INTRODUCTION
The Bluetooth® technology enables voice and data communications via a
short-distance radio link. It allows several electronic devices to
communicate with each other, particularly telephones and hands-free kits.
Parrot is drawing on its long years of experience in signal processing and
voice recognition technology to introduce a hands-free kit offering super-
ior audio quality during calls. The Parrot 3200 LS-COLOR PLUS benefits
from the [Beamforming] technology through a double microphone built
into the screen of the hands-free kit. This technology allows for greater call
quality by means of improved noise reduction.
Thank you for buying a Parrot hands-free kit. With the Parrot 3200 LS-COLOR
PLUS, you will be able to make telephone calls from your car while keeping
your hands on the wheel.
With its colour interface and customisable wallpaper, the Parrot 3200 LS-
COLOR PLUS is the most user-friendly hands-free kit. It acts as a real extension
of your mobile phone. Furthermore, you can take the Parrot 3200 LS-COLOR
PLUS screen with you when you leave your vehicle.
KIT CONTENTS
Colour LCD screen
Installation cable
Electronic control unit
Directions for use
Fitting accessories
Microphone
FITTING
First of all, choose the place for the colour screen inside your vehicle.
We would advise you to fit it in the centre of the dashboard or near you.
Make sure that you can view the screen at a good angle and that it does not obs-
truct your view of the road. Once the hands-free kit is fully installed and switched
on, you can adjust the screen's brightness.
The installation cable is fitted with [ISO] connectors, as well as two line-out jacks
for connecting to the car stereo's line-in jacks if applicable.
Car stereo with line-in jacks:
Use this type of connection by wiring the brown and white wires (or red and
black) to the car stereo's line-in jack and the yellow wire to the car stereo's
mute jack.
Car stereo with ISO connectors:
Disconnect the [ISO] connectors from your car stereo. Join the male [ISO]
connectors of the kit's cable to the car stereo. Join the vehicle's [ISO] connectors
to the female [ISO] connectors of the kit's cable.
If the car stereo features a mute in jack, connect the yellow wire of the kit's
cable to the corresponding "mute in" jack (Mute in 1, 2 or 3).
Car stereo without ISO connectors:
An adapter cable is required to convert the specific connections into an [ISO]
connector. As a result, installation will be the same as with an [ISO] connector.
Parrot offers a range of [ISO] adapter cables. Visit our website at
www.parrot.com.
Fitting the kit's cable:

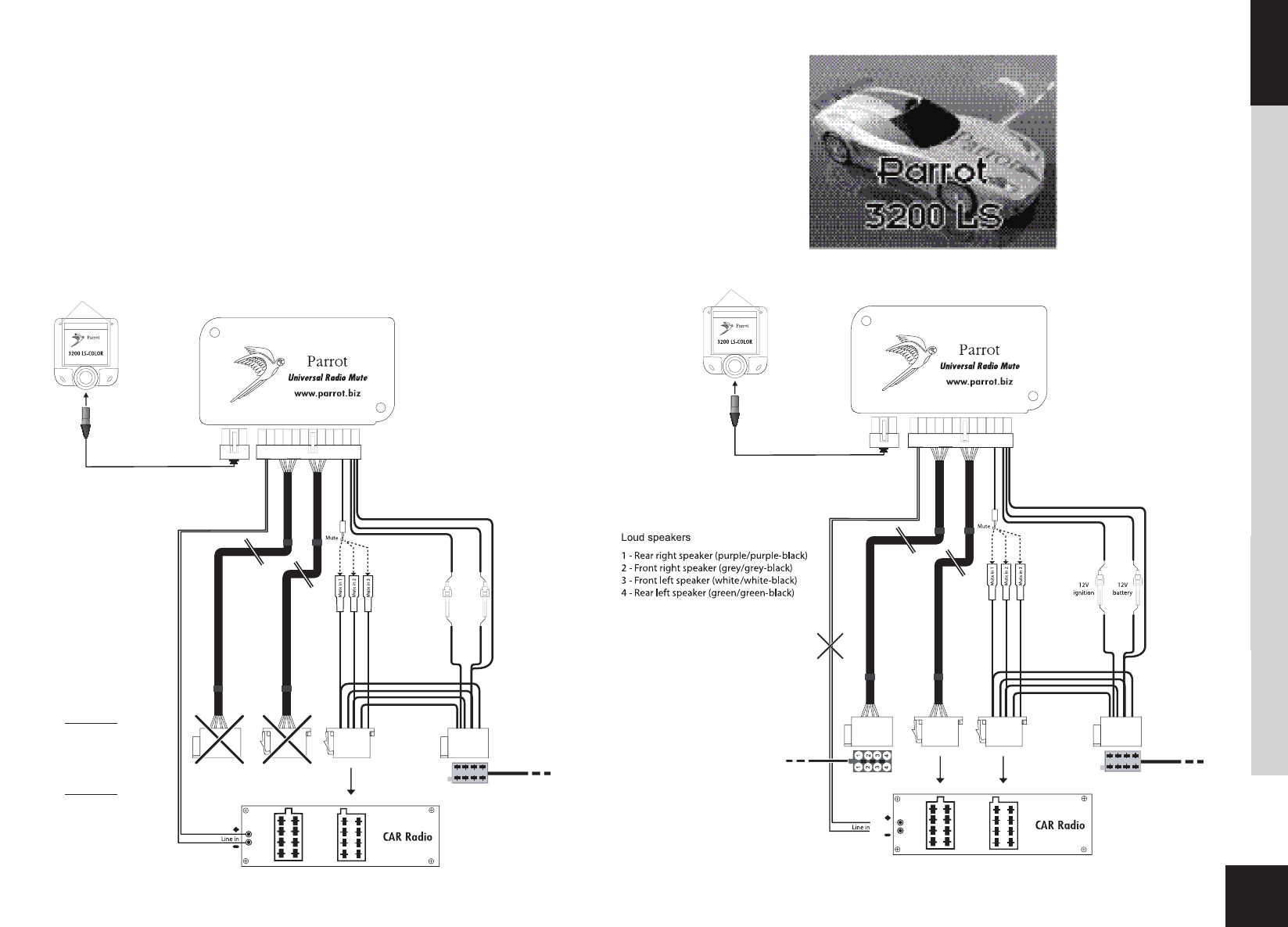

Check the wiring diagram for the car stereo's [ISO] cable.
The red wire of the kit's cable must be connected to the constant 12V supply,
the orange wire to the ignition 12V and the black wire to earth. On some vehi-
cles, the red and orange wires may need to be reversed. This can easily be
done by reversing the two fuse holders.
On other vehicles, the ignition 12V may be missing from the car stereo's
connectors, meaning that you must connect the orange wire directly
Connection car
power cable
Not used
(Microphone)
Français
EspañolItaliano
Deutsch
Português Dutch English
Connection car
power cable
Not used
Not used
Line out 1:
Line + : White
Line - : Brown
Line out 2:
Line + : Red
Line - : Black
12V
ignition
(orange)
12V
battery
(red)
(Microphone)
to an available ignition 12V source in the vehicle.
Do not connect the orange wire to the constant 12V supply, as you could run
down the vehicle's battery.
Checking the installation:
If your [3200 +] is correctly fitted, you should see the message "Goodbye"
on the screen when you switch off your car's ignition.
5
Installation de l’écran du Parrot 3200 LS-COLOR PLUS
Afin de bénificier de communication de qualité optimale,
ne collez pas l'écran directement sur le tableau de bord.
Utilisez pour cela l'un des deux supports fournis.

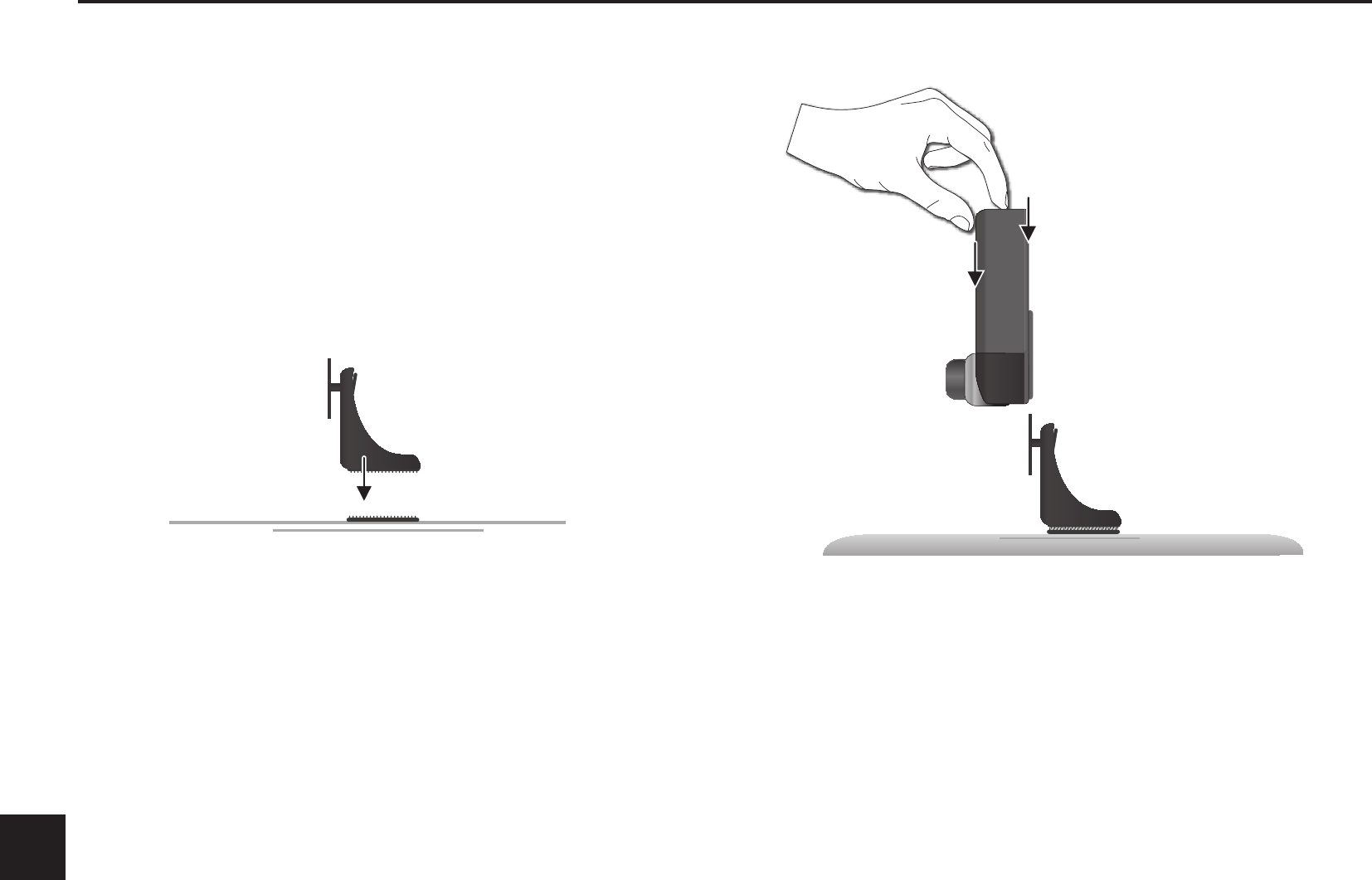

Le premier support vous permet de placer l’écran contre
le tableau de bord.
• Collez un adhésif double face sur une des faces planes du
support et un autre adhésif double face sur le tableau de bord.
• Placez le support sur le tableau de bord.
• Insérez ensuite l’écran sur le support.
6
Français
EspañolItaliano
Deutsch
Português Dutch English
IMPORTANT :
Pensez à enlever votre écran lorsque vous quittez votre véhicule
afin d’éviter les risques de vol et d’exposition prolongée au soleil.

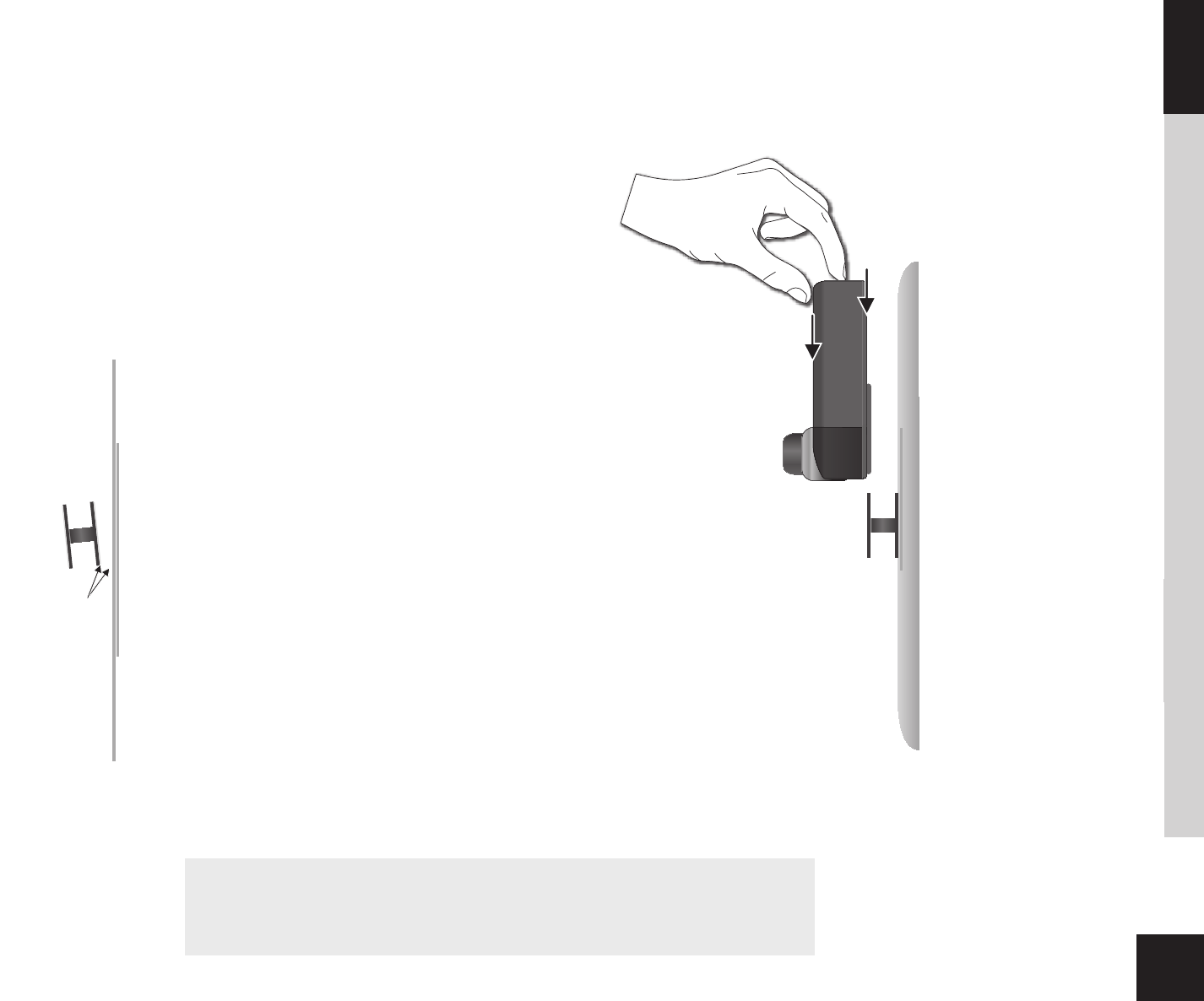

Le deuxième support vous permet de placer l’écran
du Parrot 3200 LS-COLOR PLUS en hauteur.
• Collez une bande scratch sur le support et une autre
sur le tableau de bord.
• Placez le support sur le tableau de bord.
• Insérez ensuite l’écran sur le support.
7
8
PAIRING WITH YOUR MOBILE PHONE:
Using for the first time
The first time that you switch on the Parrot 3200 LS-COLOR PLUS, you
must pair your mobile phone with the kit.
. Enable the Bluetooth mode on your phone.
. On the hands-free kit, scroll through the menus until you come to Settings
Pair with phone…, and select the relevant option for your phone.

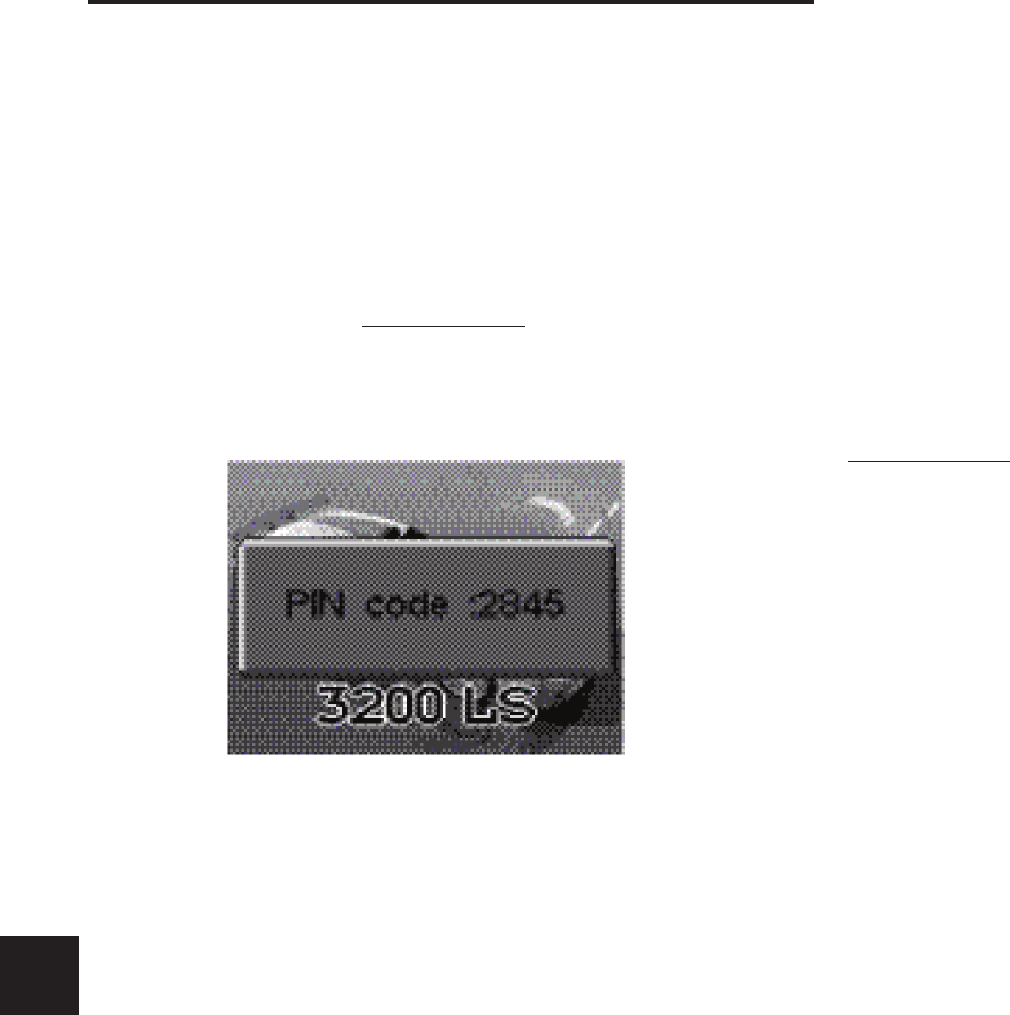

A 4-digit PIN code then appears on screen. Memorise it.
. Search for any peripherals: for further information on this procedure,
refer to the Bluetooth chapter in your mobile phone's user guide or
check out our website at : www.parrot.com
. Once the search has finished, "Parrot 3200LS" is displayed
on your phone.
. Select the kit. Your phone prompts you to enter a code:
key in the code shown on the kit screen and confirm on your phone.
. The kit's screen displays "Pairing".
. Once the data has been exchanged, "pairing successful" appears
on the Parrot 3200 LS-COLOR PLUS.
. The Parrot 3200 LS-COLOR PLUS then connects to your phone.
When pairing the first phone with your Parrot 3200 LS-COLOR PLUS, you
will automatically be prompted to adjust the direction of the double micro-
phone. Doing so will enable the kit to provide your callers with greater
call quality. The following directions are available:
• Left: the driver is on the left of the hands-free kit.
• Centre: the driver is facing the hands-free kit.
• Right: the driver is on the right of the hands-free kit.
• No special direction: allows callers to hear both the driver and the pas
senger. Noise reduction is then less effective.
Subsequently, you can change this setting by going
to the "Settings / …" menu.
Once the connection has been made, the Bluetooth logo is displayed on
the screen (except for certain phones using the Headset profile).
Some phones offer additional features, such as displaying your phone's
name on the kit's screen, as well as the battery and signal levels and the
operator's name. Please refer to the Support heading on our website at
www.parrot.com for details on your phone's features.
When your phone is connected to your hands-free kit, the menus of the
Parrot 3200 LS-COLOR PLUS are available and their name is announced
by the hands-free kit when you turn the scroll wheel. You can now access
the menus and their name is announced by the hands-free kit when you
turn the scroll wheel. Press the green button (or the scroll wheel) to access
the menus, and press the red button to exit them.
You can now use your hands-free kit to make and receive calls.
. Receiving a call: press the green button to answer the call.
. Ending a call: press the red button.
. Redial function: hold down the green key on the kit for two seconds
to redial the last number dialled.
. Adjusting the volume: turn the scroll wheel during a call to adjust
the volume.
FEATURES
The kit's screen displays your mobile phone's main information, in particular your phonebook.
Automatic downloading of your phonebook.
Display of the caller's name and image.
Contacts phoned using the kit's voice recognition feature.
Car stereo muting during calls.
Call records.
Volume adjustment during calls.
Dual call management.
Automatic redial of the last caller.
Wallpaper change.
Brightness settings.
Ringtone selection.
Language setting.
DTMF: when you receive a call from your message system, press the scroll wheel so that you can access the digits allowing you to
manage your message.
Note: the use of certain features (voice recognition, redial, discreet mode) depends exclusively on your phone.
Refer to the Support heading on our website at www.parrot.com for further information.
Français
EspañolItaliano
Deutsch
Português Dutch English
9
retrait de l’écran:

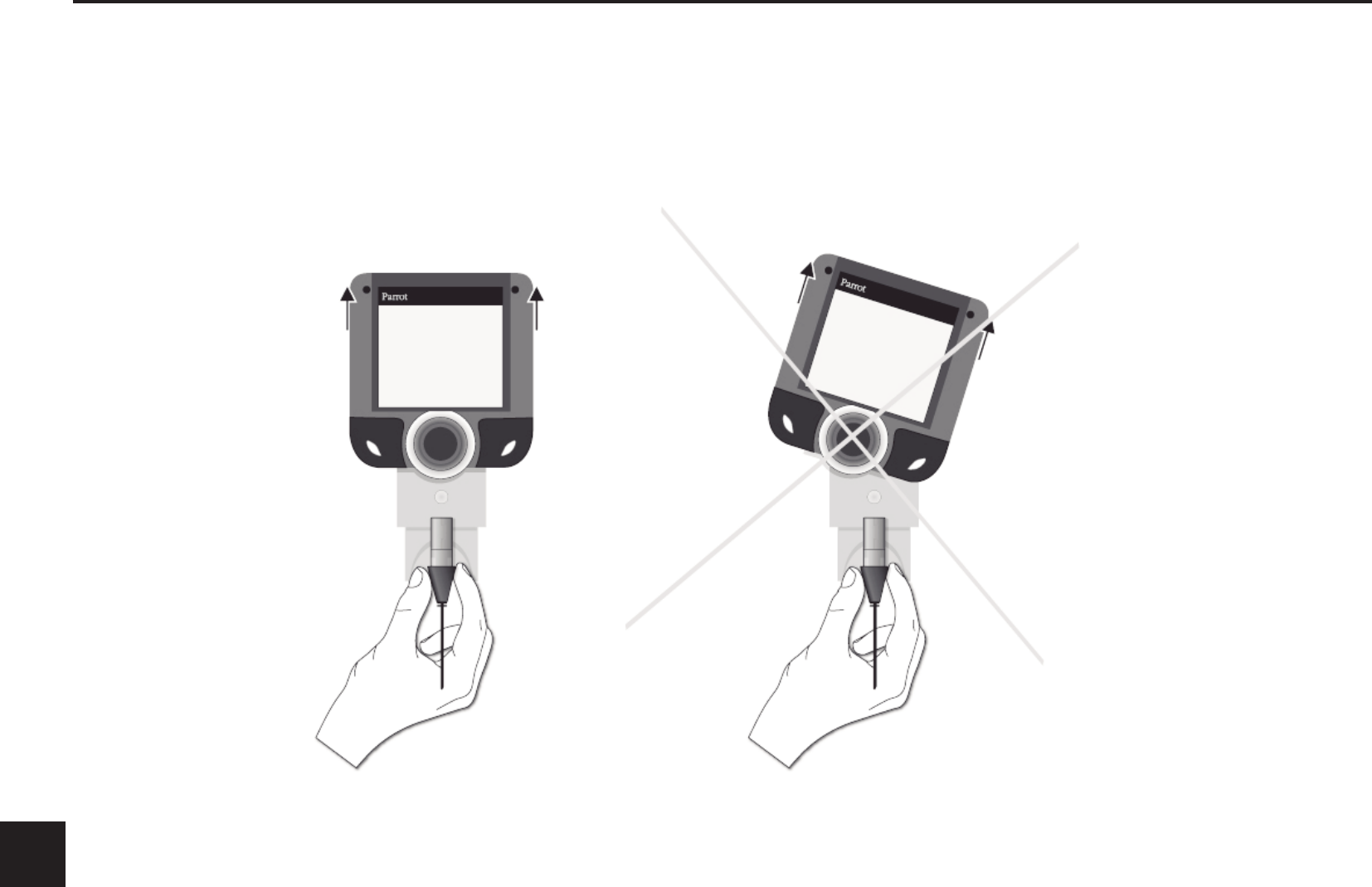

The Parrot 3200 LS-COLOR PLUS is equipped with a USB connector. You can remove your hands-free kit's screen when leaving the vehicle.
It is important to switch off your vehicle's ignition and then wait until the Parrot 3200 LS-COLOR PLUS displays "Goodbye" before unplugging the screen from
your hands-free kit. To remove the screen, you are advised to hold the cable of the Parrot 3200 LS-COLOR PLUS and then slide the screen vertically from its hol-
der.
10

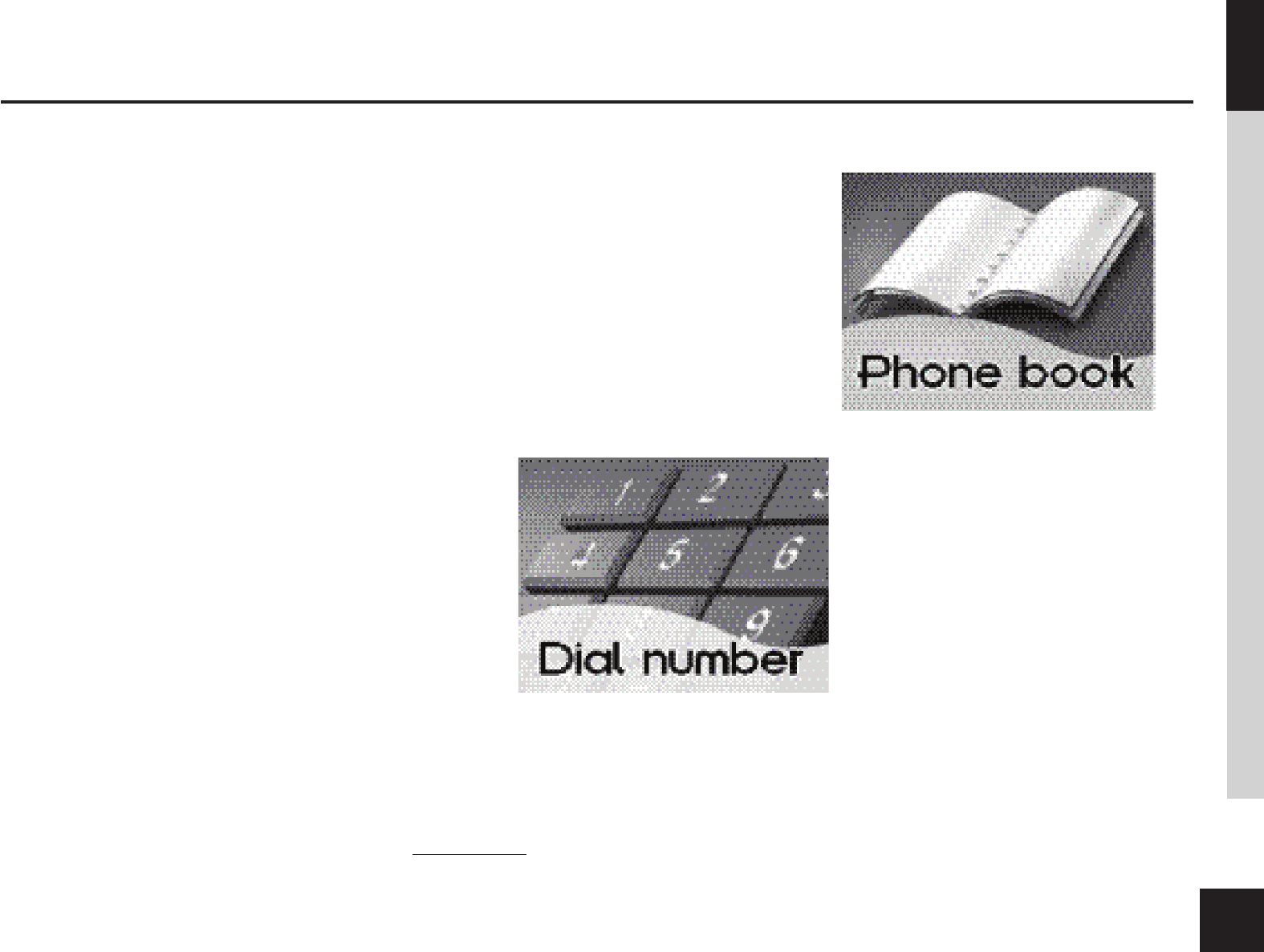

Phonebook
o Calls
Missed calls
Received calls
Calls made
o Dial number
o Settings

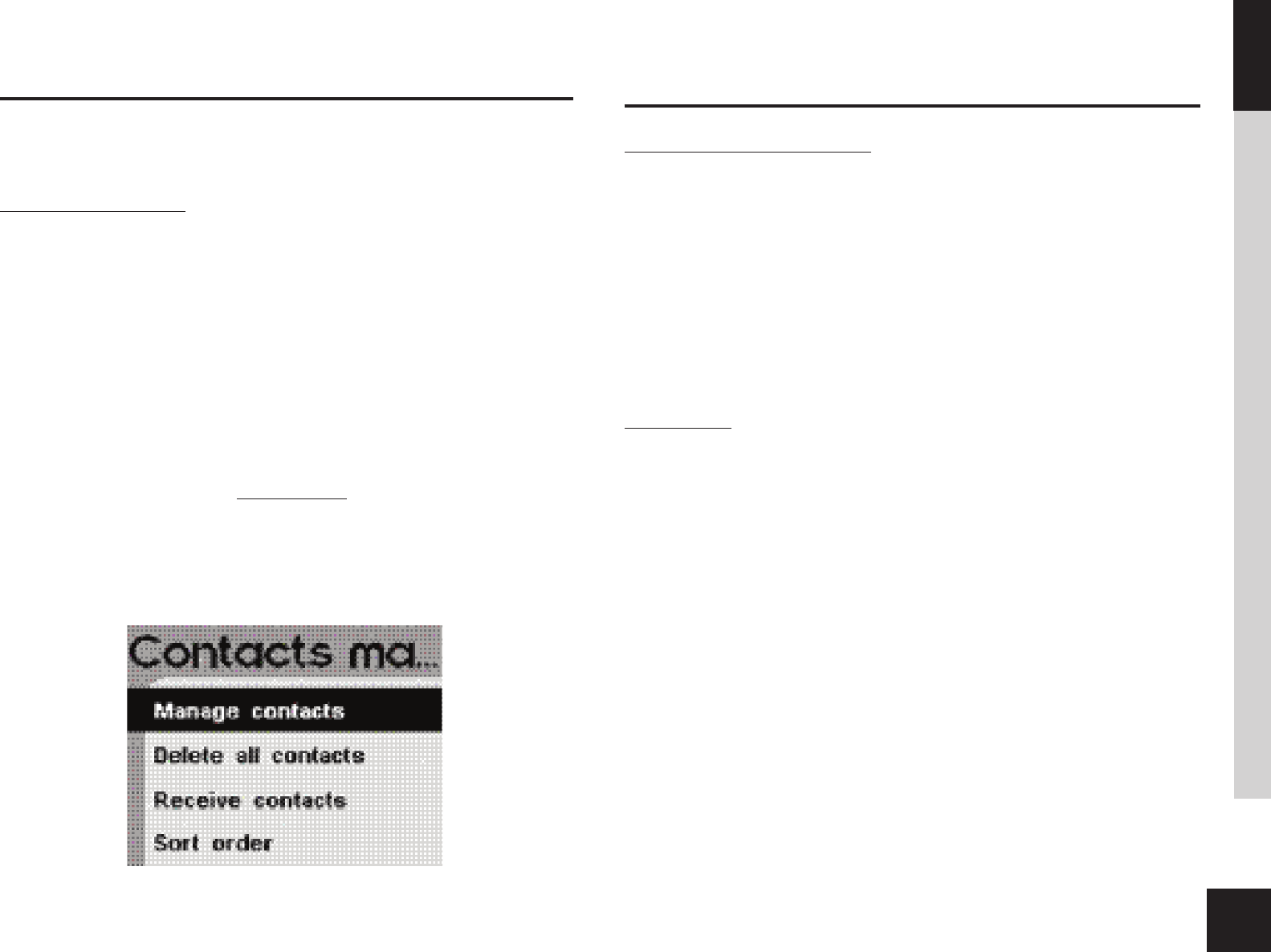

Contacts management
Phonebook Mngt
A, B, C...
Names
Record voice tag
Delete voice tag
Display the photo
Associate photo
Delete contact
Delete all contacts
Receive a contacts
Sort Order
Prefix
Allow #31#
Paired devices
List
Connect
Disconnect
Delete
Default phone
Pair with phone...
Other Phones
SE P800/P900
Windows CE®
Samsung E-720/E-530
SE K600, K750, W550
Disable Synchro
IDEN phones
D800, S400i
D500, D500e
Z310
Z300, Z500
LG U8360, VK
Sagem phones
Headset Phone
Languages
Automatic
English...
Voice Command
Keywords
Phone
Record voice tag
Activate/Deactivate
Home
Work
Cellular
General
Other
Preferred
Select voice recognition
Hands-free kit
Phone
Display
Brightness
Phonebook zoom
4 lines
3 lines
MENUS
Français
EspañolItaliano
Deutsch
Português Dutch English
11
ACCESSING THE MENUS
Phonebook
After pairing your phone with the Parrot 3200 LS-COLOR PLUS, synchronisation
with your phonebook will begin automatically (*). Once the synchronisation pro-
cess is complete, you can access your phonebook from the hands-free kit screen.
To access your phonebook and call a contact, turn the scroll wheel to access the
menus, then select Phonebook. Scroll through the letters until you reach the first let-
ter of the relevant person's name and confirm. You will then see this person's name
and the various phone numbers you have for them.
If your phone does not support the automatic phonebook synchronisation feature,
you can send your contacts manually from the phone to the hands-free kit.
To benefit from the most up-to-date procedures,
please refer to our website at www.parrot.com.
Note: the "Automatic phonebook synchronisation" and "Send contacts manually" features
depend exclusively on your phone. Refer to the Support heading on our website at www.par-
rot.com for further information
Call records
This menu option displays the list of calls and is divided into three sub-menus:
Missed calls / Calls received / Calls made.
It is automatically synchronised with your phone's call records (*) and you can
access them to call back a missed call.
Select the contact from these menus.
Press the scroll wheel or the green button to call the contact back.
Note: the use of this feature depends exclusively on your phone. Refer to the Support heading
on our website at www.parrot.com for further information.
Dial
Select this menu to dial a number directly via the kit.
Turn and press the scroll wheel to select a digit.
The trashcan icon deletes the last digit.
Once the number has been dialled, press the green button to call.
Wallpaper
Choose wallpaper
Default
Tree...
Add wallpapers
Delete wallpapers
Tree
Beach...
Color theme
Indigo
Sky blue...
Day/night mode
Day mode
Night mode
Sound
Mic direction
Volume
Spoken menus
Ring tone
Telephone
Microphone
Spoken menus
Activated
Deactivated
Ring choice
Ring 1
Ring 2…
Automatic answer
Activated
Desactivated
Information
Software update
12
VOICE RECOGNITION
Select voice recognition
The Parrot 3200 LS-COLOR PLUS lets you use your phone's voice recogni-
tion feature if available. The Parrot 3200 LS-COLOR PLUS also lets you use
its own voice recognition feature. Your phone must be capable of sending
contacts to the hands-free kit to be able to use this feature.
- Car kit reco: the selected voiceprints are those recorded in the memory
of the hands-free kit.
- Phone reco: the selected voiceprints are those recorded in the memory
of the phone.
Keywords
Keywords enable you to select the different types of phone number asso-
ciated with your contact: work, home, mobile, and so on.
Recording keywords enables you to phone without taking your hands off
the wheel. You can control the whole call with your voice.
All keywords must be recorded, so that they can be validated.
• To record the keywords, simply select the keyword that you wish to record.
• You are advised to record the keywords in a quiet setting, turn off your
engine, close the windows and make sure that you are in the driver's
seat. Do not get close to the microphone of the Parrot Parrot 3200 LS-
COLOR PLUS
PLUS and remain in your normal driving position.
• The hands-free kit will prompt you to say the keyword. If the keyword is
properly recorded, you will be asked to repeat the keyword.
• After recording a keyword, the Parrot 3200 LS-COLOR PLUS
will automatically get ready to record the next keyword.
PREFERENCES
This menu allows you to adjust the necessary settings to get the most out
of your hands-free kit.
Contact management
This menu enables you to manage contacts in the Parrot 3200 LS-COLOR
PLUS. Once you have selected the contact from the list (which you access via
the Contact management menu) you can record or delete a voiceprint, view
or delete the photo, or delete the contact from the phonebook.
You can also receive a contact with the relevant photo (if supported by the
phone) by selecting Receive a contact. Select on your phone the contact you
want to send via Bluetooth to the hands-free kit. From then on, whenever this
person calls you, his or her photo and name will appear on the kit screen.
Note: the use of certain features depends exclusively on your phone. Refer to the
Support heading on our website at www.parrot.com for further information. You will
also find the most up-to-date usage procedures for your phone.
You can also delete all the contacts in the kit or reverse the sort order from
surname-first name to first name-surname
Français
EspañolItaliano
Deutsch
Português Dutch English
13
. Wallpaper: allows you to select a wallpaper image.
. Theme: Correspond à la sélection d'un thème de couleur.
Sounds
. Volume: use the scroll wheel to control the volume level of the call
and the microphones' sensitivity.
. Speaking menus: adjust the volume of the hands-free kit's prompts
to the required level.
. Ringtone selection:
for phones that do not play a specific ringtone for
incoming calls, select the ringtone that you wish to hear when you receive a call.
. Microphone direction
: this menu lets you choose a specific direction for
the double microphone and thereby ensure the very highest call quality for all
your callers. The following directions are available:
• Left: the driver is on the left of the hands-free kit.
• Centre: the driver is facing the hands-free kit.
• Right: the driver is on the right of the hands-free kit.
• No special direction: allows callers to hear both the driver and the passenger.
Noise reduction is then less effective.
Automatic answer
Enable this mode if you want the Parrot 3200 LS-COLOR PLUS to auto-
matically answer any incoming calls.
Information
This menu provides information on the version of the built-in software.
Paired devices
The Parrot 3200 LS-COLOR PLUS lets you pair up to five Bluetooth phones, but
bearing in mind that only one can be connected at any one time.
The Paired devices menu allows you to connect, disconnect or delete a phone
from the kit's memory. From the Define default phone menu option, you can
control the priority level given to the Bluetooth phone during connections with
several phones in the car.
Caution:
Deleting a paired phone will clear any voiceprints attributed to the contacts
on that phone.
Pair phone
Before pairing your Bluetooth phone, you must enable the mode correspon-
ding to your Bluetooth phone.
Once the relevant mode has been selected, a (random) 4-digit code appears.
Start searching for Bluetooth peripherals from your phone. Once you have
found the hands-free kit, select it and enter this code.
Note: for greater compatibility with phones, new pairing modes are likely
to be added to future versions.
Language
Select the language for displaying the menus on your Parrot 3200 LS-COLOR PLUS.
Display
Five options are available for customising the way in which information is displayed:
. Brightness : use the scroll wheel to obtain the required
level and confirm by clicking the scroll wheel.
. Phonebook zoom: used to display the Phonebook menu over
3 or 4 lines.
. Phonebook zoom: used to display the Phonebook menu over
3 or 4 lines.
14
UPDATE
You can update the software version of your Parrot 3200 LS-COLOR PLUS
by Bluetooth. Enable this mode before updating. The update is performed
by Bluetooth from a computer equipped with Bluetooth.
Updating provides access to new features and improves compatibility with
the advanced functions on an even wider range of phones.
For further information, visit our website: www.parrot.com.
HOTLINE
Our hotline is at your disposal. You can contact the hotline by email or telephone.
Open from Monday to Friday between 9 am and 6 pm (GMT+1).
Check out our website (www.parrot.com) for further information.
Europe : + 33 (0) 1 48 03 60 69
Italie : +39 2 86 39 14 63
Espagne : +34 91 725 62 62
UK : + 44 (0) 870 112 5872
Allemagne : +49 900 172 77 68
USA : +1 (877) 9 PARROT (toll-free)
Chine : + 862 164 601 944
Français
EspañolItaliano
Deutsch
Português Dutch English
15
16
NOTES
FRA
ENG ITA
ESP
DEU
DUT POR
www.parrot.com
FCC ID: RKXCK3200PLUS
