PARROT FC6000TN Bluetooth Module User Manual FC6000T Datasheet ed3
PARROT Bluetooth Module FC6000T Datasheet ed3
PARROT >
User manual
Confidential Information
OEM
-
201
3
-
319
FC6000
T
PRODUCT
PRESENTATION
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 2/20
Ref: OEM-2013-319

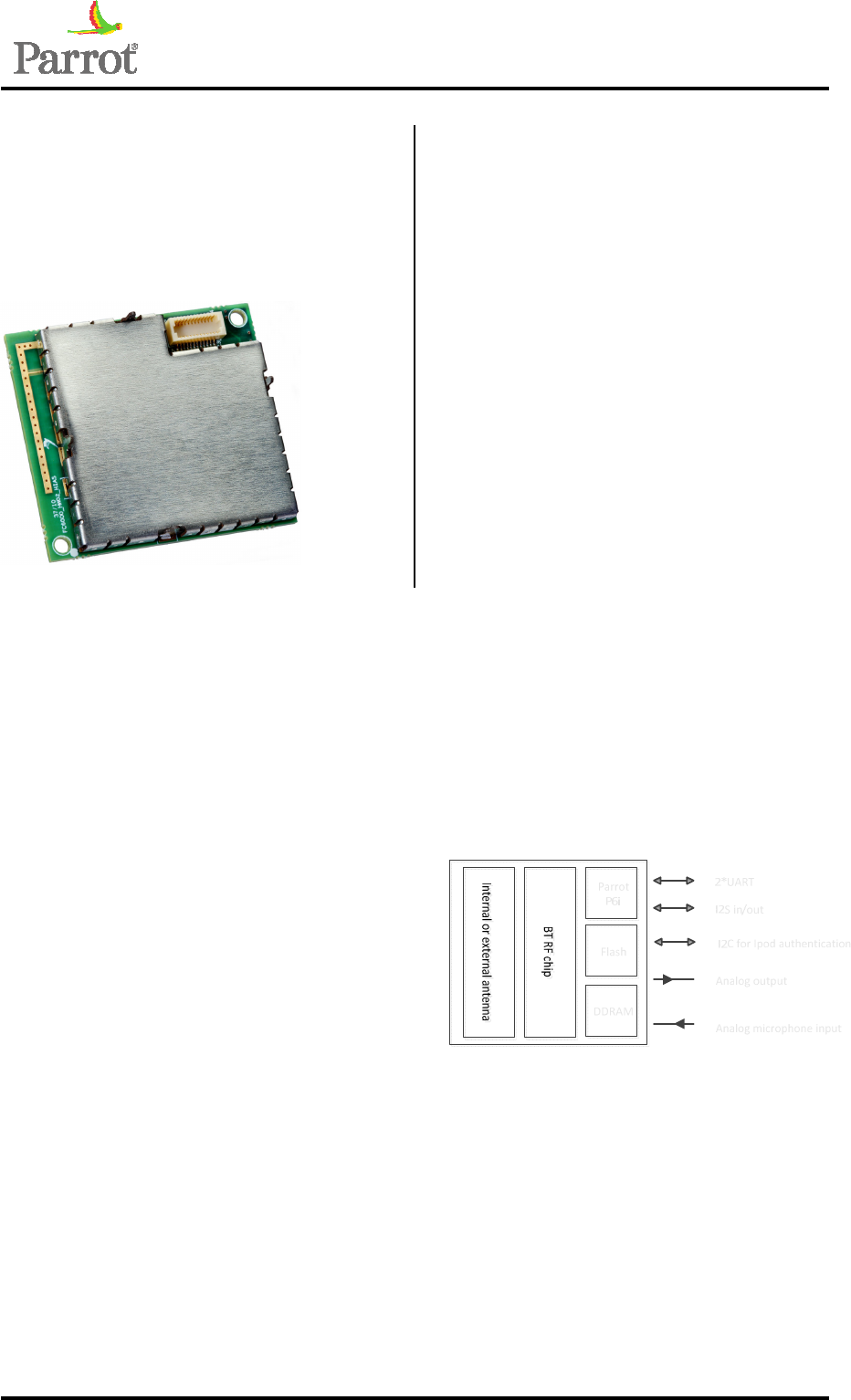

Parrot FC6000T
All in one multimedia module
Dual mode Bluetooth 3.0 and 4.0 (nb:
Bluetooth Low Energy 4.0: future
implementation)
FEATURES
Bluetooth 3.0 qualified module
Bluetooth 4.0: future implementation
Wide band speech
3.3V & 1.8V power supply
UART, I²S, I2C,
GPIO
Digital audio input and output
Analog microphone input
Analog output
Up to 10 paired phones
Small size module (32 x 36 mm)
Automotive qualified

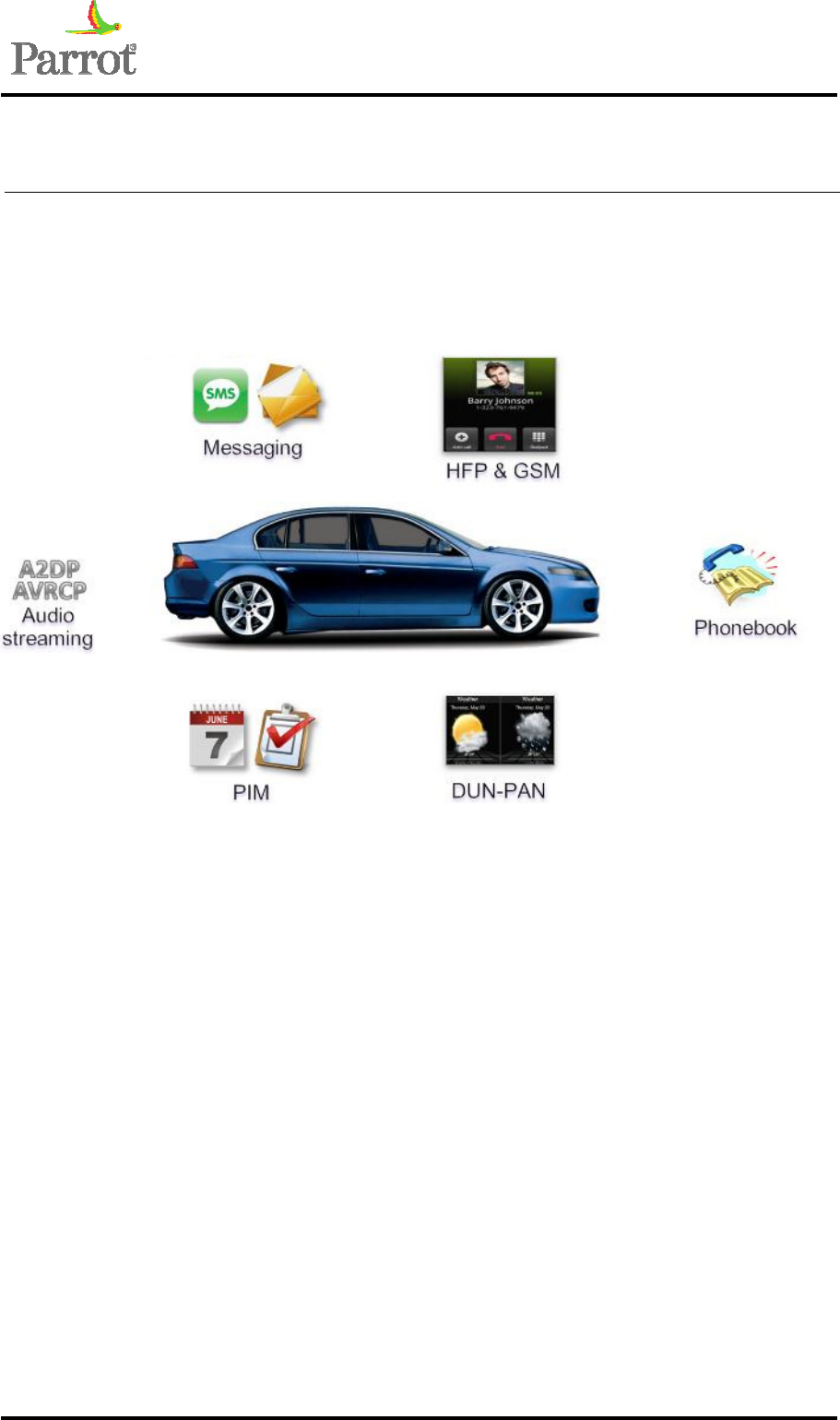

Application:
• Telephony
• Internet access (through DUN or
PAN)
• Audio Streaming
• Voice Recognition / Text To
Speech
The FC6000T integrates the latest version
of the Parrot Bluetooth stack (Blues).
Blues gives to the customer a very high
level of compatibility with most of the
phones available on the market and
provide phonebook and list
synchronization. FC6000T offers the
possibility to use a Speaker Independent
Voice Recognition (SIVR) and a Text To
Speech algorithm (TTS).
Description:
Parrot FC6000T is a fully integrated
Bluetooth phone connectivity solution
powered by a Parrot P6i with 416 MIPS
with an internal CODEC and NR/AEC
signal processing. It integrates a large
variety of interfaces for an easy integration
in most of the applications.
Parrot
P6i
Flash
DDRAM
Analog output
Analog microphone input
I2S in/out
2*UART
I2C for Ipod authentication
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 3/20
Ref: OEM-2013-319
Table of contents
1.
PRODUCT OVERVIEW ............................................................................................................................... 4
2.
RATINGS-SPECIFICATIONS-CHARACTERIZATION....................................................................................... 7
2.1
S
TORAGE
P
ERIOD AND
C
ONDITIONS
............................................................................................................... 7
2.2
A
BSOLUTE
M
AXIMUM RATINGS
..................................................................................................................... 7
2.3
P
OWER
C
ONSUMPTION
............................................................................................................................... 7
2.4
B
LUETOOTH MAIN CHARACTERISTICS
.............................................................................................................. 8
3.
MECHANICAL SPECIFICATIONS ................................................................................................................. 9

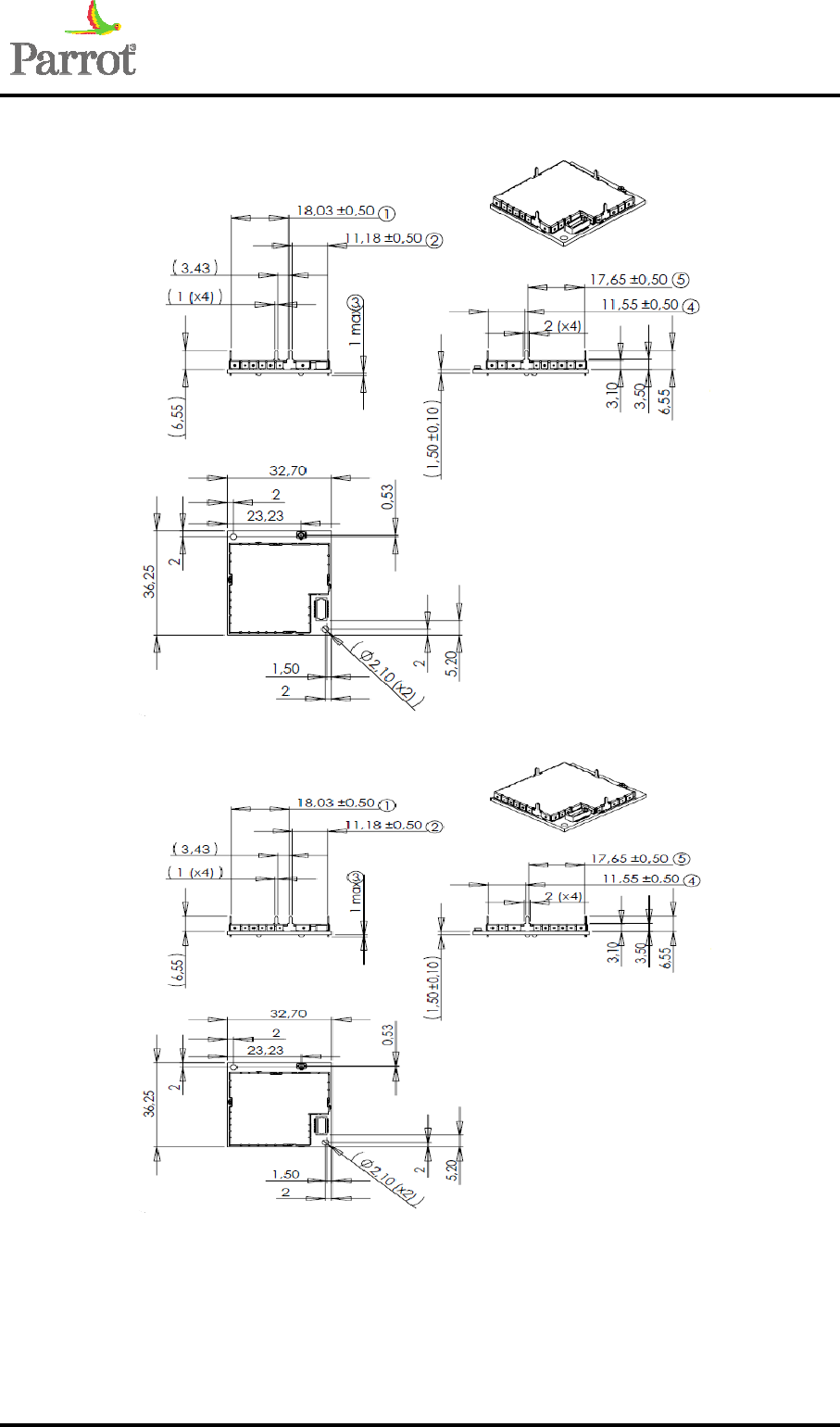

3.1
H
ORIZONTAL MODULE
............................................................................................................................... 10

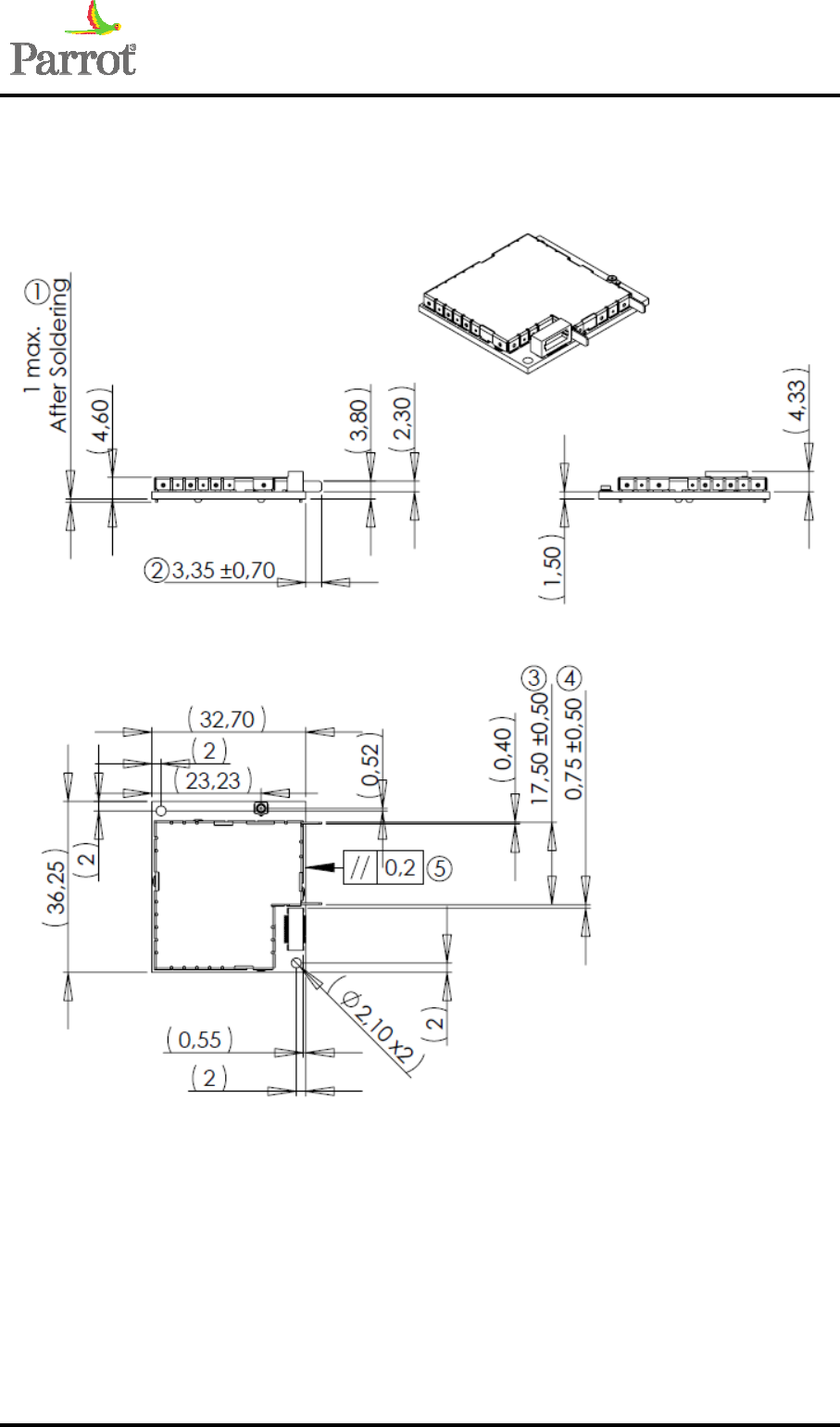

3.2
V
ERTICAL MODULE
.................................................................................................................................... 11
3.3
M
ODULE CONNECTORS
.............................................................................................................................. 12

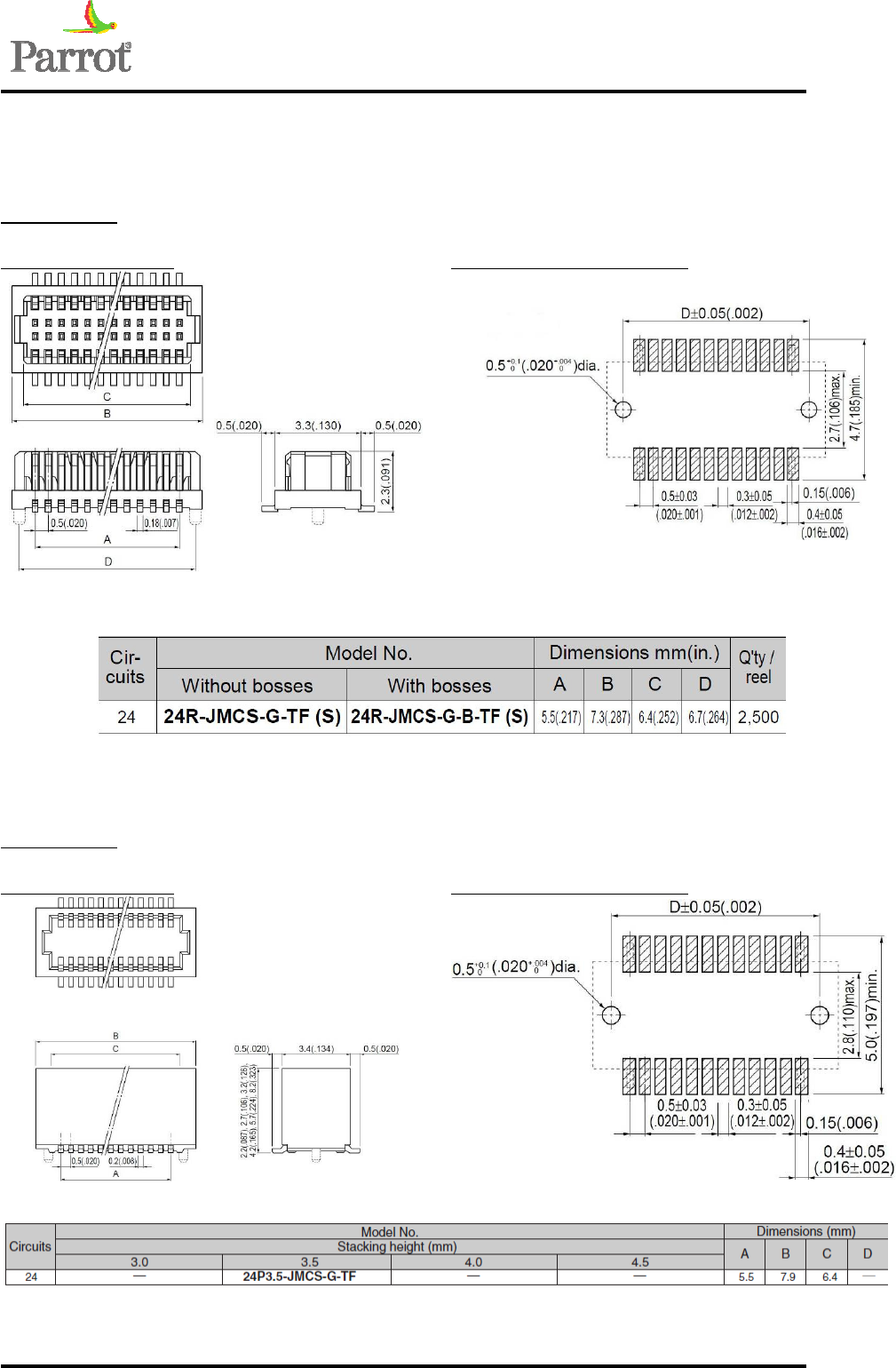

3.3.1
Connector on mother board ............................................................................................................ 12
3.3.2
Horizontal modules connector ........................................................................................................ 12

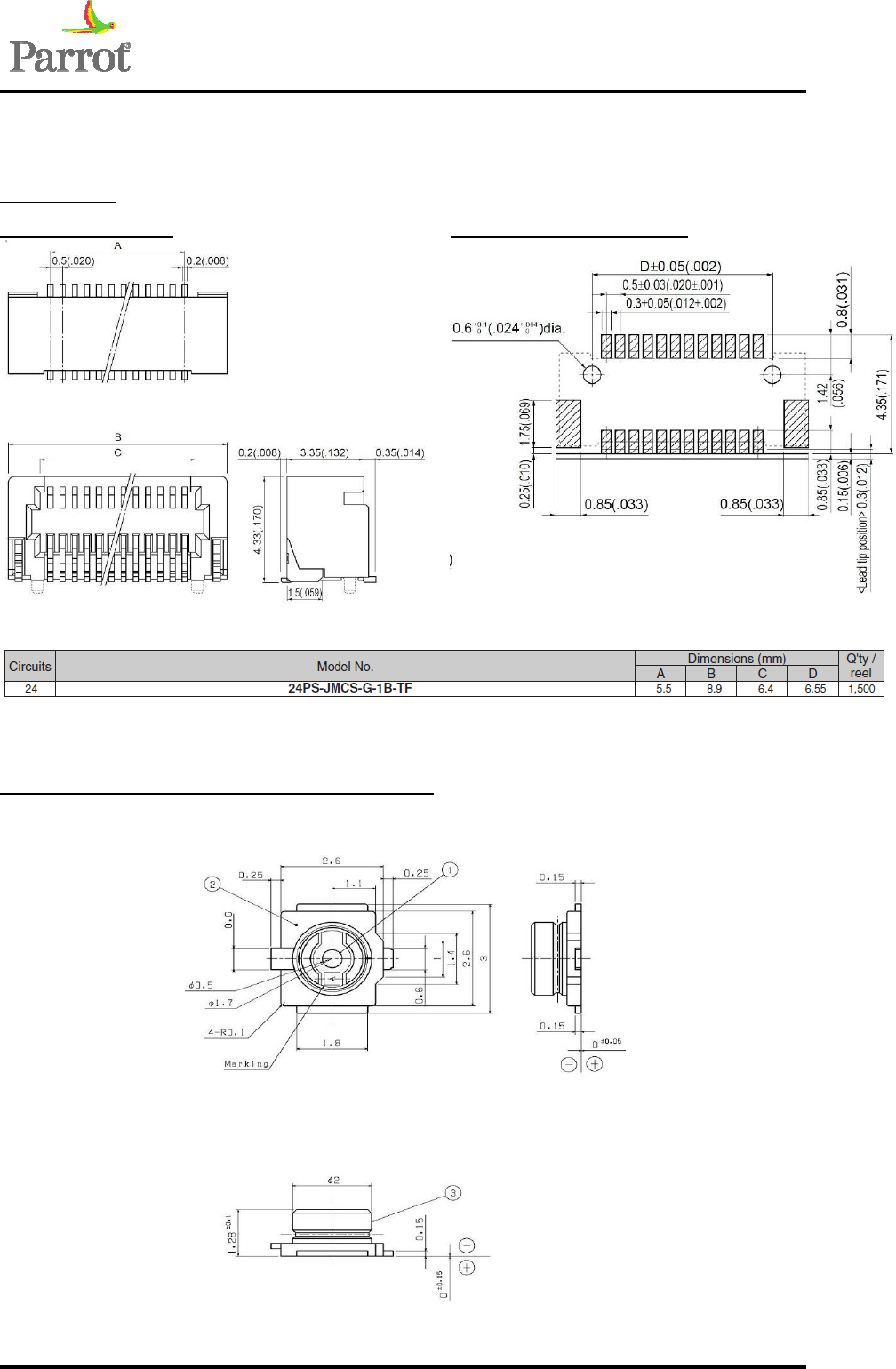

3.3.3
Vertical modules connector ............................................................................................................. 13

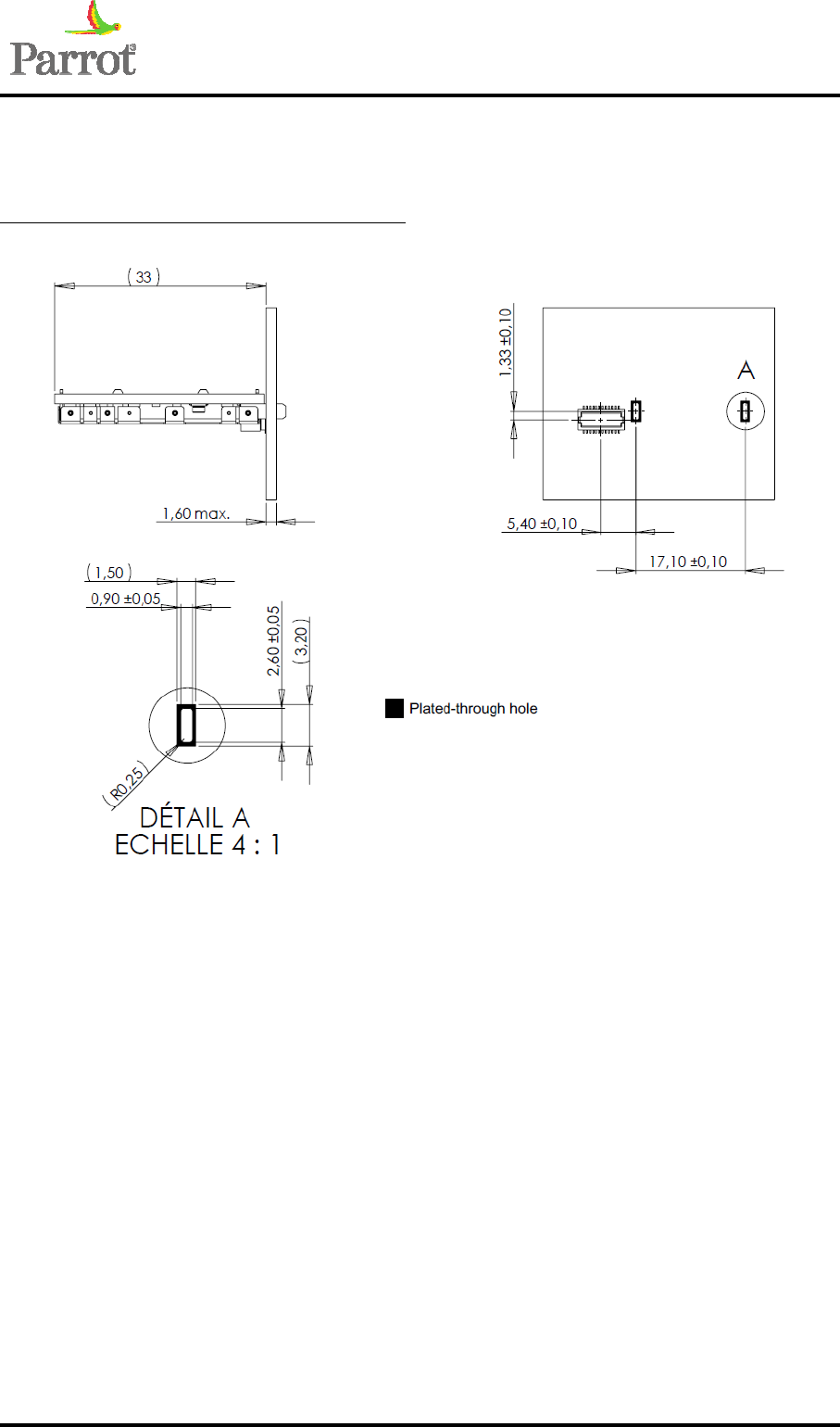

3.3.4

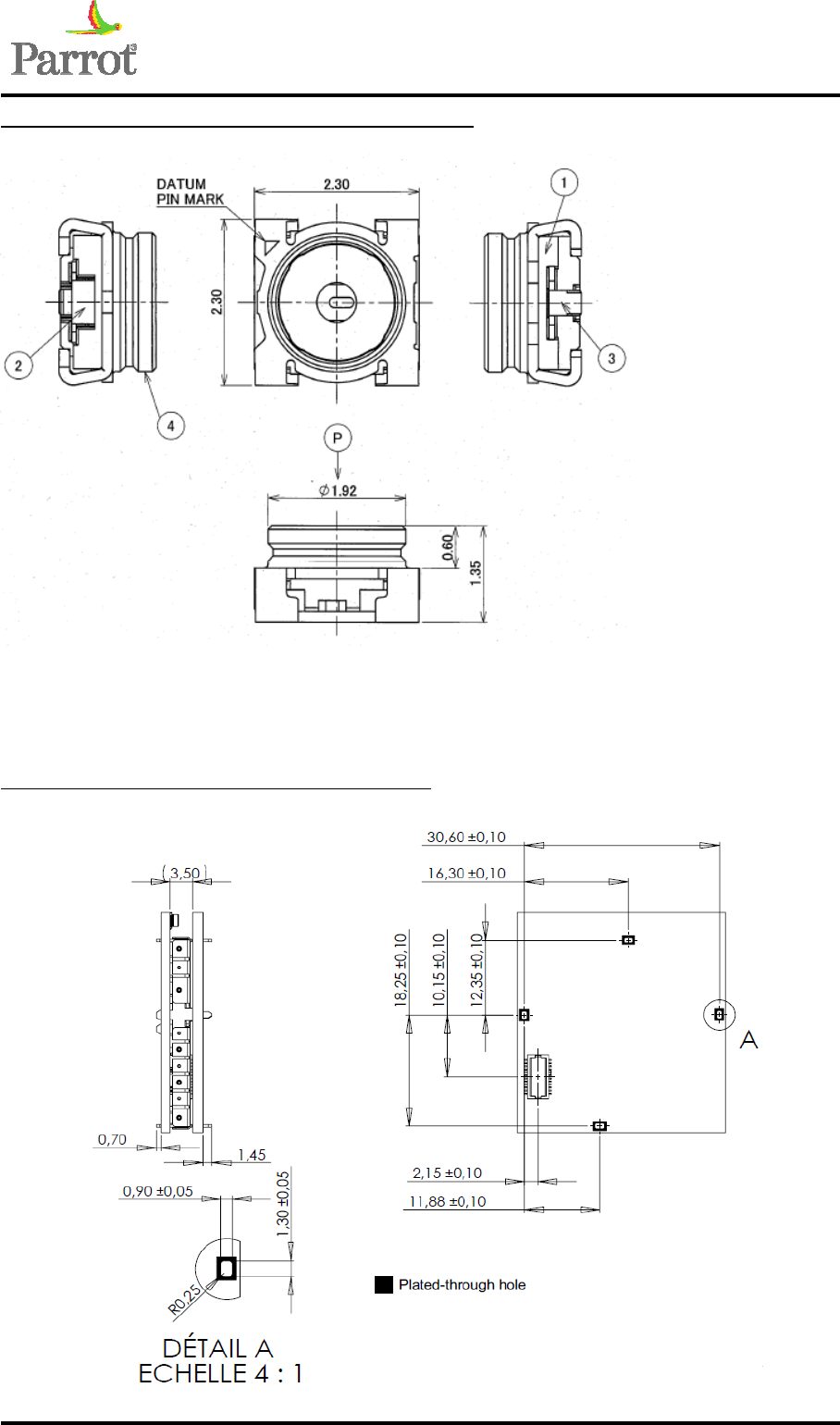

Antenna connector .......................................................................................................................... 13
3.4
M
OTHERBOARD
M
ECHANICAL
I
NTEGRATION
................................................................................................. 14
Mechanical integration – Horizontal version: .............................................................................................. 14
Mechanical integration – Vertical version: ................................................................................................... 15
4.
MARKING ............................................................................................................................................... 16

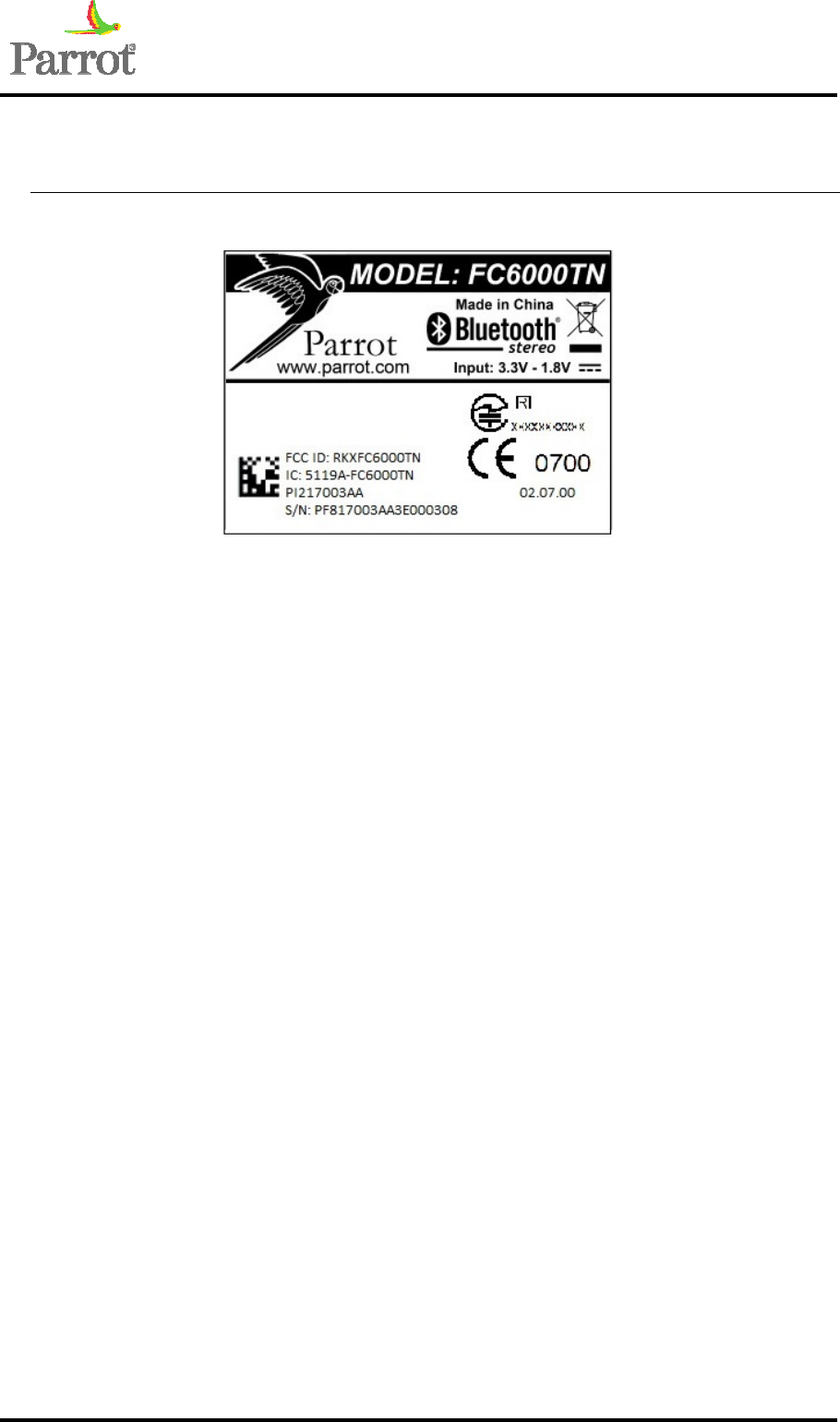

4.1
L
ABEL
FC6000TN
/
FC6000TS ................................................................................................................. 16
5.
CAUTION FOR USE ................................................................................................................................. 16
5.1
ESD
C
OMPLIANCE
.................................................................................................................................... 16
5.2
S
AFETY
................................................................................................................................................... 16
5.3
A
SSEMBLY
............................................................................................................................................... 16
5.4
D
ROP
..................................................................................................................................................... 16
6.
APPROVAL AND CERTIFICATION ............................................................................................................ 17
6.1
FC6000TS ............................................................................................................................................. 17
6.1.1
Normative certificates ..................................................................................................................... 17
6.1.2

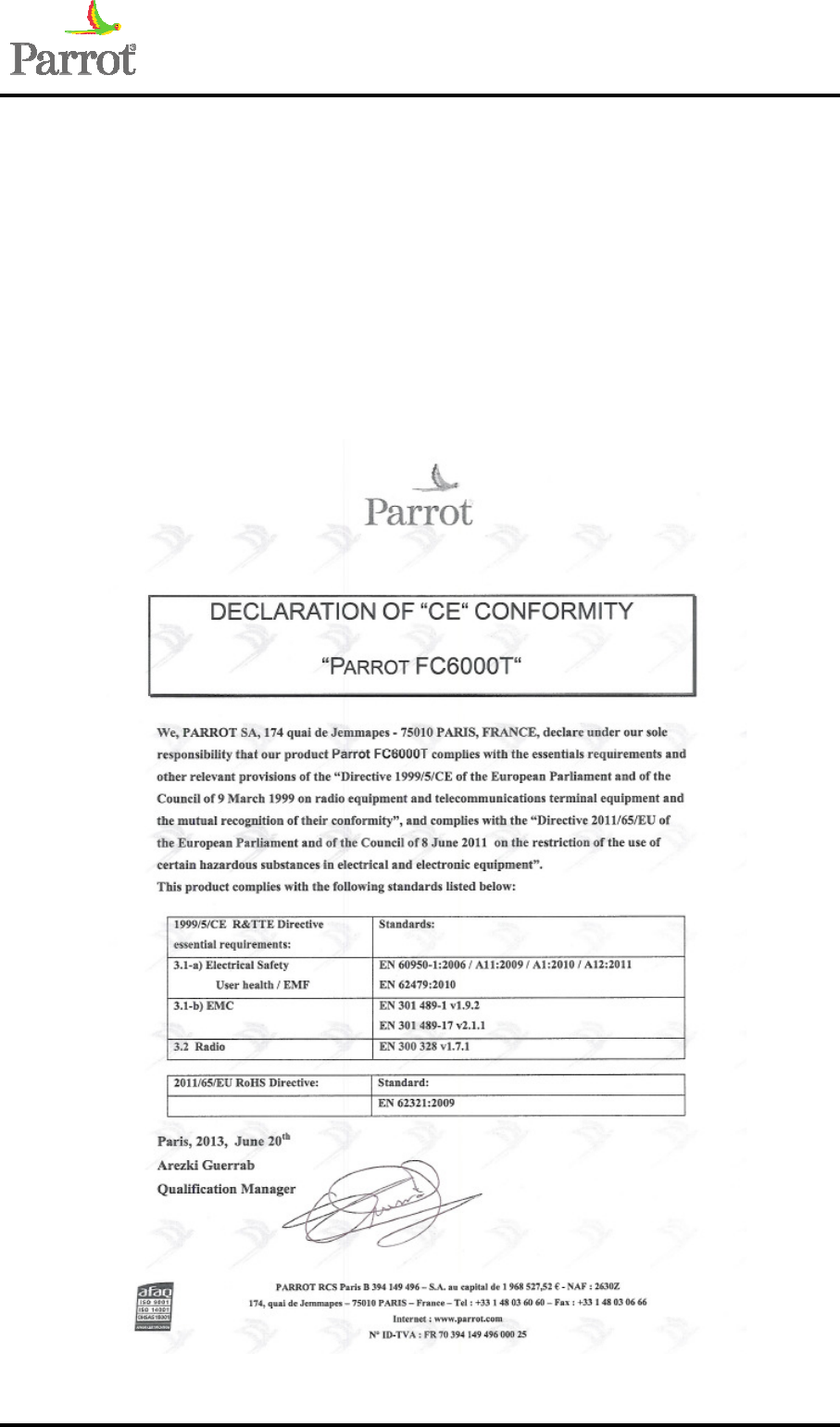

CE declaration ................................................................................................................................. 17
6.1.3
FCC and IC requirements for module application ............................................................................ 18
6.2
FC6000TN ............................................................................................................................................ 19
6.2.1
Normative certificates ..................................................................................................................... 19
6.2.2
CE declaration ................................................................................................................................. 19
6.2.3
FCC and IC requirements for module application ............................................................................ 19
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 4/20
Ref: OEM-2013-319
1. PRODUCT OVERVIEW
The FC6000T is a feature-rich Bluetooth platform dedicated for the integration of Bluetooth in
car audios, car telematics systems or any systems requiring a complete embedded
multimedia solution.
FC6000T features are:
• Bluetooth connectivity
Bluetooth Power Class 2 Radio
Embedded Bluetooth .1, v1.2, v2.0+EDR, v2.1+EDR & v3.0 compliant
Bluetooth v4.0 : future implementation
Embedded profiles
Compatible with most of Bluetooth phones
Pairing and connection with all Bluetooth Devices: Phones, Smartphones,
PDA …
Multiple users support: Up to 10 paired phones depending on Flash memory
size.
Multiple connections (up to 3 device connected at the same time)
Multiple profiles
• Phone
Pick-up, Hang-up, Redial
Automatic answer (from host via pickup command)
Send DTMF during calls
Private Mode
3-way calling
Double HFP
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 5/20
Ref: OEM-2013-319
• Phone Book
Automatic Phone book synchronization over Bluetooth (up to 5000 contacts;
depending on the Flash memory size)
Call history (dialed number, received calls, missed calls)
All Synchronization Methods
Full Unicode for compatibility with numerous characters sets (European,
Russian, Chinese, Japanese…)
• Digital Signal Processing
Microphone(s): the module can manage two configurations:
Single microphone
Two microphones with AMS (Automatic Microphone Selection): 1 for
the driver and 1 for the front seat passenger. The best microphone is
automatically selected during the call.
Noise Reduction (NR)
Maximal NR is 25dB.
Typical NR is 15dB.
No musical noise
No fluctuation of the residual noise level
Automatic adaptation of the Noise Reduction to the Signal-to-noise
ratio (SNR) to keep the best voice quality in idle and remove more
noise in noisy conditions.
Acoustic Echo Cancellation (AEC)
The level of echo attenuation, called ERLE is 45dB (measured
according to the VDA process).
Comfort Noise feature so that the background noise is adjusted after
AEC algorithm, in order to keep it constant for enhanced
communication experience.
Possibility to accept up to 100ms of delay in the speaker path for digital
amplifiers.
Full duplex
Automatic Level Control (ALC)
Different phones can have different Speaker volumes (up to 20dB of
difference). It adapts the signal level received from the phone to the
target level, quickly and precisely.
Equalizer
9 bands equalizer for microphones and speaker paths.
Tuning
Car independent tuning if the microphone position and specifications
are the same.
Possibility to tune all parameters of the audio algorithms according to
Customer preferences.
Wideband
All algorithms work @ 16 kHz.
• Audio Streaming
Embedded SBC decoder
Embedded MP3 decoder from Thomson Licensing (optional)
Stereo audio output
• Speaker Independent Voice Recognition (Optional)
• Text To Speech (Optional)
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 6/20
Ref: OEM-2013-319
• Miscellaneous
Provide Phone Battery Level and Network Level, Carrier Name (depends on
phones)
• Software Update
Full standard Software available (free upgrade from Parrot homepage)
Software update available through Bluetooth or UART
Very large compatibility with Phones, Smart phones, PDAs, Music players
• External Bluetooth Antenna connection diagnostic

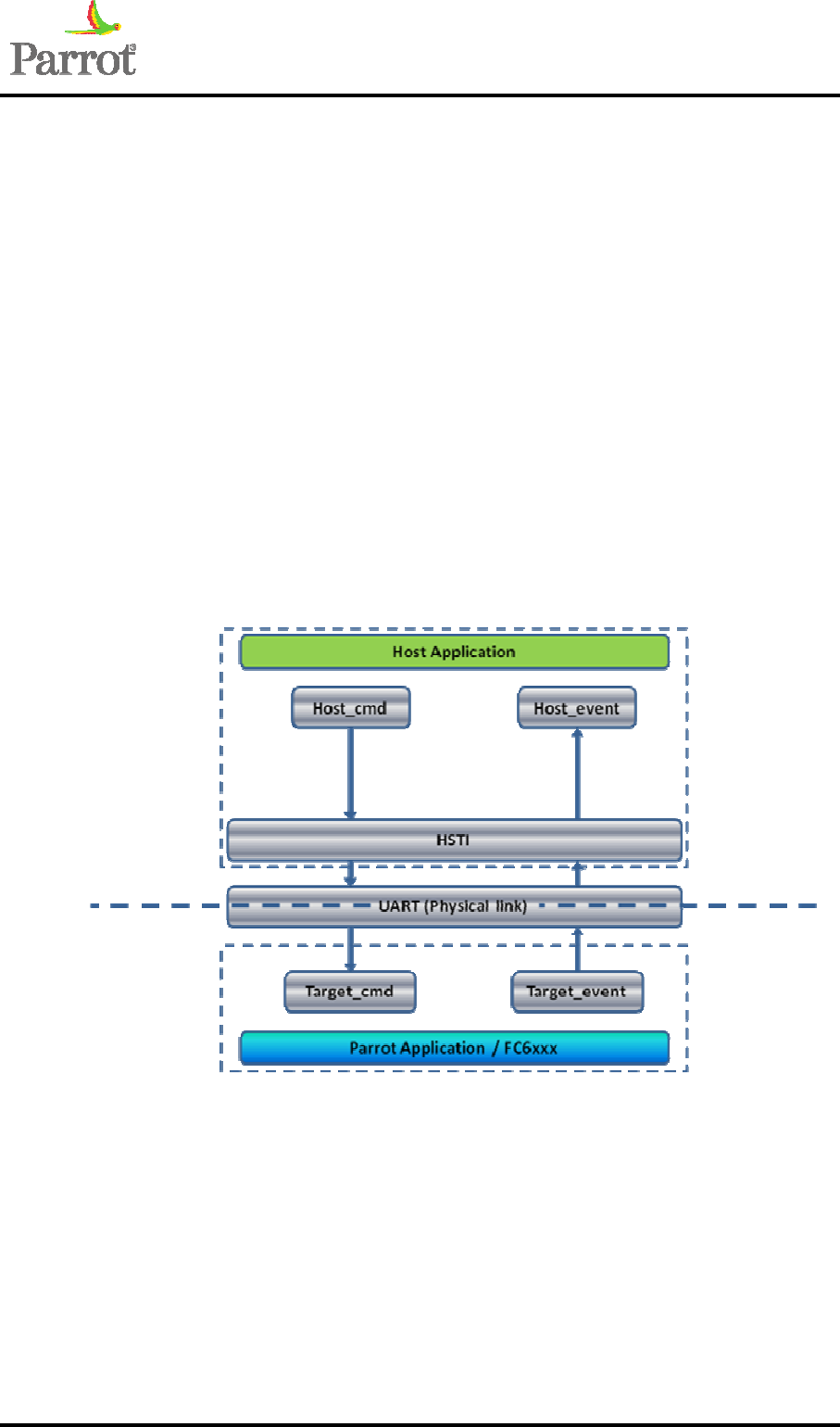

• HSTI
In order to facilitate communication between the FC6000T and your product host
microprocessor, Parrot has created and provides the HSTI Library. The HSTI library
is the software application programming interface (API) to integrate the FC6000T
command and control within the software of the host processor.
HSTI is backward compatible with former AT commands. Few adaptations may be
considered due to the improvements in the new modules generation. Application
notes are available.
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 7/20
Ref: OEM-2013-319
2. RATINGS-SPECIFICATIONS-CHARACTERIZATION
NB: ALL ELECTRICAL SPECIFICATIONS COULD BE UPDATED WITHOUT NOTIFICATION
2.1 Storage Period and Conditions
Our Design Validation test plan usually allows our customers to determine their own storage
conditions according to their experiences.
Therefore, the following chart is given for information purpose only.
Storage condition In original carton box
Storage temperature range -20°C / +50°C
Humidity 40% - 80%
Duration 3 months
Un-operating temperature range (*) -40°C / +125°C
(*) This Temperature range relates to Automotive Customers requirement regarding the following
phase of the product life cycle: Vehicle parked outdoor in very hot or cold countries, before shipment
to car dealers.
2.2 Absolute Maximum ratings
Operating temperature range ........................................................................... -40°C to +85°C
Storage temperature range ............................................................................ -40°C to +125°C
Voltage on 3V3 power supply with respect to Vss ................................................ 3,1V to 3,6V
Voltage on 1V8 power supply with respect to Vss ............................................ 1,73V to 1,89V
The FC6000T module must be powered by a Limited Power Source (in the meaning of 2.5 of
EN60950-1 safety standard).
2.3 Power Consumption
ON 3V3 Power Supply Min Typ Max Unit Comment
Stop mode - - 6 mA Reset pin low
Run/Standby mode
(waiting for
commands) - - 40 mA
Hands Free and Audio streaming mode - - 120 mA
Peak current at startup - - 200 mA
ON 1V8 Power Supply Min Typ Max Unit Comment
Stop mode - - 0 mA Reset pin low
Run/Standby mode
(waiting for
commands) - - 120 mA
Hands Free and Audio streaming mode - - 230 mA
Peak current at startup - - 800 mA
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 8/20
Ref: OEM-2013-319
2.4 Bluetooth 3.0 main characteristics
Features Description
Frequency Band 2.4000 – 2.4835 GHz (2.4 GHz ISM Band)
Number of channels 79 channels (f=2402+k MHz, k=0,…,78)
Modulation
FHSS (Fr
equenc
y Hopping Spread Spectrum)
system
Modulations GFSK, π/4 DQPSK and 8DPSK
Supported rates 1, 2, 3 Mbps
Output Power 4dBm max
Antenna type
•
PCB integrated antenna for FC6000T /
internal antenna version
• External antenna (antenna connector) for
FC6000T, external antenna version
Antenna gain Max 2,18 dBi
Pe
rmanent antenna connector (FC60
00T
,
version ‘external antenna’ ) U.FL type coaxial subminiature connector
2.5 Bluetooth 4.0 main characteristics
NB: This feature will be implemented as a second step.
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 9/20
Ref: OEM-2013-319
3. MECHANICAL SPECIFICATIONS
The following chart describes the availability of the various versions of the FC6000T: For all
versions, the legs of the shielding have to be soldered onto the host PCB in order to assure
mechanical assembly and EMC performance.
Module version Mounting
Bluetooth antenna
Internal external
FC6000T horizontal
Yes Yes
vertical Yes Yes
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 10/20
Ref: OEM-2013-319
3.1 Horizontal module
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 11/20
Ref: OEM-2013-319
3.2 Vertical module
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 12/20
Ref: OEM-2013-319
3.3 Module connectors
3.3.1 Connector on mother board
JST reference
:
24R-JMCS-G-(B)-TF
Mechanical overview: Recommended PCB footprint:
3.3.2 Horizontal modules connector
JST reference
:
24P3.5-JMCS-G-TF (Top entry type)
Mechanical overview: Recommended PCB footprint:
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 13/20
Ref: OEM-2013-319
3.3.3 Vertical modules connector
JST reference
:
24PS-JMCS-G-1B-TF (Side entry type)
Mechanical overview: Recommended PCB footprint:
3.3.4 Antenna connector
Only on external antenna products: JST reference
:
AYU1-1P-02676-120
This connector must be connected to a radio antenna.
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 14/20
Ref: OEM-2013-319
Only on internal antenna products: I-PEX reference:
20549-001E
This switch is only used in production for testing purpose.
3.4 Motherboard Mechanical Integration
Mechanical constraints for the integration on the mother board are detailed below.
Mechanical integration – Horizontal version:
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 15/20
Ref: OEM-2013-319
Mechanical integration – Vertical version:
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 16/20
Ref: OEM-2013-319
4. MARKING
4.1 Label FC6000TN / FC6000TS
The label is done here for the FC6000TN. For the FC6000TS, all designations ‘FC6000TN’ are
replaced by ‘FC6000TS’.
NB: The TELEC / Japan certification reference is not the relevant one. It is just an example for
placement on the label. It will be printed and updated when final number is available. Until that time,
neither the logo nor the number will be printed
5. Caution for use
5.1 ESD Compliance
Operator must use ESD protection gloves for Module Manipulation. In case of electrical discharge,
Module must be scrapped.
5.2 Safety
Mechanical shield is made of metal and have several draft angle which can cause Human injuries.
Operator must be trained on how to manipulate it.
5.3 Assembly
Key mechanical dimensions are tested before shipment.
In case of manual handling or operation, to avoid any issue with mechanical distance between legs
and ensure a good insertion in the host side, packaging has been designed to ensure that operator will
pick up the part by the most adequate area of the module. Operator should be trained and alerted
about this specific behavior.
5.4 Drop
In case the part drop to the floor, Parrot doesn’t warrant the part. Part has to be scrapped. Same
process applies in our manufacturing site.
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 17/20
Ref: OEM-2013-319
6. Approval and certification
6.1 FC6000TS
6.1.1 Normative certificates
FC6000TS module certifications / identifications numbers:
CE : CE0700
FCC ID : RKXFC6000TS
IC : 5119A-FC6000TS
BT : QD-ID B020794
6.1.2 CE declaration
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 18/20
Ref: OEM-2013-319
6.1.3 FCC and IC requirements for module application
FCC ID: RKXFC6000TS
IC: 5119A-FC6000TS
In accordance with FCC Part 15, the FC6000TS is listed as a Modular Transmitter device.
USA – User information
This intends to inform how to specify the FCC ID of our module “FC6000TS” on the product. Based on
the Public Notice from FCC, the host device should have a label which indicates that it contains our
module. The label should use wording such as: “Contains FCC ID: RKXFC6000TS”
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below FCC Statement. When it is not possible,
this information should be included in the User Manual of the host device.
“This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions.
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.”
Canada – User information
This intends to inform how to specify contain IC of our module “FC6000TS” on the product. According
to Canadian standards “RSS 210” and “RSS Gen”, the host device should have a label which indicates
that it contains our module. The label should use wording such as: “Contains IC: 5119A-FC6000TS
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below IC Statement.
When it is not possible, this information should be included in the User Manual of the host device.
“Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.”
« Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement. »
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 19/20
Ref: OEM-2013-319
6.2 FC6000TN
6.2.1 Normative certificates
FC6000TN module certifications / identifications numbers:
CE : CE0700
FCC ID : RKXFC6000TN
IC : 5119A-FC6000TN
BT : QD-ID B020794
6.2.2 CE declaration
Identical to CE declaration shown on 6.1.2.
6.2.3 FCC and IC requirements for module application
FCC ID: RKXFC6000TN
IC: 5119A-FC6000TN
In accordance with FCC Part 15, the FC6000TN is listed as a Modular Transmitter device.
USA – User information
This intends to inform how to specify the FCC ID of our module “FC6000TN” on the product. Based on
the Public Notice from FCC, the host device should have a label which indicates that it contains our
module. The label should use wording such as: “Contains FCC ID: RKXFC6000TN”
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below FCC Statement. When it is not possible,
this information should be included in the User Manual of the host device.
“This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions.
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.”
Canada – User information
This intends to inform how to specify contains IC of our module “FC6000TN” on the product.
According to Canadian standards “RSS 210” and “RSS Gen”, the host device should have a label which
indicates that it contains our module. The label should use wording such as: “Contains IC: 5119A-
FC6000TN”.
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below IC Statement.
When it is not possible, this information should be included in the User Manual of the host device.
“Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.”
Confidential Information
PRODUCT PRESENTATION FC6000T ed1 20/20
Ref: OEM-2013-319
« Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement. »
