PARROT FC6050B Bluetooth Module User Manual OEM 2012 250 FC6050B Product presentation

PARROT Bluetooth Module OEM 2012 250 FC6050B Product presentation

user manual

Confidential Information
1 (20)
OEM
-
2012
-
250
FC6050B
-
PRODUCT PRESENTATION
Confidential Information
2 (20)
OEM
-
2012
-
250
TABLE OF CONTENTS
1
PRODUCT OVERVIEW .......................................................................................................................................... 4
2
RATING – SPECIFICATION - CHARACTERIZATION ................................................................................................. 7
2.1
S
TORAGE
P
ERIOD AND
C
ONDITIONS
............................................................................................................................ 7
2.2
P
OWER
S
UPPLY
....................................................................................................................................................... 7
2.3
P
OWER
C
ONSUMPTION
............................................................................................................................................. 7
2.4
B
LUETOOTH
............................................................................................................................................................ 7
3
DIMENSIONS AND STRUCTURE ........................................................................................................................... 8
3.1
S
TRUCTURE
............................................................................................................................................................. 8
3.2
B
LOCK
D
IAGRAM
..................................................................................................................................................... 8
3.3
D
IMENSIONS
........................................................................................................................................................... 9
3.3.1
Horizontal version ....................................................................................................................................... 9
3.3.2
Vertical version ......................................................................................................................................... 10
3.4
PCB
F
OOTPRINTS
.................................................................................................................................................. 11
3.4.1
Horizontal version ..................................................................................................................................... 11
3.4.2
Vertical version ......................................................................................................................................... 12
3.5
C
ONNECTORS
........................................................................................................................................................ 13
3.5.1
Host Connection – Horizontal Version ...................................................................................................... 13
3.5.2
Host Connection – Vertical Version ........................................................................................................... 14
3.5.3
BT connector (External Antenna version only) .......................................................................................... 14
4
MARKING ...........................................................................................................................................................16
4.1
M
ODULE
M
ARKING
................................................................................................................................................ 16
4.1.1
Internal Antenna Modules ........................................................................................................................ 16
4.1.2
External Antenna Modules ........................................................................................................................ 16
5
CAUTION FOR USE..............................................................................................................................................17
5.1
ESD
C
OMPLIANCE
................................................................................................................................................. 17
5.2
S
AFETY
................................................................................................................................................................ 17
5.3
A
SSEMBLY
............................................................................................................................................................ 17
5.4
D
ROP
.................................................................................................................................................................. 17
6
APPROVAL / CERTIFICATIONS ............................................................................................................................18
6.1
N
ORMATIVE
C
ERTIFICATES
....................................................................................................................................... 18
6.2
CE
D
ECLARATION
................................................................................................................................................... 19

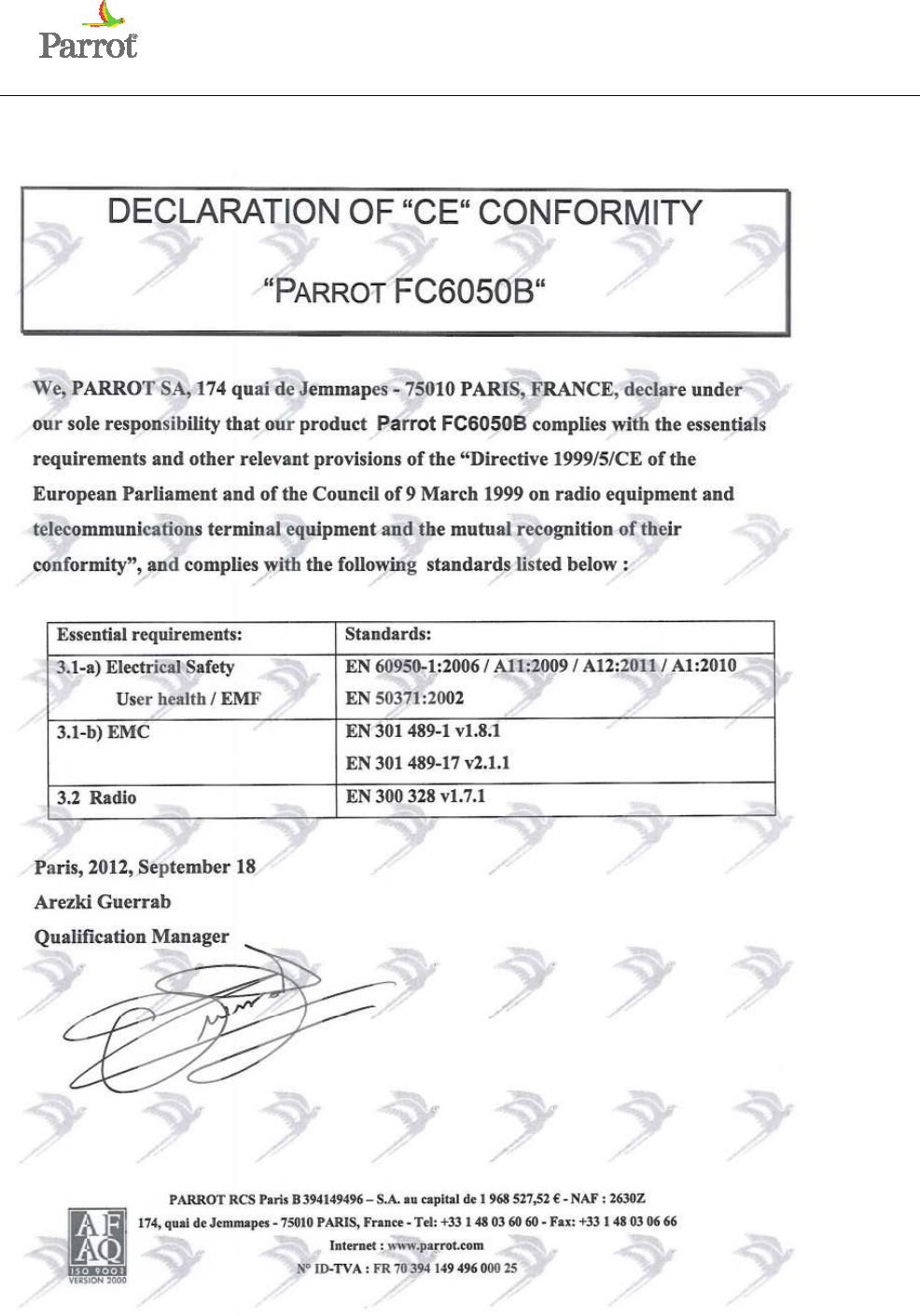

6.3
FCC
AND
IC
REQUIREMENTS FOR MODULE APPLICATION
................................................................................................ 20
Confidential Information
3 (20)
OEM
-
2012
-
250

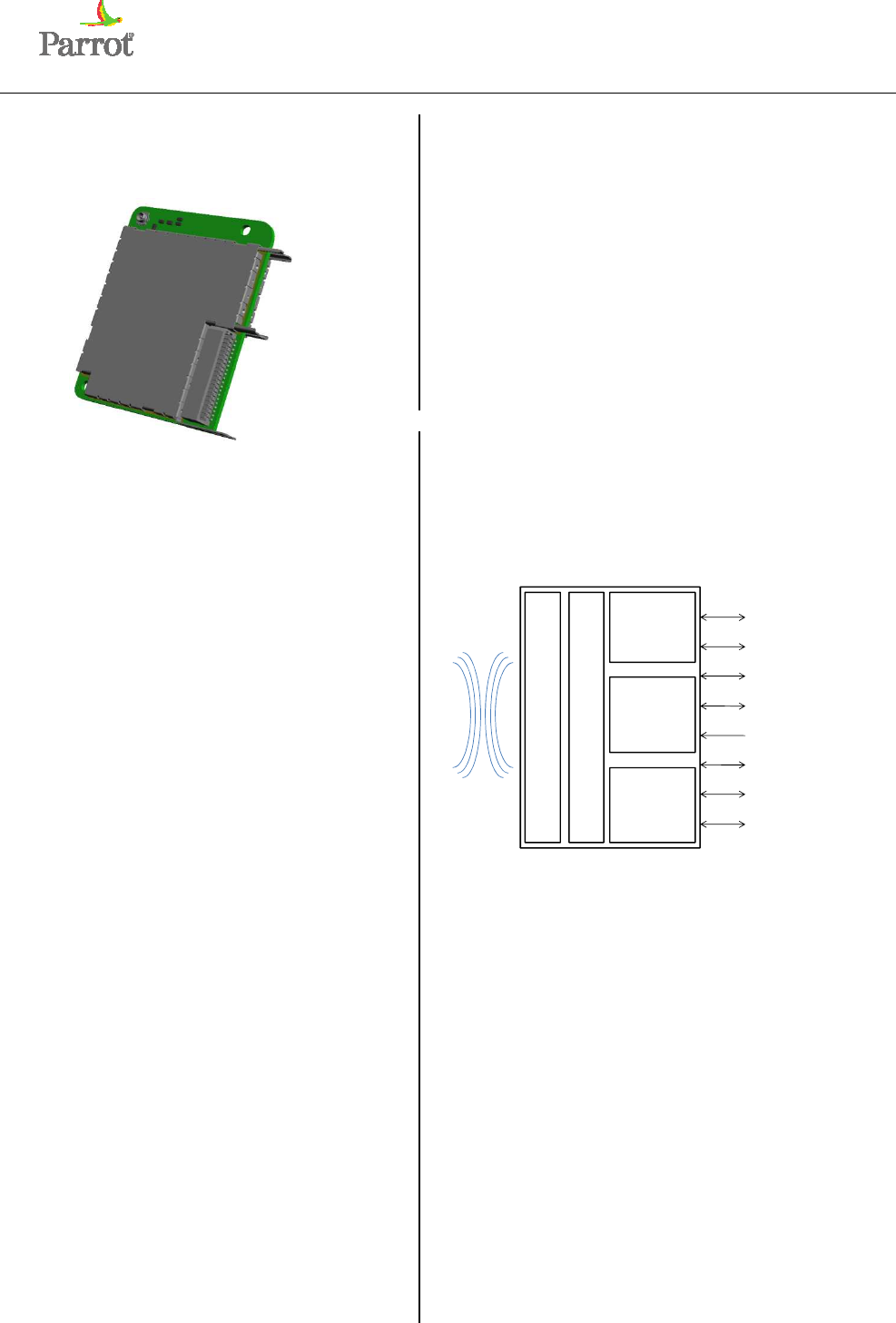

Parrot FC6050B
Full connectivity platform
Bluetooth 3.0
FEATURES
Bluetooth 3.0 qualified module
IPod chip management,
SD card management
Piconet and scatternet support
Standard single 3.3V supply
UARTs, I²C,
USB 2.0 High Speed,
Digital audio input and output
Analog audio input and output
Module dimension 34.5 x 41.35 mm x 4.60mm
Automotive qualified.
Application:
• Telephony
• Bluetooth 3.0
• Audio streaming
• USB, SD
• IPod management
The FC6050B includes the latest version of the
Parrot Bluetooth software stack (Blues). Blues
provides a very high level of compatibility with
most of the phones available on the market
today. It also provides phonebook and call list
synchronization.
The FC6050B also includes Concertos, a
Parrot proprietary database management
library used for the management of audio files.
Concertos facilitates management of audio
from all available storage media such as
USB/IPOD, SD, PHONE/A2DP. Concertos
manages the media devices, builds a database
with metadata, browses the compressed audio
files by artist/genre/title and plays them.
FC6050 offers the possibility to use a Speaker
Independent Voice Recognition (SIVR) and a
Text To Speech algorithm (TTS).The FC6050B
software is built upon the Linux operating
system. The library RAP gives the possibility to
recognize song titles or artist name
Description:
The Parrot FC6050B is a complete connectivity
solution. It offers a large variety of interfaces
for easy integration in most applications.
Parrot
P6i
FLASH
SDRAM
2*UART
1*I²C
2*I²S out/ 2*I²S in
2*Analog microphone input
1*Stereo Analog line in
BT3.0
1*USB 2.0 High Speed
SD card
Bluetooth Antenna
1*Stereo Analog line out
Confidential Information
4 (20)
OEM
-
2012
-
250
1 PRODUCT OVERVIEW
The FC6050B is a full connectivity platform designed to ease the integration of connectivity applications in
car audio systems, car telematics systems or any system requiring a complete embedded connectivity
solution.
FC6050B features:
• Bluetooth connectivity
Bluetooth Power Class 2 Radio
Embedded Bluetooth V3.0
Multiple profiles running in parallel.
Pairing and connection with all Bluetooth Devices: Phones, Smartphones, PDA, etc. Multiple
user support: Up to 15 paired phones
• SD card management
• Full internet access
Internet Access via HSDPA using USB Dongle or modules or Bluetooth
• Phone
Pick-up, Hang-up, Redial
Automatic answer (from host via dial command)
Send DTMF during calls
Private Mode
Multiparty call
• Phone Book
Automatic Phone book synchronization over Bluetooth (up to 15 paired phones, more than
10,000 contacts per phone, depending on memory available)
Call history (dialed number, received calls, missed calls)
All Synchronization Methods Supported
Specific behaviors applied for the best possible interoperability
Full Unicode for compatibility with numerous characters sets (European, Russian, Chinese,
Japanese…)
• Digital Signal Processing
Microphone(s): the module can manage two configurations:
Confidential Information
5 (20)
OEM
-
2012
-
250
Single microphone
Two microphones with AMS (Automatic Microphone Selection): 1 for the driver and 1
for the front seat passenger. The best microphone is automatically selected during
the call.
Noise Reduction (NR)
Maximal NR is 25dB.
Typical NR is 15dB.
No musical noise
No fluctuation of the residual noise level
Automatic adaptation of the Noise Reduction to the Signal-to-noise ratio (SNR) to
keep the best voice quality in idle and remove more noise in noisy conditions.
Acoustic Echo Cancellation (AEC)
The level of echo attenuation, called ERLE is 45dB (measured according to the VDA
process).
Comfort Noise feature so that the background noise is adjusted after AEC algorithm,
in order to keep it constant for enhanced communication experience.
Possibility to accept up to 100ms of delay in the speaker path for digital amplifiers.
Full duplex
Automatic Level Control (ALC)
Different phones can have different Speaker volumes (up to 20dB of difference). It
adapts the signal level received from the phone to the target level, quickly and
precisely.
Equalizer
9 bands equalizer for microphones and speaker paths.
Tuning
Car independent tuning if the microphone position and specifications are the same.
Possibility to tune all parameters of the audio algorithms according to Customer
preferences.
• Audio Streaming
Embedded SBC decoder
Embedded MP3 decoder from Thomson Licensing (optional)
Embedded AAC decoder from Via Licensing (optional)
Stereo audio output
• Concertos
Concertos is a software Library which acts as a multi-source media player.
Concertos enables DISCO playlist browsing on USB, iPod, SD and AVRCP1.4 devices
• Speaker Independent Voice Recognition (SIVR)
• Miscellaneous
Provides Phone Battery Level, Network Signal Level and Carrier Name (depends on phone)
to host
Embedded test pattern (test commands)
• Software Update
Full standard software available (free upgrade from Parrot homepage)
Software can be updated via Bluetooth, USB, UART
Software updates provide long term compatibility with latest Phones, Smartphones, PDAs
and Music players
• External Bluetooth Antenna diagnostic
• HSTI
Parrot provides a library called “HSTI” that facilitates the integration and communication with
FC6050B.
Confidential Information
6 (20)
OEM
-
2012
-
250

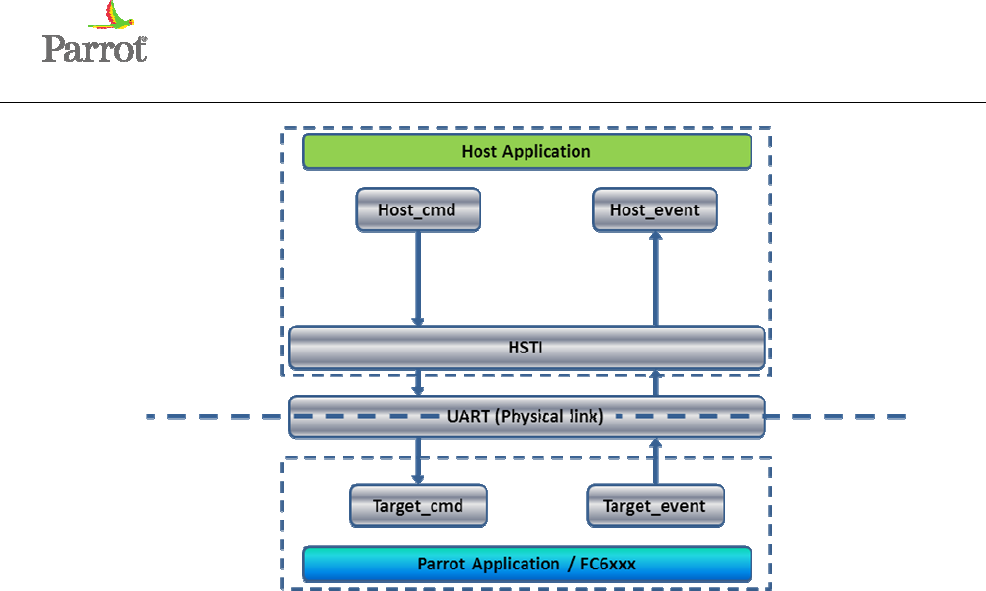

Communication between the host and the FC6050B over UART
Confidential Information
7 (20)
OEM
-
2012
-
250
2 RATING – SPECIFICATION - CHARACTERIZATION
2.1 Storage Period and Conditions
Our DV test plan usually allows our customers to determine their own storage conditions according to their
experiences.
Therefore, the following chart is given for information purpose only.
Storage condition In original carton box
Storage temperature range -20°C / +50°C
Humidity 40% - 80%
Duration 3 months
Un-operating temperature range (*) -40°C / +125°C
(*) This Temperature range relates to Automotive Customers requirement regarding the following phase of
the product life cycle: Vehicle parked outdoor in very hot or cold countries, before shipment to car dealers.
2.2 Power Supply
Value Unit
Typical Power Supply 3.3 V
Operating voltage range 3.1 to 3.6 V
Max voltage rating 3.6 V
Operating temperature range -40 / +85 °C
2.3 Power Consumption
Feature Min Typ Max Unit Comment
Stop mode - 10 20 mA NReset active
Run/Standby mode - 120 200 mA
Hands Free and Audio streaming mode - 160 300 mA
Peak current at startup - 200 300 mA
Peak current at startup (duration) - 200 - us
2.4 Bluetooth
Features Description
Frequency Band 2.4000 – 2.4835 GHz (2.4 GHz ISM Band)
Number of channels 79 channels (f=2402+k MHz, k=0,…,78)
Modulation FHSS (Frequency Hopping Spread Spectrum), GFSK
Supported rates 1, 2, 3 Mbps
Maximum receive level - 3dBm
Output Power - 6dBm~4dBm
Confidential Information
8 (20)
OEM
-
2012
-
250
3 DIMENSIONS AND STRUCTURE

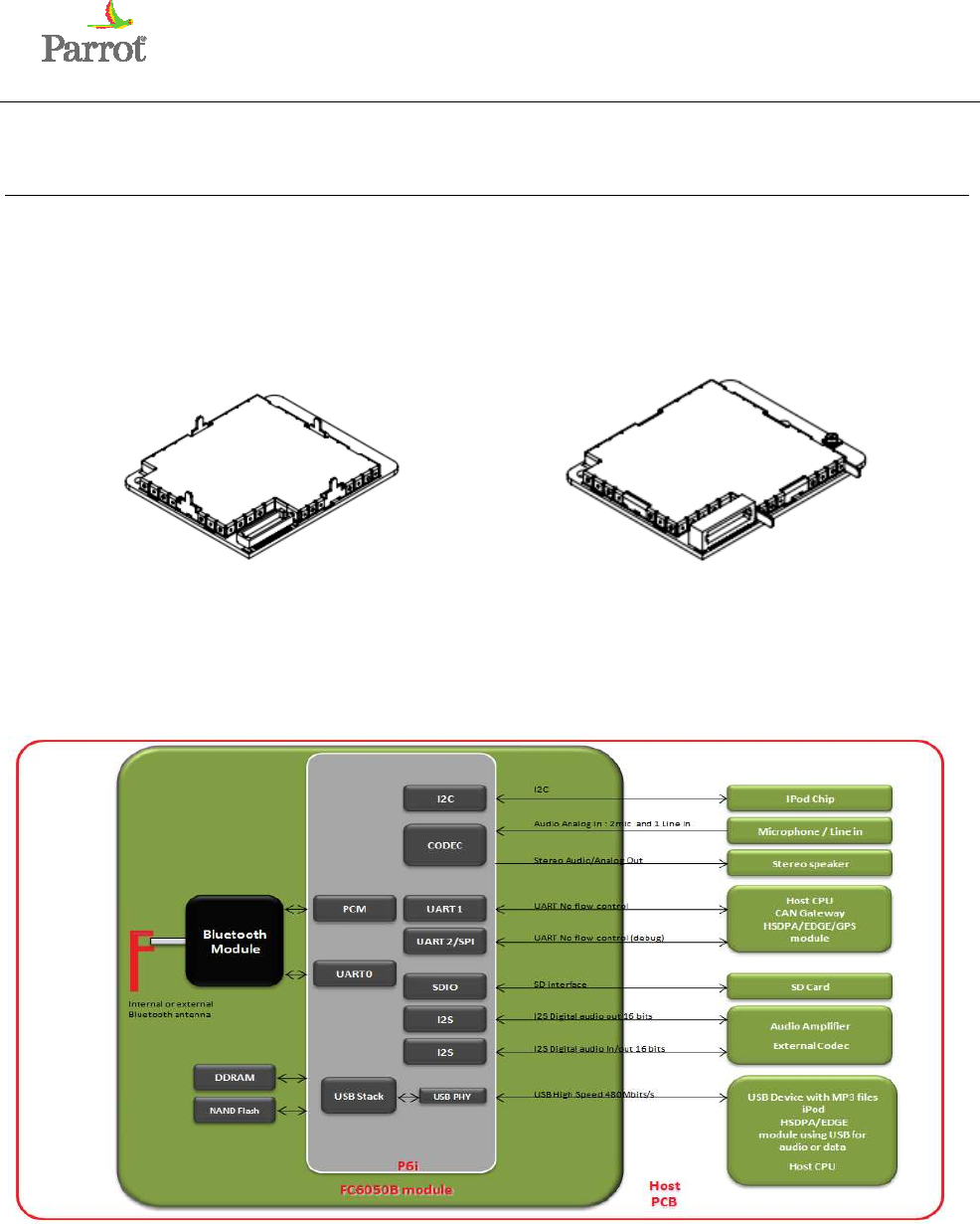

3.1 Structure
Pictures below are given for information only.
Internal BT antenna, Horizontal version External Antenna, Vertical version
3.2 Block Diagram
Confidential Information
9 (20)
OEM
-
2012
-
250
3.3 Dimensions

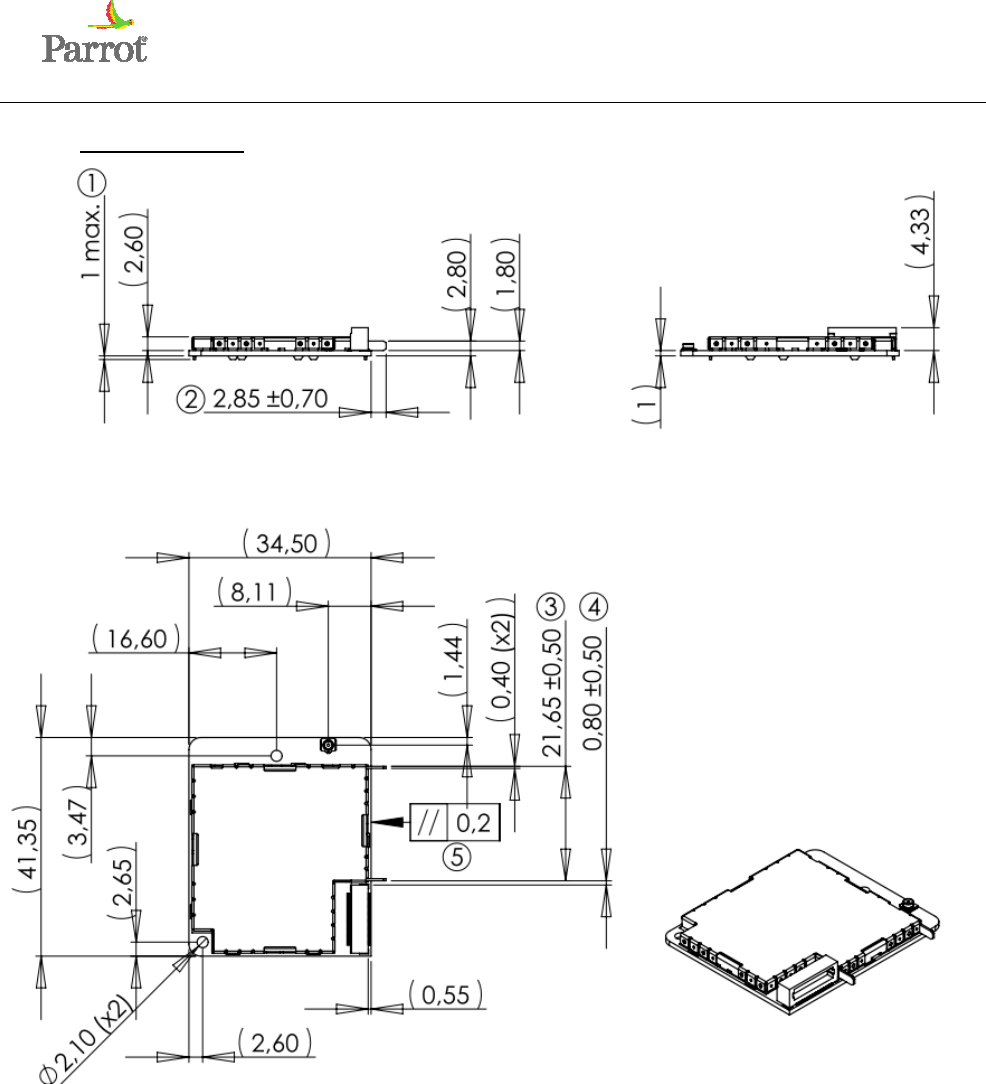

3.3.1 Horizontal version
Confidential Information
10 (20)
OEM
-
2012
-
250

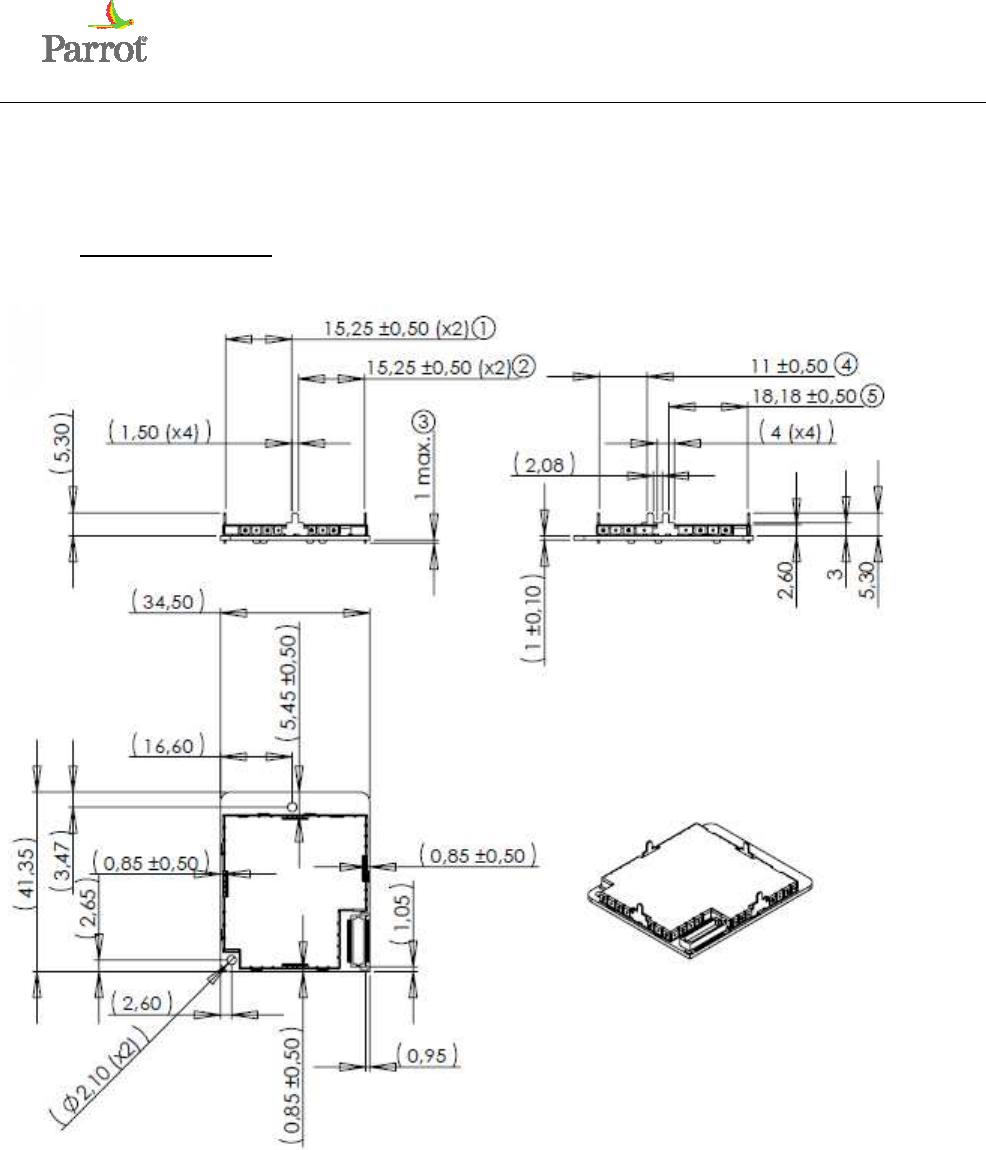

3.3.2 Vertical version
Confidential Information
11 (20)
OEM
-
2012
-
250
3.4 PCB Footprints

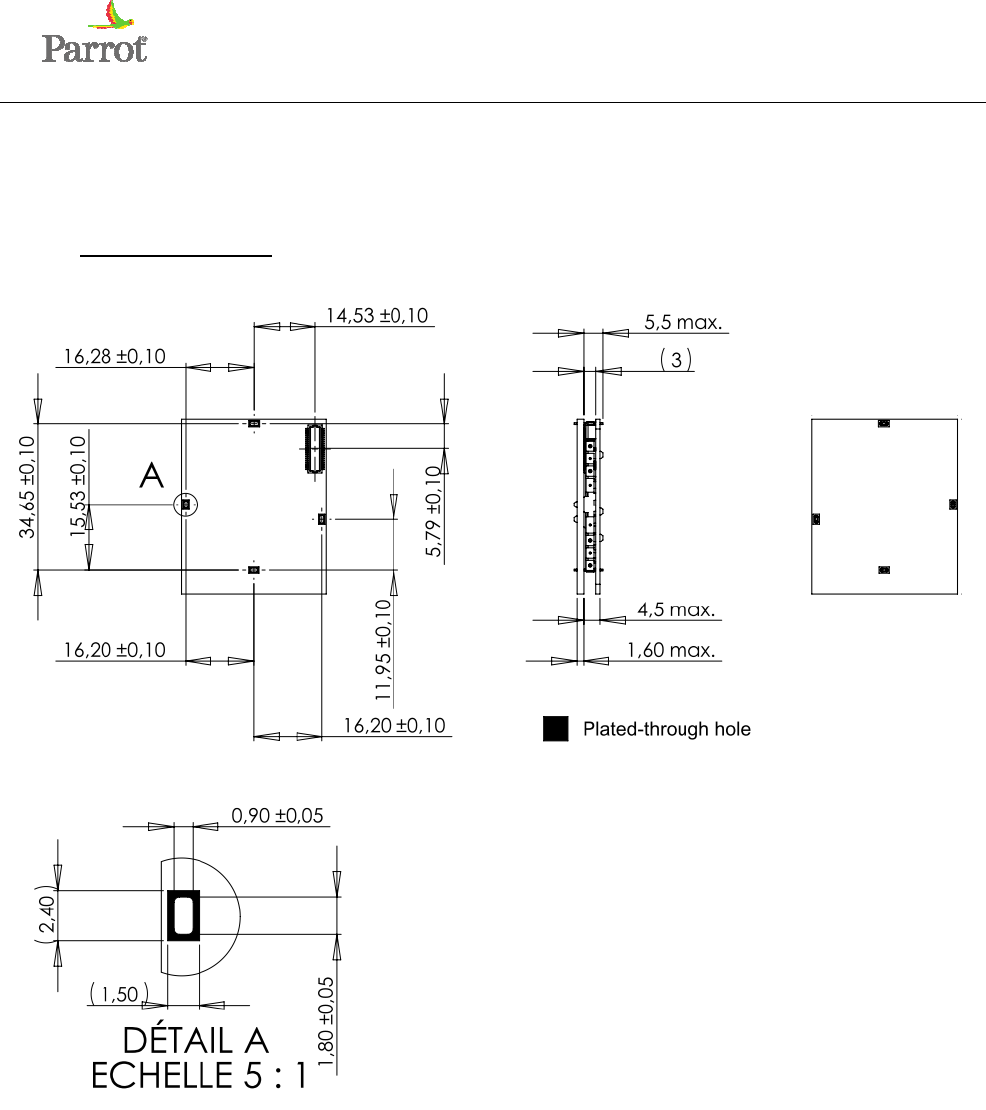

3.4.1 Horizontal version
Confidential Information
12 (20)
OEM
-
2012
-
250

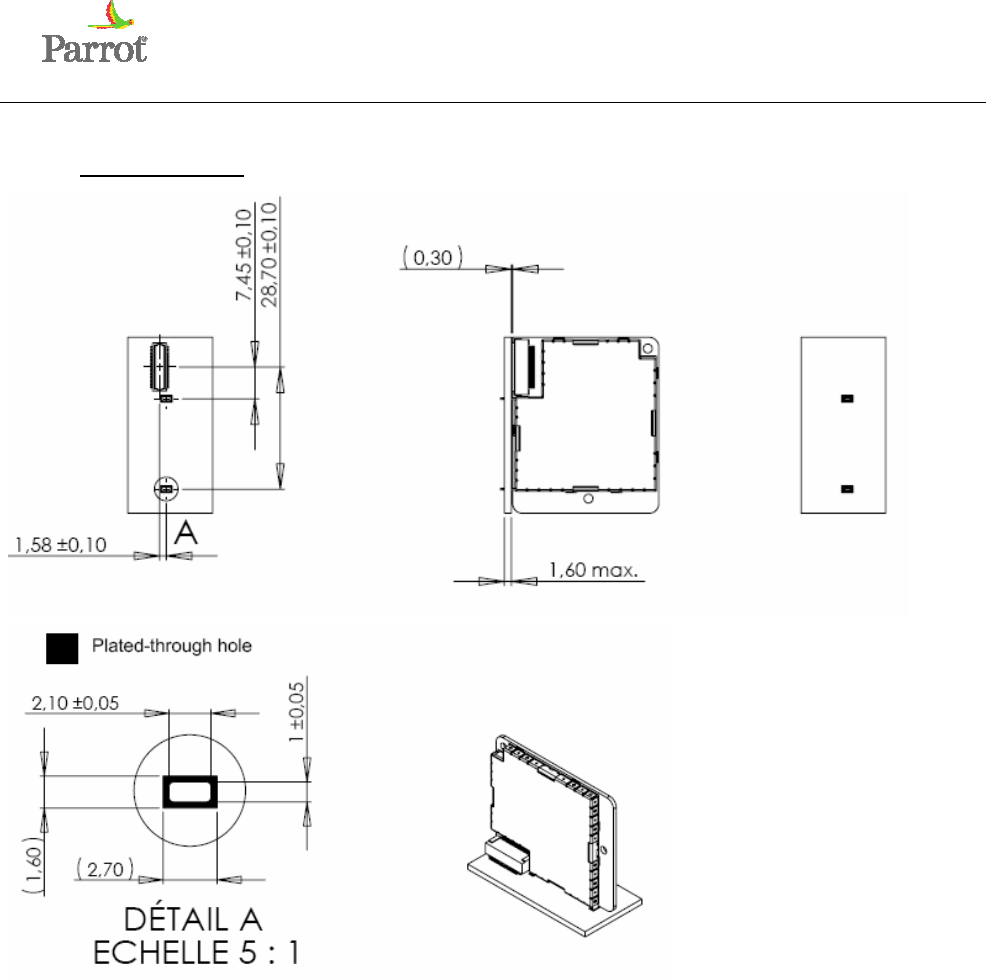

3.4.2 Vertical version
Confidential Information
13 (20)
OEM
-
2012
-
250
3.5 Connectors

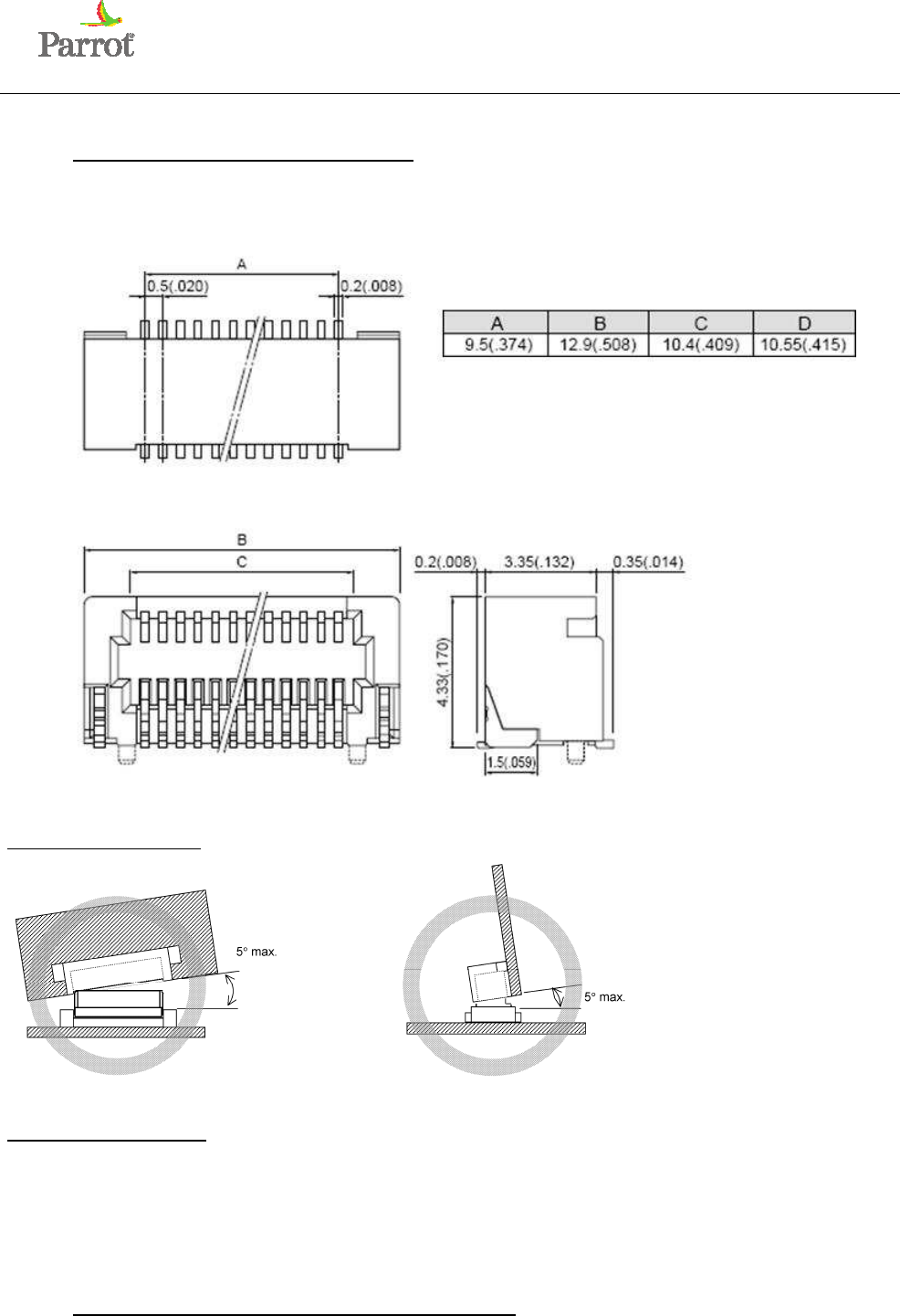

3.5.1 Host Connection – Horizontal Version
Dimensions below are given in mm
Maximum mating angle:
Maximum insertion force : 50N
Confidential Information
14 (20)
OEM
-
2012
-
250

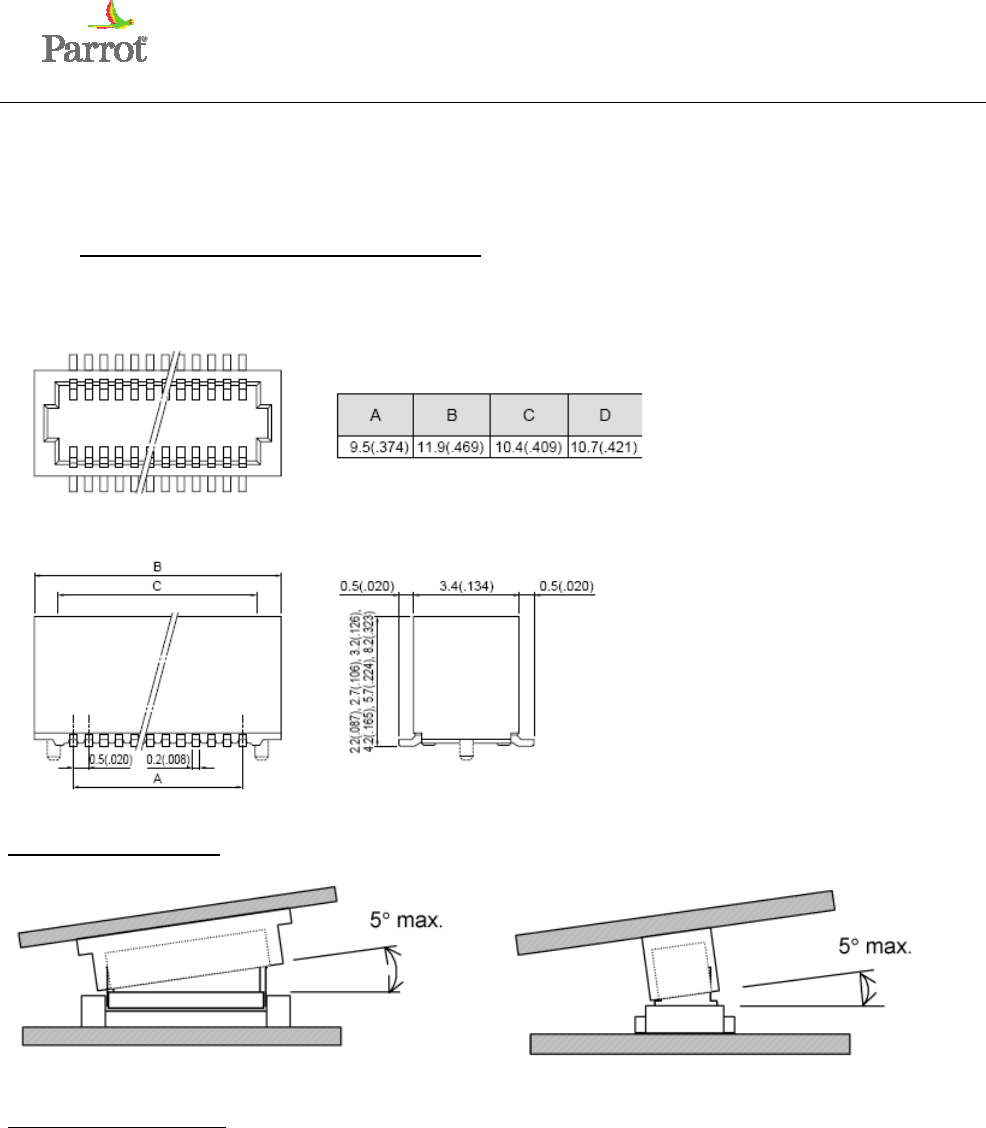

3.5.2 Host Connection – Vertical Version
Dimensions below are given in mm
Maximum mating angle:
Maximum insertion force : 50N

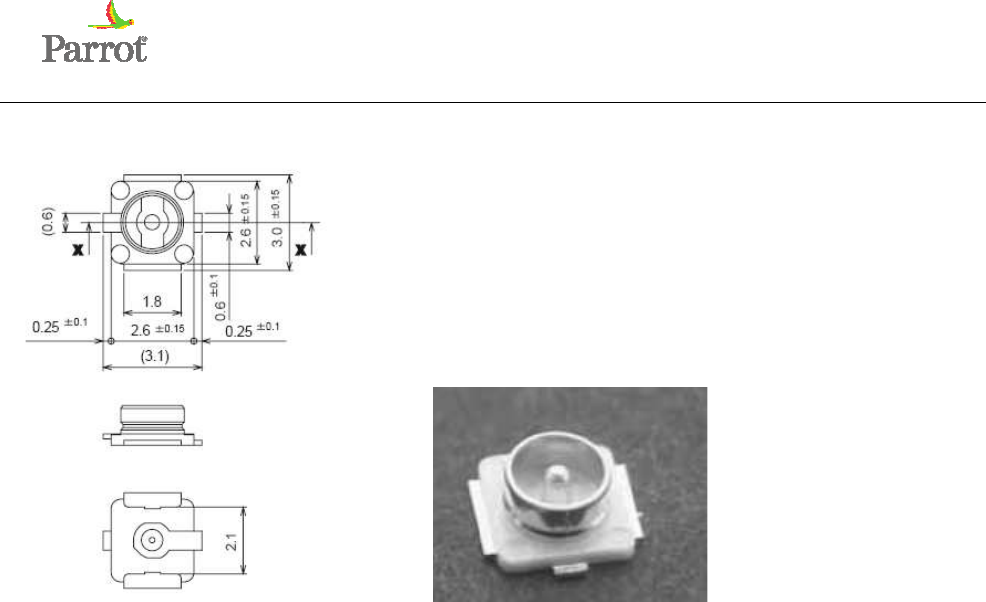

3.5.3 BT connector (External Antenna version only)
Confidential Information
15 (20)
OEM
-
2012
-
250
BT antenna is connected to the module through an ultra-small coaxial connector:
Confidential Information
16 (20)
OEM
-
2012
-
250

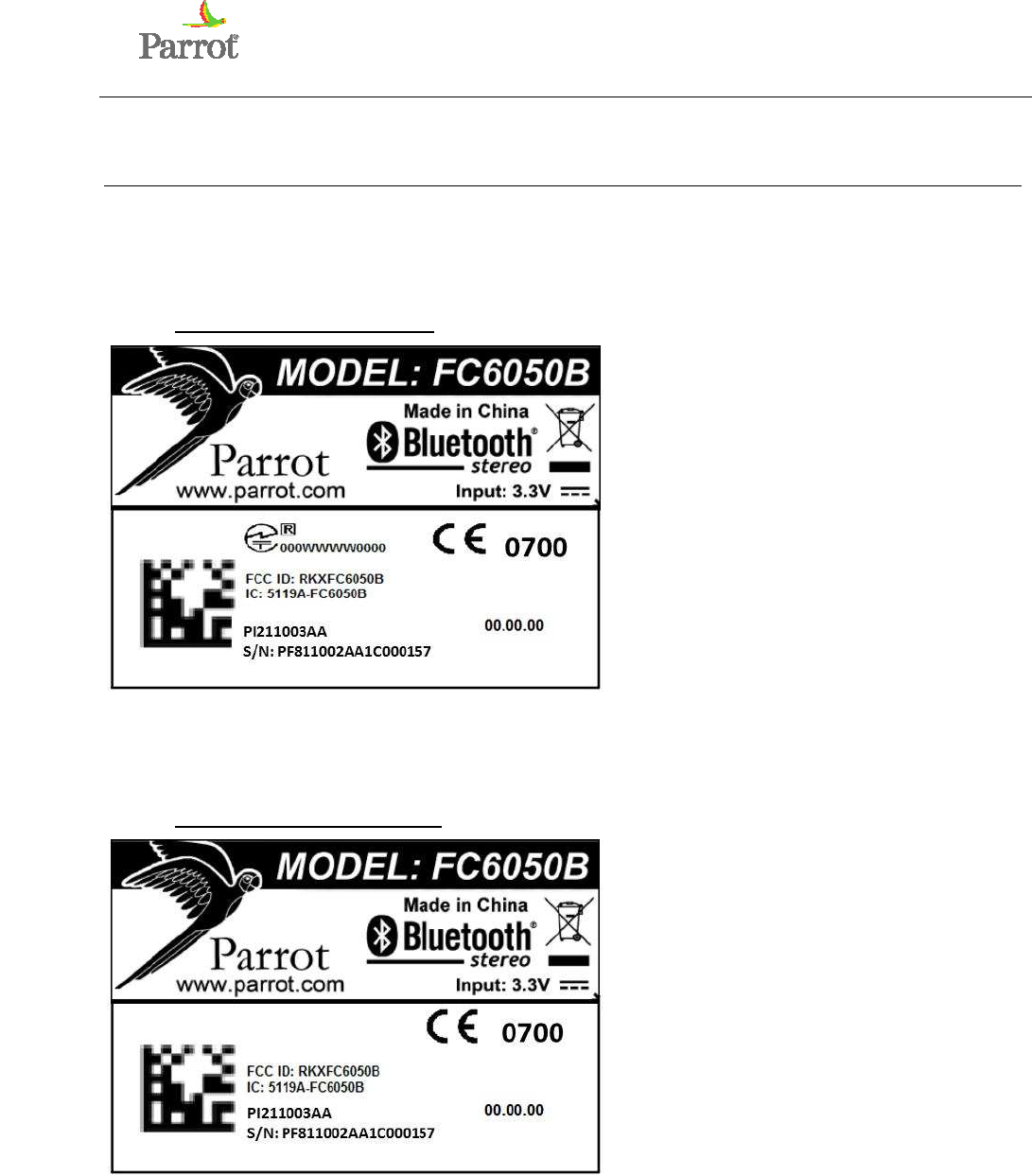

4 MARKING
4.1 Module Marking
4.1.1 Internal Antenna Modules
The telec certification number is not the relevant one. It is just an example for placement on the label. It will
be printed and updated when final number is available. Until that time, neither the logo nor the number
will be printed
4.1.2 External Antenna Modules
0700
Confidential Information
17 (20)
OEM
-
2012
-
250
5 CAUTION FOR USE
5.1 ESD Compliance
Operator must use ESD protection gloves for Module Manipulation. In case of electrical discharge, Module
must be scrapped.
5.2 Safety
Mechanical shield is made of metal and have several draft angle which can cause Human injuries. Operator
must be trained on how to manipulate it.
5.3 Assembly
Key mechanical dimensions are tested before shipment.
In case of manual handling or operation, to avoid any issue with mechanical distance between legs and
ensure a good insertion in the host side, packaging has been designed to ensure that operator will pick up
the part by the most adequate area of the module. Operator should be trained and alerted about this specific
behavior.
5.4 Drop
In case the part drop to the floor, Parrot doesn’t warrant the part. Part has to be scrapped. Same process
applies in our manufacturing site.
Confidential Information
18 (20)
OEM
-
2012
-
250
6 APPROVAL / CERTIFICATIONS
6.1 Normative Certificates
FC6050B module certifications numbers:
CE : CE 0700
FCC : RKXFFC6050B
IC : 5119A-FC6050B
Telec : Not yet available
BT : QDID B019291
Confidential Information
19 (20)
OEM
-
2012
-
250
6.2 CE Declaration
Confidential Information
20 (20)
OEM
-
2012
-
250
6.3 FCC and IC requirements for module application
FCC ID: RKXFC6050B
IC : 5119A-FC6050B
In accordance with FCC Part 15, the FC6050B is listed as a limited Modular Transmitter device.
USA – User information
This intends to inform how to specify the FCC ID of our module “FC6050B” on the product. Based on the
Public Notice from FCC, the host device should have a label which indicates that it contains our module. The
label should use wording such as: “Contains FCC ID: RKXFC6050B”.
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below FCC Statement. When it is not possible, this
information should be included in the User Manual of the host device :
“This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.”
CANADA – User information
This intends to inform how to specify the IC ID of our module “FC6050B” on the product. According to
Canadian standards “RSS-210” and “RSS-Gen”, the host device should have a label which indicates that it
contains our module. The label should use wording such as: “Contains IC ID: 5119A-FC6050B”.
Any similar wording that expresses the same meaning may be used.
The label of the host device should also include the below IC Statement. When it is not possible, this
information should be included in the User Manual of the host device :
“Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.”
« Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage, et
(2) L’utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement »

Navigation menu
