Parrot FC6100
Full connectivity module with Android OS.
Bluetooth 3.0 +HS
Applications:
•
Smartphone Android Apps platform
• Navigation
•
Internet access (through 3G USB dongle,
Bluetooth Dun, Pan, 3G+ module)
• MMI Display via LCD screen
• Telephony voice recognition
• Multimedia voice recognition
• USB & IPod management
• Rear-view camera vide
o stream reception and
decoding
• Telephony & Audio streaming
• Terminal mode
The FC6100 employs the ANDROID OS which
embeds a WEB browser and a JAVA machine.
The FC6100 is designed as an open platform for
any Android apps intended for a mobile phone
such as
Google Maps with Street view and POI
search, Panoramio, and apps for weather and
Yellow Page information.
The FC6100 embeds all of the automotive qualified
Parrot Libraries:
•
USB devices and iPod, iPhone, with database
for metadata
• Voice recognition for tel
ephony features or
multimedia selection
•
Bluetooth with a very high level of
compatibility with most of the phones
available on the market and phonebook
synchronization.
Title
-
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
17
3.0
Full connectivity module with Android OS.
Technical Features:
• LCD Management-
LCD RGB/LVDS
•
Bluetooth 3.0+HS qualified module
•
Piconet and scatternet support
• Stand
ard single 3V3 supply
• UARTs, I²C
• 1*USB 2.0 High Speed
•
Digital and analog audio in and out
• Analog Video output
• Module dimensions
72 x 44.3
• Automotive qualified
•
IPod chip management (optional)
• 2
nd
USB 2.0 connection (optional)
• 2*SDcard support
Smartphone Android Apps platform
Internet access (through 3G USB dongle,
Bluetooth Dun, Pan, 3G+ module)
o stream reception and
The FC6100 employs the ANDROID OS which
embeds a WEB browser and a JAVA machine.
The FC6100 is designed as an open platform for
any Android apps intended for a mobile phone
Google Maps with Street view and POI
search, Panoramio, and apps for weather and
The FC6100 embeds all of the automotive qualified
USB devices and iPod, iPhone, with database
ephony features or
Bluetooth with a very high level of
compatibility with most of the phones
available on the market and phonebook
The FC6100 platform provides a full API, to access
Parrot Libraries and to
enhance And
features.
Description:
Parrot FC6100 is a solution for Multimedia
systems. It integrates a large variety of interfaces
for easy integration of most multimedia
applications.
3 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
3/20
LCD RGB/LVDS
Bluetooth 3.0+HS qualified module
Piconet and scatternet support
ard single 3V3 supply
Digital and analog audio in and out
72 x 44.3
x 4.60mm
IPod chip management (optional)
USB 2.0 connection (optional)
The FC6100 platform provides a full API, to access
enhance And
roid basic
Parrot FC6100 is a solution for Multimedia
systems. It integrates a large variety of interfaces
for easy integration of most multimedia
Reference
OEM-2012-
273
Date
2012-12-17
1

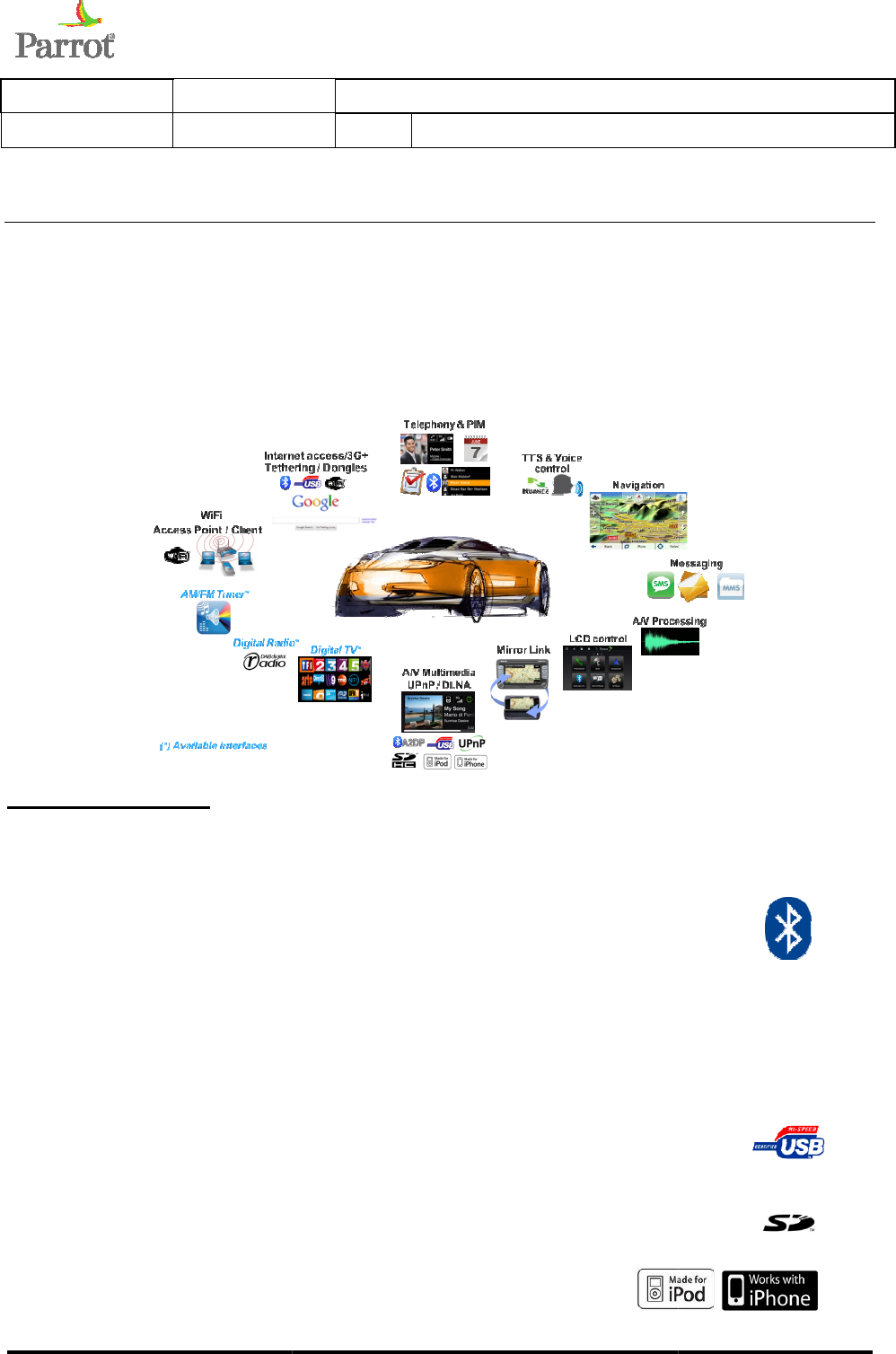

PRODUCT OVERVIEW
Warning !: This product is to be so
Public.
The FC6100
is a connected Infotainment open platform,
applications in car audio / vidéo
systems, car telematics systems or any system requiring a comp
embedded connectivity solution.
FC6100 features:
1.1 Connectivity
• Bluetooth
Bluetooth Power Class 2 Radio
Embedded Bluetooth V3.0+HS
Compatible with virtually all Bluetooth phones, best
Pairing and connection with all Bluetooth Devices: P
Multiple users support: Up to 10 paired phones
Multiple connections (up to 3 devices connected at the same time)
Multiple profiles active simultaneously
Full Bluetooth Stack, all profiles supported
• USB
Parrot FC6100 embeds a USB
Compliant with USB devices supporting Mass Storage Class
Supports USB hub
• SD Card
• iPod / iPhone
connectivity
IAP (iPod Accessory Protocol)
Album cover art download
iPod Out
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
PRODUCT OVERVIEW
AND FEATURES
Warning !: This product is to be so
ld only to OEM customers and not to the General
is a connected Infotainment open platform,
designed to ease the integration of connectivity
systems, car telematics systems or any system requiring a comp
Bluetooth Power Class 2 Radio
Embedded Bluetooth V3.0+HS
Compatible with virtually all Bluetooth phones, best
-in-class IOP
Pairing and connection with all Bluetooth Devices: P
hones, Smartphones, PDA…
Multiple users support: Up to 10 paired phones
Multiple connections (up to 3 devices connected at the same time)
Multiple profiles active simultaneously
Full Bluetooth Stack, all profiles supported
Parrot FC6100 embeds a USB
2.0 OTG high speed transceiver
Compliant with USB devices supporting Mass Storage Class
connectivity
IAP (iPod Accessory Protocol)
4 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
4/20
ld only to OEM customers and not to the General
designed to ease the integration of connectivity
systems, car telematics systems or any system requiring a comp
lete
Reference
OEM-2012-
273
Date
2012-12-17
• iPod Out compatible
Reference design availa
ble for Host motherboard
Support of
iOS devices running iOS 4 and higher
Simplified iPod interface
able to control music and show a
• Wi-Fi
IEEE 802.11b/g compliant
Data rates up to 54 Mbps (
802.11g
Security support for WPS, WPA2, WP
station
or Access Point mode
Up to 8 devices can simulta
1.2 Telephony
• Hands-
Free Telephony, Phonebook synchronization,
SMS
Automatic Phone book synchronization over Bluetooth
Up to 10 paired phones, 5000 contacts
Supports all of the various synchronization methods
Full Unicode;
compatibility with
Message Access Profile (MAP)
•
Digital Signal Processing
Single or dual microphones (Automat
Noise Reduction (NR), Acoustic Echo Cancellation (AEC)
Automatic Level Control (ALC)
Equalizer
Car Independent Tuning
Wideband speech
1.3 Multimedia
• Audio Player
Multi Sources (Line-
In, USB, SD, iPod, iPhone, BT/Wi
Call artists
and albums by voice recognition (see RAP)
Multiple codecs supported (External licences apply)
LC / AC3 (…)
• CONCERTOS library
Parrot Music library
Eases management of audio compressed files
• RAP library
Parrot Music library
Accurate s
earch for artists, albums and genres using voice recognition
(both CONCERTOS and Nuance VR required)
Operate player functionalities by voice commands on external sources
Voice recognition latency is
• Video Player
Video multimedia player
(H264, H263
Dailymotion™, YouTube™ compatible
•
UPNP server Synchronization over Wi
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
ble for Host motherboard
iOS devices running iOS 4 and higher
able to control music and show a
UI on incoming call
802.11g
)
Security support for WPS, WPA2, WP
A
or Access Point mode
Up to 8 devices can simulta
neously be connected in Access Point mode
Free Telephony, Phonebook synchronization,
Automatic Phone book synchronization over Bluetooth
Up to 10 paired phones, 5000 contacts
per phone, call history
Supports all of the various synchronization methods
compatibility with
many characters sets (EU
, Russian, Chinese, Japanese…)
Message Access Profile (MAP)
Digital Signal Processing
Single or dual microphones (Automat
ic Microphone Selection)
Noise Reduction (NR), Acoustic Echo Cancellation (AEC)
Automatic Level Control (ALC)
In, USB, SD, iPod, iPhone, BT/Wi
-Fi)
and albums by voice recognition (see RAP)
Multiple codecs supported (External licences apply)
: MP3 / AAC / WMA / Ogg Vorbis /
Eases management of audio compressed files
earch for artists, albums and genres using voice recognition
(both CONCERTOS and Nuance VR required)
Operate player functionalities by voice commands on external sources
Voice recognition latency is
typical ~ 1,8 s for a size of 20 000 Albums or Artists
(H264, H263
-MPEG4)
Dailymotion™, YouTube™ compatible
, Streaming support over Wi-Fi
UPNP server Synchronization over Wi
-Fi
5 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
5/20
, Russian, Chinese, Japanese…)
: MP3 / AAC / WMA / Ogg Vorbis /
AAC
earch for artists, albums and genres using voice recognition
Reference
OEM-2012-
273
Date
2012-12-17
Personal
files (music, pictures, etc
personal server to the car
• Graphical HMI
3D accelerator up to 18 million
3D Graphics
Industry standa
OpenGL ES 1.1 and 2.0, OpenVG 1.0.1, OpenMax
LCD manageme
nt up to 2048 by 2048 pixels
Wide range of graphical objects to facilitate user specific HMI design
1.4
Voice Recognition / Text to Speech
•
Speaker Independent voice recognition
Vocon 3200
Recognizes
a contact in the phonebook by speaking the contact name
Initiates the
phone call to that person
Selects
a music file from any media device (USB, SD Card
20 languages available (see TTS)
•
Text To Speech (TTS)
Based on SVOX (acquired by Nuance) Automotive Speech
Tailored for noisy
car environments
I
ndustry leading quality reputation
Natural and clear sound
quality
Not limited in vocabulary
:
vehicle commands, so
ngs titles or phonebook entries etc…
20 languages available.
•
Gracenote® for the management of music collection
Advanced speech-
based media databases
Multi-steps
recognition to
music collection
Unique tool to manage
large music
Improved voice recognition accuracy up to
8 languages supported.
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
files (music, pictures, etc
. ) can be downloaded
3D accelerator up to 18 million
triangles per seconds.
Industry standa
rd API support Direct3D mobile
OpenGL ES 1.1 and 2.0, OpenVG 1.0.1, OpenMax
nt up to 2048 by 2048 pixels
Wide range of graphical objects to facilitate user specific HMI design
Voice Recognition / Text to Speech
Speaker Independent voice recognition
a contact in the phonebook by speaking the contact name
phone call to that person
a music file from any media device (USB, SD Card
, IPod) connected to the system
20 languages available (see TTS)
Text To Speech (TTS)
Based on SVOX (acquired by Nuance) Automotive Speech
car environments
ndustry leading quality reputation
quality
:
confirms
the orders identified by a voice recognition process
ngs titles or phonebook entries etc…
Gracenote® for the management of music collection
based media databases
(Media-Vocs)
recognition to
identify, to categorize, and to organize the digital
large music
collections
Improved voice recognition accuracy up to
7%
6 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
6/20
rd API support Direct3D mobile
, IPod) connected to the system
the orders identified by a voice recognition process
or for reading
Reference
OEM-2012-
273
Date
2012-12-17
1.5 Internet

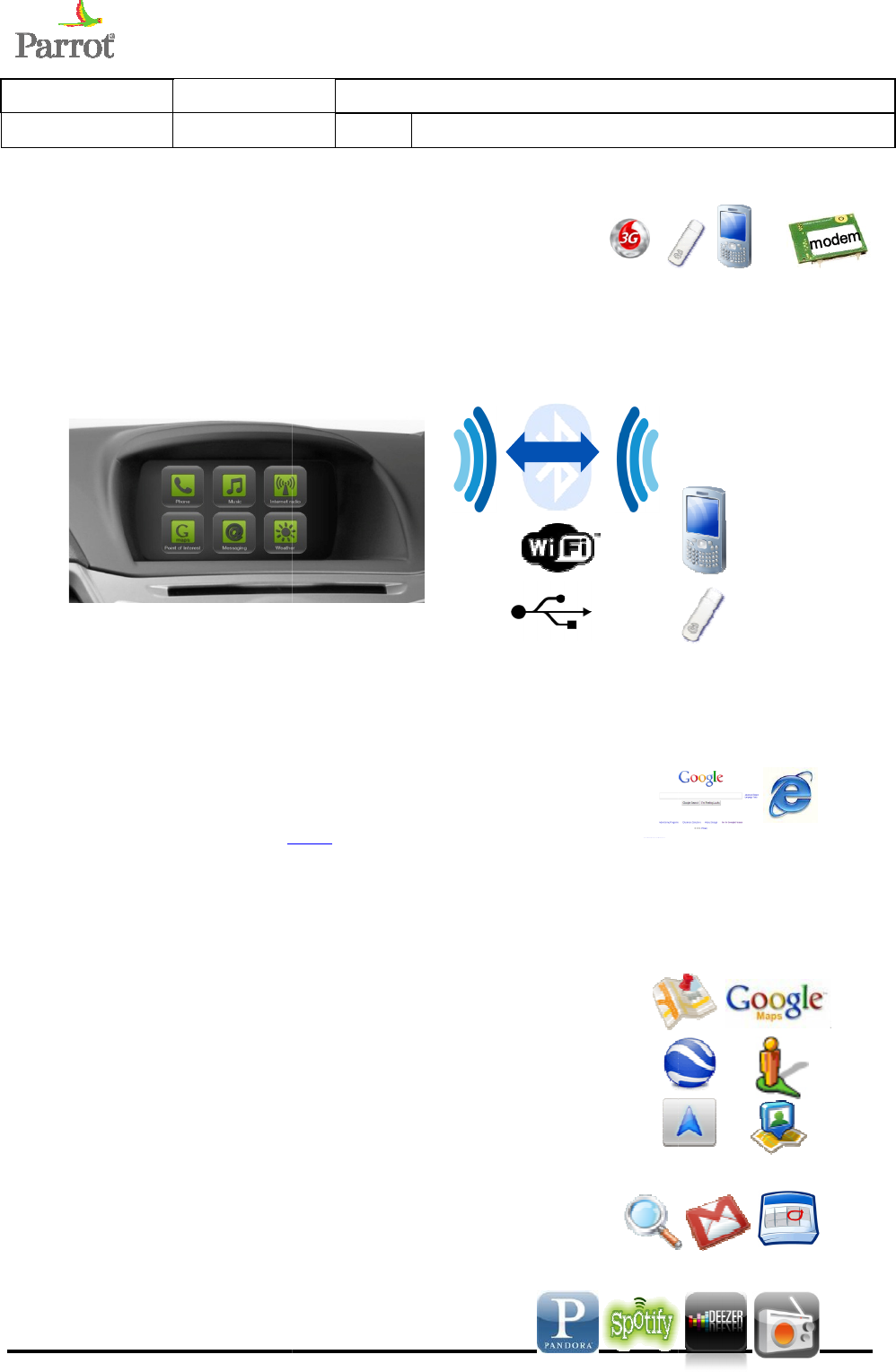

• Full Access (
3G Dongle,
Customer phone
Bluetooth (DUN, PAN)
USB tethering (cable)
Wifi tethering
USB 3G Dongles
Control of a built-in
modem (embedded SIM, SAP)
Once an internet connection is established, the Android apps which require a connection become available.
The following page shows some examples of Apps selected by Parrot. Other apps can also be
customer in collaboration with Parrot.
• Internet Browser
Based on Webkit, i
ntegrated HTML5 and JAVA features
Compatible with any w
eb radio application available on Android
Scores a 93/100 on the
Acid3
SSL support
1.6 Apps
• Google
Location Based Services Apps
Google Maps with Street View
Location-
based Google POI search
Roadtrip
Initiate a phone call with a Google POI in one click
Google Earth
Google Latitude
Google NAV (Go
ogle certification required)
• Google
Productivity Apps
Google Search
Gmail
Google Calendar
•
Internet Music & Radios Apps
Pandora
TuneIn
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
3G Dongle,
Customer Phone, Modem)
Bluetooth (DUN, PAN)
USB tethering (cable)
modem (embedded SIM, SAP)
Once an internet connection is established, the Android apps which require a connection become available.
The following page shows some examples of Apps selected by Parrot. Other apps can also be
customer in collaboration with Parrot.
ntegrated HTML5 and JAVA features
eb radio application available on Android
Acid3
Test
Location Based Services Apps
Google Maps with Street View
based Google POI search
Initiate a phone call with a Google POI in one click
ogle certification required)
Productivity Apps
Internet Music & Radios Apps
DUN or
PAN
Data
7 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
7/20
Once an internet connection is established, the Android apps which require a connection become available.
The following page shows some examples of Apps selected by Parrot. Other apps can also be
added by the
Reference
OEM-2012-
273
Date
2012-12-17
Spotify
Deezer
Orange Live Radio
• Dangerous Aera
Notification
Coyote
Wikango
• Petrol / Fuel Apps
Whatgas petrol prices
Station Essences
• Weather Apps
•
Traffic Information Apps
Inrix
Michelin Traffic
Any other Android compatible App…
• Instant Messaging (
using TTS and Voice Message
Yahoo Messenger
Google Talk
•
News / RSS Feeds Apps
CNN News
BBC News
Le Monde
Many more…
•
Video streaming Apps (future development)
YouTube (Google)
DailyMotion
1.7

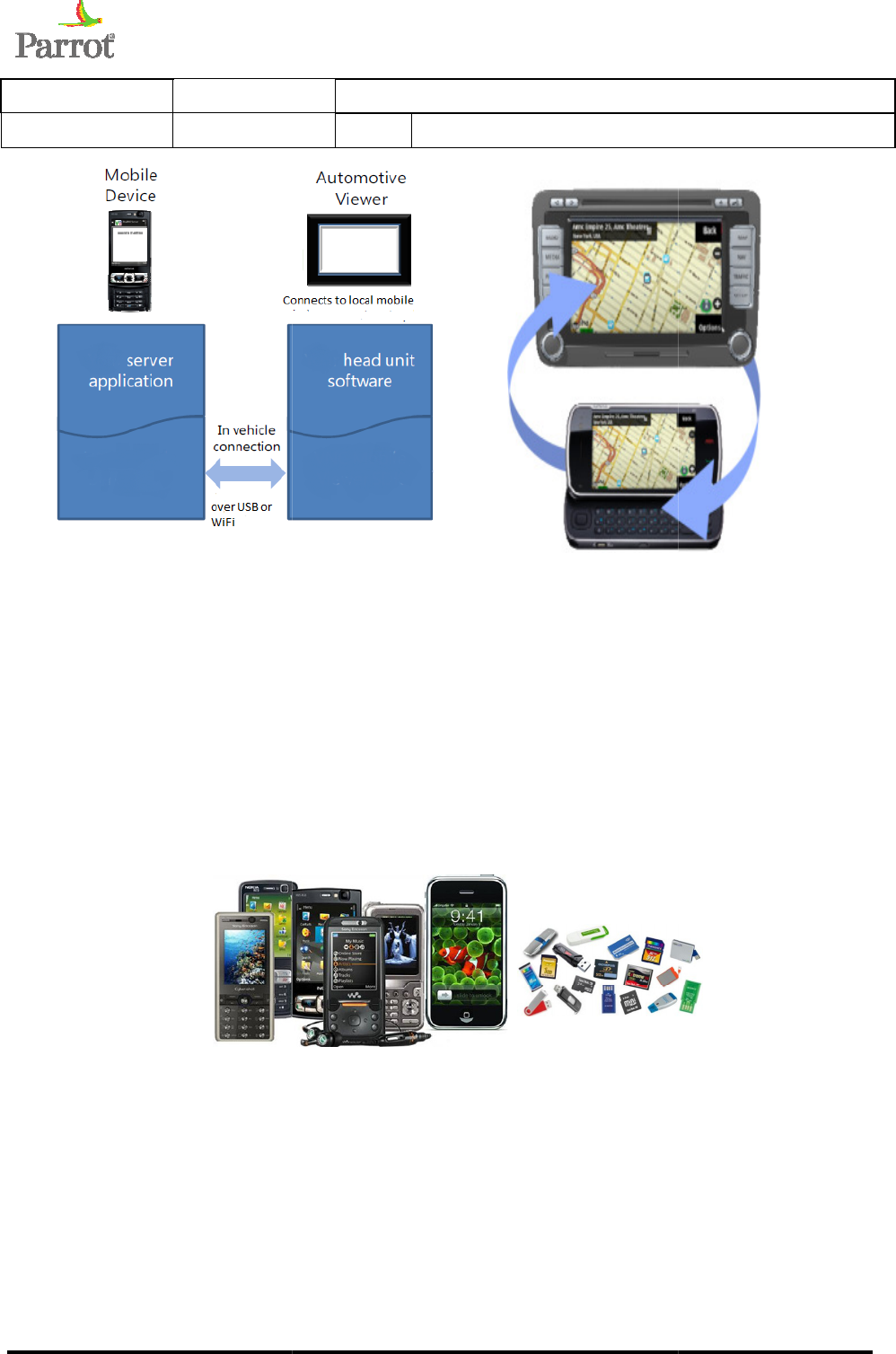

Mirror Link (Real VNC library)
Mirrors on head-
unit’s LCD the display of compatible smart
Controls any App located on you
r smart
or commands and controls
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
Notification
Apps
Traffic Information Apps
Any other Android compatible App…
using TTS and Voice Message
)
News / RSS Feeds Apps
Video streaming Apps (future development)
Mirror Link (Real VNC library)
unit’s LCD the display of compatible smart
-phone
r smart
-phone using the vehicle’s touch-screen
8 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
8/20
Reference
OEM-2012-
273
Date
2012-12-17
1.8
Software Updates (IOP)
To ensure a maximum compatibility level with the latest consumer electronic
Stick, SD Card, iPod, i
Phone), Parrot provides free firmware updates for all solutions on a regular basis
(twice a year during mass production).
Full standard software update made available twice per year
Software can be updat
ed via Bluetooth, USB, UART, DUN or PAN
Regular updates ensure the best compatibility with Phones, Smartphones, PDA, Music players
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
Software Updates (IOP)
To ensure a maximum compatibility level with the latest consumer electronic
devices (mobile phones, USB
Phone), Parrot provides free firmware updates for all solutions on a regular basis
(twice a year during mass production).
Full standard software update made available twice per year
ed via Bluetooth, USB, UART, DUN or PAN
Regular updates ensure the best compatibility with Phones, Smartphones, PDA, Music players
9 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
9/20
devices (mobile phones, USB
Phone), Parrot provides free firmware updates for all solutions on a regular basis
Regular updates ensure the best compatibility with Phones, Smartphones, PDA, Music players
Reference
OEM-2012-
273
Date
2012-12-17
2 RATINGS AND
MAIN SPECIFICATIONS
2.1 Environmental c
onditions
Our Design Validation
test plan usually allows our customer
conditions according to their experiences.
Therefore,
the following chart is given
Storage conditions
Un-
operating temperature range (*)
Operating temperature range
(*) This Temperatu
re range relates to automotive c
the product life cycle: Vehicle parked outdoor in very hot or cold countries, before shipment to ca
2.2 Power Supply
Typical Power Supply
Operating voltage range
Max voltage rating
Max dc current drawn on 3,3 Vdc
supply
Warning !:
This module is strictly limited to battery
battery-type power system
, and cannot be powered
The FC6100 module must be powered by a Limited Power Source
60950-1 safety standard).
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
MAIN SPECIFICATIONS
onditions
test plan usually allows our customer
s to determine their own environmental
conditions according to their experiences.
the following chart is given
for information purpose only:
operating temperature range (*)
Temperature: - 40°C to +125°C
Humidity: 40 to 80% RH
Operating temperature range
- 40°C to + 85°C
re range relates to automotive c
ustomers requirements
regarding the following phase of
the product life cycle: Vehicle parked outdoor in very hot or cold countries, before shipment to ca
Value Unit
3.3 Vdc
3,2 to 3,6 Vdc
3.6 Vdc
1 A
This module is strictly limited to battery
-operation. It can
only be supplie
, and cannot be powered
directly by mains.
The FC6100 module must be powered by a Limited Power Source
(in the meaning of 2
10 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
10/20
s to determine their own environmental
regarding the following phase of
the product life cycle: Vehicle parked outdoor in very hot or cold countries, before shipment to ca
r dealers.
only be supplie
d by a DC mains /
(in the meaning of 2
.5 of IEC / EN / UL
Reference
OEM-2012-
273
Date
2012-12-17
This module is supplied
with a unique 3V3 voltage and integrate its own internal supplies regulations,
per

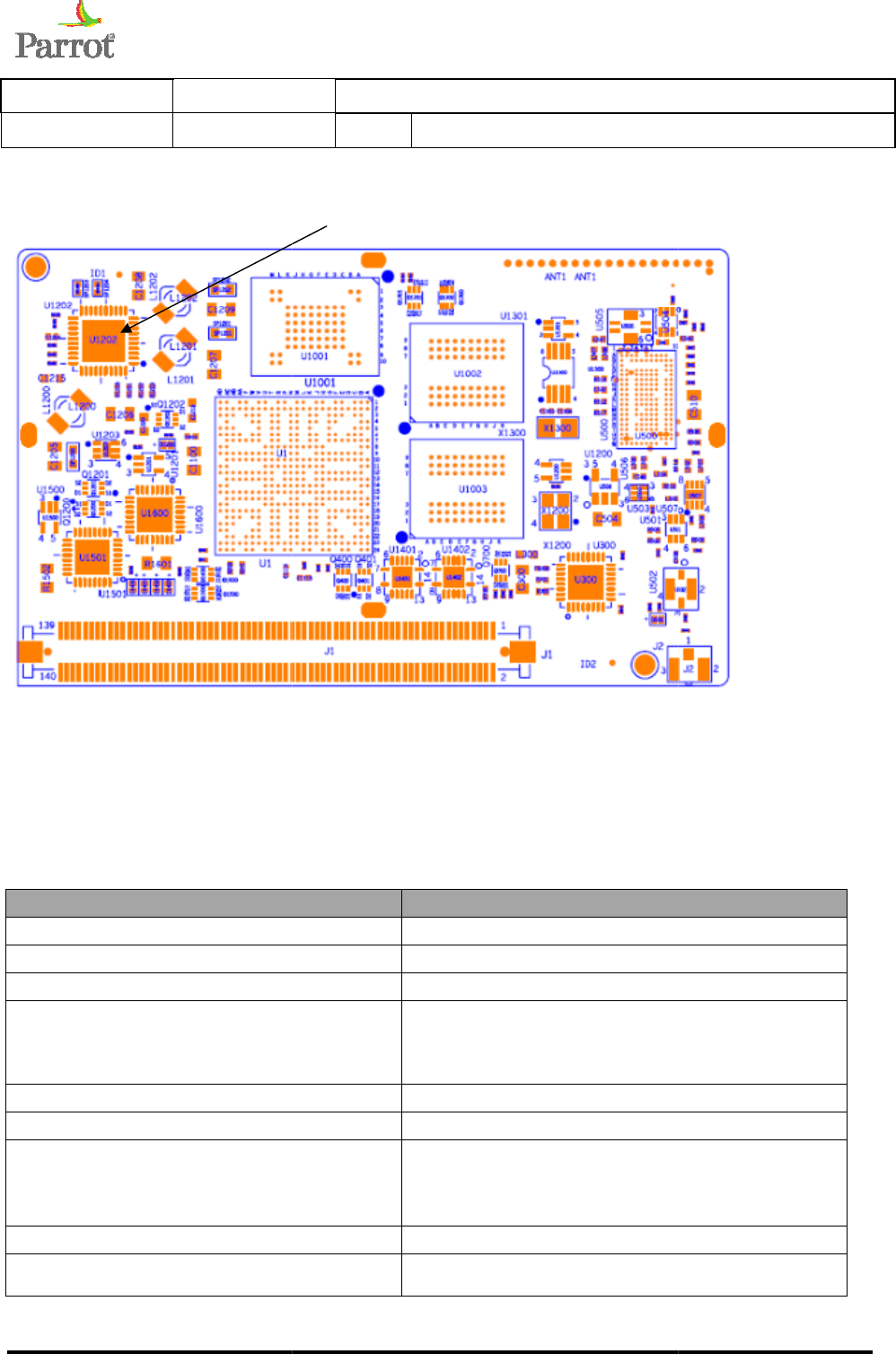

formed by IC U1202 on schematic:
2.3 Bluetooth
specifications
Two FC6100 versions may exist :
• PCB integrated
BT antenna
• External BT antenna
Features
Type
Frequency Band
Number of channels
Modulations
Supported rates
Conducted output power
Antenna types
Antenna gain
Connector
(FC6100 external BT antenna
version)
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
with a unique 3V3 voltage and integrate its own internal supplies regulations,
formed by IC U1202 on schematic:
specifications
BT antenna
(“internal BT antenna”)
Description
3.0 + HS
2.4000 –
2.4835 GHz (2.4 GHz ISM Band)
79 channels (f=2402+k MHz, k=0,…,78)
GFSK for basic rate
π/4 DQPSK for EDR2
8 DPSK for EDR3
FHSS (Frequency Hopping Spread Spectrum)
1, 2, 3 Mbps
4 dBm max
• PCB integrated antenna
for FC6100 internal
antenna version
•
External antenna (antenna connector) for
FC6100 external BT antenna version
2,18 dBi max
(internal or external versions)
(FC6100 external BT antenna
U.FL type
coaxial subminiature connector
11 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
11/20
with a unique 3V3 voltage and integrate its own internal supplies regulations,
2.4835 GHz (2.4 GHz ISM Band)
79 channels (f=2402+k MHz, k=0,…,78)
FHSS (Frequency Hopping Spread Spectrum)
for FC6100 internal
External antenna (antenna connector) for
FC6100 external BT antenna version
(internal or external versions)
coaxial subminiature connector
Reference
OEM-2012-
273
Date
2012-12-17
2.4
WLAN / WiFi specifications
The FC6100 module only exists in version
Features
Type
Frequency Band
Number of channels (USA-
Canada)
Number of channels (Europe)
Modulations
Supported rates
Conducted output power
Antenna type
Antenna gain
Antenna connector type
2.5 FC6100
Module integration
Communication with host:
The FC6100 Module communicates with its Host system
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
WLAN / WiFi specifications
The FC6100 module only exists in version
WLAN external antenna.
Description
802.11b / 802.11g
2.4000 –
2.4835 GHz (2.4 GHz ISM Band)
Canada)
11 channels (2412 to 2462 MHz)
13 channels (2412 to 2472 MHz)
DBPSK; OFDM: BPSK; OFDM:64
-
Up to 11 Mbps (802.11b)
Up to 54 Mbps (802.11g)
20 dBm max
External antenna
2,18 dBi max
U.FL type coaxial subminiature co
Module integration
into the Host System
The FC6100 Module communicates with its Host system
via a set of AT commands.
12 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
12/20
2.4835 GHz (2.4 GHz ISM Band)
-
QAM
U.FL type coaxial subminiature co
nnector
Reference
OEM-2012-
273
Date
2012-12-17
3
MECHANICAL CHARACTER
3.1

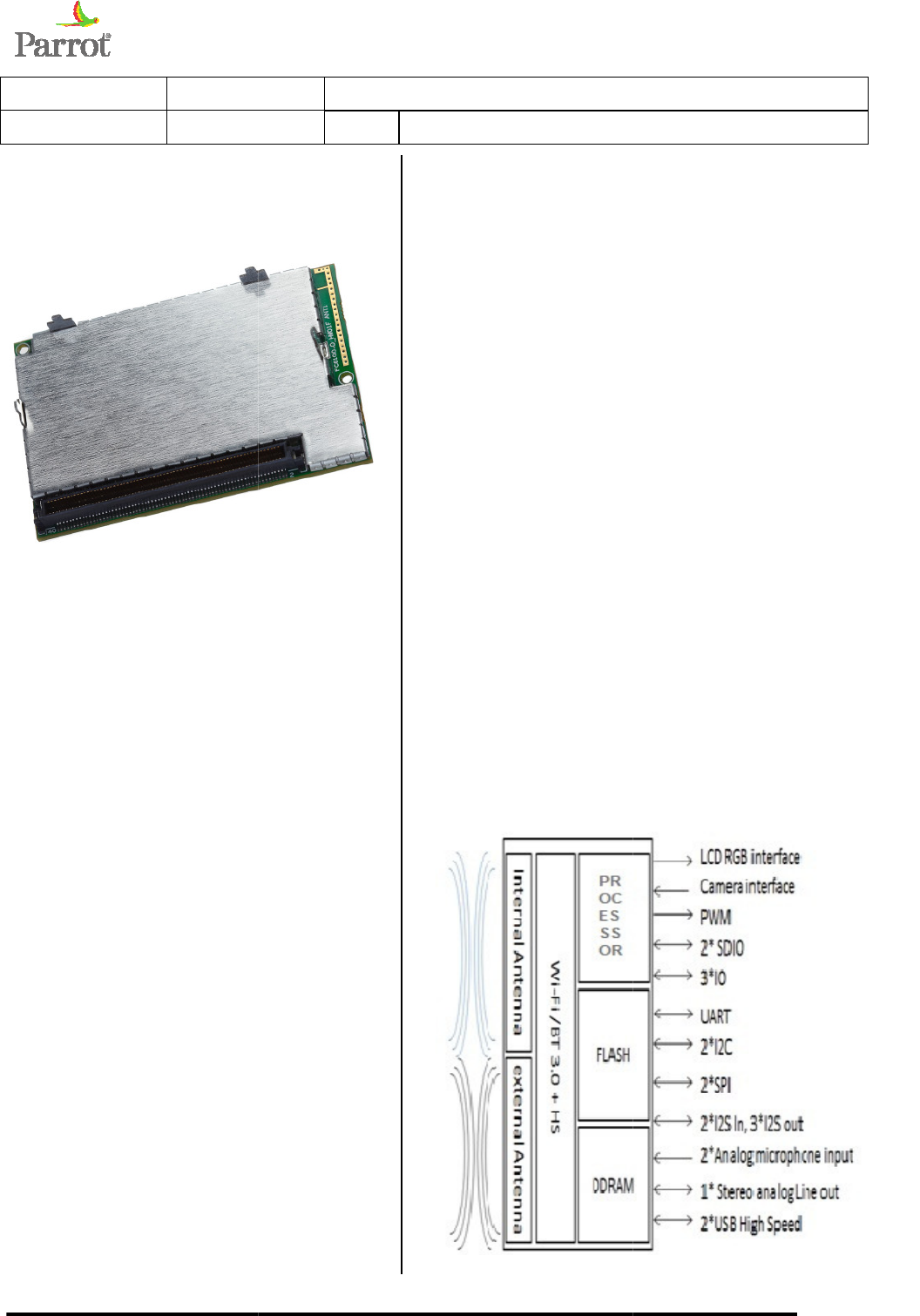

General appearance

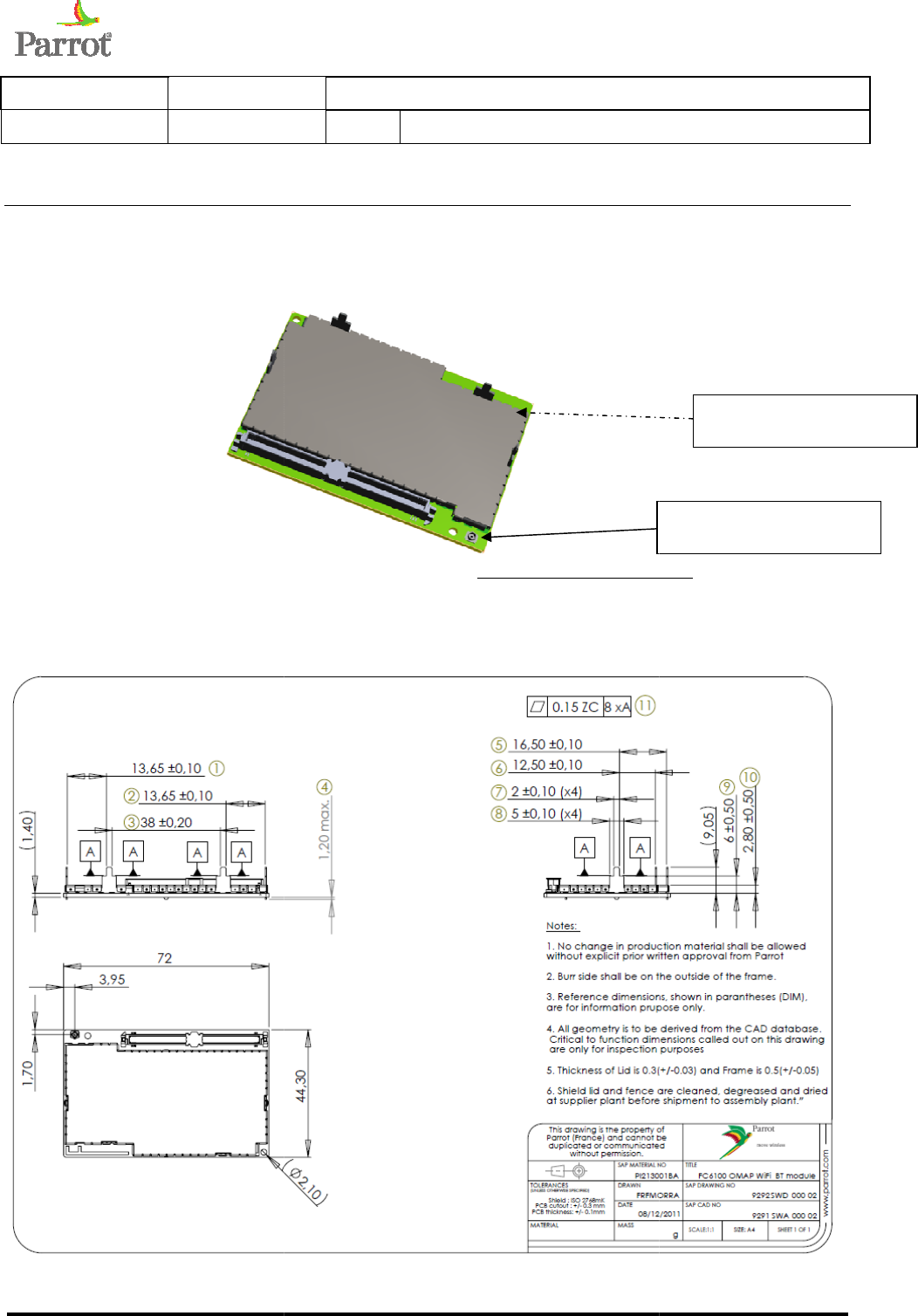

Picture below is given
for information only
(*) This connector exists also on
internal BT antenna version of the module,
3.2 Dimensions

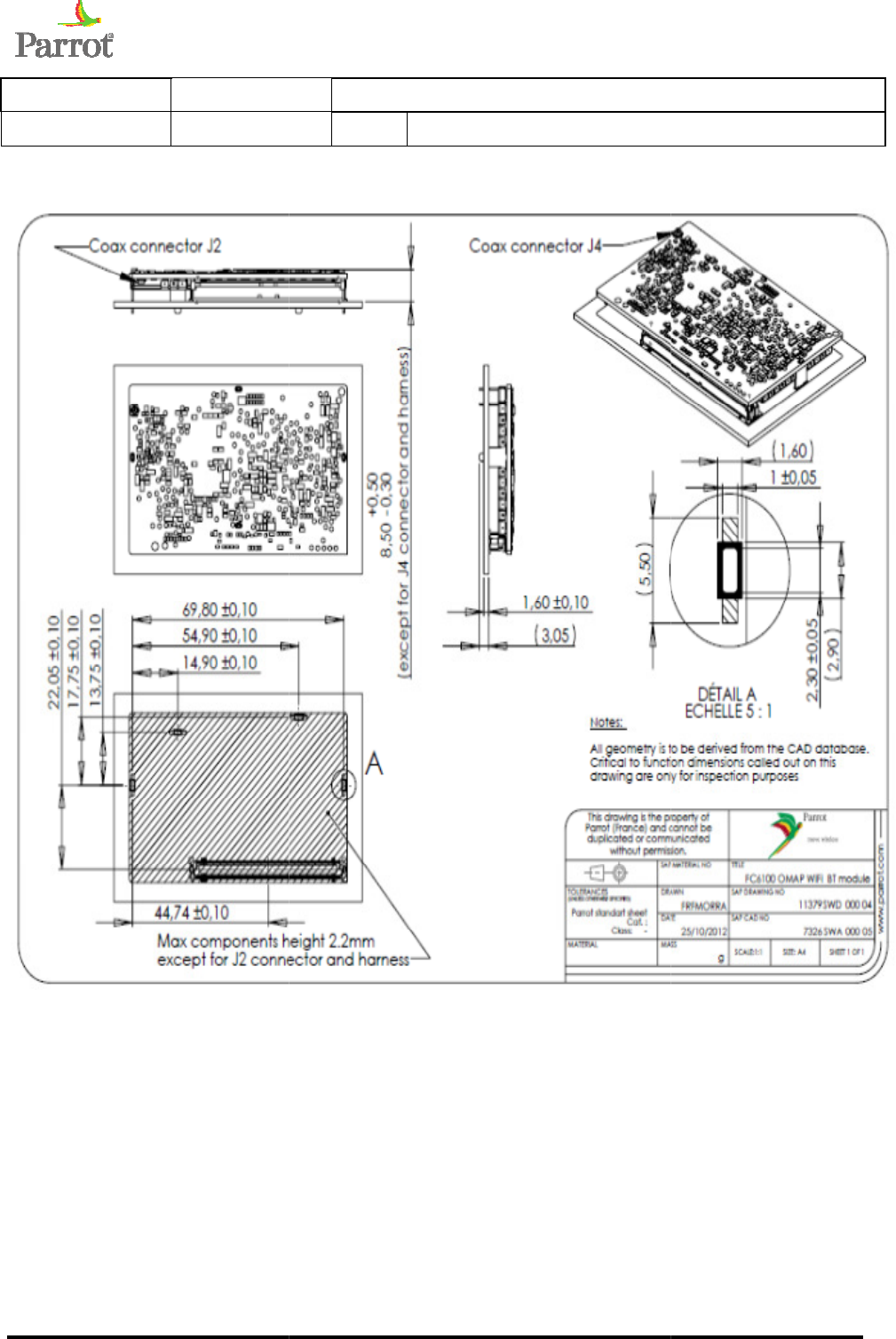

Ma
in dimensions for FC6100 module
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
MECHANICAL CHARACTER
ISTICS
General appearance
for information only
:
internal BT antenna version of the module,
but only for manufacturing purpose
in dimensions for FC6100 module
(in mm) :
13 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
13/20
but only for manufacturing purpose
.
On Bottom side: Bluetooth
external antenna connector (*)
On Top side: WLAN external
antenna connector
Reference
OEM-2012-
273
Date
2012-12-17
3.3 PCB Footprints
(Dimensions in mm)
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
14 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
14/20
Reference
OEM-2012-
273
Date
2012-12-17
3.4 Connectors
3.4.1 FC6100
Main connector
The module’s interface with host systems is made through a 140
0.635mm pitch.
Module connect
or reference: MOLEX / 52885

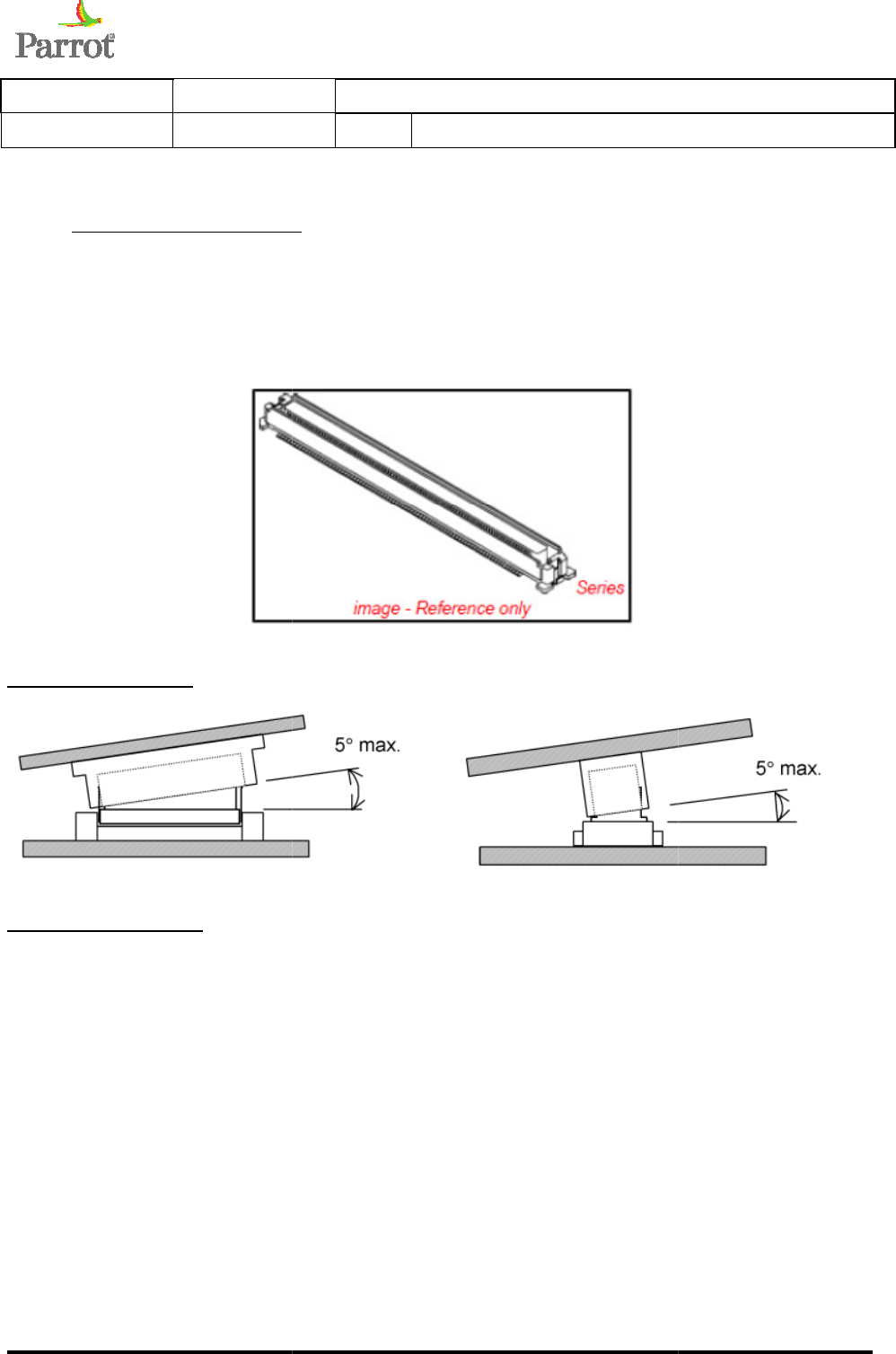

Maximum mating angle :
Maximum insertion force : 50N
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
Main connector
The module’s interface with host systems is made through a 140
-
pin board to board connector with a
or reference: MOLEX / 52885
-1474
15 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
15/20
pin board to board connector with a
Reference
OEM-2012-
273
Date
2012-12-17
3.4.2 BT antenna connector
and WLAN

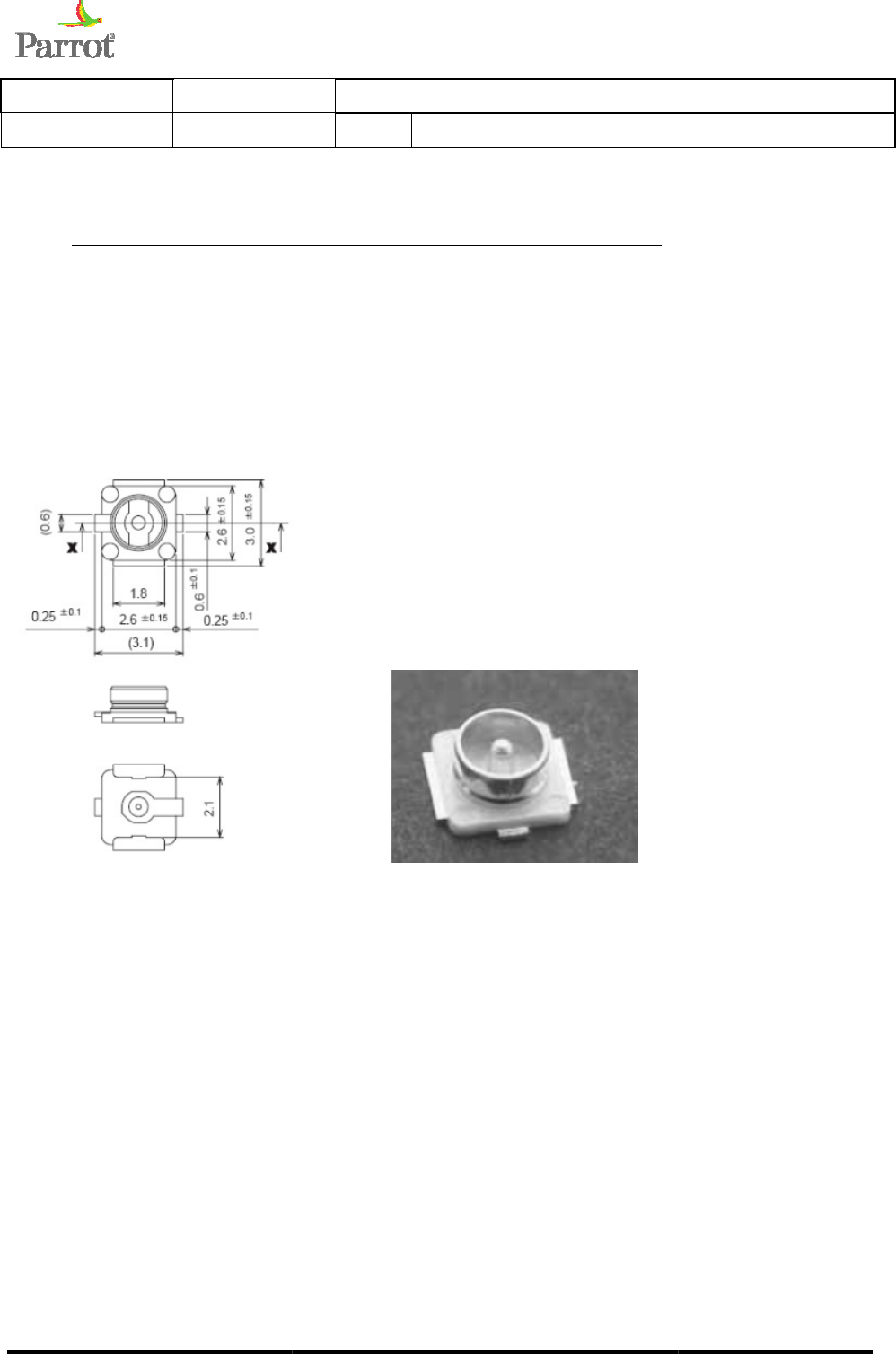

BT connector: For manufacturing purpose (internal antenna version) or connection
(BT external antenna version).
WLAN: connection of external antenna.
Theses RF connectors are of ultra-
small coaxial type :
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
and WLAN
external antenna connector
BT connector: For manufacturing purpose (internal antenna version) or connection
WLAN: connection of external antenna.
small coaxial type :
16 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
16/20
BT connector: For manufacturing purpose (internal antenna version) or connection
of an external antenna
Reference
OEM-2012-
273
Date
2012-12-17
4 MARKING
4.1 Module Marking

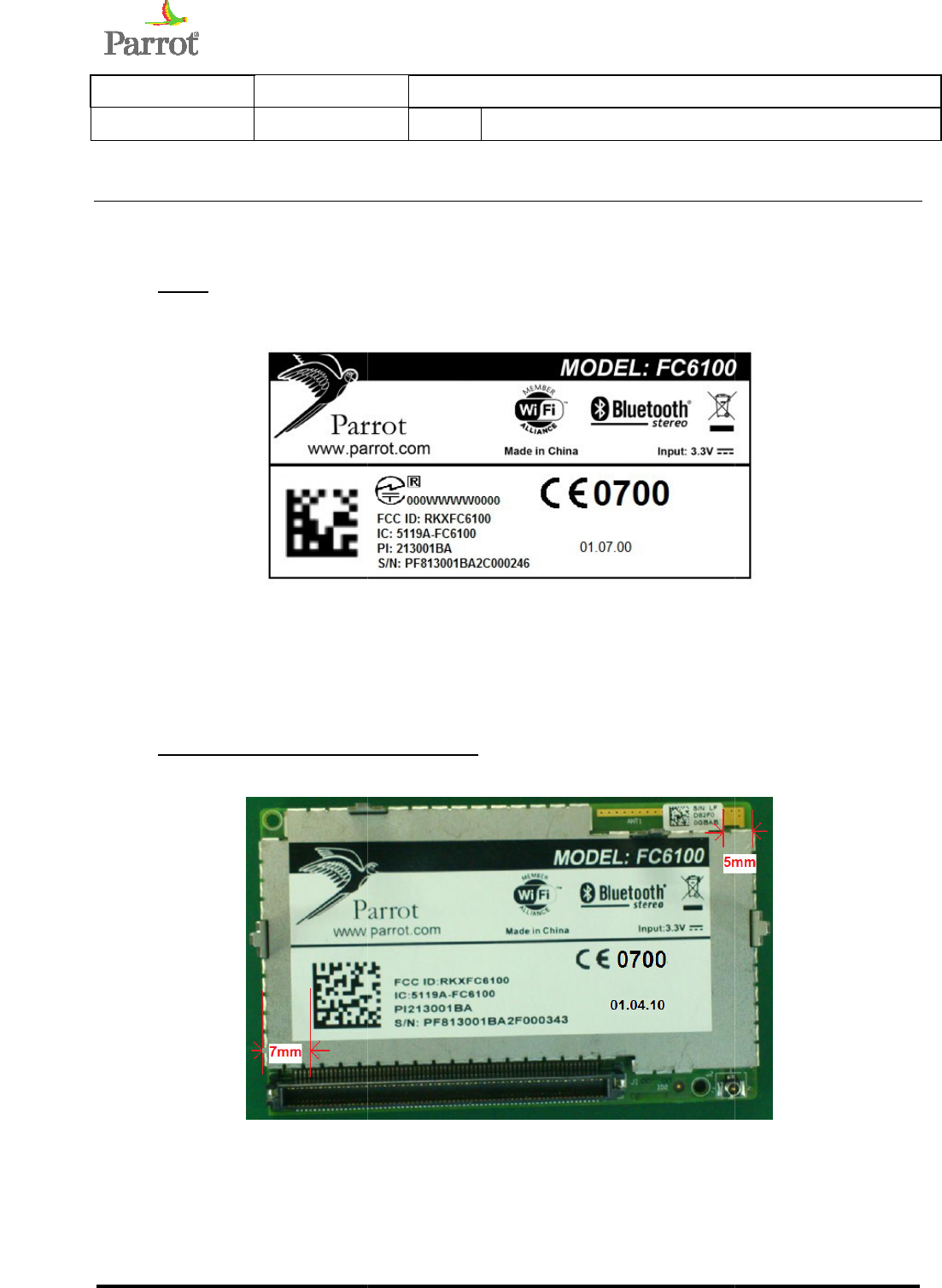

4.1.1 Label
The TELEC / Japan
certification number is not the relevant one. It is just an example for placement on the
label. It will be printed and
updated when final number is available.
number will be printed.
4.1.2
Position and Orientation on m
0700
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
certification number is not the relevant one. It is just an example for placement on the
updated when final number is available.
Until that time
, neither the logo nor the
Position and Orientation on m
odule
17 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
17/20
certification number is not the relevant one. It is just an example for placement on the
, neither the logo nor the
Reference
OEM-2012-
273
Date
2012-12-17
5 CAUTION FOR USE
5.1 ESD Compliance
Operator must use ESD protection gloves for Module Manipulation. In case of electrical discharge, Module
must be scrapped.
5.2 Safety
Mech
anical shield is made of metal and have several draft angle which can cause Human injuries. Operator
must be trained on how to manipulate it.
5.3 Assembly
Key mechanical dimensions are tested before shipment.
In case of manual handling or operation, to avoid
ensure a good insertion in the host side, packaging has been designed to ensure that operator will pick up
the part by the most adequate area of the module. Operator should be trained and alerted about th
behavior.
5.4 Drop
In case the part drop to the floor, Parrot doesn’t warrant the part. Part has to be scrapped. Same process
applies in our manufacturing site.
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
Operator must use ESD protection gloves for Module Manipulation. In case of electrical discharge, Module
anical shield is made of metal and have several draft angle which can cause Human injuries. Operator
must be trained on how to manipulate it.
Key mechanical dimensions are tested before shipment.
In case of manual handling or operation, to avoid
any issue with
mechanical distance between legs
ensure a good insertion in the host side, packaging has been designed to ensure that operator will pick up
the part by the most adequate area of the module. Operator should be trained and alerted about th
In case the part drop to the floor, Parrot doesn’t warrant the part. Part has to be scrapped. Same process
18 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
18/20
Operator must use ESD protection gloves for Module Manipulation. In case of electrical discharge, Module
anical shield is made of metal and have several draft angle which can cause Human injuries. Operator
mechanical distance between legs
and
ensure a good insertion in the host side, packaging has been designed to ensure that operator will pick up
the part by the most adequate area of the module. Operator should be trained and alerted about th
is specific
In case the part drop to the floor, Parrot doesn’t warrant the part. Part has to be scrapped. Same process
Reference
OEM-2012-
273
Date
2012-12-17
6
APPROVAL / CERTIFICA
6.1 Normative
informations
FC6100 module certifications identi
fications
CERTIFICATION
ID
Bluetooth
QD ID: B019632 (FC6100)
WLAN / WiFi
Marvell Semiconductors WFA10013
CE CE 0700
FCC
RKXFCC6100
IC 5119A-
FC6100
TELEC
Not yet available
6.2
FCC and IC requirements for module application
Identifications :
FCC ID: RKXFC6100
IC : 5119A-FC6100
In accordance with FCC Part 15, the
USA – User information
This intends to inform how to specify the FCC ID of our module “
Based on the Public Not
ice from FCC, the host device should have a label which indicat
our module.
The label should use wording such as: “Contains FCC ID: RKX
the same meaning may be used.
The label of the host device sho
uld also include the below FCC
information should be included in the
“
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
(1
) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution: Changes or modifications not expressly approved by the party responsible for complia
void the user’s authority to operate the equipment
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment..
The antenna(s) used for this transmitter must be installed and operated to provide a se
least 20 cm from all persons, and must not be co
or transmitter. Installers
/ integrators
the device and its antenna and
users
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
APPROVAL / CERTIFICA
TIONS
informations
fications
:
QD ID: B019632 (FC6100)
Marvell Semiconductors WFA10013
RKXFCC6100
FC6100
Not yet available
FCC and IC requirements for module application
In accordance with FCC Part 15, the
FC6100 is listed as a limited
Modular Transmitter device.
This intends to inform how to specify the FCC ID of our module “
FC6100” on the
final
ice from FCC, the host device should have a label which indicat
The label should use wording such as: “Contains FCC ID: RKX
FC6100”.
Any similar wording that expresses
uld also include the below FCC
statements
When it is not possible, this
information should be included in the
User Manual of the host device :
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired
Caution: Changes or modifications not expressly approved by the party responsible for complia
void the user’s authority to operate the equipment
.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment..
The antenna(s) used for this transmitter must be installed and operated to provide a se
least 20 cm from all persons, and must not be co
-
located or operated in conjunction with any other antenna
/ integrators
must ensure that a separation distance of
at least 20 cm
users
.”
19 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
19/20
Modular Transmitter device.
final
product:
ice from FCC, the host device should have a label which indicat
es that it contains
Any similar wording that expresses
When it is not possible, this
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
(2) This device must accept any interference received, including interference that may cause undesired
Caution: Changes or modifications not expressly approved by the party responsible for complia
nce could
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment..
The antenna(s) used for this transmitter must be installed and operated to provide a se
paration distance of at
located or operated in conjunction with any other antenna
at least 20 cm
exists between
Reference
OEM-2012-
273
Date
2012-12-17
CANADA – User information
This intends to inform how to specify
product:
According to Canadian st
andards “RSS
indicates that it contains our module. The label should use wording such as: “Contains IC ID: 51
FC6100”.
Any similar wording that expresses the same meaning may be used.
The label of the host device sh
ould also include the below IC s
information should be included in the
[English]
“
This device complies with Industry Canada licence
following two conditions:
(1) This device may
not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
This equipment complies with IC
RF radiation exposure limits set forth for an uncontrolled environment.. Th
antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at
least 20 cm from all persons, and must not be co
or transmitter. Installers
/ integrators
the device and its antenna and
users
[French]
«
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autori
sée aux deux conditions suivantes :
(1) L’appareil
ne doit pas produire de brouillage, et
(2) L’utilisateur
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement
Cet
appareil est conforme aux limites d’exposition au
dans un environnement non contrôlé. Les antennes utilisées pour cet émetteur doivent être installées et
doivent fonctionner à au moins 20 cm de distan
d’autres antennes ou émetteurs,
ou fonctionner
doivent s’assurer qu’une distance de 20 cm
Title
273
FC6100 OEM MODULE PRODUCT PRESENTATION
edition N° :
3.0
This intends to inform how to specify
the Industry Canada (IC)
ID of our module “FC6100
andards “RSS
-210” and “RSS-Gen”
, the host device should have a label
indicates that it contains our module. The label should use wording such as: “Contains IC ID: 51
Any similar wording that expresses the same meaning may be used.
ould also include the below IC s
tatements. W
hen it is not possible, this
information should be included in the
User Manual of the host device:
This device complies with Industry Canada licence
-exempt RSS standards.
Operation is subject to the
not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of
RF radiation exposure limits set forth for an uncontrolled environment.. Th
antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at
least 20 cm from all persons, and must not be co
-
located or operated in conjunction with any other antenna
/ integrators
must ensure that a separation distance of
at least 20 cm
users
.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
sée aux deux conditions suivantes :
ne doit pas produire de brouillage, et
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement
»
appareil est conforme aux limites d’exposition au
x rayonnement
s RF stipulées par
dans un environnement non contrôlé. Les antennes utilisées pour cet émetteur doivent être installées et
doivent fonctionner à au moins 20 cm de distan
ce des utilisateurs,
et ne doivent pas être placées près
ou fonctionner
en conjonction avec ceux-
ci. Les installateurs
doivent s’assurer qu’une distance de 20 cm
au moins sépare l’appa
reil et ses antennes
20 (20)
FC6100 OEM MODULE PRODUCT PRESENTATION
20/20
ID of our module “FC6100
” on the final
, the host device should have a label
which
indicates that it contains our module. The label should use wording such as: “Contains IC ID: 51
19A-
hen it is not possible, this
Operation is subject to the
(2) This device must accept any interference, including interference that may cause undesired operation of
RF radiation exposure limits set forth for an uncontrolled environment.. Th
e
antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at
located or operated in conjunction with any other antenna
at least 20 cm
exists between
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
s RF stipulées par
IC pour une utilisation
dans un environnement non contrôlé. Les antennes utilisées pour cet émetteur doivent être installées et
et ne doivent pas être placées près
ci. Les installateurs
/ intégrateurs
reil et ses antennes
des utilisateurs. »
