USER MANUAL

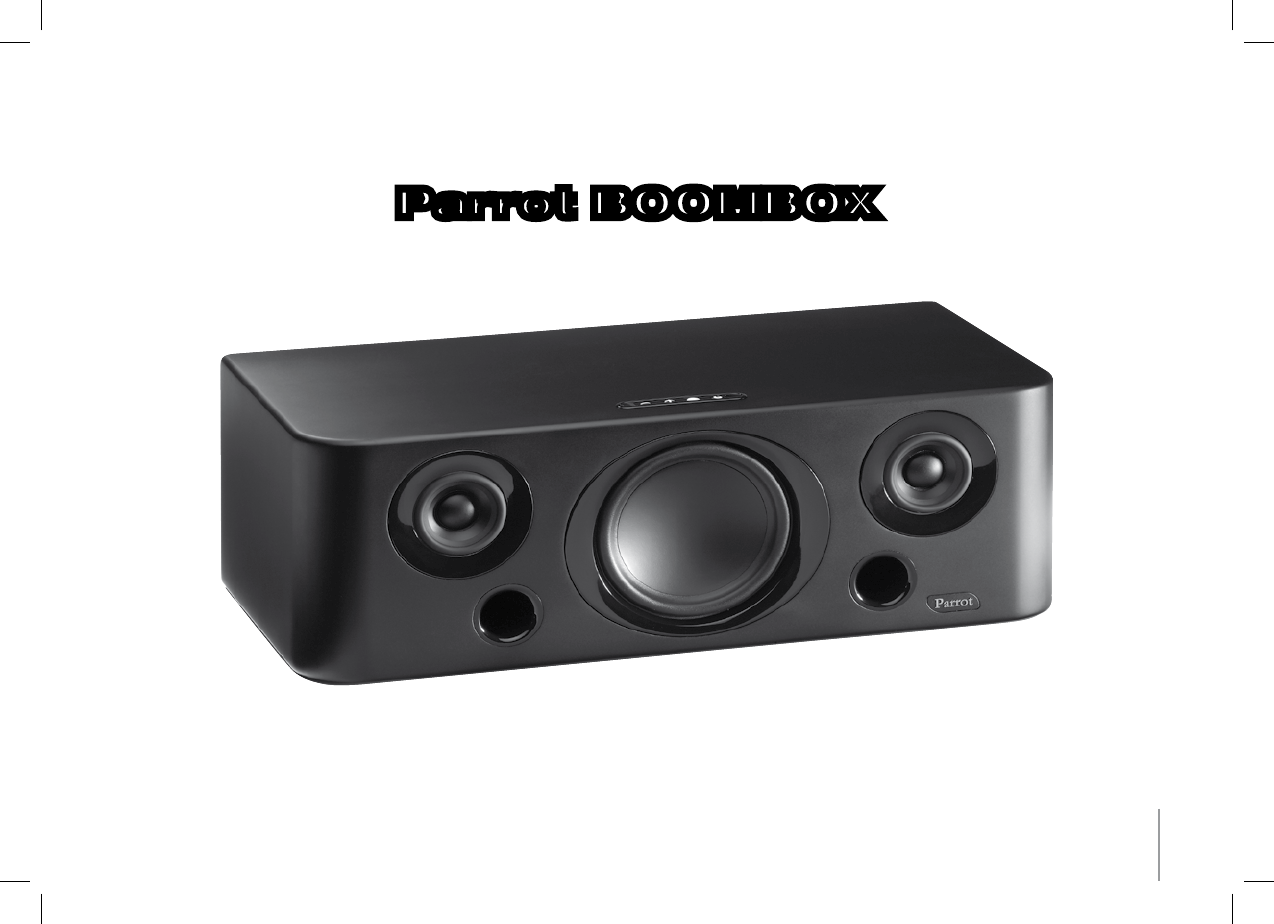

Parrot
BOOMBOX
HIFI WIRELESS
SOUND BOX
FOR BLUETOOTH®ENABLED
MOBILE PHONES, SMARTPHONES, PDA,
MP3 PLAYERS AND COMPUTERS
FRA
ENG ESP ITA DEU
DUT POR
2
www.parrot.com
Parrot BOOMBOX
English
Français
Español
Italiana
Dutch
Deutsh
Portugais
......................................................................
......................................................................
......................................................................
......................................................................
......................................................................
......................................................................
......................................................................
p 7-16
p 17-26
p 27-36
p 37-46
p 47-56
p 57-66
p 67-76
3
GENERAL INFORMATION
4
SAFETY INFORMATION
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1). this device may not cause harmful interference, and
(2). this device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
DECLARATION OF CONFORMITY
We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France, declare
under our sole responsibility that our product, the Parrot BOOMBOX to
which this declaration relates is in conformity with appropriate standards
EN300328, EN301489-1, IEC60065 following the provision of Radio
Equipment and Telecommunication Equipment directive, with requirements covering EMC
directive 89/336/EEC and Low Voltage directive 73/23/EEC.
BLUETOOTH
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by Parrot S.A. is under license. Other trademarks and trade names are those
of their respective owners.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in the European Union and other European countries with separate collection
systems). This marking shown on the product or its literature, indicates that it should
not be disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources. Household users should contact either the retailer
where they purchased this product, or their local government office, for details of where
and how they can take this item for environ, mentally safe recycling. Business users should
contract their supplier and the terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
MP3 TRADEMARK
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
and Thomson.
PROTECTION AND PERSONAL SAFETY
Carefully read the user guide and follow the indicated procedure when setting
up the device.
Do not dismantle or open the device and do not touch the electronic components
or the drivers.
Do not attempt to dismantle or modify either of the speakers. Never introduce any metal
object to avoid the risks of electric shocks, fire, short circuits or dangerous emissions.
If your device shows signs of faulty operation, call the approved Parrot technical support
centre or an approved retailer.
Never leave the Parrot BOOMBOX speakers exposed to rain or chemical products; do
not place them in a damp area or where they are likely to be splashed with water.
Never place your device on a recipient containing any type of liquid, which might seep
inside the device. Doing so will reduce the risks of electric shocks, short circuits, fire
and injury.
GENERAL PRECAUTIONS
Do not expose the Parrot BOOMBOX system to outside temperatures below 5°C or
above 55°C. The system could be damaged or the cabinet warped. Avoid placing
the system near a source of heat or exposing it to sunlight (even through a window).
•
•
•
•
•
5
Similarly, excessively low temperatures and humidity could damage the device.
Always unplug the system from the mains during a thunderstorm or if you will not be
using it for a certain amount of time. Otherwise, you are increasing the potential risks
of electric shocks, short circuits and fire.
Only use the power lead supplied with the device.
Do not place any heavy objects on top of the speakers: take care when using the
buttons, connections and protection covers. Otherwise, you are likely to damage the
device.
Avoid exposing the Parrot BOOMBOX speakers to an excessive amount of dust,
whether during operation or in storage. Dust is likely to build up inside the device and
lead to poor or faulty operation.
Do not use any benzene-based products, solvents, detergents or any other chemical
products to clean the outside of the device. Such products are likely to discolour and
damage the front panel and the case. Simply wipe over with a soft, dry cloth.
DATA SECURITY
Parrot and its suppliers shall not be held liable for any lost data or any other damage
resulting directly or indirectly from the use or malfunction of this product.
Parrot strives to provide the most up-to-date and comprehensive guides possible. It is our
aim to provide you with a user-friendly, easy-to-understand guide to help you set up your
new equipment and quickly become familiar with the various features. If your guide does
not exactly match the product purchased, refer to our website (www.parrot.com) to obtain
the very latest version of the guide.
•
•
•
•
•
GENERAL INFORMATION
COPYRIGHTS
Copyright © 2004 Parrot. All rights reserved. The total or even partial reproduction,
transmission or storage of this guide in any form or by any process whatsoever (electronic,
mechanical, photocopy, recording or otherwise) is strictly prohibited without prior consent
from Parrot.
REGISTERED TRADEMARKS
All the names and trademarks mentioned in this document are copyright-protected and are
the property of their respective owners.
MODIFICATIONS
The explanations and specifications in this guide are given for information purposes only
and may be modified without prior notice. They are deemed to be correct at time of going
to press. The utmost care has been taken when writing this guide, as part of the aim to
provide you with accurate information. However, Parrot shall not be held responsible for
any consequences arising from any errors or omissions in the guide, nor for any damage
or accidental loss of data resulting directly or indirectly from the use of the information
herein. Parrot reserves the right to amend or improve the product design or user guide
without any restrictions and without any obligation to notify users.
As part of our ongoing concern to upgrade and improve our products, the product that
you have purchased may differ slightly from the model described in this guide. If so, a
later version of this guide might be available in electronic format at Parrot’s website at
www.parrot.com.
7
English
Parrot BOOMBOX
8
SOMMAIRE
Important Safety Instructions ....................................................................................................................
Warning: Wireless technology ...................................................................................................................
Introduction ................................................................................................................................................
Kit contents .................................................................................................................................................
Using the Parrot BOOMBOX.......................................................................................................................
• Streaming audio from a mobile phone / PDA / smartphone ...............................................
• Streaming audio from a PC .....................................................................................................
Compatibility ..............................................................................................................................................
• Mobile phone/Smartphone/PDA
with A2DP audio streaming functionality ................................................................................
• Windows operated PC and peripherals .................................................................................
• Parrot Configuration Tool software .......................................................................................
Using the Parrot BOOMBOX for the first time .........................................................................................
• Placing and installing the Parrot BOOMBOX .........................................................................
Connecting the Parrot BOOMBOX to an audio player .............................................................................
• Using an audio player via Bluetooth .....................................................................................
• Pairing with a Bluetooth audio player ..................................................................
• Using several Bluetooth audio players ..................................................................................
• Using an audio player with a Cinch audio cable ...................................................................
• Low power consumption state ..............................................................................................
Audio streaming function .........................................................................................................................
•Bluetooth audio streaming connection .................................................................................
• Volume control ........................................................................................................................
• Controlling the play function .................................................................................................
Parrot Configuration Tool software ..........................................................................................................
Software updates via Bluetooth ...............................................................................................................
Troubleshooting .........................................................................................................................................
Hotline .........................................................................................................................................................
Technical Specification ...............................................................................................................................
9
10
10
11
11
11
11
12
12
12
12
12
12
13
13
13
13
13
14
14
14
14
14
14
15
15
16
16
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat as radiators. Heat registers, stoves or other apparatus (including amplifiers ) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power supply cord or AC/DC adaptor is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,does not operate normally,
or has been dropped.
14. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
This apparatus is designed for indoor use only.
An equilateral triangle, is intended to alert the user to the presence of uninsulated «dangerous voltage»
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
WARNING : To reduce the risk of fire or electric shock , do not expose this apparatus to rain or moisture.
10 Parrot BOOMBOX
WARNING : WIRELESS TECHNOLOGY
Interference can be caused by devices that emit waves. Operating devices such as WIFI routers and micro-wave ovens may cause problems when using your Parrot BOOMBOX
for audio streaming, thereby adversely affecting your system’s sound quality
INTRODUCTION
Bluetooth is used to establish audio communications and send data via a short-distance radio link. It allows a large number of electronic devices to communicate with each other,
especially Bluetooth phones and speakers.
Parrot is drawing on the benefit of many years of experience with Bluetooth technology to offer you a top-quality sound system. You will be able to connect the Parrot BOOMBOX to your
audio player, whether it’s a mobile phone, computer or whatever, via a Bluetooth or Cinch connection.
With this system based on innovative technology, you can listen to your MP3 tracks on your audio player via the Parrot BOOMBOX. You will then be able to choose the tracks you want
to listen to from your audio player.
11
English
Parrot BOOMBOX
KIT CONTENTS
The kit includes :
Parrot BOOMBOX system
Cinch audio cable
Mains cable
Four adhesive pads
Removable black cover
CD-ROM containing the Parrot Configuration Tool software
User guide
Parrot product guide
USING THE Parrot BOOMBOX
STREAMING AUDIO
FROM A MOBILE PHONE / PDA / SMARTPHONE
You can listen to your music tracks stored on your mobile phone / PDA / smartphone
via the Parrot BOOMBOX. Your mobile phone must be able to support the Bluetooth
A2DP profile (Advanced Audio Distribution Profile). You may also come across the terms
«Bluetooth stereo» or «Audio streaming».
If you want to find out which devices are equipped with this technology, visit the Support
section on our website at www.parrot.com
•
•
•
•
•
•
•
•
STREAMING AUDIO FROM A PC
You can also listen to your music tracks stored on your PC via the Parrot BOOMBOX. Your
PC must support the Bluetooth A2DP profile (Advanced Audio Distribution Profile).
To find out if your PC is equipped with this technology, visit the website of your machine
manufacturer or the Support section on our website at www.parrot.com
NB: There will be other possible ways of using the Parrot BOOMBOX in the future. You can keep up
to date with the latest developments by visiting the Support section on our website at www.parrot.
com
12 Parrot BOOMBOX
COMPATIBILITY
MOBILE PHONE/SMARTPHONE/PDA
WITH A2DP AUDIO STREAMING FUNCTIONALITY
If you want to obtain the latest, up-to-date list of compatible devices, visit the Support
section on our website at www.parrot.com.
You will find a complete list there, which is regularly updated.
You will find there, in particular, all the procedures for configuring your mobile phone to
operate with your Parrot BOOMBOX. These procedures will make it easy for you to use
your Parrot BOOMBOX with your audio player.
WINDOWS OPERATED PC AND PERIPHERALS
If you want to obtain the latest, up-to-date list of compatible devices, visit the Support
section on our website at www.parrot.com . You will find a complete list there, which is
regularly updated.
You will find there, in particular, all the procedures for configuring your PC or peripheral
to operate with your Parrot BOOMBOX. These procedures will make it easy for you to use
your Parrot BOOMBOX with your audio player.
PARROT CONFIGURATION TOOL SOFTWARE
The Parrot Configuration Tool software is an application dedicated to controlling the sound
from your Parrot BOOMBOX (volume control).
You will find this application on the CD-ROM supplied with your Parrot BOOMBOX.
This software is only compatible with the Windows XP operating system.
For further information, please refer to the «Parrot Configuration Tool software» section in
this manual.
USING THE Parrot BOOMBOX FOR THE FIRST TIME
PLACING AND INSTALLING THE PARROT BOOMBOX
• Clean the bottom of your Parrot BOOMBOX using a dry cloth.
• Stick the adhesive pads supplied to the bottom of your speaker.
• Select where you want to place your Parrot BOOMBOX in the room.
Avoid placing it close to devices using wireless technologies, such as WIFI routers,
micro-wave ovens, etc., to prevent interference from adversely affecting the sound
quality of your Parrot BOOMBOX.
WARNING: Do not block any ventilation openings located at the back of the apparatus.
• Connect the mains cable supplied to the appropriate socket on your Parrot BOOMBOX,
then plug the cable into an electrical socket.
• When your Parrot BOOMBOX is turned on the LED flashes red/blue. When the LED
stops flashing your system is ready to be used
US EU UK
Adhesive pad•
Adhesive pad•
13
English
Parrot BOOMBOX
CONNECTING THE Parrot BOOMBOX TO AN AUDIO PLAYER
An audio player is the device you use to store your MP3 music files and start playing these
files. An audio player can therefore be a mobile phone, PC, etc. However, the relevant
audio player must be equipped with Cinch connectors or a Bluetooth A2DP profile. For
more information, visit our website at www.parrot.com
USING AN AUDIO PLAYER VIA BLUETOOTH
If you are using a Bluetooth-enabled audio player with your Parrot BOOMBOX you must
first of all pair the two devices. This phase allows the two devices to exchange data in
order to establish a connection
Pairing with a Bluetooth audio player
For security reasons, you must first of all prepare your Parrot BOOMBOX for pairing.
During this phase, you must physically have access to the device
Press the Configuration button.
The Parrot BOOMBOX LED starts flashing: the device is ready to be paired.
Use your audio player’s Bluetooth menu to search for the peripherals (refer to the
manual for your audio player or to our website at www.parrot.com).
When the search is complete, select «BOOMBOX».
You are prompted to enter a PIN. Enter «0000» in your audio player. This is only
applicable if your audio player prompts you to key in a code. If this does not happen,
make sure that your audio player’s default code is «0000». Refer to your audio player’s
manual for more detailed information
You can now use your Parrot BOOMBOX with your Bluetooth audio player. If you want to
stream audio from your music files, refer to the «Audio streaming function» section in this
manual.
•
•
•
•
•
USING SEVERAL BLUETOOTH AUDIO PLAYERS
The Parrot BOOMBOX can be used with several audio players.
But if one of these audio players is streaming audio from music files the other devices will
not be able to play music via the Parrot BOOMBOX at the same time.
NB: Several audio players are using particular Bluetooth stacks which prevent you to use other
audio players with your Parrot BOOMBOX. This prevents music from being streamed from other
audio players unexpectedly and without authorisation. You must disconnect this device from the
Parrot BOOMBOX beforehand.
NB: Only one device at a time can stream audio from music files via the Parrot BOOMBOX. You
must stop the current streaming in order to stream music from another Bluetooth device.
USING AN AUDIO PLAYER WITH A CINCH AUDIO CABLE
If your audio player supports it you can connect it to your Parrot BOOMBOX using an
audio cable with Cinch connectors. The Parrot BOOMBOX actually has a Cinch connector
which you can use to stream music through. This allows you to use a huge range of audio
players.
You simply connect the Cinch audio cable to the specific Parrot BOOMBOX connectors.
Then attach this cable to your audio player. Make sure to check that the connectors are
inserted properly to avoid any disruption.
NB: When you use the Cinch connectors you can stream audio from your music files via Bluetooth
from an audio player. Streaming music via Bluetooth will have priority over the Cinch connection
14 Parrot BOOMBOX
LOW POWER CONSUMPTION STATE
The Parrot BOOMBOX does not establish any Bluetooth connection. Any audio streaming
must be initiated from your audio player : your system is operating in low power mode
when it is not being used in order to save energy.
AUDIO STREAMING FUNCTION
BLUETOOTH AUDIO STREAMING CONNECTION
Before streaming audio from your music files between your Parrot BOOMBOX and audio
player (via an audio streaming connection), you must have first paired your audio player
with your system. Refer to the «Connecting the Parrot BOOMBOX to an audio player»
section in this manual for more information
Start playing your music file.
Your audio player may prompt you to select the device again which the audio
will be streamed to from the music file.
Or
Select from the Bluetooth menu of your audio player
and connect to your Parrot BOOMBOX.
Start playing your music file
NB: If you are using a PC as a Bluetooth audio player, but there is no sound coming from your
Parrot BOOMBOX, you must specify the audio output of your computer. Make sure that the «Sound
playback» option is set to «High-quality Bluetooth Audio». You can find this option by selecting
Start/Settings/Control panel/Sound and Audio Devices/Audio on your computer. Restart your
multimedia player if needed.
To benefit from the latest procedures for establishing an audio streaming connection for
your audio player, refer to the Support section on our website at www.parrot.com
•
•
•
•
VOLUME CONTROL
If your audio player has this function, it will allow you to control the volume. This means
that you will be able to control the volume remotely.
If your audio player is a PC running Windows XP you can then use the Parrot Configura-
tion Tool software to adjust the volume settings.
The buttons on top of the Parrot BOOMBOX allow you to control the volume directly from
the device.
CONTROLLING THE PLAY FUNCTION
Some audio players allow you to fast forward/rewind your music tracks, as well as pause
them. To check whether your player has these functions, visit the Support section on our
website at www.parrot.com
NB: The use of some of these functions (volume control and remote control) depends solely on
your audio player. Visit the Support section on our website at www.parrot.com to find out more
information.
15
English
Parrot BOOMBOX
SOFTWARE UPDATES VIA BLUETOOTH
You can update the version of software used by your Parrot BOOMBOX via Bluetooth.
Upgrading offers you new features and improves compatibility with a larger number of
phones. This operation is carried out via Bluetooth using a PC equipped with Bluetooth
technology.
The software can be updated via an interface: Parrot Flash Update Wizard software. You
will find this software, along with instructions on how to use it in the Support section of our
website at www.parrot.com .
Alternatively, you can update the software directly using the Bluetooth FTP ((File Transfer
Protocol) profile from your computer, if this is supported by your Bluetooth stack. In this
case, the Parrot Flash Update Wizard is not required to update the software.
TROUBLESHOOTING PARROT CONFIGURATION TOOL SOFTWARE
You can use the Parrot Configuration Tool software from a PC running Windows XP to
configure your Parrot BOOMBOX.
Before running the Parrot Configuration Tool software, you need to make sure that there
is no active Bluetooth connection established with your Parrot BOOMBOX and more
especially, that there is no active audio streaming going on.
Once you have started the application, you need to select your Parrot BOOMBOX before
you can configure it.
Once the Bluetooth connection has been established with your Parrot BOOMBOX, you can:
Control the volume of your Parrot BOOMBOX
Find out the software version used by your Parrot BOOMBOX.
•
•
Problem Solution
No sound is coming through
the Parrot BOOMBOX.
- Check that the device is connected properly.
- Check that your device supports the Bluetooth
A2DP profile and the source role.
I cannot connect my audio player to the Parrot
BOOMBOX.
-- Hold down the Configuration button on the
Parrot BOOMBOX for two seconds, then restart
the search and connect.
I used a Cinch audio cable to connect
my audio player, but I get no sound.
- Check that the Cinch audio cable is properly
plugged in to the Parrot BOOMBOX
and audio player.
- Check that there is no Bluetooth connection
with an audio player. The Bluetooth connection
will take priority over the Cinch connection.
My Parrot BOOMBOX makes a noise
when I use a Cinch audio cable.
- Check that the Cinch audio cable is properly
plugged in to the Parrot BOOMBOX
and audio player.
I am using my PC as a Bluetooth audio player,
but there is no sound coming
from my Parrot BOOMBOX.
- Check that the «Sound playback» option is set
to «High-quality Bluetooth Audio». You can find
this option by selecting Start/Settings/Control
panel/Sound and Audio Devices/Audio on
your computer.
16 Parrot BOOMBOX
HOTLINE
Our hotline is at your disposal. You can contact us by email or telephone.
Italy : [+39] 02 86 39 14 63
Spain : [+34] 902 404 202
UK : [+44] (0)870 112 5872
Germany : 0900 172 77 68
USA : [+1] (877) 9 Parrot (toll free)
China : [+86] (0)21 6460 1944
Hong Kong: [+852] 2736 1169
France : 01 48 03 60 69
Europe : [+33] 1 48 03 60 69 (Spoken languages : French, English, Spanish and
German).
Check out our website at www.parrot.com for further information.
TECHNICAL SPECIFICATIONS
Built-in stereo codec :
Bluetooth 2.0+EDR module
32Mbit flash memory, 64Mbit SDRAM
SBC and MP3 codecs
3 drivers: one woofer and two widebands
Built-in stereo audio amplifier: 60W
Class D audio amplifier with digital input
Frequency range: 80Hz – 20kHz
Power supply: 110/220V (automatic voltage selector)
Parrot 32-bit DSP technology
Parrot P5 processor
32-bit digital sound processing
7 baud equalisers
Cinch socket for line-in
Dimensions: 430 x 225 x 150 mm
Removable speaker covers
Bluetooth :
Bluetooth 2.0+EDR qualified
A2DP (SBC and MP3 codec)
AVRCP
PIN code: 0000
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
