Parrot PHOTO VIEWER
English
User Guide
4
Parrot PHOTO VIEWER
CONTENTS
INTRODUCTION
KIT CONTENTS
QUICK START GUIDE
Switching On
SENDING PHOTOS
Sending from a Phone or PDA
Sending from a Computer
FRAME POSITION
BACKLIGHT
MENUS
Scrolling Through the Menus
Menu Description
MAIN MENU
SETTINGS
UPDATING THE SOFTWARE
HOTLINE
SPECIFICATIONS
NOTES
GENERAL INFORMATION
...................................................................................
.....................................................................................
.........................................................................
....................................................................
..............................................................................
........................................
. ...............................................
................................................................................
..........................................................................................
................................................................................................
..........................................
.............................................................
.........................................................................................
.............................................................................................
................................................................
..............................................................................................
..................................................................................
................................................................................................
...................................................................
05
06
06
06
07
07
08
09
10
10
10
11
11
13
14
14
15
16
157
5
English
Parrot PHOTO VIEWER
INTRODUCTION
Thank you for purchasing the Parrot PHOTO VIEWER.
The Parrot PHOTO VIEWER is an LCD photo frame (320 x 234 pixels). Photos can be sent to the viewer from a mobile
phone, PDA or computer via Bluetooth.
Parrot PHOTO VIEWER
6
Parrot PHOTO VIEWER
- English
- Français
- Español
- Italiano
- Deutsch
- Portuguès
- ...
KIT CONTENTS
The kit contains:
• An LCD frame.
• A transformer.
• A metal rod to be screwed into the frame.
• A wall bracket.
• A user guide.
• A Parrot product guide.
QUICK START GUIDE
Switching On
• Plug the jack into the transformer.
• Select the language that you wish to use for the Parrot
PHOTO VIEWER. Scroll through the menu using the buttons
on the rear of the frame.
• The Parrot PHOTO VIEWER is ready to receive your photos.
7
English
Parrot PHOTO VIEWER
SENDING PHOTOS
Sending from a Phone or PDA
• On your phone/PDA, go to the «Pictures» menu. Select a picture and choose «Send by Bluetooth». Your device starts
searching for Bluetooth peripherals.
• Once your phone/PDA has finished searching, select «Parrot PHOTO». If your device prompts you to enter a code,
type «0000». The picture is then sent to the viewer. Several pictures can be sent at the same time, though this feature
will depend on your device.
• During transmission, the Bluetooth icon appears on the screen and the picture is displayed.
• Note: if your phone/PDA is unable to detect the Parrot PHOTO VIEWER, you might have made the Bluetooth PHOTO
VIEWER undetectable to other devices. Refer to «Bluetooth Visibility» in the «Settings» chapter. However, if your Blue-
tooth device is already paired to the frame, it can always connect to the PHOTO VIEWER.
• Note: for further information on how to send photos, refer to your phone’s guide or visit our website at www.parrot.biz.
8
Parrot PHOTO VIEWER
Sending from a Computer
• Enable Bluetooth on your computer.
• Right-click on the picture that you wish to send and choose «Send by Bluetooth».
• Your PC will search for any nearby Bluetooth peripherals.
• Select «Parrot PHOTO». Type «0000» if your PC prompts you to enter a code.
• During transmission, the Bluetooth icon appears on the screen and the picture is displayed.
• Note: if your computer is unable to detect the Parrot PHOTO VIERWER, you might have made the Bluetooth
PHOTO VIEWER undetectable to other devices. Refer to «Bluetooth Visibility» in the «Settings» chapter. However, if your
Bluetooth device is already paired to the frame, it can always connect to the PHOTO VIEWER.
• Note: for further information on how to send photos, refer to your phone’s guide or visit our website at www.parrot.biz.
9
English
Parrot PHOTO VIEWER

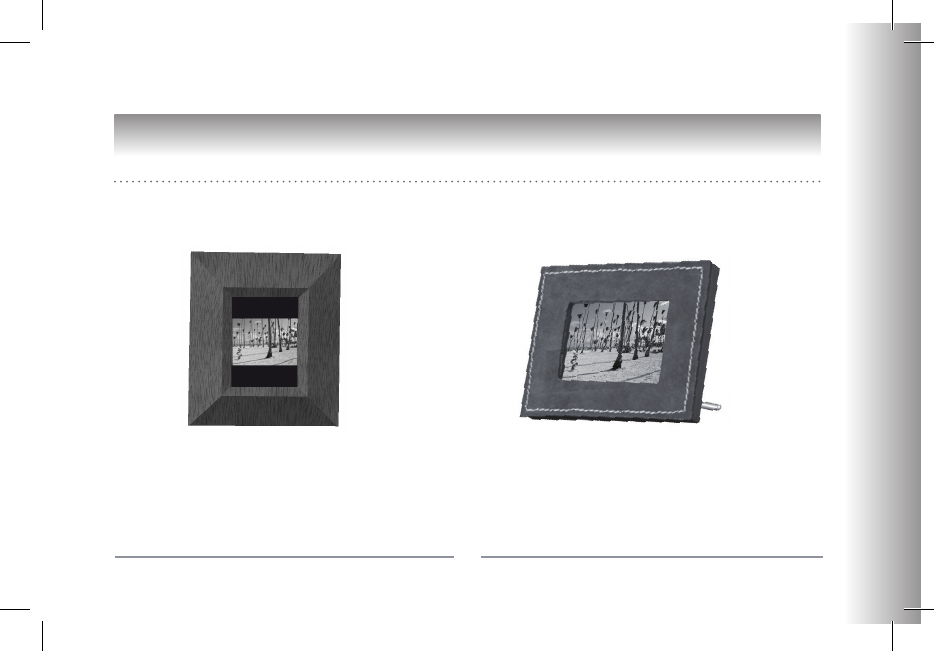

FRAME POSITION
Choose the orientation
• Portrait mode. • Landscape mode.
• Note: screw the metal rod into the back of the frame. You can also mount the frame on the wall, in which case,
screw the hook into the back and slide the cable into the slots provided. If you rotate the frame, the photo displayed
automatically changes to landscape or portrait mode.
10
Parrot PHOTO VIEWER
BACKLIGHT
There are three different settings for the screen’s backlight (also see p. 13):
• Predefined Time: define a time range during which the screen’s backlight is on.
• Automatic: a light sensor built into the frame continuously detects the brightness level over 24 hours.
The backlight is controlled automatically.
• Always On: use the switch on the power lead to turn the screen on or off.
MENUS
Scrolling Through the Menus
• Button : move left
• Button : move right
• Button : access to selected menu
• To access the main menu, press the button on the back of the viewer.
11
English
Parrot PHOTO VIEWER
Menu Description
• The viewer fully controls the way in which your photos are displayed (rotation, slideshow, delete, etc.), as well as
the brightness, language, date and time setting, and so on.

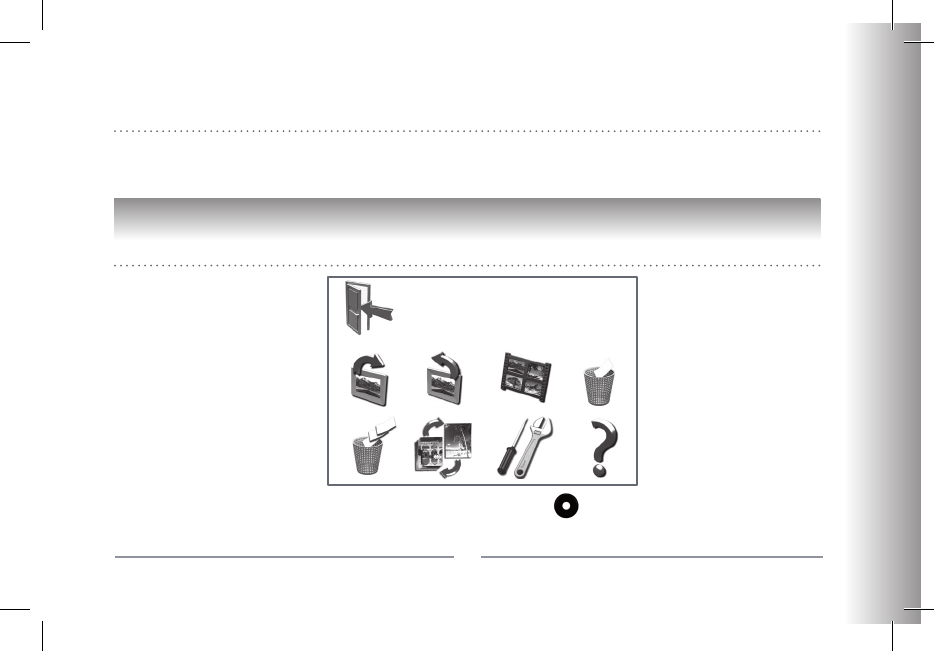

MAIN MENU
Main menu icons:
• Scroll through the menus using the arrows and the button
12
Parrot PHOTO VIEWER
Description of the icons and functions
• Exit: return to the main menu.
• Rotate Clockwise: turn the photo to the right.
• Rotate Anti-clockwise: turn the photo to the left.
• Thumbnails: display the photos as thumbnails.
• Delete Current Picture: delete the picture currently displayed.
• Delete All Pictures: delete all the pictures.
• Slideshow: choose the time interval between each photo displayed.
• Settings: adjust the settings for the display and Bluetooth.
• Information.
13
English
Parrot PHOTO VIEWER
SETTINGS
The «Settings» menu can be accessed from the main menu.
Description of the icons and functions
• Back: return to the main menu.
• Bluetooth Visibility:
• Always Visible: your Parrot PHOTO VIEWER can be detected by
and connected to all Bluetooth devices.
• Hidden: your viewer can only be connected to those devices
known by the Parrot PHOTO VIEWER.
• Brightness: adjust the brightness of the display.
• Backlight:
• Automatic: the screen’s backlight level is controlled by an
algorithm that uses a light sensor built into the viewer.
This is the default setting.
14
Parrot PHOTO VIEWER
• Always On: the backlight is always on. Use the power button to switch it off.
• Predefined Time: a predefined time range determines when the screen is backlit.
• Language: select the required language.
• Clock: set the time.
• Reset: restore the factory settings.
UPDATING THE SOFTWARE
The Parrot PHOTO VIEWER can be updated by Bluetooth. Download the utilities and the update procedure
from our website at www.parrot.biz. Doing so will increase the viewer’s compatibility with other Bluetooth
devices.
HOTLINE
• Our hotline is at your disposal. You can contact the hotline by email or telephone.
• Europe: +33 (0) 1 48 03 60 69
• UK: +44 (0) 870 112 5872
• USA: (877) 9 PARROT (toll-free)
• Germany: +49 900 172 7768
• Visit our website at www.parrot.biz for further information.
15
English
Parrot PHOTO VIEWER
SPECIFICATIONS
Screen:
• LCD screen size: 3.5’’
• Screen resolution: 320 x 234 pixels (QVGA)
• 262 144 colours
• Internal memory of 32 MB for storing over 100 photos
• Light sensor for the automatic backlight mode
• Weight (frame only): 250 g
• Dimensions: 125 x 146 mm
• Power supply: 100 - 240 V, 50 and 60 Hz
Bluetooth:
• Bluetooth 1.2 qualified
• Bluetooth PIN code: 0000
• Profiles supported:
- FTP (File Transfer Profile)
- OPP (Object Push Profile)
- BIP (Basic Imaging Profile)
• Software updates by Bluetooth
• Image format supported: JPEG
• Up to 10 devices paired
16
Parrot PHOTO VIEWER
NOTE
158
Parrot PHOTO VIEWER
SAFETY INFORMATION
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1). this device may not cause harmful interference, and
(2). this device must accept any interference received, including interference that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority to operate the equipment.
Declaration of Conformity
We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France, declare under our sole responsibility that our product,
the Parrot PHOTO VIEWER to which this declaration relates is in conformity with appropriate standards EN300328,
EN301489-1, EN60065 following the provision of Radio Equipment and Telecommunication Equipment directive, with
requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.
Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Parrot S.A.
is under license. Other trademarks and trade names are those of their respective owners.
159
Parrot PHOTO VIEWER
Correct Disposal of This Product ( Waste Electrical & Electronic Equipment )
(Applicable in the European Union and other European countries with separate collection systems). This marking shown
on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resour-
ces. Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environ, mentally safe recycling. Business users should
contract their supplier and the terms and conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
GENERAL INFORMATION
Copyrights
Copyright © 2004 Parrot. All rights reserved. The total or even partial reproduction, transmission or storage of this
guide in any form or by any process whatsoever (electronic, mechanical, photocopy, recording or otherwise) is strictly
prohibited without prior consent from Parrot.
Registered trademarks
All the names and trademarks mentioned in this document are copyright-protected and are the property of their res-
pective owners.
160
Parrot PHOTO VIEWER
Modifications
The explanations and specifications in this guide are given for information purposes only and may be modified without
prior notice. They are deemed to be correct at time of going to press. The utmost care has been taken when writing this
guide, as part of the aim to provide you with accurate information. However, Parrot shall not be held responsible for any
consequences arising from any errors or omissions in the guide, nor for any damage or accidental loss of data resulting
directly or indirectly from the use of the information herein. Parrot reserves the right to amend or improve the product
design or user guide without any restrictions and without any obligation to notify users.
As part of our ongoing concern to upgrade and improve our products, the product that you have purchased may differ
slightly from the model described in this guide. If so, a later version of this guide might be available in electronic format
at Parrot’s website at www.parrot.biz.
JPEG
This software is based in part on the work of the Independent JPEG Group
