PTC-100
Compact Wireless Charger Manual
Precautions for safety
The contents inside the product warranty is described below to ensure user's safety and prevent
property damage.
Please read the manual carefully to use the product appropriately.
Partron is not responsible for any injury or damage occurred by not following safety precautions.
Please do not use damaged power cord, plug, and loose socket.
Please do not contact power plug with wet hands, and do not unplug by pulling the cord part.
Please do not bend or damage power cord.
Please do not place or use the product nearby coin, key, cell phone, accessories, metal.
The product could cause the heat.
If the product overheated, please put down the cell phone from the charger for separation. Then,
please pause using the product.
Please be cautious in use since the contact with the heated product on the skin could cause the
red spots, pigmentation, and low-temperature burn.
Please do not place the product nearby stove, microwave, heating utensil, or high heat container.
This may cause a re.
- Do not drop the product or impact on the product.
- Do not store or leave the product on a sloping area.
- Product can be damaged, and internal parts can be broken.
- Please be cautious and guide children, baby or pet not to suck or bite the product.
- Please do not use the product other than its original purpose.
- Please leave the product on dry area where is not wet or damp.
Humidity or liquid components can damage on part and circuit of product. If product gets wet,
remove the moisture with a dry towel and take it to service center.
- Do not alter, disassemble, or repair.
Make sure to use a repair service center qualied by Parton. Free repair is not available if there is
any alteration, disassemble, or repair.
This device is built for home use (B level), and completed EMC registration. It is usable in every
area, and primarily intended for use in homes and offices.
Using the Product

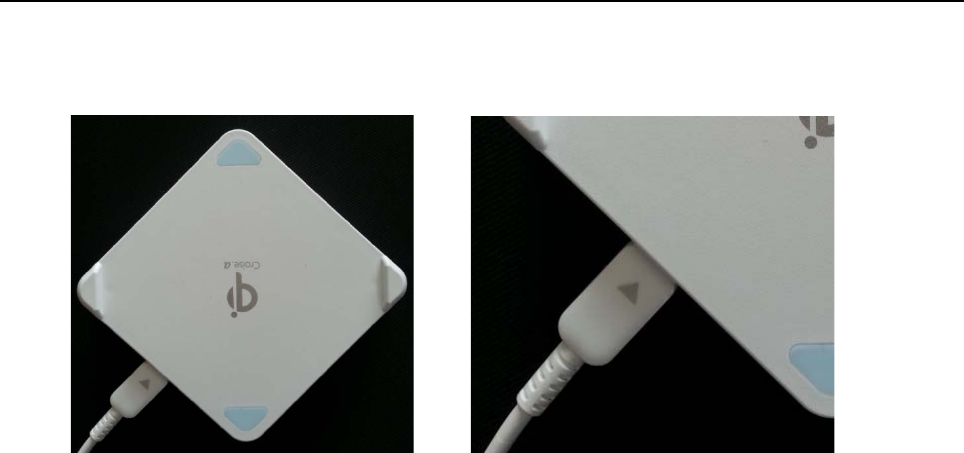

1. Please connect power after connecting AC ADAPTER(sold separately) to compact wireless
charger.
( ! ) Be sure to use original 5V/2.0A AC ADAPTER. Otherwise, it will not be recharged properly,
or it can cause defects or damage.
- Especially, AC ADAPTER for compact wireless charger is 5V/2.0A, so use of nonstandard
ADAPTER can lead to slow recharge.
- If this 5V/2.0A original AC ADAPTER is used for existing mobile charger or other low ratings,
it could cause re, explosion, or defects/damage.
( !! ) Current status of product could be checked by the color of status indicator on compact
wireless charger. If the status indicator does not function properly or incorrectly recognized,
disconnect the charger and reconnect them.
Color of Status indicator Wireless Charger Status
Off Standby and Charging completed
Green Flashed Charging in progress
Red Flashed Fast
When foreign object (knife, key, metal substance and etc) is
recognized between cell phone and compact wireless charger,
FOD function operates
Red Flashed Slow Pressure lower than rated power (5V/2A of Genuine Adapter is
recommended.)
Red Fixed Wireless charger operates inappropriately
* Color of Status indicator after full charge will not be changed per phones

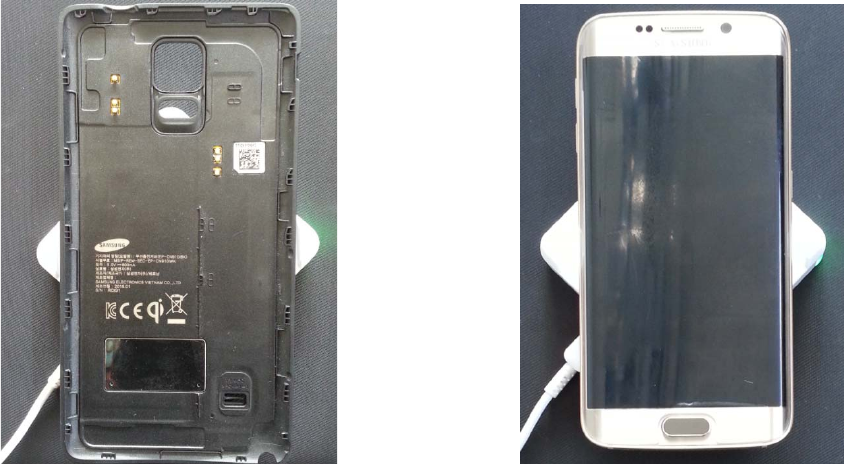

2. Firstly, please place cell phone on compact wireless charger after attaching either wireless
charge cover or patch.
( ! ) Be sure to place rear side of your cell phone completely on wireless charger.
3. Please separate AC ADAPTER (sold separately) from compact wireless charger when charging is
completed.
( ! ) To check charging status, please check charger icon on your cell phone display.
- Wireless charger might not function properly if foreign substances exist between cell phone
and compact wireless charger.
- DMB is not available while wireless charging.
- If compact wireless charger is used where signal is weak, reception rate of cell phone could be
weak.
- This product is compatible with the Wireless Power Consortium(WPC) certied product.
4. Please do not place wireless charger cover on compact wireless charger alone. This product has
been designed to flow current when charger cover and compact wireless charger are correctly
in contact. If a charger cover is left alone on compact charger, it might lead to excessive heat,
which could cause re or defects/damage on the device.
(X) (O)
Spec and Features
ITEM Specification
Size 72 x 72 x 15 (W x L x T) mm3
Recharging Method Magnetic Induction Method (WPC Standard)
Transmission Power DC 5W (Maximum 5V, 1A)
Using Frequency Range 115 ~ 205kHz
Input Power DC 5V, 2.0A
Operating Temperature -20 ℃ ~ +60 ℃
FCC Warning information
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Part 15.21
Any changes or modifications (including the antennas) to this device that are
not expressly approved by the manufacturer may void the user's authority to
operate the equipment.
RF Exposure Statement (2.1091)
This equipment complies with FCC RF Radiation exposure limits set forth
for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or
transmitter.
This equipment should be installed and operated with a minimum distance
of 20cm between the radiator and your body.
