USER GUIDE
RF&KEYPAD INTEGRATED
LOCKER LOCK
(model : ZP-200KR)
This manual is for the operation of locker lock by Keypad only.
For operation by RF key, please refer to our ZP-200R User Guide.
Version 1.0.0 - 2 -
Table of Contents
1. Understanding ZP200KR Locker Lock..................................... 3
1.1 What is ZP200KR Locker Locks? .......................................................................3
1.2 Operation Card Types and Functions.................................................................3
1.3 Locker Operation System ...................................................................................4
2. Type of Lock Operation ........................................................... 5
2.1 Free Selection (Day Use)...................................................................................... 5
2.2 Fixed Mode (Pre-Assigned Mode) .......................................................................5
3. Operation of the Lock.............................................................. 6
3.1 Fixed Selection Mode ......................................................................................... 6
3.2 Free Selection Mode...........................................................................................6
4. Lock Setting and Emergency open....................................... 7
4.1 Lock Setting .......................................................................................................... 7
5. Indication Instruction................................................................ 8
Version 1.0.0 - 3 -
1. Understanding ZP200KR Locker Lock
1.1 What is ZP200KR Locker Locks?
- ZP200KR locker locks are the locker lock operated by either13,56 Mhz RF
keys or Digital keypads.
1.2 Operation Card Types and Functions
Key Card : Delete Master card registration in the lock
Owner Card : Delete Master card registration in the lock
Register New Master card in the lock.
Master Card : Each of the following function can be set.
① Alarm Off
② Alarm Off, User card delete & registration, and
Locker open.
③ Alarm Off and Locker open.
Set – up Card : ① Set the Time of the lock when battery is replaced.
② Master Card registrations
User Card : Two types of User Cards can be set by Locker
Management System.
① User card for Fixed Mode
② User Card for Free Selection
Clear Card : Delete the User information in the memory of the lock (Owner,
Master, and User)
Version 1.0.0 - 4 -
1.3 Locker Operation System
Locker Operation System (LOS) is consisted of PC based locker management
program and RF Card reader, and enable the operator to issue User card, check lock
status and to produce the statistical report.
System requirements : Microsoft Windows XP
Serial port (or Serial to USB cable) for RF card reader
Interface
Version 1.0.0 - 5 -
2. Type of Lock Operation
2254/2255 locker locks are designed to work for the various operation requirements
by simple set up process. Following operation modes can be programmed before or
after lock installation.

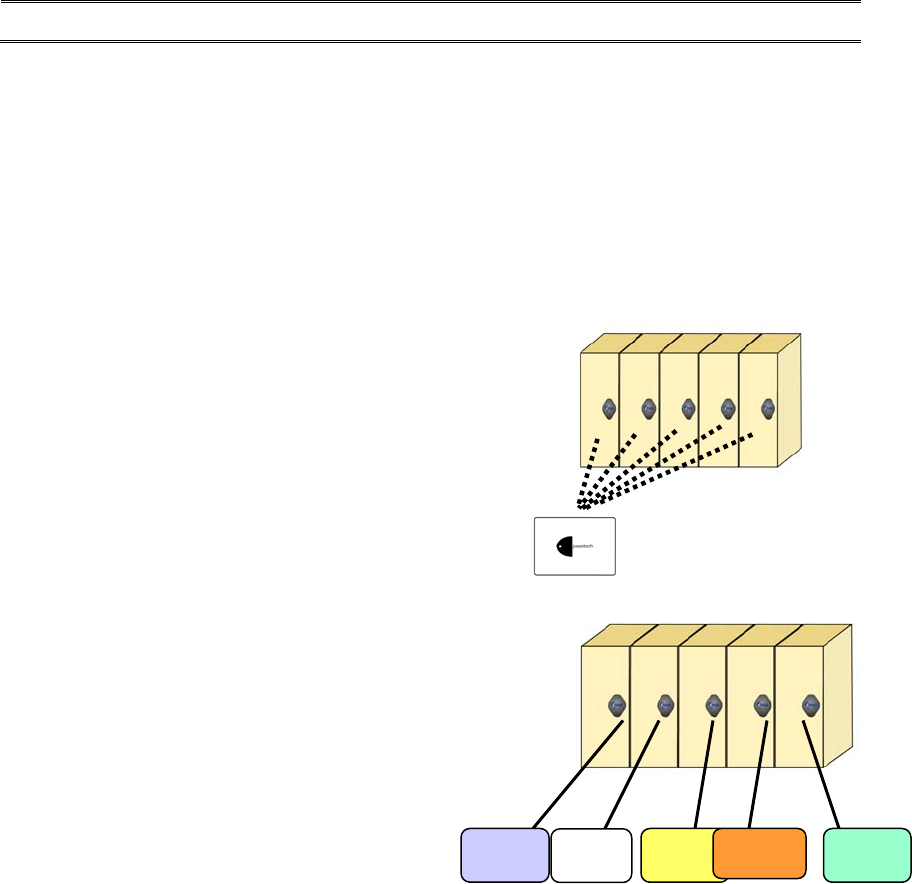

2.1 Free Selection (Day Use)
- User can select any empty locker.
- LED lamp is blinked to represent locker is in use.
- Programmable to use multiple locks with
one User card.
- Programmable for Time based operation
2.2 Fixed Mode (Pre-Assigned Mode)
- Locker assigned to each User card in advance.
- Programmable to use multiple assigned lockers
with one card
(max. 5 lockers in current program).
- Programmable for multiple user mode
per a locker (max. 9 users in a locker).
User
User User User User
Version 1.0.0 - 6 -
3. Operation of the Lock
3.1 Fixed Selection Mode
1）Default Pass Code :1234
2）Open： “ZEPHYR” button + “4 digit pass code”+ “ZEPHYR” button
3）Close： Automatic after several seconds
4）Change Pass Code： “ZEPHYR” button + old pass code + “ZEPHYR” button
+ new pass code + “ZEPHYR” button + new pass code + “ZEPHYR” button
Note: Passwords can be changed only when the lock is under unlocked
situation.
5) If user wants to the RF key instead of Digital key, the digital key stored in the
lock needs to be erased by Master Card (key), and new user RF key(card) can
be used.
This
3.2 Free Selection Mode
1）Close： “ZEPHYR” button + self-selected 4 digit code + “ZEPHYR” button
2）Open： “ZEPHYR” button + the same 4 digit code + “ZEPHYR” button.
Bolt stays open
Note: After it is unlocked, any 4 digit password can be used to lock it.
In any case, lock will automatically open after 8 hours, however this time can be
changed.
Version 1.0.0 - 7 -
4. Lock Setting and Emergency open
4.1 Lock Setting
1) Press “Zephyr” button, and put the Key card and the programmed Set up
card to the front lock body in turn.
Note : If the lock was already set to any operation mode, and you intend
to change this operation mode, please erase any User information
stored in the memory of the lock by using Clear Card.
2) The GREEN LED indicator will illuminate followed by melody.
3) The lock will stay as it was (i.e, there is no latch movement). Lock will retain
code on both Free selection and Fixed Selection mode.
4.2 Emergency Open
1) In case User forget his(her) password, Operator can open the lock by Master
Card.
2) Once Master card is used to open the lock, the lock reverts to default
position
(i.e. lock will stay open for Free Selection, and default code of 1234 for Fixed
Selection mode.).
Version 1.0.0 - 8 -
5. Indication Instruction
1) All the pass code is 4 digit（0-9）.
2) “ZEPHYR” button: wake up button，the keypad or RFID does not respond
before you press “ZEPHYR” button.
3) Open/Close：GREEN LED on for 0.2 second, one beep sound for 0.2 second.
4) Successful programming：Melody.
5) Indicate for mistake：RED LED flashes 3 times, 3 beep sounds
6) Low voltage：RED LED blinks 5 times, and beep sounds 5 times.
7) Incorrect pass code or input is beyond 5 digits: see #5, power off，need to
press “ZEPHYR” button to wake up the keypad.
8) When the input is incomplete，after 5 seconds, see #5，power off .
You need to press “ZEPHYR” button again to wake up the keypad.
