PAX Technology D200V4 Mobile Payment Terminal User Manual
PAX Technology Limited Mobile Payment Terminal
User manual
D200 Wireless POS Terminal
PAX TECHNOLOGY LIMITED

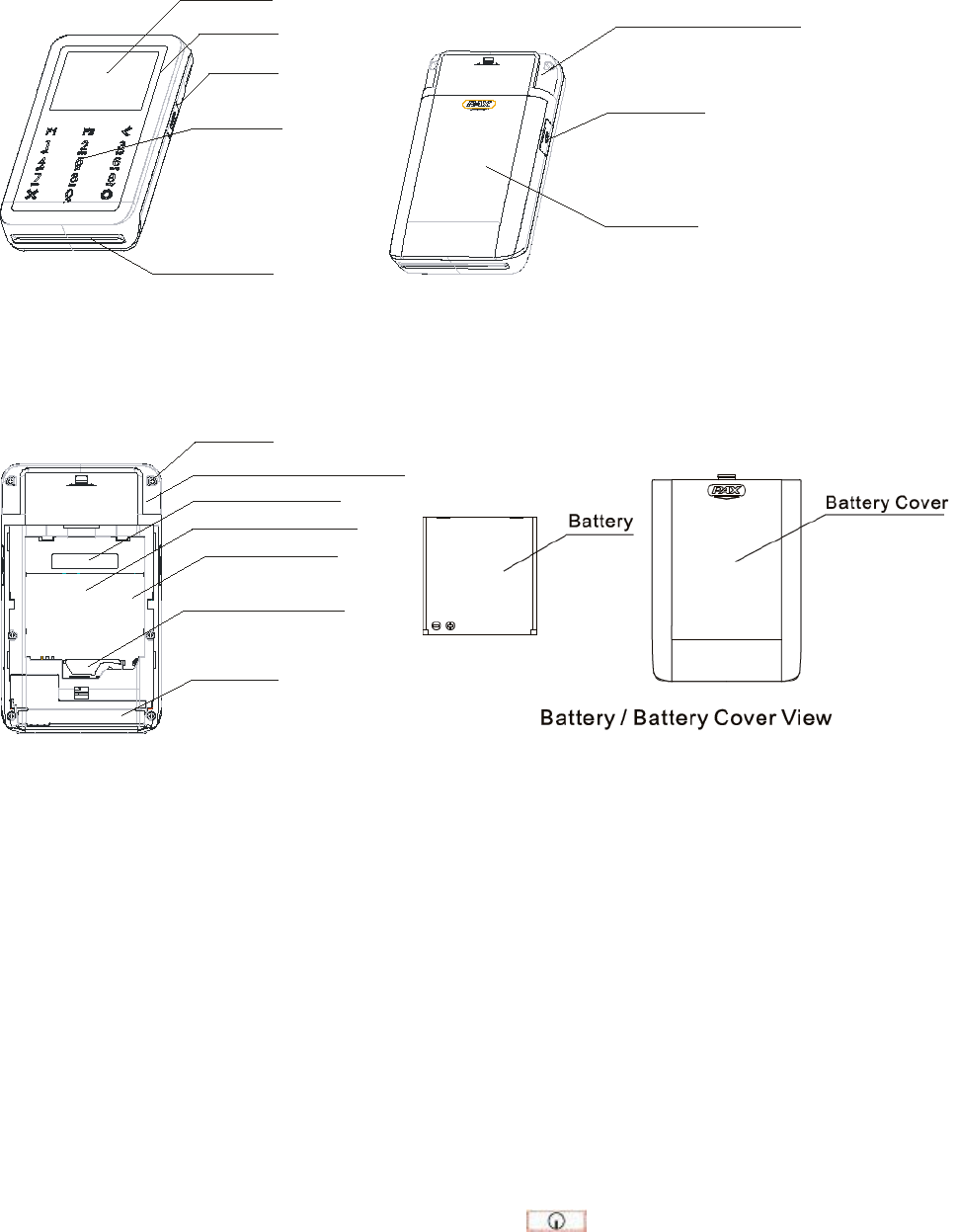

1. Production Description：

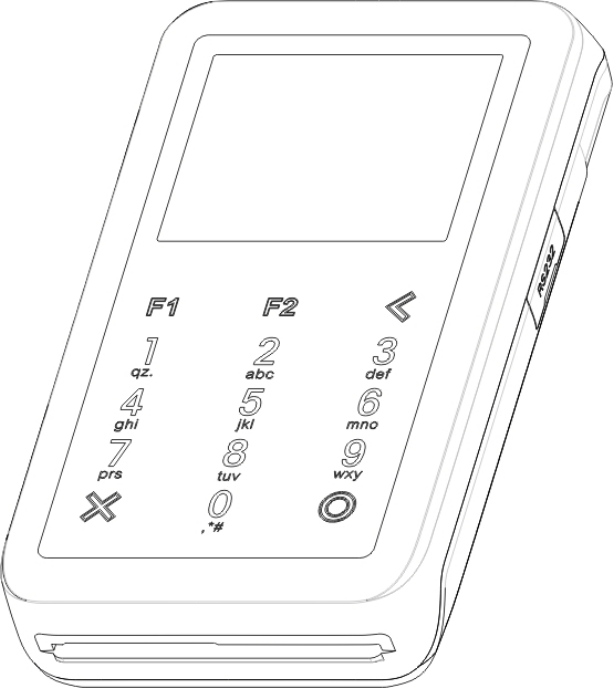

LCD Di spl ay
RF Antenna Area
Rs232 Conncet
Capacitive Key Area
I c Ca r d Sl o t
Magnetic Strip Card Solt
USB Connect
Battery Cover
Front View Back View
Scr ew
Magnetic Strip Card Solt
Barcode Label
Nameplat e Label
Bat t er y Ar ea
SAM / SIM Car d Sl ot
Antenna
Back Layout Battery / Battery Cover View
2. Installation
1） SAM Card Installation
① Open up battery cover, which is at the bottom of the terminal;
② Take out battery;
③ Insert SAM card to corresponding SAM card slot.
2） Battery Installation
① Hold the battery with its facing up;
② Attach battery forelock to battery bayonet;
③ Press down the other side of the battery
3. Instruction
1） Power ON/OFF
Power on: Plug in power adapter or insert the battery, Press button for 3 seconds until
‘Di’ is heard, and then PAX LOGO will display on LCD.
Power off: Press button for 3 seconds until Shutting down... can be seen. POS terminal is
being turned off.

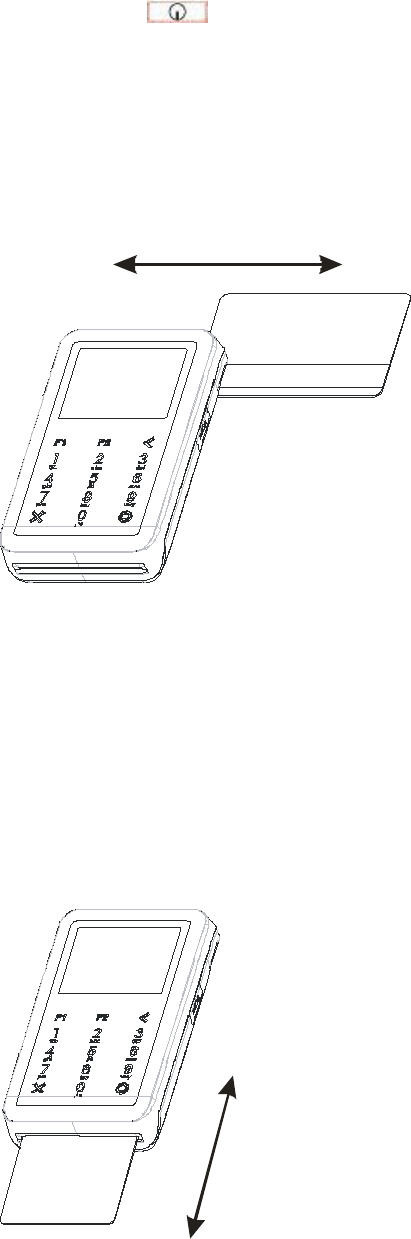

2） Magnetic Stripe Card
When user swipes magnetic stripe card along the slot, the backside of card, which contains
magnetic strip information, should be facing to the terminal. Bi-directional swiping is supported. It
is recommended to swipe starting from left to right (or from right to left) with a constant moving
speed.
3） IC card
When user insert IC card into the IC slot, the chip of IC card should be facing up; user is
recommended to gently insert the card, in order to avoid any physical damage to the card or the IC
slot of the terminal. If IC card is successfully read by the terminal, the IC card icon will be shown
on LCD display screen.
ICC Operation Process
Before inserting the IC card, please check inside and around the IC card slot. If there
is any suspicious object, please don‘t insert card and immediately report to the
relevant staff.

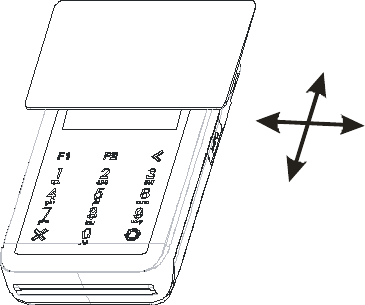

4) Contactless Card
Please refer to the picture below, the card read area is above the LCD.
4. Specifications
Default
CPU： 32-bit，ARM11
Memory：64MB SDRAM , 128MB NAND Flash
Display：2.4 -inch 240x320 pixel color TFT LCD；LED backlight；
Keypad：10 alphanumeric keys, 5 functional keys，touch key;
Magnetic Card Reader ：Track 1/2/3，bi-directional swipe
IC Card Reader：1 user card （EMV2000）
Slots：SAM *1+ SIM *1
Contactless Card Reader：ISO/IEC 14443 Type A/B, Mifare/Felica/NFC
Communication：Bluetooth, WIFI, WCDMA
Peripheral Ports：1 Micro USB(Device)
1 Mini USB(RS232)
Power Supply：Input：100—240VAC ~0.2A 50/60HZ
Output：5V DC 1A
Battery：Li-on battery,1900mAh,3.7V
Working Environment： Temperature：0 ℃~50℃(32℉~122℉)
R.H.:10%~93%(non-condense)
Storage Environment： Temperature:-20℃ ~ 70℃ (-4℉~158℉)
R.H.:5% ~95%(non-condense)
Dimensions：120mm
×
72mm
×
22.1mm（L
×
W
×
H）
Weight：169g(no battery)/206g(with battery)
5. Installation and Usage Tips
1)Do not damage electric wire and power adapter. If electric wire or power adapter is damaged ,
please do not use the terminal any more.
2)Before power adapter is plugged into power socket, please make sure that voltage which the
power socket supplies is appropriate working voltage for the terminal.
3)Do not expose the terminal in sunshine, or in humid, hot, or dusty environment
4)Keep the terminal away from liquid material
5)Do not plug any unknown material into any port of the terminal, since it may create serious
damage to the terminal.
6)If the terminal is defective, please contact professional POS repair technicians.
7)When D200 power supplied by the USB port of PC,we don’t recommend the use of CTLS
function.
8)When charged by the USB port of PC, charge time will be longer, we recommend charging
using the adapter.
9)When D200 is in charging, if you can't turn on the device, and you just hear "Di Di", please
charge it for longer, and try again later.
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
FCC RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the
United States.
During SAR testing, this device is set to transmit at its highest certified power level in all
tested frequency bands, and placed in positions that simulate RF exposure in usage near
the body. Although the SAR is determined at the highest certified power level, the actual
SAR level of the while operating can be well below the maximum value. This is because
the device is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
The FCC has granted an Equipment Authorization for this model device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model device is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on
FCC ID:V5PD200V4.
For this device, the highest reported SAR value for usage near the body is 1.48 W/kg.
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement.
ISED Notice
This device complies with Innovation, Science and Economic Development Canada
license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présentappareilestconforme aux CNR Innovation, Sciences et
Développementéconomique Canada applicables aux appareils radio exempts de licence.
L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le
brouillageest susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cetappareilnumérique de la classe B estconforme à la norme NMB-003 du Canada.
IC: 11689A-D200V4
ISED Radiation Exposure Statement
This EUT is in compliance with SAR for general population/uncontrolled exposure limits in
ISED RSS-102 and had been tested in accordance with the measurement methods and
procedures specified in IEEE 1528 and IEC 62209. This device and its antenna(s) must
not be co-located or operating in conjunction with any other antenna or transmitter.
Cetappareilestconforme aux limitesd'exposition DAS incontrôlée pour la
populationgénérale de la norme CNR-102 science de l’innovation et le
développementéconomique Canadaet a ététestéenconformité avecles méthodes de
mesure et procéduresspécifiéesdans IEEE 1528 et IEC 62209.Cetappareil et
saousesantennes ne doivent pas êtreco-localisésoufonctionnerenconjonction avec tout
autreantenneoutransmetteur.
6.Battery Usage Tips
1) Charge indoor by PAX charger, where is cool and well ventilated;
2) Do not apart the battery;
3) Do not short circuit the battery;
4) Keep the battery away from sunshine, smog and dust;
5) Do not squeeze, punch the battery, put it into liquid or near fire;
6) Keep way from environment which is too hot , too cold, damp and highly explosive;
7) Once a failure happens such as heating or distortion, or it was broken down. Please change new
battery;
8) Change new battery if it cannot satisfy your requirement;
9) Change new battery if using more than two years.
