PAX Technology PX5W Multi-Lane Payment Terminal User Manual PX5 W fcc
PAX Technology Limited Multi-Lane Payment Terminal PX5 W fcc
User manual
PAX TECHNOLOGY INC.
PAX TECHNOLOGY INC. PAX TECHNOLOGY INC.
x
P terminals that include a default communication module come
standard with one Ethernet port and RS232, USB, and PUSB
network capabilities. However, if the default communication
module is replaced with an optional communication module,
your choice of these additional network capabilities are
available:
Communication Module
Communication Module Power Connections
Power Connections
3
Product Description
Product Description
• A second Et hernet port
• Power over Et hernet
• An Et hernet hub
• Wi-Fi and Bluetooth LE
• Wi-Fi and Cellular GS M
The commu nication mo dule is located on the underside of
the termi nal.
Communication
module
Power down and remove all power from the terminal before
removing or installing a communication module. A
communication module must be installed before power can be
applied to the terminal.
WARNING:
Working Environment: Temperature -10°C～50°C (14°F～122°F)
R.H.: 10%～93% (non-condensing)
Storage Environment: Temperature -20°C～60°C (-4°F～140°F)
R.H.: 5%～95% (non-condensing)

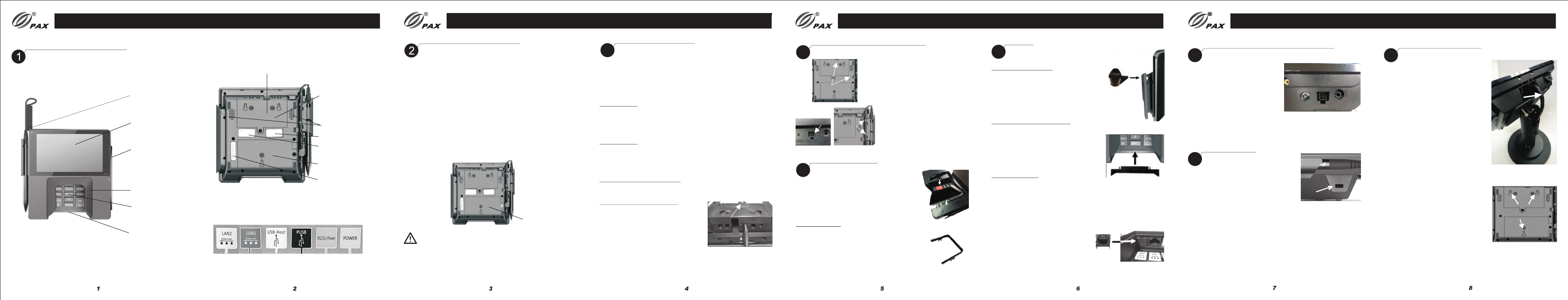

Stylus pen
Touch screen
and
Contactless
reader area
Magnetic
stripe reader
Privacy shield
Keypad
Smart card
reader
Cable retention
cover plate
Communication
ports - located
under cover plate
Speakers
MAC address label
Regulatory label
Communication
module
Communication ports are labeled and color-coded:
White Red Yellow Black Green Blue
Part number/
serial number label
Power can be supplied via the power port or a single data cable
that carries power. This power can be provided via a “powered
cable” where the connected POS terminal provides the power
x
(i.e. PUSB or Power over Ethernet) or by connecting a P power
supply directly to the data cable (i.e. RS232 or USB).
1) Power Port
Insert the power connector into the green POWER port. Turn
the power connector, locking the tab behind the short plastic
wall. Dress the cable through the retention clips. A separate
data cable is also required.
2) POS Cable
Insert the cable connector into the appropriate port on the
terminal. Dress the cable through the retention clips opposite
the port. Connect power supply to cable as required. The cash
register could also supply power to terminal.
3) Power over Ethernet (PoE)
Power is available over the red LAN1 port when the optional
PoE communication module is installed.
Cable Retention Cover Plate
After power and data cables are
connected and dressed through
retention clips, install the cable
retention cover plate and secure
with captive screw.
Screw
Stylus Holder and Pen
Stylus Holder and Pen
4
1)
Mounting
Locations
2)Stylus Port 3)
Retention
Clips
1) Align stylus holder over
metal screw openings at left
side or top of terminal. Insert
tabs into indentations along
edge. Attach with captive
screws.
2) Insert connector end of
stylus pen into stylus port on
left side of terminal.
3) Use enclosed plastic card to
press stylus cord into retention
clips on left side of terminal.
Privacy Shield
Privacy Shield
5
Insert tabs and snap shield firmly in place
to left and right of keypad. Not designed to
be removable. Removing the shield breaks
the retention tabs and the ability to remotely
track the status of the shield is lost.
1Privacy Shield
Decorative Plug
Decorative Plug – If a privacy shield is not
installed, a non-removable decorative plug
may be installed in its place. This plug does
not provide any PIN entry privacy.
CAUTION: If the privacy shield is not installed,
you must use PCI-approved alternative methods
to secure the PIN pad.
Plugs
Plugs
6
1) Stylus Holder Plug
If required, to prevent stylus pen from
being inserted vertically into stylus
holder, firmly insert plug into opening
in holder, aligning with curve of stylus
holder.
2) Smart Card Reader Plug
If required, insert smart card reader
plug into smart card receptacle slot.
To remove, if required, gently pry out
the plug using a small screwdriver in
the slit along top of plug.
3) Ethernet Plug
An Ethernet plug is included in case
you want to block an inactive LAN port.
Align plug so that it matches the shape
of the port and gently push into opening.
To remove, if required, gently pry off
using a small screwdriver in the slit
along the top of the plug.
Note: LAN2 port is enabled only when
Ethernet hub or PoE and Ethernet hub
communication module is installed.
1) Stylus
Holder
Plug
2) Smart Card Reader Plug
3) Ethernet
Plug
Mounting
Slots
Stand Installation
9
Stand Installation
PAX TECHNOLOGY INC.
Route
Cables
x
If required, the P terminal may be
mounted to a stand.
Instructions may vary depending
on stand specifications.
Carefully route the required cables
up through the stand pipe and out
the top. Connect the cables to the
x
P terminal ports.
Insert the three mounting slots on
the underside of the terminal into
the three metal prongs on the stand
base.
Slide the terminal firmly into position,
locking the terminal in place on the
stand. Secure with fastening screw
or locking device as required.
Reset Button and Audio Jack
7
Reset Button and Audio Jack
Reset
Button
Audio Jack
If required, restart the
terminal by pressing in
and holding the reset
button for 2-3 seconds
If required, a visually disabled person can connect a
headphone to the terminal for audio prompting using the
3.5mm output audio jack.
Cable Lock
8
Cable Lock
If required, insert customer-provided
cable lock into K-Slot®. Loop cable
around permanent object to secure
in place.
Stylus Port
PAX TECHNOLOGY INC.
Available Accessories
Cleaning the Device
10
Cleaning the Device
WARNING:
Do not use industrial strength or abrasive cleaner as it may
damage or scratch the screen.
Do not immerse device in water (or liquid.)
Do not spray water or cleaner into the MSR slot, Smart Card
Reader or ports.
To clean screen, apply distilled water or mild glass cleaner
onto a soft, lint-free cloth and gently wipe terminal screen.
To clean terminal, apply distilled water or plastic-safe cleaner
onto a soft, lint-free cloth and gently wipe terminal.
11

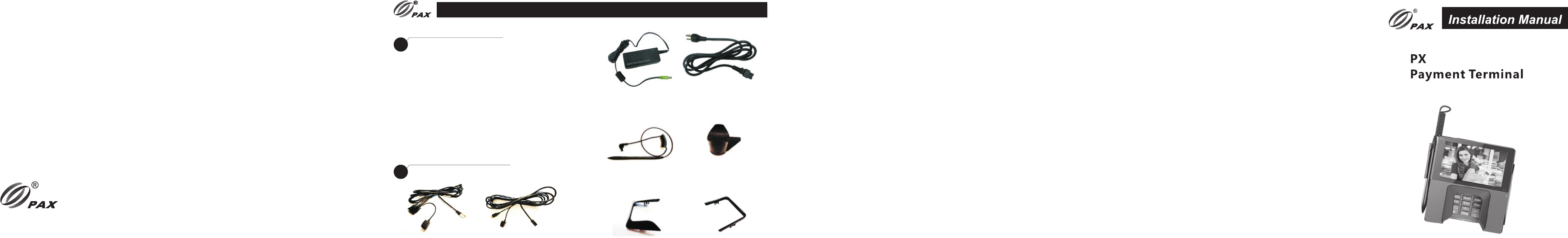

Available Accessories
RS232 Cable
200204020000140
Requires Power Supply
USB Cable
200204020000141
Requires Power Supply
Power Supply
200310110000070
Requires Power Cord
Power Cord
200311020000023
Requires Power Supply
Stylus Pen
200209090000929
Stylus Holder Plug
200209090000930
Decorative Privacy
Shield Plug
2002090900001037
Privacy Shield
200209060000040
PAX TECHNOLOGY INC.
910
This docume nt is provided to you for informational purposes
only. All features and specifications are subject to change
without notice. PAX's name and PAX's logo are registered
trademarks of PAX Technology Inc. All rights reserved.
PAX Technology Inc.
4901 Belfort Road, Suite 130
Jacksonville, FL 32256, US A
T: 877-859-0099
W: www.pax.us
E: sales@p ax.us
P/N:200312000000224
FCC Regulations:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiated radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment.
RF Exposure Information
This device meets the government's requirements for
exposure to radio waves.This device is designed and
manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S.
Government.
This device complies with FCC radiation exposure limits
set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio
frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during
normal operation.
