SP20 PIN Pad
PAX TECHNOLOGY LIMITED
![](/img.php?id=2027306&img=bg2.png)

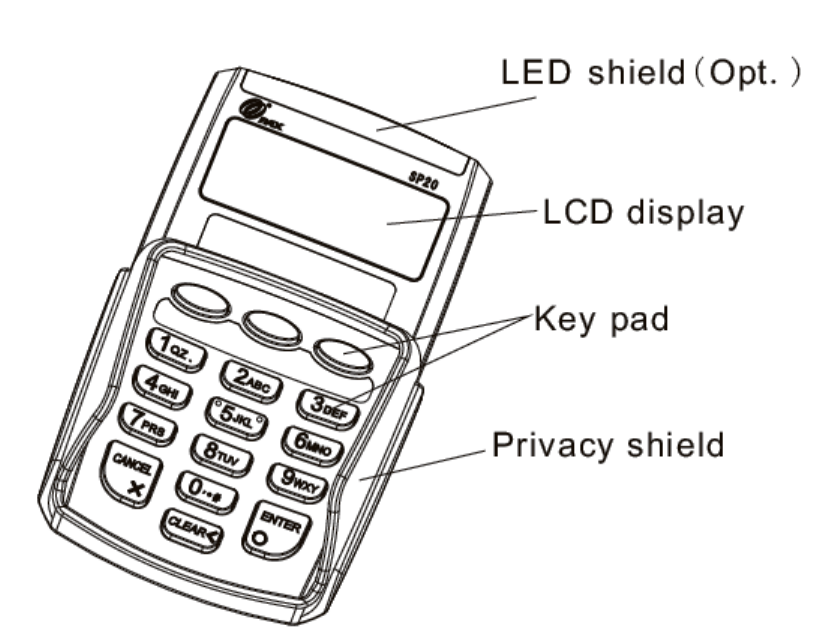

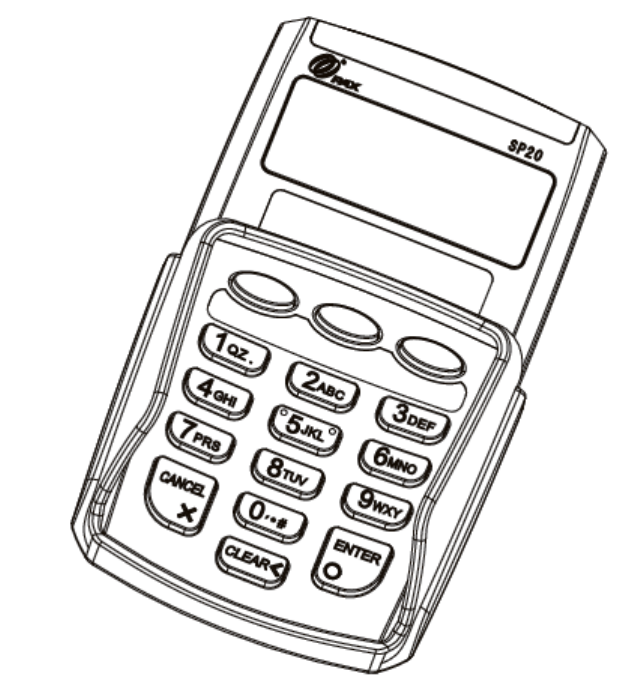

1. Product Description
2. Specifications
CPU 32-bit ARM
Memory 256KB EEPROM, 100KB RAM
Display 122x32 pixels, backlighting
Keypad 10 alphanumeric keys, 6 functional keys
Peripheral Ports 1 RJ11
Power Supply 5V DC, 300mA
Working Environment Temperature: 0℃-50℃(32℉~122℉)
R.H.: 10-93% (non-condense)
Storage Environment Temperature: -20℃-70℃(-4℉~158℉)
R.H.: 5%-95% (non-condense)
Dimensions 142 x 76 x 61mmLxWxH, incl. privacy shield
Weight 195g
Optional
LED shield
Built-in contactless card reader module
3. Installation and usage tips
1) Please make sure that secure PIN pad is working under specified range of voltage, which is
not too high and not too low;
2) Correctly connect secure PIN pad with other devices;
3) Do not damage the power cable. If power cable is damaged, please stop using the PIN pad;
4) Do not expose secure PIN pad in sunshine, or in humid, hot, dusty or corrosive environment;
5) Keep it away from liquid;
6) When the device is in failure, please contact designated personnel to maintain it. It is not
allowed to repair it on your own.
4. Instructions on protecting password privacy
SP20 Secure PIN Pad is a handheld device. Users are advised to protect their password
privacy and confidentiality.
Users are recommended to utilize the privacy shield and maintain vigilance
when they are inputting their password.
Be aware of peeper when users are inputting password;
Camera monitoring system installed by merchant should avoid recording
what customers are inputting on SP20 Secure PIN Pad.
