PBE Europe as Axell Wireless 50-1225SERIES 6 Channel VHF Repeater 50-122501 User Manual
Axell Wireless 6 Channel VHF Repeater 50-122501
User manual
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-1 of 40
12 Channel VHF Repeater
User Handbook
For
W.O.W
AFL Works Order N.:Q112547
AFL product part N.:50-122501
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-2 of 40
Table of Contents
AMENDMENT LIST RECORD SHEET ...................................................................................................4
INTRODUCTION.........................................................................................................................................5
Scope ........................................................................................................................................................................... 5
Purpose ....................................................................................................................................................................... 5
Glossary of Terms...................................................................................................................................................... 6
Key to AFL RF Module Drawing Symbols ............................................................................................................. 7
1. SAFETY CONSIDERATIONS.........................................................................................................8
1.1 Earthing of Equipment ................................................................................................................................ 8
1.2 Electric Shock Hazard.................................................................................................................................. 8
1.3 RF Radiation Hazard ................................................................................................................................... 9
1.4 Chemical Hazard ........................................................................................................................................ 10
1.5 Emergency Contact Numbers.................................................................................................................... 10
2. OVERVIEW/SYSTEM DESCRIPTION .......................................................................................11
3. SPECIFICATION ............................................................................................................................12

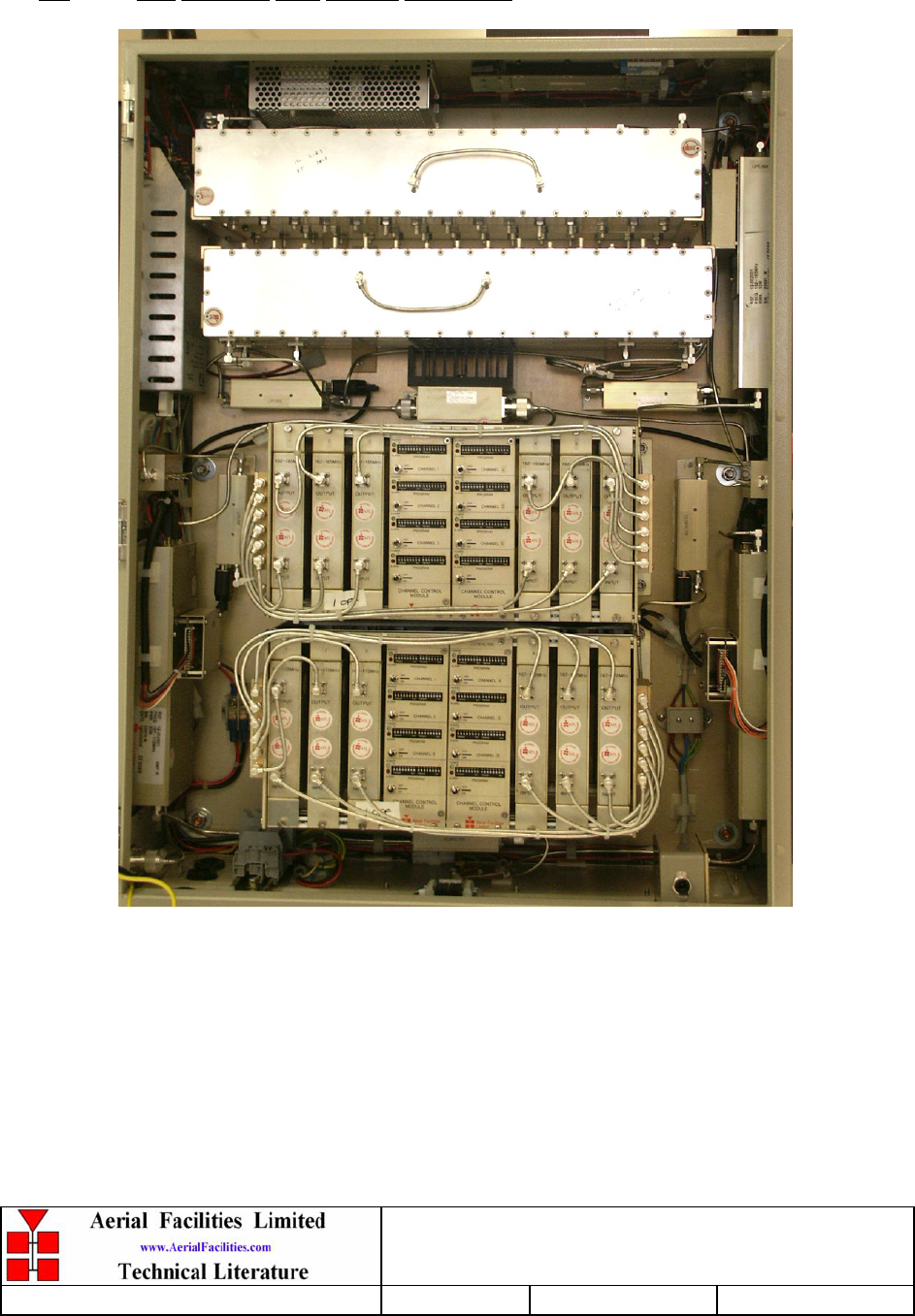

3.P Cell Enhancer Case Internal Photograph ................................................................................................ 12
3.1 Description .................................................................................................................................................. 13
3.2 Electrical Specification............................................................................................................................... 13
3.3 Mechanical Specification............................................................................................................................ 14

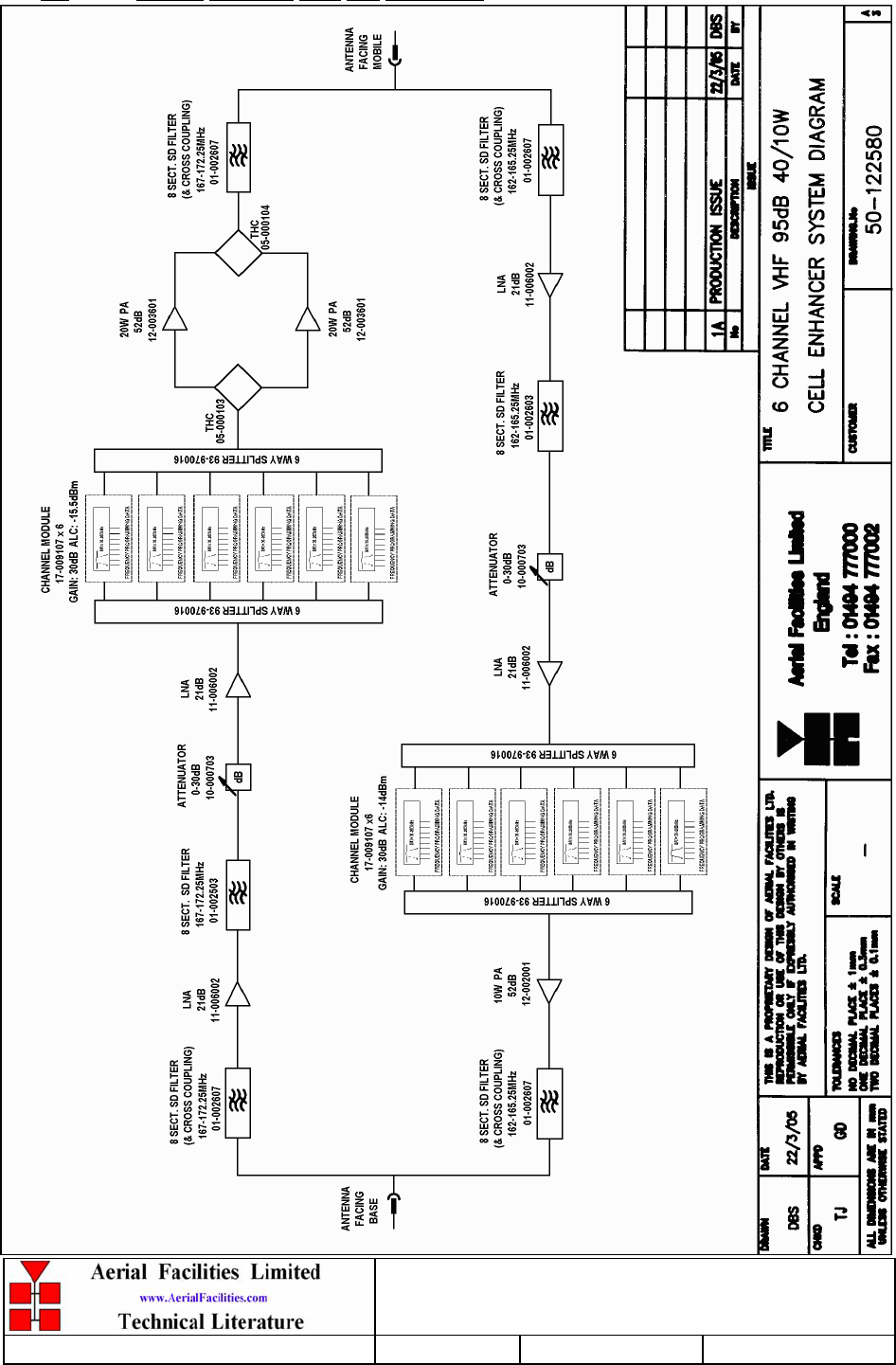

3.4 System Diagram, Drg. Nō. 50-122580 ....................................................................................................... 15

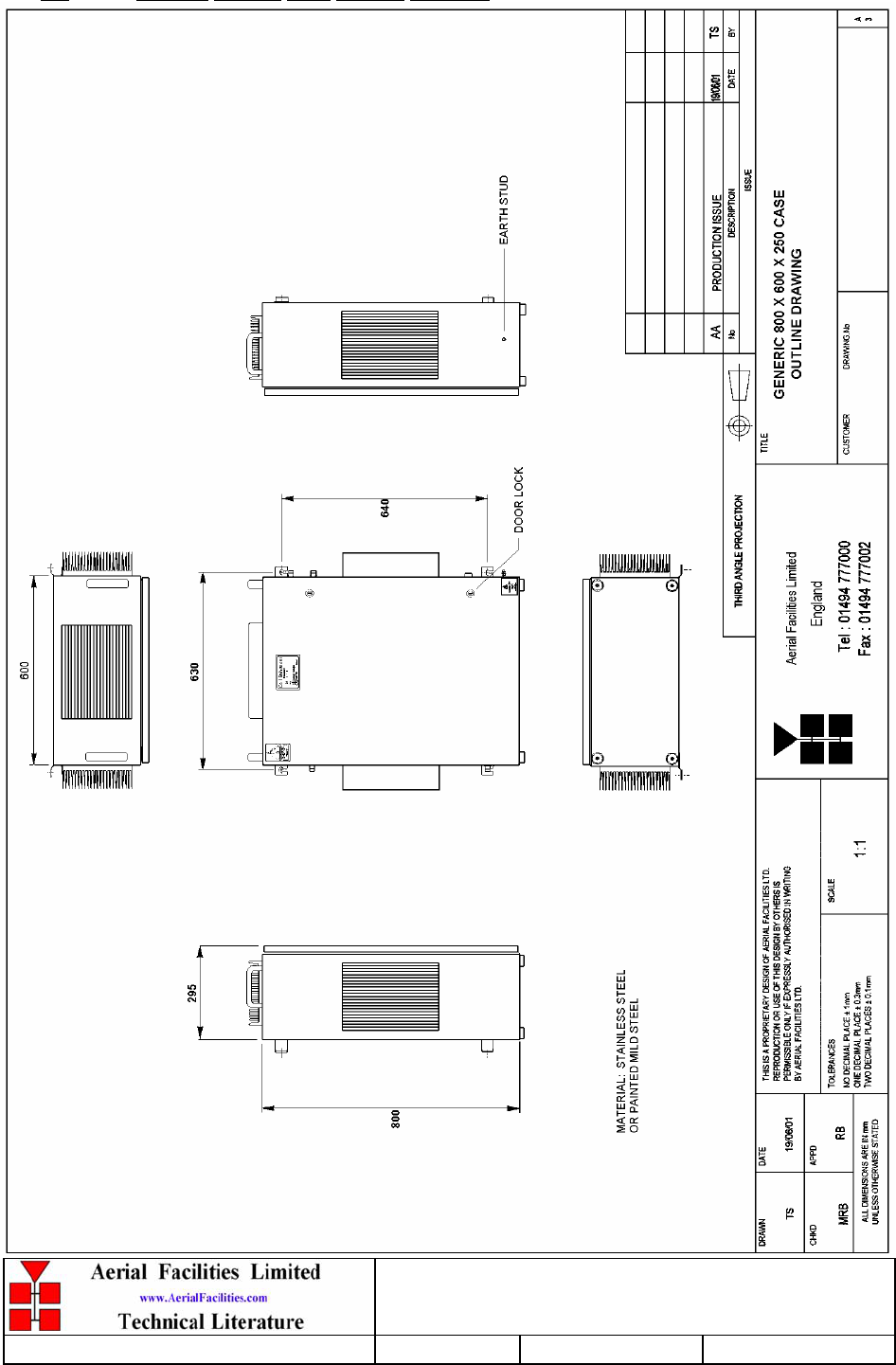

3.5 Generic System Case Outline Drawing..................................................................................................... 16
3.5 Parts List ..................................................................................................................................................... 17
4. SUB-UNIT MODULES....................................................................................................................18
4.1 3 Port Tx Hybrid Couplers (05-000103 & 05-000104) ............................................................................ 18
4.1.1 Description ............................................................................................................................................... 18
4.1.2 Technical Specification............................................................................................................................. 18
4.2 ¼Watt 0- -30dB Switched Attenuator (10-000703)..................................................................................19
4.2.1 General Application ................................................................................................................................. 19
4.2.2 Switched Attenuators ................................................................................................................................ 19
4.3 VHF/UHF Low Noise Amplifier (11-006002)........................................................................................... 20
4.3.1 Description ............................................................................................................................................... 20
4.3.2 Technical Specification............................................................................................................................. 20
4.3.3 LNA ‘D’ Connector Pin-out details.......................................................................................................... 20
4.4 10Watt Power Amplifier (12-002001) ....................................................................................................... 21
4.4.1 Description ............................................................................................................................................... 21
4.4.2 Technical Specification............................................................................................................................. 21
4.5 20Watt Power Amplifier (12-003601) ....................................................................................................... 22
4.5.1 Description ............................................................................................................................................... 22
4.5.2 Technical Specification............................................................................................................................. 22
4.6 DC/DC Converter, 24V in, 12V 8A out (13-003011) ............................................................................... 23
4.6.1 Description ............................................................................................................................................... 23
4.6.2 Technical Specification............................................................................................................................. 23
4.7 Channel Control Module (17-002101) ...................................................................................................... 24
4.7.1 Description ............................................................................................................................................... 24
4.7.2 Technical Specification............................................................................................................................. 24
4.7.3 VHF/ UHF Programming Procedure....................................................................................................... 25
4.7.4 VHF/ UHF Programming Example.......................................................................................................... 26
4.8 Channel Selective Module (17-009106)..................................................................................................... 27
4.8.1 Description ............................................................................................................................................... 27

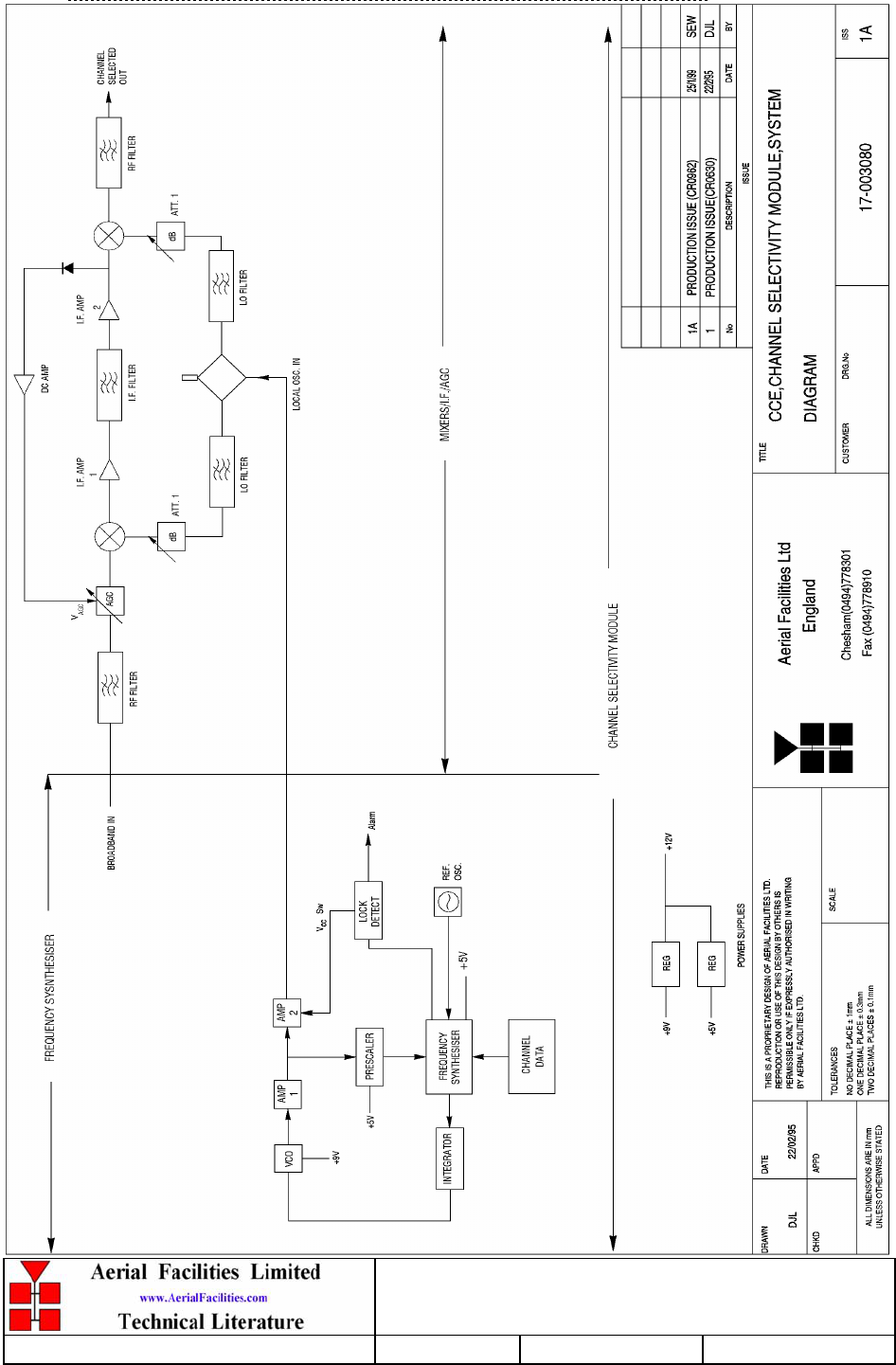

4.8.2 Drg. Nō. 17-003080, Generic Channel Module Block Diagram.............................................................. 28
4.9 24V Relay Board (20-001602).................................................................................................................... 29
4.9.1 Description ............................................................................................................................................... 29
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-3 of 40
4.9.2 Technical Specification............................................................................................................................. 29
4.10 Six-Way Splitter (93-100004)..................................................................................................................... 30
4.10.1 Description ........................................................................................................................................... 30
4.10.2 Technical Specification......................................................................................................................... 30
4.11 STPS12045TV 60A Dual Diode Assembly (94-100004)........................................................................... 30
4.11.1 Description ........................................................................................................................................... 30
4.12 JWS100-12/A PSU (96-300051) ................................................................................................................. 31
4.12.1 Description ........................................................................................................................................... 31
4.12.2 Technical Specification......................................................................................................................... 31
4.13 24V, 400W Power Supply Pack (96-300054) ............................................................................................ 32
4.13.1 Description ........................................................................................................................................... 32
4.13.2 Technical Specification......................................................................................................................... 32
5. INSTALLATION .............................................................................................................................33
5.1 Initial Installation Record.......................................................................................................................... 33
5.2 Antenna Installation & Gain Calculations ............................................................................................... 33
5.3 Antenna Isolation........................................................................................................................................ 34
6. MAINTENANCE .............................................................................................................................35
6.1 General Procedures .................................................................................................................................... 35
6.1.1 Fault Finding............................................................................................................................................ 35
6.1.2 Downlink................................................................................................................................................... 36
6.1.3 Uplink ....................................................................................................................................................... 36
6.1.4 Fault repair............................................................................................................................................... 36
6.1.5 Checking service....................................................................................................................................... 37
6.1.6 Service Support......................................................................................................................................... 37
6.2 Tools & Test Equipment ............................................................................................................................ 37
6.3 Care of Modules.......................................................................................................................................... 38
6.3.1 General Comments ................................................................................................................................... 38
6.3.2 Module Removal (LNA’s, general procedure): ........................................................................................ 38
7.3.3 Module Replacement (general): ............................................................................................................... 38
6.3.4 Power Amplifiers ...................................................................................................................................... 38
6.3.5 Low Power Amplifier Replacement .......................................................................................................... 39
6.3.6 Module Transportation: ........................................................................................................................... 39
APPENDIX A INITIAL EQUIPMENT SET-UP CALCULATIONS.................................................40
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-4 of 40
AMENDMENT LIST RECORD SHEET
Issue
Nō.
Date Incorporated
by
Page No.’s
Amended
Reason for new issue
A 29/03/05 CMH 1st Draft
1 CMH 1st Issue
Document Ref:-50-122501HBK
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-5 of 40
INTRODUCTION
Scope
This handbook is for use solely with the equipment identified by the AFL Part Number
shown on the front cover. It is not to be used with any other equipment unless specifically
authorised by Aerial Facilities Limited.
Purpose
AFL recommends that the installer of this equipment familiarise his/herself with the safety
and installation procedures contained within this document before installation commences.
The purpose of this handbook is to provide the user/maintainer with sufficient information to
service and repair the equipment to the level agreed. Maintenance and adjustments to any
deeper level must be performed by AFL, normally at the company’s repair facility in
Chesham, England.
This handbook has been prepared in accordance with BS 4884, and AFL’s Quality
procedures, which maintain the company’s registration to BS EN ISO 9001:2000 and to the
R&TTE Directive of the European Parliament. Copies of the relevant certificates and the
company Quality Manual can be supplied on application to the Quality Manager.
This document fulfils the relevant requirements of Article 6 of the R&TTE Directive.
Limitation of Information Notice
This manual is written for the use of technically competent operators/service persons. No
liability is accepted by AFL for use or misuse of this manual, the information contained
therein, or the consequences of any actions resulting from the use of the said information,
including, but not limited to, descriptive, procedural, typographical, arithmetical, or listing
errors.
Furthermore, AFL does not warrant the absolute accuracy of the information contained
within this manual, or it’s completeness, fitness for purpose, or scope.
AFL has a policy of continuous product development and enhancement, and as such,
reserves the right to amend, alter, update and generally change the contents, appearance and
pertinence of this document without notice.
All AFL products carry a twelve month warranty from date of shipment. The warranty is
expressly on a return to base repair or exchange basis and the warranty cover does not extend
to on-site repair or complete unit exchange.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-6 of 40
Glossary of Terms
Repeater or
Cell Enhancer A Radio Frequency (RF) amplifier which can simultaneously
amplify and re-broadcast Mobile Station (MS) and Base
Transceiver Station (BTS) signals.
Band Selective Repeater A Cell Enhancer designed for operation on a range of channels
within a specified frequency band.
Channel Selective
Repeater A Cell Enhancer, designed for operation on specified channel(s)
within a specified frequency band. Channel frequencies may be
factory set or on-site programmable.
BTS Base Transceiver Station
C/NR Carrier-to-Noise Ratio
Downlink (D/L.) RF signals transmitted from the BTS and to the MS
Uplink (U/L.) RF signals transmitted from the MS to the BTS
EMC Electromagnetic Compatibility
GND Ground
DC Direct Current
AC Alternating Current
ID Identification Number
OIP3 Output Third Order Intercept Point = RFout +(C/I)/2
LED Light Emitting Diode
M.S. Mobile Station
N/A Not Applicable
N/C No Connection
NF Noise Figure
RF Radio Frequency
Rx Receiver
Tx Transmitter
S/N Serial Number
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-7 of 40

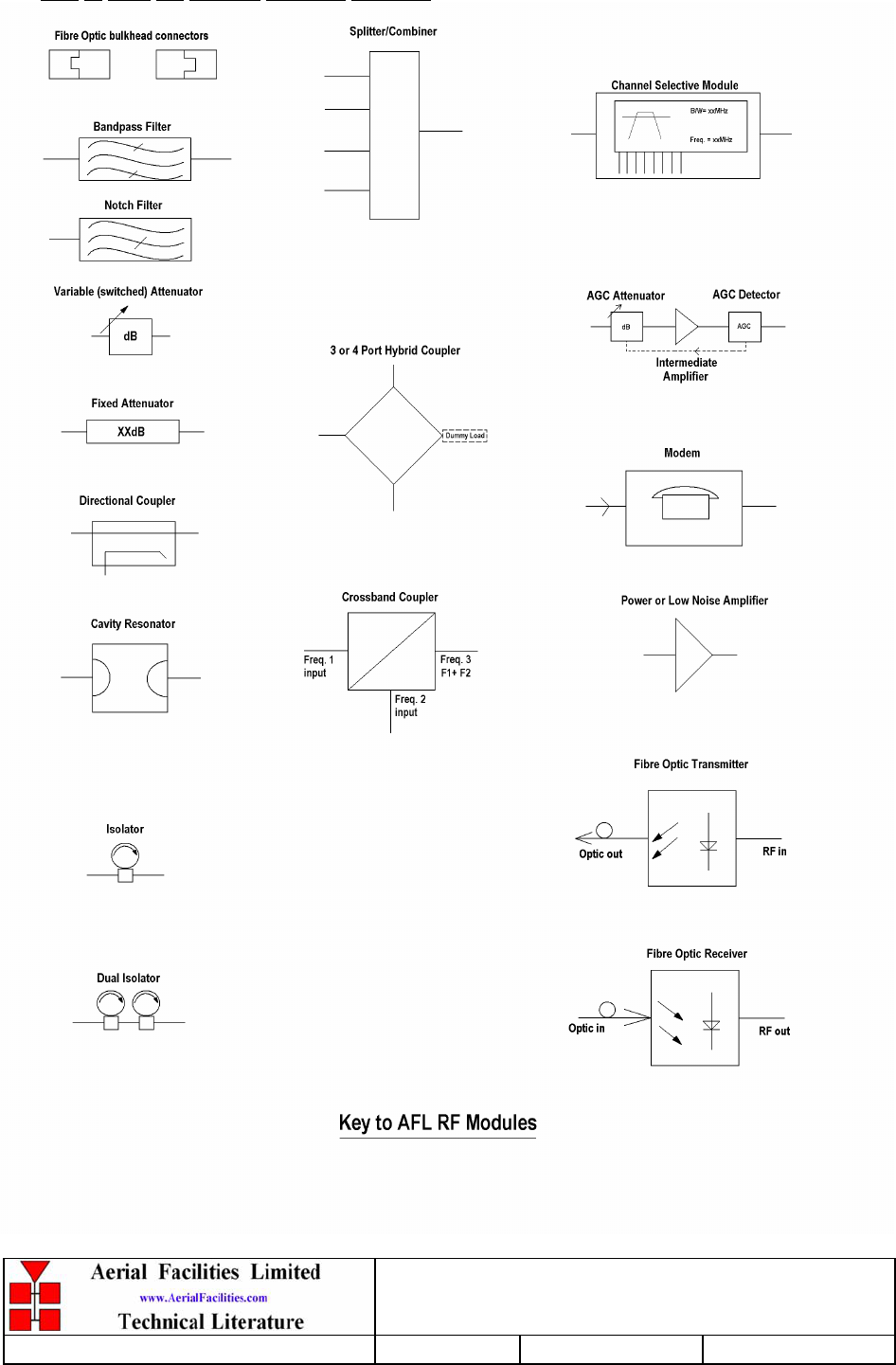

Key to AFL RF Module Drawing Symbols
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-8 of 40
1. SAFETY CONSIDERATIONS
1.1 Earthing of Equipment
Cell Enhancers supplied from the mains must be connected to grounded outlets and earthed
in conformity with appropriate local, national and international electricity supply and safety
regulations.
1.2 Electric Shock Hazard
Electrical shocks due to faulty mains driven power supplies.
Whilst ever potentially present in any electrical equipment, such a condition would be
minimised by quality installation practice and thorough testing at:
a) Original assembly
b) Commissioning
c) Regular intervals, thereafter.
All test equipment to be in good working order prior to its use. High current power supplies
can be dangerous because of the possibility of substantial arcing. Always switch off during
disconnection and reconnection.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-9 of 40

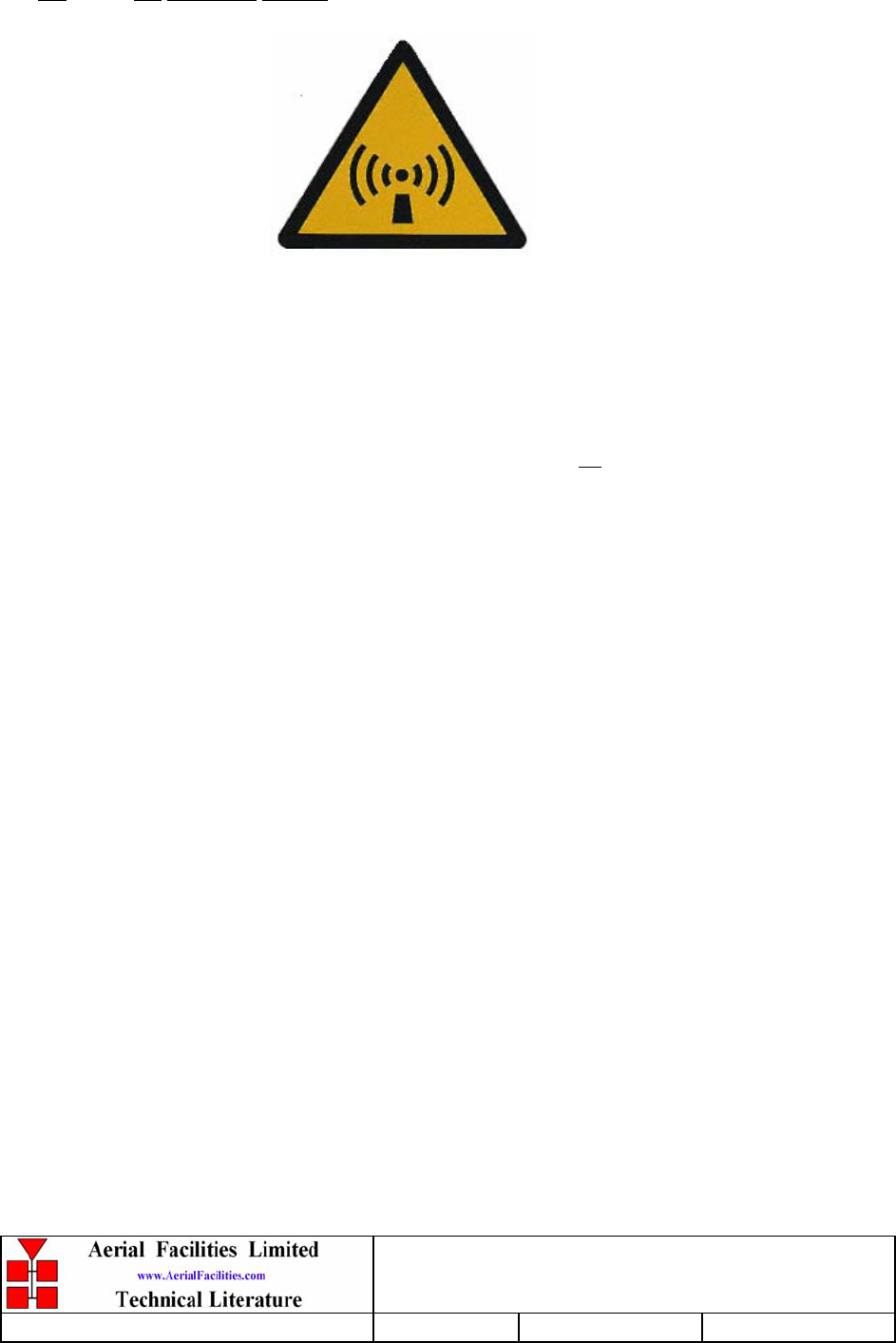

1.3 RF Radiation Hazard
RF radiation, (especially at UHF frequencies) arising from transmitter outputs connected to
AFL’s equipment, must be considered a safety hazard.
This condition might only occur in the event of cable disconnection, or because a ‘spare’
output has been left unterminated. Either of these conditions would impair the system’s
efficiency. No investigation should be carried out until all RF power sources have been
removed. This would always be a wise precaution, despite the severe mismatch between the
impedance of an N type connector at 50, and that of free space at 377, which would
severely mitigate against the efficient radiation of RF power. Radio frequency burns could
also be a hazard, if any RF power carrying components were to be carelessly touched!
Antenna positions should be chosen to comply with requirements (both local & statutory)
regarding exposure of personnel to RF radiation. When connected to an antenna, the unit is
capable of producing RF field strengths, which may exceed guideline safe values especially if
used with antennas having appreciable gain. In this regard the use of directional antennas with
backscreens and a strict site rule that personnel must remain behind the screen while the RF
power is on, is strongly recommended.
Where the equipment is used near power lines, or in association with temporary masts not
having lightning protection, the use of a safety earth connected to the case-earthing bolt is
strongly advised.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-10 of 40
1.4 Chemical Hazard
Beryllium Oxide, also known as Beryllium Monoxide, or Thermalox™, is sometimes used in
devices within equipment produced by Aerial Facilities Ltd. Beryllium oxide dust can be toxic
if inhaled, leading to chronic respiratory problems. It is harmless if ingested or by contact.
Products that contain beryllium are load terminations (dummy loads) and some power
amplifiers. These products can be identified by a yellow and black “skull and crossbones”
danger symbol (shown above). They are marked as hazardous in line with international
regulations, but pose no threat under normal circumstances. Only if a component containing
beryllium oxide has suffered catastrophic failure, or exploded, will there be any danger of the
formation of dust. Any dust that has been created will be contained within the equipment
module as long as the module remains sealed. For this reason, any module carrying the yellow
and black danger sign should not be opened. If the equipment is suspected of failure, or is at
the end of its life-cycle, it must be returned to Aerial Facilities Ltd for disposal.
To return such equipment, please contact the Quality Department, who will give you a
Returned Materials Authorisation (RMA) number. Please quote this number on the packing
documents, and on all correspondence relating to the shipment.
PolyTetraFluoroEthylene, (P.T.F.E.) and P.T.F.E. Composite Materials
Many modules/components in AFL equipment contain P.T.F.E. as part of the RF insulation
barrier.
This material should never be heated to the point where smoke or fumes are evolved. Any
person feeling drowsy after coming into contact with P.T.F.E. especially dust or fumes should
seek medical attention.
1.5 Emergency Contact Numbers
The AFL Quality Department can be contacted on:
Telephone +44 (0)1494 777000
Fax +44 (0)1494 777002
e-mail qa@aerial.co.uk
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-11 of 40
2. OVERVIEW/SYSTEM DESCRIPTION
The AFL Channel Selective Cell Enhancer is a 2-way on-band repeater. Various models are
available to cover frequency bands from 50MHz to 3000MHz. Its main sphere of
applications is in urban areas where the topology is such that shadows occur in the
propagation pattern (for example within large buildings, conference centres and tunnels,
etc.,)
The Channel Selective Cell Enhancer is a 2-port device for direct connection to two
antennas, usually a highly directional Yagi or similar aligned towards the base (donor) site
and an omni-directional antenna to cover the mobiles. The frequency bands that are passed
by the Cell Enhancer are set as per the specific customer requirements.
AFL manufacture a wide range of Cell Enhancers, configured for each customer's specific
requirements. Two basic physical variants are available, a rack mounted version to fit in a
standard 19" rack and an environmentally sealed wall mounted version which requires no
further enclosure.
The rack-mounted version is usually supplied in 3 units, a power supply unit and 2 RF units
(one containing each path). Each shelf/tray unit containing active modules has a ‘D.C. on’
indicator on the front panel and the PSU also has an ‘A.C. on’ indicator.
The wall-mounted version is supplied in a single environmentally-protected case. Handles
are provided for carrying the unit and the door is fitted with locks. A supply isolator switch is
fitted inside the unit and there are ‘.DC. on’ and ‘Alarm on’ indicators on the outside of the
door.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-12 of 40
3. SPECIFICATION
3.P Cell Enhancer Case Internal Photograph
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-13 of 40
3.1 Description
The system consists of separate modules mounted within a lockable, environmentally
protected enclosure. It is designed to amplify twelve bi-directional channels (six uplink, six
downlink) of mobile signals operating in the VHF waveband. All twelve channel selective
modules are configurable for any frequency (within the channel modules’ designed range) set
by the DIP switches on the channel control modules – see section 4.8 for channel frequency
calculation examples. Alarms are provided for each amplifier and channel selective module
which are wired as a volt-free, relay isolated summary loop, terminating at pins 1 & 2 in the
external connector. The ‘normal’ condition is that each active device ‘holds’ a local relay
closed, (so if power fails, the alarms become active) making a fail-safe system.
3.2 Electrical Specification
PARAMETER SPECIFICATION
Frequency range: 167.0-172MHz (Downlink)
162.0-165MHz (Uplink)
Channel module frequencies: Unspecified
Bandwidth: 3MHz uplink 5MHz downlink
Channel ripple: <±1.5dB
Gain: >95dB
Gain Adjustment: 0 - 30dB (in 2dB steps)
Spurious noise (in-band 30kHz): <-13dBm (U/L & D/L)
Uplink Power: >10.0Watts
Downlink Power: >40.0Watts
DownlinkO/P power/channel: +24dBm
UplinkO/P power/channel: +18dBm
Channel module gain: 30dB
-15.5dBm (downlink)
Channel module ALC: -14dBm (uplink)
+44dBm (downlink)
PA 1 dB compression point: +38dBm (uplink)
+56dBm (downlink)
PA IP3: +50dBm (uplink)
Noise Figure: <6dB
VSWR: better than 1.5:1
RF Connectors: N type, female
Input supply power: 110 or 230V ac
operational: -10°C to +60°C
Temperature range: storage: -40°C to +70°C
1 Amplifiers Alarms Fitted:
(volt-free contacts/TTL) 2 Channel modules
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-14 of 40
3.3 Mechanical Specification
Height: 800mm
Width: 600mm
Case Size:
Depth: 250mm
(excluding heatsinks, connectors, handles and feet)
Fixings: 4 holes on 630(w) x 640(h)mm
Weight: 80kg (approximately)
RF Connectors: N type female
Environmental Protection: IP65 with door closed and ports terminated
Case: To RAL 7035
Heatsinks: Matt black
Finish:
Handles: Black technopolymer
operational: -20°C to +60°C Temperature
Range: storage: -40°C to +70°C
Supply cord: Unit supplied with 3-pin IP68 connector for
customer interface with AC input.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-15 of 40
3.4 System Diagram, Drg. N. 50-122580
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-16 of 40
3.5 Generic System Case Outline Drawing
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-17 of 40
3.5 Parts List
AFL Part Nō. Part Description Qty.
05-000103 TX HYBRID COUPLER 3 PORT NO HTSINK 1
05-000104 TX HYBRID COUPLER 3 PORT W/HEATSINK 1
10-000703 1/4W0-30dB SWITCHED ATTENUATOR 2
11-006002K LNA VHF 70-500MHz KIT 4
12-002001K PWR AMP 10W 100-250MHz SMA KIT 1
12-003601K POWER AMP.150MHz 20W KIT 2
13-003011 DC/DC CONVERTER.18-36in 12v out 8.3A 1
13-003020 DC/DC CONVERTER 24-12V HEATSINK 1
17-000526 CE 10/20W HEATSINK THERMAL GASKET 4
17-002101 CHANNEL CONTROL MODULE 4
17-002103 26WAY RIBBON CABLE LEAD 12
17-003022 MODULE PATTERNED LEAVE 12
17-003023 SUBRACK SIDE PANEL 4
17-003024 SUBRACK REAR BRACKET 12
17-003025 BOTTOM MODULE GUIDE 12
17-003028 MODULE SQUARE LEAVE 12
17-003029 TOP MODULE GUIDE 12
17-009106 160MHz VHF CHAN MOD, 30kHz (8p) 12
20-001602 24V RELAY BOARD 1
80-031820 20W PA HEATSINK 2
80-310420 BCC 400W POWER SUPPLY HEATSINK 2
91-030002 N ADAPTOR PANEL FEMALE:FEMALE 2
91-130001 SMA ADAPT 'T' ALL FEMALE 3 GHz 2
91-800027 DIN RAIL NON-FUSED TERMINAL BLOCK 9
91-800028 DIN RAIL END-STOP 4
91-800029 DIN RAIL TERMINAL BLOCK PARTITION 3
92-120009 M20 IP68 CABLE GLAND 3
93-970016 6 WAY SPLITTER 1-500MHz SMA 4
94-100004 STPS12045TV 60A DUAL DIODE 2
96-100006 FUSE HOLDER ATO IN-LINE 1
96-110057 25A ATO FUSE 1
96-300051 JWS100-12/A PSU 1
96-300054 24V 17A PSU 400W (XP BCC) 1
96-700034 LED RED 5mm IP67 1
96-700035 LED GREEN 5mm IP67 1
96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1
97-100109 CASE 800 x 600 x 250 SAREL(FEC 650-754) 1
97-400010 BLACK PLASTIC HANDLE 50mm HIGH 2
97-600001 SUBRACK FRONT HORIZ 4
97-600002 SUBRACK M2.5 STD TAP 24
97-900004 RUBBER FOOT FOR CELL ENHANCERS 4
99-200017 CAUTION HEAVY LABEL 75 x 55mm 1
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-18 of 40
4. SUB-UNIT MODULES
4.1 3 Port Tx Hybrid Couplers (05-000103 & 05-000104)
4.1.1 Description
The transmitter hybrid couplers provide isolation from unwanted reflected frequencies
to/from the leaky feeder antennas. They are 4 port devices with the one unused port
terminated internally with a 50 dummy load. The ‘104’ version has higher power
capability due to an attached heatsink.
Being passive devices, the hybrid couplers should be maintenance free over their entire
lifetime and have an extremely high MTBF figure. It is not recommended that the top cover
be removed or any of the internal components needlessly touched, since the original factory
alignment/tuning would be extremely hard to reproduce in a ‘field’ environment.
4.1.2 Technical Specification
PARAMETER SPECIFICATION
Frequency Range: 140-170 MHz
Bandwidth: ±10% of fo
Insertion Loss: 3.2dB
Impedance: 50
V.S.W.R: 1.2:1
Input to input isolation: >20dB
Connectors: Type N Standard
Dimensions: 140 x 120 x 35mm
25Watts (05-000103)
Power rating: 100W (05-000104)
Weight: 0.5kg
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-19 of 40
4.2 ¼Watt 0- -30dB Switched Attenuator (10-000703)
4.2.1 General Application
In many practical applications for Cell Enhancers etc., the gain in each path is found to be
excessive. Therefore, provision is made within the unit for the setting of attenuation in each
path, to reduce the gain.
4.2.2 Switched Attenuators
The AFL switched attenuators are available in two different types; 0 – 30dB in 2 dB steps (as
in this case), or 0 – 15dB in 1 dB steps. The attenuation is simply set using the four miniature
toggle switches on the top of each unit. Each switch is clearly marked with the attenuation it
provides, and the total attenuation in line is the sum of the values switched in. They are
designed to maintain an accurate 50 impedance over their operating frequency at both input
and output.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-20 of 40
4.3 VHF/UHF Low Noise Amplifier (11-006002)
4.3.1 Description
The 21dB gain low noise amplifier used is a double stage solid-state low-noise amplifier.
Class A circuitry is used throughout the unit to ensure excellent linearity over a very wide
dynamic range. The two active devices are very moderately rated to provide a long, trouble-
free working life. There are no adjustments on this amplifier, and in the unlikely event of
failure then the entire amplifier should be replaced. The amplifier features a dedicated, in-
built alarm monitoring system based on class A DC biasing levels whose output is a volts-free
relay contact pair that may be integrated into an existing system via the 9-way D-type
interface.
4.3.2 Technical Specification
PARAMETER SPECIFICATION
Frequency range: 70 – 500MHz
Bandwidth: <430MHz
Gain: 21dB (typical)
1dB Compression Point: +20dB (typical)
3rd order intercept: +33dB (typical)
Input return loss: >14dB
Output return loss: >20dB
VSWR: Better than 1.5:1
Noise figure: <2.7dB
Connectors: SMA female
Supply: 230 - 260mA @ 10 to 24V DC
Size: 88 x 50 x 34mm (ex. connectors)
operational: -10°C to +60°C
Temperature range: storage: -20°C to +70°C
Weight: 0.26kg
4.3.3 LNA ‘D’ Connector Pin-out details
Connector pin Signal
1 +Ve input (10-24V)
2 GND
3 Alarm RelayO/P bad
4 Alarm Relay common
5 Alarm Relay good
6 No connection
7 TTL voltage set
8 TTL alarm/0V (good)
9 O/C good/0V bad
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-21 of 40
4.4 10Watt Power Amplifier (12-002001)
4.4.1 Description
The power amplifier fitted to this unit is a multi-stage, solid state power amplifier. Class A
circuitry is employed throughout the device to ensure excellent linearity over a wide
dynamic frequency range. All the semi-conductor devices are very conservatively rated to
ensure low device junction temperatures and a long, trouble free working lifetime.
The power amplifier should require no maintenance over its operating life. Under no
circumstances should the cover be removed or the side adjustments disturbed unless it is
certain that the amplifier has failed; since it is critically aligned during manufacture and
any re-alignment will require extensive test equipment.
4.4.2 Technical Specification
PARAMETER SPECIFICATION
Frequency range: 100 - 250MHz (tuned to spec.)
Bandwidth: 20MHz (typical, tuned to spec.)
Maximum RF output: >10Watts
Gain: >50dB
1dB compression point: +40dBm
3rd order intercept point: +50dBm
VSWR: better than 1.5:1
Connectors: SMA female
Supply: 2.5Amps @ 24V DC
Weight: 1kg (excluding heatsink)
operational: -10°C to +60°C Temperature
range: storage: -20°C to +70°C
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-22 of 40
4.5 20Watt Power Amplifier (12-003601)
4.5.1 Description
The 20Watt power amplifier fitted to this unit is a multi-stage, solid state power amplifier.
Class A circuitry is employed throughout the device to ensure excellent linearity over a wide
dynamic frequency range. All the semi-conductor devices are very conservatively rated to
ensure low device junction temperatures and a long, trouble free working lifetime.
The power amplifier should require no maintenance over its operating life. Under no
circumstances should the cover be removed or the side adjustments disturbed unless it is
certain that the amplifier has failed; since it is critically aligned during manufacture and any
re-alignment will require extensive test equipment.
4.5.2 Technical Specification
PARAMETER SPECIFICATION
Frequency Range: 88 - 108MHz
Bandwidth: 20MHz (typical, tuned to spec.)
Maximum Output Power: >20W
Gain: 44dB
1dB Compression Point: <+43dBm
3rd Order Intercept Point: <+54dBm
VSWR: better than 1.45:1
Connectors: SMA female
Supply: 4.8A @ 24V DC
operational: -10°C to +60°C
Temperature range: storage: -20°C to +70°C
Size: 276 x 78 x 40mm (case only)
Weight: 1.5 kg (excluding heatsink)
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-23 of 40
4.6 DC/DC Converter, 24V in, 12V 8A out (13-003011)
4.6.1 Description
The DC/DC converter fitted is an O.E.M high power PCB unit with an 8 amp @ 12V output
capability. The regulator exists within this unit because of the need to supply 12V DC to the
channel modules; if the unit is being supplied with power by the external 24V DC rail, there
would be only be 24V in the system and the channel modules would have no power. The
circuit is basically an O.E.M semiconductor regulator (one side of which has a heatsink
mounting plate, usually bolted to the casing of a Cell Enhancer) and smoothing components
built onto a printed circuit board with screw block terminations.
Note: no circuit diagram of this O.E.M. regulator is available. This unit should not be
repaired, only replaced.
4.6.2 Technical Specification
PARAMETER SPECIFICATION
Input Voltage Range: 18-28V DC
Output Voltage: 12V±0.5V
Max. Current Load: 8.0Amps
operation
:
-10°C to +60°C
Temperature range:
storage: -20°C to +70°C
Size(PCB): 190 x 63mm
Weight (Loaded PCB): 291gms
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-24 of 40
4.7 Channel Control Module (17-002101)
4.7.1 Description
The purpose of the channel control modules is to change the channel selective module
frequencies by means of a series of D.I.P switch banks, each switch corresponding to a
different ‘frequency bit’.
4.7.2 Technical Specification
Below shows the pin assignments for each switch on a channel control module.
IDC PIN 25-way Connector Function
1 13 Freq. bit 1 (12.5kHz)
2 25 Freq. bit 2 (25kHz)
3 12 Freq. bit 3 (50kHz)
4 24 Freq. bit 4 (100kHz)
5 11 Freq. bit 5 (200kHz)
6 23 Freq. bit 6 (400kHz)
7 10 Freq. bit 7 (800kHz)
8 22 Freq. bit 8 (1.6MHz)
9 9 Freq. bit 9 (3.2MHz)
10 21 Freq. bit 10 (6.4MHz)
11 8 Freq. bit 11 (12.8MHz)
12 20 Freq. bit 12 (25.6MHz)
13 7 Freq. bit 13 (51.2MHz)
14 19 Freq. bit 14 (102.4MHz)
15 6 Freq. bit 15 (204.8MHz)
16 18 Freq. bit 16 (409.6MHz)
17 5 Module alarm
18 17
19 4
20 16
21 3
N/C
22 15 +5V
23 2 0V
24 14 Switched 12V
25 1 0V
26 --- ---
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-25 of 40
4.7.3 VHF/ UHF Programming Procedure
Check that the required frequency falls within the operational frequency limits of the Cell
Enhancer.
For each channel required, subtract the synthesiser offset from the required operating
frequency and record the resulting local oscillator frequency.
Divide each local oscillator frequency by the channel spacing and check that the result is
an integer (i.e.: no remainder).
If the synthesiser division ratio is not an integer value, check the required operational
frequency and repeat the calculation checking for mistakes.
Convert the required local oscillator frequency to synthesiser programming switch state
patterns according to the following table.
Switch number Synthesiser offset added when switch in UP position
1 +12.5kHz
2 +25kHz
3 +50kHz
4 +100kHz
5 +200kHz
6 +400kHz
7 +800kHz
8 +1.6MHz
9 +3.2MHz
10 +6.4MHz
11 +12.8MHz
12 +25.6MHz
13 +51.2MHz
14 +102.4MHz
15 +204.8MHz
16 +409.6MHz
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-26 of 40
4.7.4 VHF/ UHF Programming Example
Frequency required: 465.5MHz
Channel spacing: 12.5kHz
Synthesiser offset: 21.4MHz
The Local Oscillator frequency is therefore: 465.4 – 21.4 = 444.0 MHz
Dividing the LO frequency
by the channel spacing of: 0.0125MHz:
444.0 = 35520
0.0125
This is an integer value, therefore it is OK to proceed.
Switch settings
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Local Oscillator
Frequency of:
444.0 MHz 1 0 0 0 1 0 1 0 1 1 0 0 0 0 0 0
Switch setting: 0 = switch DOWN (on, frequency ignored)
1 = switch UP (off, frequency added)
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-27 of 40
4.8 Channel Selective Module (17-009106)
4.8.1 Description
The channel selectivity module is employed when the Cell Enhancer requirement dictates that
very narrow bandwidths (single operating channels), must be selected from within the
operating passband. One channel selectivity module is required for each channel.
The Channel Selectivity Module is an Up/Down frequency converter that mixes the incoming
channel frequency with a synthesised local oscillator, so that it is down-converted to an
Intermediate Frequency (IF) in the upper HF range. An eight pole crystal filter in the IF
amplifier provides the required selectivity to define the operating passband of the Cell
Enhancer to a single PMR channel. The same local oscillator then converts the selected IF
signal back to the channel frequency.
Selectivity is obtained from a fixed bandwidth block filter operating at an intermediate
frequency (IF) in the low VHF range. This filter may be internal to the channel selectivity
module (Crystal or SAW filter) or an externally mounted bandpass filter, (LC or Helical
Resonator). Various IF bandwidths can therefore be accommodated. A synthesized Local
Oscillator is employed in conjunction with high performance frequency mixers, to translate
between the signal frequency and IF.
The operating frequency of each channel selectivity module is set by the programming of
channel selectivity module frequencies and is achieved digitally, via hard wired links, banks
of DIP switches, or via an onboard RS232 control module, providing the ability to remotely
set channel frequencies.
Automatic Level Control (ALC) is provided within each channel selectivity module such that
the output level is held constant for high level input signals. This feature prevents saturation
of the output mixer and of the associated amplifiers.
Alarms within the module inhibit the channel if the synthesised frequency is not locked. The
synthesiser will not usually go out of lock unless a frequency far out of band is programmed.
The channel selectivity module is extremely complex and, with the exception of channel
frequency programming within the design bandwidth, it cannot be adjusted or repaired
without extensive laboratory facilities and the necessary specialised personnel. If a fault is
suspected with any channel selectivity module it should be tested by substitution and the
complete, suspect module should then be returned to AFL for investigation.
Operators note: None of the channel modules is frequency pre-programmed, they must all
be set using the method described in section 4.8.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-28 of 40
4.8.2 Drg. N. 17-003080, Generic Channel Module Block Diagram
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-29 of 40
4.9 24V Relay Board (20-001602)
4.9.1 Description
The General Purpose Relay Board allows the inversion of signals and the isolation of
circuits. It is equipped with two dual pole change-over relays RL1 and RL2, with completely
isolated wiring, accessed via screw terminals.
Both relays are provided with polarity protection diodes and diodes for suppressing the
transients caused by "flywheel effect" which can destroy switching transistors or induce
spikes on neighbouring circuits. It’s common use is to amalgamate all the alarm signals into
one, volts-free relay contact pair for the main alarm system.
Note that the board is available for different voltages (12 or 24V) depending on the type of
relays fitted at RL1 and RL2.
4.9.2 Technical Specification
PARAMETER SPECIFICATION
Operating voltage: 8 to 30V (floating earth)
Alarm Threshold: Vcc - 1.20 volt +15%
Alarm output relay contacts:
Max. switch current: 1.0Amp
Max. switch volts: 120Vdc/60VA
Max. switch power: 24W/60VA
Min. switch load: 10.0µA/10.0mV
Relay isolation: 1.5kV
Mechanical life: >2x107 operations
Relay approval: BT type 56
Connector details: Screw terminals
operational: :-10°C to +55°C
Temperature range storage: :-40°C to +70°C
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-30 of 40
4.10 Six-Way Splitter (93-100004)
4.10.1 Description
The wide range, low power, hybrid splitter/combiner provides the means to divide the signal
into six before the channel modules & re-combine the six signals into one after processing.
Being passive devices, the receivers should be maintenance free over their entire lifetime and
have an extremely high MTBF figure. It is not recommended that the top cover be removed
should the unit be suspected of failure, replacement with a new unit is usually the most cost
effective solution.
4.10.2 Technical Specification
PARAMETER SPECIFICATION
Frequency Range: 50-500MHz
Rx/Rx Isolation: >20dB
Typical Insertion Loss: 10.5 dB
VSWR: 1.3:1
Impedance: 50
Output Connectors: N Type
Input Connectors: N Type / BNC
operation: -10°C to +60°C Temperature
range storage: -20°C to +70°C
Dimensions: 145 x 64 x 37mm (case only)
4.11 STPS12045TV 60A Dual Diode Assembly (94-100004)
4.11.1 Description
The purpose of these dual diode assemblies is to allow two (or more) DC voltage sources to
be combined, so that the main 24 volt DC rail within the equipment is sourced from either
the mains driven SMPU, or externally through an XLR connector on the rear panel. When
the DC is sourced externally, the heavy-duty diodes prevent any reverse current from flowing
back to their source or the alternative supply rail. Combining diodes such as these would also
be used if the equipment is to be powered from external back-up batteries.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-31 of 40
4.12 JWS100-12/A PSU (96-300051)
4.12.1 Description
The mains power supply unit used to power the channel selective modules is a switched-
mode type capable of supplying 12V DC at 8.5Amps continuously, (the cell enhancer
draws approximately 5.0Amps from this 12V supply under normal conditions).
No routine maintenance of the PSU is required. If a fault is suspected, then the output
voltage from the power supply may be measured on its output terminals. This is typically
set to 12.2V. The output voltage may be varied using the multi-turn adjustment
potentiometer mounted close to the DC output terminals.
All the PSU’s used in AFL Cell Enhancers are capable of operation from either 110 or
220V nominal AC supplies. The line voltage is sensed automatically, so no adjustment or
link setting is needed by the operator.
4.12.2 Technical Specification
AC Input Supply:
Voltage: 110 or 220V nominal
90 to 132 or 180 to 264V
(absolute limits)
Frequency: 47 to 63Hz
DC Output Supply:
Voltage: 12V DC (nominal)
10-14V (absolute limits)
Current: 8.5A
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-32 of 40
4.13 24V, 400W Power Supply Pack (96-300054)
4.13.1 Description
The main 24V power supply unit is a switched-mode type capable of supplying 24V DC at
17.0Amps continuously. Equipment of this type typically requires approximately 12.0 Amps
at 24V DC, so the PSU will be used conservatively ensuring a long operational lifetime.
No routine maintenance of the PSU is required. If a fault is suspected, then the output voltage
from the power supply may be measured on its output terminals. This is typically set to
24.5V using the multi-turn potentiometer mounted close to the DC output studs on the PSU
PCB.
All the PSU’s used in AFL Cell Enhancers are capable of operation from either 110 or 220V
nominal AC supplies. The line voltage is sensed automatically, so no adjustment or link
setting is needed by the operator.
4.13.2 Technical Specification
AC Input Supply
110 or 220V nominal
Voltages: 90 to 132 or 180 to 264V (absolute limits)
Frequency: 47 to 63Hz
DC Output Supply:
24V DC (nominal)
Voltage: 20 to 28V (absolute limits)
Maximum current: 17A
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-33 of 40
5. INSTALLATION
5.1 Initial Installation Record
When this equipment is initially commissioned, please use the equipment set-up record sheet
in Appendix A. This will help both the installation personnel and AFL should these figures
be needed for future reference or diagnosis.
5.2 Antenna Installation & Gain Calculations
1 Most Cell Enhancer require two antennas, one a highly directional Yagi or similar
directed towards the donor cell base station, and one a leaky feeder, omni-directional antenna
or Yagi to cover the area in which the mobiles are to be served.
2 The maximum gain at which the Cell Enhancer can be set is limited by the isolation that
can be achieved between these two antennas. Therefore when the antennas have been
installed, inject a signal (at a known power level) into one of them and measure the signal
level received by the other antenna on a spectrum analyser. The isolation can then be
calculated as the difference between these two figures. The gain in each path of the Cell
Enhancer should be set at least 10 dB below this figure, using attenuators as described below
in paragraph 5.
3 Also measure the received signal from the donor cell at the input to the Cell Enhancer
(base port). The gain of the Cell Enhancer downlink path should be set such the donor site
will not overload the Cell Enhancer amplifiers. It is recommended that the input level should
be less than -50dBm at the input of the Cell Enhancer (Base Port). (This figure is assuming
maximum gain, and may be increased by the value of the attenuator fitted in the downlink
path.)
4 Ensure that the mobile facing antenna has at least 70 dB isolation from the nearest mobile.
(This is usually easily achieved when using a leaky feeder.)
5 The Cell Enhancer gain is set by setting the attenuation in each path (uplink and
downlink) between the first two amplifier stages (see markings within the Cell Enhancer or
layout drawings for the exact attenuator locations). Note that the uplink (mobile to base) and
downlink (base to mobile) path gains are set independently. This allows the paths to have
different gains if required to set the correct output power levels.
6 It is recommended that the gains are set such that the Downlink channel output levels
from the Cell Enhancer are typically +30dBm per channel
(Input level + Gain = Output level).
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-34 of 40
5.3 Antenna Isolation
Base Site
Mobiles
Ya
g
i or leak
y
feede
r
Ya
g
i
Measure Isolation
Between antennas
B) Install the Cell Enhancer with its gain set 10dB below the isolation
figure obtained above.
Ya
g
i or leak
y
feede
r
Ya
g
i
Base Port Mobile Port
Cell Enhance
r
Base Site
(
donor
)
Mobile
A
)
. First set u
p
the two antennas & measure the isolation between them.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-35 of 40
6. MAINTENANCE
6.1 General Procedures
6.1.1 Fault Finding
In the event that the performance of the system is suspect, a methodical and logical approach
to the problem will reveal the cause of the difficulty. The System consists of modules within
a wall mounted, environmentally protected enclosure
Transmissions from the main base stations are passed though the system to the mobile radio
equipment; this could be a handheld radio or a transceiver in a vehicle. This path is referred
to as the downlink. The return signal path from the mobile radio equipment to the base
station is referred to as the uplink.
The first operation is to check the alarms of each of the active units and determine that the
power supplies to the equipment are connected and active.
This can be achieved remotely (via CEMS, the RS232 Coverage Enhancement Management
System, if fitted), or locally with the front panel LED’s. The green LED on the door should
be illuminated, while the red alarm indicator should be off.
If an Alarm is on, then that module must be isolated and individually tested against the
original test specification. Note that channel modules will alarm if their channel frequency
(set by the channel controller DIP switches) is set to a non-valid frequency.
The individual amplifier units within the unit have a green LED showing through a hole in
their lid, which is illuminated if the unit is working correctly.
If an amplifier is suspect, check the DC power supply to the unit. If no other fault is apparent
use a spectrum analyser to measure the incoming signal level at the input and then after
reconnecting the amplifier input, measure the output level. Consult with the system diagram
to determine the expected gain and compare result.
In the event that there are no alarms on and all units appear to be functioning it will be
necessary to test the system in a systematic manner to confirm correct operation.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-36 of 40
6.1.2 Downlink
Confirm that there is a signal at the expected frequency and strength from the base station. If
this is not present then the fault may lay outside the system. To confirm this, inject a
downlink frequency signal from a known source at the master site BTS input and check for
output at the remote site feeder output.
If a signal is not received at the output it will be necessary to follow the downlink path
through the system to find a point at which the signal is lost. The expected downlink output
for the given input can be found in the end-to-end test specification.
6.1.3 Uplink
Testing the uplink involves a similar procedure to the downlink except that the frequencies
used are those transmitted by the mobile equipment.
6.1.4 Fault repair
Once a faulty component has been identified, a decision must be made on the appropriate
course to carry out a repair. A competent engineer can quickly remedy typical faults such as
faulty connections or cables. The exceptions to this are cable assemblies connecting
bandpass filter assemblies that are manufactured to critical lengths to maintain a 50-ohm
system. Care should be taken when replacing cables or connectors to ensure that items are of
the correct specification. The repair of component modules such as amplifiers and bandpass
filters will not usually be possible in the field, as they frequently require specialist
knowledge and test equipment to ensure correct operation. It is recommended that items of
this type are replaced with a spare unit and the faulty unit returned to AFL for repair.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-37 of 40
6.1.5 Checking service
Following the repair of any part of the system it is recommended that a full end-to-end test is
carried out in accordance with the test specification and that the coverage is checked by
survey.
It is important to bear in mind that the system includes a radiating cable network and base
stations that may be faulty or may have been damaged.
6.1.6 Service Support
Advice and assistance with maintaining and servicing this system are available by contacting
Aerial Facilities Ltd.
6.2 Tools & Test Equipment
The minimum tools and test equipment needed to successfully service this AFL product are
as follows:-
Spectrum analyser: 100kHz to 2GHz (Dynamic range = 90dB).
Signal Generator: 30MHz to 2GHz (-120dBm to 0dBm o/p level).
Attenuator: 20dB, 10W, DC-2GHz, (N male – N female).
Test Antenna: Yagi or dipole for operating frequency.
Digital multi-meter: Universal Volt-Ohm-Amp meter.
Test cable x 2: N male – N male, 2M long RG214.
Test cable x 2: SMA male – N male, 1m long RG223.
Hand tools: Philips #1&2 tip screwdriver.
3mm flat bladed screwdriver.
SMA spanner and torque setter.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-38 of 40
6.3 Care of Modules
6.3.1 General Comments
Many of the active modules contain semiconductor devices utilising MOS technology, which
can be damaged by electrostatic discharge. Correct handling of such modules is mandatory to
ensure their long-term reliability.
To prevent damage to a module, it must be withdrawn/inserted with care. The module may
have connectors on its underside, which might not be visible to the service operative.
6.3.2 Module Removal (LNA’s, general procedure):
The following general instructions should be followed to remove a module:
1 Remove power to the unit
2 Remove all visible connectors (RF, DC & alarm)
3 Release module retaining screws.
4 Slowly but firmly, pull the module straight out of its position. Take care not to twist/turn
the module during withdrawal. (When the module is loose, care may be needed, as there
may be concealed connections underneath).
7.3.3 Module Replacement (general):
1 Carefully align the module into its location then slowly push the module directly straight
into its position, taking care not to twist/turn it during insertion.
2 Reconnect all connectors, RF, alarm, power etc.,(concealed connectors may have to be
connected first).
3 Replace retaining screws (if any).
4 Double-check all connections before applying power.
6.3.4 Power Amplifiers
1) Remove power to the unit. (switch off @ mains/battery, or remove DC in connector)
2) Remove alarm wires from alarm screw terminal block or disconnect multi-way alarm
connector.
3) Carefully disconnect the RF input and output coaxial connectors (usually SMA)
If alarm board removal is not required, go to step 5.
4) There is (usually) a plate attached to the alarm board which fixes it to the amplifier,
remove its retaining screws and the alarm board can be withdrawn from the amplifier in
its entirety. On certain types of amplifier the alarm board is not mounted on a dedicated
mounting plate; in this case it will have to firstly be removed by unscrewing it from the
mounting pillars, in most cases, the pillars will not have not have to be removed before
lifting the amplifier.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-39 of 40
5) If the amplifier to be removed has a heatsink attached, there may be several different ways
it can have been assembled. The most commonly used method, is screws through the front
of the heatsink to threaded screw holes (or nuts and bolts), into the amplifier within the
main case. If the heatsink is mounted on the rear of the main case (e.g., against a wall in
the case of wall mounted enclosures), then the fixing method for the heatsink will be from
within the case, (otherwise the enclosure would have to be removed from the wall in order
to remove the heatsink).
When the heatsink has been removed, the amplifier may be unscrewed from the main
casing by its four corner fixings and gently withdrawn.
Fitting a new power amplifier module will be the exact reverse of the above.
Note: Do not forget to apply fresh heatsink compound to the heatsink/main case
joint and also between the amplifier and the main case.
6.3.5 Low Power Amplifier Replacement
1 Disconnect the mains power supply and disconnect the 24V dc supply connector for the
LPA.
2 Disconnect the RF input and output cables from the LPA.
3 Disconnect the alarm connector.
4 Remove the alarm monitoring wires from (D type connector) pins 9 and 10.
5 Remove the LPA module by removing the four retaining screws, replace with a new LPA
module and secure it with the screws.
6 Connect the RF cables to the LPA input and output connectors. Reconnect the wires to
the alarm board connector pins 9 and 10.
7 Reconnect the DC supply connector and turn the mains switch on.
Note: Tighten SMA connectors using only a dedicated SMA torque spanner. If SMA
connectors are over-tightened, irreparable damage will occur. . Do not use adjustable
pliers to loosen/tighten SMA connectors.
Also take care not to drop or knock the module as this can damage (or misalign in the
case of tuned passive modules) sensitive internal components. Always store the modules
in an environmentally friendly location
6.3.6 Module Transportation:
To maintain the operation, performance and reliability of any module it must be stored and
transported correctly. Any module not installed in a whole system must be kept in an anti-
static bag or container. These bags or containers are normally identified by being pink or
black, and are often marked with an ESD label. Any module sent back to AFL for
investigation/repair must be so protected. Please contact AFL’s quality department before
returning a module.
12 Channel Channelised Cell Enhancer
User Handbook
Handbook N.-50-122501HBK Issue No:-A
Date:-16/03/05 Page:-40 of 40
APPENDIX A INITIAL EQUIPMENT SET-UP CALCULATIONS
GENERAL INFORMATION
Site Name: Client Name:
Date: AFL Equip. Model N.
ANTENNA SYSTEMS
Model Gain Azimuth Comments
A - Service Antenna
B – Donor Antenna
Type Loss Length Comments
C – Service Feeder
D – Donor Feeder
INITIAL PARAMETERS
E – CE Output Power dBm
F – Antenna Isolation dB
G – Input signal level from donor BTS dBm
Operating Voltage V
DOWNLINK CALCULATIONS
Parameter Comments Value
Input signal level (G) dBm
CE max. o/p power (E) dBm
Gain setting E - G dB
Isolation required (Gain + 10dB) dB
Service antenna gain (A) dB
Service antenna feeder loss (C) dB
Effective radiated power (ERP) E+A-C dBm
Attenuator setting CE gain-gain setting dB
If the input signal level in the uplink path is known and steady, use the following calculation
table to determine the gain setting. If the CE features Automatic Gain Control the attenuator
should be set to zero and if not, then the attenuation setting for both uplink and downlink
should be similar.
UPLINK CALCULATIONS
Parameter Comments Value
Input signal level dBm
CE max. o/p power (E) dBm
Gain setting dB
Required isolation dB
Donor antenna gain (B) dB
Donor antenna feeder loss (D) dB
Effective radiated power (ERP) E+B-D dBm
Attenuator setting (CE gain-gain setting) dB
