61 102SERIES User Manual HTML Version

Users manual

BSF3604-470-490-DP-AC

UHF Fiber Optic Repeater

Part Number: 61-102001

Product Description and User’s Manual

Document No. 61-102001HBK

This document is valid for the

BSF3604-470-490-DP-AC (470/490MHz) Repeaters for the US Market

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Table of Contents

1Notices .................................................................................................................................. 4

1.2Contact Information ............................................................................................................ 4

1.3About This Manual .............................................................................................................. 5

1.4Compliance with FCC ......................................................................................................... 6

1.4.1FCC Part 15 ............................................................................................................. 6

1.4.2Unauthorized Changes to Equipment ...................................................................... 6

1.4.3FCC RF Exposure Limits ......................................................................................... 6

1.4.4Antenna Installation ................................................................................................. 7

1.4.5Compliance with FCC deployment rule regarding the radiation of noise ................. 7

1.4.6General Safety Warnings Concerning Use of This System ..................................... 9

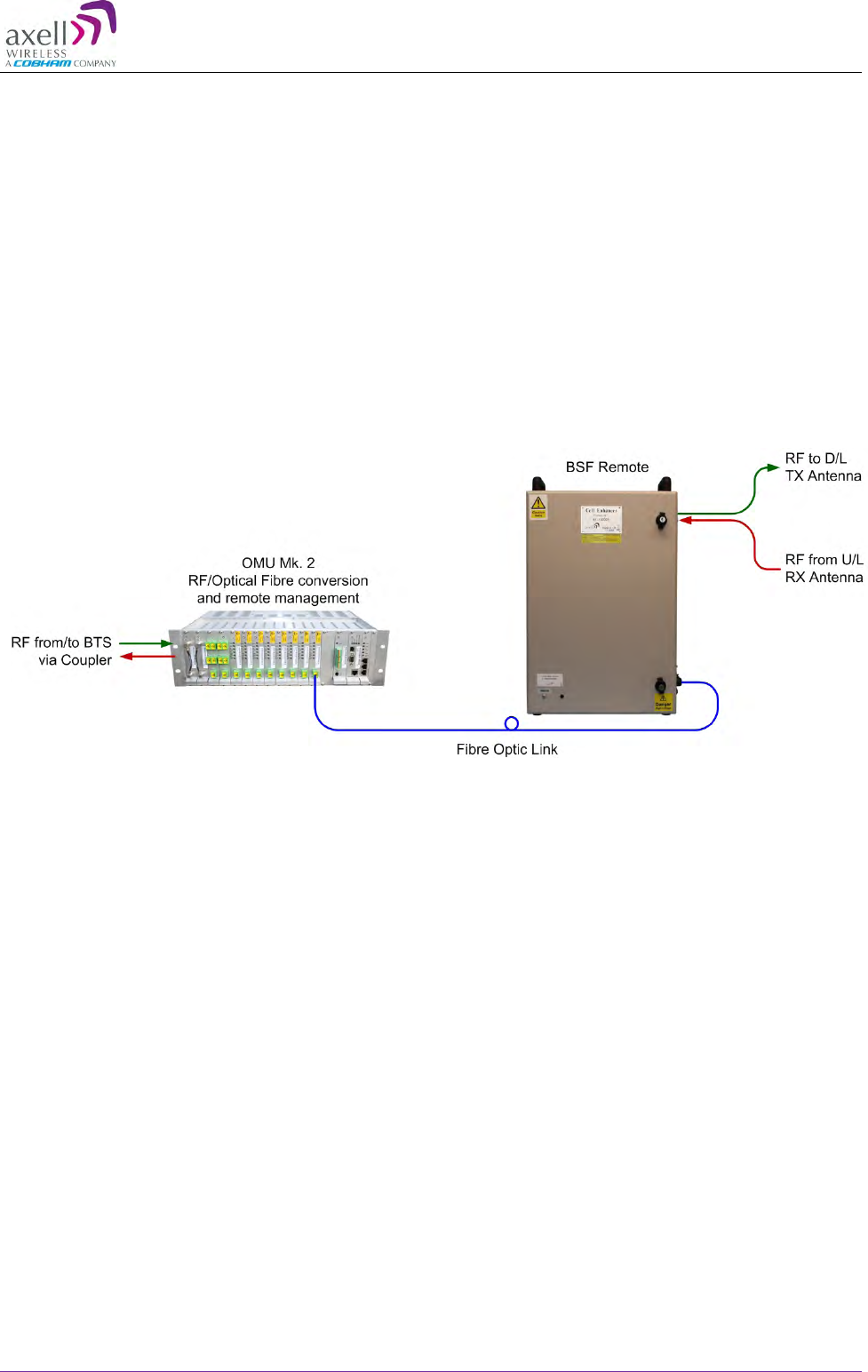

2Introduction ........................................................................................................................ 11

2.1Features and Capabilities ................................................................................................. 12

2.2Automatic Level Control ................................................................................................... 13

2.3Operating Temperature .................................................................................................... 13

2.4Management WEB GUI .................................................................................................... 14

2.5Interfaces .......................................................................................................................... 14

2.5.1Securing the Unit ................................................................................................... 14

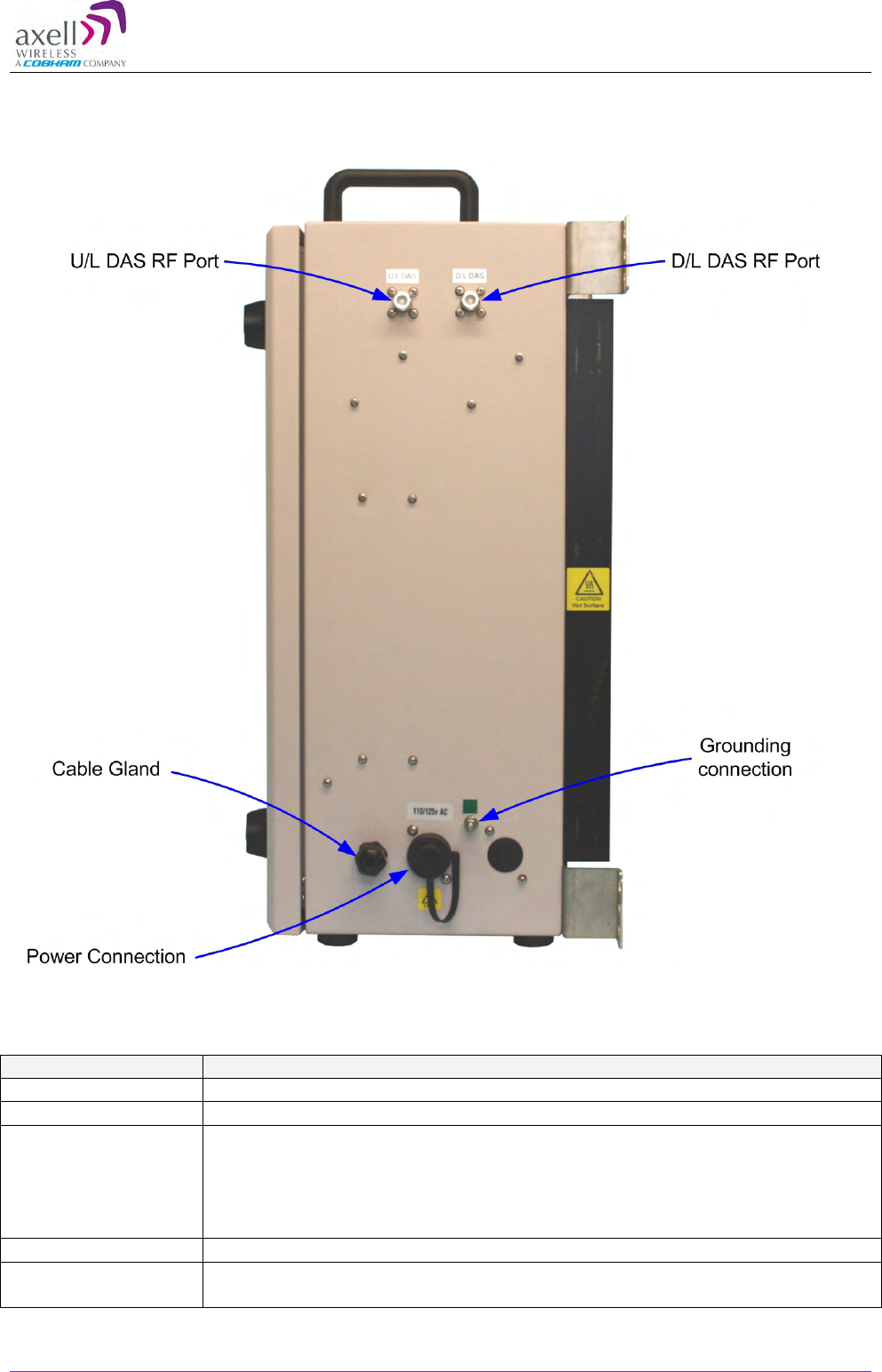

2.5.2External Interfaces ................................................................................................. 15

2.5.3Internal Interfaces .................................................................................................. 16

3Antenna and Repeater Installation Requirements .......................................................... 17

3.1BSF-3604 Installation Requirements ................................................................................ 17

3.1.1Safety Guidelines ................................................................................................... 17

3.1.2Criteria for Repeater Installation Location ............................................................. 17

3.1.3RF Cable Installation Guidelines ........................................................................... 18

3.1.4F/O Cable Installation Guidelines .......................................................................... 18

3.2Service Antenna Requirements ........................................................................................ 18

3.2.1Required Antenna Information ............................................................................... 18

3.2.2Indoor Installations ................................................................................................. 19

3.2.2.1Recommended Antennas ................................................................................... 19

3.2.2.2Recommended Splitters and Couplers .............................................................. 19

3.2.2.3Installation Criteria ............................................................................................. 20

3.2.3Service (Mobile) Antenna Installation Criteria ........................................................ 20

3.3RF Cabling Requirements ................................................................................................ 20

4Installation .......................................................................................................................... 21

4.1Unpacking ......................................................................................................................... 21

4.2Mount the Repeater .......................................................................................................... 21

4.2.1Selecting a Location to Ensure Proper Cooling ..................................................... 22

4.2.2Wall-Mounting Preparation .................................................................................... 22

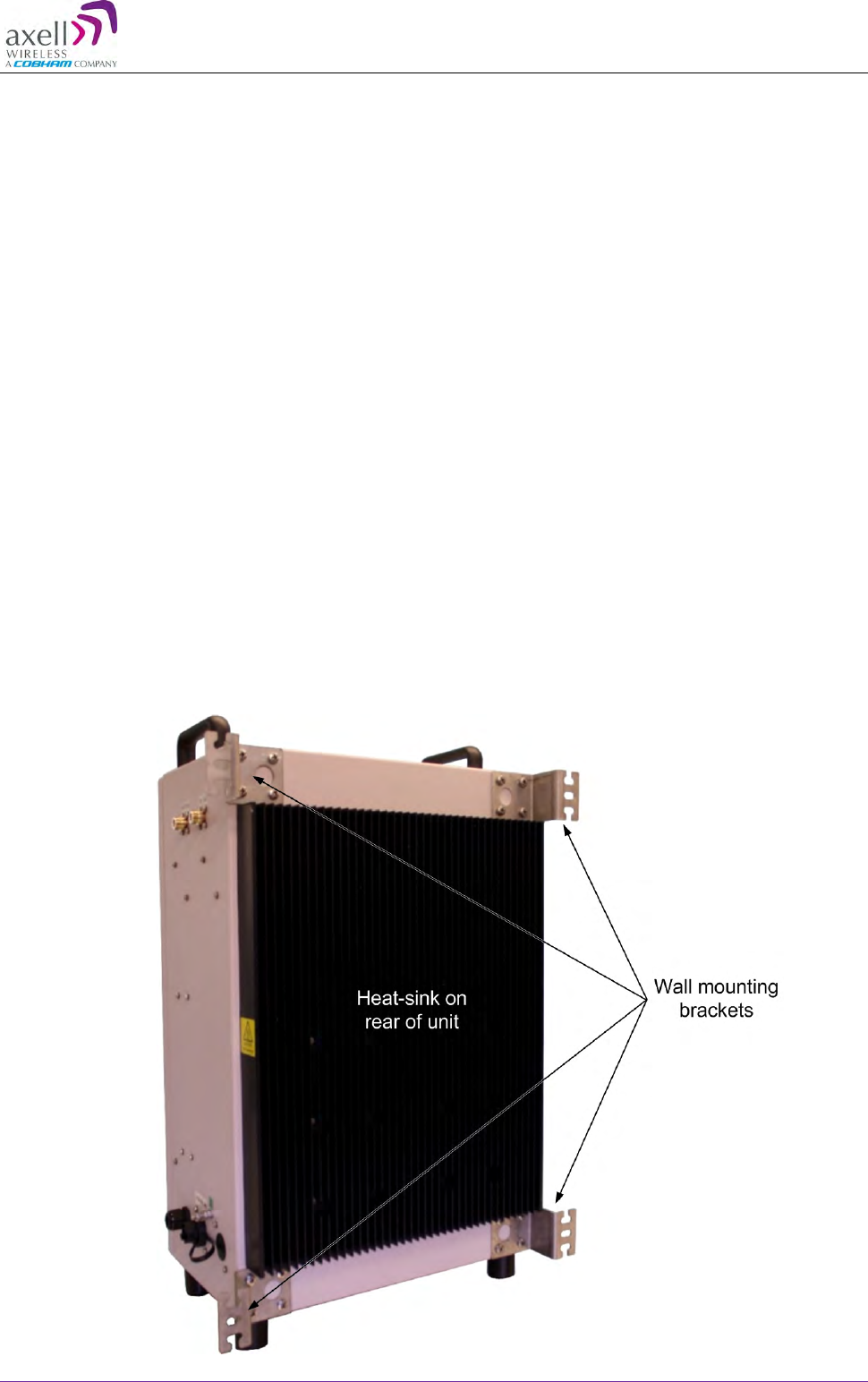

4.2.3Mount the Repeater on the Wall ............................................................................ 24

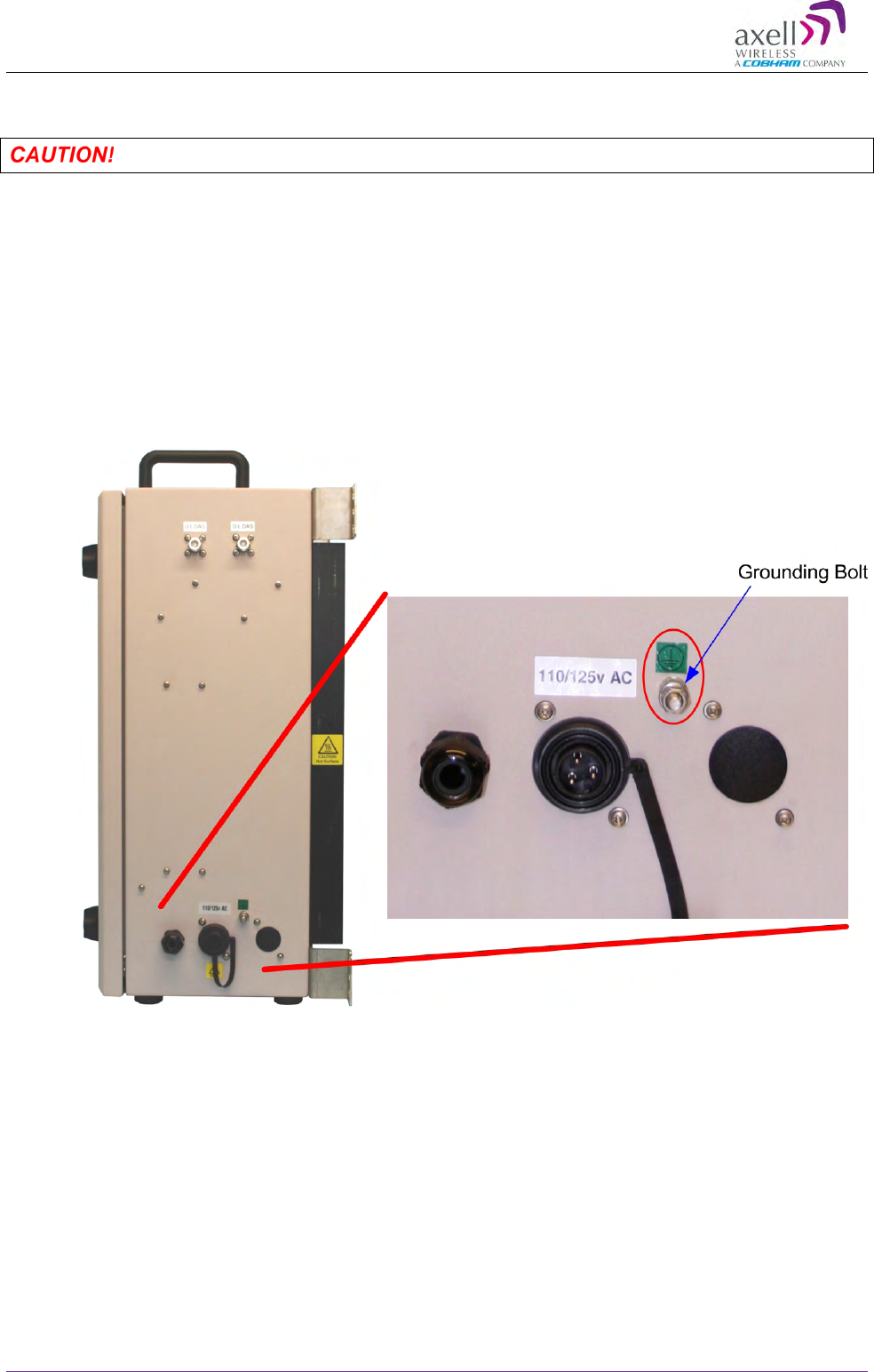

4.3Grounding ......................................................................................................................... 26

4.4Ensure Good Electromagnetic Vulnerability (EMV) Protection ......................................... 27

4.5Fiber Optic Connection ..................................................................................................... 29

4.6External Alarm and Relay Connections ............................................................................ 31

4.6.1External Alarm ....................................................................................................... 31

4.6.2Relay ...................................................................................................................... 31

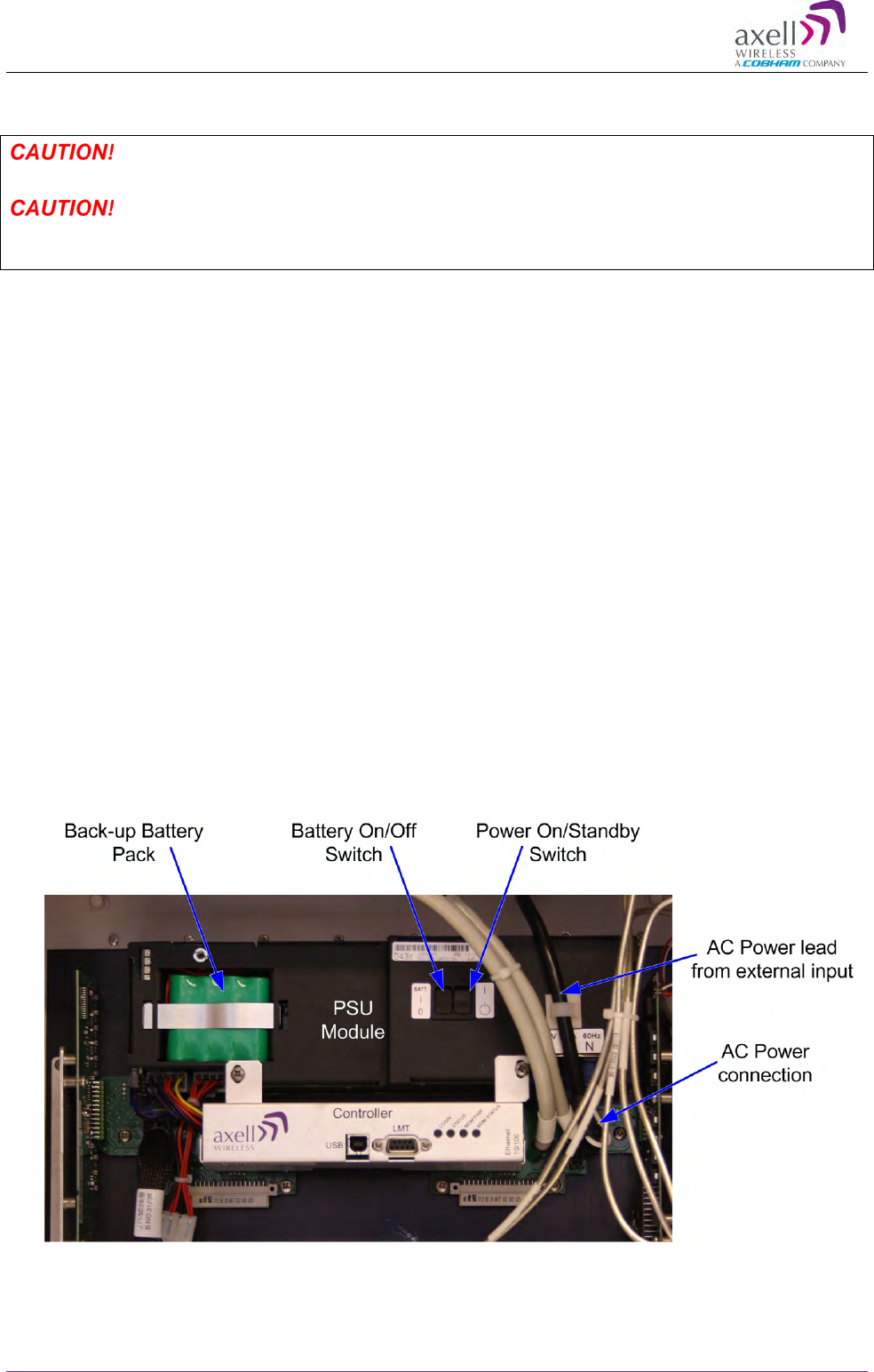

4.7Power and Backup Battery ............................................................................................... 32

4.7.1Circuit Breaker ....................................................................................................... 32

4.7.2Power Connections ................................................................................................ 32

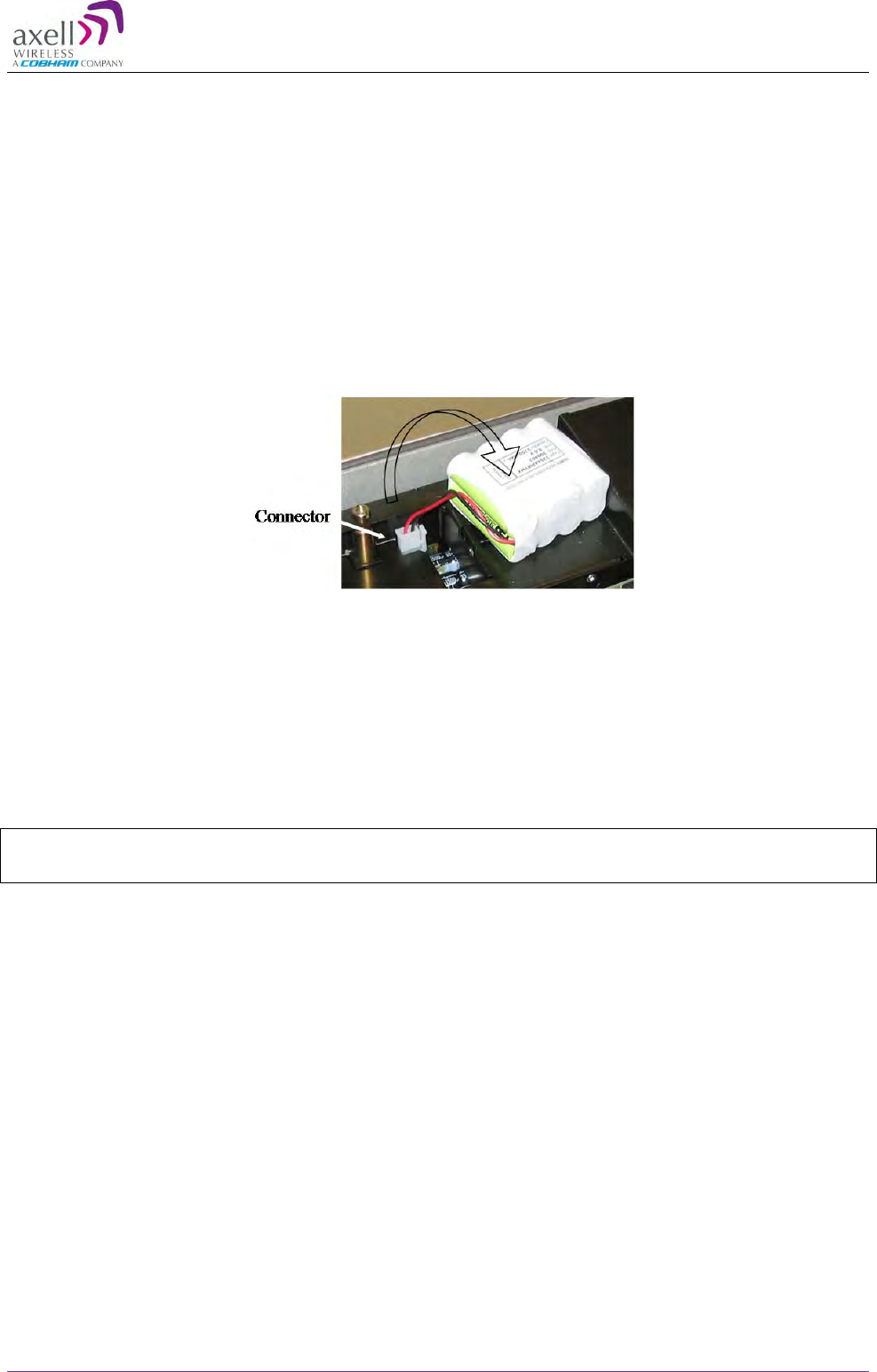

4.7.2.1Backup Battery ................................................................................................... 33

4.7.2.2Connecting the Power Source ........................................................................... 33

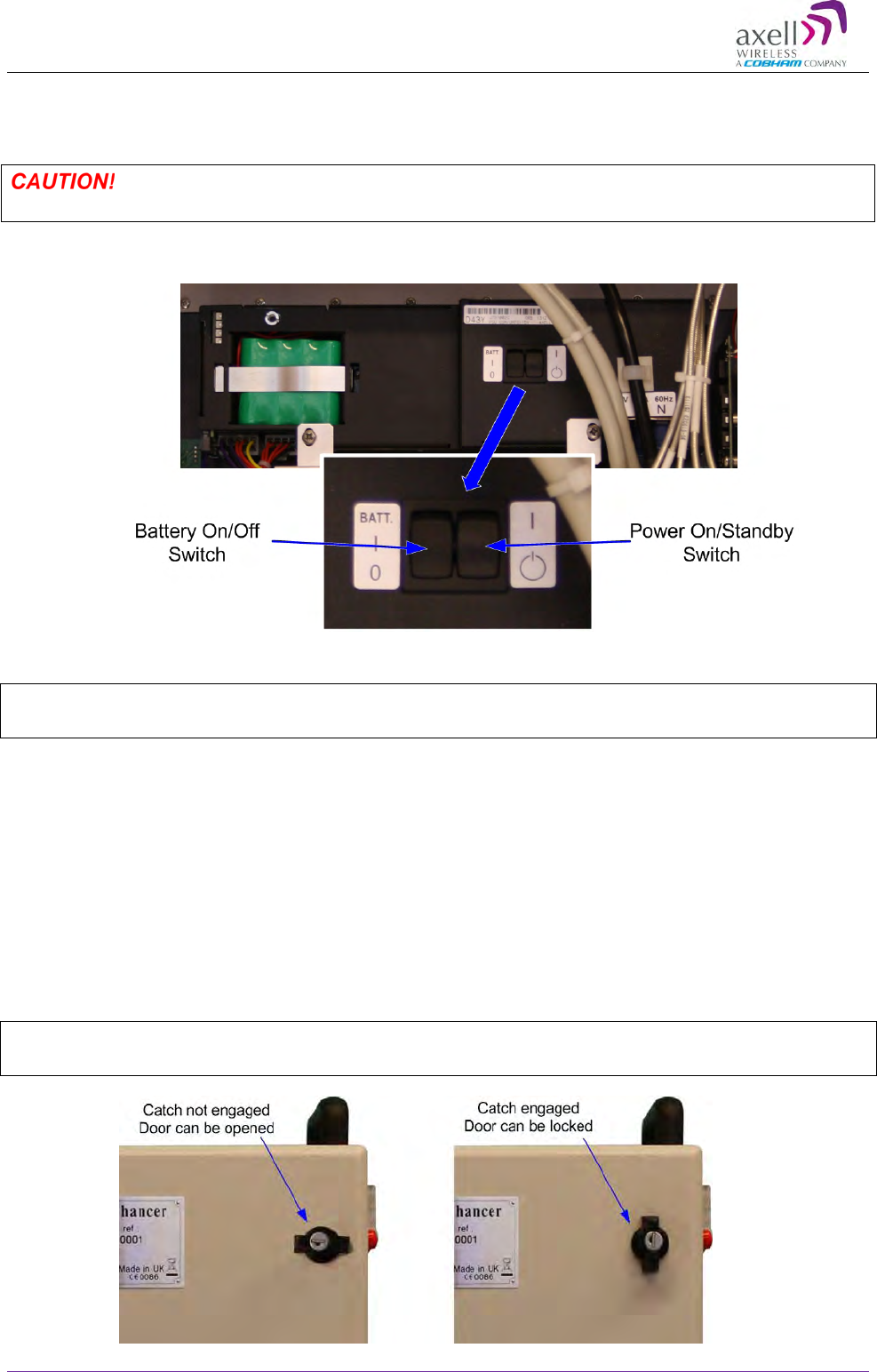

4.7.3Power ON .............................................................................................................. 34

4.7.3.1Switching Power ON .......................................................................................... 34

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.7.3.2Verifying LEDs ................................................................................................... 34

4.8Closing and Securing the Repeater .................................................................................. 34

5BSF-3604 Commissioning................................................................................................. 35

5.1Open a Session to the BSF-3604 via the OMU II ............................................................. 35

5.2BSF-3604 Optical Loss Adjustment (OLA) ....................................................................... 36

5.3RF Balancing .................................................................................................................... 38

5.3.1Manual RF Balancing ............................................................................................ 38

5.3.2Automatic BSF-3604 RF Balancing ....................................................................... 40

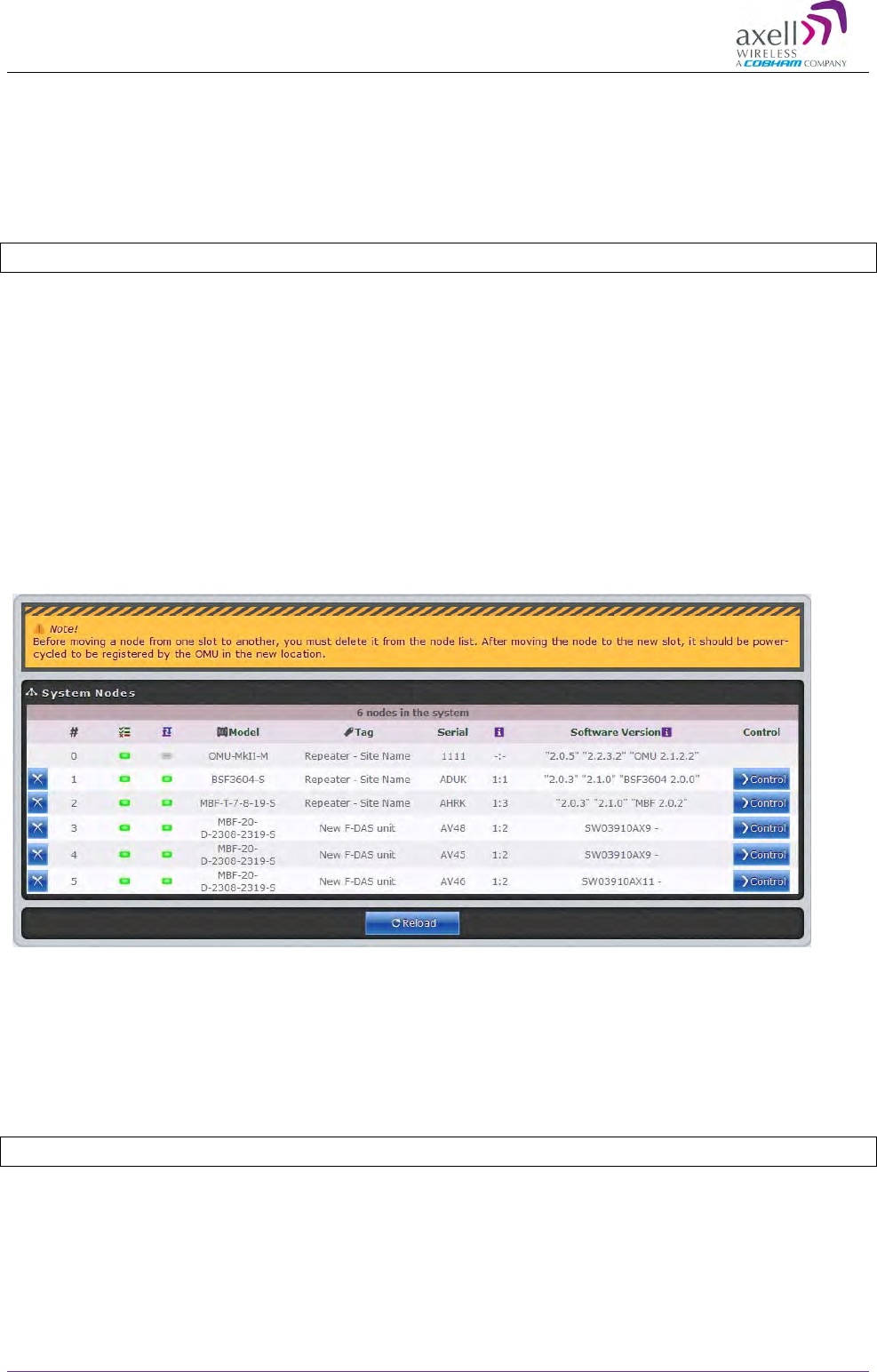

5.4Integration into the Axell Element Manager (AEM) .......................................................... 41

5.5What Next? ....................................................................................................................... 41

6BSF-3604 Full GUI Description ......................................................................................... 42

6.1Opening a Direct Web Session ........................................................................................ 42

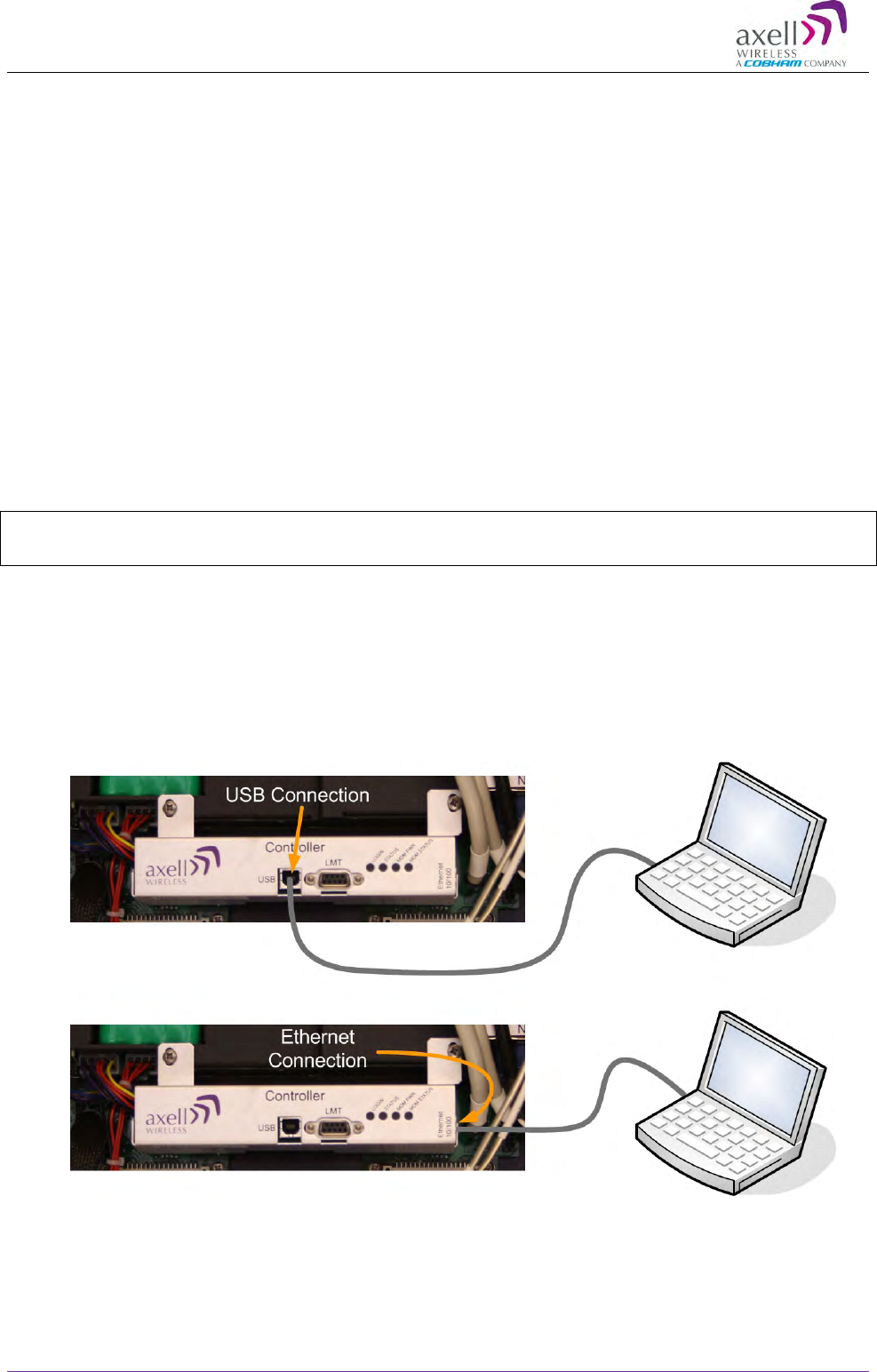

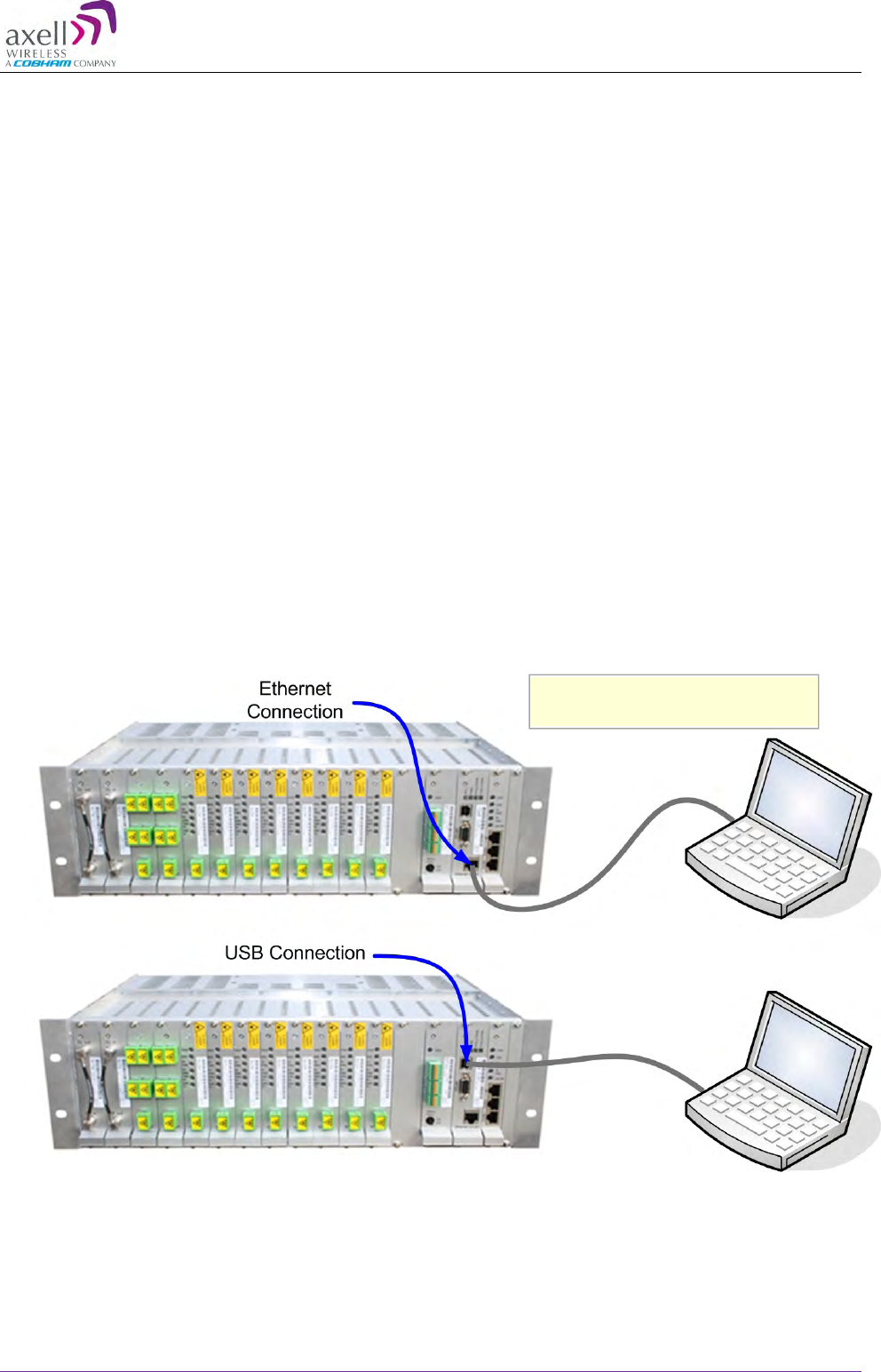

6.1.1Connecting Locally ................................................................................................ 42

6.1.2Remote Connection and Login .............................................................................. 43

6.2Navigating the Web Interface ........................................................................................... 44

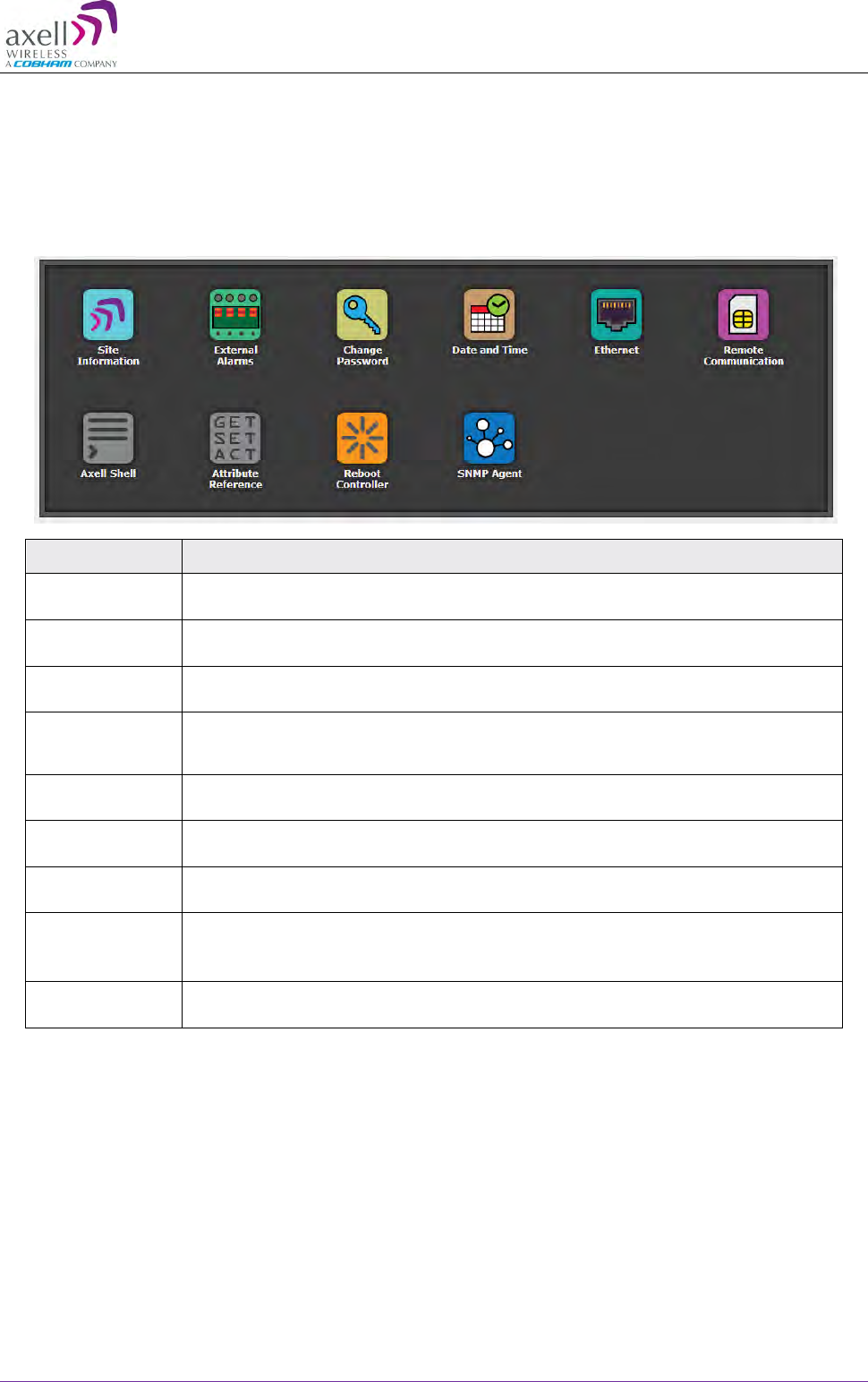

6.2.1Management Options Buttons ............................................................................... 45

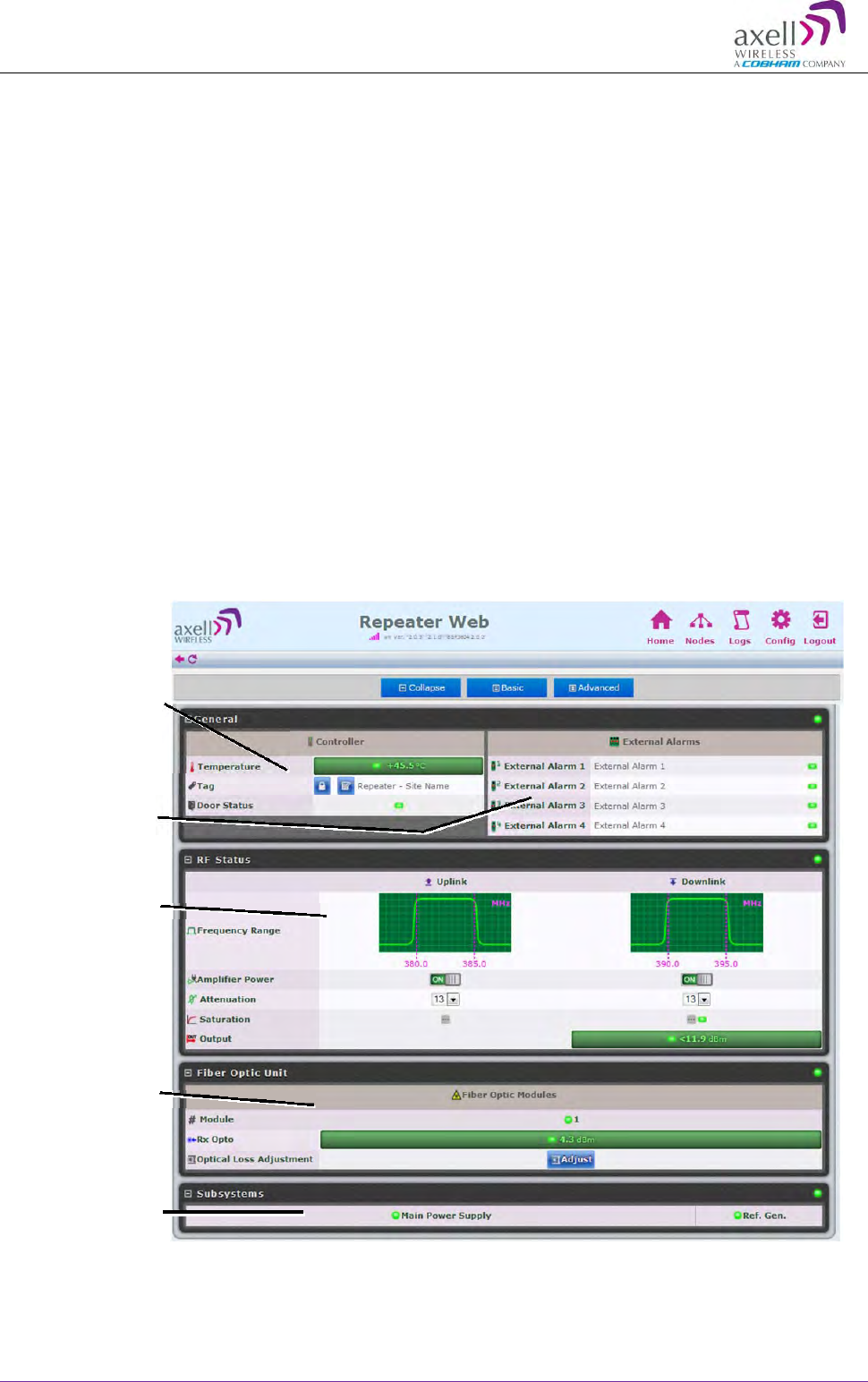

6.2.2Home Screen Overview ......................................................................................... 46

6.2.3Configuration Screen Overview ............................................................................. 47

6.3Configuring General Parameters ...................................................................................... 48

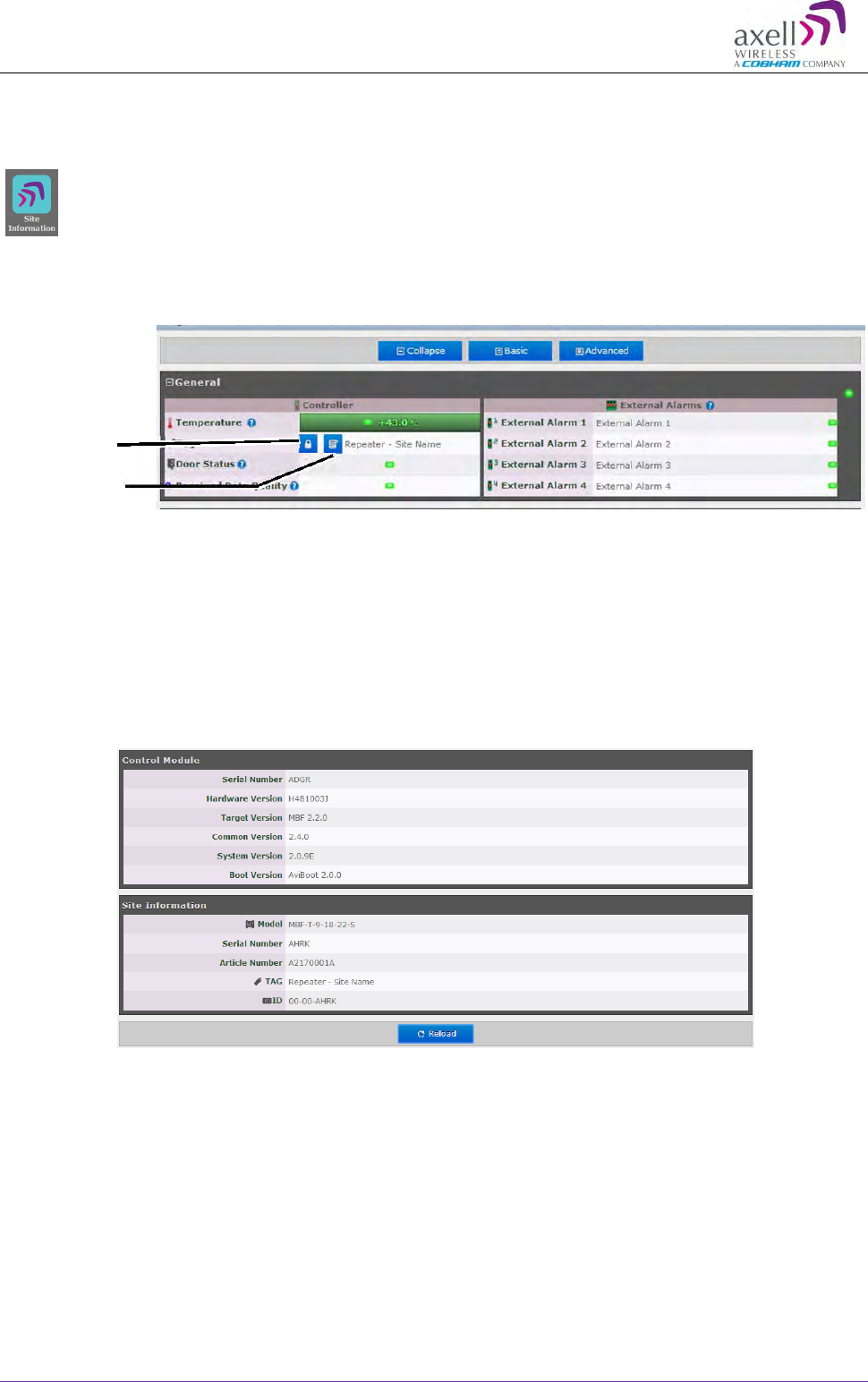

6.3.1Site Information – BSF-3604 Identification ............................................................ 48

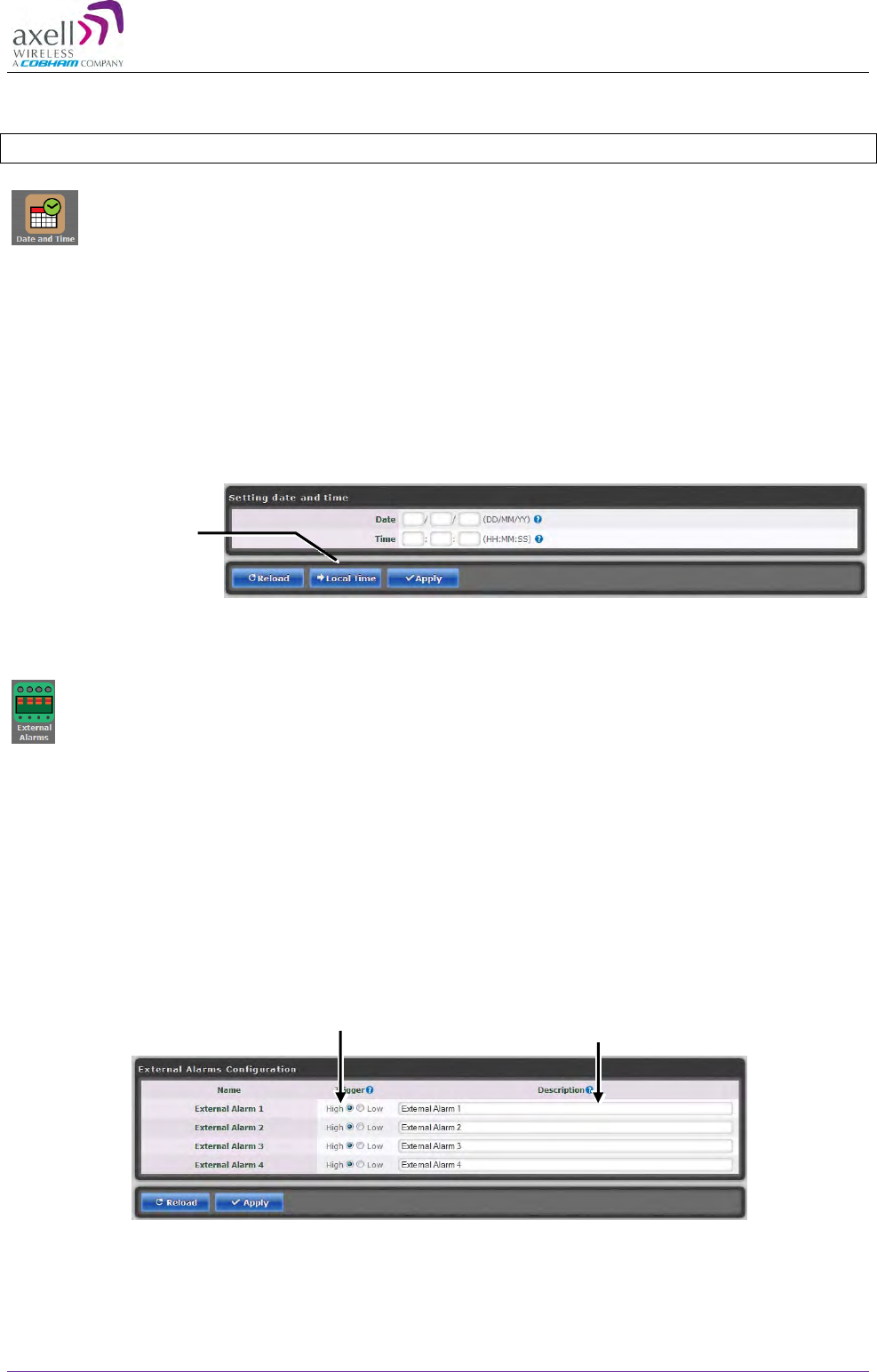

6.3.2Date & Time ........................................................................................................... 49

6.3.3Configure External Alarms ..................................................................................... 49

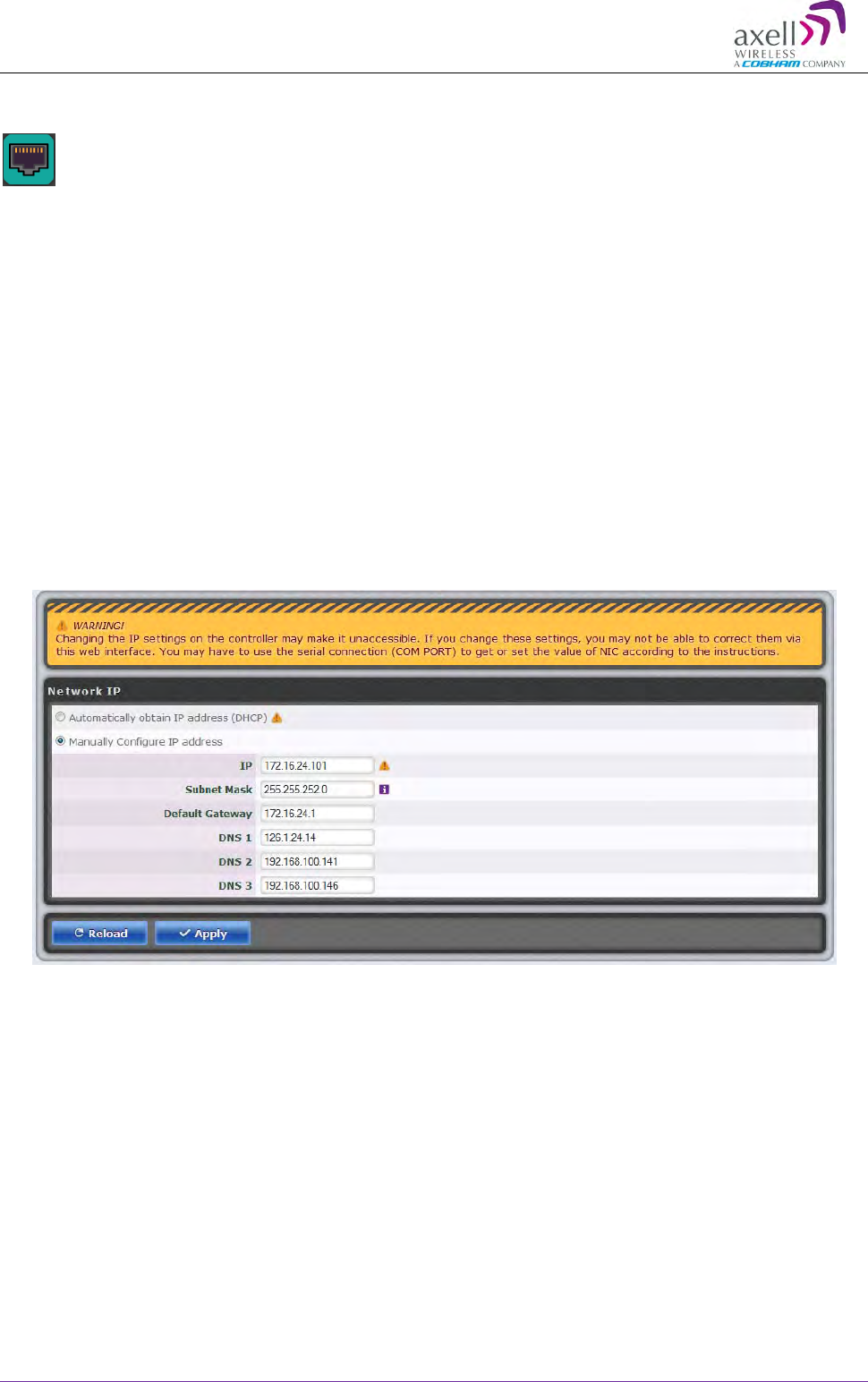

6.3.4IP Address ............................................................................................................. 50

6.4Remote Communication Setup ......................................................................................... 51

6.4.1TCP/IP and Ethernet .............................................................................................. 51

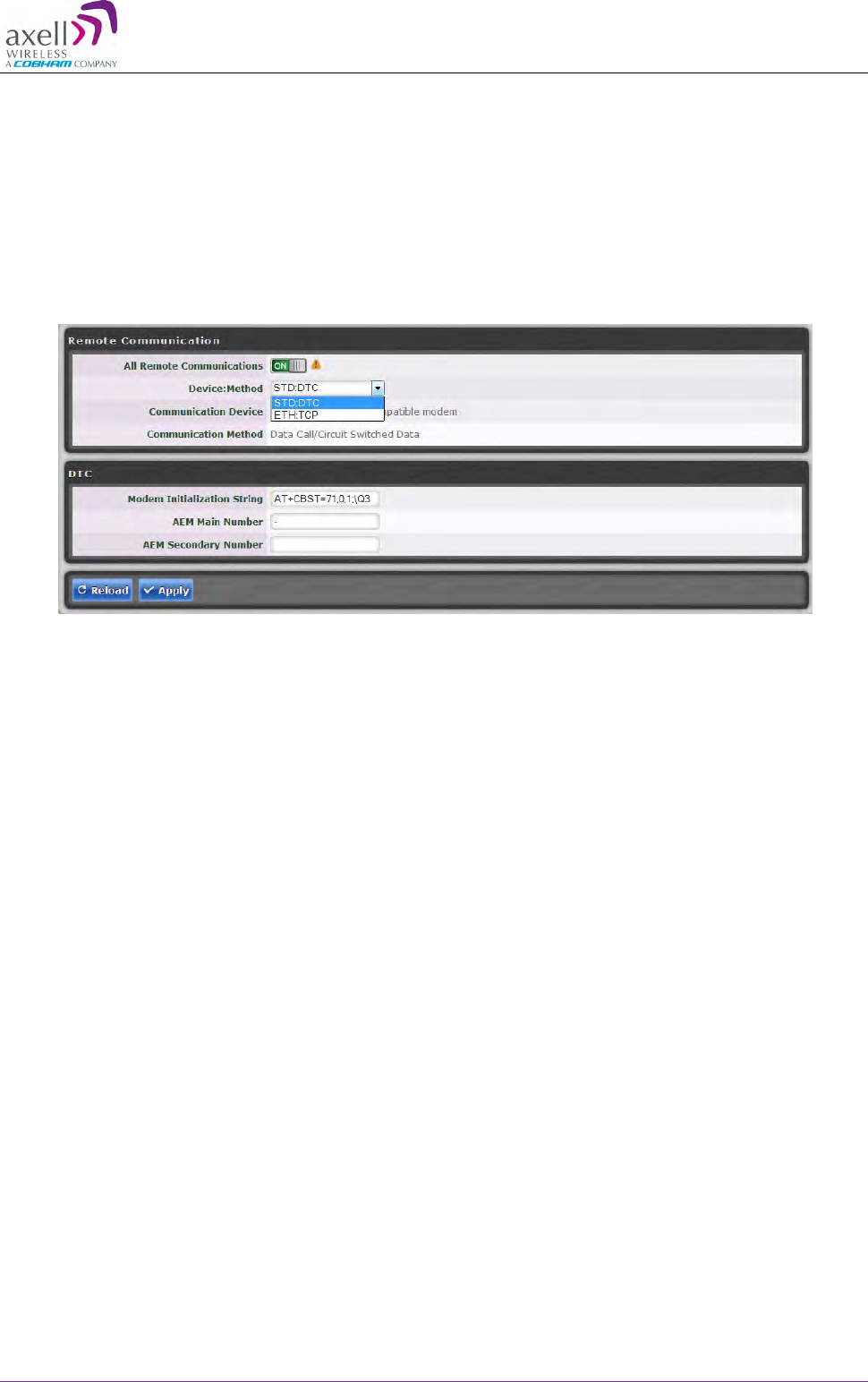

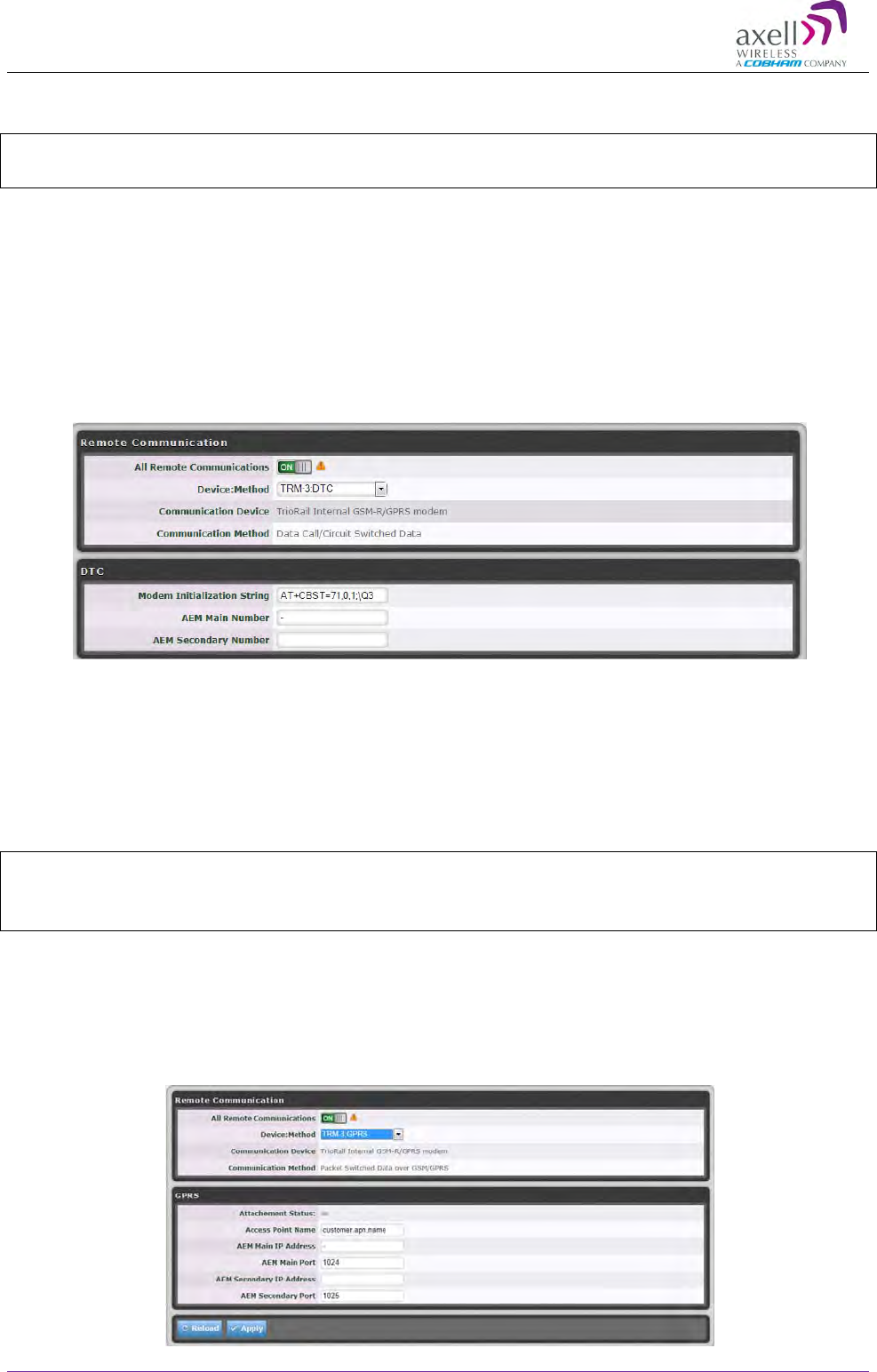

6.4.2Modem Setup ........................................................................................................ 52

6.4.2.1Packet Switched Modem Configuration (GSM/GPRS) ...................................... 52

6.4.2.2Circuit Switched Modem (PSTN/GSM) .............................................................. 53

6.4.2.3SIM-card Using Single Numbering Scheme ....................................................... 53

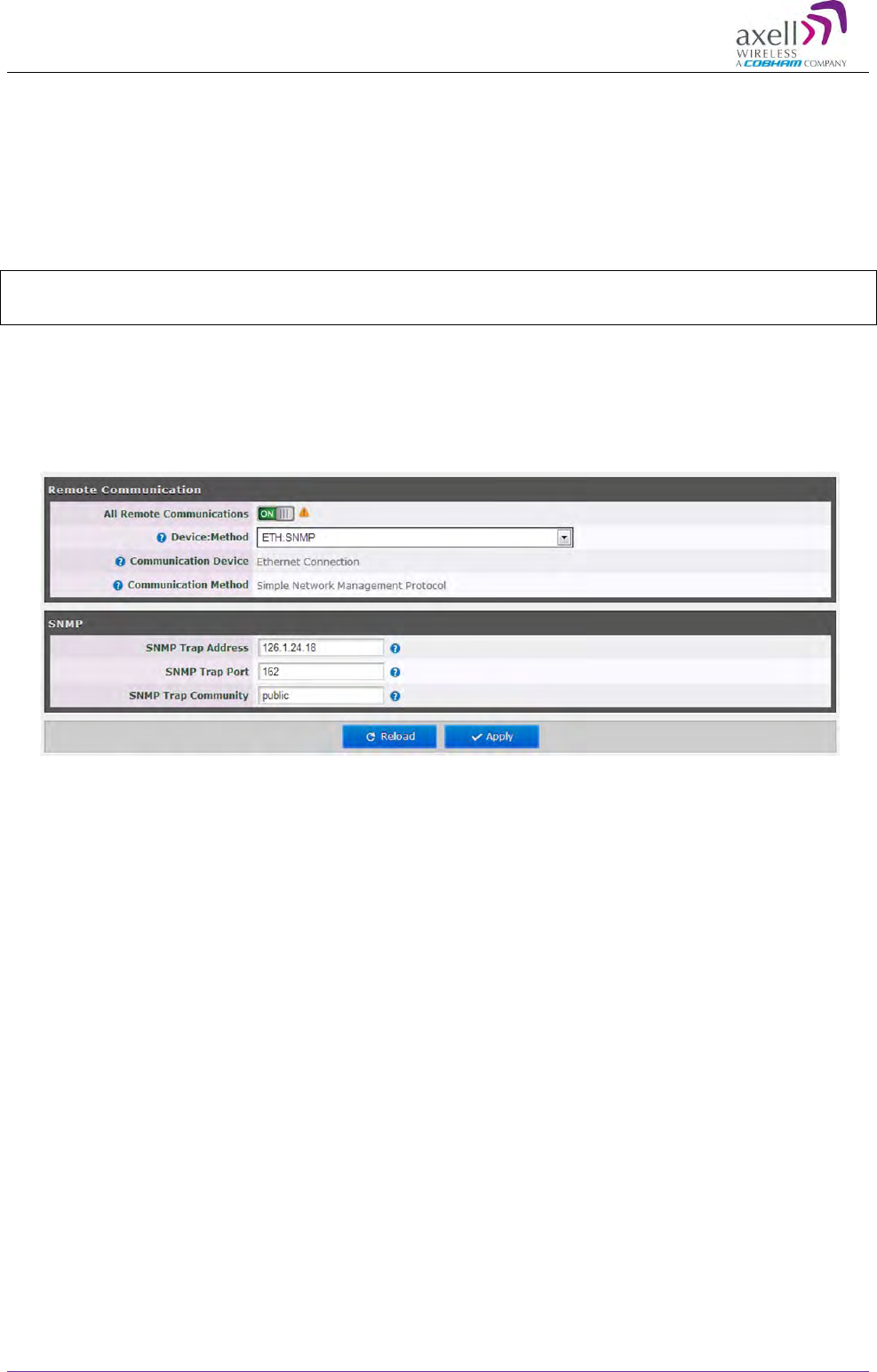

6.5SNMP Support .................................................................................................................. 54

6.5.1SNMP Traps Parameters ....................................................................................... 54

6.5.2Activating and Configuring the SNMP Agent ......................................................... 54

6.6User Accounts .................................................................................................................. 55

6.6.1Default User Accounts ........................................................................................... 55

6.6.2User Access Levels ............................................................................................... 56

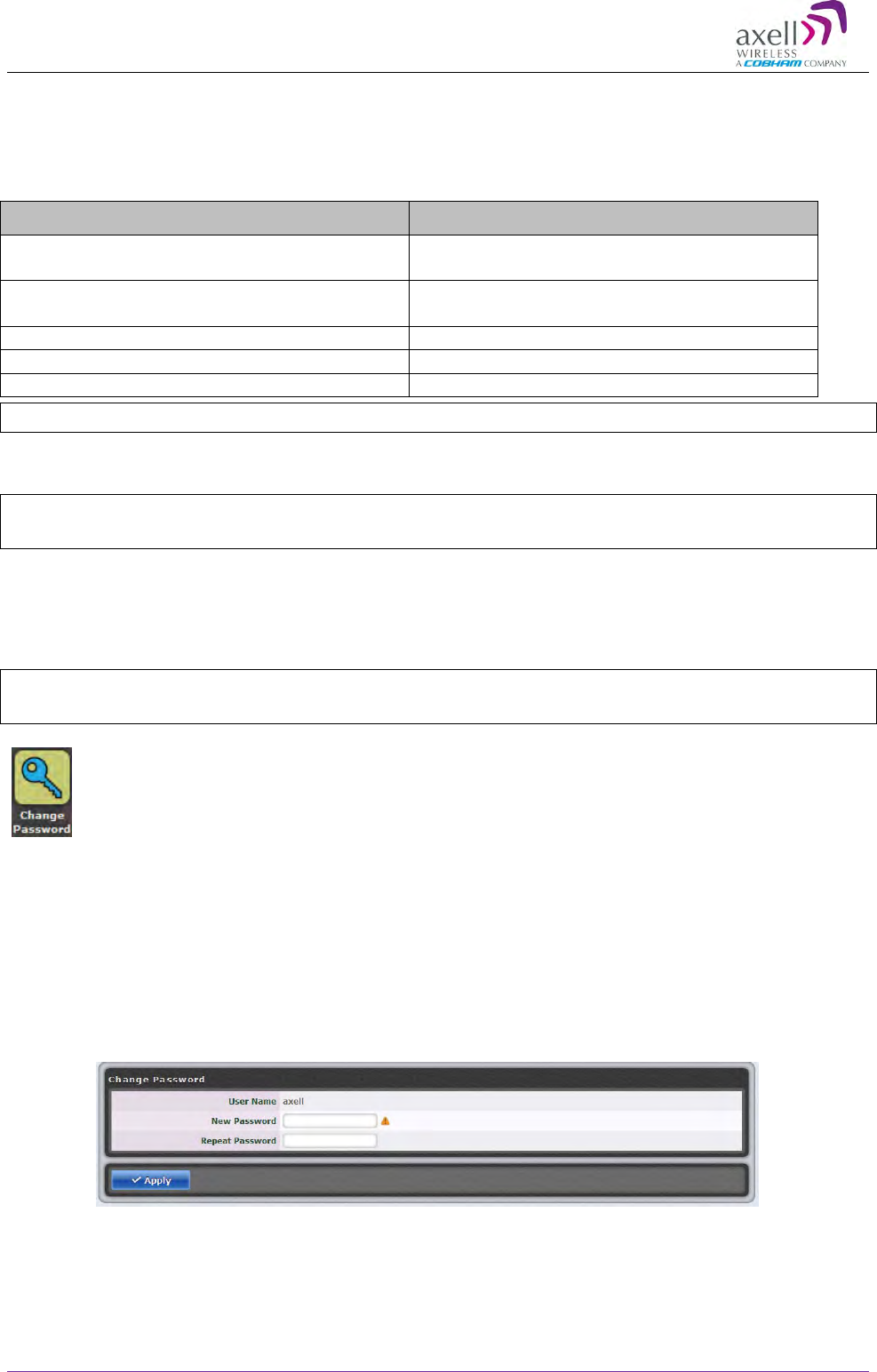

6.6.3Change Password ................................................................................................. 56

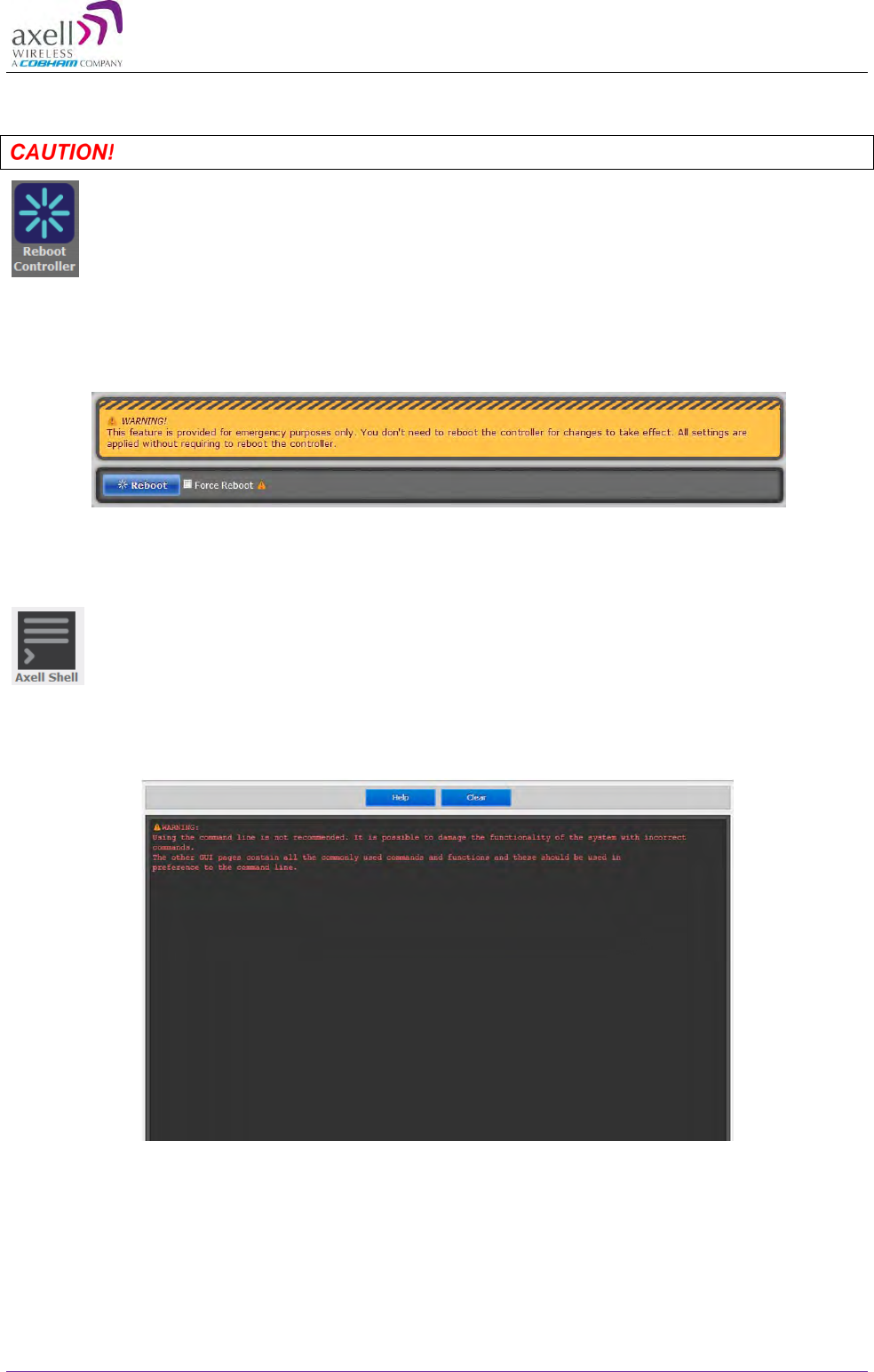

6.7Reboot .............................................................................................................................. 57

6.8Axell Shell (Command Line Interface) .............................................................................. 57

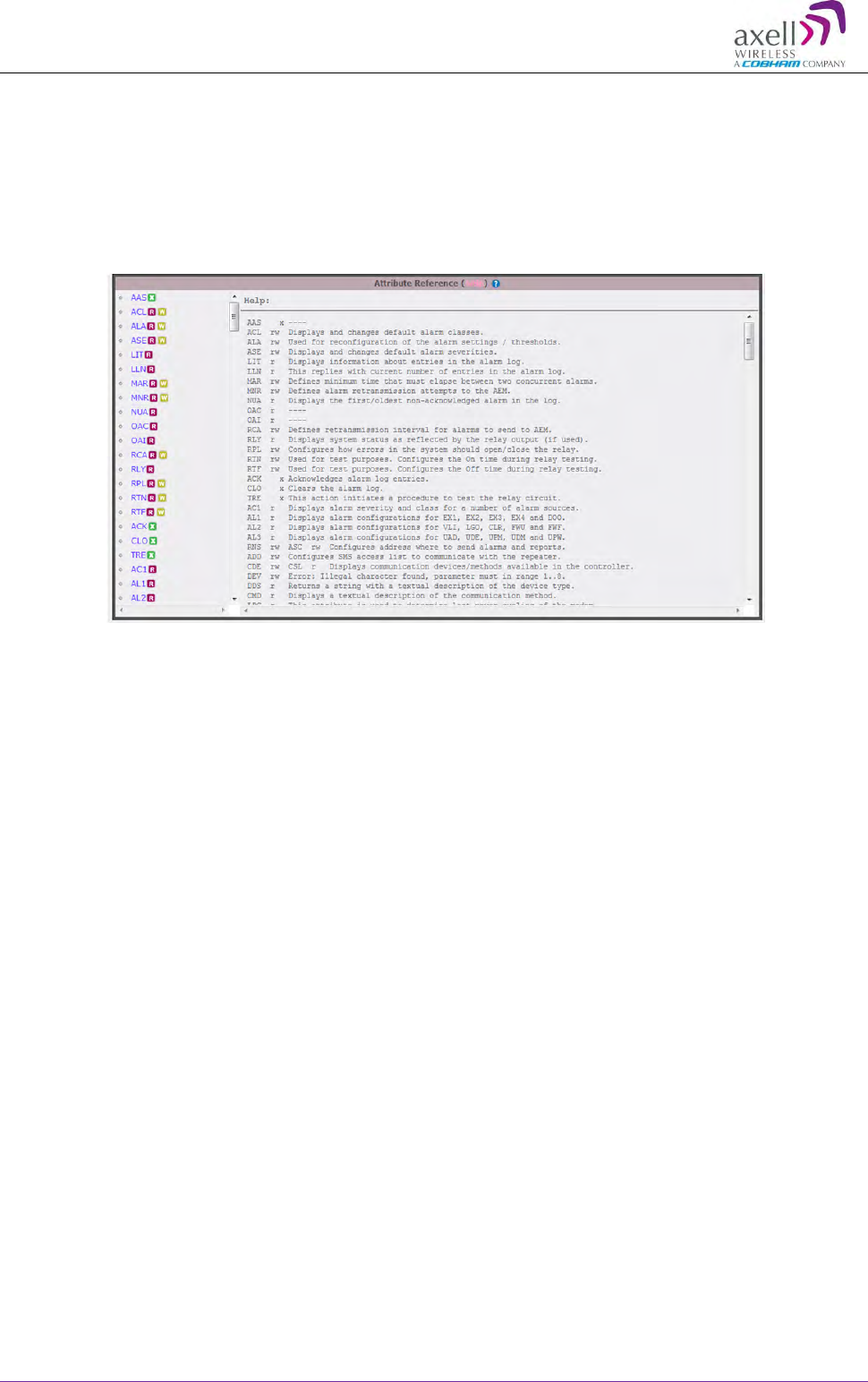

6.9Attribute Reference ........................................................................................................... 58

7Monitoring, Fault Sourcing and Maintenance ................................................................. 59

7.1Cautions and General Statements ................................................................................... 59

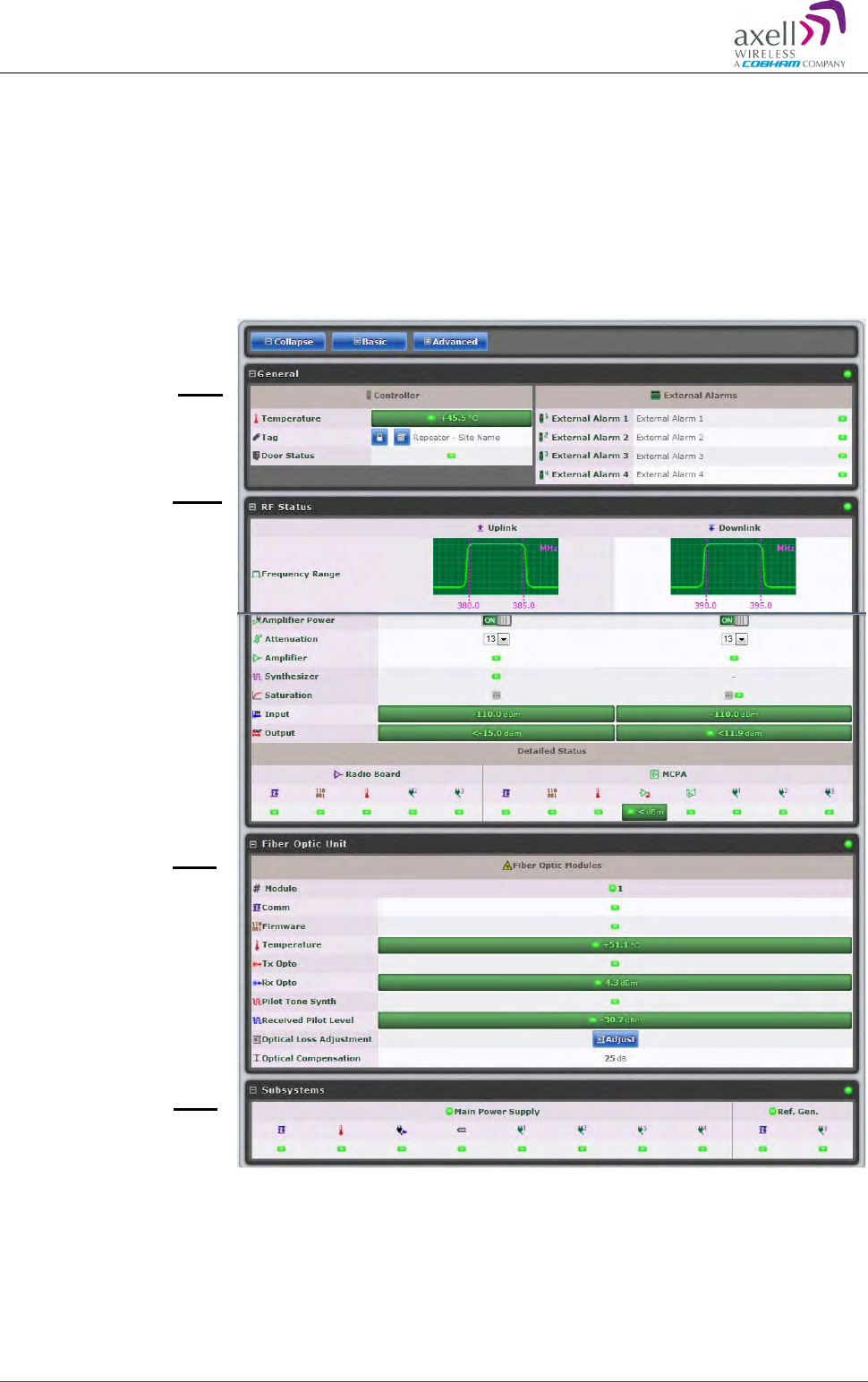

7.2Monitoring Via the BSF-3604 Home Screen .................................................................... 60

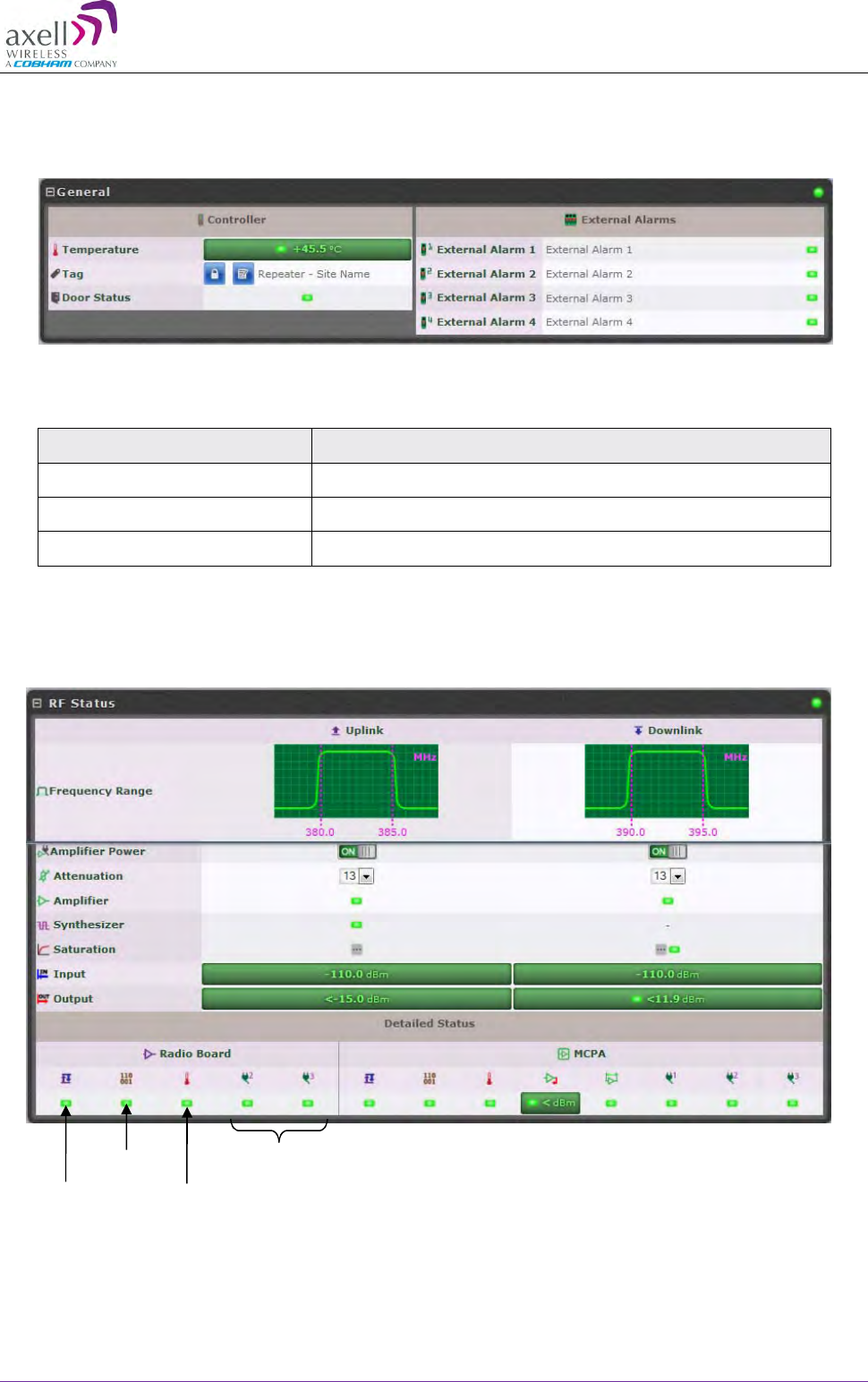

7.2.1General Page Area ................................................................................................ 61

7.2.2Detailed view of the BSF-3604 RF Status ............................................................. 61

7.2.3Detailed view of Fiber Optic Unit ........................................................................... 62

7.2.4Subsystems ........................................................................................................... 62

7.3Logs Screen ..................................................................................................................... 63

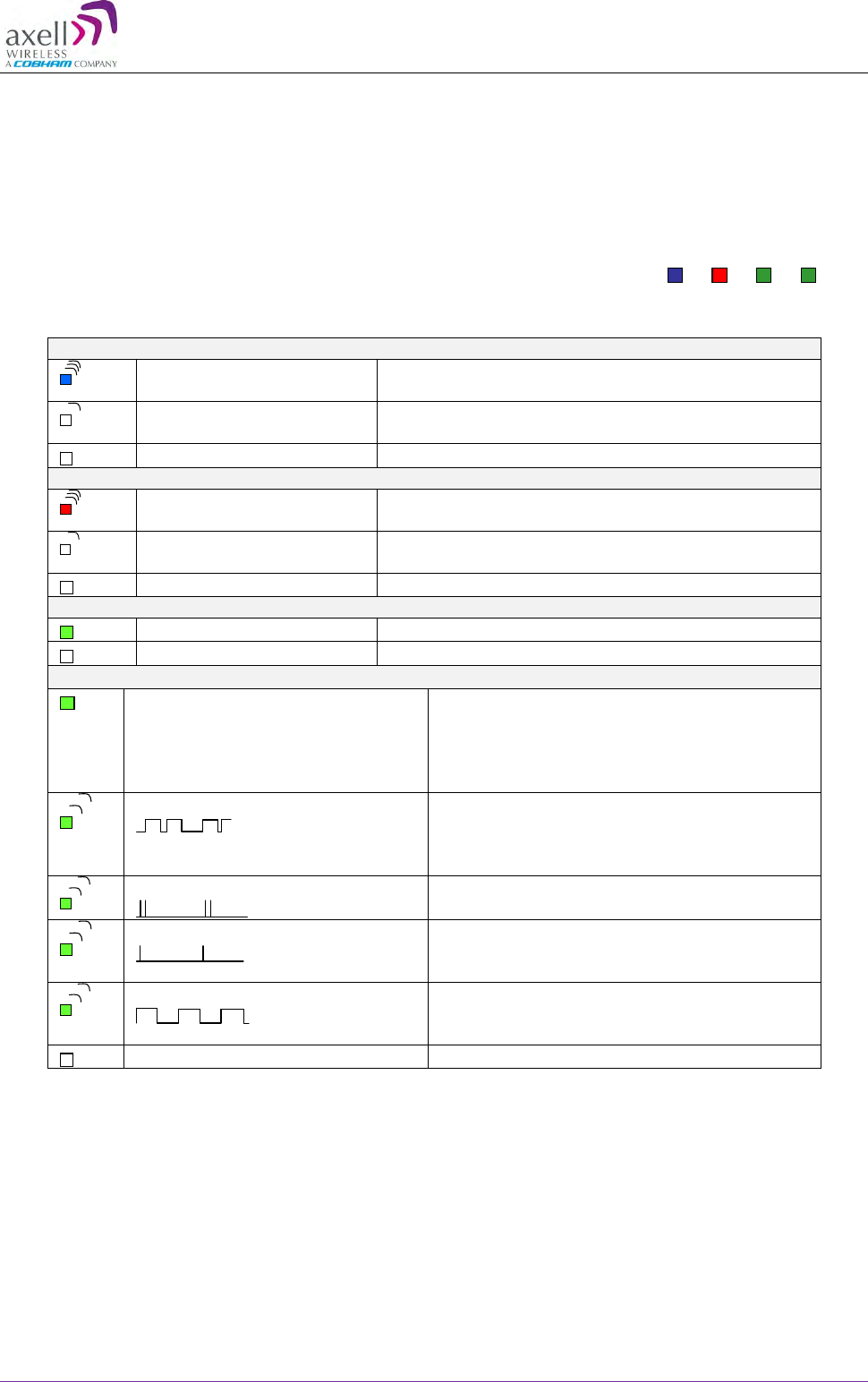

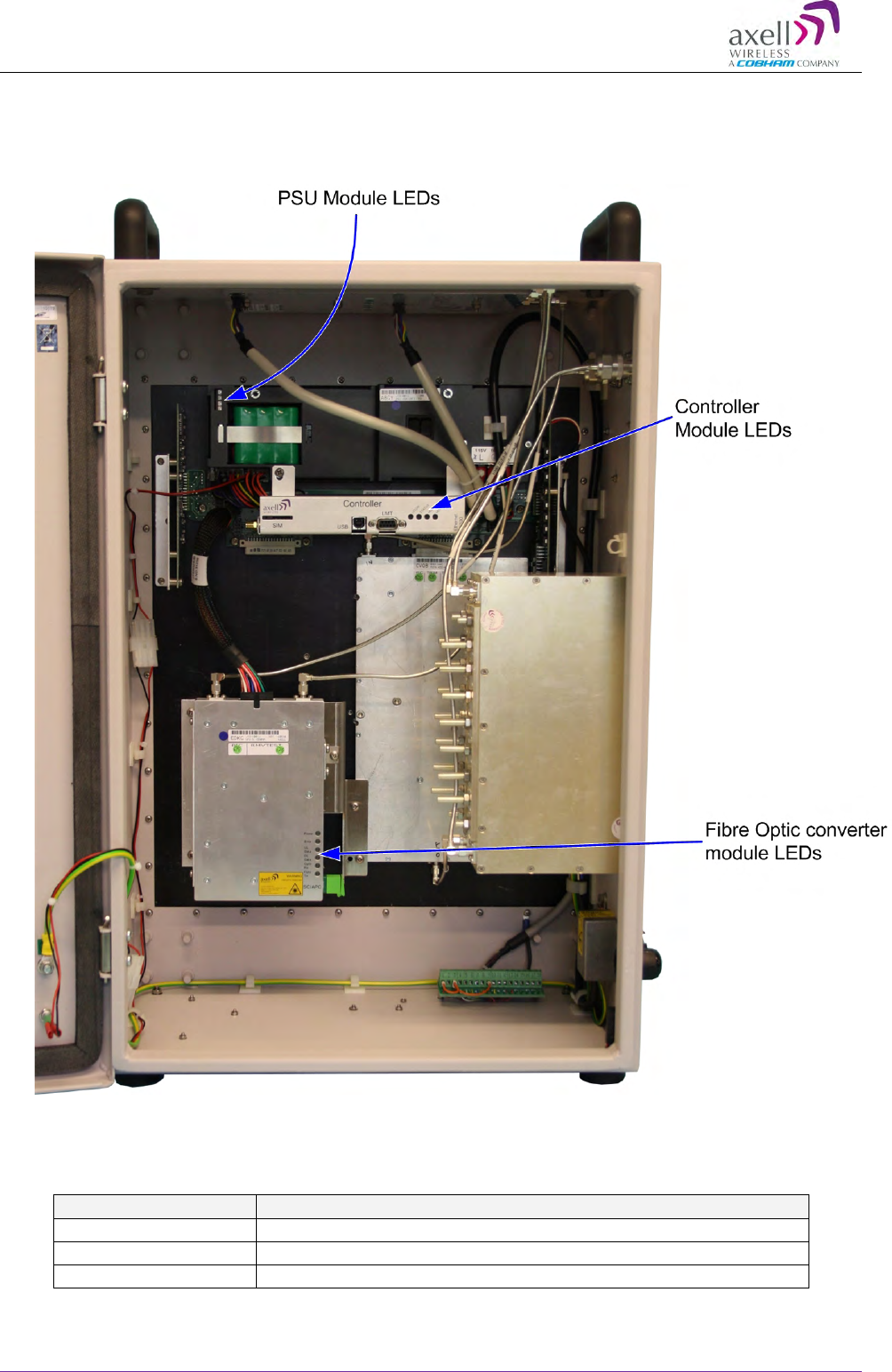

7.4Module LEDs .................................................................................................................... 64

7.4.1Control Module LEDs ............................................................................................. 65

7.4.2F/O Converter LEDs .............................................................................................. 66

7.4.3Power Supply LEDs ............................................................................................... 67

Appendix A - Specification .......................................................................................................... 68

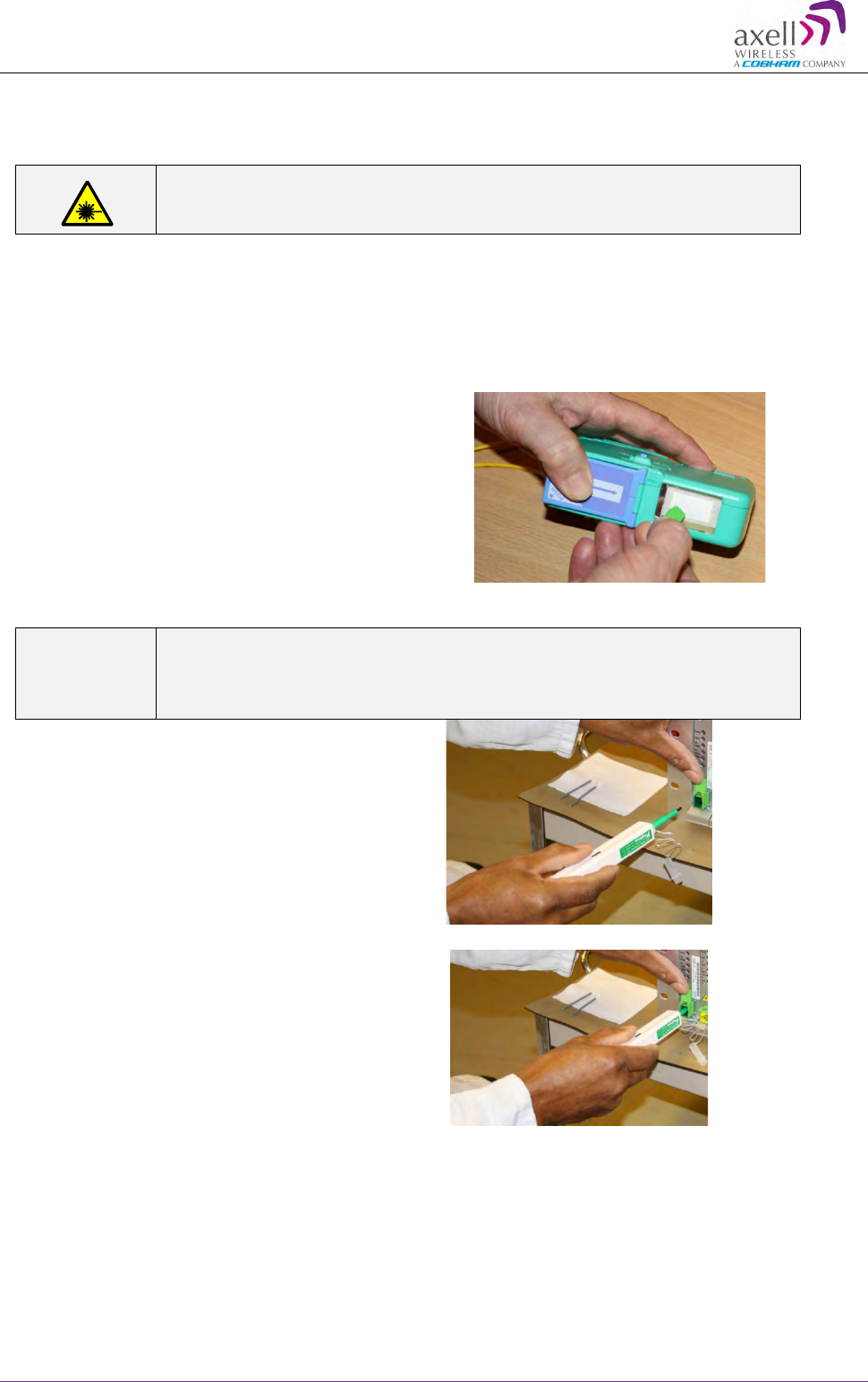

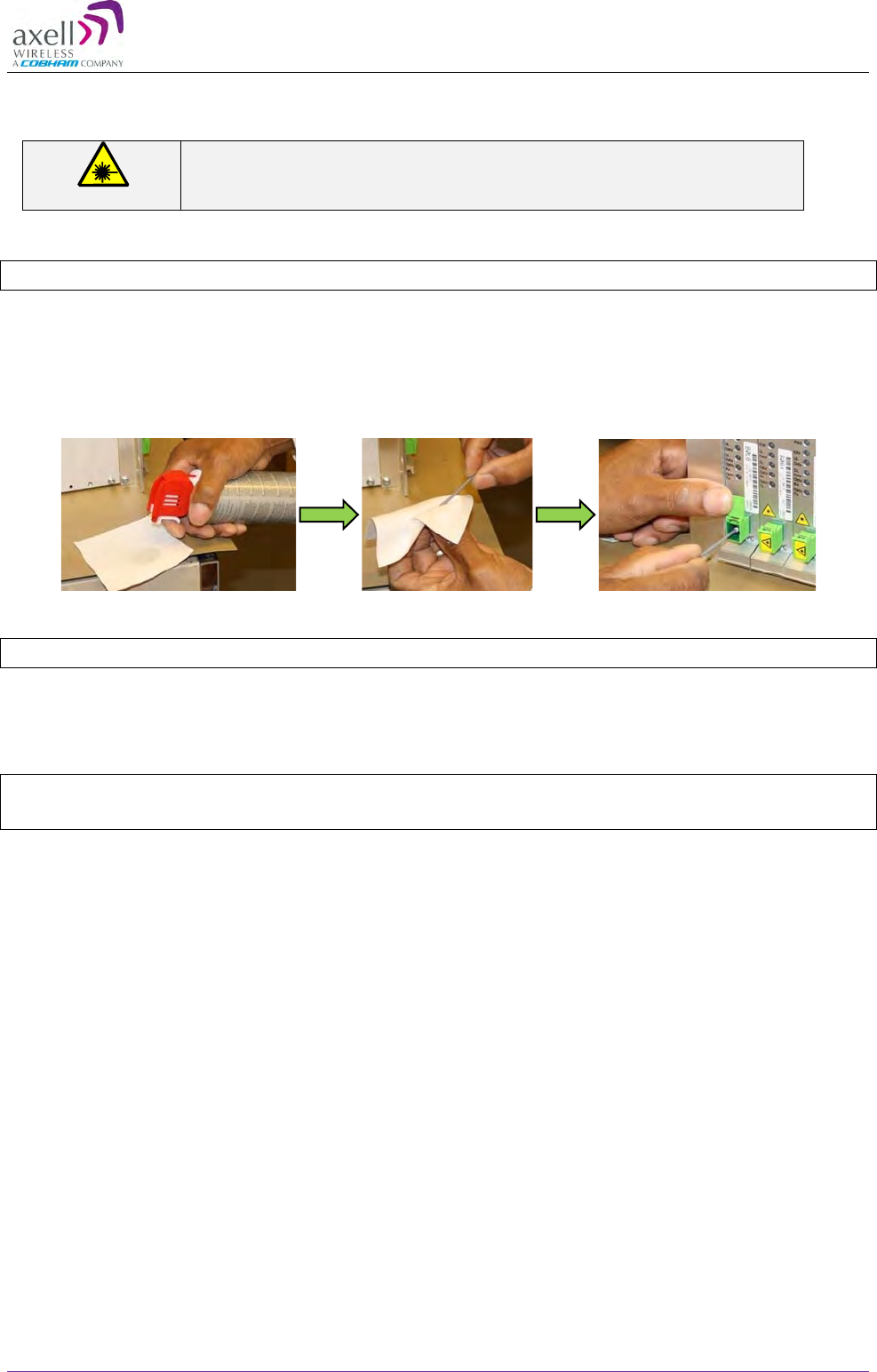

Appendix B - F/O Cleaning Procedure ........................................................................................ 69

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1 Notices

No part of this document may be copied, distributed, transmitted, transcribed, stored in a retrieval

system, or translated into any human or computer language without the prior written permission of

Axell Wireless Ltd.

The manufacturer has made every effort to ensure that the instructions contained in this document

are adequate and free of errors and omissions. The manufacturer will, if necessary, explain issues

which may not be covered by this document. The manufacturer's liability for any errors in the

document is limited to the correction of errors and the aforementioned advisory services.

This document has been prepared to be used by professional and properly trained personnel, and

the customer assumes full responsibility when using them. The manufacturer welcomes customer

comments as part of the process of continual development and improvement of the documentation

in the best way possible from the user's viewpoint. Please submit your comments to the nearest

Axell Wireless sales representative.

1.2 Contact Information

Headquarters Axell Wireless

Aerial House

Asheridge Road

Chesham

Buckinghamshire HP5 2QD

United Kingdom

Tel: +44 1494 777000

Fax: +44 1494 777002

Commercial inquiries info@axellwireless.com

Web site www.axellwireless.com

Support issues support@axellwireless.com

Technical Support Line,

English speaking +44 1494 777 747

Contact information for Axell Wireless offices in other countries can be found on our web site,

www.axellwireless.com

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1.3 About This Manual

This Product Manual provides the following information:

 Description of the BSF3604-470-490-DP-AC repeater

(hereinafter referred to as BSF-3604)

 Procedures for installation, setup, configuration and checking the proper operation of the

unit

 Maintenance and troubleshooting procedures

Intended Audience

This Product Manual is intended for experienced technicians and engineers. It is assumed that the

customers installing, operating, and maintaining Axell Wireless Repeaters are familiar with the

basic functionality of Repeaters.

Notice

Confidential - Authorized Customer Use

This document may be used in its complete form only and is solely for the use of Axell Wireless

employees and authorized Axell Wireless channels or customers. The material herein is

proprietary to Axell Wireless. Any unauthorized reproduction, use or disclosure of any part thereof

is strictly prohibited.

All trademarks and registered trademarks are the property of their respective owners.

Disclaimer of Liability

Contents herein are current as of the date of publication. Axell Wireless reserves the right to

change the contents without prior notice. The information furnished by Axell Wireless in this

document is believed to be accurate and reliable. However, Axell Wireless assumes no

responsibility for its use. In no event shall Axell Wireless be liable for any damage resulting from

loss of data, loss of use, or loss of profits and Axell Wireless further disclaims any and all liability

for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability

applies to all products, publications and services during and after the warranty period.

Safety to Personnel

 Before installing or replacing any of the equipment, the entire manual should be read and

understood.

 This equipment is to be installed only in a restricted access location where access is

restricted to is restricted to SERVICE PERSONNEL and to USERS who have been

instructed on the restrictions and the required precautions to be taken.

 Throughout this manual, there are "Caution" warnings. "Caution" calls attention to a

procedure or practice, which, if ignored, may result in injury or damage to the system,

system component or even the user. Do not perform any procedure preceded by a

"Caution" until the described conditions are fully understood and met.

This notice calls attention to a procedure or practice that, if ignored, may

result in personal injury or in damage to the system or system component. Do

not perform any procedure preceded by a "CAUTION!" until described

conditions are fully understood and met.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1.4 Compliance with FCC

Part 90 Signal Boosters THIS IS A 90.219 CLASS B DEVICE

WARNING: This is NOT a CONSUMER device. This device is designed for installation

by FCC LICENCEES and QUALIFIED INSTALLERS. You MUST have an FCC

LICENCE or express consent of an FCC Licensee to operate this device.

You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at

www.fcc.gov/signal-boosters/registration.

Unauthorized use may result in significant forfeiture penalties, including penalties in

excess of $100,000 for each continuing violation.

The installation procedure must result in the signal booster complying with FCC

requirements 90.219(d). In order to meet FCC requirements 90.219 (d), it may be

necessary for the installer to reduce the UL and/or DL output power for certain

installations.

1.4.1 FCC Part 15

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

If not installed and used in accordance with the instructions, this equipment generates, uses and

can radiate radio frequency energy. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to RF reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the Donor antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an power outlet on a circuit different from that to which the

receiver is connected.

1.4.2 Unauthorized Changes to Equipment

Changes or Modifications not expressly approved by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment

1.4.3 FCC RF Exposure Limits

This unit complies with FCC RF exposure limits for an uncontrolled environment. This equipment

can only be installed for applications, driving passive or active DAS systems. All antennas must be

operated at a minimum distance of 47 cm between the radiator and any person’s body.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1.4.4 Antenna Installation

Installation of an antenna must comply with the FCC RF exposure requirements. The antenna

used for this transmitter must be mounted on permanent structures.

The FCC regulations mandate that the ERP of type B signal boosters should not exceed 5W, this

is equivalent to 8.2W EIRP.

Therefore the max antenna gain allowed for this type of signal booster should be limited to the

values given by equation 1 (below) for the service antenna.

Equation (1) - Max SERVICE antenna gain

Max SERVICE antenna gain (dBi) = 39.1 – (37dBm - # of antennas in dB – cable losses in dB).

For example:

No. of Antennas Cable Losses Max Allowed Antenna Gain

4 3 39.1 - (37-6-3) =11.1dBi

1 3 39.1- (37-0-3) = 5.1dbi

10 3 39.1- (37-10-3) = 15.1dbi

1.4.5 Compliance with FCC deployment rule regarding the radiation of noise

Good engineering practice must be used in regard to the signal booster’s noise radiation. Thus, the

gain of the signal booster should be set so that the ERP of the output noise from the signal booster

should not exceed the level of -43 dBm in 10 kHz measurement bandwidth.

In the event that the noise level measured exceeds the aforementioned value, the signal booster

gain should be decreased accordingly.

In general, the ERP of noise on a spectrum more than 1 MHz outside of the pass band should not

exceed -70 dBm in a 10 kHz measurement bandwidth.

The BSF-3604 61-102001 Repeater has a noise level of -66 dBm in 10 kHz measurement at 1

MHz spectrum outside the passband of the signal booster and an in-band noise level at around -37

dBm in a 10 kHz bandwidth. Therefore, the noise at the antenna input port should be calculated

based on equation (2).

Equation (2) - Input Noise to service antenna

Input Noise to service antenna:

Noise level + Service antenna gain - Antenna splitter losses in dB - cable loss in dB

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Example: In band Noise

Signal booster connected to 10 service antennas with a 100m long ½ inch cable.

Losses of such a cable with the connectors = ~ 12dB

Gain =~2 dBi

Assuming 10 service antennas: antenna splitter losses = 11 dB

Based on equation (2) Input antenna noise (to the antenna) = -37 + 2 - 12 - 11 = -58 dBm ERP

The in-band input noise to the antenna should be -37 +2 - 12 - 11= -58 dBm ERP

Example: Out of band noise

Signal booster connected to 10 service antennas with a 100m long ½ inch cable.

Losses of such a cable with the connectors = ~ 12dB

Gain =~2 dBi

Assuming 10 service antennas: antenna splitter losses = 11 dB

Based on equation (2) Input antenna noise (to the antenna) = -66 + 2 -12 - 11 = -87 dBm ERP

The Out of-band input noise to the antenna should be -66 + 2 -12 - 11 = -87 dBm ERP

NOTE: In this example there is no need to add an external band pass filter to attenuate the out of

band noise. If fewer antennas are deployed then additional filtering may be required

Conclusion:

Good engineering practice requires that in general when the out of band noise measured at the

service antenna input is more than -70 dBm per 10 kHz measurement bandwidth, an external band

pass filter should be added to attenuate the out of band noise level.

All Axell Wireless repeaters include high selectivity duplexers and filters to attenuate the out of

band noise. Should additional filtering be required, we have a comprehensive range of interference

filters which can be supplied upon request.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1.4.6 General Safety Warnings Concerning Use of This System

Always observe standard safety precautions during installation, operation and maintenance of this

product.

Caution labels!

Throughout this manual, there are "Caution" warnings. "Caution" calls

attention to a procedure or practice, which, if ignored, may result in injury

or damage to the system, system component or even the user. Do not

perform any procedure preceded by a "Caution" until the described

conditions are fully understood and met.

Danger:

Electrical Shock

To prevent electrical shock when installing or modifying the system

power wiring, disconnect the wiring at the power source before working

with un insulated wires or terminals.

Caution:

Safety to personnel

Before installing or replacing any of the equipment, the entire manual

should be read and understood.



The user needs to supply the appropriate AC power to the repeater.

Incorrect power settings can damage the repeater and may cause injury

to the user.

Please be aware that the equipment may, during certain conditions

become very warm and can cause minor injuries if handled without any

protection, such as gloves.

Caution:

RF Exposure

RF radiation, arising from transmitter outputs connected to AWL’s

equipment, must be considered a safety hazard.

This condition might only occur in the event of cable disconnection, or

because a ‘spare’ output has been left un-terminated. Either of these

conditions would impair the system’s efficiency. No investigation should

be carried out until all RF power sources have been removed. This would

always be a wise precaution, despite the severe mismatch between the

impedance of an N type connector at 50, and that of free space at

377, which would severely compromise the efficient radiation of RF

power. Radio frequency burns could also be a hazard, if any RF power

carrying components were to be carelessly touched!

Antenna positions should be chosen to comply with requirements (both

local & statutory) regarding exposure of personnel to RF radiation. When

connected to an antenna, the unit is capable of producing RF field

strengths, which may exceed guideline safe values especially if used

with antennas having appreciable gain. In this regard the use of

directional antennas with backscreens and a strict site rule that

personnel must remain behind the screen while the RF power is on, is

strongly recommended.

Where the equipment is used near power lines or in association with

temporary masts not having lightning protection, the use of a safety earth

connected to the case-earthing bolt is strongly advised.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Caution:

Safety to equipment

When installing, replacing or using this product, observe all safety

precautions during handling and operation. Failure to comply with the

following general safety precautions and with specific precautions

described elsewhere in this manual violates the safety standards of the

design, manufacture, and intended use of this product.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Axell Wireless assumes no liability for the customer's failure to comply

with these precautions. This entire manual should be read and

understood before operating or maintaining the repeater.

Warning:

Restricted Access

Location

This Axell Wireless equipment is to be installed only in a restricted access

location where access is restricted to SERVICE PERSONNEL and to

USERS who have been instructed on the restrictions and the required

precautions to be taken.

Attention:

Electrostatic

Sensitivity

Observe electrostatic precautionary procedures.

ESD = Electrostatic Discharge Sensitive Device.

Static electricity can be conducted to the semiconductor chip from the

center pin of the RF input connector, and through the AC connector pins.

When unpacking and otherwise handling the repeater, follow ESD

precautionary procedures including use of grounded wrist straps,

grounded workbench surfaces, and grounded floor mats.

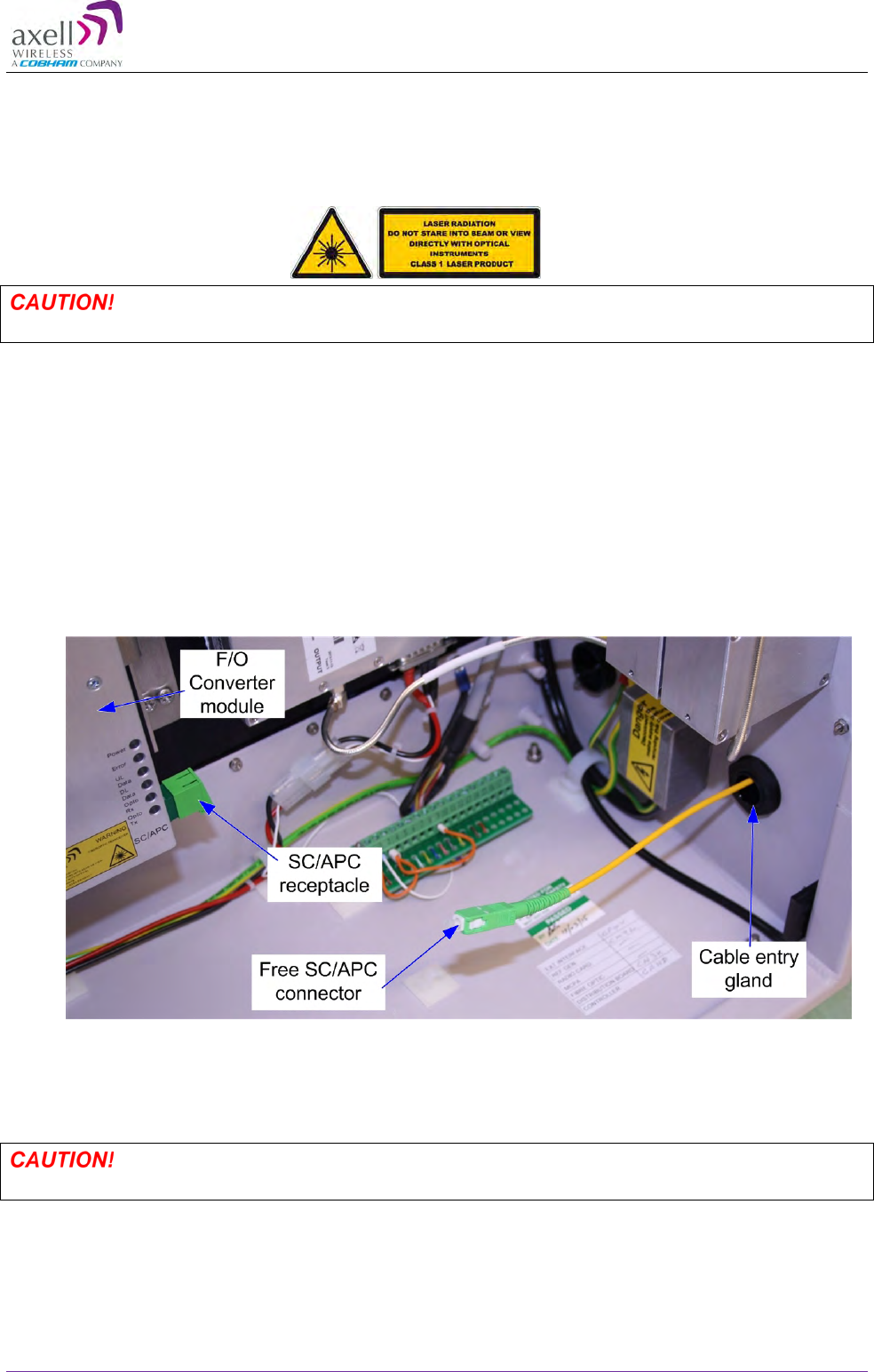

Caution:

Class 1 Laser

The repeaters described in this manual are equipped with class 1 lasers,

as per definition in EN 60825-1

Caution! - Un-terminated optical receptacles may emit laser radiation.

Exercise caution as follows:

 Do not stare into the beam or view with optical instruments.

Optical transmitters in the fiber optic converter can send out high

energy invisible laser radiation. There is a risk for permanent

damage to the eye.

 Always use protective cover on all cables and connectors which

are not connected.

 Never look directly into a fiber cable or a connector.

 Consider that a fiber can carry transmission in both directions.

 During handling of laser cables or connections, ensure that the

source is switched off.

 Regard all open connectors with respect and direct them in a

safe direction and never towards a reflecting surface. Reflected

laser radiation should be regarded as equally hazardous as

direct radiation.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

2 Introduction

The BSF-3604 is a fiber optic fed UHF repeater. It is part of a system that is fed from an Axell

Wireless Optical Master Unit Mk. 2 (OMU II), supporting WDM technology, lowering the number of

fibers needed per system. The maximum optical loss of up to 10dB is allowed over the fiber

interconnecting the OMU II and the most distant last remote unit that the OMU supports. This

offers great flexibility when providing RF coverage in areas where it is not possible to rely on off-air

transmission.

The fiber optic system is easily remotely monitored and controlled by Axell Wireless’ effective

supervision tool, The Axell Wireless Element Manager (AEM).

The BSF-3604 includes automatic optical gain settings, where the gain is adjusted in the downlink

chain by measuring the level of the pilot carrier sent from the OMU II. The level of the received pilot

carrier is continuously monitored.

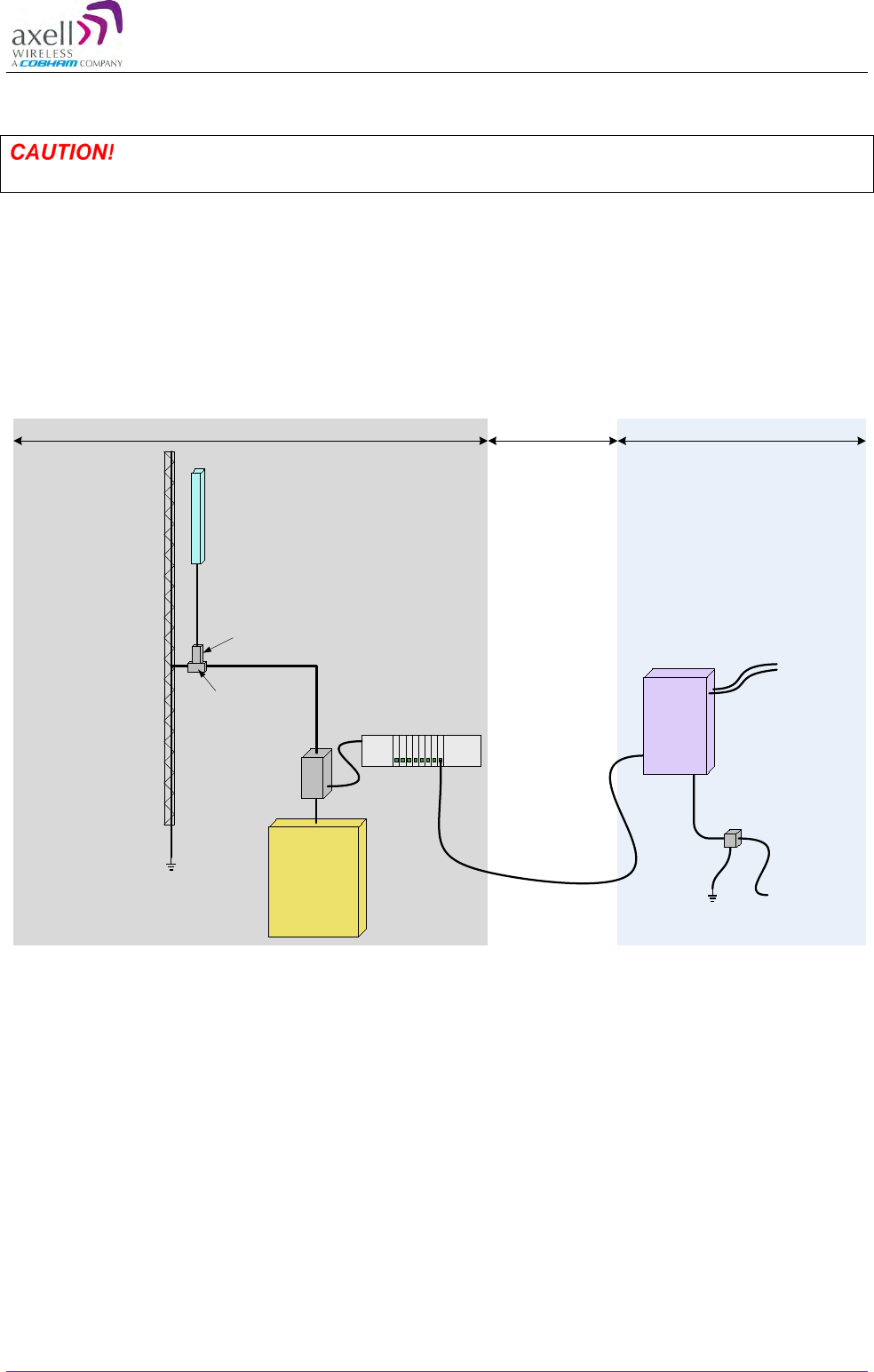

Figure 2-1 Illustration of OMU II Connection to BSF Remote

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

2.1 Features and Capabilities

 Supports frequency bands 470-490MHz

 Operational bandwidth: 0-5 MHz

 Duplex Distance: 0-5 MHz

 Output Power per carrier UL/DL:

 1 carrier: + 36dBm

 2 carriers: + 33dBm

 3-4 carriers: +30dBm

 8 carriers: +27dBm

 Supports WDM technology

 Automatic Optical Gain Setting via OMU II

 Remote configuration and management:

 Via OMU II intuitive Web GUI

 Via AEM – automatically detected via AEM no local setup required

 Optionally via Ethernet or GSM, GSM-R PSTN modem

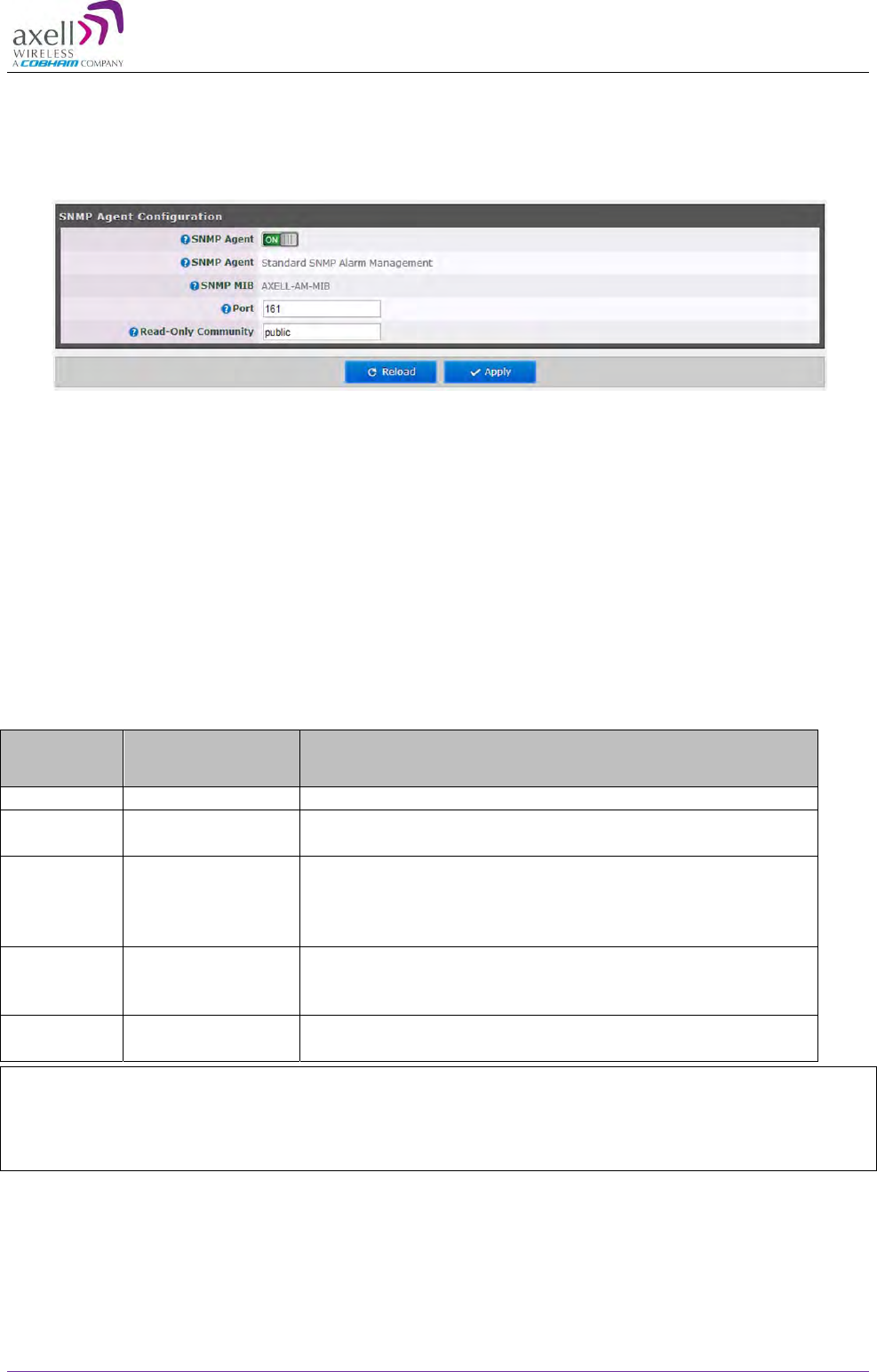

 SNMP v1/v2c support

 Automatic Level Control (ALC) - provides constant gain in both uplink and downlink paths

according to the defined maximum output level

 Very low noise factor - minimizes interference to BTS and increases high speed data

throughput

 Backup battery for ‘last gasp’, sending fault error before power failure

 Wall or pole mount conforming to IP65 and NEMA 4 standard

 Power source: 115VAC, 230 VAC or -48VDC power (depending on your order)

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

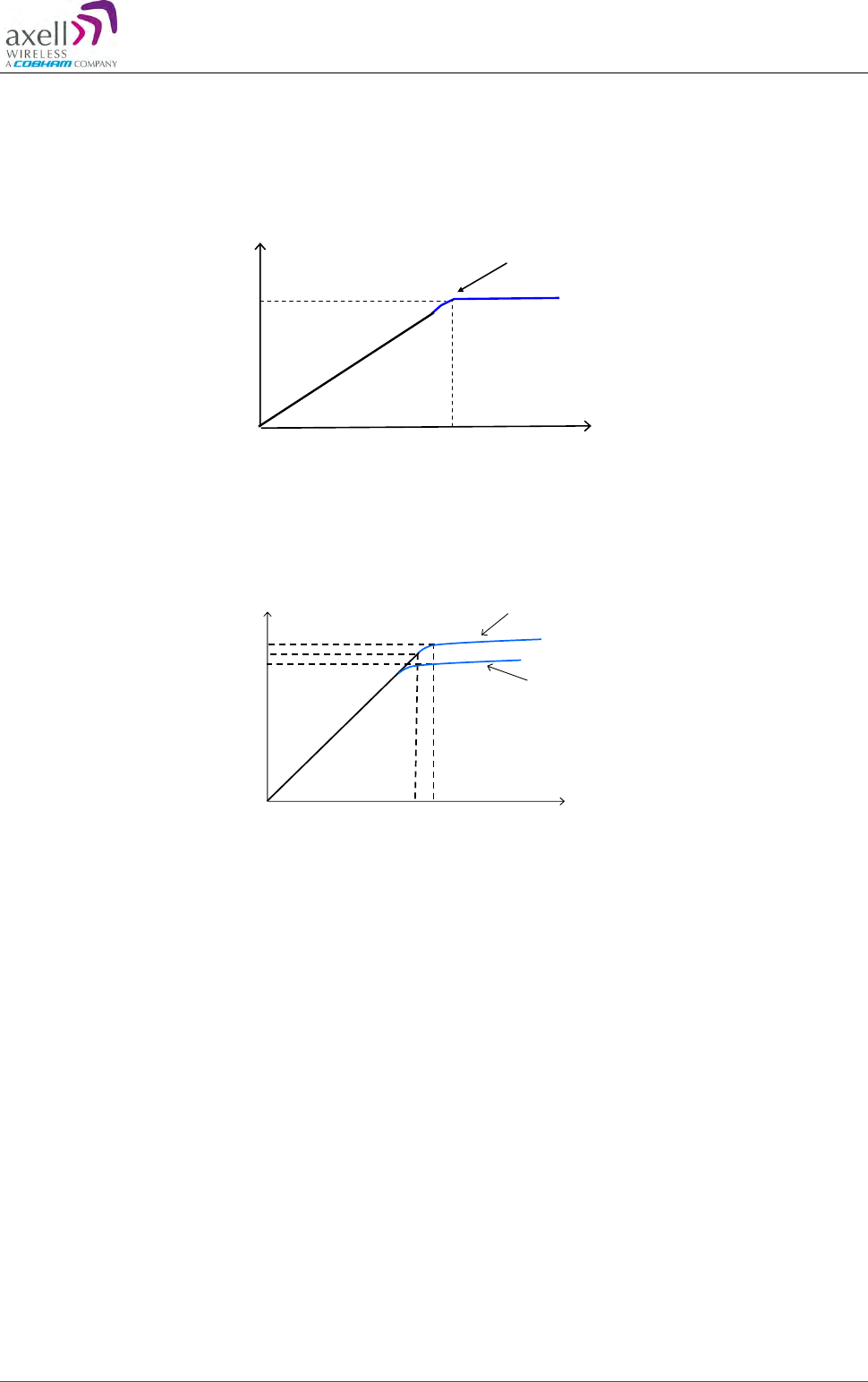

2.2 Automatic Level Control

The repeater is equipped with Automatic Level Control (ALC). The ALC feature enables

maintaining the maximum defined output level.

The repeater has a defined maximum output level. If the input signal amplified by the gain set

exceeds the set output limit, an ALC loop is activated. This ALC ensures that the amplifier does not

add distortion to the radio signal. Below are examples of the ALC function for one and two carriers.

2.3 Operating Temperature

The BSF-3604 is designed primarily for multi carrier purposes. If the repeater is run at full output

power over a long period of time, the convection cooling may not be enough. The repeater is

equipped with a power management function that steps down the power and, if needed, fully shuts

down the amplifier chains until temperature reaches normal values. In situations where a repeater

will be run in such a manner extra cooling can be provided by putting the repeater in a temperature

controlled environment or via external fans.

+20

Input Signal, dBm

Output Power Level, dBm

Gain 70dB

-50

ALC

ALC one carrier

Input signal, dBm

Output power, dBm

+36,5

+33,8

-24 -16

Gain: 60 dB

+35

ALC two carriers

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

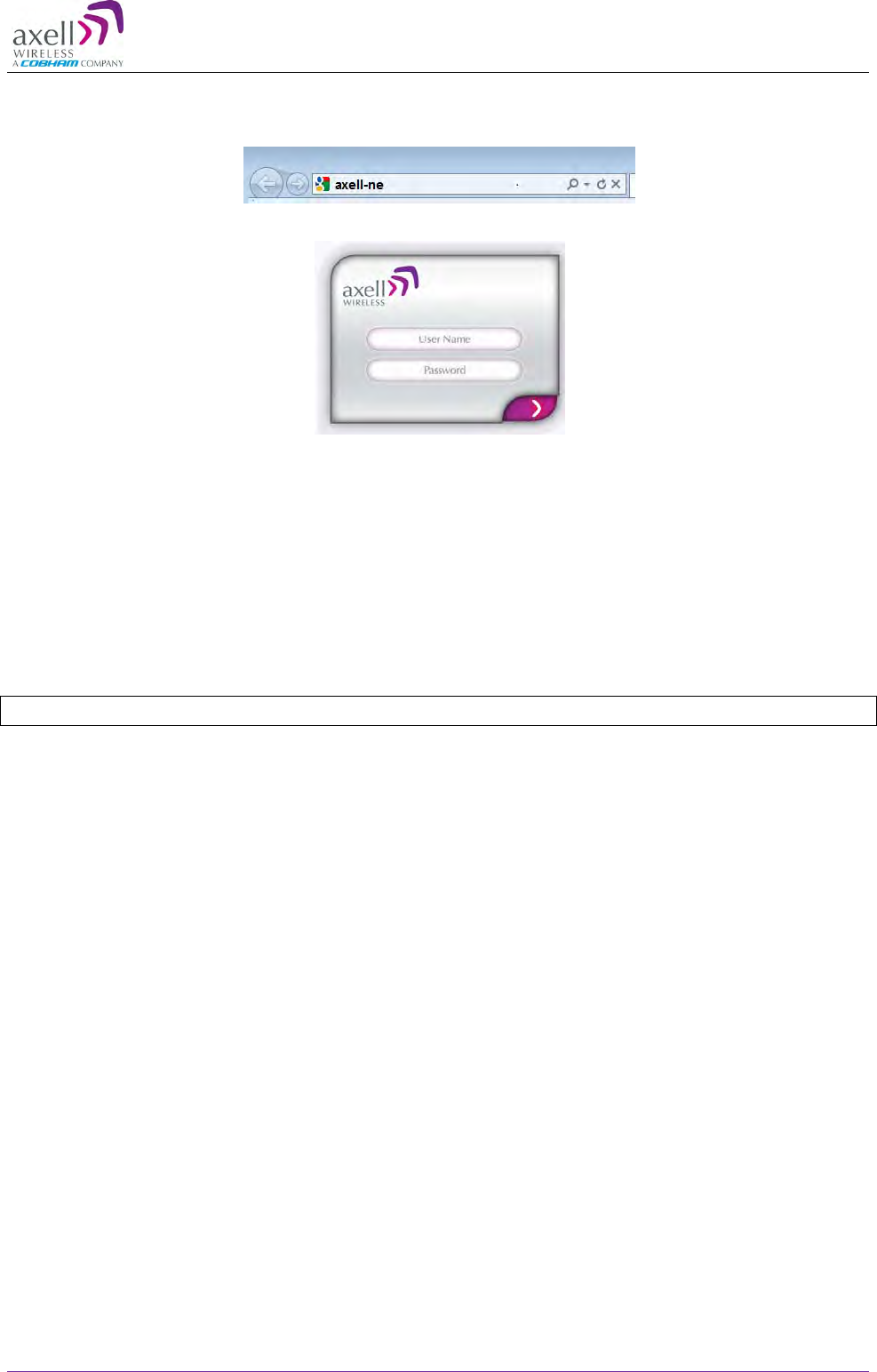

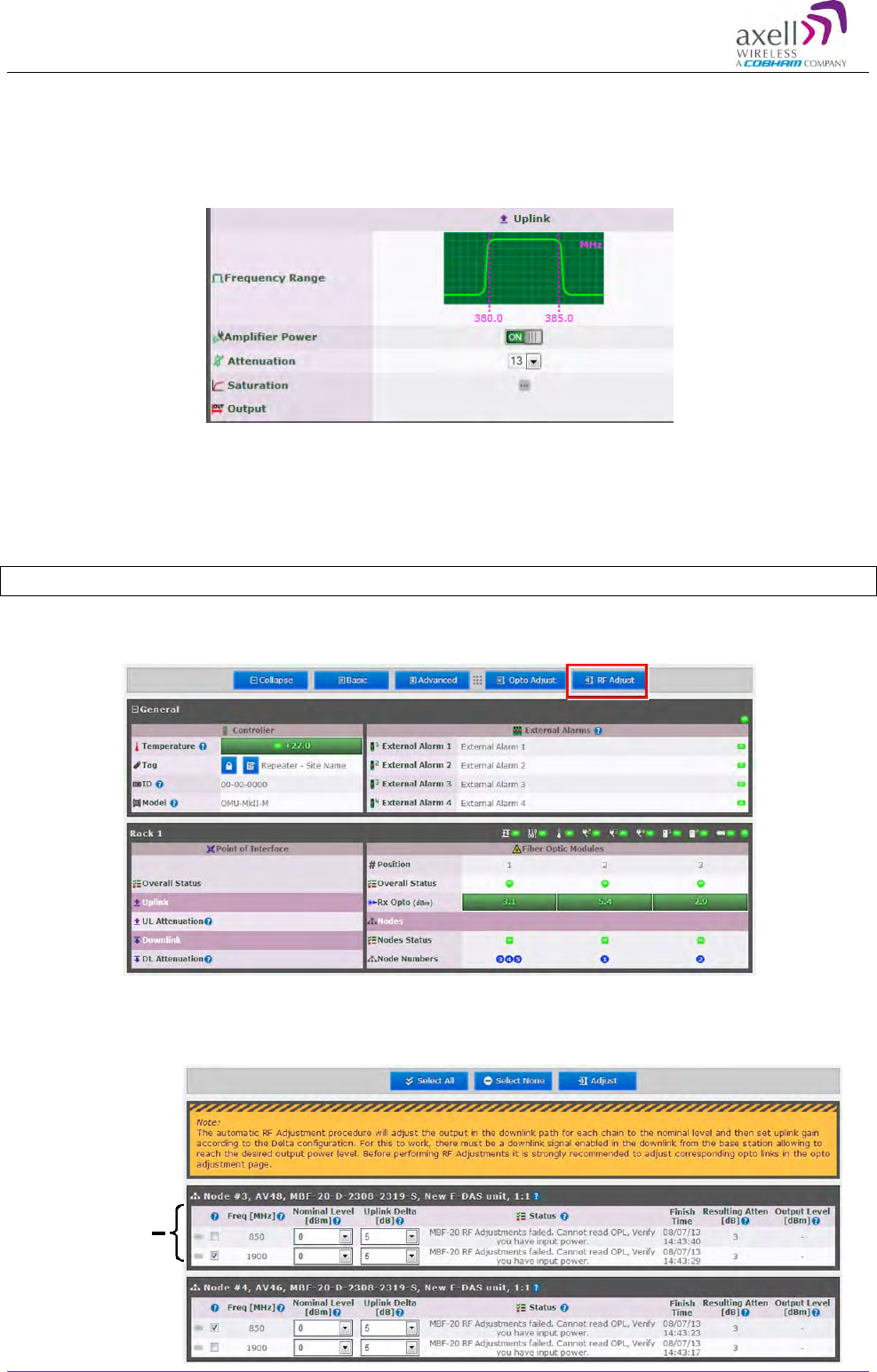

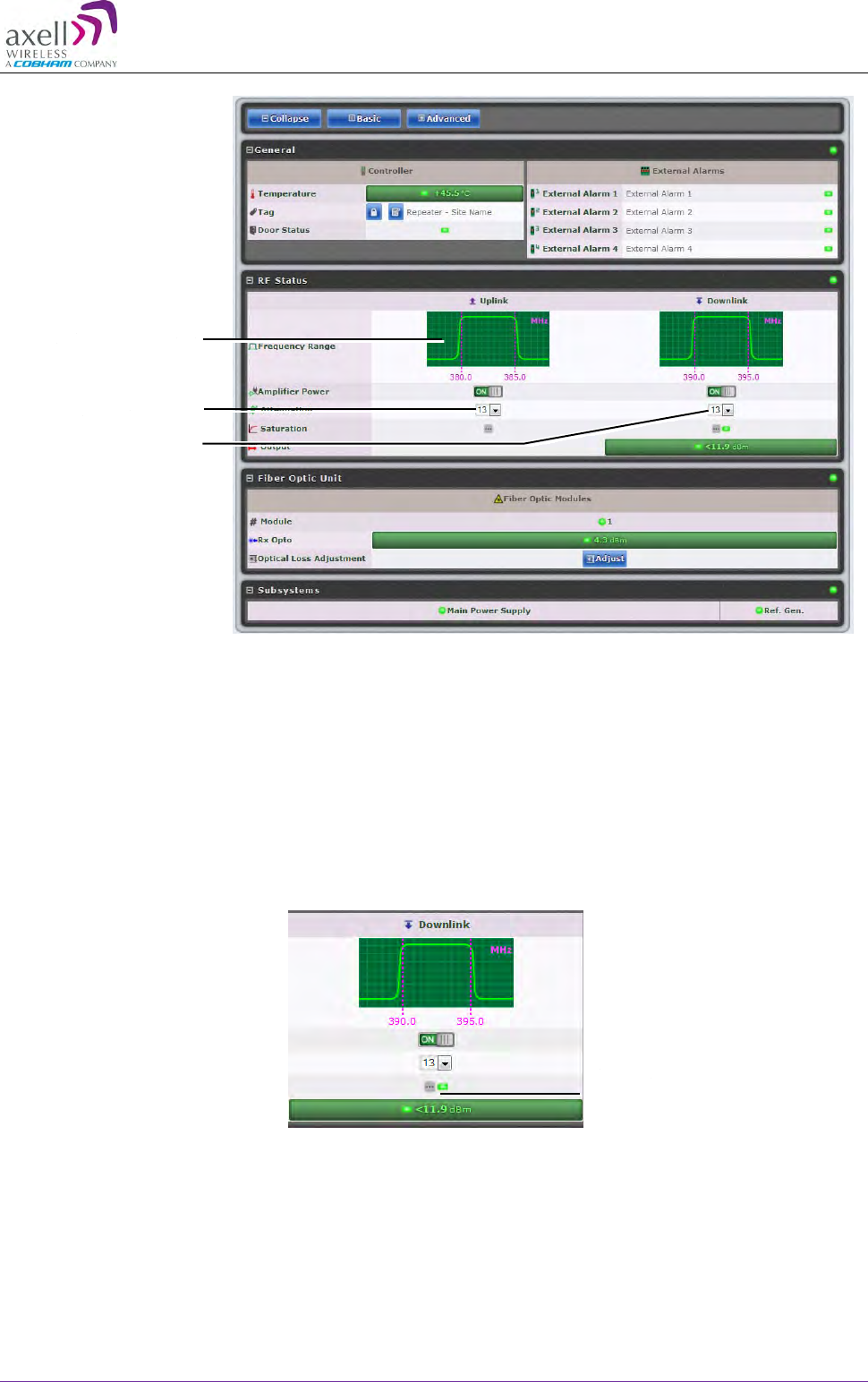

2.4 Management WEB GUI

BSF-3604 is remotely commissioned and monitored via an OMU II session. Local access to the

unit is not required for commissioning.

Additional configuration and troubleshooting options are available via a direct connection to the

BSF-3604 IP address. A direct session can be opened locally or remotely.

NOTE: Direct remote communication requires connecting the BSF-3604 to an Ethernet network

and configuration of an IP address, or via GSM/GSM-R PSTN modem.

2.5 Interfaces

The BSF-3604 unit provides the following interfaces:

 Lockable door catches for protection and security

 External TX and RX antenna and GND connections

 External connection for power

 Internal connection for fiber optics and alarm cables routed via cable gland on the side of

the unit

 Internal USB/Ethernet connection for (optional) management and analysis via Web GUI

routed via cable gland on the side of the unit

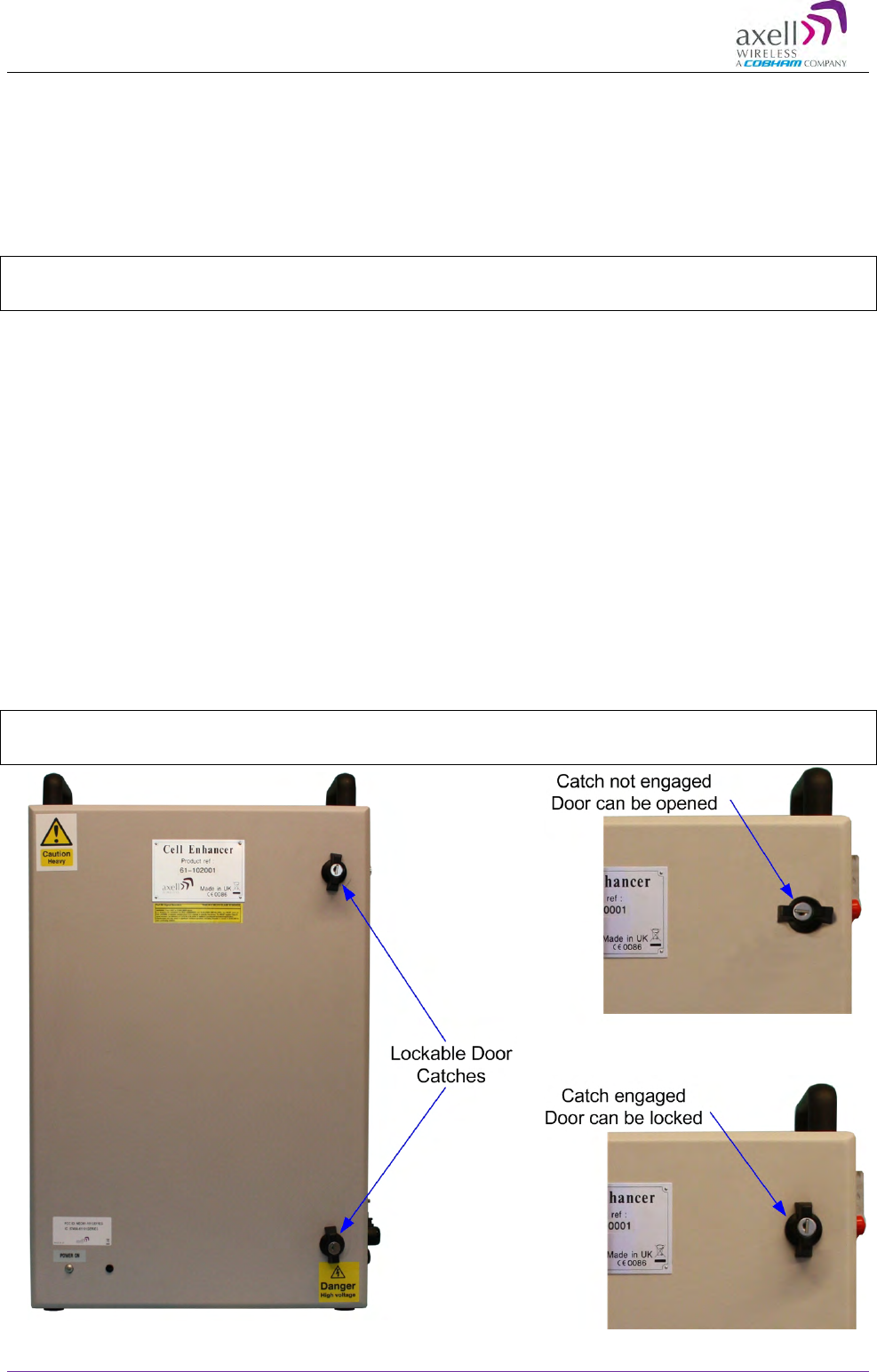

2.5.1 Securing the Unit

The repeaters are secured with two, quarter-turn door catches which can be locked with a key.

NOTE: The two door catches must be fully closed and locked. Failure to do so will affect the IP65

compliancy and therefore any warranty.

Figure 2-2: Securing the Unit

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

2.5.2 External Interfaces

The repeater’s external interfaces are located on the right-hand side of the unit

Figure 2-3: ports and connections

The following table provides a description of the ports and connections.

Port Description

D/L DAS RF Port Downlink output connection to TX Antenna – N type connector, female

U/L DAS RF Port Uplink input connection from RX Antenna – N type connector, female

Cable Gland

The fiber optic cable link from the master site is routed through this gland.

The optional Ethernet connection for management and analysis via Web

GUI may also be routed through this gland.

Connections for routing external alarms and relay wiring cable for internal

connections (section 4.6.) are also routed through this cable gland

Power Connection AC inlet, 3 pole panel plug (section 4.7.)

Grounding

Connection Grounding bolt (section 4.3.)

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

2.5.3 Internal Interfaces

This section shows the internal interfaces for the repeater. You will need to open the Repeater in

order to do the following:

 Connect optic fibers

 Connect alarms (if relevant)

 Power-on (Power-ON and Battery ON switches)

 USB/Ethernet port for local setup

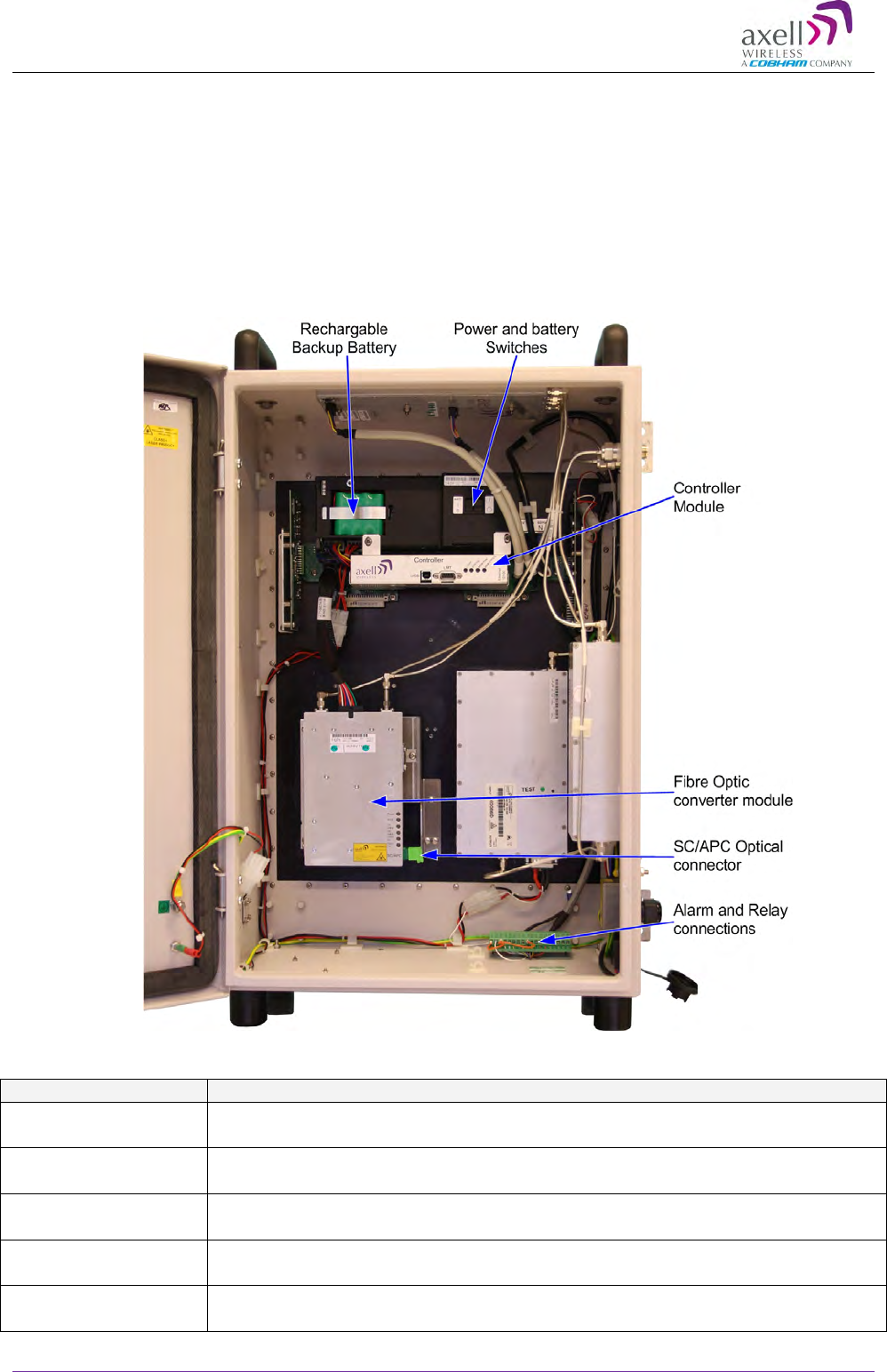

Figure 2-4: Repeater with Door Open

Feature Description

Rechargeable

Backup Battery Provides the Control Module and modem with enough capacity to send an

alarm in case of input power failure. See section 4.2.7.1.

Power and battery

Switches Separate switches for PSU module and Backup Battery. See section 4.7.3.

Controller Module Provides RS232 ,USB and Ethernet ports for local and remote control and

reporting/interrogation of alarm data. See section 7.4.1.

Fiber Optic Converter

module The fiber optic transceiver module. See section 7.4.2.

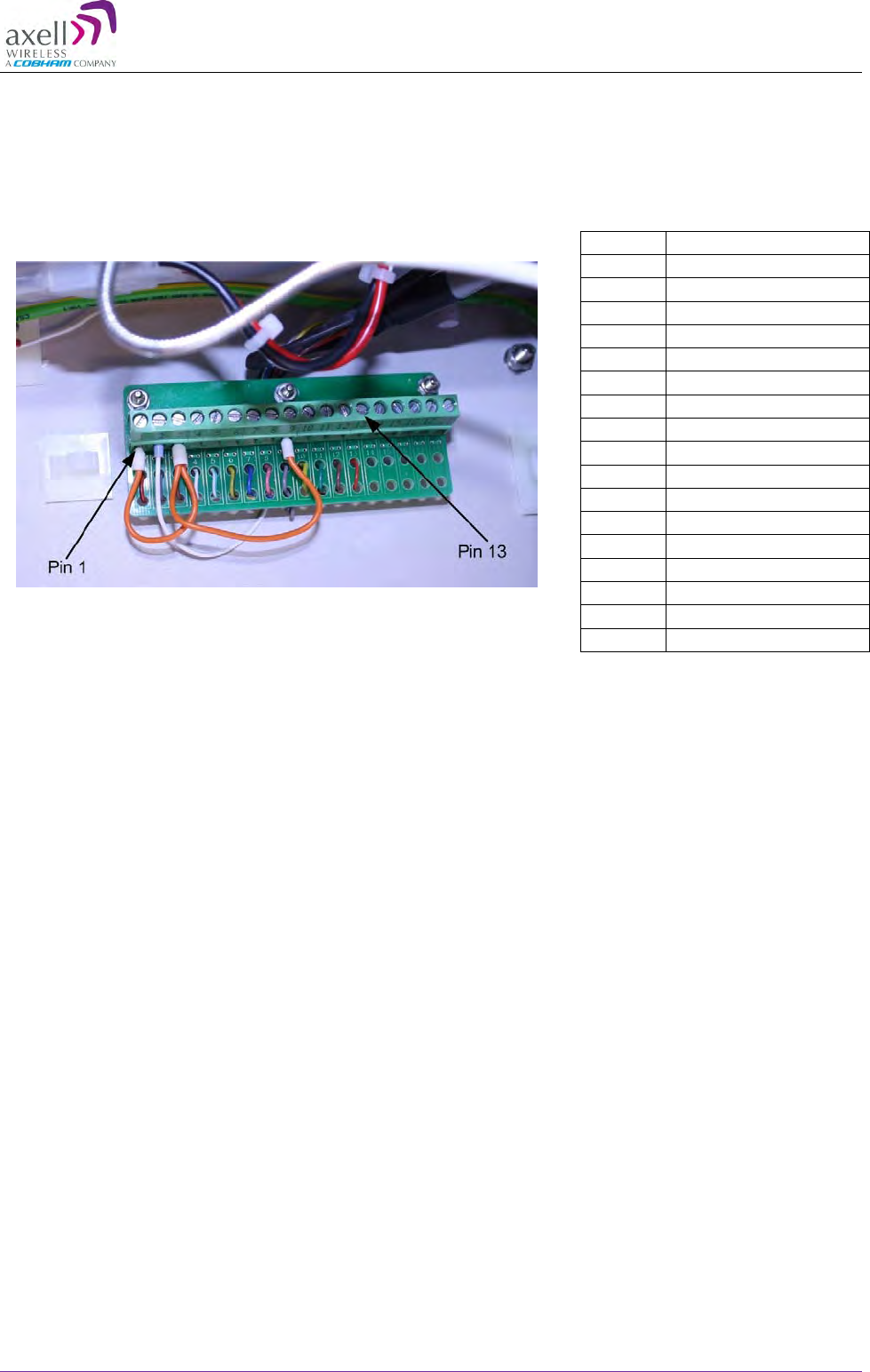

Alarm and Relay

Connections The external alarm interface card. See Section 4.6.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3 Antenna and Repeater Installation Requirements

This chapter provides information on the Remote installation site requirements, on the installation

requirements of the antennas, the specifications of the service antennas suitable for operation with

this remote and RF and F/O cable requirements.

3.1 BSF-3604 Installation Requirements

3.1.1 Safety Guidelines

Before installing the Repeater, review the following safety information:

 Follow all local safety regulations when installing the Repeater.

 Only qualified personnel are authorized to install and maintain the Repeater.

 Ground the Repeater with the grounding bolt located on the external lower side of the

Repeater.

 Do not use the grounding bolt to connect external devices.

 Follow Electro-Static Discharge (ESD) precautions.

 Use low loss cables to connect the antennas to the Repeater.

Class 1 Laser

This product is equipped with class 1 lasers,

as per definition in EN 60825-1.

Un-terminated optical receptacles may emit laser radiation. Do not stare into

the beam or view with optical instruments

3.1.2 Criteria for Repeater Installation Location

The following criteria should be considered when selecting the Repeater installation site location:

 Application type

 General surroundings

 Available installation

 Install the Repeater in a shielded, ventilated, and easy-to-reach area.

 Verify that there is a minimum of a 50 cm (20”) radius of space around the Repeater,

enabling easy access to the repeater for maintenance and on-site inspection.

 Distance from antenna site - It is recommended that the installation location be as close

as possible to the antenna site in order to maintain the cable loss to a minimum.

 The Repeater is convection cooled so airflow and alternation should be possible.

 Follow Electro-Static Discharge (ESD) precautions.

 Install the Repeater close to the service area to monitor the output power.

 Use low loss cables to connect the antennas to the Repeater.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3.1.3 RF Cable Installation Guidelines

Required:

 For all coaxial connections to/from the Repeater - high performance, flexible, low loss

50 coaxial communications cable.

 All cables shall be weather-resistant type.

 Cable length - determined by the Repeater installation plan. When calculating the cable

length, take into account excess cable slack so as not to limit the insertion paths.

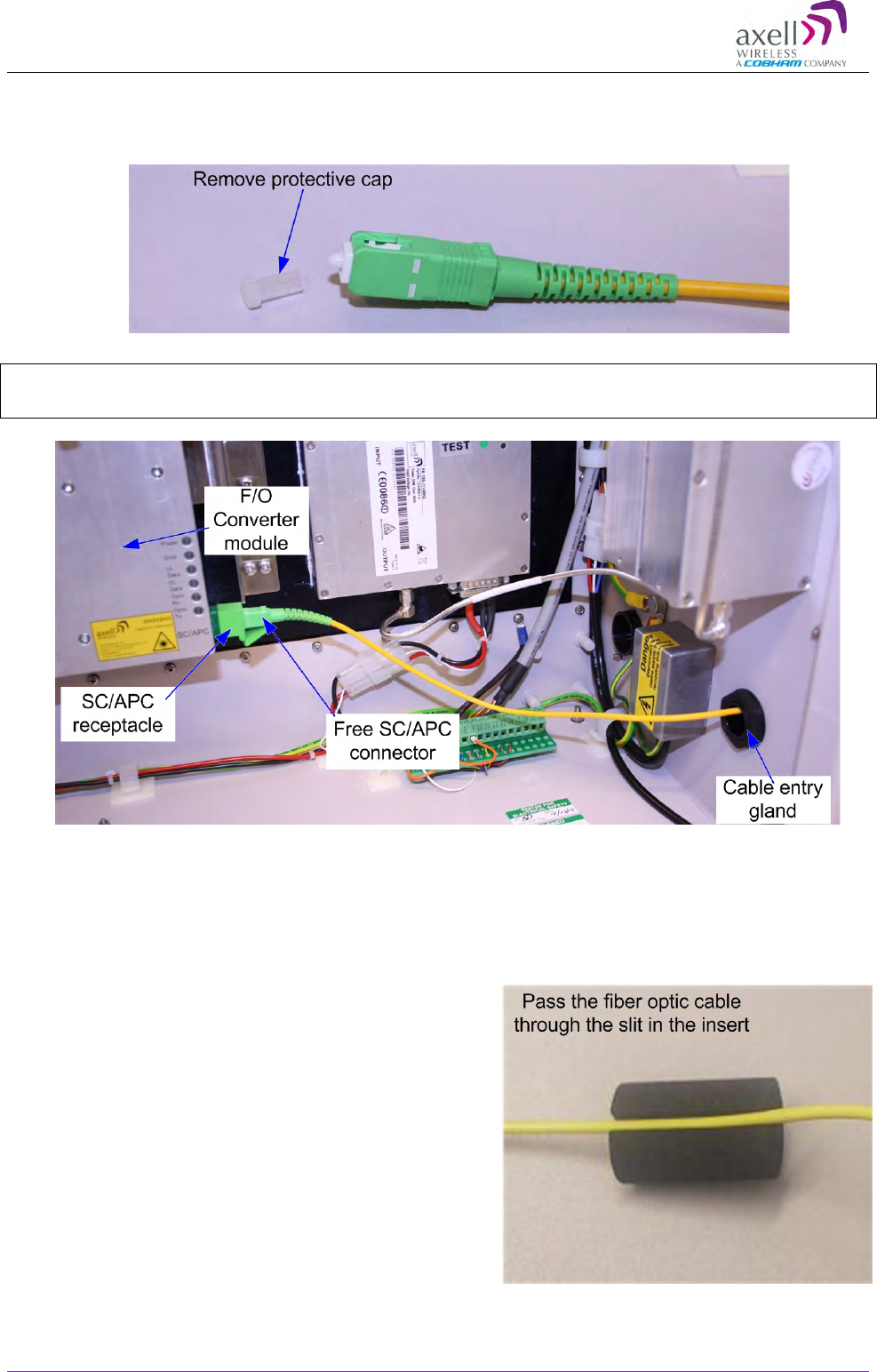

3.1.4 F/O Cable Installation Guidelines

Use the following over the complete link between the Remote and OMU:

 Use SC/APC connectors (8 degree angle) for all connections

 Cable length - determined by the Remote installation plan. When calculating the cable

length, take into account excess cable slack so as not to limit the insertion paths.

Recommended fiber-optic cable:

 Single-mode type fiber 9/125

3.2 Service Antenna Requirements

a. The installer is held accountable for implementing the rules required for

deployment.

b. Good engineering practice must be used to avoid interference.

c. Output power should be reduced to solve any IMD interference issues.

The Service antenna type (i.e. the antenna feeding the mobile/remote units) depends on the

design of the indoors DAS.

3.2.1 Required Antenna Information

The following antenna requirements, specifications and site considerations should be met:

 Type of installation – indoor DAS/Radiating Cable

 Service area type and size

 Antenna type and characteristics

 Height

 Length and type of coaxial cable required for connecting the antenna to the Repeater and

the attenuation.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3.2.2 Indoor Installations

3.2.2.1 Recommended Antennas

The following describes the requirements for an omnidirectional mobile used for indoor

applications.

Specifications:

 One or a combination of the following antennas can be used: Ceiling Mount Patch antenna,

Wall Mount Patch antenna, Corner Reflector.

 Choose an antenna with high side lobe attenuation which enables maximum isolation from

other co-located antennas.



Equation (1) - Max SERVICE antenna gain

Max SERVICE antenna gain (dBi) = 39.1 – (37dBm - # of antennas in dB – cable losses in dB).

For example:

No. of Antennas Cable Losses Max Allowed Antenna Gain

4 3 39.1 - (37-6-3) = 11.1dBi

1 3 39.1- (37-0-3) = 5.1dBi

10 3 39.1- (37-10-3) = 15.1dBi

Typical Antenna Types:

 Indoor Dome 2.1dBi beam width 360o

 Indoor Panel 4.2dBi beam width 106o

 Radiating Cable Typically < -50dBi

3.2.2.2 Recommended Splitters and Couplers

Axell Wireless can supply a comprehensive range of splitters and Couplers to aid the installation of

the internal DAS system. Typical specifications as below:

Splitter Part Numbers 90-851202 90-851203 90-851204

Frequency Band 300 - 500MHz

Split 2 way 3 way 4 way

Max Insertion Loss 0.3dB 0.5dB 0.4dB

Split Loss 3dB 4.8dB 6dB

Coupler Part Number 90-852306 90-852310 90-852315 90-852320

Frequency Band 300 - 500MHz

Coupling -6dB ±1.0dB -10dB ±1.0dB -15dB ±1.0dB -20dB ±1.0dB

Max Mainline Loss 1.7dB 0.8dB 0.4dB 0.22dB

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3.2.2.3 Installation Criteria

Determine the antenna installation configuration, according to the transmission requirements and

the installation site conditions.

Installation requirements:

 An indoor antenna should be installed at a convenient location. It should be free of

metallic obstruction.

Install the Service Antenna at the designated height and tune it roughly toward the Service

coverage area.

3.2.3 Service (Mobile) Antenna Installation Criteria

Determine the antenna installation configuration, according to the transmission requirements and

the installation site conditions.

Installation requirements:

 An indoor antenna should be installed at a convenient location. It should be free of

metallic obstruction.

 Install the Service Antenna at the designated height and tune it roughly toward the

Service coverage area.

 Installation of this antenna must provide a minimum separation distance of 47 cm from

any personnel within the area.

3.3 RF Cabling Requirements

 For all coaxial connections to/from the Repeater - high performance, flexible, low loss

50 coaxial communications cable.

 All cables shall be weather-resistant type.

 Cable length - determined by the Repeater installation plan. When calculating the cable

length, take into account excess cable slack so as not to limit the insertion paths.

 Make sure that cable and connector are compatible. Using cables and connectors from

the same manufacturer is helpful.

 All connectors must be clean and dry

 Waterproof all outdoor connections using silicone, vulcanizable tape or other suitable

substance as moisture and dust can impair RF characteristics.

 Make sure enough room has been allocated for the bending radius of the cable. RF

cables must not be kinked, cut or damaged in any way

 Connect the RF cable to the antenna tightly but without damaging threads

 Fasten cables tight to cable ladder or aluminum sheet

 For short length of feeder cables use ½ “, for longer feeder cables use ”. Chose thicker

coax cables for lower attenuation. Minimize the length of the coax cables to reduce the

attenuation

 Use jumper cable for easy installation. The RF Coaxial cable can be substituted at each

end with a jumper cable.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4 Installation

4.1 Unpacking

Inspect the shipped material before unpacking the equipment, document any visual damage and

report according to routines.

A delivery of a repeater from Axell Wireless contains:

 Checklist with delivered items

 Repeater with attached wall mounting brackets

 Mains lead

 Keys to repeater

 Rubber inset for fiber inlet cable gland

 CD containing User’s Manual and RMC

 Any other specifically ordered item

4.2 Mount the Repeater

The BSF-3604 Remote is designed to be mounted on a wall. The Repeater is delivered with wall

mounting brackets attached.

Mount the repeater in an accessible location and in a location that fulfils the environmental

requirements. Mounting must be tight to eliminate vibration.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.2.1 Selecting a Location to Ensure Proper Cooling

 Mount the repeater so that heat can be dispersed from it.

 The repeater wall mounting brackets ensure an optimum airflow between the wall and the

heat-sink on the rear of the repeater.

 Do not block this air channel as it will cause the MTBF of the repeater to drop

dramatically, or even in the worst case cause the repeater to fail completely.

 If possible, use a wall in the shade to minimize the overall sun loading. If sufficient

shielding cannot be obtained, an additional sun shield should be mounted.

Figure 4-1: Example of a sun shield

4.2.2 Wall-Mounting Preparation

It is recommended that two people lift the repeater since (depending upon the

configuration) the BSF-3604 weighs approximately 30 kg.

 Wall compatibility - check the suitability of the wall on which the BSF-3604 is to be to be

fitted.

 Plan mount - check the actual fixing centers (see below) and overall dimensions of the

BSF-3604 enclosure. The BSF-3604 is fitted with wall mounting brackets which provide

adequate ventilation between the BSF-3604 and the wall to which it is fixed.

 Plan connection cable clearances - the Optical, RF and power connections located on

the side of the BSF-3604 will need at least 300mm clearance to enable the connections

to be made. The minimum bend radius for Optical and RF cables must not be less than

the recommendations made by the cable manufacturer. Plan the cable runs and ensure

adequate space is available.

 Allow for door opening - ensure that there is sufficient space at the front of the BSF-

3604 to allow the door to be fully opened and for maintenance engineers to get access to

the unit with test equipment such as a spectrum analyzer. Allow an additional 500mm of

space in front of the BSF-3604 when the door is fully open.

 Fix bolts –fix M8 RawlBolts or similar (100mm in length) into the wall at the dimensions

as illustrated in figure 1 below using equipment as specified by the fixing manufacturer. A

recommended method is set out below. Care must be taken to ensure the alignment of

the four fixings. A spirit level or plumb line should be used to ensure horizontal/vertical

alignment.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

BSF-3604 should be fixed to a solid wall (these include brickwork, blockwork, and concrete.), due

to the weight of the cell enhancer, fixing to a hollow wall is not recommended.

Always check that there are no pipes or cables hidden in the wall beneath the area to be drilled.

Various pipe and cable detectors are available to check this.

To provide secure fixing to a solid wall, the

most common method is drilling and plugging.

The size of fixing is dependent on the item to

be fixed and the nature of the wall, Repeater

50-122503 should be fixed with mild steel, M8

x 100mm RawlBolts or similar.

Right: M8 RawlBolt of the type recommended

to fix BSF-3604 to a wall.

First mark out on the chosen wall the fixing centers of the BSF

Figure 4-2: Fixing Centers

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.2.3 Mount the Repeater on the Wall

The Repeater wall mount brackets assembly should be fixed to a solid wall (these include

brickwork, blockwork, and concrete.);

(Due to the weight of the Repeater, it is NOT recommended to fix to a hollow wall).

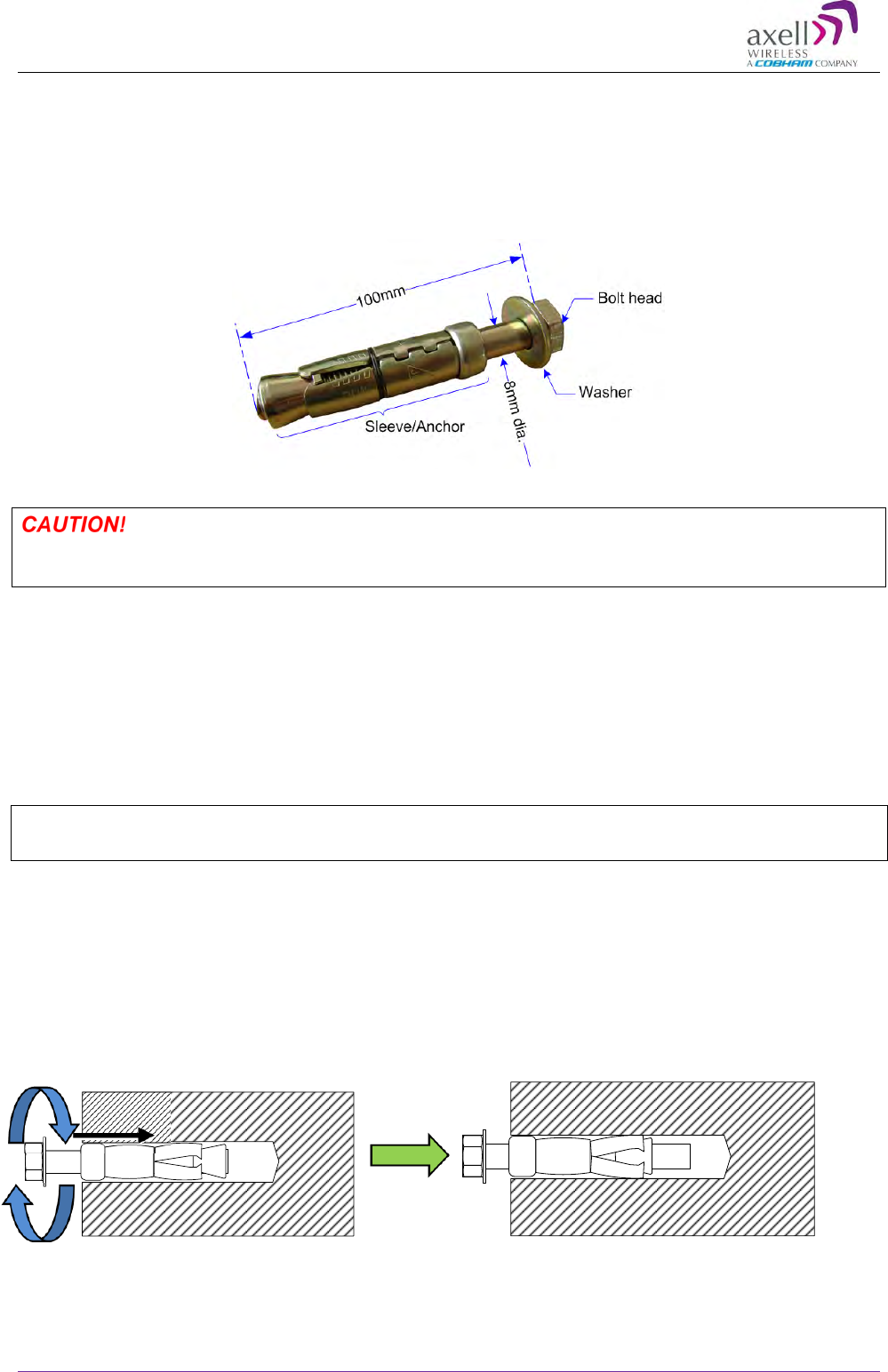

Figure 4-3: M8 RawlBolt – recommended for wallmount.

Always check that there are no pipes or cables hidden in the wall beneath the

area to be drilled. Various pipe and cable detectors are available for this type

of inspection.

To provide secure fixing to a solid wall, the most common method is drilling and plugging. The size

of fixing is dependent on the item to be fixed and the nature of the wall, The Repeater should be

fixed with mild steel, M8 (100mm) RawlBolts or similar.

1. Mark out the fixing centers of the repeater on the chosen wall (see 4.2.2).

2. Mark and drill the wall with the correct size masonry bit as specified by the fixing

manufacturer.

NOTE: It is good practice to wear goggles to protect your eyes from flying debris when using power

tools.

3. Hold the drill bit against the mark and begin drilling slowly so that the bit does not wander

from the position. The wall should be drilled to a depth which is sufficient to accommodate the

full length of the fixing.

4. Insert the fixings so that the top of the sleeve/anchor section is level with the wall surface.

Gently tighten the bolt by hand so that the anchor section of the fixing expands and grips the

inside of the hole.

Figure 4-4: Inserting Fixing and Tightening.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

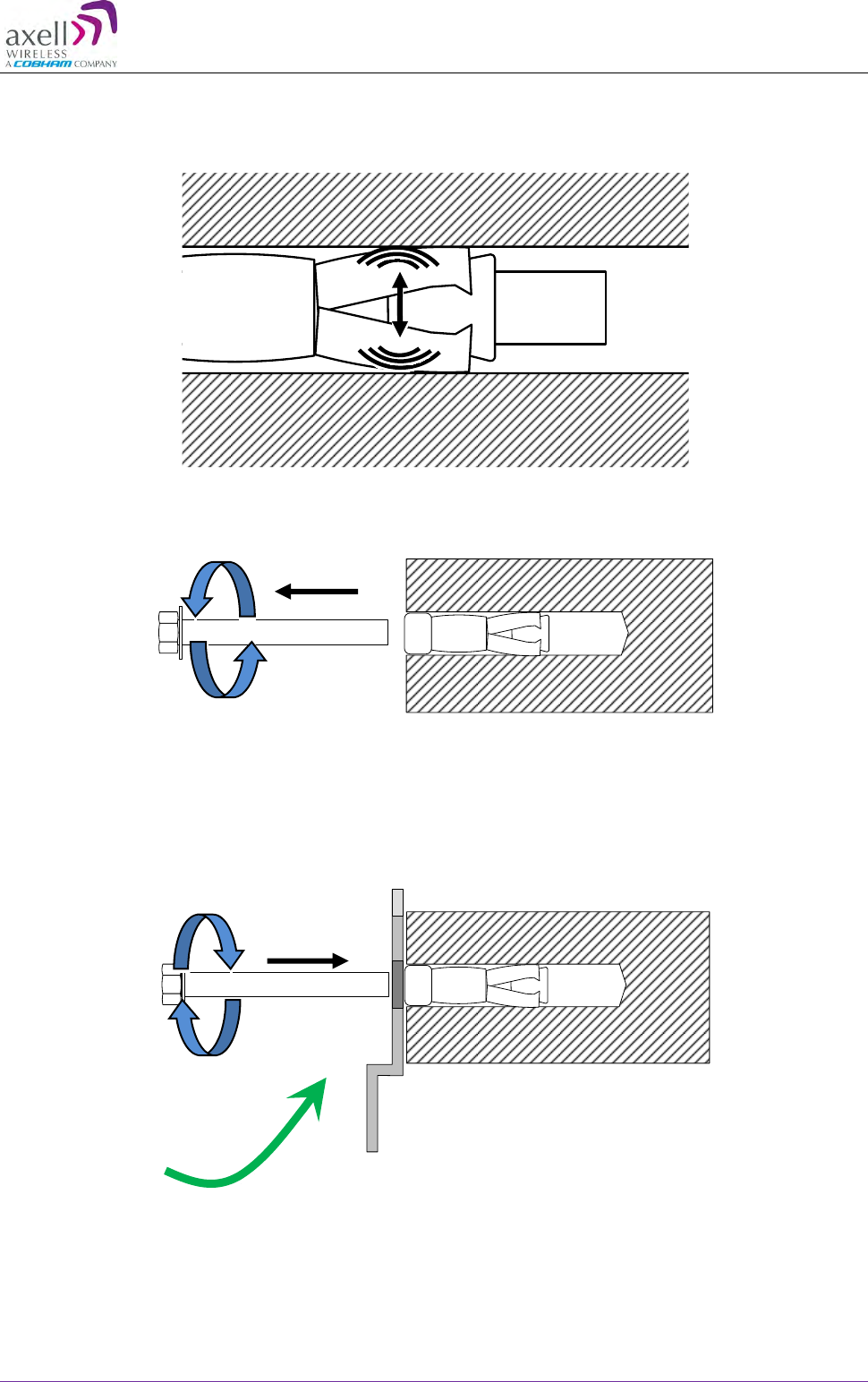

5. As the bolt pulls its way in, the sides of the anchor section are forced outwards, gripping the

surrounding surface.

Figure 4-5: Anchor Sides Pushed Outwards.

6. Once all four fixings are in place, carefully withdraw the four bolts.

Figure 4-6: Withdraw Bolts.

7. Align repeater with the four fixings. Great care should be exercised here as the repeater is

very heavy. Once repeater is held in the chosen position (a suitably rated heavy duty scissor

lift table/trolley may be suitable for this operation). Carefully insert the fixing bolts through the

mounting lugs of the Repeater and into the sleeve/anchor sections of the fixing in the wall and

tighten the bolts.

Figure 4-7: Mount Repeater

Align Repeater

and Secure Bolts

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.3 Grounding

This equipment must be grounded.

Connect the grounding protection as follows:

 Ensure that good grounding protection measures are taken to create a reliable repeater

site.

 Make sure to use adequately dimensioned grounding cables. The minimum

recommended conductive area for a grounding cable is 16mm2

 Make sure the grounding product used is suitable for the kind and size of cable being

used.

 Connect the repeater grounding bolt to the same ground.

Figure 4-8: Grounding the BSF-3604

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

BTS AC Supply

Circuit

Breaker

OMU

Directional

Coupler

Optical Fiber

Equipotential

Grounding Bar

Primary

Protection

Device

Antenna

The top of the mast

must be higher than

the antenna and

grounded properly

The grounding path

must have reliable

continuity and be

dimensioned correctly

BSF

Repeater

RF to/from

DAS

BTS Area Repeater AreaFiber Optic Link

4.4 Ensure Good Electromagnetic Vulnerability (EMV) Protection

If insufficient Electromagnetic Protection is provided, or if EMV measures are

not taken, warranties issued by Axell Wireless are not valid.

Connect the lightning protection

The lightning hazard to electric and electronic equipment consists in the interferences of direct

lightning current infections and high surge voltages induced by the electromagnetic field of nearby

lightning channels or down conductors. Amplitudes from cloud-to-earth lightning amounts to

several 10kA and may last longer than 2ms. The damage caused depends on the energy involved

and on the sensitivity of the electronics systems.

Ensure that lightning protection measures are taken to create a reliable repeater site. Protect all

coaxial cables and power cables from the transients caused by lightning. Fit all cables with suitable

lightning protection devices.

Figure 4-9: Example of EMV protection for a repeater system

For detailed information please refer to IEC 61024-1 and 61312-1 for international standards for

protection of information systems against LEMP (Lightning Electromagnetic Pulse), including radio

transmitters. They define proper planning, installation and inspection of effective lightning

protection systems.

The Axell Wireless repeaters comply with the EN standard ETS 301 498-8 which stipulates

demands on lightning/surge protection for typical infrastructure telecom equipment installations.

Several lightning protection devices should be used in series with declining threshold voltages to

help attenuate the pulse component which makes it through the first layer of protection.

The primary protective device is part of the site installation and is not supplied by Axell Wireless.

Coaxial lightning protection is normally one of these three types: Gas capsule, High-pass and

Bandpass.

There also needs to be a protective device (circuit breaker) installed on the power supply cord (see

section 4.7).

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Figure 4-10: Example of protective device installed in connection with the power supply

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.5 Fiber Optic Connection

Class 1 Laser

This product is equipped with class 1 lasers, as per definition in EN 60825-1.

Un-terminated optical receptacles may emit laser radiation. Do not stare into

the beam or view with optical instruments

Use the following over the complete fiber link between the OMU and the Repeater:

 Single-mode type fiber 9/125

 Use SC/APC connectors (8 degree angle) for all connections

Connecting the Fiber Optic Cable

1. The fiber optic cable with its SC/APC connector must be passed through the cable gland on

the side of the repeater. If the rubber sealing insert is already inside the gland it must first be

removed.

2. Ensure that there is enough cable slack between the cable gland and the fiber optic converter

module to connect the free SC/APC connector to the SC/APC receptacle on the F/O

converter module.

Make sure the fiber optical cable is not bent too sharply inside the repeater as

this can damage the cable and lead to communication disruptions.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3. Remove any protective caps from the SC/APC connector and SC/APC receptacle and mate

the free connector to the receptacle.

NOTE: Clean the fiber connector before connecting it to the system. See instruction in

Appendix B - F/O Cleaning Procedure.

4. To ensure IP65 compliancy and provide a degree of strain relief rubber sealing insert should

be employed. The insert has a slit along one side; on the outside of the repeater, pass the

fiber optic cable through the slit in the insert and then slide the insert along the cable and into

the cable entry gland.

5. With the rubber sealing insert sitting inside the

cable entry gland, tighten the exterior nut until it

grips the rubber sealing insert - the exterior nut

acts as a collet gripping the rubber sealing insert.

Check again that there is enough cable slack

between the cable gland and the fiber optic

converter module, the cable should not be too

tight.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.6 External Alarm and Relay Connections

The repeater is equipped with an external alarm interface card. The connector terminal block for

the external alarms is located at the base of the repeater.

Connect the alarm cords to the plinth according to the pin layout below (pins 14 – 18 are not used).

Figure 4-11: External alarm interface card

located inside Repeater

4.6.1 External Alarm

 Four external alarm sources can be connected to the repeater.

 Alarm operating voltage: between 12 and 24VDC.

 Alarm polarity can be configured:

 Active-low - when there is no voltage the alarm indicator will turn red

 Active-high - an applied voltage of between 12 and 24VDC will cause the external alarm

indicator to turn red.

 The repeater can supply +15 VDC to an external alarm source through pin 9 and 10. The

maximum allowed load is 100mA.

4.6.2 Relay

 Relay (pins 11 and 12) can be connected to an external device to indicate an alarm.

 Can be configured to trigger on any number of internal and external alarms. The

maximum current that can be supplied is 100mA.

Pin 1 External alarm 1A

Pin 2 External alarm 1B

Pin 3 External alarm 2A

Pin 4 External alarm 2B

Pin 5 External alarm 3A

Pin 6 External alarm 3B

Pin 7 External alarm 4A

Pin 8 External alarm 4B

Pin 9 Alarm +15V

Pin 10 Alarm 0V

Pin 11 Relay Output 1A

Pin 12 Relay Output 1B

Pin 13 GND

Pin 14 Not used

Pin 15 Not used

Pin 16 Not used

Pin 17 Not used

Pin 18 Not used

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.7 Power and Backup Battery

Make sure the antenna cables or 50 ohm terminations are connected to the

repeater’s antenna connectors before the repeater is turned on.

Be sure a CIRCUIT BREAKER meeting the instructions given in this section is

connected near the unit at an easily reachable and accessible location from

the unit.

4.7.1 Circuit Breaker

The internal power connections for the unit are hard-wired. The Repeater’s internal PSU Module

has a switch which allows it to be set in the “on” or “standby” position. Setting the switch to standby

will disable the repeater. In the standby position the PSU module and repeater are still connected

to the AC power supply but the PSU module is not operational,

As an additional safety feature to disconnect the unit (either manually or automatically in case of

overcurrent), it is good practice to install a circuit breaker on the wall near the unit, at an easily

accessible distance and location from the unit.

Circuit-breaker minimum requirements

 10AT, 250VAC

 Needs to be SAFETY approved

 Requires minimum contact separation of 3mm

 Install on the wall near the unit

4.7.2 Power Connections

The image below shows the location of the various power elements. These are described in detail

in the following sections.

Figure 4-12: Power Elements – Located Inside Repeater

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.7.2.1 Backup Battery

 A rechargeable battery pack is mounted in a small recess on the PSU module. The PSU

module also includes charging and supervision electronics.

 The backup battery will provide the Control Module and modem with enough capacity to

send an alarm in case of input power failure.

 The battery can be switched on and off. The switch is placed adjacent to the main power

on/standby switch on the PSU module.

 At delivery the back-up battery is connected.

 The battery is replaced by removing the restraining clip and lifting the battery pack out of

the recess and disconnecting the cable.

Figure 4-13: Backup Battery

4.7.2.2 Connecting the Power Source

 The BSF unit is supplied with an AC Mains cable with a free socket which mates with the

panel plug on the side of the unit.

 Power Source: 115 VAC 60 Hz

 The power supply module has a switch which allows it to be set in “on” position or in

“stand by”.

NOTE: With the PSU module on/standby switch in the standby position the repeater is still

connected to the AC power supply but is not operational.

 To disconnect the repeater completely from the AC supply the PSU on/standby switch

should be set in the standby position and the mains flying socket removed from the panel

plug on the side of the repeater.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4.7.3 Power ON

4.7.3.1 Switching Power ON

Make sure the antenna cables or 50Ω terminations are connected to the

repeater’s antenna connectors before the repeater is turned on.

1. Set the PSU On/Standby Switch to On

2. Set the Battery On/Off switch to On.

Figure 4-14: BSF-3604 Power Module

NOTE: With the PSU module on/standby switch in the standby position the repeater is still

connected to the AC power supply but is not operational.

4.7.3.2 Verifying LEDs

Verify the LEDs from the following modules are indicating correct operation (see section 0):

 Control module

 F/O converter

 Power supply modules

4.8 Closing and Securing the Repeater

Close the door, tighten the quarter-turn door catches and lock repeater with the keys provided.

Continue with the following section “Commissioning” to setup the repeater.

NOTE: The two door catches must be fully closed and locked. Failure to do so will affect the IP65

compliancy and therefore any warranty.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

5 BSF-3604 Commissioning

After the repeater is connected, it is identified by the OMU II via the fiber connection and the unit is

commissioned from the OMU II. The commissioning process consists of a few simple steps.

To commission the BSF-3604 - overview:

1. Open an OMU II session. This is used to access the BSF-3604 configuration window (via

OMU II).

2. Perform Optical Loss Adjustment.

3. Set the required RF attenuation and gain levels

4. Assign the unit a recognizable name (according to its location).

5.1 Open a Session to the BSF-3604 via the OMU II

1. Open a local or remote session to the host OMU II:

 Remote session – open a Browser session in the same subnet as the host OMU II and

enter the IP of the host OMU II (see OMU user manual for detailed procedure). Enter the

OMU II User Name (e.g. axell) and Password (provided by your system administrator).

 Local session– connect to the OMU II Control Module's USB or Ethernet ports. Enter the

OMU II User Name (e.g. axell) and Password (provided by your system administrator).

 After accessing an OMU II session, commission the BSF-3604 according to the following

section.

Figure 5-1: Connection to OMU II

Connect to either the USB port

or the Ethernet port

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

5.2 BSF-3604 Optical Loss Adjustment (OLA)

BSF-3604 OLA is performed from the OMU II.

To perform BSF-3604 OLA (via OMU II)

1. From the OMU II main window, click the Opto Adjust button.

Figure 5-2: OMU II Main window

The OLA screen appears. The screen lists the OLA options (and status) for each link. (The links

are listed according to the OMU II slot to which the remote is connected.).

Figure 5-3. Configure and Initiate Optical Loss Adjustment

Click to access OLA

screen

OMUII Main

window

Rack#:

Opto-Module

Select nodes

for UL/DL

Adjustment

F-DAS

Remotes via

Optic Splitter

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Column Description

Pos Each Rack corresponds to an OMU unit whereas each Slot

corresponds to an Opto-Module. Slots are numbered according

to their position in the OMU Chassis (numbered left to right).

Select All Batch selection options:

- mark all remotes for UL opto-adjustment.

- mark all remotes for DL opto-adjustment.

- mark all remotes for DL and UL adjustment.

Node Node list number and identification (e.g. AHFK)

Status Displays an Error if process failed. If successful the pilot tone

used and the adjustment level will be displayed.

Resulting Attenuation Compensation level used for the opto-module (in dB).

2. Mark the check-boxes corresponding to the remotes (each connected to the designated Opto-

module/Opto-Splitter) to which to perform the adjustment.

3. OLA (DL/UL) may be performed on each node individually (or a batch) or on all nodes at

once by marking the checkbox next to the desired corresponding Opto-module and clicking

Adjust.To easily mark all checkboxes mark the checkbox named OLA.

NOTE: The process may take several minutes depending on the size of the system and remote

distance.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

5.3 RF Balancing

The BSF-3604 RF Balancing procedure can be performed manually (the automatic option specified

in section 5.3.2 will be available in the future) via the OMU II web interface.

5.3.1 Manual RF Balancing

NOTE: If connected locally, enter the BSF-3604 Home screen and skip to step 2.

The manual balancing procedure consists of the following steps:

 Verifying the DL RF output level is maximized by setting the required DL attenuation of

the signal.

 Setting the UL attenuation according to the DL.

 In case of noise, adjusting the UL attenuation to reduce noise

To balance the BSF-3604 UL and DL outputs

1. Access the BSF-3604 Configuration window:

 Click on the Nodes button. The below pane appears

 Click Control next to the node to be balanced.

Figure 5-4: OMU II System Nodes window

2. The resulting pane can be displayed in two views:

 Basic – default view (Basic button)

 Advanced – provides more information (Advanced button)

The dialog below shows an example of the Basic (default) view.

NOTE: The various elements monitoring options are described in detail in section 7.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Figure 5-5: Example of Partial view of BSF-3604 Configuration window

3. In the Downlink section:

 Verify the Amplifier is set to ON.

 Set Attenuation to maximum value (15dB).

 Lower the Attenuation level step by step until the desired Output power level is reached

(Zero attenuation = maximum gain).

 Verify the Amplifier Saturation is GREEN.

Figure 5-6: BSF-3604 Downlink Configuration Section

UL Attenuation

DL Attenuation

UL/DL bandwidth

Saturation

status

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

4. In the Uplink:

 Verify the Amplifier is set to ON.

 Set UL Attenuation == DL Attenuation value.

Figure 5-7: BSF-3604 Uplink Configuration Section

5. If noise is detected, adjust only the uplink value.

5.3.2 Automatic BSF-3604 RF Balancing

NOTE: This feature will be available in future release.

To access the Automatic RF Adjustment pane

1. Access the OMU II Home window and click on RF Adjustment.

Figure 5-8: OMU II Main window

2. The following pane appears.

Remote with

selected

bands to

adjust

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

3. Select the bands of each remote to be adjusted (e.g. 450MHz band on Node #3)

4. Adjust the following for each band:

 Nominal Level (dBm)

 Uplink Delta (dB)

5. Click Adjust. The procedure may take several minutes depending on the number of units

selected.

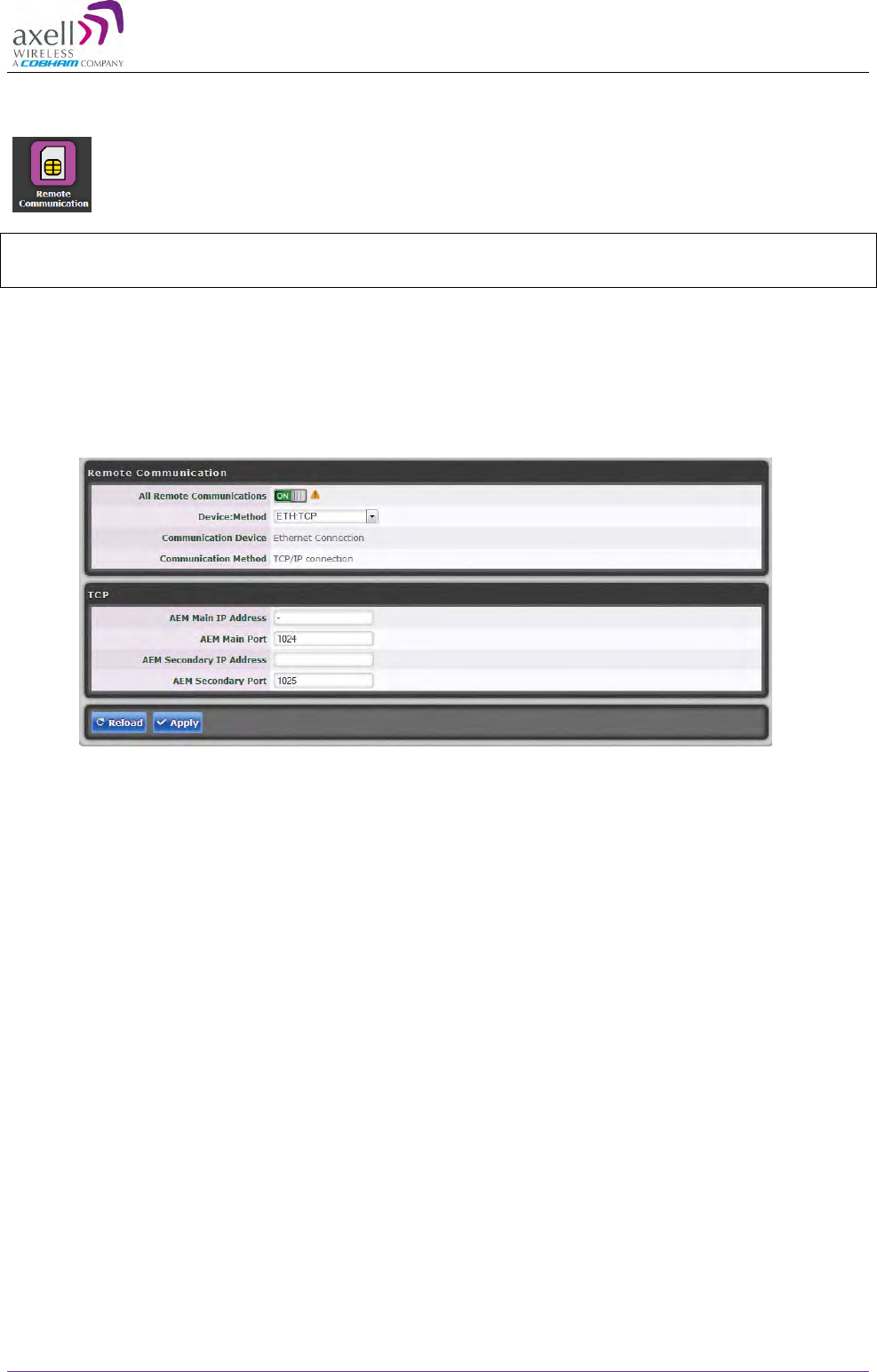

5.4 Integration into the Axell Element Manager (AEM)

NOTE: All integration into the AEM is performed from the AEM side – no action is required from the

BSF-3604 side.

The AEM automatically connects to the repeater, downloads all the repeater parameters and

statuses into a database. When all parameters have been downloaded, the AEM configures the

repeater with the IP address where alarms and reports should be sent to, and optionally with a

secondary IP address where the repeater can connect to in case connection to primary IP fails.

When heartbeat reports and alarms are sent from the repeater to the AEM also the latest

information about the status and RF-configuration is included. This means that the AEM operator

always has information about the current status in the AEM database (and do not need to call the

repeater to find this out).

NOTE: Once the repeater is integrated to the AEM, all changes to the repeater should preferably

be done from the Axell Element Manager in order to ensure that the database always

contains correct information.

5.5 What Next?

The BSF-3604 unit is now ready for operation. You may monitor the unit's general status via the

OMU II Home screen and if the node is faulty (red LED), access the Home screen in Advanced

mode for more detailed information.

NOTE: Consult the OMU II User Manual for additional information on RF and Optical adjustments.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6 BSF-3604 Full GUI Description

This chapter provides a detailed description of the complete BSF-3604 Web GUI that is accessed

when a direct session is opened to the BSF-3604.

When an indirect session (via OMU II) is opened to the BSF-3604, only the BSF-3604 Main

window is available. The additional options are available when a direct session is opened to the

BSF-3604 (not via OMU II).

This chapter describes how to open local and remote direct sessions to the Remote and the

available options when such a session is opened.

6.1 Opening a Direct Web Session

You may open a direct Web session to the BSF-3604 by connecting to the unit either:

A. Locally

B. Remotely via an Ethernet/modem connection – requires to unit to be connected to the

network.

6.1.1 Connecting Locally

NOTE: This connection requires downloading the USB driver from the provided setup disk (or

connection to the internet, where the driver is automatically loaded).

To open a local session:

1. Open the BSF-3604 door

 Connect to the USB port or the Ethernet port on the Controller module. If the USB driver

is not already installed on your laptop, the system will search for the driver on the

provided setup disk or on the internet (if a network connection is available).

 Run a browser and login according to the following section.

Figure 6-1: BSF-3604 Controller Module Connections

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

1. Open the web browser and type "axell-ne" in the address bar.

The Axell login dialog appears.

Figure 6-2: Login Screen

2. Use the following username and password to login:

 Username: axell

 Password: AxellPasswd

For backwards compatibility, you may also use:

 User Name: Avitec

 Password: AvitecPasswd

NOTE: It is highly recommended to change the default password according to section 0.

The Web GUI Main Window appears. This is the same window is also viewed via the OMU II.

6.1.2 Remote Connection and Login

This type of Web session requires connecting the Repeater to the network and defining an IP

address. See section 6.3.4.

To login:

 Open a standard Browser.

 Enter the IP address of the Repeater in the address bar.

 Enter the User Name and Password as described in the following section.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.2 Navigating the Web Interface

The Web GUI window provides access to the management options of the BSF-3604. Several tabs

(and sub-tabs) are available: Home, Nodes, Logs, etc., while the Home tab (illustrated below), is

displayed on login.

Figure 6-3: BSF-3604 Home Screen

Menu options buttons

Home

screen

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.2.1 Management Options Buttons

The following table briefly describes the main functions of each tab:

Tab Description

Provides a general status and alarm information. Switching to Advanced

View will toggle a more detailed view of each band and module. Section 0.

Lists the remote nodes – corresponding OMU and units connected the

specific OMU.

List of recent operations. Section 0.

Provides a range of BSF-3604 configuration procedures such as

communication, RF, Date and Time, Password, etc. Section 0.

Logout of the system.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.2.2 Home Screen Overview

The screen is divided into four basic areas:

1. General

 Controller – shows general information on the BSF-3604 such as identification and

temperature level.

 External Alarms – shows status of external alarms and the defined names.

2. RF Status

 Frequency Range – shows frequency range used per DL/UL.

 Uplink/Downlink – gain, attenuation and connection status in the specific direction.

3. Fiber Optic Unit

 Shows status on connection to remote OMU and allows for optical link adjustment.

4. Sub-systems

 Shows overall status of all sub-systems such as power supplies, battery, communication

etc.

General

Information

UL and DL

output control

options

Fiber Optic

options

Powe

monitoring

options

External

Alarms

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.2.3 Configuration Screen Overview

The configuration screen provides access to the BSF-3604 configuration options.

To access the configuration screen

Click on the Config menu option in the Main window. The following screen appears.

Option Description

Site

Information Display BSF-3604 identification information.

See section 6.3.1

External

Alarms Used to activate and assign names to external alarms.

See section 6.3.3

Change

password Used to update system login password for the logged-in user.

See section 0

Date and Time Used to configure the time stamp for dating BSF-3604 events.

See section 0.

Ethernet Used to define the IP Address for remote access via Ethernet.

See section 6.3.4

Remote

Communication Used to configure remote communication parameters and AEM

integration. See section 0

Axell Shell Command line used to communicate with the remote units. List of

commands is found under Help. See section 0

Attribute

Reference Lists all possible Axell Shell commands, detailed and explained. You may

also refer to the Common Commands and Attributes document.

See section 0

Reboot

controller Soft restarts the BSF-3604 device.

See section 6.7.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.3 Configuring General Parameters

6.3.1 Site Information – BSF-3604 Identification

It is recommended to assign each BSF-3604 a recognizable name that will identify the

location, site name, etc. The Site Information button provides access to BSF-3604

hardware and software version information.

To set BSF-3604 TAG

1. In the Home window, click the edit button next to Tag.

Figure 6-4. Set BSF-3604 TAG Name

2. Enter the Name (up to 30 characters), click OK and click Apply.

To view BSF-3604 Site Information

Click the Config button and click on the Site Information icon. Two areas are displayed:

 Control Module – provides hardware and software version information.

 Site Information – provides BSF-3604 identification information.

Figure 6-5. BSF-3604 Site Information

Edit Tag

Lock Name

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.3.2 Date & Time

NOTE: The date and time are automatically set from the OMU II.

Be sure to set the correct date and time in order to accurately timestamp all events

occurring on the BSF-3604.

To set the Date & Time:

1. Click the Config button.

2. Click on Date & Time.

3. Do one of the following:

 Either, enter the correct date and time according to the displayed formats.

 Or, click on Local Time to set the time according to the PC running the Web-GUI.

4. Click Apply.

Figure 6-6: Configure Date and Time

6.3.3 Configure External Alarms

It is necessary to configure any connected external alarms according to the trigger (high or

low) and it is recommended to assign the alarms recognizable names (such as Door Open,

High Temperature, etc.)

To configure the external alarms

1. In the Main menu, click the Config button.

2. Click on the External Alarms icon.

3. For each alarm:

 Set the Trigger as High or Low as required.

 Assign the alarm a recognizable description

4. Click Apply.

Figure 6-7: Configure External Alarms

Set to local time

Enter Alarm

Description

Set High/Low

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.3.4 IP Address

This procedure describes how to set up the IP address either manually or configure for

acquisition via DHCP (usually configured for local management options).

To configure the IP address

1. In the Main menu, click the Config button.

2. Click on Ethernet.

3. For manual IP address configuration:

 Select Manually Configure IP Address.

 Set the IP, Subnet Mask, Default Gateway and DNS addresses.

 Click Apply.

4. For DHCP IP address configuration:

 Select Automatically Obtain IP Address (DHCP).

 No other settings are required.

 Click Apply.

The Manual configuration settings are illustrated below.

Figure 6-8: Configure Local Network Parameters

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.4 Remote Communication Setup

This section describes the Ethernet and modem setup. The SNMP setup option also

available in this dialog is described in section 6.5. SNMP .

Select an option (ETH TCP, Modem or SNMP) and configure. Then select the next

relevant option.

NOTE: The configuration of each option is saved and active. It is not relevant which option is

currently selected (ETH TCP, Modem or SNMP).

6.4.1 TCP/IP and Ethernet

1. Click on the Config button.

2. From Device:Method select ETH:TCP (Ethernet:TCP/IP).

3. Click Apply.

Figure 6-9: Remote ETH Configuration

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.4.2 Modem Setup

NOTE: This section is relevant only if a modem is installed in the system. If connecting directly via

Ethernet, see section 0.

The BSF-3604 can operate over two types of modem: Packet Switched (GPRS, GSM etc.) or

Circuit Switched (PSTN/GSM). The available options depend on the modem type installed in your

system.

Modem Setup Overview

1. Insert the SIM card in the modem SIM slot (if using a wireless modem).

2. Click the Config button and then select Remote Communication from the displayed icons.

The following dialog appears.

3. Verify that Remote Communication is ON.

4. Select the Device:Method – communication method. Select the option relevant to your

installed modem. (STD:DTC = Standard AT:Data Call, ETH:TCP = Ethernet:TCP connection)

5. Configure your communication method according to the relevant following section.

6.4.2.1 Packet Switched Modem Configuration (GSM/GPRS)

NOTE: In case network attach is not done properly (using GPRS), it is necessary to telnet, SSH or

serial into the controller and enter TRACE MODEM to see why modem is not initialized

(wrong / missing PIN, wrong APN etc).

 From the Remote communication menu, select TRM-3 GPRS.

 In the GRPS area, enter the following:

 Access Point Name – customer’s Access Point name.

 Click Apply.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.4.2.2 Circuit Switched Modem (PSTN/GSM)

Using a circuit switched modem requires a landline connection be present at the site (for PSTN) or

a SIM card supporting this feature (for wireless).

Communication Setup

1. From Device:Method select STD:DTC (Stadnard AT:DataCall).

2. In the modem initialization string type: AT+CBST=7,0,1.

3. Click Apply.

Verify Circuit Switched Modem Functionality

1. Use the ACT RCD command via the Axell Shell or via Terminal to launch a modem restart (if

logged in, restart will be performed on the first logout).

2. Dial the modem number (if PSTN) or the data number (if SIM card).

3. Verify modem LEDs are lit correctly (model dependent).

4. Use any ACT command using the RMC or other Terminal to test connectivity and

responsiveness.

6.4.2.3 SIM-card Using Single Numbering Scheme

If using SNS (Single Numbering Scheme), calls to the modem within the network are automatically

classified as DATA. However, if calling from outside the network, you must first verify how its

interfaces handle the VOICE vs. DATA bearing. This cannot be solved at remote level. The

external network administrator must provide the above information.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.5 SNMP Support

The BSF-3604 includes SNMP support, including an SNMP Agent and SNMP traps (alarms). All

SNMP queries and traps are supported either via the OMU II or a direct connection to the unit.

6.5.1 SNMP Traps Parameters

The BSF-3604 sends SNMP traps to user defined destination addresses.

NOTE: One destination address can currently be defined via the Web. Seven more destination

addresses can be defined via the Axell Shell.

To configure the SNMP traps destination address

1. Click on the Configure button (top right corner).

2. Select Remote Communication.

3. In the Device:Method field, select ETH:SNMP

4. Define the SNMP trap destination IP address (additional addresses can be defined via the

Axell Shell.).

5. Enter the (destination address device) Trap Port and its Community parameters.

6. Click Apply.

6.5.2 Activating and Configuring the SNMP Agent

The SNMP agent provides inventory management for hosted repeaters (on which the SNMP agent

is enabled) and a table of active alarms in the controller or fiber system for remote querying.

The SNMP Agent is responsible for responding to queries and carries out requests. The SNMP

Agent also provides the proprietary Axell MIB (AXELL-AM-MIB), accessible via any SNMP

manager (e.g. HP OpenView).

All SNMP queries to the remote are implemented via an OMU session.

To allow SNMP agent queries

 To allow SNMP queries of the OMU II – the SNMP agent must be enabled on the OMU II.

 To allow SNMP queries of the remote devices via OMU II – the SNMP agent must be

enabled on the OMU II and on the remote devices.

 Remote units configured with an IP address and connected to the communication

infrastructure, can be queried directly.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

To activate the BSF-3604 SNMP Agent

1. Click on the Config button (top right corner) and select SNMP Agent Config. The following

pane appears:

2. Set the SNMP Agent toggle to ON.

3. Set the port and the Read-Only community.

4. Click Apply.

6.6 User Accounts

The BSF-3604 comes pre-configured with default usernames and passwords in various

administration levels.

At the moment, updating user accounts is available only via Command Line Interface (CLI) or Axell

Shell. See the Common Commands and Attributes v2.0.0 document for detailed commands and

syntax or click on the Help button at the top right of the Web-GUI screen.

6.6.1 Default User Accounts

User Name Default

Password Details

axell AxellPasswd Default user name.

omcuname iwnkhoob Axell Element Manager (AEM) user account. This

account will not generate VLI, LGO or CLR alarms.

sysadmin AxellAdmin4050

This is the system administration password which is used

for firmware upgrades and user administration.

Escalation to this level is achieved by issuing command

SYSADMIN from the user prompt.

useradmin UseradminPwd23

This account contains user administration privileges.

Escalation to this level is achieved by issuing command

USERADMIN from the user prompt.

Avitec AvitecPasswd

Account available for compatibility reasons with older

system firmware.

NOTE: It is strongly recommended to change the default user names and passwords immediately

at commissioning. This is done by using the command ACT PASSWORD. Please refer to

the User Administration section in Common Commands and Attributes document for

detailed syntax.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.6.2 User Access Levels

In this generation of the system, standard users can be promoted to login via the Web Interface,

inheriting the Read-Write or Read-Only access to this interface.

There are five different access levels:

Access Level Default User Levels

Read-Only axell, avitec, omcuname, useradmin,

sysadmin

Read-Write axell, avitec, omcuname, useradmin,

sysadmin

Web axell, avitec

User Administrator omcuname, useradmin, sysadmin

System Administrator omcuname, sysadmin

NOTE: New users added to the system have read-only access.

Users may be promoted to read-write and/or web access using the ACT USERPROMOTE

command. See Common Commands and Attributes document for details on promoting users.

NOTE: Users omcuname, sysadmin and useradmin cannot be promoted to Web Access due to

security reasons.

6.6.3 Change Password

To prevent unauthorized access, it is highly recommended to change the default password of the

user.

NOTE: You can only change the password for the User Name with which the session was

accessed.

To change the Password

1. In the Main menu, click the Config button.

2. Click the Change Password button.

3. For the current User Name (e.g. axell):

 Enter the New password.

 Repeat the entry.

4. Click Apply.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.7 Reboot

Use this function in Emergency Cases ONLY!

To reboot the Control Module:

1. Click the Config tab.

2. Click on the Reboot icon.

3. Approve the Reboot sequence.

Figure 6-10: Reboot System

6.8 Axell Shell (Command Line Interface)

To access the Axell Shell:

1. Click on the Config button.

2. Select the Axell Shell option.

The Axell Shell button invokes the CLI screen. It is used to run some of the commands that are

currently not provided by the Web GUI (user privileges and administration) and/or for advanced

troubleshooting and configurations procedures.

All configuration and management procedures can be implemented using this interface. Please

refer to the Attribute Reference section (by clicking the Cofing button on the top right and selecting

Attribute Reference – see 0) for detailed syntax and available commands. You may also consider

viewing the BSF-3604 Commands and Attributes document.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

6.9 Attribute Reference

To access the Attribute Reference

1. Click on the Config button.

2. Select the Attribute Reference option.

The Attribute Reference lists all available CLI commands and includes details and examples on

how to use the commands. Additional information may be found in the BSF-3604 Commands and

Attributes document.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7 Monitoring, Fault Sourcing and Maintenance

BSF-3604 provides the following monitoring and fault sourcing options:

 Web GUI Home screen Advanced mode – shows general status of system and

components

 Web GUI Logs screen – provides logs of faults and operations

 Module LEDs – can be seen locally when opening the Repeater

This chapter describes these fault sourcing tools. Be sure to review the Cautions and General

Statements below.

7.1 Cautions and General Statements

 The system normally operates without any operator intervention or maintenance. If in the

unlikely event of any unit failure, the faulty repeater should be replaced. A failed unit can

be removed and replaced with a spare while the rest of the system (other repeaters) is

still operating. However, the power supply of the failed repeater should be isolated from

the power before anything is replaced.

 In the event of a malfunction in the system, the status of the antenna systems as well as

the continuity of the cabling should be checked before replacing any modules within the

repeater.

 In the event of a failure Axell Wireless’ support service should be contacted for advice on

a possible module replacement or other action to be taken.

 If a shipment of a repeater back to Axell Wireless is made within the period of guarantee

the original packing must be used.

 Component Replacement - None of the modules in the repeater can be replaced without

removing the repeater from its mounting and opening the cover of the repeater.

 Product Disposal - Disposal of this product must be handled according to all national laws

and regulations. For detailed information regarding materials, please refer to Axell

Wireless.

Please be aware that the equipment may, during certain conditions become

very warm and can cause minor injuries if handled without any protection,

such as gloves.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to local laws and instructions.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7.2 Monitoring Via the BSF-3604 Home Screen

In addition to RF settings and readings, the BSF-3604 Home screen provides detailed information

on the operation status of internal modules. This information can be used to aid in remotely

troubleshooting the Remote.

To access the BSF-3604 Main Monitoring and Configuration window

1. Access the OMU II main windows, click the Nodes button, choose the remote related node

and click the adjacent Control button. The BSF-3604 Home window appears in Basic View. To

view more details, click Advanced.

Figure 7-1: BSF-3604 Main Screen Advanced

General

(same as Basic view)

Detailed RF

Status view

Detailed fiber optic

status

Powe

measurements

status

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7.2.1 General Page Area

This section displays general status parameters such as temperature, alarms and site name.

Figure 7-2: BSF-3604 General

Indicator Description

Temperature Current ambient temperature

Tag Name of Repeater, user customizable

Door Status Green if closed

7.2.2 Detailed view of the BSF-3604 RF Status

The BSF-3604 RF Status screen provides the RF balancing options as described in section 5.3.,

as well as various status monitoring options. Below is the Advanced view of the RF Status screen.

Figure 7-3: BSF-3604 Repeater Status

Comm.

Firmware

Temp

Pwr.

modules

status

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Indicator Details

Frequency Range Visualization of Bandwidth

Amplifier Power Turn amp. on/off.

Attenuation Use to define DL/UL attenuation level (in dBm)

Saturation Saturation status

Output output power level

7.2.3 Detailed view of Fiber Optic Unit

Figure 7-4: BSF-3604 F/O Status

Indicator Description

#Module Overall optic module status

Comm Optic connection status

Temperature Temperature level and status indicator

Tx Opto DL optic signal status

Rx Opto UL optic signal strength and status

Pilot Tone Synth Pilot tone synthesizer status

Firmware Firmware related error

Received Pilot Level Pilot tone level received in optic module

Optical Level Adjustment Perform UL OLA (on repeater side)

Optical Compensation Compensation performed on the optic link

7.2.4 Subsystems

Comm

Temp

Pwr.

input

Batt.

status Pwr.

modules

status

Reference

Generator

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

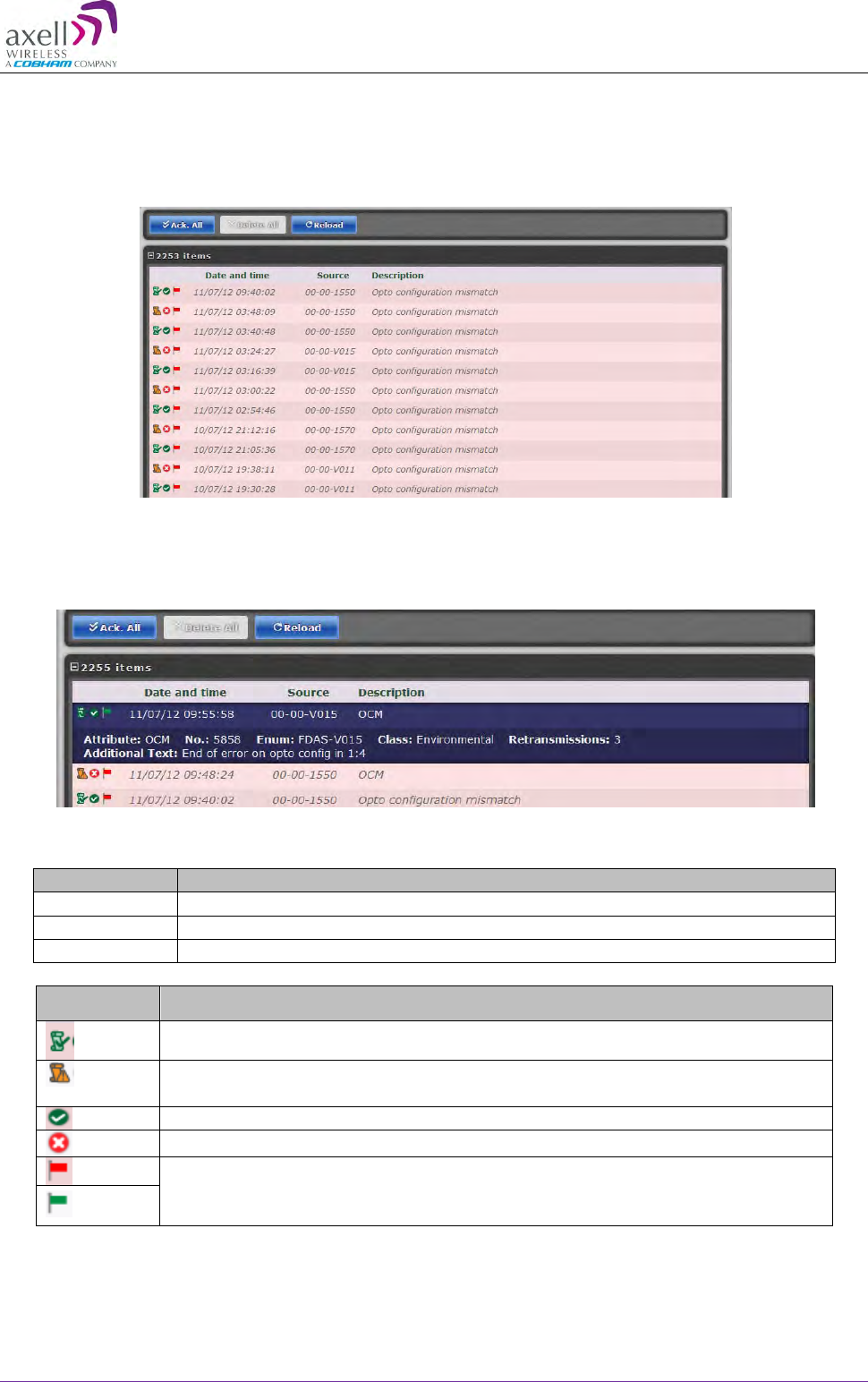

7.3 Logs Screen

The Alarms Log displays the last 100 alarms and/or user actions on the remote system in a

chronological order. By hovering with the mouse over each alarm, full alarm details are available,

including alarm descriptions, severities, alarm classes and time of event.

Figure 7-5: Logs

To receive a summary containing all information on a reported incident in the Log list, simply hover

with the mouse over the specified Log and view all details contained in the Log (see below).

Figure 7-6: Logs – Summary

Column Description

Date & Time Time of occurrence

Source ID of reporting source

Description Additional alarm information (e.g. Open Door)

Icon Description

Alarm attended to and cleared.

System alarm – displayed when system functionality may be

compromised.

Alarm status: OK

Alarm status: Error

Acknowledge alarm – Green = Acknowledged.

Click to change acknowledgement.

Use the Ack All button to acknowledge all alarm logs.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7.4 Module LEDs

This section describes the LEDs of the internal modules. The modules are accessed if the remote

is opened.

Figure 7-7: Position of Module LEDs

Module Description

Control Module See section 7.4.1.

F/O Converter See section 7.4.2.

PSU Module See section 7.4.3.

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7.4.1 Control Module LEDs

The Control Module has four LEDs which give information regarding

the status of the BSF-3604.

If the BSF-3604 is configured for Ethernet communication the two

LEDs Modem Power and Modem Status do not fill any function and

can be disregarded.

Blue LED - Login

Quick flash Control Module switched on, someone logged in

locally and/or remotely

Off (except for a quick flash

every 10th second) Control Module switched on, no one logged in

Off (permanent) Control Module switched OFF

Red LED - Status

Quick flash Control Module switched on, one or more

errors/alarms detected

Off (except for a quick flash

every 10th second) Control Module switched on, status OK

Off (permanent) Control Module switched off

Green LED – Modem Power

On Modem Power is on

Off Modem Power is off

Green LED – Modem Status

On Depending on type of call:

Voice call: Connected to remote party

Data call: Connected to remote party or

exchange of parameters while setting up or

disconnecting a call

Flashing

(irregular)

Indicates GPSR data transfer. When a GPRS

transfer is in progress the LED goes on within

1 second after data packets were exchanged.

Flash duration in approximately 0.5s.

75ms on/75ms off/75ms on/3s off

One or more GPRS contexts activated

75ms on/3s off

Logged to network (monitoring control

channels and user interactions). No call in

progress

600ms on/600ms off

No SIM card inserted, or no PIN entered, or

network search in progress, or ongoing user

authentications, or network login in progress

Off Modem is off

Modem Status

Modem Power

Status

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

7.4.2 F/O Converter LEDs

There are 6 LEDs on the

module to indicate the

status.

LED 1, Power, Green

On Unit is powered on

Off Unit has no power

LED 2, Error, Red

On Error detected

Off No error

LED 3, UL Data, Yellow

On Communication is ongoing in the uplink direction

Off No communication

LED 4, DL Data, Yellow

On Communication is ongoing in the downlink direction

Off No communication

LED 5, Opto Rx, Green

On Received RF signal on fiber channel is above threshold

Off Input level below threshold

LED 6, Opto Tx, Green

On Transmitted RF signal on fiber channel is above

threshold

Off Output level below threshold

PWR

ERR

UL Data

DL Data

Opto Rx

Opto Tx

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

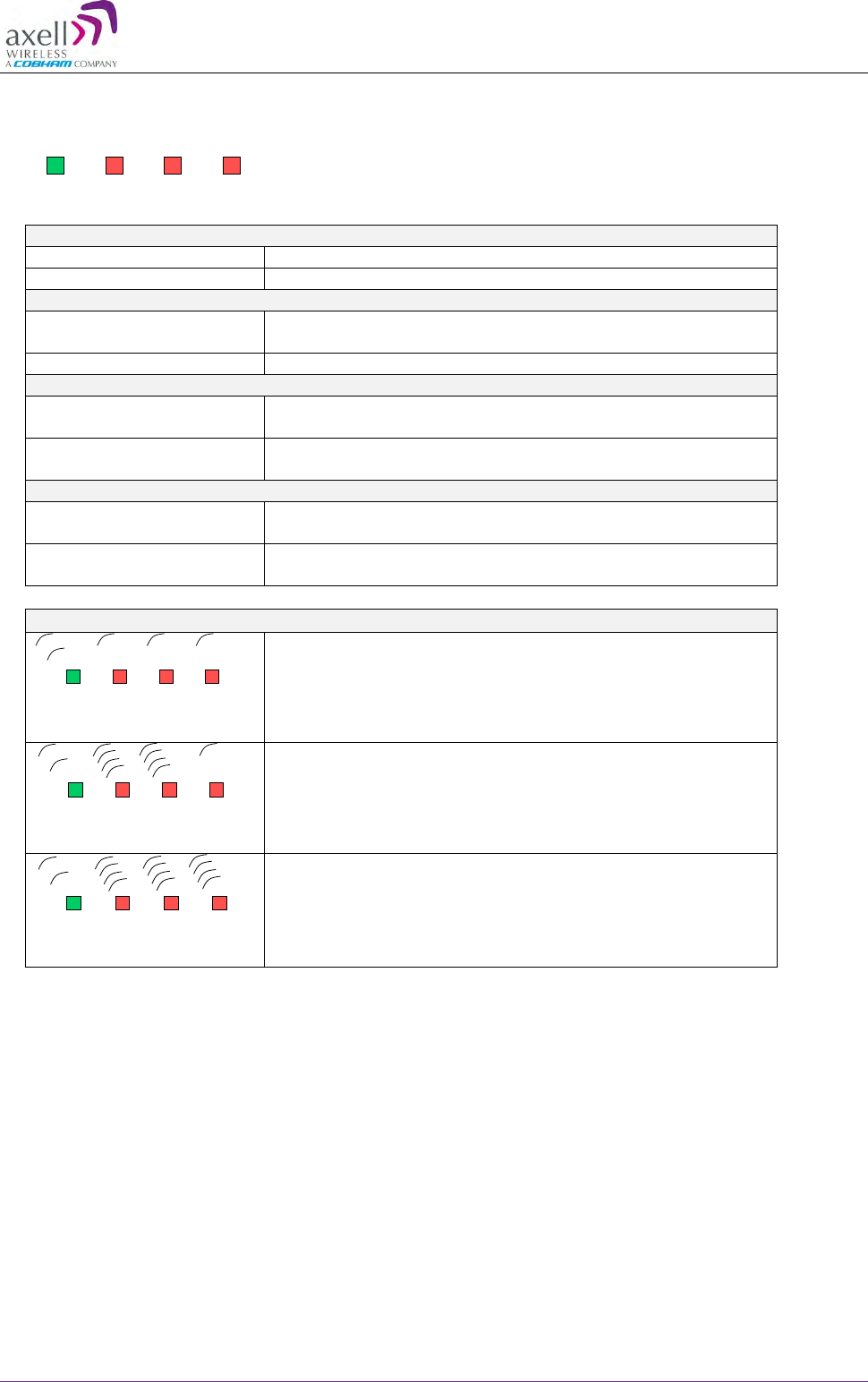

7.4.3 Power Supply LEDs

This section provides a detailed description of the LEDs and fault examples.

LED 1, Input Power, Green

Slow flash Power supply unit operating on AC or DC

OFF Power supply unit not operating

LED 2, +6V, Red

Slow flash (every 10

seconds) +6V power supply operating

Quick flash +6V power supply not operating or operating with malfunction

LED 3, +15V, Red

Slow flash (every 10

seconds) +15V power supply operating

Quick flash +15V power supply not operating or operating with

malfunction

LED 4, +28V, Red

Slow flash

(every 10 seconds) +28V power supply operating

Quick flash +28V power supply not operating or operating with

malfunction

Examples

LED 1 is flashing slowly, LED 2 – 4 are flashing slowly (once

every 10 seconds)

=> power supply unit is operating without problem

LED 1 is flashing slowly, one or two of the red LEDs are

flashing quickly

=> Input power is operating but there is a problem with some

of the other voltages

LED 1 is flashing slowly, all of the red LEDs are flashing

quickly

=> Input power is out and unit is operating on backup battery

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

Input

Power +6V +15V +28V

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Appendix A - Specification

Electrical Specifications

Standard Operational Frequency Range 470-490 MHz

Duplexer Frequency Spacings 5 MHz

Filter options (passband/guardband)

0.5 MHz / 2.5 MHz

1.0 MHz / 2.0 MHz

1.5 MHz / 1.5 MHz

1.8 MHz / 1.2 MHz

2.0 MHz / 1.0 MHz

Impedance 50 

Output power/carrier (DL)

1 carrier: +36 dBm

2 carriers: +33 dBm

3-4 carriers: +30 dBm

8 carriers: +27 dBm

IP3 > +63dBm

Noise figure (UL) <6dB, 5dB typical at maximum gain

Group delay 2us max

System net gain at 10 dB optical loss Uplink & Downlink Net Gain = 30dB with OMU

Spurious Emissions from RF port Complies with FCC

Optical Module Electrical Specification

DL Optical Wavelength 1310 ± 10 nm

UL Optical Wavelength 1550 ± 3 nm

Maximum optical output power +3 dBm ±2 dB

Maximum optical input power +2 dBm

Power Requirements 115 VAC, 60Hz (options: 230 VAC 50Hz, -48 VDC)

Power Consumption <120W, typical

External connection

Local Maintenance Terminal RS232

TX Server Port N female

RX Server Port N female

Optical Ports 1 x SC/APC female

Remote connection Via OMU (options GSM, GSM-R PSTN modem or Ethernet)

Modem antenna connector (if fitted) SMA

Mechanical Specification

Dimensions 24½” x 16½ ” x 10¼” (ex handles, feet and heatsinks)

Enclosure Aluminum (IP65/NEMA4)

Weight 66 lbs. approx.

Cooling Convection

Environmental Specification

Operating Temperature -13 to +131˚F (- 25˚C to + 55˚C)

Storage -22 +158˚F (- 30˚C to + 70˚C)

Compliance FCC

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Appendix B - F/O Cleaning Procedure

NOTE: The process is demonstrated on an OMU F/O module and is similar to all F/O equipment

supplied by Axell.

Tools:

Tool Description Illustration

Fiberscope connected to a PC running the

appropriate viewing software.

It is highly recommended that some form of fiber

viewing equipment such as a Fiberscope is used

to ensure that all fiber connections are clean

before termination; failure to do so could result in

poor system performance

Lint-free swabs (box), Axell P/N 99-000127

Lint-free wipes (pack) Axell P/N 99-000125

Fujikura “One Click” cleaner, Axell P/N 98-900004.

99% isopropyl alcohol (can), Axell P/N 99-000126

Cletop type S Cassette Cleaner, Axell P/N 98-

900001

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

The Cleaning Procedure:

Dry Cleaning

ATTENTION! Invisible laser radiation might be emitted from disconnected fibers or

connectors. Do not stare into the beams or view directly with optical

instruments.

1. Before cleaning the optical connectors on the OMU it is advisable to clean the connector of

the mating cable being attached to the optical port.

An unclean optical connector is often the cause for reduced system performance. A bit of dust or

oil from a finger can easily interfere with, or block light. Fortunately, it is very easy to clean the

connector. Be sure to use the correct procedure for the given connector. When disconnected, cap

the SC/APC connector to keep it clean and prevent scratching the tip of the ferrule.

Use a product specially designed for the

purpose, such as the Cletop type S

Cassette Cleaner.

2. Begin by dry cleaning the F/O bulkhead connector (shown below is the Fujikura One-Click

in use).

IMPORTANT

Always make sure there is a way of inspecting the connector after

cleaning. Cleaning can actually leave the end-face in a worse condition,

since alcohol residue is one of the most difficult contaminants to

remove.

3. Remove the protective cap

from the cleaning-head end of the

“One Click” cleaner, lift the

protective end-cap on the fiber

connector and offer-up the end to

the fiber connector.

4. With the cleaning-head end

fully engaged in the connector, push

until an audible “click” is heard

5. Without fully withdrawing the

cleaning head end push it in

again twice more, each time until an

audible “click” is heard.

6. Withdraw the “One Click”

cleaner and replace the protective

end cap.

7. Inspect the fiber connector using a Fiberscope. On the PC monitor, verify that there is no

contamination present on the connector end-face.

8. If the connector is dirty, clean it with a wet cleaning technique followed immediately by dry

cleaning. This is to remove any remaining residue from the wet clean (the following steps

demonstrate a wet cleaning technique).

Axell BSF3604-470-490-DP-AC (61-102001) Repeater

Product Description and User’s Manual

Wet Cleaning

ATTENTION!

Invisible laser radiation might be emitted from disconnected fibers or

connectors. Do not stare into the beams or view directly with optical

instruments.

1. Lightly moisten a new lint-free wipe with 99% isopropyl alcohol. (Step 1 below).

Tip: Have a dry lint-free swab available for immediately drying after performing the wet-cleaning.

2. Lightly press and turn a clean lint-free swab in the moistened area of the wipe to moisten

the swab. It is important that the swab is not too wet. (Step 2 below).

3. Insert the moistened lint-free swab into the bulkhead adapter. Lightly press and rotate

several times in the same direction. (Step 3 below).

Wet-Cleaning Technique

4. Immediately use a dry lint-free swab to clear any remaining alcohol residue.

NOTE: Do not re-use any of the wipes and/or swabs. Dispose of them properly.

5. Follow steps 3 to 6 of Dry Cleaning above

6. Re-inspect the fiber using the Fiberscope. On the PC monitor, verify that there is no

contamination present on the connector end-face.

7. If the fiber is still dirty, go back to step 1 (Wet Cleaning) and repeat the entire process.

NOTE: The entire wet/dry cleaning cycle should only be used twice, if the fiber is still dirty after two

cycles of wet/dry cleaning seek advice from the Axell Wireless Support Desk.

Step 1 Step 2 Step 3
