PBE Europe as Axell Wireless CE-470BDA UHF Remote Repeater, type 60-056100 units 1-2 User Manual 616969
Axell Wireless UHF Remote Repeater, type 60-056100 units 1-2 616969
User manual
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-1 of 63
Pasadena Blue Line
Metro Radio System
Maintenance Handbook
For
Canam Technology Inc.
AFL Works Order N.: Q107519
Including AFL product part N’s.:
60-056100 UHF Units 1 & 2 (This document)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-2 of 63
Table of Contents
AMENDMENT LIST RECORD SHEET .................................................................................................. 5
INTRODUCTION ....................................................................................................................................... 6
Scope...........................................................................................................................................................................6
Purpose.......................................................................................................................................................................6
Glossary of Terms .....................................................................................................................................................7

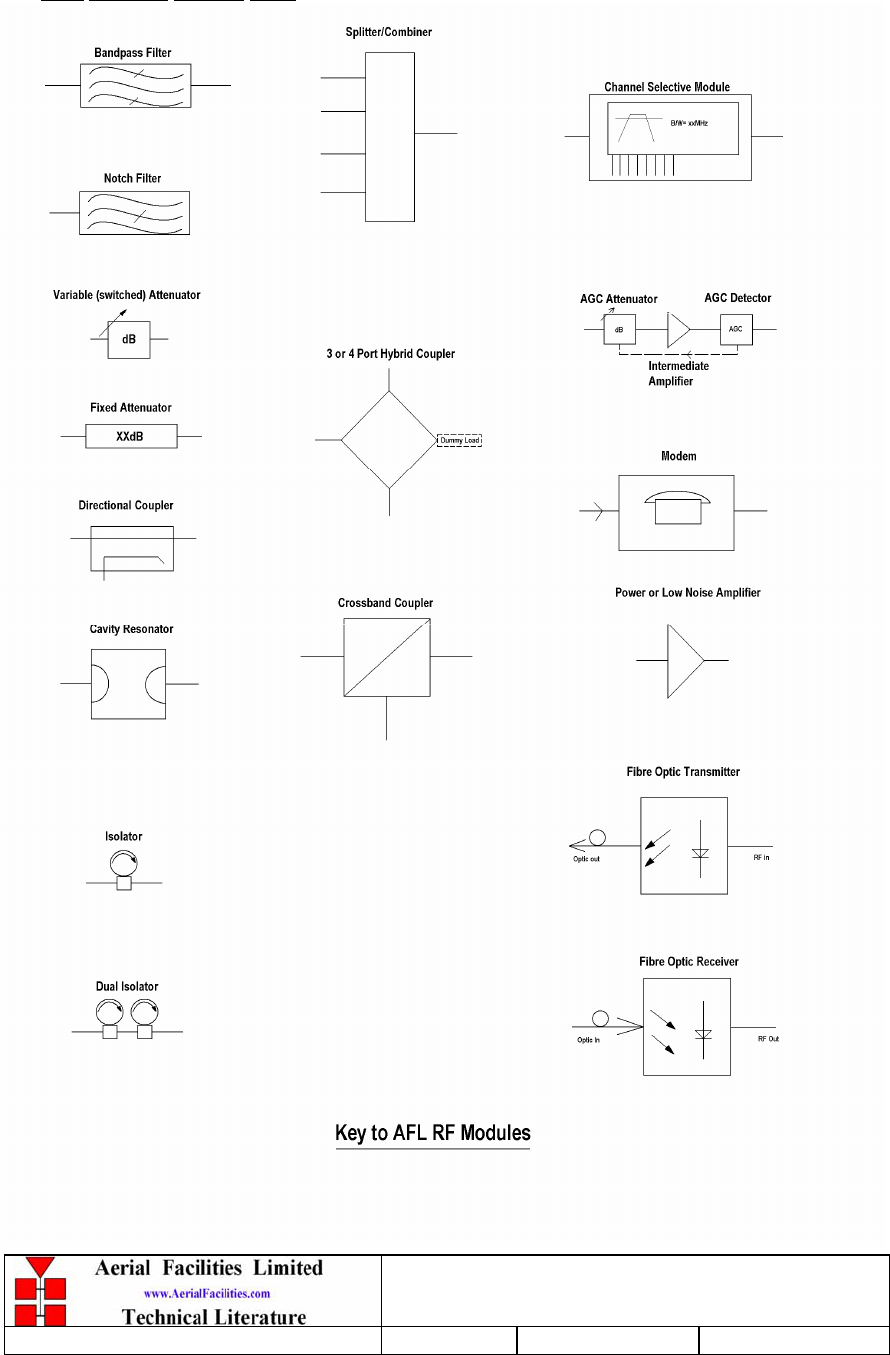

AFL Drawing Symbol Keys......................................................................................................................................8
1. SAFETY CONSIDERATIONS ....................................................................................................... 9
1.1 Electric Shock Hazard .................................................................................................................................9
1.2 RF Radiation Hazard...................................................................................................................................9

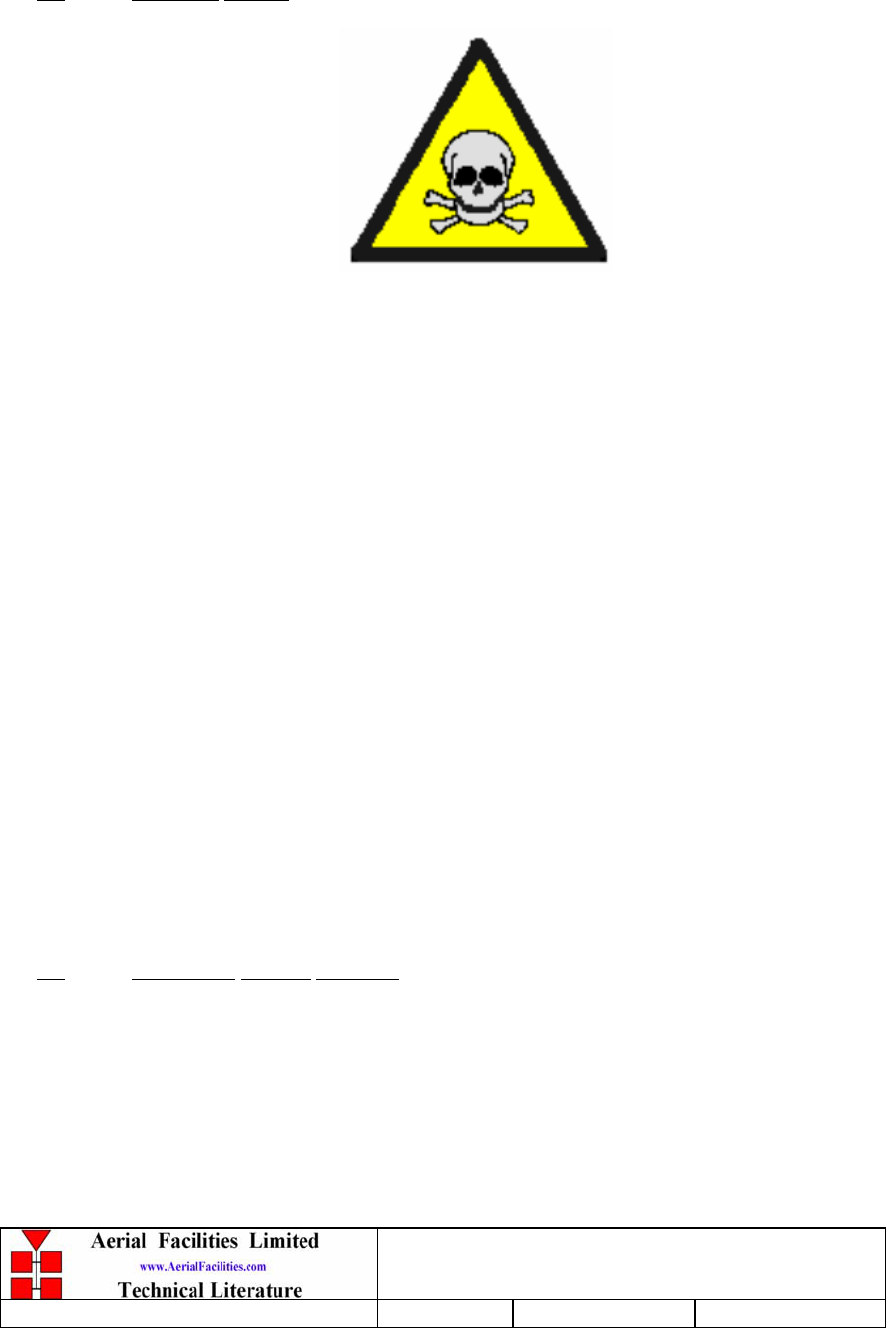

1.3 Chemical Hazard........................................................................................................................................10
1.4 Emergency Contact Numbers ...................................................................................................................10
2. OVERVIEW/SYSTEM DESCRIPTION...................................................................................... 11
3. SPECIFICATIONS ........................................................................................................................ 12
3.1 Parts Lists ...................................................................................................................................................12
3.1.1 Equipment 60-056100 Parts List .............................................................................................................................. 12
3.1.2 Unit 1 Fibre Fed Tunnel Amplifier 60-056101 Parts List ......................................................................................... 12
3.1.3 Unit 2 Fibre Fed Tunnel Amplifier 60-056102 Parts List ......................................................................................... 13
3.2 Technical Specifications.............................................................................................................................15
3.2.1 UHF ONE to Tunnels 1 & 2 Technical Specification ............................................................................................... 15
3.2.2 UHF TWO to Tunnels 1 & 2 Technical Specification .............................................................................................. 16
3.3 Mechanical Specifications..........................................................................................................................17
3.3.1 Unit 1 60-056101 Mechanical Specification ............................................................................................................. 17
3.3.2 Unit 2 60-056102 Mechanical Specification ............................................................................................................. 17
4. SYSTEM DRAWINGS................................................................................................................... 18
4.1 Drg. Nō. 60-056190, Location 2 Unit 1 Case Outline Drawing ..............................................................18
4.2 Drg. Nō. 60-056192, Location 2 Unit 2 Case Outline Drawing ..............................................................19
4.3 Complete Pasadena Metro System Diagram ...........................................................................................20
5. SUB-UNIT MODULES .................................................................................................................. 21
5.1 Location 2, Unit 1 (60-056101) ..................................................................................................................21
5.1.1 Bandpass Filters (02-007302).................................................................................................................................... 21
5.1.1.1 Description .......................................................................................................................................21
5.1.1.2 Technical Specification (02-007302) ...............................................................................................21
5.1.2 AFL Fibre Optic Receiver & Transmitter (20-004001, Tx & 20-004101, Rx)..........................................................22
5.1.2.1 Description .......................................................................................................................................22
5.1.2.2 Fibre Optic Units Technical Specification .......................................................................................22
5.1.2.3 ‘D’ Connector Pinouts......................................................................................................................23
5.1.3 JWS75-15/A PSU (96-300045) ................................................................................................................................. 24
5.1.3.1 Description .......................................................................................................................................24
5.1.3.2 Technical Specification ....................................................................................................................24
5.2 Location 2, Unit 2 (60-056102) ..................................................................................................................25
5.2.1 Bandpass Filter (02-013401) ..................................................................................................................................... 25
5.2.1.1 Description .......................................................................................................................................25
5.2.1.2 Technical Specification ....................................................................................................................25
5.2.2 Two Section Notch Filter (02-010401)...................................................................................................................... 26
5.2.2.1 Description .......................................................................................................................................26
5.2.2.2 Technical Specification (Uplink) .....................................................................................................26
5.2.2.3 Technical Specification (Downlink) ................................................................................................26
5.2.3 Crossband Couplers (07-004801 & 07-005705)........................................................................................................ 27
5.2.3.1 Description .......................................................................................................................................27
5.2.3.2 Technical Specification (07-004801) ...............................................................................................27
5.2.3.3 Technical Specification ....................................................................................................................27
5.2.4 ¼Watt 0- -30dB Switched Attenuator (10-000701) .................................................................................................. 28
5.2.4.1 General Application .........................................................................................................................28
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-3 of 63
5.2.4.2 Switched Attenuators .......................................................................................................................28
5.2.5 Low Noise Amplifiers (11-006102, & 11-007302) ................................................................................................... 28
5.2.5.1 Description .......................................................................................................................................28
5.2.5.2 Technical Specification (11-006102) ...............................................................................................28
5.2.5.3 Drg. N. 11-006102, Low Noise Amplifier General Assembly.......................................................29
5.2.5.4 Drg. N. 11-006170, LNA RF Circuit Diagram ..............................................................................30
5.2.5.5 Drg. N. 11-006171, LNA DC Wiring Diagram .............................................................................31
5.2.5.6 Drg. N. 11-003971, LNA DC Schematic Diagram ........................................................................32
5.2.5.7 Technical Specification (11-007302) ...............................................................................................33
5.2.5.8 Drg. N. 11-007302, LNA Assembly With Alarm Relay................................................................34
5.2.5.9 Drg. N. 11-007370, LNA RF Circuit Diagram ..............................................................................35
5.2.5.10 Drg. N. 11-007371, LNA DC Wiring Diagram .........................................................................36
5.2.6 3 Stage Amplifier Alarm Boards (12-002201) .......................................................................................................... 37
5.2.6.1 Description .......................................................................................................................................37
5.2.6.2 Technical Specification ....................................................................................................................38
5.2.6.3 Drg. N. 12-002201, 3 Stage Alarm Board Assembly Drawing & Parts List..................................39
5.2.6.4 Drg. N. 12-002270, 3 Stage Alarm Board Circuit Diagram...........................................................40
5.2.6.5 Generic Wall Enclosure Alarm Wiring Sketch ................................................................................41
5.2.7 450MHz 20W Power Amplifier (12-004201)............................................................................................................ 42
5.2.7.1 Description .......................................................................................................................................42
5.2.7.2 Technical Specification ....................................................................................................................42
5.2.7.3 Drg. N. 12-004201, PA General Assembly....................................................................................43
5.2.7.4 Drg. N. 12-004270, PA Circuit Diagram .......................................................................................44
5.2.7.5 Drg. N. 12-004270C1, PA Parts List(1).........................................................................................45
5.2.7.6 Drg. N. 12-004270C2, PA Parts List(2).........................................................................................46
5.2.7.7. Drg. N. 12-003670, PA to Alarm Wiring Details ......................................................................47
5.2.8 DC/DC Converter, 24V in, 12V 8A out (13-003011) ............................................................................................... 48
5.2.8.1 Description .......................................................................................................................................48
5.2.8.2 Technical Specification ....................................................................................................................48
5.2.8.3 Photo of Regulator PCB (regulator heatsink side) ...........................................................................48
5.2.9 Wide Dynamic Range AGC (17-001105, Det. & 17-001201, Atten.)....................................................................... 49
5.2.9.1 Description .......................................................................................................................................49
5.2.9.2 Technical Specification ....................................................................................................................50
5.2.9.3 Drg. N. 17-001105, ACG Detector Assembly ...............................................................................51
5.2.9.4 Drg. N. 17-001175, Wide Range AGC Detector Circuit Diagram ................................................52
5.2.9.5 Drg. N. 17-001201, AGC Attenuator Assembly Drawing .............................................................53
5.2.9.6 Drg. N. 17-001270, AGC Attenuator Circuit Diagram..................................................................54
5.2.10 24V Single Relay Board (80-008902) ....................................................................................................................... 55
5.2.10.1 Description ...................................................................................................................................55
5.2.11 24V Flat-Pack PSU (96-300002)............................................................................................................................... 55
5.2.11.1 Description ...................................................................................................................................55
5.2.11.2 Technical Specification ................................................................................................................55
6. INSTALLATION............................................................................................................................ 56
6.1 Initial Installation Record .........................................................................................................................56
6.2 General........................................................................................................................................................56
6.3 Electrical Connections ...............................................................................................................................56
6.4 Optical Connections...................................................................................................................................56
6.5 RF Connections ..........................................................................................................................................57
6.6 Commissioning ...........................................................................................................................................57
7. MAINTENANCE............................................................................................................................ 58
7.1 General Procedures....................................................................................................................................58
7.1.1 Fault Finding ............................................................................................................................................................. 58
7.1.2 Downlink................................................................................................................................................................... 59
7.1.3 Uplink........................................................................................................................................................................ 59
7.1.4 Fault repair ................................................................................................................................................................ 59
7.1.5 Checking service ....................................................................................................................................................... 60
7.1.6 Service Support ......................................................................................................................................................... 60
7.2 Tools & Test Equipment............................................................................................................................60
7.3 Care of Modules .........................................................................................................................................61
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-4 of 63
7.3.1 General Comments.................................................................................................................................................... 61
7.3.2 Module Removal (LNA’s, general procedure):......................................................................................................... 61
7.3.3 Module Replacement (general): ................................................................................................................................ 61
7.3.4 Power Amplifiers ...................................................................................................................................................... 61
7.3.5 Low Power Amplifier Replacement.......................................................................................................................... 62
7.3.6 Module Transportation:............................................................................................................................................. 62
APPENDIX A INITIAL EQUIPMENT SET-UP CALCULATIONS ............................................... 63
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-5 of 63
AMENDMENT LIST RECORD SHEET
Issue
Nō.
Date Incorporated
by
Page No.’s
Amended
Reason for new issue
1 09/04/2003 CMH 1st Issue
Document Ref:-60-056100HBKM
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-6 of 63
INTRODUCTION
Scope
This handbook is for use solely with the equipment identified by the AFL Part Number
shown on the front cover. It is not to be used with any other equipment unless specifically
authorised by Aerial Facilities Limited. This is a controlled release document and, as such,
becomes a part of Aerial Facilities’ Total Quality Management System. Alterations and
modification may therefore only be performed by Aerial Facilities Ltd.
Purpose
The purpose of this handbook is to provide the user/maintainer with sufficient information
to service and repair the equipment to the level agreed. Maintenance and adjustments to any
deeper level must be performed by AFL, normally at the company’s repair facility in
Chesham, England.
This handbook has been prepared in accordance with BS 4884, and AFL’s Quality
procedures, which maintain the company’s registration to ISO 9001: 1994 and to the
R&TTE Directive of the European Parliament. Copies of the relevant certificates and the
company Quality Manual can be supplied on application to the Quality Manager.
This document fulfils the relevant requirements of Article 6 of the R&TTE Directive.
Limitation of Information Notice
This manual is written for the use of technically competent operators/service persons. No
liability is accepted by AFL for use or misuse of this manual, the information contained
therein, or the consequences of any actions resulting from the use of the said information,
including, but not limited to, descriptive, procedural, typographical, arithmetical, or listing
errors.
Furthermore, AFL does not warrant the absolute accuracy of the information contained
within this manual, or it’s completeness, fitness for purpose, or scope.
AFL has a policy of continuous product development and enhancement, and as such,
reserves the right to amend, alter, update and generally change the contents, appearance and
pertinence of this document without notice.
All AFL products carry a twelve month warranty from date of shipment. The warranty is
expressly on a return to base repair or exchange basis and the warranty cover does not
extend to on-site repair or complete unit exchange.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-7 of 63
Glossary of Terms
Repeater or
Cell Enhancer A Radio Frequency (RF) amplifier which can simultaneously
amplify and re-broadcast Mobile Station (MS) and Base
Transceiver Station (BTS) signals.
Band Selective Repeater A Cell Enhancer designed for operation on a range of channels
within a specified frequency band.
Channel Selective
Repeater A Cell Enhancer, designed for operation on specified channel(s)
within a specified frequency band. Channel frequencies may be
factory set or on-site programmable.
BTS Base Transceiver Station
C/NR Carrier-to-Noise Ratio
Downlink (D.L.) RF signals transmitted from the BTS and to the MS
Uplink (U.L.) RF signals transmitted from the MS to the BTS
EMC Electromagnetic Compatibility
GND Ground
DC Direct Current
AC Alternating Current
ID Identification Number
OIP3 Output Third Order Intercept Point = RFout +(C/I)/2
LED Light Emitting Diode
M.S. Mobile Station
N/A Not Applicable
N/C No Connection
NF Noise Figure
RF Radio Frequency
Rx Receiver
Tx Transmitter
S/N Serial Number
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-8 of 63
AFL Drawing Symbol Keys
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-9 of 63
1. SAFETY CONSIDERATIONS
1.1 Electric Shock Hazard
Electrical shocks due to faulty mains driven power supplies.
Whilst ever potentially present in any electrical equipment, such a condition would be
minimised by quality installation practice and thorough testing at:
a) Original assembly.
b) Commissioning.
c) Regular intervals, thereafter.
All test equipment to be in good working order prior to its use. High current power supplies
can be dangerous because of the possibility of substantial arcing. Always switch off during
disconnection and reconnection.
1.2 RF Radiation Hazard
“CAUTION: This equipment is approved for antennas mounted on fixed outdoor
permanent structures. A minimum separation distance of 2 metres must be maintained
between the radiating elements and any nearby persons. A maximum antenna gain of 21
dBi may be used. Operating this equipment without regard to these restrictions will result
in RF exposure levels above the limits allowed by FCC rules.”
This equipment complies with part 90 of the FCC rules. Any changes or modifications not
expressly approved by the manufacturer could void the user’s authority to operate the
equipment.
RF radiation, (especially at UHF frequencies) arising from transmitter outputs connected to
AFL’s equipment, must be considered a safety hazard.
This condition might only occur in the event of cable disconnection, or because a ‘spare’
output has been left unterminated. Either of these conditions would impair the system’s
efficiency. No investigation should be carried out until all RF power sources have been
removed. This would always be a wise precaution, despite the severe mismatch between the
impedance of an N type connector at 50, and that of free space at 377, which would
severely mitigate against the efficient radiation of RF power. Radio frequency burns could
also be a hazard, if any RF power carrying components were to be carelessly touched!
Antenna positions should be chosen to comply with requirements (both local & statutory)
regarding exposure of personnel to RF radiation. When connected to an antenna, the unit is
capable of producing RF field strengths, which may exceed guideline safe values especially if
used with antennas having appreciable gain. In this regard the use of directional antennas
with backscreens and a strict site rule that personnel must remain behind the screen while the
RF power is on, is strongly recommended.
Where the equipment is used near power lines, or in association with temporary masts not
having lightning protection, the use of a safety earth connected to the case-earthing bolt is
strongly advised.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-10 of 63
1.3 Chemical Hazard
Beryllium Oxide, also known as Beryllium Monoxide, or Thermalox™, is sometimes used
in devices within equipment produced by Aerial Facilities Ltd. Beryllium oxide dust can be
toxic if inhaled, leading to chronic respiratory problems. It is harmless if ingested or by
contact.
Products that contain beryllium are load terminations (dummy loads) and some power
amplifiers. These products can be identified by a yellow and black “skull and crossbones”
danger symbol (shown above). They are marked as hazardous in line with international
regulations, but pose no threat under normal circumstances. Only if a component containing
beryllium oxide has suffered catastrophic failure, or exploded, will there be any danger of the
formation of dust. Any dust that has been created will be contained within the equipment
module as long as the module remains sealed. For this reason, any module carrying the
yellow and black danger sign should not be opened. If the equipment is suspected of failure,
or is at the end of its life-cycle, it must be returned to Aerial Facilities Ltd for disposal.
To return such equipment, please contact the Quality Department, who will give you a
Returned Materials Authorisation (RMA) number. Please quote this number on the packing
documents, and on all correspondence relating to the shipment.
PolyTetraFluoroEthylene, (P.T.F.E.) and P.T.F.E. Composite Materials
Many modules/components in AFL equipment contain P.T.F.E. as part of the RF insulation
barrier.
This material should never be heated to the point where smoke or fumes are evolved. Any
person feeling drowsy after coming into contact with P.T.F.E. especially dust or fumes
should seek medical attention.
1.4 Emergency Contact Numbers
The AFL Quality Department can be contacted on:
Telephone +44 (0)1494 777000
Fax +44 (0)1494 777002
e-mail qa@aerial.co.uk
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-11 of 63
2. OVERVIEW/SYSTEM DESCRIPTION
The AFL Fibre feed Amplifier for the Pasadena Blue line project is a 2 way on-band RF
amplifier. The primary application is as an interface between the fibre optical link from UNIT
ONE (Port 3 Downlink/Port 4 Uplink) and the tunnel antenna/leaky feeder system(Ports J3
and J4). There are two units, one designated ‘UNIT 1’, which is a fibre Tx or Rx with an
associated bandpass filter for each RF path, and ‘UNIT 2’ (a Bi-Directional amplifier) for the
frequencies in the 483-486MHz range.
Each unit is housed in an environmentally protected IP65 steel wall-mount case. Handles are
provided for carrying the unit and the door is fitted with locks. The unit interfaces with ‘N’
type female connectors for RF connections and heavy duty connectors for routing of AC
power supply input and alarm output wiring. Cable glands are provided for routing of the
Fibre optic cable in to the units.
The downlink signal path is as follows: The signal is received by a fibre optic receiver
located in unit 1 it is then split in to two paths using bandpass filtering for the frequencies
required. One downlink path is contained in unit 1 the other in unit 2. To provide the
required gain to reach the required signal levels, low-noise amplifiers (LNA’s) are used in
each path, these being followed by power amplifier modules to provide the required
intermodulation performance. The paths are then recombined using bandpass filtering (in unit
2) and are fed to the radiating cable. Gain adjustment is available locally using switched
attenuators.
Similarly the uplink path is taken from the radiating cable and spilt into the two required
frequency bands. One uplink path is contained in unit 1 the other in unit 2, again to provide
the required gain to reach the required signal levels, low-noise amplifiers (LNA’s) are used in
each path, these being followed by power amplifier modules to provide the required
intermodulation performance. The paths are then recombined using bandpass filtering and are
fed to a fibre optic transmitter. Gain adjustment is available locally using switched
attenuators.
To provide adequate selectivity in the Downlink and Uplink paths, combline design
duplexers are used at the input and output ports.
Note that “Downlink” refers to the RF path from FO receiver to the leaky feeder port and that
“Uplink” refers to the RF path from the leaky feeder port to either the FO transmitter or off-
air antenna.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-12 of 63
3. SPECIFICATIONS
3.1 Parts Lists
3.1.1 Equipment 60-056100 Parts List
AFL Part N. Description Qty. Ref
60-056105 PBL F/O Filter Interface UNIT1 470/473 MHz 1 -
60-056102 PBL F/O BDA UNIT2 483/485 MHz 1 -
60-056104 PBL BDA LOC2 812/857MHz 1 -
3.1.2 Unit 1 Fibre Fed Amplifier 60-056101 Parts List
02-007302 SDF C/L5P 380MHz VAR.BW TOPSMA 2 5.1.1
02-007339 02-0073(FOUR) MTG PLATE 1
20-004001 FIBRE OPTIC RF TRANSMITTER 1 5.1.2
20-004101 FIBRE OPTIC RF RECEIVER 1 5.1.2
80-000720 CASE 420 x 420 x 260 SCHROFF CUSTOM 1
91-500011 PWR 3POLE PNL PLUG SEALED IP68 1
91-500015 PWR CON CAP SEALED with INT. THREAD 2
91-500016 PWR 6POLE PNL PLUG SEALED IP68 1
91-510010 PWR 3POLE FREE SOC.SEALED IP68 1
91-510013 PWR CON CAP SEALED with Ext. THREAD 2
91-510014 PWR 6POLE FREE SOC.SEALED IP68 1
91-600007 'D' 9 WAY BLACK SHELL 2
91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 2
91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 1
96-300045 JWS75-15/A PSU (COUTANT LAMBDA) 1 5.1.3
96-500003 AC FILTER 110V 5A 1
96-700002 LED.GREEN 5mm SEALED IP66 1
96-700005 LED.RED 5mm SEALED IP66 1
96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1
96-920011 PROXIMITY SWITCH 1
96-920012 PROXIMITY SWITCH MAGNET 1
97-300010 SUPPLY I/P COVERS 1
97-400010 BLACK PLASTIC HANDLE 37311 2
97-900004 RUBBER FOOT FOR CELL ENHANCERS 4
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-13 of 63
3.1.3 Unit 2 Fibre Fed Tunnel Amplifier 60-056102 Parts List
AFL Part Nō. Description Qty. Ref.
02-007302 6P TETRA C/L FILT(NARROW) SMA 2
02-013401 SDF C/L5P 380MHzVAR.BW TOP SMA 2
02-010401 UHF 2 SECTION NOTCH FILTER SMA 2 5.2.1
02-007339 02-0073(FOUR) MTG PLATE 2
07-004801 500-800MHz CROSS BAND COUPLER 1 5.2.2
07-005705 CROSSBAND CPLR XC 250/380 SMA 1 5.2.2
10-000701 1/4W0-30dB SWITCHED ATTENUATOR 2
11-006102 LNA 380-500MHz 1W WITH RELAY 1
11-007302 LNA. 380-500MHz 20dB (C/W RELAY) GA 3
12-002201 3 STAGE AMPLIFIER ALARM BOARD 1
12-002220 3 STAGE ALARM PCB COVER 1
12-002826 ALARM BOARD ACRYLIC LENS 1
12-004201 PWR AMP.450MHz 20W version CLASS A 1
13-003011 DC/DC CONVERTER 24-12V 8A PCB SUB-ASS 1
17-000126 CELL ENHANCER LABEL 6 DIGIT 1
17-001105 CE AGC UNIT LOG DET/AMP ASSY 1
17-001201 C/E AGC UNIT ATTENUATOR ASSY 1
17-001520 CASE620 x 420 x 250 HOFFMAN X2HS CUSTOM 1
17-001522 BASE PLATE 560x345mm 17-001520&9020 1
17-009720 EQUIP. MTG PLATE No.1 2
17-009723 EQUIP. MTG PLATE No.4 4
17-009726 EQUIP. MTG PLATE No.7 1
80-008902 24V RELAY PCB ASSEMBLY 1
80-031820 POWER AMP HEATSINK 20W 900MHz 1
80-032322 POWER SUPPLY HEATSINK 10W 1
90-010021 RF CABLE SUPFLEX SMA R/A MALE 100mm 6
90-010023 RF CABLE SUPFLEX SMA R/A MALE 300mm 1
90-010026 RF CABLE HIFLEX SMA R/A MALE 150mm 3
90-010027 RF CABLE HIFLEX SMA R/A MALE 250mm 1
90-010120 RF CABLE SMA R/A - N-TYPE (M) 100mm 1
90-010121 RF CABLE SMA R/A - N-TYPE (M) 200mm 1
90-010122 RF CABLE SMA R/A - N-TYPE (M) 250mm 1
90-010122 RF CABLE SMA R/A - N-TYPE (M) 250mm 1
90-010123 RF CABLE SMA R/A - N-TYPE (M) 300mm 1
90-010130 RF CABLE SMA R/A-N PANEL JACK 100mm 2
90-010132 RF CABLE SMA R/A-N PANEL JACK 250mm 1
90-010133 RF CABLE SMA R/A-N PANEL JACK 300mm 2
90-010134 RF CABLE SMA R/A-N PANEL JACK 400mm 1
90-010520 RF CABLE N-TYPE(M)-N-TYPE(M)150MM 1
90-010522 RF CABLE N-TYPE(M)-N-TYPE(M)250MM 1
90-010523 RF CABLE N-TYPE(M)-N-TYPE(M)300MM 1
90-010524 RF CABLE N-TYPE(M)-N-TYPE(M)350MM 1
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-14 of 63
90-010525 RF CABLE N-TYPE(M)-N-TYPE(M)400MM 1
91-030002 N ADAPTOR PANEL FEMALE:FEMALE 3
91-500011 PWR 3POLE PNL PLUG SEALED IP68 1
91-500015 PWR CON CAP SEALED with INT. THREAD 2
91-500016 PWR 6POLE PNL PLUG SEALED IP68 1
91-510010 PWR 3POLE FREE SOC.SEALED IP68 1
91-510013 PWR CON CAP SEALED with Ext. THREAD 2
91-510014 PWR 6POLE FREE SOC.SEALED IP68 1
91-520003 POWER SWITCHD/FUSED MAINS INL. 1
91-600005 'D' 9 WAY SOCKET S/B TERM 6
91-600007 'D' 9 WAY BLACK SHELL 6
91-600014 'D' 9 WAY SOCKET S/B (NON FILTERED) 4
91-600015 'D' 9 WAY PLUG S/B (NON FILTERED) 1
91-700017 ICD 15 WAY 0.1' CONNECTOR 2
92-120009 M20 IP68 CABLE GLAND 2
92-400017 GASKET FOR N TYPE CONNECTOR 6
93-540035 1K3 0.25W 1% RES MRS25 M:F 2
96-300002 24V 6.25A 150W PSU Flatpac 1
96-500003 AC FILTER 110V 5A 1
96-500005 DC INPUT FILTERS 1
96-700002 LED.GREEN 5mm SEALED IP66 1
96-700005 LED.RED 5mm SEALED IP66 1
96-900018 AC TRIP SWITCH (5 AMP M.C.B.) 1
96-920011 PROXIMITY SWITCH 1
96-920012 PROXIMITY SWITCH MAGNET 1
97-300010 SUPPLY I/P COVERS 1
97-400010 BLACK PLASTIC HANDLE 37311 2
97-900004 RUBBER FOOT FOR CELL ENHANCERS 4
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-15 of 63
3.2 Technical Specifications
3.2.1 UHF ONE to Tunnels Technical Specification
Frequency Range: Downlink Channels:
470.2125MHz
470.2625MHz
Spare
Uplink Channels:
473.2125MHz
473.2625MHz
Spare
Band Width Downlink :15kHz
Uplink : 25kHz
N. of Paths 2
Downlink Gain 82 dB min
Uplink Gain 70 dB min
RF Connector N type female
RF Impedance 50Ω
VSWR Better than 1.5:1
Gain Adjustment 0 to 30 in 2dB steps
Downlink PA 470.2125MHz, 470.2125MHz: 5WClass A Linear PA
482.2375MHz :20W Class A Linear PA
Uplink PA 485.2375MHz : 1W Class A Linear
473.2625MHz, 473.2125MHz : 5W Class A Linear
Duplexer UP/DN Isolation >80 dB
Passband Ripple <±1.5 dB
Noise Figure Downlink <7 dB at maximum gain
Noise Figure Uplink <18 dB at maximum gain
In-Band Spurious Better than –13dBm downlink
Better than –13dBm uplink
(measure with 30KHz BW & max gain setting)
Out-band Spurious up to
3GHz:
Better than –90dBc
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-16 of 63
3.2.3 UHF TWO to Tunnels Technical Specification
Frequency Range:
Downlink Channels:
483.0625MHz
483.2875MHz
483.3125MHz
483.5625MHz
Uplink Channels:
486.0625MHz
486.2875MHz
486.3125MHz
486.5625MHz
Band Width:
Downlink :15kHz
Uplink : 25kHz ,486.0625MHz, 486.5625MHz
15kHz ,486.2875MHz, 486.3125MHz
N. of Paths: 2
RF Connector: N type female
RF Impedance: 50Ω
VSWR: Better than 1.5:1
Downlink Gain: 90 dB min
Uplink Gain: 68 dB min
Gain Adjustment: 0 to 30 in 2dB steps
Downlink PA: 20W Class A Linear
Uplink PA: 20W Class A Linear
Duplexer UP/DN Isolation: >80 dB
Passband Ripple: <±1.5 dB
Noise Figure: Downlink <5 dB at maximum gain
Noise Figure: Uplink <12dB at maximum gain
In-Band Spurious:
Better than –13dBm downlink
Better than –13dBm uplink
(measure with 30KHz BW with max gain setting)
Out-band Spurious up to 3GHz: Better than –90dBc
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-17 of 63
3.3 Mechanical Specifications
3.3.1 Unit 1 60-056101 Mechanical Specification
PARAMETER SPECIFICATION
height: 620 mm
width: 420 mm
Size:
depth: 260 mm
(excluding connectors, heatsinks, handles and feet)
Fixings: 4 holes on 250 mm (h) x 470 mm (w)
Weight: 50 kg (approx.)
operational: -20°C to +50°C
Temperature
Range: storage: -40°C to +70°C
Humidity: 10% to 95% non-condensing
Environmental Protection: IP65 (with door closed and all ports terminated)
Case: RAL 7032
Heatsinks: Black anodised
Finish:
Handles: Black (where fitted)
Supply Cable: Unit supplied with 3-pin IP68 connector for
customer interface with AC input.
3.3.2 Unit 2 60-056102 Mechanical Specification
height: 620 mm
width: 420 mm
Size:
depth: 250 mm
(excluding connectors, heatsinks, handles and f
e
Fixings: 4 holes on 500 mm (h) x 467 mm (w)
Weight: 50 kg (approx.)
operational: -20°C to +50°C
Temperature Range: storage: -40°C to +70°C
Humidity: 10% to 95% non-condensing
Environmental Protection: IP65 (with door closed and all ports terminated)
Case: RAL 7032
Heatsinks: Black anodised
Finish:
Handles: Black (where fitted)
Supply Cable: Unit supplied with 3-pin IP68 connector for
customer interface with AC input.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-18 of 63
4. SYSTEM DRAWINGS
4.1 Drg. N. 60-056190, Location 2 UHF 1 Case Outline Drawing
260 [10.3"]
620 [2'-0.4"]
LOCKABLE
DOOR
CATCH
vol t age
High
DANGER
Heavy
CAUTI ON
500 [1'-7.7"]
CE- / - N
P roduc t r ef :
BPA 470/473MHz
Aerial Facilities
Li mi t ed
BYDA TEDE SCRIP T IO NNo
ISSUE
1 23456789
A
B
C
D
E
F
1 23456789
A
B
C
D
E
F
Fax : 01494 777002
Fax : 01494 777000
Aerial Facilities Limited
THIS IS A PRO PRIETARY DESIGN OF AERIAL FACILITIES LTD.
REPRODUCTION OR USE OF THIS DESIGN BY OTHERS IS
PERMISSIBLE O NLY IF EXPRESSL Y AUTHORISED IN WRITING
BY AERIAL FACILITIES L TD.
NO DECIMAL PL ACE ± 1mm
O NE DECIM AL PL ACE ± 0 .3 mm
TWO DECIMAL PLACES ± 0.1mm
ALL DIMENSIONS ARE IN mm
UNLESS O THERWISE STATED
CHKD
DRAWN
APPD
DATE
T O L ERANCES SCAL E
England
CUST O MER DRAWING .No
TITLE
3
A
PASADENA BLUE LINE. LOCATION 2.
BDA 470/473MHz. OUTLINE DRAWING
60-056190
1A
1:8
DBS 15/10/02
PRODUCTION ISS UE
15/10/02
DBS
420 [1'-4.5"]
709 [2'-3.9"]
483MHz OUTPUT
M6 EARTH STUD
115V AC INPUT
MATERIAL: MILD STEEL
FINISH: PAINTED TO RAL 9017
WALL FIXINGS: M8 (5/16")
RF CONNECTORS: N TYPE FEMALE
ENVIRONMENTAL CLASS.: IP65
SEMI-GLOSS TRAFFIC BLA CK
467 [1'-6.4"]
460 [1'-6.1"]
470/473MHz INPUT/OUTPUT
485/486MHz INPUT
CABLE GLANDS (FIBRE OPTICS)
PSU ALARM
DBSDECIMAL EQUIV'S
21/10/02
1B
DBSECN27472A
30/10/02
ALARMS
PB GD
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-19 of 63
4.2 Drg. N. 60-056192, Location 2 UHF 2 Case Outline Drawing
PASADENA BLUE LINE. LOCATION 2.
BDA 483/485MHz. OUTLINE DRAWING
60-056191
1A
1:8
DBS 15/10/02
250 [9.9"]
620 [2'-0.4"]
LOCKABLE
DOOR
CATCH
vol t age
High
DANGER
H eavy
CAUTION
500 [1'-7.7"]
CE- / - N
Product ref :
B P A 483/ 485M H z
Aerial Facilities
Li mi t ed
BYDAT EDESCRIPT IO NNo
ISSUE
12
3456789
A
B
C
D
E
F
123456789
A
B
C
D
E
F
Fax : 01494 777002
Fax : 01494 777000
Aerial Facilities Limited
THIS IS A PRO PRIETARY DESIGN OF AERIAL FACILITIES LTD.
REPRO DUCTIO N O R USE O F T HIS DESIG N BY O THERS IS
PERMISSIBLE O NLY IF EXPRESSLY AUTHORISED IN WRITING
BY AERIAL FACILITIES LTD.
NO DECIM AL PL ACE ± 1 mm
ONE DECIMAL PL ACE ± 0 .3 mm
TWO DECIMAL PLACES ± 0 .1mm
AL L DIMENSIO NS ARE IN mm
UNL ESS OTHERWISE STATED
CHKD
DRAWN
APPD
DAT E
T OL ERANCES SCA L E
England
CUSTO MER DRAWING .No
TITLE
3
A
PRODUCTION ISSUE
15/10/02
DBS
420 [1'-4.5"]
709 [2'-3.9"]
M6 EARTH STUD
115V AC INPUT
MATERIAL: MILD STEEL
FINISH: PAINTED TO RAL 9017
WALL FIXINGS: M8 (5/16")
RF CONNECTORS: N TYPE FEMALE
ENVIRONMENTAL CLASS.: IP65
SEMI-GLOSS TRAFFIC BLACK
467 [1'-6.4"]
497 [1'-7.6"]
PSU ALARM
DBSDECIMAL EQUIV'S
21/10/02
1B
LCX
800MHz
485/486MHz OUTPUT
VHF
483MHz INPUT
470/473MHz
INPUT
DBSECN27472A
30/10/02
ALARMS
PB GD
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-20 of 63
4.3 Complete Pasadena Metro System Diagram
3
dB
dB
EO
470MHz
483MHz
473MHz
485-486MHz
UNIT 1
UNIT 2
470MHz
EO
AGC
AGC
DET
473MHz
dB
dB
483MHz
AGC
AGC
DET
485-486MHz
HL
483-486MHz
470-475MHz
VHF
LCX
LCX
02-007302
02-007302
02-007302
02-007302
02-013401
02-013401
02-013401
02-013401
12-00180111-007302
11-00730211-006102 11-007302
20dB 30dB
16dB 20dB 20dB
12-00420111-007302
11-00730211-006102 11-007302
20dB 30dB
16dB 20dB 20dB
02-007302
Remote Locations
-15dBm
20dBm
20dBm
27dBm
30dBm
28dBm
18dBm
18dBm
-15dBm
-50dBm
-50dBm
-50dBm
-50dBm
-57dBm
-15dBm
-57dBm
-15dBm
-17dBm
60-056101
60-056102
EFG
HI
J
3
4
J4
J3
U
T6
T5
02-007302
02-010401
02-010401
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-21 of 63
5. SUB-UNIT MODULES
5.1 Unit 1 (60-056101)
5.1.1 Bandpass Filters (02-007302)
5.1.1.1 Description
The bandpass filters are multi-section designs with a bandwidth dependent upon the
passband frequencies, (both tuned to customer requirements). The response shape is
basically Chebyshev with a passband design ripple of 0.1dB. The filters are of combline
design, and are carefully aligned during manufacture in order to optimise the insertion
loss, VSWR and intermodulation characteristics of the unit. The tuned elements are
silver-plated to reduce surface ohmic losses and maintain a good VSWR figure and 50
load at the input and output ports.
No adjustments should be attempted without full network sweep analysis facilities to
monitor both insertion loss and VSWR simultaneously.
5.1.1.2 Technical Specification (02-007302)
PARAMETER SPECIFICATION
Response type: Chebyshev
Frequency range: 350-500MHz (tuned to spec.)
Bandwidth: <3.5 MHz
Number of sections: 5
Insertion loss: 2.7 dB (typical)
VSWR: better than 1.2:1
Connectors: SMA
Power handling: 100W max
operation: -10°C to +55°C
Temperature range storage: -40°C to +70°C
Weight: 3 kg (approximately)
Size: 266 x 143 x 39.5mm
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-22 of 63
5.1.2 AFL Fibre Optic Receiver & Transmitter (20-004001, Tx & 20-004101, Rx)
5.1.2.1 Description
The FO units consist of a receiver & transmitter, which modulates the RF signal onto a laser
carrier and transmits it via fibre/optic cable to a receiver unit some distance away where it is
demodulated back to the original RF signal with very small values of accrued attenuation.
Both transmitter and receiver modules have their own dedicated alarm outputs (volt-free
relay contacts) which are integrated/summed into the main alarm system. The alarms are
non-latching, so an alarm condition may revert to ‘good’ if the fault clears for any reason
(e.g. momentary DC power loss).
The AFL Fibre Optic transmitters and receivers both have two LED status indicators, one
on each module showing DC power and the other indicating ‘Laser On’ for the transmitter,
and ‘Carrier Being Received’ for the receiver.
Typically the input to transmitter units will be at a level of between –30 and –15 dBm. The
RF gain of a pair (Tx to Rx) units is factory set to give a 0dB gain, but this is with a short,
low loss fibre. In determining the performance of any link, the insertion loss of the fibre and
any power splitters fitted must be considered. A general rule of thumb figure would be
around 0.5 - 1.5dB loss per fibre Kilometre.
The fibre optic transmitter module (20-004001) takes two RF inputs, one containing signals
between 20- and 35 MHz (generally used by laser-modems for carrying alarm, and status
information between sites) and another containing signals between 70 MHz and 2.5 GHz
(the main RF carrier) and modulates them both onto to a fibre optic cable. The Laser Tx
module uses a Class IIIa Transmitting Laser Device, see laser safety precautions in section
1. The receiver module (20-004101) takes a fibre optic signal, and converts this into two RF
outputs, one containing signals between 20- and 35 MHz and another containing signals
between 70 MHz and 2.5 GHz.
5.1.2.2 Fibre Optic Units Technical Specification
PARAMETER SPECIFICATION
Fre
q
uenc
y
ran
g
e
(
Traffic
)
70-2500MHz
Fre
q
uenc
y
ran
g
e
(
‘Data’
)
20-35 MHz
Tx Max. O
p
tical Out
p
ut Power +10dBm
6
1.5
Rx Alarm:
@
10dBm Fibre Loss
Gain
(
back-to-
b
ack connection
)
+10dB
Flatness 70-2500MHz +/-1.5dB
IP3
(
All conditions
)
>+30dB
m
Noise Fi
g
ure
(
back-
b
ack connector
)
: <40dB
Power Su
pp
l
y
: 12V DC –Ve GND
350mA
(
t
yp
ical
)
@
12V DC
(
Rx
)
Consumption: 100mA
(
t
yp
ical
)
@
12V DC
(
Tx
)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-23 of 63
5.1.2.3 ‘D’ Connector Pinouts
Rx ‘D’ Type Female Connector
Pin N. Signal Description
1 +12V DC Power
2 No Connection
3 Power Ground
4 No Connection
5 No Connection
6 O/C. Alarm
7 Relay Alarm Contact (N.C)
8 Relay Alarm Contact (Common)
9 Relay Alarm Contact (N.O)
Tx ‘D’ Type Female Connector
Pin N. Signal Description
1 +12V DC Power
2 No Connection
3 Power Ground
4 No Connection
5 No Connection
6 O/C Alarm
7 Relay Alarm Contact (N.C)
8 Relay Alarm Contact (Common)
9 Relay Alarm Contact (N.O)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-24 of 63
5.1.3 JWS75-15/A PSU (96-300045)
5.1.3.1 Description
The power supply unit is a switched-mode type capable of supplying 24V DC at 3.25Amps
continuously. This PSU is used to provide power for the fibre optic modules which will
typically require less than 1.50 Amps at 15V DC, so the PSU will be used conservatively
ensuring a long operational lifetime.
No routine maintenance of the PSU is required. If a fault is suspected, then the output
voltage from the power supply may be measured on its output terminals. The output voltage
is set at test but can be adjusted by a multi-turn potentiometer mounted close to the DC
output terminals.
All the PSU’s used in AFL Cell Enhancers are capable of operation from either 110 or
220V nominal AC supplies. The line voltage is sensed automatically, so no adjustment or
link setting is needed by the operator.
5.1.3.2 Technical Specification
AC Input Supply:
110 or 220V nominal
Voltage: 90 to 132 or 180 to 264V
(absolute limits)
Frequency: 47 to 63Hz
DC Output Supply:
24V DC (nominal)
Voltage: 22 to 26V (absolute limits)
Current: 6.25A
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-25 of 63
5.2 Unit 2 (60-056102)
5.2.1 Bandpass Filter (02-013401)
5.2.1.1 Description
The bandpass filters are multi-section designs with a bandwidth dependent upon the
passband frequencies, (both tuned to customer requirements). The response shape is
basically Chebyshev with a passband design ripple of 0.1dB. The filters are of combline
design, and are carefully aligned during manufacture in order to optimise the insertion loss,
VSWR and intermodulation characteristics of the unit. The tuned elements are silver-plated
to reduce surface ohmic losses and maintain a good VSWR figure and 50 load at the input
and output ports. Being passive devices, the bandpass filters should have an extremely long
operational life and require no maintenance. Should a filter be suspect, it is usually most
time efficient to replace the module rather than attempt repair or re-tuning.
No adjustments should be attempted without full network sweep analysis facilities to
monitor both insertion loss and VSWR simultaneously.
5.2.1.2 Technical Specification
PARAMETER SPECIFICATION
FILTER 1 470-470.5MHz Passband:
FILTER 2 473-473.5MHz
FILTER 1 2.8 dB typical
Insertion Loss: FILTER 2 2.8 dB typical
FILTER 1 470-470.5MHz > 60 dB
Rejection: FILTER 2 473-473.5MHz > 60 dB
Power Rating 250 Watt
Impedance 50 ohm
VSWR Better than 1.2:1
Connectors SMA female
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-26 of 63
5.2.2 Two Section Notch Filter (02-010401)
5.2.2.1 Description
Fitted in Unit 2 after the amplification stages is a 2 element notch filter (one in downlink,
one in uplink), which is designed to reject the uplink frequencies in the downlink path
and vice-versa. The notch filter is not required for Unit One as the rejection from the two
series bandpass filters as apposed to one, is sufficient to meet the specification.
5.2.2.2 Technical Specification (Uplink)
PARAMETER SPECIFICATION
Frequency range: 485.2-485.6 MHz
Stopband: 482.2 – 483.6MHz
N. of sections: 2
Attenuation: >40dB @ 482.2MHz
Insertion loss: 0.5dB
VSWR: Better than 1.2:1
Connectors: SMA
Power Handling: 50W maximum
operate
:
-10°C to +55°C
Temperature
range: store: -30°C to +70°C
Weight: <3 kg
Size: 384 x 82.5 x 56.4mm
5.2.2.3 Technical Specification (Downlink)
Frequency range: 482.2-483.6 MHz
Stopband: 485.2-486.6MHz
N. of sections: 2
Attenuation: >40dB @ 485.2MHz
Insertion loss: 0.5dB
VSWR: Better than 1.2:1
Connectors: SMA
Power Handling: 50W maximum
operate: -10°C to +55°C Temperature
range: store: -30°C to +70°C
Weight: <3 kg
Size: 384 x 82.5 x 56.4mm
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-27 of 63
5.2.3 Crossband Couplers (07-004801 & 07-005705)
5.2.3.1 Description
The purpose of a crossband coupler is to either combine/split transmission signals from
different parts of the frequency spectrum.
The crossband coupler fitted here, is the means by which the separate UHF & GSM
frequency band signals are mixed to form a composite RF signal.
It basically comprises of a 3 port device, two filters, one a low pass the other a high pass, that
are then mixed and fed to a common output. The couplers are built into a machined
aluminium casing having a centre screening wall between the filter sections and lid secured
by screws at frequent intervals over its perimeter to obtain a tight seal and to ensure linearity
and stability of response.
5.2.3.2 Technical Specification (07-004801)
PARAMETER SPECIFICATION
390-490MHz
Passband: 700-900MHz
N. Of i/p ports: 2
N. Of o/p ports: 1
Insertion loss: 0.5dB (typical)
>40dB 390-490MHz
Isolation: >40dB 700-900MHz
Impedance: 50Ω
Connectors: SMA female
Power rating: 50Watts (CW)
5.2.3.3 Technical Specification
PARAMETER SPECIFICATION
250 MHz
Passband: 380 MHz
70.0-250MHz
380-960MHz
Power Rating 50 Watts (CW)
Number of Input ports 2
Number of Output ports 1
Insertion loss 0.5 dB
Isolation > 50 dB 70-250 MHz
> 50 dB 380-960 MHz
(15 dB typical return loss 500-960)
Impedance 50
Connectors SMA- female
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-28 of 63
5.2.4 ¼Watt 0- -30dB Switched Attenuator (10-000701)
5.2.4.1 General Application
In many practical applications for Cell Enhancers etc., the gain in each path is found to be
excessive. Therefore, provision is made within the unit for the setting of attenuation in
each path, to reduce the gain.
5.2.4.2 Switched Attenuators
The AFL switched attenuators are available in two different types; 0 – 30dB in 2 dB steps
(as in this case), or 0 – 15dB in 1 dB steps. The attenuation is simply set using the four
miniature toggle switches on the top of each unit. Each switch is clearly marked with the
attenuation it provides, and the total attenuation in line is the sum of the values switched
in. They are designed to maintain an accurate 50 impedance over their operating
frequency at both input and output.
5.2.5 Low Noise Amplifiers (11-006102, & 11-007302)
5.2.5.1 Description
The low noise amplifiers used are double or triple stage solid-state low-noise amplifiers.
Class A circuitry is used in the units to ensure excellent linearity over a very wide
dynamic range. The active devices are very moderately rated to provide a long trouble-
free working life. There are no adjustments on these amplifiers, and in the unlikely event
of failure then the entire amplifier should be replaced. Note that all LNA’s use similar DC
power circuit boards.
5.2.5.2 Technical Specification (11-006102)
PARAMETER SPECIFICATION
Frequency range: 70 – 500MHz
Bandwidth: <430MHz
Gain: 15.5dB (typical)
1dB Compression Point: +31dBm (typical)
3rd order intercept: +46dBm (typical)
Input return loss: >20dB
Output return loss: >20dB
VSWR: Better than 1.5:1
Noise figure: <4.8dB
Connectors: SMA female
Supply: 530mA @ 10 to 24V DC (typical)
operational: -10°C to +60°C
Temperature range: storage: -40°C to +70°C
Weight: 260gms
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-29 of 63
5.2.5.3 Drg. N. 11-006102, Low Noise Amplifier General Assembly
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-30 of 63
5.2.5.4 Drg. N. 11-006170, LNA RF Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-31 of 63
5.2.5.5 Drg. N. 11-006171, LNA DC Wiring Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-32 of 63
5.2.5.6 Drg. N. 11-003971, LNA DC Schematic Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-33 of 63
5.2.5.7 Technical Specification (11-007302)
PARAMETER SPECIFICATION
Frequency range: 380-500MHz
Bandwidth: <140MHz
Gain: 20-22dB
1dB Compression Point: +23.5dB (typical)
3rd order intercept: +36dB (typical)
Input/Output return loss: >20dB
Noise figure: <1.3dB
Connectors: SMA female
Supply: 200-230mA @ 24V DC
operational: -10°C to +55°C
Temperature range: storage: -30°C to +70°C
Weight: <300gms
Size: 90 x 55 x 30.2 (case only)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-34 of 63
5.2.5.8 Drg. N. 11-007302, LNA Assembly With Alarm Relay
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-35 of 63
5.2.5.9 Drg. N. 11-007370, LNA RF Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-36 of 63
5.2.5.10 Drg. N. 11-007371, LNA DC Wiring Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-37 of 63
5.2.6 3 Stage Amplifier Alarm Boards (12-002201)
5.2.6.1 Description
Amplifier Alarm Boards are fitted to monitor the bias conditions of AFL Class A amplifiers
which remain constant in normal operation. Any departure from normal bias conditions is a
result of device failure, excess temperature, over-driving or oscillation (excessive power).
In normal operation, the Class A bias circuit of the amplifier develops a constant voltage of
1.20V across the collector current setting resistor. The Amplifier Alarm Board is a window
comparator device, which is adjusted to sense a departure from this condition. Several
different alarm outputs are provided to simplify interfacing, (Relay Contact, Open Collector,
and TTL Logic Levels)
The basic version of the Alarm Board (12-002801) monitors a single amplifier stage. A
three-stage version (12-002201) is used on complex amplifiers where three separate
comparators have their outputs logically combined to a common output stage. Failure of any
one stage will activate the alarms.
Note that the alarm board has a green Light Emitting Diode located near to the centre of the
printed circuit board, which is illuminated on ‘Good’, and extinguished on ‘Alarm’. It is
therefore a simple matter to identify an active module failure, by searching for an Alarm
Board which has its green LED extinguished. A simple test of the alarm board is possible by
shorting across the monitor inputs, pins 1 and 2, 3 and 4 or across pins 5 and 6. This last
monitor input is inactive if the board has been converted to a two way alarm board. (Refer to
relevant amplifier alarm wiring diagram.)
1) Volt-free change over relay contacts.
2) Open collector NPN transistor pulls low on alarm.
3) TTL driver.
The use of precision voltage sources and resistors has eliminated the need for initial
adjustment or calibration, and the board will function correctly with a wide variation in
power supply voltage (8 to 30 volts, nominal supply is 12 or 24Volts).
There are two selectable link options on the three-way board:
LINK1 - Removed to convert to two-way alarm board.
LINK2 - Removed to isolate 0V from chassis earth.
The one way alarm board only has the 0V isolation link (LINK2) fitted.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-38 of 63
5.2.6.2 Technical Specification
PARAMETER SPECIFICATION
Operating voltage: 8 to 30V (floating earth)
Alarm Threshold: Vcc - 1.20 volt +15%
Alarm output relay contacts:
Max. switch current: 1.0Amp
Max. switch volts: 120Vdc/60VA
Max. switch power: 24W/60VA
Min. switch load: 10.0µA/10.0mV
Relay isolation: 1.5kV
Mechanical life: >2x107 operations
Relay approval: BT type 56
Connector details: 15-way 0.1" pitch
operational: :-10°C to +55°C
Temperature range: storage: :-40°C to +70°C
74 x 56mm (3 stage)
PCB Size: 54 x 56mm (1 stage)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-39 of 63
5.2.6.3 Drg. N. 12-002201, 3 Stage Alarm Board Assembly Drawing & Parts List
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-40 of 63
5.2.6.4 Drg. N. 12-002270, 3 Stage Alarm Board Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-41 of 63
5.2.6.5 Generic Wall Enclosure Alarm Wiring Sketch
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-42 of 63
5.2.7 450MHz 20W Power Amplifier (12-004201)
5.2.7.1 Description
The power amplifiers fitted to this unit are multi-stage, solid state power amplifiers. Class
A circuitry is employed throughout the units to ensure excellent linearity over a wide
dynamic frequency range. All the semi-conductor devices are very conservatively rated to
ensure low device junction temperatures and a long, trouble free working lifetime.
The power amplifiers should require no maintenance over their operating lives. Under no
circumstances should the cover be removed or the side adjustments disturbed unless it is
certain that an amplifier has failed; since they are critically aligned during manufacture
and any re-alignment will require extensive test equipment.
5.2.7.2 Technical Specification
PARAMETER SPECIFICATION
Frequency Range: 350 – 550MHz (tuned to spec.)
Bandwidth: 20MHz (tuned to spec.)
Maximum Output Power: >20W (each)
Gain: 30dB
1dB Compression Point: <+43dBm
3rd Order Intercept Point: <+54dBm
VSWR: better than 1.45:1
Connectors: SMA female
Supply: 3.50A @ 24V DC
Size: 276 x 78 x 40mm (ex. Cons. & h’sink)
Weight: 1.5 kg (approx., excl. h’sink)
operational: -10°C to +55°C Temperature
range: storage: -40°C to +70°C
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-43 of 63
5.2.7.3 Drg. N. 12-004201, PA General Assembly
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-44 of 63
5.2.7.4 Drg. N. 12-004270, PA Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-45 of 63
5.2.7.5 Drg. N. 12-004270C1, PA Parts List(1)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-46 of 63
5.2.7.6 Drg. N. 12-004270C2, PA Parts List(2)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-47 of 63
5.2.7.7. Drg. N. 12-003670, PA to Alarm Wiring Details
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-48 of 63
5.2.8 DC/DC Converter, 24V in, 12V 8A out (13-003011)
5.2.8.1 Description
The DC/DC converter fitted is an AFL assembled, high power PCB unit with an 8 amp @
24V in, 12V output capability. The circuit is basically an O.E.M semiconductor regulator
(one side of which has a heatsink mounting plate, that is usually bolted to the casing of a
Cell Enhancer) and smoothing components built onto a printed circuit board with screw
block terminations.
Note: no circuit diagram of the O.E.M. regulator is available. This unit should not be
repaired, only replaced.
5.2.8.2 Technical Specification
PARAMETER SPECIFICATION
Input Voltage Range: 18-28V DC
Output Voltage: 12V±0.5V
Max. Current Load: 8.0Amps
operation: -10°C to +55°C Temperature
Range: storage: -40°C to +70°C
Size(PCB): 190 x 63mm
Weight (Loaded PCB): 291gms
5.2.8.3 Photo of Regulator PCB (regulator heatsink side)
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-49 of 63
5.2.9 Wide Dynamic Range AGC (17-001105, Det. & 17-001201, Atten.)
5.2.9.1 Description
The equipment is fitted with a wide dynamic range Automatic Gain Control (AGC) system.
This is generally fitted in the Uplink path (not usually needed in the downlink path, as the
signal here is at an almost constant level), to avoid overloading the amplifiers (with the
associated performance degradation) should a mobile be operated very close to the unit.
The AFL wide dynamic range Automatic Gain Control system consists of two units, a
detector/amplifier and an attenuator. The detector/amplifier unit is inserted in the RF path on
the output of the power amplifier, and the attenuator is situated in the RF path between the
1st and 2nd stages of amplification.
Normally the attenuator is at minimum attenuation. The detector/amplifier unit monitors the
RF level being delivered by the power amplifier, and when a certain threshold is reached it
begins to increase the value of the attenuator to limit the RF output to the (factory set)
threshold. Therefore overloading of the power amplifier is avoided.
The factory set threshold is 1dB below the Enhancer 1dB compression point. Some
adjustment of this AGC threshold level is possible, a 10dB range is mostly achieved. It is
not recommended under any circumstances to adjust the AGC threshold to a level greater
than the 1dB compression point as system degradation will occur.
The detector comprises of a 50 transmission line with a resistive tap which samples a
small portion of the mainline power. The sampled signal is amplified and fed to a
conventional half wave diode rectifier, the output of which is a DC voltage proportional to
the RF input signal.
This DC voltage is passed via an inverting DC amplifier with integrating characteristics, to
the output, which drives the attenuation control line of the corresponding AGC attenuator.
This unit is fitted at some earlier point in the RF circuit.
The unit contains a 12V DC regulator in the detector module, which supplies stabilised
voltage to the DC amplifier and via an external cableform to the AGC attenuator.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-50 of 63
For small signals, below AGC onset, the output control line will be close to 12V and the
AGC attenuator will have minimum attenuation. As the signal level increases the control
line voltage will fall, increasing the attenuator value and keeping the system output level at a
constant value.
The AGC onset level is adjusted by the choice of sampler resistor R1 and by the setting of
potentiometer VR1.
The attenuator comprises a 50 P.I.N diode, voltage-variable attenuator with a range of 3 to
30dB. The attenuation is controlled by a DC voltage which is derived from the associated
AGC detector unit.
5.2.9.2 Technical Specification
PARAMETER SPECIFICATION
Frequency Range: up to 1000MHz
Attenuation Range: 3 to 30dB
Attenuation Steps: continuously variable
VSWR: better than 1.2:1
RF Connectors: SMA female
attenuator: 1W Power Handling:
detector/amp: >30W (or as required)
operation: -10°C to +55°C Temperature
Range: storage: -40°C to +70°C
attenuator (pcb) 50 x 42 x 21mm Size:
Detector (pcb) 54 x 42 x 21mm
attenuator: 90grams Weight:
detector/amp: 100grams
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-51 of 63
5.2.9.3 Drg. N. 17-001105, ACG Detector Assembly
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-52 of 63
5.2.9.4 Drg. N. 17-001175, Wide Range AGC Detector Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-53 of 63
5.2.9.5 Drg. N. 17-001201, AGC Attenuator Assembly Drawing
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-54 of 63
5.2.9.6 Drg. N. 17-001270, AGC Attenuator Circuit Diagram
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-55 of 63
5.2.10 24V Single Relay Board (80-008902)
5.2.10.1 Description
The General Purpose Relay Board allows the inversion of signals and the isolation of
circuits. It is equipped with a single dual pole change-over relay RL1, with completely
isolated wiring, accessed via a 15 way in-line connector.
The relay is provided with polarity protection diodes and diodes for suppressing the
transients caused by "flywheel effect" which can destroy switching transistors or induce
spikes on neighbouring circuits. It’s common use is to amalgamate all the alarm signals
into one, volts-free relay contact pair for the main alarm system.
Note that the board is available for different voltages (12 or 24V) depending on the type
of relay fitted at RL1.
5.2.11 24V Flat-Pack PSU (96-300002)
5.2.11.1 Description
The power supply unit is a switched-mode type capable of supplying 24V DC at
6.25Amps continuously. Equipment of this type typically requires approximately 4.0-5.0
Amps at 24V DC, so the PSU will be used conservatively ensuring a long operational
lifetime.
No routine maintenance of the PSU is required. If a fault is suspected, then the output
voltage from the power supply may be measured on its output terminals. This is typically
set to 24.5V.
All the PSU’s used in AFL Cell Enhancers are capable of operation from either 110 or
220V nominal AC supplies. The line voltage is sensed automatically, so no adjustment or
link setting is needed by the operator.
5.2.11.2 Technical Specification
AC Input Supply:
110 or 220V nominal
Voltage: 90 to 132 or 180 to 264V
(absolute limits)
Frequency: 47 to 63Hz
DC Output Supply:
Voltage: 24V DC (nominal)
22 to 26V (absolute limits)
Current: 6.25A
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-56 of 63
6. INSTALLATION
6.1 Initial Installation Record
When this equipment is initially commissioned, please use the equipment set-up record sheet
in Appendix A. This will help both the installation personnel and AFL should these figures
be needed for future reference or diagnosis.
6.2 General
The size and weight of the wall units mean that they represent a significant health hazard
unless they are mechanically installed in the correct manner. In the interests of safety this
should be done before any electrical, RF, or optical connections are made.
It is important in determining the location of the wall units that space is allowed for access
to the front and underneath of the equipment. To enable maintenance to be carried out, the
door must be able to fully open. The location must be served with a duct to allow the entry
of cables into the unit.
6.3 Electrical Connections
The mains power supply and the alarms are connected through an IP65 connector which
should need no further attention once connected. It is recommended that the AC power
connection is approved by a qualified electrician, who must satisfy himself that the supply
will be the correct voltage and of sufficient capacity.
All electrical and RF connection should be completed and checked prior to power being
applied for the first time.
6.4 Optical Connections
The optical input and output ports are be located on a bracket fixed to the lower inside of the
case. The optical fibres from the tunnels enter through a cable gland on the case underside
The ports are supplied with a green plastic cover, which must be removed prior to the
connection of the fibre cable. Ensure that transmitter and receiver fibre cable are identified
to prevent misconnection. At the master site, the fibre transmitters are in the downlink path
with the receivers in the uplink. At the remote sites the fibre transmitters are in the uplink
with the receivers in the downlink. Where some of the fibre optic transmitter outputs are
split with optical couplers to provide a connection to more than one remote site, care must be
taken to ensure that the correct connections are made.
Ensure that connections are kept clean and are fully tightened.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-57 of 63
6.5 RF Connections
All RF connections are made to the cable termination, located on the right-hand side of the
wall enclosure. Care must be taken to ensure that the correct connections are made with
particular attention made to the base station TX/RX ports. In the event that the base
transmitter is connected to the RX output of the rack, damage to the equipment may be done
if the base station transmitter is then keyed. If the environment where the equipment is
installed is deemed to be ‘wet’ i.e. water seepage through roofs or walls, then suitable
methods to seal the RF N type connectors should be used, for example self amalgamating
sealant tape.
Ensure that connections are kept clean and are fully tightened.
6.6 Commissioning
Once all connections are made the equipment is ready for commissioning.
To commission the system the test equipment detailed in section 7.2 will be required.
Using the system diagrams and the end-to-end test specification, the equipment should be
tested to ensure correct operation. Typical RF levels that are not listed in the end-to-end
specification, such as input levels to the fibre transmitters are detailed in the whole system
diagram in section 4.
On initial power up the system alarm indicators on the door of the equipment should be
checked. A red LED illuminated indicates a fault and that particular module must be
investigated before proceeding with the commissioning. A green LED illuminates, to
indicate that the power supply is connected and valid.
The individual fibre optic units are fitted with a pair of status indicators on their front
panels. One is a green LED, which indicates that the unit is connected to a 15 Volt power
supply. This indicator is common to both transmit and receive units. The second LED on the
transmitter indicates that the laser is operating. On the receive unit the second LED indicates
that a light signal is being received.
When all the fibre connections are completed and power to each site is connected each fibre
unit should show two illuminated indicators.
In the event that any part of the system does not function correctly as expected, check all
connections to ensure that they are to the correct port, that the interconnecting cables are not
faulty and that they are tightened. The majority of commissioning difficulties arise from
problems with the interconnecting cables and connectors.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-58 of 63
7. MAINTENANCE
7.1 General Procedures
7.1.1 Fault Finding
In the event that the performance of the system is suspect, a methodical and logical approach
to the problem will reveal the cause of the difficulty. The System consists of modules within
a wall mounted, environmentally protected enclosure.
Transmissions from the main base stations are passed though the system to the mobile radio
equipment; this could be a handheld walkie-talkie, mobile telephone or a transceiver in a
vehicle. This path is referred to as the downlink. The return signal path from the mobile
radio equipment to the base station is referred to as the uplink.
The first operation is to check the (optional) alarms of each of the active units and determine
that the power supplies to the equipment are connected and active.
This can be achieved remotely (via CEMS, the digital RS232 Cell Enhancer Management
System, if fitted), or locally with the front door LED’s. The green LED on the front door
should be illuminated, while the red alarm indicator should be off.
If an Alarm is on, then that individual module must be removed and tested against the
original test specification.
The individual amplifier units have a green LED showing through a hole in their piggy-back
alarm board (or directly through a hole in the amplifier lid), which is illuminated if the unit
is working correctly.
If an amplifier is suspect, check the DC power supply to the unit. If no other fault is
apparent use a spectrum analyser to measure the incoming signal level at the input and then
after reconnecting the amplifier input, measure the output level. Consult with the system
diagram and amplifier specification to determine the expected gain and compare result.
In the event that there are no alarms on and all units appear to be functioning it will be
necessary to test the system in a logical manner to confirm correct operation.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-59 of 63
7.1.2 Downlink
Confirm that there is a signal at the expected frequency and strength from the base station. If
this is not present then the fault may lay outside the system. To confirm this, inject a
downlink frequency signal from a known source at the master site BTS input and check for
output at the remote site feeder output.
If a signal is not received at the output it will be necessary to follow the downlink path
through the system to find a point at which the signal is lost. The expected downlink output
for the given input can be found in the end-to-end test specification.
7.1.3 Uplink
Testing the uplink involves a similar procedure to the downlink except that the frequencies
used are those transmitted by the mobile equipment.
7.1.4 Fault repair
Once a faulty component has been identified, a decision must be made on the appropriate
course to carry out a repair. A competent engineer can quickly remedy typical faults such as
faulty connections or cables. The exceptions to this are cable assemblies connecting
bandpass filter assemblies that are manufactured to critical lengths to maintain a 50-ohm
system. Care should be taken when replacing cables or connectors to ensure that items are of
the correct specification. The repair of component modules such as amplifiers, tuned cavities
or bandpass filters will not usually be possible in the field, as they frequently require
specialist knowledge and test equipment to ensure correct operation. It is recommended that
items of this type are replaced with a spare unit and the faulty unit returned to AFL for
repair. If spare parts need to be ordered from AFL, be sure to quote the serial number of the
Cell Enhancer/Repeater and the serial number [and frequencies] of the module(s) to be
replaced.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-60 of 63
7.1.5 Checking service
Following the repair of any part of the system it is recommended that a full end-to-end test is
carried out in accordance with the test specification and that the coverage is checked by
survey.
It is important to bear in mind that the system includes a radiating cable network and base
stations that may be faulty or may have been damaged.
7.1.6 Service Support
Advice and assistance with maintaining and servicing this system are available by contacting
Aerial Facilities Ltd.
7.2 Tools & Test Equipment
The minimum tools and test equipment needed to successfully service this AFL product are
as follows:-
Spectrum analyser: 100kHz to 2GHz (Dynamic range = 90dB).
Signal Generator: 30MHz to 2GHz (-120dBm to 0dBm o/p level).
Attenuator: 20dB, 10W, DC-2GHz, (N male – N female).
Test Antenna: Yagi or dipole for operating frequency.
Optical Power Meter: 1300 – 1560nM (-40 - +10dB)
Digital multi-meter: Universal Volt-Ohm-Amp meter.
Test cable x 2: N male – N male, 2M long RG214.
Test cable x 2: SMA male – N male, 1m long RG223.
Hand tools: Philips #1&2 tip screwdriver.
3mm flat bladed screwdriver.
SMA spanner and torque setter.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-61 of 63
7.3 Care of Modules
7.3.1 General Comments
Many of the active modules contain semiconductor devices utilising MOS technology, which
can be damaged by electrostatic discharge. Correct handling of such modules is mandatory to
ensure their long-term reliability.
To prevent damage to a module, it must be withdrawn/inserted with care. The module may
have connectors on its underside, which might not be visible to the service operative.
7.3.2 Module Removal (LNA’s, general procedure):
The following general rules should be followed to remove a module:
1 Remove power to the unit
2 Remove all visible connectors (RF, DC & alarm)
3 Release module retaining screws.
4 Slowly but firmly, pull the module straight out of its position. Take care not to twist/turn
the module during withdrawal. (When the module is loose, care may be needed, as there
may be concealed connections underneath).
7.3.3 Module Replacement (general):
1 Carefully align the module into its location then slowly push the module directly straight
into its position, taking care not to twist/turn it during insertion.
2 Reconnect all connectors, RF, alarm, power etc.,(concealed connectors may have to be
connected first).
3 Replace retaining screws (if any).
4 Double-check all connections before applying power.
7.3.4 Power Amplifiers
1) Remove power to the unit. (Switch off @ mains/battery, or remove DC in connector)
2) Remove alarm wires from alarm screw terminal block or disconnect multi-way alarm
connector.
3) Carefully disconnect the RF input and output coaxial connectors (usually SMA)
If alarm board removal is not required, go to step 5.
4) There is (usually) a plate attached to the alarm board which fixes it to the amplifier,
remove its retaining screws and the alarm board can be withdrawn from the amplifier in
its entirety. On certain types of amplifier the alarm board is not mounted on a dedicated
mounting plate; in this case it will have to firstly be removed by unscrewing it from the
mounting pillars, in most cases, the pillars will not have not have to be removed before
lifting the amplifier.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-62 of 63
5) If the amplifier to be removed has a heatsink attached, there may be several different
ways it can have been assembled. The most commonly used method, is screws through
the front of the heatsink to threaded screw holes (or nuts and bolts), into the amplifier
within the main case. If the heatsink is mounted on the rear of the main case (e.g., against
a wall in the case of wall mounted enclosures), then the fixing method for the heatsink
will be from within the case, (otherwise the enclosure would have to be removed from the
wall in order to remove the heatsink).
When the heatsink has been removed, the amplifier may be unscrewed from the main
casing by its four corner fixings and gently withdrawn.
Fitting a new power amplifier module will be the exact reverse of the above.
Note: Do not forget to apply fresh heatsink compound to the heatsink/main case
joint and also between the amplifier and the main case.
7.3.5 Low Power Amplifier Replacement
1 Disconnect the mains power supply and disconnect the 24V dc supply connector for the
LPA.
2 Disconnect the RF input and output cables from the LPA.
3 Disconnect the alarm connector.
4 Remove the alarm monitoring wires from (D type connector) pins 9 and 10.
5 Remove the LPA module by removing the four retaining screws, replace with a new
LPA module and secure it with the screws.
6 Connect the RF cables to the LPA input and output connectors. Reconnect the wires to
the alarm board connector pins 9 and 10.
7 Reconnect the DC supply connector and turn the mains switch on.
Note: Tighten SMA connectors using only a dedicated SMA torque spanner. If
SMA connectors are over-tightened, irreparable damage will occur. . Do not use
adjustable pliers to loosen/tighten SMA connectors.
Also take care not to drop or knock the module as this can damage (or misalign in the
case of tuned passive modules) sensitive internal components. Always store the modules
in an environmentally friendly location
7.3.6 Module Transportation:
To maintain the operation, performance and reliability of any module it must be stored and
transported correctly. Any module not installed in a whole system must be kept in an anti-
static bag or container. These bags or containers are normally identified by being pink or
black, and are often marked with an ESD label. Any module sent back to AFL for
investigation/repair must be so protected. Please contact AFL’s quality department before
returning a module.
P B L Tunnel Units 1 & 2
Maintenance Handbook
H/book Number:-60-056100HBKMFCC Issue No:-2 Date:-04/01/2006 Page:-63 of 63
APPENDIX A INITIAL EQUIPMENT SET-UP CALCULATIONS
GENERAL INFORMATION
Site Name: Client Name:
Date: AFL Equip. Model N.
ANTENNA SYSTEMS
Model Gain Azimuth Comments
A - Service Antenna
B – Donor Antenna
Type Loss Length Comments
C – Service Feeder
D – Donor Feeder
INITIAL PARAMETERS
E – CE Output Power dBm
F – Antenna Isolation dB
G – Input signal level from donor BTS dBm
Operating Voltage V
DOWNLINK CALCULATIONS
Parameter Comments Value
Input signal level (G) dBm
CE max. o/p power (E) dBm
Gain setting E - G dB
Isolation required (Gain + 10dB) dB
Service antenna gain (A) dB
Service antenna feeder loss (C) dB
Effective radiated power (ERP) E+A-C dBm
Attenuator setting CE gain-gain setting dB
If the input signal level in the uplink path is known and steady, use the following calculation
table to determine the gain setting. If the CE features Automatic Gain Control the attenuator
should be set to zero and if not, then the attenuation setting for both uplink and downlink
should be similar.
UPLINK CALCULATIONS
Parameter Comments Value
Input signal level dBm
CE max. o/p power (E) dBm
Gain setting dB
Required isolation dB
Donor antenna gain (B) dB
Donor antenna feeder loss (D) dB
Effective radiated power (ERP)E+B-D dBm
Attenuator setting (CE gain-gain setting) dB
