Echo®Wireless
Vibration System
A simple, affordable, effective wireless vibration system
visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
IMI Sensors - A PCB Piezotronics Division
Why use valuable manpower to collect
vibration data on healthy machines? Why
settle for measurements once a month
when you can have them multiple times
daily? Why have people venture into
unsafe areas to collect routine
measurements? Echo® Wireless
Vibration Sensors can safely “look” at the
machine’s health several times per day
and provide immediate notification when
warning or critical levels are reached. This
frees up technical experts, like certified
vibration analysts, for higher value tasks
such as fault analysis.
■Transmits very long distances
■Batteries last up to 10 years
■Eliminates expensive cable runs
■Requires no repeaters, networks, or mesh
■Run stand alone or with junction box
■Stores data in ODBC format
■Easily installed
4visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
The Echo® Wireless Vibration Sensor is a stand
alone, battery powered, industrial vibration sensor.
At the default setting of three measurements per
day (user programmable) battery life approaches 10
years. A Raw Vibration (RV) output version includes
an integral connector that can be used with an
optional cable and a standard vibration data
collector for fault analysis. The sensor can be programmed via RS-232 to set the transmission
(collection) interval and a Residual Vibration Level (RVL) if desired. Echo® has an LED that
provides visual feedback on the status of the sensor, including: on, off, measuring,
transmitting, or changing states. The sensor has an embedded magnetic switch and can be
activated or deactivated by holding a strong magnet next to the sensor. Upon activation, the
sensor makes and transmits a set of measurements.

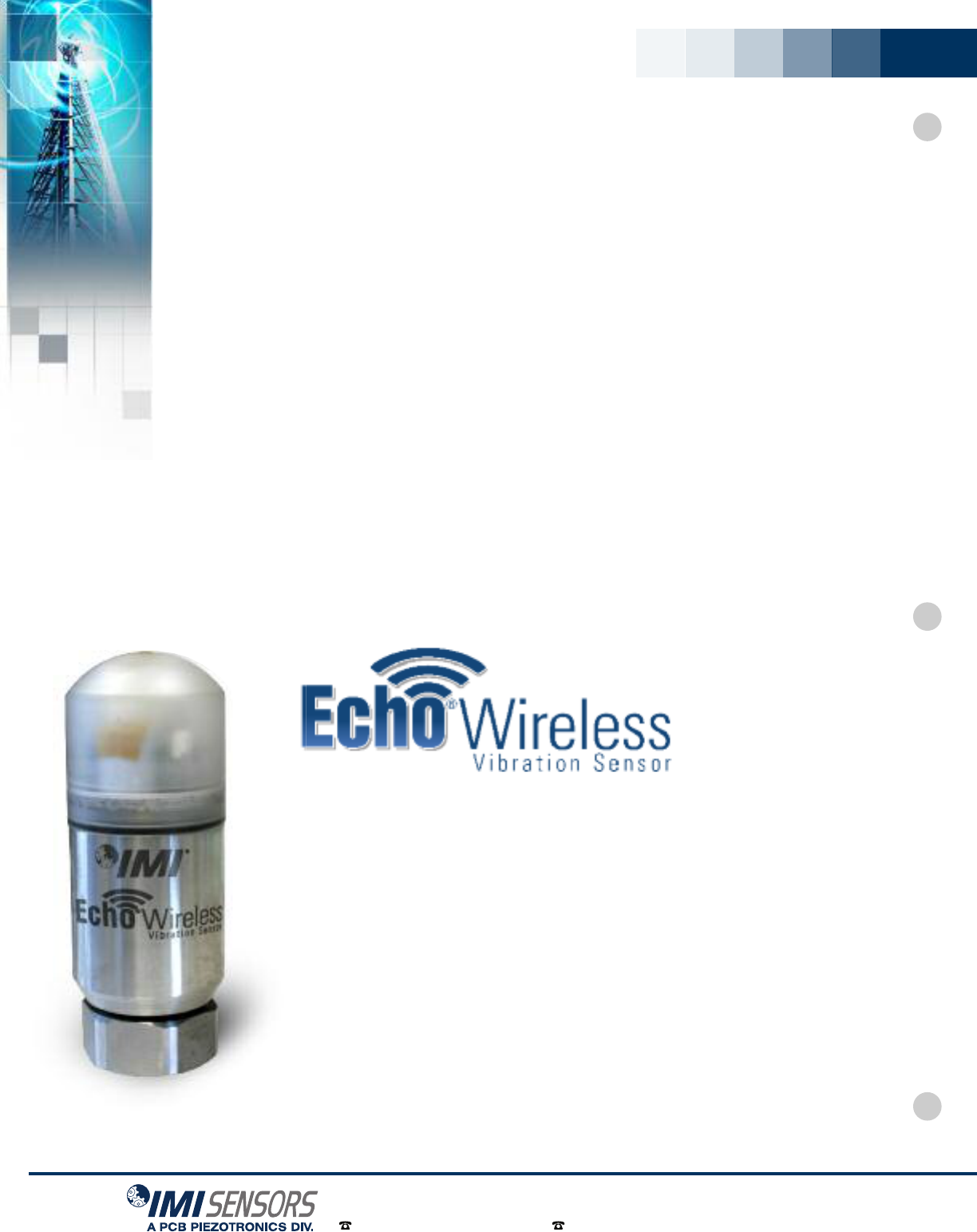

Model 670A01
Wireless Vibration Sensor
■Placeholder Bullet Point One
■Placeholder Bullet Point Two
■Placeholder Bullet Point Three
Echo®Wireless
Vibration System
The Echo® Wireless Vibration Sensor and the EchoPlus® Wireless Junction Box make the set of overall vibration
measurements, listed below, that are sure to provide early warning of most common machine faults. In addition to
these measurements, Echo® provides accurate battery status. Using a user programmable vibration threshold,
Echo® can detect if the machine is not running, and if not, skip a measurement to conserve battery power. It also
has an optional Raw Vibration Output (requires optional Model 070A86 cable) for use with a portable data collector.
Introduction
■RMS Velocity - for “balance-of-plant” faults such as unbalance, misalignment, and flow problems
■RMS Acceleration - for higher frequency faults and high frequency energy (HFE) such as high speed
gear mesh, broken rotor bars, and loss of bearing lubrication
■True Peak Acceleration - for bearing, gear, and impulsive faults, including looseness
■Crest Factor – for fault severity indication
5
visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
Echo Wireless Vibration System
LIFETIME WARRANTY
Products Guaranteed for Life & More!
Model 673A01
Wireless Reciever
■Placeholder Bullet Point One
■Placeholder Bullet Point Two
■Placeholder Bullet Point Three

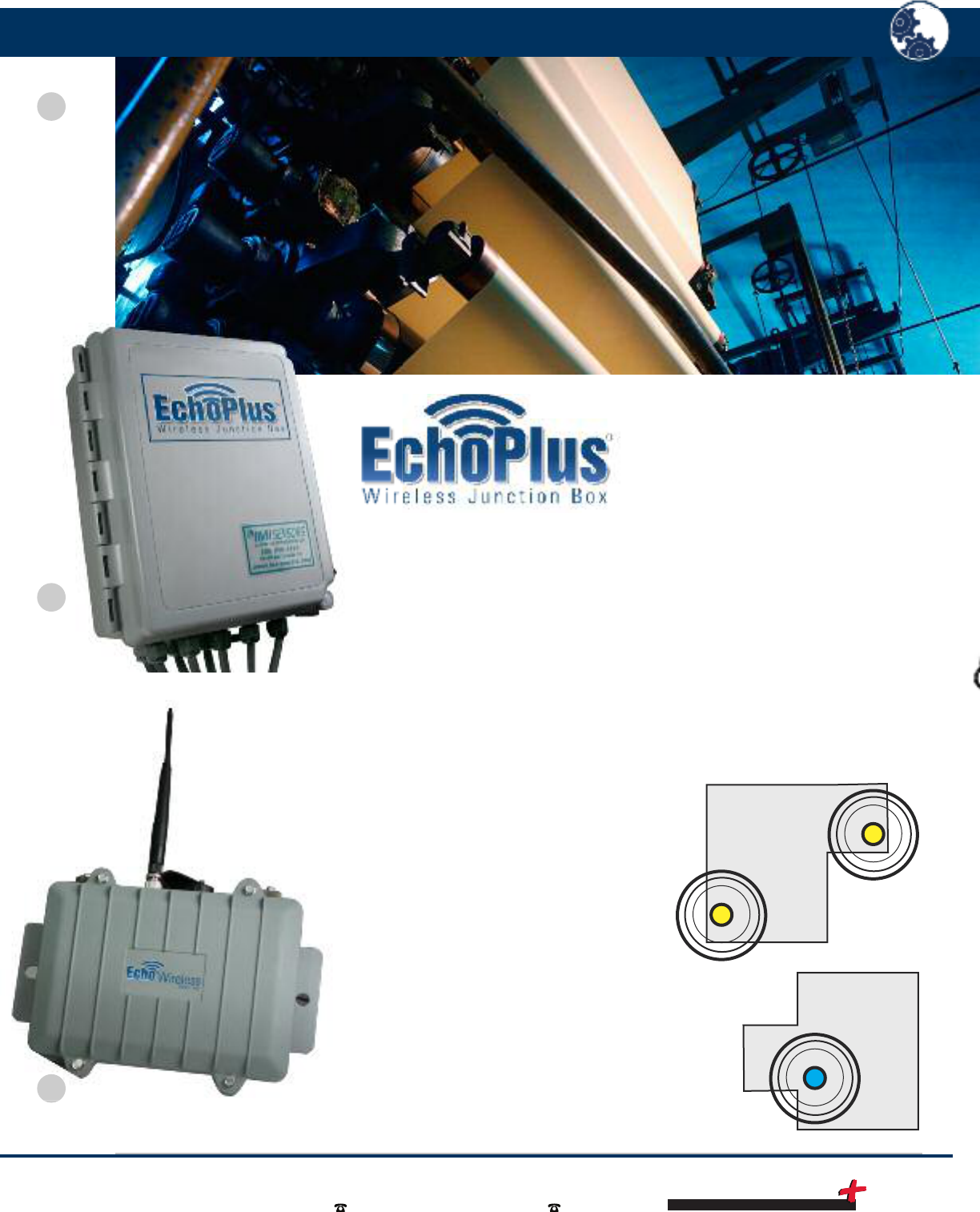

The EchoPlus® Wireless Junction Box is an 8-channel
junction box that instantly converts installed industrial
sensors to wireless operation. This incredibly economical
device periodically powers each sensor, makes the same set
of overall measurements as Echo®, and transmits them
wirelessly. The default transmission interval is 8-hours but
is user programmable. Additionally, it operates as a
standard junction box allowing full data collection with a portable data collector at the box. It can be
powered using either standard 24 VDC or any battery between 6 and 14 VDC. The unit can be used by
itself or in conjunction with an existing junction box by simply jumping wires between them.
Model 627A01
Wireless Vibration Sensor
■Placeholder Bullet Point One
■Placeholder Bullet Point Two
■Placeholder Bullet Point Three
The Echo® Wireless Vibration Sensor and the
EchoPlus® Wireless Junction Box make the set of
overall vibration measurements, listed below, that
are sure to provide early warning of most common
machine faults. In addition to these
measurements, Echo® provides accurate battery
status. Using a user programmable vibration
threshold, Echo® can detect if the machine is not
running, and if not, skip a measurement to
conserve battery power. It also has an optional
Raw Vibration Output (requires optional Model
070A86 cable) for use with a portable data
collector.
6visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
Direct point to point
transmission
typical distance = 1 mile
Echo®System Diagram
Monitored Machinery
Echo®Wireless Vibration Sensors
Echo®Wireless
Reciever
Echo®Wireless Vibration Sensor
& EchoPlus Wireless Junction Box
EchoPlus®Wireless
Junction Box
Traditional,
Wired Sensor
Echo®
Wireless
Sensor
Additional
Antenna Option
EchoPlus®
requires 24 VDC
power or 6-14 VDC
battery power
EchoPlus® requires
24 VDC power or 6-14
VDC battery power
DHCP or static IP
addressing for
recievers
Data collector connects directly
to wireless vibration sensor or
wireless junction box
Echo®Wireless Reciever
7
visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
Echo Wireless Vibration System
LIFETIME WARRANTY
Products Guaranteed for Life & More!

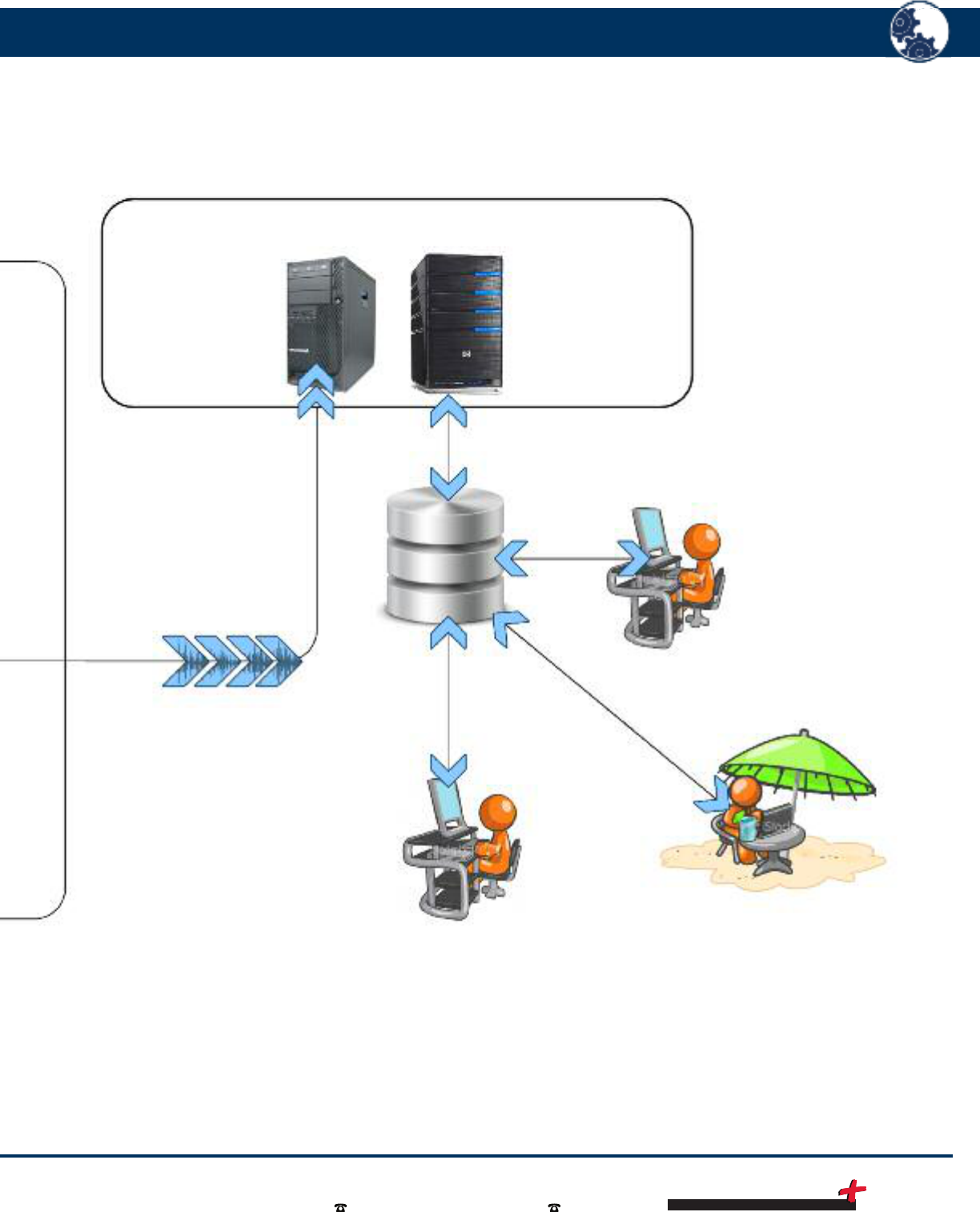

PC’s Running WinXP or Win7 & Echo™ Data
Server SW Robust data presentation SW
including Plots, reports, alarms, and status
Remote Access to SQL Database
through internet with VPN
Monitor stations have all the same
functionality of server, but do not store data
■Trend Plots
■Status
■Alarms
■Trend plot
■Reports
■Echo®sensor
configuration utilities
Ethernet
MS SQL Server 2005
PCB Echo Software
SQL Database
Echo® Data Server
Echo® Sensor Data
TCP/IP
TCP/IP
■Collects Transmissions
■Formats Data
■Stores in Database
■Generates Alarm Email
Echo® Data Client
■Trend Plots
■Status
■Alarms
■Reports
■Sensor
Configuration
Echo® Data Server Only
■Trend Plots
■Status
■Alarms
■Reports
■Sensor
Configuration
Echo® Data
Server Only
■Trend Plots
■Status
■Alarms
■Reports
■Sensor
Configuration
Echo® Data
Server Only
Server instance is fully
functional SW that also
stores sensor
transmissions in
database
8visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003

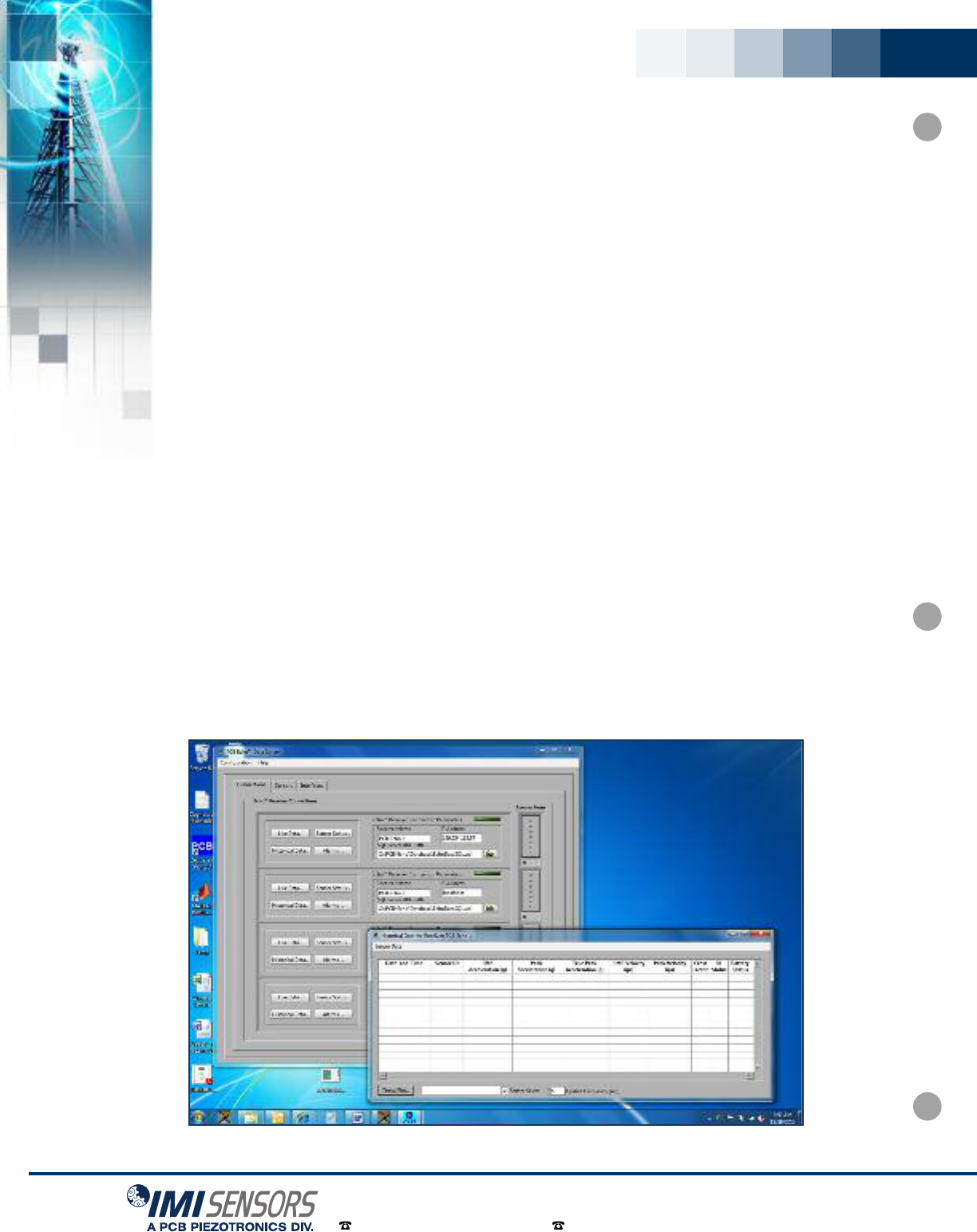

Echo®Data Server
and Database
■Configuration utilities to setup a machinery database and set alarms levels
■Tabular displays to view live and historical data.
■System level sensor status display to warn of low batteries,
low RF signal, or missed measurements
■Alarm reporting - graphically via system status screens
and electronically via email
■Single and multi-sensor plot displays with alarm levels to show trends
■Hardcopy report generation for last transmission and alarm events
■Additional utilities to query and program Echo® Sensors,
EchoPlus® Junction Boxes, and Echo® Receivers.
Echo® sensor data is stored in a Microsoft SQL Server 2005 database. The format is published in the
User’s Manual so it can be accessed by users directly using any ODBC compliant application. The data can
also be exported to a tab delimited spreadsheet file that is suitable for use with Excel or other data
viewing applications for post processing. Additionally, IMI is working on interfaces to legacy condition
monitoring programs and plant monitoring systems. Contact IMI for details.
The Echo®Data Server Software provides two major functions
■Collect transmission data reported by the receiver and
store in in the SQL database
■Present Echo® sensor data to the user through an intuitive
and concise interface the includes:
9
visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003
Echo Wireless Vibration System
LIFETIME WARRANTY
Products Guaranteed for Life & More!
Common Specifications
Measurements & Data Provided Specifications
Date / Time
Sensor ID
RMS Velocity
Derived Peak Velocity 1.414 x RMS Velocity
RMS Acceleration
Derived Peak Acceleration 1.414 x RMS Acceleration
True Peak Acceleration 3.7 sec time sample @ 61.4 kHz sample rate
Crest Factor True Peak / RMS
Acceleration Maximum Value = 16
Battery Status 4-levels, status on previous transmission @
max load
RF Status 4 - levels
Noise Power Instantaneous power
level of the RF background noise
Average Power Average power level of the transmission
Average SNR Average SNR of transmission
Radio & Standard Specification
Radio Standard Extended Range RF (ERRF)
Modulation Mode Binary Frequency Shift Keying (BFSK)
Receiver Noise Floor -155dBm
Radio Sensitivity -145 dBm
Frequency Band (unlicensed ISM) 902-928 MHz (FCC Part 15.249)
Effective Radiated Power (ERP) 0.75 mW (50 mV / m @ 3 meters)
Transfer Rate 20 bps
Number of Frequency Bands 12
Number of receivers handled
by a host computer Network capability dependent
Sensors per receiver @ 3 meas/day,
1% miss rate typical ~400
Sensors per receiver @ 3 meas/day,
5% miss rate typical ~2000
Sensor/Junction Box Antenna Integral 0.433 inch Ceramic Chip
Certifications FCC (USA) & IC (Canada)
Performance Specification
RMS Velocity Analog Integration
Velocity HP Filter 2 Hz, 1-pole RC
Velocity LP Filter 2400 Hz, 3-pole Chebyshev
Velocity Resolution 0.001 ips
Velocity Range ± 4.096 ips
Derived peak velocity 1.414 x RMS Velocity
RMS Accleleration (HFE) Time Sample Sum
Acceration HP Filter 2000 Hz, 4-pole Chebyshev
Acceration LP Filter 15k Hz, 3-pole Chebyshev + 1-pole RC
Acceleration Resolution 0.005 g
Acceleration Range ± 20.48 g
Derived Peak Acceleration 1.414 x RMS Acceleration
True Peak Acceleration (absolute value)
@ 61.4 kHz sample rate ≥50 s pulse width
Crest Factor True Peak / RMS Acceleration
Maximum Value = 16
ADC/dynamic range 16 bit / >90 dB
Residual Vibration Level (RVL)
If RVL = 0 Collect on normal transmission period
If RVL > 0 Check at normal transmission period and
collect data only if RMS velocity > RVL
Operation Status Indicator LED
Echo®Wireless Vibration Sensor Specs
Echo®Environmental
Specifications
Overload Limit (Shock) 100 g
Temperature Range (Electronics) -20° to 70° C (-4 to 158° F)
Temperature (Base) -54° to 121° C (-65° to 250° F)
Humidity 5% - 95%, non-condensing
Enclosure Rating IP66
Echo®Electrical
Specifications
Power Saft 7.2V Lithium Battery, 100-9206-10
Replaceable Yes
Electrical Isolation (Case) >108 ohm
Frequency Response (±3 dB) 3 Hz to 15 kHz
Channels 1 (single channel)
Raw Vibration Output Connector 4-pin optional, also requires optional 070A86
cable
Echo®Physical
Specifications
Sensor Module Dimensions
Base Assembly 1-3/8" Hex
Housing 1.65" Dia
Height (overall) 4.4"
Mounting Surface 0.87" Dia
Weight (including battery pack) 450 g (15.9 Oz)
Mounting Thread 1/4-28 Female
Mounting Torque 2 to 5 ft-lb
Sensing Element (IMI 66213LPZ1) Ceramic Shear
Sensor Module Material
Base 304 Stainless Steel
Echo®Plus Wireless Junction Box Specs
Echo®Plus Environmental
Specifications
Temperature Range (Electronics) -20° to 70° C (-4 to 158° F)
Humidity 5% - 95%, non-condensing
Enclosure Rating NEMA 4x
Echo®Plus Electrical
Specifications
Power 24 VDC or 6 - 14 V Battery
Channels 8
Raw Vibration Output Connector BNC Jack
Sensors Supported ICP® (IEPE) 10 - 500 mV/g or PE
with inline charge converter
Sensors Settling Time ≤5 s
Frequency Response Sensor dependent
Echo® Physical
Specifications
Input Connector Terminal Strip
Enclosure Material Fiberblass
Size (h x w x d) 8 x 6 x 4 in
Weight (including battery pack) 2.9 lb
10 visit us online at www.imi-sensors.com
Toll-Free in USA 800-959-4464 716-684-0003

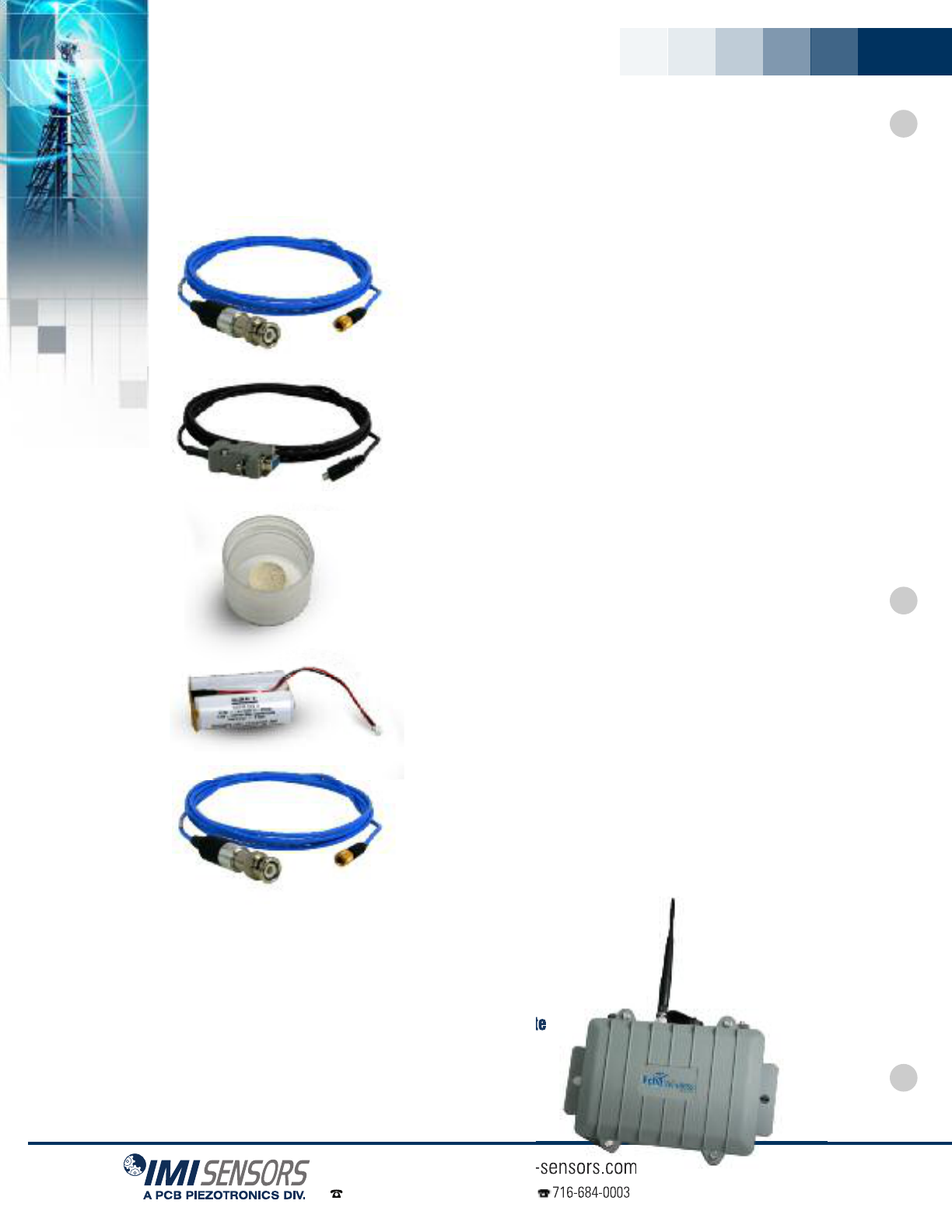

Echo®Wireless Accessories
Predictive Maintenance
Model 07086
Echo® RV Output Cable
When used in conjunction with a portable data collector, it
converts standard sensor power to the low voltage required by
Echo® and allows normal broadband data collection with the
RV Echo® Sensor.
Model 07087
Echo® Programming Cable
This special RS-232 to Micro USB cable allows serial
communication with the mating Micro USB connector in the
Echo® Sensor.
Model 070A88
Echo® RV Shorting Cap
This is used on the RV670A01 Echo® Sensor for normal
wireless use. When removed, the Model 070A86, Echo® RV
Output Cable can be used for data collection with a portable
data collector.
Model 073A2D
Echo® Replacement Battery Kit
The kit includes a battery pack, o-ring, silicon grease, foam
compressor, and instructions.
Model 07086
Echo® RV Output Cable
When used in conjunction with a portable data collector, it
converts standard sensor power to the low voltage required by
Echo® and allows normal broadband data collection with the
RV Echo® Sensor.
Antennas, Low Loss Antenna Cable, and Antenna
Accessories are available through many commercial
outlets such as L-com. IMI Sensors can, however, quote
these if desired. Contact IMI for details.
Correct Photo
Needed
Correct Photo
Needed
Additional
Items to be
added
