User Manual
Quick Start Guide
Start Here

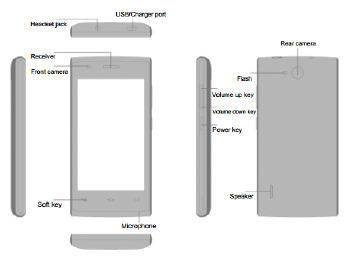

Phone overview
Knowing the Keys
Key Function
Power Key
Press and hold to power
on, or power off.
Press to turn off or on the
screen display.
Long Press 10-12 Sec to
reboot handset.
Home Key
Touch to return to the
Home Screen from any
application or screen.
Touch and hold to open
Google app
Menu Key
Touch to get the options
for the current screen.
Touch and hold to switch
between recent apps.
Back Key Touch to go to the
previous screen.
Volume Up/
Down
Press or hold to turn the
volume up or down.
Getting started
1. Please make sure that the phone is powered off
before proceeding.

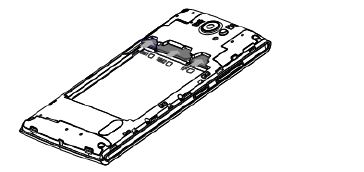

2. Install Micro SIM card
SIM Slot 1: Micro SIM card slot
SIM Slot 2: Mini SIM card slot
Note: 4G LTE works in both SIM Slots individually, but
not simultaneously (i.e. One SIM slot works as 4G LTE
and other as 2G based on the Data subscription set).
Screen
Flame 7S features a larger 4 inch with 1280*720
Resolution which makes your phone look fascinating.
Screen lock
You can increase the security of your phone by
selecting screen lock .Screen lock settings can be
found under “Settings”>“Security”> “Screen lock”.
Customize home screen
In standby mode, touch and hold an empty area to add
set wallpapers. You can also remove items from the
home screen, move items, and add items to home
screen to customize the home screen.
Camera
Flame 7S is equipped with 0.3 MP front camera and
5.0 MP rear camera, which are designed for you to
share wonderful moments with friends and family.
Exposure, zoom in or zoom out, switch between
cameras by flipping the icon on the screen and switch
between the functions.
Internet
You can enjoy network by selecting 4G, 3G, WLAN,
and GSM. Enjoy music, videos, apps and news
anywhere and anytime as you like.
Make a call
You can make a call under the interface of speed dial,
recent, contacts (which contains a phone number). In
standby mode, press call key to make a call.
Messaging
Touch the text box to select an input method. You can
insert smiley, picture, audio or video files and send to
single or multiple recipients.
Email
The email app enables you to read, compose and send
emails, and is configured to work with all the major
service providers. Flame 7S supports multiple account
mode and you may not miss any email.
Music
Flame 7S supports various music formats as
mp3,m4a,aac,3gp,ogg,wav and mid.
Videos
To enjoy a visual feast in a variety of video formats,
please choose Flame 7S. You may trim, mute and
share a video. Supports video formats as mpeg4, mp4,
3gp, 3gpp, 3gpp2, webm, avi and mpeg
Photos
You will find it very easy to view all the photos. Flick
right or left to move among images. Double-tap or
pinch the photo to zoom. You may edit, rotate, crop
share, and print a photo. Supports photos formats as
bmp, gif, jpg, png and wbmp.
Intelligent keyboard
Flame 7S automatically corrects and suggests words
as you type and it also supports pictures and audio
input.
Cut, copy and paste
Touch and hold text content to bring up the magnifying
glass, and then slide your finger to move the insertion
points. Then tap to cut, copy, or paste. It is very easy to
copy text from web pages, email or text messages.
Map
You can view satellite images or street map with
detailed route instructions just as you are walking in
the street. The Map app can be used to locate yourself,
view real-time traffic conditions, pedestrian, bus routes
or car driving route instructions.
Extending Battery Life
Few points, to improve battery life.
• Turn OFF radio services i.e. Wi-Fi, Bluetooth and
GPS, when not needed.
• Keep screen brightness on Auto Mode.
• Use Bluetooth tethering or USB tethering (when you
have a cable) instead of portable Wi-Fi hotspot to
share your phone’s data service.
• From the home screen, hold the menu key to close
the recent apps running in background.
Note:
Due to non-usage of Phone for long time battery may
be drained out and it needs to be connect with charger
and allow battery to charge about 30-40 minutes in off
state. If still the problem persists, suggested to visit the
nearest Device Care Centre.
Correct disposal
Do not dispose off your mobile and its battery in fire.
Do not dispose your mobile with the regular waste.
For proper disposal please contact customercare.
This marking on the product, accessories
or literature indicates that the product
and its electronic accessories (e.g.
charger, headset, and USB cable)
should not be disposed of with other household waste.
This product is RoHS compliant.
This marking on the battery, manual or
packaging indicates that the batteries in
this product should not be disposed of
with other household waste.
Safety information
Read all safety information before using the device to
ensure safe and proper use.
Warning
Following are the warning information provided
below to prevent incidents such as fire or
explosion
Do not expose the device to physical impact or
damage.
-Do not carry your device in your back pockets or
on your waist.
Use manufacturer-approved batteries, chargers,
accessories, and supplies
Prevent the multipurpose jack and battery terminals
from contacting conductive elements, such as metal
or liquids.
Do not touch the device with wet hands. Also, do
not use the device in humid environments, such as
rest rooms, or during water-based activities, such
as swimming.
If any part of the device is cracked or broken, or if
the device becomes very hot, stop using the device
immediately and take it to a Device care Centre.
Do not turn on or use the device when the battery
compartment is exposed
Following are the warnings below to prevent injury
to people or damage to the device
Do not allow children or animals to chew or suck the
device.
Do not poke eyes, ears, or other body parts with the
device or insert the device into the mouth.
If the device has a camera flash or light, do not use
it close to the eyes of people or animals.
Do not store your device in very hot or very cold
areas. It is recommended to use your device at
temperature between 5Ԩ to 35Ԩ.
Do not store your device near or in heaters,
microwaves, cooking equipment, or high pressure
containers.
Keep your device dry.
Do not use your device outdoor during a
thunderstorm.
Comply with all safety warnings and regulations
regarding mobile device usage while operating a
vehicle
To prevent possible hearing damage
when using a headset, do not listen to
sound at high volume for long periods.
Specific Absorption Rate (SAR)
Certification information
Precautions:
Use a wireless hands-free system (headphone,
headset) with a low power Bluetooth emitter
Make sure the cell phone a low SAR
Keep your calls short or send a text message (SMS)
instead. This advice applies especially to children,
adolescents and pregnant women.
Use cell-phone when signal quality is good.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over
one gram of tissue. Device types 4G Smart Phone /
(FCC ID: 2ALJJ-PL4002) has also been tested against
this SAR limit. SAR information on this and other pad
can be viewed on ‐line
at http://www.fcc.gov/oet/ea/fccid/. Please use the
device FCC ID number for search. This device was
tested for typical body-worn operations with the back of
the handset kept 10mm from the body. To maintain
compliance with FCC RF exposure requirements, use
accessories that maintain a 10mm separation distance
between the user's body and the back of the handset.
The use of belt clips, holsters and similar accessories
should not contain metallic components in its assembly.
The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTE 1: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
NOTE 2: Any changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
