Verizon Wireless
Samsung 4G LTE
SCH-LC11 - Mobile Hotspot
User Manual
Please read this manual before operating your
phone and keep it for future reference.
SCH-LC11_UM_English_FL06_PS_010413_F3
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Galaxy Player, including but not limited to, accessories, parts, or software relating there to (the “Galaxy
System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the
rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain
with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser
General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered
under the open source licenses, please visit:
http://opensource.samsung.com
.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR
ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS
OR BENEFITS.
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS,
OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY.
Samsung Telecommunications America (STA), LLC
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
Internet Address:
http://www.samsung.com
©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Do you have questions about your Samsung Mobile Device?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
1
Table of Contents
Section 1: Getting Started .......................... 3
Understanding this User Manual . . . . . . . . . . . . 3
4G LTE SIM Card . . . . . . . . . . . . . . . . . . . . . . . 3
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Turning Your Device On and Off . . . . . . . . . . . . 7
Section 2: Understanding Your Device ...... 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Section 3: Connecting Your Device .......... 12
System Requirements . . . . . . . . . . . . . . . . . . 12
Connecting to Your Device . . . . . . . . . . . . . . . 12
Section 4: Admin Page ............................. 15
Internet Connection . . . . . . . . . . . . . . . . . . . . 16
WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 5: Network ................................... 18
LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Section 6: Securing Your Device ..............22
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MAC Filtering . . . . . . . . . . . . . . . . . . . . . . . . . 23
Port Filtering . . . . . . . . . . . . . . . . . . . . . . . . . 24
Section 7: Configuring Your Device ..........26
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Config File . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . 30
Section 8: Health and Safety
Information .................................................32
Exposure to Radio Frequency (RF) Signals . . . 32
Specific Absorption Rate (SAR) Certification
Information . . . . . . . . . . . . . . . . . . . . . . . . . 32
FCC Part 15 Information to User . . . . . . . . . . . 33
Radio Frequency (RF) Energy . . . . . . . . . . . . . 34
Knowing Radio Frequency Safety . . . . . . . . . . 34
FCC Radio Frequency Emission . . . . . . . . . . . 35
Samsung Mobile Products and Recycling . . . . 35
2
UL Certified Travel Charger . . . . . . . . . . . . . . . 36
Battery Use and Safety . . . . . . . . . . . . . . . . . .36
Care and Maintenance . . . . . . . . . . . . . . . . . .38
Operating Environment . . . . . . . . . . . . . . . . . . 39
Restricting Children's Access to Your
Wireless Mobile Device . . . . . . . . . . . . . . . .41
FCC Notice and Cautions . . . . . . . . . . . . . . . . . 41
Other Important Safety Information . . . . . . . . . 42
Section 9: Warranty Information ..............44
Standard Limited Warranty . . . . . . . . . . . . . . .44
End User License Agreement for Software . . . . 49
Index ...........................................................57
Getting Started 3
Section 2: Getting Started
Understanding this User Manual
The sections of this manual generally follow the features of
your device. A robust index for features begins on page 57.
Also included is important safety information, beginning on
page 32, that you should know before using your device.
This manual gives navigation instructions according to the
default display settings.
4G LTE SIM Card
The 4G LTE SIM (Subscriber Identity Module) card, is a smart
card that stores data for 4G LTE CDMA cellular telephone
subscribers.
Installing the 4G LTE SIM Card
1. Remove the battery cover and the battery if installed.
2. Carefully insert 4G LTE SIM Card with the Verizon
Wireless logo facing you into the slot.
The 4G LTE SIM Card MUST remain in the mobile hotspot
when in use.
Note:
Your 4G LTE SIM (Subscriber Identity Module) Card is a
small rectangular plastic card that stores your phone
number and important information about your wireless
service.
Caution!
Do not bend or scratch your 4G LTE SIM Card. Avoid
exposing your 4G LTE SIM Card to static electricity,
water or dirt.
4
Removing the 4G LTE SIM Card
To remove the 4G LTE SIM card, carefully slide the 4G
LTE SIM card out of the SIM card socket.
Note:
Should your 4G LTE SIM Card be lost or damaged please
call
1-800-922-0204 to speak with a Customer Service
Representative. From outside the U.S. call
+ 1-908-559-4899 for 24/7 Global Support.
The Verizon Wireless 4G LTE SIM Card is compatible
with any Verizon Wireless 4G LTE certified device. You
can move the 4G LTE SIM Card from one device to
another and your wireless service will work seamlessly
as long as you have a compatible device and service
plan. To see which devices are compatible with the
Verizon Wireless 4G LTE SIM Card, visit
verizonwireless.com/certifieddevice.
For additional information about 4G LTE SIM Cards, visit
verizonwireless.com/4GSIM.
Getting Started 5
Battery
Your device is powered by a rechargeable, standard Li-Ion
battery. A Wall/USB Charger (Charging Head and USB cable)
are included with the device, for charging the battery.
Note:
The battery comes partially charged. You must fully
charge the battery before using your device for the first
time.
After the first charge, you can use the device while
charging.
Battery Indicator
Normally, this should be left enabled, so that this device will
appear in the list of
Available Wireless Networks
on your PC or
portable device. If disabled, this device will not be listed, or
will it be listed as
Unknown SSID
,
SSID not broadcast
or
similar.
Battery Power
Battery Power when enabled allows your device to
automatically power off after idle for a specified period.
Note:
By default the device is set to turn off after being idle for
30 minutes.
Enabling Automatic Turn Off
1. From the administration Home screen, select
Configuration
➔
Power
.
2. Open the
Turn off:
drop down menu and select an
option
➔
Apply
to save changes.
Tip:
To prevent automatic turn off, select the option
None
.
Note:
This setting has no effect when using the USB
connection.
6

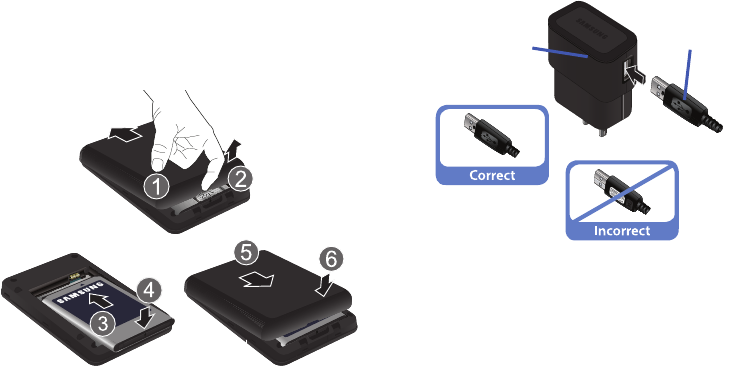

Installing the Battery
Remove the cover by placing your fingernail in the opening
and firmly pop the cover from the device (1 and 2). Insert the
battery into the phone housing, align both sets of gold
contacts and press down (3 and 4). Press down on the
corners of the battery cover to snap into place (5 and 6).
Charging the Battery
1. Connect the USB cable to the Charging Head.
Charging Head USB Cable
Getting Started 7
2. Insert the USB cable into the Charger/Accessory Port.
3. Plug the charging head into a standard AC power
outlet.
Warning!
Please only use an approved charging accessory to
charge your device. Improper handling of the
Charging/Accessory Port, as well as the use of an
incompatible charger, may cause damage to your
device and void the warranty.
Turning Your Device On and Off
Turning Your Device On
Press and hold the
Power Key
( ) to turn the device
on.
Turning Your Device Off
Press and hold the
Power Key
( ) for three seconds
to turn the device off.
L
TE
8
Resetting Your Device
Resetting your device restores all factory defaults. You may
need to reset your device if you cannot connect device(s) to
your Samsung 4G LTE Mobile Hotspot.
Remove the battery cover, press and hold the
Reset/WPS key
on the left side of the device for
10 seconds. Hold the
Reset/WPS key
until all LEDs
turns white to return device to default setting.
Understanding Your Device 9
Section 3: Understanding Your Device
Features
1.
4G LTE Network LED
: Displays one of the following:
• Solid green
: Strong signal
• Solid yellow
: Weak signal
• Solid red
: No signal
• Interchanging colors
: Roaming
• Solid red
: Service failure
2.
Reset/WPS Button
: Returns device to default settings.
3.
Charging Port
: Plug in a USB cable for charging.
4.
3G Network Status LED
: Displays one of the following:
• Solid green
: Strong signal
• Solid yellow
: Weak signal
• Solid red
: No signal
• Interchanging colors
: Roaming
• Solid red
: Service failure
5.
Power Button
: Press and hold to turn the device on or
off.
6.
Wi-Fi Status LED
: Displays one of the following:
• Solid blue
: Wi-Fi connected
• Blinking blue
: Transferring data
• Solid green
: Wi-Fi standby
• Blinking green
: Wi-Fi protected setup (WPS) mode
1
6
5
4
3
2
10
Indicators
LED Service Status Indicator
* Wi-Fi Protected Setup (WPS) is a standard for easy and
secure establishment of a wireless home network.
ICON STATUS
POWER
Travel
adapter
not
connected
Solid green
: Battery 100-20%
Solid yellow
: Battery 20-6%
Solid red
: Battery 5 -1%
Travel
adapter
connected
Solid green
: Fully charged
Solid green
: Charging
Blinking green
: Charging
interruption
• temperature related
Blinking red
: Charging error
ICON STATUS
Wi-Fi
Solid blue
: Wi-Fi connected
Blinking blue
: Transferring data
Solid green
: Wi-Fi standby
Blinking green
: Wi-Fi protected setup (WPS)
mode*
Network
Status
Solid green
: Strong Signal
Solid yellow
: Weak Signal
Solid red
: No signal
Interchanging colors
: Roaming
Solid red
: Service failure
Network
Status
Solid green
: Strong Signal
Solid yellow
: Weak Signal
Solid red
: No signal
Interchanging colors
: Roaming
Solid red
: Service failure
Understanding Your Device 11
Combined Indicators
Note:
*During Over The Air Device Management (OTADM)
Downloading, the LEDs turn on in sequential order
(4G LTE ➔ 3G ➔ Wi-Fi ➔ Power).
Network
Status
Network
Status
Wi-Fi Power
DESCRIPTION STATUS
OTADM
Downloading*
BLINKING
BLUE
BLINKING
BLUE
BLINKING
BLUE
SOLID
GREEN
OTADM
Downloading
Complete
BLINKING
BLUE
BLINKING
BLUE
BLINKING
BLUE
SOLID
GREEN
OTADM
Updating
SOLID
BLUE
SOLID
BLUE
SOLID
BLUE
SOLID
GREEN
NO SIM
NO Wi-Fi,
Pin Lock
BLINKING
RED
BLINKING
RED
BLINKING
RED
SOLID
GREEN
12
Section 4: Connecting Your Device
With your new mobile hotspot and your computer, a wireless
Internet connection can always be at your fingertips.
System Requirements
•
Wi-Fi 802.11b/g/n connectivity
If you choose to connect with a USB cable, your computer
will need the following minimum system requirements:
•
One Type-A USB Port
Note:
Samsung 4G LTE Mobile Hotspot does not support USB
cable connections for use as a modem.
The USB cable is for charging only
.
Connecting to Your Device
Note:
It is recommended the battery be fully charged in order
to use your device via Wi-Fi for the first time, or connect
your device to the AC wall charger for power.
The following should occur once you press the
Power Key
():
•
Your device is powered as soon as you press the
Power Key
()
and the Power LED lights up solid green (if there is more
than a 20% charge.)
•
Once your device is powered and has been activated, it
automatically connects to the Internet provided that Mobile
Broadband service is available and one or more Wi-Fi devices are
connected with your device.
•
The 3G and/or 4G LTE Status LED indicator on the device lights
solid green (if there is more than a 20% charge) to indicate the
device is in service and ready to connect.
Connecting Your Device 13
1. Use your normal Wi-Fi application on your mobile
device (e.g. laptop, tablet, smartphone, etc) to
establish a connection to your mobile hotspot.
2. Look for the network (SSID) named “
Verizon SCH-LC11
XXXX secure.
” The XXXX is unique to your device
following the network (SSID) name displayed.
The XXXX is the last 4 digits of MAC address.
Note:
The password is digits 7-14 of your IMEI number. If the
IMEI number is “123456789012345”, the password is
“78901234”.
3. Click or touch
Connect
and enter the default password
located on the back of the device or under the battery
cover.
Connecting to Your Device via WPS
1. Press the
Power Key
()
to turn the device on.
2. Remove the battery cover and press the
Reset/WPS key
on the left side of the device for 0.5 seconds.
3. On your Wi-Fi enabled device, enable
WPS connection
.
Note:
WPS Connection usually can be found under the
Wi-Fi Settings
menu.
SS ID :
Verizon SCH-LC11-XXXX
Password : 78901234
14
4. The Wi-Fi LED on LC11 will blink green.
After a moment, you should see activity on the Wi-Fi
enabled device showing connection state.
5. The Wi-Fi LED on the LC11 will turn solid blue once
connected.
Admin Page 15
Section 5: Admin Page
While using your Samsung LC11, configure the modem using
the Web user interface, enter
http://192.168.1.1.
in your web
browser, on you laptop or tablet to open the Admin Page.
Enter your password and click or touch
Apply
.
Note:
The default password is digits 7-14 of your IMEI number.
If the IMEI number is “123456789012345”, the
password is “78901234”. The password is located
under the battery cover.
Note:
The default mode is Secure. Use the Web Server to
update settings.
Select
Admin/Home
()
[from the upper-left of the
screen] to launch the Admin page (also known as the Home
page).
Home
Button
16
Internet Connection
•
Received
: For the current connection, the amount of data
received.
•
IP Address
: The Internet IP address assigned to this device.
•
Transmitted
: For the current connection, the amount of data
transmitted.
•
Mask
: The network mask associated with the IP address above.
•
Connected Time
: For the current Internet connection, the period
of time which has elapsed since the connection was established.
•
Gateway
: The gateway IP address associated with the IP address
above.
•
DNS
: The Domain Name Server currently used by this device.
WLAN
•
Profile
: The Wi-Fi (802.11) profile currently in use. You can
change this by selecting a different profile, and clicking the
Apply
button next to the profile list.
•
Network Name
: The SSID (network name) used by the current
profile.
•
IP Address
: The IP address of this device, as seen by devices on
the WLAN (802.11 wireless network).
•
Security
: The security method used by the current profile.
•
Mask
: The network mask associated with the IP address above.
•
Users
: The number of users (wireless clients) connected to this
device, and the number of wireless clients allowed. This is
presented in the form
number connected /number allowed
.
Admin Page 17
Buttons
•
Connect/Disconnect
: The button will say
Connect
if a
connection to the mobile data network is established, or
Disconnect
if the mobile data network is available but no
connection currently exists. For other situations, this button will
be grayed out. You can use this button to change the connection
state as desired.
•
Apply
: Use this button to change the current profile. Select the
desired profile, then click this button.
Note:
Changing the current profile will disconnect all the
current Wi-Fi clients, including yours. You will need to
reconnect using the Wi-Fi settings for the new profile.
18
Section 6: Network
This Network configuration tab includes both LAN and Wi-Fi
network configuration options.
Click the
Network
tab to access the options.
LAN
A Local Area Network (LAN) is a group of computers and
associated devices that share a common communications
line or wireless link inside a network. The term LAN can be
either a wired or wireless connection where devices within a
localized home or business office setting talk to each other,
in order to share data, printers, or an internet connection.
To access the LAN screen, click or touch the LAN
option in the Network section of the screen.
Network
Options
Network 19
TCP/IP
The LC11 is shipped preconfigured to use private IP
addresses on the WAN side, and to act as a DHCP server. The
router's default WAN IP configuration is:
–
WAN IP address
: 192.168.1.1
–
Subnet mask
: 255.255.255.0
Note:
These addresses are part of the IETF-designated private
address range for use in private networks, and should
be suitable in most applications. If your network has a
requirement to use a different IP addressing scheme,
you can make those changes in this menu.
–
IP Address
: This is the LAN WAN IP address of the router.
–
IP Subnet Mask
: This is the LAN WAN Subnet Mask of the
LC11 router. Combined with the IP address, the IP Subnet Mask
allows a device to know which other addresses are local to it,
and which must be reached through a gateway or router.
–
MAC Address
: Displays the device MAC address.
DHCP Server
A Dynamic Host Configuration Protocol (DHCP) server allows
your system to acquire network configuration settings from
your ISP automatically. Click or touch to enable.
•
DHCP Address Range
: The range of IP addresses reserved for
use by LC11’s DHCP server table. If a device with a static IP
address wants to connect to LC11’s network, the static IP should
be outside of the DHCP address range. Most devices do not have
a static IP.
•
Mask
: The subnet mask network setting for LC11. The default
value 255.255.255.0 is standard for small (class “C”) networks. If
you change the LAN IP Address, ensure you use the correct
Subnet Mask for the IP address range containing the LAN IP
address.
•
Gateway
: Displays the default gateway address.
•
DNS Server
: Displays the primary DNS of the present connection.
20
Connected Devices
Displays connected devices. Up to 5 devices can be
connected to your network.
Buttons
•
Apply
: Click or touch button to update the profile and also make it
the current profile.
•
Revert
: Click or touch button to returns changed profile settings
to the previous settings.
•
Refresh
: Click or touch to refresh your device listing.
Wi-Fi
Wi-Fi is a branded standard for wireless connecting
electronic devices. A Wi-Fi device, such as a personal
computer, video game console, smartphone, or digital audio
player can connect to the Internet via a wireless network
access point. An access point (or hotspot) has a range of
about 20 meters (65 feet) indoors and a greater range
outdoors. Multiple overlapping access points can cover large
areas.
To access the Wi-Fi panel, click or touch the
WiFi
option in the Network section of the panel.
Access Point
A Service Set Identifier (SSID) is the public name of your
wireless network. When enabled, others will see the Wi-Fi
network name in the list of available wireless networks.
When disabled, others will not see the Wi-Fi network name in
the list of available wireless networks. Click or touch to
enable.
Wi-Fi Configuration
This panel allows you to customize your device.
•
Current Profile
: Displays the network current profile.
•
Selected Profile
: Displays the selected network profile. Click or
touch the drop down menu to select a profile.
•
Authentication
: This feature is dependent on your security
setting. Once a secured connection has been established, you are
then provided different supported authentication types. If you
select an usecured connection this field is not available.
•
Network Name (SSID)
: Displays the network name. Click or
touch the field to enter a network ID.
•
Security
: Security provides different types of security protocols.
The protocols encrypt the data that is going between two points.
Click or touch the drop down menu to select a protocol. Protocols
are listed from least secure to most secure.
Network 21
•
Password
: Displays the current network password. Click or touch
the field and enter a new password to password-protect access
to your network. WPA provides the highest level of Wi-Fi security,
but older Wi-Fi-enabled devices may not support WPA security.
WEP security is supported by virtually all Wi-Fi-enabled devices.
•
802.11 Mode
: Displays Wireless Local Area Network (WLAN)
connection speed. Click or touch the drop down menu to select a
connection speed.
•
Broadcast Channel
: Click or touch
Auto
for the LC11 to
automatically choose the best available channel. Click or touch
the drop down menu to select a specific channel.
Buttons
•
Apply
: Click or touch button to update the profile.
•
Revert
: Click or touch button to returns changed profile settings
to the previous settings.
•
Update Profile
: Click or touch button to update the profile and
also make it the current profile.
22
Section 7: Securing Your Device
This section outlines how to enable security features for your
device.
Click the
Security
tab to access the options.

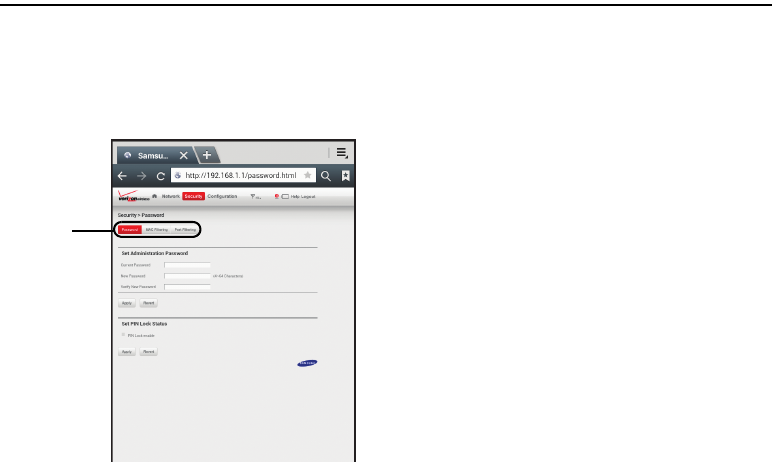

Security
Select the security tab to set your security parameter.
Set Administration Password
This password is used to protect the configuration settings
on this device. You must provide the password in order to
connect to this Web-based administration interface. This
screen allows you to change the password.
Enter the new password, using only letters, numbers, and
standard punctuation symbols. The password must be at
least 4 characters long. The maximum length is 64
characters.
•
Current Password
: Enter the current password used to access
the administration interface.
•
New Password
: Enter the new password you would like to used
to access the administration interface.
•
Verify New Password
: Re-enter the new password to verify and
click or touch
Apply
.
Set Pin Lock Status
•
PIN Lock enable
: When enabled, enter your PIN lock code each
time you log into the Web-based administration interface.
Security
Settings
Securing Your Device 23
MAC Filtering
MAC Filtering prevents unknown Wi-Fi clients from using
your access point. A MAC address is a low-level network ID
which is unique to a device. Access is allowed only for
trusted clients.
Note:
Before enabling this feature, ensure that the MAC
address of your own PC is included in the Trusted Client
list.
Enable MAC Filtering
•
Enable MAC Filtering
: Click or touch the checkbox to enable
MAC Address Filtering.
When the featured is enabled only Trusted Clients can connect. If
the MAC address is in the
Trusted Client MAC Address List
,
access is allowed. Otherwise, access is blocked.
When this feature is disabled the MAC address of each Wi-Fi
client is not checked. All clients will be allowed to connect.
Note:
Whether enabled or disabled, clients must have the
correct Wi-Fi Security settings to connect.
Trusted Client List
MAC addresses of trusted clients are listed here. If you have
not entered any MAC addresses, this field will be empty.
To add a client to the
Trusted Client List
, click or touch the
Add Client
button.
To remove a client from the
Trusted Client List
, click or touch
the drop down menu to select a device and click or touch the
Delete Client
button.
Note:
On Windows PCs, the "MAC address" is called the
"Physical Address". You can check the properties or
status of the Wi-Fi interface on your PC to find the MAC
address of your PC.
Buttons
•
Add Client
: Click or touch to add the MAC address typed in the
Add Trusted Client MAC Address field to the Trusted Client List.
•
Delete Client
: Click or touch to remove a device from the Trusted
Client List.
•
Apply
: Click or touch to save changes made to the list.
•
Revert
: Click or touch to discard changes made to the list.
24
Port Filtering
Port Filtering blocks outgoing Internet traffic. When enabled,
only traffic from selected applications can access the
Internet. Traffic is identified by port number.
Note:
DNS should always be enabled when using Port
Filtering. Without DNS, it is not possible to convert a
Domain name (e.g. www.msn.com) to an IP address.
DNS is used by E-mail, FTP and many other protocols as
well as by Web browsers.
Enable Port Filtering
•
Enable Port Filtering
: Click or touch the checkbox to enable Port
Filtering.
When the featured is enabled only traffic from selected
applications from the Allowed Applications list are allowed access
to the internet.
When the featured is disabled all traffic is allowed to access to the
internet.
Allowed Applications
Click or touch applications you wish to give access to the
internet while the Port Filtering feature is enabled. All other
applications will be blocked.
Custom Applications
Define your own
Allowed Applications
. Define and enable
additional applications.
•
Application Name
: Enter a name for the application you are
defining.
•
Port Range
: Define the ports used by the application. These ports
refer to outgoing traffic.
–
For a single port, enter the port number in both the
Start Port
and
End Port
fields.
–
For a port range, enter the beginning of the range in the
Start
Port
field and the end of the range in the
End Port
field.
–
Up to 5 ports or port ranges can be defined. Use as many rows
as necessary; unused rows can be left blank.
•
Port Type
: For each port range (each row), select the protocol
(TCP, UDP, or both) used by that port range.
Securing Your Device 25
Buttons
•
Hide
: Click this when you are finished defining the ports for the
current application. When this link is clicked, port settings for the
current application are stored in your Browser, but they are not
saved to this device until you click the
Apply
button.
•
Apply
: When this button is clicked, all settings (enabled, name,
port settings) for all applications are saved to this device.
•
Revert
: Click or touch this button to discard all changes made
since the last
Apply
operation.
26
Section 8: Configuring Your Device
Settings
These rarely-used settings are provided to deal with special
circumstances.
Click the
Configuration
tab.
3G/4G LTE Network
•
Auto-connect enable
: If enabled, the 3G/4G LTE Mobile Hotspot
will connect to the network whenever it is powered up. If
disabled, a connection must be established manually, using this
Web UI.
•
Auto Roaming enable
: If enabled, the 3G/4G LTE Mobile Hotspot
will automatically roam when you travel outside your home
network’s coverage area, your device can roam to acquire service
on other compatible digital networks.
•
Connection Selection
: Allows the user to select from a list of
available connection parameters such as:
Best available
(default)
,
CDMA Auto (1x
,
EVDO)
,
LTE Only
,
1xRTT Only
,
or
EVDO Only
.
Configuration
Settings
Configuring Your Device 27
Access Point (AP)
•
Privacy Separator enable
: The Privacy Separator feature
ensures that your data won’t become visible to others as it travels
from your protected inner gateway to the public outer gateway, on
its way to the Internet.
•
VPN Passthrough enable
: VPN Passthrough allows you to use a
VPN connection to connect to a corporate network or other
network requiring a VPN connection. Normally, this option should
be left enabled.
System
•
System Log enable (see Diagnostic screen)
: The System log
feature is used for troubleshooting. In normal operation, it should
be disabled.The system log can be viewed on the Diagnostics
screen.
•
Language
: Choose a language to be used in this Web-based
administration interface.
•
Date/Time Format
: Choose a date and time format for the
Diagnostics screen.
Buttons
•
Apply
: Click or touch this button to save updated settings.
•
Revert
: Click or touch this button to discard all changes made
since the last
Apply
operation.
28
Config File
Config File, allows you to save your configuration settings to
a central location for access at a later time.
•
Export Config File
: Export Config File, allows you to download
your LC11 device settings to your PC.
•
Select
Export File
button to begin the transfer process from
your LC11 to your PC.
•
Import Config File
: Import Config File, allows you to upload your
LC11 device configuration from your PC.
•
Select
Import File
button to begin the transfer process from
your PC to your LC11.
Diagnostics
The Diagnostic screen displays details of the firmware
(software) and other system-level information. You can also
view the system log and perform various operations. This
screen is used mostly for troubleshooting and is not required
for normal operation.
To reset to factory default:
1. Navigate to
Configuration
➔
Diagnostics
screen.
2. Scroll to the bottom of the page and click
Reset to
Factory Defaults
.
3. Follow the on-screen instructions.
Warning!
The
Reset to Factory Defaults
operation will overwrite
ALL
existing settings. If the Wi-Fi settings change,
you will lose this connection, and will need to
reconnect using the new settings.
System Information
This section contains detailed information about your device.
–
AP
•
Manufacturer: The manufacturer of the LC11.
•
Model: The model number or name of the LC11.
•
IMEI: The unique identification number for the device
–
Modem
•
ESN: The Electronic Serial Number (ESN) is used by the mobile
data network to identify this particular modem.
•
MDN: The Mobile Directory Number (MDN) is used by the
mobile data network to identify this particular data service.
•
ICCID: This is your SIM card’s serial number, which serves to
identify it to the Verizon’s network.
Configuring Your Device 29
–
Version
•
AP: For the Access Point component, the version of the
firmware (software) currently installed.
•
Modem: For the Modem component, the version of the
firmware (software) currently installed.
System Status
This section displays Modem Status and System Log
information.
•
Modem Status
: Click or touch the button to view more
information about the Modem status. This information is mostly
used for troubleshooting.
•
System Log
: Click or touch the button to view the System Log.
The System Log records various operations, and is mostly used
for troubleshooting.
Global Traffic Counter
These counters record incoming and outgoing Internet traffic.
They continue incrementing until you click Restart Counters.
•
Start Date
: The date on which these Global Traffic Counters
started, usually the date of the first connection. If the counters
have been restarted, this is the date of the last restart.
•
Total Connection Time
: This records the total time period during
which a data connection to the Internet has been available.
•
Data Received
: The total amount of data received.
•
Data Transmitted
: The total amount of data transmitted.
•
Total Data
: The total sum of the data received and transmitted.
•
Restart Counters
: Click or touch the button to set the counters
above to zero.
•
Connection Log
: Click or touch the button to view the Internet
Connection Log.
Monthly Total Data
Click or touch the
My Verizon
button to view your monthly
data usage. A login ID and password is required to access
My Verizon.
Buttons
•
Modem Status
: Click or touch this button to view details of the
Modem status in the panel beside this button. This information is
mostly useful for troubleshooting.
•
System Log
: Click or touch this button to view the System Log in
the panel beside this button. The System Log records various
operations, and is mostly useful for troubleshooting.
30
•
Restart Counter
: Click or touch the button to set the counters to
zero.
•
Connection Log
: Click or touch the button to set the counters
above to zero.
•
My Verizon
: Click or touch to access My Verizon website.
•
Restart
: Click or touch this button to restarts your LC11. All
Internet connections, and all Wi-Fi connections, are lost during
the restart.
•
Reset to Factory Defaults
: Click or touch this button to reset to
factory default settings.
Warning!
The
Reset to Factory Defaults
operation will overwrite
ALL
existing settings. If the Wi-Fi settings change,
you will lose this connection, and will need to
reconnect using the new settings.
Port Forwarding
Port Forwarding allows incoming traffic (from the Internet) to
be forwarded to a particular PC or device on your local
WLAN. Normally, incoming traffic from the Internet is blocked
by the Firewall.
You need to use Port Forwarding to allow Internet users to
access any server your are running on your PC, such as a
Web server, FTP server, or E-mail server. Also, for some
online games, Port Forwarding must be used in order for the
game to function correctly. Note that Port Forwarding creates
a security risk and should be disabled when not required.
Note:
Some 3G Mobile Wireless Networks do not provide you
with an Internet IP address, but an IP address on their
own network. In this case, Port Forwarding can not be
used because Internet users cannot reach your IP
address.
Configuring Your Device 31
Port Forwarding Applications
A number of common server applications are listed.
To use any of these applications:
1. Install the application on a PC on your local WLAN.
2. Ensure the PC is connected to this device, and record
the PC's IP address for the Wi-Fi interface.
3. On this screen, enter the PC's IP Address in the
IP Address on WLAN
field beside the application.
4. Enable this application on this screen by checking its
checkbox.
5. Save your changes with the
Apply
button.
6. On the Home screen, make a note of the Internet IP
address of this device.
7. Ask users on the Internet to connect to the Internet IP
address of this device. These connection requests will
be forwarded to the IP address specified in step 3.
8. When no longer needed, the application should be
disabled on this screen by unchecking its checkbox,
and saving this change with the
Apply
button. Leaving
applications enabled unnecessarily creates a security
risk.
Note:
Some 3G Mobile Wireless Networks do not provide you
with an Internet IP address, but an IP address on their
own network. In this case, Port Forwarding can not be
used because Internet users cannot reach your IP
address.
IP Address on LAN
This is the IP address of the PC, server, or device on the local
WLAN which is running this application. If an application is
enabled, an IP address is required. Otherwise, this field may
be blank.
Power
This menu allows you to configure the power off cycle time
for your device idle time has reached a set time interval.
1. Select the
Turn Off
drop-down field.
2. Select from an available timeout value.
3. Click
Apply
.
For more information, refer to “Battery Power” on page 5.
32
Section 9: Health and Safety Information
This section outlines the safety precautions associated with
using your mobile hotspot. Your Samsung Mobile Hotspot
device may also be referred to as “wireless device” or
“wireless mobile device” or “device”.
Read this information
before using your device
.
Exposure to Radio Frequency (RF)
Signals
The U.S. Food and Drug Administration (FDA) has published
information for consumers relating to Radio Frequency (RF)
exposure from wireless devices. The FDA publication
includes the following information:
Specific Absorption Rate (SAR)
Certification Information
Your wireless device is a radio transmitter and receiver. It is
designed and manufactured not to exceed the exposure
limits for Radio Frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. Government.
These FCC RF exposure limits are derived from the
recommendations of two expert organizations: the National
Council on Radiation Protection and Measurement (NCRP)
and the Institute of Electrical and Electronics Engineers
(IEEE). In both cases, the recommendations were developed
by scientific and engineering experts drawn from industry,
government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF
energy.
The RF exposure limit set by the FCC for wireless mobile
devices employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure of the
rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/kg). The FCC
requires wireless devices to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg).
The FCC SAR limit incorporates a substantial margin of safety
to give additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the device transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while
Health and Safety Information 33
operating can be well below the maximum reported value.
This is because the device is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base
station antenna, the lower the power output of the device.
Before a new model device is available for sale to the public,
it must be tested and certified to the FCC that it does not
exceed the SAR limit established by the FCC. Tests for each
model wireless mobile device are performed in positions and
locations (e.g. at the ear and worn on the body) as required
by the FCC. For body-worn operation, this device has been
tested and meets FCC RF exposure guidelines when used
with an accessory that contains no metal and that positions
the wireless mobile device a minimum of 1.5cm from the
body.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines. The FCC has granted an
Equipment Authorization for this mobile device with all
reported SAR levels evaluated as in compliance with the FCC
RF exposure guidelines. This device has a FCC ID number:
A3LSCHLC11 [Model Number: SCH-LC11 and the specific
SAR levels for this device can be found at the following FCC
website:
http://www.fcc.gov/oet/ea/
.
The SAR information for this device can also be found on
Samsung’s website:
http://www.samsung.com/sar
.
SAR information on this and other model devices can be
accessed online on the FCC's website through
http://
transition.fcc.gov/oet/rfsafety/sar.html
. To find information that
pertains to a particular model device, this site uses the
device FCC ID number which is usually printed somewhere
on the case of the device. Sometimes it may be necessary to
remove the battery pack to find the number. Once you have
the FCC ID number for a particular device, follow the
instructions on the website and it should provide values for
typical or maximum SAR for a particular device. Additional
SAR information can also be obtained at
http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-
cellular-telephones
.
FCC Part 15 Information to User
Pursuant to part 15.21 of the FCC Rules, you are cautioned
that changes or modifications not expressly approved by
Samsung could void your authority to operate the device.
34
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency (RF) Energy
Understanding How Your Samsung Mobile
Hotspot Operates
Your device functions as a radio transmitter and receiver.
When it is turned on, it receives and transmits radio
frequency (RF) signals.
Knowing Radio Frequency Safety
The design of your device complies with updated NCRP
standards described below:
In 1991–92, the Institute of Electrical and Electronics
Engineers (IEEE) and the American National Standards
Institute (ANSI) joined in updating ANSI’s 1982 standard for
safety levels with respect to human exposure to RF signals.
More than 120 scientists, engineers and physicians from
universities, government health agencies and industries
developed this updated standard after reviewing the
available body of research.
In 1993, the Federal Communications Commission (FCC)
adopted this updated standard in a regulation. In August
1996, the FCC adopted a hybrid standard consisting of the
Health and Safety Information 35
existing ANSI/IEEE standard and the guidelines published by
the National Council of Radiation Protection and
Measurements (NCRP).
For more information about RF exposure, visit the FCC Web
site at
www.fcc.gov
.
FCC Radio Frequency Emission
This device meets the FCC Radio Frequency Emission
Guidelines. FCC ID number: A3LACHLC11.
Samsung Mobile Products and
Recycling
Samsung cares for the environment and encourages its
customers to recycle Samsung wireless mobile devices and
genuine Samsung accessories.
Proper disposal of your wireless mobile device and its battery
is not only important for safety, it benefits the environment.
Batteries must be recycled or disposed of properly.
Recycling programs for your wireless mobile device,
batteries, and accessories may not be available in your area.
We've made it easy for you to recycle your old Samsung
wireless mobile device by working with respected take-back
companies in every state in the country.
Drop It Off
You can drop off your Samsung-branded wireless mobile
device and batteries for recycling at one of our numerous
Samsung Recycling Direct (SM) locations. A list of these
locations may be found at:
http://pages.samsung.com/us/recyclingdirect/
usactivities_environment_samsungrecyclingdirect_locations.jsp
.
Samsung-branded wireless mobile devices and batteries
will be accepted at these locations for no fee.
Consumers may also recycle their used wireless mobile
device or batteries at many retail or carrier-provided
locations where wireless mobile devices and batteries
are sold. Additional information regarding specific
locations may be found at:
http://www.epa.gov/epawaste/partnerships/plugin/cellphone/
index.htm
or at
http://www.call2recycle.org/
.
Mail It In
The Samsung Mobile Take-Back Program will provide
Samsung customers with a free recycling mailing label.
Just go to
http://www.samsung.com/us/aboutsamsung/citizenship/
usactivities_environment_samsungrecyclingdirect.html?INT=ST
36
A_recyle_your_phone_page
and follow the instructions to
print out a free pre-paid postage label and then send your
old mobile device or battery to the address listed, via U.S.
Mail, for recycling.
Dispose of unwanted electronics through an approved
recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect
Or call, (877) 278-0799.
Follow local regulations regarding disposal of
wireless mobile devices and batteries
Dispose of your wireless mobile device and batteries in
accordance with local regulations. In some areas, the
disposal of these items in household or business trash may
be prohibited. Help us protect the environment - recycle!
Warning!
Never dispose of batteries in a fire because they may
explode.
UL Certified Travel Charger
The Travel Charger for this wireless mobile device has met
applicable UL safety requirements. Please adhere to the
following safety instructions per UL guidelines:
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY
LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH
AMERICA, USE AN ATTACHMENT PLUG ADAPTOR
OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET.
THIS POWER UNIT IS INTENDED TO BE
CORRECTLY ORIENTED IN A VERTICAL OR
HORIZONTAL OR FLOOR MOUNT POSITION.
Battery Use and Safety
Important! Handle and store batteries properly to avoid injury or
damage
. Most battery issues arise from improper
handling of batteries and, particularly, from the
continued use of damaged batteries.
Health and Safety Information 37
•
Do not disassemble, crush, puncture, shred, or otherwise
attempt to change the form of your battery
. Do not put a high
degree of pressure on the battery. This can cause leakage or an
internal short-circuit, resulting in overheating.
•
Do not let the wireless mobile device or battery come in
contact with liquids.
Liquids can get into the wireless mobile
device’s circuits, leading to corrosion. Even when the mobile
wireless device appears to be dry and appears to operate
normally, the circuitry could slowly corrode and pose a safety
hazard. If the mobile wireless device and/or battery get wet, have
them checked by your service provider or contact Samsung, even
if they appear to be working properly.
•
Do not place your battery in or near a heat source
. Excessive
heating can damage the phone or the battery and could cause the
wireless mobile device or the battery to explode. Do not dry a wet
or damp battery with an appliance or heat source such as a
microwave oven, hair dryer, iron, or radiator. Avoid leaving your
wireless mobile device in your car in high temperatures.
•
Do not dispose of the wireless mobile device or the battery in
a fire
. The wireless mobile device or the battery may explode
when overheated.
•
Do not handle a damaged or leaking battery
. Do not let leaking
battery fluid come in contact with your eyes, skin or clothing. For
safe disposal options, contact your nearest Samsung-authorized
service center.
•
Avoid dropping the wireless mobile device
. Dropping the
wireless mobile device or the battery, especially on a hard
surface, can potentially cause damage to the wireless mobile
device and battery. If you suspect damage to the wireless mobile
device or battery, take it to a service center for inspection.
•
Never use any charger or battery that is damaged in any way
.
•
Do not allow the battery to touch metal objects
. Accidental
short-circuiting can occur when a metallic object (coin, key,
jewelry, clip, or pen) causes a direct connection between the +
and - terminals of the battery (metal strips on the battery), for
example when you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the battery or the
object causing the short-circuiting.
38
Important!
Use only Samsung-approved batteries, and
recharge your battery only with
Samsung-approved chargers which are
specifically designed for your wireless mobile
device.
WARNING!
Use of a non-Samsung-approved battery or charger may
present a risk of fire, explosion, leakage, or other hazard
.
Samsung's warranty does not cover damage to the wireless
mobile device caused by non-Samsung-approved batteries
and/or chargers.
•
Do not use incompatible wireless mobile device batteries and
chargers
. Some websites and second-hand dealers not
associated with reputable manufacturers and carriers, might be
selling incompatible or even counterfeit batteries and chargers.
Consumers should purchase manufacturer or
carrier-recommended products and accessories. If unsure about
whether a replacement battery or charger is compatible, contact
the manufacturer of the battery or charger.
•
Misuse or use of incompatible mobile wireless device,
batteries, and charging devices could result in damage to the
equipment and a possible risk of fire, explosion, or leakage,
leading to serious injuries, damages to your wireless mobile
device, or other serious hazard
.
Care and Maintenance
Your device is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for many
years:
Keep your Samsung Device away from:
Liquids of any kind
Keep the wireless mobile device dry. Precipitation,
humidity, and liquids contain minerals that will corrode
electronic circuits. If the wireless mobile device does get
wet, do not accelerate drying with the use of an oven,
microwave, or dryer, because this may damage the
device and could cause a fire or explosion.
Do not use the wireless mobile device with a wet hand.
Doing so may cause an electric shock to you or damage
to the wireless mobile device.
Health and Safety Information 39
Extreme heat or cold
Avoid temperatures below 0°C / 32°F or above 45°C /
113°F.
Microwaves
Do not try to dry your wireless mobile device in a
microwave oven. Doing so may cause a fire or explosion.
Dust and dirt
Do not expose your wireless mobile device to dust, dirt,
or sand.
Cleaning solutions
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the wireless mobile device. Wipe it
with a soft cloth slightly dampened in a mild
soap-and-water solution.
Shock or vibration
Do not drop, knock, or shake the wireless mobile device.
Rough handling can break internal circuit boards.
Paint
Do not paint the wireless mobile device. Paint can clog
the device’s moving parts or ventilation openings and
prevent proper operation.
Operating Environment
Remember to follow any special regulations in force in any
area, and always switch your wireless mobile device off
whenever it is forbidden to use it, or when it may cause
interference or danger. When connecting the wireless mobile
device or any accessory to another device, read its user's
guide for detailed safety instructions. Do not connect
incompatible products.
Using Your Mobile Hotspot Near Other Electronic
Devices
Most modern electronic equipment is shielded from Radio
Frequency (RF) signals. However, certain electronic
equipment may not be shielded against the RF signals from
your wireless mobile device. Consult the manufacturer to
discuss alternatives.
Conversely, ensure the unit is placed at least 2 feet away
from products which generate electromagnetic radiation,
such as a computer monitor or microwave oven.
40
Note:
For the best care of your device, ensure that only
authorized personnel service your wireless mobile
device. Failure to do so may be dangerous and void your
warranty. Consult the manufacturer of any personal
medical devices, such as pacemakers and hearing aids,
to determine if they are adequately shielded from
external RF signals.
Implantable Medical Devices
A minimum separation of six (6) inches should be maintained
between a handheld wireless mobile device and an
implantable medical device, such as a pacemaker or
implantable cardioverter defibrillator, to avoid potential
interference with the device.
Persons who have such devices:
•
Should ALWAYS keep the mobile device more than six (6) inches
from their implantable medical device when the mobile device is
turned ON;
•
Should not carry the mobile device in a breast pocket;
•
Should use the ear opposite the implantable medical device to
minimize the potential for interference;
•
Should turn the mobile device OFF immediately if there is any
reason to suspect that interference is taking place;
•
Should read and follow the directions from the manufacturer of
your implantable medical device. If you have any questions about
using your wireless mobile device with an implantable medical
device, consult your health care provider.
For more information see:
http://www.fcc.gov/oet/rfsafety/rf-
faqs.html#
.
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information. Switch your
mobile device off in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your vehicle
Health and Safety Information 41
before using your mobile device in a motor vehicle. You
should also consult the manufacturer of any equipment that
has been added to your vehicle.
Posted Facilities
Switch your mobile device off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your mobile device off when in any area with a
potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death. Users are
advised to switch the mobile device off while at a refueling
point (service station).
Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting
operations are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals
or particles, such as grain, dust, or metal powders, and any
other area where you would normally be advised to turn off
your vehicle engine.
When your Device is Wet
Do not turn on your device if it is wet. If your device is
already on, turn it off and remove the battery immediately (if
the device will not turn off or you cannot remove the battery,
leave it as-is). Then, dry the device with a towel and take it
to a service center.
Restricting Children's Access to Your
Wireless Mobile Device
Your wireless mobile device is not a toy. Do not allow
children to play with it because they could hurt themselves
and others or damage the wireless mobile device.
Keep the wireless mobile device and all its parts and
accessories out of the reach of small children.
FCC Notice and Cautions
FCC Notice
The device may cause TV or radio interference if used in
close proximity to receiving equipment. The FCC can require
you to stop using the device if such interference cannot be
eliminated. Vehicles using liquefied petroleum gas (such as
42
propane or butane) must comply with the National Fire
Protection Standard (NFPA-58). For a copy of this standard,
contact the National Fire Protection Association.
Cautions
Any changes or modifications to your device not expressly
approved in this document could void your warranty for this
equipment and void your authority to operate this equipment.
Only use approved batteries, antennas, and chargers. The
use of any unauthorized accessories may be dangerous and
void the device warranty if said accessories cause damage
or a defect to the device.
Although your device is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting,
bending, or sitting on it.
Other Important Safety Information
•
Only qualified personnel should service the device or install the
wireless mobile device in a vehicle. Faulty installation or service
may be dangerous and may invalidate any warranty applicable to
the device.
•
Ensure that any devices or related equipment installed in your
vehicle are securely mounted.
•
Check regularly that all wireless device equipment in your vehicle
is mounted and operating properly.
•
Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the device, its parts, or
accessories.
•
For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including installed
or portable wireless equipment near or in the area over the air
bag or in the air bag deployment area. If wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
•
Switch your device off before boarding an aircraft. The use of
wireless devices in aircraft is illegal and may be dangerous to the
aircraft's operation. Check with appropriate authorities before
using any function of a device while on an aircraft.
•
Failure to observe these instructions may lead to the suspension
or denial of services to the offender, or legal action, or both.
•
While using your device, leave some lights on in the room and do
not hold the screen too close to your eyes.
Health and Safety Information 43
•
Seizures or blackouts can occur when you are exposed to flashing
lights while watching videos or playing games for extended
periods. If you feel any discomfort, stop using the device
immediately.
•
Reduce risk of repetitive motion injuries. When you repetitively
perform actions, such as pressing keys, drawing characters on a
touch screen with your fingers, or playing games, you may
experience occasional discomfort in your hands, neck, shoulders,
or other parts of your body. When using your device for extended
periods, hold the device with a relaxed grip, press the keys lightly,
and take frequent breaks. If you continue to have discomfort
during or after such use, stop use and see a physician.[122011]
44
Section 10: Warranty Information
Standard Limited Warranty
What is covered and for how long?
SAMSUNG TELECOMMUNICATIONS AMERICA, LLC
(“SAMSUNG”) warrants that SAMSUNG’s Mobile Hotspot
device and accessories (“Products”) are free from defects in
material and workmanship under normal use and service for
the period commencing upon the date of purchase by the
first consumer purchaser and continuing for the following
specified period of time after that date:
What is not covered?
This Limited Warranty is conditioned upon proper use of the
Product.
This Limited Warranty does not cover: (a) defects or damage
resulting from accident, misuse, abnormal use, abnormal
conditions, improper storage, exposure to liquid, moisture,
dampness, sand or dirt, neglect, or unusual physical,
electrical or electromechanical stress; (b) scratches, dents
and cosmetic damage, unless caused by SAMSUNG;
(c) defects or damage resulting from excessive force or use
of a metallic object when pressing on a touch screen;
(d) equipment that has the serial number or the
enhancement data code removed, defaced, damaged,
altered or made illegible; (e) ordinary wear and tear;
(f) defects or damage resulting from the use of Product in
conjunction or connection with accessories, products, or
ancillary/peripheral equipment not furnished or approved by
SAMSUNG; (g) defects or damage resulting from improper
testing, operation, maintenance, installation, service, or
adjustment not furnished or approved by SAMSUNG;
(h) defects or damage resulting from external causes such as
collision with an object, fire, flooding, dirt, windstorm,
lightning, earthquake, exposure to weather conditions, theft,
blown fuse, or improper use of any electrical source;
(i) defects or damage resulting from cellular signal reception
Mobile Hotspot Device 1 Year
Batteries 1 Year
Case/Pouch/Holster 90 Days
Other Accessories 1 Year
Warranty Information 45
or transmission, or viruses or other software problems
introduced into the Product; or (j) Product used or purchased
outside the United States. This Limited Warranty covers
batteries only if battery capacity falls below 80% of rated
capacity or the battery leaks, and this Limited Warranty does
not cover any battery if (i) the battery has been charged by a
battery charger not specified or approved by SAMSUNG for
charging the battery; (ii) any of the seals on the battery are
broken or show evidence of tampering; or (iii) the battery has
been used in equipment other than the SAMSUNG mobile
wireless device for which it is specified.
What are SAMSUNG’s obligations?
During the applicable warranty period, provided the Product
is returned in accordance with the terms of this Limited
Warranty, SAMSUNG will repair or replace the Product, at
SAMSUNG’s sole option, without charge. SAMSUNG may, at
SAMSUNG’s sole option, use rebuilt, reconditioned, or new
parts or components when repairing any Product, or may
replace the Product with a rebuilt, reconditioned or new
Product.
Repaired/replaced cases, pouches and holsters will be
warranted for a period of ninety (90) days. All other repaired/
replaced Products will be warranted for a period equal to the
remainder of the original Limited Warranty on the original
Product or for ninety (90) days, whichever is longer. All
replaced Products, parts, components, boards and
equipment shall become the property of SAMSUNG. Except to
any extent expressly allowed by applicable law, transfer or
assignment of this Limited Warranty is prohibited.
What must you do to obtain warranty service?
To obtain service under this Limited Warranty, you must
return the Product to an authorized mobile wireless device
service facility in an adequate container for shipping,
accompanied by the sales receipt or comparable proof of
sale showing the original date of purchase, the serial number
of the Product and the seller’s name and address.
To obtain assistance on where to deliver the Product, please
call SAMSUNG Customer Care at 1-888-987-4357. If
SAMSUNG determines that any Product is not covered by this
Limited Warranty, you must pay all parts, shipping, and labor
charges for the repair or return of such Product.
You should keep a separate backup copy of any contents of
the Product before delivering the Product to SAMSUNG for
warranty service, as some or all of the contents may be
deleted or reformatted during the course of warranty service.
46
What are the limits on SAMSUNG’s liability?
THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF
SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE
REMEDY REGARDING THE PRODUCTS.
ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT
LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF
USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL,
PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR
DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE
PRODUCT. SOME STATES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND DISCLAIMERS MAY NOT APPLY TO YOU.
SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR
THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR
EQUIPMENT WITH THE PRODUCT, WHETHER SUCH
THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH
THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE.
RESPONSIBILITY FOR THE QUALITY, CAPABILITIES,
OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY
SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS
SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER
OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT.
Nothing in the Product instructions or information shall be
construed to create an express warranty of any kind with
respect to the Products. No agent, employee, dealer,
representative or reseller is authorized to modify or extend
this Limited Warranty or to make binding representations or
claims, whether in advertising, presentations or otherwise,
on behalf of SAMSUNG regarding the Products or this Limited
Warranty.
This Limited Warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
Warranty Information 47
What is the procedure for resolving disputes?
ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM
THIS LIMITED WARRANTY OR THE SALE, CONDITION OR
PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY.
Any such dispute shall not be combined or consolidated with
a dispute involving any other person’s or entity’s Product or
claim, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the Limited Warranty and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the Limited
Warranty.
For any arbitration in which your total damage claims,
exclusive of attorney fees and expert witness fees, are
$5,000.00 or less (“Small Claim”), the arbitrator may, if you
prevail, award your reasonable attorney fees, expert witness
fees and costs as part of any award, but may not grant
SAMSUNG its attorney fees, expert witness fees or costs
unless it is determined that the claim was brought in bad
faith. In a Small Claim case, you shall be required to pay no
more than half of the total administrative, facility and
arbitrator fees, or $50.00 of such fees, whichever is less, and
SAMSUNG shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 (“Large Claim”)
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator’s award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
SAMSUNG’s employees, representatives and affiliates if any
such claim arises from the Product’s sale, condition or
performance.
48
You may opt out of this dispute resolution procedure by
providing notice to SAMSUNG no later than 30 calendar days
from the date of the first consumer purchaser’s purchase of the
Product. To opt out, you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: “Arbitration
Opt Out.” You must include in the opt out e-mail (a) your name
and address; (b) the date on which the Product was purchased;
(c) the Product model name or model number; and (d) the IMEI
or MEID or Serial Number, as applicable, if you have it (the IMEI
or MEID or Serial Number can be found (i) on the Product box;
(ii) on the Product information screen, which can be found
under “Settings;” (iii) on a label on the back of the Product
beneath the battery, if the battery is removable; and (iv) on the
outside of the Product if the battery is not removable).
Alternatively, you may opt out by calling 1-888-987-4357 no
later than 30 calendar days from the date of the first consumer
purchaser’s purchase of the Product and providing the same
information. These are the only two forms of notice that will be
effective to opt out of this dispute resolution procedure. Opting
out of this dispute resolution procedure will not affect the
coverage of the Limited Warranty in any way, and you will
continue to enjoy the benefits of the Limited Warranty.
Severability
If any portion of this Limited Warranty is held to be illegal or
unenforceable, such partial illegality or unenforceability shall
not affect the enforceability of the remainder of the Limited
Warranty.
Precautions for Transfer and Disposal
If data stored on this device is deleted or reformatted using
the standard methods, the data only appears to be removed
on a superficial level, and it may be possible for someone to
retrieve and reuse the data by means of special software.
To avoid unintended information leaks and other problems of
this sort, it is recommended that the device be returned to
Samsung’s Customer Care Center for an Extended File
System (EFS) Clear which will eliminate all user memory and
return all settings to default settings. Please contact the
Samsung Customer Care Center
for details.
Important!
Please provide warranty information (proof of
purchase) to Samsung’s Customer Care Center in
order to provide this service at no charge. If the
warranty has expired on the device, charges may
apply.
Warranty Information 49
Samsung Telecommunications America, LLC
1301 E. Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
©2012 Samsung Telecommunications America, LLC. All
rights reserved.
No reproduction in whole or in part allowed without prior
written approval. Specifications and availability subject to
change without notice. [111611]
End User License Agreement for
Software
IMPORTANT. READ CAREFULLY: This End User License
Agreement ("EULA") is a legal agreement between you
(either an individual or a single entity) and Samsung
Electronics Co., Ltd. ("Samsung Electronics Co.") for
software, owned by Samsung Electronics Co. and its
affiliated companies and its third party suppliers and
licensors, that accompanies this EULA, which includes
computer software and may include associated media,
printed materials, "online" or electronic documentation
("Software").
Samsung Electronics Co. is a separate company
from the company that provides the limited warranty for this
mobile device, Samsung Telecommunications America, LLC.
This device requires the use of preloaded software in its
normal operation. BY USING THE DEVICE OR ITS PRELOADED
SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU
DO NOT ACCEPT THESE TERMS,
DO NOT USE
THE DEVICE OR
THE SOFTWARE. INSTEAD, RETURN THE DEVICE TO THE
RETAILER FOR A REFUND OR CREDIT.
1. GRANT OF LICENSE. Samsung Electronics Co. grants you
the following rights provided that you comply with all terms
and conditions of this EULA: You may install, use, access,
display and run one copy of the Software on the local hard
disk(s) or other permanent storage media of one computer
and use the Software on a single computer or a mobile
device at a time, and you may not make the Software
available over a network where it could be used by multiple
computers at the same time. You may make one copy of the
Software in machine readable form for backup purposes
only; provided that the backup copy must include all
copyright or other proprietary notices contained on the
original.
50
2. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung
Electronics Co. reserves all rights not expressly granted to
you in this EULA. The Software is protected by copyright and
other intellectual property laws and treaties. Samsung
Electronics Co. or its suppliers own the title, copyright and
other intellectual property rights in the Software. The
Software is licensed, not sold.
3. LIMITATIONS ON END USER RIGHTS. You may not reverse
engineer, decompile, disassemble, or otherwise attempt to
discover the source code or algorithms of, the Software
(except and only to the extent that such activity is expressly
permitted by applicable law not withstanding this limitation),
or modify, or disable any features of, the Software, or create
derivative works based on the Software. You may not rent,
lease, lend, sublicense or provide commercial hosting
services with the Software.
4. CONSENT TO USE OF DATA. You agree that Samsung
Electronics Co. and its affiliates may collect and use
technical information gathered as part of the product support
services related to the Software provided to you, if any.
Samsung Electronics Co. and its affiliates may use this
information solely to improve their products or to provide
customized services or technologies to you and will not
disclose this information in a form that personally identifies
you.
5. UPGRADES. This EULA applies to updates, supplements
and add-on components (if any) of the Software that
Samsung Electronics Co. may provide to you or make
available to you after the date you obtain your initial copy of
the Software, unless we provide other terms along with such
upgrade. To use Software identified as an upgrade, you must
first be licensed for the Software identified by Samsung
Electronics Co. as eligible for the upgrade. After upgrading,
you may no longer use the Software that formed the basis for
your upgrade eligibility.
6. SOFTWARE TRANSFER. You may not transfer this EULA or
the rights to the Software granted herein to any third party
unless it is in connection with the sale of the mobile device
which the Software accompanied. In such event, the transfer
must include all of the Software (including all component
parts, the media and printed materials, any upgrades, this
EULA) and you may not retain any copies of the Software.
The transfer may not be an indirect transfer, such as a
consignment. Prior to the transfer, the end user receiving the
Software must agree to all the EULA terms.
Warranty Information 51
7. EXPORT RESTRICTIONS. You acknowledge that the
Software is subject to export restrictions of various countries.
You agree to comply with all applicable international and
national laws that apply to the Software, including the U.S.
Export Administration Regulations, as well as end user, end
use, and destination restrictions issued by U.S. and other
governments.
8. TERMINATION. This EULA is effective until terminated. Your
rights under this License will terminate automatically without
notice from Samsung Electronics Co. if you fail to comply
with any of the terms and conditions of this EULA. Upon
termination of this EULA, you must cease all use of the
Software and destroy all copies, full or partial, of the
Software.
9. Disclaimer of Warranty. ALL SOFTWARE PROVIDED BY
SAMSUNG ELECTRONICS CO. WITH THIS MOBILE DEVICE IS
PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS,
WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG
ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, SATISFACTORY QUALITY OR
WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR
PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK
OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF
THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR
LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO
ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN,
OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR
ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS
DISCLAIMER BY SAMSUNG ELECTRONICS CO. OF WARRANTY
REGARDING THE SOFTWARE, OR TO CREATE ANY WARRANTY
OF ANY SORT FROM SAMSUNG ELECTRONICS CO.
10. THIRD-PARTY APPLICATIONS. Certain third party
applications may be included with, or downloaded to this
mobile device. Samsung Electronics Co. makes no
representations whatsoever about any of these applications.
Since Samsung Electronics Co. has no control over such
applications, you acknowledge and agree that Samsung
Electronics Co. is not responsible for the availability of such
applications and is not responsible or liable for any content,
advertising, products, services, or other materials on or
available from such applications. You expressly acknowledge
and agree that use of third party applications is at your sole
52
risk and that the entire risk of unsatisfactory quality,
performance, accuracy and effort is with you. It is up to you
to take precautions to ensure that whatever you select to use
is free of such items as viruses, worms, Trojan horses, and
other items of a destructive nature. References on this
mobile device to any names, marks, products, or services of
any third-parties are provided solely as a convenience to you,
and do not constitute or imply an endorsement, sponsorship,
or recommendation of, or affiliation with the third party or its
products and services. You agree that Samsung Electronics
Co. shall not be responsible or liable, directly or indirectly, for
any damage or loss caused or alleged to be caused by, or in
connection with, use of or reliance on any such third party
content, products, or services available on or through any
such application. You acknowledge and agree that the use of
any third-party application is governed by such third party
application provider's Terms of Use, License Agreement,
Privacy Policy, or other such agreement and that any
information or personal data you provide, whether knowingly
or unknowingly, to such third-party application provider, will
be subject to such third party application provider's privacy
policy, if such a policy exists. SAMSUNG ELECTRONICS CO.
DISCLAIMS ANY RESPONSIBILITY FOR ANY DISCLOSURE OF
INFORMATION OR ANY OTHER PRACTICES OF ANY THIRD
PARTY APPLICATION PROVIDER.
11. Disclaimer of Warranty Regarding Third Party
Applications. SAMSUNG ELECTRONICS CO. DOES NOT
WARRANT OR MAKE ANY REPRESENTATIONS REGARDING
THE AVAILABILITY, USE, TIMELINESS, SECURITY, VALIDITY,
ACCURACY, OR RELIABILITY OF, OR THE RESULTS OF THE
USE OF, OR OTHERWISE RESPECTING, THE CONTENT OF ANY
THIRD PARTY APPLICATION WHETHER SUCH THIRD PARTY
APPLICATION IS INCLUDED WITH THE PRODUCT
DISTRIBUTED BY SAMSUNG ELECTRONICS CO., IS
DOWNLOADED, OR OTHERWISE OBTAINED. USE OF ANY
THIRD PARTY APPLICATION IS DONE AT YOUR OWN
DISCRETION AND RISK AND YOU ARE SOLELY RESPONSIBLE
FOR ANY DAMAGE TO THE MOBILE DEVICE OR LOSS OF DATA
THAT RESULTS FROM THE DOWNLOADING OR USE OF SUCH
THIRD PARTY APPLICATIONS. SAMSUNG ELECTRONICS CO.
EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING
WHETHER YOUR PERSONAL INFORMATION IS CAPTURED BY
ANY THIRD PARTY APPLICATION PROVIDER OR THE USE TO
WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY
SUCH THIRD PARTY APPLICATION PROVIDER. ANY THIRD
PARTY APPLICATIONS PROVIDED WITH THIS MOBILE DEVICE
Warranty Information 53
ARE PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS,
WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG
ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, SATISFACTORY QUALITY OR
WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR
PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK
OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF
THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS.
SAMSUNG ELECTRONICS CO. DOES NOT WARRANT AGAINST
INTERFERENCE WITH YOUR ENJOYMENT OF THE THIRD
PARTY APPLICATION, THAT THE FUNCTIONS CONTAINED IN
THE THIRD PARTY APPLICATION WILL MEET YOUR
REQUIREMENTS, THAT THE OPERATION OF THE THIRD PARTY
APPLICATION WILL BE UNINTERRUPTED OR ERROR FREE, OR
THAT DEFECTS IN THE THIRD PARTY APPLICATION WILL BE
CORRECTED. YOU ASSUME THE ENTIRE COST OF ALL
NECESSARY SERVICING, REPAIR, OR CORRECTION. SOME
JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR
LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO
ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN,
OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR
ANY OTHER PERSON OR ENTITY SHALL BE DEEMED TO
ALTER THIS DISCLAIMER OF WARRANTY REGARDING THIRD
PARTY APPLICATIONS, OR TO CREATE ANY WARRANTY BY
SAMSUNG ELECTRONICS CO.
12. Limitation of Liability. SAMSUNG ELECTRONICS CO. WILL
NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING
OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE
THE SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS
CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED
TO DAMAGES CAUSED BY OR RELATED TO ERRORS,
OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN
OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE
TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES,
AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF
SAMSUNG ELECTRONICS CO. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS
OR LIMITATIONS MAY NOT APPLY TO YOU.
NOTWITHSTANDING THE FOREGOING, SAMSUNG
ELECTRONIC CO.'S TOTAL LIABILITY TO YOU FOR ALL
54
LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT
NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR
OTHERWISE, ARISING OUT OF YOUR USE OF THE SOFTWARE
OR THIRD PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR
ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED
THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS
MOBILE DEVICE OR ANY SUCH THIRD PARTY APPLICATION
THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE
FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS
(INCLUDING SECTIONS 9, 10, 11 AND 12) SHALL APPLY TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.
13. U.S. Government End Users Restricted Rights. The
Software is licensed only with "restricted rights" and as
"commercial items" consisting of "commercial software"
and "commercial software documentation" with only those
rights as are granted to all other end users pursuant to the
terms and conditions herein. All Products are provided only
with "restricted rights" with only those rights as are granted
to all other end users pursuant to the terms and conditions
herein. All Software and Products are provided subject to
Federal Acquisition Regulation (FAR) 52.227.19.
14. APPLICABLE LAW. This EULA is governed by the laws of
TEXAS, without regard to conflicts of laws principles. This
EULA shall not be governed by the UN Convention on
Contracts for the International Sale of Goods, the application
of which is expressly excluded.
15. DISPUTE RESOLUTION.
(a) Non-United States residents. If a dispute, controversy or
difference is not amicably settled, it shall be finally resolved
by arbitration in Seoul, Korea in accordance with the
Arbitration Rules of the Korean Commercial Arbitration Board.
The award of arbitration shall be final and binding upon the
parties.
(b) United States residents. ALL DISPUTES WITH SAMSUNG
ELECTRONICS CO. ARISING IN ANY WAY FROM THIS EULA OR
YOUR USE OF THE SOFTWARE SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY. Any such dispute shall not
be combined or consolidated with any other person's or
entity's claim or dispute, and specifically, without limitation
of the foregoing, shall not under any circumstances proceed
as part of a class action. The arbitration shall be conducted
before a single arbitrator, whose award may not exceed, in
form or amount, the relief allowed by the applicable law. The
Warranty Information 55
arbitration shall be conducted according to the American
Arbitration Association (AAA) Commercial Arbitration Rules
applicable to consumer disputes. This arbitration provision is
entered pursuant to the Federal Arbitration Act. The laws of
the State of Texas, without reference to its choice of laws
principles, shall govern the interpretation of the EULA and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the EULA. For
any arbitration in which your total damage claims, exclusive
of attorney fees and expert witness fees, are $5,000.00 or
less ("Small Claim"), the arbitrator may, if you prevail, award
your reasonable attorney fees, expert witness fees and costs
as part of any award, but may not grant Samsung Electronics
Co. its attorney fees, expert witness fees or costs unless it is
determined that the claim was brought in bad faith. In a
Small Claim case, you shall be required to pay no more than
half of the total administrative, facility and arbitrator fees, or
$50.00 of such fees, whichever is less, and Samsung
Electronics Co. shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 ("Large Claim")
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator's award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
Samsung Electronics Co.'s employees, representatives and
affiliates if any such claim arises from the licensing or use of
the Software. You may opt out of this dispute resolution
procedure by providing notice to Samsung Electronics Co. no
later than 30 calendar days from the date of the first
consumer purchaser's purchase of this device. To opt out,
you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: "Arbitration
Opt Out." You must include in the opt out e-mail (a) your
name and address; (b) the date on which the device was
purchased; (c) the device model name or model number; and
(d) the IMEI or MEID or Serial Number, as applicable, if you
have it (the IMEI or MEID or Serial Number can be found (i) on
the device box; (ii) on the device information screen, which
can be found under "Settings;" (iii) on a label on the back of
the device beneath the battery, if the battery is removable;
and (iv) on the outside of the device if the battery is not
removable). Alternatively, you may opt out by calling 1-888-
987-4357 no later than 30 calendar days from the date of
56
the first consumer purchaser's purchase of the device and
providing the same information. These are the only two
forms of notice that will be effective to opt out of this dispute
resolution procedure. Opting out of this dispute resolution
procedure will not affect your use of the device or its
preloaded Software, and you will continue to enjoy the
benefits of this license.
16. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the
entire agreement between you and Samsung Electronics Co.
relating to the Software and supersedes all prior or
contemporaneous oral or written communications, proposals
and representations with respect to the Software or any other
subject matter covered by this EULA. If any provision of this
EULA is held to be void, invalid, unenforceable or illegal, the
other provisions shall continue in full force and effect.
[101212]
57
Index
A
Access Point (AP) 27
Auto Roaming 26
Auto-connect 26
B
Battery 5
Charging 6
Indicator 5
Installing 6
Battery Power (Power Management)
5
Battery Use & Safety 36
Buttons 17
C
Care and Maintenance 38
Configuration
Wi-Fi 20
Connection
Device 12, 13
Internet 16
Connection Selection 26
D
Device
On and Off 7
Diagnostics 28
E
Exposure to Radio Frequency (RF)
Signals 32
F
FCC Notice and Cautions 41
Features 9
Filtering
Enable 24
MAC 23
Port 24
H
Health and Safety Information 32
I
Idle
Setting Timeout Value 31
Indicators 10
Combined 11
LED Service Status 10
O
Operating Environment 39
Other Important Safety Information
42
P
Port Forwarding 30
R
Reset
Factory Defaults 28
Reset to Factory Defaults 28
Resetting 8
Router 27
S
Samsung Mobile Products and
Recycling 35
Saving Changes 25
Settings 26
58
Specific Absorption Rate (SAR)
Certification Information 32
Standard Limited Warranty 44
System
Date/Time Format 27
Information 28
Language 27
System Requirements 12
U
UL Certified Travel Charger 36
V
VPN 27
W
Warranty Information 44

Navigation menu
