PDI Communication System CV3200M LCD TV User Manual PDI CV2600 PDI CV3200 V2 0

PDI Communication System, Inc. LCD TV PDI CV2600 PDI CV3200 V2 0

Users manual

1Document Number: PD196-167R2
PDI Communication Systems
Models
PDI-CV2600
PDI-CV3200
26” and 32”
Healthcare LCD TV
User Manual
Document Number: PD196-167R2
2Document Number: PD196-167R2
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN !
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
7KLVOLJKWQLQJÀDVKZLWKDUURZKHDGV\PERO
ZLWKLQDQHTXLODWHUDOWULDQJOHLVLQWHQGHGWR
DOHUWWKHXVHUWRWKHSUHVHQFHRIXQLQVXODWHG
GDQJHURXVYROWDJHZLWKLQWKHSURGXFW¶V
HQFORVXUHWKDWPD\EHRIVXI¿FLHQWPDJQLWXGHWR
FRQVWLWXWHDULVNRIHOHFWULFVKRFNWRSHUVRQV
7KHH[FODPDWLRQSRLQWZLWKLQDQHTXLODWHUDO
WULDQJOHLVLQWHQGHGWRDOHUWWKHXVHUWR
WKHSUHVHQFHRILPSRUWDQWRSHUDWLQJDQG
PDLQWHQDQFHVHUYLFLQJLQVWUXFWLRQVLQWKH
OLWHUDWXUHDFFRPSDQ\LQJWKHSURGXFW
WARNING: To reduce the risk of re or electric shock, do
not expose this apparatus to rain or moisture.
WARNING: To prevent injury, this apparatus must be
securely attached to the oor/wall in accordance with the
installation instructions.
WARNING: Do not install this equipment in a conned
space such as a bookcase or similar unit.
CAUTION: Do not block ventilation openings. Install in
accordance with the manufacturer’s instructions.
REGULATORY INFORMATION
FCC Part 15
is equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
ese limits are designed to provide reasonable protection against harmful
interference in a residential installation. is equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, many cause harmful interference to radio
communications.
However, there is not guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
t Reorient or relocate the receiving antenna.
t Increase the separation between the equipment and receiver.
t Connect the equipment into an outlet on a circuit dierent from
that to which the receive is connected.
t Consult the dealer or an experienced radio/TV technician for help.
Modications
Any changes or modications made to this device that are not expressly ap-
proved by PDI may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic
RFI/EMI connector hoods to maintain compliance with FCC Rules and
Regulations.
Healthcare Grade Television
e PDI Healthcare series television is specically designed for installation
and use in a healthcare environment. e TV’s special design and safety
features have been investigated by the Underwriters Laboratory and
Listed for use in Hospitals, Nursing Facilities, Dialysis Clinics, and similar
healthcare services.
SERVICING
User Servicing
If your product is not operating correctly or exhibits a marked change in
performance and you are unable to restore normal operation by following the
detailed procedure in its operating instructions, do not attempt to service it
yourself as opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualied service personnel.
Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualied
service personnel under the following conditions:
t When the power supply cord or plug is damaged.
t If liquid has been spilled, or objects have fallen into the product.
t If the product has been exposed to rain or water.
t If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will oen require extensive work by a
qualied technician to restore the product to its normal operation.
t If the product has been dropped or damaged in any way.
t When the product exhibits a distinct change in performance which
indicates a need for service.
Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specied by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result in
re, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in safe
operating conditions.
Cleaning & Disinfecting
t Unplug the TV Before Cleaning.
t Use a so damp cloth to clean.
t Do not use harsh chemicals such as solvents.
t Wipe o water droplets from the cabinet and screen as soon as pos-
sible as they may leave spots.
3Document Number: PD196-167R2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. e wide
blade or the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or
sold with the apparatus. When a cart
is used, use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during light-
ning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. is appliance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
16. Care should be taken so that objects do no fall
and liquids are not spilled into the enclosure through
openings.
17. If an outside antenna or cable system is connected
to the video product, be sure the antenna or cable
system is grounded so as to provide some protection
against voltage surges and built-up static charges.
Section 810 of the National Electrical Code, ANSI/
NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of anten-
na-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See
Figure A.

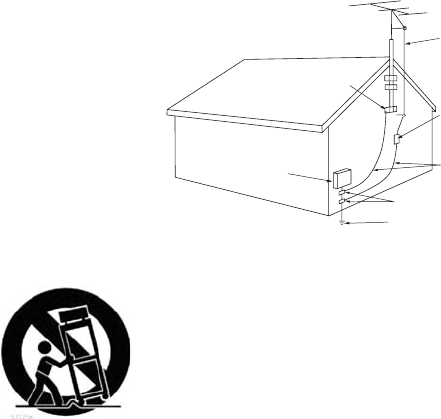

NEC – NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 – 20)
GROUNDING CONDUCTORS
(NEC SECTION 810 – 21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
FIG.A
NOTE: is reminder is provided to call the CATV
system installer’s attention to article 820-40 of the NEC
that provides guidelines for proper grounding and,
in particular, species that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
4Document Number: PD196-167R2
INSTALLATION
LOCATION
Locate a mounting position on the foot wall in front of
the hospital bed. Other locations may be used depending
upon the mounting means and room type. Healthcare
televisions are normally mounted near the ceiling to
provide needed clearance. A minimum 3 inch spacing is
recommened for cooling.
Note: Ceiling mounted uorescent lights and windows
may produce unwanted glare and should be considered
when selecting a mounting location.
TV MOUNT
e PDI Healthcare television utilizes a VESA pattern.
Selection of an appropriate mount will depend primarily
upon the mount’s capacity and intended functionality.
Install the TV as recommended by the mount’s
manufacturer. Please note the correct mounting screw
size requirements.
PDI also oers compatible TV mounts. Please refer to
the installation instructions that pack with each mount
for additional details.
PDI TV MODEL MOUNT MODEL
CV2600 PD168-033
CV3200 PD168-204

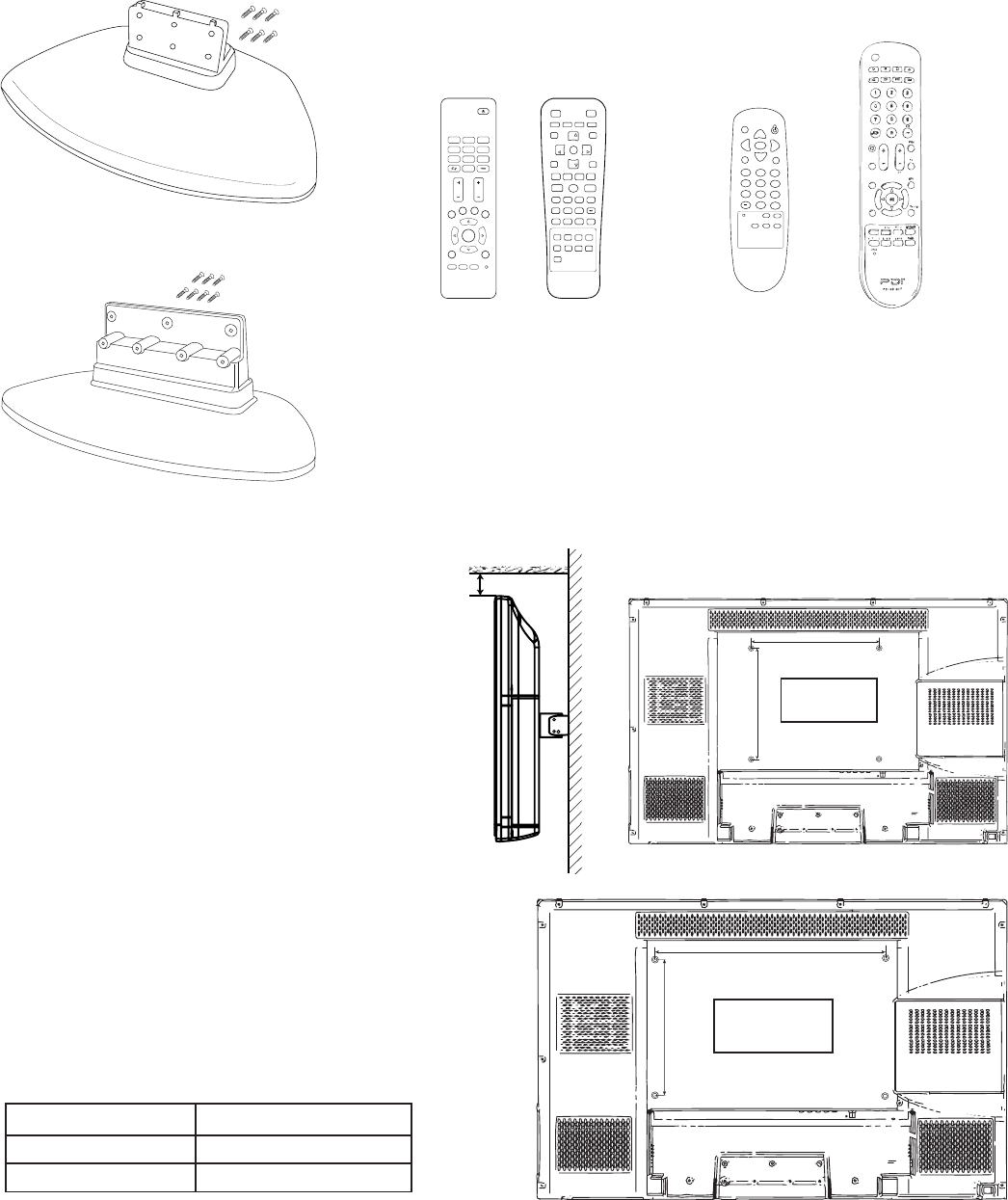

OPTIONAL ACCESSORIES
e following optional accessories are available for your PDI Healthcare television.
CV2600 Table Stand CV1003
Programming Remotes
400 mm
200 mm
CV3200
M6 Screws Required
200 mm
200 mm
CV2600
M4 Screws Required
POWER
MUTE
OK
TV/FM
TV/AV
123
456
789
0*
CODE SLEEP LAST
CC ARC SAP
Patient Remotes
PD108-421 PD108-427
CV1000 (Not Pictured)
CV1001 PD108-420
POWER MUTE
SETUP TV/AV TV/FM CH LIST
SLEEP LAST
OK
ARC CC
PSM SSM SAP
TEXT SIZE INDEX REVEAL
HOLD MODE MIX UPDATE
SUBPAGE
123
456
7890
*
CH
CH
VOL
VOL
SLEEP ARC SETUP
OK
VOL CH
TV/AV TV/FM
MUTE
MTS/SAP. PSM.
CC.
Page
Up
Page
Down
123
456
789
0
LAST
POWER
CV3200 Table Stand CV1004
3” min.
5Document Number: PD196-167R2

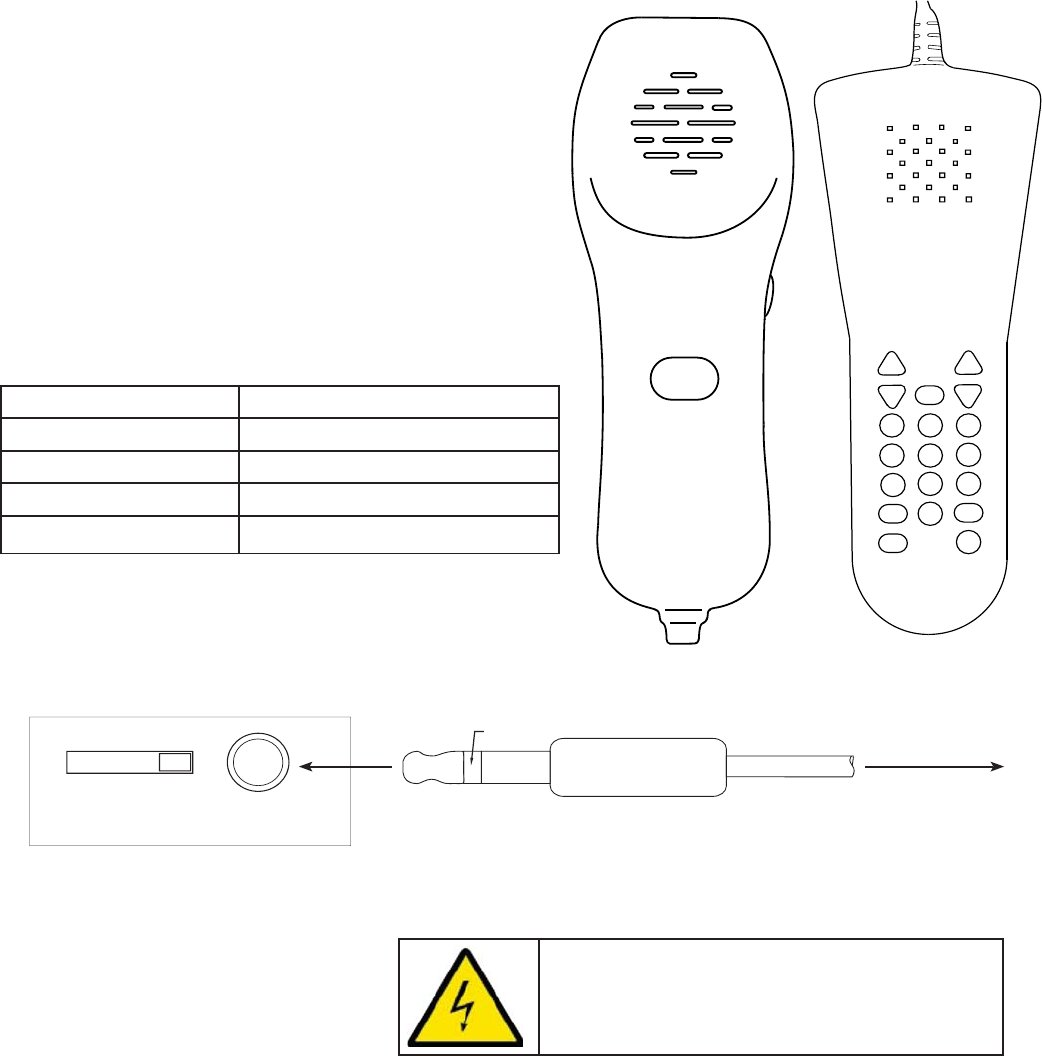

PILLOW SPEAKER CONNECTIONS
PILLOW SPEAKER STYLES
Control of the TV is possible using either a single-button Analog or
multi-button Digital style pillow speaker (neither supplied with TV).
TV PILLOW SPEAKER WIRING
e PDI Healthcare television series utilizes the industry standard
3-wire interface via a 1/4 inch stereo jack located on the back of the TV.
Additionally, the TV employes a universal pillow speaker interface that
can be congured to operate with many dierent model pillow speakers.
Move the pillow speaker slide switch located next to the Pillow Jack
to match the appropriate style pillow speaker. Refer to your nurse call
system wiring instructions for the pillow speaker’s bed side connections.
Slide Switch Position Pillow Speaker Type
CR RCA
OFF Disables Pillow Speaker Control
CP Phillips
CZ Zenith and Analog
123
456
789
0
ANALOG DIGITAL
TV
DATA
SOUND COMMON
CR OFF CP CZ
PILLOW
TV CONNECTION
TO BEDSIDE
CONNECTION
WARNING: Do Not Ground the Common wire
connection. Grounding the connection will
by-pass the TV’s pillow speaker isolation circuit
and increase the risk of electrical shock.
6Document Number: PD196-167R2
TV CONTROLS & CONNECTIONS
TV Controls

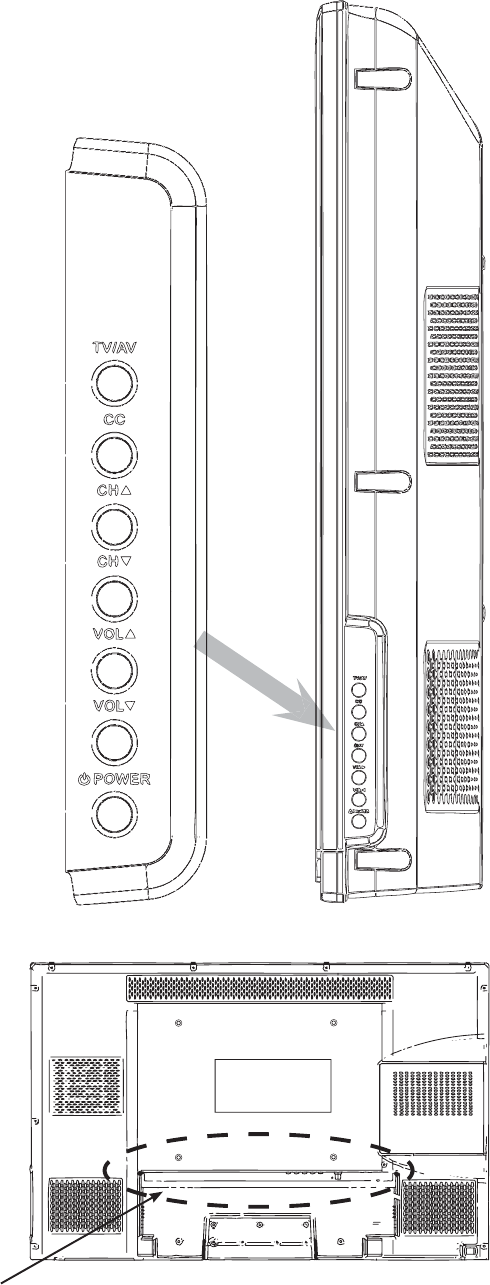

Standard TV controls are located on the TV’s lower right cabinet side.
Basic control is provided.
TV/AV Switches the TV between various Enabled
Sources. Press the button once to verify the current
sources. Press the button additional times to advance to
the next active source.
CC Closed Caption (Sub-Title) control. Press the
button once to verify the current Closed Caption mode.
Press the button additional times to advance to the next
Closed Caption Mode.
CHŸ/źSelects the next or previous channel. If a menu
item is active, selects the next or previous menu item.
VOLŸ/źIncreases or decreases the volume. If a menu
item is active, adjusts the menu items settings.
POWER Turns TV On and O.
TV Connections

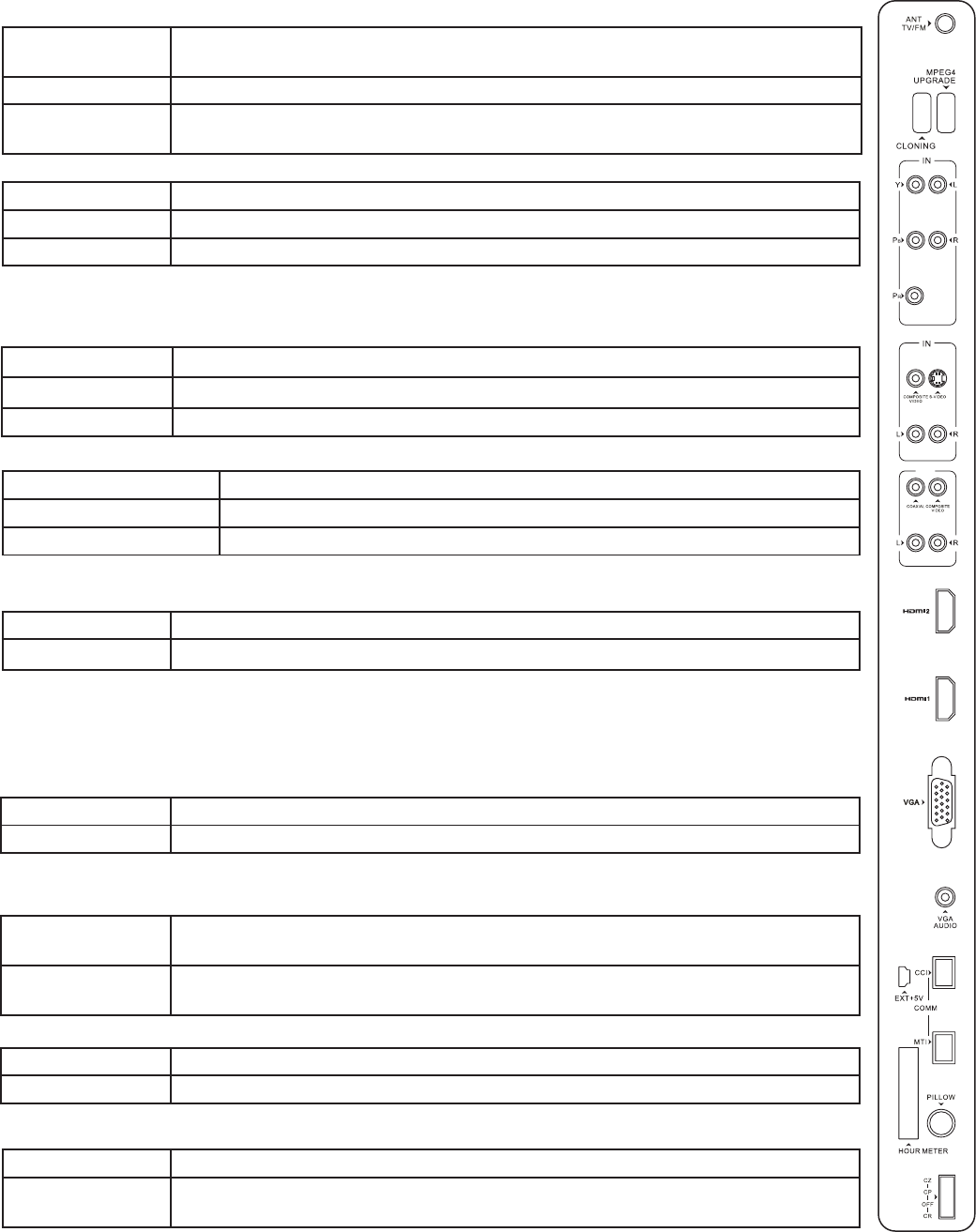

e PDI CV series televisions oer connection jacks for many
dierent types of external devices such as DVD players, Game
Boxes, and other similar devices. Connections are located along
the back edge of the Television.
TV Connectors
7Document Number: PD196-167R2
,1&RPSRVLWH &RPSRVLWH9LGHRLQSXWMDFN
,169LGHR 69LGHR9LGHRLQSXWMDFN
IN - L, R /HIWDQG5LJKW$XGLRLQSXWMDFNVFRPPRQIRUERWK&RPSRVLWHRU69LGHRLQSXWV
TV Connectors
ANT TV/FM )&RQQHFWRULQSXWMDFNIRUWKHKRVSLWDOFDEOH79VLJQDO127()0UDGLRFKDQQHOV
DUHDOVRUHFHLYHGRQWKLVLQSXW
03(*8SJUDGH 86%3RUWIRUVHUYLFHXVHRQO\
CLONING 86%3RUWIRUFORQLQJWKH797KH79FDQEHSURJUDPPHGFORQHGIURPLQIRUPDWLRQ
VWRUHGRQD86%)ODVK'ULYH
OUT
287&RPSRVLWH9LGHR 'HPRGXODWHG79VLJQDO&RPSRVLWHRXWSXWYLGHR
287&RD[LDO 'HPRGXODWHG79VLJQDO'LJLWDODXGLRRXWSXW
OUT - L, R 'HPRGXODWHG79VLJQDO/HIWDQG5LJKWRXWSXWDXGLR
IN - L, R &RPSRQHQW/HIWDQG5LJKWDXGLRLQSXWMDFNV
IN - Y, PB, PR&RPSRQHQW9LGHRLQSXWMDFNV
HDMI2 +'0,VLJQDOLQSXWMDFN,QSXWIRUWKHKLJKTXDOLW\+'0,VLJQDO
HDMI1 +'0,VLJQDOLQSXWMDFN,QSXWIRUWKHKLJKTXDOLW\+'0,VLJQDO
VGA 9*$9LGHR,QSXWMDFN7KH79FDQEHXVHGDVDFRPSXWHUPRQLWRU
VGA AUDIO 3&$XGLR,QSXWMDFN7KH79¶VLQWHUQDOVSHDNHUVFDQEHXVHGIRUFRPSXWHUVRXQG
COMM - CCI &RPSXWHU&RQWURO,QWHUIDFHMDFNNOTE: DO NOT FRQQHFWWRDKRVSLWDO¶VGDWD
QHWZRUNDVGDPDJHZLOOUHVXOWWRWKHO79
COMM - MTI 0XOWLSOH7HOHYLVLRQ,QWHUIDFHMDFN8VHZLWKH[WHUQDOFRQWUROER[HV NOTE: DO
NOTFRQQHFWWRDKRVSLWDO¶VGDWDQHWZRUNDVGDPDJHZLOOUHVXOWWRWKH79
EXT +5V ([WHUQDO9,QSXWIRU79VHUYLFHGLDJQRVWLFV
HOUR METER 'LJLWDO5HDGRXWRIWKH79¶VKRXUV
PILLOW 3LOORZ6SHDNHU-DFN6HHPILLOW SPEAKER CONNECTIONSIRUGHWDLOV
CR-OFF-CP-CZ 3LOORZ6SHDNHUFRPSDWLELOLW\VZLWFK6HHPILLOW SPEAKER CONNECTIONSIRU
GHWDLOV
8Document Number: PD196-167R2
Programming the TV
Connect the TV to a Cable TV signal before proceeding. Verify the
handheld remote control operates the TV.
1. Press the setup button on the remote.
2. From the Setup menu, select Channels.
3. In the Channels menu, select Signal. Set the signal to one ap-
propriate to your healthcare facility. e possible choices are,
&DEOH67' Standard Cable TV
&DEOH,5& Incrementally Related Carrier
&DEOH+5& Harmonically Related Carrier
$LU Air (Antenna)
4. In the Channels menu, select Auto Program.
5. In the Auto Program menu, select Mode. e TV can be set
to search and locate dierent styles of TV signals; $QDORJ2QO\,
'LJLWDO2QO\, or both $QDORJDQG'LJLWDO channels. Select the
style of signal.
6. In the Auto Program menu, select Channel Sequence and
select the manner in which channels are viewed. e possible
selections are:
,QWHUOHDYH$' Analog and Digital appear grouped together
$OO$WKHQ' Analog appear rst, followed by Digital
7. e Additional Digital Signal selection allows for auto pro-
gramming of a second block of channels using a dierent signal
type. For example, rst Auto Program the TV for CATV STD
signals, then use the $GGLWLRQDO'LJLWDO6LJQDO set to AIR provides
a second auto programming of air type signals to be included
in addition to the channels found during normal Auto Program
searching into the same Service Level.
8. e TV oers 3 discrete groups of channels or Service Levels.
Free, Basic, or Premium can each be programmed and used as
needed. Select the desired Service Level to program.
9. Press the <HV (Channel Up button) to begin Auto Programing or
1R (Channel Down button) to exit. Auto Programming takes ap-
proximately 2 to 12 minutes.
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channels ▶
■ Features ▶
■ OSD Language English
■ Sources ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
Channel Setup
■ Signal Cable STD
■ Auto Program ▶
■ Add/Delete Channels ▶
■ Clear Service Level ▶
■ Copy Service Level ▶
■ Parental Control ▶
■ Power On Channel ▶
■ Channel Lock Disabled
■ Channel Memory Override Enabled
Position: ST
Exit: SETUP Next: WX
Auto Program
■ Mode Analog Only
■ Channel Sequence Interleave A+D
■ Additional Digital Signal None
■ Free Programmed ▶
■ Basic Blank ▶
■ Premium Blank ▶
Position: ST
Exit: SETUP Next: WX
9Document Number: PD196-167R2
Pillow Speaker Sound Setup
Proper setup of the TV’s Sound is required for use with a
wired Pillow Speaker. Setup involves disabling the TV’s
internal speakers and then setting the audio level to the
pillow speaker.
1. Press the setup button on the handheld programming
remote control.
2. From the Setup menu, select Sound.
3. In the Sound menu, select Internal Speaker
Enable.
4. In the Internal Speaker Enable menu select the
source you wish to disable. For television select TV.
5. For Pillow Speakers with a thumb wheel volume con-
trol, in the Sound Menu, select Minimum Volume,
and set the level to approximately 50% to provide a
xed level of sound for the pillow speaker to adjust.
NOTE: Pillow Speakers with dedicated Volume Up
and Volume Down buttons do not require a Minimum
Volume adjustment.
Internal Speaker Enable
S
p
eake
r
■ TV Disabled
■ Composite Video Disabled
■ S-VIDEO Disabled
■ Component 1 Disabled
■ Component 2 Disabled
■ HDMI 1 Disabled
■ HDMI 2 Disabled
■ PC-ANALOG Disabled
■ FM RADIO Disabled
Position: ST
Exit: SETUP Next: WX
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channels ▶
■ Features ▶
■ OSD Language English
■ Sources ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
Sound
■ Balance 0
■ Minimum Volume 0
■ Maximum Volume 100
■ Power On Volume Last
■ Internal Speaker Enable ▶
■ HDMI 1 Audio Port HDMI 1
■ HDMI 2 Audio Port HDMI 2
■ Composite /S-Video Sound Mode L+R
Position: ST
Exit: SETUP Next: WX
Sound
■ Balance 0
■ Minimum Volume 50
■ Maximum Volume 100
■ Power On Volume Last
■ Internal Speaker Enable ▶
■ HDMI 1 Audio Port HDMI 1
■ HDMI 2 Audio Port HDMI 2
■ Composite/S-Video Sound Mode L+R
Position: ST
Exit: SETUP Next: WX
10 Document Number: PD196-167R2
Programming the TV’s FM Radio
Connect the TV to a Cable TV signal before proceeding. Verify the
handheld remote control operates the TV.
1. Press the setup button on the remote.
2. From the Setup menu, select FM Radio. NOTE: if the FM Radio
item is non-selectable, enable FM Radio in the Sources menu
rst.
3. In the FM Radio Setup menu, select Auto Program. A
conrmation screen will appear.
4. In the &RQ¿UP)05DGLR3URJUDP menu, press Channel
Up on the remote to begin or Channel Down to abort. e TV
will now search every available FM frequency and memorize
frequencies that contain radio stations. NOTE: FM radio signals
must be present on the coax input cable for the TV’s FM radio
feature to work properly.
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channels ▶
■ Features ▶
■ OSD Language English
■ Sources ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
FM Radio Setup
■ Auto Program ▶
■ Frequency 100.7 MHz
■ Add/Delete Added
Position: ST
Exit: SETUP Next: WX
Conrm FM Radio Program
Exit: SETUP
Yes: S
No: T
■ Conrmation ▶
11 Document Number: PD196-167R2
Troubleshooting
Problem CHECK
No Picture and No Sound
ವ Ensure the TV is connected to a powered AC outlet. The TV’s front lamp
will glow Red when correctly connected to power.
ವ Operate the TV directly by pressing the TV’s POWER button located on
the side of the cabinet.
ವ Try to cycle power to the TV by pulling the power cord from the AC outlet,
wait for 30 seconds, plug it back into the outlet, wait 15 seconds or more
and then try to turn On the TV again.
No Picture, Sound OK
ವ Verify TV is set to an active Video Source or set directly to TV by pressing
the TV/AV button on the side of the TV or the TV/AV button on the remote
control.
ವ If an Auxiliary Input Source is selected, verify the Video input signal cable
is connected and the video source is playing.
Picture OK, No Sound
ವ Verify the Sound has not been muted.
ವ Check the Volume settings.
ವ Verify pillow speaker is connected and the volume control on the pillow
speaker is properly adjusted.
ವ If an Auxiliary Input Source is selected, verify the Audio input signal cable
is connected and the video source is playing.
No Sound from Internal TV Speaker
ವ Verify the sound has not been muted.
ವ Verify the TV’s internal speakers have not been disabled in the “Internal
Speaker Enable” setup menu.
Picture is too Light
ವ Check that external light sources, such as windows or overhead lights are
not creating glare on the TV’s screen.
ವ Check the TV’s Brightness and Contrast settings in the TV’s Picture menu.
Picture is too Dark ವ Check the TV’s Brightness and Contrast settings in the TV’s Picture menu.
Picture Breaks-Up or Jitters ವ Verify the coax cable is connected correctly.
ವ The cable TV signal may be too weak.
Picture has Ghost Images ವ The cable TV signal may be too weak.
ವ The coax cable connection may be loose.
Picture has Stripes or Dots ವ The cable TV signal may be too weak.
ವ The coax cable connection may be loose.
Pillow Speaker does not Control TV ವ Check the TV’s Pillow Speaker Selector switch is correctly set.
ವ Replace Pillow Speaker.
Remote Control does not work
ವ Replace the remote’s batteries.
ವ 9HULI\WKDWVWURQJᚐXRUHVFHQWOLJKWVDUHQRWᚐRRGLQJWKH79ಬV,5ZLQGRZV
ವ For patient remote controls, verify remote is set to the correct Bed Code.
12 Document Number: PD196-167R2
Cloning the TV - Saving Settings
e TV settings can be saved to a USB Flash Drive and then used to
program another television. A specially prepared USB Flash Drive
(not supplied) is required. Please contact PDI to purchase this optional
item.
SAVING A TV’S SETTINGS
1. Turn the TV On and insert the USB Flash Drive into the Cloning
USB Slot located on the back of the TV. A Cloning Main Menu
will appear when the Drive is properly installed.
2. From the Cloning Main Menu, select Save Settings to USB.
3. In the Save Settings to USB Drive menu, select the appropri-
ate model. A conrmation menu will appear.
4. In the conrmation menu, select Channel Up for Yes to save the
settings. Otherwise, press Volume Down to exit without saving the
TV’s setting.
5. e USB Flash Drive can now be removed and used to program
another television with its settings.
Cloning Main Menu
■ Restore Settings to TV ▶
■ Save Settings to USB ▶
■ Download Firmware to TV ▶
■ Information ▶
Position: ST Next: X
Save Settings to USB Drive
■ CV2600 ▶
■ CV3200 ▶
Position: ST Next: X
Back: W
Save Settings to USB Drive
Back: WYes: S
Overwrite CV2600.tdf
with settings from TV ?
13 Document Number: PD196-167R2
Cloning the TV - Restoring Settings
A TV settings once saved to a USB Flash Drive and then be used to
program another television. A specially prepared USB Flash Drive
(not supplied) is required. Please contact PDI to purchase this optional
item.
RESTORE A TV’S SETTINGS
1. Turn the TV On and insert the USB Flash Drive into the Cloning
USB Slot located on the back of the TV. A Cloning Main Menu
will appear when the Card is properly installed.
2. From the Cloning Main Menu, select Restore Settings to
TV.
3. In the Restore Settings to TV menu, select the appropriate
model. A conrmation menu will appear.
4. In the conrmation menu, select Channel Up for Yes to restore the
settings. Otherwise, press Volume Down to exit without restoring
the TV’s setting.
5. e USB Flash can now be removed and the TV checked for cor-
rect programming.
Cloning Main Menu
■ Restore Settings to TV ▶
■ Save Settings to USB ▶
■ Download Firmware to TV ▶
■ Information ▶
Position: ST Next: X
Restore Settings to TV
■ CV2600 ▶
■ CV3200 ▶
Position: ST Next: X
Back: W
Restore Settings to TV
Back: WYes: S
Restore Settings
to TV from
CV2600.tdf?
14 Document Number: PD196-167R2

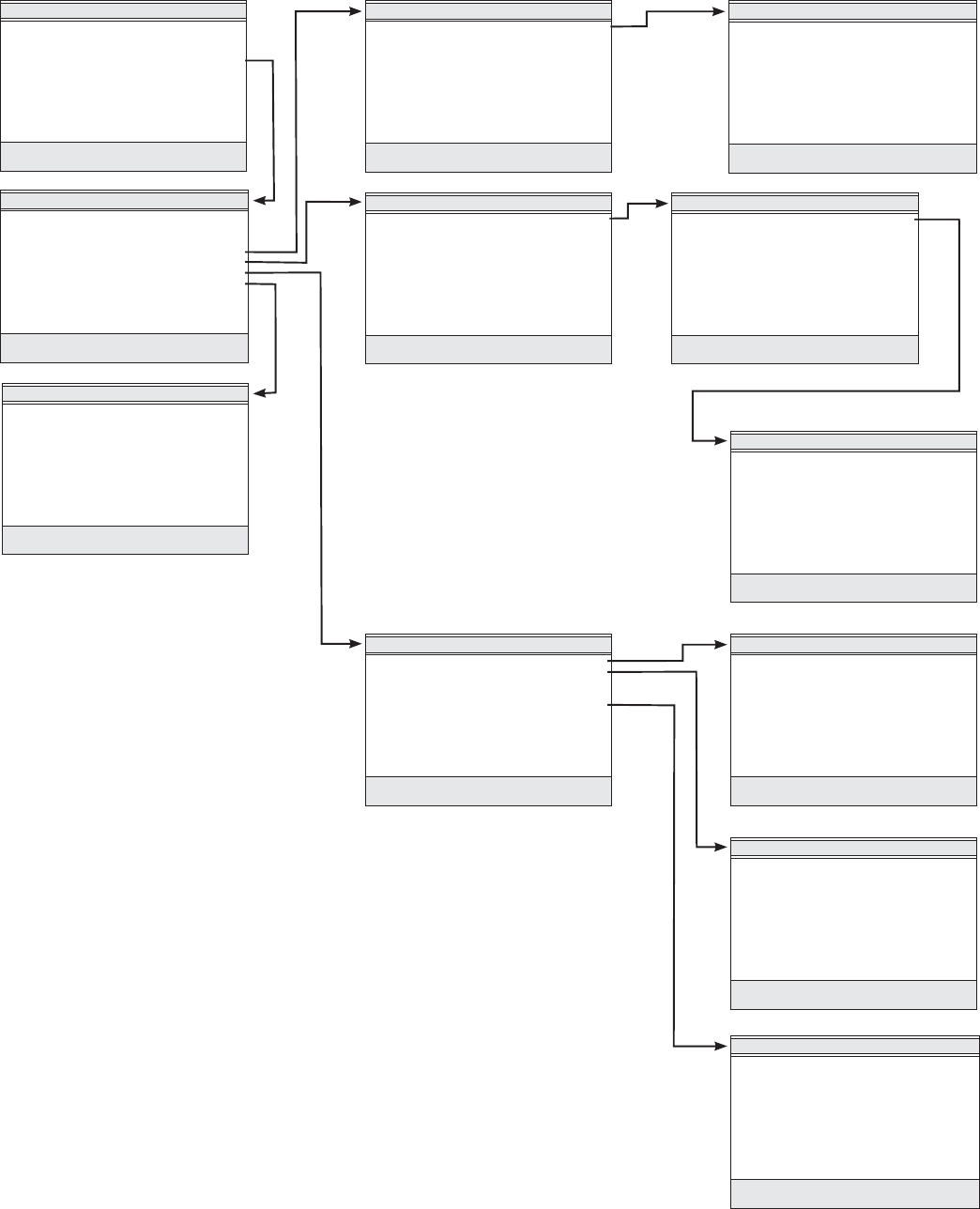

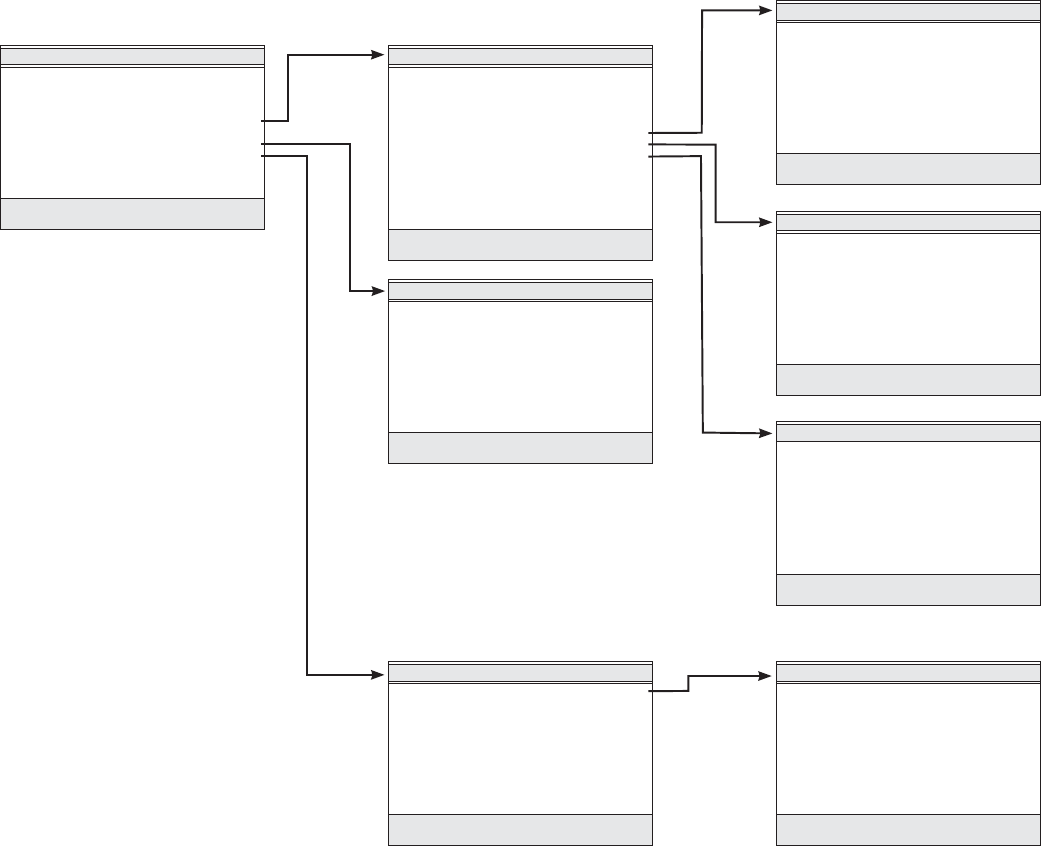

TV Menu Navigation
■ Brightness 50
■ Contrast 50
■ Color 50
■ Tint 50
■ Color Temp ▶
■ Sharpness 50
■ PC Analog/HDMI Picture ▶
■ Component Input Picture ▶
Position: ST
Exit: SETUP Next: WX
Color Temperature
■ Standard
■ Reddish
■ Greenish
■ Blueish
■ User
R G B
Position: ST
Exit: SETUP Next: WX
Component 1/2 Input Picture
■ Temperature 6500
■ Clock 50
■ Phase 50
■ ARC 16:9
■ H-Position 50
■ V-Position 50
■ Auto
Position: ST
Exit: SETUP Next: WX
Add/Delete Channel Service Level
■ Free Programmed ▶
■ Basic Blank ▶
■ Premium Blank ▶
Position: ST
Exit: SETUP Next: WX
Add/Delete Channels
■ Analog Channel 2
■ Add/Delete Analog Channel Deleted
■ Enable/Disable Digital Channel ▶
Position: ST
Exit: SETUP Next: WX
Enable/Disable Digital Channels
7-1 WHIO HD Enabled
7-2 WHIO WX Enabled
16-1 16HD Enabled
16-2 16Again Enabled
16-3 16 Life Enabled
16-4 16 Ohio Enabled
16-5 16DT Enabled
44-315 Enabled
77-7 Enabled
77-9 Enabled
Position: ST
Exit: SETUP Next: WX
Sample Channel Listing Shown for Illustrative purposes.
Actual Channel Listing will vary.
Internal Speaker Enable
Speake
r
■ TV Disabled
■ Composite Video Disabled
■ S-VIDEO Disabled
■ Component 1 Disabled
■ Component 2 Disabled
■ HDMI 1 Disabled
■ HDMI 2 Disabled
■ PC-ANALOG Disabled
■ FM RADIO Disabled
Position: ST
Exit: SETUP Next: WX
Auto Program
■ Mode Analog Only
■ Channel Sequence Interleave A+D
■ Additional Digital Signal None
■ Free Programmed ▶
■ Basic Blank ▶
■ Premium Blank ▶
Position: ST
Exit: SETUP Next: WX
Channel Setup
■ Signal Cable STD
■ Auto Program ▶
■ Add/Delete Channels ▶
■ Clear Service Level ▶
■ Copy Service Level ▶
■ Parental Control ▶
■ Power On Channel ▶
■ Channel Lock Disabled
■ Channel Memory Override Enabled
Position: ST
Exit: SETUP Next: WX
Conrm Auto Program
■ Conrmation ▶
Exit: SETUP
Yes S
No T
PC Analog/HDMI Picture
■ Temperature 6500
■ Clock 50
■ Phase 50
■ ARC 16:9
■ H-Position 50
■ V-Position 50
■ Auto
Position: ST
Exit: SETUP Next: WX
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channel Setup ▶
■ Features ▶
■ OSD Language English
■ Source Setup ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
Sound
■ Balance 0
■ Minimum Volume 0
■ Maximum Volume 100
■ Power On Volume Last
■ Internal Speaker Enable ▶
■ HDMI 1 Audio Port HDMI 1
■ HDMI 2 Audio Port HDMI 2
■ Composite/S-Video Mode L+R
Position: ST
Exit: SETUP Next: WX
15 Document Number: PD196-167R2

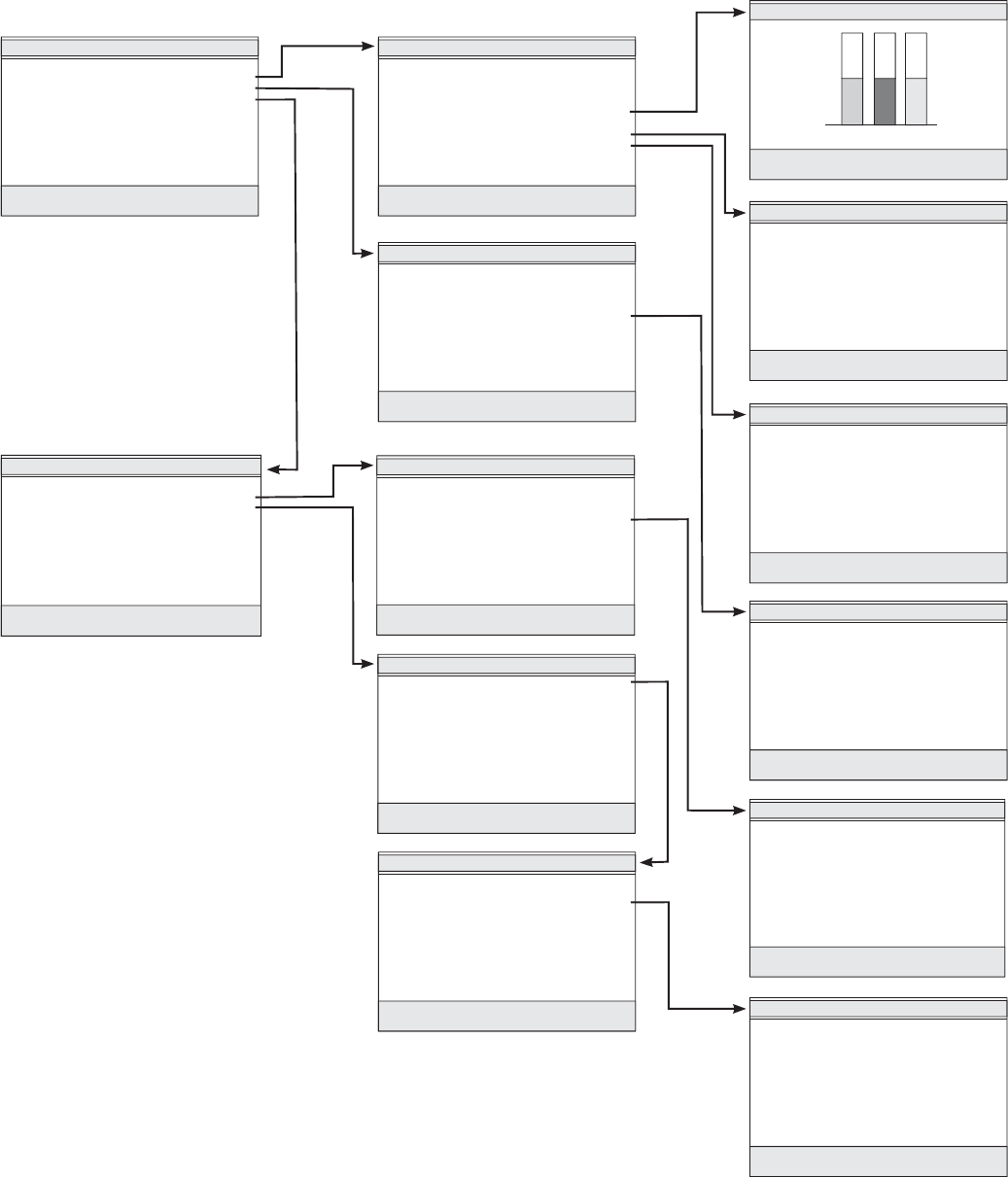

TV Menu Navigation- continued
Clear Service Level
■ Free Programmed ▶
■ Basic Blank ▶
■ Premium Blank ▶
Position: ST
Exit: SETUP Next: WX
Conrm Clear
■ Conrmation ▶
Exit: SETUP
Yes S
No T
Copy Service Level
■ From: Free To: Basic ▶
Adjust From: S
Exit: SETUP
Adjust To: T
Next: WX
Copy Service Level
■ From: Free To: Basic ▶
Adjust From: S
Exit: SETUP
Adjust To: T
Next: WX
Conrm Copy
■ Conrmation ▶
Exit: SETUP
Yes S
No T
Parental Control
■ TV Rating ▶
■ MPAA Rating ▶
■ Advanced Rating ▶
■ Advanced Rating Option Disabled
■ Change Password ▶
■ Aux. Block Sources Unblocked
■ Block Hour Always
■ Parental Lock Disabled
Position: ST
Exit: SETUP Next: WX
MPAA Rating
■ G U
■ PG U
■ PG-13 U
■ R U
■ NC-17 U
■ X U
■ No Rating U
Position: ST
Exit: SETUP Next: WX
Change Password
Enter Password - - - -
Conrm Password - - - -
Exit: SETUP
Power On Channel
Channel
■ Free 12
■ Basic Last
■ Premium Last
Position: ST
Exit: SETUP Next: WX
Channel Setup
■ Signal Cable STD
■ Auto Program ▶
■ Add/Delete Channels ▶
■ Clear Service Level ▶
■ Copy Service Level ▶
■ Parental Control ▶
■ Power On Channel ▶
■ Channel Lock Disabled
■ Channel Memory Override Enabled
Position: ST
Exit: SETUP Next: WX
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channel Setup ▶
■ Features ▶
■ OSD Language English
■ Source Setup ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
TV Rating
ALL FV L S V D
■ TV-Y U
■ TV-Y7 U U
■ TV-G U
■ TV-PG U U U U U
■ TV-14 U U U U U
■ TV-MA U U U U
Position: ST
Exit: SETUP Next: WX
16 Document Number: PD196-167R2
TV Menu Navigation- continued
Digital Mode Time Stamp
■ Time Zone Eastern
■ Daylight Savings On
Position: ST
Exit: SETUP Next: WX
FM Radio Setup
■ Auto Program ▶
■ Frequency 100.7 MHz
■ Add/Delete Added
Position: ST
Exit: SETUP Next: WX
SETUP
■ Service Level Free
■ Picture ▶
■ Sound ▶
■ Channel Setup ▶
■ Features ▶
■ OSD Language English
■ Source Setup ▶
■ FM Radio ▶
Position: ST
Exit: SETUP Next: WX
Features
■ Power On Caption Mode Last
■ Auto Power On Disabled
■ Power Management Disabled
■ Bed A/B A
■ Caption Text Modes Disabled
■ Digital Captions ▶
■ Digital Mode Time Setup ▶
■ Diagnostics ▶
■ Channel Up Power O Disabled
■ Channel to other Sources Enabled
■ Power on ARC Mode Last
■ Slot Standby Power Disabled
■ Standby Power Low
Position: ST
Exit: SETUP Next: WX
Source Setup
■ TV Enabled/No APO
■ Composite Video Disabled
■ S-VIDEO Disabled
■ Component 1 Disabled
■ Component 2 Disabled
■ HDMI 1 Disabled
■ HDMI 2 Disabled
■ PC-ANALOG Disabled
■ FM RADIO Disabled
■ Power on Source TV
Position: ST
Exit: SETUP Next: WX
APO = Auto Power o if no video
Digital Captions
■ Mode Default
■ Font Default
■ Size Default
■ FG Color Default
■ BG Color Default
■ FG Opacity Default
■ BG Opacity Default
Position: ST
Exit: SETUP Next: WX
Diagnostics
■ Field ON Hours 132
■ Field Powered Hours 265
■ IO Firmware VSN 3.6
■ Main Firmware VSN 2.90
■ Pro:Idiom Support
■ Mpeg4 1.0
■ Bluethooth Firmware VSN 1.0
Exit: SETUP
Conrm FM Auto Program
■ Conrmation ▶
Exit: SETUP
Yes S
No T
17 Document Number: PD196-167R2
TV Menu Explanations
Menu Item Explanation Sub-Item Explanation
Setup
Service Level 3 programmable Service
Levels (banks of channels)
plus a Disable service level.
Picture Adjusts picture appearance. Brightness Adjust the brightness of the dark areas in the
picture. 50% is the default value.
Contrast Adjust the brightness of the light areas in the
picture. 50% is the default value.
Color Adjust the strength of the color in the picture.
50% is the default value.
Tint Adjust the tint of the picture. 50% is the default
value.
Color Temperature Opens a sub-menu that provides adjustment to
the color balance of the picture.
Sharpness Adjust the amount of detail present in the
picture. 50% is the default value.
PC Analog/HDMI Picture Opens a sub-menu that provides adjustment
to the picture when the TV is used in computer
mode.
Temperature: Color warmth of picture.
Clock: Adjust the horizontal screen size.
Phase: Removes horizontal noise.
ARC: Selects the screen size ratios.
H-Position: Move Picture left or right.
V-Position: Moves Picture up or down.
Auto: Automatically adjust picture.
Component Input Picture Opens a sub-menu that provides adjustment to
the picture when viewing a component signal.
Temperature: Color warmth of picture.
Clock: Adjust the horizontal screen size.
Phase: Removes horizontal noise.
ARC: Selects the screen size ratios.
H-Position: Move Picture left or right.
V-Position: Moves Picture up or down.
Auto: Automatically adjust picture.
Sound Adjusts sound parameters. Balance Moves sound between the Left and Right
Speakers.
Minimum Volume Sets a minimum sound level. The TV’s sound
level can not be adjusted below the minimum
volume setting. The default value is 0.
Maximum Volume Sets a maximum sound level. The TV’s sound
level can not be adjusted above the maximum
volume setting. The default value is 100.
Power On Volume 6HWVDQLQLWLDOVRXQGOHYHOZKHQWKH79LVᚏUVW
turned on. The default value is LAST.
Internal Speaker Enable Opens a sub-menu that provide Disabling/
Enabling the TV’s internal speakers. Items are
shown in the default setting.
TV Enabled
Composite Video Enabled
S-VIDEO Enabled
Component 1 Enabled
Component 2 Enabled
HDMI 1 Enabled
HDMI 2 Enabled
PC-Analog Enabled
FM Radio Enabled
HDMI 1 Audio Port
HDMI 2 Audio Port
Audio ports HDMI 1 or 2, PC, or Component 1
or 2 can be used as inputs for HDMI sound.
Composite/S-Video Mode Adjust Composite/S-Video for L+L, L+R, or R+R
18 Document Number: PD196-167R2
TV Menu Explanations - continued
Menu Item Explanation Sub-Item Explanation
Channel Setup 3URJUDPVGLᚎHUHQWFKDQQHOVDQGVRXUFHV
into each of the 3 service levels
Signal 6HWVWKH79WRWXQHRIGLᚎHUHQWVLJQDO
styles: Air, Cable STD, Cable IRC, Cable
HRC
Auto Program TV automatically scans for active
channels and memorizes them into the
selected service level.
Mode Scan for “Analog Only”, “Digital Only”, or
“Analog and Digital” channels.
Channel Sequence Set the sequence in which the TV displays
channels.
Interleave A+D, Analog and Digital appear
grouped together. All A then D, Analog
DSSHDUᚏUVWIROORZHGE\'LJLWDO
Additional Digital
Signal
Provides a second auto search for channels
XVLQJDGLᚎHUHQWVLJQDOW\SH
None Disabled
Air Antenna Tuning
Cable STD Standard Cable
Cable IRC Incremental Related Cable
Cable HRC Harmonic Relate Cable
Free 2QHRIWKUHHGLᚎHUHQWVHUYLFHOHYHOV
FKDQQHOEDQNVXVHGWRKROGGLᚎHUHQW
groupings of channels.
&RQᚏUP$XWR3URJUDP Begins the Auto Program process. Auto
Program requires 2 to 12 minutes to
complete.
Basic 2QHRIWKUHHGLᚎHUHQWVHUYLFHOHYHOV
FKDQQHOEDQNVXVHGWRKROGGLᚎHUHQW
groupings of channels.
&RQᚏUP$XWR3URJUDP Begins the Auto Program process. Auto
Program requires 2 to 12 minutes to
complete.
Premium 2QHRIWKUHHGLᚎHUHQWVHUYLFHOHYHOV
FKDQQHOEDQNVXVHGWRKROGGLᚎHUHQW
groupings of channels.
&RQᚏUP$XWR3URJUDP Begins the Auto Program process. Auto
Program requires 2 to 12 minutes to
complete.
Add/Delete
Channels
Add or Delete Channels from a Service
Level.
Free Selects the Free service level edit menu.
Basic Selects the Basic service level edit menu.
Premium Selects the Premium service level edit
menu.
Analog Channel Selects the channel to be edited.
Add/Delete Analog
Channel
Sets the indicated Analog channel to either
“Deleted” or “Added”.
Enable/Disable Digital
Channel
Displays a list of auto programmed Digital
Channels. Each channel can be “Enabled”
or “Disabled” for viewing.
Clear Service
Level
Erase the programmed channels from a
service level. “Blank” indicates an empty
service level.
Free Selects the Free Service level to Clear. &RQᚏUP&OHDU &RQᚏUPDWLRQ0HQXEHIRUHFOHDULQJVHUYLFH
level.
Basic Selects the Basic Service level to Clear. &RQᚏUP&OHDU &RQᚏUPDWLRQ0HQXEHIRUHFOHDULQJVHUYLFH
level.
Premium Selects the Premium Service level to
Clear.
&RQᚏUP&OHDU &RQᚏUPDWLRQ0HQXEHIRUHFOHDULQJVHUYLFH
level.
Copy Service
Level
Copy an existing service level to a desti-
nation service level.
From: Sets the service level to be copied.
To: Sets the service level to be programmed.
&RQᚏUP&RS\ &RQᚏUPDWLRQ0HQXWREHIRUHFRS\LQJVHUYLFH
levels.
19 Document Number: PD196-167R2
TV Menu Explanations - continued
Menu Item Explanation Sub-Item Explanation
Parental Control Control Access of TV and Movie content.
TV Rating Displays a list of parental TV viewing levels
and allows for Blocking or Unblocking of
TV content.
MPAA Rating Displays a list of parental Movie viewing
levels and allows for Blocking or
Unblocking of Movie content.
Advanced Rating Digital TV content Rating levels listing
menu.
Advanced Rating
Option
Enable or Disable the Advanced Rating
menu for digital TV content.
Change Password Displays a menu and allows creation of a
new parental password.
Aux. Block Sources Enable or Disable the Aux. Block Source
item to restrict program content inputted
through the TV’s auxiliary inputs.
Block Hours Sets the number of hours the parental lock
is enabled.
Parental Lock Enable or Disable the settings in the Pa-
rental Control menus.
Power On Channel TV displays a preset TV channel upon
initial powering for each service level.
Free TV powers on to this set channel
number. Entering “Last” causes the
TV to power on to the last channel
viewed.
Basic TV powers on to this set channel
number. Entering “Last” causes the
TV to power on to the last channel
viewed.
Premium TV powers on to this set channel
number. Entering “Last” causes the
TV to power on to the last channel
viewed.
Channel Lock Enable or Disable the Channel Lock
feature. When Enabled the TV is locked
to the last channel viewed. Prevents the
TV from being tuned to any other channel
or source. Disabled allows the TV to be
tuned to other channels.
Channel Memory
Override
Enable means the TV will tune to all pos-
sible channels.
Disable means the TV can only be tuned to
channels in the currently selected service
level.
Features
Power on Caption
Mode
Sets the Caption mode TV when the
powers On.
2ᚎ 79SRZHUVRQZLWKFDSWLRQVGLVDEOHG
/DVW 79SRZHUVRQLQODVWFDSWLRQVHWWLQJ
Auto Power On 79UHPDLQV2QDQGFDQQRWEHWXUQHG2ᚎ
Power
Management
79ZLOOWXUQ2ᚎDIWHUDSUHVHWSHULRGRI
inactivity. Default is Disabled.
Bed A/B Set the IR code for patient remote controls
for either Bed A or Bed B. Bed A is the
default setting.
Caption Text Mode Teletext can be displayed on screen.
(QDEOHG 7HOHWH[WWXUQHGRQ
'LVDEOHG 7HOHWH[WRᚎ
NOTE: Teletext is not readily available in
North America
20 Document Number: PD196-167R2
TV Menu Explanations - continued
Menu Item Explanation Sub-Item Explanation
Features Digital Captions Customize the look of captions when
tuned to a digital channel.
Font Size Default, Small, Standard, Large
Font Style Default, Style 0 thru Style 7
Foreground Color Default, White, Black, Red, Green, Blue,
Yellow, Magenta, Cyan
Background Color Default, White, Black, Red, Green, Blue,
Yellow, Magenta, Cyan
Foreground Opacity Default, Solid, Translucent, Transparent,
Flashing
Background Opacity Default, Solid, Translucent, Transparent,
Flashing
Edge Color Default, White, Black, Red, Green, Blue,
Yellow, Magenta, Cyan
Edge Style Default, None, Raised, Depressed, Uniform,
Left Drop Shadow, Right Drop Shadow,
Digital Mode
Time Setup
Timing information provided by Digital
FKDQQHOVFDQEHVHWWRWKHVSHFLᚏF7LPH
Zone and also Daylight Savings.
Time Zone Sets the current Time zone to Newfoundland,
$WODQWLF(DVWHUQ&HQWUDO0RXQWDLQ3DFLᚏF
Alaska, Hawaii.
Daylight Saving 7XUQV'D\OLJKW6DYLQJ2Q2ᚎRUVHWWR$XWR
detect.
Diagnostics A display menu that provides a readout
of the TV’s internal operations.
Field ON Hours Readout of the number of hours the TV has
been turned On.
Field Power Hours Readout of the number of hours the TV has
been plugged into a powered outlet.
IO Firmware VSN ,2ᚏUPZDUHYHUVLRQUHVLGHQWLQVLGHWKH79
Main Firmware VSN 0DLQᚏUPZDUHYHUVLRQUHVLGHQWLQVLGHWKH79
Pro:Idom Indicates presence of ProIdiom option.
Mpeg4 Firmware Version of Mpeg4 decoder
Bluetooth Firmware
VSN
Firmware Version of Bluetooth decoder
Channel Up
3RZHU2ᚎ
:KHQ(QDEOHGWKH79VKXWVRᚎZKHQLW
reaches the highest channel.
Channel to Other
Sources
When Enabled the External sources
connected to the TV appear in the TV’s
channel listing. If Disabled the External
sources do not appear in the TV’s chan-
nel listing.
Power on ARC
Mode
The TV can be set to turn On with a
VSHFLᚏFSLFWXUH$VSHFW5DWLR/DVW
14:9, 16:9, and 16:9 Panorama.
Slot Standby
Power
7XUQVSRZHU2QRU2ᚎWR6ORWDQG6ORW
2 accessory slots.
Standby Power Places TV in Low Standby Power or
Normal Standby Power Mode
OSD
Language
The menu system On Screen Display
language settings are English, Spanish,
and French
21 Document Number: PD196-167R2
TV Menu Explanations - continued
Menu Item Explanation Sub-Item Explanation
Setup
Source Setup The individual auxiliary in-
put connectors on the back
of the TV can be turned On
RU2ᚎ7KHVRXUFHFDQDOVR
EHVHWWR$XWR3RZHU2ᚎ
(APO) after 5 minutes of a
no signal condition.
TV Disabled, Enabled/APO,
Enabled/No APO
Composite Video Disabled, Enabled/APO,
Enabled/No APO
S-VIDEO Disabled, Enabled/APO,
Enabled/No APO
Component 1 Disabled, Enabled/APO,
Enabled/No APO
Component 2 Disabled, Enabled/APO,
Enabled/No APO
HDMI 1 Disabled, Enabled/APO,
Enabled/No APO
HDMI 2 Disabled, Enabled/APO,
Enabled/No APO
PC-ANALOG Disabled, Enabled/APO,
Enabled/No APO
FM RADIO Disabled, Enabled
Power On Source Last, (Any Enabled Source)
FM Radio FM Radio Setup menu Auto Program Automatic search for FM
radio stations present on
the connected coax cable.
Frequency User selectable Frequency
Add/Delete Add or Delete a Frequency
22 Document Number: PD196-167R2
is page intentionally blank.
23 Document Number: PD196-167R2
PDI Limited Warranty
PDI Communication Systems (PDI) warrants this product, except as set forth below, ONLY TO THE ORIGINAL
PURCHASER to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of original
purchase for a period of 2 years for parts and 2 years for labor (“e Warranty Period”). THIS LIMITED WARRANTY
IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA, AND CANADA.
If this product is found to be defective, PDI will repair or replace defective parts at no charge to the original owner during
the warranty period. Such repair and replacement services shall be rendered by PDI or a PDI Authorized Servicer during
normal business hours. Parts used for replacement or repair are warranted only for the remainder of the Warranty Period.
To return a product for service please obtain a Return Material Authorization (RMA) from PDI. Products returned
without a RMA will not be serviced.
WHAT IS NOT COVERED
is limited warranty provided by PDI does NOT cover:
1. Product which has been subject to abuse, accident, alteration, modication, tampering, negligence, misuse,
faulty installation, lack of reasonable care, or if axed to any attachment not specied for the product;
2. Product that has either the model number or serial number altered, tampered with, defaced or removed;
3. Initial installation and removal for repair;
4. Operational adjustments covered in the Owner’s Manual, normal maintenance, and cleaning;
5. Damage that occurs in shipment, due to act of God, and cosmetic damage;
6. Signal reception problems and failures due to line power surge;
7. e cost for shipping the product to PDI’s service center;
8. Accessories;
9. Batteries;
ere are no expressed warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY HEREIN. PDI
SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY
OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESSED
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential damages or limitations on how
long an implied warranty lasts, so these limitations or exclusions may not apply to you. is warranty
gives you specic legal rights and you may also have other rights which vary from state to state.
Refurbished products carry a separate warranty. is warranty does not apply. For details of refurbished product
warranty, please refer to the refurbished product warranty information packaged with each refurbished product.
PDI Communication Systems, Inc.
40 Greenwood Lane
Springboro, Ohio 45066
PH: 937-743-6010 FX: 937-743-5664
24
PDI Communication Systems, Inc.
40 Greenwood Lane
Springboro, Ohio 45066

Navigation menu
