Systems Inc. PDI-P32LCDD Quick Start Guide Page 1 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
PRODUCT ACCESSORIES
(Not Included with TV)
100mm VESA Wall Mount PD168-003
Remote Control PD108-427
¼” to 6-Pin Jumper Cable PD106-416
¼” to ¼” Jumper Cable PD106-417
VGA IN: Connection to the video output jack on your
PC. VGA AUDIO IN: Connect the audio cable from the
PC to the AUDIO IN of the set.
NOTE TO CABLE TV INSTALLER
This reminder is provided to call the cable
TV systems
installer’s attention to
Article 820-40 of the National Electrical
Code.
The code provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close
to the point of the cable entry as practical.
WARNINGS
CAUTION :
To reduce the risk of electric shock do not
remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified service personnel.
This symbol is intended to alert the user of the
presence of uninsulated ‘dangerous voltage’
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user of the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
OVERHEAD FALLING HAZARD
WARNING: To prevent injury, this apparatus
must be securely attached to the wall in
accordance with the installation instructions. TVs
can pose a striking hazard when mounted at an
elevated position.
RAIN AND MOISTURE
WARNING:
To avoid the hazards of fire or
electrical shock, DO NOT
expose this television
to rain or moisture.
OXYGEN ENVIRONMENT
WARNING: Do not use in any oxygen tent or
oxygen chamber. Such use may cause a fire
hazard.
RAIN AND MOISTURE
WARNING:
To avoid the hazards of fire or
electrical shock, DO NOT
expose this television
to rain or moisture.
WET LOCATION
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
FCC
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules.
These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a residential or commercial
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of more
of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
FCC ID: WQ5P32LCDD
This device complies with Part 15 of the FCC Rules.
Operation issubject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation
MAINTENANCE AND SERVICING
Never remove the back cover of the
TV; this can expose you
to high voltage and other hazards. If the
TV does not
operate properly, unplug it and call an authorized service
center or PDI.
CLEANING AND DISINFECTION
Clean the exterior of this television by removing dust with a
lint-free cloth. CAUTION:
To avoid damage to the surface of
the television, do not use abrasive or chemical cleaning
agents.
DISCONNECTING DEVICE FROM MAINS
Main plug is the disconnecting device. The plug must
remain readily operable.
SERVICE INSTRUCTIONS
CAUTION:
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock, do not perform any
servicing other than contained in the operating instructions
unless you are qualified to do so.
PRODUCT MODIFICATION
Do not attempt to modify this product in any way without
written authorization. Unauthorized modification could void
the user’s authority to operate this product.
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 2 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
Important Safety Instructions
Important safeguards for you and your new product.
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do no block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8.
Do not install near any heat source such as
radiators, heat registers, stove, or other
apparatus (including amplifiers) that produces
heat.
9.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one wider
than the other. A grounding type plug has
two plates and a third grounding prong. The
wide blade or the third prong is provided for
your safety. If the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.
10.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11.
Only use attachments/accessories specified by the
manufacturer.
12.
Use only with the cart,
stand, tripod, bracket or
table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart / apparatus
combination to avoid injury
from tip-over.
13.
Unplug this apparatus during lightning storms or
when unused for long period of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Copyright, Disclaimer, & Trademarks
COPYRIGHT
PDi Communication Systems, Inc. claims proprietary right to the material disclosed in this user guide.
This guide is issued
for user information only and may not be used to manufacture anything shown herein. Copyright
2008 by PDi
Communication Systems, Inc.
All rights reserved.
DISCLAIMER
The author and publisher have used their best efforts in preparing this guide. PDi Communication Systems, Inc. make no
representation or warranties with respect to the accuracy or completeness of the contents of this guide and specifically
disclaim any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for
any loss of profit or any other damages.
The information contained herein is believed accurate, but is not warranted, and is
subject to change without notice or obligation.
TRADEMARKS
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
All other brand names and product names used in this guide are trademarks, registered trademarks, or trade names of their
respective holder. PDi and Better Solutions
Are Within Reach are registered trademarks of PDi Communication Systems,
Inc., Springboro, Ohio.
LOCATION GUIDELINES
The model PDI-P32LCDD Hospital LCD TV is a specialized LCD television. This TV is intended for entertainment and
educational purposes for use in a hospital, a nursing home, a medical-care center, or a similar health-care facility in which
installation is limited to a non-hazardous area in accordance with the National Electrical Code, ANSI/NFPA 70. The PDI-
P32LCDD is designed for mounting to PDI manufactured mounts. Installation of the TV on a non-PDI approved mount is
not recommended.
WARNING: The TV’s VESA mounting holes are
designed for M6 metric screws. M4 metric screws
can be used with the M6-to-M4 adaptor provided and
installed. Use of a non-PDI approved mount or SAE
hardware could result in a condition where the TV
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 3 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
could unexpectedly fall and cause injury or death.
The PDI-P32LCDD TV mounts on the wall at the foot of a patient’s bed. Select a location that is near an AC wall
outlet and that does not expose the TV to bright room lights or sunlight if possible. The LCD TV also requires
connection of both CATV cable signal and across-room wiring for the pillow speaker.
CABLE SYSTEM GROUNDING
The coax cable system connected to the PDI-P32LCDD TV should be grounded in accordance with the National Electrical
Code, ANSI/NFPA 70. The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
WALL MOUNTING WITH PD168-003 STANDARD WALL BRACKET (Not supplied with TV)

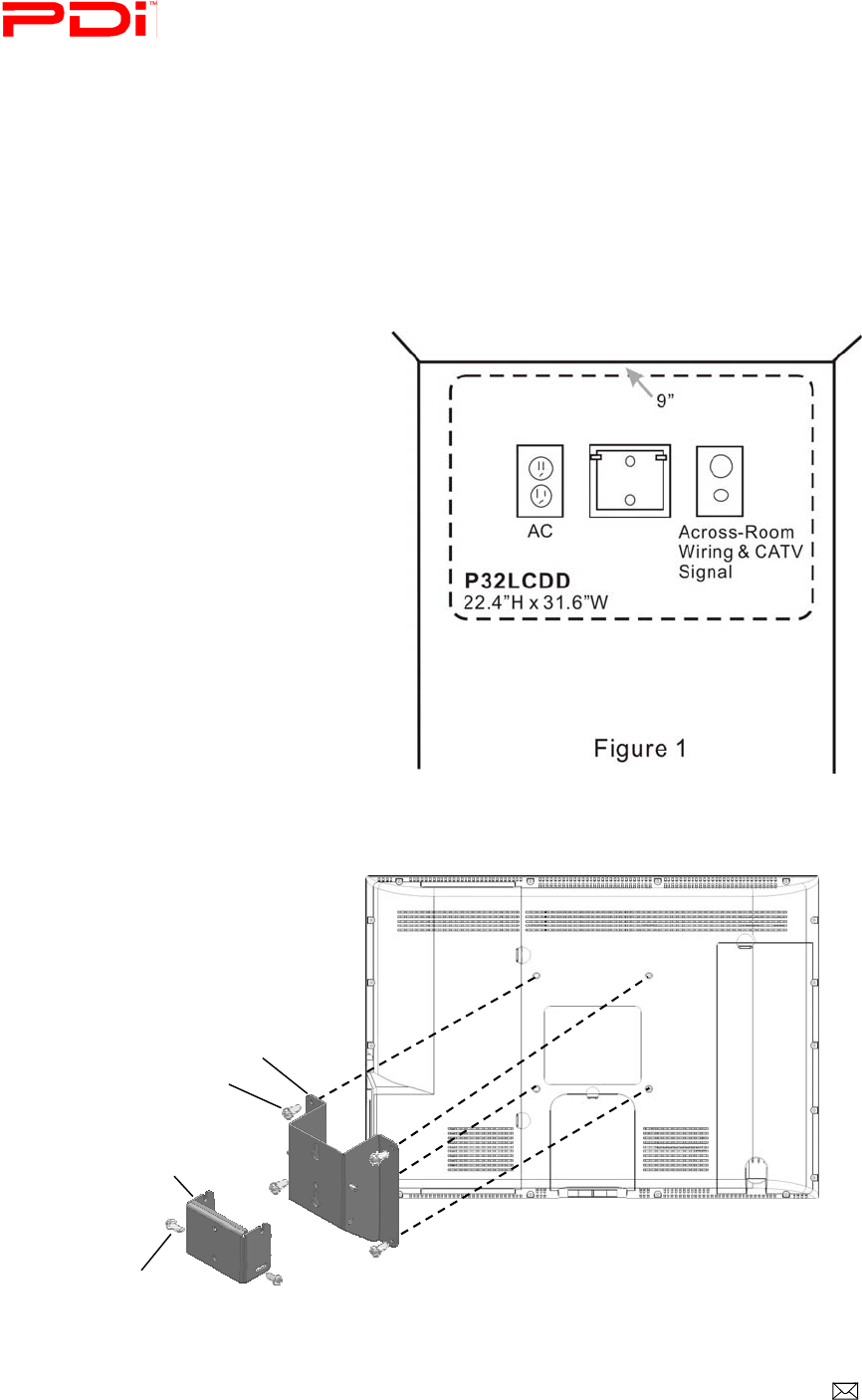

1. Refer to Figure 1. Select a location on the wall
approximately 9 inches below the ceiling.
NOTE: Do not locate AC, Across-Room Wiring,
and CATV Signal outlets below the Wall
Bracket’s location as it will cause clearance
issues and interfere with the TV’s cabinet when
mounted to the bracket.
Position the Wall Bracket and locate two
mounting holes. Secure the bracket to the wall
(mounting hardware is not included).
2. Refer to Figure 2. The TV can be mounted
with 6 mm hardware (Not Provided) using a
compatible mount. To use 4 mm hardware,
please screw a M6-to-M4 adaptor (4 provided)
into each of the four mounting holes located on
the back of the TV. Position the Back Mount
on the LCD TV cabinet. Attach with four M6 x
10mm screws provided with the mount.
3. Mate the Back Mount to the Wall Bracket
making sure the pivot pins are retained in the
“U” shaped slot. Using the pilfer security driver
packed with the hardware, secure with two
10x32 pilfer screws.

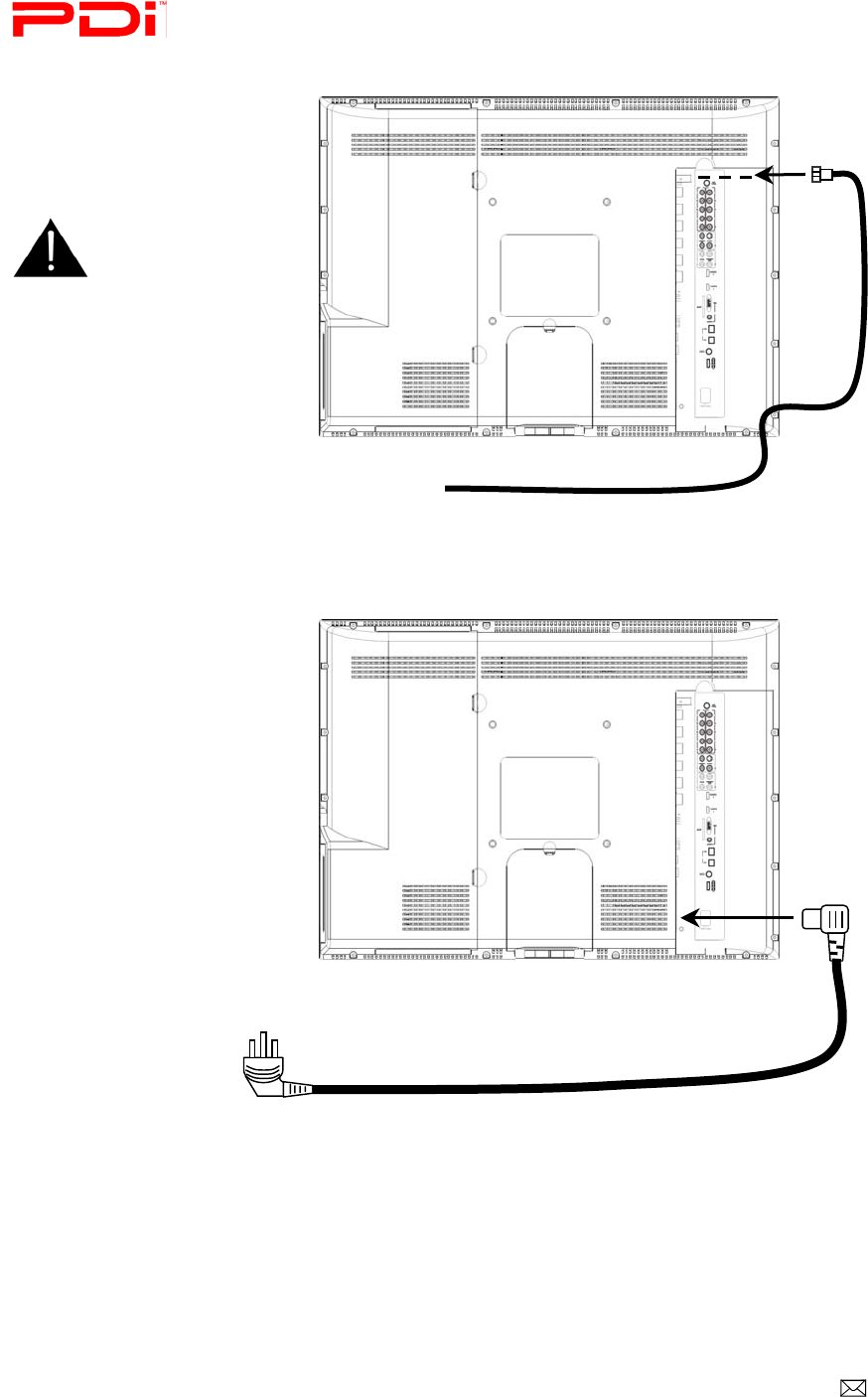

4. Connect the AC line cord, Pillow Speaker
Jumper Cable, and CATV Coax Cable.
5. The TV’s tilt can be adjusted by loosening both
Pilfer Screws, adjusting tilt, and then tighten.
Figure 2
M6 x 10mm
Screws (4)
Pilfer Screws (2)
Back Mount
Wall Mount
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 4 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
ACROSS ROOM WIRING

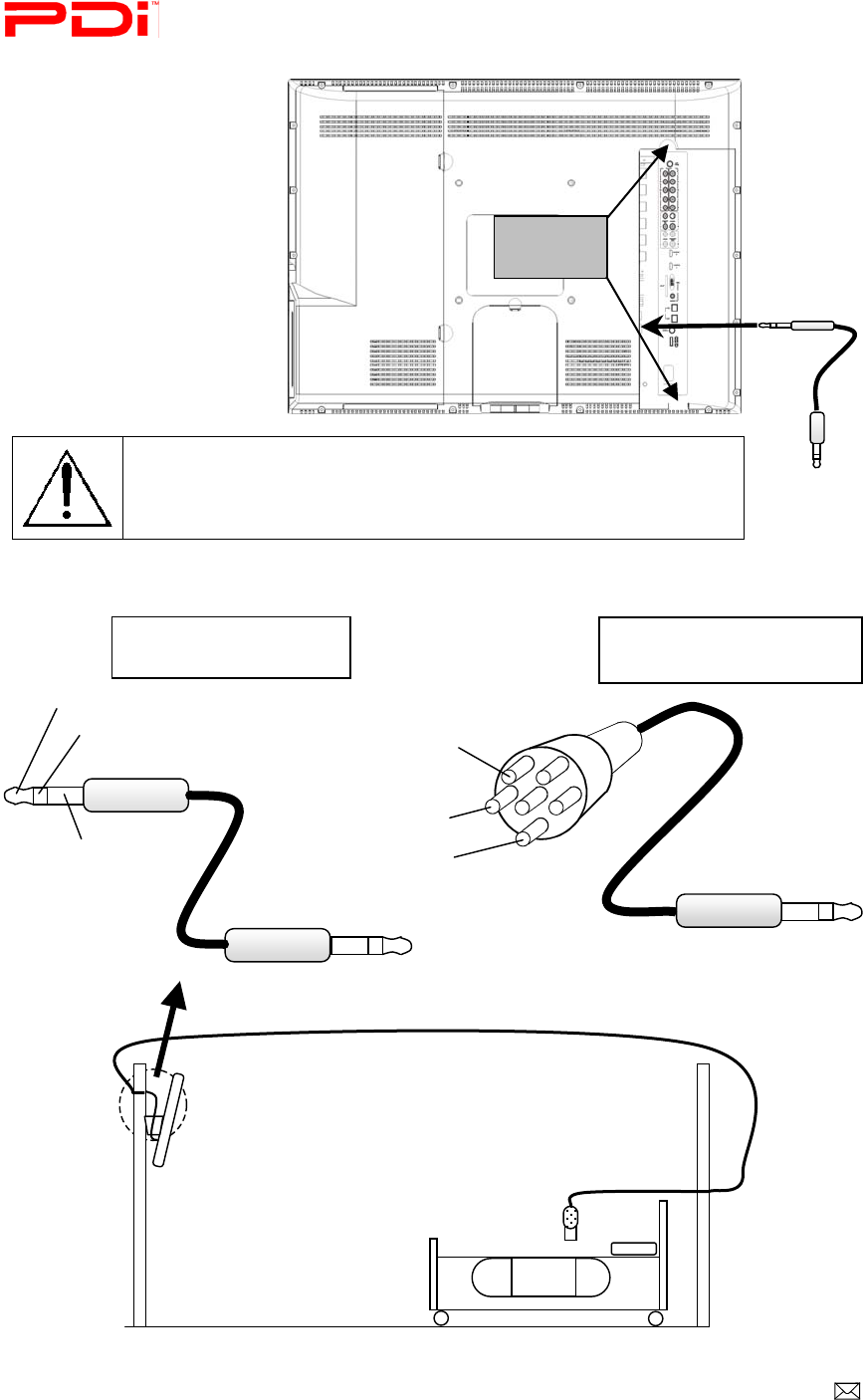

A ¼” stereo style pillow speaker
(pendant control) jack is located on
the TV’s connector panel behind the
removable access cover. This cover
can be removed without the use of
hand tools by depressing both thumb
tabs.
This TV is designed to work with
either a digital pillow speaker that
generates digital style control codes
or a single-button analog (switch-
style) pillow speaker. A rear panel
mounted switch allows use of
different brands of pillow speakers
and supports; Zenith, Philips, and
RCA compatible pillow speakers.
WARNING: DO NOT connect the pillow speaker circuit Common to
earth ground. Grounding of the Common will defeat the isolation
circuitry of the television and possibly expose the patient to harmful
shock currents should a wiring fault occur.
NOTE: A Jumper Cable is NOT supplied with the TV and must be ordered separately.
SPEAKER
DATA / SWITCH
COMMON
¼” to 6-Pin Jumper Cable
PD106-416
¼” to ¼” Jumper Cable
PD106-417
ACROSS ROOM WIRING
To Wall Plate
Pillow Speaker
Connection
SPEAKER
DATA / SWITCH
COMMON
THUMB
TABS
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 5 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
Antenna “ANT” Connection
An “F” style jack is located on the TV’s
connector panel behind the removable
access cover.
CAUTION: Some hospital
cable systems provide
power voltage on the
coaxial cable. This TV is
NOT designed to be
powered via a coaxial
cable. Do not connect to
a powered coaxial cable.
Damage will result to the
TV.
AC POWER
A right-angled AC power cord is
supplied with each TV.
Connect the AC plug into the TV’s AC
jack before connecting the AC power
cord to a powered outlet.
CABLE ROUTING
Route all cables through the opening
located at the bottom of the cabinet.
Then re-attach the back access cover
before operating the television.
Hospital Coax Cable
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 6 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
PROGRAMMING
NOTE: The remote control (PD108-427) is also performed all setup operations for the television and a password is
needed to enter the setup mode. The following instructions assume you have correctly mounted the TV, wired an external
pillow speaker, and connected an RF coax cable signal, and AC power cord to the TV.

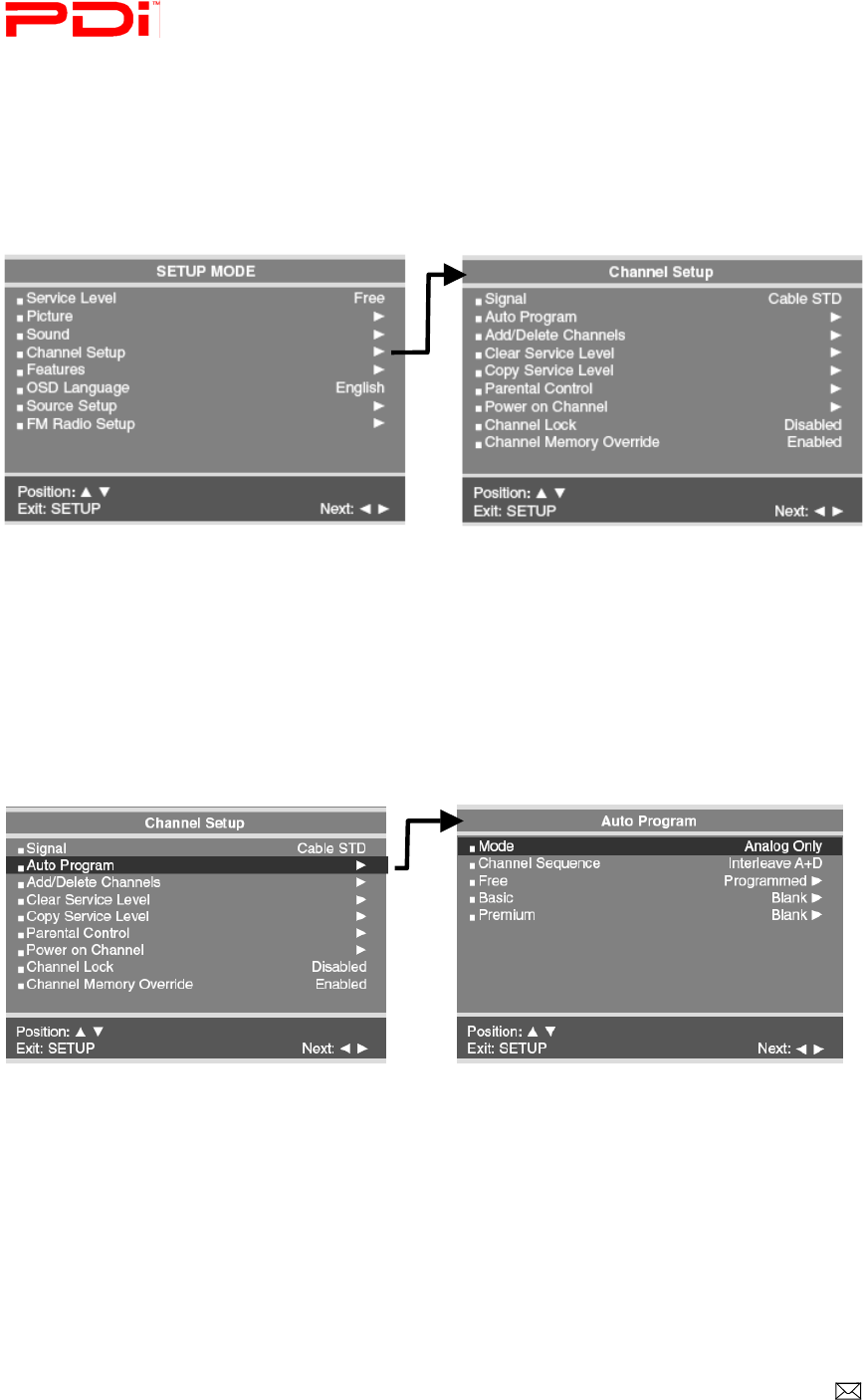

Channel Setup
The TV offers three different programmable channel banks or Service Levels to program. Only one Service Level is
usable at a time.
Four different tuning types are available depending upon the healthcare facilities’ signal style.
Selection of the correct signal type is required for the TV to recognize all possible channels and before any channel
programming can begin.
1. Press the SETUP button to display the SETUP MODE menu.
2. Press the ▲/▼ direction
button to select Signal.
3. Press ◄/► direction
to select Air, Cable STD, Cable IRC or Cable HRC. NOTE: Most hospitals use the Cable STD
signal style.
Auto Program
The TV automatically scans each available channel for activity. Channels that display activity are memorized into the
selected Service Level.
1. Press the SETUP button to display the SETUP MODE menu.
2. Press the ▲/▼ direction
button to select Mode.
3. Press ◄/► direction to set the scope of channel scanning.
Analog Only: TV searches for analog channels only.
Digital Only: TV searched for digital channels only.
Analog and Digital: TV searches for both analog and digital channels.
4. Press the ▲/▼ direction
button to select the Channel Sequence menu item.
5.
Press
◄/► direction
to set the Channel Sequence in which the channels are displayed after searching.
Interleave A+D: In the order of channel number regardless of the system.
All A then D: Digital channels are displayed after all analog channels.
6.
Press the
▲/▼ direction
button to select the Service Level you wish to program. The menu displays the current
programming status of each level as either Programmed or Blank. NOTE: A Programmed service level can also be re-
programmed if desired.
7.
Press the
► direction
button
to start auto programming.
Communication
Systems Inc. PDI-P32LCDD Quick Start Guide Page 7 of 7
Better Solutions Are Within Reach™ INSTALLATION INSTRUCTIONS
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I127R1.DOC
8. A confirmation menu will appear before proceeding. Press either the ▲ direction to start auto programming. Press
▼ direction
button to cancel the operation.
The TV will now search all available channels. Press the SETUP button to
return to normal TV viewing.

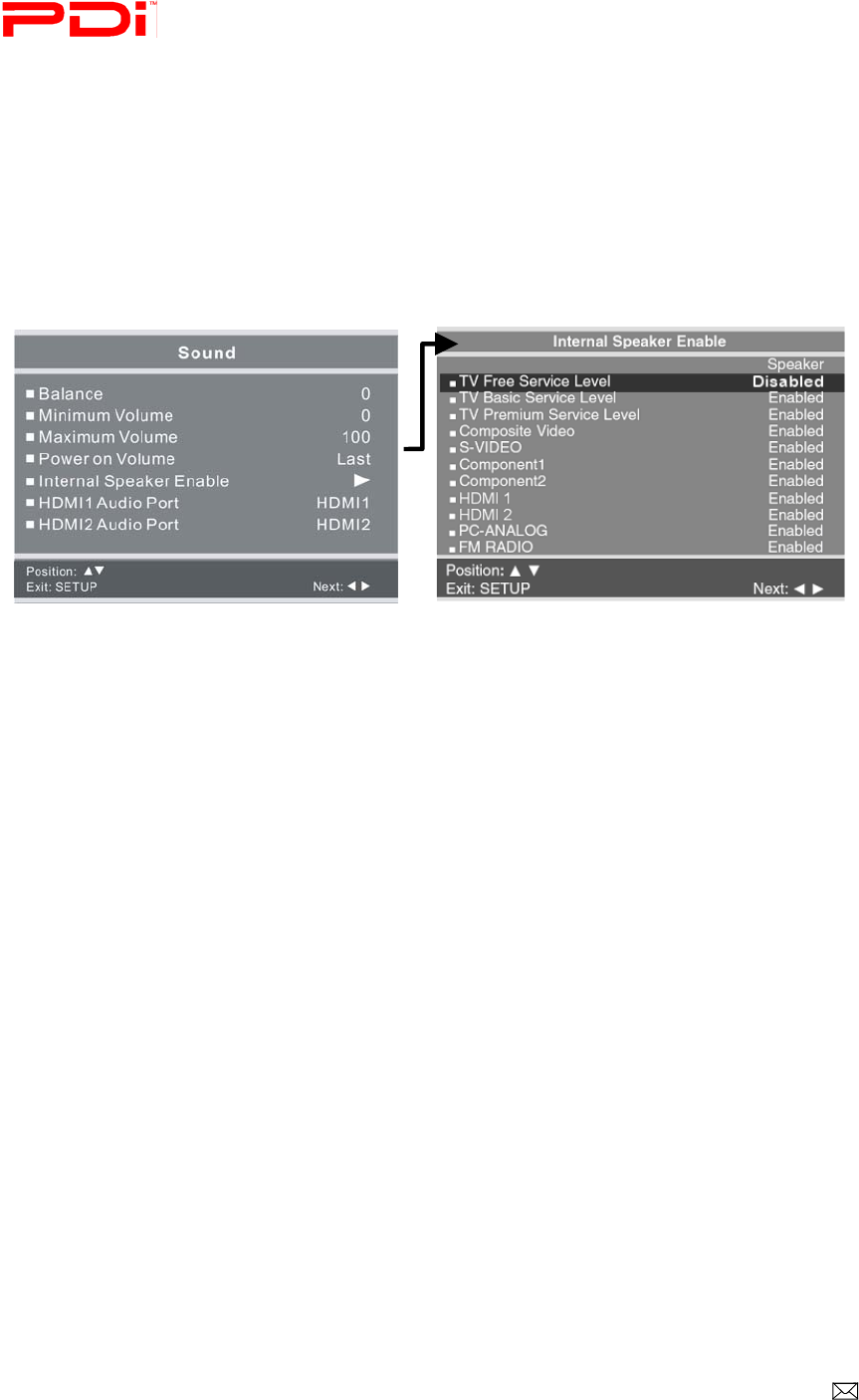

SOUND PROGRAMMING
Most hospital installations utilize a remotely wired pillow speaker. The following instructions customize the sound to the
attached pillow speaker.
Internal Speaker Enable
The speaker’s inside the TV’s cabinet are normally silenced and sound is routed externally to the attached pillow speaker.
1. In the Sound menu, press ▲/▼ direction
button to select the Internal Speaker Enable menu item.
2.
Press the
▲/▼ direction
button to select the desired Service Level(s) or Sources.
3.
Press
◄/► direction to select Disabled and turn off the TV’s internal speakers.
4. Press the SETUP button to return to the preceding menu.
Minimum Volume
For pillow speakers with an adjustment thumbwheel volume control, always set a minimum volume level for the
TV.
Set this level to any value other than
0
guarantees that some level of sound will always be heard when the
TV is
operating. A minimum volume setting is usually not required for pillow speaker’s with dedicated Volume up and down
buttons.
1.
In
the
Sound
menu, press the
▲/▼ direction
button to select
Minimum
Volume
.
2.
Press the
◄/► direction
button to select your preferred minimum volume with the
TV turns on.
3.
Press the
SETUP
button to return to the preceding menu.
Power On Volume
Sets the initial volume the
TV starts at upon powering on. Once the
TV is on, the volume can be set to any allowable
level.
1.
In
Sound
menu, press the
▲/▼ direction
button to select
Power on Volume.
2.
Press the
◄/► direction
button to determine your preferred volume when the
TV turns on. Setting the level to LAST
causes the
TV to remember the last volume level used by the
TV prior to turning off.
3.
Press the
SETUP
button to return to the preceding menu.
Additional Information
Additional information is available in the user manual. Please request document number PD196-127.
