PDI Communication System P40LCDE LCD TV User Manual PD196I190R1 revised
PDI Communication System, Inc. LCD TV PD196I190R1 revised
Users manual
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 1 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

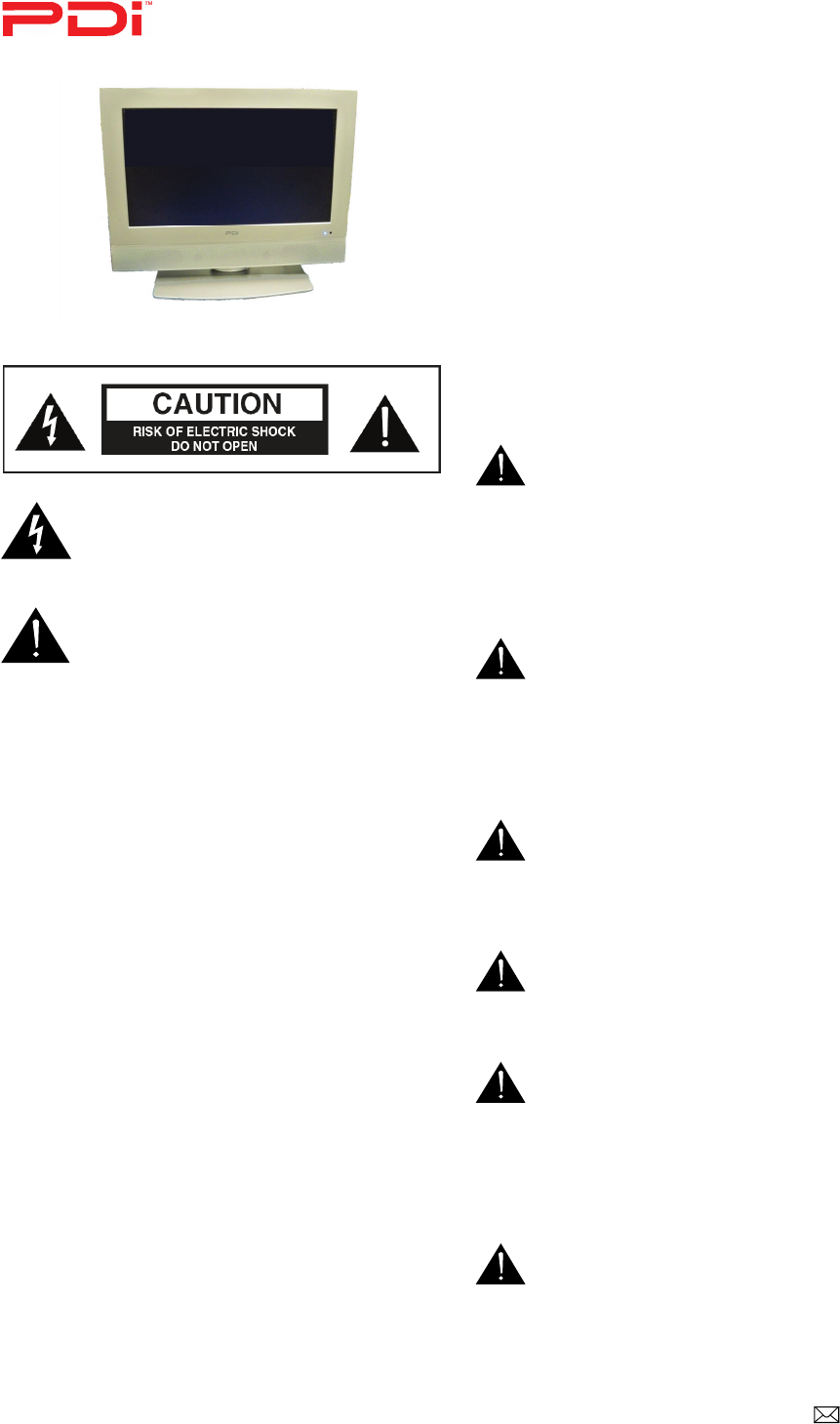

WARNINGS
This symbol is intended to alert the user of the
presence of un-insulated ‘dangerous voltage’ within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user of the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
NOTE TO CABLE TV INSTALLER
This reminder is provided to call the cable TV systems installer’s
attention to Article 820-40 of the National Electrical Code. The
code provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of the
cable entry as practical.
FCC
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a residential or commercial installation. If this
equipment does cause harmful interference to radio or TV
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one of more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
SAFETY INSTRUCTIONS
INSTRUCTIONS
Be sure to read, follow, and keep these instructions. Heed all the
warnings.
OTHER EQUIPMENT
Use only with the cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the apparatus. Use caution when
moving the cart / apparatus combination to avoid injury from tip-
over.
MAINTENANCE AND SERVICING
Servicing is required when the apparatus has
been damaged in any way: the power cord or
plug is damaged, liquid has been spilled,
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, it does not operate normally, or it
has been dropped.
Never remove the back cover of the TV; this
can expose you to high voltage and other
hazards. If the TV does not operate properly,
unplug it and call an authorized service
center or PDI.
POWER CORD
Protect the power cord from being walked on
or pinched particularly at the plugs,
convenience receptacles, and the point where
it exits from the apparatus.
CAUTION: DO NOT defeat the safety
purpose of the polarized or grounding-type
plug. A polarized plug has two blades with
one wider than the other. A grounding
type plug has two plates and a third
grounding prong. The wide blade or the
third prong is provided for your safety. If
the provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
RAIN AND MOISTURE
WARNING: To avoid the hazards of fire or
electrical shock, DO NOT expose this TV to
rain or moisture.
WET LOCATION
The apparatus SHOULD NOT be exposed to
dripping or splashing. Objects filled with
liquids, such as vases, SHOULD NOT be
placed on the apparatus.
OXYGEN ENVIRONMENT
WARNING: DO NOT use in an oxygen tent
or an oxygen chamber. Such use may cause
a fire hazard.
CLEANING AND DISINFECTION
Clean the exterior of this TV by removing
dust with a lint-free cloth.
CAUTION: To avoid damage to the surface
of the TV, DO NOT use abrasive or chemical
cleaning agents. Clean only with a dry cloth.
DISCONNECTING DEVICE FROM MAINS
The main plug is the disconnecting device.
CAUTION: Unplug this apparatus during
lightning storms or when unused for long
periods of time.
PRODUCT MODIFICATION
DO NOT attempt to modify this product in
any way without written authorization.
Unauthorized modification could void the
user’s authority to operate this product.
OVERHEAD FALLING HAZARD
WARNING: To prevent injury, this apparatus
must be securely attached to the wall in
accordance with the installation instructions.
TVs can pose a striking hazard when
mounted at an elevated position.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 2 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC
Copyright, Disclaimer, & Trademarks
COPYRIGHT
PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user guide. This guide is
issued for user information only and may not be used to manufacture anything shown herein
. C
opyright 2011 by PDI
Communication Systems, Inc. All rights reserved.
DISCLAIMER
The author and publisher have used their best efforts in preparing this guide. PDI Communication Systems, Inc. makes
no representation or warranties with respect to the accuracy or completeness of the content of this guide and specifically
disclaims any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for
any loss of profit or any other damages. The information contained herein is believed to be accurate, but is not warranted,
and is subject to change without notice or obligation.
TRADEMARKS
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
All other brand names and product names used in this guide are trademarks, registered trademarks, or trade names of
their respective holders. PDI and Better Solutions Are Within Reach are registered trademarks of PDI Communication
Systems, Inc., Springboro, Ohio.
LOCATION GUIDELINES
The model PDI-P26/P32/P40LCDE Hospital Grade LCD TV is a specialized LCD TV. It is intended for entertainment and
educational purposes in a hospital, a nursing home, medical-care center, or similar health-care facility in which installation
is limited to a non-hazardous area in accordance with the National Electrical Code, ANSI/NFPA 70. The PDI-
P26/P32/P40LCDE is designed for mounting to PDI manufactured mounts. Installation of the TV on any other mount is
not recommended.
WARNING: The TV’s VESA mounting holes are designed
for M4 and/or M6 metric screws only. Use of a non-PDI
approved mount or SAE hardware could result in a
condition where the TV could unexpectedly fall and cause
injury or death.
The PDI-P26/P32/P40LCDE TV mounts on the wall at the foot of a patient’s bed. Select a location that is near an AC wall
outlet and that does not expose the TV to bright room lights or sunlight, if possible. The LCD TV also requires connection
of both CATV cable signal and across-room wiring for the pillow speaker.
CABLE SYSTEM GROUNDING
The coax cable system connected to the PDI-P26/P32/P40LCDE TV should be grounded in accordance with the National
Electrical Code, ANSI/NFPA 70. The code provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as
practical.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 3 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

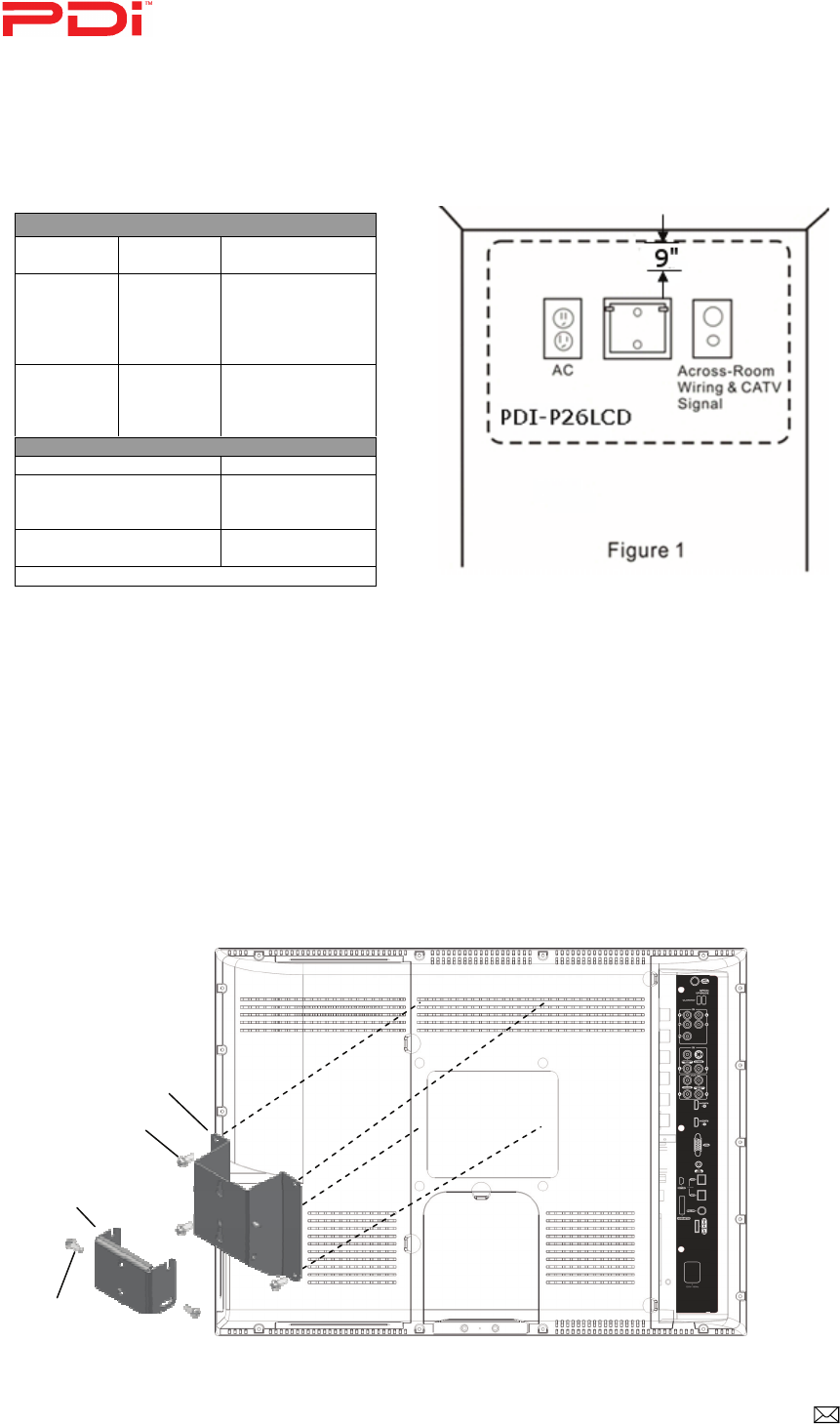

Wall Mounting with Standard Wall Bracket for PDI-P26LCDE TV
The PDI-P26LCD TV is mounted to the wall with a PD168-103 mount (Not supplied with TV) or a PD168-203 mount
(Not supplied with TV). The PD168-203 mount is a heavy duty mount and is to be used if a DVD or an IPT module is
going to be mounted on the P26. A PD168-203 wall mount connects to a PD181-674 LCD mount. A PD168-103 wall
mount connects to a PD181-597 LCD mount.
Mounting Connections
Figure 2
M4 x 6mm
Screws
Pilfer
Screws
LCD mount
Wall Mount
Attach with the four M4 screws (PDIPPHMSM4X76) that
are provided.
4. Mate the LCD mount to the wall mount, making sure the
pivot pins are retained in the slots.
5. Secure with two 10x32 Pilfer screws
(PDIPPBHSCS103250).
6. The TV’s tilt can be adjusted by loosening both Pilfer
screws, adjusting tilt, and then tightening the screws.
Mounting Pieces
Wall
Mount
LCD
Mount Purpose
PD168-103 PD181-597
For mounting PDI-
P26LCD TV to wall
without DVD
and/or IPT
Modules (1)
PD168-203 PD181-674
For mounting PDI-
P26LCD TV to wall
with DVD and/or
IPT Modules (1)
Screws
Part # Part
PDIPPBHSCS103250
10-32 X ½ Pilfer
Proof PIH Button
Head (2)
PDIPPHMSM4X76 M4-.7 X 6MM
PPHMS (4)
Numbers in parenthesis represent quantity
1. Refer to Figure 1. Select a location on the wall
approximately 9 inches below the ceiling.
NOTE: DO NOT locate AC, Across-Room
Wiring, and CATV Signal outlets below the
Wall Bracket’s location as it will cause
clearance issues and interfere with the TV’s
cabinet when mounted to the bracket.
2. Position the wall mount and locate the two
mounting holes. Secure the bracket to the wall
(mounting hardware is not included).
3. Refer to Figure 2. Position the LCD mount on
the LCD TV cabinet.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 4 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

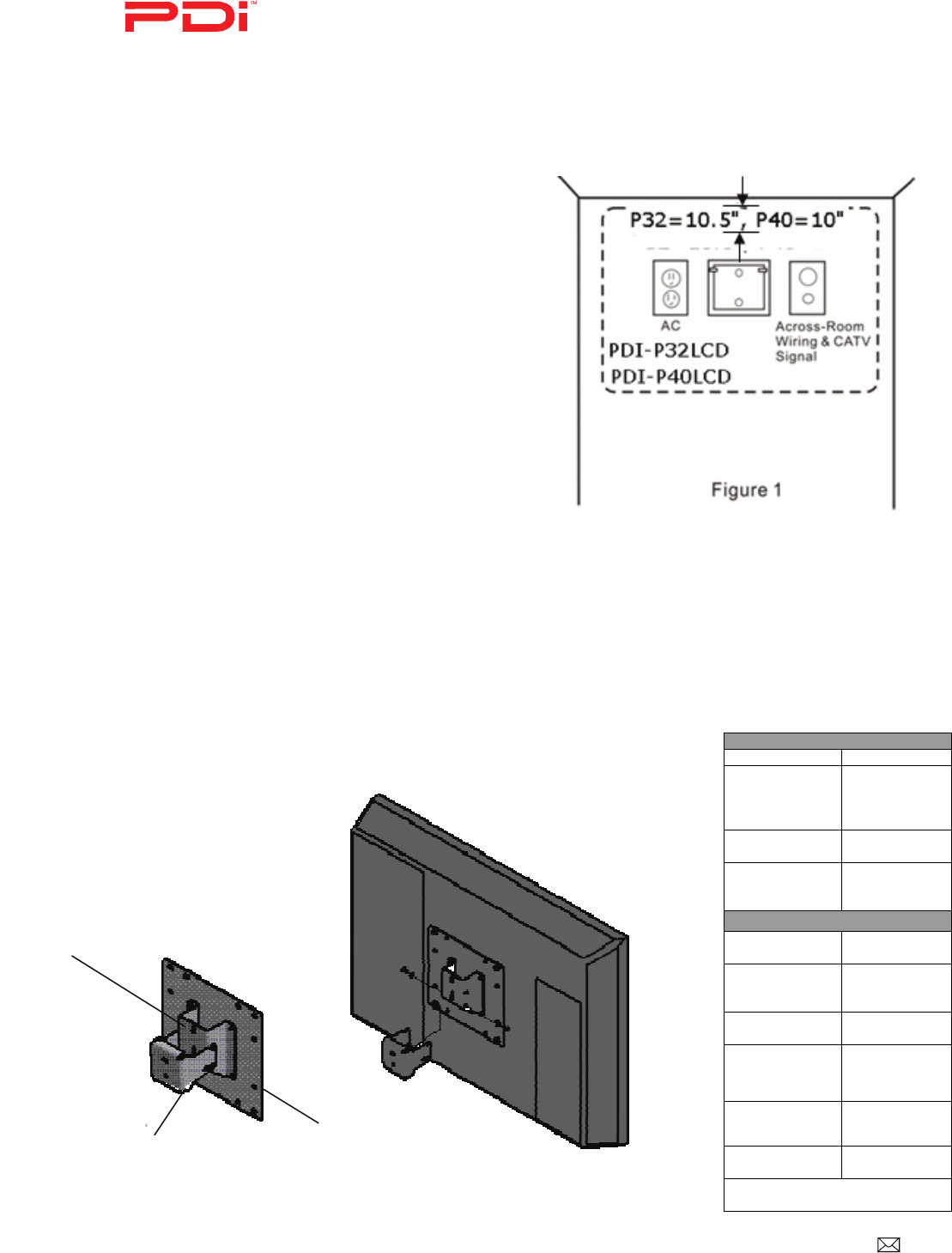

Wall Mounting for PDI-P32LCDE TV and PDI-P40LCDE TV
The PDI-P32LCDE and PDI-P40LCDE televisions require a PD181-672 200mm to 100mm Adapter Plate (Not supplied with TV), a
PD181-596 LCD Mounting Bracket (Not supplied with TV), and a PD181-674 HD Extended LCD Tilt Clevis (Not supplied with TV)
to be mounted to the wall.
1. Refer to Figure 1. For the PDI-P32LCD find a location on
the wall 10.5 inches below the ceiling to mount the HD
Extended LCD Tilt Clevis (wall mount). For the PDI-
P40LCD, the location will be 10 inches below the ceiling.
NOTE: DO NOT locate AC, Across-Room
Wiring, and CATV Signal outlets below the
Wall Bracket’s location as it will cause
clearance issues and interfere with the TV’s
cabinet when mounted to the bracket.
2. Position the HD Extended LCD Tilt Clevis and locate two
mounting holes. Place one of the supplied ¼” flat washers
(PDIFW25) and the ¼” lock washer (PDISLW25) on a ¼”
screw (not included) and insert it into the top mounting hole
of the clevis. Secure the clevis to the wall. Place the other
supplied ¼” flat washer on another ¼” screw and insert it in
the bottom mounting hole. Secure it to the wall and tighten
both screws.
3. Refer to Figure 2. Attach the LCD mount to adapter plate
using the four M4 screws (PDIPPHMSM4X76) and four #10
Internal Tooth Lock washers (PDIITLW10).
NOTE: The side with the four hex sides will
go toward the back of the set.
4. Position the mounting bracket and adapter plate on the LCD
TV cabinet. Attach with the four M6 screws
(PDIPPHMSM6X110) that are provided.
Mounting Connections
Mounting Pieces
Part # Part
PD181-672
200mm to
100mm
Adapter Plate
(1)
PD181-596 LCD Mounting
Bracket (1)
PD181-674
HD Extended
LCD Tilt Clevis
(1)
Screws and Washers
PDIPPHMS103
238
10-32X3/8
PPHMS (2)
PDIITLW10
#10 Internal
Tooth Lock
Washer (6)
PDIPPHMSM4
X76
M4-.7X6mm
PPHMS (4)
PDIPPHMSM6
X110
M6-1X10mm
PPHMS (4)
PDIFW25 ¼” flat washer
(2)
PDISLW25 ¼” lock
washer (1)
Numbers in parenthesis represent
quantity
Figure 2
PD181-672: 200mm to
100mm Adapter Plate
PD181-596: LCD
Mounting Bracket
PD181-674: HD Extended
LCD Tilt Clevis
5. Mate the mounting bracket to the clevis making sure
the resting pins are inserted in the two notches at the
front of the clevis. Secure with the two 10x32 screws
(PDIPPHMS103238) and the two remaining Internal
Tooth Lock washers.
6. The TV’s tilt can be adjusted by loosening both Pilfer
Screws, adjusting tilt, and then tightening the screws.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 5 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC
Pillow speaker
A ¼” stereo-style pillow speaker (pendant control) jack is located on the TV’s connector panel on the backside. This TV is designed to
work with either a digital pillow speaker that generates digital-style control codes or a single-button analog (switch-style) pillow speaker.
A rear panel mounted switch allows use of different brands of pillow speakers and supports the major brands: Zenith, Philips, and RCA.

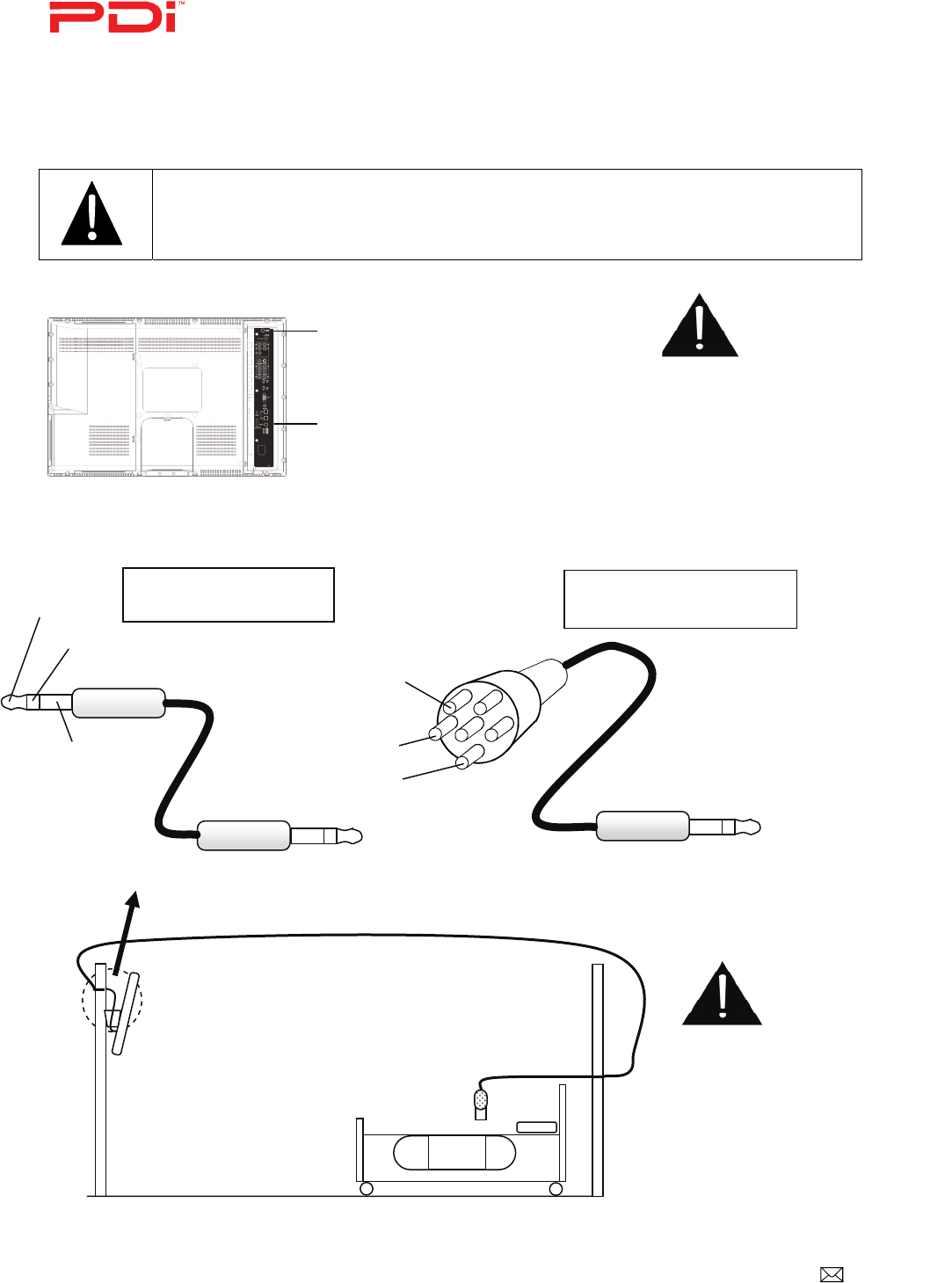

Pillow Speaker and Antenna Connection
Across-Room Wiring
NOTE: A Jumper Cable is NOT supplied with the TV and must be ordered separately.
CAUTION: Confirm the pillow speaker type and set the side switch appropriately
BEFORE connecting the pillow speaker to the TV. Failure to follow this procedure could
result in damage to the pillow speaker and/or TV.
SPEAKER
DATA / SWITCH
COMMON
SPEAKER
DATA / SWITCH
COMMON
¼” to 6-Pin Jumper Cable
PD106-416
¼” to ¼” Jumper Cable
PD106-417
ACROSS ROOM WIRING
WARNING: DO NOT connect
the pillow speaker circuit
Common to earth ground.
Grounding of the Common will
defeat the isolation circuitry of
the TV and possibly expose the
patient to harmful shock
currents should a wiring fault
occur.
CAUTION: Some hospital
cable systems provide
power voltage on the coaxial
cable. This TV is NOT
designed to be powered via
a coaxial cable. DO NOT
connect to a powered
coaxial cable. Damage will
result to the TV.
Pillow Speaker
TV/FM Antenna
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 6 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

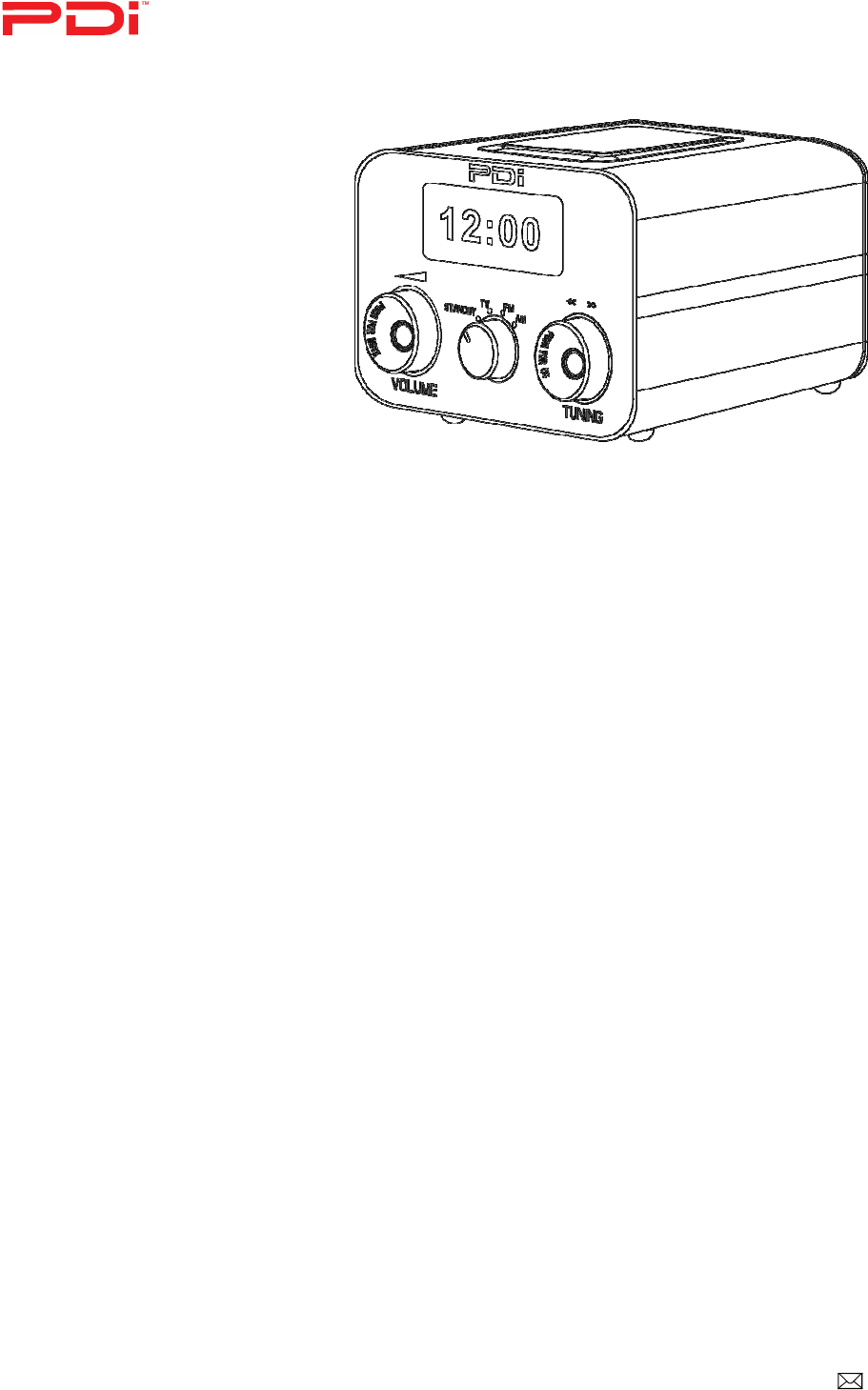

Wireless Control
The PDI-P26/P32/P40LCDE model televisions
include wireless connectivity for use with the
optional PDI-TR100 Table Radio.
Both wireless audio and control of the TV are
possible using the Table Radio.
Please refer to the Table Radio manual for setup
instructions.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 7 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC
Programming
A programming remote control (PD108-420) is used to perform all setup operations for the TV.
NOTE: The following instructions assume you have correctly mounted the TV, wired an external pillow speaker, and connected
an RF coax cable signal, and AC power cord to the TV.
Service Levels Setup
The PDI-P26/P32/P40LCDE TV contains four separate service levels, allowing the hospital to offer basic and enhanced viewing. The
current service level can be quickly determined by accessing the SETUP menu using the remote control. Service Level can be
changed to any of the 4 levels at any time by entering the SETUP menu and changing the Service Level setting.

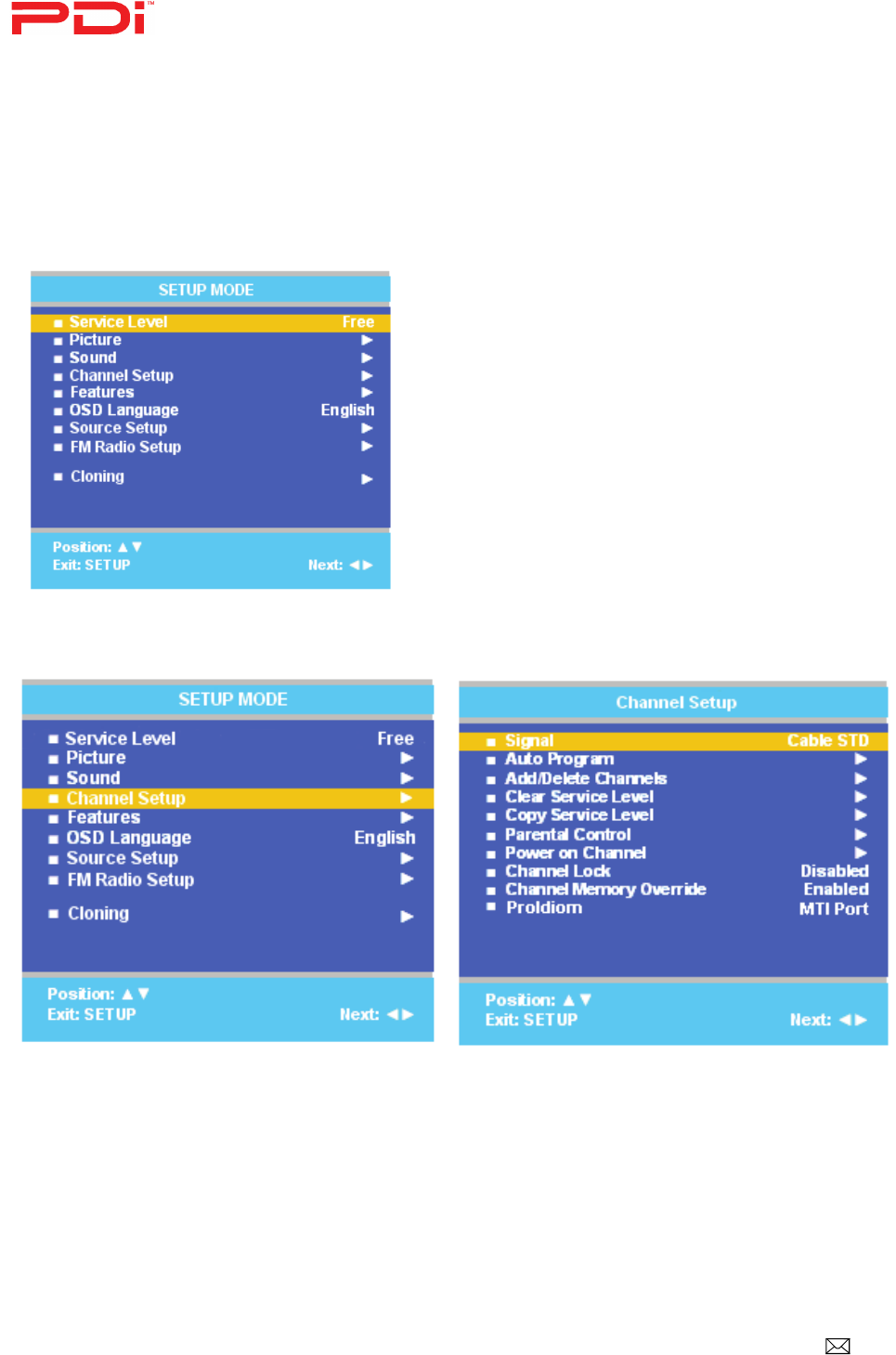

Signal
Four different tuning types are available depending upon the healthcare facility’s signal style. Selection of the correct signal type is
required for the TV to recognize all possible channels and before any channel programming can begin.
1. Press SETUP on the remote control.
2. Press CH▲ or CH▼ to highlight Channels.
3. Press VOL► to enter the Channels menu.
4. Press CH▲ or CH▼ to highlight Signal.
5. Press VOL◄ or VOL► to select Air, Cable STD, Cable IRC, or Cable HRC.
NOTE: Most hospitals use the Cable STD signal style.
6. Now perform Auto Program or Add/Delete Channels to adjust the channels.
DISABLED – This is like a mechanical key lock. The TV
can be turned OFF and ON, but cannot be used for viewing
programs. A standard message appears on a black
screen.
FREE – This lets patients watch hospital education and
information channels without renting the TV. The channels
containing programming for no charge are typically
programmed into this level of service. This is the factory
default setting for Service Level.
BASIC – This service typically allows additional channels
beyond those offered in the FREE level.
PREMIUM – This is the highest service level with typically
the most channels available for viewing.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 8 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

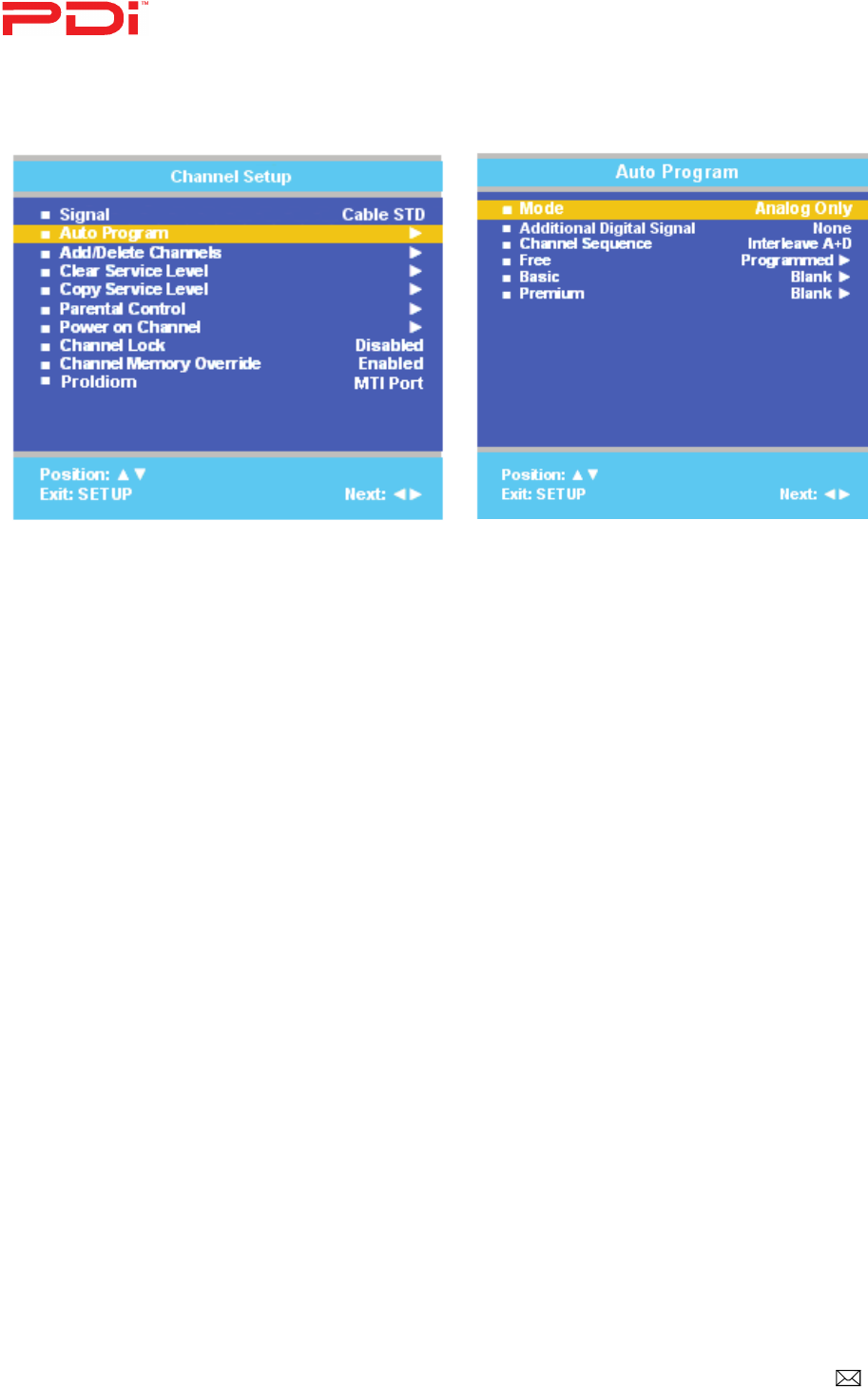

Auto Program
The TV automatically scans each available channel for activity. Channels that display activity are memorized into the selected Service
Level.
1. After setting Signal, press CH▲ or CH▼ to highlight Auto Program.
2. Press VOL► to select it.
3. On Mode, press VOL◄ or VOL► to select the scope of channel scanning.
Analog Only: TV searches for analog channels only.
Digital Only: TV searches for digital channels only.
Analog and Digital: TV searches for both analog and digital channels.
4. Press CH▲ or CH▼ to highlight Channel Sequence.
5. Press VOL◄ or VOL► to select the channel sequence in which the channels are displayed.
Interleave A+D: Channels are displayed
in the order of channel number.
All A then D: All
digital channels are displayed after all analog channels.
6. If you want to allow the TV to program additional digital channels, press CH▲ or CH▼ to highlight Add. Digital
Signal. Press VOL◄ or VOL► to select Air.
NOTE: This feature is only available if Mode is set to Digital Only or Analog and Digital.
7. Press CH▲ or CH▼ to highlight the Service Level (Free, Basic, or Premium) you wish to program. The menu
displays the current programming status of each level as either Programmed or Blank.
NOTE: A programmed service level can also be reprogrammed if desired.
8. Press VOL► to start auto programming.
9. A confirmation menu will appear before proceeding. Press CH▲ to start auto programming. Press CH▼ to
cancel the operation. The TV now will search all available channels. Auto programming requires several
minutes to complete.
NOTE: Digital channel auto programming may take longer than 10 minutes to complete.
10. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 9 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

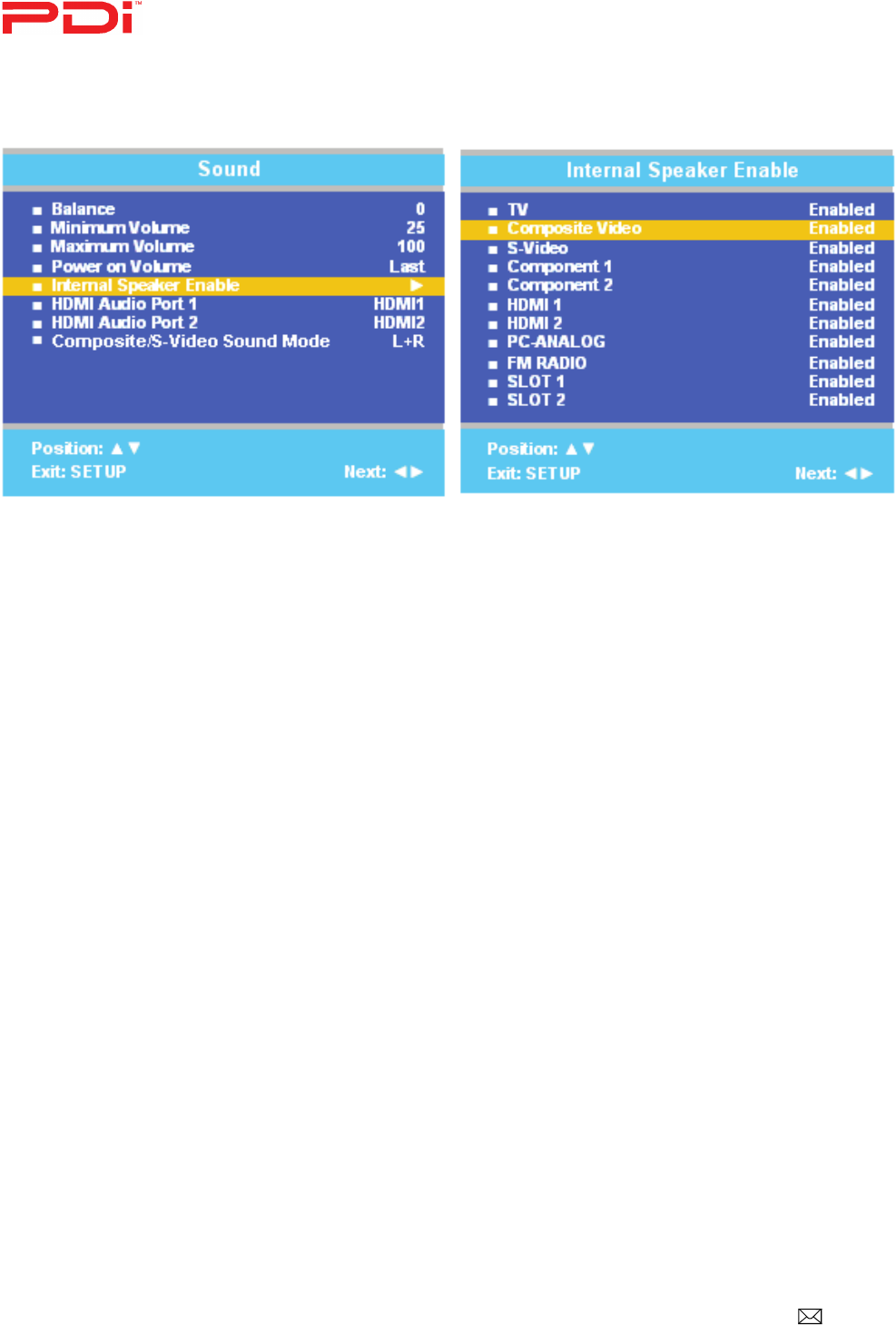

Internal Speaker Enabled
The speakers inside the TV’s cabinet normally are enabled. Sound is also routed externally to an attached pillow speaker.
1. Enter the Sound menu
2. Press CH▲ or CH▼ to highlight the component you want to change.
3. Press VOL◄ or VOL► to select Enabled or Disabled.
4. Press SETUP to return to the previous menu.
Minimum Volume
This
sets the minimum volume level the TV can reach.
For pillow speakers with an adjustment thumbwheel volume control, ALWAYS
set a minimum volume level for the
TV. A minimum volume setting is usually not required for pillow speakers with dedicated Volume
Up and Down buttons.
NOTE:
Setting this level to any value other than
0
guarantees that some level of sound will always be heard when
the
TV is operating.
1. In
the
Sound
menu, press CH▲ or CH▼ to highlight
Minimum
Volume
.
2. Press
VOL◄ or VOL►
to select the preferred minimum volume.
3. Press the
SETUP
button to return to the preceding menu.
Power on Volume
This sets the initial volume the
TV starts at upon powering on. Once the
TV is on, the volume can be set to any allowable level.
In
Sound
menu, press CH▲ or CH▼ to highlight
Power on Volume.
1. Press
VOL◄ or VOL►
to select the preferred volume when the
TV turns on.
NOTE
: Setting the level to LAST
causes the
TV to remember the last volume level used by the
TV prior to turning off.
2. Press the
SETUP
button to return to the preceding menu.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 10 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

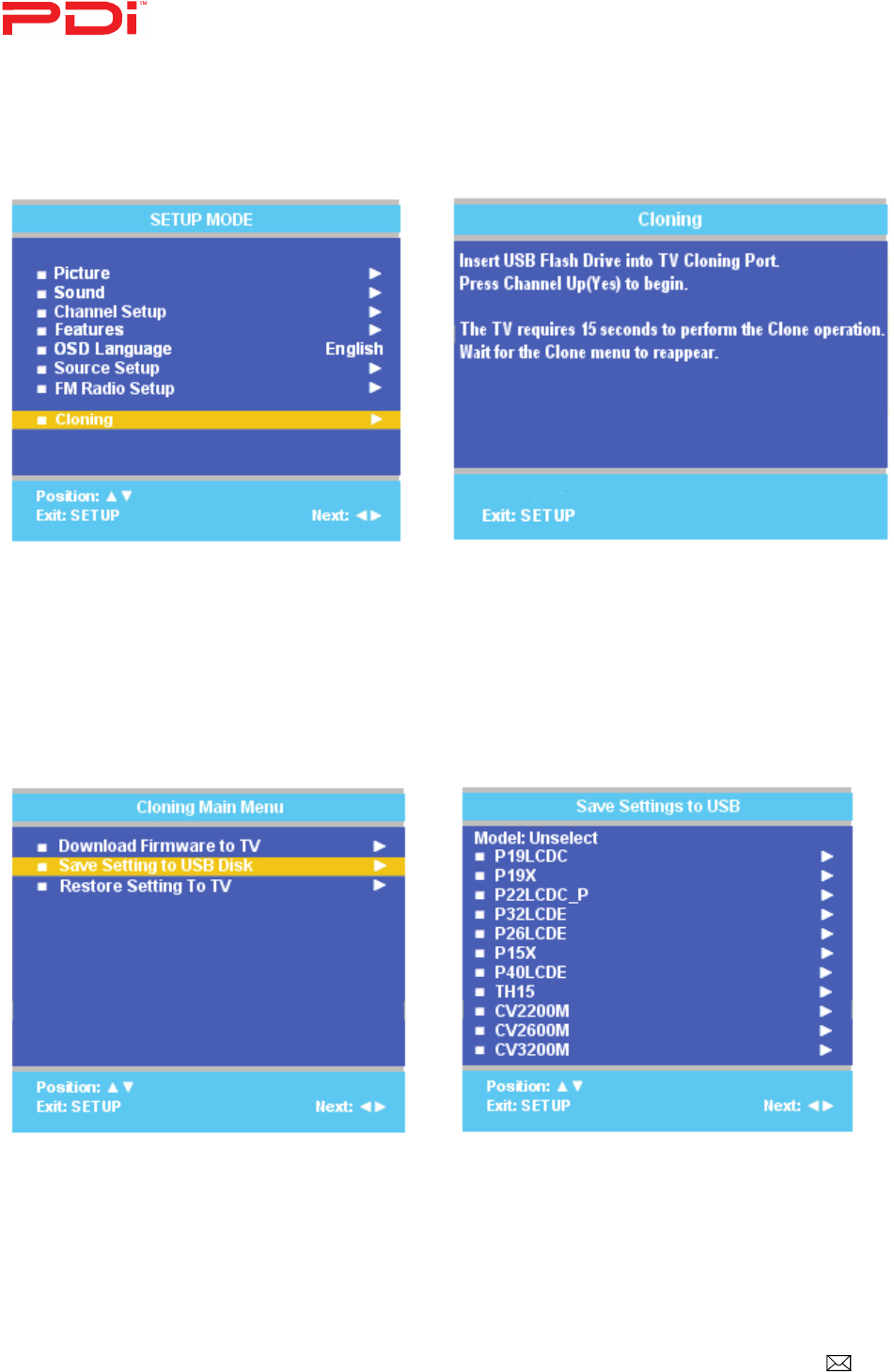

Cloning
Cloning allows quick programming of a TV using a USB Flash Drive. First a specimen TV is hand-programmed using a
programming remote control (PD108-420) with channels, sound, and other settings. While the TV is On a USB Flash Disk is
inserted into that TV’s Clone port, the specimen TV’s setup written to the Flash Disk, and then the Flash Disk is removed to program
other televisions. One Flash Disk can be used to program an entire hospital of televisions.
Save Setting to USB Disk
1. Turn the TV On.
2. Press SETUP on the remote control.
3. Press CH▲ or CH▼ to highlight Cloning.
4. Press VOL► to enter the Cloning menu.
5.
A Message Prompt appears indicating 15 seconds required to enter Clone mode. Insert a Flash Drive (user provided) into the
USB Clone Port located adjacent the Cable TV Jack.
6.
Press CH▲ to initiate Clone mode.
7. When the Cloning Main Menu appears, Press CH▲ or CH▼ to highlight Save Setting to USB Disk.
8.
When the Save Settings to USB menu appears, press
CH▲ or CH▼ to highlight the appropriate model.
9. Press VOL► to initiate.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 11 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

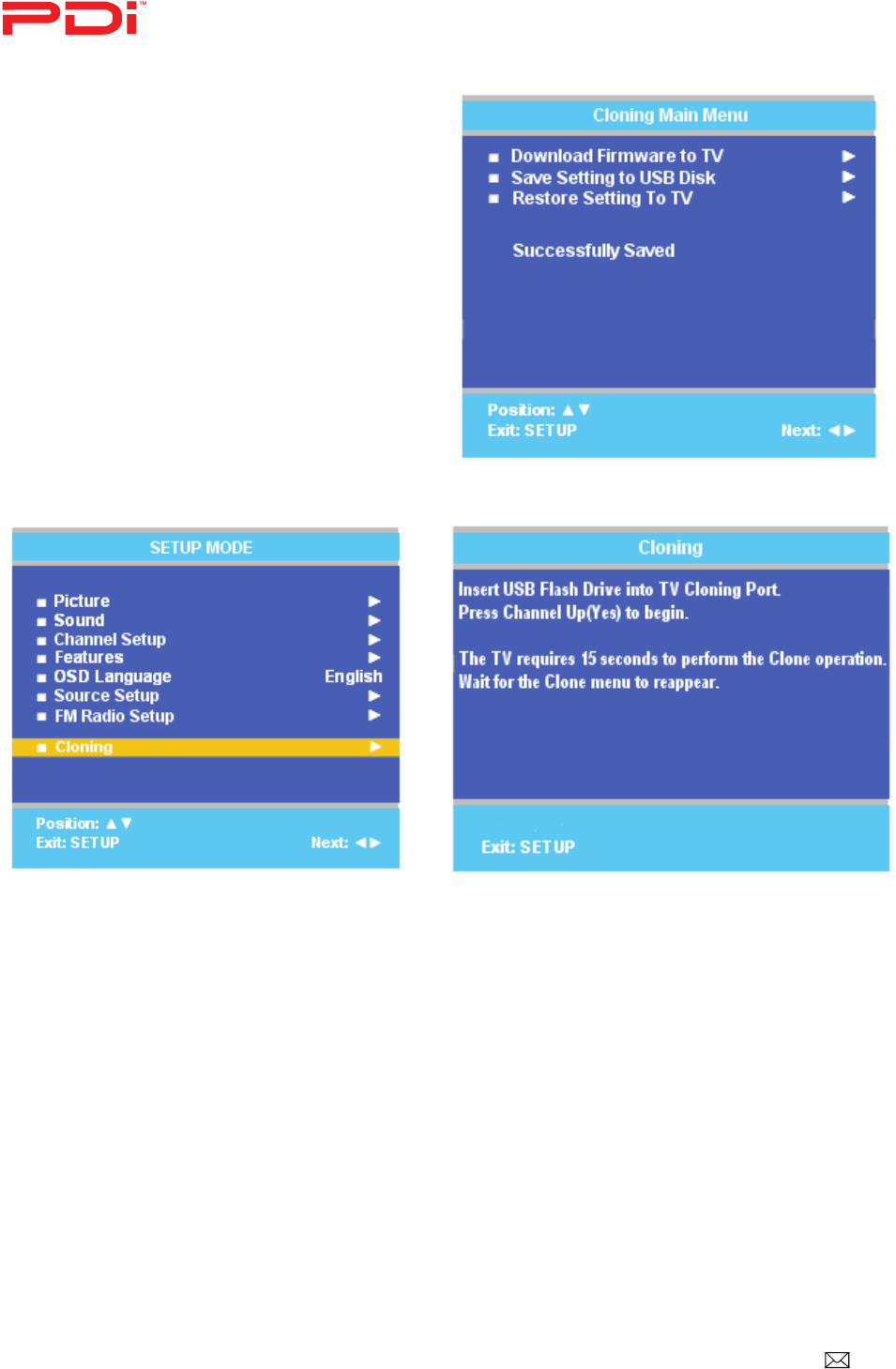

10. Wait for the Cloning Main Menu to reappear. A status
line indicates Successful Saving of TV information to the
USB Disk.
11. Remove the USB Disk from the TV.
Restore Setting to TV
1. Turn the TV On.
2. Press SETUP on the remote control.
3. Press CH▲ or CH▼ to highlight Cloning.
4. Press VOL► to enter the Cloning menu.
5.
A Message Prompt appears indicating 15 seconds required to enter Clone mode. Insert a Flash Drive (user provided) into the
USB Clone Port located adjacent the Cable TV Jack.
6. Press CH▲ to initiate Clone mode.
Communication
Systems Inc. PDI-P26/P32/P40LCDE
Quick Start Guide
Page 12 of 12
Better Solutions Are Within Reach™
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH +1-937-743-6010 PH +1-937-743-5664
Document Number: PD196I190R1.DOC

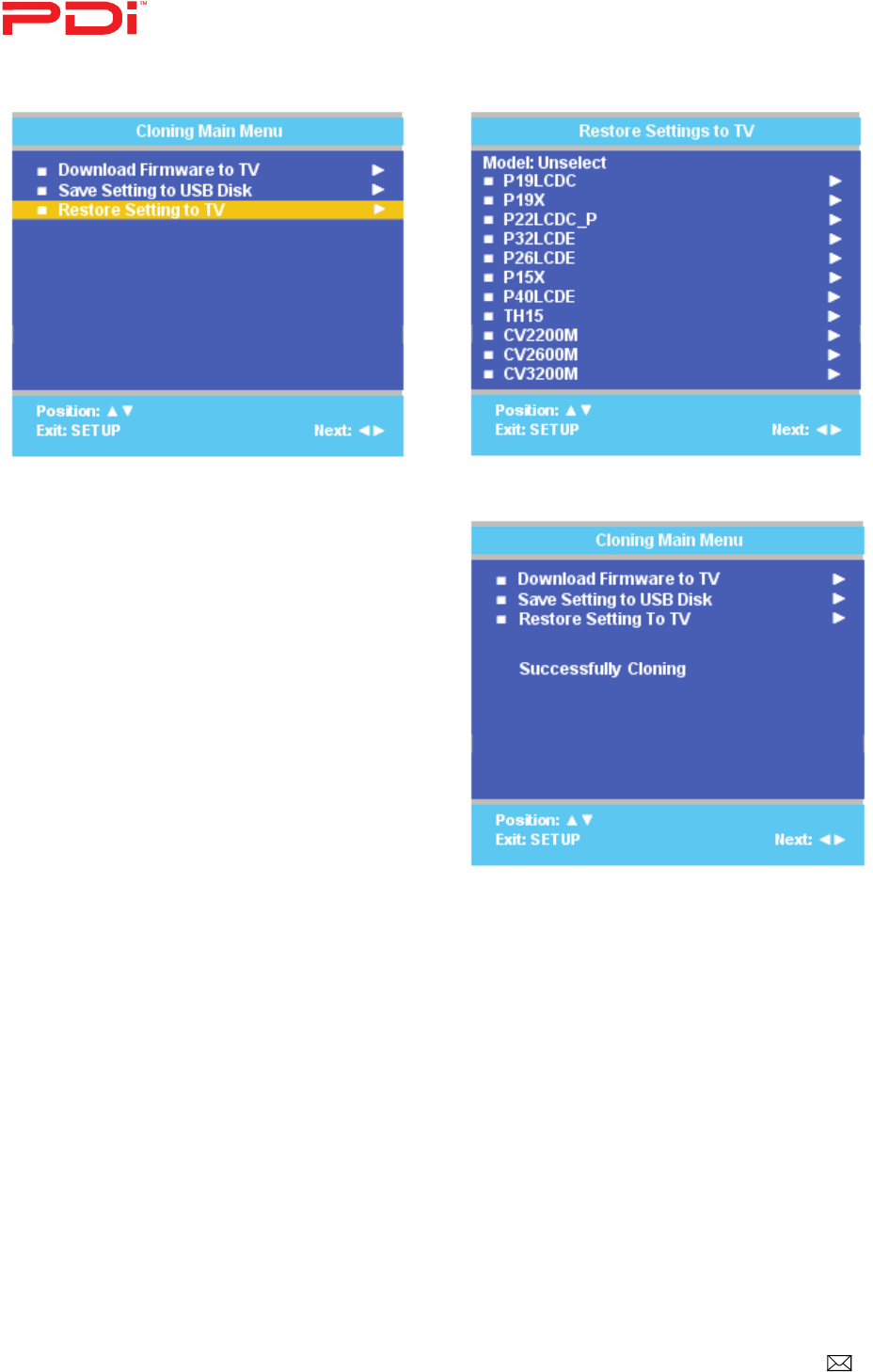

7.
When the Cloning Main Menu appears, p
ress CH▲ or CH▼ to highlight Restore Setting to TV.
8.
When the Restore Settings to TV menu appears, press
CH▲ or CH▼ to highlight the appropriate model.
9. Press VOL► to initiate.
10. Wait for the Cloning Main Menu to reappear. A status line
indicates successful Cloning of the TV.
11. Remove the USB Disk from the TV.
12. Verify correct setup of the TV.
Additional Assistance
PDI Communication Systems, Inc.
40 Greenwood Lane
Springboro, Ohio 45066 USA
WEB: http://www.pdiarm.com
PH: 800-628-9870
