PDI Communication System PDI-TR100 WIRELESS TABLE RADIO User Manual tbr 100 2011 06 26

PDI Communication System, Inc. WIRELESS TABLE RADIO tbr 100 2011 06 26

user manual 6.27

PDI-TR100
TABLE RADIO
The lightning flash with arrow-head symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated"dangerousvoltage"within the
unit’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the unit.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER OR BACK. THERE ARE NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
FCC INFORMATION
This equipment has been tested and found to comply with the
limits for Class B digital devices, pursuant to part 15 of FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
TABLE RADIO
PDI-TR100
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK.DO
NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE.REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
institutions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This equipment complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
Statement:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
TABLE RADIO
PDI-TR100
CONTENTS
Read this manual carefully to get the best performance from this
unit.
Package contents
Mount clock battery
Specifications
Menu
Front panel
Rear panel
Operation
(1)AM/FM OPERATION
(2) TV WIRELESS CONNECTION
(3)MUTE FUNCTION
(4)BASS/TREBLE FUNCTION
(5)ALARM CLOCK
(6)DIMMER ADJUSTMENT
安全 警告
目录 TABLE RADIO
PDI-TR100
1
2
5
2
5
2
5
3
6
4
6
5
6
2
1

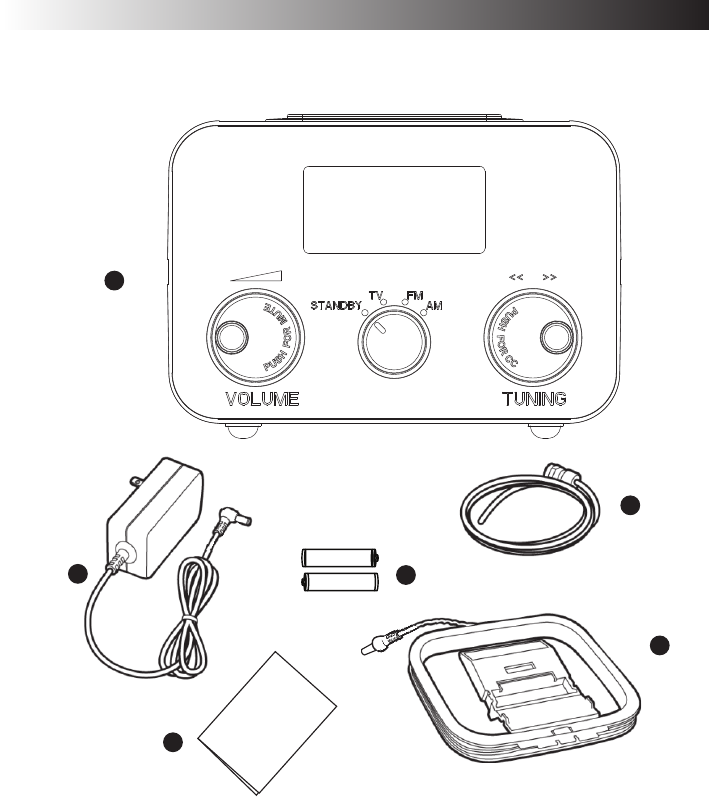

1.PDI-TR100 unit 1PC.
2.15V AC adaptor 1PC.
3.FM antenna 1PC.
4.AM antenna 1PC.
5.2XAAA batteries 2PC.
6.Owners manual 1PC.
1
3
4
5
Package contents
6
TABL E RADIO
PDI- TR100
TABLE RADIO
PDI-TR100
2
Menu
2 x AAA
TV LINK
12:00AM
15 M01
A B C
DEF
A
G
Specifications
·FM/AM tuner.
FM Frequency range: 87.5-
108MHz.
AM Frequency range: 530-
1700KHz.
Wireless audio output.
Driver: 3” full range.
Back-lit display.
TV channel selection.
INPUT:15V 1.6A DC, external
power supply.
OUTPUT:Battery back-up for
clockAlarm function.
Working temperature: -5C to
+40C.
Size: H120xD140xW180mm.
·
·
·
·
·
·
·
·
·
·
（A）Indicates Function on.
（B）Indicates ALARM on.
（C）Blinks when link to TV.
（D）Indicates Volume.
（E）Blinks when poor or no battery.
（F）Display memory-station.
（G）Display frequency, clock.
BASS -3 > +3
TREBLE -3 > +3
ALARM
ALM OFF
HOUR
ALM On
Min
TABLE RADIO
PDI-TR100

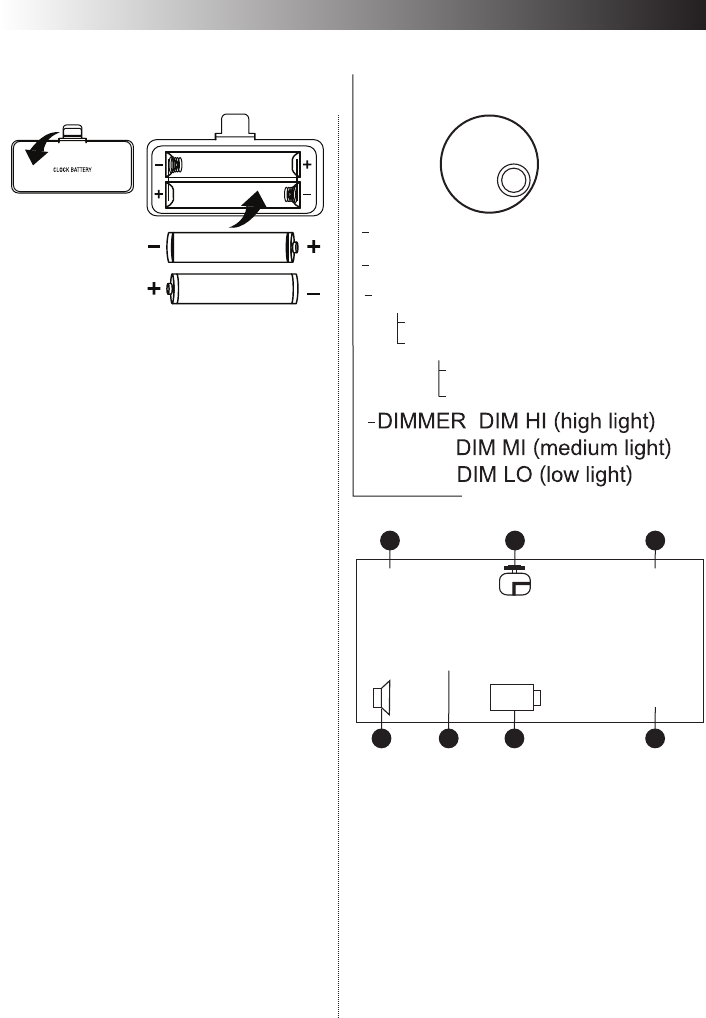

Mount clock battery
3
(1)VOLUME KNOB
Adjust the volume knob to desired listening level.
Push for mute and push again or tuning the knob to turn on the
volume.
FUNCTION KNOB
STANDBY (Display the clock)
TV MODE
FM MODE
AM MODE
(3)TUNING KNOB
Adjust the “TUNING” to choose the radio station .
Adjust the “TUNING” to choose the TV station.
Longpush “TUNING” for 3 seconds to enter the “MENU”.
(4)LCD DISPLAY
(5)SPEAKER
·
·
(2)
·
·
·
·
·
·
·
Front panel
TABLE RADIO
PDI-TR100

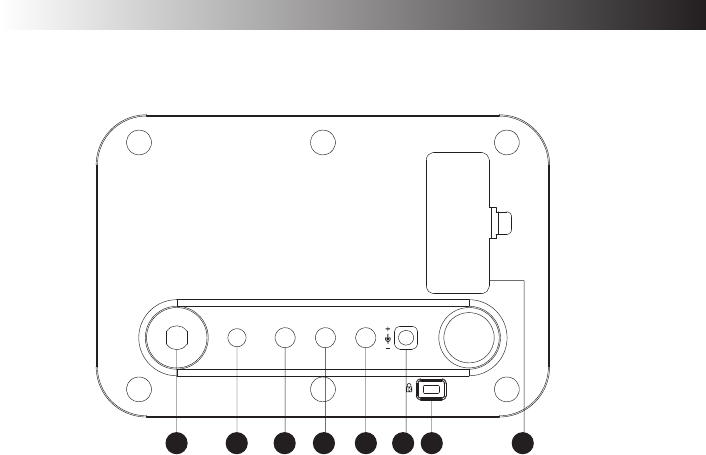

123
4
5
SCAN
CLOCK SET
PAIR DC15V-1.6A
ANTENNA
FM
ANTENNA
AM
CLOCK BATTERY
678 9 10 11 12 13
FM EXTERNALANTENNAJACK
Connect the enclosed external FM antenna if reception is poor
,You can also connect a communal aerial.
(7)AM EXTERNALANTENNAJACK
Connect the enclosed external AM antenna if reception is poor
,You can also connect a communal aerial.
(8)PAIR TO TV BUTTON
(9)CLOCK SET BUTTON
(10)AUTO SCAN BUTTON
(11)DC ADAPTOR JACK
(12)LOCK FOR UNIT
(13)BATTERY LID
(6)
·
·
4
Rear panel
TABLE RADIO
PDI-TR100
5
(1)
(2)
(3)
AM/FM OPERATION
Make sure the DC power adaptor is connecting to the unit .
——Choose the function to AM/FM mode, Adjust the
“TUNING”(3)to choose the desired radio station .
——Fine tune by short adjust AM -/+10KHz, FM -/+100KHz.
——Choose the function to AM/FM mode,push “SCAN”(10)on
the rear panel. After scan,”M01-M20” will display on the right
corner of the LCD. Adjust the “TUNING”(3)to choose the radio
station. If you want cancel the scan, push the “SCAN”(10)again.
——”M01-M20” it means the unit can restore most 20pcs
stations.
TV WIRELESS CONNECTION
——Make sure the DC adaptor is connecting to unit.Adjust the
function knob to “STANDBY”,Long push “VOLUME”(1) until
“TR100-01”display on the LCD.
——Adjust the function knob to “TV”(2),Long push the “PAIR”(8)
5 seconds.the “PAIR” will display and blink on the LCD. In the
mean time ,you can open the TV wirless connect mode to
search the unit .”TR100-01”will display on the LCD. Then input
the code “0000”,Once the pair is successful ,”LINK”will display
on the LCD of TV and TR100. Then adjust the “TUNING”(3) to
choose the TV channel.
——The limited time of pairing is one minute ,If the pair is
unsuccessful. You can reset the “PAIR”(8) 5 seconds again.
Once the pairing is successful, You don’t to pair the TV any
more in the future .
Mute function
Push the “VOLUME”(1) for mute, Push again to cancel the mute.
(4)BASS/TREBLE FUNCTION
In TV/FM/AM mode , ,long push the “TUNING”(3) for 3 seconds
TABLE RADIO
PDI-TR100
OPERATION
. “MENU”will display on the LCD.Push “TUNING”(3)to choose the
“BASS” FUNCTION,Adjust the“TUNING”(3) right or left to
choose the range from -3----+3.
In TV/FM/AM mode , ,long push the “TUNING”(3) for 3 seconds.
“MENU”will display on the LCD. Push “TUNING”(3)to choose
the “TREBLE ” FUNCTION, Adjust the“TUNING”(3) right or left
to choose the range from -3----+3.
(5)ALARM CLOCK
In SATANDBY /TV/FM/AM mode ,long push the “TUNING”(3)
for 3 seconds. “MENU” will display on the LCD. Push
“TUNING”(3) to choose “ALARM”. Adjust the “TUNING”(3)” to
choose “ON/OFF”, Push “TUNING”(3) “HOUR ”will blink
,Adjust the “TUNING”(3) to choose the hour ,then push the
“TUNING”(3) to confirm the hour. then “MINUTE”will blink
,Adjust the “TUNING”(3) to choose the minute ,The alarm have
set already .After 3 seconds , the display of LCD will return the
current settings.
——If you want to cancel the alarm clock during the ring ,you
can Adjust the “TUNING” or “VOLUME” to cancel the “beep”.
(6) DIMMER ADJUSTMENT
In SATANDBY /TV/FM/AM mode, long push the “TUNING”(3) for
3 seconds. “MENU” will display on the LCD. Push “TUNING”(3)
to choose “DIMMER”, Adjust the “TUNING”(3)” to choose
“HI”/”MI”/”LO”.
6
