User Manual
User Guide
Cisco ITV7900 Family
IP Set-Tops
ITV7900 REC
2
3
Contents
Notice for Installers ..........................................................................................................4
IMPORTANT SAFETY INSTRUCTIONS..............................................................................4
Change the Way You Watch TV .......................................................................................6
What’s In the Carton? ......................................................................................................6
Safety First ....................................................................................................................... 6

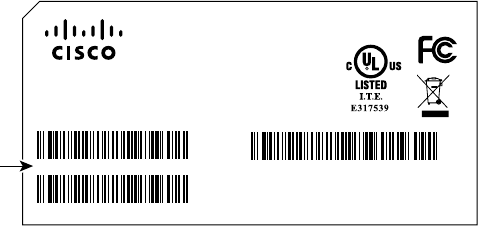

Identify Your Receiver with the Serial Number .................................................................6
In This Manual ..................................................................................................................6
Questions About Your Service. ........................................................................................6
Protecting You and the Environment ................................................................................7
Front Panel .......................................................................................................................8
Back Panel .......................................................................................................................9
Connecting the Receiver ................................................................................................10
Connecting to the In-Home Network .............................................................................11
Connections for a High-Denition TV (HDTV) ................................................................12
Connections for a Standard-Denition TV (SDTV) .........................................................13
Connections for a VCR or DVD Recorder ....................................................................... 14
Connecting an Over-the-Air Converter Box ...................................................................14

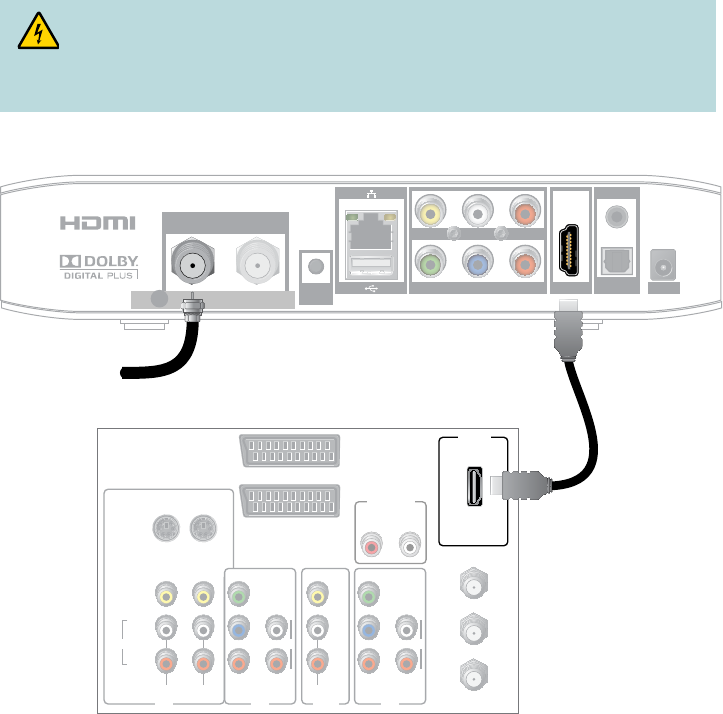

Connecting to an HDTV with an HDMI Connector ..........................................................15

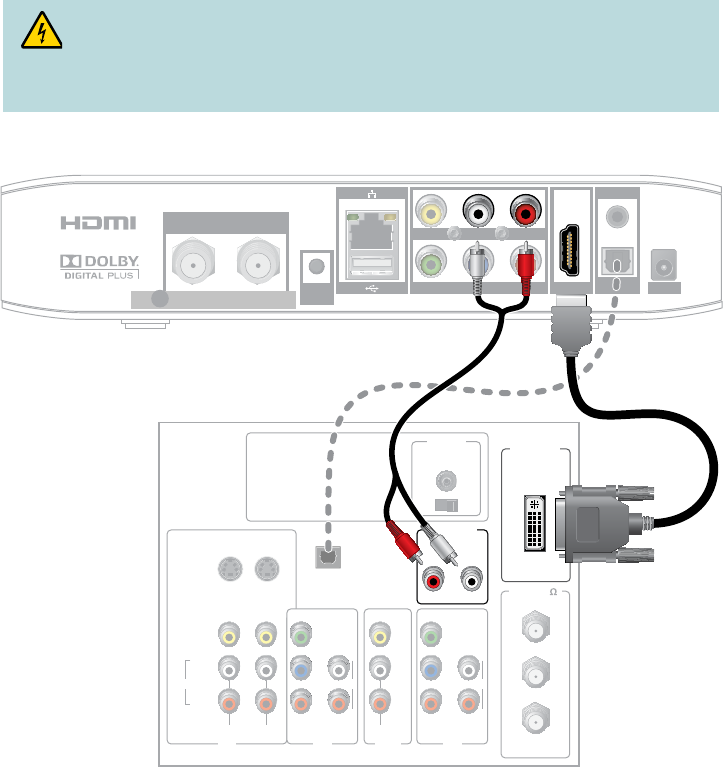

Connecting to an HDTV with a DVI Connector ...............................................................16
Connecting to an HDTV with Component (YPbPr) Connectors ...................................... 17

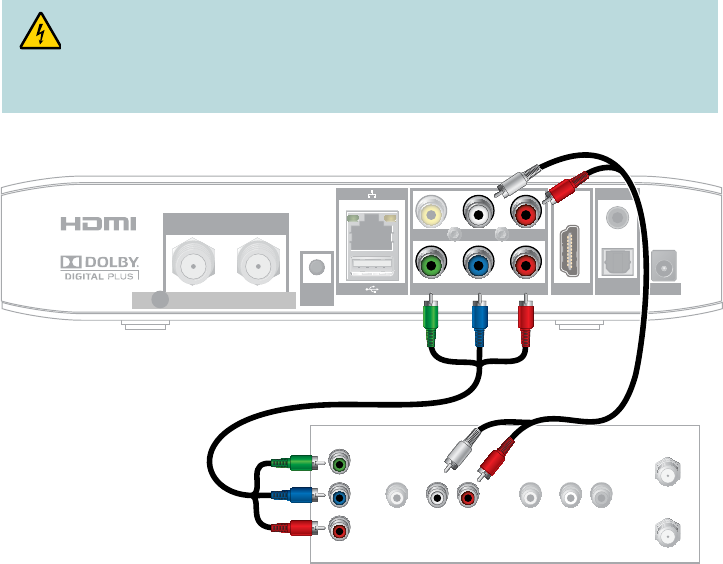

Connecting to an SDTV with Component (YPbPr) Connectors ......................................18
Connecting to an SDTV with an S-Video Connector ......................................................19

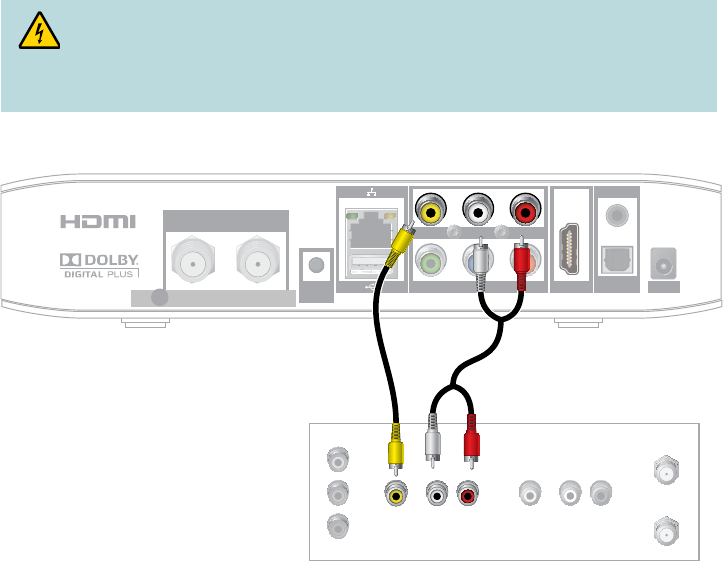

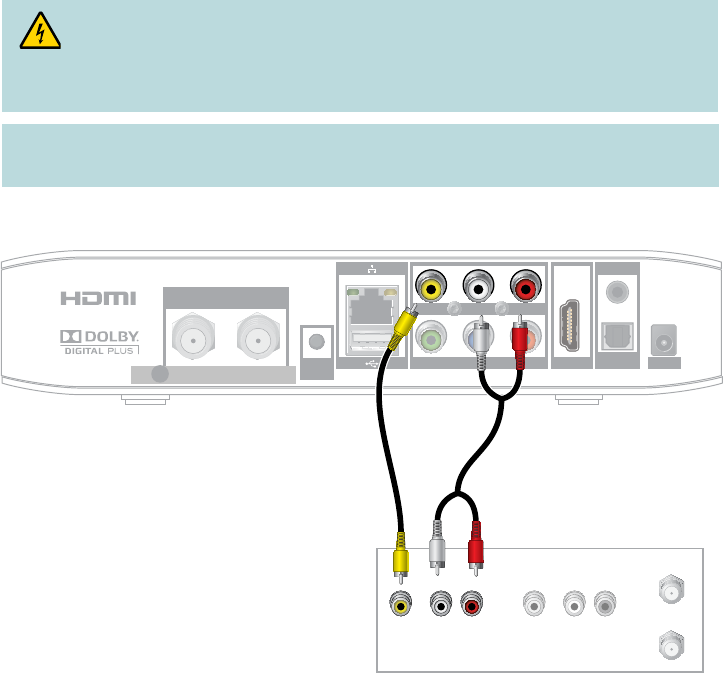

Connecting to an SDTV with an RCA-Type Connector ..................................................20
Connecting to an SDTV with a Coaxial Cable.................................................................21
Connecting to a Home Theater System with Component (YPbPr) Connectors .............22
Connecting to a Stereo VCR or DVD Recorder (optional) ..............................................23
Troubleshooting .............................................................................................................24
Avoid Screen Burn-In .....................................................................................................24
Frequently Asked Questions ..........................................................................................24

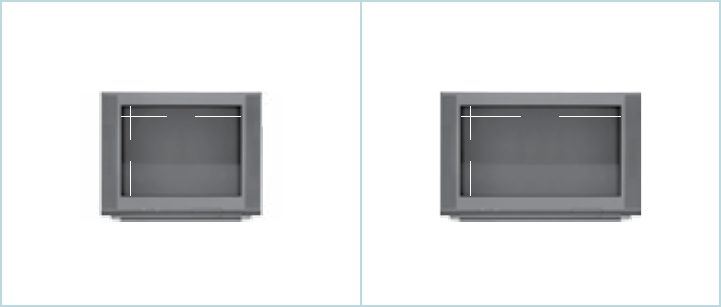

Picture Formats ..............................................................................................................24
Index ..............................................................................................................................24
Service Warnings
WARNING: Avoid electric shock! Do not open the cover of this product. Openingor removing the cover
may expose you to dangerous voltages. If you open the cover, your warranty will be void. This product contains
no user-serviceable parts.
Check Product Safety
Upon completion of any service or repairs to this product, the service technician must perform safety checks to
determine that this product is in proper operating condition.
Protect the Product When Moving It
Always disconnect the power source when moving the apparatus or connecting or disconnecting cables.
20110316_IP_No Tuner_Safety
Compliance Information
United States FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modi cations not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device is going to operated in the 5.15-5.25 MHz frequency ranges, it is restricted in indoor
environment only
The availability of some specifi c channels and/or operational frequency bands are country dependent and are fi
rmware programmed at the factory to match the intended destination. The fi rmware setting is not accessible by the
end user.
Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band.
ITV7900 Family IP Set-Top
Models ITV7904, ITV7906, and ITV7908
Manufactured by: Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134 USA
www.cisco.com/go/contacts
Note: The ITV7906 andITV7908 have disabled the 5600-5650M band by S/W to avoid 5600-5650M band for
IC certi cation.
Canada EMI Regulation
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la class B est conforme à la norme NMB-003 du Canada.
20081121 FCC Standard
AVC VIDEO LICENSE
With respect to each AVC/H.264 product, we are obligated to provide the following notice:
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF
A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM.
Accordingly, please be advised that service providers, content providers, and broadcasters may be required to
obtain a separate use license from MPEG LA prior to any use of AVC/H.264 encoders and/or decoders.
ROVI CORPORATION COPYRIGHT NOTICE
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights of Rovi Corporation. Use of this copyright protection technology must be authorized by Rovi Corporation,
and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Disclaimer
Cisco Systems, Inc. assumes no responsibility for errors or omissions that may appear in this manual. We reserve the
right to change this manual at any time without notice.
IMPORTANT NOTE:
FCC RF Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter
except in accordance with FCC multi-transmitter product procedures
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution:
The device for the bands 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to
co-channel mobile satellite systems.
High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or damage to LE-LAN devices.
IMPORTANT NOTE:
Canada RF Exposure Statement:
This system has been evaluated for radiofrequency exposure for humans in reference to Canada Health Code 6
(2009) limits. The evaluation was based on evaluation per RSS-102 Rev 4. The minimum separation distance
from the antenna to general bystander is 7.9 inches (20cm) to maintain compliance.
L’exposition humaine aux radiofréquences émises par ce système a été évaluée conformément aux limites
spécifi ées dans le Code de sécurité6 de Santé Canada (2009). Cette évaluation était basée sur l’évaluation
décrite dans le document RSS-102 Rev 4. Cette norme défi nit à 20cm (7,9po) la distance minimale devant
séparer l’antenne de toute personne.
FCC Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) the
device may not cause harmful interference, and 2) the device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories speci ed by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has been
damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Power Source Warning
A label on this product indicates the correct power source for this product. Operate this product only from an electrical
outlet with the voltage and frequency indicated on the product label. If you are uncertain of the type of power supply
to your home or business, consult your service provider or your local power company.
The AC inlet on the unit must remain accessible and operable at all times.
Ground the Product
WARNING: Avoid electric shock and re hazard! If this product connects to cable wiring, be sure
the cable system is grounded (earthed). Grounding provides some protection against voltage surges
and built-up static charges.
Protect the Product from Lightning
In addition to disconnecting the AC power from the wall outlet, disconnect the signal inputs.
Verify the Power Source from the On/O Power Light
When the on/o power light is not illuminated, the apparatus may still be connected to the power source. The light
may go out when the apparatus is turned o , regardless of whether it is still plugged into an AC power source.
Eliminate AC Power/Mains Overloads
WARNING: Avoid electric shock and re hazard! Do not overload AC power/mains, outlets, extension
cords, or integral convenience receptacles. For products that require battery power or other power
sources to operate them, refer to the operating instructions for those products.
Provide Ventilation and Select a Location
• Remove all packaging material before applying power to the product.
• Do not place this apparatus on a bed, sofa, rug, or similar surface.
• Do not place this apparatus on an unstable surface.
• Do not place this apparatus in excessive heat or moisture.
• Do not install this apparatus in an enclosure, such as a bookcase or rack, unless the installation provides proper
ventilation.
• Do not place entertainment devices (such as VCRs or DVDs), lamps, books, vases with liquids, or other objects
on top of this product.
• Do not block ventilation openings.
Operating Environment
This product is designed for operation indoors with a temperature range from 32° to 104° F (0° to 40°C). Each
product should have adequate spacing on all sides so that the cooling air vents on the chassis are not blocked.
Protect from Exposure to Moisture and Foreign Objects
WARNING: Avoid electric shock and re hazard! Do not expose this product to dripping or splashing
liquids, rain, or moisture. Objects lled with liquids, such as vases, should not be placed on this apparatus.
WARNING: Avoid electric shock and re hazard! Unplug this product before cleaning. Do not use
a liquid cleaner or an aerosol cleaner. Do not use a magnetic/static cleaning device (dust remover) to
clean this product.
WARNING: Avoid electric shock and re hazard! Never push objects through the openings in this
product. Foreign objects can cause electrical shorts that can result in electric shock or re.
Notice for Installers
The servicing instructions in this notice are for use by quali ed service personnel only. To reduce the risk of electric shock,
do not perform any servicing other than that contained in the operating instructions, unless you are quali ed to do so.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its a liates in the U.S. and other
countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks
mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories.
The terms HDMI and HDMI High-De nition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Rovi is a trademark of Rovi Corporation.
The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a trademark of the Wi-Fi Alliance.
© 2014 Cisco and/or its a liates. All rights reserved. Last Updated: July 2014 78-21653-01C0
Printed in China PRC
Note to System Installer
WARNING
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
For this apparatus, the cable shield/screen shall be
grounded as close as practical to the point of entry of the
cable into the building.For products sold in the US and
Canada, this reminder is provided to call the system
installer's attention to Article 800-93 and Article
800-100 of the NEC (or Canadian Electrical Code Part
1), which provides guidelines for proper grounding of
the cable shield.
This symbol is intended to alert you that uninsulated
voltage within this product may have sufficient
magnitude to cause electric shock.Therefore, it is
dangerous to make any kind of contact with any inside
part of this product.
Ce symbole a pour but d’alerter toute personne qu’un
contact avec une pièce interne de ce produit, sous
tension et non isolée, pourrait être suffisant pour
provoquer un choc électrique. Il est donc dangereux
d’être en contact avec toute pièce interne de ce produit.
This symbol is intended to alert you of the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying this product.
Ce symbole a pour but de vous avertir qu’une documentation
importante sur le fonctionnement et l’entretien accompagne ce produit.
CAUTION: To reduce the risk of electric shock, do not remove cover
(or back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.
INSTRUCTIONS IMPORTANTES RELATIVES À LA SÉCURITÉ
1) Lisez ces instructions.
2) Conservez ces instructions.
3) Soyez attentif à tous les avertissements.
4) Suivez toutes les instructions.
5) N'utilisez pas cet appareil à proximité de points d'eau.
6) Nettoyez cet appareil avec un chi on sec uniquement.
7) Veillez à ne pas obstruer les ori ces de ventilation. Installez cet appareil conformément aux instructions du fabricant.
8) N'installez pas l'appareil à proximité d'une source de chaleur telle qu'un radiateur, une grille de chau age, un
poêle ou tout autre dispositif produisant de la chaleur (y compris un ampli cateur).
9) Ne retirez pas le dispositif de sécurité de la prise avec détrompeur ou avec mise à la terre. Une prise avec
détrompeur est constituée de deux broches dont l’une est plus large que l’autre. Une prise avec mise à la terre
est constituée de deux broches et une troisième broche de terre. La broche large, ou la troisième broche de
terre, est destinée à garantir votre sécurité. Si la prise fournie n’est pas adaptée à votre prise de courant,
consultez un électricien pour remplacer cette dernière.
10) Évitez de marcher sur le cordon d’alimentation ou de le pincer, en particulier au niveau des prises de courant,
des socles de prises de courant et du point de sortie de l’appareil.
11) Utilisez exclusivement les accessoires recommandés par le fabricant.
12) Utilisez uniquement le chariot, le support, le trépied, la console ou la table recommandés par le fabricant
ou vendus avec l'appareil. Si vous utilisez le chariot, veillez à déplacer l'appareil avec précaution, a n
de ne pas faire basculer le chargement et risquer de vous blesser.
13) Débranchez cet appareil pendant les orages ou en cas d'inutilisation prolongée.
14) La maintenance doit être réalisée par des techniciens quali és. Des opérations de maintenance sont nécessaires
lorsque l'appareil a été endommagé (par exemple, en cas de dégâts au niveau du cordon d'alimentation ou de
la prise), lorsque du liquide s'est répandu ou que des objets sont tombés à l'intérieur de l'appareil, lorsqu'il a
été exposé à la pluie ou à l'humidité et en cas de dysfonctionnement ou de chute.
Avertissement relatif à l'alimentation
Une étiquette apposée sur le produit indique le type d'alimentation à utiliser. Ne branchez ce produit qu'à une prise électrique
o rant la tension et la fréquence indiquées sur l'étiquette. Si vous ne savez pas quel type de prise est installé à votre domicile
ou dans votre entreprise, contactez votre fournisseur d'électricité.
La prise CA de l'unité doit rester accessible et utilisable à tout instant.
Mise à la terre
AVERTISSEMENT: évitez les électrocutions et les incendies! Si ce produit est branché par câble, assurez-
vous que le câblage est relié à la terre. La mise à la terre permet de se protéger contre les surtensions et les
accumulations d'électricité statique.
Protection contre la foudre
Débranchez la prise CA de la prise murale et déconnectez les entrées de signaux.
Véri cation de la source d'alimentation à l'aide du voyant de mise sous et hors tension
Même lorsque le voyant de mise sous et hors tension est éteint, il se peut que l'appareil soit encore branché à l'alimentation.
Le voyant peut s'éteindre lorsque l'appareil est mis hors tension, qu'il soit débranché ou non.
Élimination des surcharges du réseau d'alimentation CA
AVERTISSEMENT: évitez les électrocutions et les incendies! Évitez les surcharges au niveau du secteur,
des prises, des rallonges ou des socles de prises de courant. Dans le cas de produits fonctionnant sur batterie
ou à partir d'autres sources d'alimentation, consultez les instructions fournies avec ces produits.
Ventilation et choix de l'emplacement
• Retirez l'intégralité de l'emballage avant de brancher le produit.
• Ne placez pas l'appareil sur un lit, un canapé, une couverture ou une surface similaire.
• Ne placez pas ce produit sur une surface instable.
• N'exposez pas cet appareil à une chaleur excessive ou à l'humidité.
• N'installez pas cet appareil dans un emplacement fermé tel qu'une bibliothèque ou un rack, sauf si cette installation béné cie
d'une aération adaptée.
• Ne placez pas d'appareils multimédia (magnétoscopes, lecteurs de DVD), de lampes, de livres, de vases contenant de l'eau
ou d'autres objets sur le produit.
• Veillez à ne pas obstruer les ori ces de ventilation.
Environnement de fonctionnement
Ce produit est destiné à une utilisation en intérieur, avec une température comprise entre 0et40°C. Vous devez laisser
su samment d'espace de chaque côté du produit a n de ne pas bloquer les grilles d'aération du châssis.
Protection contre l'humidité et les corps étrangers
AVERTISSEMENT: évitez les électrocutions et les incendies! N'exposez pas ce produit aux in ltrations et
aux projections de matières liquides, à la pluie ou à l'humidité. Ne placez pas d'objets contenant des matières
liquides tels que des vases sur cet appareil.
AVERTISSEMENT: évitez les électrocutions et les incendies! Débranchez le produit avant de le nettoyer.
N'utilisez pas de nettoyant liquide ou sous forme d'aérosol. N'utilisez pas d'appareil magnétique ou à électricité statique
(dépoussiéreur) pour nettoyer ce produit.
AVERTISSEMENT: évitez les électrocutions et les incendies! N'insérez jamais d'objets dans les ouvertures.
Ceux-ci peuvent créer des courts-circuits et entraîner une électrocution ou un incendie.
Avertissements relatifs à la maintenance
AVERTISSEMENT: évitez les électrocutions! Ne retirez pas le couvercle de ce produit. L'ouverture ou le
retrait du couvercle peut vous exposer à des tensions dangereuses. Retirer le couvercle entraîne l'annulation de
la garantie. Aucune pièce de ce produit ne peut être réparée par l'utilisateur.
Véri cation de la sécurité du produit
Après toute opération de maintenance ou toute réparation, le technicien doit procéder à des véri cations pour déterminer si
le produit est en bon état de fonctionnement.
Protection du produit lors de son déplacement
Débranchez toujours le produit de sa source d'alimentation lorsque vous le déplacez ou lorsque vous branchez ou débranchez
des câbles.
20110316_IP_No Tuner_Safety
Informations relatives à la conformité
Conformité aux normes de la FCC aux États-Unis
Cet équipement a été testé et jugé conforme aux limites des appareils numériques de classeB en vertu de la
Partie15 des règlements de la FCC. L'objectif de ces normes est de fournir une protection raisonnable contre ce type
d'interférence dans une installation résidentielle. Cet équipement génère, utilise et peut émettre des radiofréquences.
S'il n'est pas installé et utilisé conformément aux instructions, il peut entraîner un brouillage préjudiciable dans les
communications radio. Toutefois, il n’est pas garanti que son fonctionnement ne provoquera pas de brouillage, dans
une installation donnée. Si cet équipement cause un brouillage préjudiciable à la réception des ondes de radio ou de
télévision, ce qui peut être véri é en le mettant HORS TENSION puis de nouveau SOUS TENSION, l'utilisateur devra
tenter de les corriger en procédant comme suit:
• Augmentez la distance entre l’équipement et le récepteur.
• Branchez l’équipement sur une prise d’un circuit autre que celui auquel le récepteur est relié.
• Demandez l'aide de votre câblo-opérateur ou d'un technicien de radio/télévision expérimenté.
Avis pour les installateurs
Les instructions de maintenance présentées dans cette notice sont réservées aux techniciens quali és. Si vous n'êtes pas quali é
et a n de minimiser les risques d'électrocution, n'e ectuez aucune autre tâche que celles décrites dans le guide d'utilisation.
Toute modi cation non approuvée explicitement par CiscoSystems, Inc. pourrait annuler le droit de l'utilisateur à
faire usage de cet équipement.
Les informations présentées dans le paragraphe suivant de la Déclaration de conformité à la FCC sont demandées
par la FCC et ont pour but de vous informer de la certi cation de ce périphérique par la FCC. Les numéros de
téléphone indiqués permettent uniquement de poser des questions en rapport avec la réglementation FCC et non
pas des questions concernant le branchement ou le fonctionnement de ce périphérique. Contactez votre fournisseur
d'accès pour toute question concernant le fonctionnement ou l'installation du périphérique.
Déclaration de conformité FCC
Cet appareil est conforme à la Partie15 des règlements de la FCC. Son utilisation est soumise aux deuxconditions
suivantes: 1) il ne doit pas produire de brouillage préjudiciable et 2) il doit tolérer les brouillages reçus, y compris
ceux susceptibles de perturber son fonctionnement.
Décodeurs IP de la gamme ITV7900
Modèles ITV7904, ITV7906 et ITV7908
Fabriqués par: CiscoSystems, Inc.
170 West Tasman Drive
San Jose, CA 95134 États-Unis
www.cisco.com/go/contacts
Réglementation du Canada relative aux interférences électromagnétiques
Cet appareil numérique de classeB est conforme à la norme NMB-003 du Canada.
Cet appareil numérique de classeB est conforme à la norme NMB-003 du Canada.
Norme 20081121 de la FCC
LICENCE VIDÉO AVC
Pour chaque produit AVC/H.264, nous sommes tenus de mentionner l'avis suivant:
CE PRODUIT EST SOUS LICENCE DU PORTEFEUILLE DE BREVETS AVC POUR UNE UTILISATION PERSONNELLE
PAR UN CONSOMMATEUR, OU TOUTE AUTRE UTILISATION N'OUVRANT PAS DROIT À RÉMUNÉRATION LORSQUE
CE CONSOMMATEUR (i) ENCODE UNE VIDÉO CONFORME AUX NORMES AVC (LA «VIDÉO AVC») ET/OU (ii)
DÉCODE UNE VIDÉO AVC ENCODÉE PAR UN CONSOMMATEUR IMPLIQUÉ DANS UNE ACTIVITÉ PERSONNELLE
ET/OU OBTENUE D'UN FOURNISSEUR DE VIDÉOS DISPOSANT D'UNE LICENCE DE DIFFUSION DE VIDÉOS AVC.
AUCUNE LICENCE EXPRESSE OU TACITE N'EST ACCORDÉE POUR UN AUTRE USAGE QUEL QU'IL SOIT. POUR
DE PLUS AMPLES RENSEIGNEMENTS, ADRESSEZ-VOUS À MPEG LA, L.L.C. CONSULTEZ LE SITE WEB: HTTP://
WWW.MPEGLA.COM.
En conséquence, nous vous informons que les fournisseurs de services, les fournisseurs de contenu et les
télédi useurs peuvent avoir obligation d'obtenir une licence d'utilisation séparée émise par MPEG LA, préalablement
à toute utilisation d'encodeurs et/ou décodeurs AVC/H.264.
AVERTISSEMENT RELATIF AUX DROITS D'AUTEUR DE ROVI CORPORATION
Ce produit intègre une technologie de protection des droits d'auteur protégée par des brevets américains et d'autres
droits de propriété intellectuelle de Rovi Corporation. L'utilisation de cette technologie de protection des droits d'auteur
doit être autorisée par Rovi Corporation et n'est destinée qu'à un usage privé ou restreint, sauf autorisation contraire
de Rovi Corporation. Il est interdit de démonter le produit ou d'en étudier le fonctionnement.
Avertissement
CiscoSystems, Inc. décline toute responsabilité en cas d'erreurs ou d'omissions dans le présent manuel. Nous nous
réservons le droit de modi er ce manuel à tout moment et sans avis préalable.
Déclaration sur les interférences de la FCC
(Federal Communication Commission)
Cet équipement a été testé et jugé conforme aux limites des appareils numériques de ClasseB en vertu de la
Partie15 des règlements de la FCC. L’objectif de ces normes est de fournir une protection raisonnable contre
toute interférence nuisible dans une installation résidentielle. Cet équipement génère, utilise et peut émettre
de l’énergie radioélectrique à haute fréquence et, s’il n’est pas installé et utilisé selon le manuel d’instructions,
peut provoquer des interférences nuisibles aux communications radio. Toutefois, il n’est pas garanti que son
fonctionnement ne provoquera pas de brouillage, dans une installation donnée. Si cet équipement provoque des
interférences nuisibles à la réception de la radio ou de la télévision (détectables par la mise hors tension et sous
tension de l’équipement), l’utilisateur peut tenter d’y remédier de di érentes façons:
• Réorienter ou déplacer l’antenne réceptrice.
• Augmenter la distance entre l’équipement et le récepteur.
• Brancher l'équipement sur une prise d'un circuit autre que celui auquel le récepteur est relié.
• Solliciter l’aide du distributeur ou d’un technicien radio/télévision expérimenté.
Avertissement de la FCC: toute modi cation non approuvée expressément par la partie responsable de la
conformité pourrait annuler le droit de l'utilisateur à faire usage de cet équipement.
Pour un fonctionnement à des plages de fréquences allant de 5150 à 5250MHz et de 5470 à 5725MHz,
l'appareil est destiné à être utilisé dans un environnement intérieur.
Cet appareil est conforme à la section15 des règlements de la FCC. Son utilisation est soumise aux
deuxconditions suivantes: (1)il ne doit pas produire de brouillage préjudiciable et (2)il doit tolérer les brouillages
reçus, y compris ceux susceptibles de perturber son fonctionnement.
REMARQUE IMPORTANTE:
Déclaration de la FCC sur l'exposition aux radiofréquences:
Cet équipement est conforme aux normes d’exposition de la FCC en matière de radiations dé nies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé en respectant une distance minimale de
20 cm entre l'émetteur de radiations et vous-même.
Cet émetteur ne cohabitera pas ou ne fonctionnera pas en conjonction avec toute autre antenne ou tout autre
émetteur.
La disponibilité de certains canaux et/ou bandes de fréquences d'exploitation dépend du pays. Elle est
programmée par micrologiciel sur le site de l'usine en fonction du pays de destination. La con guration par
micrologiciel n'est pas accessible à l'utilisateur nal.
Déclaration d'Industrie Canada:
Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son utilisation est soumise
aux deuxconditions suivantes: (1)il ne doit pas produire de brouillage préjudiciable et (2)il doit tolérer les
brouillages reçus, y compris ceux susceptibles de perturber son fonctionnement.
Mise en garde:
Pour des bandes de fréquences allant de 5150 à 5250MHz et de 5470 à 5725MHz, l'appareil peut
uniquement être utilisé à l'intérieur pour réduire le risque de brouillage préjudiciable qui pourrait a ecter les
systèmes satellites portables sur la même voie.
Les radars haute puissance sont les utilisateurs principaux (c.-à-d. les utilisateurs prioritaires) des bandes 5250-5
350MHz et 5650-5850MHz, et sont susceptibles de causer des brouillages ou d'endommager les appareils
LE-LAN.
REMARQUE IMPORTANTE:
Déclaration sur l'exposition aux radiofréquences au Canada:
L'exposition humaine aux radiofréquences émises par ce système a été évaluée conformément aux limites
spéci ées dans le Code de sécurité6 de Santé Canada (2009). Cette évaluation était basée sur l'évaluation
décrite dans le document RSS-102 Rev 4. Cette norme dé nit à 20cm (7,9po) la distance minimale devant
séparer l'antenne de toute personne.
Remarque: Pour les modèlesITV7906 et ITV7908, la bande 5600-5650M a été désactivée par logiciel
a n d’éviter la certi cation d’IC exigée pour cette bande.
Cisco et le logo Cisco sont des marques de commerce ou marques de commerce déposées de Cisco ou de ses liales aux
États-Unis et dans d’autres pays. Pour voir la liste des marques de commerce de Cisco, visitez le site www.cisco.com/go/
trademarks. Les autres marques de commerce mentionnées appartiennent à leur détenteur respectif. L’utilisation du terme
«partenaire» n’implique pas de relation de partenariat entre Cisco et une autre entreprise. (1110R)
Fabriqué sous licence de Dolby Laboratories. Dolby est une marque commerciale de Dolby Laboratories.
Les termes «HDMI» et «Interface Multimédia Haute Dé nition» (HDMI ou High-De nition Multimedia
Interface), ainsi que le logo HDMI, sont des marques commerciales ou des marques déposées de HDMI
Licensing LLC aux États-Unis et dans d'autres pays.
Rovi est une marque commerciale de Rovi Corporation.
La marque Wi-Fi Protected Setup est une marque commerciale de Wi-Fi Alliance. Wi-Fi Protected Setup est une marque de
Wi-Fi Alliance.
© 2014 Cisco et/ou ses a liés. Tous droits réservés. Dernière mise à jour: juin2014 78-21653-01C0
Imprimé en République populaire de Chine
Remarque à l’intention de
l’installateur du système
Pour cet appareil, l’écran/le blindage du câble doit être
mis à la terre aussi près que possible du point d’entrée du
câble dans l’immeuble. Pour les produits vendus aux
États-Unis et au Canada, ce rappel sert à attirer l’attention
de l’installateur du système sur les articles 800-93 et
800-100 du NEC (ou au Code canadien de l’électricité,
Partie 1), qui présentent des directives concernant la mise
à la terre appropriée du blindage du câble.
Ce symbole a pour but d’alerter toute personne qu’un
contact avec une pièce interne de ce produit, sous
tension et non isolée, pourrait être suffisant pour
provoquer un choc électrique. Il est donc dangereux
d’être en contact avec toute pièce interne de ce produit.
Ce symbole a pour but de vous avertir qu’une documentation
importante sur le fonctionnement et l’entretien accompagne ce
produit.
ATTENTION : afin de minimiser les risques de décharge
électrique, ne retirez pas le couvercle (ni le panneau arrière).
L’appareil ne contient aucune pièce dont l’entretien peut être
assuré par l’utilisateur. Les tâches de maintenance doivent être
réalisées par du personnel d’entretien qualifié.
MISE EN GARDE
RISQUE DE DÉCHARGE
ÉLECTRIQUE
NE
PAS OUVRIR
AVERTISSEMENT
POUR ÉVITER LES INCENDIES ET LES DÉCHARGES
ÉLECTRIQUES, N’EXPOSEZ PAS CET APPAREIL À LA PLUIE OU
À L’HUMIDITÉ.
5
Antenna Lead In Wire
T15378
Ground Clamps
Electric Service
Equipment
NEC = National Electrical Code 1990
National Fire Protection Association
TO CATV INSTALLER
This reminder is provided to call the CATV system installer’s attention
to Article 820-40 of the National Electrical Code (NEC) that provides
guidelines for proper grounding, and in particular, specifies that the
cable ground shall be connected to the grounding system of the
building, as close to the point of entry as practical.
Antenna Discharge
Unit
(NEC Section 810-21)
Power Service
Grounding
Electrode System
(NEC Art 250, Part H)
Grounding
Conductors
(NEC Section 810-20)
Ground Clamps
Protect the Product from Lightning
In addition to disconnecting the AC power from the wall outlet,
disconnect the signal inputs.
Verify the Power Source from the On/O Power Light
When the on/o power light is not illuminated, the apparatus may
still be connected to the power source. The light may go out when
the apparatus is turned o, regardless of whether it is still plugged
into an AC power source.
Eliminate AC Power/Mains Overloads
WARNING: Avoid electric shock and re hazard! Do
not overload AC power/mains, outlets, extension cords, or
integral convenience receptacles. For products that require
battery power or other power sources to operate them, refer
to the operating instructions for those products.
Handling Disposable Batteries
This product may contain disposable batteries. Heed the following
warning and follow the Battery Safety and Battery Disposal instructions
below.
WARNING: There is danger of explosion if the battery
is mishandled or incorrectly replaced. Replace only with
the same type of battery. Do not disassemble it or attempt
to recharge it outside the system. Do not crush, puncture,
dispose of in re, short the external contacts, or expose to
water or other liquids. Dispose of the battery in accordance
with local regulations and instructions from your service
provider.
Battery Safety
batteries are incorrectly inserted.
batteries.
recommend.
re).
IMPORTANT SAFETY INSTRUCTIONS, continued
Battery Disposal
the environment.
manufacturer’s instructions and local/national disposal and
recycling regulations.
substance, so special handling and disposal of this product might
be necessary. For more information about perchlorate and best
management practices for perchlorate-containing substance,
see
Provide Ventilation and Select a Location
• Remove all packaging material before applying power to the product.
• Do not place this apparatus on a bed, sofa, rug, or similar surface.
• Do not place this apparatus on an unstable surface.
• Do not install this apparatus in an enclosure, such as a bookcase
or rack, unless the installation provides proper ventilation.
• Do not place entertainment devices (such as VCRs or DVDs), lamps,
books, vases with liquids, or other objects on top of this product.
• Do not block ventilation openings.
Operating Environment
The set-top is designed for operation indoors with a temperature
adequate spacing on all sides so that the cooling air vents on the
chassis are not blocked.
Protect from Exposure to Moisture and Foreign
Objects
WARNING: Avoid electric shock and re hazard! Do
not expose this product to dripping or splashing liquids, rain,
or moisture. Objects lled with liquids, such as vases, should
not be placed on this apparatus.
WARNING: Avoid electric shock and re hazard!
Unplug this product before cleaning. Do not use a liquid
cleaner or an aerosol cleaner. Do not use a magnetic/static
cleaning device (dust remover) to clean this product.
WARNING: Avoid electric shock and re hazard!
Never push objects through the openings in this product.
Foreign objects can cause electrical shorts that can result
in electric shock or re.
Service Warnings
WARNING: Avoid electric shock! Do not open the
cover of this product. Opening or removing the cover may
expose you to dangerous voltages. If you open the cover,
your warranty will be void. This product contains no user-
serviceable parts.
Check Product Safety
Upon completion of any service or repairs to this product, the service
technician must perform safety checks to determine that this product
is in proper operating condition.
Protect the Product When Moving It
Always disconnect the power source when moving the apparatus
or connecting or disconnecting cables.
20110316_Cable_Safety
6
Welcome
The Cisco® ITV7900 family of IP set-tops provide high-denition (HD) capability and
broadband digital video services in exceptional picure and audio quality. On MoCA™-
tops, the connection with a video-centric access point/gateway, allows you to add new
Wireless Protected Setup (WPS) -compliant clients to your home network giving you the
exibility to watch TV anywhere in the house. Contact your service provider for wireless
pairing information and other available services.
Follow the instructions in this guide to install the set-top and to access the programming
oered by your service provider.
The consumer support website provides news and information about this product. For more
information, please refer to http://www.cisco.com/web/consumer/support/index.html.
Safety First
Before using the set-top, read the Important Safety Instructions section of this guide.
Identify your Set-Top
If your set-top requires troubleshooting in the future, your service provider may ask for
this serial number. The serial number can be located on the label found at the bottom of
the set-top.
ITV790x
Set-Top Box SD/HD
Date of Mfg: XXXX-XX-XX
Input: 12VDC/15W
SN: XXXXXXXX
Ethernet Mac: XX XX XX XX
PID: XXXXXXX
TAN: XX-XXXXXX-XX
HW: XXXXX
SW: XXXXX
Cisco factory ID: PSZ
Made in China
Wifi MAC: XXXXXXXXXXX
Manufactured under license from Dolby Laboratories
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
T16500
Serial Number
Watch TV
Use the Remote Control to Access Services and Programs
Press the following keys on the remote control to access services:
services available from your service provider, such as video-on-demand and pay-
per-view programs.
or while viewing a program.
7
Front Panel
1 Powe r Turns the set-top on or places it in standby mode
2 Display Displays the selected channel number and time of day. The display
shows the following:
REC ) - Indicates a recording is in progress when illuminated
) - Indicates multi-room DVR activity when illuminated
) - Indicates the set-top is receiving a wireless signal
when illuminated
) - Indicates the set-top is receiving data via
MoCA, Ethernet, or WiFi when illuminated
) - Indicates the set-top is on when illuminated
) - Indicates the set-top has received a system
message when illuminated
Notes:
ITV7900 REC
1 2
T16501
8
Back Panel
1 Cable In (optional Connects to a coaxial cable that delivers the MoCA signal (IP
for some models) over coax ) to the set-top
2 Cable Out Connects to a coaxial cable that sends audio and video signals
to a TV or VCR
3 WPS (optional When pressed, initiates the wireless setup feature, which allows
for some models) you to add new Wireless Protected Setup (WPS) compliant
clients to your home network
4 Ethernet Connects to the in-home network via Ethernet instead of using
MoCA or WiFi
5 USB 2.0 Connects to external USB equipment if supported by your
service provider
6 Video Out Connects to the composite video input on your TV
7 Y Pb Pr Connects to the component input (YPbPr) on your TV
8 Audio Out Connects to RCA cables that send analog audio signals (left and
(Left/Right) right) to the stereo inputs on a TV
9 HDMI Connects an HDMI™ cable to the HDMI input of an HDTV. HDMI
supports both digital audio and video. May be used to connect
to a DVI interface using an HDMI-to-DVI adapter for video and
separate audio connections. Any of the following audio
Audio Out (10)
10 Optical Audio Out Connects to an optical cable that sends a digital audio signal to
a surround-sound receiver or other digital audio device input
11 IR Remote Input Available to be connected to an approved remote IR receiver
(purchased separately). Contact your service provider for details
12 AC Power Input Connects to the external power supply to deliver power to the
set-top
SD Card reader Allow the addition of an SD card reader to support time shifted
(optional, not shown) buer (TSB) functionality
Notes:
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
WPS
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
T16502
1 2 3 5 9 10
4 6 11 12
7 8
9
Because the connections
for a high-denition (HD)
or standard-denition (SD)
TV are dierent, you must
determine if your TV is HD
or SD. Your TV must
receive HD signals for
you to enjoy the benets of HDTV. Refer to the manual that came with your
TV for more information.
See page 26 for more information on picture formats.
Make one of the following connections for your home network:
on the receiver. See page 11.
twisted pair to coaxial. See page 11.
home network uses Ethernet (CAT-5) cable, use the NETWORK
connector on the receiver. See page 11.
Connecting the Receiver
To connect your receiver to your network and home entertainment devices, complete
these steps.
Identify the additional
consumer electronic devices
you will connect to the
receiver and TV. See pages
15 through 23 and refer to
the owner’s manual for the
device.
Plug the receiver and the TV into an AC power source that is not
controlled by a switch.
Make the connections for your TV, VCR, and DVD recorder as follows:
see page 12 and the connection diagrams in
this manual.
see page 13 and the
connection diagrams in this manual.
see page
14 and the connection diagrams in this manual.
1
2
3
5
4
Home Theater
OtherDVDVCR
9
16 4
3
or
10
Connecting to the In-Home Network
The following diagrams illustrate examples of the connections you can use to
connect your receiver to your in-home network. Contact your service provider for the
recommended connection method for your home.
Notes:
Pb
Pr
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWORK eSATA
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWORK
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWORK
T15906
Coaxial
In-Home
Coaxial
Network
Wall
Phoneline
OR
Wall
Adapter
CAT-5
OR
In-Home
Phoneline
Network
In-Home
CAT-5
Network
Wall
Should this stay shown with connections
to the back of the ITV7900?
11
Connections for a High-Denition TV (HDTV)
To use the receiver with an HDTV, you must make one of the following connections to
view the HD content. Refer to the owner’s manual for your TV and the cabling diagrams
in this manual for more detailed connection information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
Some HDTVs have a High-Denition
Multimedia Interface (HDMI) connector. The
HDMI connector provides both a digital video
and audio connection. See the connection
diagram on page 15 for an example.
Note: The HDMI port on the TV must
support high-bandwidth digital content
protection (HDCP).
HDTV
Connections
The HDMI connector can provide the
connection to an HDTV with a DVI input. If
your HDTV has a Digital Visual Interface
(DVI) connector, you need an HDMI-to-DVI
adapter, and a separate audio connection
Note: The DVI port on the TV must support
high-bandwidth digital content protection
(HDCP).
See the connection diagram on page 16
for an example.
Use One of These Required Connections
to an HDTV
HDMI
HDMI
HDMI
DVI
Receiver
Connections
The YPbPr (red, blue, and green)
connectors provide high-denition
component video signals to an HDTV, and
optical audio).
See the connection diagram on page 17
for an example.
Pr
Pb
Y
Audio/VideoVideoVideo
DVI HDMIYPbPr
Pr
Pb Y
Some HDTVs have only RGB or RGB-HV
connectors. If you have one of these
HDTVs, you need a Component-to-RGB
adapter, and you need a separate audio
connection.
B
G
V
H
R
Pr
Pb Y
Adapter Needed
Adapter Needed
Video
RGB
Audio
L R
AUDIO
OUT
L R
AUDIO
OUT
L R
OPTICAL
OPTICAL
INPUT
L R
Audio
AUDIO
OUT
L R
OPTICAL
OPTICAL
INPUT
L R
Audio
Should this connection page stay using connectors from the ITV7900?
12
Connections for a Standard-Denition TV (SDTV)
When using the receiver with an SDTV, you must make one of the following
connections to view content. Some SDTVs may not have all these connections. Refer
to the owner’s manual for your TV and the cabling diagrams in this manual for more
detailed information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
The YPbPr (red, blue, and green)
connectors can provide standard-denition
component video signals to an SDTV. A
separate audio connection is also needed.
See the connection diagram on page 18
for an example.
SDTV
Connections
Use One of These Required Connections
to an SDTV
Receiver
Connections
The S-Video connection provides an
optimal video connection to SDTVs. A
separate audio connection is also needed.
See the connection diagram on page 19
for an example.
Audio/Video
The Video Out connector provides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 20
for an example.
S-VideoTo TV (Video Out) Video Out
TO TV
(VIDEO OUT)
CABLE IN/
ANT IN
S-VIDEO
IN
VIDEO
OUT
VIDEO
IN
L R
L R
Pr
Pb
Y
L R
YPbPr
Audio VideoAudio Video
The To TV (Video Out) connector provides
both a video and audio connection to an
SDTV.
See the connection diagram on page 21
for an example.
Audio Video
Pr
Pb Y
AUDIO
OUT
L R
AUDIO
OUT
L R
AUDIO
OUT
L R
S-VIDEO
IN
Should these connection pages stay using connect
13
Should these connection pages stay using connectors from the ITV7900?
Connections for a VCR or DVD Recorder
When using the receiver with a VCR or DVD recorder, you must make one of the
following connections to view content.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
illustrations shown below.
receiver.
Connecting an Over-the-Air Converter Box
You can connect an over-the-air converter box directly to your TV to receive certain
local channels, but do not connect the over-the-air converter box directly to your
receiver.
For VCRs or DVD recorders with Video
use the Video Out and the Audio Out
receiver.
See the connection diagram on page 23
for an example.
VCR/DVD Recorder
Connections
Use One of These Optional
Connections to a VCR or DVD Recorder
Receiver
Connections
VCR/DVD Recorder
Audio Video
For VCRs or DVD recorders with
connectors, use the S-Video and the
the receiver.
Audio Video
S-VIDEO
IN
VIDEO
OUT
VIDEO
IN
L R
L R
AUDIO
OUT
L R
AUDIO
OUT
L R
S-VIDEO
IN
14
Connecting to an HDTV with an HDMI Connector
Cable Used in this Conguration
Notes:
™ Digital 5.1 audio.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T16503
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
ANT (75 )
INOUT
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
S-VIDEO
VIDEO
AUDIO
SCART VIDEO OUT
SCART VIDEO IN
HDMI
AUDIO IN
DVI/HDCP
L
R
IN
HD 1
Y
PB
PR
L
R
AUDIO
Back of HDTV
Cable Input
15
Connecting to an HDTV with a DVI Connector
Cables Used in this Conguration
or 1 HDMI Cable and 1 HDMI-to-DVI Adapter
your TV’s capabilities.)
Notes:
an HDMI-to-DVI adapter and a separate audio connection.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
T16504
HDMI
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO Y
PB
PR
L
R
AUDIOAUDIO
DVI/HDCP
IN
AUDIO IN
DVI/HDCP
LR
Back of HDTV
OPTICAL
INPUT
OR
AUDIO
CENTER
CHANNEL IN
16
Connecting to an HDTV with Component (YPbPr)
Connectors
Cables Used in this Conguration
your TV’s capabilities.)
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T16505
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of
HDTV
OPTICAL
INPUT
DVI/HDCP
IN
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO Y
PB
PR
L
R
AUDIOAUDIO
OR
17
Connecting to an SDTV with Component (YPbPr)
Connectors
Cables Used in this Conguration
Note: The receiver must be set to the proper standard-denition mode.
T16506
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of SDTV
CABLE OUT/
ANT OUT
CABLE IN/
ANT IN
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
18
Connecting to an SDTV with an RCA-Type Connector
Cables Used in this Conguration
T16507
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of
SDTV
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
CABLE IN/
ANT IN
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
19
Connecting to a Home Theater System with
Component (YPbPr) Connectors
Cables Used in this Conguration
Notes:
connecting your other video and audio devices.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T16508
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of Home
Theater Receiver
COMPONENT VIDEO
1
Y
PB
PR
2
Y
PB
PR
Y
PB
PR
S-VIDEO
DIGITAL
AUDIO TV/CABLE
1
2
3
4
VIDEO
L
R
AUDIO
S-VIDEO
DVD
VIDEO
L
R
AUDIO
VIDEO
L
R
AUDIO
S-VIDEO
VIDEO 1
S-VIDEO
OUT
VIDEO OUT
MONITOR
VIDEO
L
R
AUDIO
S-VIDEO
OUTIN
OUTIN
OR
20
Connecting to a Stereo VCR or DVD Recorder (optional)
The diagram below shows how to connect a recording device to your receiver. Although
it is possible to watch TV using a connection through your VCR or DVD recorder to the
TV, this connection may not provide the best picture, and HDTV users are restricted to an
SD format. In addition, some content is copy protected and passing this content through
the recording device may result in a picture that cannot be viewed.
For these reasons, the connection shown is best used to provide only video and audio to
your recording device and not for normal TV viewing. The connection from the recording
device to the TV (only used for playback of recorded material) depends on the type of
device being used, the outputs that are supported, and the inputs that remain available
for use on your TV.
Consult the owner’s manuals provided with your TV and recording device for more
details on connection options.
Cables Used in this Conguration
Connecting your TV directly to the Audio/Video output of your receiver will
assure a more vivid picture and enhance your viewing enjoyment.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T16509
NETWORK
L R
Pr Pb Y VIDEO
OUT AUDIO
OUT OPTICAL POWER
HDMI
®
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of Stereo VCR
or DVD Recorder
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
R
L
AUDIO
OUT
VIDEO
OUT
CABLE IN/
ANT IN
21
Troubleshooting
If the set-top does not perform as expected, the following tips may help you. If you need
further assistance, contact your service provider:
No Picture
another channel to see if a picture appears.
No Color
No Sound
Avoid Screen Burn-In
Images such as letterbox bars or side bars, bright closed-captioning backgrounds, station
logos, or any other stationary images may cause the display in your HDTV to age
unevenly; this is known as screen burn-in. Refer to the owner’s manual that came with
your HDTV for more information.
CAUTION:
Avoid screen burn-in. Do not display the same xed images on your HDTV
screen for extended periods of time.
22
Frequently Asked Questions
What Is Digital Television?
Digital television (DTV) is a huge leap forward in television technology compared to
analog television that has been widely available since the 1940s. DTV is delivered and
displayed using digital encoding, similar to the way a PC operates. By using digital
technology, there is no variation in picture and sound quality from the origination point
until it is displayed on your television. You always receive a high-quality picture without
the wavy lines or static you might sometimes get from a weak analog signal. Another
feature of digital television is digital surround sound using Dolby Digital technology, which
is the same technology used to produce the sound you hear in movie theaters.
What Is Standard-Denition Television?
Standard-denition television (SDTV) is basic digital television programming delivered by
your service provider. Typically, the SDTV screen is the same, nearly square shape as an
analog television screen. Digital images on an SDTV set are crisp and clear—noticeably better
than on a standard analog television set using an antenna to receive over-the-air signals.
What Is High-Denition Television?
High-denition television (HDTV) is a completely new way to send and receive television
broadcast signals. HDTV images are made up of pixels that are much smaller and closer
together than those used in standard analog television, and there are millions of them. Thus,
HDTV can display ve to six times the detail of analog television to deliver picture quality that is
much more realistic, dimensional, and precise. SDTV programs can be viewed on an HDTV.
Are Local TV Stations or Other Programmers Broadcasting in HDTV?
Many local TV stations and programmers are transmitting digital signals. However,
transmitting a digital signal does not mean transmitting an HDTV signal. Some stations
are using the new bandwidth to broadcast several standard-denition channels. Most
stations and programmers, once they begin broadcasting in digital, are oering HD
content from their parent network (for example, CBS, ABC, NBC, Fox, and PBS). Contact
your service provider for more information.
Why Aren’t All the Shows I Watch in High-Denition?
A high-denition program must originate in HD format and be broadcast in HD format.
Having an HDTV system does not mean that everything you watch will be viewed in high-
denition. Getting the signal from a digital source also does not mean it is high-denition.
Why Are Some HDTVs 4:3 Aspect Ratio and Others 16:9?
The aspect ratios dier because television manufacturers build both standard-screen
and wide-screen HDTVs to appeal to consumer viewing preferences. The two aspect
ratios are as follows:
the middle of the screen. There are bars surrounding the picture.
What Is HDMI and Does it Support Dolby Digital 5.1 Audio?
The High-Denition Multimedia Interface (HDMI) is an uncompressed, all-digital audio/video
interface. The Dolby Digital audio format that provides up to 5.1 separate channels of surround
sound, and is the standard used for DVD-Video. HDMI supports standard, enhanced, or high-
denition video, plus multi-channel digital audio, such as Dolby Digital audio, on a single cable.
Picture Formats
What Is the Dierence Between a Standard-Screen and a Wide-
Screen HDTV?
The type of screen your HDTV has (wide-screen or standard-screen) determines how
the receiver displays programs on the screen. The picture format for an HDTV is a
combination of aspect ratio and screen resolution and is dierent for standard-screen
and wide-screen HDTVs.
What Is Aspect Ratio?
An aspect ratio is the ratio of the width to the height of the TV screen. The aspect ratios
dier because the television industry manufactures both standard-screen and wide-
screen HDTVs to appeal to consumer viewing preferences.
What Is the Screen Resolution?
The screen resolution indicates the amount of detail that the picture displays. Resolution
is identied by the number of display lines on the screen. The techniques that an HDTV
uses to “paint” the picture on the screen are referred to as progressive and interlaced.
With the progressive scanning method, the lines are drawn on the screen one at a time
in sequential order. Progressive scanning results in a more detailed image on the screen
and is also less susceptible to the icker commonly associated with interlaced scanning.
The interlaced method involves refreshing pixels in alternation — rst the odd lines and
then the even lines.
For advanced setup, select the screen resolution that your TV can support. Refer to your
Feature Guide and HDTV owner’s manuals to choose the proper screen resolution (480i,
720p, 1080i, or 1080p) for your setup.
For example, a screen resolution of 1080i indicates that the screen shows 1080 lines
in an interlaced display, and 720p indicates that the screens shows 720 lines in a
progressive display.
A standard-screen HDTV has a 4x3
aspect ratio. The screen is 4 units wide
for every 3 units tall.
A wide-screen HDTV is one-third wider
than a standard-screen HDTV. The screen
is 16 units wide for every 9 units tall.
A screen resolution of 480i lls the screen. A screen resolution of 720p, 1080i, or
1080p lls the screen.
9
16
4
3
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its aliates in the U.S. and other
mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Rovi is a trademark of Rovi Corporation.
MoCA is a trademark of the Multimedia over Coax Alliance.
Printed in China
