User Manual
User's Manual
Satellite S50-C/S50t-C/P50-C/
P50t-C
Satellite L50W-C/P50W-C
Series
Table of Contents
Chapter 1 TOSHIBA Legal, Regulatory, and Safety
Copyright, Disclaimer and Trademarks .............................................. 1-1
Regulatory Information ......................................................................... 1-2
Video Standard Notice .......................................................................... 1-8
OpenSSL Toolkit License Issues ......................................................... 1-8
FreeType License Issues .................................................................... 1-10
ENERGY STAR® Program .................................................................. 1-14
Disposing of the computer and the computer's batteries ............... 1-14
General Precautions ........................................................................... 1-14
Safety Icons ......................................................................................... 1-17
Chapter 2 Getting Started
Equipment checklist ............................................................................. 2-1
Conventions ........................................................................................... 2-1
Short Name ............................................................................................ 2-2

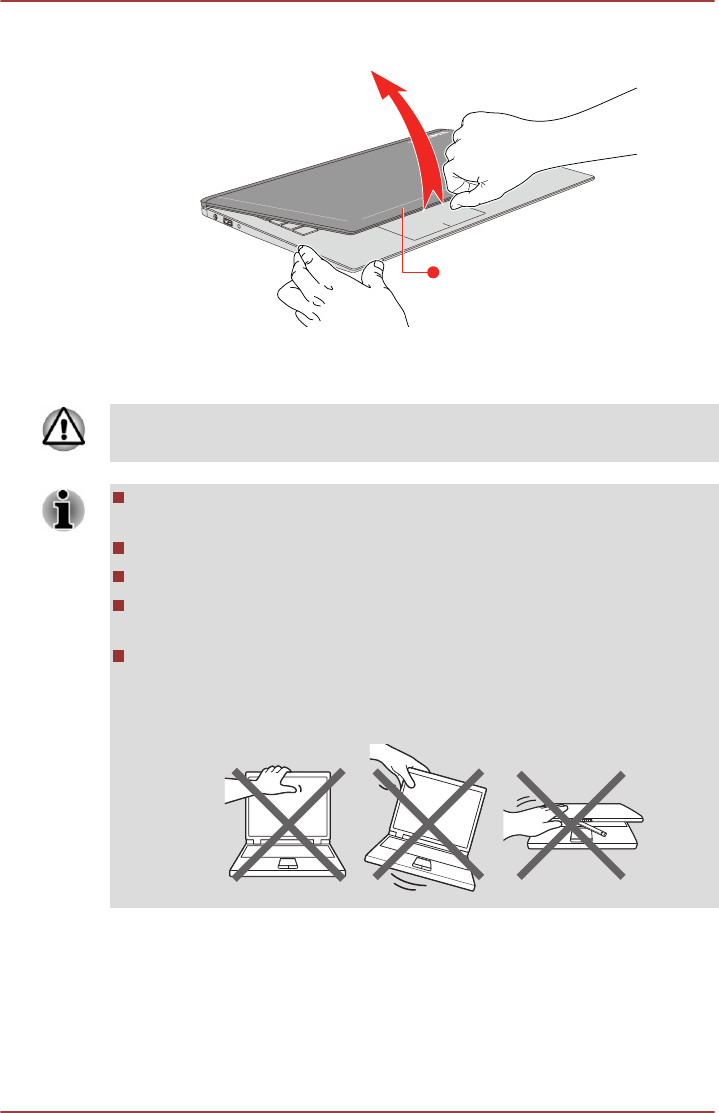

Using your computer for the first time ................................................ 2-3
Getting to know Windows ................................................................... 2-10
Turning off the power .......................................................................... 2-11
Chapter 3 The Grand Tour

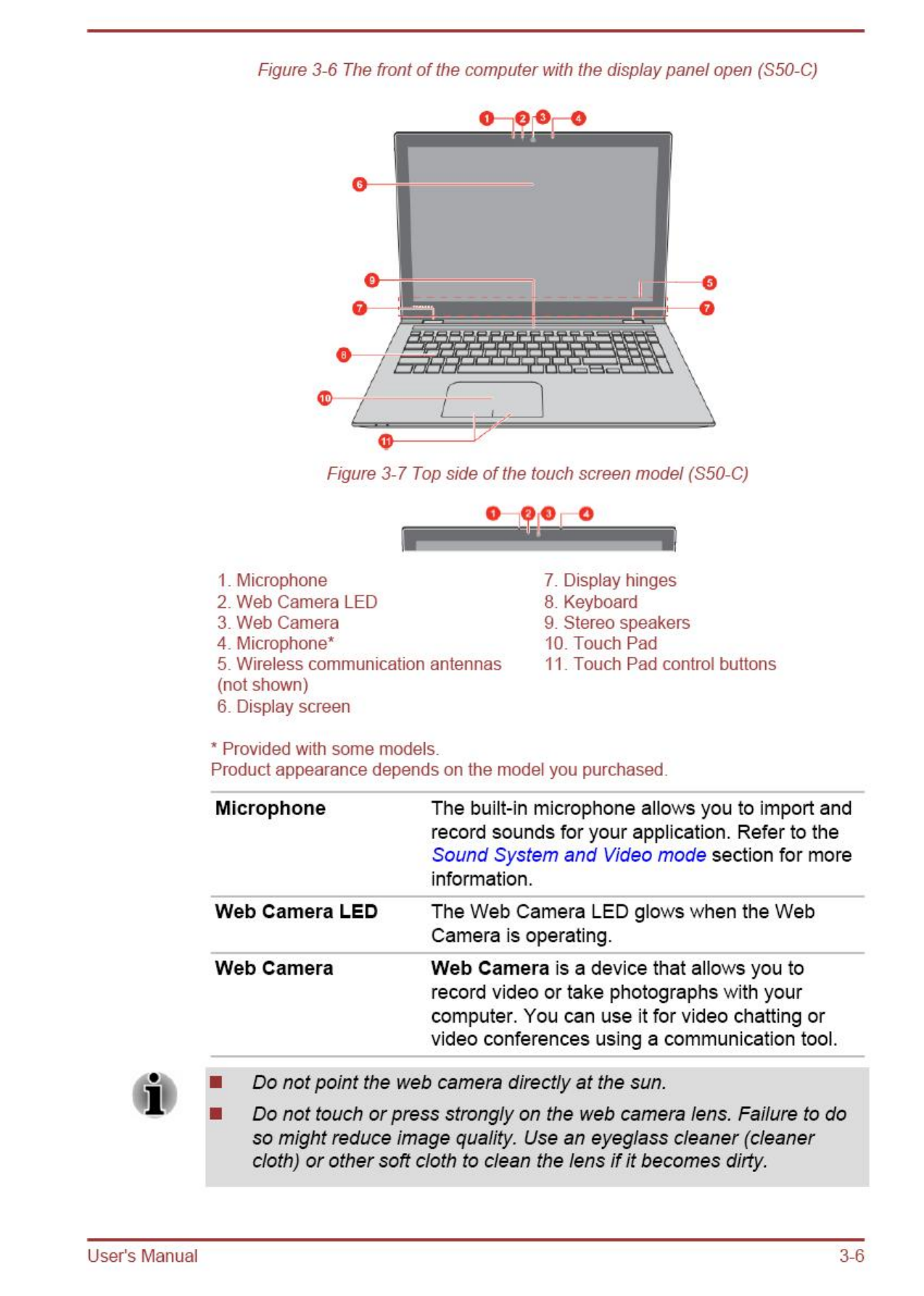

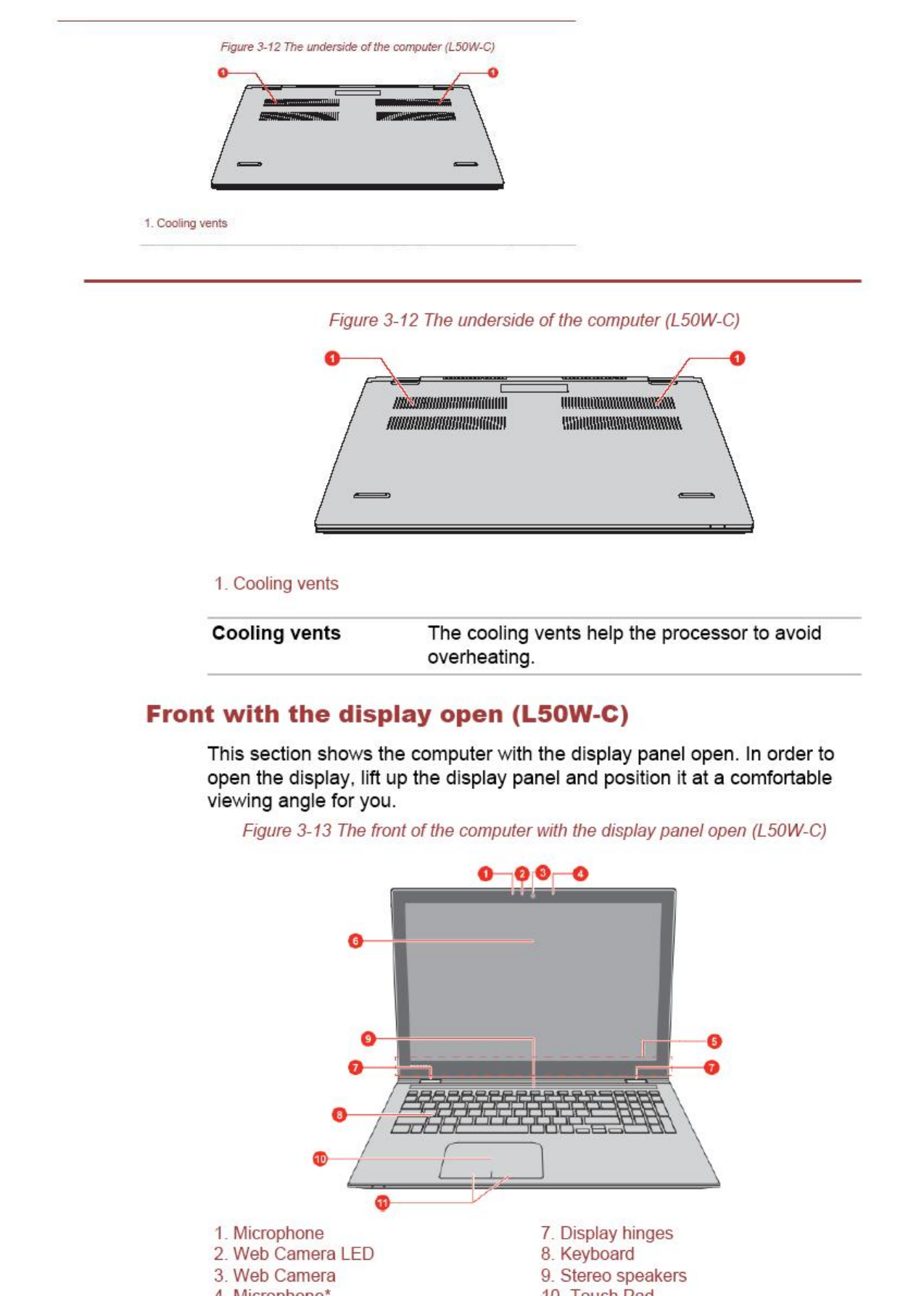

The Grand Tour for S50-C ..................................................................... 3-1
The Grand Tour for L50W-C ................................................................. 3-8

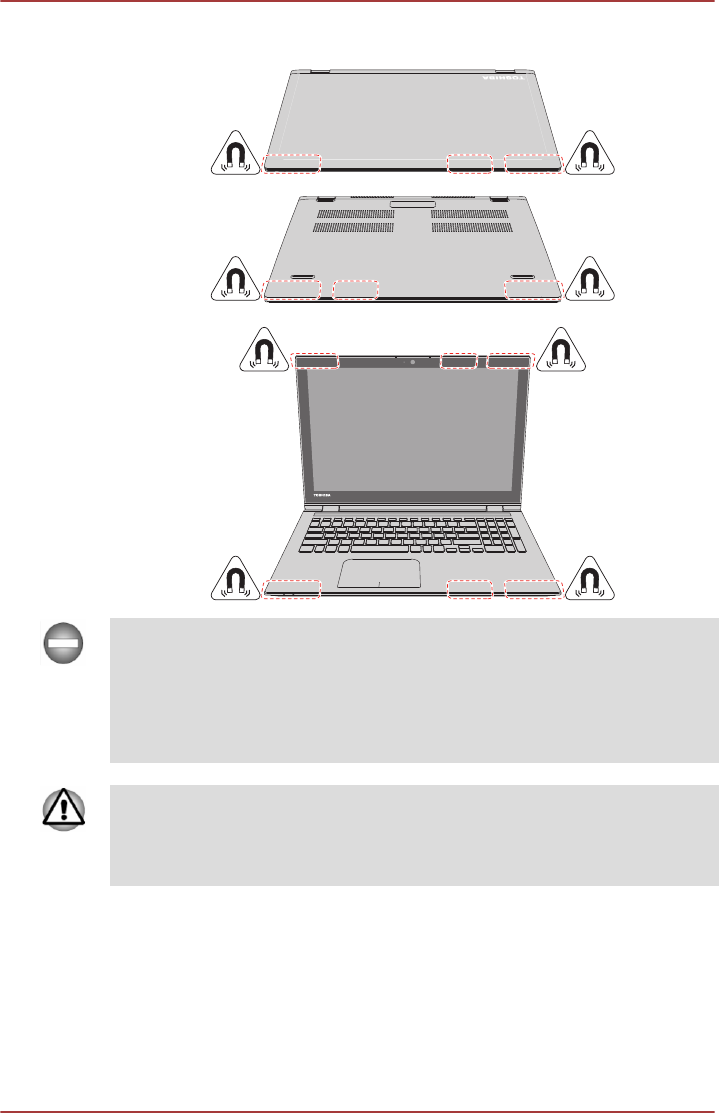

Magnets location (L50W-C) ................................................................ 3-14
Internal Hardware Components ......................................................... 3-15
Power Condition Descriptions ........................................................... 3-18
Chapter 4 Operating Basics

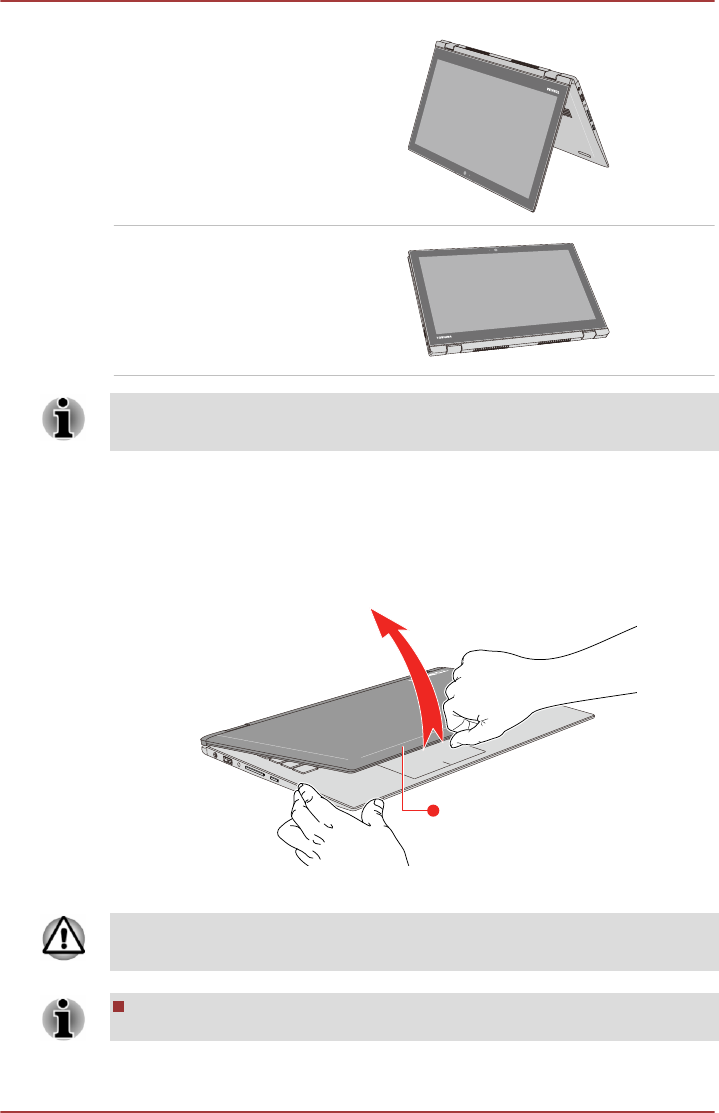

Operating in Tablet Mode (L50W-C) ..................................................... 4-1

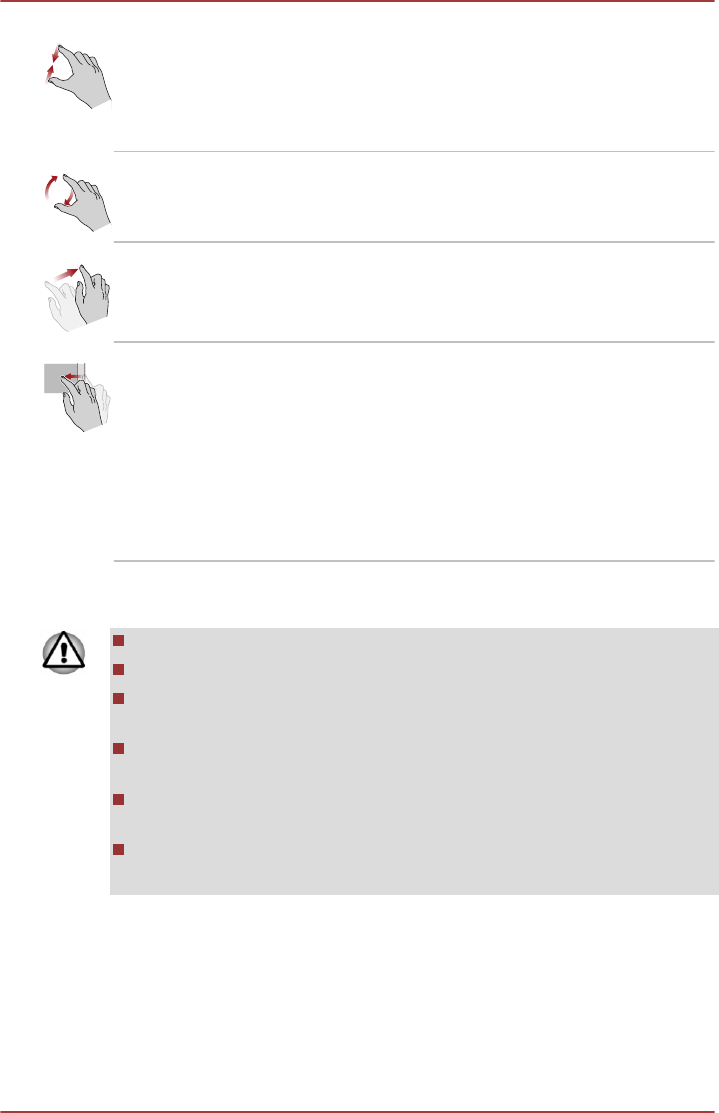

Using the Touch Screen ....................................................................... 4-2
Using the Touch Pad ............................................................................. 4-3
The Keyboard ......................................................................................... 4-4
Battery .................................................................................................... 4-7

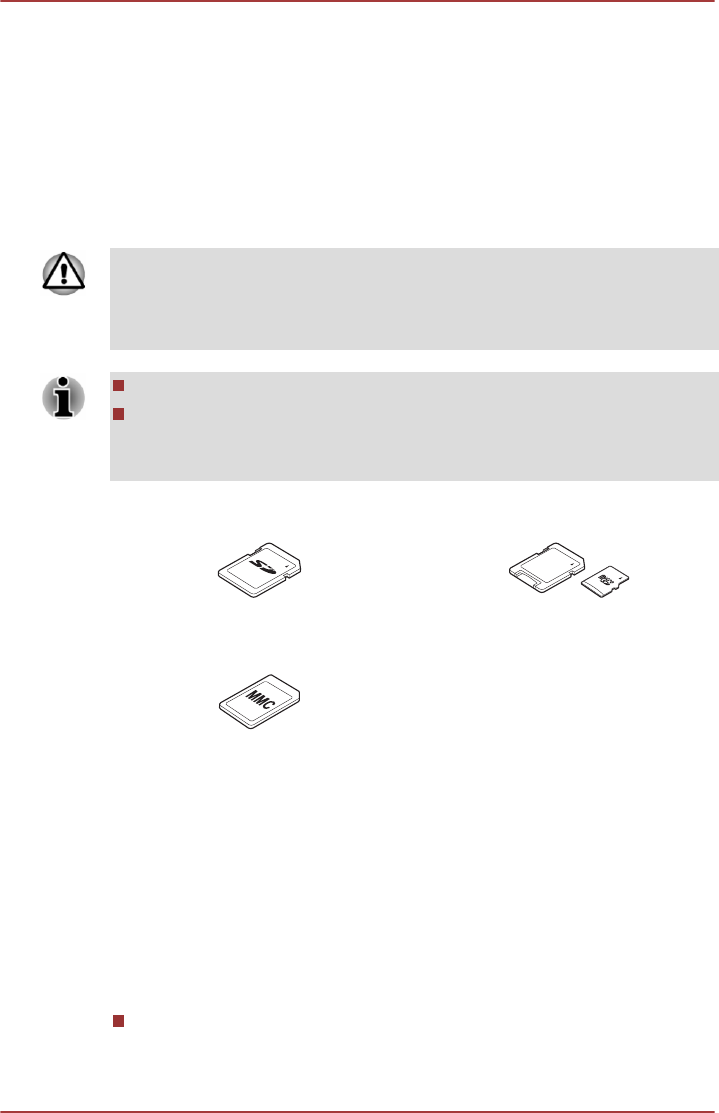

Memory media ..................................................................................... 4-11
External Display .................................................................................. 4-14
Security lock ........................................................................................ 4-17
Optional TOSHIBA Accessories ........................................................ 4-17
Sound System and Video mode ......................................................... 4-18
User's Manual ii
Chapter 5 Utilities and Advanced Usage
Utilities and Applications ...................................................................... 5-1
Special features ..................................................................................... 5-4
TOSHIBA Password Utility ................................................................... 5-6
TOSHIBA System Settings ................................................................... 5-9
TOSHIBA Media Player by sMedio TrueLink+ .................................. 5-10
TOSHIBA PC Health Monitor .............................................................. 5-11
TOSHIBA Setup Utility ........................................................................ 5-12
System Recovery ................................................................................ 5-14
Chapter 6 Troubleshooting
Problem-solving process ..................................................................... 6-1
Hardware and system checklist ........................................................... 6-4
TOSHIBA support ................................................................................ 6-13
Chapter 7 Appendix
Specifications ........................................................................................ 7-1
AC Power Cord and Connectors .......................................................... 7-2
Information for Wireless Devices ........................................................ 7-3
Information about Intel AMT ............................................................... 7-13
Legal Footnotes ................................................................................... 7-15
Glossary ............................................................................................... 7-18
Index
User's Manual iii
User's Manual iv
Chapter 1
TOSHIBA Legal, Regulatory, and
Safety
This chapter states the Legal, regulatory, and safety information applicable
to TOSHIBA computers.
Copyright, Disclaimer and Trademarks
Copyright
© 2015 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.
First edition March 2015
Copyright authority for music, movies, computer programs, databases and
other intellectual property covered by copyright laws belongs to the author
or to the copyright owner. Copyrighted material can be reproduced only for
personal use or use within the home. Any other use beyond that stipulated
above (including conversion to digital format, alteration, transfer of copied
material and distribution on a network) without the permission of the
copyright owner is a violation of copyright or author's rights and is subject
to civil damages or criminal action. Comply with copyright laws in making
any reproduction from this manual.
Disclaimer
This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for your computer at
the time of this manual’s production. However, succeeding computers and
manuals are subject to change without notice. TOSHIBA assumes no
liability for damages incurred directly or indirectly from errors, omissions or
discrepancies between the computer and the manual.
Trademarks
Intel is a trademark or registered trademark of Intel Corporation.
Windows, Microsoft, and Windows logo are registered trademarks of
Microsoft Corporation.
User's Manual 1-1
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Toshiba Corporation and
its affiliates is under license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
sMedio and sMedio TrueLink+ are trademarks or registered trademarks of
sMedio, Inc.
CyberLink, CyberLink PowerDVD, and CyberLink MediaStory are
registered trademarks of CyberLink Corporation.
Secure Digital and SD are trademarks of SD Card Association.
MultiMediaCard, MMC, and eMMC are trademarks of MultiMediaCard
Association.
QUALCOMM is a trademark of Qualcomm Incorporated, registered in the
United States and other countries. ATHEROS is a trademark of Qualcomm
Atheros, Inc., registered in the United States and other countries.
DTS, the Symbol, & DTS and the Symbol together are registered
trademarks and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
Realtek is a registered trademark of Realtek Semiconductor Corporation.
All other product names and service names in this manual might be
trademarks or registered trademarks of their respective companies.
Regulatory Information
FCC information
FCC notice "Declaration of Conformity Information"
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
User's Manual 1-2
Only peripherals complying with the FCC class B limits might be attached
to this equipment. Operation with non-compliant peripherals or peripherals
not recommended by TOSHIBA is likely to result in interference to radio
and TV reception. Shielded cables must be used between the external
devices and the computer’s Universal Serial Bus (USB 2.0 and 3.0) ports,
HDMI port and Headphone/Microphone combo jack. Changes or
modifications made to this equipment, not expressly approved by
TOSHIBA or parties authorized by TOSHIBA could void the user’s authority
to operate the equipment.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Contact
Address: TOSHIBA America Information Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618-1697
Telephone: (949) 583-3000
This information is only applicable for the countries/regions where it is
required.
EU Declaration of Conformity
This product is carrying the CE-Mark in
accordance with the related European Directives.
Responsible for CE-Marking is TOSHIBA EUROPE
GMBH, Hammfelddamm 8, 41460 Neuss,
Germany. The complete and official EU
Declaration of Conformity can be found on
TOSHIBA’s web site
http://epps.toshiba-teg.com on the Internet.
CE compliance
This product is labeled with the CE Mark in accordance with the applicable
European Directives, notably RoHS Directive 2011/65/EU, Radio
User's Manual 1-3
Equipment and Telecommunications Terminal Directive 1999/5/EC,
Ecodesign Directive 2009/125/EC (ErP) and the related implementing
measures.
This product and the original options are designed to observe the related
EMC (Electromagnetic Compatibility) and safety standards. However,
TOSHIBA cannot guarantee that this product still observes these EMC
standards if options or cables not produced by TOSHIBA are connected or
implemented. In this case the persons who have connected/implemented
those options/cables have to provide assurance that the system (PC plus
options/cables) still fulfils the required standards. To avoid general EMC
problems, the following guidance should be noted:
Only CE marked options should be connected/implemented
Only best shielded cables should be connected
Working environment
This product was designed to fulfil the EMC (Electromagnetic Compatibility)
requirements to be observed for so-called “Residential, commercial and
light industry environments”. TOSHIBA do not approve the use of this
product in working environments other than the above mentioned
“Residential, commercial and light industry environments”.
For example, the following environments are not approved:
Industrial Environments (e.g. environments where a mains voltage of
380 V three-phase is used)
Medical Environments
Automotive Environments
Aircraft Environments
Any consequences resulting from the use of this product in working
environments that are not approved are not the responsibility of TOSHIBA.
The consequences of the use of this product in non-approved working
environments may be:
Interference with other devices or machines in the near surrounding
area.
Malfunction of, or data loss from, this product caused by disturbances
generated by other devices or machines in the near surrounding area.
Therefore TOSHIBA strongly recommend that the electromagnetic
compatibility of this product should be suitably tested in all non-approved
working environments before use. In the case of automobiles or aircraft,
the manufacturer or airline respectively should be asked for permission
before use of this product.
Furthermore, for general safety reasons, the use of this product in
environments with explosive atmospheres is not permitted.
User's Manual 1-4
VCCI Class B Information (Japan Only)
この装置は、クラスＢ情報技術装置です。この装置は、家庭環境で使
用することを目的としていますが、この装置がラジオやテレビジョン
受信機に近接して使用されると、受信障害を引き起こすことがあります。
取扱説明書に従って正しい取り扱いをしてください。
ＶＣＣＩ－Ｂ
Canadian regulatory information (Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Note that Canadian Department of Communications (DOC) regulations
provide, that changes or modifications not expressly approved by
TOSHIBA Corporation could void your authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Following information is only valid for EU-member
States:
Disposal of products

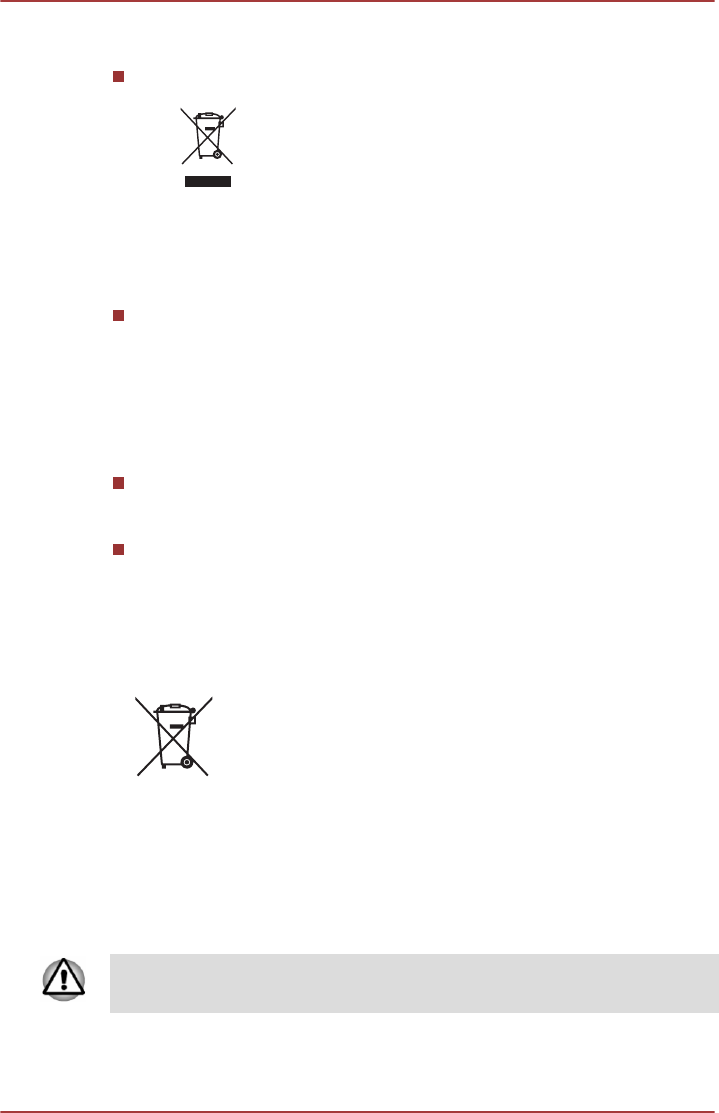

The crossed out wheeled dust bin symbol indicates that
products must be collected and disposed of separately
from household waste. Integrated batteries and
accumulators can be disposed of with the product. They
will be separated at the recycling centres.
The black bar indicates that the product was placed on the
market after August 13, 2005.
By participating in the separate collection of products and
batteries, you will help to assure the proper disposal of
products and batteries and thus help to prevent potential
negative consequences for the environment and human
health.
For more detailed information about the collection and
recycling programmes available in your country, please
visit our website
( www.toshiba.eu/recycling ) or contact your local council
office or the retail outlet where you purchased the product.
User's Manual 1-5
Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symbol indicates that
batteries and/or accumulators must be collected and
disposed of separately from household waste.
If the battery or accumulator contains more than the
specified values of lead (Pb), mercury (Hg), and/or
cadmium (Cd) defined in the European Battery Directive,
then the chemical symbols for lead (Pb), mercury (Hg)
and/or cadmium (Cd) will appear below the crossed out
wheeled dust bin symbol.
By participating in the separate collection of batteries, you
will help to assure the proper disposal of products and
batteries and thus help to prevent potential negative
consequences for the environment and human health. To
achieve this you should take any battery and/or
accumulator to your local recycling site, or to a retail outlet
or facility that offers to collect these devices for
environmentally friendly disposal, ensuring that the
terminal contacts are covered by non-conductive tape.
For more detailed information about the collection and
recycling programmes available in your country, please
visit our website
( www.toshiba.eu/recycling ) or contact your local council
office or the retail outlet where you purchased the product.
These symbols might not stick depending on the country and region where
you purchased.
REACH - Compliance Statement
The European Union (EU) chemical regulation, REACH (Registration,
Evaluation, Authorization and Restriction of Chemicals), entered into force
on 1 June 2007, with phased deadlines to 2018.
Toshiba will meet all REACH requirements and is committed to provide our
customers with information about the presence in our articles of
substances included on the candidate list according to REACH regulation.
Please consult the following website
www.toshiba.eu/reach for information about the presence in our articles of
substances included on the candidate list according to REACH in a
concentration above 0.1 % weight by weight.
User's Manual 1-6
Following information is only for Turkey:
Disposal of products:
The crossed wheelie bin symbol means that this
product should not be collected and disposed with
other household wastes. When product become waste
at the end-of-life, to protect environment and human
health, it should be given to nearest collection
recycling or disposal center. For more information
about collection and recycling programs in your
country please contact your local authority or the
retailer where the product was purchased.
Toshiba meets all requirements of Turkish regulation 28300
“Restriction of the use of certain hazardous substances in electrical
and electronic equipment”.
AEEE Yönetmeliğine Uygundur
Toshiba 28300 sayılı Türkiye ''Elektrikle çalişan ve elektronik
ekipmanda belirli tehlikeli maddelerin kullanimiyla ilgili kisitlama”
yönetmeliği gereklerini tamamen yerine getirmektedir
The number of possible pixel failures of your display is defined
according to ISO 9241-307 standards. If the number of pixel failures is
less than this standard, they will not be counted as defect or failure.
Battery is a consumption product, since the battery time depends on
the usage of your computer. If the battery can not be charged at all,
then it is a defect or failure. The changes in battery time is not a defect
or failure.
Following information is only for India:
The use of this symbol indicates that this product may not
be treated as household waste.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please visit our website
( http://www.toshiba-india.com ) or contact call center
(1800-200-8674).
These symbols might not stick depending on the country and region where
you purchased.
User's Manual 1-7
Video Standard Notice
THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND
MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL
AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING
VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO")
AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND
NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH
VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
OpenSSL Toolkit License Issues
LICENSE ISSUES
==============
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of
the OpenSSL License and the original SSLeay license apply to the toolkit.
See below for the actual license texts. Actually both licenses are BSD-style
Open Source licenses. In case of any license issues related to OpenSSL
please contact openssl-core@openssl.org.
OpenSSL License
------------------------
/*=====================================================
Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software
must display the following acknowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit."
( http://www.openssl.org/ )
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be
used to endorse or promote products derived from this software
without prior written permission. For written permission, please contact
openssl-core@openssl.org.
User's Manual 1-8
5. Products derived from this software may not be called "OpenSSL" nor
may "OpenSSL" appear in their names without prior written permission
of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following
acknowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit"
( http://www.openssl.org/ )
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS''
AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
=====================================================
This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com). This product includes software written by Tim
Hudson (tjh@cryptsoft.com).
*/
Original SSLeay License
----------------------------------
/* Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric Young
(eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the
following conditions are aheared to. The following conditions apply to all
code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;
not just the SSL code. The SSL documentation included with this
distribution is covered by the same copyright terms except that the holder
is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young's, and as such any Copyright notices in the
code are not to be removed.
If this package is used in a product, Eric Young should be given attribution
as the author of the parts of the library used.
User's Manual 1-9
This can be in the form of a textual message at program startup or in
documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list
of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software
must display the following acknowledgement:
"This product includes cryptographic software written by Eric Young
(eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the rouines from the library
being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from
the apps directory (application code) you must include an
acknowledgement:
"This product includes software written by Tim Hudson
(tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The licence and distribution terms for any publically available version or
derivative of this code cannot be changed. i.e. this code cannot simply be
copied and put under another distribution licence [including the GNU Public
Licence.]
*/
FreeType License Issues
The FreeType Project LICENSE
----------------------------
2006-Jan-27
User's Manual 1-10
Copyright 1996-2002, 2006 by
David Turner, Robert Wilhelm, and Werner Lemberg
Introduction
============
The FreeType Project is distributed in several archive packages; some of
them may contain, in addition to the FreeType font engine, various tools
and contributions which rely on, or relate to, the FreeType Project.
This license applies to all files found in such packages, and which do not
fall under their own explicit license. The license affects thus the FreeType
font engine, the test programs, documentation and makefiles, at the very
least.
This license was inspired by the BSD, Artistic, and IJG (Independent JPEG
Group) licenses, which all encourage inclusion and use of free software in
commercial and freeware products alike. As a consequence, its main
points are that:
We don't promise that this software works. However, we will be
interested in any kind of bug reports. (`as is' distribution)
You can use this software for whatever you want, in parts or full form,
without having to pay us. (`royalty-free' usage)
You may not pretend that you wrote this software. If you use it, or only
parts of it, in a program, you must acknowledge somewhere in your
documentation that you have used the FreeType code. (`credits')
We specifically permit and encourage the inclusion of this software, with or
without modifications, in commercial products.
We disclaim all warranties covering The FreeType Project and assume no
liability related to The FreeType Project.
Finally, many people asked us for a preferred form for a credit/disclaimer to
use in compliance with this license. We thus encourage you to use the
following text:
"""
Portions of this software are copyright (C) <year> The FreeType Project
www.freetype.org
All rights reserved.
"""
Please replace <year> with the value from the FreeType version you
actually use.
Legal Terms
============
0. Definitions
--------------
Throughout this license, the terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files originally distributed by the
User's Manual 1-11
authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the
`FreeType Project', be they named as alpha, beta or final release.
`You' refers to the licensee, or person using the project, where `using' is a
generic term including compiling the project's source code as well as
linking it to form a `program' or `executable'. This program is referred to as
`a program using the FreeType engine'.
This license applies to all files distributed in the original FreeType Project,
including all source code, binaries and documentation, unless otherwise
stated in the file in its original, unmodified form as distributed in the original
archive. If you are unsure whether or not a particular file is covered by this
license, you must contact us to verify this.
The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert
Wilhelm, and Werner Lemberg. All rights reserved except as specified
below.
1. No Warranty
--------------
THE FREETYPE PROJECT IS PROVIDED `AS IS' WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE
INABILITY TO USE, OF THE FREETYPE PROJECT.
2. Redistribution
--------------
This license grants a worldwide, royalty-free, perpetual and irrevocable
right and license to use, execute, perform, compile, display, copy, create
derivative works of, distribute and sublicense the FreeType Project (in both
source and object code forms) and derivative works thereof for any
purpose; and to authorize others to exercise some or all of the rights
granted herein, subject to the following conditions:
Redistribution of source code must retain this license file (`FTL.TXT')
unaltered; any additions, deletions or changes to the original files must
be clearly indicated in accompanying documentation. The copyright
notices of the unaltered, original files must be preserved in all copies
of source files.
Redistribution in binary form must provide a disclaimer that states that
the software is based in part of the work of the FreeType Team, in the
distribution documentation. We also encourage you to put an URL to
the FreeType web page in your documentation, though this isn't
mandatory.
These conditions apply to any software derived from or based on the
FreeType Project, not just the unmodified files. If you use our work, you
must acknowledge us. However, no fee need be paid to us.
3. Advertising
User's Manual 1-12
--------------
Neither the FreeType authors and contributors nor you shall use the name
of the other for commercial, advertising, or promotional purposes without
specific prior written permission.
We suggest, but do not require, that you use one or more of the following
phrases to refer to this software in your documentation or advertising
materials: `FreeType Project', `FreeType Engine', `FreeType library', or
`FreeType Distribution'.
As you have not signed this license, you are not required to accept it.
However, as the FreeType Project is copyrighted material, only this license,
or another one contracted with the authors, grants you the right to use,
distribute, and modify it. Therefore, by using, distributing, or modifying the
FreeType Project, you indicate that you understand and accept all the
terms of this license.
4. Contacts
--------------
There are two mailing lists related to FreeType:
freetype@nongnu.org
Discusses general use and applications of FreeType, as well as future
and wanted additions to the library and distribution. If you are looking
for support, start in this list if you haven't found anything to help you in
the documentation.
freetype-devel@nongnu.org
Discusses bugs, as well as engine internals, design issues, specific
licenses, porting, etc.
Our home page can be found at
http://www.freetype.org
User's Manual 1-13
ENERGY STAR® Program
Your Computer model may be ENERGY STAR®
compliant. If the model you purchased is compliant, it uses
the ENERGY STAR logo and the following information
applies.
TOSHIBA is a partner in the ENERGY STAR Program and
has designed this computer to meet the latest ENERGY
STAR guidelines for energy efficiency. Your computer
ships with the power management options preset to a
configuration that will provide the most stable operating
environment and optimum system performance for both
AC power and battery modes.
To conserve energy, your computer is set to enter the low-
power Sleep Mode which shuts down the system and
display within 15 minutes of inactivity in AC power mode.
TOSHIBA recommends that you leave this and other
energy saving features active, so that your computer will
operate at its maximum energy efficiency. You can wake
the computer from Sleep Mode by pressing the power
button.
Your ENERGY STAR certified computer should be set by
default to enter a low-power "sleep mode" after a period of
inactivity. Simply touching the mouse or keyboard "wakes"
the computer in seconds. These sleep features can save
you up to $23 per year (200 kWh per year in electricity)
and prevent up to 300 pounds of greenhouse gas
emissions annually.To learn how to adjust or activate
these sleep settings on your computer, please go to:
www.energystar.gov/sleepinstructions
To activate sleep settings organization-wide quickly and
easily through network tools, please go to
www.energystar.gov/powermanagement
Disposing of the computer and the computer's
batteries
The computer's battery is not user-accessible. Contact an authorized
TOSHIBA service provider for details regarding how to dispose of the
computer and the batteries.
General Precautions
TOSHIBA computers are designed to optimize safety, minimize strain, and
withstand the rigors of portability. However, certain precautions should be
User's Manual 1-14
observed to further reduce the risk of personal injury or damage to the
computer.
Be certain to read the following general precautions and to note the
cautions included in the text of the manual.
Provide adequate ventilation
Always make sure that your computer and AC adaptor have adequate
ventilation and are protected from overheating when the power is turned on
or when an AC adaptor is connected to a power outlet (even if your
computer is in Sleep Mode). In this condition, observe the following:
Never cover your computer or AC adaptor with any object.
Never place your computer or AC adaptor near a heat source, such as
an electric blanket or heater.
Never cover or block the air vents including those at the base of the
computer.
Always operate your computer on a hard flat surface. Using your
computer on a carpet or other soft material can block the vents.
Always provide sufficient space around the computer.
Overheating your computer or AC adaptor could cause system failure,
computer or AC adaptor damage or a fire, possibly resulting in serious
injury.
Creating a computer-friendly environment
Place the computer on a flat surface that is large enough for the computer
and any other items you are using, such as a printer.
Leave enough space around the computer and other equipment to provide
adequate ventilation. Otherwise, they might overheat.
To keep your computer in prime operating condition, protect your work area
from:
Dust, moisture, and direct sunlight.
Equipment that generates a strong electromagnetic field, such as
stereo speakers (other than speakers that are connected to the
computer) or speakerphones.
Rapid changes in temperature or humidity and sources of temperature
change such as air conditioner vents or heaters.
Extreme heat, cold, or humidity.
Liquids and corrosive chemicals.
Stress injury
Carefully read the Instruction Manual for Safety and Comfort. It contains
information on the prevention of stress injuries to your hands and wrists
that can be caused by extensive keyboard use. It also includes information
on work space design, posture, and lighting that can help reduce physical
stress.
User's Manual 1-15
Heat injury
Avoid prolonged physical contact with the computer. If the computer is
used for long periods, its surface can become very warm. While the
temperature will not feel hot to the touch, if you maintain physical
contact with the computer for a long time, for example if you rest the
computer on your lap or if you keep your hands on the palm rest, your
skin might suffer a low-heat injury.
If the computer has been used for a long time, avoid direct contact
with the metal plate supporting the various interface ports as this can
become hot.
The surface of the AC adaptor can become hot when in use but this
condition does not indicate a malfunction. If you need to transport the
AC adaptor, disconnect it and let it cool before moving it.
Do not lay the AC adaptor on a material that is sensitive to heat as the
material could become damaged.
Pressure or impact damage
Do not apply heavy pressure to the computer or subject it to any form of
strong impact as this can damage the computer's components or otherwise
cause it to malfunction.
Cleaning the computer
To help ensure long, trouble-free operation, keep the computer free of dust
and dirt, and use care with all liquids around it.
Be careful not to spill liquids into the computer. If the computer does
get wet, turn the power off immediately and let the computer dry
completely. In these circumstances, you should get the computer
inspected by an authorized service provider in order to assess the
scope of any damage.
Clean the plastics of the computer using a cloth slightly dampened
with water.
You can clean the display screen by spraying a small amount of glass
cleaner onto a soft, clean cloth and then wiping the screen gently with
the cloth.
Never spray cleaner directly onto the computer or let liquid run into any part
of it. Never use harsh or caustic chemical products to clean the computer.
Moving the computer
While the computer is designed for flexible day-to-day usage, you should
exercise a few simple precautions when moving it in order to help ensure
trouble-free operation.
User's Manual 1-16
Make sure all disk/disc activity has ended before moving the
computer.
Turn off (shut down) the computer.
Disconnect the AC adaptor and all peripherals before moving the
computer.
Close the display panel.
Do not pick up the computer by its display panel.
Before carrying your computer, shut it down, disconnect the AC
adaptor and allow it to cool down. A failure to follow this instruction
might result in minor heat injury.
Do not expose the computer to rapid temperature changes (for
example, in a situation where you carry the computer from a cold
environment to a warm room). Do not turn on the power until
condensation disappears.
Be careful not to subject the computer to impact or shock. A failure to
follow this instruction could result in damage to computer, computer
failure, or loss of data.
Never transport your computer with any cards installed. This might
damage either the computer and/or the card resulting in computer
failure.
Always use a suitable carry case when transporting the computer.
When carrying your computer, be sure to hold it securely so that it
does not fall or hit anything.
Do not carry your computer by holding any of its protruding elements.
Mobile phones
Be aware that the use of mobile phones can interfere with the audio
system. The operation of the computer will not be impaired in any way, but
it is recommended that a minimum distance of 30 cm is maintained
between the computer and a mobile phone that is in use.
Instruction Manual for Safety and Comfort
All important information on the safe and proper use of this computer is
described in the enclosed Instruction Manual for Safety and Comfort. Be
sure to read it before using the computer.
Safety Icons
Safety icons are used in this manual to bring important information to your
attention. Each type of message is identified as follows.
Indicates a potentially hazardous situation, which could result in death or
serious injury, if you do not follow instructions.
User's Manual 1-17
A caution informs you that improper use of equipment or failure to follow
instructions might cause data loss, equipment damage, or might result in
minor or moderate injury.
Please read. A note is a hint or advice that helps you make best use of
your equipment.
User's Manual 1-18
Chapter 2
Getting Started
This chapter provides an equipment checklist, and basic information to
start using your computer.
If you use an operating system that was not pre-installed by TOSHIBA,
some of the features described in this manual might not function properly.
Equipment checklist
Carefully unpack your computer, taking care to save the box and
packaging materials for future use.
Hardware
Check to make sure that you have all the following items:
TOSHIBA Portable Personal Computer

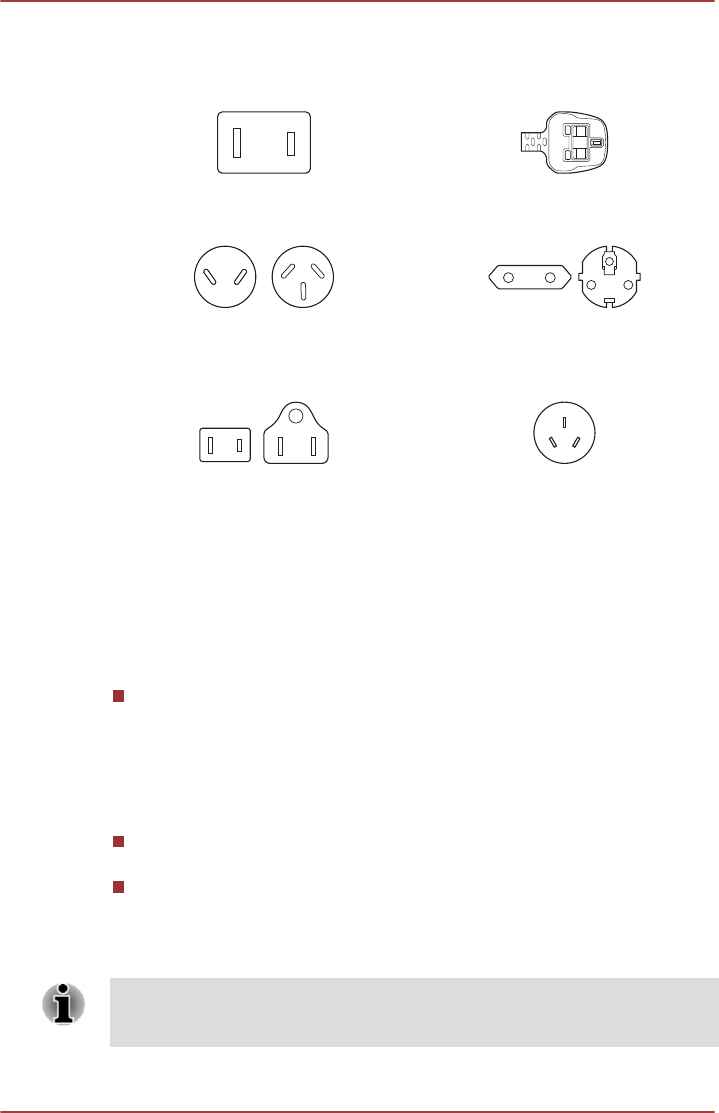

AC adaptor and power cord (2-pin plug or 3-pin plug)
Documentation
User Information Guide
Instruction Manual for Safety and Comfort
If any of the items are missing or damaged, contact your dealer
immediately.
Conventions
This manual uses the following formats to describe, identify, and highlight
terms and operating procedures.
HDD or Hard disk
drive
Some models are equipped with a "Solid-State
Drive (SSD)" instead of a hard disk drive. In this
manual, the word "HDD" or "Hard disk drive" also
refers to the SSD unless otherwise stated.
Click Tap the Touch Pad or click the left Touch
Pad control button once.
Left-click the mouse once.
Tap the touch screen once (only for touch
screen models).
User's Manual 2-1
Right-click Click the right Touch Pad control button
once.
Right-click the mouse once.
Press and hold on the touch screen (only for
touch screen models).
Double-click Tap the Touch Pad or click the left Touch
Pad control button twice.
Left-click the mouse twice.
Tap the touch screen twice (only for touch
screen models).
Charm By swiping in from the right edge (only for touch
screen models) or pointing the mouse pointer to
the lower-right (or upper-right) corner of your
screen, you can find a list of charms: Search,
Share, Start, Devices, and Settings.
Desktop Click the Desktop tile from the Start screen to
access the desktop.
Start screen You can go back to the Start screen from an app
or the desktop by the following ways:
Click the Start charm.
Move the mouse pointer all the way into the
lower-left corner of the screen and then click
the Start button ( ).
Use the Windows® logo key ( ) on your
keyboard.
Press the Windows® button ( ) on your
computer (if provided).
For detailed information, refer to the Windows
Help and Support.
Apps view You can find all of your apps including desktop
programs in the Apps view.
To get to the Apps view:
Move the mouse pointer and then click the
icon in the lower-left corner of the screen.
Slide up from the middle of the Start screen
(only for touch screen models).
Short Name
Short Name is defined as follows in this manual.
Model Name Short Name
Satellite S50-C/S50t-C/P50-C/P50t-C S50-C
User's Manual 2-2
Model Name Short Name
Satellite L50W-C/P50W-C L50W-C
Using your computer for the first time
Be sure to read the enclosed Instruction Manual for Safety and Comfort for
information on the safe and proper use of this computer. It is intended to
help you be more comfortable and productive while using a notebook
computer. By following the recommendations in it, you can reduce your
chance of developing a painful or disabling injury to your hand, arms,
shoulders, or neck.
This section provides basic information to start using your computer. It
covers the following topics:
Opening the display
Connecting the AC adaptor
Turning on the power
Initial setup
Use a virus-check program and make sure that it is updated regularly.
Never format storage media without checking its content - formatting
destroys all stored data.
It is a good idea to back up the internal Hard Disk Drive or other main
storage device to external media periodically. General storage media
is not durable or stable over long periods of time and under certain
conditions might result in data loss.
Before you install a device or application, save any data in memory to
the Hard Disk Drive or other storage media. Failure to do so might
result in data loss.
Opening the display (S50-C)
The display panel can be opened to a wide range of angles for optimal
viewing.
While holding down the palm rest with one hand so that the main body of
the computer is not raised, slowly lift the display panel. It allows the angle
of the display panel to be adjusted to provide optimum clarity.
User's Manual 2-3
Figure 2-1 Opening the display panel (S50-C)
1
1. Display panel
Product appearance depends on the model you purchased.

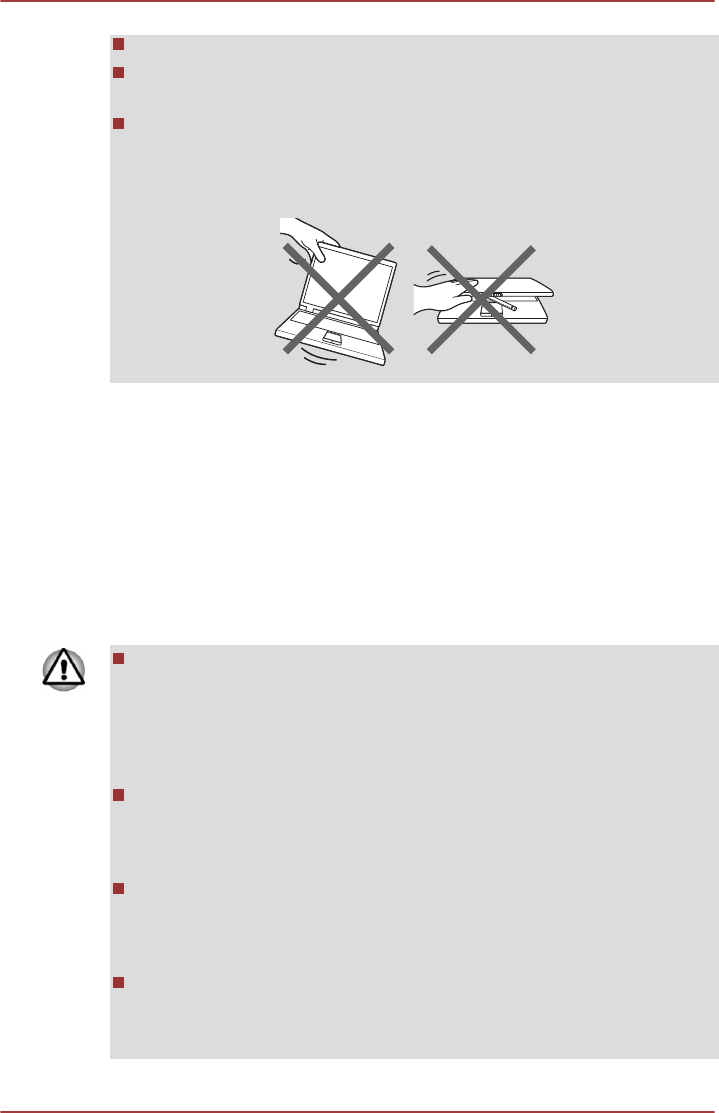

Open and close the display panel with reasonable care. Opening it
vigorously or slamming it shut might damage the computer.
Be careful not to open the display panel too far as this could put stress
on the display panel’s hinges and cause damage.
Do not press or push on the display panel.
Do not lift the computer by the display panel.
Do not close the display panel with pens or any other objects left in
between the display panel and the keyboard.
When opening or closing the display panel, place one hand on the
palm rest to hold the computer in place and use the other hand to
slowly open or close the display panel (Do not use excessive force
when opening or closing the display panel).
Opening the display (L50W-C)
The display panel can be opened to any angle up to 360 degrees which
offers you the flexibility and versatility to operate your computer in one of
the following defined modes.
User's Manual 2-4

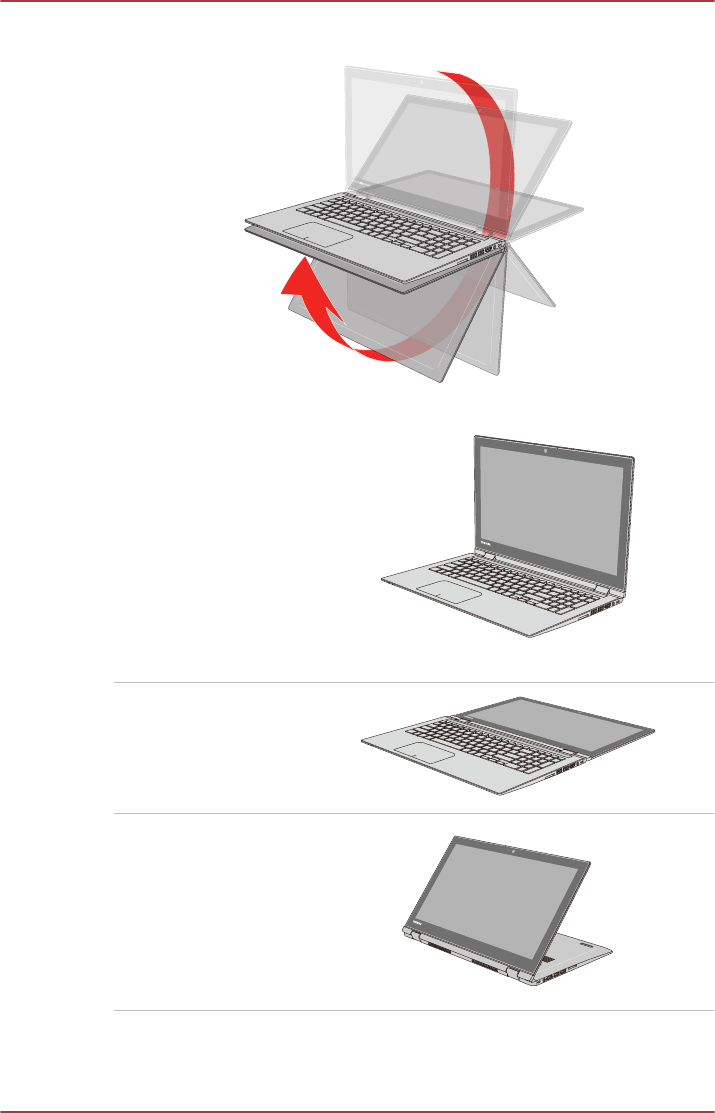

Figure 2-2 Opening the display panel to any angel (L50W-C)
Laptop mode
Flat mode
Stand mode
User's Manual 2-5
Tent mode
Tablet mode
Keyboard and Touch Pad are temporarily disabled when you operate the
computer in stand, tent or tablet mode.
To open the display panel, slowly lift it with one hand holding the center of
the display panel (as shown in the following figure) and the other hand
holding the palm rest down so that the main body of the computer is not
raised.
Figure 2-3 Opening the display panel (L50W-C)
1
1. Display panel
Open and close the display panel with reasonable care. Opening it
vigorously or slamming it shut might damage the computer.
It is suggested that you hold the center of the display panel while
rotating the display panel.
User's Manual 2-6
Do not lift the computer by the display panel.
Do not close the computer with pens or any other objects left in
between the display panel and the keyboard.
When opening or closing the display panel, place one hand on the
palm rest to hold the computer in place and use the other hand to
slowly open or close the display panel (Do not use excessive force
when opening or closing the display panel).

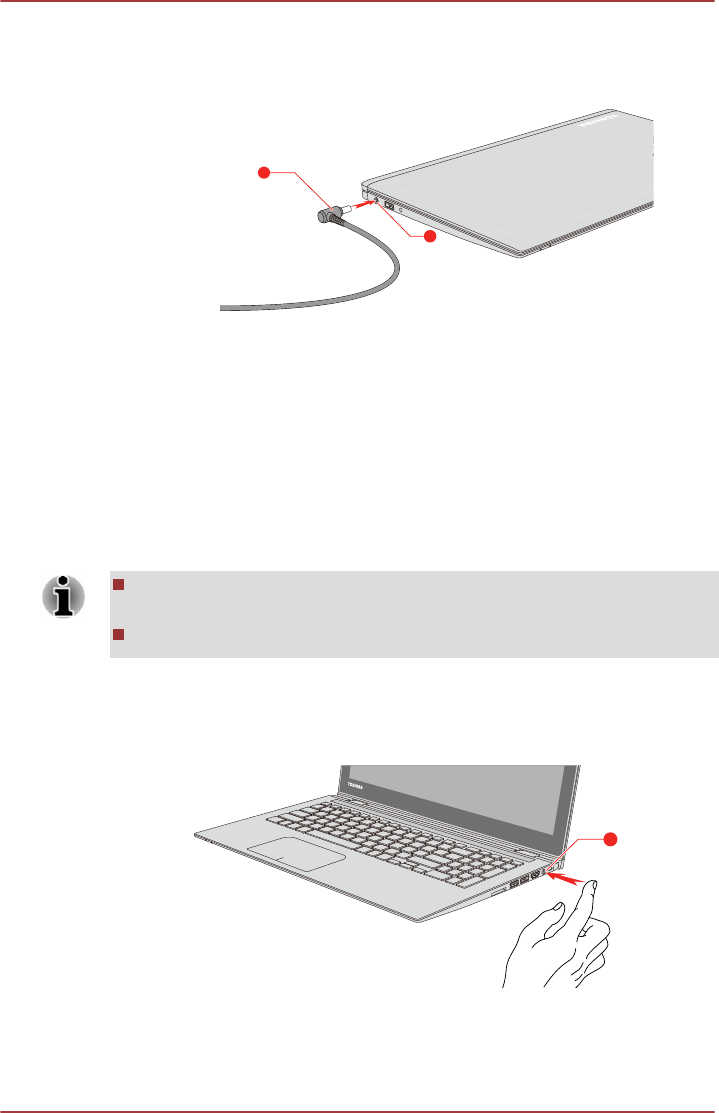

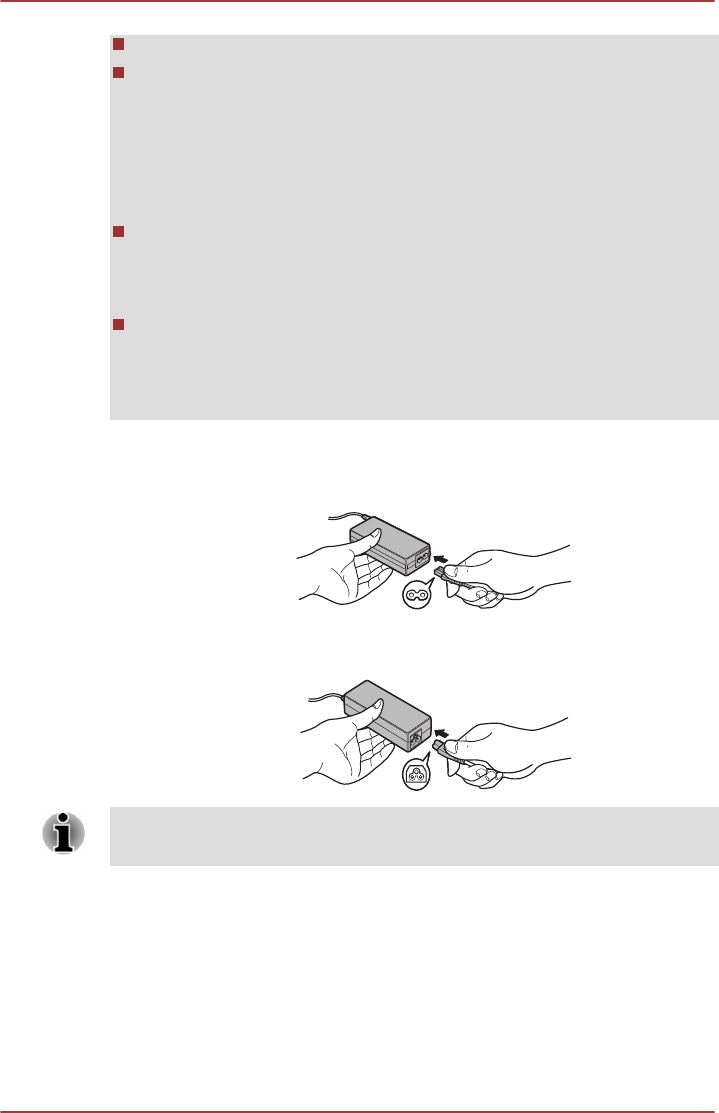

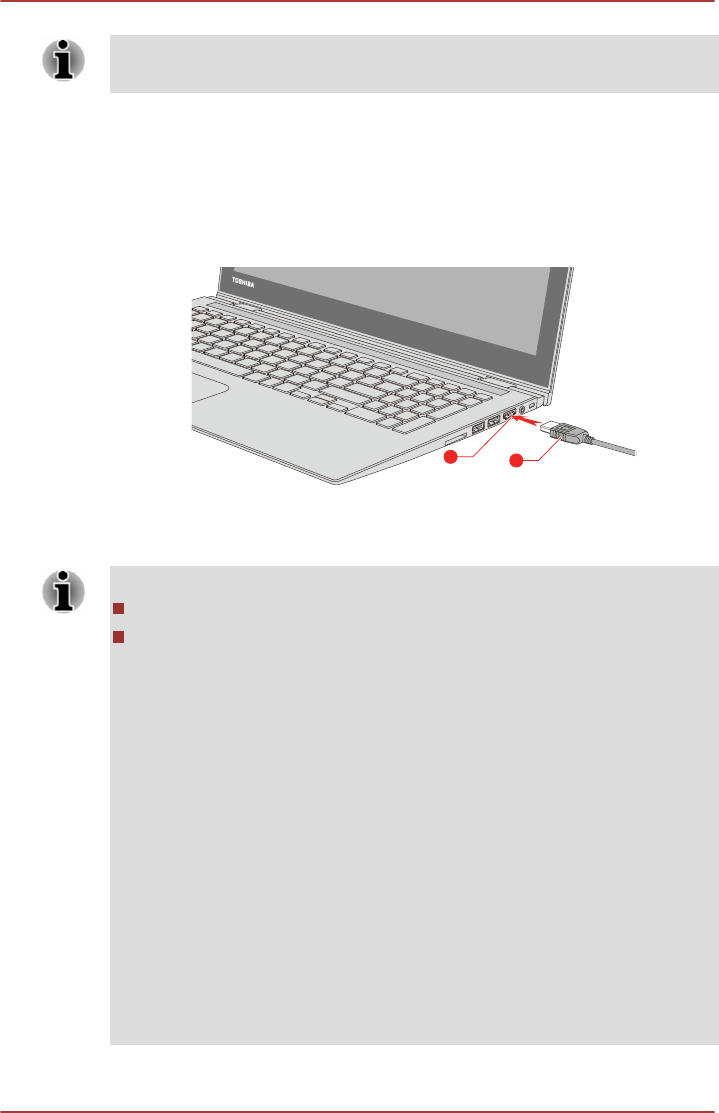

Connecting the AC adaptor
Attach the AC adaptor when you want to charge the battery or operate from
AC power. The battery pack must be charged before you can operate from
battery power.
The AC adaptor can automatically adjust to any voltage ranging from 100
volts to 240 volts and to a frequency of either 50 hertz or 60 hertz, enabling
you to use this computer in almost any country/region. The adaptor
converts AC power to DC power and reduces the voltage supplied to this
computer.
Always use the TOSHIBA AC adaptor that was included with your
computer, or use AC adaptors specified by TOSHIBA to avoid any risk
of fire or other damage to the computer. Use of an incompatible AC
adaptor could cause fire or damage to the computer possibly resulting
in serious injury. TOSHIBA assumes no liability for any damage
caused by use of an incompatible adaptor.
Never plug the AC adaptor into a power source that does not
correspond to both the voltage and the frequency specified on the
regulatory label of the unit. Failure to do so could result in a fire or
electric shock, possibly resulting in serious injury.
Always use or purchase power cables that comply with the legal
voltage and frequency specifications and requirements in the country
of use. Failure to do so could result in a fire or electric shock, possibly
resulting in serious injury.
The supplied power cord conforms to safety rules and regulations in
the region the computer is bought and should not be used outside this
region. For use in other regions, buy power cords that conform to
safety rules and regulations in the particular region.
User's Manual 2-7
Do not use a 3-pin to 2-pin conversion plug.
When you connect the AC adaptor to the computer, always follow the
steps in the exact order as described in this User’s Manual.
Connecting the power cable to a live electrical outlet should be the last
step otherwise the adaptor DC output plug could hold an electrical
charge and cause an electrical shock or minor bodily injury when
touched. As a general safety precaution, avoid touching any metal
parts.
Never place your computer or AC adaptor on a wooden surface,
furniture, or any other surface that could be marred by exposure to
heat since the computer base and the surface of the AC adaptor
increase in temperature during normal use.
Always place your computer or AC adaptor on a flat and hard surface
that is resistant to heat damage.
Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.
1. Connect the power cord to the AC adaptor.
Figure 2-4 Connecting the power cord to the AC adaptor (2-pin plug)
Figure 2-5 Connecting the power cord to the AC adaptor (3-pin plug)
Either a 2-pin or 3-pin adaptor/cord is included with the computer
depending on the model.
User's Manual 2-8
2. Connect the DC output plug of the AC adaptor to the DC IN 19V jack
on your computer.
Figure 2-6 Connecting the DC output plug to the computer
1
2
1. DC IN 19V jack 2. DC output plug
Product appearance depends on the model you purchased.
3. Plug the power cord into a live wall outlet. The DC IN/Battery indicator
glows.
Turning on the power
This section describes how to turn on the power. The Power indicator
indicates the status. Refer to the Power Condition Descriptions section for
more information.
After you turn on the power for the first time, do not turn it off until you
have set up the operating system.
Volume cannot be adjusted during Windows Setup.
1. Open the display panel.
2. Press the power button.
Figure 2-7 Turning on the power
1
1. Power button
Product appearance depends on the model you purchased.
User's Manual 2-9
Initial setup
The Windows Startup Screen is the first screen displayed when you turn on
the power. To install the operating system properly, follow the on-screen
instructions on each screen.
When it is displayed, be sure to read the License Terms carefully.
Getting to know Windows
For detailed information on what is new and how to operate Windows, refer
to the Windows Help and Support.
Start screen
The Start screen is the launching pad for everything you can do in the
Windows operating system, providing new and easy ways to access
everything from your favorite apps and websites to your contacts and other
important information.
From the Start screen, you can start typing to search for what you want.
From there, you can easily switch between results for apps, files, and
more.
Windows Taskbar
Point to the bottom edge to show the Windows Taskbar on the Start
screen. (If you’ve moved the Windows Taskbar to another edge, point
there.)
You can see all of your recently used apps on the Windows Taskbar.
Power Options icon
The Start screen provides you a convenient way to enter the Shut Down/
Sleep/Hibernation Mode. You can just click the power icon ( ) on the
upper right of the Start screen and then select the mode you want.
Charms
Use the Windows charms to start apps, find documents, set up system
components, and perform most other computing tasks.
By pointing the mouse pointer to the upper or lower right corner of your
screen, you can find a list of charms: Search, Share, Start, Devices, and
Settings.
User's Manual 2-10
Search This charm allows you to search your computer
(apps, settings, and files), the web, or within an
app. You can also find the Search icon on the
upper right of the Start screen.
Share This charm allows you to share items (links,
photos, and more).
Start This charm takes you to the Start screen or, if
already on the Start screen, returns you to your
last app.
Devices This charm allows you to manage your hardware.
Settings This charm allows you to access your computer
settings (volume, brightness, connecting to the
internet, and more).
Tiles
Tiles can be accessed and launched from the Start screen.
Typical Start screen tiles are the Desktop tile and Mail tile, as well as tiles
representing all other applications downloaded to your system.
Windows Store
Although many applications are pre-installed or built-in to your computer,
you can also download many other applications at the click of your mouse.
In the Windows Store, you can search for and browse thousands of apps,
all grouped into easy to find categories.
Sign-in options
Windows offers a number of sign-in options including Password ( ),
PIN ( ) and Picture password ( ) authentication to prevent from
unauthorized access. If you have multiple sign-in methods set for a user
account, you can select an option on the Windows login screen by clicking
sign-in options. Password authentication is the default sign-in option.
Turning off the power
The power can be turned off in one of the following modes, either Shut
Down Mode, Sleep Mode or Hibernation Mode.
User's Manual 2-11
Shut Down Mode
When you turn off the power in Shut Down Mode, no data will be saved
and the computer will boot to the main screen of the operating system the
next time it is turned on.
1. If you have entered data, either save it to the Hard Disk Drive or to
other storage media.
2. Make sure all disk/disc activity has stopped before removing the disk/
disc.
If you turn off the power while a disk (disc) is being accessed, you
might lose data or damage the disk.
Never turn off the power while an application is running. Failure to do
so can cause data loss.
Never turn off the power, disconnect an external storage device, or
remove storage media during data read/write. Failure to do so can
cause data loss.
3. Click the power icon ( ) on the Start screen and then select Shut
down.
4. Turn off any peripheral devices connected to your computer.
Do not turn the computer or peripheral devices back on immediately. Wait
a short period to avoid any potential damage.
Restarting the computer
Certain conditions require that you reset the computer, for example if:
You change certain computer settings.
To restart the computer, there are several ways this can be achieved:
Click the power icon ( ) on the Start screen and then select Restart.
In the Settings charm, click Power and then select Restart.
Press CTRL, ALT, and DEL simultaneously (once) to display the
menu window, and then select Restart by clicking the power icon ( )
in the lower-right corner.
Sleep Mode
If you have to interrupt your work, you are able to turn off the power without
exiting from your software by placing the computer into Sleep Mode. In this
mode, data is maintained in the main memory of the computer. When you
turn on the power again, you can continue working right where you left off.
When you have to turn off your computer aboard an aircraft or in places
where electronic devices are regulated or controlled, always shut down the
User's Manual 2-12
computer. This includes turning off any wireless communication
functionalities, and canceling settings that reactivate the computer
automatically, such as a timer recording function. Failure to shut down the
computer in this way could allow the operating system to reactivate and run
pre-programmed tasks or preserve unsaved data, which could interfere
with aviation or other systems, possibly causing serious injury.
Before entering Sleep Mode, be sure to save your data.
To prevent data loss, do not switch to Sleep Mode while transferring
data to external media, such as USB devices, memory media, or other
external memory devices.
When the AC adaptor is connected, the computer will go into Sleep
Mode according to the settings in the Power Options (to access it,
click Control Panel -> System and Security -> Power Options
under Windows System group in the Apps view).
To restore the operation of the computer from Sleep Mode, press and
hold the power button or any key on the keyboard for a short amount
of time. Note that keyboard keys can only be used if the Wake-up on
Keyboard option is enabled within the TOSHIBA System Settings.
If the computer enters Sleep Mode while a network application is
active, the application might not be restored when the computer is
next turned on and the system returns from Sleep Mode.
To prevent the computer from automatically entering Sleep Mode,
disable Sleep Mode within the Power Options.
To use the Hybrid Sleep function, configure it in the Power Options.
Benefits of Sleep Mode
The Sleep Mode feature provides the following benefits:
Restores the previous working environment more rapidly than the
Hibernation Mode feature.
Saves power by shutting down the system when the computer
receives no input or hardware access for the time period set by the
System Sleep Mode feature.
Allows the use of the panel power off feature.
Executing Sleep Mode
You can enter Sleep Mode in one of following ways:
Click the power icon ( ) on the Start screen and then select Sleep.
In the Settings charm, click Power and then select Sleep.
Close the display panel. Note that this feature must be enabled within
the Power Options.
User's Manual 2-13
Press the power button. Note that this feature must be enabled within
the Power Options.
When you turn the power back on, you can continue where you left off
when you shut down the computer.
When the computer is in Sleep Mode, the Power indicator blinks white.
If you are operating the computer on battery power, you can lengthen
the overall operating time by turning it off into Hibernation Mode. Sleep
Mode consumes more power while the computer is off.
Sleep Mode limitations
Sleep Mode will not function under the following conditions:
Power is turned back on immediately after shutting down.
Memory circuits are exposed to static electricity or electrical noise.
Hibernation Mode
The Hibernation Mode feature saves the contents of memory to the Hard
Disk Drive when the computer is turned off so that, the next time it is turned
on, the previous state is restored. Note that the Hibernation Mode feature
does not save the status of any peripheral devices connected to the
computer.
Save your data. While entering Hibernation Mode, the computer saves
the contents of memory to the Hard Disk Drive. However, for safety
sake, it is best to save your data manually.
Data will be lost if you disconnect the AC adaptor before the save is
completed.
To prevent data loss, do not switch to Hibernation Mode while
transferring data to external media, such as USB devices, memory
media, or other external memory devices.
Benefits of Hibernation Mode
The Hibernation Mode feature provides the following benefits:
Saves data to the Hard Disk Drive when the computer automatically
shuts down because of a low battery condition.
You can return to your previous working environment immediately
when you turn on the computer.
Saves power by shutting down the system when the computer
receives no input or hardware access for the time period set by the
System Hibernate feature.
Allows the use of the panel power off feature.
User's Manual 2-14
Starting Hibernation Mode
To enter Hibernation Mode, click the power icon ( ) on the Start screen
and then select Hibernate.
To show Hibernate in Power menu, set up according to the following
steps:
1. Click Control Panel -> System and Security -> Power Options under
Windows System group in the Apps view.
2. Click Choose what the power button does or Choose what closing
the lid does.
3. Click Change settings that are currently unavailable.
4. Select the Hibernate check box from Shutdown settings.
5. Click the Save changes button.
Automatic Hibernation Mode
The computer can be configured to enter Hibernation Mode automatically
when you press the power button or close the lid. To define these settings,
do the following:
1. Click Power Options and then click Choose what the power button
does or Choose what closing the lid does.
2. Enable the desired Hibernation Mode settings for When I press the
power button and When I close the lid.
3. Click the Save changes button.
Data save in Hibernation Mode
When you turn off the power in Hibernation Mode, the computer takes a
moment to save the current data in memory to the Hard Disk Drive.
After you turn off the computer, and the content of memory has been saved
to the Hard Disk Drive, turn off the power to any peripheral devices.
Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.
User's Manual 2-15
Chapter 3
The Grand Tour
This chapter identifies the various components of the computer. It is
recommended that you become familiar with each before you operate the
computer.
Legal Footnote (Non-applicable Icons)
For more information regarding Non-applicable Icons, refer to the Legal
Footnotes section.
Handle your computer carefully to avoid scratching or damaging the
surface.
Short Name is defined as follows in this manual.
Model Name Short Name
Satellite S50-C/S50t-C/P50-C/P50t-C S50-C
Satellite L50W-C/P50W-C L50W-C
The Grand Tour for S50-C
Front with the display closed (S50-C)

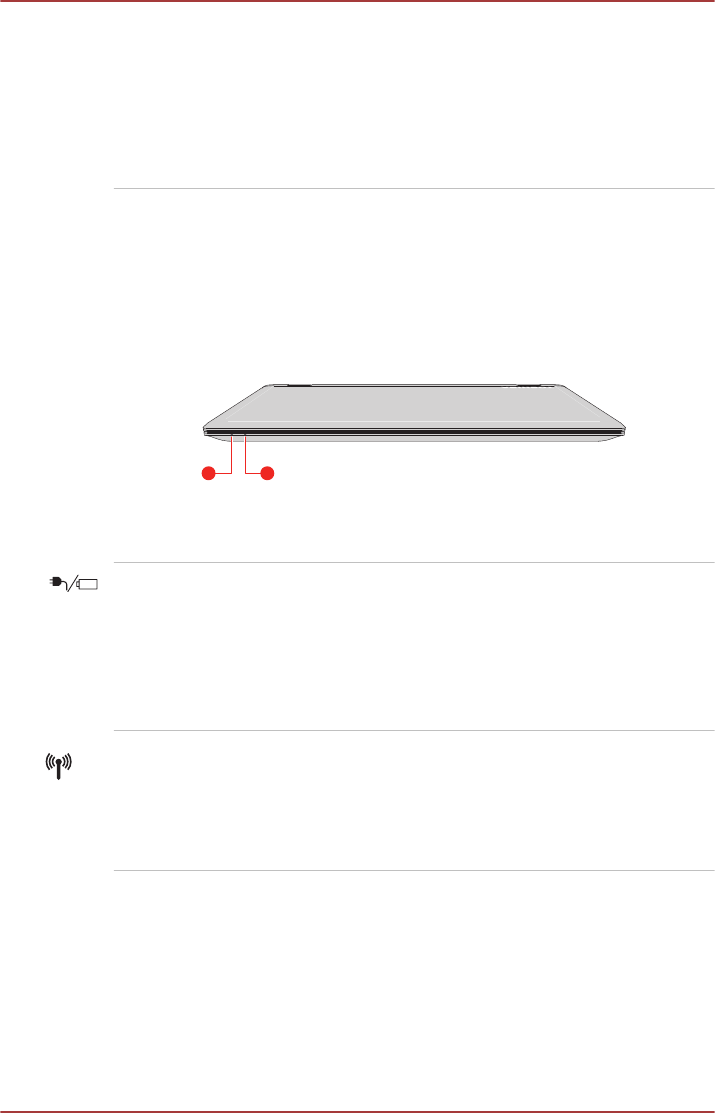

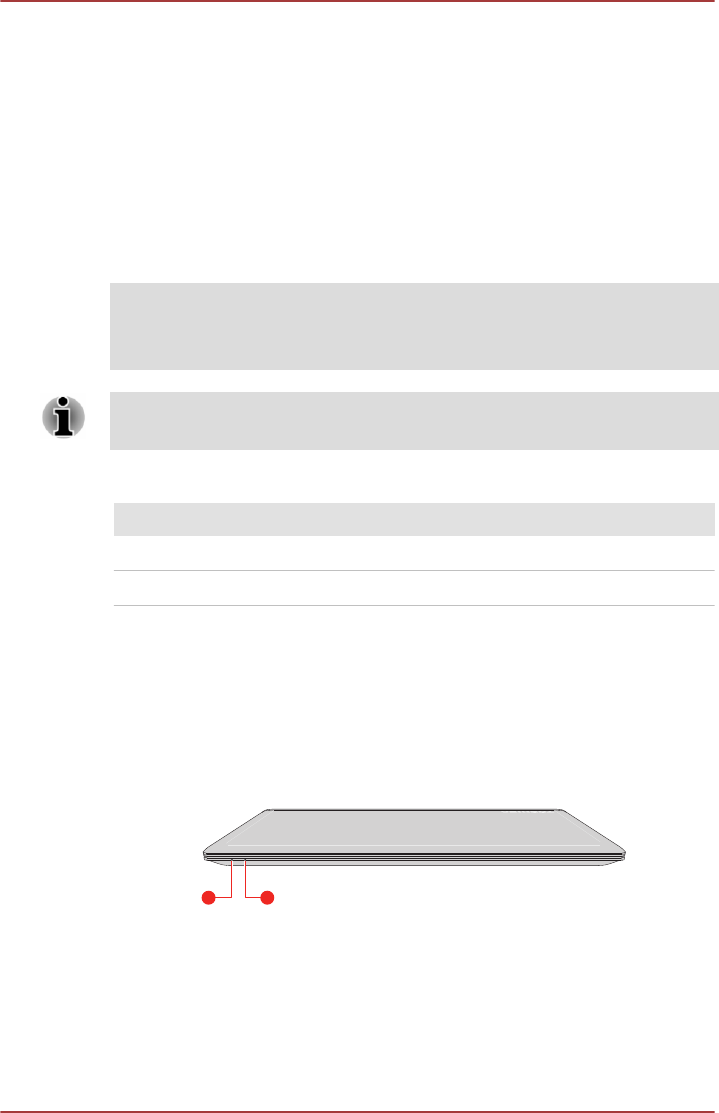

The following figure shows the front of the computer with the display panel
in the closed position.
Figure 3-1 Front of the computer with display panel closed (S50-C)
1 2
1. DC IN/Battery indicator 2. Wireless communication indicator
Product appearance depends on the model you purchased.
User's Manual 3-1
DC IN/Battery
indicator
The DC IN/Battery indicator shows the condition
of the DC IN and the battery charge status. White
indicates the battery is fully charged while the
power is being correctly supplied from the AC
power adaptor.
Refer to the Power Condition Descriptions
section for more information on this feature.
Wireless
communication
indicator
The Wireless communication indicator glows
amber when the Bluetooth or Wireless LAN
functions are turned on.
Only some models are equipped with Bluetooth
and Wireless LAN functions.

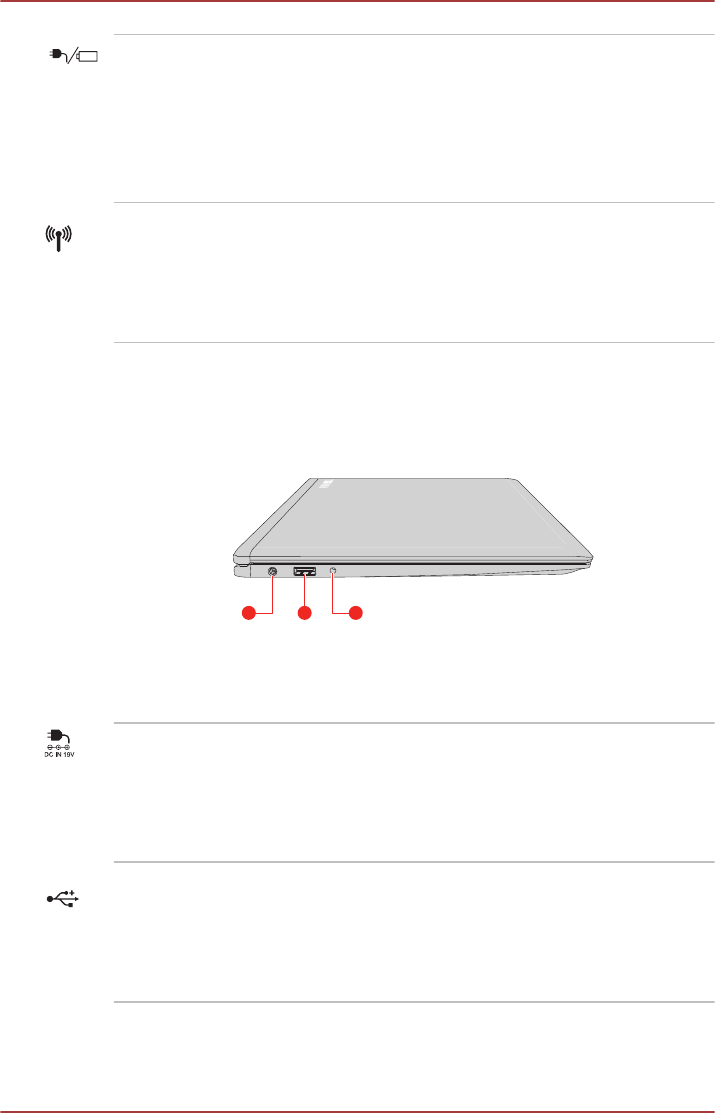

Left side (S50-C)
The following figure shows the left side of the computer.
Figure 3-2 The left side of the computer (S50-C)
1 32
1. DC IN 19V jack 3. Headphone/Microphone combo jack
2. Universal Serial Bus (USB 2.0) port
Product appearance depends on the model you purchased.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Note that you must only use the model
of AC adaptor supplied with the computer at the
time of purchase. Using the wrong AC adaptor
can damage the computer.
Universal Serial Bus
(USB 2.0) port
One Universal Serial Bus port, which complies to
the USB 2.0 standard, is provided on the left side
of the computer.
The USB 2.0 port is not compatible with USB 3.0
devices.
User's Manual 3-2
Note that it is not possible to confirm the operation of all functions of
all USB devices that are available. Some functions associated with a
specific device might not operate properly.
Before removing a USB device from the USB port of your computer,
click the Safely Remove Hardware and Eject Media icon on the
Windows Taskbar, and then select the USB device that you want to
remove.
Keep foreign metal objects, such as screws, staples, and paper clips, out of
the USB port. Foreign metal objects can create a short circuit, which can
cause damage and fire, possibly resulting in serious injury.
Headphone/
Microphone combo
jack
A 3.5 mm mini headphone/microphone combo
jack enables connection of a monaural
microphone or a stereo headphone.

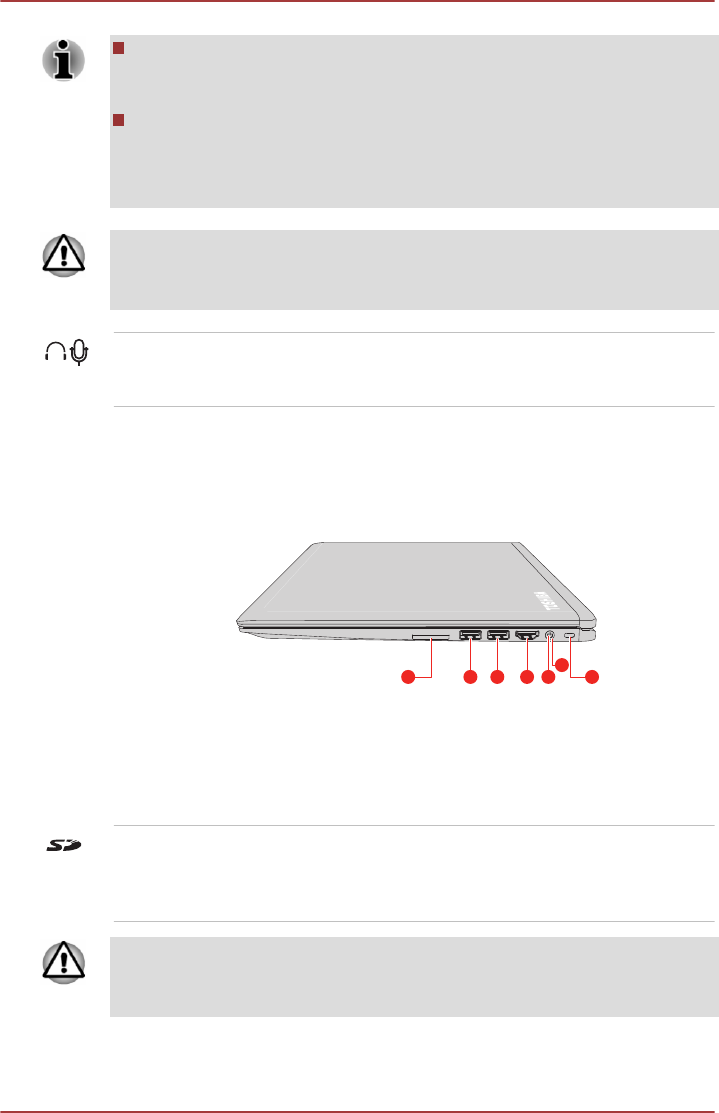

Right side (S50-C)

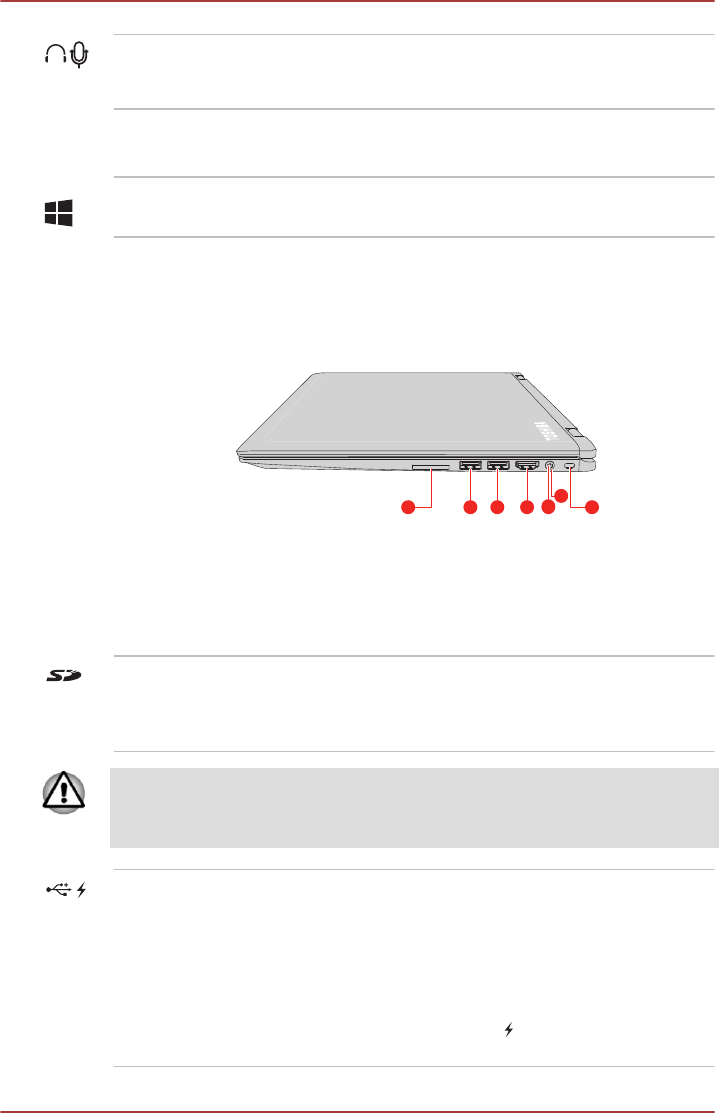

The following figure shows the right side of the computer.
Figure 3-3 The right side of the computer (S50-C)
1 5432 7
6
1. Memory media slot 5. Power button
2. Universal Serial Bus (USB 3.0) port 6. Power indicator
3. Universal Serial Bus (USB 3.0) port 7. Security lock slot
4. HDMI out port
Product appearance depends on the model you purchased.

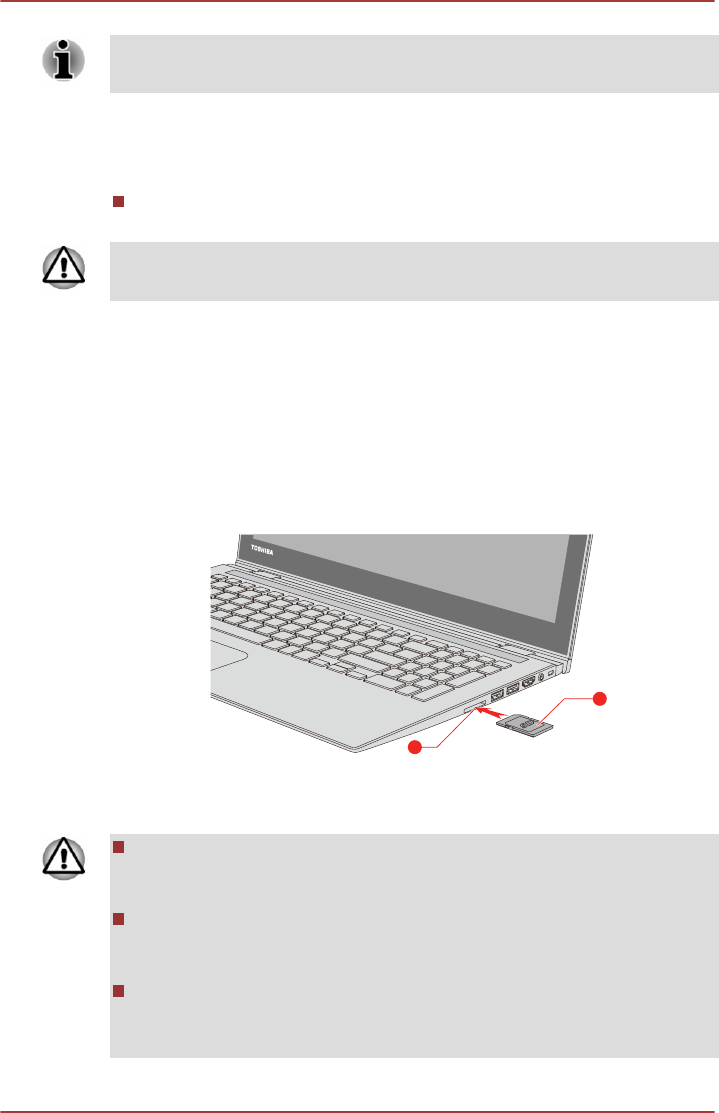

Memory media slot This slot lets you insert an SD™/SDHC™/
SDXC™ memory card, miniSD™/microSD™
Card and MultiMediaCard™. Refer to the
Memory media section for more information.
Keep foreign metal objects, such as screws, staples, and paper clips, out of
the Memory media slot. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.
User's Manual 3-3
Universal Serial Bus
(USB 3.0) ports
Two Universal Serial Bus ports, which comply to
the USB 3.0 standard, are provided on the right
side of the computer.
The USB 3.0 port is compliant with USB 3.0
standard and backward compatible with USB 2.0
devices.
The port with the icon ( ) has Sleep and Charge
function.
USB 3.0 port(s) might work as USB 2.0 port(s) when operating in USB
Legacy Emulation mode.
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
Power button Press this button to power on/off the computer.
Power indicator The Power indicator glows white when the
computer is turned on. However, if you turn off
the computer into Sleep Mode, this indicator
blinks white.
Security lock slot A security cable can be attached to this slot and
then connected to a desk or other large object in
order to deter theft of the computer.
Back (S50-C)

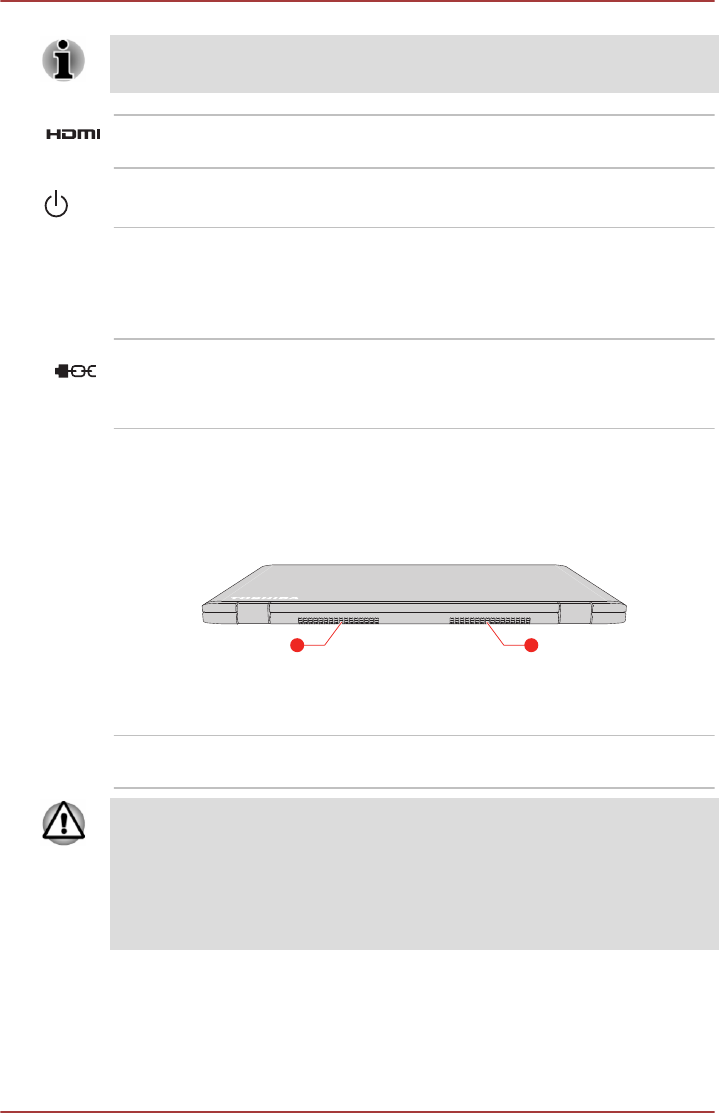

The following figure shows the back of the computer.

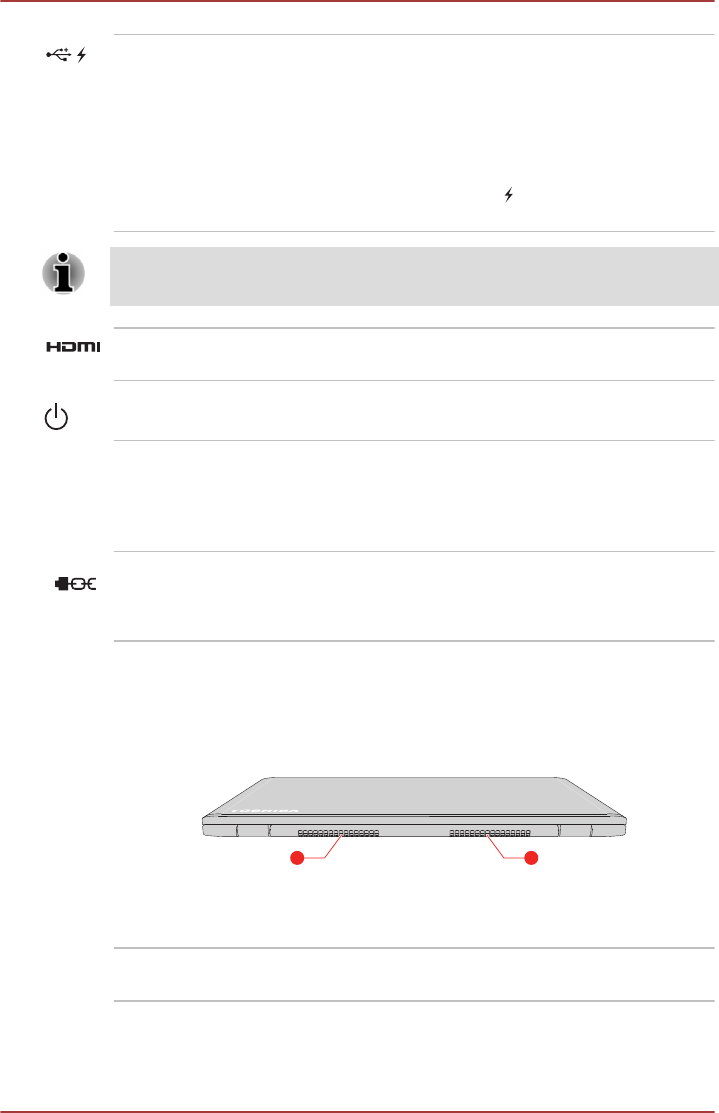

Figure 3-4 The back of the computer (S50-C)
1 1
1. Cooling vents
Product appearance depends on the model you purchased.
Cooling vents The cooling vents help the processor to avoid
overheating.
User's Manual 3-4
Do not block the cooling vents. Keep foreign metal objects, such as
screws, staples, and paper clips, out of the cooling vents. Foreign metal
objects can create a short circuit, which can cause damage and fire,
possibly resulting in serious injury.
Carefully clean the dust on the surface of the cooling vents using a soft
cloth.

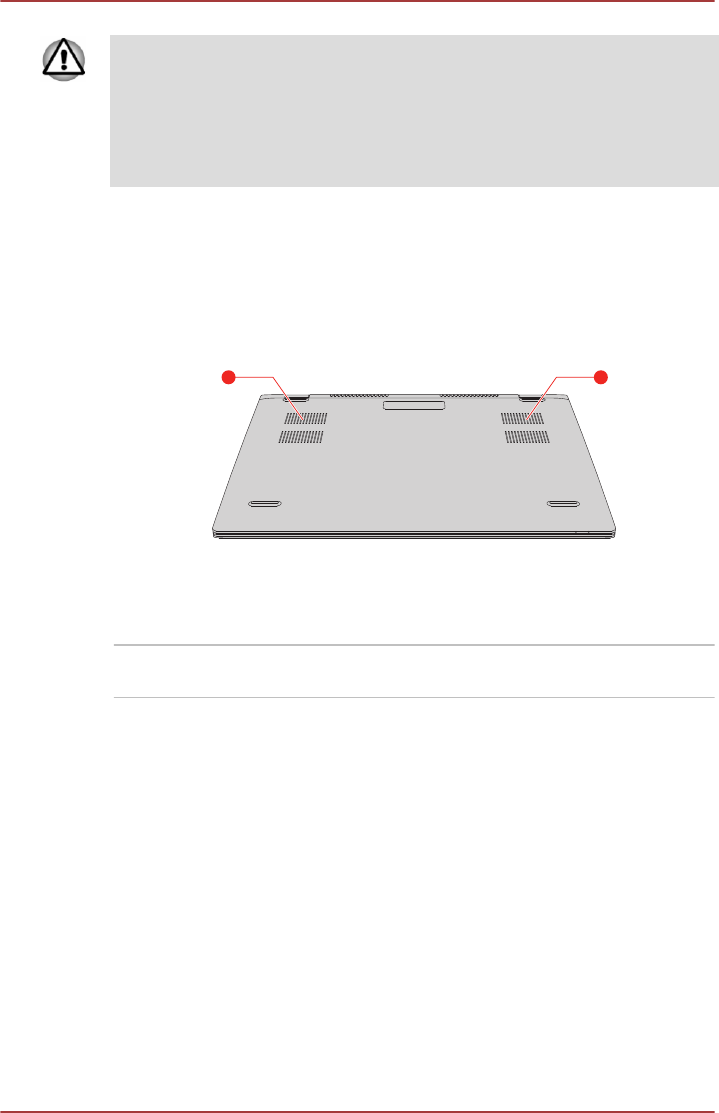

Underside (S50-C)
The following figures show the underside of the computer. Ensure that the
display is closed before the computer is turned over to avoid causing any
damage.
Figure 3-5 The underside of the computer (S50-C)
1 1
1. Cooling vents
Product appearance depends on the model you purchased.
Cooling vents The cooling vents help the processor to avoid
overheating.
Front with the display open (S50-C)
This section shows the computer with the display panel open. In order to
open the display, lift up the display panel and position it at a comfortable
viewing angle for you.
User's Manual 3-5
Wireless
communication
antennas
Depending on the configuration of your
computer, one or all of the following antennas are
built-in:
Wireless LAN
Wireless LAN/Bluetooth
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, refer to the Legal Footnotes
section.
Display screen 39.6 cm (15.6") LCD screen, configured with the
following resolution:
HD, 1366 horizontal x 768 vertical pixels
FHD, 1920 horizontal x 1080 vertical pixels
Be aware that, when the computer is operating
on the AC adaptor, the image displayed on the
internal screen is somewhat brighter than when it
operates on battery power. This difference in
brightness levels is intended to save power when
operating on batteries.
Legal Footnote (LCD)
For more information regarding LCD, refer to the Legal Footnotes section.
Display hinges The display hinges allow the display panel to be
positioned at a variety of easy-to-view angles.
Keyboard The keyboard contains character keys, control
keys, function keys, and special Windows keys,
providing all the functionality of a full-size
keyboard.
Refer to the The Keyboard section for details.
Stereo speakers The speakers emit sound generated by your
software as well as audio alarms, such as low
battery condition, generated by the system.
Touch Pad The Touch Pad located in the palm rest is used
to control the movement of the on-screen pointer.
To use the Touch Pad, simply touch and move
your fingertip across it in the direction you want
the on-screen pointer to go.
User's Manual 3-7
Touch Pad control
buttons
The two buttons below the Touch Pad are used
like the buttons on a standard mouse. Press the
left button to select a menu item or to manipulate
text or graphics designated by the pointer, and
press the right button to display a menu or other
function depending on the software you are
using.
The Grand Tour for L50W-C
Front with the display closed (L50W-C)
The following figure shows the front of the computer with the display panel
in the closed position.
Figure 3-8 Front of the computer with display panel closed (L50W-C)
1 2
1. DC IN/Battery indicator 2. Wireless communication indicator
Product appearance depends on the model you purchased.
DC IN/Battery
indicator
The DC IN/Battery indicator shows the condition
of the DC IN and the battery charge status. White
indicates the battery is fully charged while the
power is being correctly supplied from the AC
power adaptor.
Refer to the Power Condition Descriptions
section for more information on this feature.
Wireless
communication
indicator
The Wireless communication indicator glows
amber when the Bluetooth or Wireless LAN
functions are turned on.
Only some models are equipped with Bluetooth
and Wireless LAN functions.
Left side (L50W-C)
The following figure shows the left side of the computer.
User's Manual 3-8

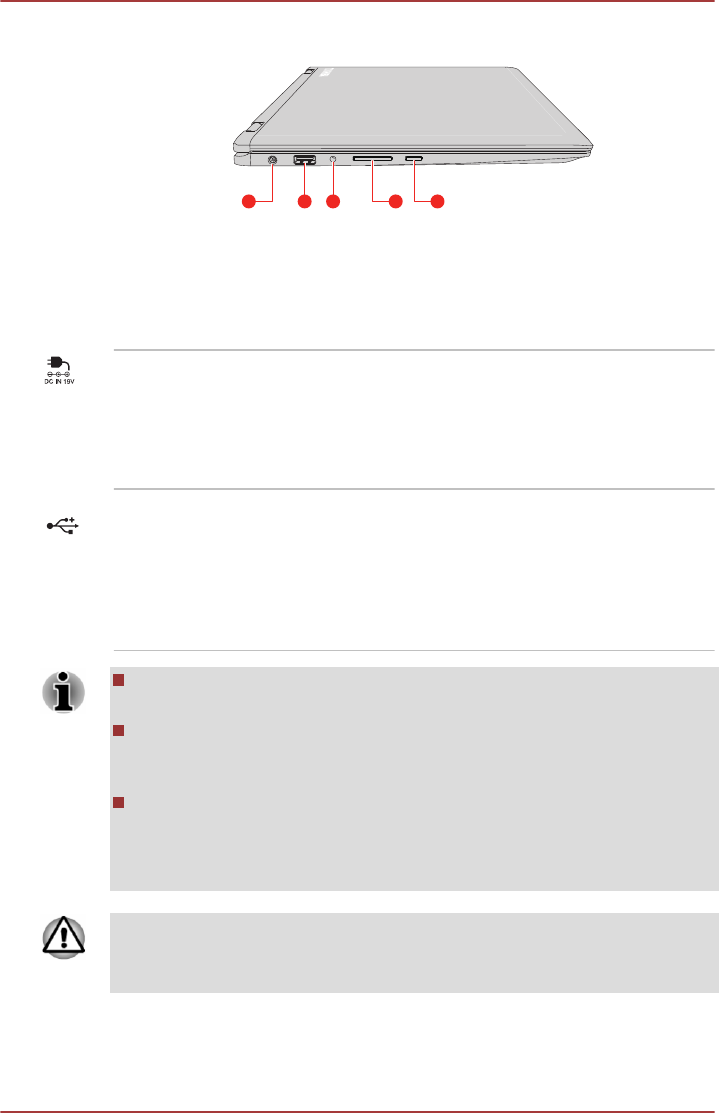

Figure 3-9 The left side of the computer (L50W-C)
1 4 52 3
1. DC IN 19V jack 4. Volume up/down button
2. Universal Serial Bus (USB 2.0 or 3.0)
port
5. Windows button
3. Headphone/Microphone combo jack
Product appearance depends on the model you purchased.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Note that you must only use the model
of AC adaptor supplied with the computer at the
time of purchase. Using the wrong AC adaptor
can damage the computer.
Universal Serial Bus
(USB 2.0 or 3.0) port
One Universal Serial Bus port, which complies to
the USB 2.0 or 3.0 standard, is provided on the
left side of the computer.
The USB port type might vary depending on the
model you purchased. The port with blue color is
USB 3.0 port.
USB 3.0 port(s) might work as USB 2.0 port(s) when operating in USB
Legacy Emulation mode.
Note that it is not possible to confirm the operation of all functions of
all USB devices that are available. Some functions associated with a
specific device might not operate properly.
Before removing a USB device from the USB port of your computer,
click the Safely Remove Hardware and Eject Media icon on the
Windows Taskbar, and then select the USB device that you want to
remove.
Keep foreign metal objects, such as screws, staples, and paper clips, out of
the USB port. Foreign metal objects can create a short circuit, which can
cause damage and fire, possibly resulting in serious injury.
User's Manual 3-9
Headphone/
Microphone combo
jack
A 3.5 mm mini headphone/microphone combo
jack enables connection of a monaural
microphone or a stereo headphone.
Volume up/down
button
Press the button to increase or decrease the
volume.
Windows button Press this button to open the Start screen.
Right side (L50W-C)
The following figure shows the right side of the computer.
Figure 3-10 The right side of the computer (L50W-C)
1
5
432 7
6
1. Memory media slot 5. Power button
2. Universal Serial Bus (USB 3.0) port 6. Power indicator
3. Universal Serial Bus (USB 3.0) port 7. Security lock slot
4. HDMI out port
Product appearance depends on the model you purchased.
Memory media slot This slot lets you insert an SD™/SDHC™/
SDXC™ memory card, miniSD™/microSD™
Card and MultiMediaCard™. Refer to the
Memory media section for more information.
Keep foreign metal objects, such as screws, staples, and paper clips, out of
the Memory media slot. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.
Universal Serial Bus
(USB 3.0) ports
Two Universal Serial Bus ports, which comply to
the USB 3.0 standard, are provided on the right
side of the computer.
The USB 3.0 port is compliant with USB 3.0
standard and backward compatible with USB 2.0
devices.
The port with the icon ( ) has Sleep and Charge
function.
User's Manual 3-10
USB 3.0 port(s) might work as USB 2.0 port(s) when operating in USB
Legacy Emulation mode.
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
Power button Press this button to power on/off the computer.
Power indicator The Power indicator glows white when the
computer is turned on. However, if you turn off
the computer into Sleep Mode, this indicator
blinks white.

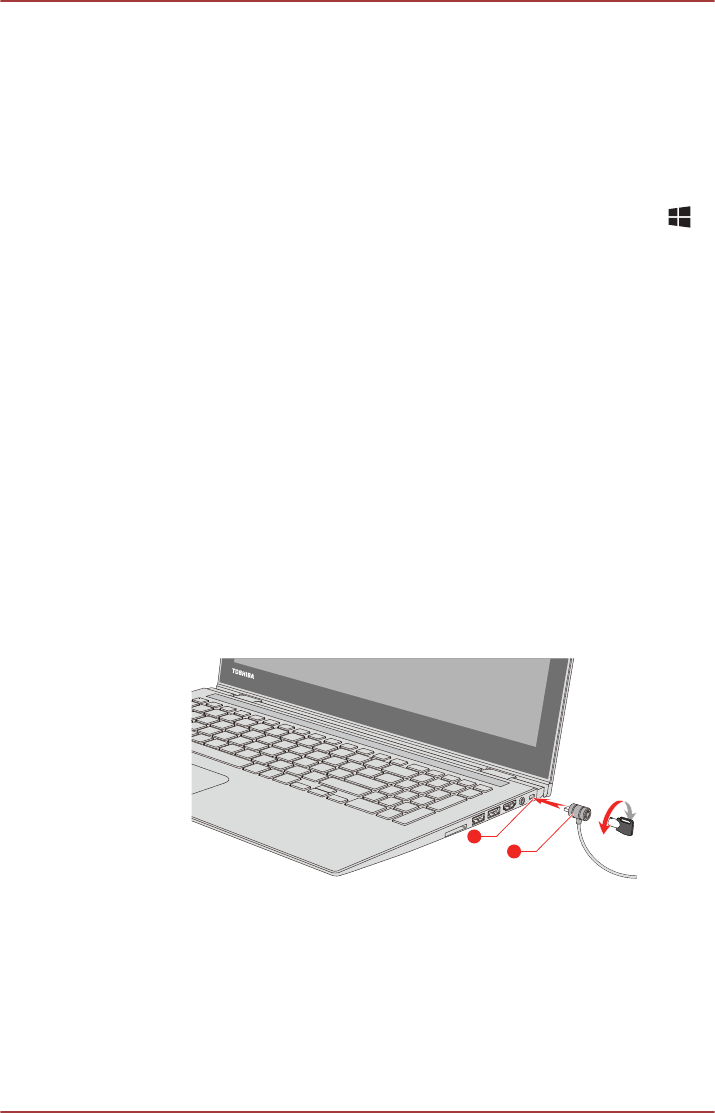

Security lock slot A security cable can be attached to this slot and
then connected to a desk or other large object in
order to deter theft of the computer.
Back (L50W-C)
The following figure shows the back of the computer.
Figure 3-11 The back of the computer (L50W-C)
1 1
1. Cooling vents
Product appearance depends on the model you purchased.
Cooling vents The cooling vents help the processor to avoid
overheating.
Do not block the cooling vents. Keep foreign metal objects, such as
screws, staples, and paper clips, out of the cooling vents. Foreign metal
objects can create a short circuit, which can cause damage and fire,
possibly resulting in serious injury.
Carefully clean the dust on the surface of the cooling vents using a soft
cloth.
Underside (L50W-C)
The following figures show the underside of the computer. Ensure that the
display is closed before the computer is turned over to avoid causing any
damage.
User's Manual 3-11
Microphone The built-in microphone allows you to import and
record sounds for your application. Refer to the
Sound System and Video mode section for more
information.
Web Camera LED The Web Camera LED glows when the Web
Camera is operating.
Web Camera Web Camera is a device that allows you to
record video or take photographs with your
computer. You can use it for video chatting or
video conferences using a communication tool.
Do not point the web camera directly at the sun.
Do not touch or press strongly on the web camera lens. Failure to do
so might reduce image quality. Use an eyeglass cleaner (cleaner
cloth) or other soft cloth to clean the lens if it becomes dirty.
Wireless
communication
antennas
Depending on the configuration of your
computer, one or all of the following antennas are
built-in:
Wireless LAN
Wireless LAN/Bluetooth
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, refer to the Legal Footnotes
section.
Display screen 39.6 cm (15.6") LCD screen, configured with the
following resolution:
HD, 1366 horizontal x 768 vertical pixels
FHD, 1920 horizontal x 1080 vertical pixels
UHD, 3840 horizontal x 2160 vertical pixels
Be aware that, when the computer is operating
on the AC adaptor, the image displayed on the
internal screen is somewhat brighter than when it
operates on battery power. This difference in
brightness levels is intended to save power when
operating on batteries.
Legal Footnote (LCD)
For more information regarding LCD, refer to the Legal Footnotes section.
Display hinges The display hinges allow the display panel to be
positioned at a variety of easy-to-view angles.
User's Manual 3-13
Keyboard The keyboard contains character keys, control
keys, function keys, and special Windows keys,
providing all the functionality of a full-size
keyboard.
Refer to the The Keyboard section for details.
Stereo speakers The speakers emit sound generated by your
software as well as audio alarms, such as low
battery condition, generated by the system.
Touch Pad The Touch Pad located in the palm rest is used
to control the movement of the on-screen pointer.
To use the Touch Pad, simply touch and move
your fingertip across it in the direction you want
the on-screen pointer to go.
Touch Pad control
buttons
The two buttons below the Touch Pad are used
like the buttons on a standard mouse. Press the
left button to select a menu item or to manipulate
text or graphics designated by the pointer, and
press the right button to display a menu or other
function depending on the software you are
using.
Magnets location (L50W-C)
Please read the following information before using the computer.
User's Manual 3-14
Figure 3-14 Magnets location (L50W-C)
The computer contains magnets that might interfere with pacemakers,
defibrillators, or other medical devices. If you wear a pacemaker, keep at
least 5 inches (approximately 13 cm) of separation between your medical
device and the computer. If you suspect that the computer is interfering
with your medical device, discontinue use and consult your physician for
information related to your specific device.
The circled areas in the preceding illustrations show the location of
magnets. Do not place any products utilizing magnetic materials or
magnetic data stored devices (for example, credit cards, compass) in close
proximity to the computer as it might damage the magnetic products.
Internal Hardware Components
This section describes the internal hardware components of your computer.
The actual specifications might vary depending on the model you
purchased.
User's Manual 3-15
Battery pack This computer includes a battery pack inside.
However, do not attempt to dismount or replace it
by yourself. Contact an authorized TOSHIBA
service provider, if necessary.
The rechargeable lithium-ion battery pack
provides power to the computer when the AC
adaptor is not connected.
For more detailed information on the use and
operation of the battery pack, refer to the Battery
section.
Legal Footnote (Battery Life)
For more information regarding Battery Life, refer to the Legal Footnotes
section.
CPU The processor type varies depending on model.
To check which type of processor is included in
your model, open the TOSHIBA PC Health
Monitor utility by clicking PC Health Monitor
under TOSHIBA group in the Apps view, and
then click PC Information.
Legal Footnote (CPU)
For more information regarding CPU, refer to the Legal Footnotes section.
Hard Disk Drive or
Solid-State Drive
The capacity of the hard disk drive varies
depending on the model.
To check which type of HDD/SSD is included in
your model, open the TOSHIBA PC Health
Monitor utility by clicking PC Health Monitor
under TOSHIBA group in the Apps view, and
then click PC Information.
Note that part of the hard disk overall capacity is
reserved as administration space.
In this manual, the word "HDD" or "Hard disk drive" also refers to the
SSD unless otherwise stated.
SSD is a large-capacity storage device which uses Solid-State
Memory in place of a magnetic disk of the hard disk.
Under certain unusual conditions of prolonged non-use and/or exposure to
high temperatures, the SSD might be vulnerable to data retention errors.
User's Manual 3-16
Legal Footnote (Hard Disk Drive (HDD) Capacity)
For more information regarding Hard Disk Drive (HDD) Capacity, refer to
the Legal Footnotes section.
Video RAM The memory in the graphics adaptor of the
computer, used to store the image displayed on a
bitmap display.
The amount of Video RAM available depends on
the system memory of the computer.
Click Control Panel -> Appearance and
Personalization -> Display -> Adjust
resolution under Windows System group in the
Apps view.
The amount of Video RAM can be verified by
clicking the Advanced settings button in the
Screen Resolution window.
Memory module The memory module is installed in the computer.
Legal Footnote (Memory (Main System))
For more information regarding Memory (Main System), refer to the Legal
Footnotes section.
Graphics Processing
Unit
Graphics processing unit (GPU) performance
might vary depending on product model, design
configuration, applications, power management
settings and features utilized. GPU performance
is only optimized when operating in AC power
mode and might decrease considerably when
operating in battery power mode.
Legal Footnote (Graphics Processing Unit (GPU))
For more information regarding Graphics Processing Unit (GPU), refer to
the Legal Footnotes section.
Intel® Display Power Saving Technology
Intel GPU models might include the Display Power Saving Technology
feature that can save the power consumption of the computer by optimizing
picture contrast on the internal LCD.
This feature can be used if the computer is:
running under battery mode
using the internal LCD display only
User's Manual 3-17
The Display Power Saving Technology feature is enabled as the factory
default. If you want to turn off this feature, change it in the settings
accordingly in the Intel® HD Graphics Control Panel/Intel® Graphics and
Media Control Panel.
You can access this control panel in the following way:
1. Right-click on the desktop and click Graphics Properties...
2. Click Power and then select On battery from the drop-down menu
under Power in the upper-left corner.
3. Click Disable under Display Power Saving Technology.
4. Click Apply.
If you want to enable this feature, click Enable under Display Power
Saving Technology.
In Intel® Graphics and Media Control Panel:
1. Click Power.
2. Select On battery from the drop-down menu in Power Source.
3. Clear the Display Power Saving Technology check box.
4. Click OK.
If you want to enable this feature, select the Display Power Saving
Technology check box.
Power Condition Descriptions
The computer operating capability and battery charge status are affected
by different power conditions, including whether an AC adaptor is
connected and what the charge level is.
DC IN/Battery indicator
Check the DC IN/Battery indicator to determine the status of the battery
pack and the power status with the AC adaptor connected. The following
indicator conditions should be noted:
Flashing amber The battery charge is low. The AC adaptor must
be connected to recharge the battery.
Amber Indicates that the AC adaptor is connected and
the battery is charging.
White Indicates that the AC adaptor is connected and
the battery is fully charged.
No light Under any other conditions, the indicator does
not light.
If the battery pack becomes too hot while it is being charged, the charge
stops and the DC IN/Battery indicator goes out. When the temperature of
User's Manual 3-18
the battery pack falls to a normal range, charging will resume. This process
occurs regardless of whether the computer's power is on or off.
Power indicator
Check the Power indicator to determine the power status of the computer.
The following indicator conditions should be noted:
White Indicates that power is being supplied to the
computer and the computer is turned on.
Flashing white Indicates that the computer is in Sleep Mode and
that there is sufficient power available (AC
adaptor or battery) to maintain this condition.
No light Under any other conditions, the indicator does
not light.
User's Manual 3-19
Chapter 4
Operating Basics
This chapter describes the basic operations of your computer, and
highlights the precautions that must be taken when using it.
Operating in Tablet Mode (L50W-C)
When operating the computer in tablet mode, observe the following
instructions.

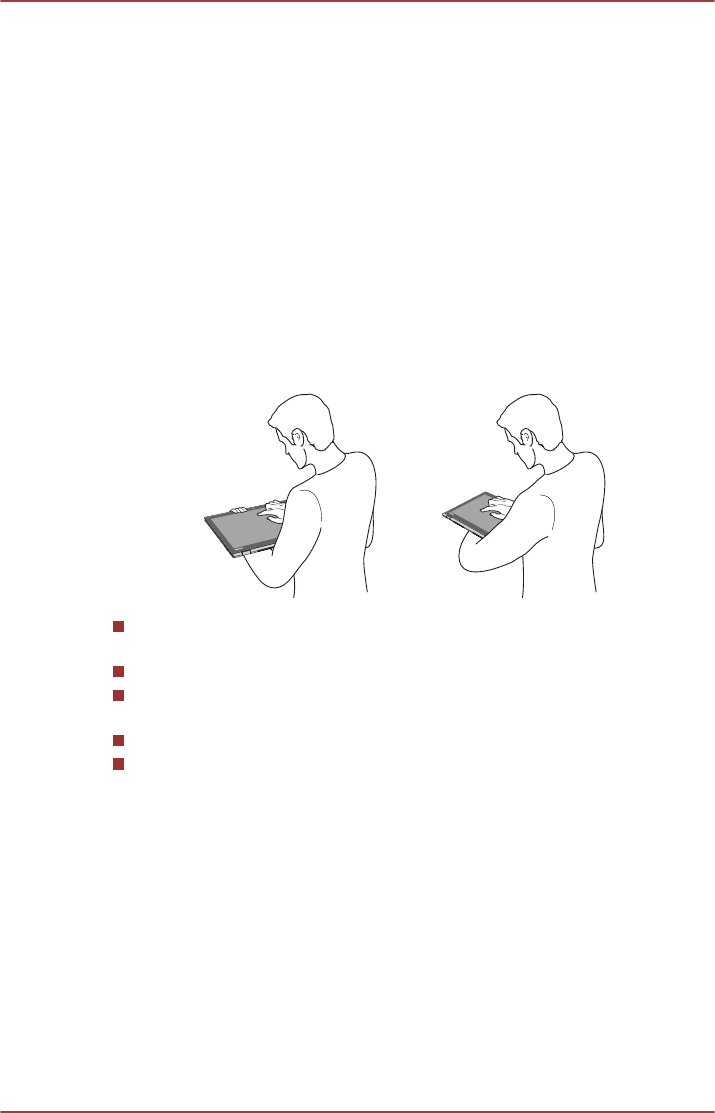

Figure 4-1 Operating the computer in tablet mode (L50W-C)
Remove all external peripheral devices and their connection cables
from the computer before carrying.
Hold the computer firmly on your forearm.
Remove the AC adaptor from the computer when using it held in your
forearm.
Do not use the computer while walking or driving a car.
Do not drop the computer or apply excessive impact to it. Do not leave
the computer in a car or similar environment where it is exposed to
direct sunlight.
Changing the screen orientation (L50W-C)
When operating the computer in tent, stand, or tablet mode, you can
change the screen orientation by rotating the computer sideways. The
screen orientation automatically changes according to the rotation angle
detected.
User's Manual 4-1
Figure 4-2 Rotating the computer sideways (L50W-C)
1 2
1. Landscape mode 2. Portrait mode
To manually disable the automatic screen orientation, do the following:
1. In the Settings charm, click Screen.
2. Click , and appears indicating that the automatic screen
orientation is currently disabled.
When operating the computer in laptop and flat mode, however, the
automatic screen orientation is locked, and stays in Landscape mode.
Avoid having direct contact with the other edges of the hand held
device while the wireless device is turned on and transmitting. Only
factories installed wireless transmitter can be used with this hand held
device to satisfy RF exposure compliance.
In the Portrait mode, some drivers/utilities might not perform install
and uninstall operation. If it occurs, switch to the Landscape mode to
proceed.
Using the Touch Screen
Some models are equipped with a touch screen.
You can use your finger to manipulate icons, buttons, menu items, the
onscreen keyboard, and other items on the touch screen.
Tap Simply tap your finger once on the touch screen
to activate an item, such as an app.
Press and hold Press your finger down and leave it there for a
few seconds. This shows information to help you
learn more about an item or opens a menu
specific to what you are doing.
User's Manual 4-2
Pinch or stretch Touch the screen or an item with two or more
fingers, and then move the fingers toward each
other (pinch) or away from each other (stretch).
This shows different levels of information or
visually zooms in or out.
Rotate Put two or more fingers on an item and then turn
your hand to rotate things in the direction you
turn your hand. Only some items can be rotated.
Slide Drag your finger on the touch screen to move
through what is on the screen.
Swipe Quickly move your finger in from the edge of the
screen, without pausing when you first touch it.
Swipe from the left edge: shows your recently
opened apps, and so on.
Swipe from the right edge: opens or closes the
charms (Search, Share, Start, Devices, Settings).
Swipe from the top edge: opens or closes the
app command bar.
For details and more advanced touch screen gestures to interact with
Windows operating system, refer to Help and Support.
Do not press or push with excess force on the touch screen.
Do not apply excess force when cleaning the touch screen.
Never touch the screen with a sharp object such as a ball-point pen
which might scratch or damage the surface.
Do not use a protecting sheet for the touch screen as it might
decrease its sensitivity to gestures.
Do not touch the screen with gloves, wet hands, or the tip of your
fingernails as it might decrease the sensitivity.
The touch screen might not work correctly if part of the surface is
slightly wet, or covered with an object.
Using the Touch Pad
The Touch Pad located in the palm rest might support the following
gestures:
User's Manual 4-3

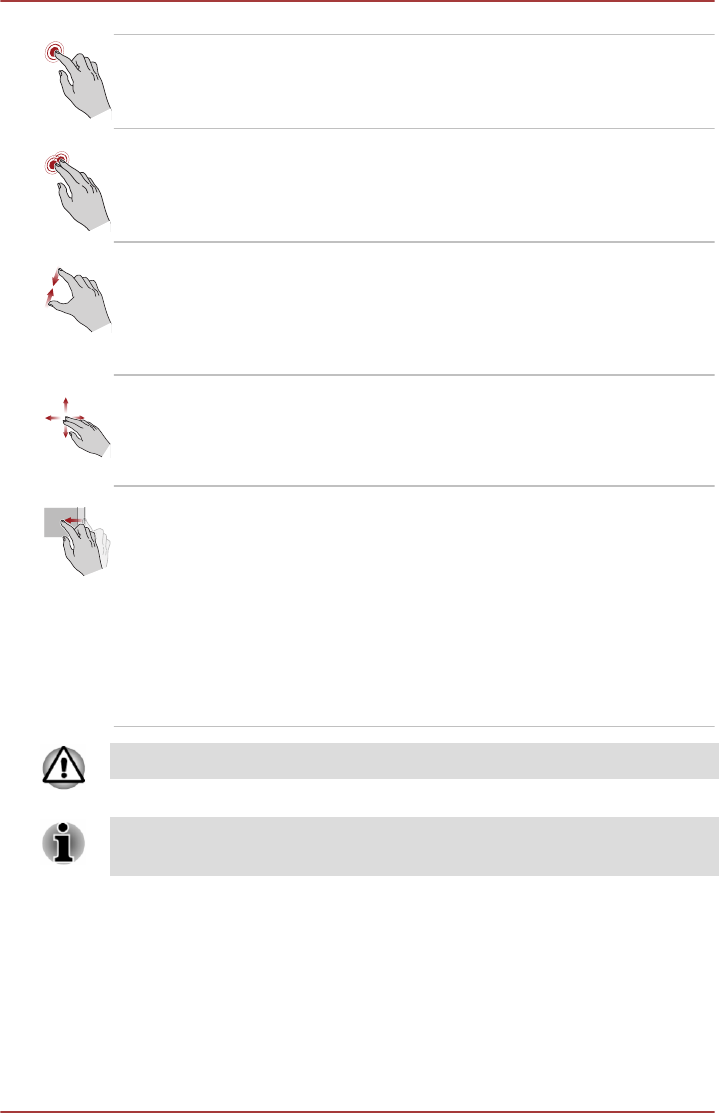

Tap Tap once on the Touch Pad to activate an item,
such as an app.
Two-Finger Tap Tap once on the Touch Pad with two fingers
together to display a menu or other function
depending on the software you are using.
(Similar to right-click)
Pinch or stretch Place two or more fingers down on the Touch
Pad and move them toward each other (pinch) or
away from each other (stretch). This shows
different levels of information or visually zooms in
or out.
Two-Finger Scroll Place two fingers down and slide them vertically
or horizontally from anywhere on the Touch Pad.
This allows you to operate the scroll bars of a
window.
Swipe Quickly move your finger in from the edge of the
Touch Pad, without pausing when you first touch
it.
Swipe from the left edge: shows your recently
opened apps.
Swipe from the right edge: opens or closes the
charms (Search, Share, Start, Devices, Settings).
Swipe from the top edge: opens or closes the
app command bar.
Do not put items on the Touch Pad surface to prevent abnormal action.
Some of the Touch Pad operations described in this section are only
supported in certain applications.
The Keyboard
The number of keys available on your keyboard depends on which country/
region your computer is configured for, with keyboards being available for
numerous languages.
There are different types of keys, specifically typewriter keys, function keys,
soft keys, Windows special keys, and the keypad overlay.
User's Manual 4-4
Never remove the key caps on your keyboard. Failure to do so could
damage the parts under the key caps.
Keyboard indicator
The following figure shows the position of the CAPS LOCK indicator and
NUM LOCK indicator which show the following conditions:
When the CAPS LOCK indicator glows, the keyboard produces
capitals when any letter is typed.
When the NUM LOCK indicator glows, the ten key allows you to enter
numbers.

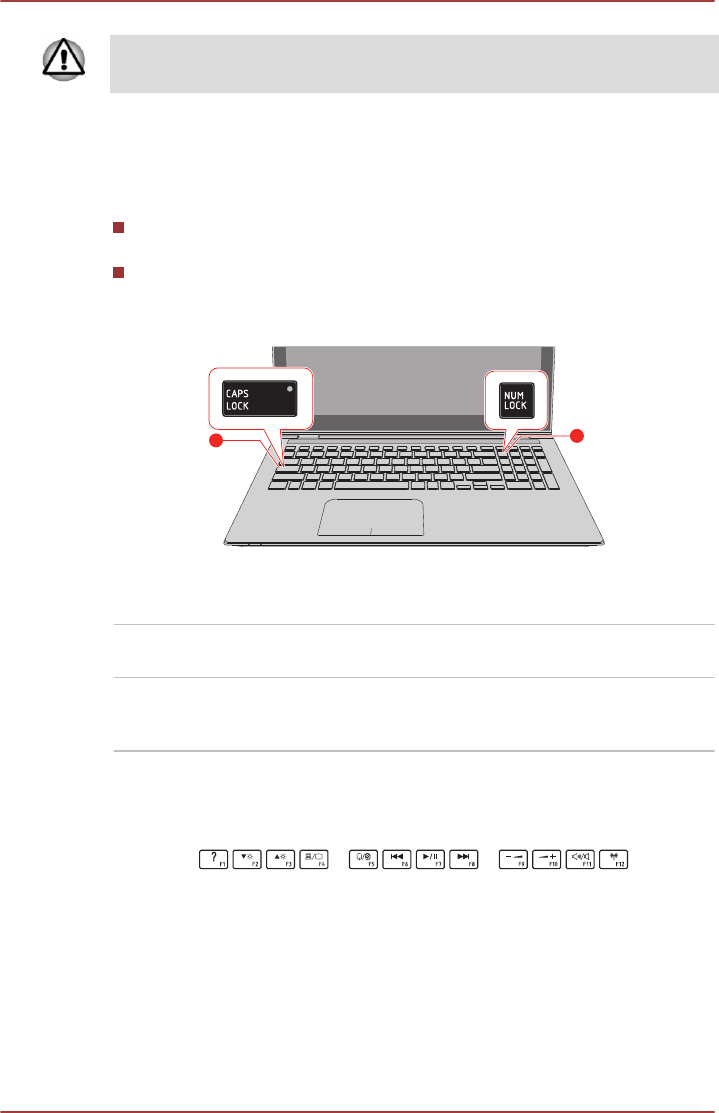

Figure 4-3 Keypad indicators
2
1
1. CAPS LOCK indicator 2. NUM LOCK indicator
Product appearance depends on the model you purchased.
CAPS LOCK This indicator glows green when letter keys are
locked into their uppercase format.
NUM LOCK When the NUM LOCK indicator glows, you can
use the number keys on the keyboard for number
entry.
Function Key
The function keys (F1 ~ F12) are the 12 keys at the top of your keyboard.
You can configure the function keys’ mode as "Special function mode" or
"Standard F1-F12 mode" by clicking System Settings -> Keyboard under
TOSHIBA group in the Apps view.
"Special function mode" allows you to use special functions without
pressing the FN key.
User's Manual 4-5
Special
function mode
Standard F1-
F12 mode
Function
F1 FN + F1 Launches the help file supplied with
the software.
F2 FN + F2 Decreases the brightness of the
display panel in individual steps.
F3 FN + F3 Increases the brightness of the
display panel in individual steps.
F4 FN + F4 Changes the active display device.
To use a simultaneous mode, you
must set the resolution of the internal
display panel to match the resolution
of the external display device.
F5 FN + F5 Enables or disables the Touch Pad.
This function is supported with some
models.
F6 FN + F6 Moves media backward.
F7 FN + F7 Plays or pauses media playback.
F8 FN + F8 Moves media forward.
F9 FN + F9 Decreases the computer’s volume.
F10 FN + F10 Increases the computer’s volume.
F11 FN + F11 Turns the sound on or off.
F12 FN + F12 Turns the Airplane mode on or off.
FN + 1 FN + 1 Reduces the icon size on the desktop
or the font sizes within one of the
supported application windows.
FN + 2 FN + 2 Enlarges the icon size on the desktop
or the font sizes within one of the
supported application windows.
FN + Space FN + Space Changes the display resolution.
FN + FN + Turns the keyboard backlight on or
off. This function is supported with
some models.
Some functions show the toast notification at the edges of the screen.
User's Manual 4-6
Those toast notifications are disabled by default. You can enable them in
the TOSHIBA Function Key application.
To access it, click Function Key under TOSHIBA group in the Apps view.
Windows special keys
The keyboard provides two keys that have special functions in Windows,
the Windows® logo key activates the Start screen while the application key
has the same function as the secondary (right) mouse button.
This key activates the Windows Start screen.
This key has the same function as the secondary (right) mouse button.
Generating ASCII characters
Not all ASCII characters can be generated using normal keyboard
operation, but you can generate these characters using their specific ASCII
codes.
1. Hold down the ALT key.
2. Using the numeric keypad, type the ASCII code of the character you
require.
3. Release ALT. The ASCII character appears on the display screen.
Battery
This section explains battery types, use, recharging methods and handling.
Battery pack
When the AC adaptor is not connected, the main power source of the
computer is this lithium ion battery pack, also referred to in this manual as
the main battery.
Real-Time Clock (RTC) function
The Real-Time Clock (RTC) function is supported. The main battery
provides power for the internal real-time clock and calendar function and
also maintains the system configuration while the computer is turned off. If
the RTC lasting time completely runs out, the system will lose this
information and the real-time clock and calendar will stop working.
You can change the Real-Time Clock settings in the BIOS setup utility.
Refer to Troubleshooting for further information.
User's Manual 4-7
Care and use of the battery pack
This section provides the important safety precautions in order to handle
your battery pack properly.
Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.
Charge the battery pack only in an ambient temperature from 5 through 35
degrees Celsius. Otherwise, the electrolyte solution might leak, battery
pack performance might deteriorate, and the battery life might be
shortened.
Charging the batteries
When the power in the battery pack becomes low, the DC IN/Battery
indicator flashes amber to indicate that only a few minutes of battery power
remain. If you continue to use the computer while the DC IN/Battery
indicator flashes, the computer enters Hibernation Mode so that you do not
lose any data, and automatically turn itself off.
You must recharge a battery pack when it becomes discharged.
Procedures
To recharge a battery pack, connect the AC adaptor to the DC IN 19V jack
and plug the other end into a working outlet. The DC IN/Battery indicator
glows amber while the battery is being charged.
Charging Time
The following table shows the approximate time required to charge an
exhausted battery fully.
Battery type Power off Power on
Battery pack (45 Wh, 3
cell)
about 3.5 hours about 4 hours
Be aware that the charging time when the computer is on is affected by
ambient temperature, the temperature of the computer and how you are
using the computer. If you make heavy use of external devices for
example, the battery might scarcely charge at all during operation.
Battery charging notice
The battery might not begin charging immediately under the following
conditions:
User's Manual 4-8
The battery is extremely hot or cold (if the battery is extremely hot, it
might not charge at all). To ensure the battery charges to its full
capacity, charge it at room temperature of between 5°C to 35°C (41–
95°F).
The battery is nearly completely discharged. In this instance, leave the
AC adaptor connected for a few minutes and the battery should begin
charging.
The DC IN/Battery indicator might show a rapid decrease in battery
operating time when you try to charge a battery under the following
conditions:
The battery has not been used for a long time.
The battery has completely discharged and been left in the computer
for a long time.
In such cases, do the following:
1. Fully discharge the battery by leaving it in the computer with the power
on until the system automatically turns itself off.
2. Connect the AC adaptor to the DC IN 19V jack of the computer, and to
a wall outlet that is supplying power.
3. Charge the battery until the DC IN/Battery indicator glows white.
Repeat these steps two or three times until the battery recovers normal
capacity.
Monitoring battery capacity
Remaining battery power can be monitored using the following methods.
Clicking the battery icon on the Windows Taskbar
Via the Battery Status in the Windows Mobility Center window
Wait several seconds to monitor the remaining operating time because
the computer needs time to check the remaining capacity of the
battery pack and then calculate the remaining operating time, based
on this together with the current power consumption.
Be aware that the actual remaining operating time might differ slightly
from the calculated time.
With repeated discharges and recharges, the battery capacity will
gradually decrease. In view of this, it is noted that an often used, older
battery will not operate for as long as a new battery even when both
are fully charged.
Maximizing battery operating time
The usefulness of a battery depends on how long it can supply power on a
single charge, while how long the charge lasts in a battery depends on:
Processor speed
Screen brightness
User's Manual 4-9
System Sleep Mode
System Hibernation Mode
Display power off period
How often and for how long you use the Hard Disk Drive and external
disk drives, for example, optical disc
How much charge the battery contained to begin with
How you use optional devices, such as a USB device, to which the
battery supplies power
Whether you enable Sleep Mode, which can conserve battery power if
you are frequently turning the computer off and on
Where you store your programs and data
Whether you close the display panel when you are not using the
keyboard - closing the display saves power.
The environmental temperature - operating time decreases at low
temperatures.
Batteries exhausted time
When you turn off the power of your computer with batteries fully charged,
the batteries exhaust within the following approximate period.
Battery type Sleep Mode Shut Down Mode
Battery pack (45 Wh, 3
cell)
about 2.5 days about 98 days
Extending battery life
To maximize the life of your battery packs, do the following at least once a
month.
1. Turn off the computer's power.
2. Disconnect the AC adaptor and turn on the computer's power. If it
does not turn on then go to Step 4.
3. Operate the computer on battery power for five minutes. If you find
that the battery pack has at least five minutes of operating time,
continue operating until the battery pack is fully discharged. However,
if the DC IN/Battery indicator flashes or there is some other warning to
indicate a low battery condition, go to Step 4.
4. Connect the AC adaptor to the DC IN 19V jack of the computer, and
to a wall outlet that is supplying power. The DC IN/Battery indicator
glows amber to indicate that the battery pack is being charged.
However, if DC IN/Battery indicator does not glow, this indicates that
power is not being supplied. Check the connections for the AC adaptor
and the power cord.
User's Manual 4-10
5. Charge the battery pack until the DC IN/Battery indicator glows
white.
Memory media
The computer is equipped with a memory media slot that can
accommodate some kinds of memory media with various memory
capacities so that you can easily transfer data from devices, such as digital
cameras and Personal Digital Assistants.
Keep foreign objects out of the memory media slot. Never allow metal
objects, such as screws, staples and paper clips, to enter the computer or
Keyboard. Foreign metal objects can create a short circuit, which can
cause computer damage and fire, possibly resulting in serious injury.
An adaptor is required to use miniSD/microSD Card.
Not all memory media have been tested and verified to work correctly.
Therefore, it is not possible to guarantee that all memory media can
operate properly.
Figure 4-4 Examples of memory media
Secure Digital (SD) Card microSD card adaptor and
microSD card
MultiMediaCard (MMC)
Points to note about the memory media card
SD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music
Initiative), which is a technology adopted to prevent unlawful copy or
playback of digital music. For this reason, you cannot copy or play back
protected material on another computer or other device, and you cannot
reproduce any copyrighted material except for your personal enjoyment.
The following is a simple explanation for distinguishing SD memory cards
from SDHC memory cards and SDXC memory cards.
SD, SDHC and SDXC memory cards appear the same externally.
However, the logo on memory cards is different, so pay careful
attention to the logo when purchasing.
User's Manual 4-11
The SD memory card logo is ( ).
The SDHC memory card logo is ( ).
The SDXC memory card logo is ( ).
The maximum capacity of SD memory cards is 2 GB. The maximum
capacity of SDHC memory cards is 32 GB. The maximum capacity of
SDXC memory cards is 128 GB.
Memory media format
New media cards are formatted according to specific standards. If you wish
to reformat a media card, be sure to do so with a device that uses media
cards.
Formatting a memory media card
Memory media cards are sold already formatted in conformity to specific
standards. If you reformat a memory card, be sure to reformat it with a
device such as digital camera or digital audio player that uses the memory
cards, not with the format command provided within Windows.
To format all areas of the memory card, including the protected area, you
must obtain an appropriate application that applies the copy protection
system.
Media care
Observe the following precautions when handling the card.
Do not twist or bend cards.
Do not expose cards to liquids or store in humid areas or lay media
close to containers of liquid.
Do not touch the metal part of a card or expose it to liquids or let it get
dirty.
After using card, return it to its case.
The card is designed so that it can be inserted only one way. Do not
try to force the card into the slot.
Set the write-protect switch to the lock position, if you do not want to
record data.
Memory cards have a limited lifespan, so it is important to back up
important data.
Do not write to a card if the battery power is low. Low power could
affect writing accuracy.
Do not remove a card while read/write is in progress.
User's Manual 4-12
For more details on using memory cards, see manuals accompanying the
cards.
About the write-protect feature
Memory media cards have a write-protect function.
SD Card (SD memory card, SDHC memory card and SDXC memory
card)
Set the write-protect switch to the lock position, if you do not want to record
data.
Inserting memory media
The following instructions apply to all types of supported media devices. To
insert memory media, do the following:
1. Turn the memory media so that the contacts (metal areas) face down.
2. Insert the memory media into the memory media slot on the computer.
3. Press the memory media gently until it clicks into place.
Figure 4-5 Inserting memory media
1
2
1. Memory media slot 2. Memory media
Product appearance depends on the model you purchased.
Make sure that the memory media is oriented properly before you
insert it. If you insert the media in wrong direction, you might not be
able to remove it.
When inserting the memory media, do not touch the metal contacts.
You could expose the storage area to static electricity, which can
destroy data.
Do not turn off the computer or switch to Sleep Mode or Hibernation
Mode while files are being copied. Failure to do so might cause data
loss.
User's Manual 4-13
Removing memory media
The following instructions apply to all types of supported media devices. To
remove memory media, do the following:
1. Click the Safely Remove Hardware and Eject Media icon on the
Windows Taskbar.
2. Select memory media.
3. Push the memory media until you hear a click to partially release it.
4. Grasp the media and pull it out of the slot.
If you remove the memory media or turn off the power while the
computer is accessing the memory media, you might lose data or
damage the media.
Do not remove the memory media while the computer is in Sleep or
Hibernation Mode. The computer could become unstable or data in
the memory media could be lost.
Do not remove only the miniSD/microSD Card while leaving the
adaptor in the memory media slot.
External Display
Your computer video capabilities can be enhanced with additional displays.
External displays allow you to share your desktop or extend the desktop
area.
Connecting an external display
Your computer comes with a built-in display, but you can also connect
other external displays via available ports on the computer.
As the port operation of all external display devices have not been
confirmed, some devices might not function properly.
The HDMI out port
HDMI (High-Definition Multimedia Interface) port digitally transfers both
video and audio data without reducing the quality. HDMI-compatible
external display devices including televisions can be connected via the
HDMI port.
Some models can support ultra high definition (3840 x 2160 pixels) display
on compatible external display devices via HDMI output port. To use this
function, you must purchase an HDMI cable (corresponding to 3840x2160
pixels or higher).
To connect an HDMI-compatible display device, do the following:
User's Manual 4-14
To connect a device to the HDMI out port, you must purchase a suitable
HDMI cable.
1. Plug one end of the HDMI cable into the HDMI in port of the HDMI
display device.
2. Plug the other end of the HDMI cable into the HDMI out port on your
computer.
3. Turn the HDMI display device's power on.
Figure 4-6 Connecting the HDMI out port
12
1. HDMI out port 2. HDMI cable
Product appearance depends on the model you purchased.
Do not plug/unplug an HDMI device under the following conditions:
The system is starting up.
The system is shutting down.
When you connect a television or external monitor to the HDMI port, the
display output device is set to HDMI.
When you unplug the HDMI cable and replug it, wait at least 5 seconds
before you replug the HDMI cable again.
When you change the display output device, the playback device may not
switch automatically. In this case, in order to set the playback device to the
same device as the display output device, please adjust the playback
device manually by the following steps:
1. Click Control Panel -> Hardware and Sound -> Sound under
Windows System group in the Apps view.
2. In the Playback tab, select the playback device which you want to
switch to.
3. To use the internal speakers on your computer, select Speakers. To use
the television or the external monitor that you have connected to the
computer, select a different playback device.
4. Click the Set Default button.
User's Manual 4-15
5. Click OK to close the Sound dialog.
Settings for display video on HDMI
To view video on the HDMI display device, be sure to configure the
following settings otherwise you might find that nothing is displayed.
Be sure to use the function key to select the display device before starting
to play video. Do not change the display device while playing video.
Do not change the display device under the following conditions.
While data is being read or written
While communication is being carried out
Selecting HD Format
To select the display mode, do the following:
1. Click Control Panel -> Appearance and Personalization -> Display
-> Change display settings -> Advanced settings -> List All
Modes under Windows System group in the Apps view.
2. Select one of the modes at List All Modes.
Wireless display
Your computer might support Wireless display, a wireless technology which
utilizes Wi-Fi to allow the computer to be connected to external displays
including TVs as extended screens wirelessly. With Wireless display,
documents, streamed/local media contents, or other online contents can be
shared wirelessly with others.
To use Wireless display, either one of the following devices is required:
A compatible external display with built-in support for Wireless display.
An external display with HDMI port and a Wireless display adaptor.
The Wireless display adaptor is a device that connects to the external
display via HDMI port and can receive Wi-Fi signals from your
computer.
To connect to an external display wirelessly, do the following:
1. In the Settings charm, click Change PC settings -> PC and devices
-> Devices.
2. Click Add a device. Your computer starts searching for the Wireless
display device.
3. After the Wireless display device is searched, follow the on-screen
instructions to finish connection.
After the connection is established, the name of the Wireless display
device will appear under Projectors.
User's Manual 4-16
To disconnect the Wireless display device, click the Wireless display
device name and then click Remove device.
Changing the display settings
After one or more external displays are connected, the operating system
can automatically detect, identify, and set up the display settings.
You can also manually manage how the external displays work and change
the display settings by pressing P while holding down the Windows ( )
key. If you disconnect the external display before you turn off the
computer's power, be sure to switch to the internal display.
Security lock
A security lock enables you to anchor your computer to a desk or other
heavy object in order to help prevent unauthorized removal or theft. The
computer has a security lock slot on its right side into which you can attach
one end of the security cable, while the other end attaches to a desk or
similar object. The methods used for attaching security cables differ from
product to product. Refer to the instructions for the product you are using
for more information.
Connecting the security lock
In order to connect a security cable to the computer, do the following:
1. Turn the computer so its right side faces you.
2. Align the security cable with the lock slot and secure it in place.
Figure 4-7 Security lock
1
2
1. Security lock slot 2. Security lock
Product appearance depends on the model you purchased.
Optional TOSHIBA Accessories
To make your computer even more powerful and convenient to use, you
can add a number of options and accessories. For reference, the following
User's Manual 4-17
list details some of the items that are available from your reseller or
TOSHIBA dealer:
Universal AC Adaptor If you frequently use your computer at more than
one site, it might be convenient to purchase an
additional AC adaptor to be kept at each site in
order to remove the need to carry the adaptor
with you always.
Sound System and Video mode
This section describes some of the audio control functions.
Volume Mixer
The Volume Mixer utility lets you control the audio volume for playback of
devices and applications under Windows.
To launch the Volume Mixer utility, right-click on the speaker icon on
the Windows Taskbar, and then select Open Volume Mixer from the
sub menu.
To adjust the volume level of speakers or headphones, move the
Speakers slider.
To adjust the volume level of an application that you are using, move
the slider for the corresponding application.
Microphone Level
To change the microphone recording level, do the following:
1. Right-click on the speaker icon on the Windows Taskbar, and select
Recording devices from the sub menu.
2. Select Microphone, and click Properties.
3. On the Levels tab, move the Microphone slider to increase or
decrease the microphone volume level.
If you feel the microphone volume level is inadequate, move the
Microphone Boost slider to a higher level.
Audio Enhancements
To apply the sound effects for your current speaker, do the following.
1. Right-click on the Speakers icon on the Windows Taskbar, and then
select Playback devices from the sub menu.
2. Select Speakers, and click Properties.
3. On the Enhancements tab, select the sound effects you would like,
and click Apply.
User's Manual 4-18
SmartAudio
Your computer contains SmartAudio, a powerful program that allows you to
configure your audio software to enhance and personalize your listening
experience.
Starting SmartAudio Application
To launch the SmartAudio, click Control Panel -> Hardware and Sound -
> SmartAudio under Windows System group in the Apps view.
Headphone/Microphone selection
To change the type of headphone or microphone, do the following:
1. Plug a headphone or microphone into the headphone/microphone
combo jack.
2. Click the Jack Configuration icon in the SmartAudio main screen.
3. Select one from the device list for the device you plugged into.
Opening SmartAudio Help
Clicking "?" in the top-right corner of the SmartAudio window can open the
Help file in your selected language, or in English if your selected language
is not supported.
DTS Sound
DTS Sound™ utilizes advanced patented techniques to retrieve audio cues
buried in the original source material and deliver immersive surround sound
complete with deep, rich bass and crystal clear dialog.
DTS Sound is provided with some models. It provides the following
features:
Immersive surround sound with bass and dialog enhancement
Broad sweet spot with elevated sound image
Improved volume output delivering maximum volume without creating
clipping or distortion
Dialog enhancement for clear and intelligible vocals
Bass enhancement for rich, low frequency production
High frequency definition for crisp details
To access the utility, click DTS Sound under DTS, Inc in the Apps view.
U.S. patents apply to this product. See
http://patents.dts.com
Manufactured under license from DTS Licensing Limited.
Video mode
Video mode settings are configured via the Screen Resolution dialog.
User's Manual 4-19
To open the Screen Resolution dialog, click Control Panel ->
Appearance and Personalization -> Display -> Change display
settings under Windows System group in the Apps view.
If you are running some applications (for example a 3D application or video
playback), you might see some disturbance, flickering, or frame dropping
on your screen.
If that occurs, adjust the resolution of display, lowering it until the screen is
displayed properly.
User's Manual 4-20
Chapter 5
Utilities and Advanced Usage
This chapter describes the utilities and special features of this computer,
and the advanced usage of some utilities.
Utilities and Applications
This section describes the pre-installed utilities that come with the
computer and details how to start them. For further information on their
operation, refer to online manual, help files, or README.TXT file (if
applicable) of each utility.
TOSHIBA Desktop
Assist
TOSHIBA Desktop Assist is a graphical user
interface that provides access to specific tools
and TOSHIBA utilities and applications that make
the use and configuration of the computer easier.
To access this utility, click Desktop Assist on
the desktop.
TOSHIBA Display
Utility
TOSHIBA Display Utility includes Desktop Text
Size utility and Split Screen utility. Desktop Text
Size allows you to make the text size bigger or
smaller on the desktop according to your usage
and favorite. You can change the text size on the
display and on the title bar of windows by
changing the scaling of the text size. When the
scaling is smaller, more information appears on
the display simultaneously but the text size
becomes smaller. When the scaling is larger,
less information appears on the display
simultaneously but the text size becomes larger.
You can install Split Screen utility by yourself.
Split Screen utility enables you to create multiple
display zones on a screen and to fit the active
windows to within those zones.
To access this utility, click Display Utility under
TOSHIBA group in the Apps view.
For details on this utility, see the help file.
TOSHIBA Password
Utility
This utility allows you to set a password in order
to restrict access to the computer.
To access this utility, click Password Utility
under TOSHIBA group in the Apps view.
User's Manual 5-1
TOSHIBA System
Settings
This utility allows you to customize your
hardware settings according to the way you work
with the computer and the peripherals you use.
To access this utility, click System Settings
under TOSHIBA group in the Apps view.
TOSHIBA Setup
Utility
TOSHIBA Setup Utility is a BIOS setup utility that
provides you a menu-based user interface so
that you can easily view and change BIOS
settings.
For more information, please refer to the
TOSHIBA Setup Utility section.
TOSHIBA eco Utility This computer is equipped with "eco mode". This
mode slightly lowers performance of some
devices to reduce electric power consumption.
You can realize measurable power savings by
using it continuously.
TOSHIBA eco Utility helps control the power
consumption of your computer. Various
information can help you understand your degree
of contribution to the environment.
Furthermore, this utility contains Peak shift
function that can help reduce power usage during
periods of peak demand by shifting some power
consumption to periods when demand is lower.
The utility also supports "eco charge mode". The
battery will not be fully charged in this mode, thus
extending the life cycle of the battery.
It is recommended using the computer with AC
adaptor connected as the battery operating time
is comparatively short in this mode.
Depending on the usage situation, the life cycle
of battery might not be extended properly.
To access this utility, click eco Utility under
TOSHIBA group in the Apps view.
For details on TOSHIBA eco utility, see the help
file.
TOSHIBA Media
Player by sMedio
TrueLink+
This software is a multimedia player which can
be used to play back video, music, and photo.
TOSHIBA Media Player can play back contents
on a local library/home network/OneDrive.To
access it, click the Media Player icon on the
Start screen. For details, refer to the Online help.
User's Manual 5-2
CyberLink MediaStory CyberLink MediaStory helps you to manage and
share your multimedia content quickly. Your
photos and videos are organized by event, date
in a calendar, geographical places, and by
people's faces. You can easily create a polished
slideshow or video of your digital life utilizing your
photos and videos.
This utility is only provided with some models.
To access it, click CyberLink MediaStory in the
Apps view.
For details on how to use CyberLink MediaStory,
check out the tutorials by clicking Preferences (
) in the main window and then clicking
Tutorials.
Do not change the display device while running CyberLink MediaStory.
TOSHIBA Function
Key
This utility allows you to perform some features
by pressing a specified key or combined with the
FN key.
To set up this utility, click Function Key under
TOSHIBA group in the Apps view.
For details, refer to the Function Key section.
TOSHIBA Service
Station
This application allows your computer to
automatically search for TOSHIBA software
updates or other alerts from TOSHIBA that are
specific to your computer system and its
programs. When enabled, this application
periodically transmits to our servers a limited
amount of system information, which will be
treated in strict accordance with the rules and
regulations as well as applicable data protection
law.
To access this utility, click Service Station under
TOSHIBA group in the Apps view.
User's Manual 5-3
TOSHIBA PC Health
Monitor
The TOSHIBA PC Health Monitor application
proactively monitors a number of system
functions such as power consumption, battery
health, and system cooling, informing you of
significant system conditions. This application
recognizes the system and individual component
serial numbers and tracks specific activities
related to their usage.
To access this utility, click PC Health Monitor
under TOSHIBA group in the Apps view.
For details on TOSHIBA PC Health Monitor, see
the help file.
TOSHIBA Audio
Enhancement
TOSHIBA Audio Enhancement provides you the
function of audio source filtering, earphone audio
enhancement, or speaker audio enhancement.
To change the settings, click Audio
Enhancement under TOSHIBA group in the
Apps view.
Trusted Platform
Module (TPM)
The TPM (Trusted Platform Module) is a security
encryption device for the HDD/SSD.
Trusted Platform Module is provided with some
models. To operate the TPM function, use an
applicable utility.
Chroma Tune for
TOSHIBA
Chroma Tune for TOSHIBA is a utility that allows
color setting of your computer.
This utility is only provided with some models.
To access this utility, click Chroma Tune for
TOSHIBA in the Apps view.
For details on Chroma Tune for TOSHIBA, see
the User Manual of the utility.
You might not have all the software listed in this section depending on the
model you purchased.
To access the setup files of the drivers/utilities, click Applications and
Drivers in the Apps view.
Windows Store apps are not included in the setup files above but can be
downloaded from Windows Store.
Special features
The following features are either unique to TOSHIBA computers or are
advanced features which make the computer more convenient to use.
Access each function using the following procedures.
User's Manual 5-4
*1 To access the Power Options, click Control Panel -> System and
Security -> Power Options under Windows System group in the Apps
view.
Display automatic
power off *1
This feature automatically cuts off power to the
computer's display panel when there is no
keyboard input for a specified time, with power
being restored the next time a key is pressed.
This can be specified in the Power Options.
HDD automatic power
off *1
This feature automatically cuts off power to the
hard disk drive when it is not accessed for a
specified time, with power being restored when
the hard disk drive is next accessed. This can be
specified in the Power Options.
System automatic
Sleep/Hibernation
Mode *1
This feature automatically shuts down the system
into either Sleep Mode or Hibernation Mode
when there is no input or hardware access for a
specified time. This can be specified in the Power
Options.
Power on password Two levels of password security, supervisor and
user, are available to prevent unauthorized
access to your computer.
Intelligent power
supply *1
A microprocessor in the computer's intelligent
power supply detects the battery charge,
automatically calculates the remaining battery
capacity, and protects electronic components
from abnormal conditions such as a voltage
overload from the AC adaptor. This can be
specified in the Power Options.
Battery save mode *1 This feature lets you configure the computer in
order to save battery power. This can be
specified in the Power Options.
Panel power on/off *1 This feature automatically turns power to the
computer off when the display panel is closed,
and turns it back on when the display panel is
opened. This can be specified in the Power
Options.
Low battery
automatic Hibernation
Mode *1
When battery power is exhausted to the point
that computer operation cannot be continued, the
system automatically enters Hibernation Mode
and shuts itself down. This can be specified in
the Power Options.
User's Manual 5-5
Sleep Mode If you have to interrupt your work, you can use
this feature to allow you to turn off power to the
computer without exiting from your software.
Data is maintained in the computer's main
memory so that when you next turn on the
power, you can continue working right where you
left off.
Hibernation Mode This feature lets you turn off the power to the
computer without exiting from your software. The
contents of main memory are automatically
saved to the Hard Disk Drive so that when you
next turn on the power again, you can continue
working right where you left off. You must enable
the Hibernation Mode before using this feature.
Refer to the Starting Hibernation Mode section
for more details.
USB Wakeup function This function restores the computer from Sleep
Mode depending on the external devices
connected to the USB ports.
For example, if a mouse or USB keyboard is
connected to a USB port, clicking the mouse
button or pressing the keyboard will wakeup the
computer.
Heat dispersal *1 To protect against overheating, the processor is
equipped with an internal temperature sensor
which lowers the processing speed if the
computer's internal temperature rises to a certain
level.
When the processor's temperature falls within
normal range, the processor operation returns to
its standard speed.
If the processor's temperature reaches an
unacceptably high level with either setting, the
computer automatically shuts down to prevent
any damage. In this instance, all unsaved data in
memory will be lost.
TOSHIBA Password Utility
The TOSHIBA Password Utility provides two levels of password security:
User and Supervisor.
Passwords set by the TOSHIBA Password Utility function are different from
the Windows password.
User's Manual 5-6
User Password
To start the utility, click the following items under TOSHIBA group in the
Apps view:
Password Utility -> User Password
User authentication might be required to validate user rights when using
TOSHIBA Password Utility to delete or change passwords, and so on.
Set (button)
Click this button to register a password. After a password is set, you
are prompted to enter it when you start the computer.
After you set the password, a dialog box appears asking whether you
want to save it to other media. If you forget the password, you can
open the password file on another computer. Be sure to keep the
media in a safe place.
When entering the character string to register the password, enter
from the keyboard character by character and do not enter as ASCII
code or copy-and-paste the character string. In addition, ensure that
the registered password is correct by outputting the character string to
the password file.
When entering a password, do not enter any characters (for example
"!" or "#") produced by pressing the SHIFT or ALT keys.
Delete (button)
Click this button to delete a registered password. Before you can
delete a password, you must first enter the current password correctly.
Change (button)
Click this button to change a registered password. Before you can
change a password, you must first enter the current password
correctly.
Owner String (text box)
You can use this box to associate text with the password. After you
enter text, click Apply or OK. When the computer is started, this text
is displayed together with the prompt asking you to enter a password.
For models equipped with HDD, you can use BIOS Setup to set, change,
or delete the HDD Password or HDD Master Password.
Refer to the TOSHIBA Setup Utility section for further information.
User's Manual 5-7
If you forget your HDD User Password, TOSHIBA will NOT be able to
assist you, and your HDD will be rendered COMPLETELY and
PERMANENTLY INOPERABLE. TOSHIBA will NOT be held
responsible for any loss of any data, any loss of use or access to your
HDD, or for any other losses to you or any other person or
organization that result from the loss of access to your HDD. If you
cannot accept this risk, do not register the HDD User Password.
When saving the HDD User Password shut down or restart the
computer. If the computer is not shut down or restarted, the saved
data might not be correctly reflected. For more information on shutting
down or restarting the computer, refer to Turning on the power.
Supervisor Password
If you set a Supervisor Password, some functions might be restricted when
a user logs on with the User Password. To set a Supervisor Password:
Click Password Utility -> Supervisor Password under TOSHIBA group
in the Apps view.
This utility lets you do the following:
Register or delete the Supervisor Password.
Specify restrictions for general users.
Starting the computer using a password
If you have already registered a user password, there is one way to start
the computer:
Enter the password manually.
The password is necessary only if the computer was shut down in
Hibernation mode or boot mode. It is not needed in Sleep mode and
Restart.
To enter a password manually, do the following:
1. Turn on the power as described in the Getting Started section. The
following message appears in the screen:
Enter Password [ ]
At this point, the function keys do not work. They will function after you
enter the password.
2. Enter the Password.
User's Manual 5-8
3. Press ENTER.
If you enter the password incorrectly three times in a row, or if you do not
enter the password within 1 minute, the computer shuts off. In this case,
some features that can power on the computer automatically (Wake-up on
LAN, Task Scheduler, etc) might not work. You must turn the computer
back on to retry password entry.
TOSHIBA System Settings
TOSHIBA System Settings is the TOSHIBA configuration management tool
available through the Windows operating system.
To run TOSHIBA System Settings, click System Settings under TOSHIBA
group in the Apps view.
The TOSHIBA System Settings window contains a number of tabs to allow
specific functions of the computer to be configured.
In addition there are also three buttons: OK, Cancel and Apply.
OK Accepts your changes and closes the TOSHIBA
System Settings window.
Cancel Closes the window without accepting your
changes.
Apply Accepts all your changes without closing the
TOSHIBA System Settings window.
Some options shown in gray are possible to confirm their status.
TOSHIBA System Settings screen might have the following tabs:
General—Allows you to view the current BIOS version or change
certain settings back to their default values
Display—Allows you to select the internal LCD and/or external monitor
when the computer boots up
Boot Options—Allows you to change the sequence in which your
computer searches the drives for the operating system
Keyboard—Allows you to access the wake-on keyboard function, or to
configure the function keys
USB—Allows you to set conditions for USB
SATA—Allows you to set conditions for SATA
LAN—Allows you to set conditions for LAN
The settings or options explained here might vary depending on the model
you purchased.
User's Manual 5-9
After you changed the settings, a dialog box might appear to prompt you
that the changes will take effect after the computer is restarted. Make sure
to restart your computer immediately to apply these changes.
TOSHIBA Media Player by sMedio TrueLink+
Be aware of the following limitations when you use the TOSHIBA Media
Player by sMedio TrueLink+:
Notes on use
TOSHIBA Media Player by sMedio TrueLink+ is a multimedia player which
can be used to play back video, music, and photo.
This software is only provided with some models.
It is recommended that the AC adaptor is connected while TOSHIBA
Media Player is running. Power saving features might interfere with
smooth playback. When TOSHIBA Media Player is used with a battery
power, set the Power Options to "Balance".
The screen saver is disabled while TOSHIBA Media Player is playing
a video file or slideshows of photos.
The computer will not enter Sleep and Hibernation mode
automatically, while TOSHIBA Media Player is running.
The display automatic power off function is disabled while TOSHIBA
Media Player is playing a video file or slideshows of photos.
The Resolution+ function was specially adjusted for the internal
monitor. Hence, turn OFF Resolution+ when viewing on external
monitor.
The Resolution+ feature for video playback is supported only on some
models. Resolution+ can only be enabled for video/photo playback if
Enhance Video/Photo Quality is displayed. Resolution+ can be
enabled only for photo playback if Enhance Photo Quality is
displayed.
The “Save with Resolution+ On” feature saves pictures with
Resolution+ On regardless of the current Resolution+ setting (On/Off/
Demo). Since the picture is saved in a size appropriate for posting to
SNS (largest edge of width/height is 2048 pixels), the saved picture
might look different than when browsing the original picture with
Resolution+ On.
Playback of video/music/slideshow can be controlled using the media
buttons on the preview window which is invoked when the mouse
cursor is moved over the TOSHIBA Media Player icon on the Windows
Taskbar.
Video/Slideshow playback can only be controlled when the application
is in the foreground.
Music playback can be controlled even when the application is in the
background.
User's Manual 5-10
Playback of high bit rate content might cause frame dropping, audio
skipping or decrease in computer performance.
The above problems could be remedied by turning Resolution+ off.
Tap/click the Refresh button on app commands to refresh the content
displayed on Library Screen. It will not be refreshed automatically.
If sleep, hibernation, shutdown, or reboot operation is in process
during uploading the files to OneDrive, the operation will not be
properly completed.
This app does not support to play back content protected by DRM. If
you try to play DRM protected content with Resolution+ On state, this
app might be closed.
Photos uploaded to OneDrive are limited to a maximum resolution of
2048 x 2048 pixels. Any photo over that resolution will be scaled
proportionally to a maximum size of 2048 x 2048 pixels.
This app does not support DMS.
The playback of some media files might not be normal by this player.
This might also happen when using Windows Media Player and Video
app.
User Interface and operational procedures might differ depending on
the application version. Refer to the Help of TOSHIBA Media Player
by sMedio TrueLink+ for details.
Opening TOSHIBA Media Player by sMedio TrueLink+
Manual
The features and operations about TOSHIBA Media Player are explained
in the TOSHIBA Media Player Manual.
Use the following procedure to open TOSHIBA Media Player Online help:
When TOSHIBA Media Player is running, click Help of the Settings charm.
TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor application proactively monitors a
number of system functions such as power consumption, battery health (for
models with battery), and the system cooling, informing you of significant
system conditions. This application recognizes the system and individual
component serial numbers, and tracks specific activities related to the
computer and their usage.
The collected information includes device operation time and number of
actuations or status changes (that is: number of power button and FN key
combination uses, AC adaptor, battery (for models with battery), LCD, fan
(for models with fan), HDD/SSD, sound volume, wireless communication
functionalities and USB information), date of initial system use, and also
computer and device usage (that is: power settings, battery temperature
and recharging (for models with battery), CPU, memory, backlight
illumination time, and temperatures for various devices). The collected
information is not limited to the examples specified here. The stored data
User's Manual 5-11
uses a very small portion of the total hard disk capacity, approximately 10
MB or less per year.
This information is used to identify and provide a notification of system
conditions which might affect the performance of your TOSHIBA computer.
It might also be used to help diagnose problems should the computer
require service by TOSHIBA or TOSHIBA authorized service providers.
Additionally, TOSHIBA might also use this information for quality assurance
analysis.
Subject to the use restrictions above, the data on the internal storage drive
logged might be transferred to entities located outside of your country or
region of residence (for example, European Union). Those countries might
or might not have the same data protection laws or data protection levels
as required by your home country or region.
You can disable the TOSHIBA PC Health Monitor at any time by
uninstalling the software via Uninstall a program in the Control Panel.
Doing so will automatically delete all collected information from the internal
storage drive.
The TOSHIBA PC Health Monitor software does not extend or modify
TOSHIBA obligations under its standard limited warranty in any way.
TOSHIBA standard limited warranty terms and limitations apply.
Starting the TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor can be opened by clicking PC Health
Monitor under TOSHIBA group in the Apps view.
The TOSHIBA PC Health Monitor main screen is displayed.
This utility might be disabled by default on your computer. You can enable
it by clicking Please click here to enable TOSHIBA PC Health Monitor.
The "PC Health Monitor Software Notice & Acceptance" screen is
displayed. Carefully read the information displayed. Selecting ACCEPT
and clicking OK enables the program. By enabling the TOSHIBA PC
Health Monitor software, you agree with these terms and conditions and to
the use and sharing of the collected information. Once the program is
enabled, the TOSHIBA PC Health Monitor screen is displayed, and the
program begins monitoring system functions and collecting information.
A message is displayed if any changes which might interfere with the
operation of the program are detected. Follow the instructions displayed
on-screen in the message.
TOSHIBA Setup Utility
TOSHIBA Setup Utility is a BIOS setup utility that provides you a menu-
based user interface so that you can easily view and change BIOS
settings.
To enter the BIOS setup utility, do the following:
User's Manual 5-12
1. Save your work.
2. Click the power icon ( ) on the Start screen and then select
Restart.
3. Hold down the F2 key and then release this key one second after the
computer is power on.
The BIOS setup utility can also be launched by button combination (L50W-
C models only):
1. Save your work.
2. Click the power icon ( ) on the Start screen and then select Shut
down.
3. While holding down the Volume down button, press the Power button
to turn on the power. Release the Volume down button after
TOSHIBA Setup Utility is loaded.
Make sure that fast startup is disabled in the Power Options by the
following steps:
1. Click Control Panel -> System and Security -> Power Options under
Windows System group in the Apps view.
2. Click Choose what the power button does or Choose what closing
the lid does.
3. Click Change settings that are currently unavailable.
4. Deselect the Turn on fast startup check box from Shutdown settings.
5. Click the Save changes button.
To save the changes and exit the utility, press the F10 key and proceed by
selecting Yes or select Exit -> Exit Saving Changes -> Yes. The
computer will restart immediately.
Navigating the utility (L50W-C)
TOSHIBA Setup Utility can be navigated through the touch screen.
Some buttons on the computer are also designated to execute the
corresponding key function on the keyboard. Details are described as
follows:
Button Key Function
Windows Enter key Proceed or confirm
operation
Volume up Up arrow key Select the previous item
Volume down Down arrow key Select the next item
User's Manual 5-13
System Recovery
There is a hidden partition allocated on the Hard Disk Drive for the System
Recovery Options in the event of a problem.
You can also create recovery media and restore the system.
The following items are described in this section:
Creating Recovery Media
Restoring the pre-installed software from your created Recovery
Media
Restoring the pre-installed software from the Recovery Hard Disk
Drive
Creating Recovery Media
This section describes how to create Recovery Media.
Be sure to connect the AC adaptor when you create Recovery Media.
Be sure to close all other software programs except the Recovery
Media Creator.
Do not run software such as screen savers which can put a heavy
load on the CPU.
Operate the computer at full power.
Do not use power-saving features.
Do not write to the media when the virus check software is running.
Wait for it to finish, then disable virus detection programs including any
software that checks files automatically in the background.
Do not use utilities, including those intended to enhance Hard Disk
Drive access speed. They might cause unstable operation and
damage data.
Do not shut down/log off or Sleep/Hibernate while writing or rewriting
the media.
Set the computer on a level surface and avoid places subjected to
vibrations such as airplanes, trains, or cars.
Do not use on an unstable surface such as a stand.
A recovery image of the software on your computer is stored on the Hard
Disk Drive, and can be copied to either disc media or USB Flash Memory
by using the following steps:
1. Select either blank disc or USB Flash Memory.
The application allows you to choose from a variety of different media
onto which the recovery image can be copied including disc media
and USB Flash Memory.
User's Manual 5-14
Some of the disc media might not be compatible with the optical disc
drive connected to your computer. You should therefore verify that the
optical disc drive supports the blank media you have chosen before
proceeding.
USB Flash Memory will be formatted and all the data in the USB Flash
Memory will be lost when proceeding.
2. Turn on your computer and allow it to load the Windows operating
system from the Hard Disk Drive as normal.
3. Insert the first blank disc into the external optical disc drive tray, or
insert the USB Flash Memory into one available USB port.
4. Click Recovery Media Creator under TOSHIBA group in the Apps
view.
5. After Recovery Media Creator starts, select the type of media and the
title you wish to copy, and then click the Create button.
Restoring the pre-installed software from your created
Recovery Media
If the pre-installed files are damaged, you are able to use the Recovery
Media you have created to restore the computer to the state it was in when
you originally received it. To perform this restoration, do the following:
Make sure that the AC adaptor is connected during the restoring process.
When you reinstall the Windows operating system, the hard disk will
be reformatted and all data will be lost.
Make sure to use the default Boot Mode option in the BIOS setup
utility before restoring.
1.Launch the BIOS setup utility.
Please refer to the TOSHIBA Setup Utility section for further
information.
3. In the BIOS setup screen, select Advanced -> System
Configuration -> Boot Mode.
Note: Please skip the following contents if you cannot find the Boot
Mode option in your system.
4. Select UEFI Boot (Default).
If you set the Boot Mode as CSM Boot, the recovery media created by
Recovery Media Creator will NOT be able to restore.
If you create a recovery image using advanced recovery tools from
Control Panel, also make sure to use the default Boot Mode option
(UEFI Boot) in the BIOS setup utility before restoring.
User's Manual 5-15
1. Load the Recovery Media into the external optical disc drive or insert
the recovery USB Flash Memory into one available USB port.
2. Click the power icon ( ) on the Start screen and then select Restart.
3. Hold down the F12 key and then release this key one second after the
computer is power on.
4. Use the up and down cursor key to select the appropriate option from
the menu according to your actual recovery media.
5. A menu is displayed from which you should follow the on-screen
instructions.
For some models, Office will no longer be present after the recovery
completes. To enable users to reinstall Office, do the following:
If you have a product key for an Office 365 product, you can enter
the key at
https://officesetup.getmicrosoftkey.com/
You can also go directly to your Office Account at
https://office.microsoft.com/MyAccount.aspx to install.
If you have a product key for Office Home and Student, Office
Home and Business or Office Professional, you can go to https://
downloadoffice.getmicrosoftkey.com/ to install.
If you have previously chosen to remove the recovery partition and are
trying to create "Recovery Media", the following message apppears: "The
Recovery Media Creator can not be launched because there is no recovery
partition."
When there is no recovery partition, the Recovery Media Creator cannot
make Recovery Media.
However, if you have already created a "Recovery Media", you can use it
to restore the recovery partition.
If you have not created "Recovery Media", contact TOSHIBA support for
assistance.
Restoring the pre-installed software from the
Recovery Hard Disk Drive
A portion of the total Hard Disk Drive space is configured as a hidden
recovery partition. This partition stores files which can be used to restore
pre-installed software in the event of a problem.
If you set up your Hard Disk Drive again later, do not change, delete, or
add partitions in a manner other than specified in the manual, otherwise
you might find that space for the required software is not available.
In addition, if you use a third-party partitioning program to reconfigure the
partitions on your Hard Disk Drive, you might find that it becomes
impossible to set up your computer.
User's Manual 5-16
Make sure that the AC adaptor is connected during the restoring process.
When you reinstall the Windows operating system, the hard disk will be
reformatted and all data will be lost.
1. Click the power icon ( ) on the Start screen and then select
Restart.
2. Hold down 0 (zero) key and then release this key one second after the
computer is power on. Choose Yes if you want to continue.
3. Select Troubleshoot.
4. Select Reset your PC.
5. Follow the on-screen instructions to finish the recovery.
You can also perform the restoration through PC settings in the operating
system:
1. Click the Settings charm and click Change PC settings.
2. Click Update and recovery under PC settings and then click
Recovery.
3. Click Get started under Remove everything and reinstall Windows.
4. Follow the on-screen instructions to finish the recovery.
User's Manual 5-17
Chapter 6
Troubleshooting
TOSHIBA has designed this computer for durability, however, should
problems occur you are able to use the procedures detailed in this chapter
to help determine the cause.
You should become familiar with this chapter as knowing what might go
wrong can help prevent problems from occurring in the first place.
Problem-solving process
If you observe the following guidelines, resolving problems will be much
easier.
Stop immediately when you recognize a problem exists as taking
further action might result in data loss or damage, or you might
destroy valuable problem-related information that can help solve the
problem.
Observe what is happening. Write down what the system is doing and
what actions you performed immediately before the problem occurred.
Make a screenshot of the current display.
Also be aware that the questions and procedures described in this chapter
are meant only as a guide, they are not definitive problem-solving
techniques. In reality many problems can be solved simply, but a few might
require help from TOSHIBA Support. If you find you need to consult others,
be prepared to describe the problem in as much detail as possible.
Preliminary checklist
You should always consider the simplest solution first. The items detailed
in this checklist are easy to fix and yet can cause what appears to be a
serious problem:
Make sure that you turn on all peripheral devices before you turn on
the computer. This includes your printer and any other external device
you are using.
Before you attach an external device you should first turn off the
computer, then when you turn the computer back on it recognizes the
new device.
Make sure that all optional accessories are configured properly in the
computer's setup program and that all required driver software has
been loaded (refer to the documentation included with the optional
accessories for further information on its installation and
configuration).
User's Manual 6-1
Check all cables to ensure that they are correctly and firmly attached
to the computer - loose cables can cause signal errors.
Inspect all connecting cables for loose wires and all connectors for
loose pins.
Check that your disc media is correctly loaded
Always try to make detailed notes of your observations and keep them in a
permanent error log - this helps you to describe your problems to TOSHIBA
Support. In addition, if a problem recurs, the log you have made helps to
identify the problem faster.
Analyzing the problem
Sometimes the computer gives you clues that can help you identify why it
is malfunctioning. In view of this, keep the following questions in mind:
Which part of the computer is not operating properly - keyboard, Hard
Disk Drive, display panel, Touch Pad, Touch Pad control buttons - as
each device produces different symptoms.
Check the options within the operating system to ensure that its
configuration is set properly.
What appears on the display? Does it display any messages or
random characters? Make a screenshot of the current display and, if
possible, look up the messages in the documentation included with the
computer, software, or operating system.
Check that all connecting cables are correctly and firmly attached as
loose cables can cause erroneous or intermittent signals.
Do any indicators light, if so, which ones, what color are they and do
they stay on or blink? Write down what you see.
Do you hear any beeps, if so how many, are they long or short and are
they high pitched or low pitched? In addition, is the computer making
any unusual noises? Write down what you hear.
Record your observations so you can describe them in detail to TOSHIBA
Support.
Software The problems might be caused by your software
or disk. If you cannot load a software package,
the media might be damaged or the program
might be corrupted. In these instances, try
loading another copy of the software if possible.
If an error message appears while you are using
a software package, you should refer to the
documentation supplied with it as this usually
includes a problem-solving section or a summary
of error messages.
Next, check any error messages against the
operating system documentation.
User's Manual 6-2
Hardware If you cannot find a software problem, you should
then check the setup and configuration of your
hardware. First run through the items in the
preliminary checklist as described previously
then, if you still cannot correct the problem, try to
identify the source. The next section provides
checklists for individual components and
peripherals.
Before using a peripheral device or application software that is not an
authorized TOSHIBA part or product, make sure that the device or software
can be used with your computer. Use of incompatible devices might cause
injury or might damage your computer.
If something goes wrong
Your computer does not respond to the keyboard commands
If an error occurs and the computer does not respond to your keyboard
commands, do the following:
Press the power button and hold it down for five seconds. Once the
computer has turned itself off, wait 10–15 seconds before turning on the
power again by pressing the power button.
Your program stops responding
If you are working with a program that suddenly freezes all operations,
chances are the program has stopped responding. You can exit the failed
program without shutting down the operating system or closing other
programs.
To close a program that has stopped responding:
1. Press CTRL, ALT, and DEL simultaneously (once), then click Task
Manager. The Windows Task Manager window appears.
2. Select the program you want to close, then click End Task. Closing
the failed program should allow you to continue working. If it does not,
continue with the next step.
3. Close the remaining programs one by one by selecting the program
name, then End Task. Closing all programs should allow you to
continue working. If it does not, power off your computer and then
restart it.
The computer does not start
Make sure that you attached the AC adaptor and power cord/cable
properly.
If you are using the AC adaptor, check that the wall outlet is working by
plugging in another device, such as a lamp.
User's Manual 6-3
Verify that the computer is on by looking at the Power indicator.
If the indicator is glowing, the computer is on. Also, try turning the computer
off and then on.
If you are using an AC adaptor, verify that the computer is receiving power
from the external power source by looking at the DC IN/Battery indicator. If
the indicator is glowing, the computer is connected to a live external power
source.
The computer does not load advanced options during
startup
By holding down one of the following keys or buttons during startup, your
computer can load the following advanced options.
Advanced option Key Button (L50W-C)
BIOS utility F2 Volume down
Boot menu F12 Volume up
Recovery options 0 (zero) -
If your computer starts to load the Operating System instead of desired
advanced options, do the following:
Make sure that fast startup is disabled in the Power Options by the
following steps:
1. Click Control Panel -> System and Security -> Power Options under
Windows System group in the Apps view.
2. Click Choose what the power button does or Choose what closing
the lid does.
3. Click Change settings that are currently unavailable.
4. Deselect the Turn on fast startup check box from Shutdown settings.
5. Click the Save changes button.
1. Click the power icon ( ) on the Start screen and then select Shut
down.
2. While holding down the corresponding key or button, press the Power
button to turn on the power.
3. Follow the on-screen instructions to proceed.
Hardware and system checklist
This section discusses problems caused by your computer’s hardware or
attached peripherals. Basic problems might occur in the following areas:
User's Manual 6-4
Power
Keyboard
Internal display panel
Hard Disk Drive
Memory Media Card
Pointing Device
USB device
Sound system
External monitor
Wireless LAN
Bluetooth
Power
When the computer is not plugged into an AC power outlet, the battery
pack is the primary power source. Your computer also has Real-Time
Clock (RTC) function. All of the power resources are interrelated with
anyone having the ability to produce apparent power problems.
Overheating power down
If the processor's temperature reaches an unacceptably high level with
either setting, the computer automatically shuts down to prevent any
damage. In this instance, all unsaved data in memory is lost.
Problem Procedure
Computer shuts
down automatically.
Leave the computer off until it reaches room
temperature. If the computer has reached room
temperature and it still does not start, or if it starts
but shuts down quickly, contact TOSHIBA Support.
AC power
If you have trouble turning on the computer with the AC adaptor connected,
check the status of the DC IN/Battery indicator. Refer to the Power
Condition Descriptions section for further information.
Problem Procedure
AC adaptor does not
power the computer
Check the connections to make sure that the
power cord/adaptor is firmly connected to the
computer and a working power outlet.
Check the condition of the cord and terminals. If
the cord is frayed or damaged it should be
replaced, while if the terminals are soiled, they
should be cleaned with a clean cotton cloth.
If the AC adaptor still does not power the
computer, you should contact TOSHIBA Support.
User's Manual 6-5
Battery
If you suspect a problem with the battery, check the status of the DC IN/
Battery indicator.
Problem Procedure
Battery does not
power the computer
The battery might be discharged. Connect the AC
adaptor to recharge the battery.
Battery does not
charge when the AC
adaptor is attached.
If the battery is completely discharged, it will not
begin charging immediately. In these instances,
wait a few minutes before trying again. If the
battery still does not charge, check that the power
outlet the AC adaptor is connected to is supplying
power. This can be tested by plugging another
appliance into it.
Battery does not
power the computer
as long as expected
If you frequently recharge a partially charged
battery, the battery might not charge to its full
potential. In these instances, you should fully
discharge the battery and then attempt to charge it
again.
Check the Power saver option under Choose or
customize a power plan in the Power Options.
Real-Time Clock
Problem Procedure
The BIOS setting
and system date/
time are lost.
The lasting time of the Real-Time Clock (RTC) has
run out. You must set the date and time in the
BIOS setup utility by using the following steps:
1. Launch the BIOS setup utility.
Refer to the TOSHIBA Setup Utility section for
further information.
2. Set the date in the System Date field.
3. Set the time in the System Time field.
4. Follow the on-screen instructions to proceed.
5. Select Yes - the BIOS setup utility will end
and the computer will restart.
Keyboard
Keyboard problems can be caused by the setup and configuration of the
computer. Refer to the The Keyboard section for further information.
User's Manual 6-6
Problem Procedure
Output to screen is
garbled
Refer to your software documentation to ensure
that it is not remapping the keyboard in any way
(remapping involves changing or reassigning the
function of each key).
If you are still unable to use the keyboard, you
should contact TOSHIBA Support.
Internal display panel
Apparent problems of the computer's display panel might be related to
setup and configuration of the computer.
Problem Procedure
No display Press the function keys to adjust the display
priority, and to make sure that it is not set for
output to an external monitor.
Markings appear on
the computer's
display panel.
These marks might have come from contact with
the keyboard and Touch Pad while the display
panel has been closed. Try to remove the marks
by gently wiping the display panel with a clean dry
cloth or, if this fails, with a good quality LCD screen
cleaner. In this latter instance, you should always
follow the instructions with the screen cleaner and
always ensure that you let the display panel dry
properly before closing it.
Hard Disk Drive
Problem Procedure
Computer does not
boot from Hard Disk
Drive
Check to see whether there is a disc in the external
optical disc drive - if so remove it and try to start
the computer again.
If this has no effect, check the Boot Priority
Options setting within the TOSHIBA System
Settings.
User's Manual 6-7
Problem Procedure
Slow performance The files on the Hard Disk Drive might be
fragmented. In this instance, you should run the
disk Defragmentation utility to check the condition
of your files and the Hard Disk Drive. Refer to the
operating system's documentation or online Help
File for further information on operating and using
the Defragmentation utility.
As a last resort, you should reformat the Hard Disk
Drive and then reload the operating system and all
other files and data. If you are still unable to
resolve the problem, contact TOSHIBA Support.
Memory Media Card
For further information, refer to Operating Basics.
Problem Procedure
Memory media card
error occurs
Remove the memory media card from the
computer and then reinsert it in order to ensure
that it is firmly connected.
If the problem persists, then you should refer to the
documentation supplied with your memory media
card for further information.
You cannot write to
a memory media
card
Remove the memory media card from the
computer and check to ensure that it is not write
protected.
You cannot read a
file
Check to ensure that the required file is actually on
the memory media card that is inserted into the
computer.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
Pointing device
If you are using a USB mouse, you should also refer to both the USB
mouse section and the documentation supplied with your mouse.
User's Manual 6-8
Touch Pad
Problem Procedure
The Touch Pad does
not work.
Check the Device Select settings.
Click Control Panel -> Hardware and Sound ->
Mouse under Windows System group in the Apps
view.
On-screen pointer
does not respond to
pointing device
operation
In this instance, the system might be busy. Try
moving the mouse again after waiting a short
while.
Double-tapping
(Touch Pad) does
not work
In this instance, you should initially try changing
the double-click speed setting within the Mouse
Control utility.
1. To access this utility, click Control Panel ->
Hardware and Sound -> Mouse under
Windows System group in the Apps view.
2. Within the Mouse Properties window, click the
Buttons tab.
3. Set the double-click speed as required and
click OK.
The on-screen
pointer moves too
fast or too slow
In this instance, you should initially try changing
the speed setting within the Mouse Control utility.
1. To access this utility, click Control Panel ->
Hardware and Sound -> Mouse under
Windows System group in the Apps view.
2. Within the Mouse Properties window, click the
Pointer Options tab.
3. Set the pointer speed as required and click
OK.
The reaction of
Touch Pad is either
too sensitive or not
sensitive enough.
Adjust the touch Sensitivity.
To access it, click Control Panel -> Hardware
and Sound -> Mouse under Windows System
group in the Apps view.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
User's Manual 6-9
USB mouse
Problem Procedure
On-screen pointer
does not respond to
mouse operation
In this instance, the system might be busy. Try
moving the mouse again after waiting a short
while.
Remove the mouse from the computer and then
reconnect it to a free USB port in order to ensure
that it is firmly attached.
Double-clicking does
not work
In this instance, you should initially try changing
the double-click speed setting within the Mouse
Control utility.
1. To access this utility, click Control Panel ->
Hardware and Sound -> Mouse under
Windows System group in the Apps view.
2. Within the Mouse Properties window, click the
Buttons tab.
3. Set the double-click speed as required and
click OK.
The on-screen
pointer moves too
fast or too slow
In this instance, you should initially try changing
the speed setting within the Mouse Control utility.
1. To access this utility, click Control Panel ->
Hardware and Sound -> Mouse under
Windows System group in the Apps view.
2. Within the Mouse Properties window, click the
Pointer Options tab.
3. Set the pointer speed as required and click
OK.
The on-screen
pointer moves
erratically
The elements of the mouse responsible for
detecting movement might be dirty. Refer to the
documentation supplied with the mouse for
instructions on how to clean it.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
USB device
In addition to the information in this section, also refer to the documentation
supplied with your USB device.
User's Manual 6-10
Problem Procedure
USB device does not
work
Remove the USB device from the computer and
then reconnect it to a free port in order to ensure
that it is firmly attached.
Ensure that any required USB device drivers are
properly installed. To achieve this, you should refer
to both the device documentation and the
operating system documentation.
Sound system
In addition to the information in this section, also refer to the documentation
supplied with your audio device.
Problem Procedure
No sound is heard Press the function keys to increase or decrease
volume.
Check the software volume settings.
Check to see if Mute is turned to Off
Check to make sure that the headphone
connection is secure.
Check within the Windows Device Manager
application to ensure that the sound device is
enabled and that the device is properly working.
Annoying sound is
heard
In this instance, you might be experiencing
feedback from either the internal microphone or an
external microphone connected to the computer.
Refer to Sound System and Video mode for further
information.
Volume cannot be adjusted during Windows start
up or shut down.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
External monitor
Also refer to Operating Basics, and to the documentation supplied with
your monitor for further information.
User's Manual 6-11
Problem Procedure
Monitor does not
turn on
After confirming that the monitor's power switch is
on, check the connections to make sure that the
power cord/adaptor is firmly connected to the
monitor and to a working power outlet.
No display Try adjusting the contrast and brightness controls
on the external monitor.
Press the function key in order to change the
display priority and ensure that it is not set for the
internal display only.
Check to see if the external monitor is connected.
When the external monitor is set as the primary
display device in extended desktop mode, it does
not display when the computer wakes up from
Sleep Mode if the external monitor has been
disconnected while in Sleep Mode.
To keep this from happening, do not disconnect
the external monitor while the computer is in Sleep
or Hibernation Mode.
Remember to turn off the computer before
disconnecting the external monitor.
When the display panel and an external monitor
are set to clone mode and they are turned off by
the timer, the display panel or the external monitor
might not display when turned on again.
If this occurs, press the function key to reset the
display panel and external monitor to clone mode.
Display error occurs Check that the cable connecting the external
monitor to the computer is firmly attached.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
Wireless LAN
Problem Procedure
Cannot access
Wireless LAN
Make sure that the wireless communication
function of the computer is on.
If problems persist, contact your LAN
administrator.
User's Manual 6-12
Bluetooth
Problem Procedure
Cannot access
Bluetooth device
Check to ensure that the wireless communication
function of the computer is on.
Check to ensure that the Bluetooth Manager
application is running on the computer and that
power to the external Bluetooth device is turned
on.
Check to ensure that no optional Bluetooth Adaptor
is installed in the computer. The built-in Bluetooth
hardware cannot operate simultaneously with
another Bluetooth controller.
If you are still unable to resolve the problem,
contact TOSHIBA Support.
TOSHIBA support
If you require any additional help using your computer or if you are having
problems operating the computer, you might need to contact TOSHIBA for
additional technical assistance.
Before you call
Some problems you experience might be related to software or the
operating system so it is important that you investigate other sources of
assistance first. Before contacting TOSHIBA, try the following:
Review troubleshooting sections in the documentation supplied with
your software and/or peripheral devices.
If a problem occurs when you are running software applications,
consult the software documentation for troubleshooting suggestions
and consider calling the software company's technical support
department for assistance.
Consult the reseller or dealer from where you purchased your
computer and/or software - they are your best resource for current
information and support.
TOSHIBA technical support
If you are still unable to solve the problem and suspect that it is hardware-
related, visit TOSHIBA technical support website
http://www.toshiba.co.jp/worldwide/
User's Manual 6-13
Chapter 7
Appendix
Specifications
This section summarizes the technical specifications of the computer.
Physical Dimensions
The following physical dimensions do not include parts that extend beyond
the main body. The physical dimensions might vary depending on the
model you purchased.
Size Approximately 379.5 (w) x 244.9 (d) x 19.4/20.1 (h)
millimeters
Approximately 379.5 (w) x 244.9 (d) x 20.1/22.7 (h)
millimeters
(not including parts that extend beyond the main body).
Environmental Requirements
Conditions Ambient temperature Relative humidity
Operating 5°C (41°F) to 35°C
(95°F)
20% to 80%
(noncondensing)
Non-operating -20°C (-4°F) to 60°C
(140°F)
10% to 90%
(noncondensing)
Wet-bulb temperature 29°C maximum
Conditions Altitude (from sea
level)
Operating -60 to 3,000 meters
Non-operating -60 to 10,000 meters
maximum
Power Requirements
AC adaptor 100-240V AC
50 Hz or 60 Hz (cycles per second)
User's Manual 7-1
Computer 19V DC
AC Power Cord and Connectors
The AC input plug of the power cord must be compatible with the various
international AC power outlets and the cord must meet the standards for
the country/region in which it is used. All cords must meet the following
specifications:
Wire size: Minimum 0.75 mm2
Current rating: Minimum 2.5 amperes
Certification agencies
China: CQC
U.S. and Canada: UL listed and CSA certified
No. 18 AWG, Type SVT or SPT-2
Australia: AS
Japan: DENANHO
Europe:
Austria: OVE Italy: IMQ
Belgium: CEBEC The Netherlands: KEMA
Denmark: DEMKO Norway: NEMKO
Finland: FIMKO Sweden: SEMKO
France: LCIE Switzerland: SEV
Germany: VDE United Kingdom: BSI
In Europe, two conductors power cord must be VDE type, H05VVH2-F or
H03VVH2-F and for three conductors power cord must be VDE type,
H05VV-F.
For the United States and Canada, two-pin plug configuration must be a
2-15P (250 V) or 1-15P (125 V) and three-pin plug configuration must be
6-15P (250 V) or 5-15P (125 V) as designated in the U.S. National
Electrical code handbook and the Canadian Electrical Code Part II.
User's Manual 7-2
The following illustrations show the plug shapes for the U.S.A. and
Canada, the United Kingdom, Australia, Europe, and China.
USA
UL approved
United Kingdom
BS approved
Australia
AS approved
Europe
Approved by the appropriate
agency
Canada
CSA approved
China
CCC approved
Information for Wireless Devices
Wireless Technology Interoperability
The Wireless LAN is compatible with other LAN systems Direct Sequence
Spread Spectrum (DSSS) /Orthogonal Frequency Division Multiplexing
(OFDM) radio technology, and is compliant to:
The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n, b/g/n
or Revision a/b/g/n/ac), as defined and approved by the Institute of
Electrical and Electronics Engineers.
Bluetooth® Modules are designed to be interoperable with any product with
Bluetooth wireless technology that is based on Frequency Hopping Spread
Spectrum (FHSS) radio technology, and is compliant to:
Bluetooth Specification (depending on the model you purchased), as
defined and approved by the Bluetooth Special Interest Group.
Logo certification with Bluetooth wireless technology as defined by the
Bluetooth Special interest Group.
This Bluetooth product is not compatible with devices using Bluetooth
Version 1.0B specifications.
The wireless devices have not completed verification of connection and
operation with all devices which are using the Wireless LAN or Bluetooth
radio technology.
User's Manual 7-3
Bluetooth and Wireless LAN devices operate within the same radio
frequency range and might interfere with one another. If you use Bluetooth
and Wireless LAN devices simultaneously, you might occasionally
experience a less than optimal network performance or even lose your
network connection.
If you experience any such problem, immediately turn off either one of your
Bluetooth or Wireless LAN.
If you have any questions about using Wireless LAN or Bluetooth Module,
visit
http://www.pc.support.global.toshiba.com
In Europe, visit
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm
Wireless Devices and your health
Wireless products, like other radio devices, emit radio frequency
electromagnetic energy. The level of energy emitted by Wireless products
however is far much less than the electromagnetic energy emitted by
wireless devices like for example mobile phones.
Because Wireless products operate within the guidelines found in radio
frequency safety standards and recommendations, TOSHIBA believes
Wireless products are safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature.
In some situations or environments, the use of Wireless products may be
restricted by the proprietor of the building or responsible representatives of
the organization. These situations may for example include:
Using the Wireless products equipment on board of airplanes, or
In any other environment where the risk of interference to other
devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices
in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use the Wireless device prior to
turning on the equipment.
Wireless LAN Technology
The wireless communication function of the computer supports some
wireless communication devices.
Only some models are equipped with both Wireless LAN and Bluetooth
functions.
User's Manual 7-4
Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a
microwave oven or in areas subject to radio interference or magnetic
fields. Interference from a microwave oven or other source can disrupt
Wi-Fi or Bluetooth operation.
Turn off all wireless functionalities when near a person who might
have a cardiac pacemaker implant or other medical electric device.
Radio waves might affect pacemaker or medical device operation,
possibly resulting in serious injury. Follow the instruction for your
medical device when using any wireless functionality.
Always turn off wireless functionality if the computer is near automatic
control equipment or appliances such as automatic doors or fire
detectors. Radio waves can cause malfunction of such equipment,
possibly resulting in serious injury.
It might not be possible to make a network connection to a specified
network name using the ad hoc network function. If this occurs, the
new network (*) has to be configured for all computers connected to
the same network in order to re-enable network connections.
* Make sure to use new network name.
Security
TOSHIBA strongly recommends that you enable encryption
functionality, otherwise your computer is open to illegal access by an
outsider using a wireless connection. If this occurs, the outsider might
illegally access your system, eavesdrop, or cause the loss or
destruction of stored data.
TOSHIBA is not liable for the loss of data due to eavesdropping or
illegal access through the wireless LAN and the damage thereof.
Card Specifications
Compatibility IEEE 802.11 Standard for Wireless LANs
Network Operating
System
Microsoft Windows Networking
Media Access
Protocol
CSMA/CA (Collision Avoidance) with
Acknowledgment (ACK)
Radio Characteristics
Radio Characteristics of Wireless LAN module might vary according to:
Country/region where the product was purchased
Type of product
Wireless communication is often subject to local radio regulations.
Although Wireless LAN wireless networking products have been designed
for operation in the license-free 2.4 GHz and 5 GHz band, local radio
User's Manual 7-5
regulations might impose a number of limitations to the use of wireless
communication equipment.
Radio Frequency Band 5 GHz (5150-5850 MHz) (Revision a
and n)
Band 2.4 GHz (2400-2483.5 MHz) (Revision
b/g and n)
The range of the wireless signal is related to the transmit rate of the
wireless communication. Communications at lower transmit range might
travel larger distances.
The range of your wireless devices can be affected when the
antennas are placed near metal surfaces and solid high-density
materials.
Range is also impacted due to "obstacles" in the signal path of the
radio that might either absorb or reflect the radio signal.
Radio Frequency Interference Requirements
This device is restricted to indoor use due to its operation in the 5.15 to
5.25GHz frequency range.
High-power radars are allocated as primary users (i.e. priority users) of the
bands 5.25 to 5.35GHz and 5.65 to 5.85GHz and that these radars could
cause interference and/or damage to LE-LAN devices.
Bluetooth wireless technology
Some computers in this series have Bluetooth wireless communication
function which eliminates the need for cables between electronic devices
such as computers, printers, and mobile phones. When it is enabled,
Bluetooth provides the wireless personal area network environment which
is safe and trustworthy, that is quick and easy.
You cannot use the built-in Bluetooth functions of the computer and an
external Bluetooth adaptor simultaneously. For reference, Bluetooth
wireless technology has the following features:
Security
Two advanced security mechanisms ensure a high level of security:
Authentication prevents access to critical data and makes it impossible
to falsify the origin of a message.
Encryption prevents eavesdropping and maintains link privacy.
Worldwide operation
The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band,
which is license-free and compatible with radio systems in most countries
in the world.
User's Manual 7-6
Radio links
You can easily establish links between two or more devices, with these
links being maintained even if the devices are not within a line-of-sight of
each other.
Radio Regulatory Information
The Wireless device must be installed and used in strict accordance with
the manufacturer’s instructions as described in the user documentation that
comes with the product. This product complies with the following radio
frequency and safety standards.
Europe
Restrictions for Use of 2400.0-2483.5MHz Frequencies in Europe
France: Outdoor use
limited to 10mW
e.i.r.p. within the
band
2454-2483.5MHz
Military Radiolocation
use.Refarming of the 2.4GHz band
has been ongoing in recent years to
allow current relaxed regulation Full
implementation planned 2012.
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises. For public use, a general
authorization is required.
Luxembourg: Implemented General authorization required for
network and service supply.
Norway: Implemented This subsection does not apply for
the geographical area within a
radius of 20 km from the centre of
Ny-Alesund.
Russian
Federation:
- Only for indoor applications.
Restrictions for Use of 5150-5350MHz Frequencies in Europe
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply.
User's Manual 7-7
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use
only for indoor applications, closed
industrial and warehouse areas,
and on board aircraft.
1. Permitted to use for local
networks of aircraft crew
service communications on
board aircraft in area of the
airport and at all stages of
flight.
2. Permitted to use for public
wireless access local networks
on board aircraft during a flight
at the altitude not less than
3000m.
Restrictions for Use of 5470-5725MHz Frequencies in Europe
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use
only for indoor applications, closed
industrial and warehouse areas,
and on board aircraft.
1. Permitted to use for local
networks of aircraft crew
service communications on
board aircraft in area of the
airport and at all stages of
flight.
2. Permitted to use for public
wireless access local networks
on board aircraft during a flight
at the altitude not less than
3000m.
To remain in conformance with European spectrum usage laws for
Wireless LAN operation, the above 2.4GHz and 5GHz channel limitations
apply for outdoor usage. The user should use the wireless LAN utility to
User's Manual 7-8
check the current channel of operation. If operation is occurring outside of
the allowable frequencies for outdoor use, as listed above, the user must
contact the applicable national spectrum regulator to request a license for
outdoor operation.
Canada - Industry Canada (IC)
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada
applicable aux appareils radio exempts de licence. Son fonctionnement est
sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage
reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont réservés
uniquement pour une utilisation à l'intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
Les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la
priorité) pour les bandes 5.25-5.35GHz et 5.65-5.85GHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-
EL.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
Refer to the FCC information section for the detailed information.
The radiated output power of the Wireless device is far below the FCC
radio frequency exposure limits. Nevertheless, the Wireless device shall be
used in such a manner that the potential for human contact during normal
operation is minimized.
User's Manual 7-9
The installer of this radio equipment must ensure that the antenna is
located or pointed such that it does not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website
www.hc-sc.gc.ca
Taiwan
Article 12 Without permission granted by the NCC, any
company, enterprise, or user is not allowed to
change frequency, enhance transmitting power or
alter original characteristic as well as performance
to an approved low power radio frequency devices.
Article 14 The low power radio-frequency devices shall not
influence aircraft security and interfere legal
communications;
If found, the user shall cease operating
immediately until no interference is achieved.
The said legal communications means radio
communications is operated in compliance with the
Telecommunications Act.
The low power radio-frequency devices must be
susceptible with the interference from legal
communications or ISM radio wave radiated
devices.
Using this equipment in Japan
In Japan, the frequency bandwidth of 2,400MHz to 2,483.5MHz for second
generation low-power data communication systems such as this equipment
overlaps that of mobile object identification systems (premises radio station
and specified low-power radio station).
1. Important notice
The frequency bandwidth of this equipment may operate within the same
range as industrial devices, scientific devices, medical devices, microwave
ovens, licensed radio stations and non-licensed specified low-power radio
stations for mobile object identification systems (RFID) used in factory
production lines (Other Radio Stations).
1. Before using this equipment, ensure that it does not interfere with any
of the equipment listed above.
User's Manual 7-10
2. If this equipment causes RF interference to other radio stations,
promptly change the frequency being used, change the location of
use, or turn off the source of emissions.
3. Contact an authorized TOSHIBA service provider if you have
problems with interference caused by this product to Other Radio
Stations.

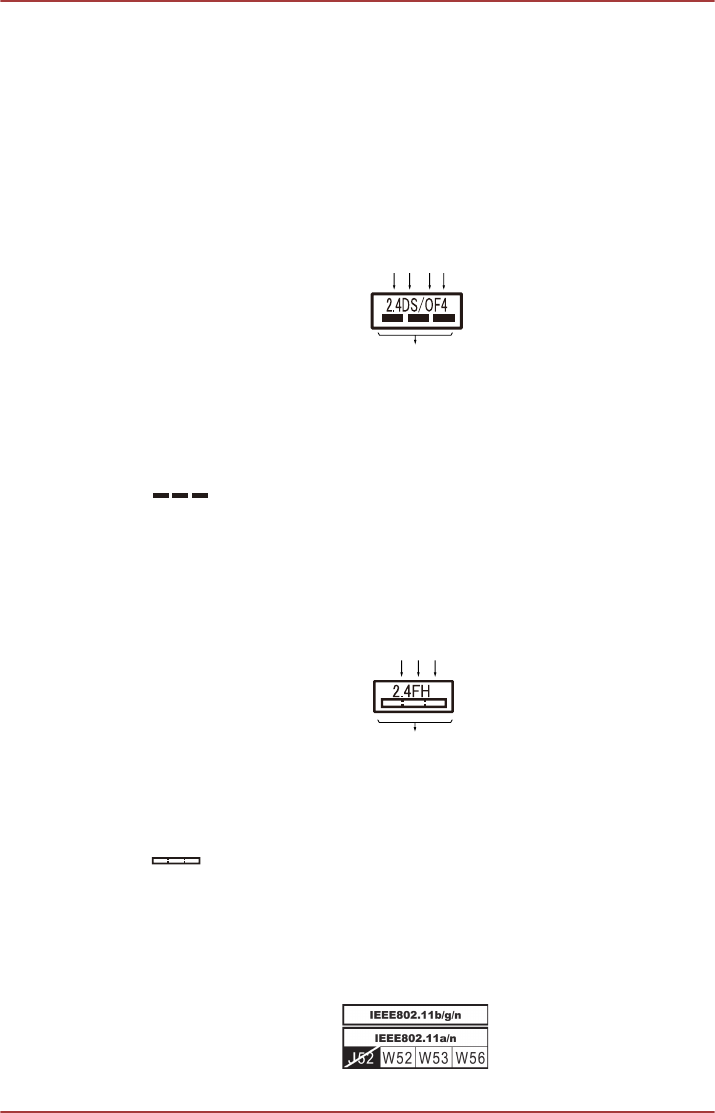

2. Indication for Wireless LAN
The indication shown below appears on this equipment.
(1)(2) (3)(4)
(5)
1. 2.4: This equipment uses a frequency of 2.4GHz.
2. DS: This equipment uses DS-SS modulation.
3. OF: This equipment uses OFDM modulation.
4. 4: The interference range of this equipment is less than 40m.
5. : This equipment uses a frequency bandwidth from 2,400MHz
to 2,483.5MHz. It is possible to avoid the band of mobile object
identification systems.
3. Indication for Bluetooth
The indication shown below appears on this equipment.
(4)
(1) (2) (3)
1
1. 2.4: This equipment uses a frequency of 2.4 GHz.
2. FH: This equipment uses FH-SS modulation.
3. 1: The interference range of this equipment is less than 10m.
4. : This equipment uses a frequency bandwidth from 2,400 MHz
to 2,483.5 MHz. It is impossible to avoid the band of mobile object
identification systems.
4. About the JEITA
5GHz Wireless LAN supports W52/W53/W56 Channel.
User's Manual 7-11
Device Authorization
This device obtains the Technical Regulation Conformity Certification and it
belongs to the device class of radio equipment of low-power data
communication system radio station stipulated in the Telecommunications
Business Law of Japan.
Intel® Centrino® Wireless-AC 7265 Wireless LAN and Bluetooth
The Name of the radio equipment: 7265NGW
DSP Research, Inc.
Approval Number: D140017003
Intel® Centrino® Wireless-AC 3160 Wireless LAN and Bluetooth
The Name of the radio equipment: 3160NGW
DSP Research, Inc.
Approval Number: D130092003
Intel® Centrino® Wireless-AC 3160 Wireless LAN and Bluetooth
The Name of the radio equipment: 3160NGW
DSP Research, Inc.
Approval Number: D130092003
Broadcom BCM43142 Wireless Network Adapter b/g/n and Bluetooth
The Name of the radio equipment: BCM943142Y
Telefication B.V. Ltd.
Approval Number: D135106201
Realtek® RTL8723BE 802.11n Wireless LAN and bluetooth
The Name of the radio equipment: RTL8723BE
Telefication B.V. Ltd.
Approval Number: D135042201
The following restrictions apply:
Do not disassemble or modify the device.
Do not install the embedded wireless module into other device.
Radio approvals for wireless devices
This equipment is approved to the radio standard by the countries/regions
in the following table.
If you use this equipment in the countries/regions which are not listed in the
following table, contact TOSHIBA Support.
As of March 2015
Austria Belgium Bulgaria Canada
User's Manual 7-12
Cyprus Czech Rep Denmark Estonia
Finland France Germany Greece
Hong Kong Hungary Iceland India
Indonesia Ireland Italy Japan
Korea Latvia Liechtenstein Lithuania
Luxemburg Malta Monaco Netherlands
Norway Philippines Poland Portugal
Romania Slovak Republic Slovenia Spain
Sweden Switzerland UK USA
Information about Intel AMT
Your computer might support Intel® Active Management Technology (AMT)
depending on the model you purchased.
Using built-in platform capabilities and popular third-party management and
security applications, Intel AMT allows IT to better discover, heal, and
protect their networked computing assets.
Consult with your system administrator about configurations of the AMT
function before connecting to a network.
Disable the AMT function
Intel AMT function is enabled by default, and in a situation where no
system administrator presents, it is strongly recommended that you turn off
the AMT function before connecting to a network.
If the AMT function is NOT turned off, there is a danger that the
management of AMT function will be abused by other parties which
possibly lead to the leak of sensitive and/or proprietary information,
data loss, HDD erasure, or file overwritten.
First, you must do the following in the BIOS setup utility:
1. Turn on the computer while pressing the F2 key.
2. On the BIOS setup utility screen, change AMT Setup Prompt to
Enabled.
3. Press the F10 key, and press Y key to save the settings.
When the computer restarts, the message “Press < Ctrl - P > to enter
Intel(R) ME Setup” appears. Press CTRL + P to enter the MEBx Setup.
To disable the AMT function, do the following:
1. Select MEBx Login, and enter the default password “admin” in the
password field.
User's Manual 7-13
2. Enter a new password. Password must comply with the following
requirements concerning character types and length:
Must be between 8 and 32 characters long.
Must contain at least one number (“0”, “1-9”).
Must contain a mix of lower-case (“a”, “b”, “z”, etc.) and upper-case
(“A”, “B”, “Z”, etc.) letter.
Must contain at least one special character of the following:` ~ ! @ $ %
^ & * ( ) - = + [ ] ; ’ < . > / ?
Underscore (“_”) is considered the same as Roman alphabet
characters, and is not counted as a special character.
Key input is based on the US keyboard layout. The following table shows
examples of the special characters in US keyboard layout.
Special character you
want to input
Corresponding number
key (SHIFT key + a number
key)
! 1
@ 2
# 3
$ 4
% 5
^ 6
& 7
* 8
( 9
) 0
3. Select Intel(R) AMT Configuration, and press the Enter key.
4. Select Manageability Features Selection, and press the Enter key.
5. Select Disabled, and press the Enter key.
6. Press the Y key, and press the ESC key.
7. Select MEBx Exit, and press Y key.
8. When the computer restarts, go to BIOS setup utility.
On the BIOS setup utility screen, change AMT Setup Prompt to
Disabled.
9. Press the F10 key to save the settings, and press the Y key.
User's Manual 7-14
When using the computer with the AC adaptor connected and the
AMT function set to enabled, power might still be supplied to the
system memory even when the computer power is turned off, or the
computer is in Sleep Mode or Hibernation Mode.
When connecting the AC adaptor, the computer is powered and can
be turned on. If the power is automatically turned off after
approximately 5 to 7 seconds, it is because the RTC lasting time runs
out, and the settings of AMT function have been cleared. This is
normal and not an error. If it occurs, the settings of AMT function must
be reconfigured.
If there is a problem when you start the computer, or initialize the
Management Engine (ME) firmware after the RTC lasting time runs
out, the system will automatically reset itself during setup. This is the
function of AMT configurations and is not an error.
Enabling the AMT function might cause the network LAN Enable/
Disable items to be no longer changeable in BIOS setup utility.
Consult with your system administrator about details.
AMT function cannot be operated using a USB-LAN adaptor.
The useable system memory for models equipped with the AMT function is
16 - 64 MB, less than that of models not equipped with the AMT function.
The amount of the difference depends on the amount of memory installed.
Notes for system administrators
Intel AMT is enabled by default in the Management Engine (ME)
firmware.
Both the security of management console and the network
management must be thoroughly implemented through management
of AMT function. Otherwise administrator privileges might be abused
by other parties which possibly lead to the leak of sensitive and/or
proprietary information, data loss, HDD erasure, or file overwritten.
The following functions are not supported:
RPAT (Remote PC Assist Technology)
Remote BIOS update
Legal Footnotes
Non-applicable Icons
Certain computer chassis are designed to accommodate all possible
configurations for an entire product series. Therefore, be aware that your
selected model might not have all the features and specifications
corresponding to all of the icons or switches shown on the computer
chassis.
User's Manual 7-15
CPU
Central Processing Unit (CPU) Performance Legal Footnotes.
CPU performance in your computer product might vary from specifications
under the following conditions:
use of certain external peripheral products
use of battery power instead of AC power
use of certain multimedia, computer generated graphics or video
applications
use of standard telephone lines or low speed network connections
use of complex modeling software, such as high end computer aided
design applications
use of several applications or functionalities simultaneously
use of computer in areas with low air pressure (high altitude >1,000
meters or >3,280 feet above sea level)
use of computer at temperatures outside the range of 5°C to 30°C
(41–86°F) or >25°C (77°F) at high altitude (all temperature references
are approximate and might vary depending on the specific computer
model - contact TOSHIBA support for details).
CPU performance might also vary from specifications due to design
configuration.
Under some conditions, your computer product might automatically
shutdown. This is a normal protective feature designed to reduce the risk of
lost data or damage to the product when used outside recommended
conditions. To avoid risk of lost data, always make back-up copies of data
by periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions in your product documentation.
Contact TOSHIBA technical service and support, refer to TOSHIBA support
section for more information.
64-Bit Computing
Certain 32-bit device drivers and/or applications might not be compatible
with a 64-bit CPU/operating system and therefore might not function
properly.
Memory (Main System)
Part of the main system memory might be used by the graphics system for
graphics performance and therefore reduce the amount of main system
memory available for other computing activities. The amount of main
system memory allocated to support graphics might vary depending on the
graphics system, applications utilized, system memory size, and other
factors.
User's Manual 7-16
If your computer is configured with more than 3 GB memory, the memory
might be displayed as approximately 3 GB only (depending on the
hardware specifications of the computer).
This is correct because the operating system usually displays the available
memory instead of the physical memory (RAM) built into the computer.
Various system components (like the video adapter’s GPU and PCI
devices like Wireless LAN, and so on) require their own memory space.
Since a 32-bit operating system cannot address more than 4 GB of
memory, these system resources overlap the physical memory. It is a
technical limitation that the overlapped memory is not available to the
operating system. Even though some tools might display the actual
physical memory built into your computer, the memory available to the
operating system is still approximately 3 GB only.
Computers configured with a 64-bit operating system can address 4 GB or
more of system memory.
Battery Life
Battery life might vary considerably depending on product model,
configuration, applications, power management settings, and features
utilized, as well as the natural performance variations produced by the
design of individual components. Published battery life numbers are
achieved on select models and configurations tested by TOSHIBA at the
time of publication. Recharge time varies depending on usage. Battery
might not charge while computer is consuming full power.
After going through many charge and discharge cycles, the battery loses its
ability to perform at maximum capacity and needs to be replaced. This is a
normal phenomenon for all batteries. To purchase a new battery pack, see
the accessories information that is shipped with your computer.
Hard Disk Drive (HDD) Capacity
1 Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10.
The computer operating system, however, reports storage capacity using
powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and
therefore shows less storage capacity. Available storage capacity will also
be less if the product includes one or more pre-installed operating systems,
such as Microsoft Operating System and/or pre-installed software
applications, or media content. Actual formatted capacity might vary.
LCD
Over a period of time, and depending on the usage of the computer, the
brightness of the LCD screen will deteriorate. This is an intrinsic
characteristic of LCD technology.
Maximum brightness is only available when operating in AC power mode.
Screen dims when the computer is operated on battery power and you
might not be able to increase the brightness of the screen.
User's Manual 7-17
Graphics Processing Unit (GPU)
Graphics processing unit (GPU) performance might vary depending on
product model, design configuration, applications, power management
settings and features utilized. GPU performance is only optimized when
operating in AC power mode and might decrease considerably when
operating in battery power mode.
Total Available Graphics Memory is the total of, as applicable, Dedicated
Video Memory, System Video Memory and Shared System Memory.
Shared System Memory varies depending on system memory size and
other factors.
Wireless LAN
The transmission speed over the wireless LAN and the distance over which
wireless LAN can reach might vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, and client design and software/hardware configurations.
The actual transmission speed is lower than the theoretical maximum
speed.
Copy Protection
Applicable copy protection standards included in certain media might
prevent or limit recording or viewing of the media.
Glossary
The terms in this glossary cover topics related to this manual. Alternate
naming is included for reference.
Abbreviations
AC: Alternating Current
AMT: Intel Active Management Technology
ASCII: American Standard Code for Information
Interchange
BIOS: Basic Input/output System
BD-ROM: Blu-ray Disc Read-only Memory
bps: bits per second
CD: Compact Disc
CD-ROM: Compact Disc Read-only Memory
CD-RW: Compact Disc-rewritable
CMOS: Complementary Metal-oxide Semiconductor
CPU: Central Processing Unit
User's Manual 7-18
DC: Direct Current
DDR: Double Data Rate
DIMM: Dual Inline Memory Module
DVD: Digital Versatile Disc
DVD-R: Digital Versatile Disc-recordable
DVD-RAM: Digital Versatile Disc-random Access Memory
DVD-R DL: Digital Versatile Disc Recordable Dual Layer
DVD-ROM: Digital Versatile Disc-read Only Memory
DVD-RW: Digital Versatile Disc-rewritable
DVD+R DL: Digital Versatile Disc Recordable Double Layer
FAT: File Allocation Table
FCC: Federal Communications Commission
FHD: Full High Definition
GB: gigabyte
GBps: gigabytes per second
HD: High Definition
HD+: High Definition Plus
HDD: Hard Disk Drive
HDMI: High-definition Multimedia Interface
HDMI CEC: High-definition Multimedia Interface Consumer
Electronics Control
HTML: Hypertext Markup Language
IEEE: Institute of Electrical and Electronics Engineers
I/O: Input/Output
IRQ: interrupt request
ISP: Internet Service Provider
KB: kilobyte
LAN: Local Area Network
LCD: Liquid Crystal Display
LED: Light Emitting Diode
MB: megabyte
MBps: megabytes per second
MMC: MultiMediaCard
OCR: Optical Character Recognition (Reader)
PC: Personal Computer
User's Manual 7-19
PCI: Peripheral Component Interconnect
PCMCIA: Personal Computer Memory Card International
Association
RAM: Random Access Memory
RGB: Red, Green, and Blue
RFI: Radio Frequency Interference
ROM: Read-Only Memory
RTC: Real-Time Clock
S/P DIF: Sony/philips Digital Interface Format
SD: Secure Digital
SDHC: Secure Digital High Capacity
SDXC: Secure Digital Extended Capacity
SDRAM: Synchronous Dynamic Random Access Memory
SSD: Solid-State Drive
TFT: Thin-film Transistor
URL: Uniform Resource Locator
USB: Universal Serial Bus
WAN: Wide Area Network
WQHD: Wide Quad High Definition
www: World Wide Web
User's Manual 7-20
Index
A
AC adaptor
additional 4-18
connecting 2-7
DC IN 19V jack 3-2, 3-9
ASCII characters 4-7
B
Battery
extending life 4-10
monitoring capacity 4-9
save mode 5-5
Bluetooth 7-6
C
Cleaning the computer 1-16
Cooling vents 3-4, 3-5, 3-11,
3-12, 3-16
D
DC IN
indicator 3-8
DC IN/Battery indicator 3-2,
3-18
Display
automatic power off 5-5
hinges 3-7, 3-13
opening 2-3
screen 3-7, 3-13
Documentation list 2-1
Dual Pointing Device
Touch Pad 6-9
E
Equipment checklist 2-1
External monitor
problems 6-12
G
Graphics Processing Unit
3-17
H
Hard disk drive
automatic power off 5-5
HDMI out port 3-4, 3-11
K
Keyboard
function keys 4-5
Function keys F1...F12 4-5
problems 6-6
Windows special keys 4-7
M
Media care
Card care 4-12
Memory card care 4-12
memory media card
inserting 4-13
User's Manual Index-1
removing 4-14
Memory media slot 4-11
Moving the computer 1-16
MultiMediaCard
removing 4-14
P
Password
power on 5-5
Starting the computer by
password 5-8
Supervisor 5-8
user 5-7
Pointing Device
Touch Pad 3-7, 3-14
Power
conditions 3-18
Hibernation Mode 2-14
panel on/off 5-5
Shut Down mode 2-12
Sleep Mode 2-12
turning off 2-11
turning on 2-9
Problems
AC power 6-5
Analyzing the problem 6-2
Battery 6-6
Dual Pointing device 6-8
External monitor 6-11
Hardware and system
checklist 6-4
HDD 6-7, 6-8
Internal display panel 6-7
Keyboard 6-6
Memory Media Card 6-8
Overheating power
down 6-5
Power 6-5
Real-Time Clock 6-6
Sound system 6-11
TOSHIBA support 6-13
Touch Pad 6-9
USB device 6-10
USB mouse 6-10
R
Recovery hard disk drive 5-16
Recovery Media 5-15
Restarting the computer 2-12
S
SD/SDHC/SDXC Card
formatting 4-12
note 4-11
Security lock 4-17
Sleep Mode
setting 2-12
System automatic 5-5
Sound system
problems 6-11
T
TOSHIBA Desktop Assist 5-1
Touch Screen 4-2
U
USB device
problems 6-10
User's Manual Index-2
