Users Manual
Manual
Unihan UPWL6024
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
i.
This device may not cause harmful interference, and
ii.
This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
i.
Reorient or relocate the receiving antenna.
ii.
Increase the separation between the equipment and receiver.
iii.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
iv.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION! You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
Safety statements
Regulatory Information/Disclaimers
Installation and use of this Bluetooth device must be in strict accordance with the instructions included
in the user documentation provided with the product. Any changes or modifications (including the
antennas) made to this device that are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment. The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the substitution of the connecting
cables and equipment other than manufacturer specified. It is the responsibility of the user to correct
any interference caused by such unauthorized modification, substitution or attachment. Manufacturer
and its authorized resellers or distributors will assume no liability for any damage or violation of
government regulations arising from failing to comply with these guidelines.
CAUTION! To maintain compliance with FCC’s RF exposure guidelines, this equipment should be
installed and operated with minimum distance [20cm] between the radiator and your body. Use on the
supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be
installed and operated with minimum distance [20cm] between the radiator and your body. Use only
with supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC
regulations.
CAUTION! Any changes or modifications not expressly approved in this manual could void your
authorization to use this device.
MPE Statement
Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency
(RF) signal.
FCC Radio Frequency Exposure
This Bluetooth device has been evaluated under FCC Bulletin OET 65C and found compliant to the
requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure
from radio frequency devices. The radiation output power of this Bluetooth device is far below the FCC
radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the
potential for human contact during normal operation – as a mobile or portable device but use in a
body-worn way is strictly prohibit. When using this device, a certain separation distance between
antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with
the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and
the user should not be less than [20cm].
RF Exposure
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
About this guide
This user guide contains the information your PEGATRON WIFI Module.
System requirements
Before installing the PEGATRON WIFI module, make sure that your system meets the
following requirements:
z Intel® Pentium® 4 or AMD K7/K8 system
z Minimum 64MB system memory
z Windows® XP/VISTA operating system
z An available USB port (USB 2.0 recommended because USB 1.1 cannot achieve
maximum wireless performance)
Installing the device drivers
To install the device driver in your computer:
Insert the support CD to the optical drive and follow the following procedure.

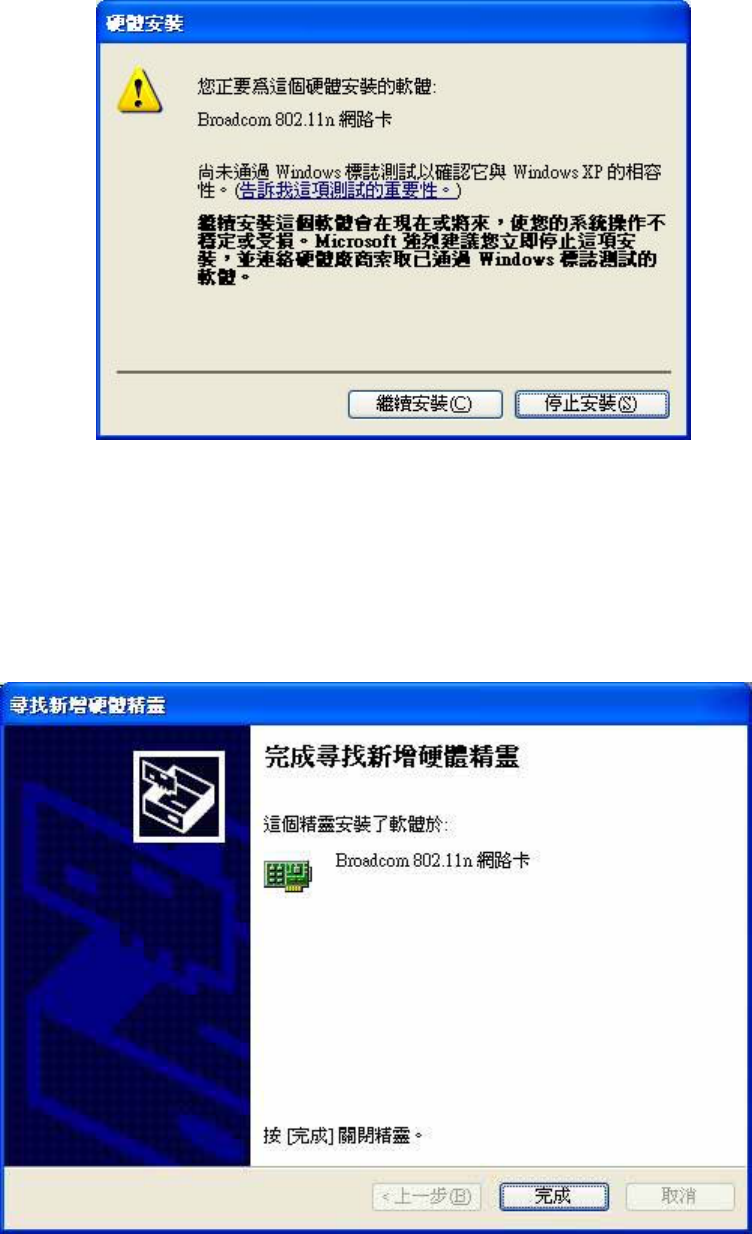

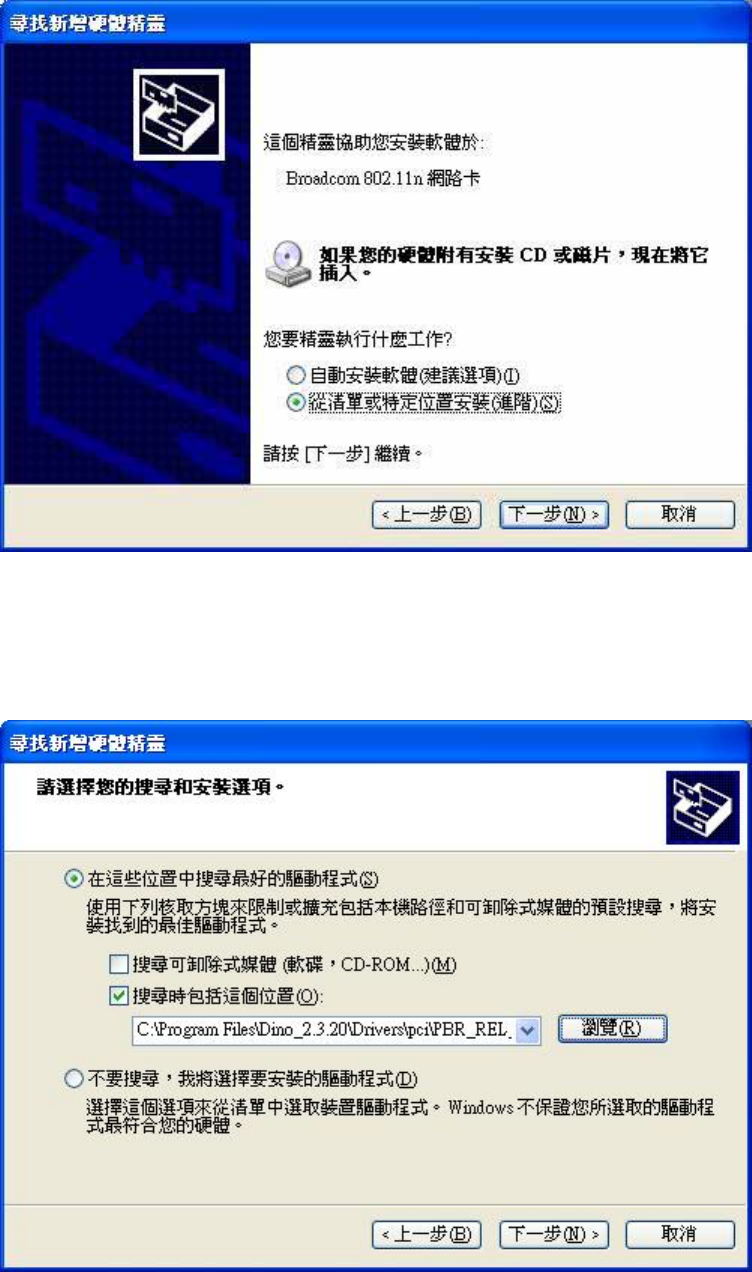

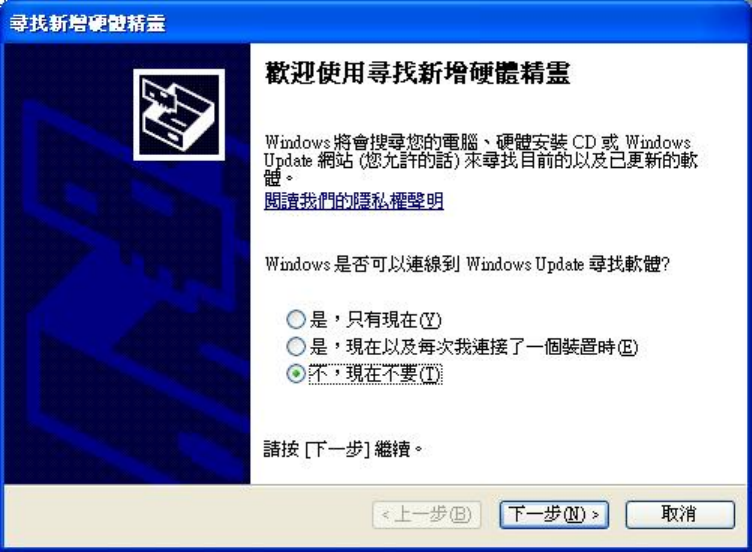

Step 1
Step 2
Step 3
Step 4
Step 5
Canadian Department of Communications
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna
and users. 2) The transmitter module may not be co-located with any other transmitter
or antenna. 3) The module is approved using the FCC’ unlicensed modular transmitter
approval’ method. Therefore the module must only be used with the originally
approved antennas.
As long as the 3 conditions above are met, further transmitter testing will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.)
IMPORTAMT NOTE: in the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product, in these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
End product labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains TX FCC
ID: VUIUPWL6024”.
Manual information that must be included
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the users manual of the end
product which integrate this module.
The users manual for OEM integrators must include the following information in a
prominent location “IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20sm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
