Cisco Small Business
WBPN Wireless-N Bridge for
Phone Adapters
Before You Begin
Before you begin the installation,
make sure that you have the
following equipment and
information:
•Power Supply for your Small
Business IP Phone (not included)
•PC to use the web-based
system management tools to
configure the WBPN (required if
you are not using Wi-Fi
Protected Setup)
1
Configuring the Wireless-N
Bridge for Phone Adapters

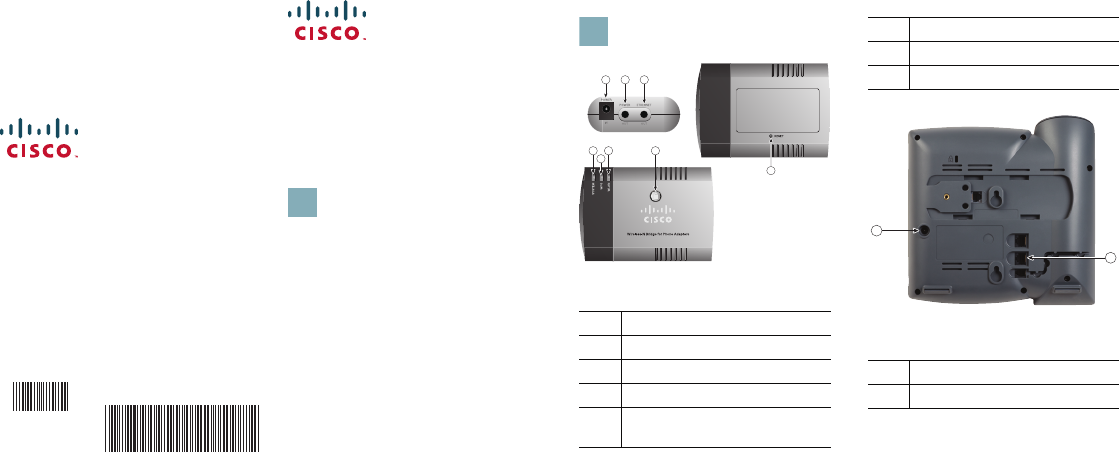

WBPN Connections
1 Power adapter port
2WBPN power cable
3Network cable
4 Reset button
5Wi-Fi Protected Setup
(WPS) button
2
283688
1 2 3
4
56
7
8
Phone Connections
6WLAN LED
7WPS LED
8System LED
1 Power adapter port
2 Ethernet port
283689
1
2
78-20173-01
Printed in China PRC
Connecting the WBPN
If your wireless device supports
Wi-Fi Protected Setup (WPS), you
can connect the WBPN to the
phone and use WPS to connect
the phone your network. If you do
not use WPS, you must connect
the WBPN to a PC and use a web
browser to configure it. See the
User Guide located on Cisco.com
for more information. (For the
location, see the Where to Go
from Here section.)
1If the IP phone power adapter is
connected to your IP phone,
disconnect it.
2Unplug the IP phone power
adapter from the power source.
3Connect the WBPN power
cable to the power port on the
IP phone (labeled #1 in the
“Phone Connections”
graphic).
4Connect the network cable
from the WBPN to the Ethernet
port on the IP phone (labeled #2
in the “Phone Connections”
graphic).
5Connect the IP phone power
adapter to the power port on
the WBPN (labeled #1 in the
“WBPN Connections”
graphic).
6(Optional) Place the WBPN
inside the hollow desktop
phone stand. See the User
Guide for more information.
7Plug the IP phone power
adapter into the power source.
Using the WPS Push Button
Method
1After all connections are made
and devices are powered on,
press the WPS button on your
wireless device.
2Press the WPS button on the
WBPN. The WPS LED on the
WBPN flashes blue during the
discovery period.
3After the WBPN establishes a
connection to the wireless
device, the WPS LED displays
solid blue, and the WLAN LED
will display either solid green or
flashing green, depending on
network activity.
Using the WPS PIN Method
1Connect the WBPN and power
on all devices as previously
described.
2On the bottom of the WBPN
unit, locate the label and make
note of the PIN. The PIN is a
unique numeric code printed on
the label.
3Connect to your wireless
device’s web interface using a
web browser. Your computer
must be connected to your
wireless network.
4In your router or device’s WPS
menu, enter the WBPN’s PIN into
the field that allows you to set
up wireless devices using a PIN.
5Save your changes. The device
should automatically connect to
the WBPN. After the WBPN
establishes a connection to the
wireless device, the WPS LED
displays solid blue, and the
WLAN LED will display either
solid green or flashing green,
depending on network activity.
Where to Go from Here
Cisco Small Business Support
Community:
www.cisco.com/go/ smallbizsupport
Phone Support Contacts:
www.cisco.com/support
Product Documentation:
www.cisco.com/go/smallbizphones
Click on the “Voice Gateways and
Accessories” tab.
Cisco Small Business Home:
www.cisco.com/smb
3
