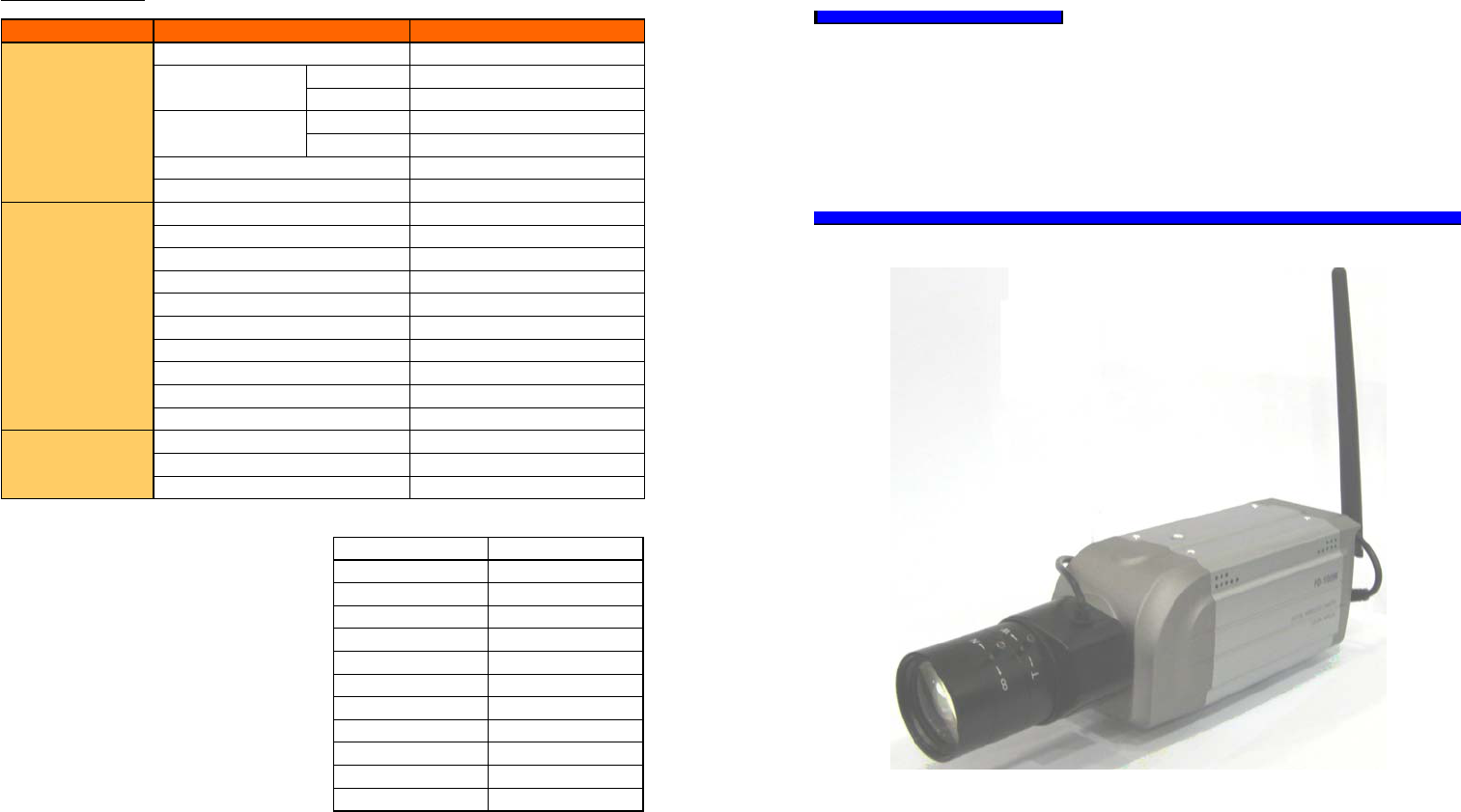

Specifications
PD-100W Function Specification
Camera Module
Image Device 1/3" Interline CCD
Number of Pixels NTSC (H) 768 x (V) 494
PAL (H) 752 x (V) 582
Scanning System NTSC 525 Line, 30 fps
PAL 625 Line, 25 fps
S/N Ratio More than 48dB(AGC off)
Horizontal Resolution 520 TV Line
TX Module
Video Compression MPEG-4 Standard
Video Resolution 704x480
Frame Rate D1 : 30 fps
Frequency of Operation 2.4GHz
Output Power 200mW
Receiver Sensitivity -85dBm
Modulation Format QPSK
Distance(2dB Antenna) 100m(Open Sight)
Security Unique Scramble Algorithm
Video Output RCA Jack Type, CVBS
PD-100W
Operation Temperature 5 ~+40 , RH95% Max℃℃
Power Consumption 12V ±10% DC, 3.5A
Dimension 64(W)x62(H)x135(D) mm
The software which is provided☞
within products, will be supplied for
better service and some function
will be hold barred according to
company policy.
It is available for extending☞
distance between PD-100W and
the access point when you use
high output antenna
ThedevicecomplieswithPart15ofthe
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
! Changes or modifications not expressly approved by the party responsiblefor
compliance could void the user's authority to operate the equipment.
EN Test Regulation Version.
1) EN 300 328 V1.7.1:2006
2) EN 301 489-1 V1.6.1:2005
3) EN 301 489-17 V1.2.1:2002
PRODUCT SPECIFICATIONS
Digital Wireless Camera
PD-100W
MPEG4 Compression, D1, 30 FPS
RF Channel Center Frequency
RFCH 1 2417 MHz
RFCH 2 2422 MHz
RFCH 3 2427 MHz
RFCH 4 2432 MHz
RFCH 5 2437 MHz
RFCH 6 2442 MHz
RFCH 7 2447 MHz
RFCH 8 2452 MHz
RFCH 9 2457 MHz
RFCH 10 2462 MHz
RFCH 11 2467 MHz

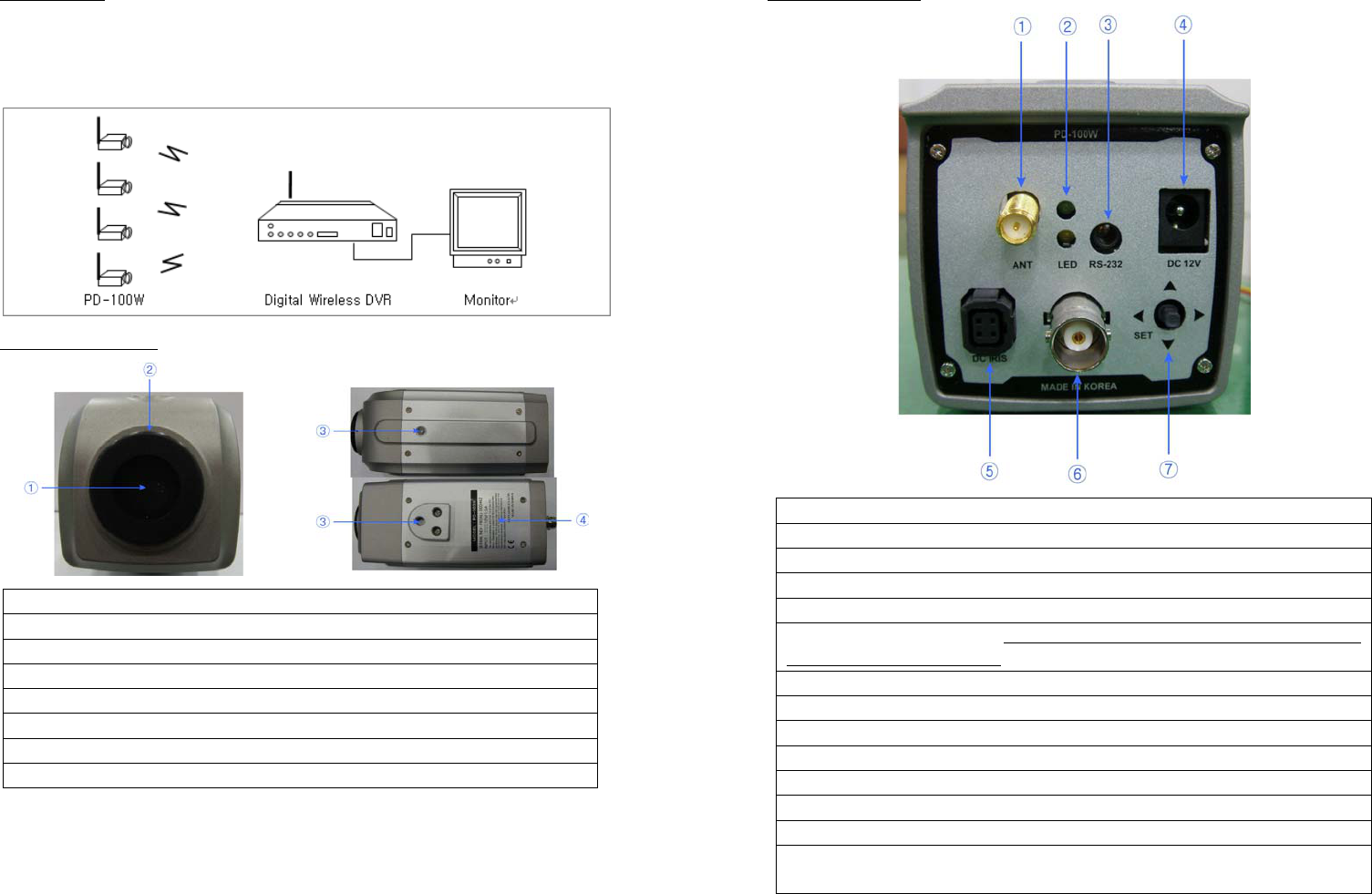

Installation
* After installing the monitor and connect DC power supply each digital
wireless camera(PD-100W). Please connect wireless DVR P-4050WK to
the wireless antenna that pentaone co,. Ltd provided.
PD-100W Front
,Notice!!
- Do not use 2 set of PD-100W / P-4050WK within 100m radius. It
maybe caused intervention between products.
PD-100W Rear
①ANTENNA
Connect Antenna.
LED②
Displays the status of the connection and operation.
RS-232③
RS-232 serial port for A/S. Do not use without agreement of maker to prevent
damage in case incorrectly use.
POWER (DC 12V)④
DC power supply input for DC 12V. Please use standard power adapter.
Vari-Focal (DC IRIS)⑤
Port for controlling Vari-Focal lens.
Video IN⑥
Use BNC type cable and input Video.
Jog Key (SET)⑦
Jog Key for controlling and choosing lens, color tone, images, quality of
images
Mount①
Mount and focus C-Mount type lens on here
Screws for fixing focus②
Screwsforfixingfocusafteradjustingit
Bracket Holder③
Screw hole for bracket holder
Serial Label④
Serial label for products information
