PHI D00001192.ps 5200 Rim Device Installation Instructions 00857 11 000

User Manual: PHI 5200 Rim Device installation Instructions Instructions

Open the PDF directly: View PDF PDF.
Page Count: 8

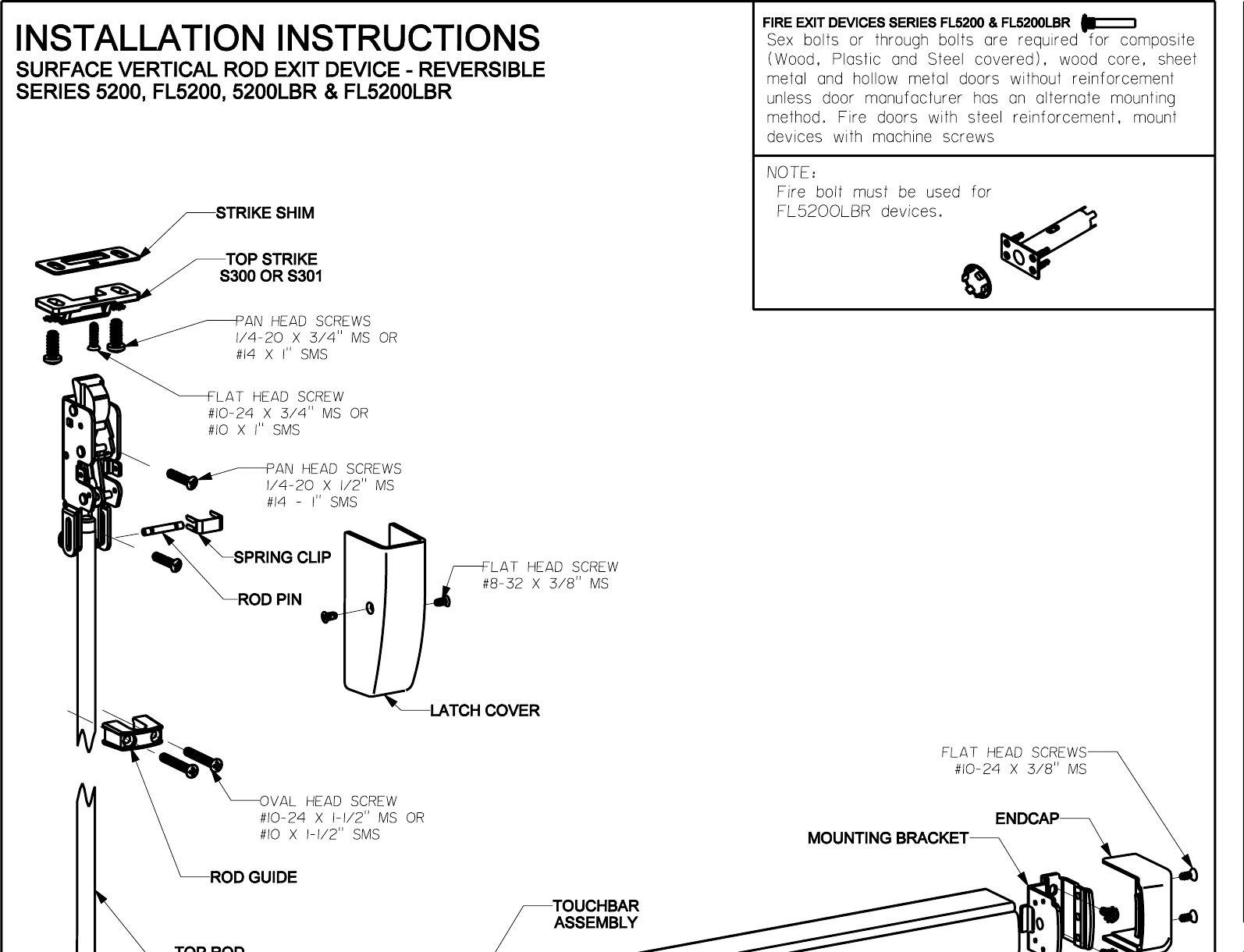

Page 1 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

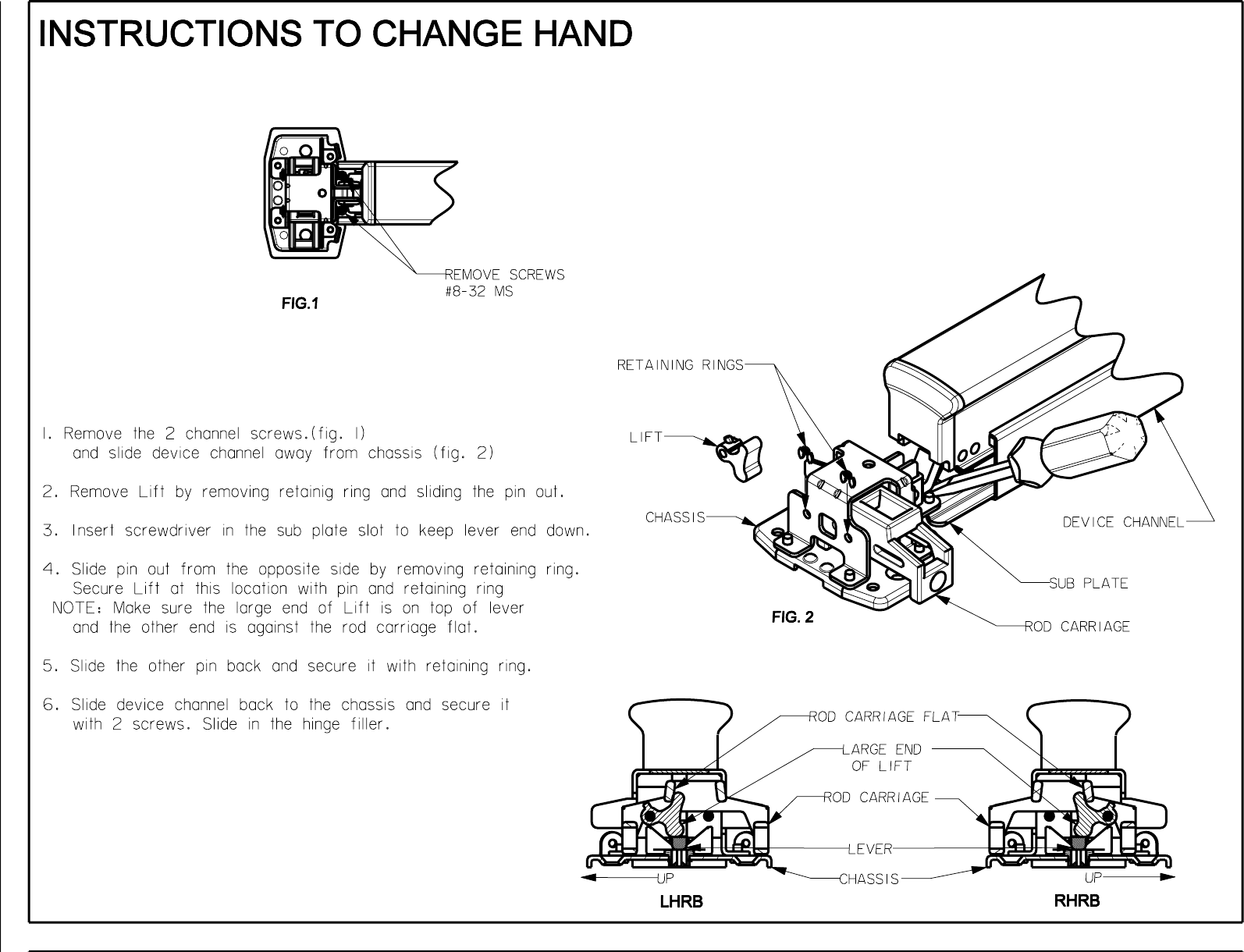

Page 2 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

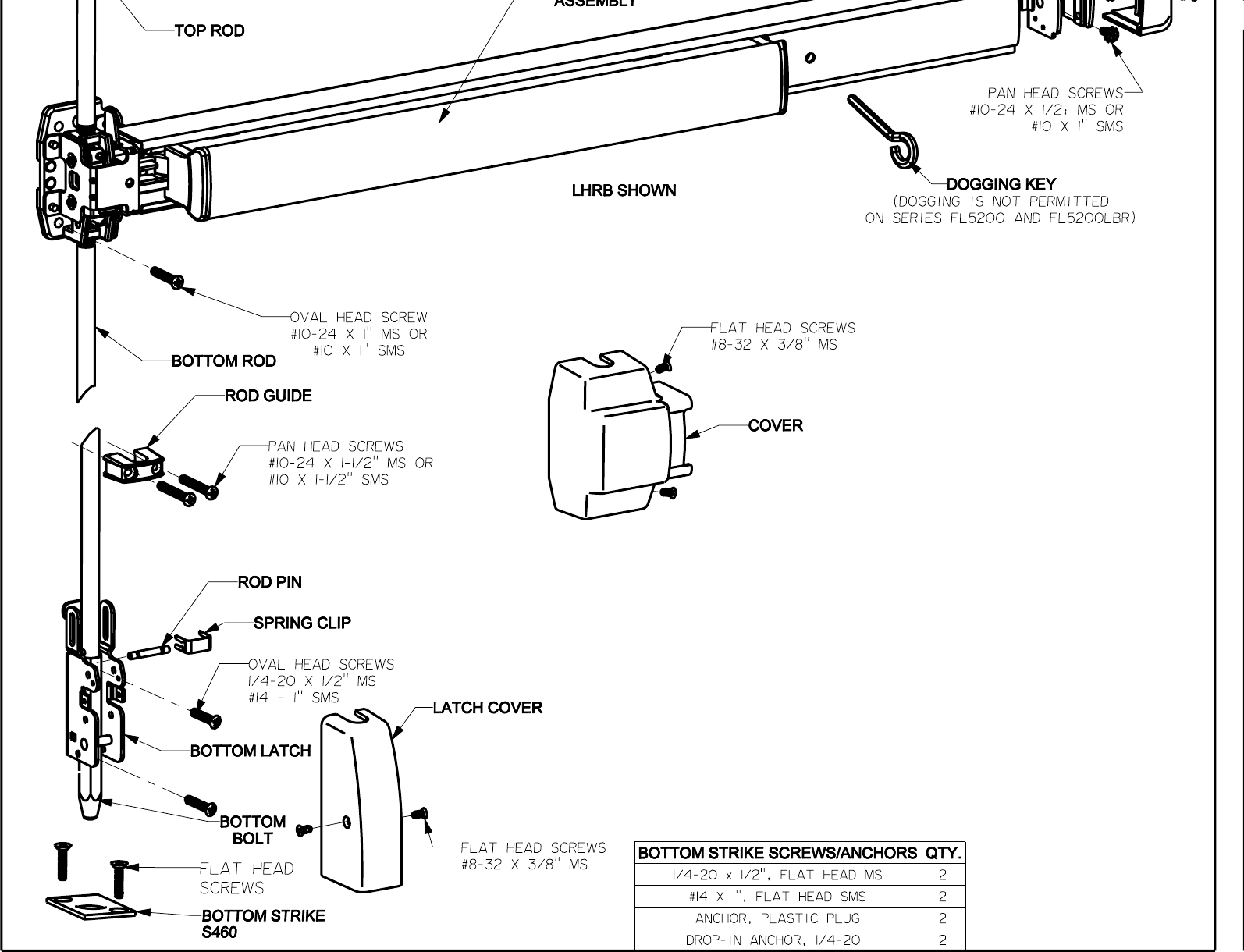

Page 3 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

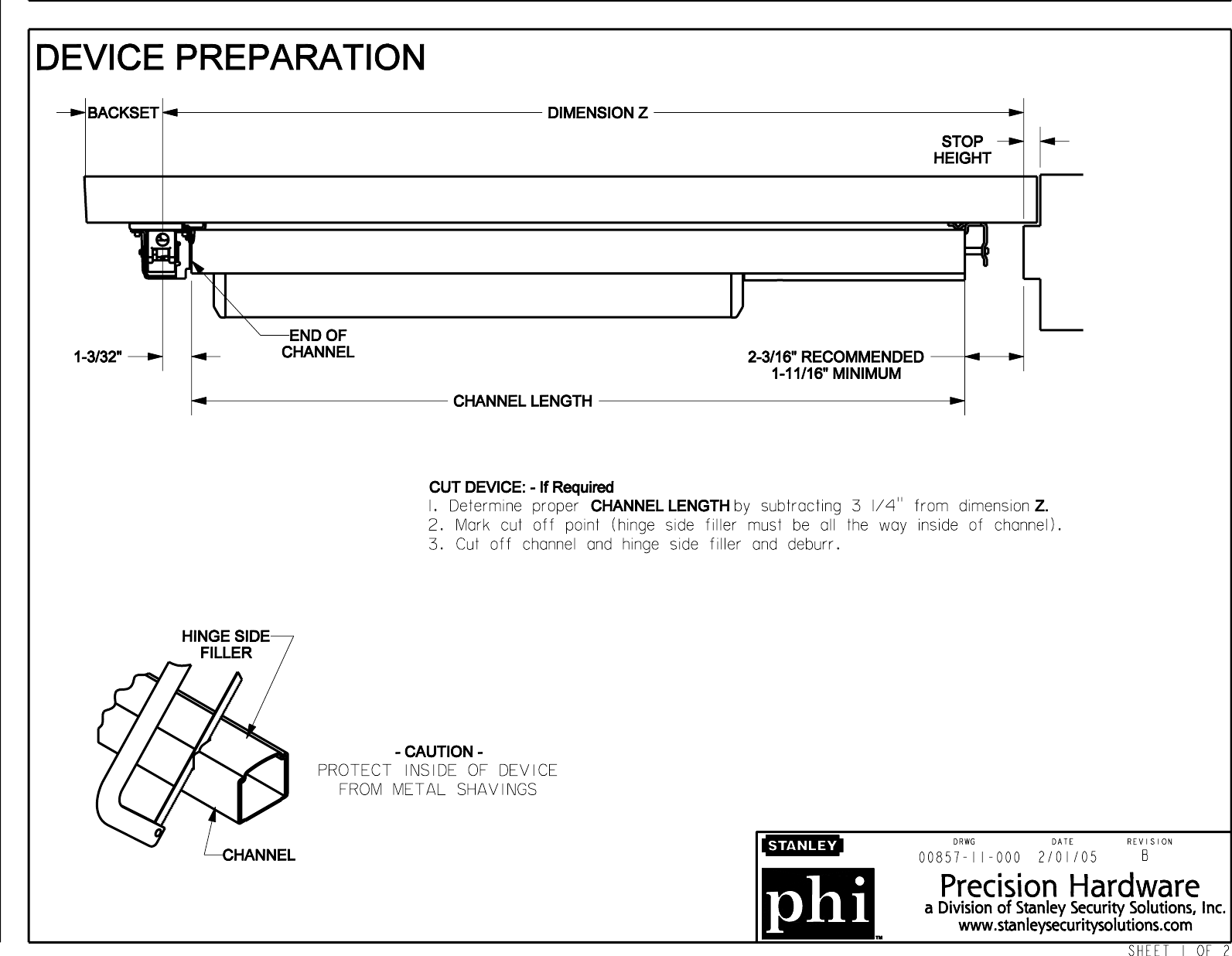

Page 4 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

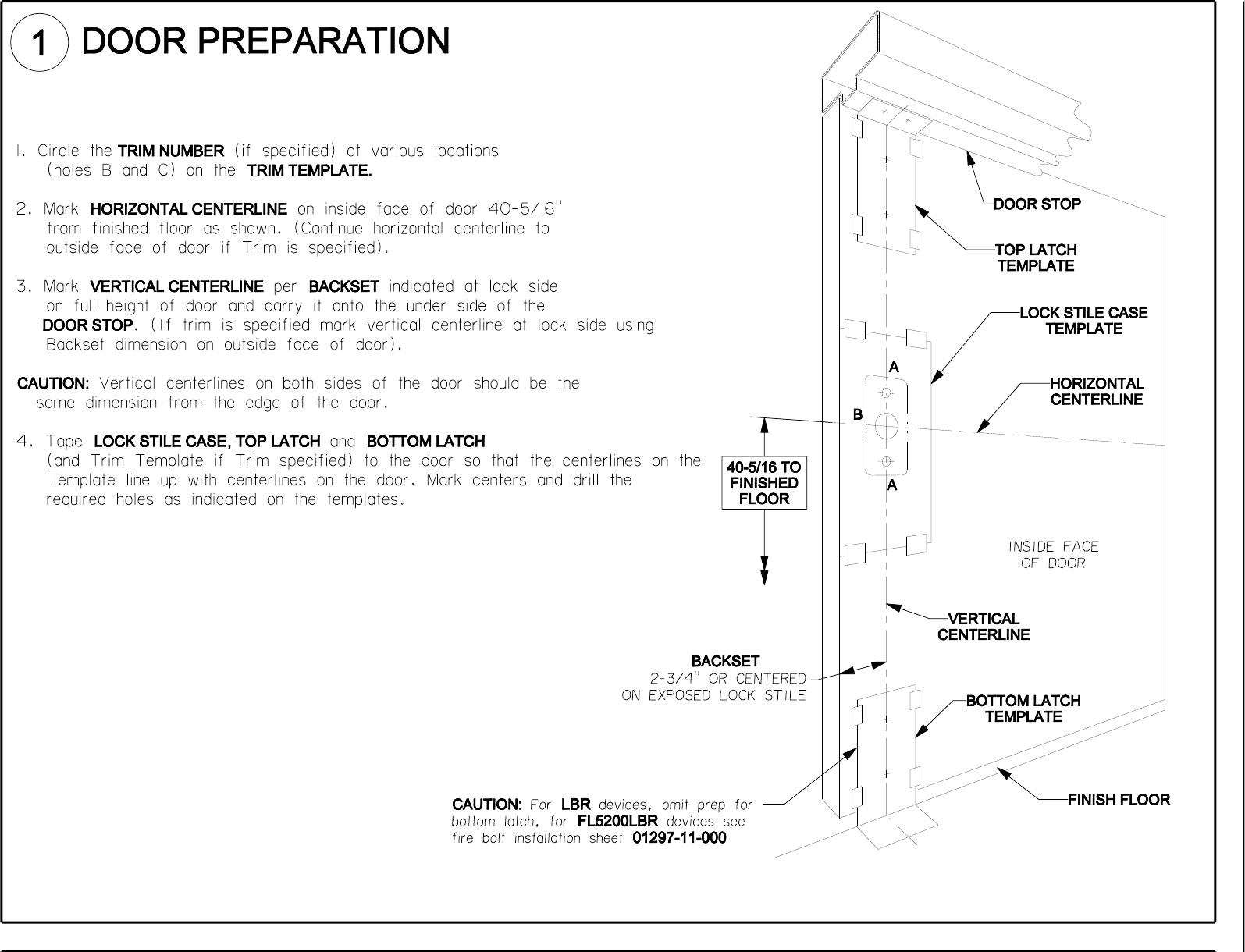

Page 5 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

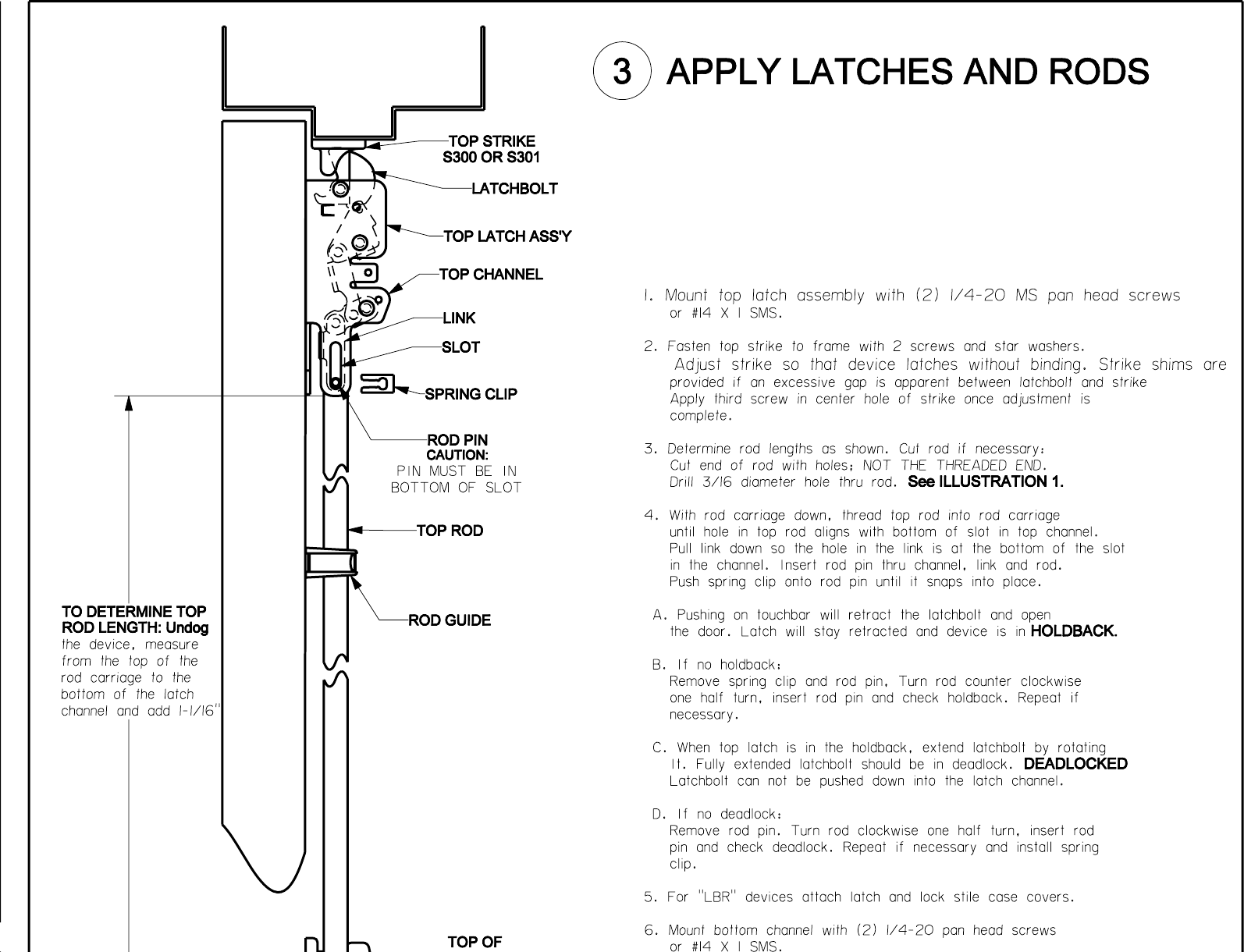

Page 6 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

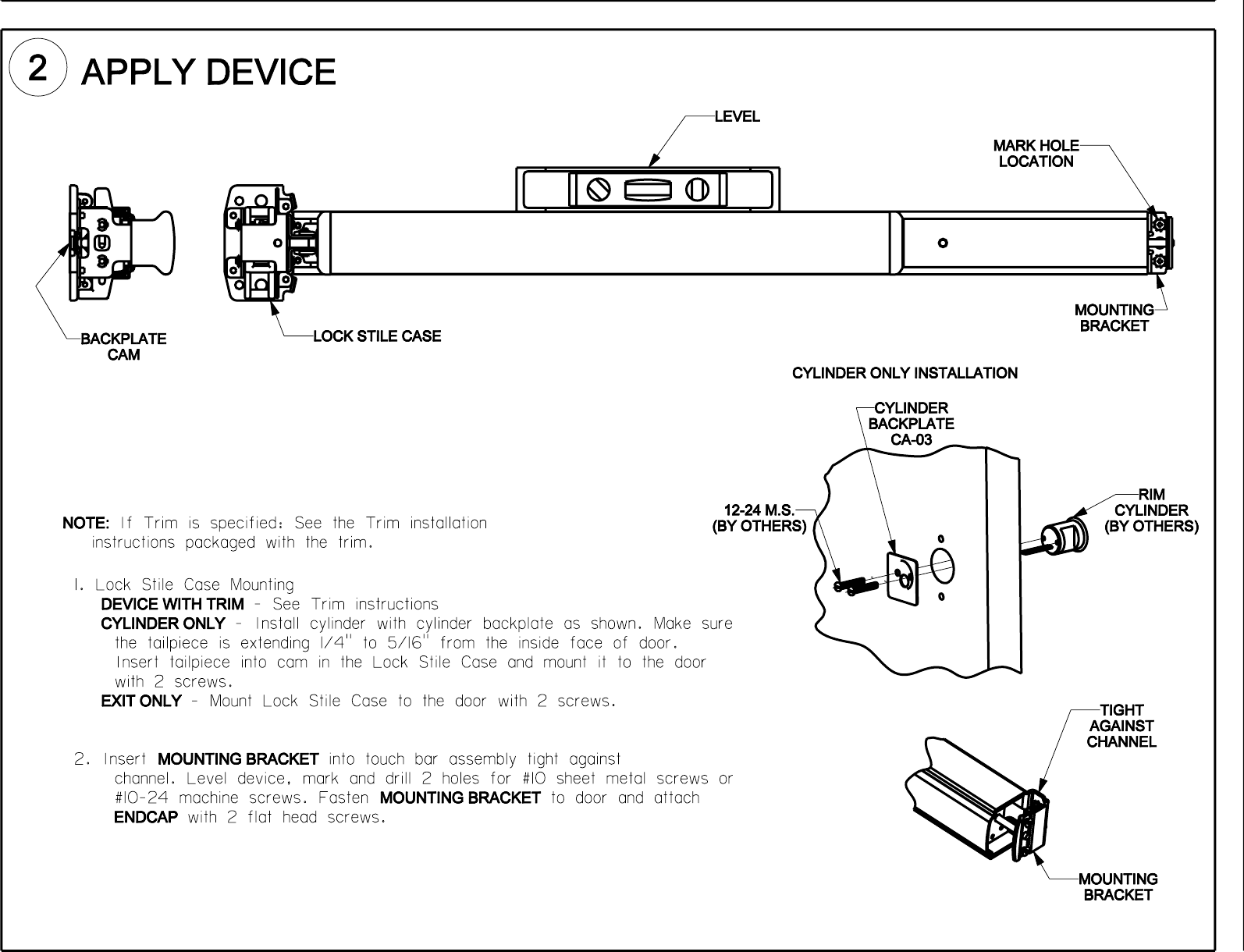

Page 7 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000

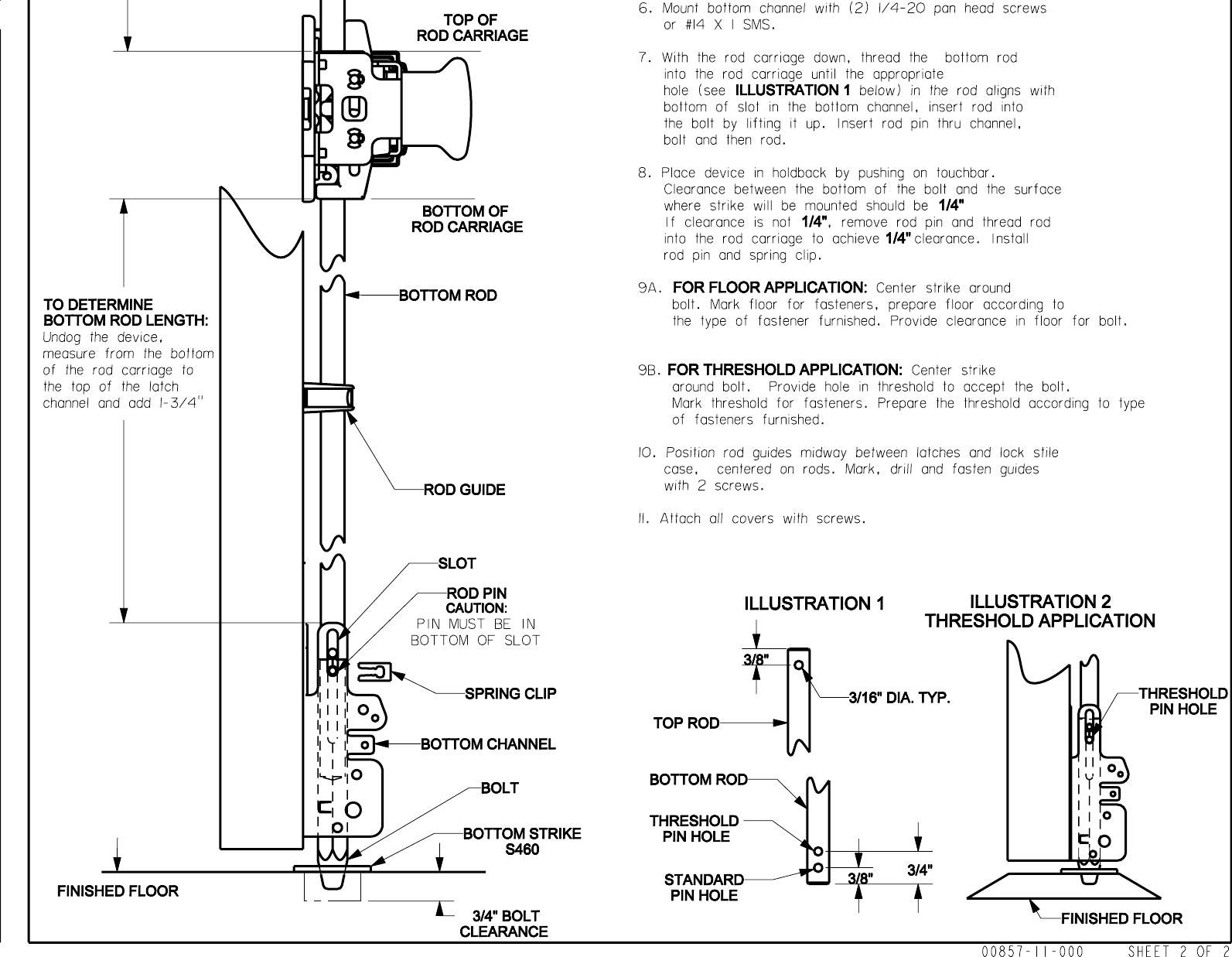

Page 8 of 8 - PHI D00001192.ps 5200 Rim Device Installation Instructions 00857-11-000
