Directions for Use

3139 125 31421

Once your PHILIPS purchase is registered, you're eligible to receive all the privileges

of owning aPHILIPS product So complete and return the Warranty Registration

Card enclosed with your purchase at once. And take advantage of these important benefits.

Congratulations on your purchase,

and welcome to the "family" PHILIPS

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You've selected one of the best-built, best-backed products available

today. And we'll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS "family," you're entitled to protection by one of the most comprehensive war-

ranties and outstanding service networks in the industry.

What's more, your purchase guarantees you'll receive all the information and special offers for which you quali-

fy, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of sayingwelcome-and thanks for investing in aPHILIPS product.

Sincerely,

Lawrence J. Blanford

President and Chief Executive Officer

P.S. Remember, to get the most from your

PHILIPS product, you must return your

Warranty Registration Card within 10

days. So please mail it to us right now!

Know these

safetysymbols

_, This "bolt of lightning" indicatesuninsulated material within your unit may causean elec-

trical shoc!c For the safety of everyone inyour household, pleasedo not remove product cor-

m'The "exclamationpoint" calls attention to features for which you should read the

enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIREOR SHOCK HAZARD, DO NOT EXPOSETHiS EQUIP-

MENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour _viter les chocs_lectriques, introduirela lame la plus large de la fiche dans

la borne correspondante de la prise et pousser iusqu'au fond.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance

with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and third ground-

ing prong, The wide blade or third prong are provided for your

safety. When the provided plug does not fit into your outlet, con-

sult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu-

lagly at plugs, convenience receptacles, and the point where they

exit from the apparatus.

11. On_se attachments/accessories specified by the manufacturer.

12. _ Use only with a cart, stand, tripod, bracket, or table

I_ specified by the manufacturer, or sold with the app-

aratus. When a cart is used, use caution when moving

the cart/appara us combmatmn to avoid injury from t_p-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has

been dropped.

15. This product may contain lead and mercury. Disposal of these

materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local

authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced

by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appli-

ance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability -All televisions must comply with recommended

international global safety standards for tilt and stability properties

of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ulti-

mately overturn the product.

• Also, do not endanger yourself, or children, by placing electron-

ic equipment/toys on the top of the cabinet. Such items could

unsuspectingly fall from the top of the set and cause product dam-

age and/or personal injury.

18. Wall or Ceiling Mounting -The appliance should be mounted to

a wall or ceiling only as recommended by the manufacturer.

19. Power Lines -An outdoor antenna should be located away from

power lines.

20. Outdoor Antenna Grounding - If an outside atnenna is connect-

ed to the receiver, be sure the antenna system is grounded so as to

wovide some wotection against voltage surges and built up static

charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-

1984, provides information with respect to proper grounding of

the mast and supporting structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding connectors, location

of antenna-discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode. See Figure below.

21. Object and Liquid Entry - Care should be taken so that objects

do not fall and liquids are not spilled into the enclosure through

openings.

22. Battery Usage CAUTION - To prevent battery leakage that may

result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - aligned as marked on

the unit_

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC

that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the

bui ding, as cose to the point of cab e entry as praetica.

Example of Antenna Grounding

as per NEC -National Electric Code

GROUNDCLAMP ANTENNALEADINWIRE

ANTENNADISCHARGEUNIT_NECSECrtOH8ie-20)

GROUNDINGCONDUCTORS_NECSECTmH81e-;_l)

GROUNDCLAMPS

POWERSERVICEGROUNDINGELECTRODESYSTEM_NECAmZSO,PAre_)

ELECTRICSERVICEEQUIPMENT

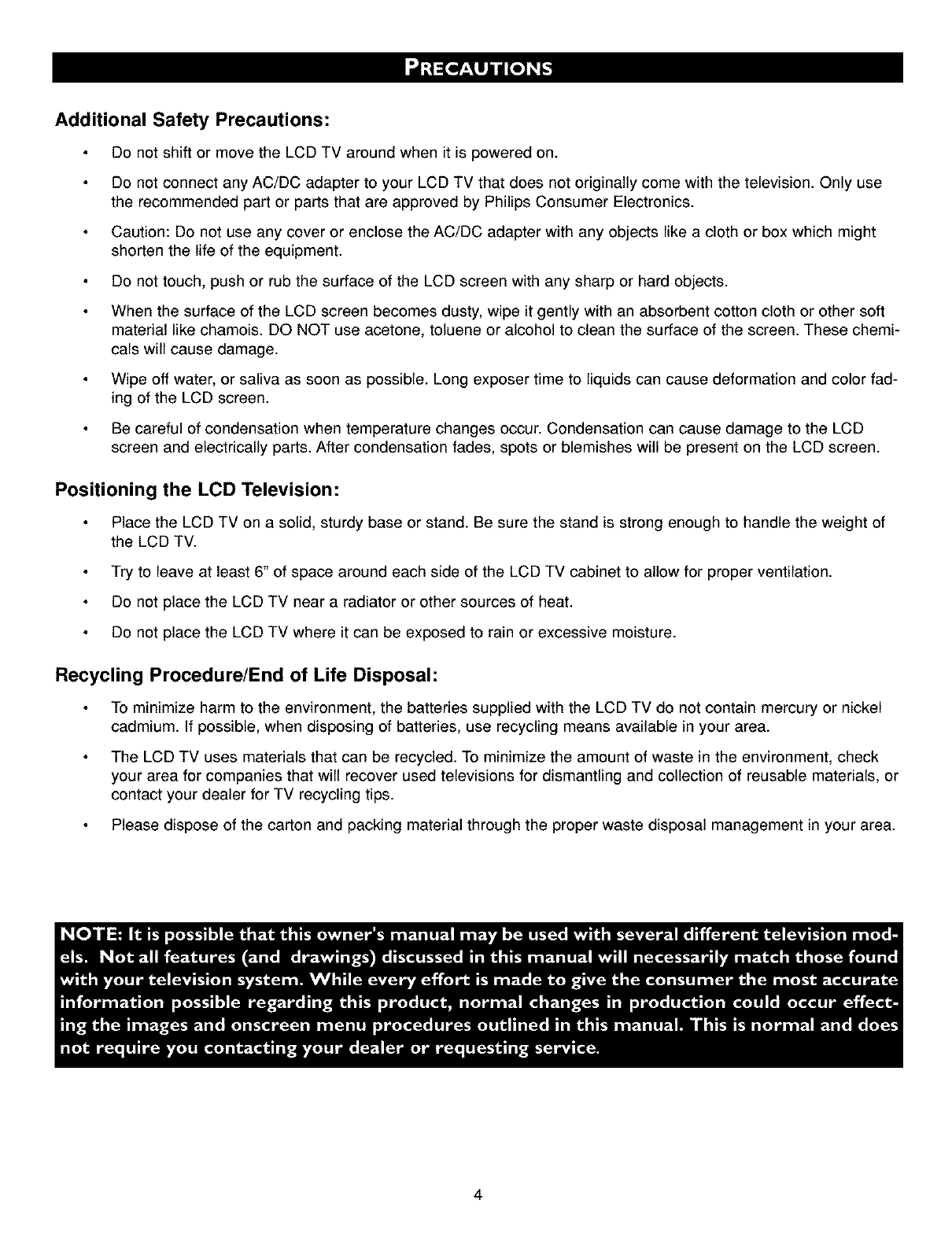

Additional Safety Precautions:

Do not shift or move the LCD TV around when it is powered on.

Do not connect any AC/DC adapter to your LCD TV that does not originally come with the television. Only use

the recommended part or parts that are approved by Philips Consumer Electronics.

Caution: Do not use any cover or enclose the AC/DC adapter with any objects like a cloth or box which might

shorten the life of the equipment.

Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.

When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or other soft

material like chamois. DO NOT use acetone, toluene or alcohol to clean the surface of the screen. These chemi-

cals will cause damage.

Wipe off water, or saliva as soon as possible. Long exposer time to liquids can cause deformation and color fad-

ing of the LCD screen.

Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD

screen and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.

Positioning the LCD Television:

Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of

the LCD TV.

Try to leave at least 6" of space around each side of the LCD TV cabinet to allow for proper ventilation.

Do not place the LCD TV near a radiator or other sources of heat.

Do not place the LCD TV where it can be exposed to rain or excessive moisture.

Recycling Procedure/End of Life Disposal:

To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or nickel

cadmium. If possible, when disposing of batteries, use recycling means available in your area.

The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check

your area for companies that will recover used televisions for dismantling and collection of reusable materials, or

contact your dealer for TV recycling tips.

Please dispose of the carton and packing material through the proper waste disposal management in your area.

Introduction

Welcome/Regislration of Your TV .................... 2

Safety Instructions ................................ 3

Precautions ...................................... 4

Table of Contents ................................. 5

_Install Menu

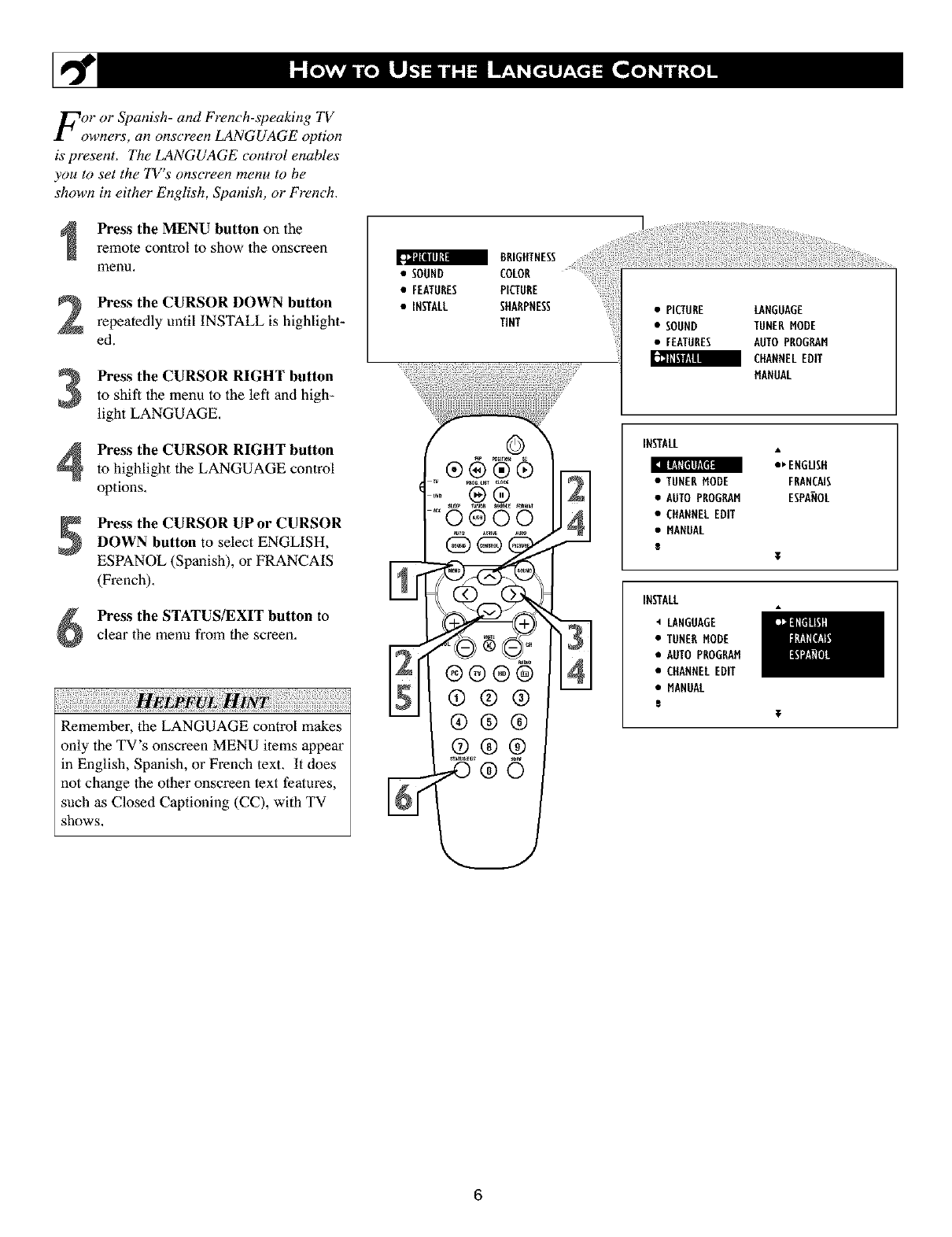

How to use the Language Control .............. 6

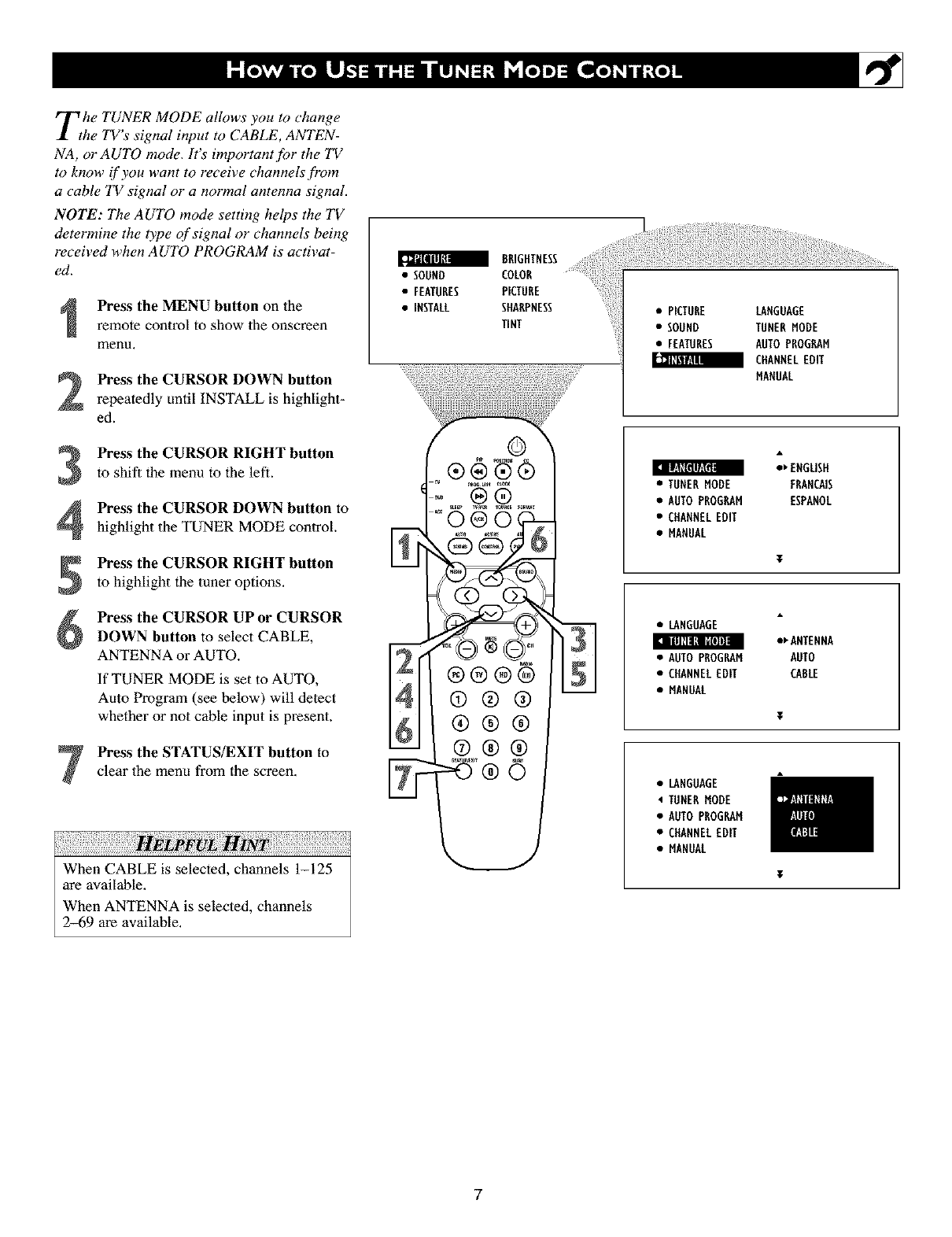

How to use the Tuner Mode Control .................. 7

How to Auto Program TV Channels ................... 8

How to Add or Delete Channels (Channel Edit) ......... 9

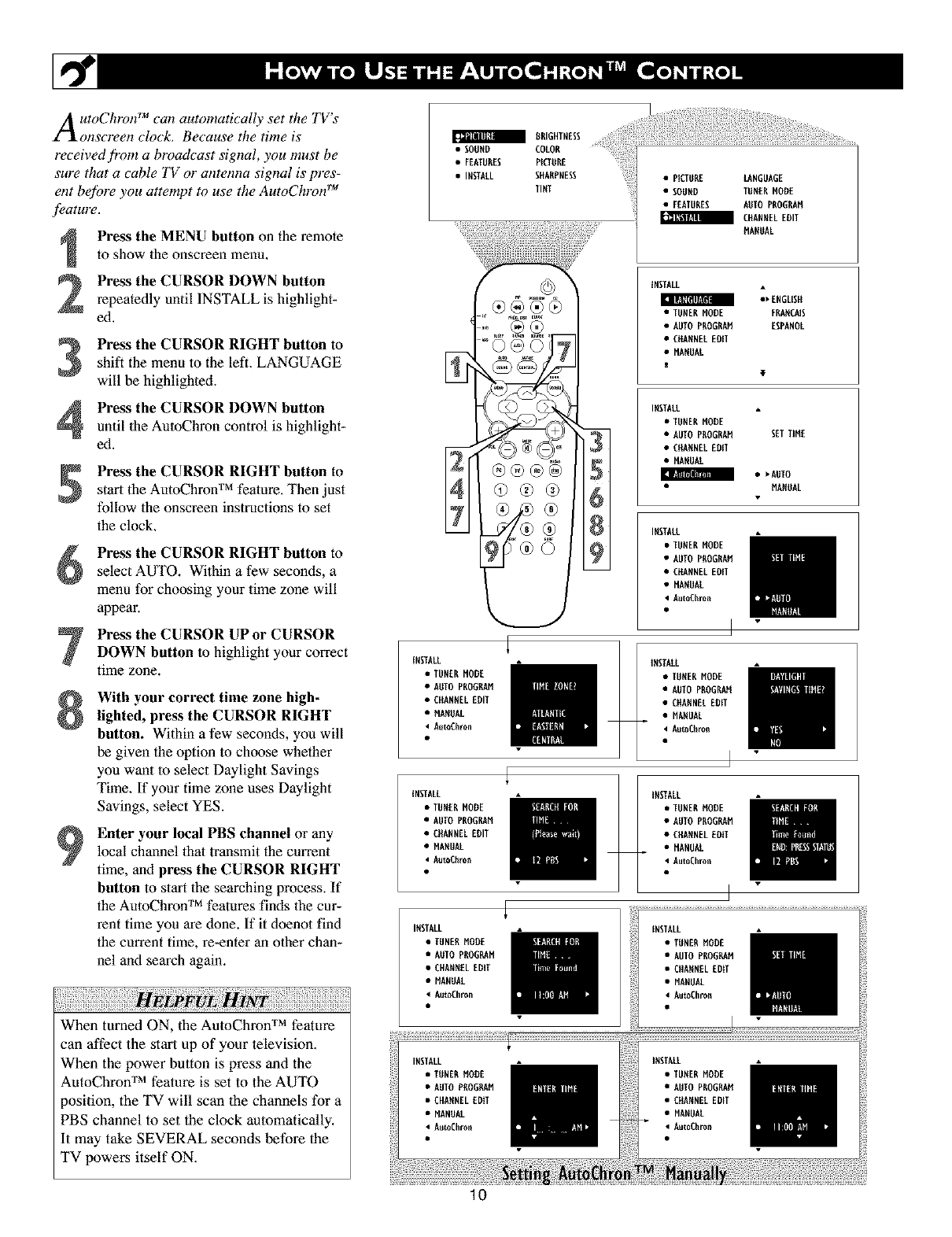

How to use the AutoChroff rMControl ................ 10

How to use the Name Control (Channel Label) ......... 11

_Picture Menu

How to use the Piclare Adjustment Controls ..... 12

_Sound Menu

How to use the Equalizer Controls ............ 13

How to use the Balance Control ..................... 14

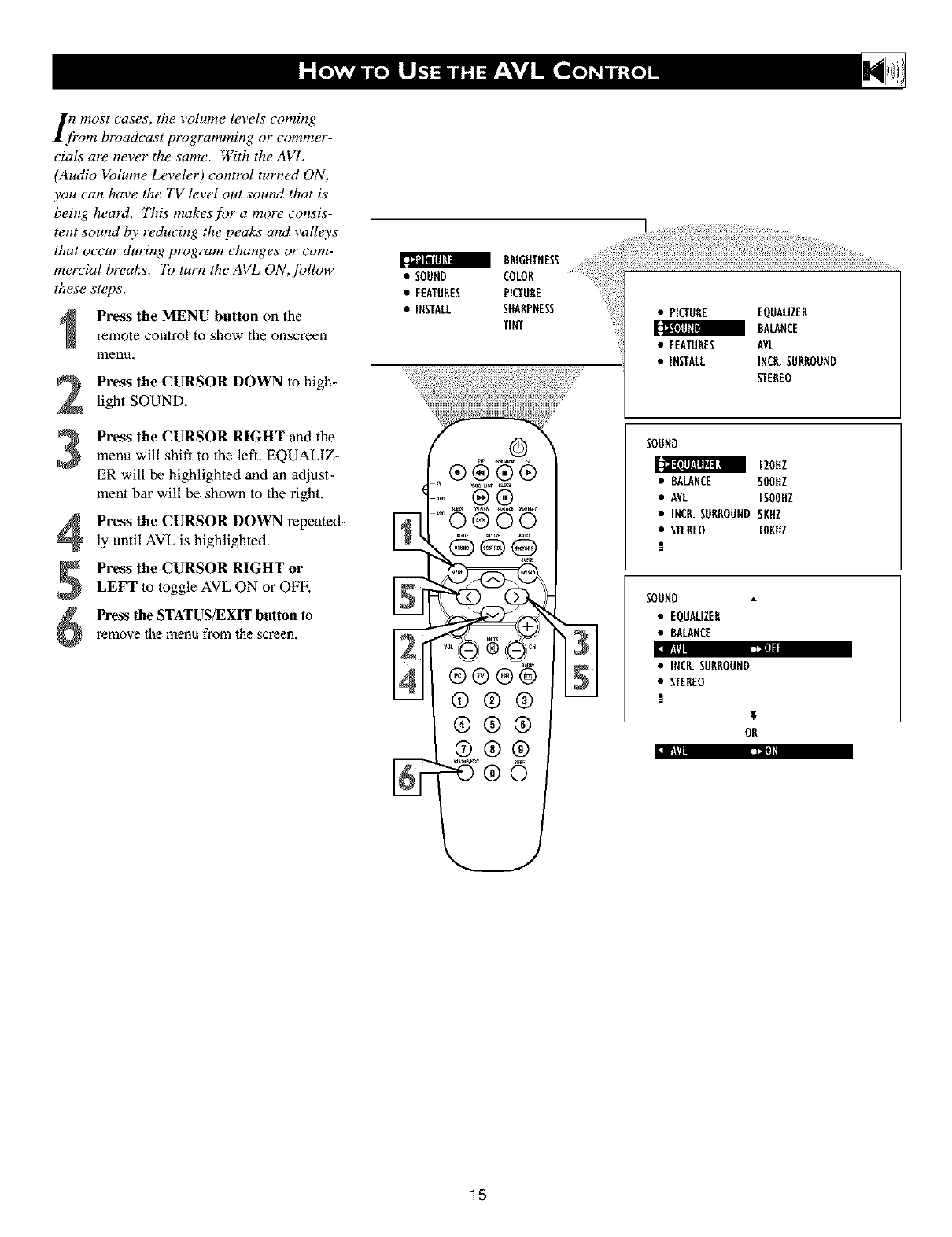

How to use the AVL Control ....................... 15

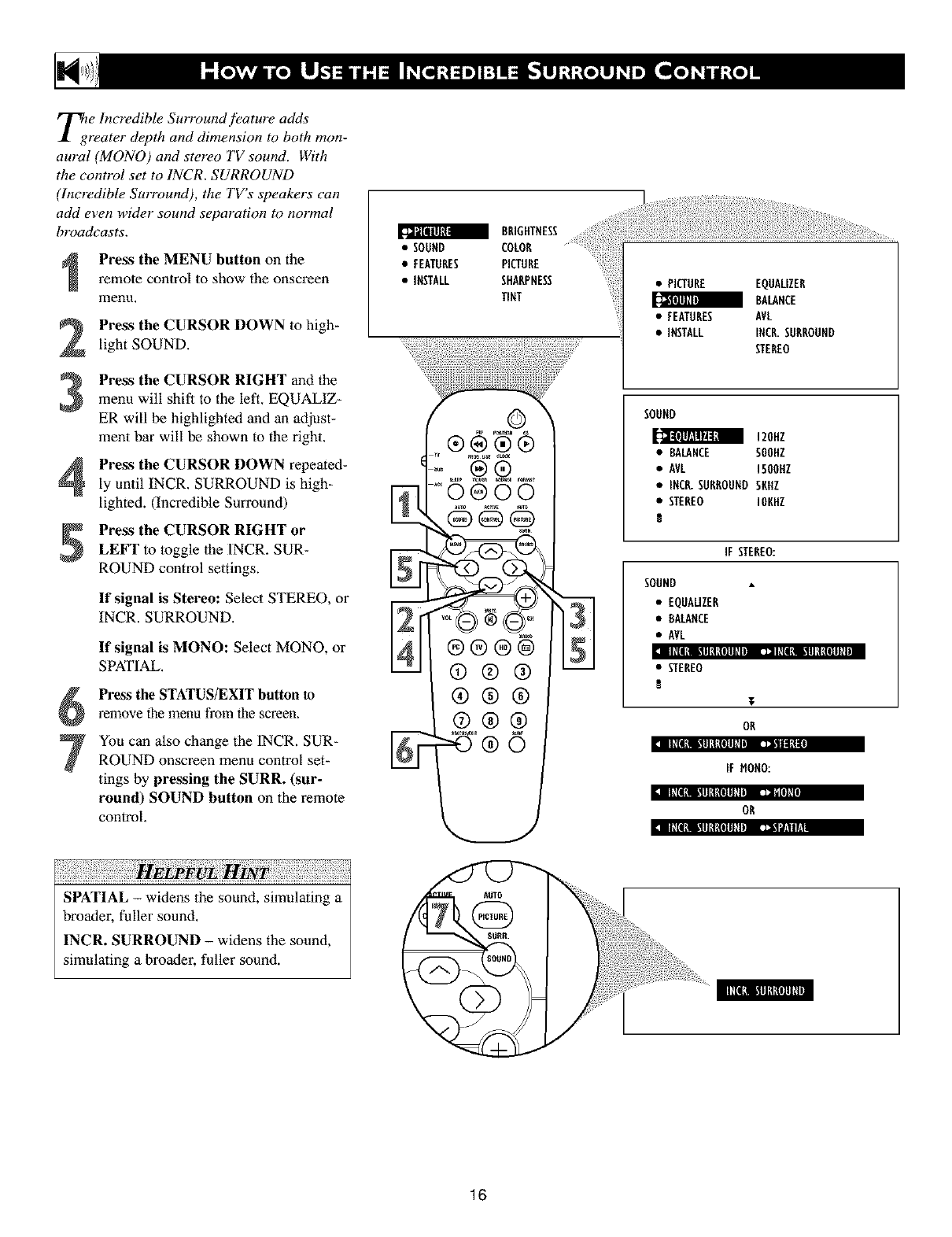

How to use the Incredible Surround Control ........... 16

Setting the TV to receive Slereo programming ......... 17

Setting the TV to receive SAP (Secondary Audio

Programming) ................................... 18

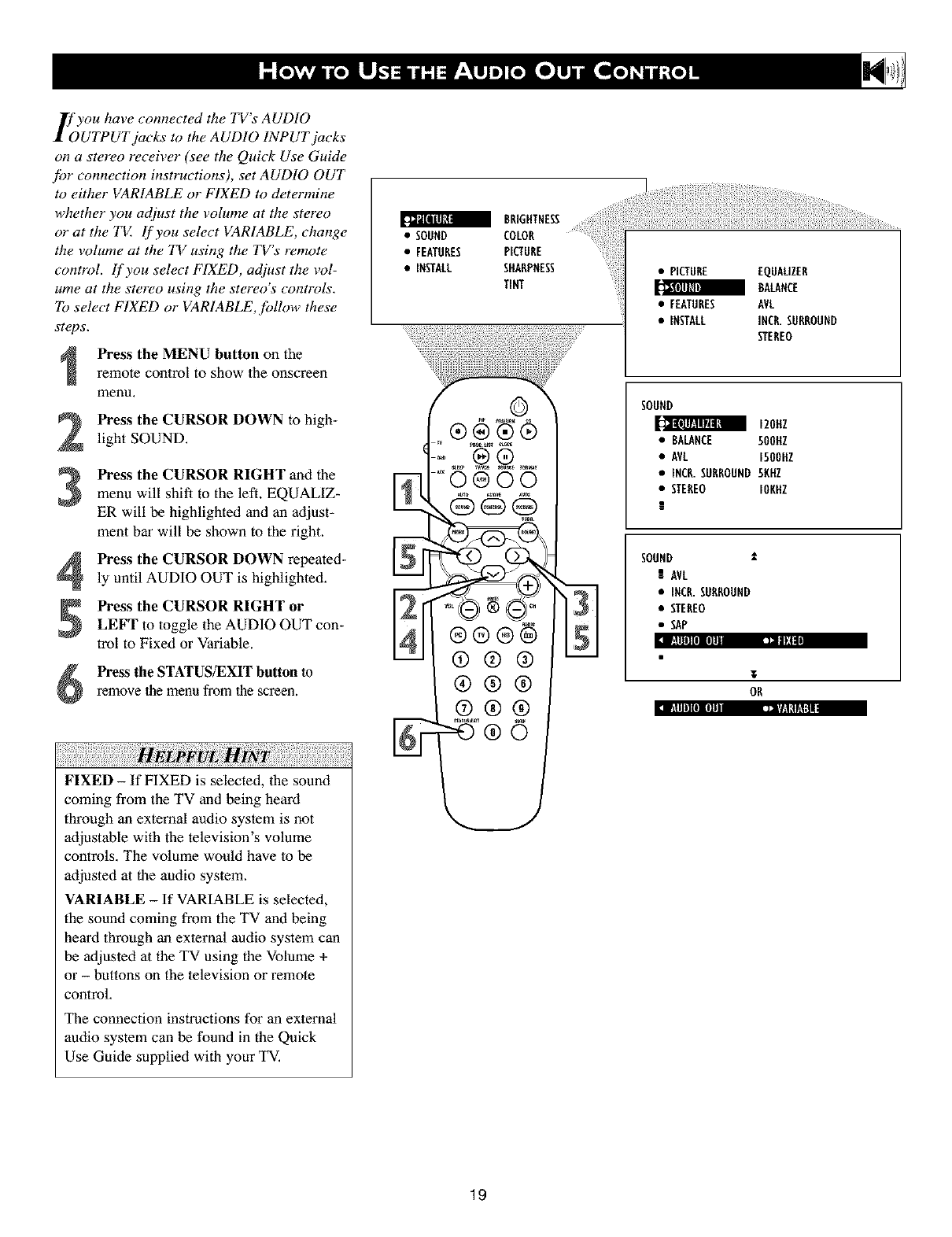

How to use the Audio Out Control ................... 19

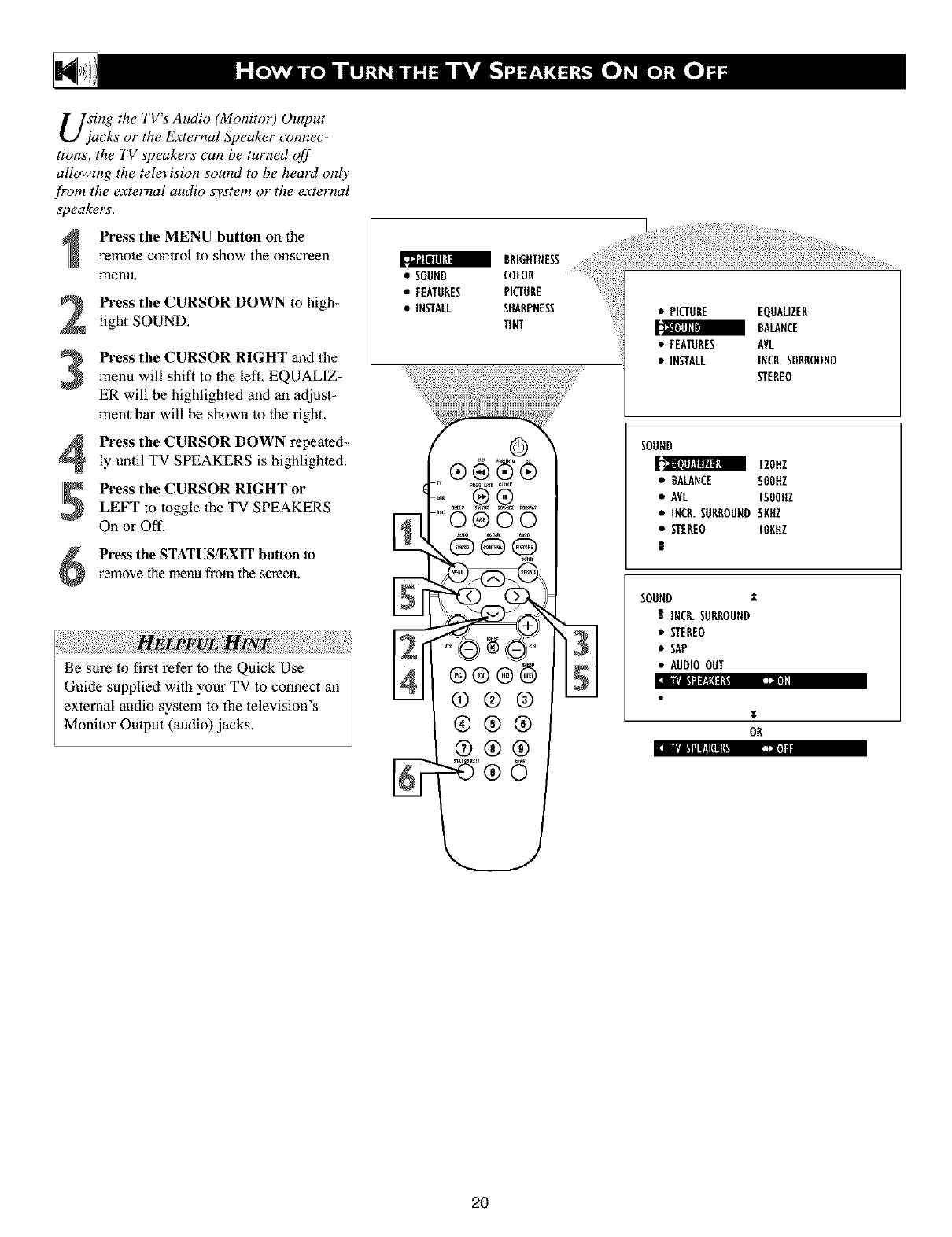

Turning 1he TV Speakers on or off ................... 20

DFeatures Menu

How to use the Timer Controls ............... 21

How to use the Mode Select Control ................. 22

How to set the Active Control ...................... 23

Understanding the AutoLock 'rMControls .............. 24

Setting up the AutoLock _MAccess Code .............. 25

How to Block Channels ........................... 26

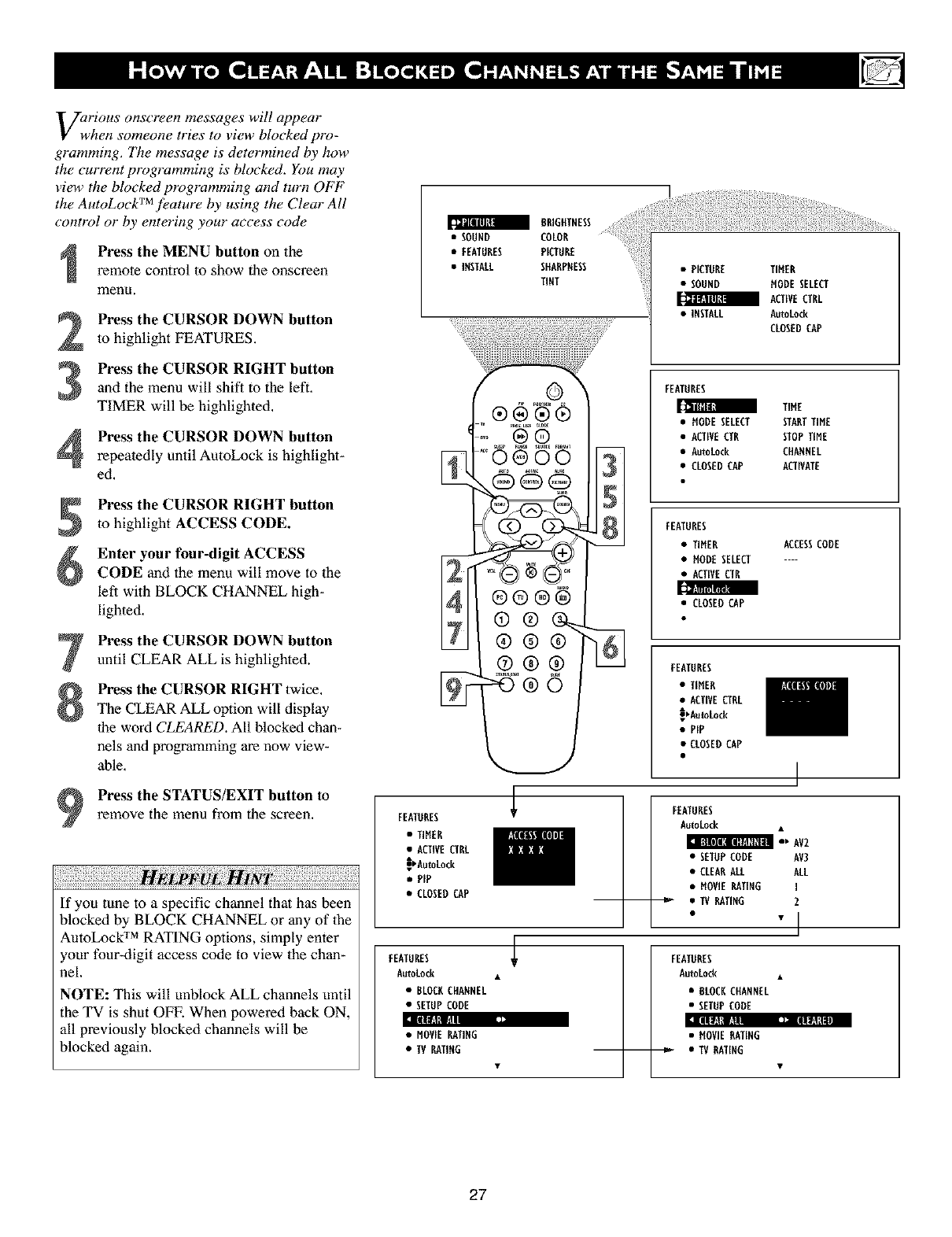

How to Clear All Blocked Channels at the Same Time .. ,27

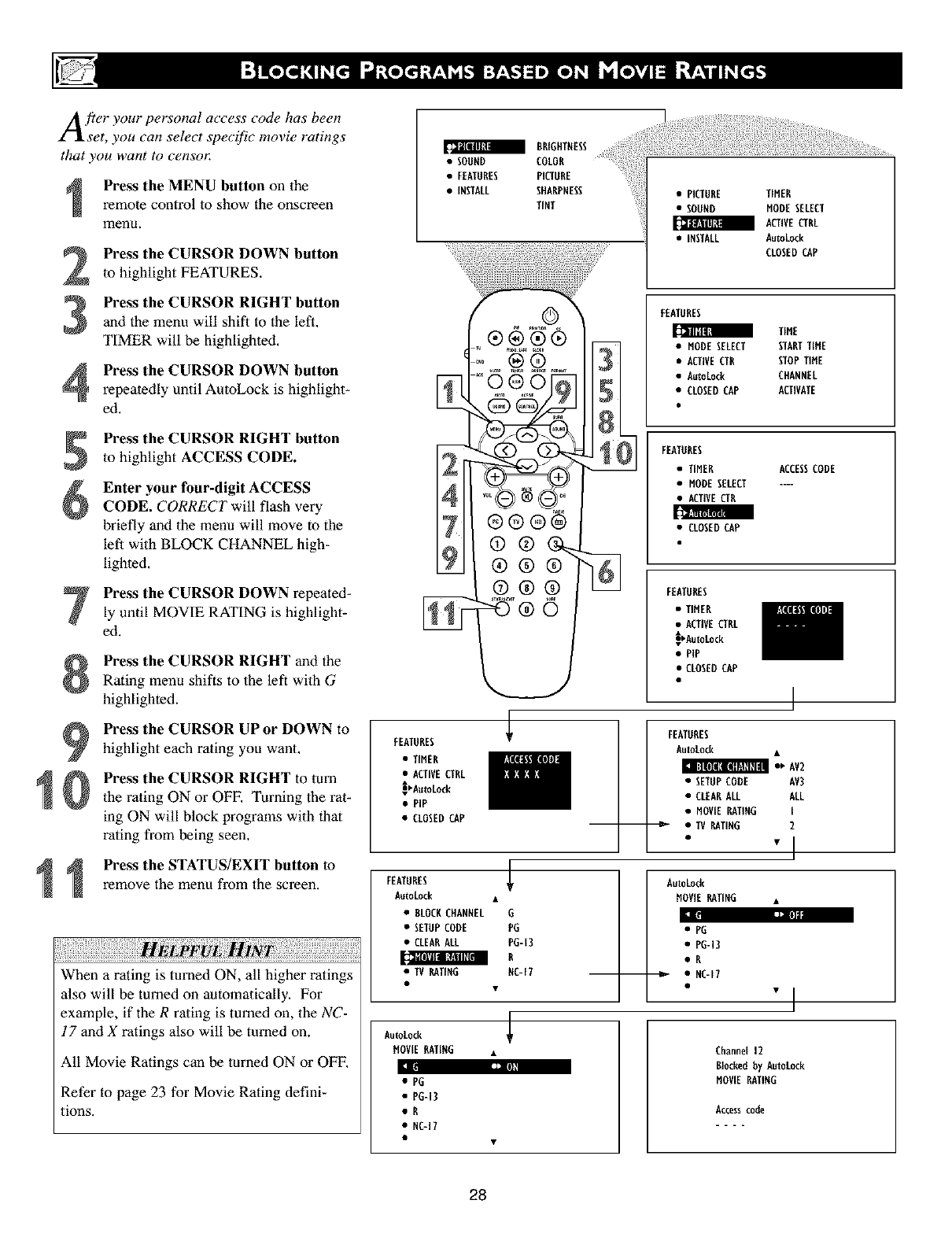

Blocking Programming Based on Movie Ratings ....... 28

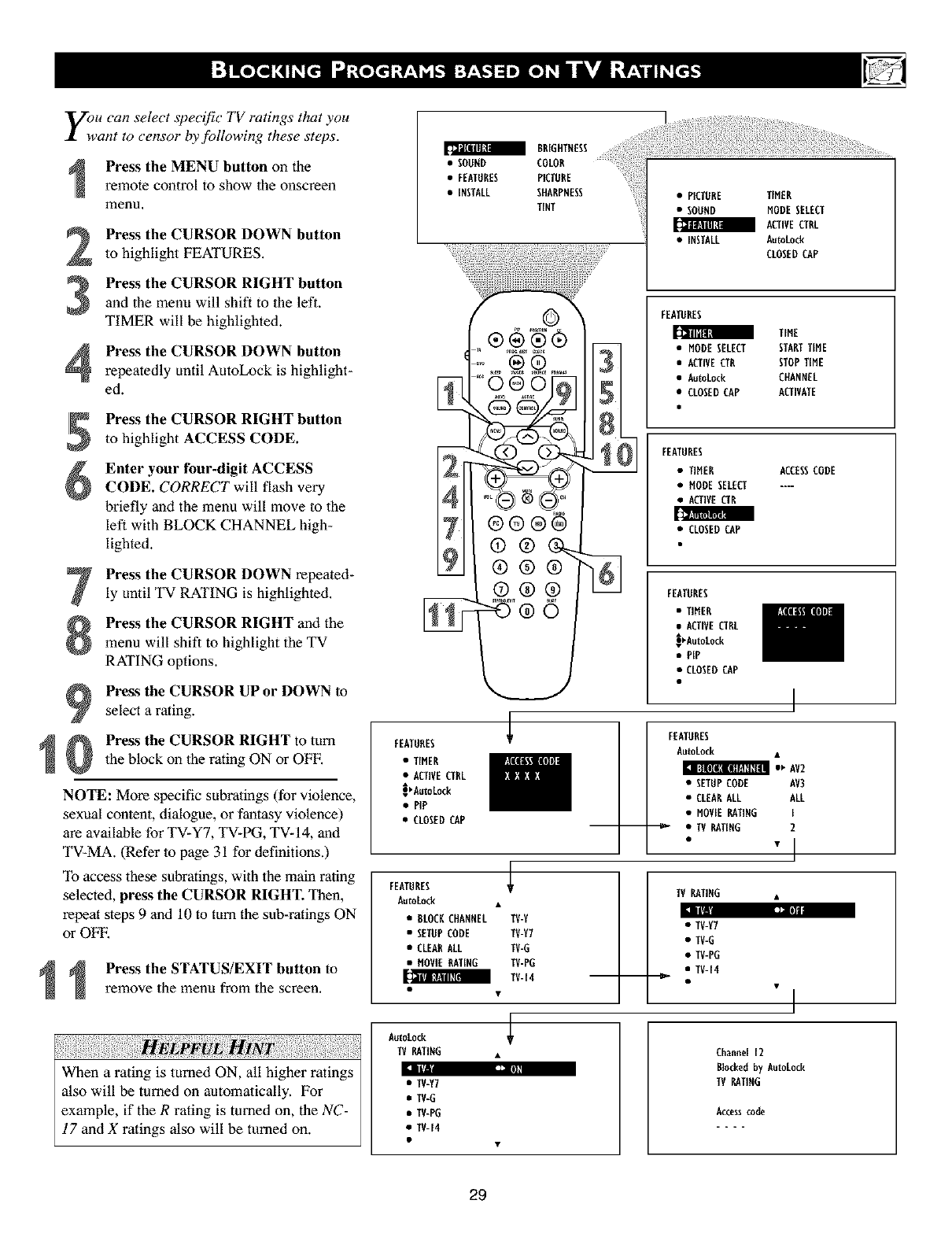

Blocking Programming Based on TV Ratings .......... 29

Other AutoLock 'rMBlocking Options ................. 30

Using the AutoLock 'rMReview Screen ................ 31

_Remote Control Use

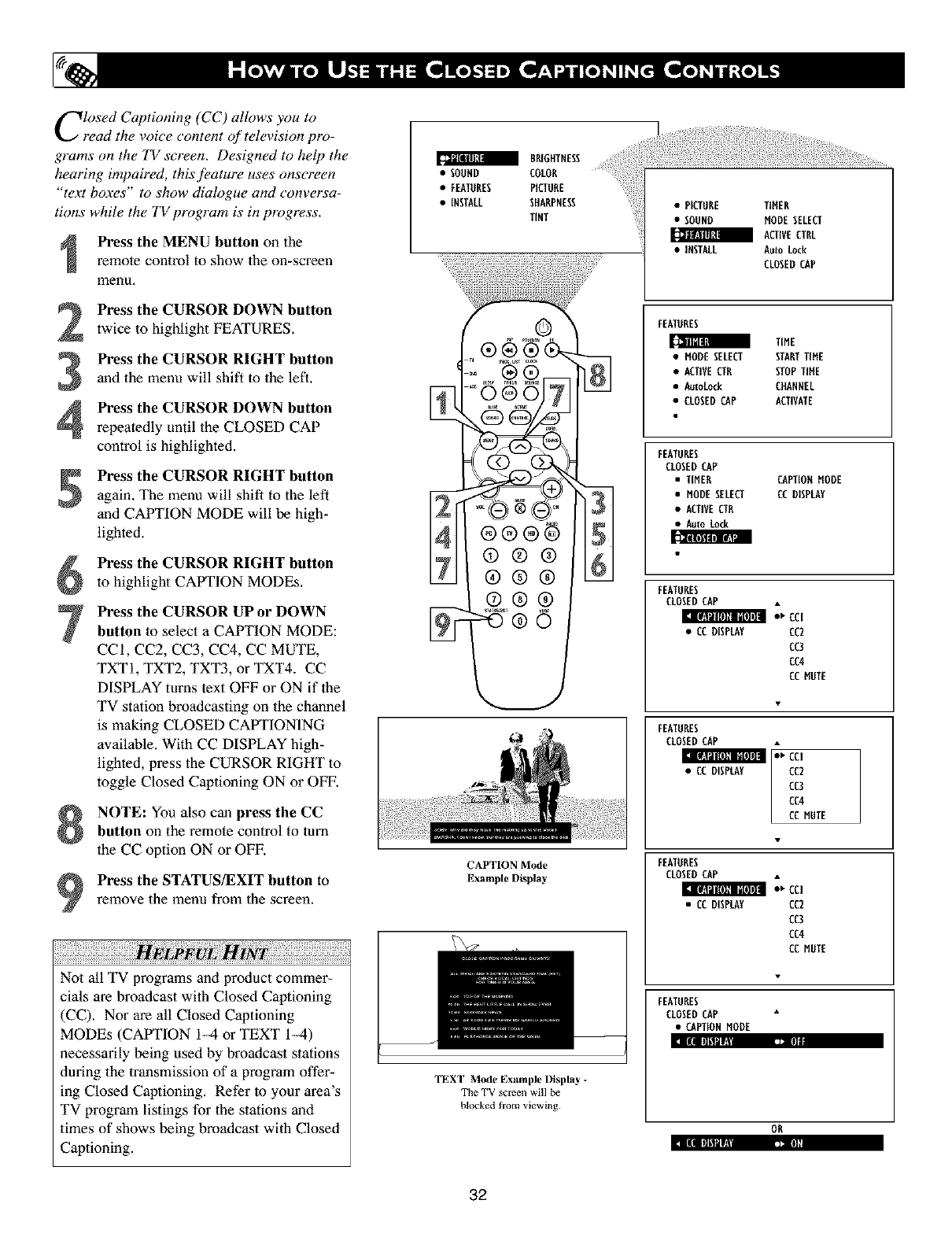

How to use the Closed Captioning Control ...... 32

How to use the Widescreen Control (Forma0 .......... 33

How to use the Program List Feature ................. 34

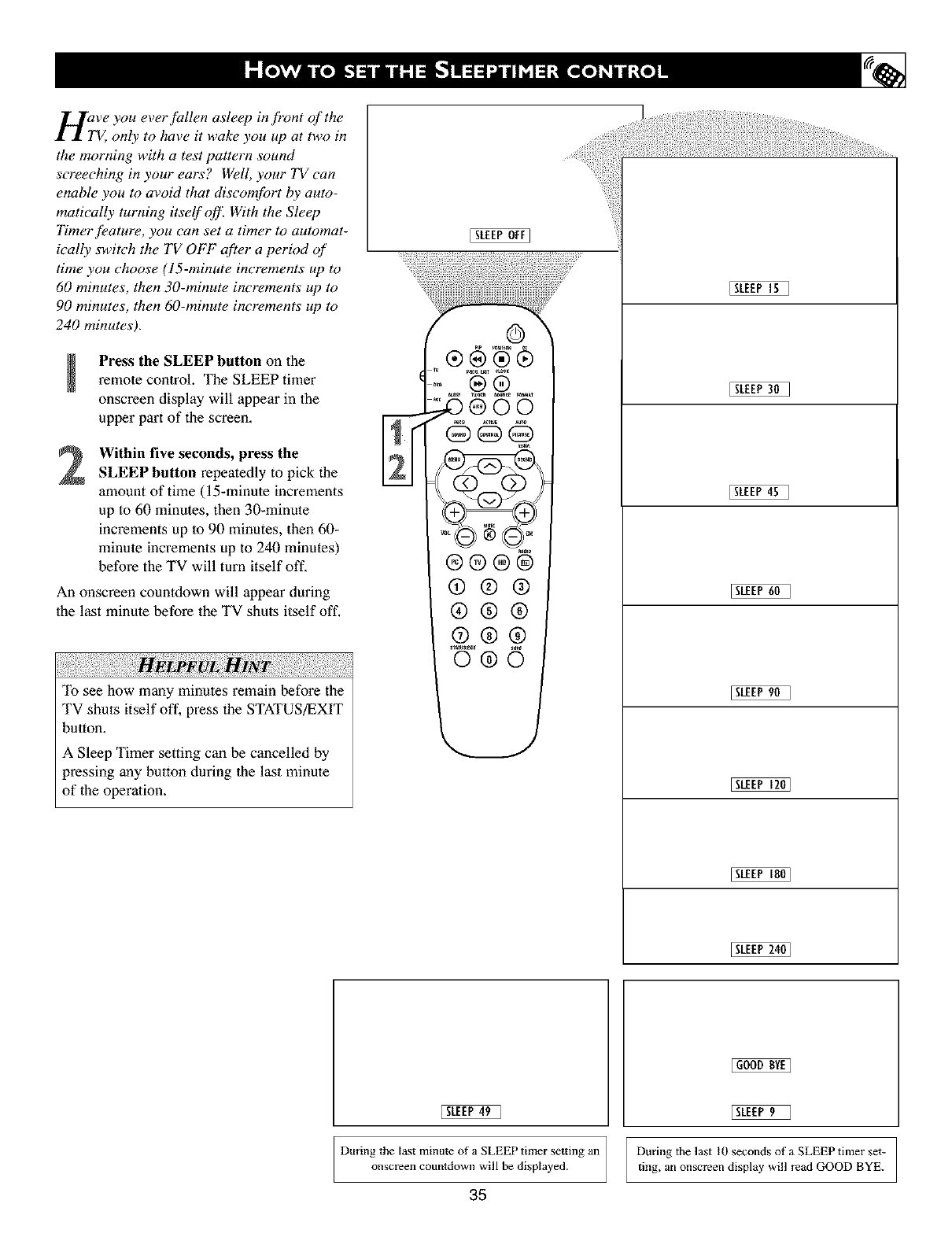

Setting the Sleeptimer Control ...................... 35

Setting the AutoPicture 'rMControl ................... 36

Setting the AutoSound 'rMControl .................... 37

Using the Surf Control ............................ 38

Programming the Remote Control for Accessory Devices

Direct Access Method ............................ 39

Code Entry Method ............................. 40

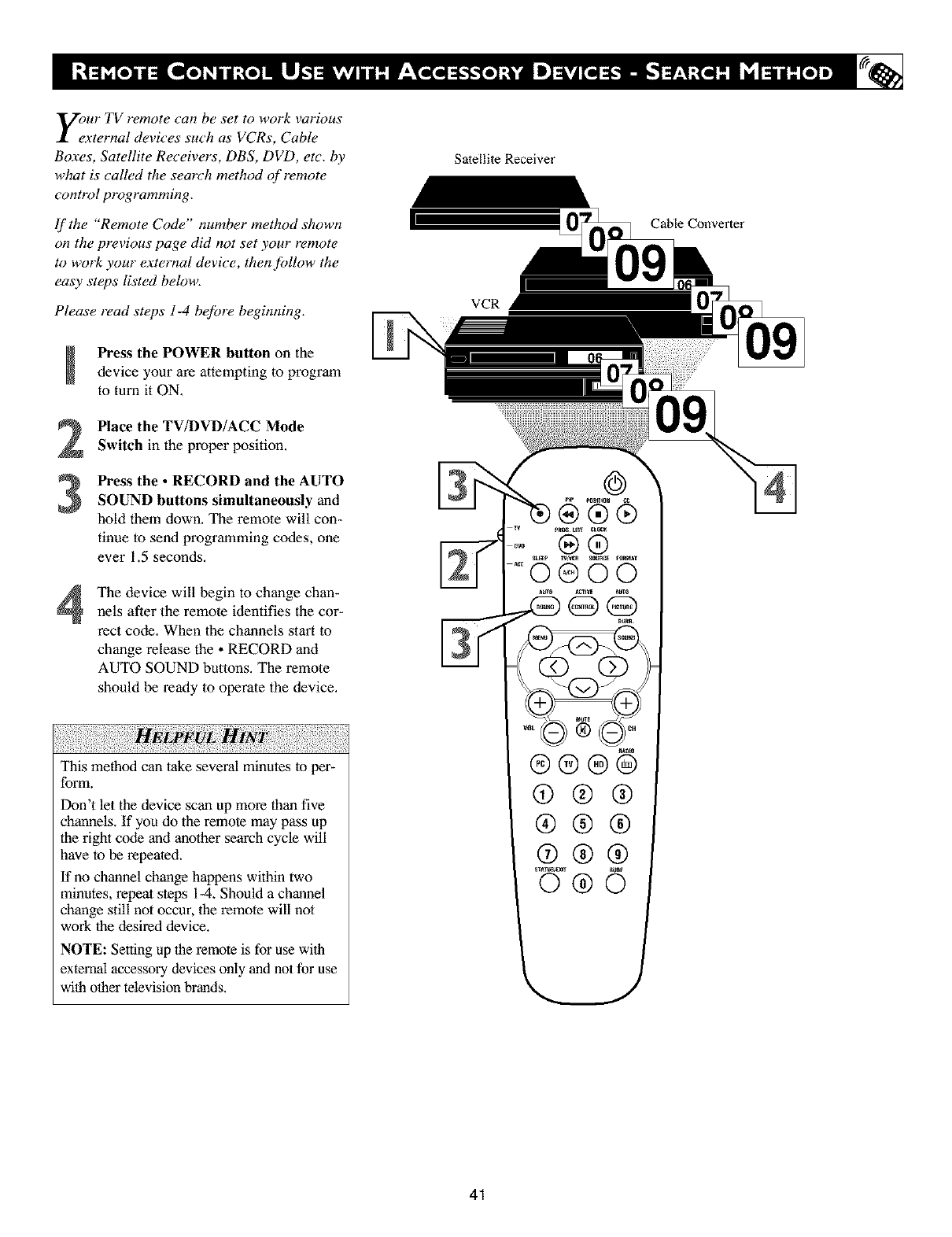

Search Code Method ............................ 41

Remote Code List ............................ 42-44

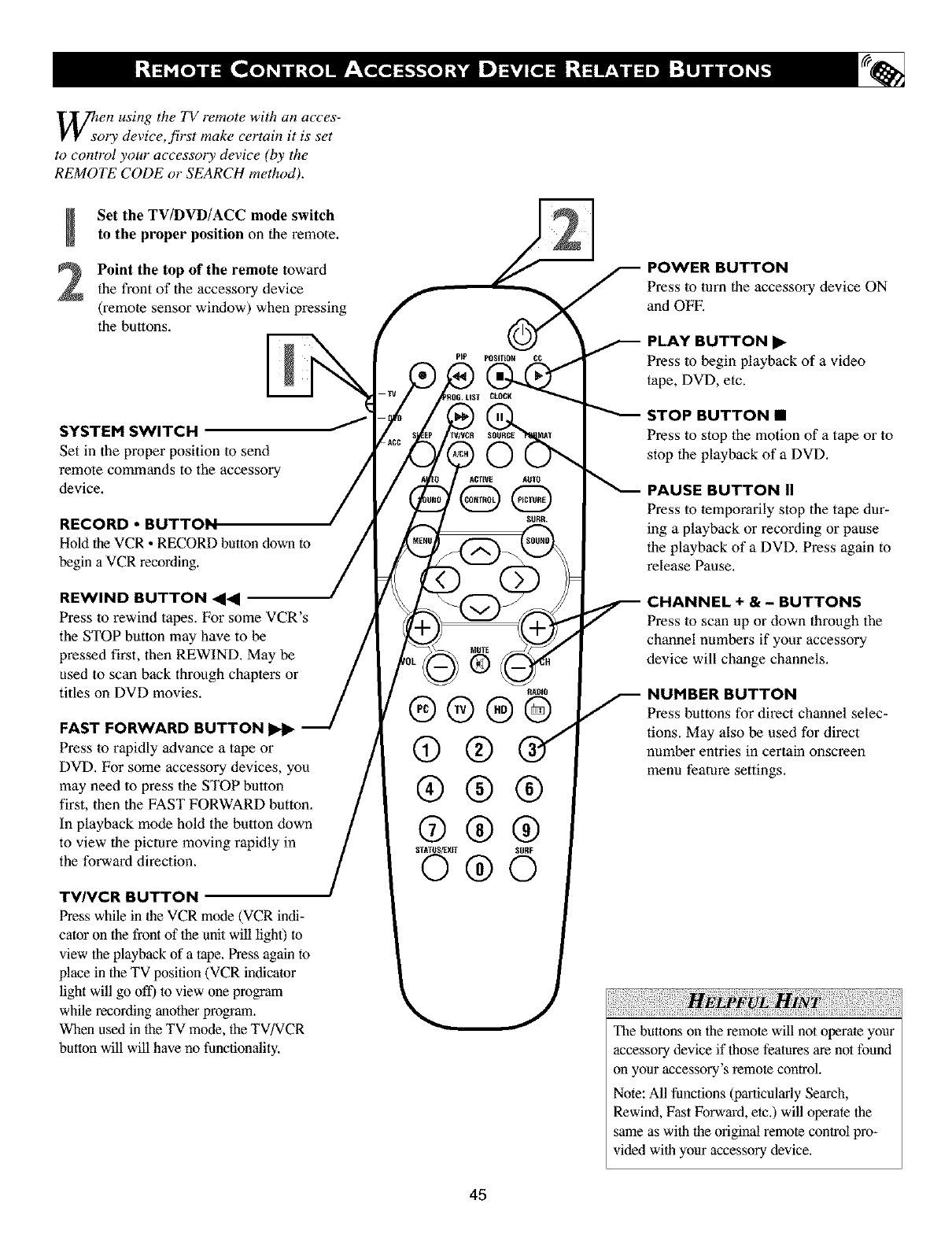

Accessory Device Remote Control Buttons ........... 45

_FM Radio Mode

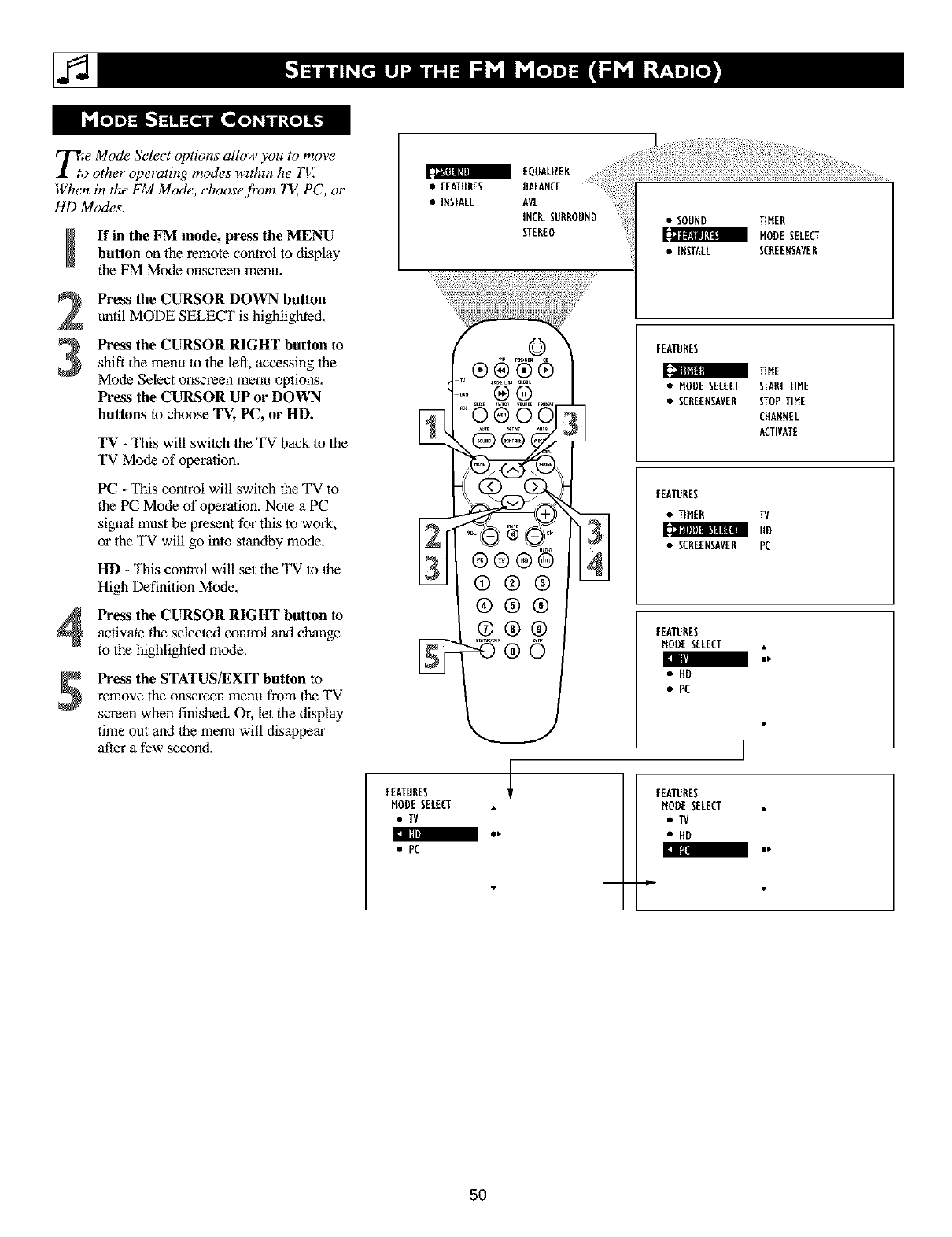

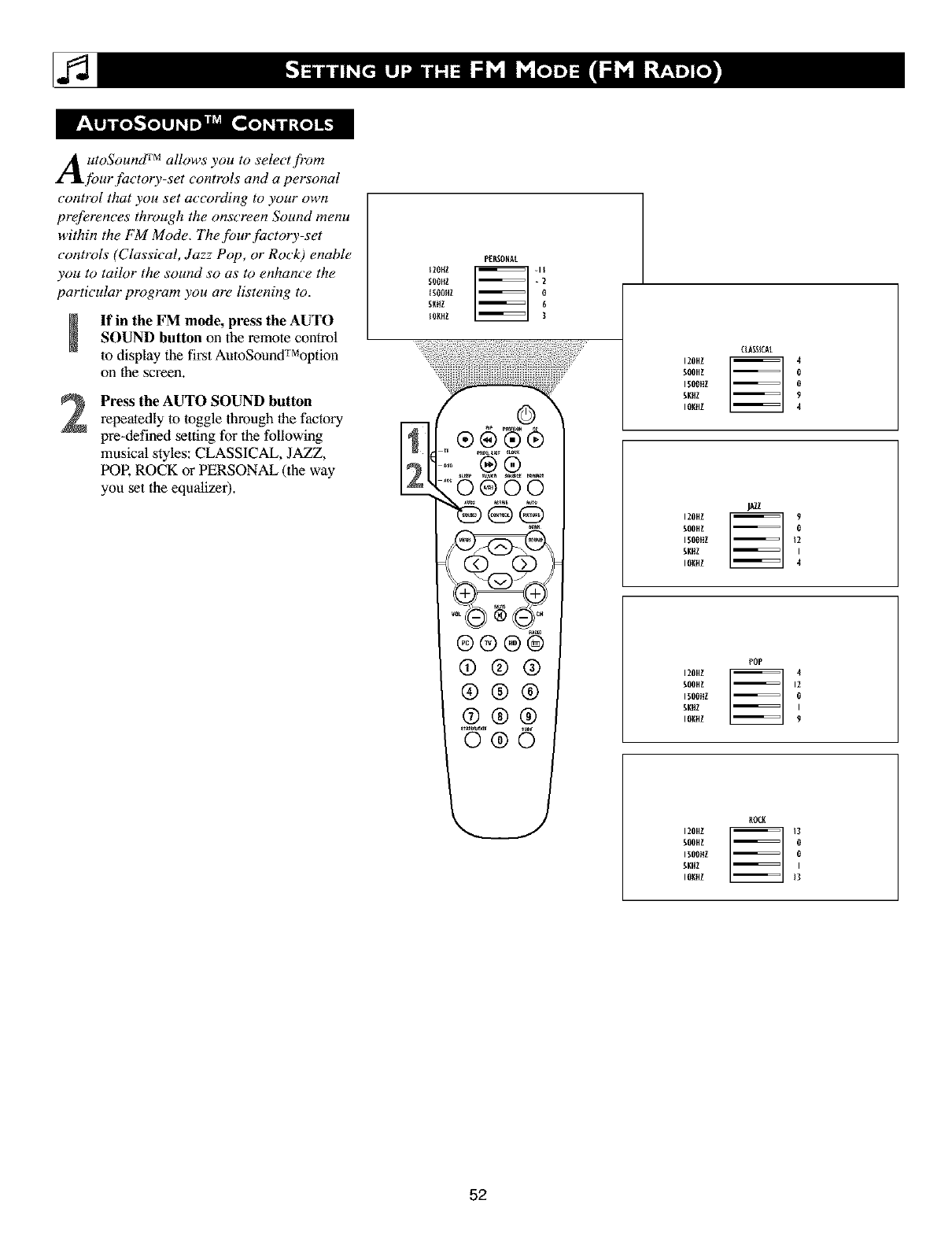

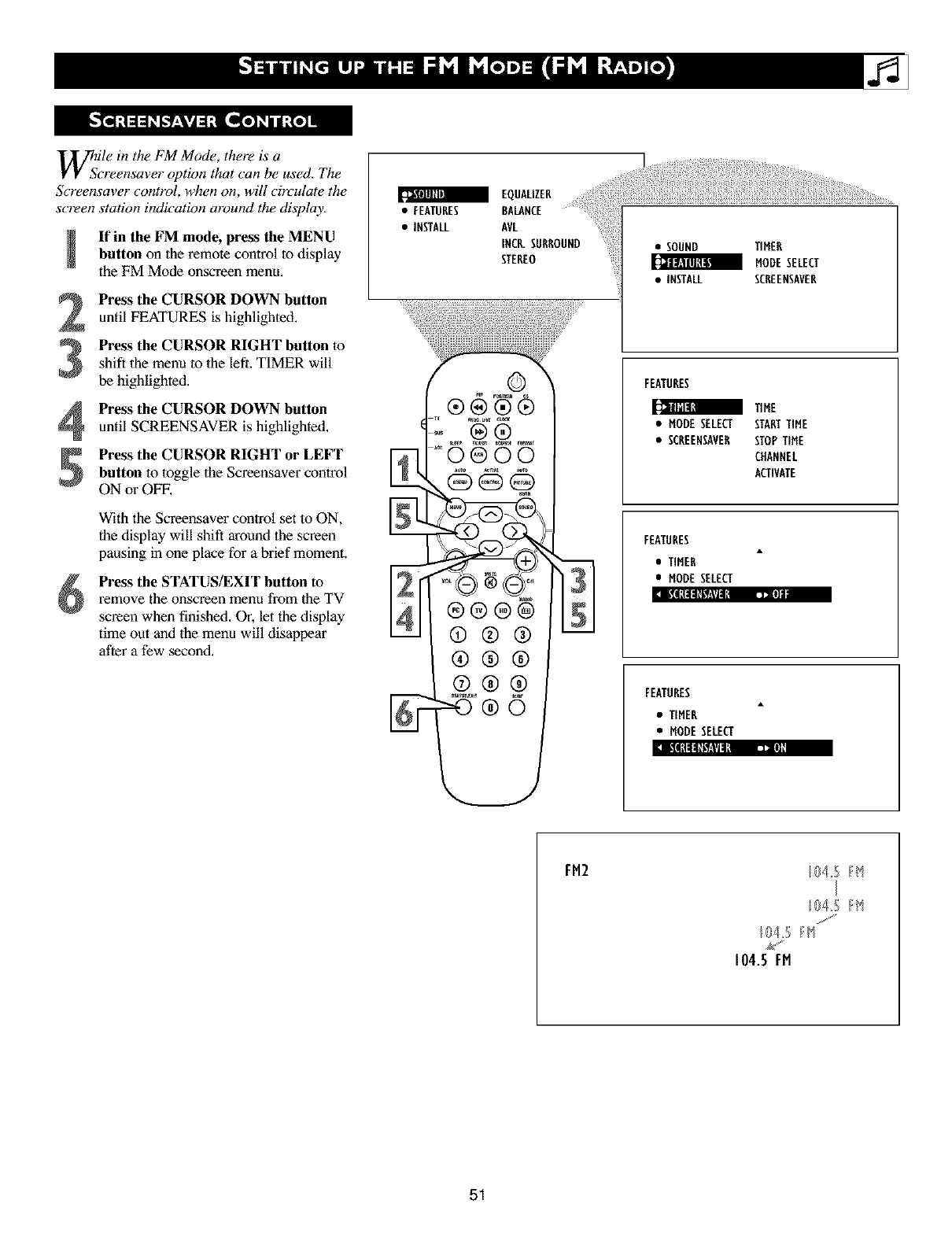

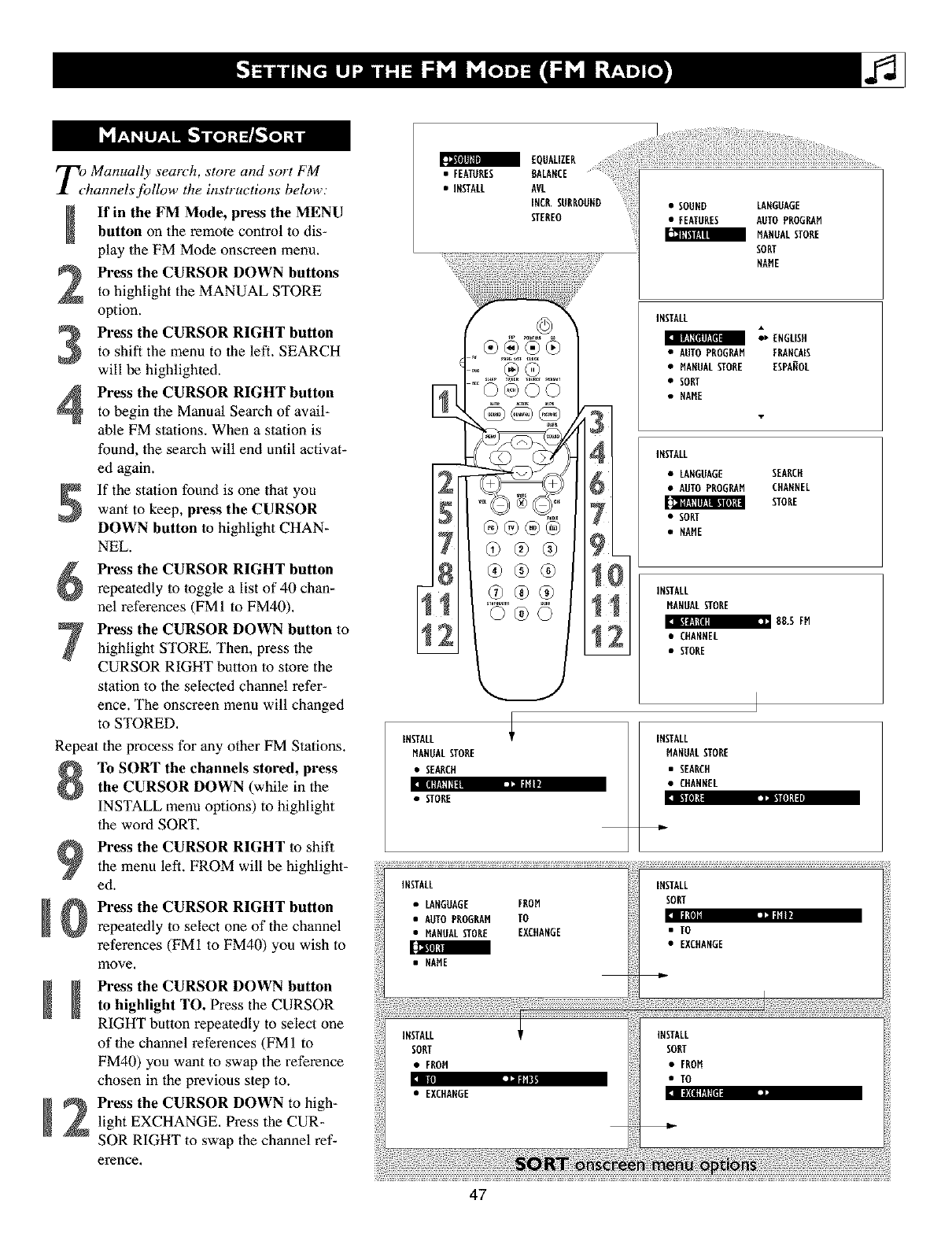

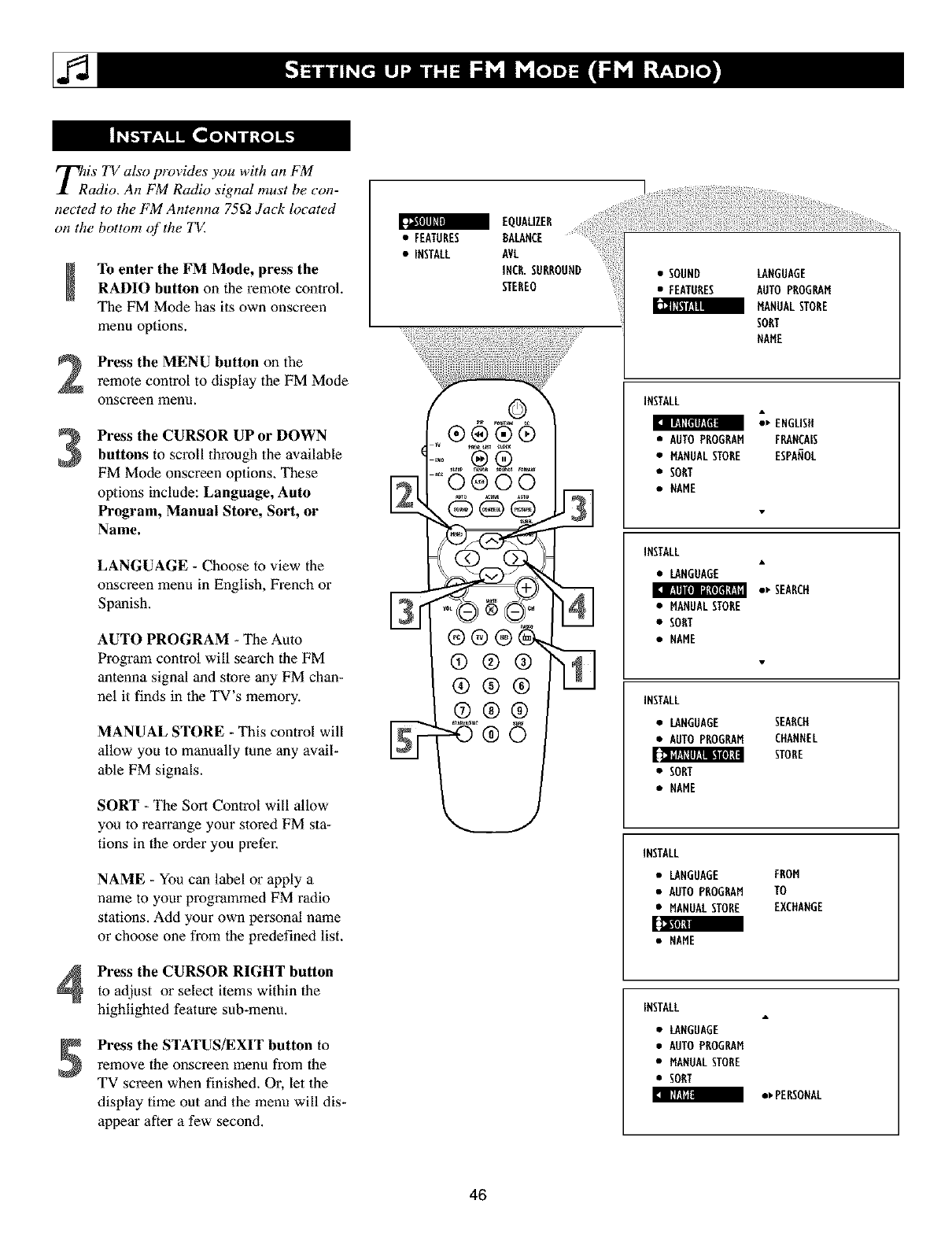

Using FM Mode Information .............. 46-52

_HD (High Definition) Mode

How to use the HD Mode and it's Features ,, .5346

_PC Mode

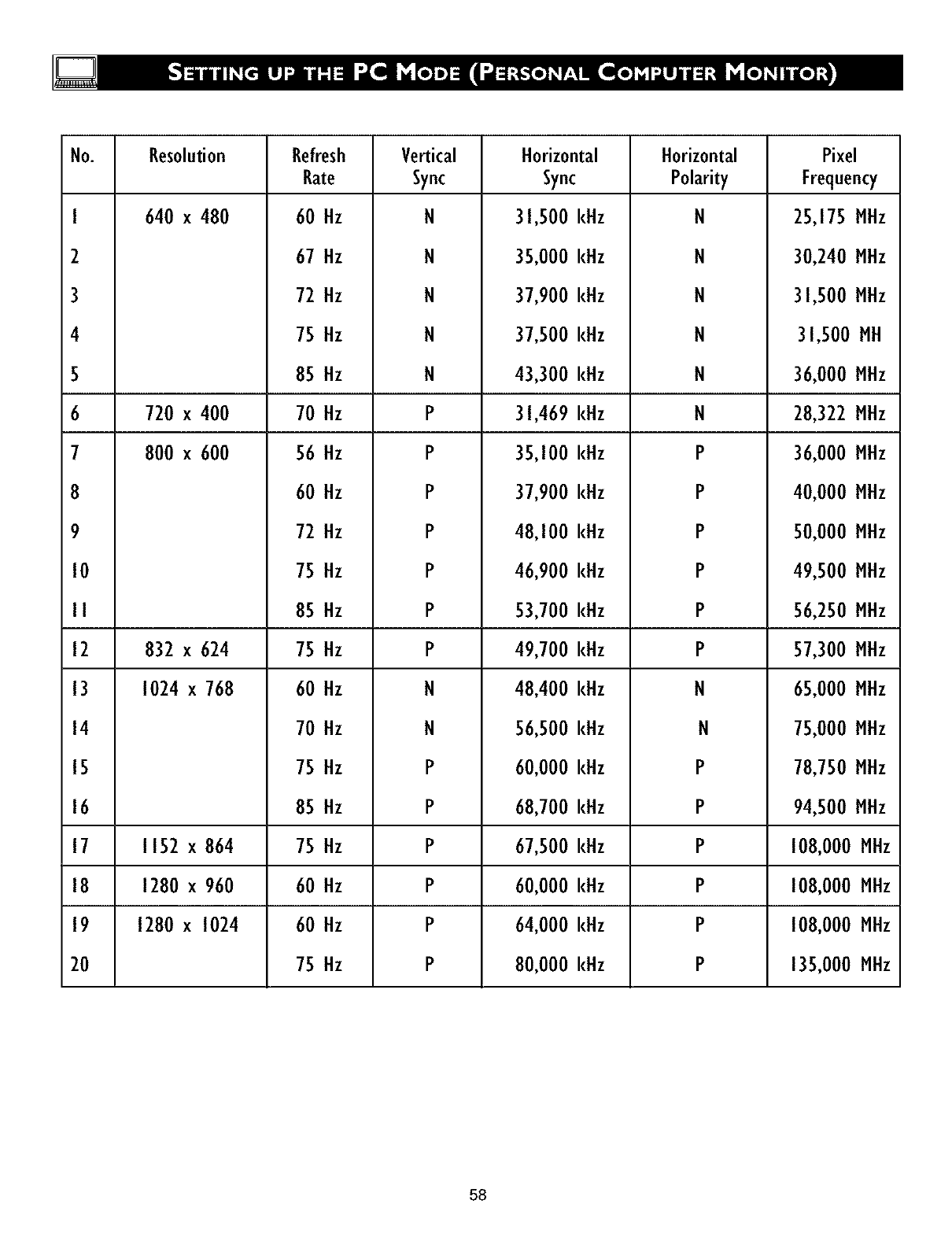

H-oow'_ou_e the PC Mode Features .......... 57-58

General Information

Troubleshooting Tips ....................... 59

Cleaning and Care ................................ 59

Glossary of Terms ................................ 60

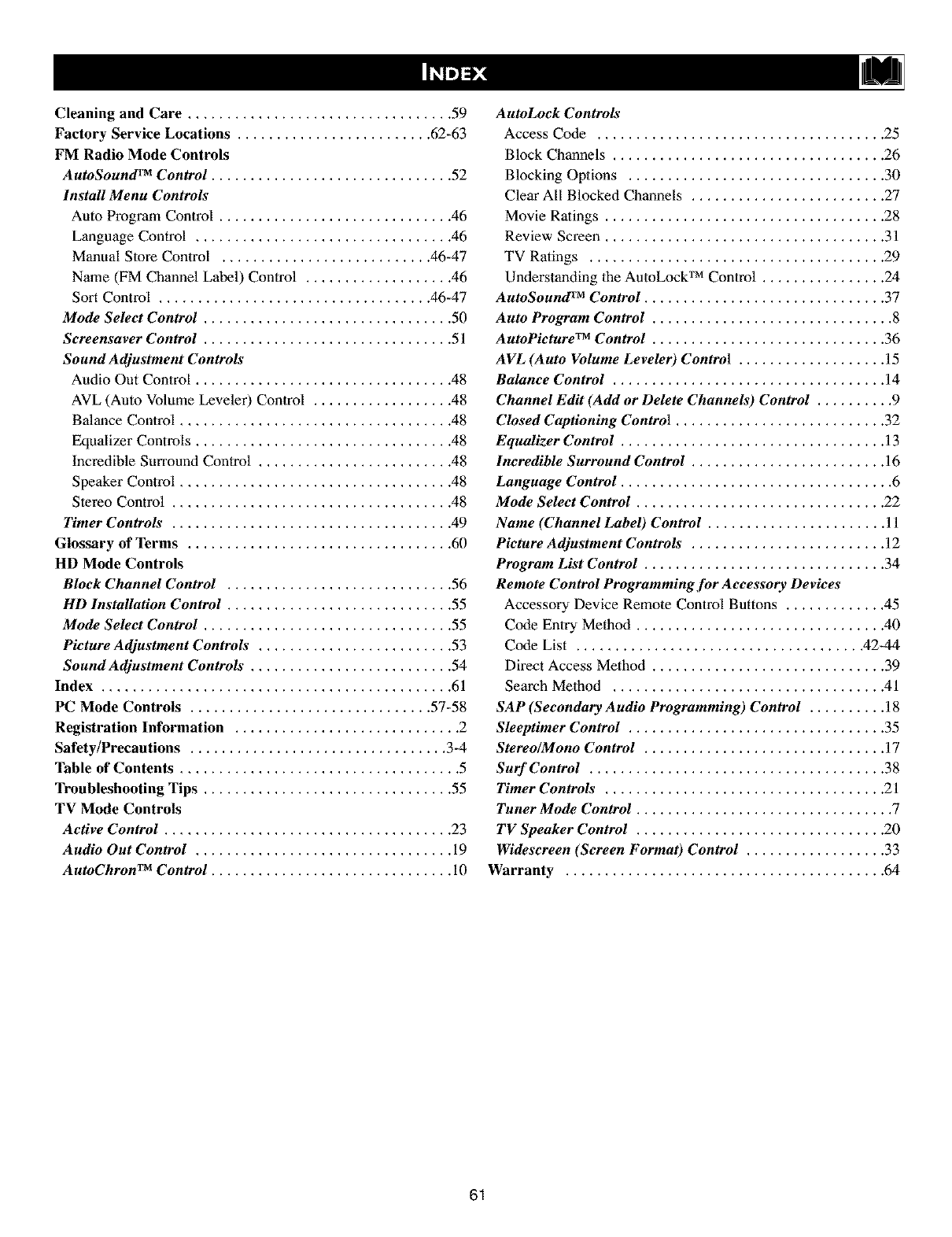

Index .......................................... 61

Factory Service Location ........................ 62-63

Warranty ....................................... 64

Here are a few of the features built into your new Television:

Active Control TM continuously measures and corrects all incoming

signals to help provide lhe best picture qualily. This fealure moni-

tors and correctsbolh the sharpness control and noise reduction

control.

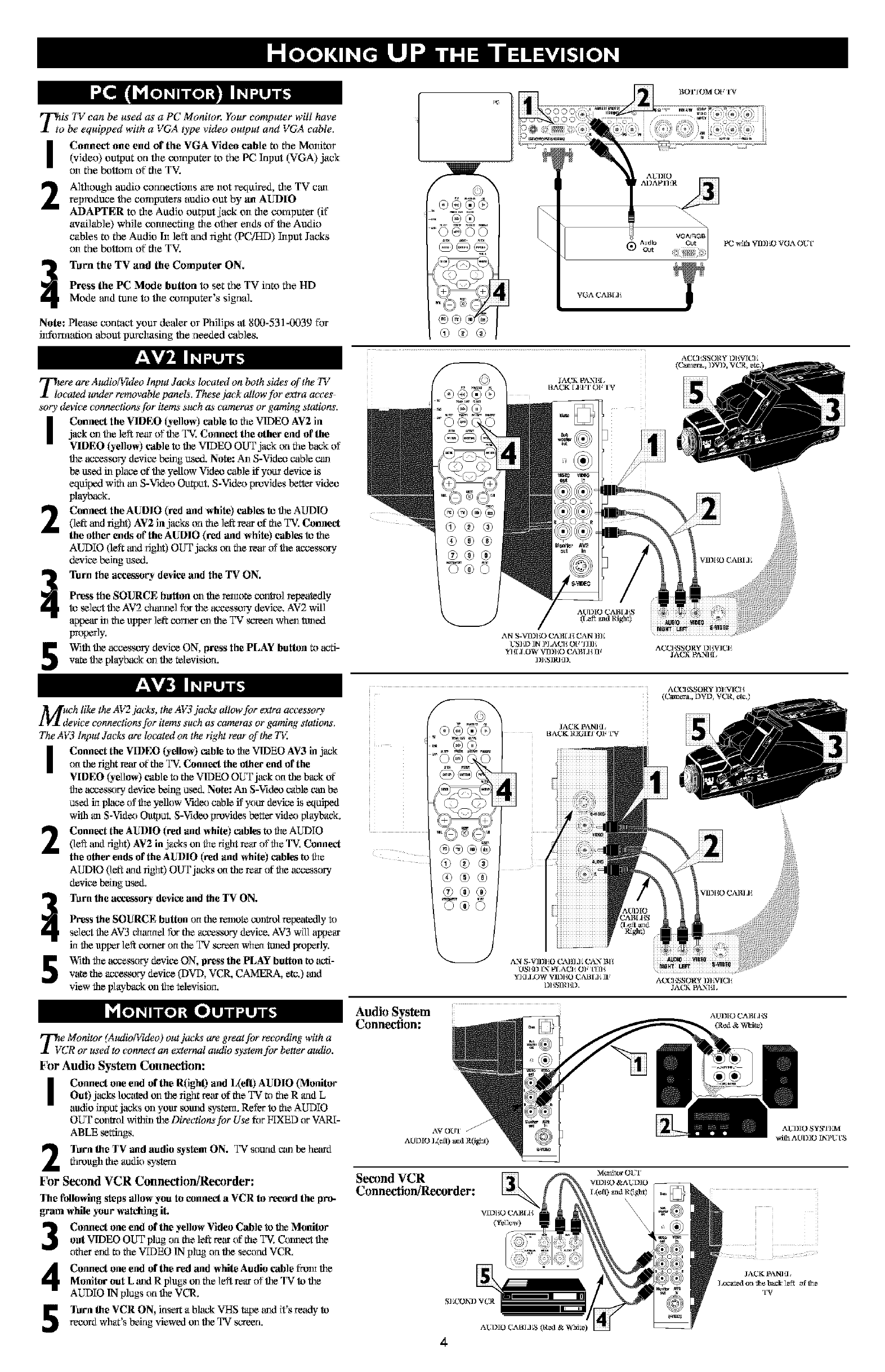

Audio/Video Jack Panels allows direct connections with VCRs,

DVDs, PCs or other devices, providing quality TV piclare and

sound playback.

Audio Volume Leveler (AVL) Control keeps the TV sound al an

even level. Peaks and valleys lhal occur during program changes or

commercial breaks are reduced, malting for a more consistent, com-

fortable sound.

AutoChron TM automatically sets the right time of day and main-

tains it with digital precision lhrough brownouts, power failures,

and even Daylight Savings Time adjustments.

AutoLock allows you to block the viewing of certain channels or

programs with certain ratings if you do not want your children to

view inappropriate materials.

Auto Programming scans (when activated) for all available chan-

nels from regular antenna or cable signals and stores only active

broadcast stations in the TV's memory.

AutoPicture TM allows you to change the piclure settings (color,

tint, contrast, etc.) for various types of programming, such as

sports, movies, multimedia (games), or weak signals wilh the push

of one butlon.

AutoSound TM allows you to select from lhree factory-set controls

and a personal control that you set according to your own prefer-

ences lhrough the onscreen Sound menu. The three factory-set con-

trols (Voice, Music, anti Theatre) enable you to tailor the TV sound

so as to enhance the particular programming you are watching.

Closed Captioning allows the viewer to read TV program dialogue

or voice conversations as onscreen text.

Infrared Remote Control works your TV and other remote-con-

trolled devices, such as VCRs, DVD players, cable converters, and

satellite receivers.

Surf Button allows you to easily switch among only the channels

that are of interest to you (lhe ones that you have

programmed into lhe TV's Surf control through the onscreen

menu).

Timer allows you to set your TV to tam itself ON and OFF once or

daily like an alarm clock.

Active Control, Auto Lock, Auto Picture, Auto Sound,

are all registered trademarks of Philips Consumer Electronics Company.

For or Spanish- and French-speaking TV

owners, an onscreen LANGUAGE option

is present. The LANGUAGE control enables

you to set the TV's onscreen menu to be

shown in either English, Spanish, or French.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button

to shift the menu to the left and high-

light LANGUAGE.

Press the CURSOR RIGHT button

to highlight the LANGUAGE control

options.

Press the CURSOR UP or CURSOR

DOWN button to select ENGLISH,

ESPANOL (Spanish), or FRANCAIS

(French).

Press the STATUS/EXIT button to

clear the menu from the screen,

Remember, the LANGUAGE control makes

only the TV's onscreen MENU items appear

in English, Spanish, or French text. It does

not change the other onscreen text features,

such as Closed Captioning (CC), with TV

shows.

BRIGHTNESS

•SOUND COLOR ......

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

"0®00

@© ....

@®@G 41

(9®®

®®®

@®®

-V

I@1

• PICTURE LANGUAGE

• SOUND TUNERNODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

MANUAL

INSTALL

•_ENGLISH

• TUNERNODE FRANCAIS

•AUTOPROGRAM ESPANOL

• CHANNELEDIT

•MANUAL

s¥

INSTALL

LANGUAGE

• TUNERNODE

•AUTOPROGRAM

• CHANNELEDIT

•MANUAL

Tthe TUNER MODE allows you to change

he TV s signal input to CABLE, ANTEN-

NA, or AUTO mode. It's important fiJr the TV

to know if you want to receive channelsJ?om

a cable TV signal or a normal antenna signal.

NOTE: The AUTO mode setting helps the TV

determine the type of signal or channels being

received when AUTO PROGRAM is activat-

ed.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT buttonto shift the menu to the left.

Press the CURSOR DOWN button to

highlight the TUNER MODE control.

Press the CURSOR RIGHT button

to highlight the tuner options.

I=illfsl(Rlll,.(((l

Press the CURSOR UP or CURSOR

DOWN button to select CABLE,

ANTENNA or AUTO.

If TUNER MODE is set to AUTO,

Auto Program (see below) will detect

whether or not cable input is present.

Press the STATUS/EXIT button to

clear the menu from the screen,

When CABLE is selected, channels 1-125

are available.

When ANTENNA is selected, channels

2_9 are available.

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• iNSTALL SHARPNESS

TINT

®®

°o0eo

®®®®

@®®

®®®

®®® ©

• PICTURE LANGUAGE

• SOUND TUNERMODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

MANUAL

_*ENGLISN

• TUNERMODE ERANCAIS

• AUTOPROGRAM ESPANOL

• CHANNELEDIT

• MANUAL

• LANGUAGE

e, ANTENNAIlIRl|_ liEoI01

• AUTOPROGRAM AUTO

• CHANNELEDIT CAELE

• MANUAL

• LANGUAGE

TUNERMODE

• AUTOPROGRAM

• CHANNELEDIT

•MANUAL

Vour TV can automatically set itself fi)r

$_ local area (o1"cable TV) channels. This

makes it easy fi)r you to select only the TV

stations in your area by pressing the CHAN-

NEL (+) or (-) button.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button

to shift the menu to the left. LAN-

GUAGE will be highlighted.

Press the CURSOR DOWN button

repeatedly until the AUTO PROGRAM

control is highlighted.

Press the CURSOR RIGHT button

to start the Auto Program scanning of

channels.

Press the STATUS/EXIT button to

clear the menu from the screen,

After you've run Auto Program, check out

the results. Press the CHANNEL (+) or (-)

button and see which channels you can

select.

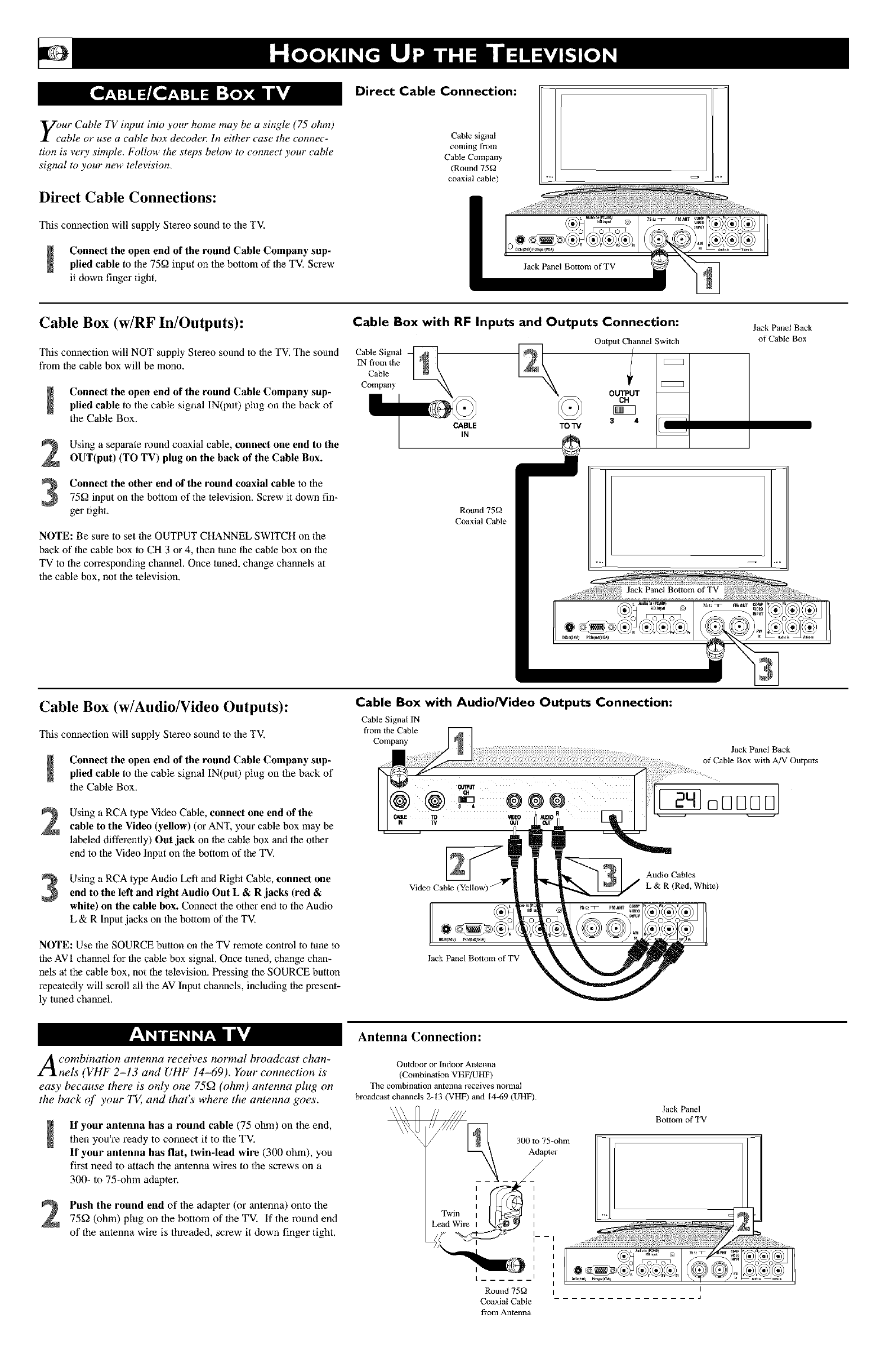

Remember, an antenna or cable TV signal

must first be connected to your TV (see

instructions for making connections on page

1 of 1his guide).

•SOUNDC0LOR"'GHTNE*S<!!iiii

• FEATURES PICTURE

•INSTALL SHARPNESS

TINT

oo ®®

®®®

• PICTURE LANGUAGE

•SOUND TUNERMODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

MANUAL

INSTALL

:* ENGLISH

[[I l,.l][lll!._Tlt|

•TUNERMODE FRANCAIS

•AUTOPROGRAM ESPANOL

• CHANNELEDIT

• MANUAL

INSTALL

• LANGUAGE

•TUNERMODE

[11._11|[01['JfflI_kT,_l_l •_SEARCN

• CHANNELEDIT

•MANUAL

INSTALL •

• LANGUAGE

•TUNERMODE

•AUTOPROGRAM

• CHANNELEDIT

• MANUAL

CHANNEL EDIT makes it easy for you to

add or delete channels j?om the list of

channels stored in the TV's memory.

Press the MENU button on the remote

control to show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button to

shift the menu to the left. LANGUAGE

will be highlighted.

Press the CURSOR DOWN button

repeatedly until the CHANNEL EDIT

control is highlighted.

Press the CURSOR RIGHT button to

access the CHANNEL EDIT menu.

Press the CURSOR UP or CURSOR

DOWN button to scroll through the list

of available channels. Or press the num-

ber buttons on your remote control to

select a specific channel (for example,

press 0and then2to select channel 2).

With the channel you want to edit select-

ed, press the CURSOR RIGHT button

to mark the channel as SKIPPED. The

channel you've marked SKIPPED will

not appear when you are changing from

channel to channel while watching TV.

NOTE: When you want to add a channel that

has been marked SKIPPED, press the CUR-

SOR UP or CURSOR DOWN button to

highlight the channel; then press the CUR-

SOR RIGHT button to remove the word

SKIPPED.

BRIGHTNESS

• SOUND COLOR

• FEATURES PICTURE

•INSTALL SHARPNESS

TINT

- ®®

°o0eo

6)@@

®®®

• PICTURE LANGUAGE

• SOUND TUNERMODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

MANUAL

INSTALL A

El II._1_Etlll_N| • _"ENGLISH

•TUNERMODE FRANCAIS

•AUTOPROGRAM ESPANOL

• CHANNELEDIT

•MANUAL

|¥

INSTALL

• LANGUAGE

•TUNERMODE 2

•AUTOPROGRAM 3

[|IEI-1lllI|III]I!

•MANUAL S

INSTALL

• LANGUAGE

•TUNERMODE

•AUTOPROGRAM

CHANNELEDIT

• MANUAL

The channels available for you to edit are the

ones that the AUTO PROGRAM feature

found through a search of your TV antenna

or cable TV signals, Channels not found dur-

ing the search are marked SKIPPED.

INSTALL

• LANGUAGE

•TUNERMODE

•AUTOPROGRAM

•CHANNELEDIT

•MANUAL

A utoChron _>acan automatically set the TV s

onscreen clocL Because the time is

received j?om a broadcast signal, you must be

sure that a cable TV or antenna signal is pres-

ent bejbre you attempt to use the AutoChlvn _

feUtHFe.

Press the MENU button on the remote

tO show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button to

shift the menu to the lefL LANGUAGE

will be highlighted.

Press the CURSOR DOWN buttonuntil the AmoChron control is highlight_

ed.

Press the CURSOR RIGHT button to

ste,ri the AutoChron TM fealure. Then just

follow 1he onscreen instructions to set

the clock_

Press the CURSOR RIGHT button to

select AUTO. Within a few seconds, a

menu for choosing your time zone will

appear.

Press the CURSOR UP or CURSORDOWN button to highlight your correct

time zone.

With your correct time zone high-

lighted, press the CURSOR RIGHT

button. Wflhin afew seconds, you will

be given the option to choose whether

you want to select DayLightSavings

Time_ If your time zone uses Daylight

Savings, select YES.

Enter your IDeal PBS ehannel or any

local channel that transmit the current

tEme, and press the CURSOR RIGHT

button to start the searching process. If

the AmoChron TM features finds 1he cur-

rent time you are done. If it doenot find

the current time, re-enter an other chan-

nel and search again.

When turned ON, the AutoChronTM feature

can affect the start up of your television,

When the power button is press and the

AutoChron TM feature is set to the AUTO

_osition, the TV will scan the channels for a

PBS channel to set the clock automatically,

It may take SEVERAL seconds before the

TV powers itself ON,

a 8HIGHTNESS

•SOUMD COLOR

• FEATURES PICTURE

•INSTALL SHARPNESS

TIMl

•PICTURE LANGUAGE

• SOUND THHERMODE

•FEATURES ADIOPROG_AH

m CHANNELEDIT

MANUAL

INSIALL :_ENGLISH

• TUHER NODE ERAMCAIS

• AUTO PROGRA_ ESPANOL

•EHAHREL EDIT

• MANUAL

INSTALL

• IUHER MODE

• AUIO PROGRAM SET TIME

• EHAHREL EDIT

• MANUAL

_I[,TH/ENH?/I_ •_A_IO

_AHHAL

IMSTALL

•TUHER NODE

•AUTO PROGRA_

• EHAHREL EDIT

• MANUAL

• AutoChro_

INSTALL

•TNHER MODE

•ADIO PROG_A_

• CHANMELEDIT

• _AH_AL

AutoEh_on

®@@

IHSTALL

• TUHER NODE

•AUTO PROGRA_

•CHANNELEDIT

• MANUAL

AutoChro_

INSIALL

•TNHERMODE

•AUTO PROGP_

• CHANNELEDIT

•MAMMAL

• AutoCAro_

IHSTALL

• TUMER _ODE

•AUTO PRDGKA_

• EHAHNE[ EDIT

•MANUAL

• AutoChro_

IMSTALL

•THREE _DD[

• AUTO PHOGEAM

• CRAMHELEDIT

• _ANHA[

,AuloChron

INSTALL

•THRER_ODE

•AUTO PHDGKAH

•CHANNELEDIT

• MARUAL

• Au_oChro_

TlThe channel NAME feature allows you to list

ecall letters ofyourjbvorite stations

beside their channel numbers when they

appear on the screen. The TV has in memory a

list of the 50 most popular channel names (for

example, ABC, NBC, FOX, err.). You also can

enter a custom name (up to five characters).

Tune to a specific channel that you want to

add a label to, then;

Press the MENU button on the remote

control to show the onscreen menm

Press the CURSOR DOWN button

repeatedly until INSTALL in highlight-

ed.

Press the CURSOR RIGHT button toshift the menu to the lefL LANGUAGE

will be highlighted.

Press the CURSOR DOWN button

repeatedly until 1he NAME control is

highlighted.

Press the CURSOR RIGHT button to

highlight the NAME options area.

Press the CURSOR RIGHT button

again; then press the CURSOR UP or

CURSOR DOWN button to scroll

through aListof options for the first char-

acter (A lhrough Z, 0 lhrough 9). Press

the CURSOR RIGHT button and

repeat for the second, third, fourth, and

fifth characters

After you have selected a name for the

channel, press the MENU button to

save the name in the TV's memory.

Press the STATUS/EXIT button to

clear the menu from the screen.

The five characters that the channel NAME

feature allows you to input can be letters, a

dash character, or the numbers 0 through 9,

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

The Channel Label or NAME will appear _,

when ever a channel change is made or

when the STATUS/EXIT button is pressed.

• PICTURE LANGUAGE

•SOUND TUNERMODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

MANUAL

INSTALL

orENGLISH

•TUNERMODE E_NCAIS

•AUTOPROGRAM ESPANOL

•CHANNELEDIT

•MANUAL

|¥

INSTALL

• AUTOPROGRAM

• CHANNELEDIT

•MANUAL

•AutoChron

• _ PERSONAL

INSTALL

I i

• AUTOPROGRAM

• CHANNELEDIT

INSTALL

•AUTOPROGRAM

• CHANNELEDIT

• MANUAL

• AutoChron

•NAME

r_) adjust your TV picture controls, select a

Ichannel andfidlow these steps.

Press the MENU button on the remote

control to show the onscreen menu. PIC-

TURE will be highlighted.

Press the CURSOR RIGHT and the menu

will shift to the left. BRIGHTNESS will be

highlighted and an Miustment bar will be

shown to the right.

:l IitllIIt[ll_ ....

Use the CURSOR LEFT or RIGHT to

adjust the BRIGHTNESS level of the pic-

tare.

After adjusting the BRIGHTNESS con-

Ii"ol, press the CURSOR DOWN to

select another picture aciiastment:

COLOR, PICTURE, SHARPNESS,

TINT, COLOR TEMP, DNR, or CON-

TRAST +. Press the CURSOR LEFT

or RIGHT to adjust the selected control.

NOTE: The menu will show only five items at a

time, so you will need to continue scrolling with

the CURSOR DOWN to adjust the TINT,

COLOR TEMR DNR, or CONTRAST +.

:z[Itllt

:1 ltIIIIh

Press the STATUS/EXIT button to

remove the merlu from the screen.

Remember, when the bar scale is centered

t, the control settings are at

normal, mid-range levels, Picture adjust-

ments are described here.

NOTE: The SHARPNESS and TINT

Controls will not be available for adjust-

ments when tuned to the CVI Inputs (CVI

Channel),

BRIGHTNESS - adds or subtracts light

from the darkest part of the picture.

COLOR - adds or eliminates color.

PICTURE - improves the detail of the light-

est parts of the picture.

SHARPNESS - improves the detail in the

ficture,

TINT - adjusts the picture to obtain natural

skin tones.

COLOR TEMP - offers NORMAL (keeps

whites, white), COOL (makes whites, bluish),

or WARM (makes whites, reddish) picture

?references.

DNR - can help eliminate slightly "speck-

led" picture (an indication of signal noise in

the picture).

CONTRAST + - helps to "sharpen" the

picture quality. The black portions of the

?icmre become richer in darkness and the

whites become brighter.

BRIGHTNESS

• SOUND COLOR ::

•FEATUBES PICTURE

• INSTALL SHARPNESS

TINT

PICTDBE •

• COLOR

•PICTUBE

•SHARPNESS

•TINT

°0®00

suR_

ooo

O®O

OOO

O00

PICTDBE •

• BRIGHTNESS

• COLOB

•PICTURE

•SHARPNESS

nlt_lt|ll, h

fill I(tll[t]lll_lll'i I_[tlNEII


• BRIGHTNESS

•PICTDBE

• SDABPNESS

!TINT


• BRIGHTNESS

• COLOR

•SHARPNESS

!TINT

PICTDBE

• BRIGHTNESS

• COLOB

•PICTDBE

•TINT


• COLOR

•PICTUBE

• SHARPNESS

--_ • TINT

PICTDBE J[

•PICTURE

• SHABPHESS

•TINT

• COLOBTEHP

PICTDBE

IPICTURE

• SHARPNESS

•TINT

• ONR

:[I[0[IIIT:III=: HIN:l lilt ,,

The Equalizer Controls allow you to adjust the

sound j?equencies to suit the type of program-

ming be watched.

Press the MENU button on the remote

control to show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until SOUND in highlighted.

Press the CURSOR RIGHT button to

shift the menu to the left. EQUALIZER

will be highlighted.

Press the CURSOR RIGHT button to

highlight the EQUALIZER options area.

Press the CURSOR UP or DOWN

buttons to highlight any of the frequen-

cy options.

Press the CURSOR RIGHT or LEFT

buttons to a_iust the control slider to the

level desired.

Once all the Equalizer controls have

been set, press the STATUS/EXIT but-

ton to clear the menu from the screen.

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT • PICTURE EQUAUZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

_ 120HZ

•BALANCE 5OOHZ

• AVL ISOOHZ

• INCR.SURROUND5KHZ

• STEREO IRKHZ

SOUND

•SOOHZ -2

• 1500HZ Ill O

•SRHZ IlI 6

• IOKHZ IlI 3

_t_h e Balance Control will allow you to adjust

e sourM levels between the right and left

speaker output.

Press the MENU button on the remote

control to show the onscreen menu. PIC-

TURE will be highlighted.

Press the CURSOR DOWN button

repeatedly until SOUND in highlighted_

Press the CURSOR RIGHT button to

shift the menu to the left. EQUALIZER

will be highlighted.

Press the CURSOR DOWN to highlight

the BALANCE control.

Press CURSOR RIGHT or LEFT but-

tons to aciiustthe sound between the right

and left speakers.

Press the STATUS/EXIT button to

remove |he mena from |he screen.

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®

ooo®

00@

0®®

06) 0

• PICTURE EQUALIZER

BALANCE

•FEATURES AVL

•INSTALL INCR.SURROUND

STEREO

SOUND

12ONZ

•BALANCE 5OOHZ

• AVL I5OOHZ

• INCR.SURROUND5RHZ

• STEREO IORHZ

SOUND

• EQUAUZEB

iIII_ll_ll

•AVL

• INCR.SURROUND

• STEREO

I;rolmost cases, the volume levels coming

mbroadcast programming or commer-

cials are never the same. With the AVL

(Audio Volume Leveler) control turned ON,

you can have the TV level out sound that is

being heard. This makes for a more consis-

tent sound by reducing the peaks and valleys

that occur during program changes or com-

memial breaks. To turn the AVL ON, fbllow

these steps.

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and the

menu will shift to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until AVL is highlighted.

Press the CURSOR RIGHT or

LEFT to toggle AVL ON or OFF.

Press the STATUS/EXIT button to

remove the menu from the screen.

ERIGNTNESS

• SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

®®

©©©

®®®®

®®®

@©

• PICTURE EQUALIZER

BALANCE

•FEATURES AVL

•iNSTALL INCR.SURROUND

STEREO

SOUND

[2ONZ

• BALANCE 5OOHZ

•AVL [SUOHZ

•iNCR.SURROUND5RNZ

• STEREO [RKHZ

SOUND

•EQUALIZER

•BALANCE

•iNCR.SURROUND

• STEREO

m_ Ii

e Incredible Surround fi, ature adds

reater depth and dimension to both mon-

aural (MONO) and stereo TV sound. With

the control set to INCR. SURROUND

(Incredible Surround), the TV's speakers can

add even wider sound separation to normal

broadcasts.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

hight SOUND.

Press the CURSOR RIGHT and the

menu will shift to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until INCR. SURROUND is high-

lighted. (Incredible Surround)

Press the CURSOR RIGHT or

LEFT to toggle the INCR. SUR-

ROUND control settings.

If signal is Stereo: Select STEREO, or

INCR. SURROUND,

If signal is MONO: Select MONO, or

SPATIAL.

:nI1_[11_1¢IlRI_OIlI_Ill ['J]l_I|[| k_III_I_UllI_II_

Press the STATUS/EXIT button to

remove |he menu from |he screen.

You can also change the INCR. SUR-

ROUND onscreen menu control set-

tings by pressing the SURR. (sur-

round) SOUND button on the remote

control.

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

@@®

®®®

@®@

•PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

12OHZ

•BALANCE $OOHZ

•AVL 15OOHZ

• INCK SURROUNDSRffZ

• STEREO IOKHZ

IF STEREO:

SOUND

•EQUAUZER

• BALANCE

•AVL

• STEREO

IF MONO:

:1 II_{i_inlL|_{llll0u •]Jill]

:1 II_[|_|nl_l_{llllau LIIIIT!|II

SPATIAL -widens the sound, simulating a

broader, fuller sound.

INCR. SURROUND - widens the sound,

simulating a broader, fuller sound.

IIll|_I!ll Itllill 1llil

t_can receive broadcast stereo TV pro-

rams. The TV has both an amplifTer and

twin speakers through which the stereo sound

can be heard.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT aridihe

menu will shift to the left. EQUALIZ-

ER will be highlighted and an adjust-

merit bar will be shown to lhe right.

Press the CURSOR DOWN repeated-

ly until STEREO is highlighted.

Press the CURSOR RIGHT or

LEFT to toggle the STEREO control

to Stereo or Mono.

Press the STATUS/EXIT button to

remove |he menu from |he screen.

{ : {

Remember, if stereo is not present on a

selected show and the TV is placed in lhe

STEREO mode, the sound coming from the

set will remain monaural.

BRIGHTNESS

• SOUND COLOR

• EEATUES PICTURE

• INSTALL SHARPNESS

TINT • PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

_|!I!tI1! 120HZ

•BALANCE SOOHZ

•AVL 1500ffZ

• INC[ SURROUNDSRNZ

• STEREO IOKHZ

SOUND

•EQUALIZER

•BALANCE

•AVL

• INCR.SURROUND

i11111 _ilt't

1111;= _z"lilll

SAP is an additional part of the stereo

broadcast system. Sent as a third audio

channel, an SAP can be heard apart from the

current TV program sound. TV stations are

free to use SAP for any number of purposes.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

hight SOUND.

Press the CURSOR RIGHT and themenu will shift to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until SAP is highlighted.

BPress the CURSOR RIGHT or

LEFT to toggle the SAP control to On

or Off.

Note: If SAP is not broadcasted on the select-

ed program your watching, NOT AVAIL-

ABLE will appear in the onscreen menu

option.

Press the STATUS/EXIT button to

remove |he menu from |he screen.

ij! iiiiiiiii!i!ilili!ijii!!ii!i!ii i! i ii!ili!ii!!i!i!!iiiii!ji ii!i!iiiiiiil¸ ii ilil

If an SAP signal is not present with a select-

ed program, the SAP option cannot be select-

ed, Also, if SAP is selected on a channel

(with SAP) and you select another channel,

when you return to 1he original channel, SAP

will be OFF, You will have to reselect the

SAP feature,

BRIGHTNESS

•SOUND COLON

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT • PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

12OUZ

• BALANCE SNUHZ

•AVL ISUOHZ

• INCR.SURROUNDSKUZ

• STEREO INNHZ

SOUND

•BALANCE

• AVL

•INCN.SURROUND

• STEREO

IJItl

If you have connected the TV's AUDIO

UTPUTjacks to the AUDIO INPUT jacks

on a stereo receiver (see the Quick Use Guide

fbr connection instructions), set AUDIO OUT

to either VARIABLE or FIXED to determine

whether you adjust the volume at the stereo

or at the T_ lf you select VARIABLE, change

the volume at the TV using the TV's remote

control, lf you select FIXED, adjust the vol-

ume at the stereo using the stereo's controls.

_) select FIXED or VARIABLE, follow these

steps.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and themenu will shift to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until AUDIO OUT is highlighted,

Press the CURSOR RIGHT or

LEFT to toggle the AUDIO OUT con-

trol to Fixed or Variable. mrRlUI[II[I]I ]a+llll

Press the STATUS/EXIT button to

remove lhe menu from lhe screen.

|L|l]l](lII) l ]]+l!lt|h|h,

) ) :

FIXED - If FIXED is selected, the sound

coming from the TV and being heard

through an external audio system is not

adjustable with the television's volume

controls, The volume would have to be

adjusted at the audio syslem.

VARIABLE - If VARIABLE is selected,

the sound coming from the TV and being

heard through an external audio system can

be adjusted at the TV using the Volume +

or - buttons on the television or remote

control,

The connection instructions for an external

audio system can be found in the Quick

Use Guide supplied with your TV.

BRIGHTNESS:)

• SOUND COLOR ......

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT •PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

IZOHZ

• BALANCE 500HZ

• AVL I50OHZ

• INCR.SURROUND5RNZ

•STEREO IOKNZ

SOUND

!AVL

• INCR.SURROUND

• STEREO

• SAP

the Audio Mo ito,->Output

cks or the External Speaker connec-

tions, the TV speakers can be turned off

allowing the television sound to be heard only

from the erternal audio system or the erternal

speakers.

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN to high-

light SOUND,

Press the CURSOR RIGHT and the

menu will shift to the left. EQUALIZ-

ER will he highlighted and an adjust-

ment bar will he shown to the right.

Press the CURSOR DOWN repeated-

ly until TV SPEAKERS is highlighted.

Press the CURSOR RIGHT or

LEFT to toggle the TV SPEAKERS

On or Off.

Press the STATUS/EXIT button to

remove the menu from the screen.

Be sure to first refer to the Quick Use

Guide supplied with your TV to connect an

external audio system to the television's

Monitor Output (audio) jacks.

BRIGHTNESS

• SOUND COLOR

• EEATURES PICTURE

•INSTALL SHARPNESS

TINT •PICTURE EQUALIZER

BALANCE

•FEATURES AVL

•INSTALL INCK SURROUND

STEREO

SOUND

12OflZ

• BALANCE 5OOHZ

•AVL 1500HZ

•INCR.SURROUND5RHZ

• STEREO IORHZ

SOUND

8INCR.SURROUND

• STEREO

• SAP

•AUDIOOUT

your television comes with an on-screen

'lock. 77w TV also can be set to turn on or

off at a specific time and tune to a specific

channel when it powers its self on.

Press the CLOCK button on the

remote control to show the TIMER

onscreen menu.

Press the CURSOR RIGHT button

and the TIMER options will shift to the

left. TIME will be highlighted.

3Press the CURSOR UP or DOWN

buttons repeatedly to highlight one of

the TIMER controls. These controls are

the TIME, START TIME, STOP

TIME, CHANNEL, ACTIVATE, or

DISPLAY.

4Press the CURSOR RIGHT or

LEFT button to make adjustments or

set the control options.

TIME: Enter the current time with the

numbered buttons. Use the Cursor

Right button to move to the AM/PM

area and use the Cursor Left and Right

buttons to loggle AM or PM.

START TIME: Use the Numbered

buttons to enter a start-up time for the

TV to turn on or tune a specific chan-

nel.

STOP TIME: Use the Numbered but-

tons to enter a time for the TV lo shut

itself off.

CHANNEL: Use the Numbered but-

tons or the CH + or -buttons to select

a specific channel for the TV to tune to

at the specific Start Time.

ACTIVATE: Set the Timer to preform

it's function ONCE or DAILY.

DISPLAY: Set to ON or OFF. When

ON, the time will be displayed ALL

die time the TV is ON. When OFF, the

time will only appear when the STA-

TUS/EXIT button is pressed.

Press the STATUS/EXIT button to

remove the menu from the screen.

FEATURES

TIMER

•_ 12:O3AM

• STARTTIME

• STOPTIME

• CHANNEL

•ACTIVATE

®®®@ 41

®®®

®®® ©

FEATURES

TIMER

•TIME

• STOPTIME

• CHANNEL

•ACTIVATE

FEATURES A

TIMER

•TIME

• STARTTIME

• CHANNEL

•ACTIVATE

FEATURES

TIMER

•TIME

• STARTTIME

• STOPTIME

•ACTIVATE

FEATURES

TIMER

•TIME

• STARTTIME

• STOPTIME

• CHANNEL

INIl_IIr_I ]:III

FEATURES

TIMER _"

• STARTTIME

• STOPTIME

• CHANNEL

•ACTIVATE

I II]I1glJl .....

i Ii]IllI,t ]_Uql

T_e Mode Select Control will allow you to

se set the TV into the TV, FM, HD, ol+PC

Modes. Depending on how the TV will be

used, these modes may have their own

onscreen menus Coiffrols to optimize t]Tere use

when used with computers, radios, or high-

definition receivers.

Press the MENU button on the

remote control to show the nnscreen

menu.

Press the CURSOR DOWN to high+

light FEATURES.

Press the CURSOR RIGHT and the

menu will shift to the left. TIMER will

be highlighted,

Press the CURSOR DOWN repeated-

ly until MODE SELECT is highlight-

ed.

Press the CURSOR RIGHT button

to shift the menu to the left. the first

option, FM RADIO will be highlight-

ed.

Press the CURSOR UP or DOWN but-

tons to highlight the desired mode option

(FM RADIO, HD, or PC).

Press the CURSOR RIGHT button

to change the TV to the desired mode.

Please refer to each specific mode later

in this manual.

Press the STATUS/EXIT button to

remove the menu from the screen.

Specific information regarding each of the

MODE SELECT options can be found later

in this manual.

FM RADIO + refer to page 46-49,

HD + refer to page 50+53,

PC - refer to page 54.

BRIGHTNESS

•souND COLOB....

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

iiiiiii!ilii i!

_a_ u_ cloc_

°+

+oo oj+i

®®®® +i

®®® 71

®®® __

• PICTURE TIMER

• SOUND MODESELECT

ACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

FEATURE

TIME

•MODESELECT STARTTIME

•ACTIVECTRL STOPETIME

•AutoLock CHANNEL

•CLOSEDCAP ACTIVATE

FEATURE

•TIMER FMRADIO

_ HD

•ACTIVECTBL PC

•AutoLock

•CLOSEDCAP

FEATURE

MODESELECT

• HD

• PC

FEATURE

MODESELECT

•EM RADIO

• PC

FEATURE

MODESELECT

•FMRADIO

•ffD

The Active Control monitors and adjusts

I incoming video signals to help provide the

best picture quality.

When you choose to turn the Active Control

ON, the picture sharpness and noise reduc-

tion are controlled automatically. Active

Control adjusts these picture settings continu-

ously and automatically.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light FEATURES.

S Press the CURSOR RIGHT and themenu will shift to the left. TIMER will

be highlighted.

Press the CURSOR DOWN repeated-

ly until ACTIVE CTRL (control) is

highlighted,

Press the CURSOR RIGHT button

repeatedly to toggle the control

options. Choose from: ON, ON + DIS-

PLAY, or OFF

Press the STATUS/EXIT button to

remove the menu from the screen. :i fRIlt;i_ iii liv:l

You can also press the ACTIVE

CONTROL button on the remote

control lo toggle the ACTIVE CON-

TROL ON, ON + DISPLAY, or OFF

directly.

BRIGHTNESS

•SOUND COLOR

• FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®

®@@

®®@

®@@

• PICTURE TIMER

• SOUND MODESELECT

ACTIVECTRL

•INSTALL AutoLock

CLOSEDCAP

FEATURES

TIME

• MODESELECT STARTTIME

•ACTIVECTB STOPTIME

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATHERS

•TIMER

• MODESELECT

•AutoLock

•CLOSEDCAP

izsl]

a[.,iiii_ll [If ,a_J

Toggle the ACTIVE CONTROL to ON +

DISPLAY with the remote control and a

screen display will appear showing the Active

Control in work. You will see the sharpness

and noise reduction settings changing to pro-

vide the best possible picture quality.

ACTIVECONTROL

SHARPNESS

NOISEREDUCTION

BLACKEXPANDER

WHITE EXPANDER ON

OFF

When ACTIVE CONTROL is set to ON + DIS-

PLAY, this screen will be displayed briefly when-

ever e channel change occurs.

Tphe AutoLocU Mfeature receives and

rocesses data sent by broadcasters or

other program providers that contain pro-

gram content advisories. When programmed

by the viewer, a TV with AutoLocU Mcan

respond to the content advisories and block

program content that may be f_und objection-

able (such as offensive language, violence,

sexual situations, etc.). This is a great J_ature

to censor the type of programming children

may watch.

_lIll

[Ill

In the AutoLock TM section, you'll learn how

lo block channels and programming that is

not rated, is unrated, or has no rating. You

will also find out how to turn these blocking

features ON or OFF. Following are brief

explanations of some terms and ratings relat-

ed to the AuloLock TM feature.

AutoLock TM offers various Blocking

Options from which to choose:

BLOCKING: The BLOCKING control is

what can be thought of as the "master switch"

for AutoLock TM, This control affects the set-

tings you have chosen for blocking programs

according to movie ratings or TV ratings, or

for blocking programs that have no rating or

are unrated. When the BLOCKING control is

OFF, the blocking or censoring of programs is

disabled. When file BLOCKING control is

ON, blocking will occur according to the set-

tings you have chosen.

NO RATING: ALL programming wifll no

content advisory data can be blocked if NO

RATING is set to ON.

Programming that has No Rating is not

encoded with any rating ir_brmation fi_om the

MPAA or the Parental Guidelines. Any pro-

gramming could fall into this category.

You also can block individual channels or

block programming based on ratings of the

MPAA and TV broadcasters. (See adescrip-

tion of the ratings on this page,)

Autotack

MOVIERATI_IG• •

•PG

• PG-13

•_IGI7

G: General Audience - All ages admiued.

Most parents would find this programming

suitable for all ages. This lype of wogram-

ming contains little or no violence, no

strong language, and little or no sexual dia-

logue or sexual situations.

PG: Parental Guidance Suggested -This

programming contains material that parents

may find unsuitable for younger children. It

may contain one or more of the following:

Moderale violence, some sexual situations,

infrequent coarse language, or some sugges-

tive dialogue.

PG-13: Parents Strongly Cautioned _This

programming contains material that parents

may find unsuitable for children under the

age of 13. It contains one or more of the fol-

lowing: violence, sexual situations, coarse

language, or suggestive dialogue.

R: Restricted -This programming is specifi-

cally designed for adults. Anyone under the

age of 17 should view this programming

only with an accompanying parent or adult

guardian. It contains one or more of the fol-

lowing: intense violence; intense sexual situ-

ations; strong, coarse language; or intensely

suggestive dialogue.

NC-17: No one under the age of 17 will be

admitted. _ This type of prognlmming should

be viewed by adults only It contains gnlphic

violence; explicit sex; or crude, indecent lan-

guage.

X: Adults Only _ This type of programming

contains one or more of the following: very

graphic violence, very graphic and explicit or

indecent sexual acts, very coarse and intense-

ly suggestive language.

AutoLock

IV RATiHG ••

Igl_ IE_lg

• TV47

•TV-G

•TV-PG

•TV_I4

TV-Y: (All children -- ITlis program is

designed to be appropriate f!)r all chil-

dren.) Designed for a very young audi-

ence, including children ages 2-6_ This type of

programming is not expected to frighten

younger children.

TV-Y7: (Directed to Older Children --

?TIisprogram is designed fi_r children

ages 7 and above.) It may be more

appropriale for children who have acquired the

development skills needed to distinguish

between make-believe and reality. This pro-

gramming may include mild fantasy and comic

violence (FV).

TV-G: (General Audience -- Mostpar+

ents would find this program suitoble for

all ages.) qhis type of programming

contains little or no violence, no strong lan-

guage, and little or no sexual dialogue or sexual

situations.

TV-PG: (Parental Guidance

Suggested -- This program coarains

maU,rial that parents may find unsuit-

able fi_r younger children.) This type of pro-

gramming contains one or more of _he follow-

ing: Moderate violence (V), some sexual situa-

lions (S), infrequent coarse language (L), or

some suggestive dialogue (D).

TV-14: (Parents Strongly Cautioned -

-This program contains some material

that many paJ_,ntswould find unsuitable

fi_r children under 14 yeaJ_ of age.) "[ltistype

of programming contains one or more of the

following: intense violence (V); intense sexual

situations (S); strong, coarse language (L); or

intensely suggestive dialogue (D).

TV-MA: (Mature Audience Only --

77ffsplvgram is _pecifically design_'d to

be viewed ILv adults and therefi)_, may

be unsuitable for children under 17.) This type

of programming contains one or more of the

following: graphic violence (V); explicit _xual

situations (S); or crude, indecent language (L).

A toLoc ::allowsparentstobloc o.tor

censor any channels they think chil-

dren should not watch. A channel blocked by

the AutoLock TM control cannot be viewed until

a correct access code is used to unh)ck the

channel/br viewing. First, let's set your

AutoLock access code.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the left.

TIMER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Press 0,7,1,1 on the remote controL,

INCORRECT will appear on the

screen.

Press 0,7,1,1 on the remote control

again. ENTER NEW CODE will

appear on the screen.

Enter a new four-digit code using the

number buttons. CONFIRM CODE

will appear on the screen.

Enter your new four-digit code again.

CORRECT will flash on the screen

briefly and the highlight bar goes back

to AutoLock.

Press the STATUS/EXIT button to

remove the menu from the screen.

Remember that 0711 is the default

AutoLock _'_code. If your access code has

been changed by someone other than you (a

child, for example) or you have forgotten the

code, you can always get in by inputting the

default code.

NOTE TO PARENTS: It isn't possible for

your child to unblock a channel without know-

ing your access code or changing it to a new

one. If your code has been changed without

your knowledge, then you will become aware

that blocked channels may have been viewed.

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTUUE

•INSTALL SHAUPDESS

TINV • PICTUUE TINED

• SODND NODE SELECT

ACTIVECfRL

• INSTALL Au_oLock

CLOSEDCAP

fEATURES

TIN[

• NODESELEEI SIAUTVINE

• ACIIVECTR SlOPTIME

• Au_Aock CHANNEL

• CLOSEDCAP ACIIVAVE

FEATURES

• lINER ACCESSCODE

• MODESELECI ....

• ACIIVECTU

[_zTITml_m

• CLOSEDCAP

FEAIMRES

•TIMER

•ACIIVECTRL

_cAut0L0ck

• PIP

• CLOSEDCAP

_©_©©

®®®

®®® 7

FCAIMRES I

•TIHER

• ACIIVEURL

_AutoLock

• PiP

• CLOSEDCAP

FEATURES

•lINER

• AUIVE CIRL

_AutoLock

• PIP

• CLOSEDCAP

FEATUUES

• IINEU

• ACTIVECTUA

_wAutoLock

• PIP

• CLOSEDCAP

ECAIDRES

•lINER

• ACTIVECTRL

_Aut0kock

• PIP

_LOSEO CAP

FEAIUUES i

• lINED

• ACTIVECTUL

AutoLock

• PIP

• CLOSEDCAP

FEAIUUES

• TINEU

•ACTIVECTUL

AutoLock

• PIP

_LOSED CAP

FEATUUES

•TINER ACCESSCODE

• ACTIVECIU[ ....

• PIP

• CLOSEDCAP

After your personal access code has been

set (see the previous page), you are ready

to select the channels or inputs you want to

block out or censm:

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN button

to highlight FEATURES,

Press the CURSOR RIGHT button

and the menu will shift to the left,

TIMER will be highlighted,

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

BPress the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high-

lighted.

Press the CURSOR RIGHT buttonto highlight the TV's available chan-

nels.

Press the CURSOR UP or DOWN

button to highlight the channel you

want to block.

Press the CURSOR RIGHT button

to block the channel. A padlock image

appears lo the right of the channel

number,

Repeat steps 7 and 8 for any channels you

want to block from viewing,

Press the STATUS/EXIT button to

remove the menu from the screen.

Remember that 0711 is the default

AutoLock ''*code. If your access code has

been changed by someone other than you (a

child, for example) or you have forgotten the

code, you can always get in by inputting the

default code.

NOTE: You also can block out the use of the

A/V external inputs on the rear of the TV. This

stops the viewing of VCR, DVD, and other

sources that can be shown through the A/V input

acks.

FEATURES

•TIMER

•ACTIVECTRL

_AutoLock

• PIP

• CLOSEDCAP

FEATURES

AutoLock •

4BLOCRCHARNEL

• SETUPCODE

• CLEARALL

•MOVIERATIRG

•IV RATIRG

BRIGHTNESS

• SOOND COLOR

•FEATURES PICTURE

•iNSTALL SHARPNESS

TINT

e®e®

(9@

®®®

@®® 6

•PICTURE TIMER

• SOORD HODE SELECT

ACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

FEATURES

l_lllilll! TIHE

•HODE SELECT STARTTIME

•ACTIVECTR STOPTIME

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURES

•TIMER ACCESSCODE

•HODESELECT ....

•ACTIVECTR

• CLOSEDCAP

FEATURES

• TIMER

•ACTIVECTRL

_AutoLock

•PIP

• CLOSEDCAP

FEATURES

AutoLock •

_•_ AV2

• SETUPCODE AV3

• CLEARALL ALL

•HOVIERATIRG [

------_ • TV RATING 2

FEATURES

AutoLock •

•8LOCKCHANNEL

• SETUPCODE

• CLEARALL

• MOVIERAT[RG

------_ •IV RATING

Channel 12

Blockedby AutoLock

If a channel is blocked by the BLOCK

CHANNEL option, the TV will display

the screen shown to the right. To watch

the channel, enter your access code or

change the BLOCK CHANNEL option

back to off.

Various onscreen messages will appear

hen someone tries to view blocked pro-

gramming. The message is determined by how

the current programming is blocked. You may

view the blocked programming and turn OFF

the AutoLockYM feature by using the Clear All

control or by entering your access code

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN button

to highlight FEATURES.

S Pre_ the CURSOR RIGHT buttonand the menu will shifi to the left,

TIMER will be highlighted.

Pre_ the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed,

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE and the menu will move to the

left with BLOCK CHANNEL high-

lighted.

Press the CURSOR DOWN button

until CLEAR ALL is highlighted.

Press the CURSOR RIGHT twice.

The CLEAR ALL option will display

ihe word CLEARED. All blocked chan-

nels and programming are now view-

able.

Press the STATUS/EXIT button to

remove the menu from ihe screen.

ii!!i!iTiiTiiii ii!i{i!iiiiiii!ili!ili!iTii!iTiiii!iTii!¸17¸i i77!i!iliii!i!7i7!i!i!17!i71i7!i!i!17!i!i iilii!

If you tune to a specific channel that has been

blocked by BLOCK CHANNEL or any of 1he

AutoLock TM RATING options, simply enter

your four-digit access code to view the chan-

nel.

NOTE: This will unblock ALL channels until

the TV is shut OFF. When powered back ON,

all previously blocked channels will be

blocked again.

BKIGffTNESS

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SffARPRESS

TINT

•PICTORE TINER

•SOUND NODESELECT

ACTIVECTRL

•IDSTALL AutoLock

CLOSEDCAP

_EP T_a_ _u_E r_M*T

oo®

ooo

OOO

O®O

FEATORES i

• TINER

• ACTIVECTRL

_AutoLock

•PIP

• CLOSEDCAP

FEATURES

AutoLock •

•BLOCKCHARNEL

• SETUPCODE

|Ill!ILl[ i

•MOVIE RATIDG

• IV RATIDG

IOI

FEATURES

[]llllll_t TIDE

•NODESELECT STARTTIHE

• ACTIVECTR STOPTIME

•AutoLock CHARNEL

• CLOSEDCAP ACTIVATE

FEATURES

•TINER ACCESSCODE

• NODESELECT ....

• ACTIVECTR

•CLOSEDCAP

FEATURES

•TINER

•ACTIVECTRL

_AutoLo_

• PEP

• CLOSEDCAP

FEATURES

AutoLock

__'AV2

• SENP CODE AV3

•CLEARALL ALL

• NOVIE RATING I

--_ • IV RATING 2

FEATURES

AutoLock

•BLOCKCHANNEL

• SETUPCODE

lilieS! •..11_1,.

• NOVIE RATING

---_ •TV RATING

After your personal access code has been

set, you can select specific movie ratings

that you want to censo_

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES.

Pre_ the CURSOR RIGHT buttonand the menu will shift to the left,

TIMER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT buttonto highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high-

lighted,

Press the CURSOR DOWN repeated-

ly until MOVIE RATING is highlight-

ed.

Press the CURSOR RIGHT and the

Rating menu shifts to the left with G

highlighted.

Pre_ the CURSOR UP or DOWN tohighlight each rating you want.

Press the CURSOR RIGHT to turn

the rating ON or OFE Turning the rat-

ing ON will block programs with that

rating from being seen.

Press the STATUS/EXIT button to

remove the menu from the screen.

When a raring is turned ON, all higher ratings

also will be turned on automatically. For

example, if the Rrating is turned on, the NC-

17 and Xratings also will be turned on.

All Movie Ratings can be turned ON or OFF,

Refer to page 23 for Movie Rating defini-

tions,

BRIGHTNESS {

SOUND COLOR :{

• FEATURES PICTURE

•INSTALL SHARPNESS

TINT

FEATURES

• TIMER

•ACTIVECTRL

_Au_Lock

•PIP

• CLOSEDCAP

FEATURES

AutoLock •

•BLOCKCHANNEL G

• SETUPCODE PG

•CLEARALL PG-13

[[_ll[01]llff_lllI[_l R

• IV RATING NC-17

AutoLock t

HOVIE RATING •

• PG

• PG-13

•R

•NC-17

•PICTURE TIMER

• SOOND MODESELECT

ACTIVECTRL

•INSTALL AutoLock

CLOSEDCAP

FEATURES

TIME

•MODESELECT STARTtitle

•ACTIVECTR STOPTitle

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURES

• TIMER ACCESSCODE

•MODESELECT ....

•ACTIVECTR

• CLOSEDCAP

FEATURES

•TIttER

•ACTIVECTRL

_AutoLock

•PIP

• CLOSEDCAP

FEATURES

AutoLock

LAW

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATING [

• IV RATING 2

AutoLock

tlOVIE RATING •

•PG

•PG-13

•R

-_ • NC-[7 "1

Channel 12

Blockedby Autotock

MOVIERATING

Access code

F)w u can select specific TV ratings that you

ant to censor by fbllowing these steps.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES,

Press the CURSOR RIGHT buttonand the menu will shift to the left.

TIMER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high-

lighted.

Press the CURSOR DOWN repeated-

ly until TV RATING is highlighted.

Press the CURSOR RIGHT and the

menu will shift to highlight the TV

RATING options.

Press the CURSOR UP or DOWN to

select a rating.

Press the CURSOR RIGHT to turn

the block on the rating ON or OFF.

NOTE: More specific subratings (for violence,

sexual content, dialogue, or fantasy violence)

are available for TV-Y7, TV-PG, TV-14, and

TV-MA. (Refer lo page 31 for definitions.)

To access these subratings, with the main rating

selected, press the CURSOR RIGHT. Then,

repeat steps 9 and 10 to turn the sub-ratings ON

or OFF.

E_.,- i_ ri

Press the STATUS/EXIT button to

remove the menu from the screen.

:li iiii

When a rating is turned ON, all higher ratings

also will be turned on automatically. For

example, if the Rrating is turned on, the NC-

17 and Xratings also will be turned on.

BRIGHTNESS

•SOUND COLOR

• FEATURES PICTURE

• INSTALL SHARPNESS

TiNT •PICTURE TIMER

•SOUND MODESELECT

ACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTRL

!_AutoLock

• PIP

• CLOSEDCAP

FEATURES

AutoLock

•8LOCKCHANNEL

•SETUPCODE

•CLEARALL

• MOVIERATING

AutoLock

IV RATING

•TV-Y7

• TV-G

• TV-PG

•TV-[4

®®

"0®

@®®®

®®®

®®@ ©

W-Y

TV-Y7

TV-G

TV-PG

IV-[4

FEATURES

[_lll;II_! TIME

•MODESELECT STARTTiME

• ACTIVECTR STOPTiME

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURES

•TIHER ACCESSCODE

•HODE SELECT ....

•ACTIVECTR

•CLOSEDCAP

FEATURES

•TIHER

• ACTIVECTRL

_AutoLock

•PIP

• CLOSEDCAP

FEATURES

AutoLock •

•_AV2

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATIRG [

--_ • IV RATING 2

IV RATING •

•TV-Y7

•TV-G

•TV-PG

•IV-I4

Channel 12

Blockedby AutoLock

IV RATING

ACCESS Co_e

T)le BLOCKING control is what be

cff, n

ought of as the "master switch for

AutoLock TM. This control affects the settings

you have chosen for blocking programs

according to movie ratings or TV ratings, or

for blocking programs that have no rating.

When the BLOCKING control is OFF, the

blocking or censoring of programs is dis-

abled. When the BLOCKING control is ON,

blocking will occur according to the settings

you have chosen. Follow these steps to toggle

BLOCKING OFF or ON.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES,

Press the CURSOR RIGHT button

and the menu will shift to the left.

TIMER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high-

lighted.

Press the CURSOR DOWN repeated-

ly until BLOCK OPTIONS is high-

lighted.

Press the CURSOR RIGHT to enter

the BLOCK OPTIONS menu.

BLOCKING will be highlighted. Or

choose NO RATING.

Press the CURSOR RIGHT or

LEFT to toggle BLOCKING (or NO

RATING) ON or OFE

:i _t[lIl[lll

Press the STATUS/EXIT button to

remove the menu from the screen, m

Remember, when the BLOCKING control is

OFF, the blocking or censoring of programs

is disabled. When the BLOCKING control is

ON, blocking will occur according to the set-

tings you have chosen.

FEATURES

•T[HER

•ACTIVECTRL

_'AutoLocE

• PEP

• CLOSEDCAP

FEATURES

AutoLock

• SETUPCODE

• CLEARALL

•MOVIERATING

• IV RATING

AutoLock

8LOCKOPTIONS

a.SOUNDCOLoRB"OHTNESS

•FEATURES PICTURE

•INSTALL SHARPNESS

TENT

®@@

®®

®®®

@®®

BLOCRIRG

NO RATING

• PICTURE TIMER

• SOUND MODESELECT

a ACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

FEATURES

l_lll;l|[I TIME

•MODESELECT STARTTIHE

•ACTIVECTR STOPTIHE

•AutoLock CHARNEL

• CLOSEDCAP ACTIVATE

FEATURES

•TIMER ACCESSCODE

•MODESELECT ....

•ACTIVECTR

• CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTRL

_,AutoLock

•PiP

• CLOSEDCAP

FEATURES

AutoLock LAV2

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATING [

-_ • WRATING 2

AutoLock

8LOCK OPTIONS

•NO RATING

_t) remind you which ratings you have

locked and which Block Options you

have selected, a review screen is available to

review your AutoLock_ settings. To access

this screen Jbllow the steps below.

Press the STATUS/EXIT button on

your remote control TWICE. Your

AutoLock _ settings will appear on the

screen.

NOTE: ff you have blocked specific subrat-

ings, such as Vfor Violence in the TV-PG cat-

egory, these blocked subratings will not appear

in the review. The subratings however, are still

blocked according to your selections.

After a few seconds, the settings will

leave the screen automatically, or you

can press the STATUS/EXIT button

a third time to remove them from the

screen.

BLOCKSG

NORATING

"° ®00

©©© auAa

®@@

@©

This display will appear afler the step 1 above

is completed if the AutoLock TM BLOCKING

option is set to ON.

This display will appear afler the step 1 above

is completed if the AutoLock BLOCKING

option is set to OFE

HOVIE_TlllG

AutoLockDISABLED

Closed Captioning (CC) allows you to

read the voice content of television pro-

grams on the TV screen. Designed to help the

hearing impaired, this feature uses onscreen

"text boxes" to show dialogue and conversa-

tions while the TV program is in progress.

Press the MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN button

twice to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the left.

Press the CURSOR DOWN button

repeatedly until the CLOSED CAP

control is highlighted.

Press the CURSOR RIGHT button

again. The menu will shift to the left

and CAPTION MODE will be high-

lighted.

Press the CURSOR RIGHT button

to highlight CAPTION MODEs,

Press the CURSOR UP or DOWN

button to select a CAPTION MODE:

CC1, CC2, CC3, CC4, CC MUTE,

TXTI, TXT2, TXT3, or TXT4. CC

DISPLAY turns text OFF or ON if the

TV station broadcasting on the channel

is making CLOSED CAPTIONING

available. With CC DISPLAY high-

lighted, press the CURSOR RIGHT to

toggle Closed Captioning ON or OFF.

NOTE: You also can press the CC

button on the remote control to turn

the CC option ON or OFF.

Press the STATUS/EXIT button to

remove the menu from the screen.

) FUL) :)

Not all TV programs and product commer-

cials are broadcast with Closed Captioning

(CC). Nor are all Closed Captioning

MODEs (CAPTION 14 or TEXT 14)

necessarily being used by broadcast stations

during the transmission of a program offer-

ing Closed Captioning. Refer to your area's

TV program listings for the stations and

times of shows being broadcast with Closed

Captioning.

a BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TiNT

= ®0

ooo®

0®0

000

OOO

._J

CAPTION Mode

Example Display

........ w,l| la ml

TEXT Mode Example Display -

The TV screen will be

blocked from viewing.

........ lIil I] Hi

• PICTURE TIMER

• SOUND MODESELECT

a ACTIVECTRL

• INSTALL Auto Lock

CLOSEDCAP

FCAIUBES

[]llllllll TIME

•MODESELECT STARTlIME

• ACTIVECTB STOPTINE

• AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURES

CLOSEDCAP

• TIMER CAPTIONHODE

•MODESELECT CC DISPLAY

•ACTIVECTB

• Auto Lock

FEATURES

CLOSEDCAP :,ccI

• CCDISPLAY CC2

CC3

CC4

CCFLUTE

FEATURES

CLOSEDCAP

IlllzllltIEIlllltl I CCI

• CC DISPLAY CC2

CC3

CCA

CCMUTE

FEATURES

CLOSEDCAP :>cc,

• CC DISPLAY CC2

CC3

CCA

CCMUTE

FEATURES

CLOSEDCAP

• CAPTIONMODE

y;tu can change the screen forma, t size to

atch the type of program you re watch-

ing. Select the normal 4:3, o1"the Zoom 14.'9,

Zoom 16.'9, Subtitle Zoom, Super Wide,

Widescreen, or Full Screen aspect ratios.

Press the MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN button

twice to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the left.

Press the CURSOR DOWN button

repeatedly until the WIDESCREEN

control is highlighted.

Press the CURSOR RIGHT button

repeatedly to toggle among the three

screen format sizes; 4:3, ZOOM 14:9,

ZOOM 16:9, SUBTITLE ZOOM,

SUPER WIDE, WIDESCREEN, or

FULL SCREEN,

:1 I_IllIll['[|I!ll,, '" "Ill!'{ _-'-

:1 I_lllllI i_[ll!ll_, JJ rlllll[{ ;:-

Press the STATUS/EXIT button to

remove the menu from the screen, :l I_llltl I_[11!III., _ _'oltlJMIIllll

:1 I_IIIlll 1_[11!III_, '" '"'=' !_!_!lll,

When in 1he TV Mode and no onscreen

menu displayed, pressing the CURSOR

RIGHT and LEFT buttons will toggle the

FORMAT options,

i iiii!i!iii !iiii iiiiiiiii! !i i

4:3

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®®®

@®®

®®®

SUPER WIDE

• PICTURE TIMER

•SOUND MODESELECT

ACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

•MODESELECT

•ACTIVECTR

•AutoLock

• CLOSEDCAP

°'

¢ ............................................... ,

ZOOM 14:9

WIDESCREEN ZOOM 16:9 SUBTITLE ZOOM

Thqe Program List Control will allow you to

uickly overview all the programmed

channels that have been placed into the tele-

visions memory (see the Auto Programming

section of this manual fiJr more details).

Program List will let you easily select the

desired channels your Iooking foi: Program

List will display the channel number, the

name of the channel if you have given it one,

and whether it have AutoLock turn on or off

Press the PROGRAM LIST button

on the remote control to show the cur-

rent list of installed channels (the cur-

rent channel will be highlighted).

Press the CURSOR UPor DOWNbuttons to scroll ihe list of channel,

highlighting the one you want to acti-

vate.

Press the CURSOR RIGHT button

to activate the channel. The TV will

tune to that channel.

Press the STATUS/EXIT button toremove the menu from the screen.

H;.vVe you ever fidlen asleep in fi'ont of the

only to have it wake you up at two in

the morning with a test pattern sound

screeching in your ears? Well, your TV can

enable you to avoid that discomfin't by auto-

matically turning itself off'. With the Sleep

Timer fkature, you can set a timer to automat-

ically switch the TV OFF after a period of

time you choose (15-minute increments up to

60 minutes, then 30-minute increments up to

90 minutes, then 60-minute increments up to

240 minutes).

Press the SLEEP button on theremote control. The SLEEP timer

onscreen display will appear in the

upper part of flaescreen.

2Within five seconds, press the

SLEEP button repeatedly to pick the

amount of time (15-minute increments

up to 60 minutes, then 30-minute

increments up to 90 minutes, then 60-

minute increments up to 240 minutes)

before the TV will turn itself off,

An onscreen countdown will appear during

the last minute before the TV shuts itself off,

ili;ili_iliiii_ii_iiiii!_ilili!iiii!;ii!i!!ill¸I¸iiiiii!_;i!ii!iiii!!ill¸ii¸!iiiiiii!i!i!iiii!_i!i_iii!i_!ili!iii!il¸ii!iiiiiii_!_iiii!iiill¸iiiiiii_!iii!;!Jilili!iiiiiiii!i!iiii!!ill¸ii¸!iiii:_i

To see how many minutes remain before the

TV shuts itself off, press file STATUS/EXIT

button,

A Sleep Timer setting can be cancelled by

pressing any button during the last minute

of the operation.

iiiiliiii!iiiiiiiii

oo ®®

®®®_

_®®

®®®

Dulingotl_erleaiicZroiunnt'doCwf_SiLiEbEPdlsmpl__ySe_dtingan]

During the last 10seconds of a SLEEP timerset-

ting, an onscreen display will read GOOD BYE.

W_ether you're watching a movie or a

ideo game, your TV has automatic"

video control settings that will match with

your current program source or colTtelTt.

AutoPicture TM quickly resets your TV's video

controls for a number of different types of

programs and viewing conditions that you

may have in your home. The Movies, Sports,

Weak Signal, and Multimedia AutoPicture TM

controls have been preset at the factory to

automatically adjust the TV's brighmess,

color, picture, sharpness, tint, and color tem-

perature levels. The PersonalAutoPicture TM

settings are the ones that you made through

the PICTURE options within the onscreen

Press the PICTURE button on theremote control. The current

AutoPicture _Msetting will appear in the

middle of the screen.

Press the PICTURE button repeat-

edly to select either PERSONAL,

MOVIES, SPORTS, WEAK SIGNAL,

or MULTIMEDIA picture settings.

NOTE: The PERSONAL setting and the

PICTURE options within the onscreen menu

are the same. This is the only option in

AutoPicture TM that can be changed. To adjust

these settings, use the PICTURE options

within the onscreen menu. All other settings

are set up at the factory during production and

cannot be adjusted.

PE_ONAL

,_o_ t_t u0_

o0 ®®

'°665

®®®®

®®®

]

MOVIES

BRIGHTEESS n

COLOR 42

PICTURE 80

SHARPNESS I

SrORIS

BRIGHTNESS ]6

COLOR ]4

PICKER 65

SHARP_ESS ]

WEARSIGNAL

BBIGffIH[SS 34

COLOR 26

PICTURE 6S

SffARP_ESS 1

MULIIN[D_A

8BIGffIH[SS 32

COLOR 42

PInURE BO

SHARPNESS 4

NOTE: The values shown in the

diagram above are sample values

only. Your television's values may

vary and d splay different numbers.

A utoSound TM allows you to select from

three factory-set controls and a personal

control that you set according to your own

prefkrences through the onscreen Sound

menu. The three factory-set controls (Voice,

Music, and Theatre) enable you to taih)r the

TV sound so as to enhance the particular pro-

gram you are watching. Follow these steps to

select any of the options.

Press the SOUND button on theremote control. The current

AutoSound _Msetting will appear in the

middle of the screen.

Press the SOUND button repeatedly

to toggle among the four settings:

PERSONAL, VOICE, MUSIC, or

THEATRE.

Remember, only the PERSONAL control can Itl

be changed by the viewer. This changes the

settings in the main onscreen menu's SOUND

controls

AuloSound '_ works only with the programs

coming lhrough the ANTENNA/CABLE

(ANT) input on the rear of the TV (RF

audio). It will not control the sound levels

for 1he external connections.

NOTE: The values shown in the

diagram above are sample values

only. Your television's values may

vary and d sp ay different numbers.

Alist or series of previously viewed chan-

nels can be selected with the SURF button

on your remote control. With this fi, ature, you

can easily switch between different TV chan-

nels that currently interest you. The SURF

control allows you to set up to ten channels in

its quick viewing list.

Press the CHANNEL(+) or (-) but-

ton (or the numbered buttons) to select

a channel to add to the SURF list.

2Press the SURF button on the remote

control. The onscreen display may

read, "SURF LIST EMPTY." The num-

ber of the current channel will be

shown with "ADD?" to the right.

3While the SURF list message or the

SURF channel list appears on the

screen, press the CURSOR RIGHT

button to add the present channel lo

the SURF list.

If you want to delete the present channel

from the SURF list, press the CURSOR

RIGHT button again.

Repeat steps 1 through 3 to add more chan-

nels (up to i0) to the SURF list,

Along with regularly programmed chan-

nels, the external video source connections

can be added to the SURF list. This means

lhat the external A/V Jacks and lheir chan-

nels can be added to your SURF list. Use

lhe Source button to tune their channel and

use the same procedure described on lhis

page.

your remote control is set to work your TV

nd many infrared remote (IR) control

VCRs, Cable Boxes, Satellite Systems, DBS,

DVD, etc. However, an easy onetirue step may

be necessary befi)re the remote will work your

VCR.

Try this initial Direct Access Method to see if'

going on to the fidlowing section is necessary.

Place the TV/DVD/ACC Mode

Switch in the proper position.

Point the remote control at the device

and press the POWER button.

Does the remote turn the device ON?

If YES, stop and try other function buttons on

the remote. If they also work the device, then

the remote is ready and no further sleps are

needed,

If NO, continue...

First look up a FOUR-DIGIT remote

control number for your brand of

Device before going through the simple

steps on the following page,

Find your Four-Digit Code on pages

42-44.

VCR

Satellite Receiver

PiP POSITION CC

®®®®

TV PROG. LIST CLOCK

ovo®@

SLEEP TV/VCR SOURCE FORMAT

A Q@OQ

Cableconverter

PFVL

If more than one number is listed, you may

have to try more than the first Four-Digit code

given in order to locate your Device's remote

code.

NOTE: Setting up the remote is for use with

external accessory devices only and not for use

with other television brands.

(9@@

@@@

Nd w that you have looked up the three-

igit Remote Code Number for your

brand of device, you are ready to follow the

fbur simple steps belo_

Please read through steps 1-4 befi)re begin-

ning.

Place the TV/DVD/ACC Mode

Switch in the proper position.

Press the • RECORD button on the

remote control and release.

Press the AUTO SOUND button on

the remote within 30 seconds, then

release.

Enter the FOUR-DIGIT REMOTE

CODE NUMBER (page 42-44) for

your desired device. The remote is now

ready to send commands to the unit,

Point the remote at the Device. Press

the POWER button on the remote to

turn the unit ON. If this works you are

finished, If it does not work the first

time, repeat the steps using a different

remote code number.

After a second try and the remote does not

operate your device, see if there is another

four-digit code number (pages 42-44) listed

for your device and repeat the steps above

using the new number.

If after repeated attempts the code number

method does not work you device, try the

SEARCH METHOD on the next page.

NOTE: Setting up the remote is for use with

external accessory devices only and not for use

with other television brands.

VCR

S_lellite Receiver

or DBS, DVD

" I

Cable Converter

yOxUr TV remote can be set to work various

ternal devices such as VCRs, Cable

Boxes, Satellite Receivers, DBS, DVD, etc. by

what is called the search method of remote

control programming.

If' the "Remote Code" number method shown

on the previous page did not set your remote

to work your external device, then follow the

easy steps listed below.

Please read steps 1-4 beJbre beginning.

Press the POWER button on the

device your are attempting to program

to turn it ON.

Place the TV/DVD/ACC Mode

Switch in the proper position.

Press the • RECORD and the AUTO

SOUND buttons simultaneously and

hold them down. The remote will con-

tinue to send programming codes, one

ever 1.5 seconds.

4The device will begin to change chan-

nels after the remote identifies the cor-

rect code. When the channels start to

change release the * RECORD and

AUTO SOUND buttons. The remote

should be ready to operate the device.

This method can take several minutes to per-

form.

Don't let the device scan up more than five

channels. If you do the remote may pass up

the right code and another search cycle will

have to be repeated.

If no channel change happens within two

minutes, repeat steps i-4. Should a channel

change still not occur, the remote will not

work the desired device.

NOTE: Setting up the remote is for use with

external accessory devices only and not for use

with other television brands.

Satellite Receiver

VCR

Cable Converter

®®®6

@®®

®®®

@®® ©

k'£,dig3_o] e]:_

Admiral ................. 2027, 2052

Adventura .................... 2001

Aiko ......................... 2059

Aiwa .... 2001, 2017, 2062, 2070, 2072

Akai ..... 2021, 2029, 2038, 2060, 2063

Akiba ........................ 2034

Alba .............. 201 i, 2034, 2052,

................... 2059, 2063, 2072

Ambassador ................... 2011

American Action ............... 2059

American High ................ 2015

Amstrad ....... 2001, 2059, 2067, 2068

Anam ............. 2017, 2042, 2054,

.............. 2057, 2059, 2082, 2084

Anam National ...... 2042, 2054, 2087

Anitech ...................... 2034

Asa ..................... 2017, 2035

Asha ......................... 2057

Asuka ........................ 2017

Audiovox ..................... 2017

Baird ......... 2001, 2021, 2037, 2039

Basic Line .......... 201 i, 2034, 2059

Beaamark ..................... 2057

Bell & Howell ................. 2037

Blaapunkt ..... 2003, 2005, 2010, 2014,

.... 2041, 2042, 2048, 2054, 2055, 2075

Brandt ............. 2047, 2064, 2065

Brandt Electronic ............... 2021

Broksonic 2002, 2040, 2046, 2052, 2078

Bush ......... 2034, 2052, 2059, 2072

Calix ........................ 2017

Canon ........................ 2015

Capehart ...................... 2011

Carver ....................... 2035

Catron ....................... 2011

CCE .................... 2034, 2059

CGE ......................... 2001

Cimline ...................... 2034

Cineral ....................... 2059

Citizen .................. 2017, 2059

Clatronic ..................... 2011

Colt ......................... 2034

Combitech .................... 2072

Condor ....................... 2011

Craig .... 2017, 2026, 2034, 2057, 2058

Crown ............. 201 i, 2034, 2059

Curtis Mathes . .2015, 2021, 2032, 2042

Cybernex ..................... 2057

Cyrus ........................ 2035

Daewoo . .2011, 2024, 2025, 2059, 2083

Dansai ....................... 2034

Daytron ...................... 2011

De Graaf ................ 2022, 2043

Decca ................... 2001, 2035

Denon ....................... 2022

Dual ......................... 2021

Dumont ............ 2001, 2035, 2037

Dynatech ..................... 2001

Elbe ......................... 2018

Elcatech ...................... 2034

Electrohome ................... 2017

Electrophonic .................. 2017

Emerex ....................... 2012

Emerson ...... 2001, 2002, 2017, 2023,

.............. 2040, 2046, 2051, 2052,

................... 2059, 2078, 2083

ESC .................... 2057, 2059

Ferguson ...... 2021, 2039, 2064, 2065

Fidelity ....................... 2001

Finlandia ................ 2035, 2037

Finlux ........ 2001, 2022, 2035, 2037

Firstline . .2017, 2023, 2024, 2034, 2052

Fisher ......... 2025, 2026, 2030, 2037

Frontech ...................... 2011

Fuji .......................... 2015

Funai ........................ 2001

Garrard ....................... 2001

GE ........... 2015, 2027, 2032, 2057

GEC ......................... 2035

General ...................... 2011

Go Video ................ 2077, 2081

Goldhand ..................... 2034

Goldstar ....... 2017, 2018, 2053, 2079

Goodmans 2001, 2017, 2034, 2059, 2075

Gradiente ................ 2001, 2008

Graetz ........ 2005, 2021, 2037, 2057

Granada ............ 2025, 2035, 2037

Grandin ............ 2001, 2017, 2034

Gmndig ...... 2003, 2005, 2007, 2010,

.............. 2034, 2035, 2048, 2050,

.............. 2054, 2069, 2071, 2075

Hanseatic ..................... 2017

Harley Davidson ............... 2001

Harman/Kardon ........... 2018, 2035

Harwood ..................... 2034

HCM ........................ 2034

Headquarter ................... 2025

Hinari ........ 2004, 2034, 2057, 2072

Hi-Q ......................... 2026

Hitachi ............ 2001, 2004, 2021,

................... 2022, 2043, 2057

Hughes Network Systems ........ 2022

Hypson ....................... 2034

Imperial ...................... 2001

Ingersol ...................... 2004

Interfunk ..................... 2035

ITT .......... 2005, 2021, 2025, 2037,

................... 2038, 2057, 2074

ITV .................... 2017, 2059

Jensen ....................... 2021

JVC .......... 2008, 2021, 2033, 2049,

................... 2050, 2074, 2080

Kaisui ........................ 2034

KEC .................... 2017, 2059

Kendo .................. 2038, 2052

Kenwood ........... 2018, 2021, 2033

KLH ......................... 2034

Kodak .................. 2015, 2017

Korpel ....................... 2034

Layco ........................ 2034

Lenco ........................ 2059

LG .......................... 2079

Lloyd's .................. 2001, 2051

Loewe ........ 2004, 2005, 2017, 2035

Logik .............. 2004, 2034, 2057

Luxor .... 2023, 2025, 2027, 2037, 2038

LXI ......................... 2017

M Electronic .................. 2001

Magnasonic ................... 2059

Magnavox ..... 2001, 2015, 2019, 2035

Magnin ....................... 2057

Manesth ................. 2024, 2034

Marantz ....... 2003, 2005, 2015, 2035

Marta ........................ 2017

Matsai ............. 2004, 2016, 2036,

................... 2052, 2070, 2072

Matsashita .......... 2015, 2042, 2055

Mei .......................... 2015

Melectronic ................... 2018

Memorex ..... 2001, 2015, 2017, 2019,

......... 2025, 2026, 2027, 2037, 2052,

......... 2057, 2062, 2085, 2087, 2088

Memphis ..................... 2034

Metz .............. 2003, 2005, 2017,

.............. 2042, 2048, 2055, 2069

MGA ................... 2023, 2057

MGN Technology .............. 2057

Mincrva ...................... 2048

Minerva ............ 2005, 2010, 2048

Minolta ...................... 2022

Mitsubishi 2023, 2027, 2033, 2035, 2045

Motorola ................ 2015, 2027

MTC ................... 2001, 2057

Multitech ................ 2001, 2034

Murphy ...................... 2001

NAD ........................ 2031

National ...................... 2054

NEC ..... 2018, 2020, 2021, 2033, 2037

Neckermann ................... 2035

Nesco ........................ 2034

Nikko ........................ 2017

Nikon ........................ 2014

Noblex ....................... 2057

Nokia ......... 2025, 2037, 2038, 2057

Nokia .... 2021, 2025, 2037, 2038, 2057

Nordmende ......... 2021, 2061, 2064,

........................ 2065, 2074

Oceanic ................. 2001, 2021

Okano .................. 2063, 2070

Olympus ................ 2015, 2054

Optimas ....... 2017, 2027, 2031, 2037,

......... 2042, 2077, 2086, 2087, 2088

Orion ........ 2002, 2004, 2016, 2036,

......... 2046, 2052, 2070, 2072, 2078

Osaki .............. 2001, 2017, 2034

Otto Versand .................. 2035

Palladium ..... 2005, 2017, 2021, 2034

Panasonic .......... 2015, 2042, 2053,

................... 2054, 2055, 2087

Pathe Cinema .................. 2016

Palhe Marconi ................. 2021

Penny ............. 2015, 2017, 2018,

................... 2020, 2022, 2057

Pentax....................... 2022

Perdio........................ 2001

Philco ........ 2015,2018,2052,2078

Philips ..2015,2035(DEFAULTVCR),

........................ 2074,2075

Phonola...................... 2035

Pilot ......................... 2017

Pioneer............. 203i, 2033,2035

Portland...................... 2011

Profex ....................... 2066

Profitronic.................... 2057

Proline....................... 2001

Proscan...................... 2032

Protec........................ 2034

Pulsar........................ 2019

Pye.......................... 2035

Quarter....................... 2025

Quartz....................... 2025

Quasar............. 2015,2042,2087

Quelle ....................... 2035

RadioShack............. 2001,2085

Radiola....................... 2035

Radix........................ 2017

RCA2015,2022,2027,2032,2038,2057

Realistic........... 2001,2015,2017,

.............. 2025,2026,2027,2037

REX .................... 2021,2074

RFT ......................... 2075

Ricoh........................ 2014

Roadstar...... 2017,2034,2057,2059

Runco........................ 2019

Saba........ 2021,2049,2050,2061,2

.................... 064,2065,2074

Saisho........ 2004,2016,2036,2052

Salora.............. 2023,2025,2038

Samsung...... 2024,2057,2076,2077

Sanky................... 2019,2027

Sansui............. 2001,2021,2033,

................... 2052,2058,2078

Sanyo......... 2025,2026,2037,2057

Saville....................... 2072

SBR2035

SchaubLorenz. .2001, 2005, 2021, 2037

Schneider ........... 2001, 2034, 2035

Scott ......... 2023, 2024, 2040, 2046

Sears .............. 2001, 2015, 2017,

.............. 2022, 2025, 2026, 2037

SEG .................... 2057, 2066

SEI ..................... 2004, 2035

Seleco ....................... 2021

Setup ........................ 2024

Sentra ........................ 2011

Sharp ................... 2027, 2073

Shintom ................. 2034, 2037

Shogun ....................... 2057

Shorai ........................ 2004

Silva ......................... 2017

Singer .................. 2024, 2034

Sinudyne ................ 2004, 2035

Solavox ...................... 2011

Sonolor ...................... 2025

Sontec ....................... 2017

Sony .... 2001, 2012, 2013, 2014, 2015

STS ......................... 2022

Sunkai ....................... 2070

Sunstar ....................... 2001

Suntronic ..................... 2001

Sylvania ....... 2001, 2015, 2023, 2035

Symhonic ..................... 2001

Tashiko ...................... 2001

Tatung ............. 2001, 2021, 2035

Teac .................... 2001, 2021

TEC ......................... 2011

Technics ............ 2015, 2042, 2054

Teknika ....... 2001, 2015, 2007, 2017

Teleavia ...................... 2021

Telefunken 2021, 2047, 2058, 2064, 2074

Tenosal ....................... 2034

Tensai ................... 2001, 2066

Thomas ...................... 2001

Thomson ........... 2021, 2064, 2074

Thorn .............. 2016, 2021, 2037

TMK ................... 2051, 2057

Toshiba . .2021, 2023, 2024, 2035, 2074

Totelevision .............. 2017, 2057

Towada ...................... 2066

Uher ......................... 2057

Unitech ...................... 2057

Universum .... 2001, 2006, 2010, 2017,

......... 2035, 2038, 2048, 2057, 2067

Vector ........................ 2024

Vector Research ........... 2018, 2020

Victor .............. 2008, 2021, 2033

Video Concepts ........... 2020, 2024

Videosonic .................... 2057

Wards ........ 2001, 2015, 2022, 2026,

......... 2027, 2032, 2034, 2035, 2057

White Westinghouse ....... 2052, 2059

XR- 1000 ..................... 2001

XR-1001 ..................... 2015

XR-1002 ..................... 2034

Yamaha ...................... 2018

Yamishi ...................... 2034

Yokan ........................ 2034

Yoko .................... 2011, 2057

Zenith ...2001, 2014, 2019, 2052, 2078

Ie][el IIIT-'5Ik'J !e]::[e]Ie][_'Te][e][e]e]:[-1

Akai ......................... 5316

HarmalVKardon ................ 5314

JVC .................... 5311, 5318

Kenwood ..................... 5307

Magnavox .................... 5302

Mitsubishi .................... 5303

Onkyo ............. 5302, 5317, 5319

Panasonic ................ 5301, 5322

Philips ...5302, 5308 (DEFAULT DVD)

Pioneer ............. 5305, 5312, 5321

Proscan ...................... 5304

RCA ......................... 5304

Samsung ..................... 5313

Sharp ........................ 5320

Sony ......................... 5306

Technics ...................... 5301

Theta Digital .................. 5312

Thomson ..................... 5310

Toshiba ...................... 5302

Yamaha ................. 5301, 5309

[eY_,q:]II::l[e][e]e]:g_

ABC .... 3002, 3003, 3004, 3006, 3008

Andover ...................... 3037

Bell&Howell ................. 3006

BirgminghamCable Communication ...

............................. 3020

British Telecom ........... 3002, 3012

Cabletime ..... 3016, 3019, 3025, 3029

Clyde ........................ 3011

Contec ....................... 3009

Cryptovision .................. 3038

Daehan ....................... 3043

Daeryung ..................... 3003

Decsat ....................... 3027

Everquesst .................... 3007

Filmnet ....................... 3028

France Telecom ................ 3030

GEC ......................... 3011

Gemini ....................... 3007

General Instrument ........ 3004, 3020,

........................ 3031, 3046

Goldstar ................. 3014, 3047

Grundig ...................... 3035

Hitachi ....................... 3004

Jasco ........................ 3007

Jerrold ........ 3002, 3004, 3005, 3006,

.............. 3007, 3020, 3031, 3046

LG Alps ...................... 3044

Memorex ..................... 3001

Mnet ................... 3009, 3028

Now ......................... 3041

Oak ......................... 3009

Pacific ....................... 3039

Panasonic ................ 3001, 3013

Paragon ...................... 3001

Pioneer .................. 3014, 3036

Pulsar ........................ 3001

[__,I :]all:1[_e] D]:[-']1[_ )]

PVP Stereo Visual Matrix ........ 3002

Quasar ....................... 3001

Radio Shack ................... 3007

Rembrandt .................... 3004

Runco ........................ 3001

Salora ........................ 3026

Samsung ................ 3014, 3040

Satbox ....................... 3024

Scientific ........... 3003, 3032, 3049

Scientific Atlanta ..... 3003, 3008, 3021

Seawoo ...................... 3045

Signal ........................ 3007

Signature ..................... 3004

Starcom ................. 3002, 3007

Stargate ...................... 3007

Starquest ..................... 3007

STS ......................... 3015

Taihan ....................... 3043

Tele+l ....................... 3028

Teleservice .................... 3022

Tocom ....................... 3005

Tongkook 3 ................ 042, 3048

Toshiba ...................... 3001

Tadi ......................... 3023

Tusa ......................... 3007

United Cable .................. 3002

Videoway ..................... 3017

Visicable+ .................... 3033

Westminster ................... 3012

Wolsey Gene .................. 3037

Zenith .................. 3001, 3034

[,,',]r_,_d::imliiild_[o[e] e]:_1

Absat ........................ 4006

Alba .......... 4029, 4034, 4037, 4052

Aides ........................ 4019

Amstrad ........... 4003, 4016, 4025,

................... 4038, 4039, 4042

Ankard ........ 4013, 4019, 4030, 4044

Anttron ................. 4009, 4034

Armstrong .................... 4015

AST ......................... 4027

Astra ........................ 4005

Astro .............. 4008, 4039, 4045

Avalon ....................... 4031

Axis .................... 4030, 4046

Beko ......................... 4010

Best ......................... 4030

Blaupunkt .................... 4008

Boca .................... 4015, 4043

Brain Wave ................... 4022

British Sky Broadcasting ......... 4058

BT .......................... 4053

Bush ......................... 4002

Cambridge .................... 4024

Canal Satellite ................. 4059

Canal+ ....................... 4059

Channel Master ................ 4029

CNT ......................... 4045

Comlink ...................... 4019

Connexions ................... 4031

Crown ....................... 4015

Cyrus ........................ 4011

D-Box ....................... 4054

DDC ......................... 4029

DNT .................... 4011,4031

Echostar ............ 4031, 4036, 4061

Emanon ...................... 4034

Ferguson ...... 4002, 4009, 4010, 4023

Fidelity ....................... 4016

Finlux ........ 4005, 4024, 4032, 4037

Fracarro ...................... 4061

Freecom ...................... 4034

FFE Humax ................... 4060

Fube ............... 4030, 4031, 4034

Galaxis ............. 4019, 4057, 4060

General Instrument ............. 4012

Gold Box ..................... 4059

Gooding ...................... 4048

Goodmans .................... 4010

Grundig ............ 4008, 4010, 4048

G-sat ........................ 4009

Hinari ........................ 4009

Hirschimann ........ 4008, 4032, 4039,

........................ 4040, 4049

Hitachi ....................... 4037

Houston ...................... 4053

Huth .......... 4013, 4015, 4019, 4026

Intervision .................... 4050

Invideo ....................... 4061

1TT .......................... 4005

Johansson ..................... 4022

JVC ......................... 4048

Kathrein ........... 4004, 4006, 4008,

................... 4011, 4035, 4041

Kreiselmeyer .................. 4008

Kyostar ...................... 4034

La Sat .................. 4043, 4045

Lenco ........................ 4034

Lennox ....................... 4050

Lupus ........................ 4030

Luxor ................... 4005, 4049

Manhattan .......... 4037, 4045, 4050

Marantz ...................... 4011

Maspro .................. 4004, 4023

Matsui .................. 4024, 4048

Mediamarkt ................... 4015

Mediasat ..................... 4059

Minerva ...................... 4048

Morgan's ................ 4015, 4043

Navex ........................ 4022

Neuhaus ...................... 4039

Neusat ....................... 4057

Newhaus ..................... 4013

Nokia ............. 4005, 4032, 4037,

................... 4049, 4054, 4063

Nordmende ................... 4029

Orbitech ...................... 4039

Oxford ....................... 4024

Pace ......... 4002, 4009, 4014, 4023,

................... 4037, 4055, 4058

PaLladium ..................... 4048

Palsat ........................ 4039

Panda ........................ 4037

Philips ............. 4007, 401 i, 4020,

................... 4037, 4048, 4059

Phonotrend .............. 4019, 4050

Pioneer .................. 4021, 4059

Planet ........................ 4061

Promax ....................... 4037

Prosat ........................ 4019

Quadral ................. 4029, 4044

Radiola ....................... 4011

Radix ................... 403 i, 4064

RFT ............... 401 i, 4013, 4019

Saba .................... 4023, 4045

Sabre ........................ 4037

Sagem ....................... 4056

Salora ........................ 4005

SAT .................... 4027, 4038

Satcom .................. 4026, 4051

Satec ........................ 4009

Satmaster ..................... 4026

Satparmer ..... 4022, 4034, 4040, 4045

Schwaiger ............... 4009, 4041

Seemann ................ 4031, 4046

SEG .................... 4030, 4034

Siemens ...................... 4008

Skymaster .......... 4019, 4044, 4051

Sony .................... 4017, 4018

Strong ....................... 4062

Sunstar ....................... 4043

Tantec .................. 4023, 4037

Techniland .................... 4026

Technisat ................ 4001, 4039

Telefunken .................... 4034

Teleka .................. 4015, 4052

Telesat ....................... 4051

Thomson ................ 4037, 4059

Tonna ................... 4026, 4053

TPS ......................... 4056

Triad ........................ 4027

Triasat ....................... 4040

Unitor ........................ 4022

Universum ............... 4008, 4049

Ventana ...................... 4011

Vortec ........................ 4034

Vtech ........................ 4027

Winersat ...................... 4022

Wisi .......... 4008, 4027, 403 i, 4037

Xcom Multimedia .............. 4065

Xsat .................... 4006, 4065

Zehnder ................. 4033, 4045

Ws_oen using the TV remote with an acces-

ry device, first make certain it is set

to control your accessory device (by the

REMOTE CODE o1"SEARCH method).

Set the TV/DVD/ACC mode switch

to the proper position on the remote,

Point the top of the remote toward

the front of the accessory device

(remote sensor window) when pressing

the buttons,

SYSTEM SWITCH

Set in the proper position to send

remot_

device,

RECORD •

Hold the VCR •RECORD button down to

begin a VCR recording.

REWIND BUTTON _1_1

Press to rewind tapes, For some VCR's

the STOP button may have to be

pressed first, then REWIND. May be

used to scan back through chapters or

titles on DVD movies.

FAST FORWARD BUTTON

Press to rapidly advance

DVD, For some accessory devices, you

may need to press the STOP button

first, then the FAST FORWARD button,

In playback mode

to view the " , in

the forward direction.

TV/VCR BUTTON

Press while in the VCR mode (VCR indi-

cator on the front of the unit will light) to

view the playback of a tape. Press again to

place in the TV position (VCR indicator

light will go off) to view one program

while recortfing another program.

When used in the TV mode, the TV/VCR

button will will have no functionality.

Press to turn the accessory device ON

and OFF,

JTTON •

Press to begin playback of a video

tape, DVD, etc.

STOP BUTTON •

Press to stop the motion of a tape or to

stop the playback of a DVD,

JSE BUTTON II

Press to temporarily stop the tape dur-

ing a playback or recording or pause

the playback of a DVD, Press again to

release Pause.

HANNEL + & - BUTTONS

Press lo scan up or clown through the

channel nmnbers if your accessory

device will change channels,

INBER BUTTON

Press buttons for direct channel selec-

tions. May also be used for direct

nmnber entries in certain onscreen

menu feature settings.

¸iii!ii!ii!ii!ii il'iii!!;iiiiiiii¸!ii;iiiili!iiiiiiii!ii!i¸! ili!i! !!i!!ii!ii!iiiii!!i!iiii!i!i!ii!i!ililiiii!i!iiiiiiiii¸!iii!iiiiiiii!ill i:ili!!

The buttons on the remote will not operate your

accessory device if those features are not found

on your accessory's remote control.

Note: All functions (particularly Search,

Rewind, Fast Forward, etc.) will operate the

same as with the original remote control pro-

vided with your accessory device.

This TV also provides you with an FM

adio. An FM Radio signal must be con-

nected to the FM Antenna 75_ Jack located

on the bottom of the TX

To enter the FM Mode, press theRADIO button on the remote control.

The FM Mode has its own onscreen

menu options.

Press the MENU button on the

remote control to display the FM Mode

onscreen menu.

SPress the CURSOR UP or DOWN

buttons to scroll through the available

FM Mode onscreen options. These

options include: Language, Auto

Program, Manual Store, Sort, or

Name.

LANGUAGE - Choose to view the

onscreen menu in English, French or

Spanish.

AUTO PROGRAM - The Auto

Program control will search the FM

antenna signal and store any FM chan-

nel it finds in the TV's memory.

MANUAL STORE - This control will

allow you to manually tune any avail-

able FM signals.

SORT - The Sort Control will allow

you to rearrange your stored FM sta-

tions in the order you prefer,

NAME - You can label or apply a

name to your programmed FM radio

stations. Add your own personal name

or choose one from the predefined list.

Press the CURSOR RIGHT button

to adjust or select items within the

highlighted feature sub-menu,

Press the STATUS/EXIT button to

remove the onscreen menu from the

TV screen when finished. Or, let the

display time out and the menu will dis-

appear after a few second,

.FEATURESBALANCEEQUAL'ZER,:!!:iiiill

•INSTALL AVL

INCR.SURROUND

STEREO • SOUND LANGUAGE

• EEATHRES AUTOPROGRAM

MANUALSTORE

SORT

NAME

INSTALL

_ENGLISH

lEvi]trill,31|

•AUTOPROGRAM ERANCAIS

• MANUALSTORE ESPANOL

• SORT

• NAME

INSTALL

•LANGUAGE

• _ SEARCH

•MANUALSTORE

• SORT

•NAME

iNSTALL

• LANGUAGE SEARCH

•AUTOPROGRAM CHANNEL

rJIE_ISF;U klEoN STORE

• SORT

•NAME

INSTALL

• LANGUAGE FROM

• AUTOPROGRAM TO

•MANUALSTORE EXCHANGE

• NAME

INSTALL

• LANGUAGE

•AUTOPROGRAM

• MANUALSTORE

• SORT

•_'PERSONAL

!1 D.1111

I :lllf!l_lll "--"

I iH[llit .-...

To Manually search, store and sort FM

• channels follow the instructions below;

If in the FM Mode, press the MENU

button on the remote control to dis-

play the FM Mode onscreen menu.

Press the CURSOR DOWN buttons

to highlight the MANUAL STORE

option.

Press the CURSOR RIGHT buttonto shift the menu to the left. SEARCH

will be highlighted.

Press the CURSOR RIGHT button

to begin the Manual Search of avail-

able FM stations. When a station is

found, the search will end until activat-

ed again.

If the station found is one that you

want to keep, press the CURSOR

DOWN button lo highlight CHAN-

NEL.

Press the CURSOR RIGHT button

repeatedly to toggle a list of 40 chan-

nel references (FMI to FM40).

Press the CURSOR DOWN button to

highlight STORE. Then, press the

CURSOR RIGHT button to store the

station to the selected channel refer-

eoce. The onscreen menu will changed

to STORED.

Repeat the process for any other FM Stations.

To SORT the channels stoned, press

the CURSOR DOWN (while in the

INSTALL menu options) to highlight

the word SORT.

Press the CURSOR RIGHT to shift

the menu left. FROM will be highlight-

ed.

Press the CURSOR RIGHT button

repeatedly to select one of the channel

references (FMI to FM40) you wish to

move,

Press the CURSOR DOWN button

to highlight TO. Press the CURSOR

RIGHT button repeatedly to select one

of the channel references (FM 1 to

FM40) you want to swap the reference

chosen in the previous step to.

Press the CURSOR DOWN to high-

light EXCHANGE. Press the CUR-

SOR RIGHT to swap the channel ref-

erence.

a EQUALIZER .....

FEATURES BALAUCE ....

•IUSTALL AVL

IHCR.SURROUUD

IHSTALL

MAUDALSTORE

•SEARCH

•STORE

STEREO

_T _r,rt _r_ 1

•SOUUD LAUGUAGE

• FEATURES AOTOpROGRAM

aMAUUALSTORE

SORT

UAHE

IUSTALL

_EHGLISH

•AUTOPROGRAM FRAU_IS

•MAUUALSTORE ESPANOL

• SORT

•HAME

IUSTALL

•LAUGOAGE SEARCH

•AUTOPROGRAM CHAUHEL

_iL_t]IUA|Illlltl STORE

• SORT

• UAME

IUSTALL

MAUUALSTORE

_88.5 FM

• CHAUHEL

•STORE

IHSTALL

MAUUALSTORE

•SEARCH

• CUAUUEL

IUSTALL

• LAUGUAGE FROM

•ADTOpROGRAM TO

• MAUUALSTORE EXCHAUGE

•UAME

IHSTALL

SORT

•TO

• EXCHAUGE

Fl'!_ ensure the best sound quolity from the FM

adio feature ()/'this 7_ several Sound

Controls are available/br adjustment.

To enter the FM Mode, press the

RADIO button on the remote control.

The FM Mode has its own onscreen

menu options.

Press the MENU button on the remotecontrol to display the FM Mode

onscreen menu.

Press the CURSOR DOWN button

until SOUND is highlighted.

Press the CURSOR RIGHT button to

shift the menu to the left, accessing the

SOUND onscreen menu options, these

option include: EQUALIZER, BAL-

ANCE, STORE, AVL, INCREDIBLE

SURROUND, STEREO, AUDIO

OUT, or SPEAKERS.

EQUALIZER -Allows the listener to

change the sound frequencies to their

liking.

BALANCE - This controls the sound

level balance between the right and left

TV speakers.

STORE - Once Sound controls are

adjusted, activating the STORE control

will save those settings in the TV's

memory.

i11 ]llej

AVL - Automatic Volume Leveler, when

ON, will keep the volume level at a con-

sistent level should there be sudden

peaks and valleys in sound levels during

commercial breaks or channel changes.

INCREDIBLE SURROUND - Allows

the user to select a predefined Incredible

Surround setting or Stereo when the sig-

nal is stereo or Spatial and Mono when

the signal is being received in mono.

:_ IIEiglIIIgt_l]ll_! _lll_IIl_ll IIIgt_l]ll?lK=II_EN_tl_lllfl_lilll_li]I:llll_lN_tllllfl_lilll_D

STEREO * Select Stereo or Mono. If

the signal is being received in Mono the

control cannot be placed in Stereo.

AUDIO OUT - When using an external

stereo for sound reproduction, the Audio

Out control will allow FIXED or VARI-

ABLE output options.

I+llliitll] llllii ilia • 1-1ilia

SPEAKERS - When using an external

speaker system, the Speaker control will

allow you to mm the TV speakers ON

or OFE

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished, Or, let the display

time out anti the menu will disappear

after a few second,

EQUALIZER ....

• FEATURES 8ALARCE .......

•IHSTALL AVL

INCR.SURROUND

STEREO

®+N(b

"gX5

'<'0®00

o o @ 1'11

OOO

®®@

SOURD

•EQUALIZER

•BALANCE

•AVL

• STEREO

l i I

SOUND t

•EQUALIZER

•8ALARCE

•AVL

•IRCR.SURROUND

BTI

SOUND

I AVL ±

• INCR.SURROUND

• STEREO

•AUDIOOUT

i_wJ

•FEATURES

•INSTALL

BALANCE

AVL

INCR.SURROUND

STEREO

S0080

12ODZ

•BALANCE 5OOHZ

•AVL 15OOHZ

• INCR.SURROUND51tZ

• STEREO IOKHZ

SOUND

• EQUALIZER

rJl_f_|_l

•AVL

•INCR.SURROUND

• STEREO

II g

SOUND

• EQUALIZER

•BALANCE

•INCR.SURROUND

• STEREO

$ T

SOUND

• EQUALIZER

•BALANCE

•AVL

• STEREO

SOUND t

IBALANCE

•AVL

•INCR.SURROUND

•ffEREO

-i

i _ _1,1 [I 1 i_.j

_/u e FM Radio within the TV can be set to

rn on arm off at a specific time, or tune to

a specific channel when it powers on. The

Timer controls also allows the FM Display to

be turned on o1"offl

To enter the FM Mode, press the

RADIO button on the remote control.

The FM Mode has its own onscreen

menu options.

Press the MENU button on the remote

control to display the FM Mode

onscreen menu.

Press the CURSOR DOWN button

until TIMER is highlighted.

Press the CURSOR RIGHT button to

shift the menu to the heft,accessing the

TIMER onscreen menu options, these

option include: TIME, START TIME,

STOP TIME, CHANNEL, ACTI-

VATE, or DISPLAY.

TIME - This is simply the Clock set-

ting. Allows you to enter the current

time.

START TIME - This control allows

you to set a specific time you want the

FM Radio to turn ON.

STOP TIME - This control allows you

to set a specific time you want the FM

Radio to lure OFE

CHANNEL - This controls allows you

to set a specific channel you want the

FM Radio to tune to when it powers on,

ACTIVATE - Once the Time and chan-

nel controls have been adjusted, set

Activate to ONCE or DAILY. ONCe

will activate the process one time, while

DAILY will activate the TIMER con-

trois every week day.

:n [|It_ll

DISPLAY - If set to ON, the Display

control will display the current time on

the TV screen when in the FM Mode.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished. Or, let the display

time out anti the menu will disappear

after a few second.

a EQUALIZER

•FEATURES BALANCE

• INSTALL AVL

INCR.SURROUND

STEREO

• SOUND TIMER

aMODE SELECT

•IRSTALL SCREENSAVER

FEATURES

.o ®®

®®@

®®®

N@ I

FEATURES

TIME

• MODE SELECTR STARTTIME

• SCREERSAVER STOPTIME

CHARREL

ACTIVATE

FEATURES

TIMER

• SIARTTiME

• SIOPTiME

• CHANNEL

• ACTIVATE

FEATURES

TIMER

•TiME

m ...... : ......

• SIOPTIME

• CHAHHEL

• ACTIVATE

FEATURES

TIMER _-

•TiME

•SIART TiME

iI,

• CHANNEL

•ACTIVATE

FEATURES

TIMER

•TiME

• STARTTiME

• SIOP TiME

• CHANNEL

TIMER

•TIME

•SIART TiME

•SIOP TIME

•ACTIVATE

FEATURES

TIMER

OSTARTTIME

• STOPTiME

• CHANNEL

•ACTIVATE

:1 IRIIli_t_- :=_.:

:1 [|t_ u'll .....

T/o e Mode Select options allow you to move

other operating modes within he TE

When in the FM Mode, choosejS"om "1_ PC, or

HD Modes.

If in the FM mode, press the MENU

button on the remote control to display

the FM Mode onscreen menu.

Press the CURSOR DOWN button

until MODE SELECT is highlighted.

3Press the CURSOR RIGHT button to

shift the menu to the left, accessing the

Mode Select onscreen menu options.

Press the CURSOR UP or DOWN

buttons to choose TV, PC, or HD.

TV - This will switch the TV back to the

TV Mode of operalion.

PC - This control will switch the TV to

the PC Mode of operation. Note a PC

signal must be present for this to work,

or the TV will go into standby mode.

HD - This control will set the TV to the

High Definition Mode.

Press the CURSOR RIGHT button toactivate the selected control and change

to the highlighted mode.

Press the STATUS/EXIT button to

remove the onscreen menu from the ZV

screen when finished. Or, let the display

time out anti the menu will disappear

after a few second.

a EQUALIZER

•FEATURES BALANCE

•INSTALL AVL

INCR.SURROUND

STEREO

• SOUND TIMER

a MODE SELECT

•iNSTALL SCREENSAVER

FEATURES

MODESELECT

• PC

FEATURES

•TIMER IV

31 • SCREENSAVER PC

FEATURES

a TIME

• MODE SELECT STARTTIME

• SCREENSAVER STOPTIME

CHANNEL

ACTIVATE

FEATDRES

MODESELECT

• HD

• PC

FEATDRES

MODESELECT

•IV

•HD

I o_

W_sile in the FM Mode, there is a

creensaver option that can be"used._ The

Screensaver control, when on, will circulate the

screen station indication around the display.

If in the FM mode, press the MENUbutton on the remote control to display

the FM Mode onscreen menu,

Press the CURSOR DOWN button

until FEATURES is highlight_l.

Press the CURSOR RIGHT button to

shift the menu to the heft.TIMER will

be highlighted,

Press the CURSOR DOWN button

until SCREENSAVER is highlighted,

Press the CURSOR RIGHT or LEFT

button to toggle the Screensaver control

ON or OFE

With the Screensaver control set to ON,

the display will shift around the screen

pausing in one place for a brief moment.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished, Or, let the display

time out and the menu will disappear

after a few second,

EQUALIZER .......

• FEATURES BALANCE ........ ........................................................................................

• INSTALL AVL

INCR.SURROUNDiiiiiiiiiiiiiii:I •SOUND TIMER

STEREO _ MODESELECT

• INSTALL SCREENSAVER

®®®@

@@@

®@@

@@@

FEATURES

TIME

•MODESELECT STARTTIME

• SCREENSAVER STOPTIME

CHANNEL

ACTIVATE

FEATURES

• TIMER

•MODESELECT

FEATURES

•TIMER

• MODESELECT

FH2 O4S I

sJ _

104.5 FH

A utoSound TM allows you to select from

Jbur factory-set controls and a personal

control that you set according to your own

preferences through the onscreen Sound menu

within the FM Mode. TheJburJactory-set

controls (Classical, Jazz Pop, or Rock) enable

you to tailor the sound so as to enhance the

particular program you are listening to.

If in the FM mode, press the AUTO

SOUND button on the remote control

to display the first AutoSoand'fMoption

on the screen.

Press the AUTO SOUND button

repeatedly to toggle through lhe factory

pre-defined setting for the following

musical styles: CLASSICAL, JAZZ,

POP, ROCK or PERSONAL (the way

you set the equalizer).

PEESONA[

I/OffZ 41

500ffZ -2

1500HZ O

SKffZ 6

IO_HZ 3

e®e

@®®

®®®

®®@

CLASSICAl

120HZ 4

500HZ 0

1500ffZ 0

5KHZ 9

IOKHZ 4

jAZZ

120HZ 9

SOOHZ 0

1500ffZ 12

SKffZ I

IOKflZ 4

POP

120HZ 4

500HZ 12

1500ffZ 0

5KffZ I

IOKHZ 9

ROCg

120HZ 13

500HZ 0

1500ffZ 0

5Kffl I

IOKHZ 13

riga e HD Mode offers certain Picture, Sound

nd Blocking options within its onscreen

menu. Below is a list of Picture Menu options.

Press the HD button on the remotecontrol to place the TV in the HD Mode

(HDI).

Press the MENU button on the remotecontrol to display the HD Mode

onscreen menu. The PICTURE option

will be highlighted.

Press the CURSOR UP or DOWN

buttons until PICTURE is highlighted,

Press the CURSOR RIGHT button toshift the menu to the left, accessing the

Picture onscreen menu options,

Press the CURSOR UP or DOWN

buttons to highlight any of the HD

Mode Picture Controls. Choose from:

BRIGHTNESS, COLOR, PICTURE,

SHARPNESS, TINT, COLOR TEMP,

or VIEW FORMAT,

BRIGHTNESS - This control will adds

or subtracts light from the darkest part of

the picture.

COLOR - This control adds or elimi-

nates color intensity from the picture.

PICTURE - This control improves the

detail of the lightest parts of the picture.

SHARPNESS - This control improves

the detail in the picture.

TINT - This control adjusts the picture

to obtain natural skin tones.

COLOR TEMP - Choose from NOR-

MAL (keeps whites, white), COOL

(makes whites, bluish), or WARM

(makes whiles, reddish) picture prefer-

ences.

VIEW FORMAT - Choose between the

FULL SCREEN or WIDE SCREEN

fonnata.

Press the CURSOR RIGHT or LEFT

buttons to adjust the selected control.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished, Or, let the display

time out anti the menu will disappear

after a few second,

M_E_

$1N_O

MO_ELE_t

_Dio

®®®

._J

_EEWFCAI_I

_EW FNI_I

_EWFNI_I

_EW FOa_I

P_URE

_OLNI

pgt_E

P_URE

rl_tlpe HD Mode also offers certain Sound con-

"oladjustments to fine tune the sound being

heard when in the HD Mode.

Press the HD button on the remotecontrol to place the TV in the HD Mode

(HDI).

Press the MENU button on the remotecontrol to display the HD Mode

onscreen menu. The PICTURE option

will be highlighted.

Press the CURSOR UP or DOWN

buttons until SOUND is highlighted,

Press the CURSOR RIGHT button toshift the menu to the left, accessing the

SOUND onscreen menu options,

Press the CURSOR UP or DOWN

buttons to highlight any of the HD

Mode Sound Controls. Choose from:

EQUALIZER, BALANCE, or AVL,

EQUALIZER -Allows the listener to

change the sound frequencies lo their

liking,

BALANCE -This controls the sound

level balance between the right and left

TV speakers.

AVL - Aulomatic Volume Leveler, when

ON, will keep the volume level at a con-

sistent level should there be sudden

peaks and valleys in sound levels during

commercial breaks or channel changes.

Press the CURSOR RIGHT or LEFT

buttons to adjust the selected control.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished. Or, let the display

time out and the menu will disappear

after a few second.

E_AHZE_

_S_O_Z

_[HZ

_O[HZ

BALAK[E

AVL

E_UAHZ[_

120_Z

S_Z

ISOOHZ

SK_Z

l_W I.

E_AUZE_

120_Z

IS_O_Z

_HZ

IO_HZ

BALA_[E

T_qe HD Select Control will allow you to

uickly change j$om the HD Mode of oper-

ation to the _FM Radio, or PC Modes.

If in the HD Mode, press the MENUbutton on the remote control to display

the HD Mode onscreen menu, The PIC-

TURE option will be highlighted.

Press the CURSOR UP or DOWN

buttons until MODE SELECT is high-

lighted.

Press the CURSOR RIGHT button to

shift the menu to the left displaying the

MODE SELECT options. Choose from

TV MODE, FM RADIO MODE, or

PC MODE.

Press the CURSOR RIGHT button toactivate the highlighted mode control.

MA_H

®®

®®®®

@®®

®®®

@®®

rl_ie HD Mode channel can be blocked to

ensor the viewing of programming not

suitable fi)r children. 7b block the HD Mode

c'hannel, fidlow the steps below.

Press the HD button on the remotecontrol to place the TV in the HD Mode

(HD]),

Press the MENU button on the remotecontrol to display the HD Mode

onscrcen menu. The PICTURE option

will be highlighted,

Press the CURSOR UP or DOWN

buttons until BLOCK CHANNEL is

highlight_l.

4Press the NUMBERED buttons and

enter your four digit Access Code that

was setup for the TV AutoLock feature.

The Block Channel Control will be

available for adjustment

Press the CURSOR RIGHT button to

loggle the control ON or OFF. If set to

ON, the HDI channel (mode) will not

allow viewing of programs. This control

would have to be set to OFF to make the

HDI channel (mode) viewable.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished.

®®

©© J31

®®

®®® ©

floo£ EffU

_llqi_li' q

_videe TV can be used as a PC Monitol: A PC

osignal must be present or the TV will

go into standby mode.

Follow the steps below to access and adjust the

onscreen PC" Menu controls.

Press the PC button on the remote con-

trol to place the TV in the PC Mode,

Press the MENU button on the remote

control to display the PC Mode onscreen

menu. The AUDIO SELECTION option

will be highlighted.

Press the CURSOR UP or DOWN

buttons to highlight any of the listed

onscreen menu options.

Choose from:

AUDIO SELECTION - Will allow the

Audio Source to come from the PC, the

TV, or the FM Radio.

BRIGHTNESS & CONTRAST -

Allows you to adjust the Brightness and

Contrast picture levels.

ADJUST COLOR - This control allow

you to set the Color Temperature of the

picture. Choose between the Normal,

Cool or Warm pre-defined setlings,

VIDEO NOISE - Will allow you to

remove any flickering Vertical or

Horizontal bars thai may appear on the

screen.

ADJUST POSITION - This control

will allow you lo move the onscreen pic-

ture horizontally or vertically for better

viewing pleasure.

AUTO ADJUST - The Auto Adjust will

automatically adjust the control based on

the signal being received to give the best

possible picture.

PIP CONTROLS - change the Size and

Position of the PIP window on the

screen when the PIP button is used.

MODE SELECT - Enter the TV or FM

Mode using this control,

RESET TO FACTORY SETTINGS -

Will reset all setting lo the factory

default values.

VIEW FORMATS - Choose between

the NATIVE (the formal that is dictated

by the type of accessory device being

used) and WIDE SCREEN formals.

Press the CURSOR RIGHT button lo

enter the sub-menu of any of the high-

lighted onscreen menu controls.

Use the CURSOR UP, DOWN,

RIGHT or LEFT buttons to navigate,

adjust or activate the specific controls.

Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished.

®®®

®®@

_Ean_L _

m,.

_TI_E

No. Resolution

I 640 x 480

6 720 x 400

7 800 x 600

12 832 x 624

13 1024 x 768

17 1152 x 864

18 1280 x 960

19 1280 x 1024

Ref_sh

Rate

60 Hz

67 Hz

72 Hz

75 Hz

85 Hz

70 Hz

56 Hz

60 Hz

72 Hz

75 Hz

85 Hz

75 Hz

60 Hz

70 Hz

75 Hz

85 Hz

75 Hz

60 Hz

75 Hz

Ve_ical

Sync

Horizontal

Sync

31,500 kHz

35,000 kHz

37,900 kHz

37,500 kHz

43,300 kHz

31,469 kHz

35,100 kHz

37,900 kHz

48,100 kHz

46,900 kHz

53,700 kHz

49,700 kHz

48,400 kHz

56,500 kHz

60,000 kHz

68,700 kHz

67,500 kHz

60,000 kHz

64,000 kHz

80,000 kHz

Horizontal

Polarity

Pixel

Frequency

25,175 HHz

30,240 HHz

31,500 HHz

31,500 MH

36,000 14Hz

28,322 14Hz

36,000 14Hz

40,000 14Hz

50,000 14Hz

49,500 14Hz

56,250 14Hz

57,300 14Hz

65,000 14Hz

75,000 14Hz

78,750 14Hz

94,500 14Hz

108,000 14Hz

135,000 14Hz

No Power

• Check the TV power cord. Unplug the TV, wait 10 seconds,

then reinsert the plug into the outlet and push the POWER

button again.

• Check that the outlet is not on a wall switch.

• Be sure the fuse is not blown on the AC power strip, if one is

being used.

No Picture

• Check antenna!cable connections. Are they properly secured

to the TV's ANT 75ff2 plug?

• Check the TUNER MODE control for the correct tuner set-

ting.

• Try running the Auto Program feature to find all available

channels.

• Press the SOURCE button on the remote to make sure the

correct signal source is selected.

• If using an accessory device, be sure that it is functioning

properly.

• If in PC Mode, a video signal MUST BE present or the TV

will turn off.

No Sound

• Check the VOLUME buttons.

• Check the MUTE button on the remote control.

• If you're attempting to hook up auxiliary equipment, check

the audio jack connections.

TV Only Produces MONO Sound

• If using a cable box with RF only type connections, the signal

coming from the cable box will be produced in MONO only.

• Check Sound control setting. Change setting to Slereo.

Remote Does Not Work

• Check the batteries. If necessary, replace them with AA

Heavy Duty (Zinc Chloride) or Alkaline batteries.

• Clean the remote control and the remote control sensor win-

dow on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds,

then reinsert the plug into the outlet and push the POWER

button again.

• Be sure the fuse is not blown on the AC power strip, if one is

being used.

• Check to be sure the TV outlet is not on a wall switch.

• Be sure that the remote is in the correct operating mode.

• Be sure the remote is pointed at the Remote Sensor Window

on the TV. See page 1 of the Quick Use Guide for details.

TV Displays Wrong Channel or No Channels Above 13

•Repeat channel selection.

• Add the desired channel numbers (using the CHANNEL

EDIT control) into the TV's memory.

• Check to be sure the TUNER MODES are set to the CABLE

option and run the Auto Program feature to find all available

channels.

WARNING Concerning Stationary Images on the TV

Screen:

Do not leave stationary or letterbox images on screen

for extended periods of time. This can cause uneven

display aging.

PLACEMENT OF THE TV

Normal use of the TV should involve the showing of pictures

that contain constantly moving and changing images that fill the

screen. Be careful not to leave nonmoving images on screen for

extended periods of time, or to display the same images on CLEANING

screen too frequently, because subtle ghost images can be left

on the picture tubes, Sources of stationary images may be DVD

disks, laser disks, video games, CD-i disks, videotapes, digital

television boxes, broadcast channels, cable channels, satellite

channels, and others, Here are some examples of stationary

images (this is not an all-inclusive list; you may encounter

others in your viewing):

•DVD menus--listings of DVD disk content

•Letterbox black bars--shown at the top and bottom of the

TV screen when a wide screen (16:9) movie is viewed on a

TV with standard (4:3) aspect ratio.

•Video-game images and scoreboards

•Television station Iogos--present a problem if they are

bright and stationary; moving or low-contrast graphics are

less likely to cause uneven aging of the picture tube °

• Stock-market tickers--presented at the bottom of the TV

screen °

•Shopping channel Iogos and pricing displays---bright

and shown constantly or repeatedly in the same location on

the TV screen.

• To avoid cabinet warping, cabinet color changes, and

increased chance of set failure, do not place the TV where

temperatures can become excessively hot; for example, in

direct sunlight or near a heating appliance.

• Be sure to allow a free flow of air to and from the perforated

back cover of the set.

• To avoid possible shock hazard, be sure the TV is unplugged

from the electrical outlet before cleaning.

• Regularly dust the TV with a dry, nonscratching duster to

keep the TV clean.

• When cleaning the TV, take care not to scratch or damage the

screen surface. Avoid wearing jewelry or using anything

abrasive. Do not use household cleaners. Wipe the front

screen with a clean cloth dampened with water. Use even,

easy, vertical strokes when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge

dampened in a solution of cool, clear water and a mild soap

or detergent. Use a clean, dry cloth to dry the wiped surfaces.

Do not use acetone, toluene, or alcohol to clean the screen.

Occasionally vacuum the ventilation holes or slots in the back

cover of the set.

Never use thinners, insecticide sprays, or other chemicals on

or near the cabinet, as they might cause permanent marring

of the cabinet finish.

ActiveControl• ActiveControlcontinuouslymeasuresand cor-

rects the incoming signals to provide lhe best picture possible.

Audio/Video Inputs •Jacks (standard RCA), located on the

back of the TV, used for external accessory devices. These jacks

are designed to receive higher picture resolution and offer

sound-connection options.

Auto Programming •When activated, this feature scans for all

available channels from regular antenna or cable signals and

stores only active broadcast stations in the TV's memory.

Channel Edit • The feature thai allows you to add or delete

channels from the list of channels stored in the TV's memory.

Closed Captioning • The broadcast standard feature that allows

you to read the voice content of television programs on the TV

screen. Designed to help lhe hearing impaired, Closed

Captioning shows dialogue and conversalions while a TV pro-

gram is in progress.

Coaxial Cable • A single solid wire normally matched with a

metal plug (F-type) end connector that screws (or pushes) direct-

ly onto a 75-ohm input found on the television or VCR.

Component Video Inputs • Inputs that allow the separate recep-

tion of blue, red, and luminance signals. These inputs provide

the highest possible color and picture resolution in the playback

of digital signal-source material, such as the kind available from

DVD players.

Composite Video Input •An input in which all the components

required for displaying lhe onscreen image are combined in one

signal.

High-definition Television (HDTV) • High-resolution digital

television.

Incredible Surround ° False acoustic management of the audio

signal thai produces a dramatic expansion of the wall of sound

that surrounds the listener and heightens overall viewing pleas-

ure.

Menu °An onscreen list of feature controls available for you to

adjust or set,

Onscreen Displays (OSD) ° The wording or messages generat-

ed by the television (or VCR) to help you with specific feature

controls (color adjuslment or programming, for example).

Remote Control Sensor Window • The window or opening

found on the television control panel through which infrared

remote control command signals are received.

Second Audio Program (SAP) • An additional audio channel

provided for in the Multichannel Television Sound (MTS)

broadcast standard. Amonaural soundtrack included within the

recorded or video signal (usually containing a second language

translation for the displayed programming).

Status/Exit Button • The remote control function that allows

you to quickly confirm what channel number you are watching.

Status/Exit can also be used to clear the television of onscreen

displays or information. You can use Status/Exit rather than hav-

ing to wait for the displays to "time out," or automatically disap-

pear from the screen.

S-Video Input ° Signal input that allows direct connection of

high-resolution video sources, such as a satellite receiver, DVD

player, S (Super)-VHS videocassette recorder, or video games.

Provides improved picture resolution, sharpness, and clarity.

Tint • TV function that allows you to change the general color

balance between cool and warm. Adjust tint according lo your

personal preference.

Cleaning and Care .................................. 59

Factory Service Locations ......................... 62-63

FM Radio Mode Controls

AutoSound TM Control ............................... 52

Install Menu Controls"

Auto Program Control .............................. 46

Language Control ................................. 46

Manual Store Control ........................... 46-47

Name (FM Channel Label) Control ................... 46

Sort Control ................................... 46-47

Mode Select Control ................................ 50

Screensaver Control ................................ 51

Sound Adjustment Controls"

Audio Out Control ................................. 48

AVL (Auto Volume Leveler) Control .................. 48

Balance Control ................................... 48

Equalizer Controls ................................. 48

Incredible Surround Control ......................... 48

Speaker Control ................................... 48

Stereo Control .................................... 48

Timer Controls .................................... 49

Glossary of Terms .................................. 60

HD Mode Controls

Block Channel Control ............................. 56

lid Installation Control ............................. 55

Mode Select Control ................................ 55

Picture Adjustment Controls ......................... 53

Sound Adjustment Controls" .......................... 54

Index ............................................. 61

PC Mode Controls ............................... 57-58

Registration Information ............................. 2

Safety/Precautions ................................. 3-4

Table of Contents .................................... 5

Troubleshooting Tips ................................ 55

TV Mode Controls

Active Control ..................................... 23

Audio Out Control ................................. 19

AutoChron TM Control ............................... i0

AutoLock Controls

Access Code ..................................... 25

Block Channels ................................... 26

Blocking Options ................................. 30

Clear All Blocked Channels ......................... 27

Movie Ratings .................................... 28

Review Screen .................................... 31

TV Ratings ...................................... 29

Understanding lhe AutoLock TM Control ................ 24

AutoSound TM Control ............................... 37

Auto Program Control ............................... 8

AutoPicture TM Control .............................. 36

AVL (Auto Volume Leveler) Control ................... 15

Balance Control ................................... 14

Channel Edit (Add or Delete Channels') Control .......... 9

Closed Captioning Control ........................... 32

Equalizer Control .................................. 13

Incredible Surround Control ......................... 16

Language Control ................................... 6

Mode Select Control ................................ 22

Name (Channel Label) Control ....................... 11

Picture Adjustment Controls" ......................... 12

Program List Control ............................... 34

Remote Control Programming for Accessory Devices

Accessory Device Remote Control Buttons ............. 45

Code Entry Method ................................ 40

Code List ..................................... 42-44

Direct Access Method .............................. 39

Search Method ................................... 41

SAP (Secondary Audio Programming) Control .......... 18

Sleeptimer Control ................................. 35

Stereo/Mono Control ............................... 17

Surf Control ...................................... 38

Timer Controls .................................... 21

Tuner Mode Control ................................. 7

TV Speaker Control ................................ 20

Widescreen (Screen Format) Control .................. 33

Warranty ......................................... 64

"kIndicates In-Home Sendce Only _--_

Milwaukee:call Chicago

Cincinnatiand Columbus:carlCleveland

Nashvilleand Chattanooga:call Knoxwlle

Washington/Ba_more:callPhiladelphia

Charlotte:callAtlanta

AllFloridaIoca_ons;call Tampa

• Indicates In-Home/Cany-ln Sendce

Toll-free numbersprovidedon the nextpage

•Phlladelphla/8 New Jersey

Atlanta/N Georgia _ash/IBalt

Tampa/W Flodda

_tRM. Myers/SW Florida

immi/SEFlodda

NOTE:If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact thenearest Service Branchto obtain

efficient and expedient repair for your product, if your product is In-Warranty, you should haveproof-of-purchase to ensure No ChargeService. For

Out-of-Warranty service, call the location nearest you.

NOTA:Si vous r_sidez dans une des rdgions desservies par une succursale de service apr_s vente du fabricant Philips (voir liste ci-dessous), vous

pourrez contacter la branche deservice apr_s vente la plus pros de chezvous pour obtenir un service apr_s vente rapide et efficace. Si le produit est

sous garantie, i] suffira de prdsenter une preuve d'achat pour bdn_ficier d'un service sans frais. Pour ]as produits non couverts par ]a garantie, con-

tactez le centre le plus pros de chezvous.

NOTA:Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de f_brica (verdirectorio mds abajo), Ud. puede comunicarse con

la sucursal de servicio rods cercanapara obtener una reparaci6n oportuna y eficazde su producto. Si su producto estdtodavia bajo garantia, Ud.

debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Paraservicio despu_s del vencimiento de la garantia, llama

al lugar mds cercano de los abajo indicados.

I_anada

Howyou can obtainefficient and expedient carry-in, mail-in, or in-home service for your product

Pleasecontact Philips at 1-800-661-6162 (French speaking)

1-800-531-0039 (English or Spanish speaking)

Au Canada

Comment obtenir ]eservice apr_s-vente pour ]es produits apportds ou envoy_s par ]a poste _ notre centre deservice ou ]e service _ domicile

Veuillezcontacter philips d: 1-800-661-6162 (Francophone)

1-800-531-0039 (Anglais ou Espagnol)

Enel Canada1

C6mo recibir servicio efficiente para su producto, en persona, por correo o a domicillo

Favorde comunicarse con Philips aE 1-800-661-6162 (franc6fono)

1-800-531-0039 (Ingl_s o Espafiol))

Rev GG -11/20/2002

OUALITYSERVICEIS ASCLOSEASYOURTELEPHONE!SIMPLYLOOKOVERTHELISTBELOWFORTHENUMBEROFA FACTORYSERVICECENTER

NEARYOU.YOURPRODUCTWILLRECEIVEEFFICIENTANDEXPEDIENTCARRY'IN,MAIL'IN, ORIN'HOMESERVICE,ANDYOUWILLRECEIVEPEACEOFMIND,

KNOWINGYOURPRODUCTIS BEINGGIVENTHEEXPERTATTENTIONOFPHIUPS' FACTORYSERVICE.

COMMERTORTERIRNOTRESERVICEAPRESVENTERAPIDEET EEFICACESOIT PARCOURRIER,_DOMICILE, OUEN SE PRESENTANT_UN CENTREDESERVICEPHiLiP& PLUSDE600 CERTRESRE

RECEPTIONDE PROOUITS_ REPARER._ TRAVERSLE PAYS:CONTACTERLE CENTREDESERVICEAUXCOXSOMMATEURSLEPLUS PROCHEPOURSAVOIRL'EMPLACEMERTDECESR_PI_TSOARS

UR RAYONDE50 _75 MtLES(80 NM _120 KM)DU CENTREDESERVICELOCAL.

C()MO ORTERERUR SERVIMOOPORTUNOY EEICIERTEPORCORREO,ERCASA0 ERPERSONAPARASU PROOUCTOA TRAV_SDE URCENTROPHILIPSDESERVtCIO.MAS DE600 SmOS POR

TODOEL PAlSPARALA RECEPCIOXDE PRODUCTOSNECESITADOSDEREPARACIONES:COMURICARSECOXEL CENTRORESERVIMO DEEABRICAMAS CERCANOPARAESTOSLUGARESDENTRO

DEUN RADIODE80 A 120 KM {50 A 75 M&LAS) DELCENTRODESERVIMOLOCAL

ATLANTA

Philips FactoryService

550 FranklinRoad., Suite F

Marietta,GA30067

800-273-1501

TAMPA

Philips FactoryService

1911 US Highway 301 North, Suite 100

Tampa,FL 33619

800-442-2027

SANFRANCISCO

Philips FactoryService

681 EastBrokaw Rd.

SanJose, CA95112

800-300-9013

HOUSTON

PhilipsFactory Service

1110 N. Post Oak Rd.,Suite 100

Houston,TX 77055

800-952-3254

CLEVELAND

PhilipsFactory Service

950 KeynoteCi_le

Brooklyn Heights,OH44131

800-331-7037

DETROIT

Philips FactoryService

25173 Dequindre

Madison Heights,MI 48071

800-438-1398

DALLAS

PhilipsFactory Service

415 N. Main Street,#107

Euless,TX 76040

800-952-3254

LOSANGELES

PhilipsFactory Service

20930 Bonita, Ste.V

Ca_on, CA90746

800-300-9013

CHICAGO

Philips FactoryService

1279W. Hamilton Pkwy.

I_sca, lL 60143

800-531-2922

KNOXVILLE

Philips FactoryService

OnePhilips Drive

Knoxville, TN37914

800-821-1767

PHILADELPHIA

Philips FactoryService

352 Dunks FerryRd.

Bensalem,PA19020

800-847-9320

LCD COLOR TELEVISION

One Year Free Labor

One Year Free Replacement of Parts

This product must be carried in for service,

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales

receipt or other document showing that you purchased the product is

considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. Forone year

thereafter, all parts will be repaired or replaced free, and labor isfree.

From one year from the day of purchase, all parts will be repaired or

replaced free, and for all labor charges. After one year from the day of

purchase, you pay for the replacement or repair of all parts, and for

all labor charges.

All parts, including repaired and replaced parts, are covered only for

the original warranty period. When the warranty on the product

expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

labor chargesfor installation or setup of the product, adjustment of

customer controls onthe product, and installation or repair of

antenna systems outside of the product.

product repair and/or part replacement becauseof misuse, acci-

dent, unauthorized repair or other cause not within the control of

Philips Consumer Electronics Company.

reception problems caused by signal conditions or cable or antenna

systems outsidethe unit.

a product that requires modification or adaptation to enable it to

operate in any country other than the country for which it was

designed, manufactured, approved and/or authorized, or repair of

products damaged by these modifications.

incidentalor consequential damagesresulting from the product.

(Some states do not allow the exclusion of incidental or consequen-

tial damages,so the above exclusion may not apply to you. This

includes,but is not limited to, prerecorded material, whether copy*

righted or not copyrighted.)

•a product usedfor commercialor institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countrieswhere the product is offi-

cially distributed by Philips Consumer Electronics Company. In coun-

tries where Philips Consumer Electronics Company does not distribute

the product, the local Philips service organization will attempt to pro-

vide service (although there may be a delay if the appropriate spare

parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of

purchase. Attach it to this owner's manual and keep both nearby.

Also keep the original box and packing material in caseyou need to

return your product.

BEFORE REQUESTING SERVICE...

Please check your owner's manual before requesting service.

Adjustments of the controls discussed there may save you a service

call.

TO GET WARRANTY SERVICE IN U.S.A.,

PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or author-

ized service center to arrange repair.

(In U.S.A., Puerto Rico and U.S. Virgin Islands,all implied warranties,

including implied warranties of merchantability and fitness for a partic-

ular purpose, are limited in duration to the duration of this express

warranty. But, becausesome states do not allow limitations on how

long an implied warranty may last, this limitation may not apply to

you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 if calling from Canada (French speaking)

1-800-531-0039 (Englishor Spanish speaking)

(in Canada,this warranty isgiven in lieu of all other warranties. No

other warranties are expressed or implied,includingany impliedwar-

ranties of merchantability or fitness for a particular purpose. Philips is

not liable under any circumstances for any direct, indirect,special, inci-

dental or consequential damages,howsoever incurred, even if notified

of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product

below. Also, please fill out and mail your warranty registration card

promptly. It will be easier for us to notify you if necessary.

MODEL #

SERIAL#

Philips Consumer Electronics, P.O. Box 520890, Miami, FL 33152, (402) 536-4171

Printed in China.

Use and Hookup Guide

Important Notice/Warning ..................... 1

Basic TV Operation .......................... 1

Remote Battery Installation .................. 1

Remote Control Button Descriptions ........... 1

Hooking up the Television

Basic Cable/Cable Box TV Connections ........ 2

Basic Antenna TV Connections ............... 2

AVI Input Connections ...................... 3

Component Video Input Connections ........... 3

High Definition Input Connections ............. 3

Headphone/Sub-woo fer_at a Jacks ............. 3

PC (Monitor) Connection .................... 4

AV2 Input Connections ...................... 4

AV3 Input Connection ....................... 4

Monitor Output Connections .................. 4

IMPORTANT

NOTE: This owner's manual is used with several

different television models. Not all features (and

drawings) discussed in this manual will necessarily

match those found with your television set. This is

normal and does not require that you contact your

dealer or request service.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD DO NOT EXPOSE THIS UNIT TO

RAIN OR EXCESSIVE MOISTURE.

_this LCD television has a set of controls located on the top of

e cabinet for use when the remote control is not needed.

Press the POWER button on the front of the TV cabinet to

turn the TV ON.

Note: With AutoChron ON, the TV will search for a PBS chan-

nel to set the clock before powering itself on. This can take a

few seconds.

Press the VOLUME + button to increase the sound level or

the VOLUME - button to lower the sound level.

Pressing both buttons at the same time will display the

onscreen menu. After you are in the menu, use these buttons to

make Mjustments or selections.

Press the CHANNEL + or - button to select TV channels.

Use these buttons to make adjustments or selections in the

onscreen menu.

There is also a set of Audio and Video Input jacks located on both sides

and the bottom of the television cabinet. Refer to the Aarfio/Video

Hookup sections within this Guide.

To load the supplied batteries into the remote:

Remove the battery compartment door on the back of the

remote.

Place the batteries (2-AA) in the remote. Be sure the (+) and(-) ends of the batteries line up con'ectly (the inside of the case

is marked).

Reattach the battery compartment door.

Be sure Io point the remote at tI _

Remole Sensor window on the

fiont of the _elevision when using

the wmote control to operave the

television.

Remote Control

(shown from the bottom)

2 "AA" Batteries

Volume and Channel buttons are located

on the top of the television cabinet.

,Remote Sensor Window

DC Input located on the

bottom jack panel of the TV

00000 _

00000

Power Cord and Adapter

Batteny Compartment Door

Baaely Compartment

PIP Button - When in the PC Mode, pressing the PIP button will bring up a __

smaller second screen window _o view programming while using lhe TV as a com-

puter monilor.

Accessory Device 4141, II, I_, II"_, 1I Buttons - Press Io rewind, stop, play,_

fastforward, or pause/freeze a videotape, or DVD.

TV/DVD/ACC Mode Switch - Slide to the TV position to control TV func- /_

tions, to the DVD posilion 1o control DVD Player functions, or _o the ACC position

to control the functions of accessory devices (a cable converter, DBS, or VCR, for

example).

Program List Button - Press to display a list of channel numbers and their

names. Each channel will appear as a selectable menu item. Refer m lhe Program

List section wilhin the Directionsfi)r Use manual supplied with the TV for detailed

instructions. /

Sleep Button - Press to set the TV to automatically turn ilself OFF at a given

amount of time.

TV/VCR (A/CH) Button - TV/VCR - Press while in the VCR mode

indicalor on the front of lbe VCR will light) 1oview Ibe playback of a tape. Press

again to place in the TV position (the VCR indicalor light will go off) to view one

program while recording another program. A/CH - Press to toggle between the cur-

rently viewed channel and the pl_eviouslyviewed channel.

Auto Sound Button - Press to select an AuloSound TM control. Choos_

three faclory-set controls (VOICE, MUSIC, and THEATRE) and a PERSONAL 1o

tailor the TV sound to enhance lhe particular type of program you are watching./

Menu (Select) Button - Press for the onscreen menu to appear. Pressing lbe

menu button after menu selections are made will eliminate the menu from the dis-

play.

Active Coutrol Button - Press

O_. When ON, lhe sharpness and noise reduction will be continuously monitored.

Cursor Buttons (Left, Right, Up, Down) - Press these buttons Io highlight,

select, and adjust ilems on the TV's onscreen menu.

Volume (+) or (-) Buttons - Press to adjust the TV sound level. J

Mute Button - Press 1oturn the TV sound OFE Press again to return the sound 1o •

its previous level.

Status/Exit Button - Press _o see the current channel number on the TV screen.

Also press to clear the TV screen after control adjustments.

®®6]

@®®

®®®.

@®®

p®o

Power Button - Press to turn the TV ON and OFE

Position Button - When using the PC Mode and the PIP window is present

on the screen, press the Position button to move the PIP window to any of the

four corners.

CC Button - Press to select Closed Captio ring options within the menu.

(See the Direztionsfi)r Use manual for details.)

Clock Button - Press the CLOCK button to access the onscreen Clock

menu.

_Format Button - Press to toggle the different screen format options.

Source Button - Press to toggle between the different A/V Input jack con-

nections and the currently tuned channel.

Auto Picture Button - Press to select an AutoPicture'rr_ control. Choose

from four factory-set controls (MOVIES, SPORTS, WEAK SIGNAL, and

MULTI MEDIA) and a PERSONAL control that you set according to your

own preferences through the onscreen PICTURE menu. The four factory-set

controls will tailor the TV picture so _s to enhance the particular type of pro-

gram you are watching, or to improve the picture of a program that has a weak

signal.

Sun; Sound button - Press to set various factory Incredible Surround

Sound listening modes. (Refer to the Incredible Surround section within the

_Directionsfi)r Use for detailed instructions.)

Channel (+) or (-) Buttons - Press to change the tuned channel.

Mode buttons - Press to directly enter a specific mode, use the PC button to

place the TV in the PC (computer monitor) mode, press the HD button to

place the TV in the HD (high definition) mode, press the Radio button to place

the TV in the FM Radio mode, or the TV button to place the TV back to its

_ normal TV mode.

Number Buttons - Press the number buttons to select TV channels. When

selecting single-digit channels, press the number of the desired channeL The

TV will pause for a few seconds and then tune to the selected channel. (Note:

You can press O, then the number also.) For channels lO0 and above, first

then the next two numbers of the desired channel.

- Press to select previously viewed channels. You can place up

m I0 channels in memory. Then by pressing the SURF button you can quickly

view the select channels. (See the "Using the Channel Surf Control" section in

your lnstructionsfi)r Use manual to see how to select a series of channels

using the Surf button.)

3139 125 31571

u,'Cablei, ut/ntoyo.rbTemay easUeoh,n

able o1"use a cable box decoder. In either case ihe connec-

tion is very simple. Follow the steps below to connect your cable

signal to your new television.

Direct Cable Connections:

This connection will supply Stereo sound to the TV.

Connect the open end of the round Cable Company sup-

plied cable to the 75f_ input on the bottom of the TV. Screw

it down finger tight.

Direct Cable Connection:

CabLe signal

coming from

CabLe Company

(Round 75_

coaxial cable)

IJack Panel Bottom of TV

Cable Box (w/RF In/Outputs):

This connection will NOT supply Stereo sound to the TV. The sound

from the cable box will be mono.

Connect the open end of the round Cable Company sup-

plied cable to the cable signal IN(put) plug on the back of

the Cable Box.

Using a separate round coaxial cable, connect one end to the

OUT(put) (TO TV) plug on the back of the Cable Box.

Connect the other end of the round coaxial cable to the

75f_ input on the bottom of the television. Screw it down fin-

ger tight.

NOTE: Be sure to set the OUTPUT CHANNEL SWITCH on the

back of the cable box to CH 3 or 4, then tune the cable box on the

TV to the corresponding channel. Once tuned, change channels at

the cable box, not the television.

Cable Box with RF Inputs and Outputs Connection:

Output Channel Switch

Cable Signal _ I

1N from the _

Cable

Company EZZZ3

OUTPUT

CABLE TO TV 3 4

IN --

Jack Panel Back

of Cable Box

Round 75Q

Coaxial Cable

Jack Panel Bottom of TV

75_7F

Cable Box (w/Audio/Video Outputs):

This connection will supply Stereo sound to the TV.

Connect the open end of the round Cable Company sup-

plied cable to the cable signal IN(put) plug on the back of

the Cable Box.

Using a RCA type Video Cable, connect one end of the

cable to the Video (yellow) (or ANT, your cable box may be

labeled differently) Out jack on the cable box and the other

end to the Video Input on the bottom of the TV.

Using a RCA type Audio Left and Right Cable, connect one

end to the left and right Audio Out L & R jacks (red &

white) on the cable box. Connect the other end to the Audio

L & R Input jacks on the bottom of the TV.

NOTE: Use the SOURCE btuton on the TV remote conlrol to tune to

the AVI channel for the cable box signal. Once tuned, change chan-

nels at lhe cable box, not the television. Pressing the SOURCE button

repemedly will scroll all the AV Input channels, including the present-

ly tuned channel.

Cable Box with Audio/Video Outputs Connection:

Cable Signal 1N

from the Cable

Company .................... Jack Panel Back

................ .... of Cable Box with A/V Outputs

0ur_t. []0000

Video Cable,

Audio CabLes

L & R (Red, White)

Jack Panel Bonom of TV

A combination antenna receives normal broadcast chan-

nels (VHF 2-13 and UHF 14-69). Your connection is

easy because there is only one 75_2 (ohm) antenna plug on

the back of your TV; and that's where the antenna goes.

!If your antenna has a round cable (75 ohm) on the end,

then you're ready to connect it to 1he TV.

If your antenna has flat, twin-lead wire (300 ohm), you

first need to attach the antenna wires to {he screws on a

300- to 75-ohm adapter.

Push the round end of the adapter (or antenna) onto the

75£2 (ohm) plug on the bottom of the TV. If the round end

of file antenna wire is threaded, screw it down finger tight.

Antenna Connection:

Outdoor or Indoor Antenna

(Combination VHF/UHF)

The combination antenna receives normal

broadcast channels 2-I 3 (VHF) and 14-69 (UHF).

////////

300 to 75-ohm

Adapter

LeTd___ -_ _ ,

I_ I

Round 75ff2 I

Coaxial Cable

from Antenna

Jack Panel

Bottom of TV

T}o e drUid/video input jacks on the bottom panel of the TV are

r direct picture and sound connections between the TV and

a VCR (or similar device) that haz"audio/video output jacks.

iConnect the VIDEO (yellow) cable m the VIDEO AVI in

jack ontim 1K_ttoTn of file TV.

Connect the AUDIO (red and white) cables to the

AUDIO (left and fight) AVI in jacks on file bett_ml of the

TV.

Connect the VIDEO (yellow) cable m the VIDEO OUTjack on tie back of the VCR or accessory device being

used.

4Connect the AUDIO (red and white) cables to the

AUDIO (left and fight) OUT jacks on the rear of the VCR

or accessory device being used.

Turn the VCR or accessory de_ice and the TV ON,

Press the SOURCE button on fire remote con*m] to select

rite AVI channel for fire *vzcesscuTdevice. AV1 will appear

in fire upper left corner on fire TV screen when tuned prop-

erly.

BACK OI; VCit

(_r AccessvD2 d_ae)

VCR (or accessor$ device)

([V_UIPPI_I) W]'I]I Vl_)lgOfk_3)

A[B)IO OU'IP[71_JACKS,

Cpomponent _qdeo inputs provide the highest possible color and

ictum resolution in the playback of digital signal source

material, such as with DVD players.

IConnect the Component (¥; Pb, Pr) Video OUT jacks

from fire DVD player (or similar device) to fire

COMP(onent) VqDEO Input (Y green, Pb blue, Pr red)

jacks on the botR)m of fire TV.When using the ('*m_ponent

Video Inputs, it is best not tx_connect a slgn*d to the AV1 in

Video Jack.

Connect the red and white AUDIO CABLES m fireAudio (left and right) output jacks on fire rear of the acces-

sory device t_ fire Audio (L and R) AV1 in Input Jacks on

the TV.

Turn the TV and file DVD (or digital accessory device)

ON.

Press the SOURCE button to scroll tie available chan-ads mttil CVq appears in the upper left comer of fire TV

screen.

htsert a DVD disc into the DVD player and press thePLAY _1_button on the DVD Player.

If your using a High Definition receiver that can transmit high

efinition programming, the 75, can except those signals

through the HD Inputs located on the bottom of the 7"tl.

Connect the Component (Y, Pb, Pr) Video OUT jacks

fR_T_)fire HD Receiver (or similar device) to fire HI) ('_; Pb,

Pr) input jacks on fire bottom of the T%'.

Connect the red and white AUDIO CABLES to file

Audio (left and right) output jacks on file rear of the HD

Receiver to fire Audio In (PC!HD) Input Jacks on fire lint-

tom of fire TV.

Turn the TV and fl*e HD Receiver ON.

Press the HD Mode button to set the TV into the HD

Mode and ttme R_the HI) signal.

Note: The Audio!_rldeo cables needed for fltis connection are not

supplied wit* your T%<Ple*_secomact yottr deMer or Philips at

800-531-0039 tbr information abeut purchasing fire needed

cables.

]rQiTi_Pig ) wr l'Ii (X)MIXONENU

V iI}],X)OUTP]L7FS,

e sid JackPTJco tainsthr,, Sa,, sthatcan used

r your convenience, They include a Headphone Jack a Sub_

Woo]er Jack, and a Data Jack,

i HEAD PHONE JACK - Used for headphone listening inany of rite available modes. When headphones are connect-

ed t_ this jack fire TV speakers will be, muted.

SUB-WOOFER JACK - An external Sub-woofer speakercan be, connected to rite T%r at fltis jack. This would pro-

vide for adeeper bass somtd.

DATA JACK - This jack is used in service applications

and should not be used by the customer.

_oiS 777 can be used as"a PC Monitor. )'our computer will have

be equipped with a VGA type video output and VGA cable,

Connect one end of the VGA Video cable m the Monitor

(video) output on the computer to the PC Input (VGA) jack

Oil [he Ixtttom of fire TV.

Although audio connections are not required, fire TV cmt

reproduce the computers audio out by ao AUDIO

ADAPTER to fire Audio output jack on the computer (if

available) while connecting fire other ends of the Audio

cables m the Audio N left and right (PC_D) 5tput Jacks

on the Ixtttom of the TV.

Turn the TV and the Computer ON,

Press the PC Mode button to set the TV into the HD

Mode mtd mite to the computer's signal.

Note: Please contact your dealer or Philips at 800-531-(Kt39 for

information about purchasing the needed cables.

®®

igJ _h Sq]t] O VGA OI7F

ACCliSSOI_Y DEVI(D

_:re am AudioiIqdeo Input Jacks located on both sides of the TV

ated under removable panels, The_e jacl_ allow for extra acee_

sot7: device connections fin' itetns svx:h as camera_ ar gaming stations.

IConnect the VIDEO (yellow) cabletothe _IDEO AV2 injack on the left rear of the "1%".Com;ect tbe other end of the

VIDEO (yellow) cable to the bIDEO OL_ jack on the back of

rite ac_a._ry deMc_ beringused. Note: An S-Vide_ cable can

be _sed in pk_ceof"riteyellow Vi_te cable if"your deMce is

eq_lped with an S-Video Output. S-Video provides begter videe

playback.

Connect theAUDIO (red and white) cables to the AUDIO(left *rodfight) AV2 'n jacks on the le_ rear of the TV. Col nect

the other ends of the AUDIO (red and white) cables to the

AUDIO (le_t atd rigbf!OUT jacks on the rear of the aacesstwy

de_ic_ being _sed.

Tom the ae_r, device and the TV ON.

Press the SOURCE button on the remote controlre,peatedly

to _3¢ct riteAV2 chanlte3for flte acces._rry dexic_. AV2 ",_ill

appear in the UFWS left txmter on rite TV _xeen whez_ttmed

tm_perly.

With flte acces._rry de_i_ ON, press the PI,AY button m acti-

vate rite playback on rite teleMglon.

]1_ruchlike the A} _jackL theA_3 jacks allow for extra aceesso_,

1!¢1 device connections for items such as cameras or gaming stations,

The AV3 Input Jacks are located on the Hght teal' of the TV.

IConnect the VIDEO (yellow) cable to *kteVIDEO AV3 in jack

on the fi_t reurof the TV, Conn_'t the other end of the

VIDEO (yellow) cable to the VIDEO OUT jt_'k on the back of

the _g:cesmo' device being u_& Note: An S-Video cable c_mbe

used in pk_ceof the yellew Video cable ff ye_ device is equiped

with a_ S-Vid_xtOutpuL S-Video provides better vid_xtplayback.

Connect the AUI)IO (red and white) cables to the AUDIO(left and d_It) AV2 in jacks on *ktedght rear of *kteTV. Connect

the otherendsof the AUDIO (red and white) cables to the

AUDIO (left _mdri_it) OUT jacks on the rear of the accessory

device being u_d,

Turn the ao:essorv device and the TV ON.

Press the SOURCE button on the remote control repeattedlyto

select the AV3 ch_mnelfor the accesm_' device, AV3 will appear

in the upper left comer on the TV acreen when tuned properly.

With *kteaccesso_, device ON, press the PlAY buRan to ac_-wtte the acces_, devtce (DVD, \2CR, CAMERA, etcJ and

view the playback on *ktetelevision.

r'p_:t Monitor (AudioA_deo) outjaeks are gmat :br recording with a

l VCR or used to connect an external audio gvstemfar better a_io.

For Audio System Connection:

IComted one end of the R(igh0 and L(eR) AUDIO (MonitorOut) jacks located on the fight rearof the TV m the R aad L

audio iuput jacks on your _ur_l systezmRefer to the AUDIO

OUT control within riteDirections jot" Use fbr FIXED or _ARI-

ABLE _tfings.

Tzwnthe TV and audio system ON. TV souad c_mbe heardthrough the audio system

For Second VCR Connection!Recorder:

The followhtg steps "allowyou to conned a VCR to re_orfl the pro-

gram while your watching iL

Comted one end of the yellow Video Cable to the Motdtor

ant _,qDEO OUT plug on the left rear of the T'v; Cotmect rite

other eed to the VDEO 1N plug on rite second VCR.

Comte_ one end of the red and wMte Audio cable f?om rite

• _ • • ¢

Momtor out L_mdR plugs on the left rear of rite T_ to rite

AUDIO IN plugs on the VCR,

Tm'n the VCR ON, iasert a bktck VHS tape and it's really to

record what s beiag viewed on rite TV acreen.

Ai_I_SORY In i'vicl g

(Camera, DVO, ¥CR, e_c,

Audio System

Connection:

Second VCR

Connection/Recorder:

M_fitor OFF

V£OFk) &AUOIO

PHILIPS LCD Television Manual L0305449

Navigation menu

Versions of this User Manual:

Views

Navigation
