PHIPOL POWER CO GBFDC001 RF Remote Control used for Christmas trees,wreaths or garlands User Manual Specification For 46 Watts

PHIPOL POWER CO LTD. RF Remote Control used for Christmas trees,wreaths or garlands Specification For 46 Watts

Users Manual

PHIPOL POWER CO LTDPage 0SPECIFICATION FOR APPROVALMODEL NO. : GBFDC001-1AMODEL NO. : GBFDC001-2A

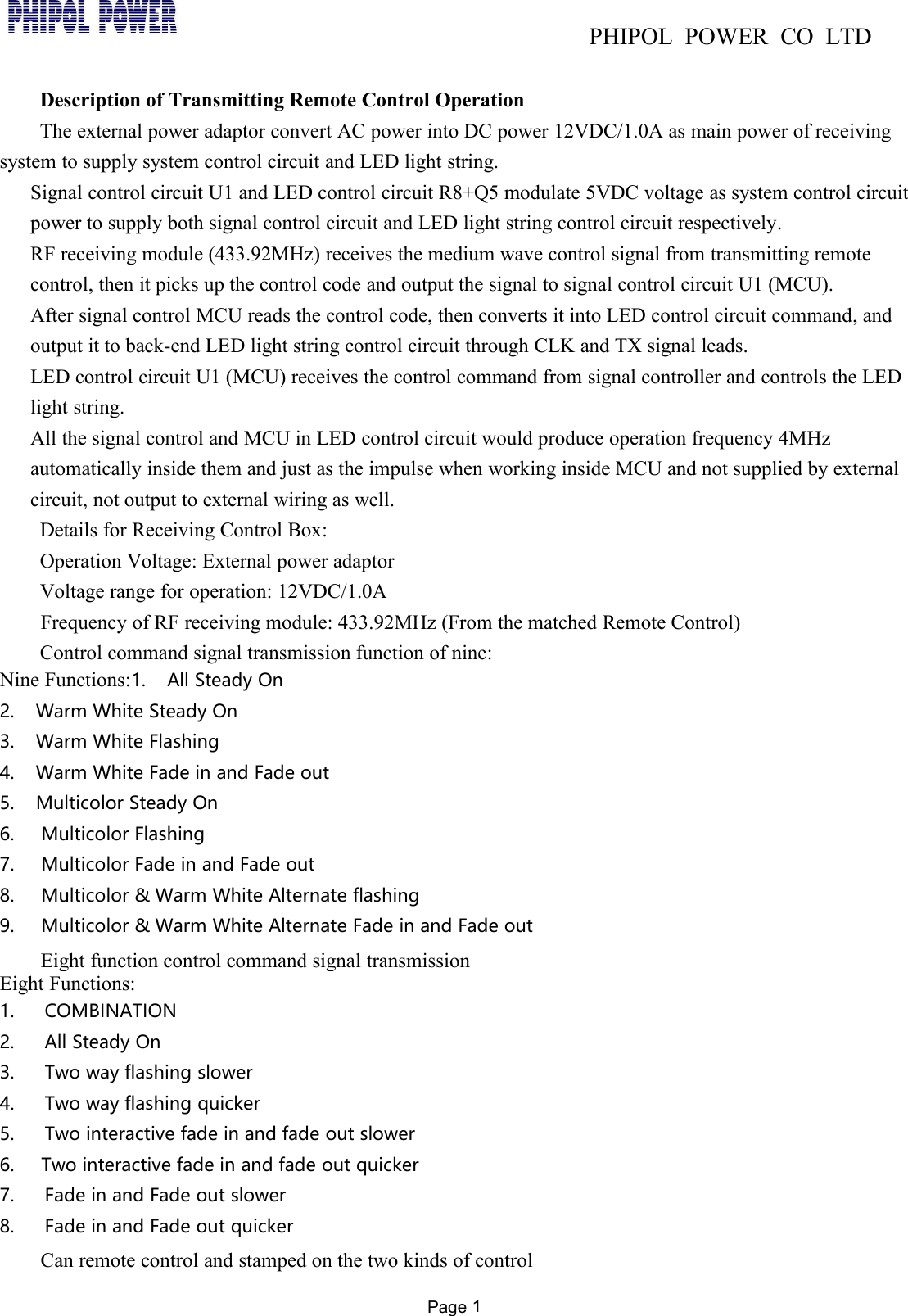

PHIPOL POWER CO LTDPage 1Description of Transmitting Remote Control OperationThe external power adaptor convert AC power into DC power 12VDC/1.0A as main power of receivingsystem to supply system control circuit and LED light string.Signal control circuit U1 and LED control circuit R8+Q5 modulate 5VDC voltage as system control circuitpower to supply both signal control circuit and LED light string control circuit respectively.RF receiving module (433.92MHz) receives the medium wave control signal from transmitting remotecontrol, then it picks up the control code and output the signal to signal control circuit U1 (MCU).After signal control MCU reads the control code, then converts it into LED control circuit command, andoutput it to back-end LED light string control circuit through CLK and TX signal leads.LED control circuit U1 (MCU) receives the control command from signal controller and controls the LEDlight string.All the signal control and MCU in LED control circuit would produce operation frequency 4MHzautomatically inside them and just as the impulse when working inside MCU and not supplied by externalcircuit, not output to external wiring as well.Details for Receiving Control Box:Operation Voltage: External power adaptorVoltage range for operation: 12VDC/1.0AFrequency of RF receiving module: 433.92MHz (From the matched Remote Control)Control command signal transmission function of nine:Nine Functions:1. All Steady On2. Warm White Steady On3. Warm White Flashing4. Warm White Fade in and Fade out5. Multicolor Steady On6. Multicolor Flashing7. Multicolor Fade in and Fade out8. Multicolor & Warm White Alternate flashing9. Multicolor & Warm White Alternate Fade in and Fade outEight function control command signal transmissionEight Functions:1. COMBINATION2. All Steady On3. Two way flashing slower4. Two way flashing quicker5. Two interactive fade in and fade out slower6. Two interactive fade in and fade out quicker7. Fade in and Fade out slower8. Fade in and Fade out quickerCan remote control and stamped on the two kinds of control
PHIPOL POWER CO LTDPage 21. The Christmas tree, wreath or garland images used with the product:
PHIPOL POWER CO LTDPage 3
PHIPOL POWER CO LTDPage 4

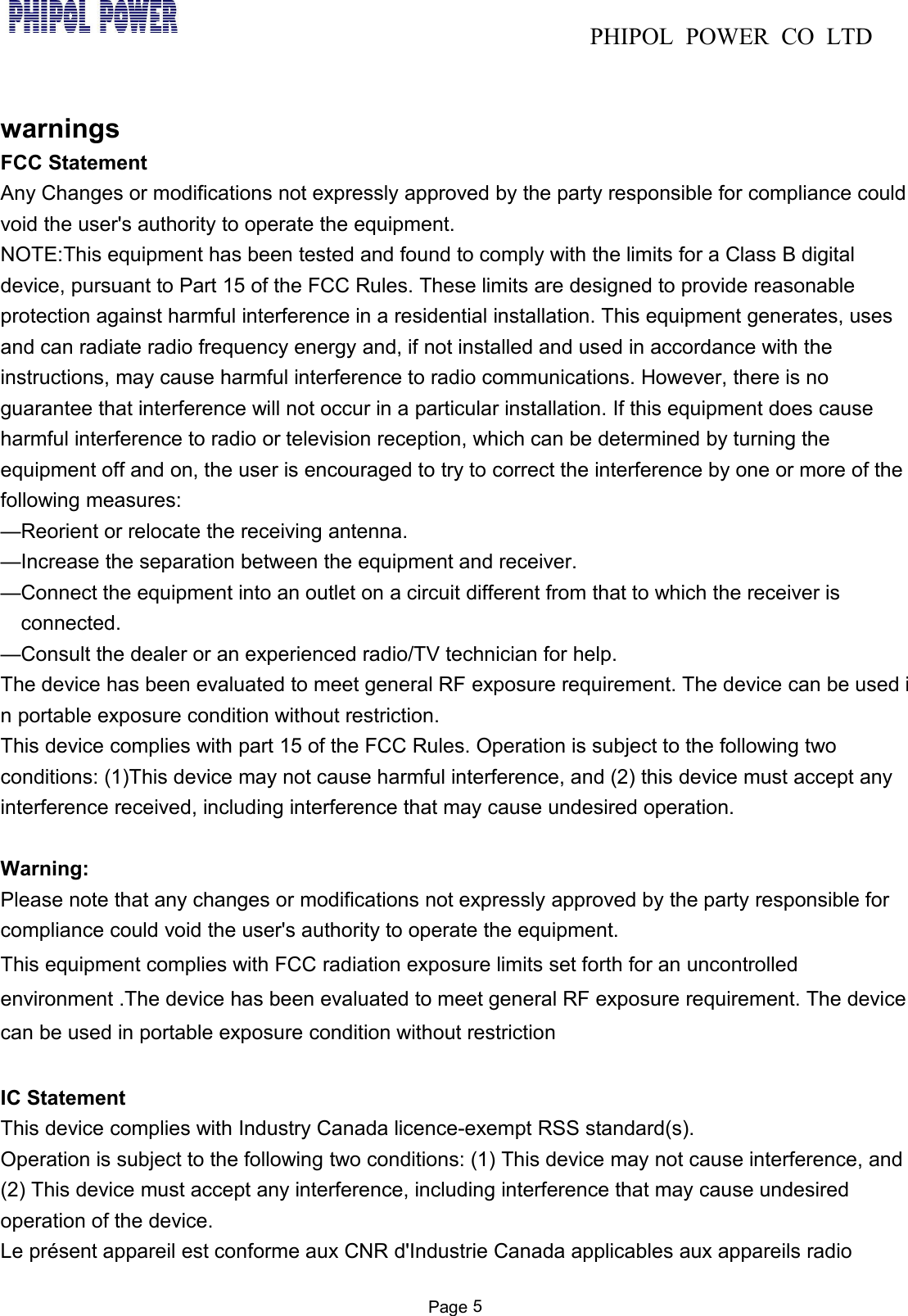

PHIPOL POWER CO LTDPage 5warningsFCC StatementAny Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1)This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.Warning:Please note that any changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment .The device has been evaluated to meet general RF exposure requirement. The devicecan be used in portable exposure condition without restrictionIC StatementThis device complies with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not cause interference, and(2) This device must accept any interference, including interference that may cause undesiredoperation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

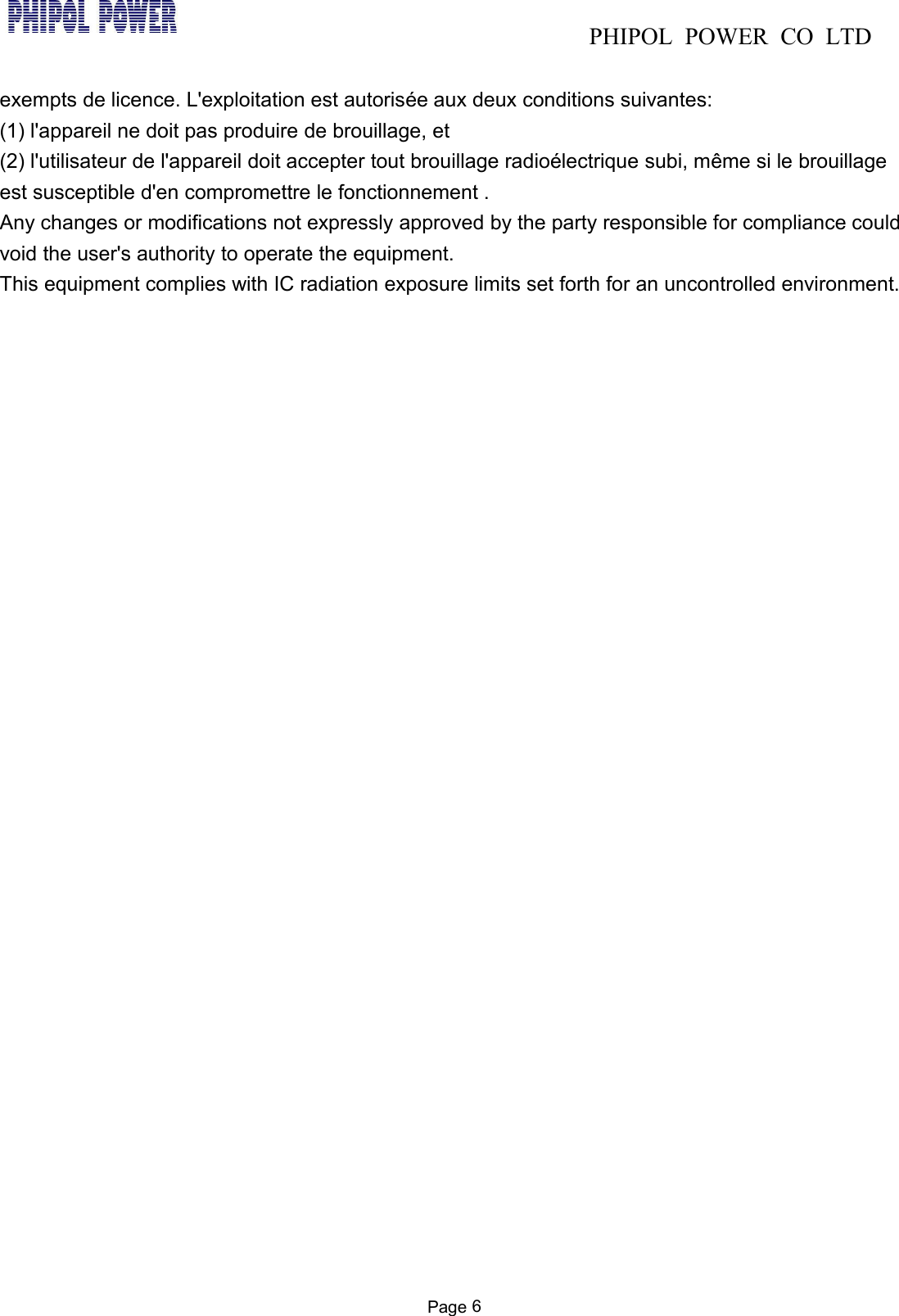

PHIPOL POWER CO LTDPage 6exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillageest susceptible d'en compromettre le fonctionnement .Any changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
