PIPO TECHNOLOGY P102 Mobile Internet Device User Manual

Pipo Technology Co., Ltd. Mobile Internet Device

User Manual

                             P102 User Manual     Tablet Android 4.1

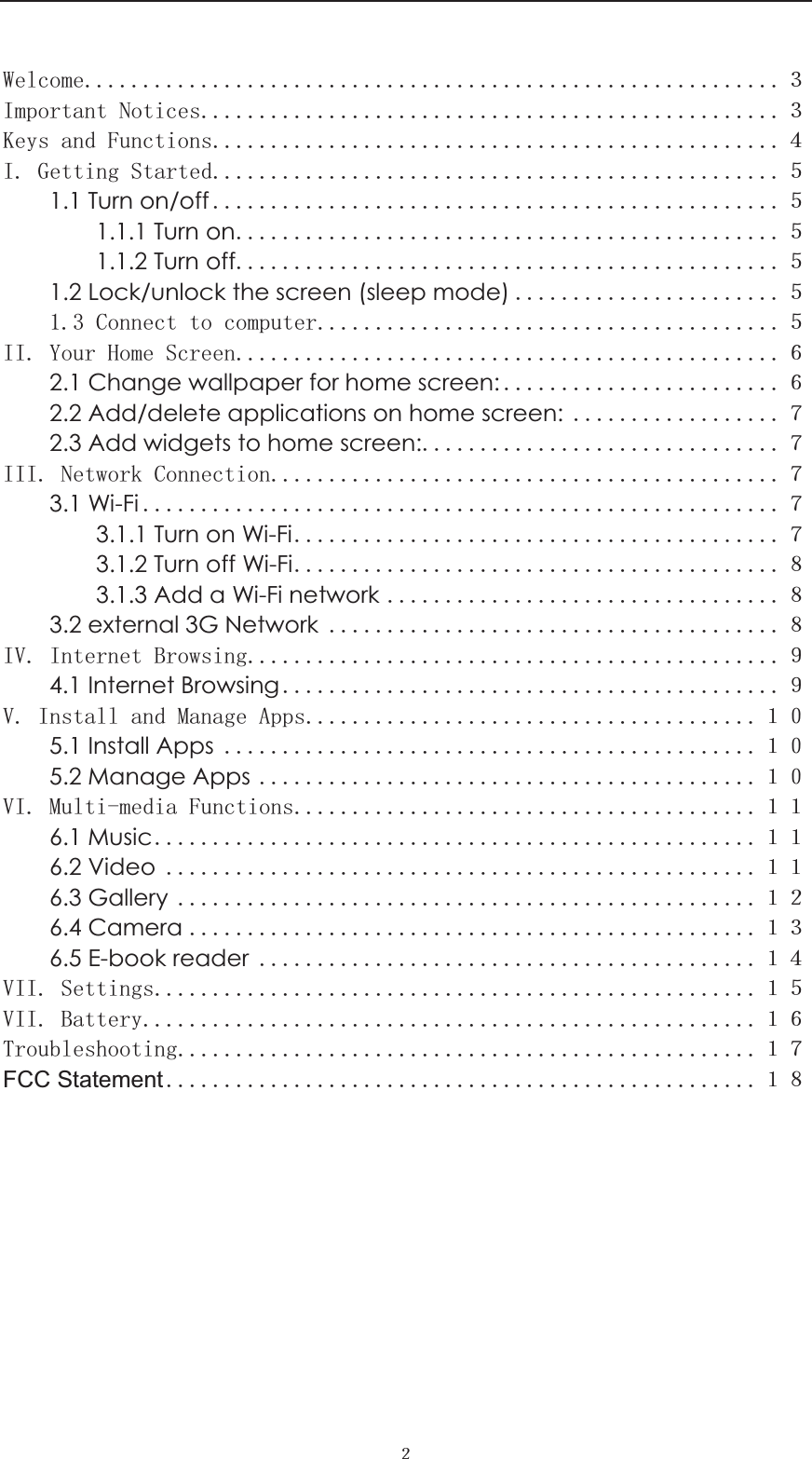

 ˎ :HOFRPHˏ,PSRUWDQW1RWLFHVˏ.H\VDQG)XQFWLRQVː,*HWWLQJ6WDUWHGˑ1.1 Turn on/off ˑ1.1.1 Turn onˑ1.1.2 Turn offˑ1.2 Lock/unlock the screen (sleep mode) ˑ&RQQHFWWRFRPSXWHUˑ,,<RXU+RPH6FUHHQ˒2.1 Change wallpaper for home screen: ˒2.2 Add/delete applications on home screen: ˓2.3 Add widgets to home screen:˓,,,1HWZRUN&RQQHFWLRQ˓3.1 Wi-Fi ˓3.1.1 Turn on Wi-Fi˓3.1.2 Turn off Wi-Fi˔3.1.3 Add a Wi-Fi network ˔3.2 external 3G Network ˔,9,QWHUQHW%URZVLQJ˕4.1 Internet Browsing ˕9,QVWDOODQG0DQDJH$SSVˍˌ5.1 Install Apps ˍˌ5.2 Manage Apps ˍˌ9,0XOWLPHGLD)XQFWLRQVˍˍ6.1 Musicˍˍ6.2 Video ˍˍ6.3 Gallery ˍˎ6.4 Camera ˍˏ6.5 E-book reader ˍː9,,6HWWLQJVˍˑ9,,%DWWHU\ˍ˒7URXEOHVKRRWLQJˍ˓FCC Statement ˍ˔

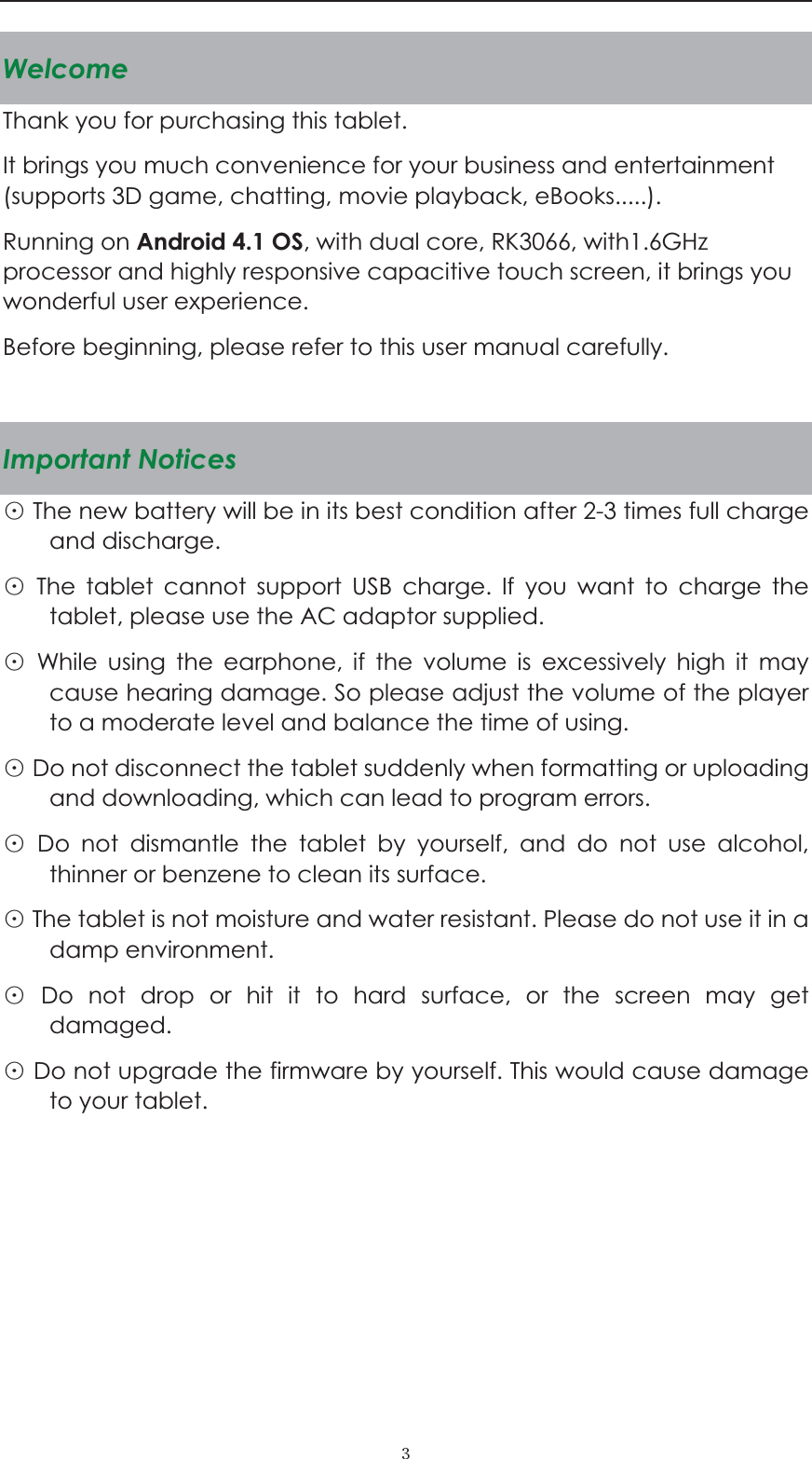

 ˏWelcomeThank you for purchasing this tablet. It brings you much convenience for your business and entertainment (supports 3D game, chatting, movie playback, eBooks.....). Running on Android 4.1 OS, with dual core, RK3066, with1.6GHz processor and highly responsive capacitive touch screen, it brings you wonderful user experience.   Before beginning, please refer to this user manual carefully.  Important Notices Ĵ The new battery will be in its best condition after 2-3 times full charge and discharge.   Ĵ The tablet cannot support USB charge. If you want to charge the tablet, please use the AC adaptor supplied.   Ĵ While using the earphone, if the volume is excessively high it may cause hearing damage. So please adjust the volume of the player to a moderate level and balance the time of using. Ĵ Do not disconnect the tablet suddenly when formatting or uploading and downloading, which can lead to program errors. Ĵ Do not dismantle the tablet by yourself, and do not use alcohol, thinner or benzene to clean its surface. Ĵ The tablet is not moisture and water resistant. Please do not use it in a damp environment.   Ĵ Do not drop or hit it to hard surface, or the screen may get damaged. Ĵ Do not upgrade the firmware by yourself. This would cause damage to your tablet.

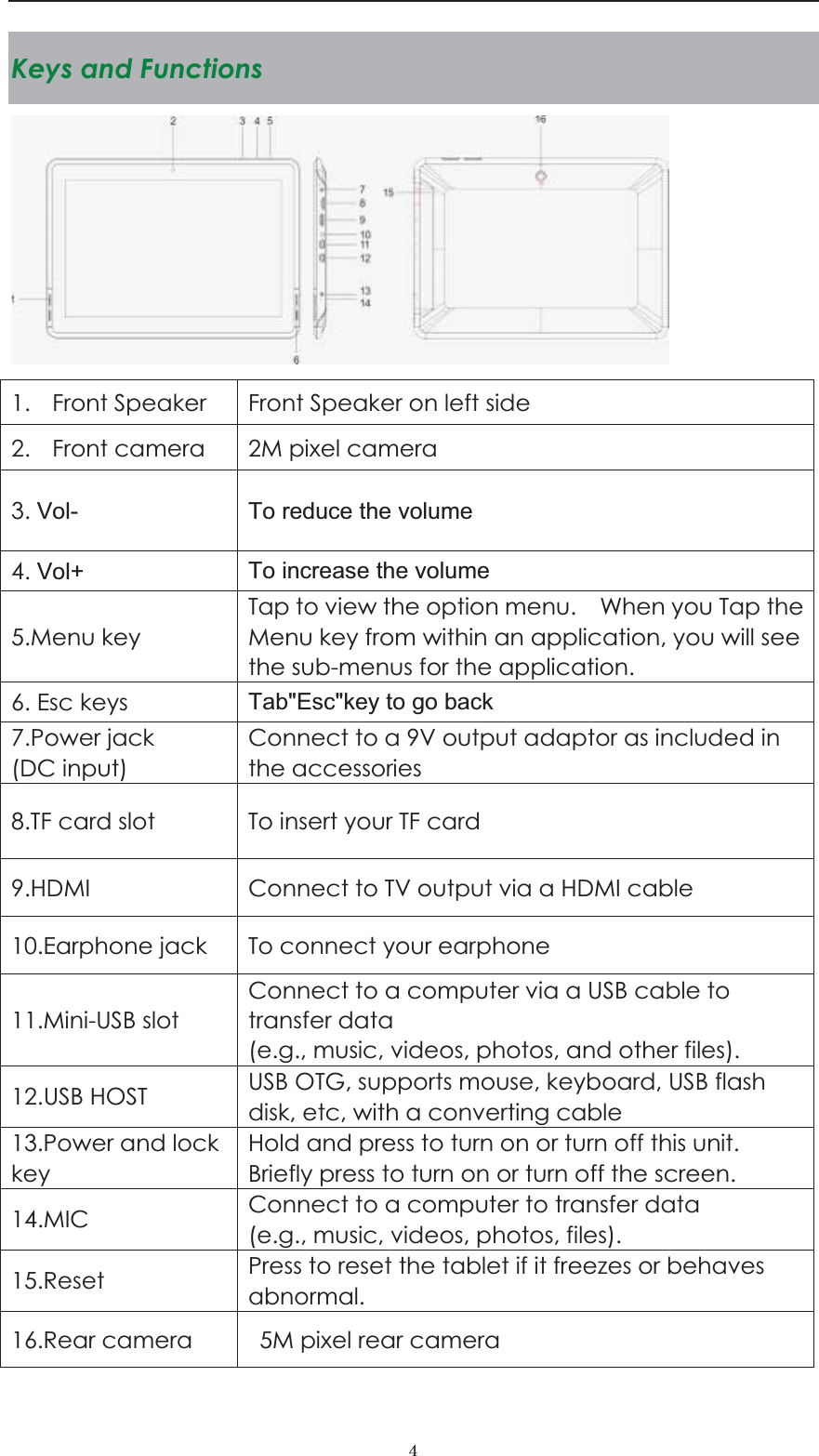

 ːKeys and Functions  1. Front Speaker  Front Speaker on left side 2. Front camera  2M pixel camera 3. Vol- To reduce the volume 4. Vol+ To increase the volume 5.Menu key Tap to view the option menu.    When you Tap the Menu key from within an application, you will see the sub-menus for the application.     6. Esc keys  Tab"Esc"key to go back 7.Power jack   (DC input) Connect to a 9V output adaptor as included in the accessories 8.TF card slot  To insert your TF card 9.HDMI  Connect to TV output via a HDMI cable 10.Earphone jack  To connect your earphone 11.Mini-USB slot Connect to a computer via a USB cable to transfer data   (e.g., music, videos, photos, and other files). 12.USB HOST  USB OTG, supports mouse, keyboard, USB flash disk, etc, with a converting cable 13.Power and lock key Hold and press to turn on or turn off this unit.   Briefly press to turn on or turn off the screen. 14.MIC  Connect to a computer to transfer data   (e.g., music, videos, photos, files). 15.Reset  Press to reset the tablet if it freezes or behaves abnormal. 16.Rear camera    5M pixel rear camera

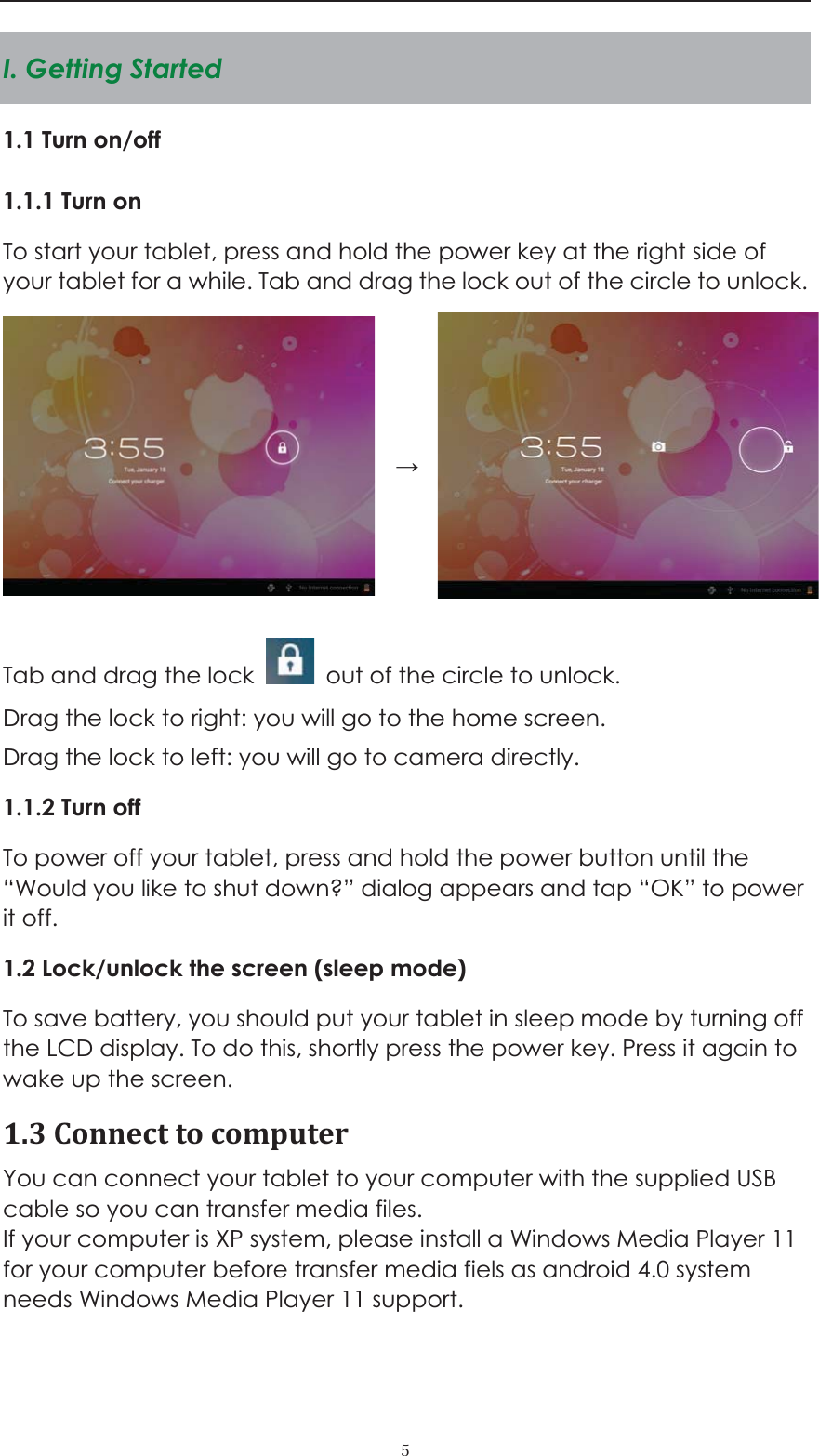

 ˑI. Getting Started 1.1 Turn on/off 1.1.1 Turn on   To start your tablet, press and hold the power key at the right side of your tablet for a while. Tab and drag the lock out of the circle to unlock.      Tab and drag the lock    out of the circle to unlock.   Drag the lock to right: you will go to the home screen. Drag the lock to left: you will go to camera directly.       1.1.2 Turn off To power off your tablet, press and hold the power button until the “Would you like to shut down?” dialog appears and tap “OK” to power it off.   1.2 Lock/unlock the screen (sleep mode)   To save battery, you should put your tablet in sleep mode by turning off the LCD display. To do this, shortly press the power key. Press it again to wake up the screen.   1.3Connecttocomputer You can connect your tablet to your computer with the supplied USB cable so you can transfer media files.   If your computer is XP system, please install a Windows Media Player 11 for your computer before transfer media fiels as android 4.0 system needs Windows Media Player 11 support.

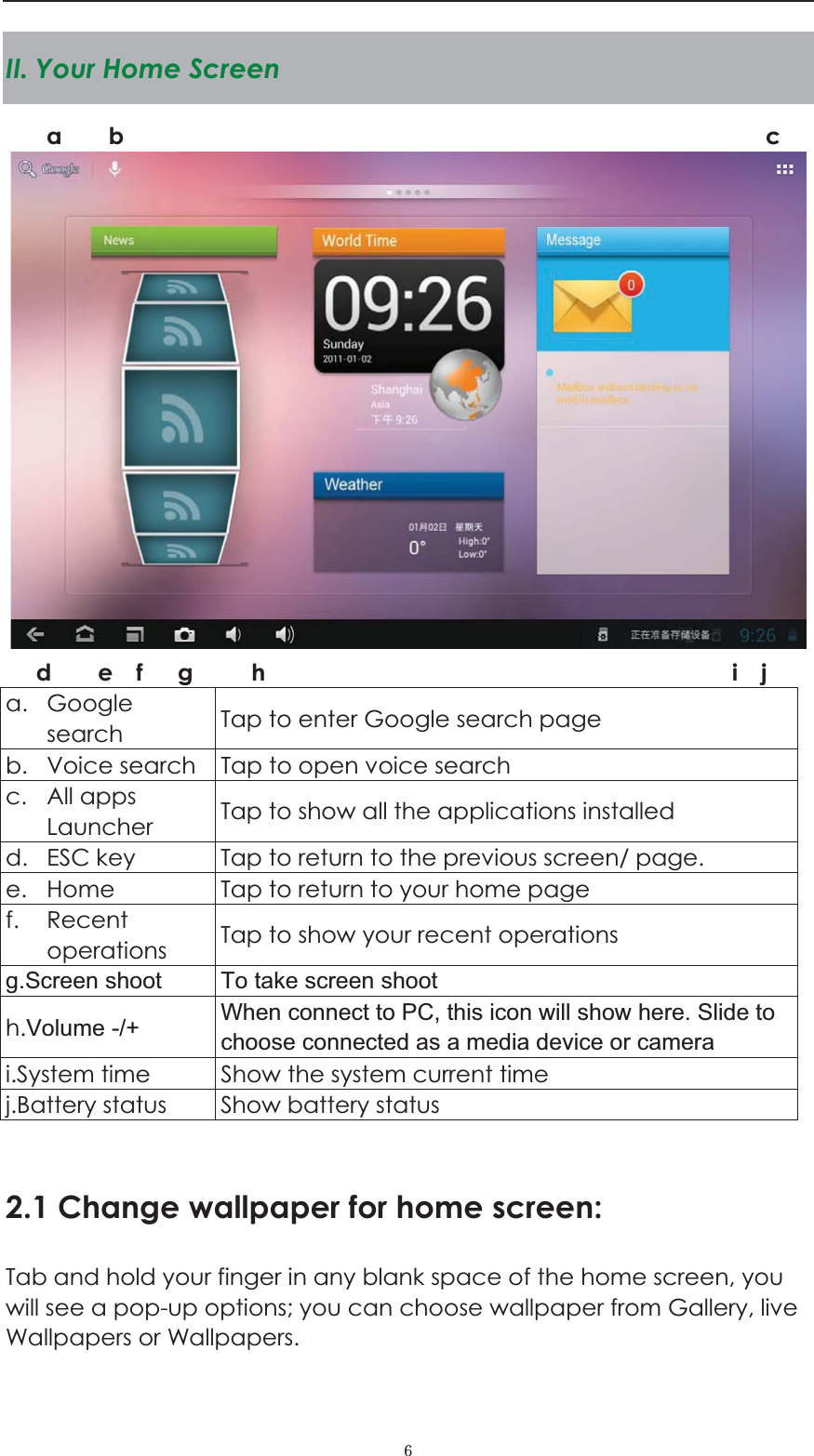

 ˒II. Your Home Screen    a. Google search  Tap to enter Google search page b. Voice search  Tap to open voice search c. All apps Launcher  Tap to show all the applications installed d. ESC key  Tap to return to the previous screen/ page.   e. Home  Tap to return to your home page f. Recent operations  Tap to show your recent operations g.Screen shoot To take screen shoot h.Volume -/+ When connect to PC, this icon will show here. Slide to choose connected as a media device or camera i.System time    Show the system current time j.Battery status  Show battery status  2.1 Change wallpaper for home screen: Tab and hold your finger in any blank space of the home screen, you will see a pop-up options; you can choose wallpaper from Gallery, live Wallpapers or Wallpapers.   a    b                                                       c    d    e  f   g     h                                        i  j

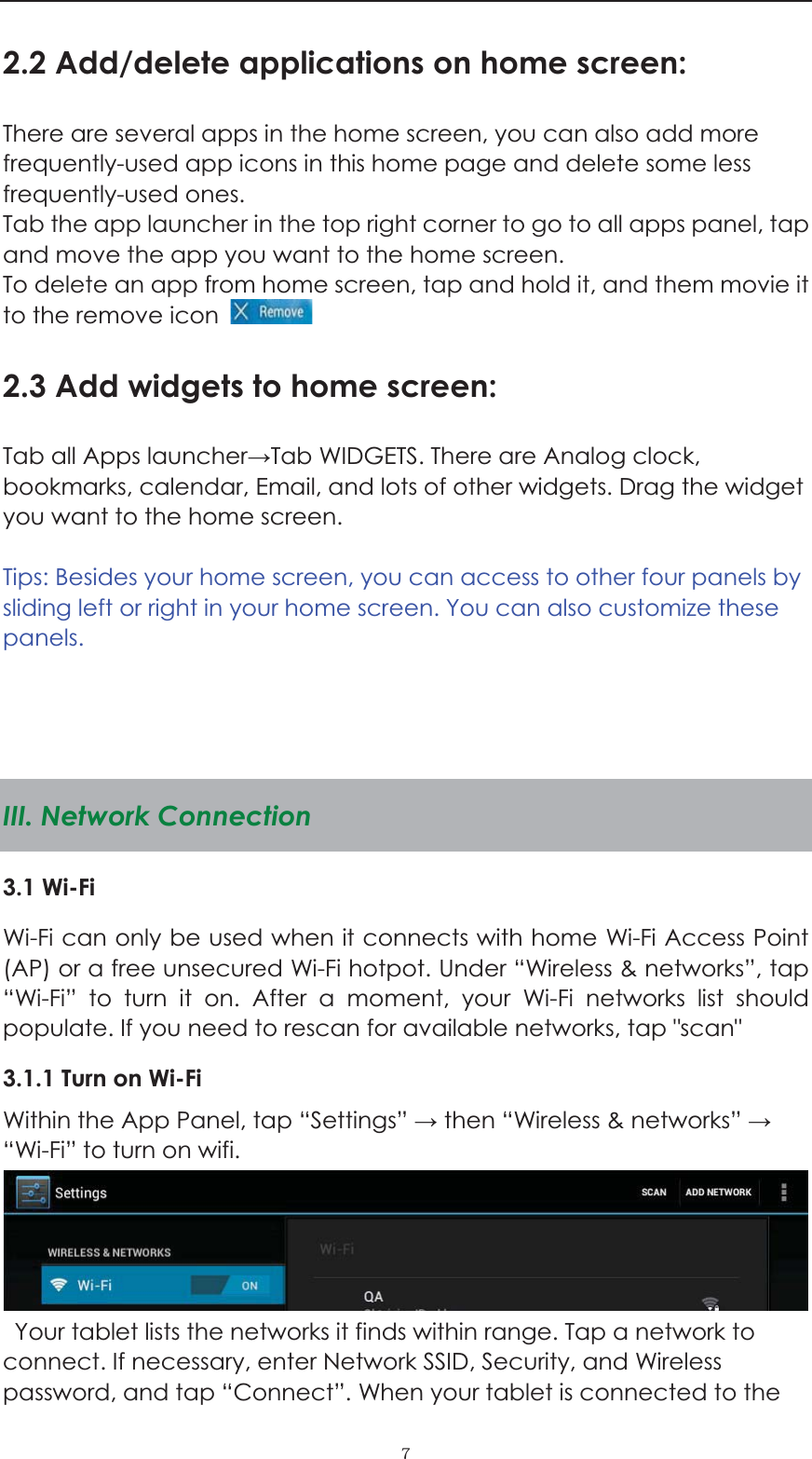

 ˓2.2 Add/delete applications on home screen: There are several apps in the home screen, you can also add more frequently-used app icons in this home page and delete some less frequently-used ones.  Tab the app launcher in the top right corner to go to all apps panel, tap and move the app you want to the home screen.   To delete an app from home screen, tap and hold it, and them movie it to the remove icon   2.3 Add widgets to home screen: Tab all Apps launcherTab WIDGETS. There are Analog clock, bookmarks, calendar, Email, and lots of other widgets. Drag the widget you want to the home screen.    Tips: Besides your home screen, you can access to other four panels by sliding left or right in your home screen. You can also customize these panels.     III. Network Connection 3.1 Wi-Fi   Wi-Fi can only be used when it connects with home Wi-Fi Access Point (AP) or a free unsecured Wi-Fi hotpot. Under “Wireless & networks”, tap “Wi-Fi” to turn it on. After a moment, your Wi-Fi networks list should populate. If you need to rescan for available networks, tap "scan" 3.1.1 Turn on Wi-Fi   Within the App Panel, tap “Settings”  then “Wireless & networks”  “Wi-Fi” to turn on wifi.    Your tablet lists the networks it finds within range. Tap a network to connect. If necessary, enter Network SSID, Security, and Wireless password, and tap “Connect”. When your tablet is connected to the

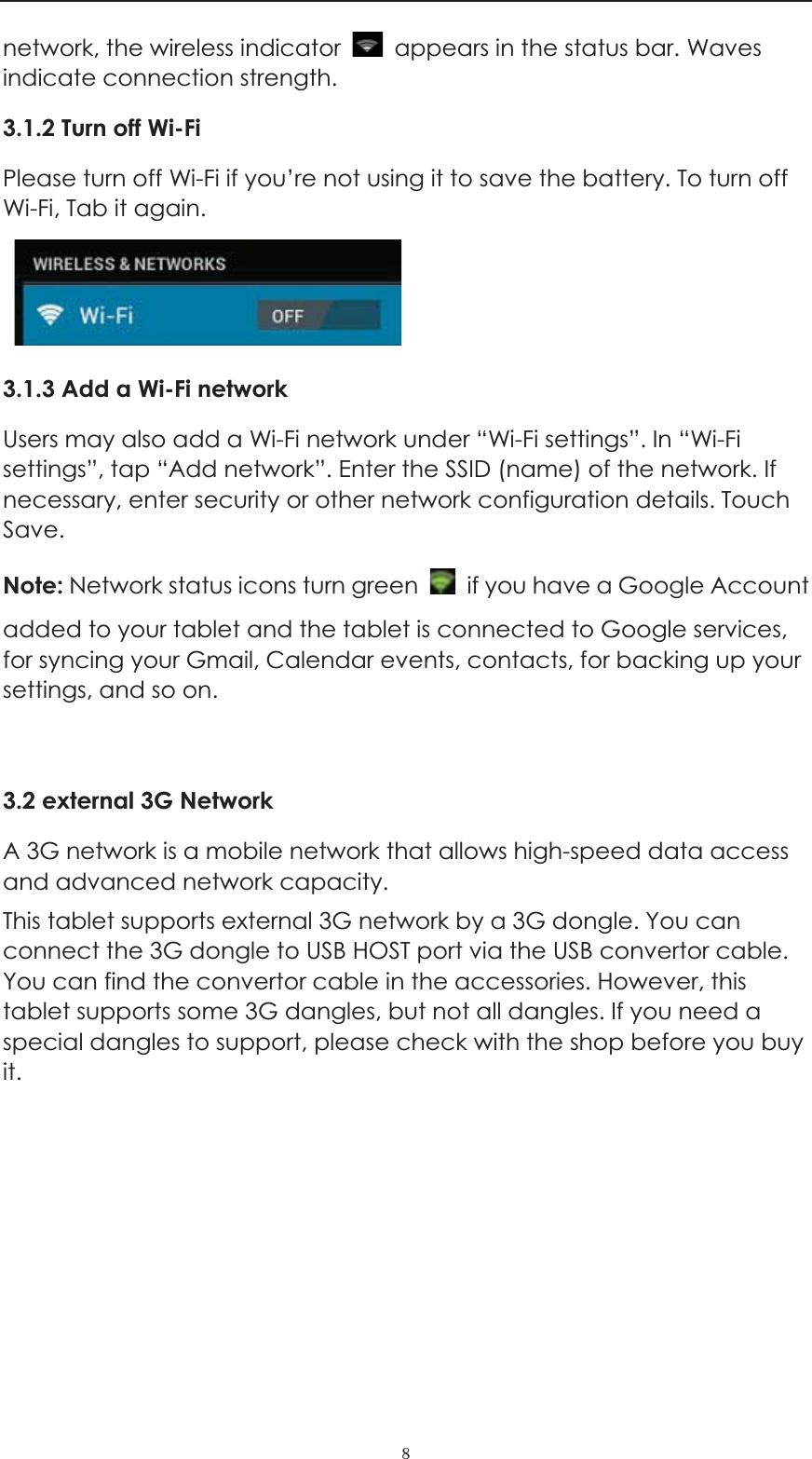

 ˔network, the wireless indicator    appears in the status bar. Waves indicate connection strength. 3.1.2 Turn off Wi-FiPlease turn off Wi-Fi if you’re not using it to save the battery. To turn off Wi-Fi, Tab it again.   3.1.3 Add a Wi-Fi network Users may also add a Wi-Fi network under “Wi-Fi settings”. In “Wi-Fi settings”, tap “Add network”. Enter the SSID (name) of the network. If necessary, enter security or other network configuration details. Touch Save. Note: Network status icons turn green    if you have a Google Account added to your tablet and the tablet is connected to Google services, for syncing your Gmail, Calendar events, contacts, for backing up your settings, and so on. 3.2 external 3G Network A 3G network is a mobile network that allows high-speed data access and advanced network capacity.   This tablet supports external 3G network by a 3G dongle. You can connect the 3G dongle to USB HOST port via the USB convertor cable. You can find the convertor cable in the accessories. However, this tablet supports some 3G dangles, but not all dangles. If you need a special dangles to support, please check with the shop before you buy it.   

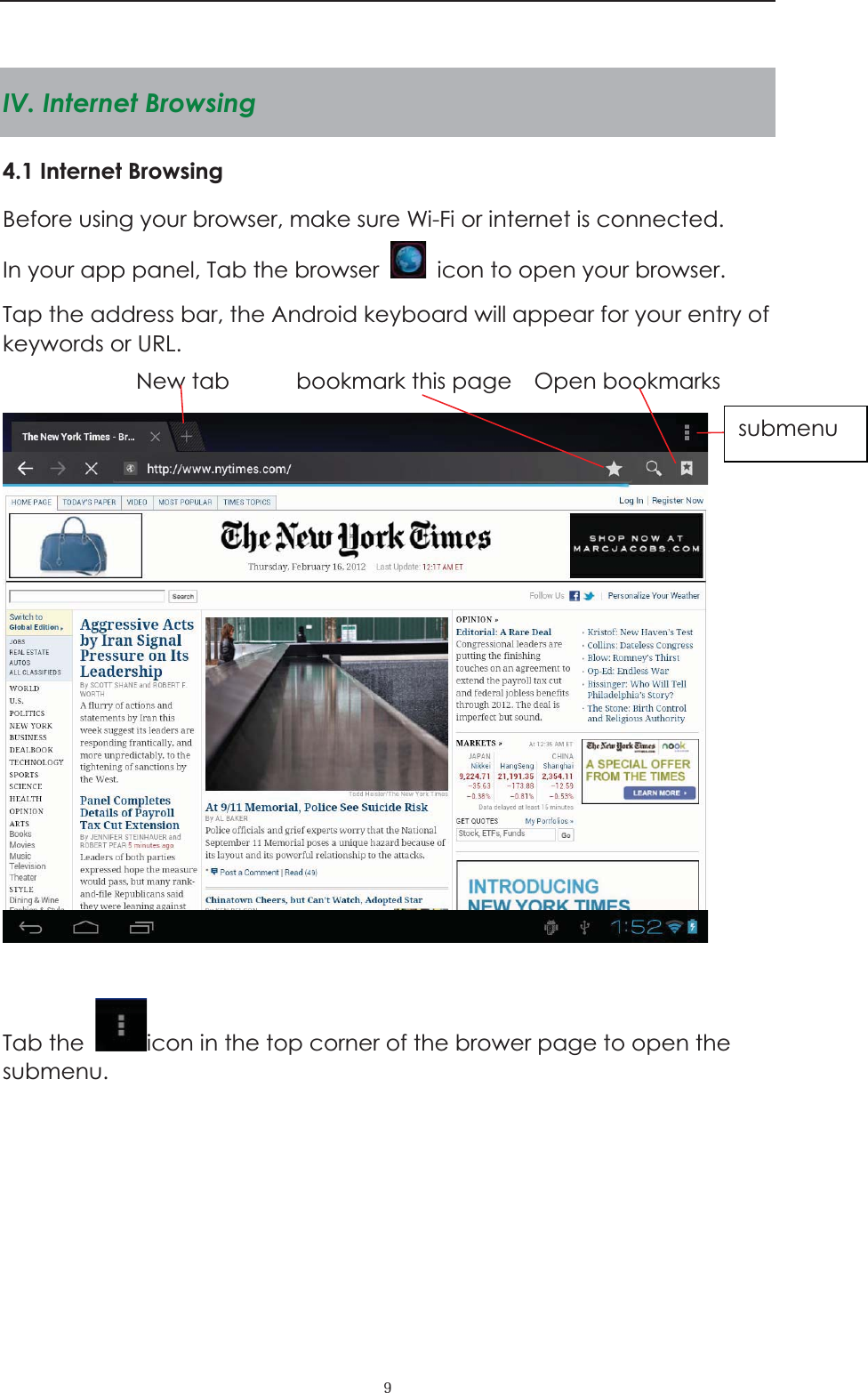

 ˕ IV. Internet Browsing 4.1 Internet Browsing Before using your browser, make sure Wi-Fi or internet is connected. In your app panel, Tab the browser    icon to open your browser. Tap the address bar, the Android keyboard will appear for your entry of keywords or URL.             New tab      bookmark this page  Open bookmarks   Tab the  icon in the top corner of the brower page to open the   submenu.     submenu

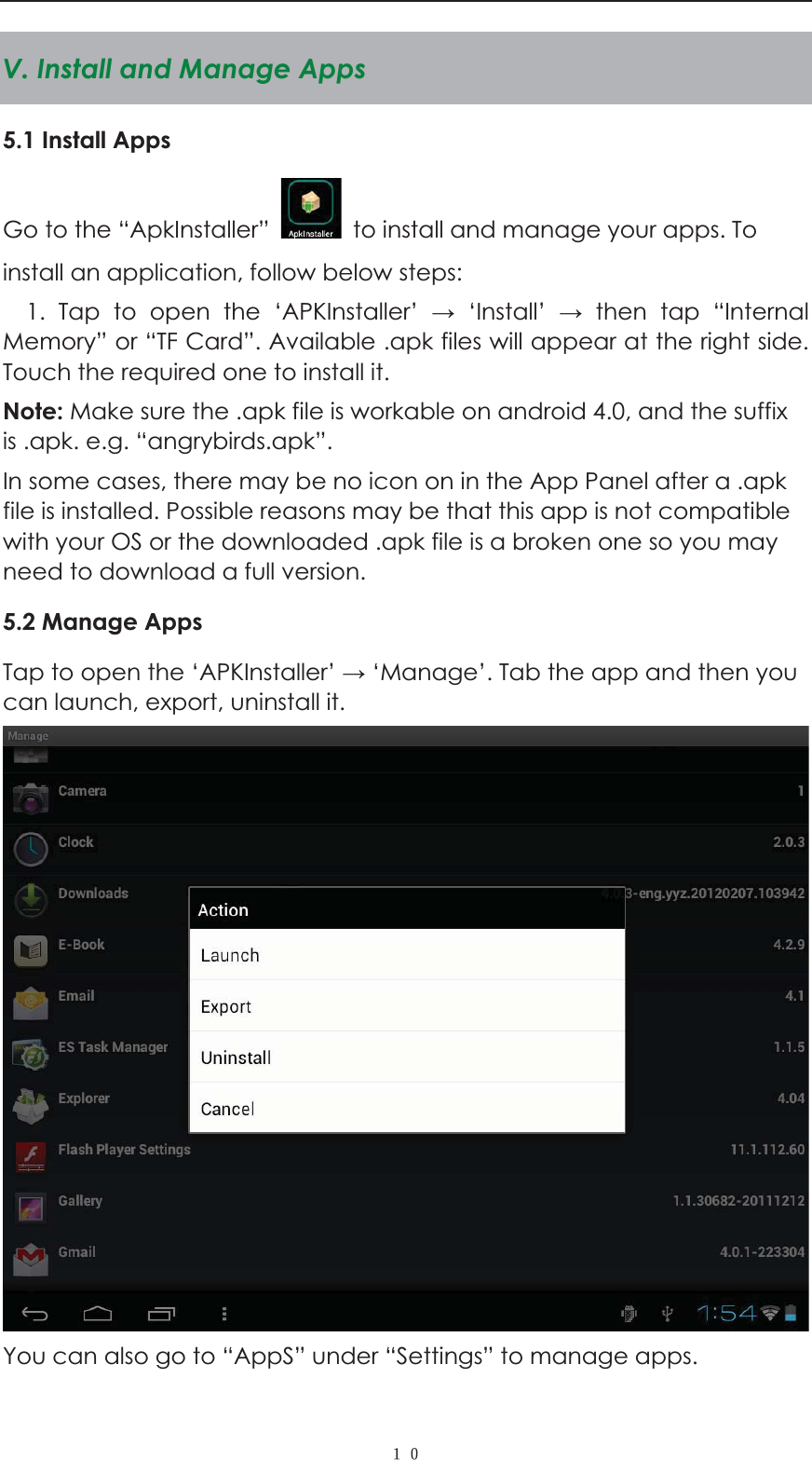

 ˍˌV. Install and Manage Apps 5.1 Install Apps Go to the “ApkInstaller”    to install and manage your apps. To install an application, follow below steps: 1. Tap to open the ‘APKInstaller’  ‘Install’  then tap “Internal Memory” or “TF Card”. Available .apk files will appear at the right side. Touch the required one to install it. Note: Make sure the .apk file is workable on android 4.0, and the suffix is .apk. e.g. “angrybirds.apk”.   In some cases, there may be no icon on in the App Panel after a .apk file is installed. Possible reasons may be that this app is not compatible with your OS or the downloaded .apk file is a broken one so you may need to download a full version.   5.2 Manage Apps Tap to open the ‘APKInstaller’  ‘Manage’. Tab the app and then you can launch, export, uninstall it.  You can also go to “AppS” under “Settings” to manage apps.

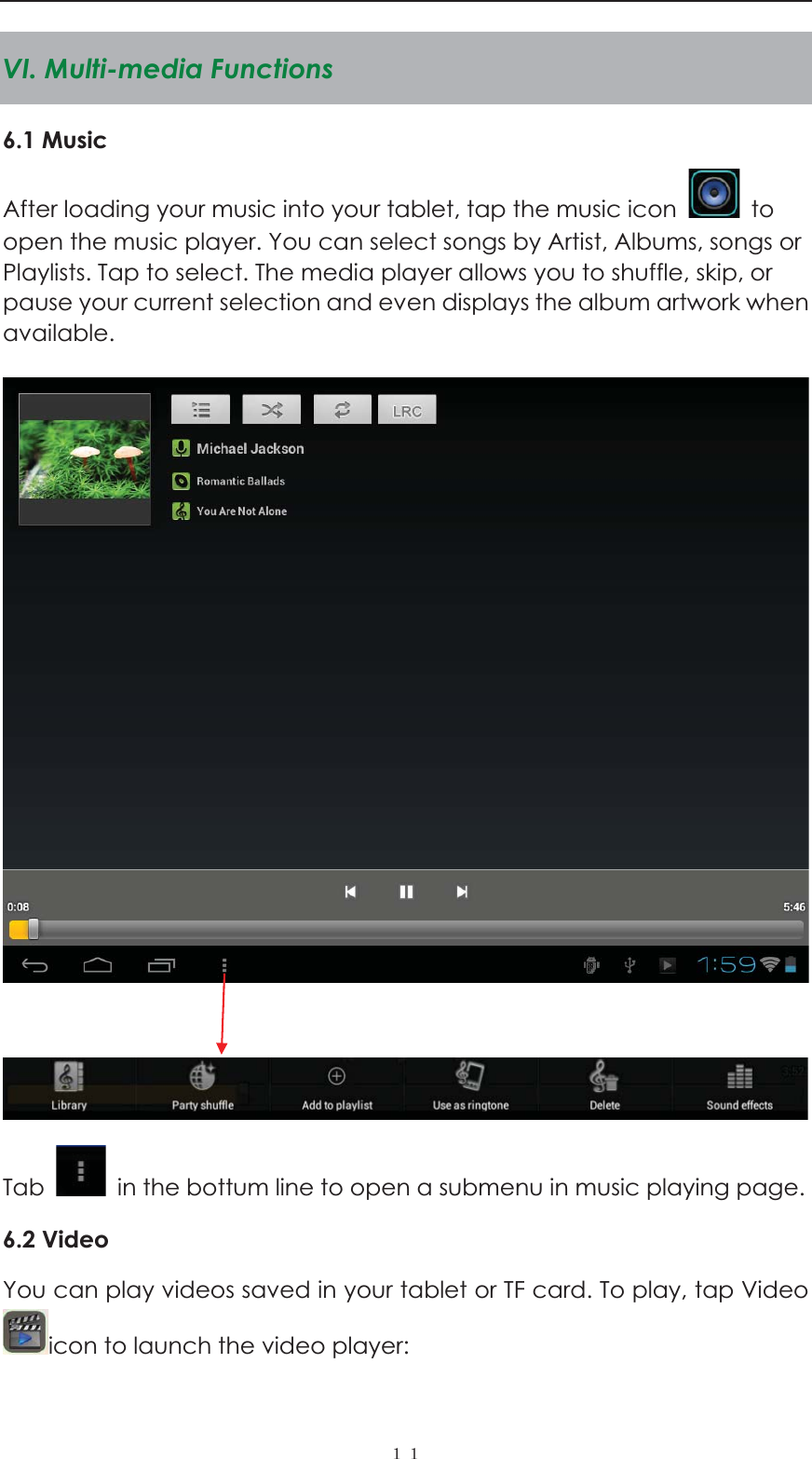

 ˍˍVI. Multi-media Functions 6.1 Music After loading your music into your tablet, tap the music icon   to open the music player. You can select songs by Artist, Albums, songs or Playlists. Tap to select. The media player allows you to shuffle, skip, or pause your current selection and even displays the album artwork when available.      Tab    in the bottum line to open a submenu in music playing page. 6.2 Video   You can play videos saved in your tablet or TF card. To play, tap Video icon to launch the video player:

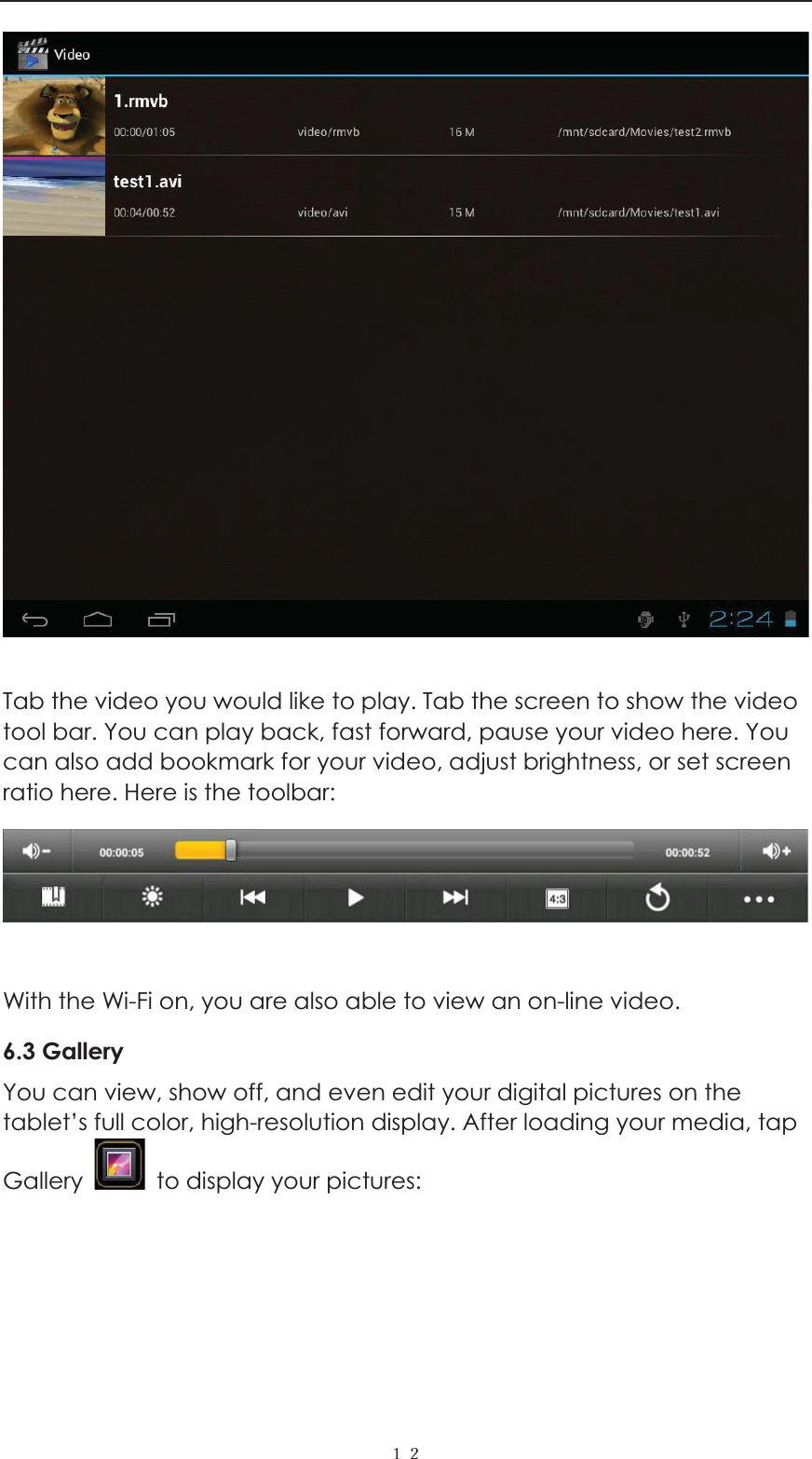

 ˍˎ  Tab the video you would like to play. Tab the screen to show the video tool bar. You can play back, fast forward, pause your video here. You can also add bookmark for your video, adjust brightness, or set screen ratio here. Here is the toolbar:     With the Wi-Fi on, you are also able to view an on-line video. 6.3 Gallery You can view, show off, and even edit your digital pictures on the tablet’s full color, high-resolution display. After loading your media, tap Gallery    to display your pictures:

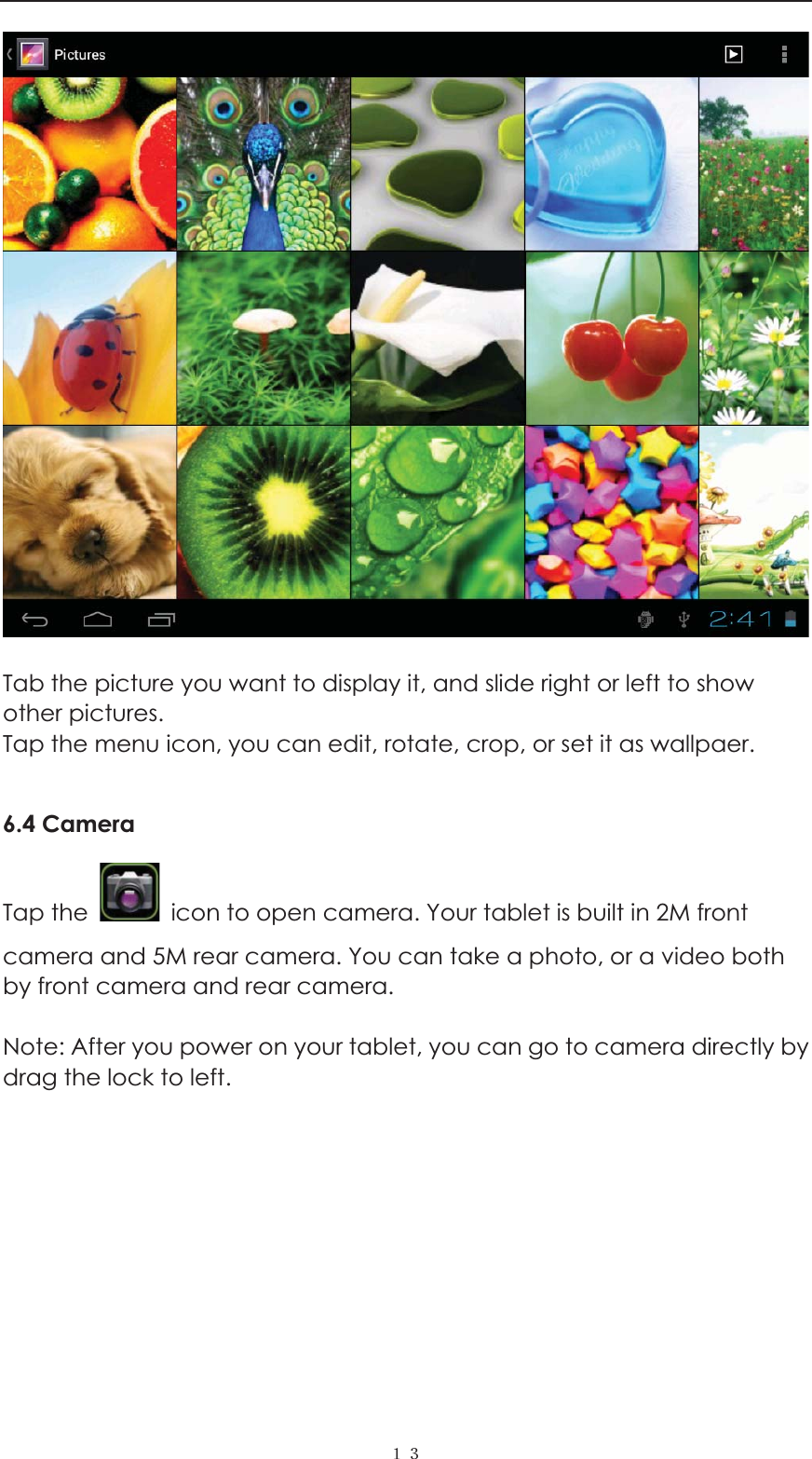

 ˍˏ  Tab the picture you want to display it, and slide right or left to show other pictures.   Tap the menu icon, you can edit, rotate, crop, or set it as wallpaer.    6.4 Camera Tap the    icon to open camera. Your tablet is built in 2M front camera and 5M rear camera. You can take a photo, or a video both by front camera and rear camera.    Note: After you power on your tablet, you can go to camera directly by drag the lock to left.

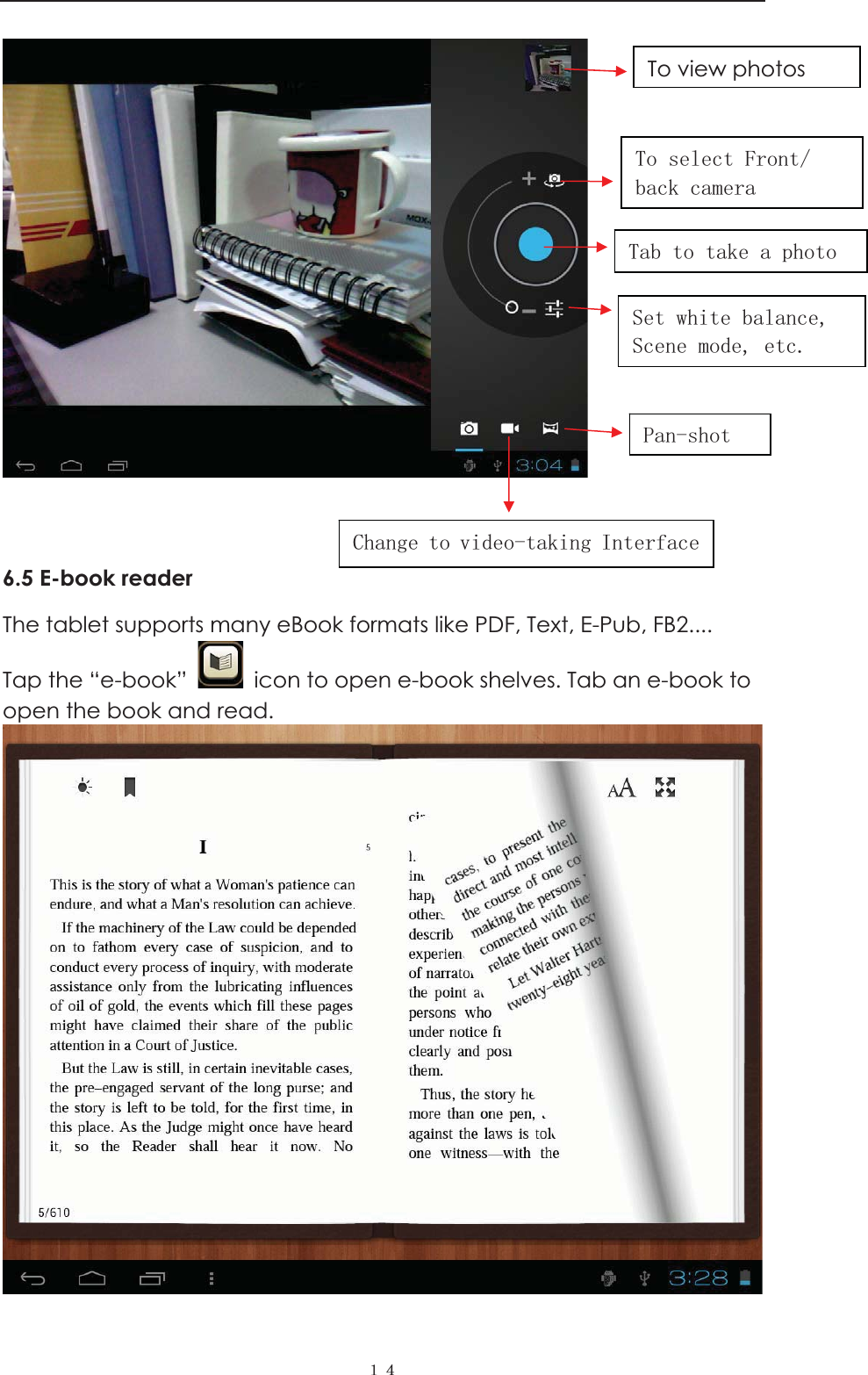

 ˍː  6.5 E-book reader The tablet supports many eBook formats like PDF, Text, E-Pub, FB2....   Tap the “e-book”    icon to open e-book shelves. Tab an e-book to open the book and read.     To view photos 7RVHOHFW)URQWEDFNFDPHUD7DEWRWDNHDSKRWR6HWZKLWHEDODQFH6FHQHPRGHHWF3DQVKRW&KDQJHWRYLGHRWDNLQJ,QWHUIDFH

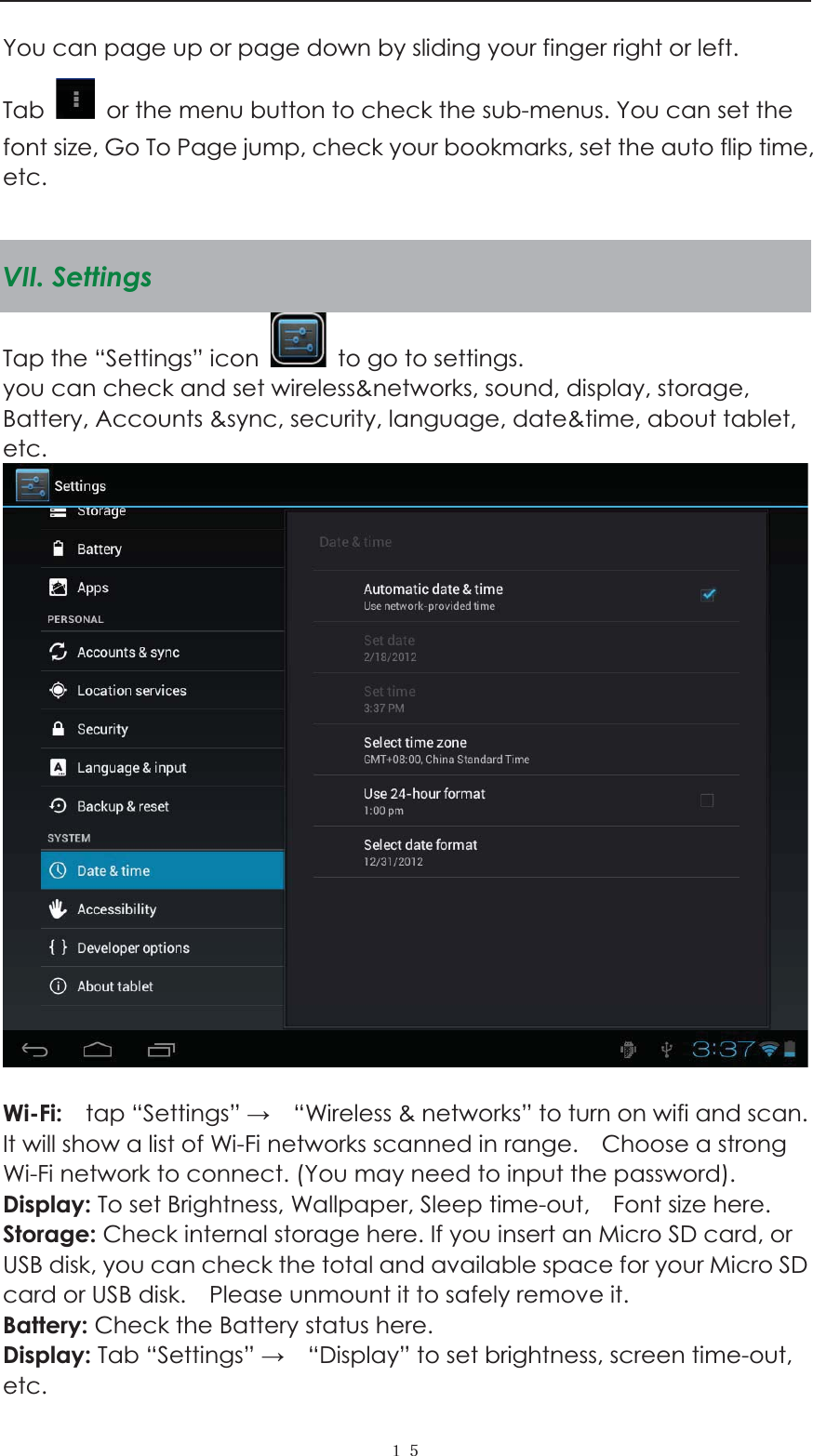

 ˍˑYou can page up or page down by sliding your finger right or left.   Tab    or the menu button to check the sub-menus. You can set the font size, Go To Page jump, check your bookmarks, set the auto flip time, etc.   VII. Settings Tap the “Settings” icon    to go to settings.   you can check and set wireless&networks, sound, display, storage, Battery, Accounts &sync, security, language, date&time, about tablet, etc.    Wi-Fi:    tap “Settings”     “Wireless & networks” to turn on wifi and scan. It will show a list of Wi-Fi networks scanned in range.    Choose a strong Wi-Fi network to connect. (You may need to input the password).   Display: To set Brightness, Wallpaper, Sleep time-out,    Font size here.   Storage: Check internal storage here. If you insert an Micro SD card, or USB disk, you can check the total and available space for your Micro SD card or USB disk.    Please unmount it to safely remove it.   Battery: Check the Battery status here.   Display: Tab “Settings”     “Display” to set brightness, screen time-out, etc.

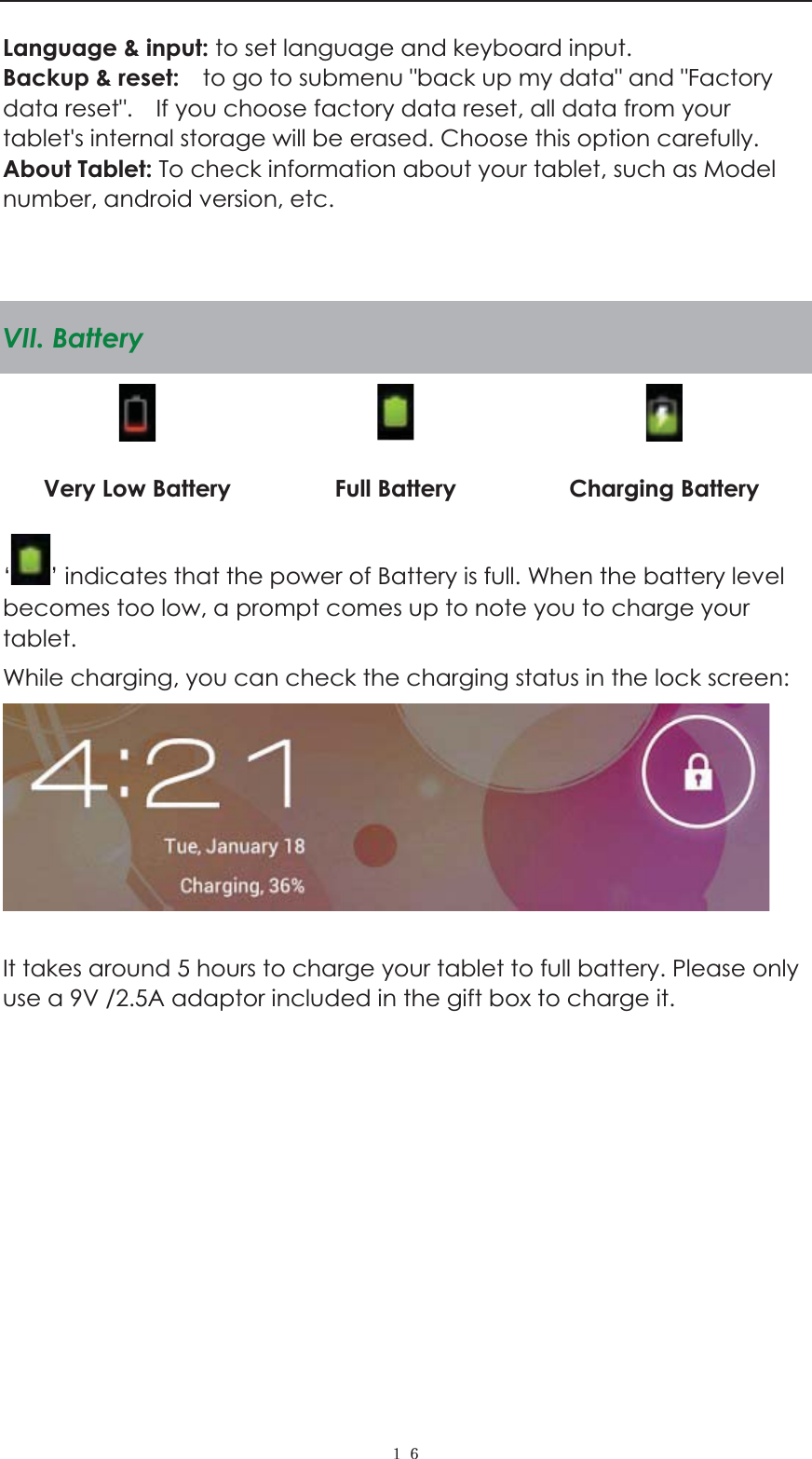

 ˍ˒Language & input: to set language and keyboard input.   Backup & reset:    to go to submenu "back up my data" and "Factory data reset".    If you choose factory data reset, all data from your tablet's internal storage will be erased. Choose this option carefully.   About Tablet: To check information about your tablet, such as Model number, android version, etc.   VII. Battery      Very Low Battery  Full Battery  Charging Battery ‘’ indicates that the power of Battery is full. When the battery level becomes too low, a prompt comes up to note you to charge your tablet. While charging, you can check the charging status in the lock screen:     It takes around 5 hours to charge your tablet to full battery. Please only use a 9V /2.5A adaptor included in the gift box to charge it.

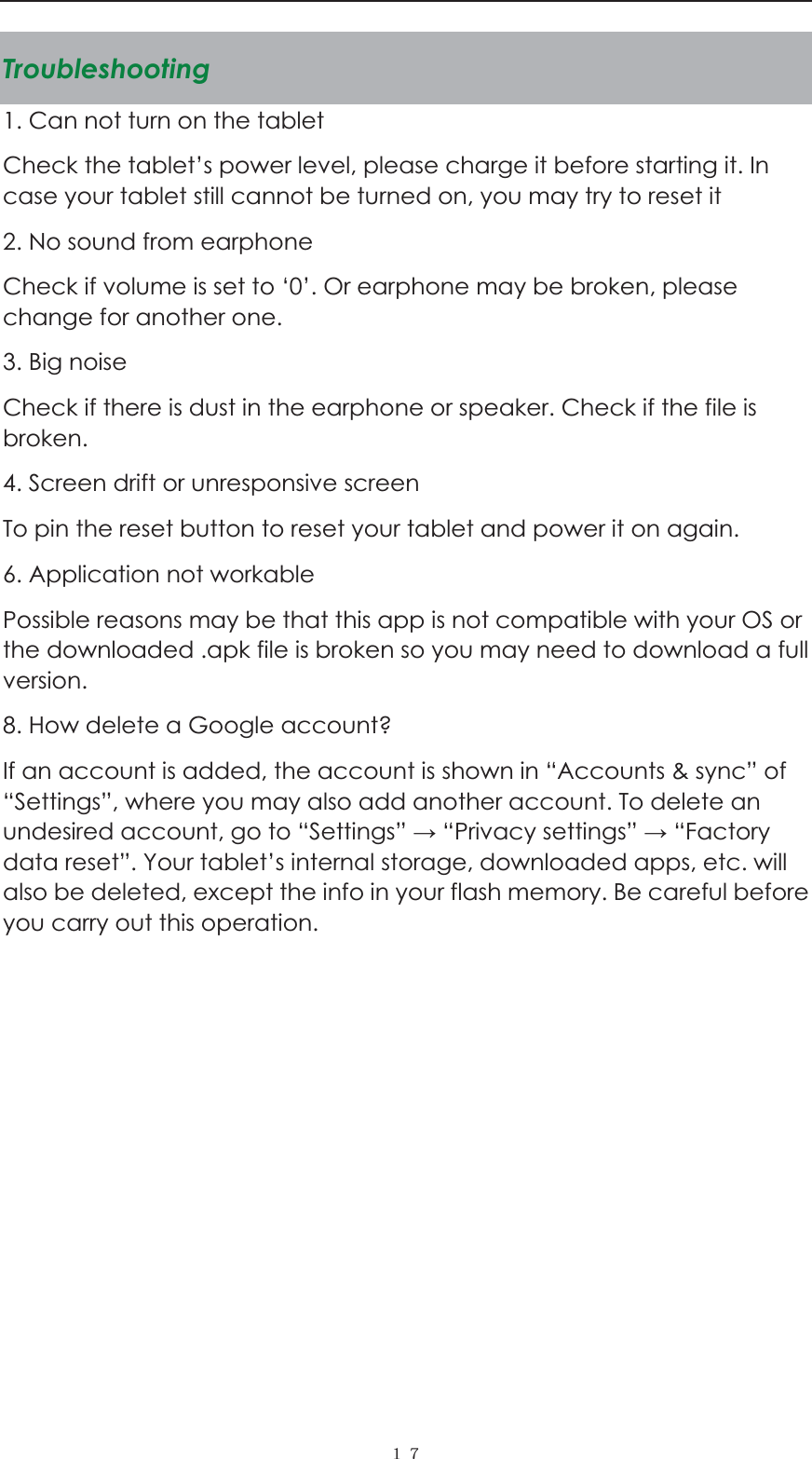

 ˍ˓Troubleshooting1. Can not turn on the tablet Check the tablet’s power level, please charge it before starting it. In case your tablet still cannot be turned on, you may try to reset it   2. No sound from earphone Check if volume is set to ‘0’. Or earphone may be broken, please change for another one. 3. Big noise Check if there is dust in the earphone or speaker. Check if the file is broken. 4. Screen drift or unresponsive screen To pin the reset button to reset your tablet and power it on again.   6. Application not workable Possible reasons may be that this app is not compatible with your OS or the downloaded .apk file is broken so you may need to download a full version. 8. How delete a Google account? If an account is added, the account is shown in “Accounts & sync” of “Settings”, where you may also add another account. To delete an undesired account, go to “Settings”  “Privacy settings”  “Factory data reset”. Your tablet’s internal storage, downloaded apps, etc. will also be deleted, except the info in your flash memory. Be careful before you carry out this operation.

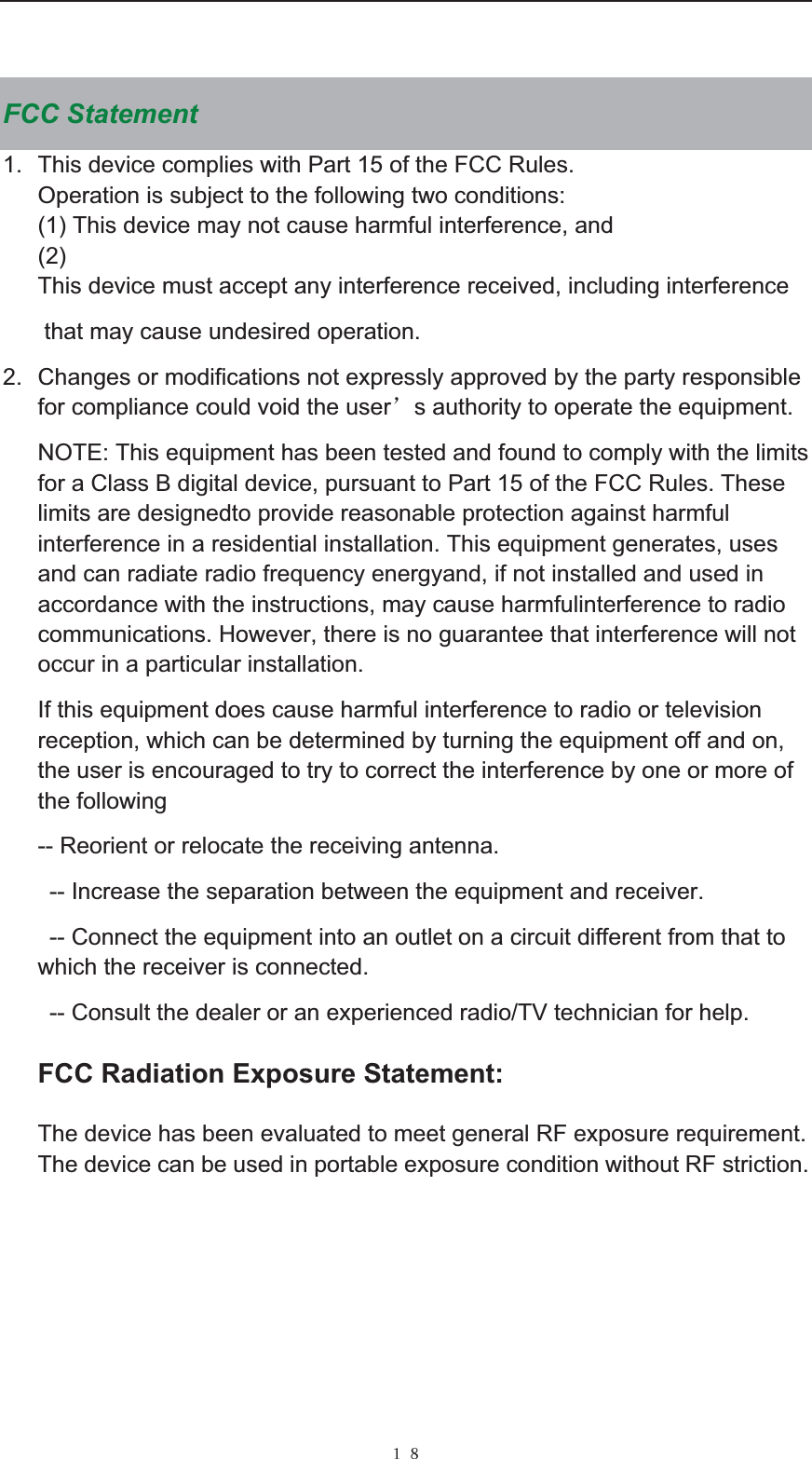

 ˍ˔ FCC Statement 1.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference  that may cause undesired operation. 2.  Changes or modifications not expressly approved by the party responsible for compliance could void the userÿs authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following -- Reorient or relocate the receiving antenna.   -- Increase the separation between the equipment and receiver.   -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.         -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement:   The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without RF striction.
