42" High-Definition Plasma Television

PLA-4250A

Operating Manual

20050316

Contents

Important Safeguards

Warnings and Precautions ..................................................... 3

Avoid Image Sticking ............................................................. 4

Getting Started

Package Contents ................................................................ 5

Front View of the Product ...................................................... 6

Rear View of the Product ....................................................... 7

Remote Controls .................................................................. 9

Installation ......................................................................... 11

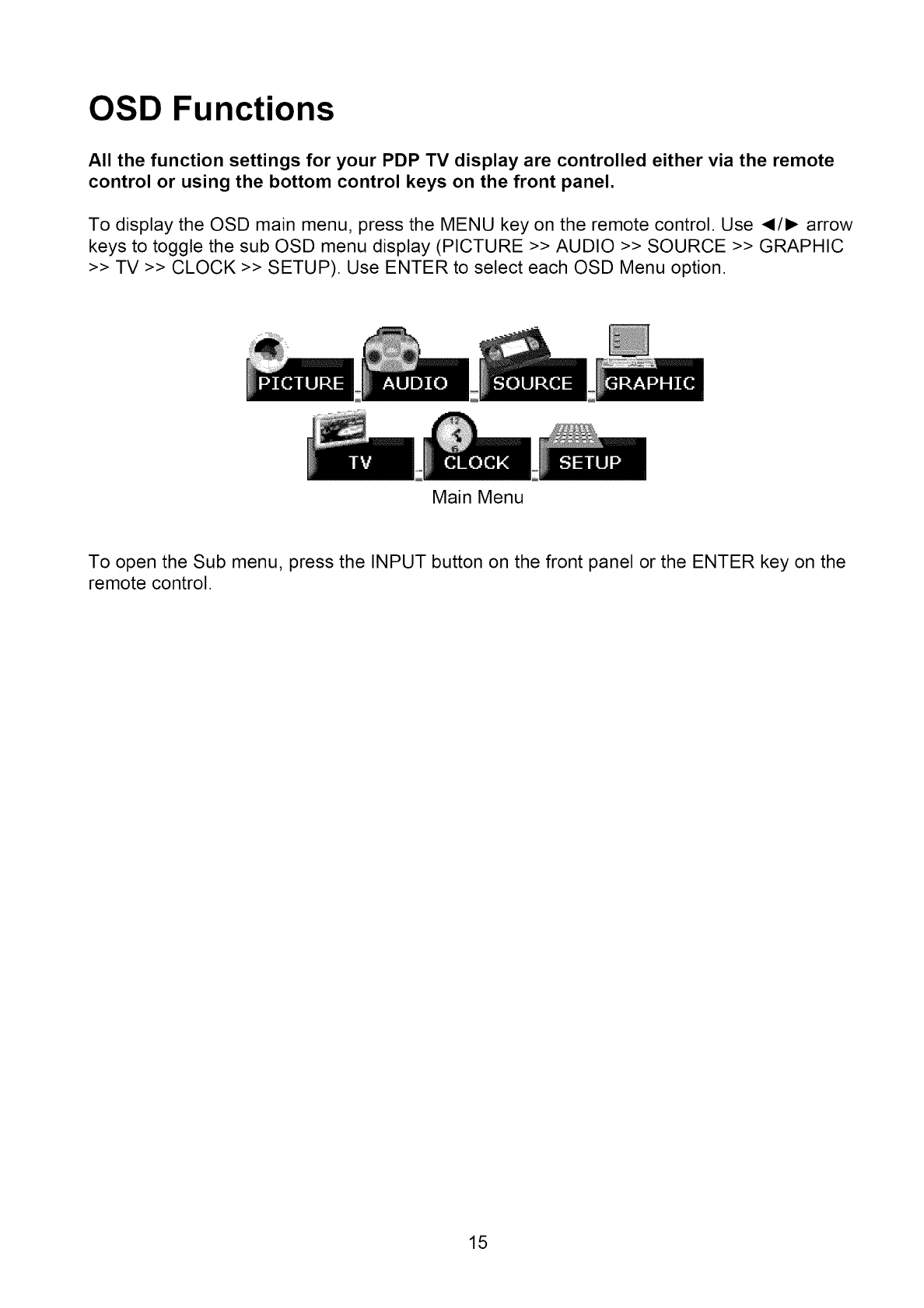

OSD Functions

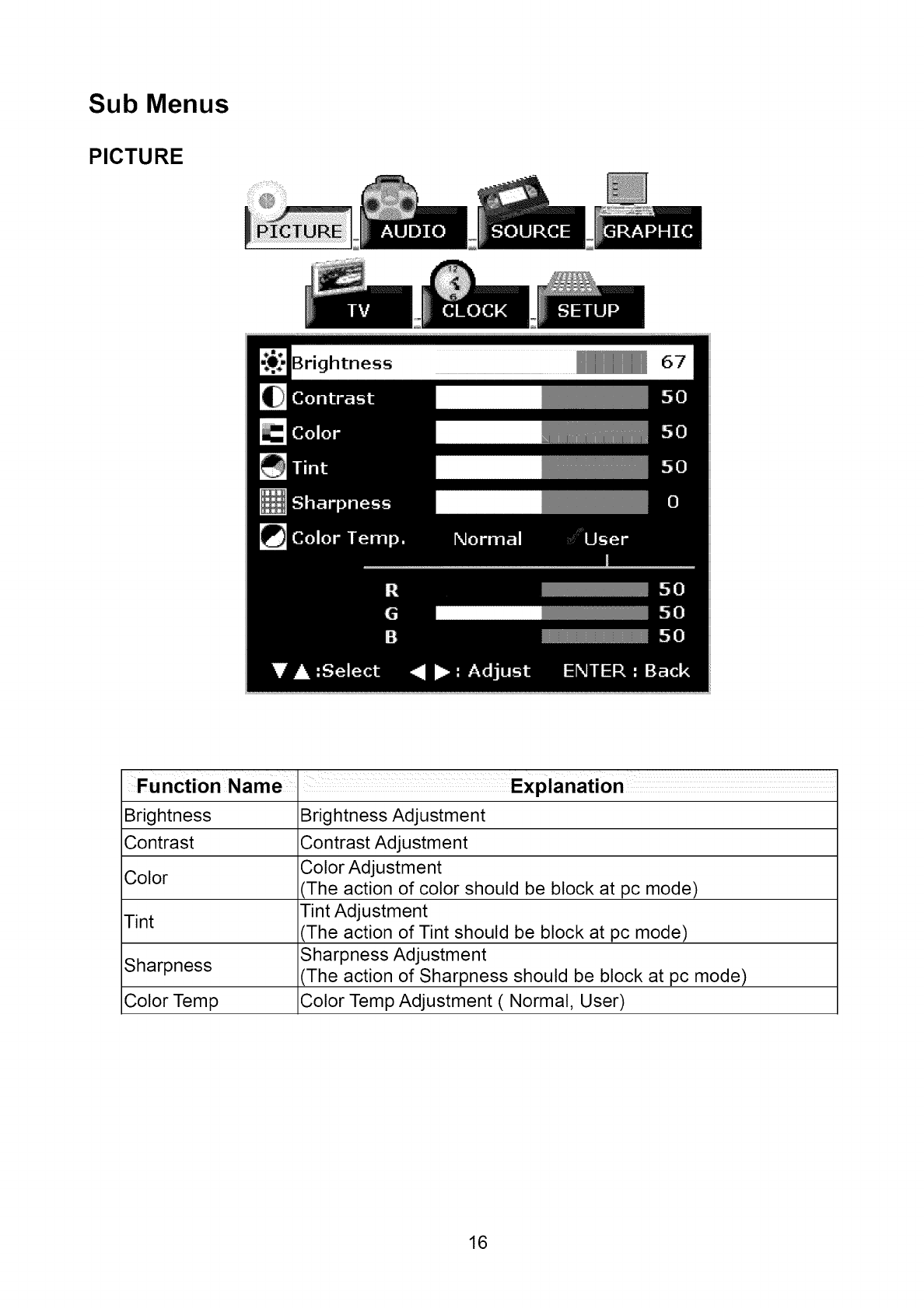

PICTURE: Brightness /Contrast /Color /Tint /Sharpness /Color Temp. 16

AUDIO: Volume /Bass /Treble /Balance /Speaker Sel. /Speaker /

Line Out /Subwoofer /BBE ........................................... 17

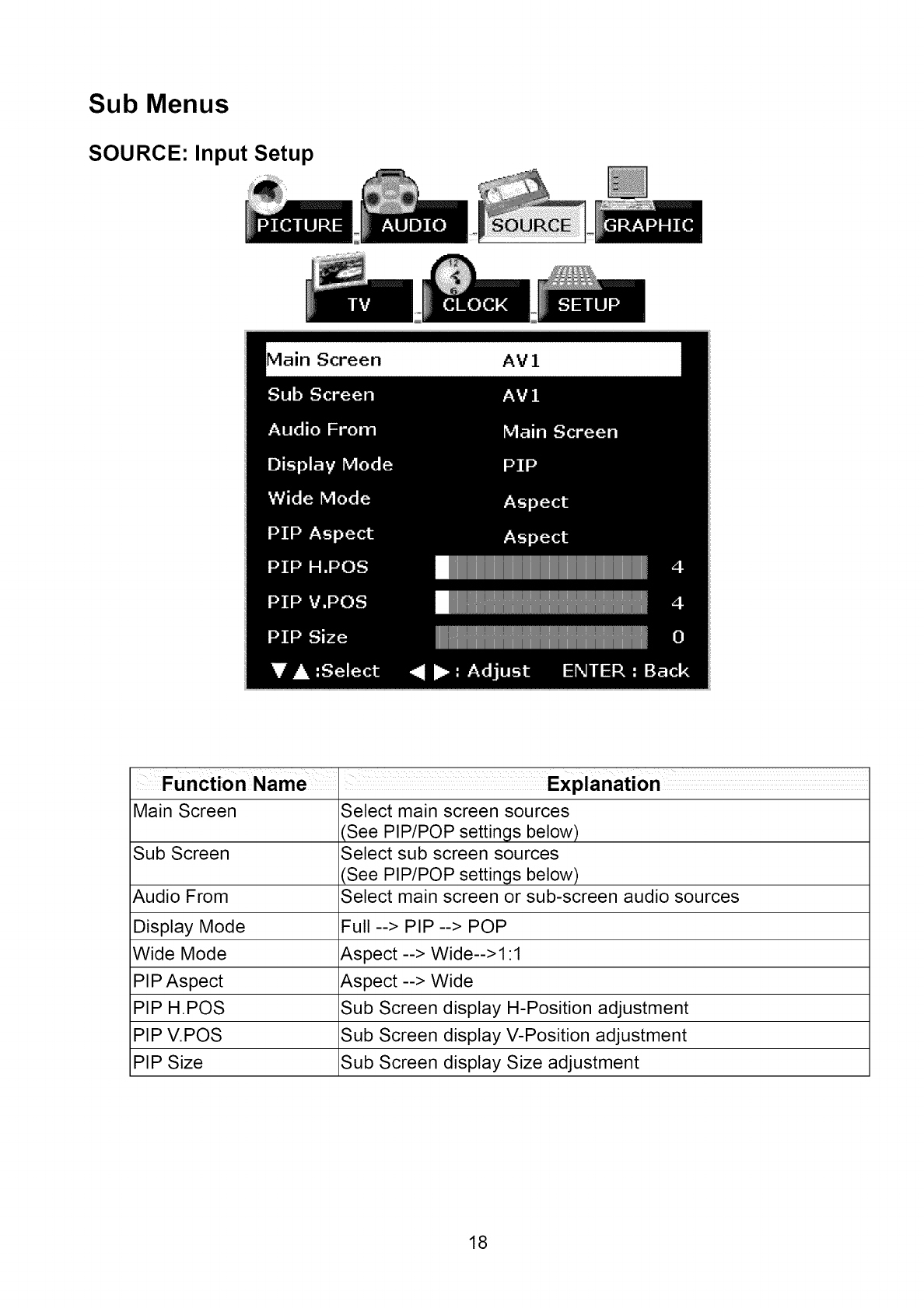

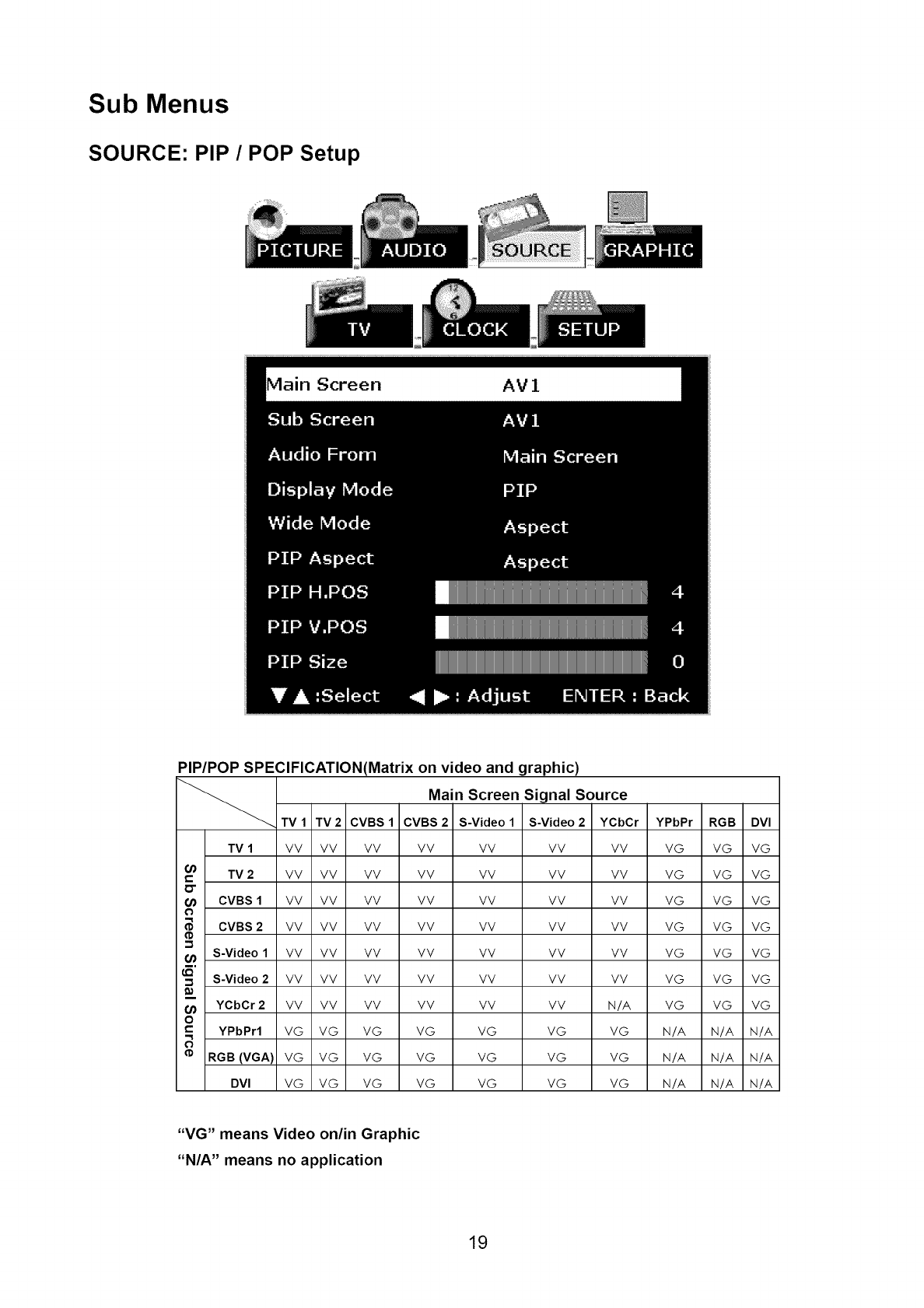

SOURCE: Main Screen /Sub Screen /Audio From /Display Mode /

Wide Mode •

PIP Aspect/PIP H.POS /PIP V.POS /PIP Size ................. 18

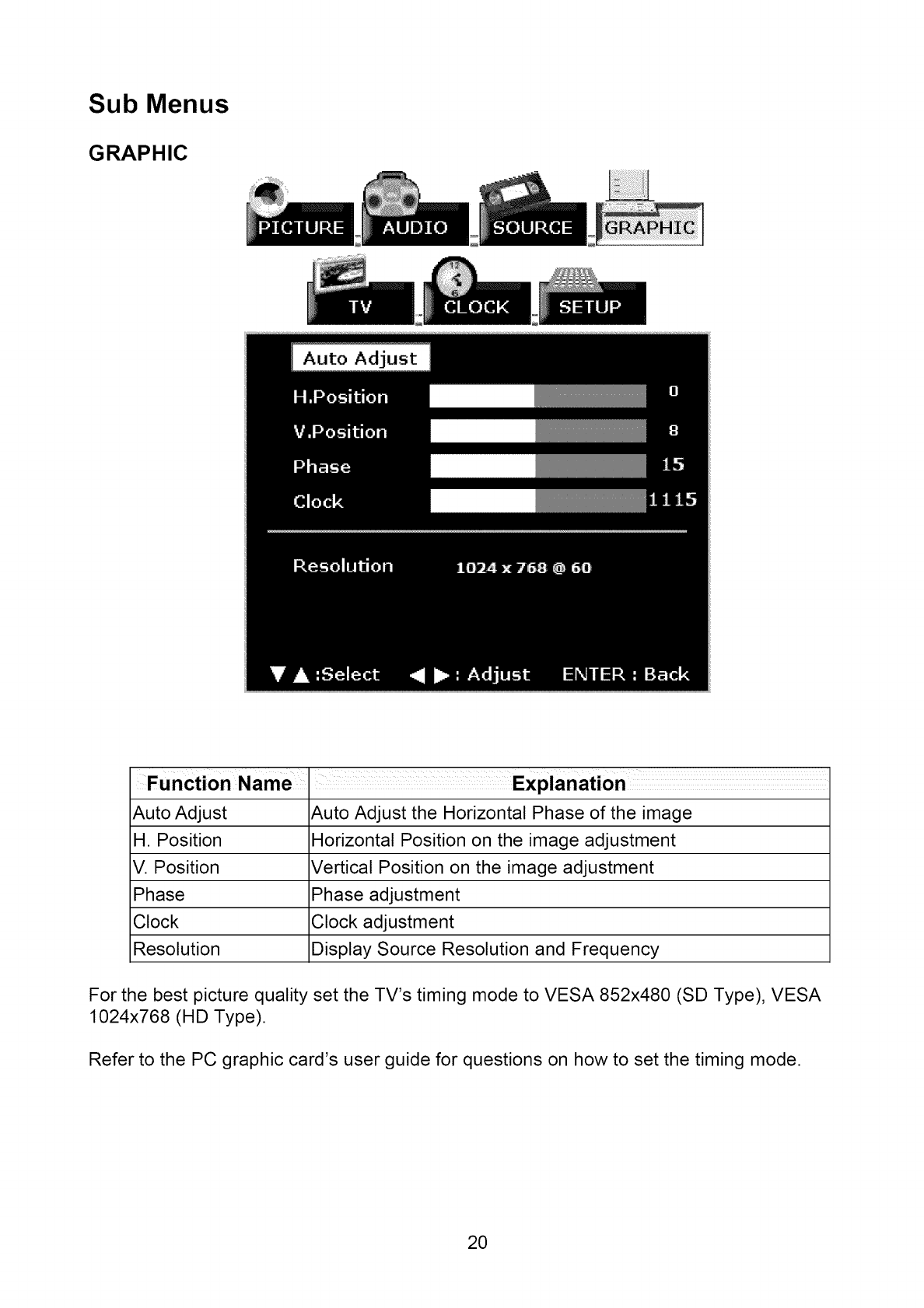

GRAPHIC: Auto Adjust /H.Position /V.Position /Phase /Clock /

Resolution .......................................................... 19

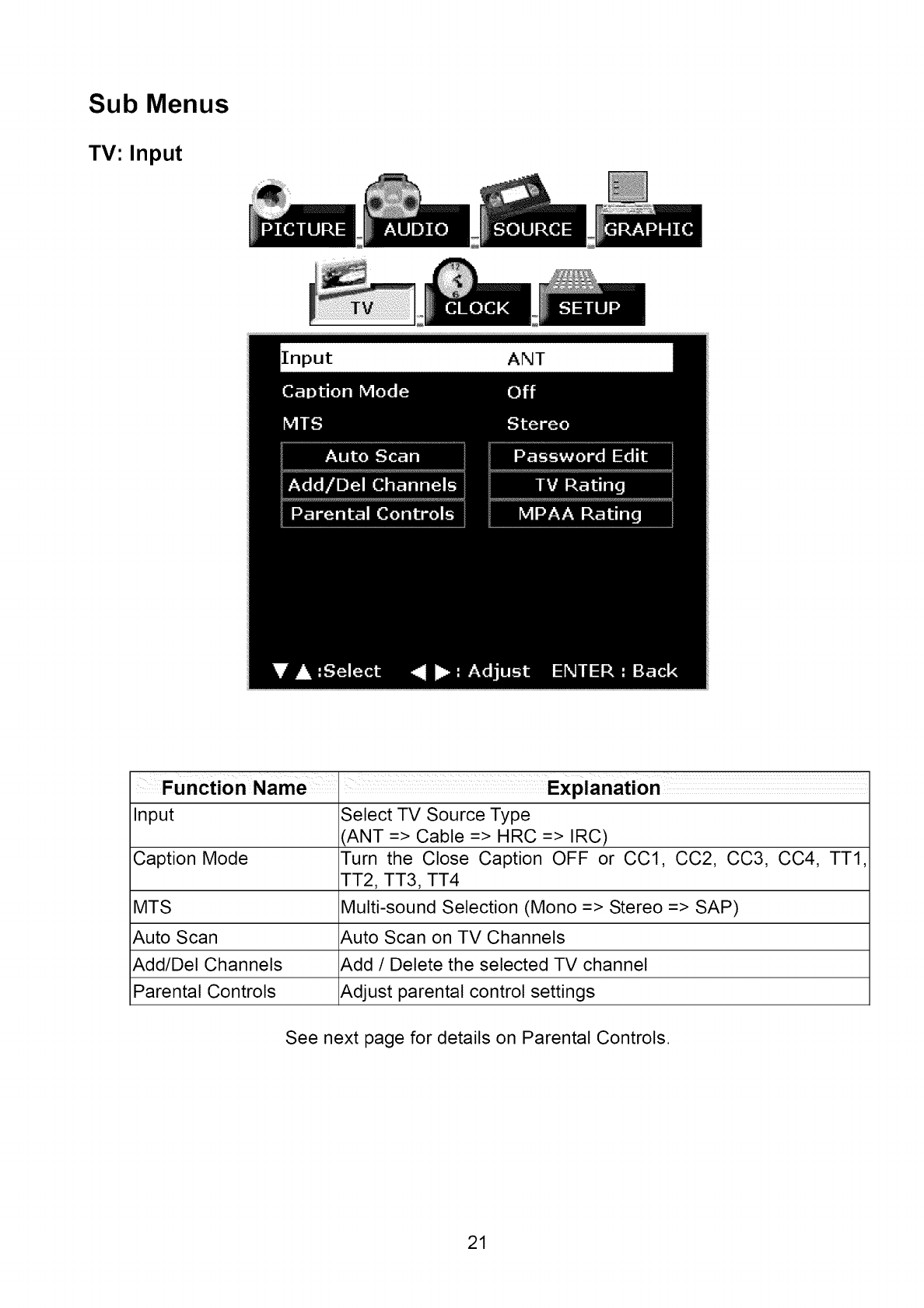

TV: Input /Caption Mode /MTS /Auto Scan /Add/Del Channels /

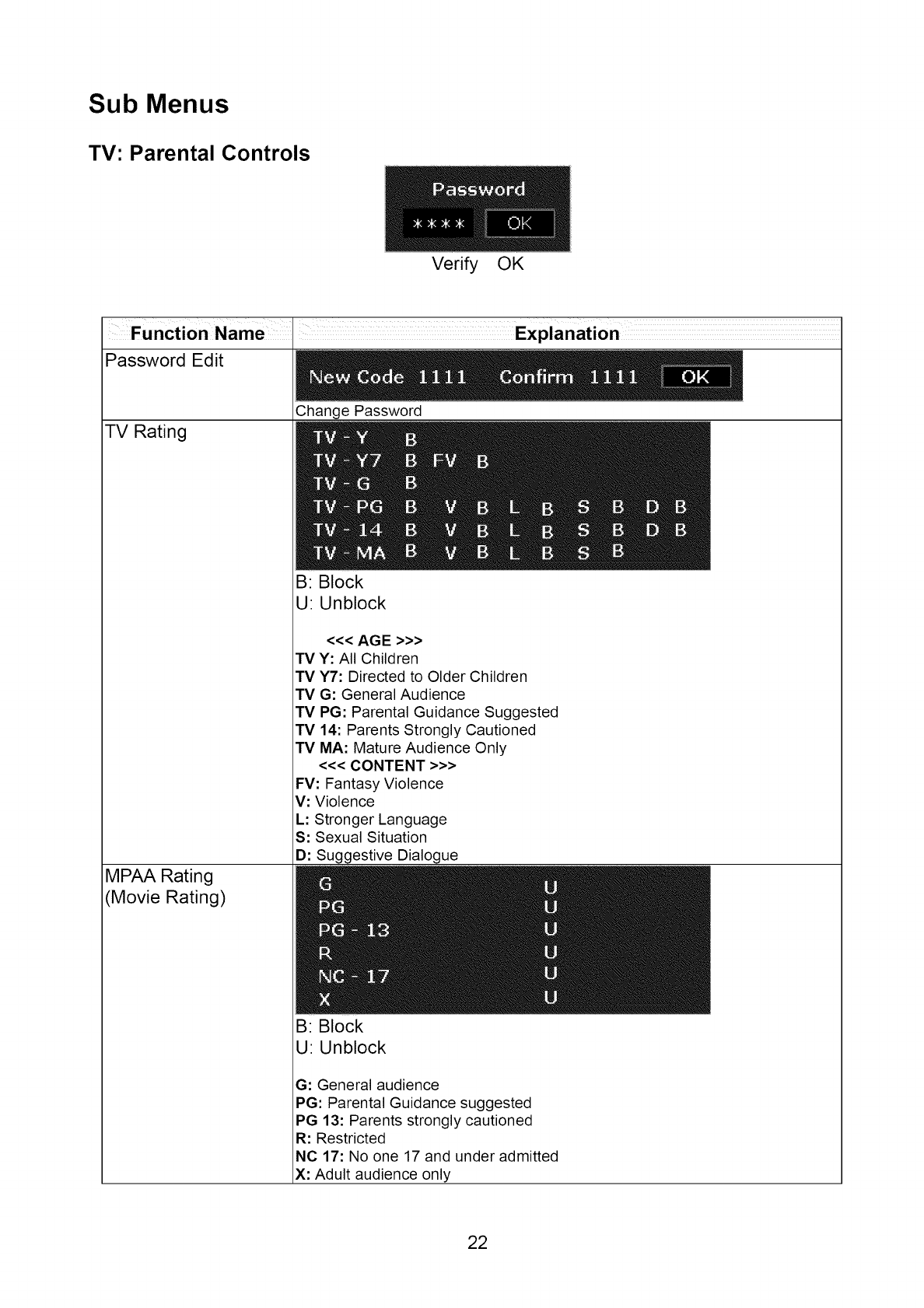

Parental Controls /Password Edit /TV Rating /MPAA

Rating ......................................................................... 21

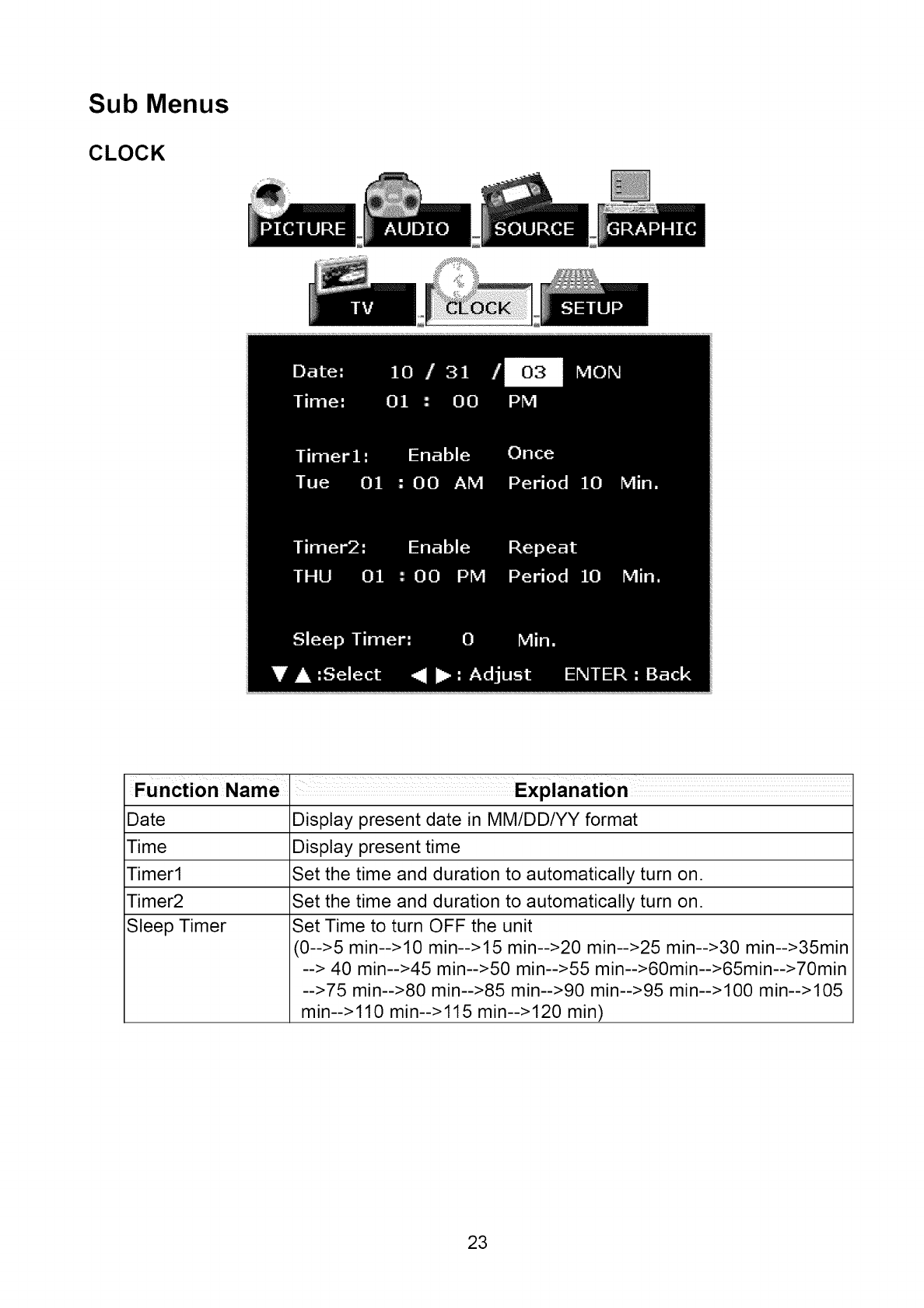

CLOCK: Date /Time /Timer1 /Timer2 /Sleep Timer ......................... 23

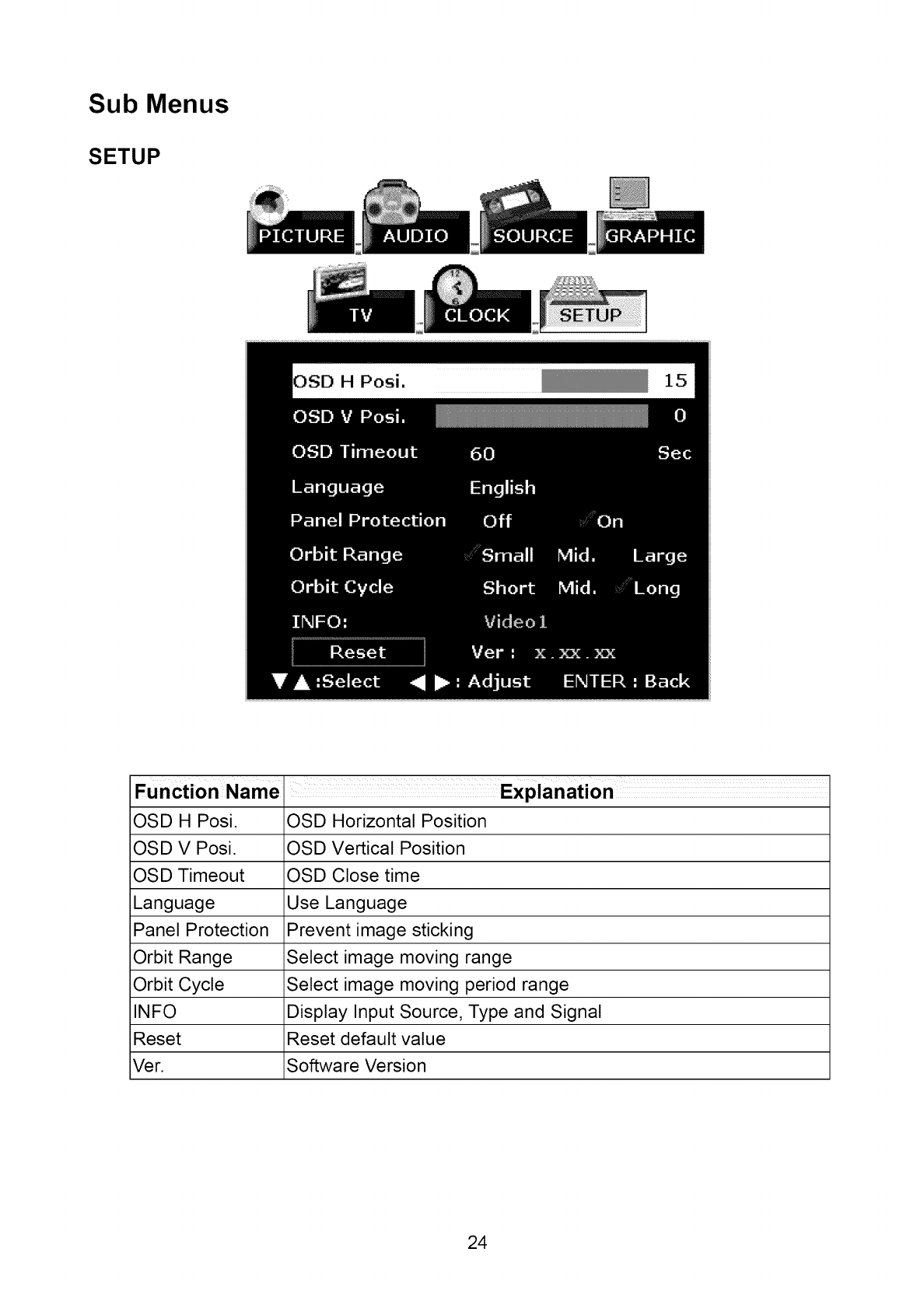

SETUP: OSD H Posi. /OSD V Posi. /OSD Timeout /Language /

Panel Protection /Orbit Range /Orbit Cycle /INFO /Reset /

Ver ...................................................................... 24

Other Information

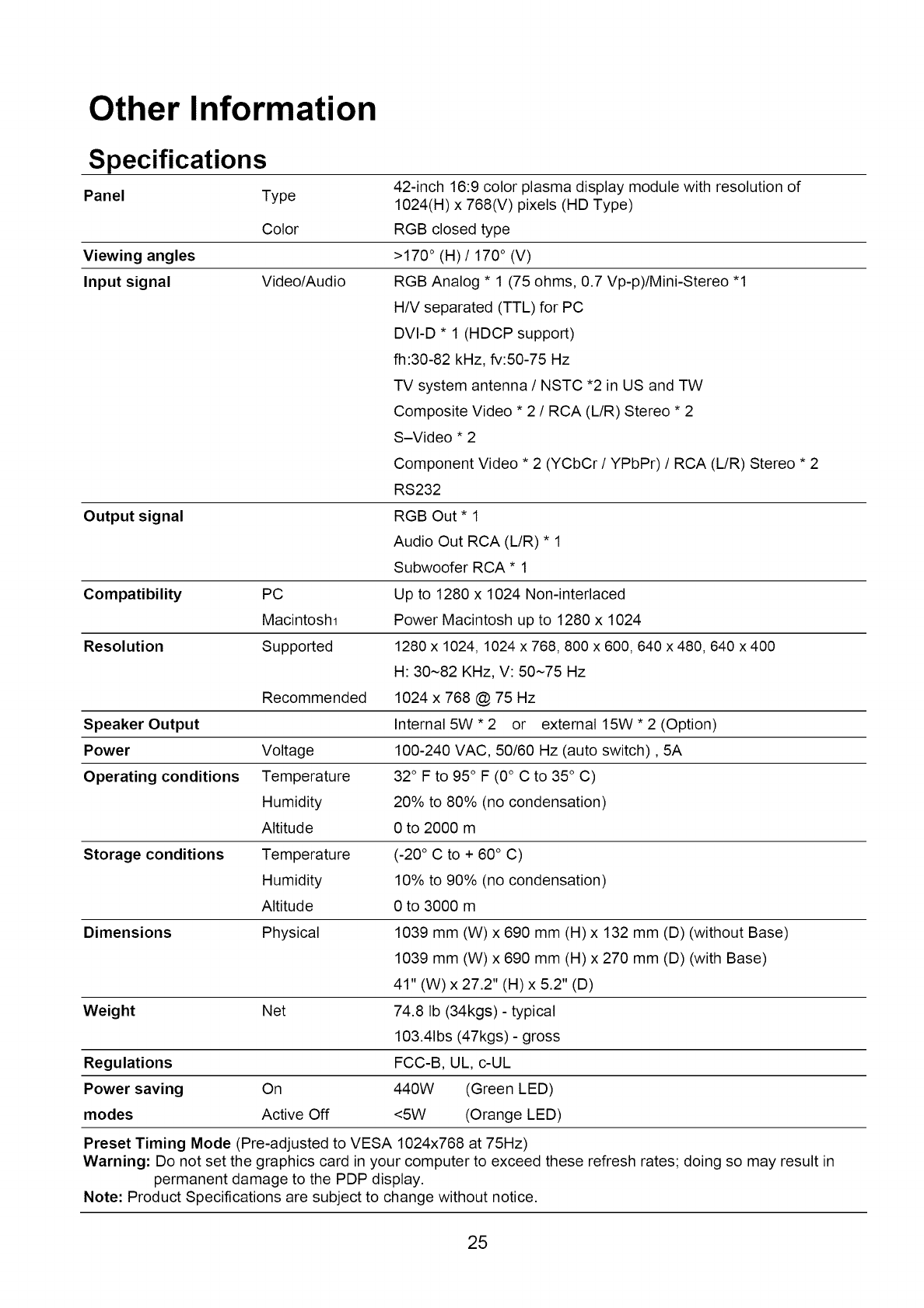

Specifications .................................................................. 25

Troubleshooting ............................................................... 26

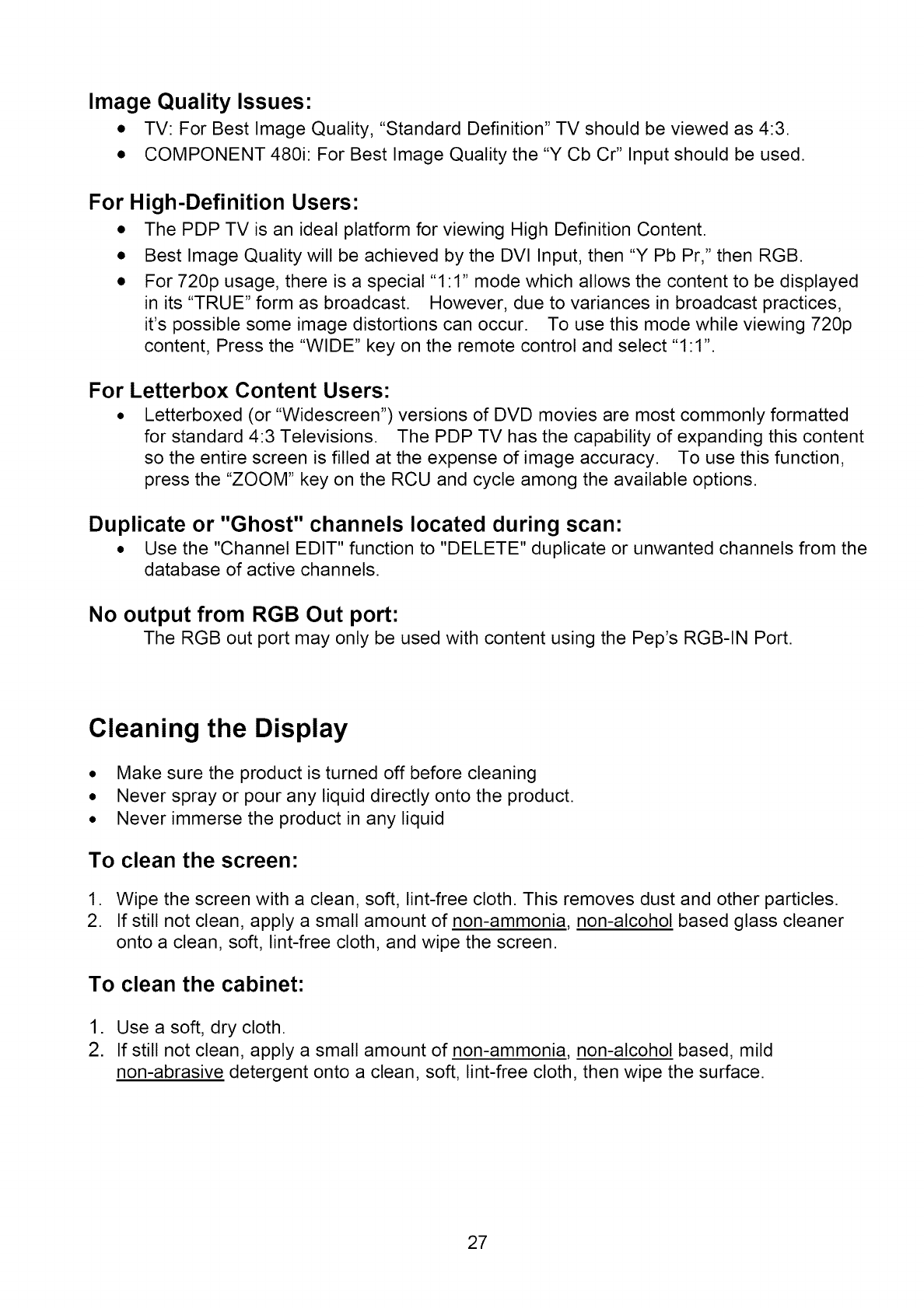

Cleaning the Display ......................................................... 27

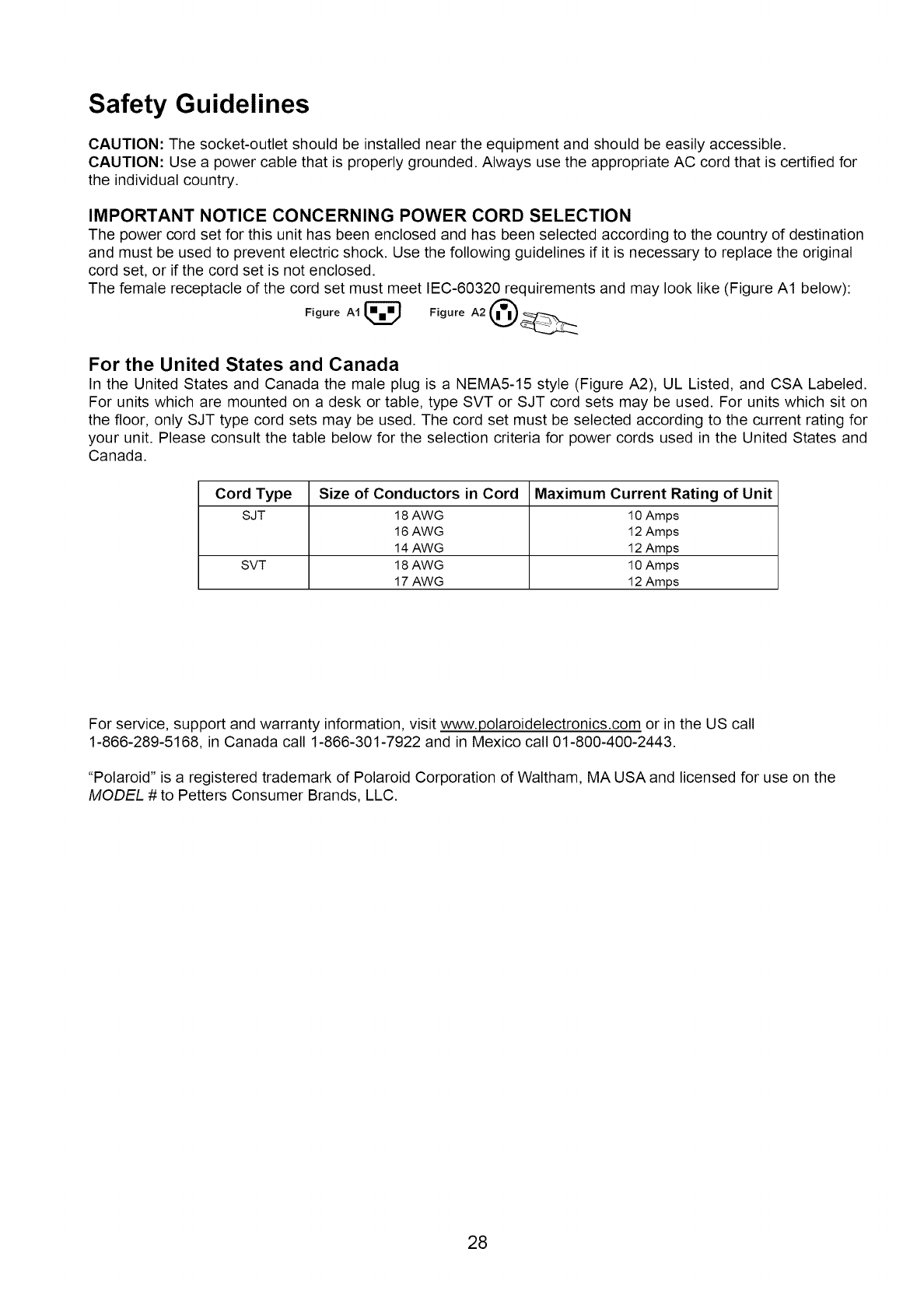

Safety Guidelines ............................................................. 28

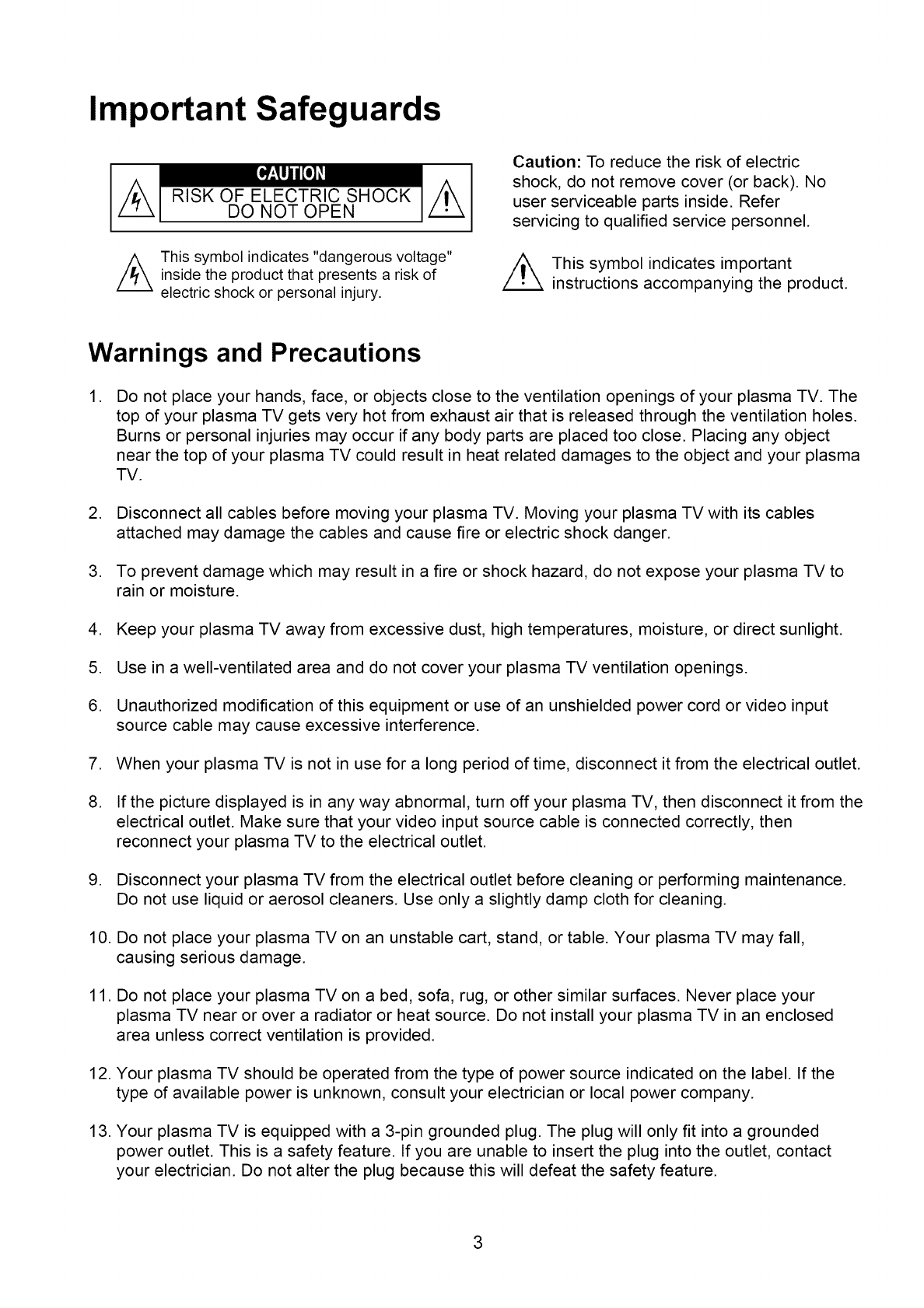

Important Safeguards

_ RISK OF ELECTRIC SHOCK _

[_o_

DO NOT OPEN

//_ This symbol indicates "dangerous voltage"

inside the product that presents a risk of

electric shock or personal injury.

Caution: To reduce the risk of electric

shock, do not remove cover (or back). No

user serviceable parts inside. Refer

servicing to qualified service personnel.

//_ This symbol indicates important

instructions accompanying the product.

Warnings and Precautions

.Do not place your hands, face, or objects close to the ventilation openings of your plasma TV. The

top of your plasma TV gets very hot from exhaust air that is released through the ventilation holes.

Burns or personal injuries may occur if any body parts are placed too close. Placing any object

near the top of your plasma TV could result in heat related damages to the object and your plasma

TV.

2. Disconnect all cables before moving your plasma TV. Moving your plasma TV with its cables

attached may damage the cables and cause fire or electric shock danger.

3. To prevent damage which may result in a fire or shock hazard, do not expose your plasma TV to

rain or moisture.

4. Keep your plasma TV away from excessive dust, high temperatures, moisture, or direct sunlight.

5. Use in a well-ventilated area and do not cover your plasma TV ventilation openings.

6. Unauthorized modification of this equipment or use of an unshielded power cord or video input

source cable may cause excessive interference.

7. When your plasma TV is not in use for a long period of time, disconnect it from the electrical outlet.

8. If the picture displayed is in any way abnormal, turn off your plasma TV, then disconnect it from the

electrical outlet. Make sure that your video input source cable is connected correctly, then

reconnect your plasma TV to the electrical outlet.

9. Disconnect your plasma TV from the electrical outlet before cleaning or performing maintenance.

Do not use liquid or aerosol cleaners. Use only a slightly damp cloth for cleaning.

10. Do not place your plasma TV on an unstable cart, stand, or table. Your plasma TV may fall,

causing serious damage.

11. Do not place your plasma TV on a bed, sofa, rug, or other similar surfaces. Never place your

plasma TV near or over a radiator or heat source. Do not install your plasma TV in an enclosed

area unless correct ventilation is provided.

12. Your plasma TV should be operated from the type of power source indicated on the label. If the

type of available power is unknown, consult your electrician or local power company.

13. Your plasma TV is equipped with a 3-pin grounded plug. The plug will only fit into a grounded

power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact

your electrician. Do not alter the plug because this will defeat the safety feature.

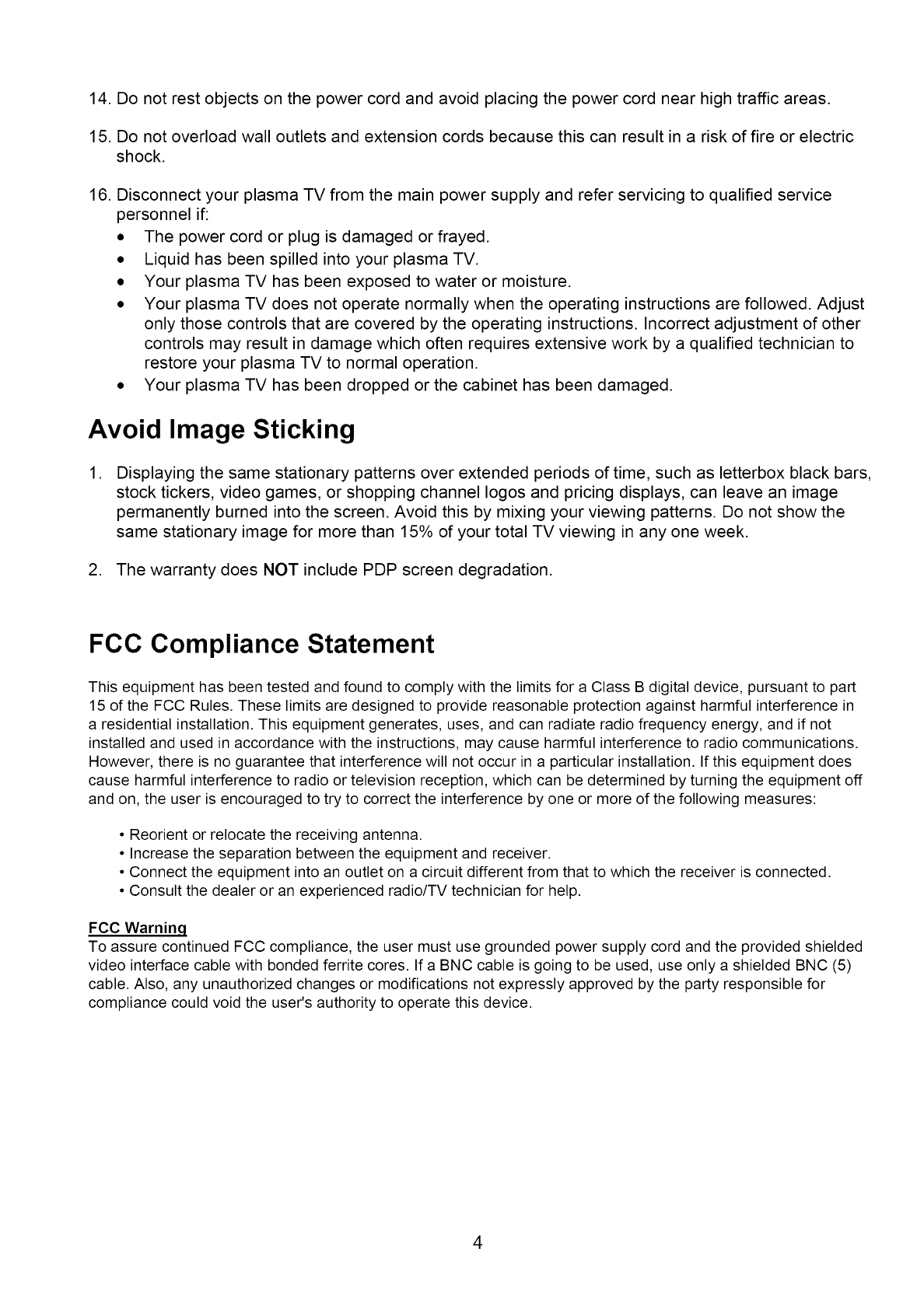

14. Do not rest objects on the power cord and avoid placing the power cord near high traffic areas.

15. Do not overload wall outlets and extension cords because this can result in a risk of fire or electric

shock.

16. Disconnect your plasma TV from the main power supply and refer servicing to qualified service

personnel if:

• The power cord or plug is damaged or frayed.

• Liquid has been spilled into your plasma TV.

• Your plasma TV has been exposed to water or moisture.

• Your plasma TV does not operate normally when the operating instructions are followed. Adjust

only those controls that are covered by the operating instructions. Incorrect adjustment of other

controls may result in damage which often requires extensive work by a qualified technician to

restore your plasma TV to normal operation.

• Your plasma TV has been dropped or the cabinet has been damaged.

Avoid Image Sticking

.Displaying the same stationary patterns over extended periods of time, such as letterbox black bars,

stock tickers, video games, or shopping channel Iogos and pricing displays, can leave an image

permanently burned into the screen. Avoid this by mixing your viewing patterns. Do not show the

same stationary image for more than 15% of your total TV viewing in any one week.

2. The warranty does NOT include PDP screen degradation.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warninq

To assure continued FCC compliance, the user must use grounded power supply cord and the provided shielded

video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a shielded BNC (5)

cable. Also, any unauthorized changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this device.

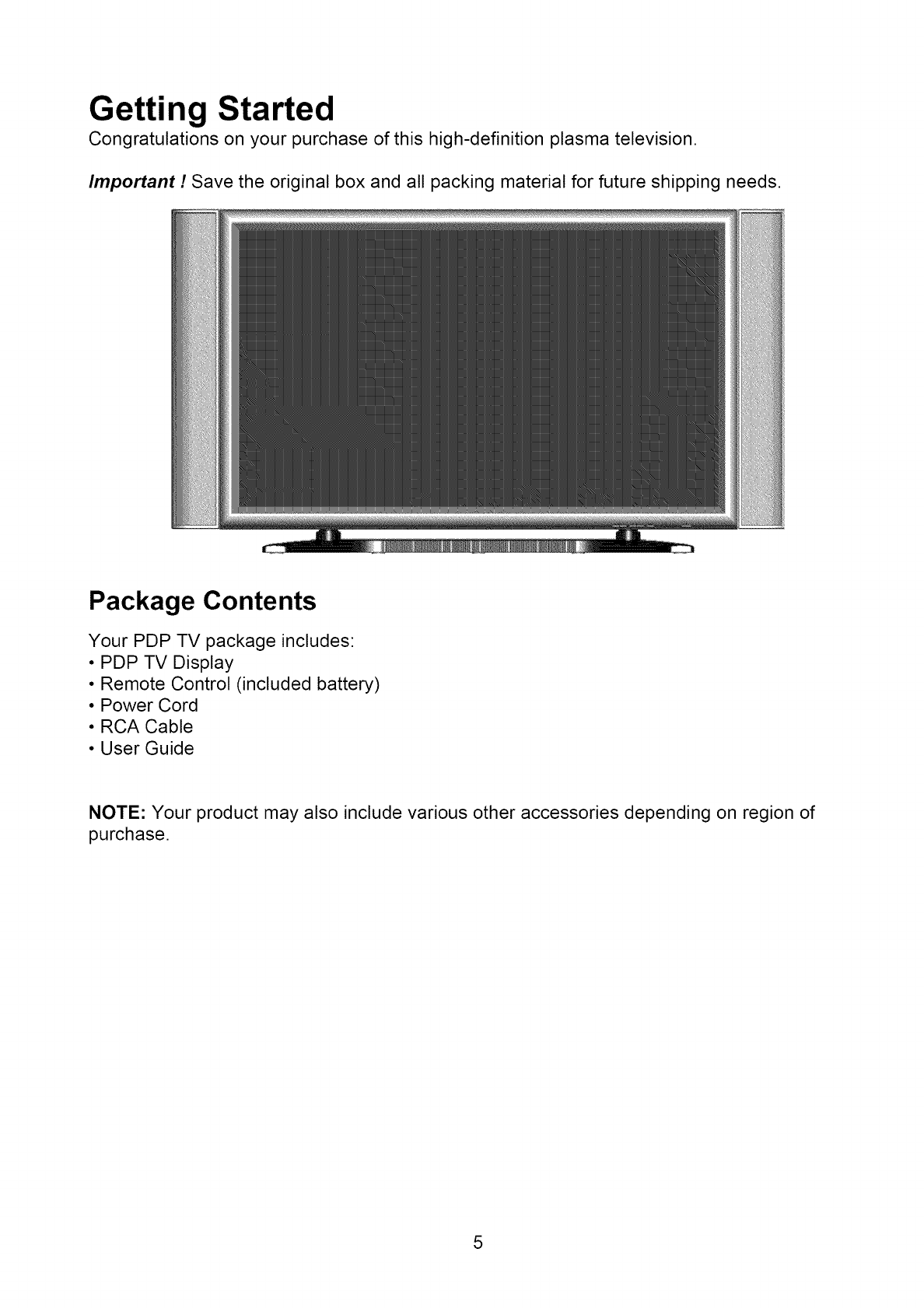

Getting Started

Congratulations on your purchase of this high-definition plasma television.

Important !Save the original box and all packing material for future shipping needs.

Package Contents

Your PDP TV package includes:

•PDP TV Display

• Remote Control (included battery)

• Power Cord

• RCA Cable

• User Guide

NOTE: Your product may also include various other accessories depending on region of

purchase.

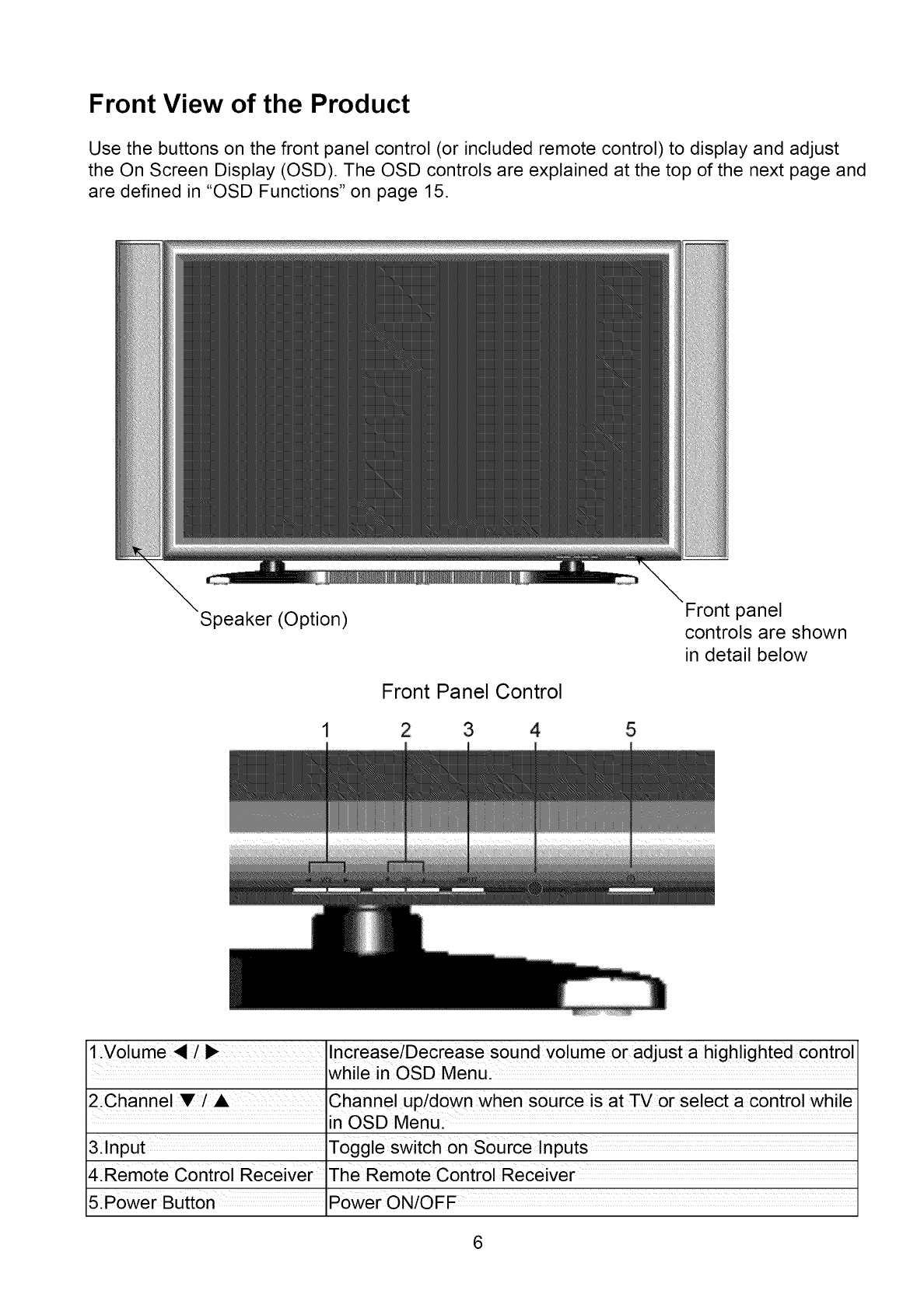

Front View of the Product

Use the buttons on the front panel control (or included remote control) to display and adjust

the On Screen Display (OSD). The OSD controls are explained at the top of the next page and

are defined in "OSD Functions" on page 15.

Speaker (Option)

Front Panel Control

2 3 4 5

Front panel

controls are shown

in detail below

Channel up/down when source is at TV or select a control while

in OSD Menu.

Toggle switch on Source Inputs

4.Remote Control Receiver

Rear View of the Product - 1

AB C D EG H

Audio

ASpeaker Jack

Connect the external speaker to this jack.

B. DVI Input

Using the 20-pin DVI connecting to the DVI Out.

C. DVI/RGB Audio In

Using cable provided connecting to the Audio out (Green) on your DVD or

PC.

D. RGB (VGA input)

Using the 15-pin VGA cable provided connecting to the RGB Out.

NOTE: VGA out only outputs the data received on the RGB IN port.

E. RGB (VGA output)

Using the 15-pin VGA connecting to the RGB Out.

F. Factory Service Port

Using the 9-pin RS232 input to service customer.

AC IN

G. AC IN (Power)

Connect the power cord from AC IN to a power source.

H. AC switch (Power)

Turn AC IN power on/off.

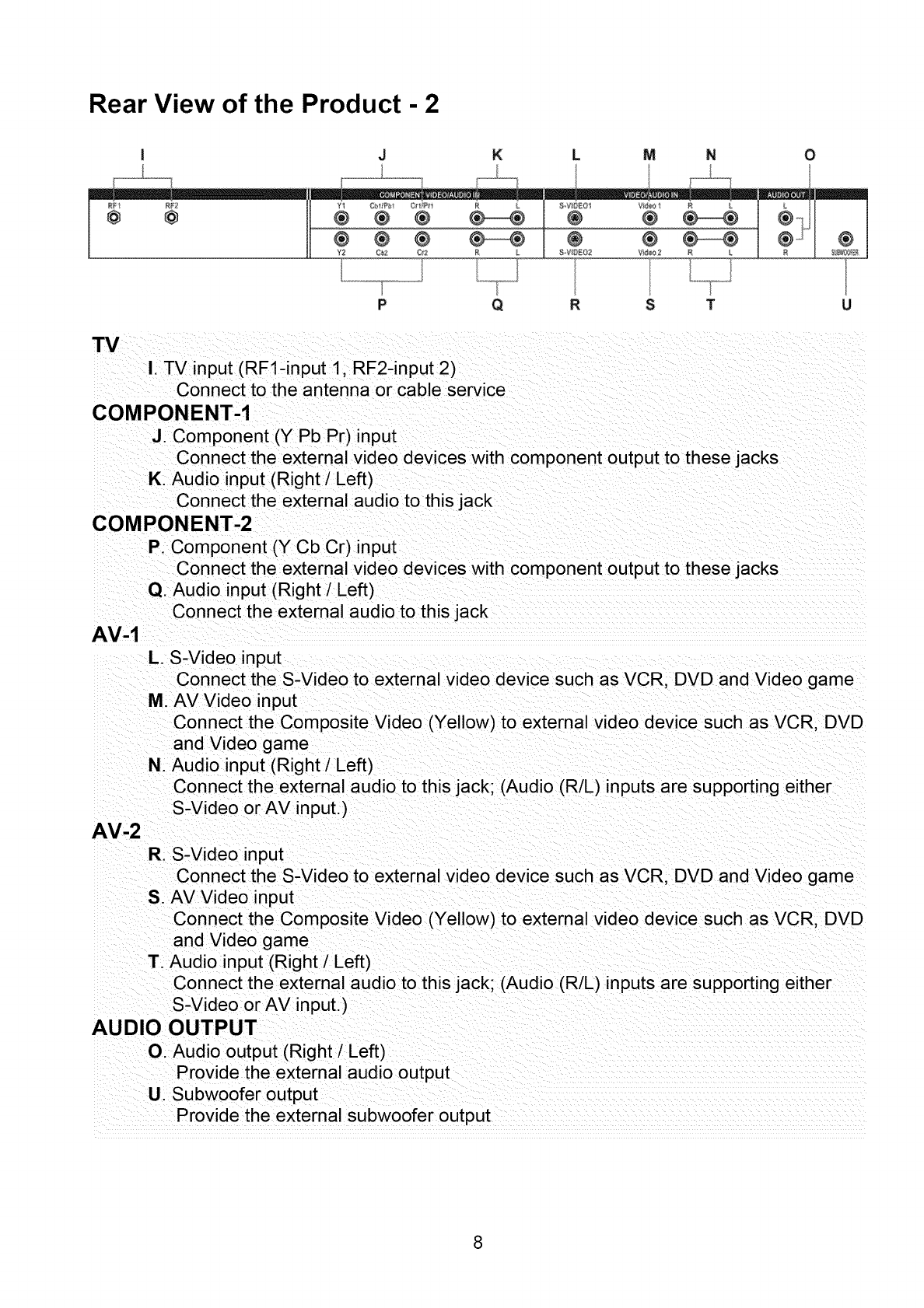

Rear View of the Product - 2

J K L M N _

PQRS T U

I. TV input (RFl-input 1, RF2-input 2)

Connect to the antenna or cable service

COMPONENT-1

J. Component (Y Pb Pr) input

Connect the external video devices with component output to these jacks

K. Audio input (Right /Left)

Connect the external audio to this jack

COMPONENT-2

P. Component (Y Cb Cr) input

Connect the external video devices with component output to these jacks

Q. Audio input (Right/Left)

Connect the external audio to this jack

AV-1

AV -2

L. S-Video input

Connect the S-Video to external video device such as VCR, DVD and Video game

M. AV Video input

Connect the Composite Video (Yellow) to external video device such as VCR, DVD

and Video game

N. Audio input (Right/Left)

Connect the external audio to this jack; (Audio (R/L) inputs are supporting either

S-Video or AV input.)

R. S-Video input

Connect the S-Video to external video device such as VCR, DVD and Video game

S. AV Video input

Connect the Composite Video (Yellow) to external video device such as VCR, DVD

and Video game

T_Audio input (Right /Left)

Connect the external audio to this jack; (Audio (R/L) inputs are supporting either

S-Video or AV input.)

AUDIO OUTPUT

O. Audio output (Right /Left)

Provide the external audio output

U. Subwoofer output

Provide the external subwoofer output ......

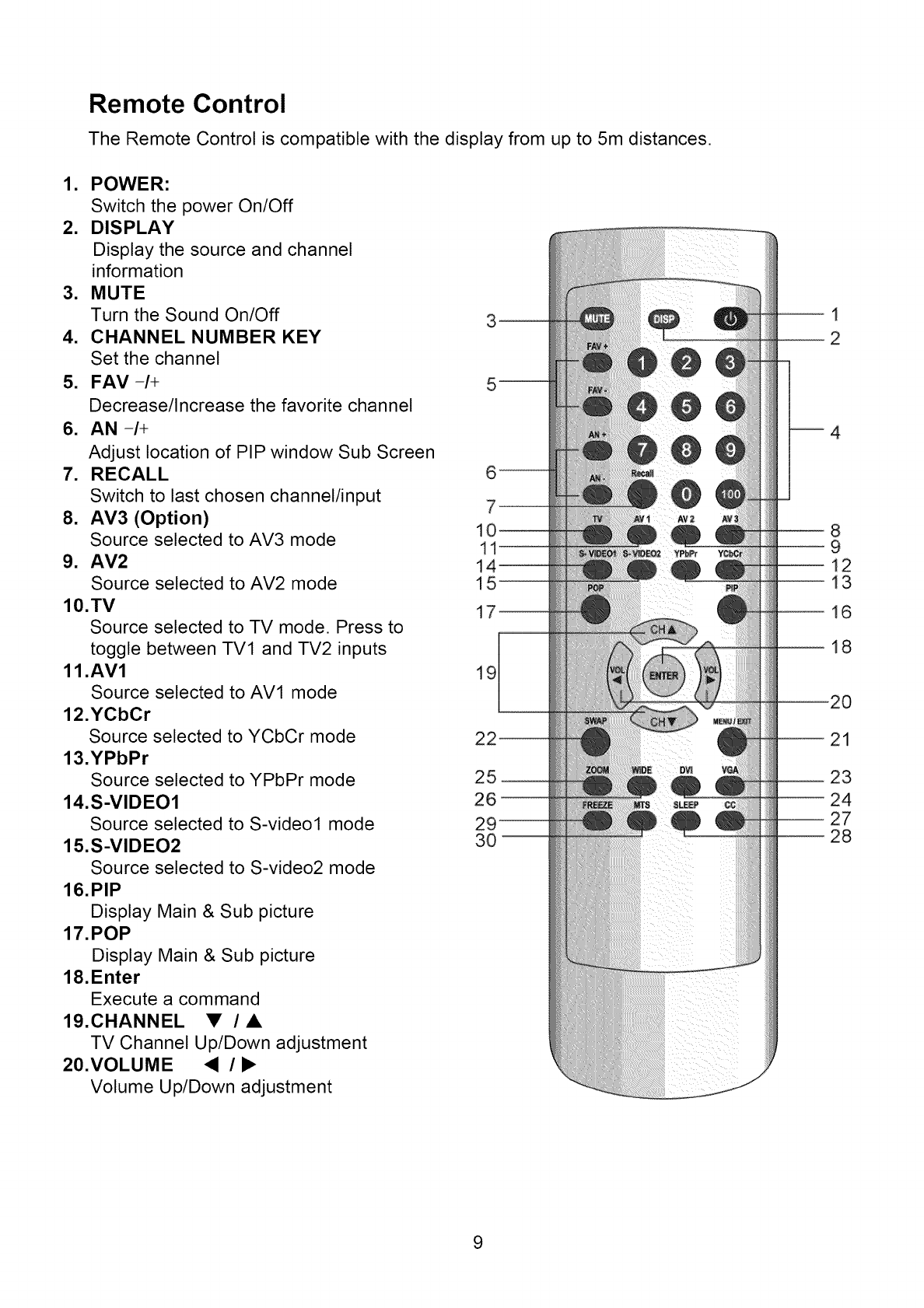

Remote Control

The Remote Control is compatible with the display from up to 5m distances.

1. POWER:

Switch the power On/Off

2. DISPLAY

Display the source and channel

information

3. MUTE

Turn the Sound On/Off

4. CHANNEL NUMBER KEY

Set the channel

5. FAV-/+

Decrease/Increase the favorite channel

6. AN-/+

Adjust location of PIP window Sub Screen

7. RECALL

Switch to last chosen channel/input

8. AV3 (Option)

Source selected to AV3 mode

9. AV2

Source selected to AV2 mode

10.TV

Source selected to TV mode. Press to

toggle between TV1 and TV2 inputs

11 .AVl

Source selected to AV1 mode

12.YCbCr

Source selected to YCbCr mode

13.YPbPr

Source selected to YPbPr mode

14.S-VIDEO1

Source selected to S-video1 mode

15.S-VIDEO2

Source selected to S-video2 mode

16.PIP

Display Main & Sub picture

17.POP

Display Main & Sub picture

18. Enter

Execute a command

19.CHANNEL •/•

TV Channel Up/Down adjustment

20.VOLUME _ /I_

Volume Up/Down adjustment

11_

30--

_16

_18

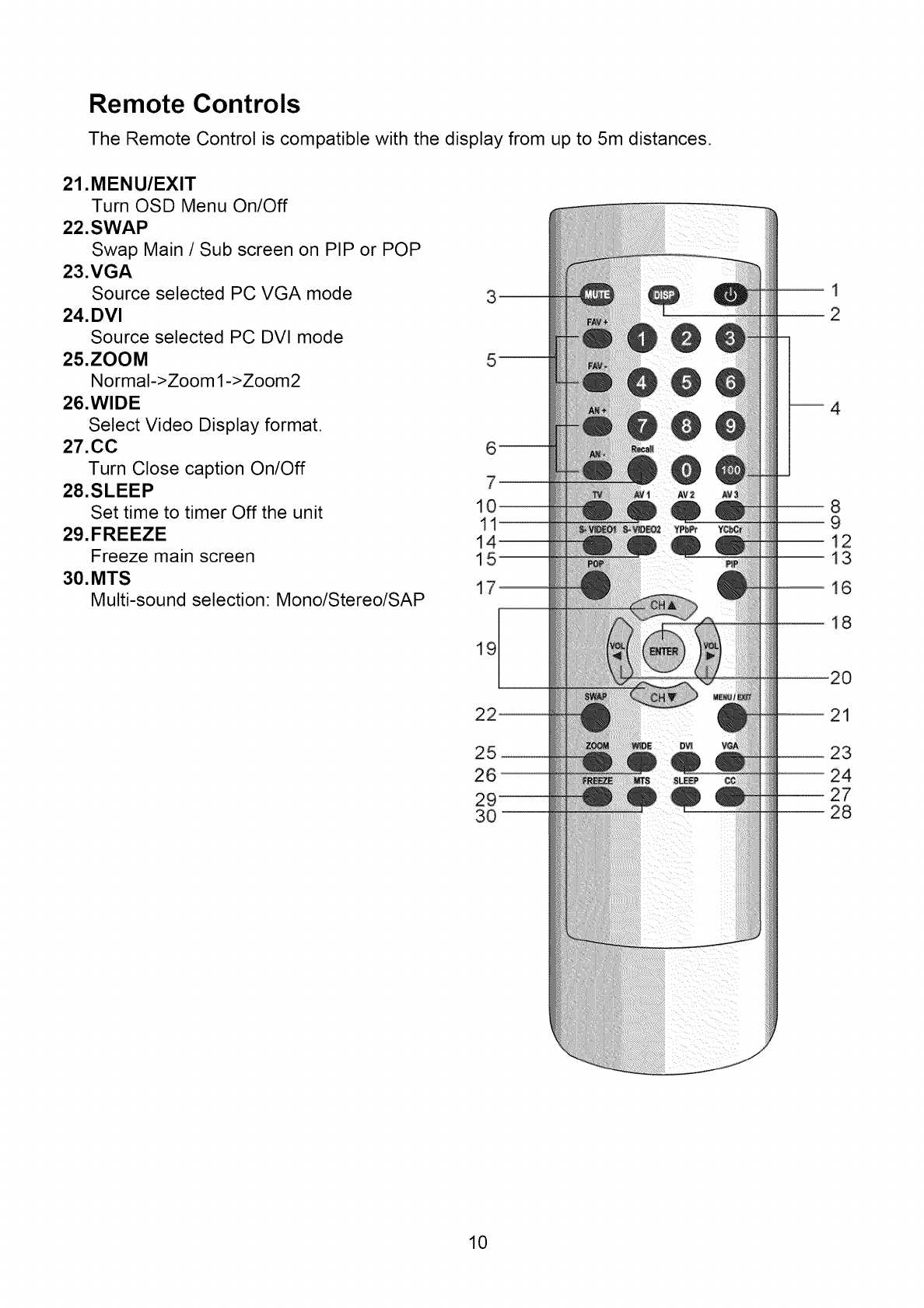

Remote Controls

The Remote Control is compatible with the display from up to 5m distances.

21.MENU/EXIT

Turn OSD Menu On/Off

22.SWAP

Swap Main /Sub screen on PIP or POP

23.VGA

Source selected PC VGA mode

24.DVl

Source selected PC DVl mode

25.ZOOM

Normal->Zooml->Zoom2

26.WIDE

Select Video Display format.

27.CC

Turn Close caption On/Off

28.SLEEP

Set time to timer Off the unit

29.FREEZE

Freeze main screen

30.MTS

Multi-sound selection: Mono/Stereo/SAP

11--

30--

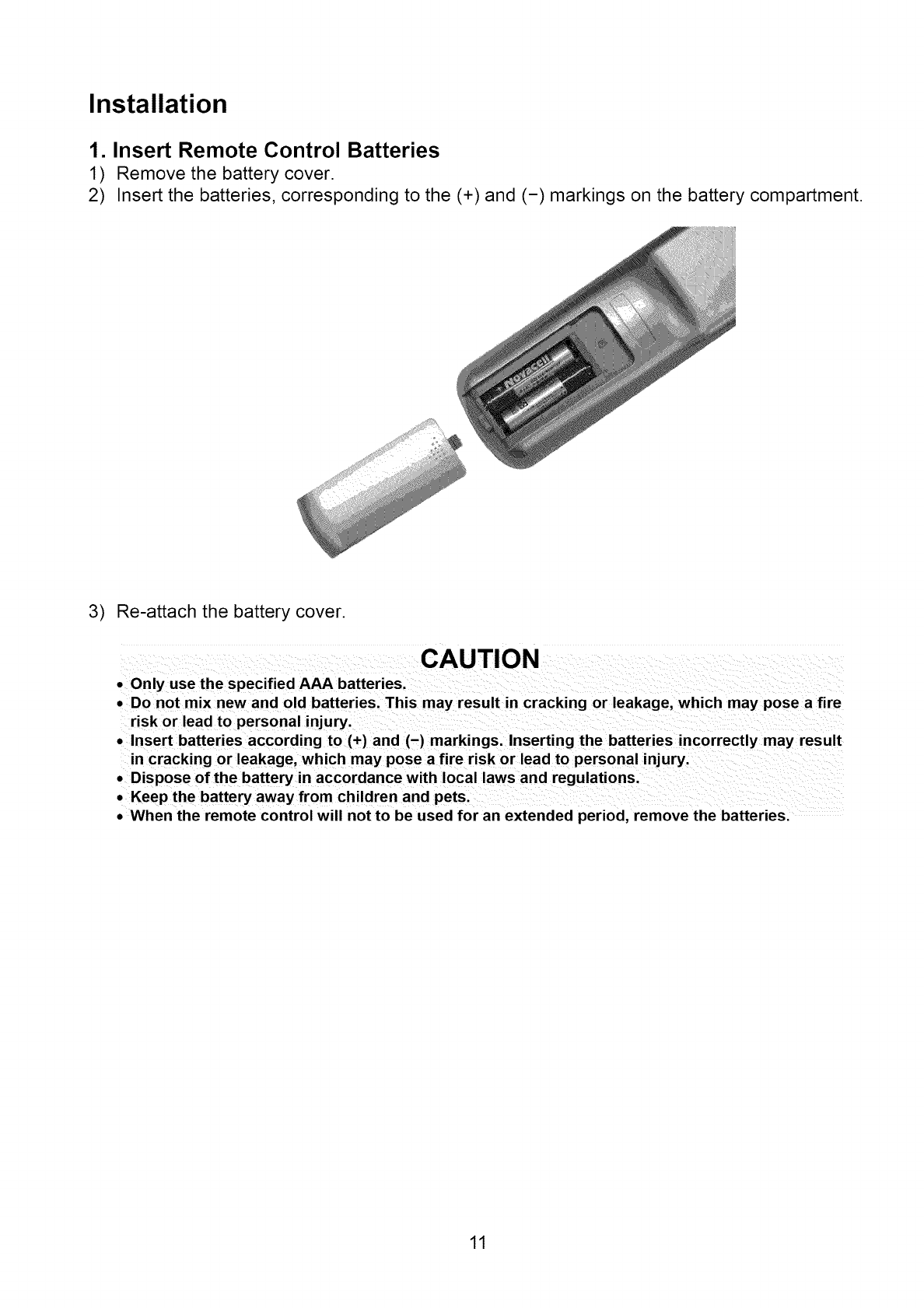

Installation

1. Insert Remote Control Batteries

1) Remove the battery cover.

2) Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment.

3) Re-attach the battery cover.

CAUTION

• Only use the specified AAA batteries.

• Do not mix new and old batteries. This may result in cracking or leakage, which may pose a fire

risk or lead to personal injury.

• Insert batteries according to (+) and (-) markings. Inserting the batteries incorrectly may result

in cracking or leakage, which may pose a fire risk or lead to personal injury.

• Dispose of the battery in accordance with local laws and regulations.

• Keep the battery away from children and pets.

• When the remote control will not to be used for an extended period, remove the batteries.

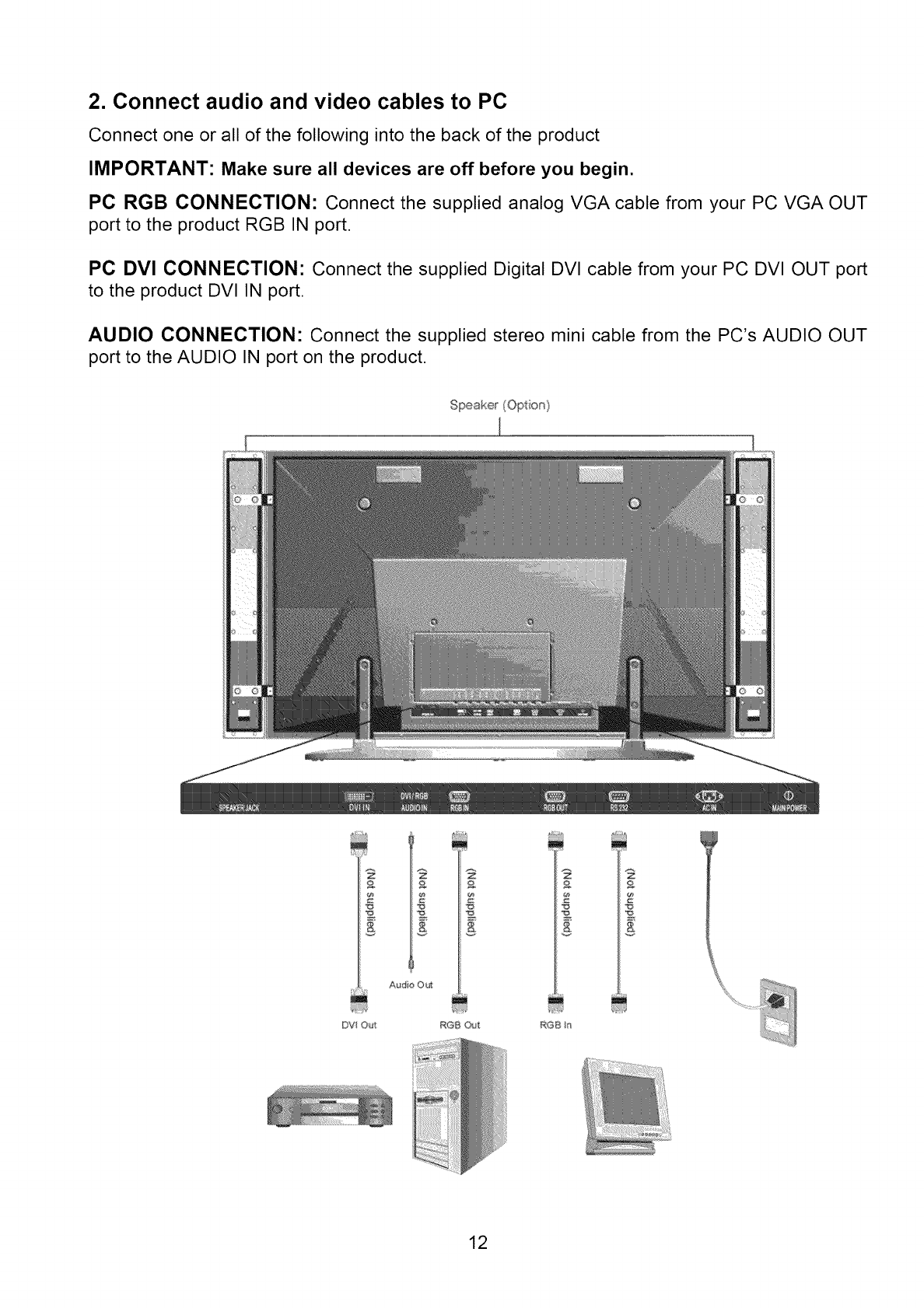

2. Connect audio and video cables to PC

Connect one or all of the following into the back of the product

IMPORTANT: Make sure all devices are off before you begin.

PC RGB CONNECTION: Connect the supplied analog VGA cable from your PC VGA OUT

port to the product RGB IN port.

PC DVI CONNECTION: Connect the supplied Digital DVI cable from your PC DVI OUT port

to the product DVI IN port.

AUDIO CONNECTION: Connect the supplied stereo mini cable from the PC's AUDIO OUT

port to the AUDIO IN port on the product.

Speake_ (Op_ on)

DVi Ou_

A_do Out

RGB O_,at

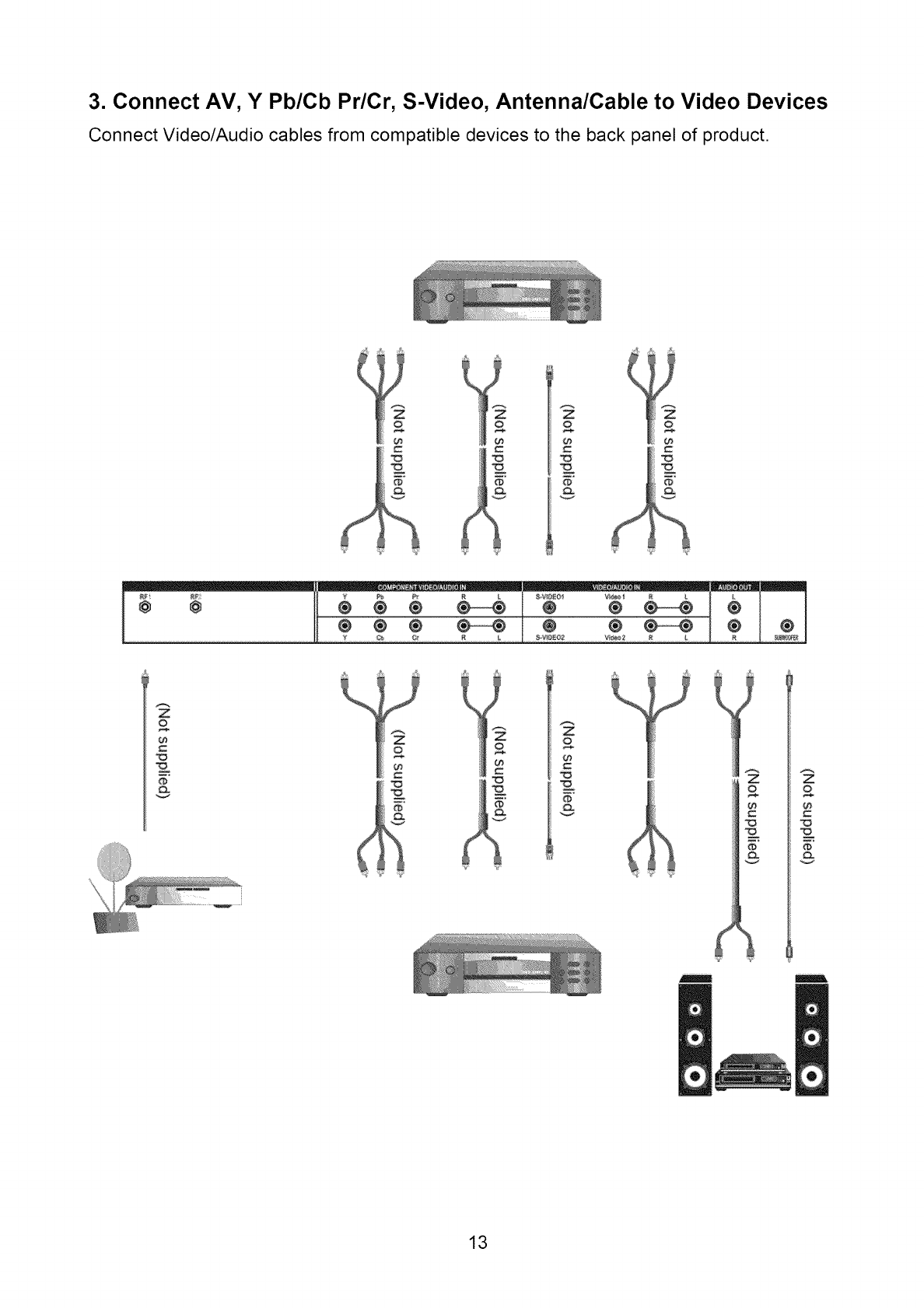

3. Connect AV, Y Pb/Cb Pr/Cr, S-Video, Antenna/Cable to Video Devices

Connect Video/Audio cables from compatible devices to the back panel of product.

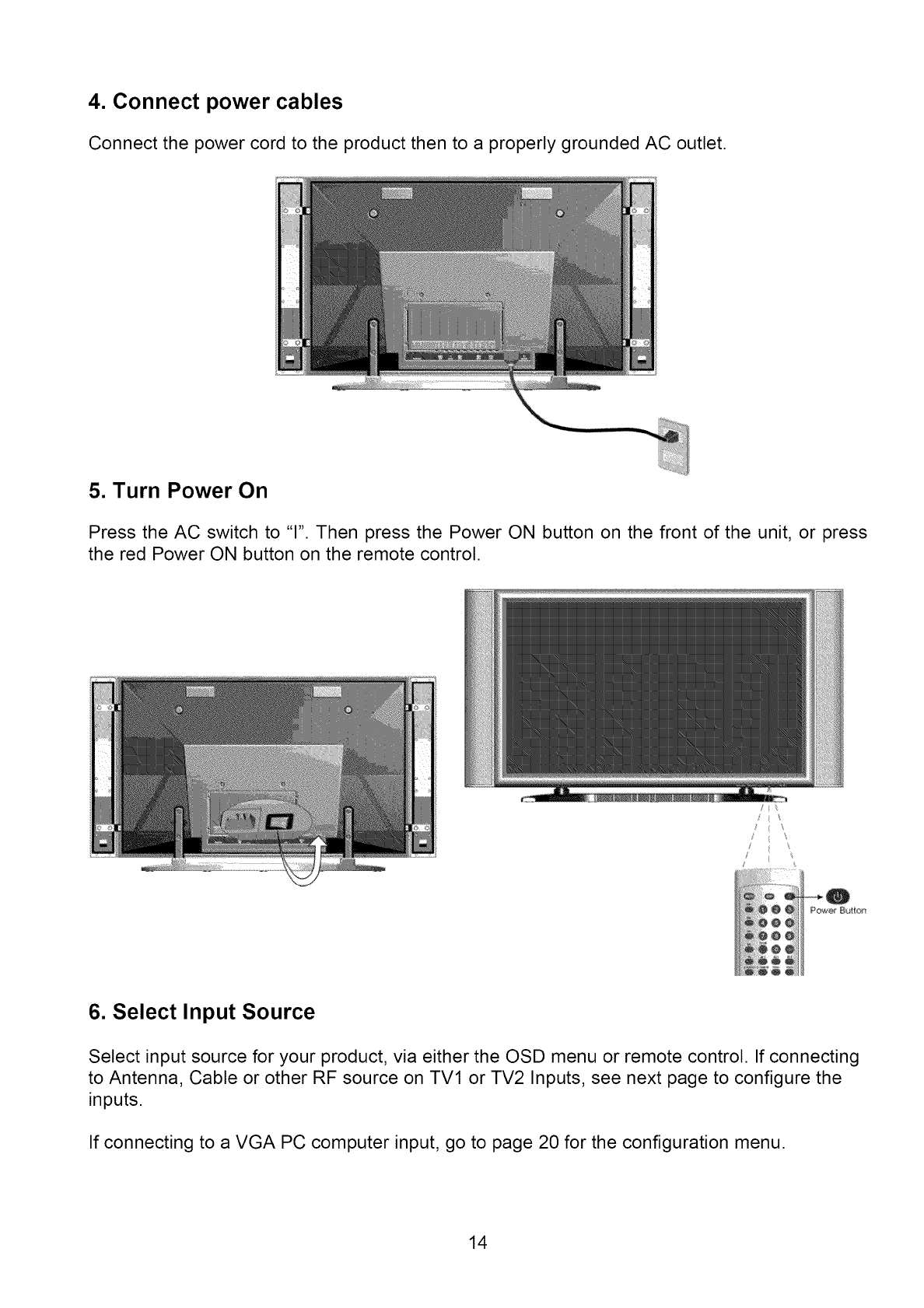

4. Connect power cables

Connect the power cord to the product then to a properly grounded AC outlet.

5. Turn Power On

Press the AC switch to "1". Then press the Power ON button on the front of the unit, or press

the red Power ON button on the remote control.

/ '

6. Select Input Source

Select input source for your product, via either the OSD menu or remote control. If connecting

to Antenna, Cable or other RF source on TV1 or TV2 Inputs, see next page to configure the

inputs.

If connecting to a VGA PC computer input, go to page 20 for the configuration menu.

OSD Functions

All the function settings for your PDP TV display are controlled either via the remote

control or using the bottom control keys on the front panel.

To display the OSD main menu, press the MENU key on the remote control. Use _1/1_ arrow

keys to toggle the sub OSD menu display (PICTURE >> AUDIO >> SOURCE >> GRAPHIC

>> TV >> CLOCK >> SETUP). Use ENTER to select each OSD Menu option.

Main Menu

To open the Sub menu, press the INPUT button on the front panel or the ENTER key on the

remote control.

Sub Menus


Brightness Brightness Adjustment

Contrast Contrast Adjustment

Color Color Adjustment

(The action of color should be block at pc mode)

Tint Adjustment

Tint (The action of Tint should be block at pc mode)

Sharpness Adjustment

Sharpness (The action of Sharpness should be block at pc mode)

Color Temp Color Temp Adjustment ( Normal, User)

Sub Menus

AUDIO

Volume Volume Adjustment

Bass Bass Adjustment

Treble Treble Adjustment

Balance Balance Adjustment

Speaker Sel, Select Internal speaker or External speaker

Speaker Turn Speaker OFF or ON

Sets Line Out Level to

Line Out Variable: Sound level will change with Volume,

Fixed: Sound level remains constant,

Subwoofer Turn Subwoofer OFF or ON

BBE Turn BBE OFF or ON

Sub Menus

SOURCE: Input Setup

Main Screen

Sub Screen

Audio From

Display Mode

Wide Mode

PIP Aspect

PIP H.POS

PIP V.POS

PIP Size

Select main screen sources

(See PIP/POP settings below)

Select sub screen sources

(See PIP/POP settings below)

Select main screen or sub-screen audio sources

Full--> PIP--> POP

Aspect --> Wide-->1:1

Aspect --> Wide

Sub Screen display H-Position adjustment

Sub Screen display V-Position adjustment

Sub Screen display Size adjustment

Sub Menus

SOURCE: PIP /POP Setup

PIP/POP SPECIFICATION(Matrix on video and graphic)

TV 1

=Or) TV 2

CVBS 1

CVBS 2

(I)

(/) S-Video 1

4" S-Video 2

(/) YCbCr 2

_YPbPrl

RGB (VGA)

DVI

Main Screen Signal Source

TV 1 TV2 CVBS 1 CVBS 2 S-Video 1 S-Video 2 YCbCr YPbPr RGB DVI

VV VV VV VV VV

VG VG VG VG VG

VV VV VG VG VG

VV N/A VG VG VG

VG VG N/A N/A N/A

"VG" means Video on/in Graphic

"N/A" means no application

Sub Menus

GRAPHIC

Auto Adjust Auto Adjust the Horizontal Phase of the image

H. Position Horizontal Position on the image adjustment

V. Position Vertical Position on the image adjustment

Phase Phase adjustment

Clock Clock adjustment

Resolution Display Source Resolution and Frequency

For the best picture quality set the TV's timing mode to VESA 852x480 (SD Type), VESA

1024x768 (HD Type).

Refer to the PC graphic card's user guide for questions on how to set the timing mode.

Sub Menus

TV: Input

Input Select TV Source Type

(ANT => Cable => HRC => IRC)

Caption Mode Turn the Close Caption OFF or CCl, CC2, CC3, CC4, TT1,

TT2, TT3, TT4

MTS Multi-sound Selection (Mono => Stereo => SAP)

Auto Scan Auto Scan on TV Channels

Add/Del Channels Add /Delete the selected TV channel

Parental Controls Adjust parental control settings

See next page for details on Parental Controls.

Sub Menus

TV: Parental Controls

Verify OK

Function Name

Password Edit

TV Rating

MPAA Rating

Movie Rating)

Explanation

Change Password

B: Block

U Unblock

<<< AGE >>>

TV Y: All Children

TV Y7: Directed to Older Children

TV G: General Audience

TV PG: Parental Guidance Suggested

TV 14" Parents Strongly Cautioned

TV MA: Mature Audience Only

<<< CONTENT >>>

FV: Fantasy Violence

V: Violence

L: Stronger Language

S: Sexual Situation

D: Suggestive Dialogue

B: Block

U Unblock

G: General audience

PG: Parental Guidance suggested

PG 13: Parents strongly cautioned

R: Restricted

NC 17: No one 17 and under admitted

X: Adult audience only

Sub Menus

CLOCK

Date

Time

Timer1

Timer2

Sleep Timer

Display present date in MM/DD/YY format

Display present time

Set the time and duration to automatically turn on.

Set Time to turn OFF the unit

(0-->5 min-->10 min-->15 min-->20 min-->25 min-->30 min-->35min

--> 40 min-->45 min-->50 min-->55 min-->60min-->65min-->70min

-->75 min-->80 min-->85 min-->90 min-->95 min-->100 min-->105

min-->110 min-->115 min-->120 min)

Sub Menus

SETUP

OSD H Posi. OSD Horizontal Position

OSD V Posi. OSD Vertical Position

OSD Timeout OSD Close time

Language Use Language

Panel Protection Prevent image sticking

Orbit Range Select image moving range

Orbit Cycle Select image moving period range

INFO Display Input Source, Type and Signal

Reset Reset default value

Ver. Software Version

Other Information

Specifications

Panel Type

Color

Viewing angles

Input signal Video/Audio

Output signal

Compatibility PC

Macintosh1

Resolution Supported

Recommended

Speaker Output

Power Voltage

Operating conditions Temperature

Humidity

Altitude

Storage conditions Temperature

Humidity

Altitude

Dimensions Physical

Weight Net

Regulations

Power saving

modes

42-inch 16:9 color plasma display module with resolution of

1024(H) x 768(V) pixels (HD Type)

RGB closed type

>170 ° (H)/170 ° (V)

RGB Analog * 1 (75 ohms, 0.7 Vp-p)/Mini-Stereo "1

H/V separated (TTL) for PC

DVI-D * 1 (HDCP support)

fh:30-82 kHz, fv:50-75 Hz

TV system antenna /NSTC *2 in US and TW

Composite Video * 2 /RCA (L/R) Stereo * 2

S-Video * 2

Component Video * 2 (YCbCr /YPbPr) /RCA (L/R) Stereo * 2

RS232

RGB Out * 1

Audio Out RCA (L/R) * 1

Subwoofer RCA * 1

Up to 1280 x 1024 Non-interlaced

Power Macintosh up to 1280 x 1024

1280 x 1024, 1024 x 768,800 x 600,640 x480, 640 x400

H: 30~82 KHz, V: 50~75 Hz

1024 x 768 @ 75 Hz

Internal 5W * 2 or external 15W* 2 (Option)

100-240 VAC, 50/60 Hz (auto switch), 5A

32° F to 95° F (0° C to 35° C)

20% to 80% (no condensation)

0 to 2000 m

(-20 ° C to + 60 ° C)

10% to 90% (no condensation)

0 to 3000 m

1039 mm (W) x 690 mm (H) x 132 mm (D) (without Base)

1039 mm (W) x 690 mm (H) x 270 mm (D) (with Base)

41" (W) x 27.2" (H) x 5.2" (D)

74.8 Ib (34kgs) - typical

103.41bs (47kgs) - gross

FCC-B, UL, c-UL

On 440W (Green LED)

Active Off <5W (Orange LED)

Preset Timing Mode (Pre-adjusted to VESA 1024x768 at 75Hz)

Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in

permanent damage to the PDP display.

Note: Product Specifications are subject to change without notice.

Troubleshooting

No power

• Make sure AC power switch is ON, DC power button is ON (Green LED)

• Make sure AC power cord is securely connected to the AC socket

• Plug another electrical device (like a radio) to the power outlet to verify that the outlet is

supplying the proper voltage

System is "Locked" or Not Responding:

• In the unlikely occurrence, press the "Up" key + AC power on to reset the monitor.

Parental Control password is "LOST""

• In the unlikely occurrence, press the "Up" key + AC power on to reset the password.

AUDIO Interconnection Issues:

• On AV1, AV2, and AV3; SVHS and Composite share the same Audio source.

Power is ON but no screen image

• Make sure the video cable supplied with the PDP display is tightly secured to the video

output port on the back of the computer. If the other end of the video cable is not

attached firmly to the PDP display, tightly secure it to the PDP display

• . Adjust brightness and contrast

• If you are using a Macintosh older than G3, you must use a Macintosh adapter

• Check Source settings

Wrong or abnormal colors

• If a color (red, green, or blue) is missing, check the video cable to make sure it is

securely connected. Loose or broken pins in the cable connector could cause an

improper connection

• Connect the PDP display to another computer

Control buttons do not work

•Press only one button at a time

Static appears on screen

• Check your antenna connection

• Check TV /CATV selection

No sound

• Check your audio connection

• Press MUTE on the remote control again, so that MUTE disappears from the screen

• Check your audio settings, your TV audio may be set to SAP or minimum

• Press the Volume + (Up) key on your remote control

Make sure that headphones are not connected

Remote Control does not work

• Make sure batteries are inserted correctly

• Batteries could be weak

Image Quality Issues:

• TV: For Best Image Quality, "Standard Definition" TV should be viewed as 4:3.

• COMPONENT 480i: For Best Image Quality the "Y Cb Cr" Input should be used.

For High-Definition Users:

The PDP TV is an ideal platform for viewing High Definition Content

Best Image Quality will be achieved by the DVI Input, then "Y Pb Pr," then RGB

For 720p usage, there is a special "1:1" mode which allows the content to be displayed

in its "TRUE" form as broadcast. However, due to variances in broadcast practices,

it's possible some image distortions can occur. To use this mode while viewing 720p

content, Press the "WIDE" key on the remote control and select "1:1"

For Letterbox Content Users:

• Letterboxed (or"Widescreen") versions of DVD movies are most commonly formatted

for standard 4:3 Televisions. The PDP TV has the capability of expanding this content

so the entire screen is filled at the expense of image accuracy. To use this function,

press the "ZOOM" key on the RCU and cycle among the available options.

Duplicate or "Ghost" channels located during scan:

• Use the "Channel EDIT" function to "DELETE" duplicate or unwanted channels from the

database of active channels.

No output from RGB Out port:

The RGB out port may only be used with content using the Pep's RGB-IN Port.

Cleaning the Display

• Make sure the product is turned off before cleaning

• Never spray or pour any liquid directly onto the product.

• Never immerse the product in any liquid

To clean the screen"

1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.

2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner

onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the cabinet:

1. Use a soft, dry cloth.

2. If still not clean, apply a small amount of non-ammonia, non-alcohol based, mild

non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Safety Guidelines

CAUTION: The socket-outlet should be installed near the equipment and should be easily accessible.

CAUTION: Use a power cable that is properly grounded. Always use the appropriate AC cord that is certified for

the individual country.

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of destination

and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original

cord set, or if the cord set is not enclosed.

The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1 below):

Figure AI!_ Figure A2(3__

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled.

For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For units which sit on

the floor, only SJT type cord sets may be used. The cord set must be selected according to the current rating for

your unit. Please consult the table below for the selection criteria for power cords used in the United States and

Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit

SJT 18 AWG 10 Amps

16 AWG 12 Amps

14 AWG 12 Amps

SVT 18 AWG 10 Amps

17 AWG 12 Amps

For service, support and warranty information, visit www.polaroidelectronics.com or in the US call

1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443.

"Polaroid" is a registered trademark of Polaroid Corporation of Waltham, MA USA and licensed for use on the

MODEL # to Petters Consumer Brands, LLC.

POLAROID Plasma Television Manual L0902408

Navigation menu

Versions of this User Manual:

Views

Navigation
