PORTMAN ELECTRONICS RX03-SSF2W CAR ALARM User Manual
PORTMAN ELECTRONICS (DONGGUAN) CO., LTD. CAR ALARM
User manual
4180075 MANUAL
1. Antenna Model : 4180075
2. Technology: SST 2-WAY
3. Max Range : 1800M
4. LED : status indication
5. Button: setup key
6 Connect to Host (To plug Weblink or RF-Decoder/Antenna)
pin1- Rx (Data from antenna, 0-5 Volts)
pin2- Tx (Data from Host, 0-5 Volts)
pin3- GND (Ground from Host)
pin4- 12V (Power from Host, 12V )

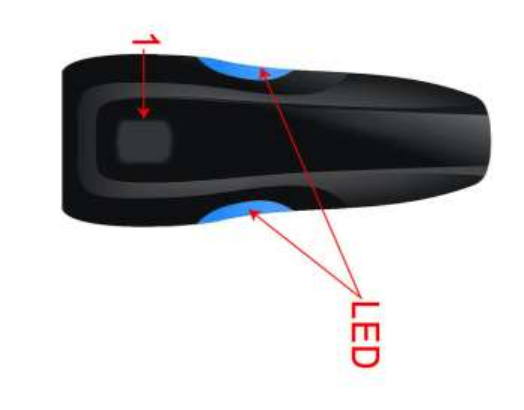

The Control Center,typically located on the upper part of the front windshield.It consists of:
The In-vehicle system antenna.
The Status LED,as a visual indicator of the system’s status.
The Control button,for placing the system into Valet Mode and to perform the Emergency
Override operation.
