PORTMAN ELECTRONICS (DONGGUAN) CO., LTD.

RX12 receiver

Operation/ Installation Manual

RX12

01/13/2010

Version 1.9

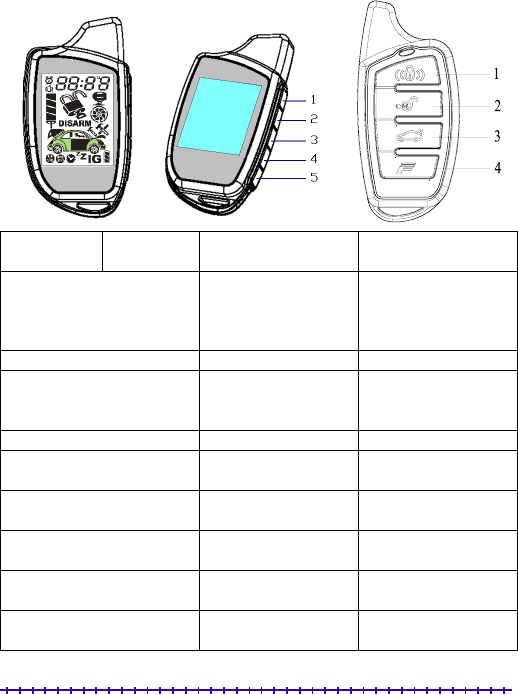

T35 (Two way) T36 (One way)

T35

(Two way)

T36

(One way) Functions Conditions

Press button 1 once

Arm and lock doors

Car finder with sound

Stop alarm temporarily

Remote lock doors

Disarmed and Ignition OFF

Armed

Sounding

While driving

Press and hold button 1 for 2 sec. Remote Panic Anytime

Press button 2 once

Disarm/unlock

Stop alarm temporarily

Remote unlock doors

Armed

Sounding

While driving

Press and hold button 2 for 2 sec. All door unlock/disarm Arming

Press and hold button 3 for 2 sec. Open trunk (Channel 1

output) Anytime

Press button 4 once then press

button 1 within 3 sec. Active anti car hijacking While driving

Press button 4 once then press

button 2 within 3 sec. Channel 2 output Anytime

Press button 4 once then press

button 3 within 3 sec. Channel 3 output Anytime

Press button 4 once then press

button 4 within 3 sec. Channel 4 output Anytime

Press and hold button 4 for 2 sec. Remote start on/off When start procedure

ready

Press button 1 + 4 once together Arm with bypass shock

sensor

Disarming and ignition

OFF

Press button 3 + 4 once together Manual active ready

mode

Ignition on & disarming

& handbrake on

Press button 5

once then

press button 1

within 3 sec.

Press button

1 + 3 once

together

Silent arm Disarmed and ignition

OFF

Press button 5

once then

press button 2

within 3 sec.

Press button

2 + 3 once

together

Silent disarm Arming

Press button 5

once then

press button 3

within 3 sec.

Press and hold

utton 1 + 3 for

sec

Silent arm with bypass

ext. sensor

Disarmed and ignition

OFF

Press button 5

once then

press button 4

within 3 sec.

Press and hold

button 3 + 4 for

2 sec

Timer start on/off When start procedure

ready

Press button 5

once then

press button 5

within 3 sec.

Press button

2 + 4 once

together

Valet mode on/off Disarming

Press button 5 once then press

and hold button 1 for 2 sec.

within 3 sec. (only T35)

No alarm arm mode Disarmed and ignition

OFF

Press button 5 once then press

and hold button 2 for 2 sec.

within 3 sec. (only T35)

Car temperature monitor Anytime

Transmitter power on Transmitter power off Press button 1+5 once together

(only T35) Transmitter power off Transmitter power on

Press button 5 once then press

and hold button 5 for 2 sec.

within 3 sec. (only T35)

Unit Program mode on Ignition off & disarming

& door open

Unit Program mode off Ignition off & disarming

& door open

Press and hold button 5 for 2 sec.

(only T35) Transmitter program

mode on/off Anytime

Press button 4 once then press

button 5 once within 3 sec.

(only T35)

System status check Anytime

Special function for T35

1. Press button 1+5 to turn on /off transmitter power

2. In disarm mode, if the transmitter without any operation within 1~9 days, transmitter

will chirp bi-bi-bi-----for 5 times, then turn off the power, in this time, press button

1+5 to turn on /off transmitter power, if the transmitter in arm mode, the transmitter

power can not be turned to off.

3. If any button has been pressed exceed 10 seconds, transmitter will long chirp bi---bi--

-bi--- for 3 times, then light the icon (button1 or 2 or 3 or 4 or 5) to indicate which

button has locked.

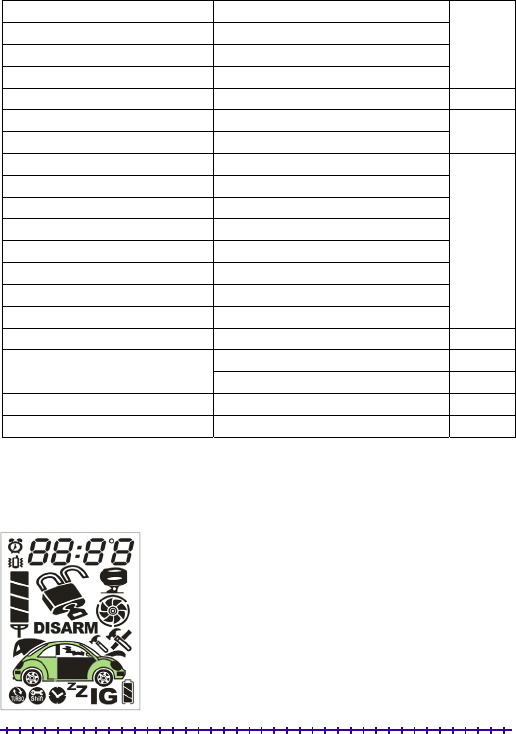

T35 BACKLIGHT:

Button Functions Color

1 once

Arm and lock doors

Car finder with sound

Stop alarm temporarily

Remote lock doors

1 for 2 sec. Remote Panic

2 once

Disarm/unlock

Stop alarm temporarily

Remote unlock doors

2 for 2 sec. All door unlock/disarm

3 for 2 sec. Open trunk (Channel 1 output)

Green

4 -> 1 within 3 sec. Active anti car hijacking

4 -> 2 within 3 sec. Channel 2 output

4 -> 3 within 3 sec. Channel 3 output

4 -> 4 within 3 sec. Channel 4 output

Blue

4 for 2 sec. Remote start on/off Green

1 + 4 once Arm with bypass shock sensor

3 + 4 once Manual active ready mode Red

5 -> 1 within 3 sec. Silent arm

5 -> 2 within 3 sec. Silent disarm

5 -> 3 within 3 sec. Silent arm with bypass ext. sensor

5 -> 4 within 3 sec. Timer start on/off

5 -> 5 within 3 sec. Valet mode on/off

5 -> 1 for 2 sec. within 3 sec. No alarm arm mode

5 -> 2 for 2 sec. within 3 sec. Car temperature monitor

5 -> 5 for 2 sec. within 3 sec. Unit Program mode on

Blue

5 for 2 sec. Unit Program mode off Green

Transmitter power on Red

1+4 for 2 sec. (only T35) Transmitter power off Red

5 for 2 sec. (only T35) Transmitter program mode on/off Green

4 -> 5 within 3 sec. (only T35) System status check Blue

While the backlight was turn to on, if without any action on T35 but alarm signal was

received from unit, the Green backlight will turn to on (greenÆblueÆred…….)

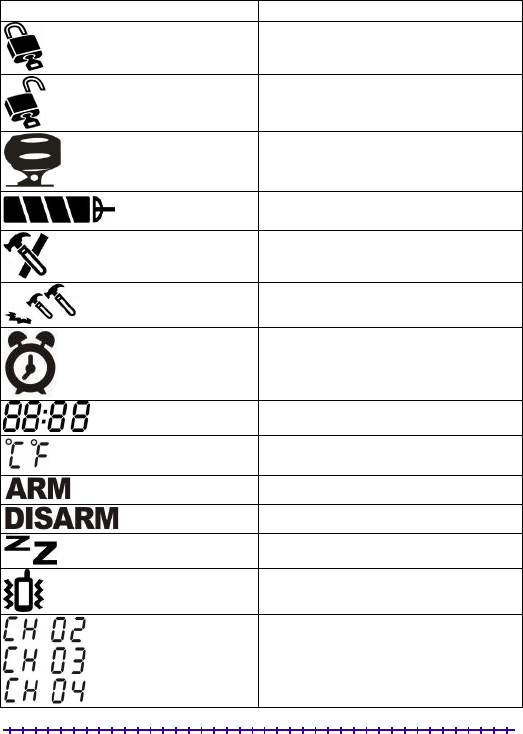

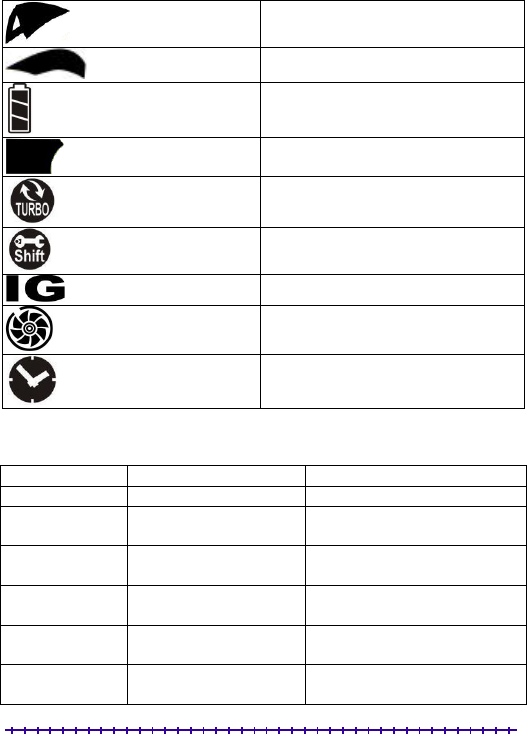

ICON:

ICON Explanation

Indicates that you car is locked

Indicates that you car is unlocked

Indicate that your siren is turned on when

locking /unlocking or alarm

Indicate that your remote-pager is sending

signals to the controller unit

Indicate that the shock sensor is turned off

Indicate that the shock sensor has been

triggered

Indicate alarm clock mode is on

Indication time hour, minute (24Hr)

Vehicle’s interior temperature Celsius /

Fahrenheit units

Indicate your vehicle is in arm mode

Indicate your vehicle is in disarm mode

Indicate if you are in valet mode

Indicate that vibration mode is on

Indicate channel output. (CH2, CH3, CH4…

output function)

Indicate that your trunk is open

Indicate that your hood is open

Display remaining battery life

Indicate that your vehicle door is open

Indicate the turbo mode is on

Indicate function transfer and setting mode

Indicate the ignition key on trigger

Indicate your vehicle is in remote-start mode

Indicate timer start mode is on

TWO WAY TRANSMITTER T35 SETTING FUNCTION

Button Function Setting

Press 5 for 2 sec. Enter Program mode Anytime

Press 5 once Enter time of hour setting Press button 1 for time add

Press button 2 for time reduce

Press 5 once Enter time of minute setting Press button 1 for time add

Press button 2 for time reduce

Press 5 once Temperature’s unit

& setting℃℉

Press button 1 for set ℃

Press button 2 for set ℉

Press 5 once Alarm clock ON/OFF Press button 1 for alarm clock on

Press button 2 for alarm clock off

Press 5 once Enter clock hour setting Press button 1 for time add

Press button 2 for time reduce

Press 5 once Enter clock minute setting Press button 1 for time add

Press button 2 for time reduce

Press 5 once Setting backlight ON/OFF Press button 1 to turn on backlight

Press button 2 to turn off backlight

Press 5 once Vibration motor ON/OFF Press button 1 for vibration on

Press button 2 for vibration off

Press 5 once Arm/disarm siren chirp

ON/OFF

Press button 1 for siren chirp on

Press button 2 for siren chirp off

Press 5 once Setting shock sensor bypass

ON/OFF

Press button 1 for shock bypass on

Press button 2 for shock bypass off

Press 5 once Auto power-off setting Press button 1 for day increase

Press button 2 for day reduce

Press 5 for 2 sec. Exit Program mode Program mode

TWO WAY TRANSMITTER T35 SETTING OPERATION:

Anytime Press 5 for 2 sec., the transmitter will enter program setting mode, then the ICON

of the time clock, alarm clock, shock bypass, temperature unit, siren and vibrate, backlight

LED will begin to flash.

The first setting item is HOUR, using button 1 or button 2 to adjust up and down the

HOUR. After setting the HOUR, Press button 5 once to minute setting, the operation is the

same as HOUR setting. Then the time clock setting is over, press button 5 once will enter

the temperature unit setting, press button 1 set the temperature unit is , press button 2 set ℃

the temperature unit is , After th℉e temperature unit setting, press button 5 once to alarm

clock setting. If the alarm clock is setting ON, then auto entry the time clock setting, the

procedure is the same as time clock setting. After the alarm clock setting, press button 5

once will enter the backlight LED setting; press button 1 to set the backlight LED function

will ON, press button 2 set the backlight LED function will OFF (The backlight LED will

not light when any button be pressed). After the backlight LED setting, press button 5 once

will entry the vibration setting, press button 1 set the vibration function will ON (every

trigger, the transmitter motor will continue running), press button 2 set the vibration

function will OFF (every trigger, the transmitter motor will not running). After the vibration

setting, press button 5 once will entry the sound setting, press button 1 set the sound

function will ON (the unit arm/disarm with chirp), press button 2 set the sound function

will OFF (the unit arm/disarm without chirp). After the sound setting, press button 5 once

will entry the shock bypass setting, press button 1 set the shock bypass function will ON

(the unit arm with shock bypass), press button 2 set the shock bypass function will OFF

(the unit arm without shock bypass), press button 5 once will entry auto power off within

the preset day, press button 1 to increase power-off day or button 2 to reduce power-off day.

(PF:00 means the transmitter has set without auto power-off function, PF:01~PF:09 means

auto power off is 1~9 day).

TAKE TIME SETTING FOR EXAMPLE (FOR T35)

Press 5 for 2 sec. to enter timer-setting mode, press button 1 for time add, press button 2 for

time reduce, press button 5 to choose sub-setting, e.g. clock, hour, minute

In clock setting mode, when clock set with any number but not “0”, the timer setting is

valuable, or else timer setting is invaluable.

THE FUNCTION SETTING FOR USING THE TRANSMITTER (FOR T35)

Ignition OFF, disarming and door open, press and hold button 5 -> 5 for 2 sec. within 3 sec,

the unit will enter function selection mode. If press and hold button5 -> 5 for 2 sec. within 3

sec and don’t enter the function selection mode successfully, T35 will chirp for 5 times to

indicate the failure. At the same time, the Icon will show “FAIL” for 5 sec to indicate the

reason for failure. After the 5 sec, the T35 screen will return to normal status.

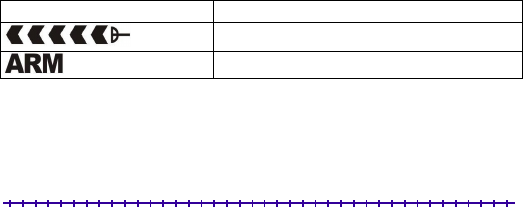

ICON FOR INDICATION OF THE FAILURE AS BELOW:

ICON Explanation

RF communication failed

The unit is not in disarming mode

When both the transmitter of T35 and main unit enter in to the function selection mode

successfully, the siren will chirp 3 times to indicate that the main unit is under function

selection mode. Transmitter T35 also will chirp 3 times to indicate the good condition of

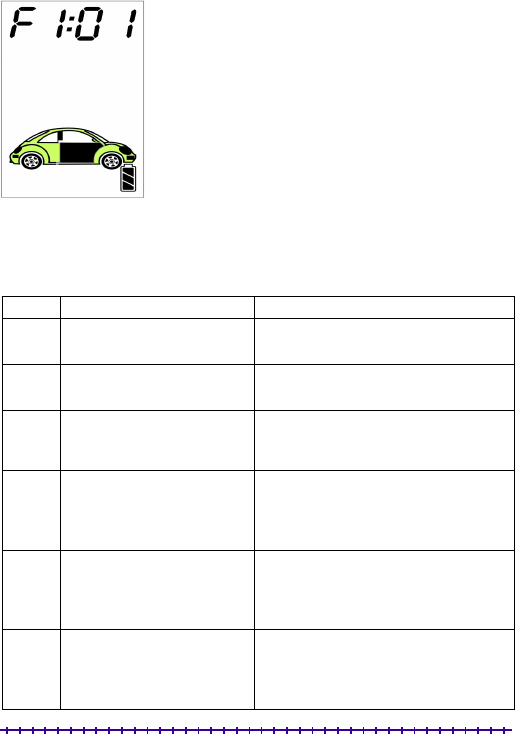

communication. At the same time, the LCD will show as below:

F1：01＂means： already in the menus of the function selection and show the First Status

in the menus 1.

FUNCTION AS BELOW:

Button Functions Indication

1 once Return to the above function

selection page

“F1：13＂ Show the function code if

success , for example: “F1：13＂

2 once Go to the next function selection

page

“F1：02＂ Show the function code if

success , for example: “F1：02＂

3 once

Skip to the menus of the function

selection in next page (can be

circulatory)

“F2：01＂ Show the function code if

success , for example: “F2：01＂

Hold 1

for 2 sec.

Turn the chose function to factory

default and the main unit will

operate this indication

If success, siren chirp once, flash “SUC” for

3 times

If failure, siren chirp twice, flash “FAIL” for

3 times

Hold 2

for 2 sec.

Turn the chose function to the

second setting and the main unit

will operate this indication

If success, siren chirp once, flash “SUC” for

3 times

If failure, siren chirp twice, flash “FAIL” for

3 times

Hold 3

for 2 sec.

Turn the chose function to the

third setting and the main unit

will operate this indication

If success, siren chirp once, flash “SUC” for

3 times

If failure, siren chirp twice, flash “FAIL” for

3 times

Hold 4

for 2 sec.

Turn the chose function to the

Four setting and the main unit

will operate this indication

If success, siren chirp once, flash “SUC” for

3 times

If failure, siren chirp twice, flash “FAIL” for

3 times

Hold

5 for 2

sec.

Exit the function choosing mode

The siren will chirp 4 times to indicate that

the main unit already get out function

selection mode. Transmitter T35 also will

chirp 4 times, flash “SUC” for 3 times to

indicate the goods condition of

communication. At the same time, the LCD

returns to the normal status.

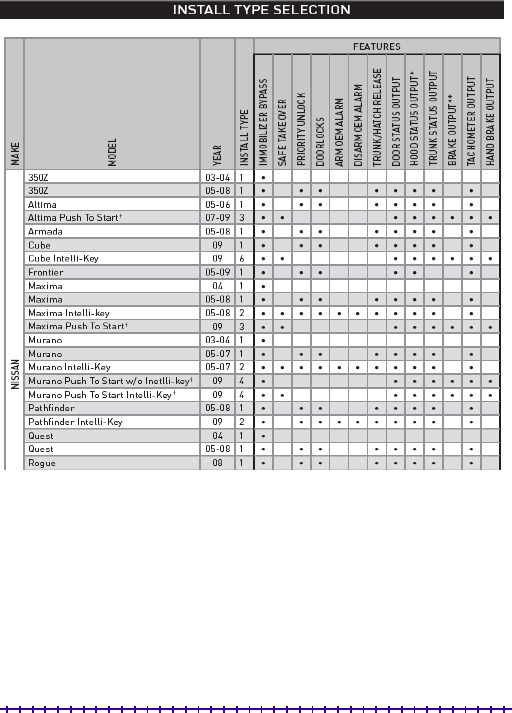

CANBUS FUNCTION

1. ARM IN +: This input wire is normally connected to the vehicle’s CANBUS

interface. The system will enter arming mode when it detected arming signal from

the CANBUS interface.

2. DISARM IN +: This input wire is normally connected to the vehicle’s CANBUS

interface. The system will enter disarming mode when it detected disarming signal

from the CANBUS interface.

3. Hood trigger -: This input wire is normally connected to the vehicle’s CANBUS

interface. The system will alarm in arming mode when it detected hood trigger

signal from the CANBUS interface.

4. Ignition input +: This input wire is normally connected to the vehicle’s CANBUS

interface. If it detected ignition trigger signal from the CANBUS interface, then the

system will alarm in arming mode, and the system will enter driving mode in

disarming mode.

5. Door trigger -: This input wire is normally connected to the vehicle’s CANBUS

interface. The system will alarm in arming mode when it detected door trigger

signal from the CANBUS interface.

6. Trunk trigger -: This input wire is normally connected to the vehicle’s CANBUS

interface. The system will alarm in arming mode when it detected trunk trigger

signal from the CANBUS interface.

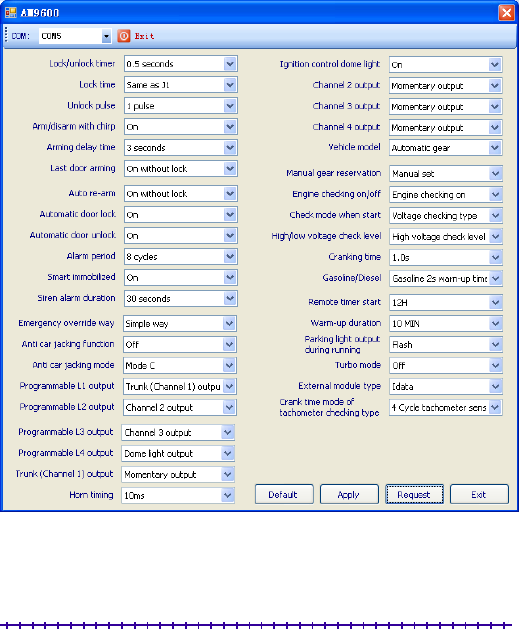

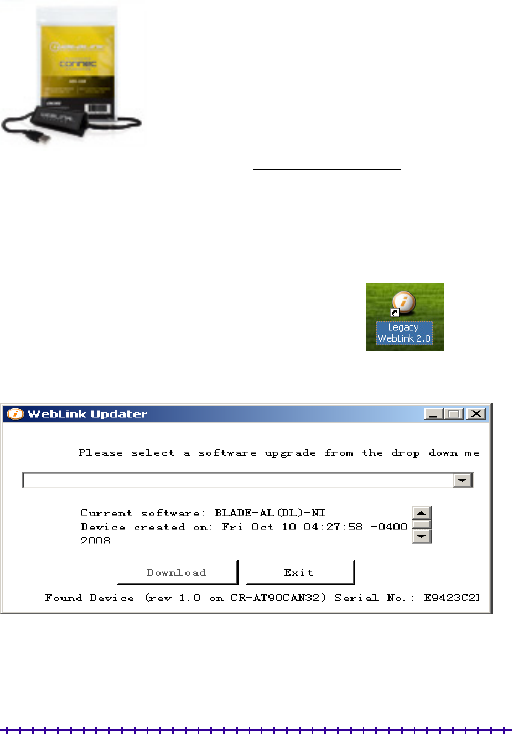

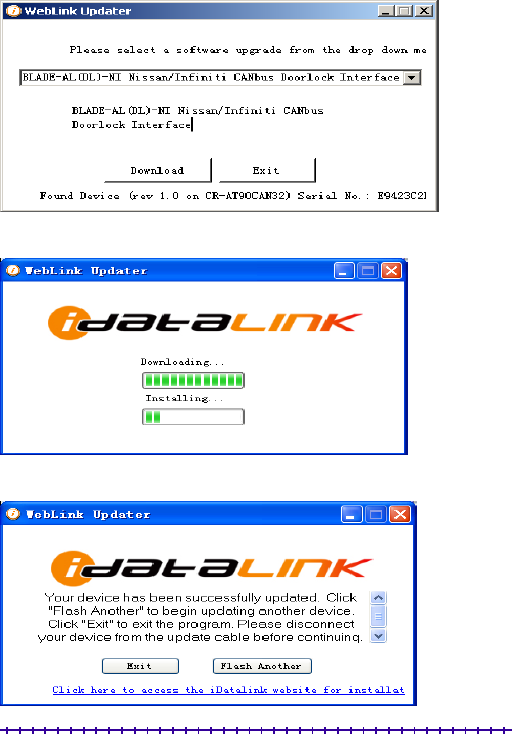

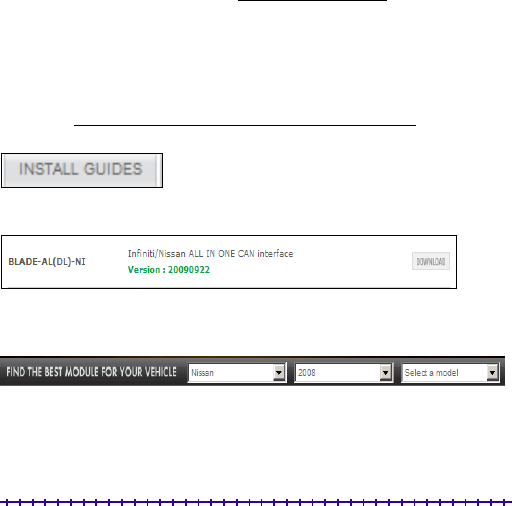

PC SETUP FUNCTION

When unit is in disarming & Door open status, Select the correct COM port number, and

then set the following functions

Default: to use factory default setting

Request: read out the setting in the current page.

Apply: transfer the setting to unit in the current pages.

Exit: exit PC-Setup program.

BASIC CAR ALARM FUNCTION DESCRIPTION

CODE LEARNING

a. When in disarmed mode.

b. Turn ignition ON, press Valet Switch 10 times within 8 seconds, siren will chirp 3

times, system will enter code-learning mode.

c. Press any button on the transmitter, the siren will chirp accordingly for confirmation

as soon as the transmitter is learned. For example, if the first transmitter is learned,

the siren will chirp once. If the second transmitter is learned, the siren will chirp

twice, etc…

d. Up to 3 transmitters can be programmed.

e. If one of the transmitters is programmed, the other transmitters must be

reprogrammed within 8 seconds. Turn ignition OFF or 8 seconds later, system will

exit code- learning mode.

ARMING

a. Press button 1.

b. Siren will chirp once. Parking lights will flash once.

c. Disables engine starter.

d. The doors will be locked after 0.5 seconds or 3.5 seconds. (see function selection J1-

e. Two-way transmitter LCD screen will display arm and lock icon and chirp once.

f. LED will flash slowly

g. After 3 seconds, all the sensors are armed. If the alarm shock sensor is triggered

within 3 seconds, the siren will chirp twice and the circuit will be by-passed. Alarm

will rearm by itself only when the sensor is stable for 2 seconds.

h. If doors, trunk, hood are not closed enter arm, siren will chirp 5 time and the

transmitter LCD screen will display doors, trunk, and hood open icon.

ARMING WITH BYPASSING SHOCK SENSOR

a. Press button 4 and button 1 together once

b. Siren will chirp once then long chirp once and parking light will flash once, the

system is entry in armed mode, all sensors will be bypassed in this arming cycle.

c. Two-way transmitter LCD screen will chirp once and display arm, lock and shock

bypass icon.

SILENT ARMING

a. In disarming state, press button 3 and button 1 once together on T36 or press button 5

once then press button 1 once within 3 seconds.

b. Parking light will flash once.

c. Disables engine starter.

d. Door will be locked at 0.5seconds or 3.5 seconds (See Function Selection J1-1).

e. Two-way transmitter LCD screen will display arm and lock icon.

f. After 3 seconds, all the sensors are armed. If the alarm shock sensor is triggered

within 3 seconds, the siren will chirp twice and the circuit will be by-passed. Alarm

will rearm by itself only when the sensor is stable for 2 seconds.

g. LED will flash slowly.

SILENT ARMING WITH BYPASSING SHOCK SENSOR

a. In disarming state, press and hold button 3 + 1 together for 2 seconds on T36 or press

button 5 once then press button 3 once within 3 seconds.

b. Parking light will flash once, the system is entry in silent armed mode, all sensors

will be bypassed in this arming cycle.

c. Two- way transmitter LCD will display arm and chirp once, lock and shock bypass

icon.

HIDDEN ALARM ARMING (ONLY FOR T35)

a. First press button 5 then press and hold button 1 for 2 seconds within 3 seconds

b. Siren will chirp twice and parking light will flash twice, the system will entry in no

alarm arming mode.

c. In this arming mode, the siren and parking light will not alarm if any sensor will be

triggered, but the system will remain send trigger signal to the transmitter.

ALARM PERIOD AND SOUNDING CYCLE

a. While arming, if any detector is triggered, the siren will sound 30 seconds (max) and

the parking light will flash 30 seconds (max).

b. For any single trigger, the siren will sound one cycle only. (One cycle is: sound 30

seconds and stop 3 seconds.)

c. For the same arming period, and for each single detector, the system can only be

triggered (single trigger) at most 8 times.

d. For each individual detector, the number of sounding cycle can be accumulated in

the same arming period. (E.g. If open the door, and let the siren sound 5 cycles, and

close the door, the siren will stop sound, then if open the door again, it can only

sound 3 cycles.)

e. After 8 cycles, the triggered detector will be bypassed. This detector will not be

triggered again in the same arming period.

f. The system is disarmed; the all the detector is return normal status.

TRANSMITTER DISPLAY REPORT WHEN SYSTEM TRIGGER

a. The system is in arming status.

b. If the shock sensor is warned triggered, the unit will send the information to

transmitter, the transmitter LCD screen will display shock sensor warn trigger icon

and piezo will continue sound.

c. If the shock sensor or ext sensor is fully triggered, the unit will send the information

to transmitter, the transmitter LCD screen will display shock sensor full trigger icon

and piezo will continue sound.

d. If the door is triggered, the unit will send the information to transmitter, the

transmitter LCD screen will display door trigger icon and piezo will continue sound.

e. If ignition has been triggered, the unit will send the information to transmitter, the

transmitter LCD screen will display ignition trigger icon and piezo will sound

continually.

f. If the trunk is triggered, the unit will send the information to transmitter, the

transmitter LCD screen will display trunk trigger icon and piezo will continue sound.

g. If the hood is triggered, the unit will send the information to transmitter, the

transmitter LCD screen will display hood trigger icon and piezo will continue sound.

h. The transmitter alarm display (icon flash and piezo sound) will continuously for 30

seconds (max), within 30 seconds, press button 1 or button 2 will stop alarm.

DISARMING

a. Press button 2.

b. Siren will chirp 3 times, parking lights will flash 3 times. If siren chirps 4 times and

parking lights flash 4 times, which means the alarm has been triggered during arming

state.

c. Press button 3 and button 2 together once on T36 or press button 5 once then press

button 2 once within 3 seconds on T35, the system will silent disarming, only parking

light will flash indication.

d. Doors will be unlocked after 0.5 seconds or 3.5 seconds (see function selection J1-1).

e. If somewhere was triggered, the LED will flash to indicate as following:

Quick flash 2 times after a pause Shock sensor or ext sensor full trigger

Quick flash 3 times after a pause Door trigger

Quick flash 4 times after a pause Trunk trigger

Quick flash 5 times after a pause Hood trigger

Quick flash 6 times after a pause IGN trigger

f. Two-way transmitter LCD screen will display the triggered zone icon and unlock

icon.

g. Dome light will be ON for 30 seconds (if selective dome light output), and will be

OFF when ignition ON.

AUTOMATIC REARMING (SEE FUNCTION SELECTION J1-7)

After disarm, the system will be re-armed automatically or re-arm with door lock after 30

seconds if the ignition does not turn ON or the door is not open.

LAST DOOR ARMING (SEE FUNCTION SELECTION J1-6)

a. Turn ignition ON, then OFF and close the last door. After 30 seconds, the system

will arm automatically or arm with door lock.

b. If one of the doors is opened during the above mentioned 30 seconds periods, system

will postpone enter arming mode till all doors are closed.

SMART IMMOBILIZATION (SEE FUNCTION SELECTION J1-11)

a. When ignition is turned to OFF for 2 min, if the alarm is not armed, the engine will

be cut automatically and cannot be restarted. LED will be ON for 0.5 seconds and

then OFF for 3 seconds, and circle.

b. Exit auto-immobilization mode: when ignition OFF, press button 2 once, Or please

perform OVERRIDE PROCEDURE.

2-STAGE SENSOR

a. If car receives a light shock, siren will chirp five times and parking lights will flash

once for warning purpose.

b. If car receives a heavy signal, siren will sound and parking lights will flash for 30

seconds immediately.

DOOR LOCK CONTROL (WHILE DRIVING)

a. Press button 1 to lock doors. The doors can be locked.

b. Press button 2 to unlock doors. The doors can be unlocked.

AUTOMATIC DOOR LOCK (SEE FUNCTION SELECTION J1-8)

When the system is disarming and the ignition turn from OFF to ON, door will lock after

15 seconds or door will lock with footbrake is press first.

AUTOMATIC DOOR UNLOCK (SEE FUNCTION SELECTION J1-9)

When the ignition turns from ON to OFF, doors will automatically unlock.

SECOND UNLOCK (SEE FUNCTION SELECTION J2-4)

If the system is selection second unlock on, press and hold button 2 for 2 seconds, the

second unlock will output 300mA negative signal.

OPEN TRUNK (CHANNEL 1 OUTPUT) (SEE FUNCTION SELECTION J2-3

/J2-8)

a. Anytime, press and hold button 3 for 2 seconds will to open trunk (channel 1 output)

(with 300mA negative output).

b. The two-way transmitter LCD screen will display channel 1 output icon.

c. If the system is in arming at this time, the trunk trigger, ext sensor is by-pass till the

channel output off. After 4 seconds, the system is in arm mode again.

CHANNEL 2 OUTPUT (SEE FUNCTION SELECTION J2-4 /J2-11)

a. Anytime, first press button 4 once then press button 2 once within 3 seconds will to

remote channel 2 output (with 300mA negative output).

b. The two-way transmitter LCD screen will display channel 2 output icon.

c. If the system is in arming at this time, the trunk trigger, ext sensor is by-pass till the

channel output off. After 4 seconds, the system is in arm mode again.

CHANNEL 3 OUTPUT (SEE FUNCTION SELECTION J2-5 /J2-12)

a. Anytime, first press button 4 once then press button 3 once within 3 seconds will to

remote channel 3output (with 300mA negative output).

b. The two-way transmitter LCD screen will display channel 3 output icon.

c. If the system is in arming at this time, the trunk trigger, ext sensor is by-pass till the

channel output off. After 4 seconds, the system is in arm mode again.

CHANNEL 4 OUTPUT (SEE FUNCTION SELECTION J2-6 / J2-13)

a. Anytime, first press button 4 once then press button 4 once within 3 seconds will to

remote channel 4 output (with 300mA negative output).

b. The two-way transmitter LCD screen will display channel 4 output icon.

c. If the system is in arming at this time, the trunk trigger, ext sensor is by-pass till the

channel output off. After 4 seconds, the system is in arm mode again.

PANIC MODE

a. Anytime press and hold button 1 for 2 seconds. The siren will sound and parking

lights will flash for 30 seconds

b. The two-way transmitter LCD screen will display siren icon and sound.

c. Press button 1or 2 to stop the panic.

CAR FINDER

a. The system is armed.

b. Press button 1: siren will chirp 6 times, the parking lights will flash 12 times. At the

same time, the door will lock.

c. Press button 2 to stop car finder and disarm.

SYSTEM’S STATUS CHECK

Anytime press button 4 once then press button 5 once within 3 seconds, the system’s

present status and current temperature will be shown on two-way transmitter LCD screen

for five seconds.

POWER ON MEMORY

This security system is equipped with circuitry that will allow the unit to remember its

alarm status if the power is lost and then reconnected.

VALET MODE

a. The system is disarming, turn ignition ON, within 8 seconds press and hold valet

switch 3 seconds for once or press button 2+4 once together on T36 or press button

5 twice within 3 seconds on T35.

b. LED will be constantly ON, the parking light will flash once.

c. The two-way transmitter LCD screen will display valet mode icon, which indicates

that system enters valet mode.

d. In VALET mode, siren will chirp once and parking lights will flash once when lock

the door, and siren will chirp twice and parking lights will flash twice when unlock

the door.

e. In Valet mode, there is no arm and trigger alarm function, and it cannot enter smart

immobilization and anti car jacking.

f. Leave valet mode: press button 2+4 once together on T36 or press button 5 twice

within 3 seconds on T35.

g. LED will be OFF, and the parking light will flash twice which indicates that system

exit valet mode.

ANTI CAR JACKING (SEE FUNCTION SELECTION J2-1, 2)

The system provides 3 ways to enter anti-car jacking mode.

For MODE A, there are three ways to enter anti carjacking:

a. When ignition ON, first press transmitter button 4 once then press button 1 once

within 3 seconds to activate the anti carjacking.

b. When ignition ON, after the door is opened, the system will enter anti carjacking.

Within 10 seconds, pressing button 1 once of the transmitter will bypass the action

of opening the door, and the system will exit anti carjacking mode. And the parking

will flash once and siren will chirp once. Or perform Emergency disarming to exit

the anti car jacking mode, that is to say, Within 71 seconds press and hold valet

switch once for one second to exit anti jacking mode.

c. After turning ignition ON, the system will enter anti carjacking mode at once.

Within 10 seconds, pressing button 1 once of the transmitter will bypass the action

of turning ignition ON, and the system will exit anti carjacking mode. And the

parking will flash once and siren will chirp once. Or perform Emergency

disarming to exit the anti car jacking mode, that is to say, Within 71 seconds

press and hold valet switch once for one second to exit anti jacking mode.

For MODE B, there are two ways to enter anti carjacking:

The above b and a ways are available for mode B.

For MODE C, there is one way to enter anti carjacking:

The above a way is available for mode C.

WHEN THE SYSTEM ENTERS ANTI CARJACKING MODE

a. From the beginning to 15 seconds, nothing happen.

b. From 16 to 30 seconds, the LED will blink slowly.

c. From 31 to 45 seconds, the LED will blink fast and the siren will chirp once per 2

seconds.

d. Form 46 to 70 seconds, the LED will blink fast and the siren will chirp once per

seconds.

e. After 71 seconds, the siren will sound and the parking light will flash continuously.

The arming wire will output negative 300mA current.

f. After turn ignition OFF, the siren will sound and the parking lights will flash for 3

minutes before they stop.

g. Turn ignition ON again without exiting anti carjacking mode, the siren will sound

and the parking lights will flash continuously again.

TO EXIT: perform Emergency disarming to exit the antijacking

Note: when system entered anti car jacking, the transmitter cannot control the unit.

Emergency disarming (See Function Selection J1-13)

Please refer to its instruction for emergency disarm the system as following:

1. SIMPLE WAY：

Please turn ignition ON, press and hold valet switch once for 1 second. Siren will chirp

4 times and the parking lights will flash 4 times, which indicates that the system is

disarmed.

2. 2ND WAY:

Please refer 2-pin code override procedure:

2-PIN CODE OVERRIDE PROCEDURE:

a. Turn ignition ON, press valet switch 5 times within 8 seconds.

b. After 8 seconds, the LED should stay ON solid for 5 seconds, after the 5 seconds

LED begins to flash.

c. When the LED flashes the 1st number of the 2-pin code, turn ignition OFF. Then

turn back ON to wait for LED to flash the 2nd number of the 2-pin code. When the

LED flashes the2nd number of the 2-pin code, turn ignition OFF When complete,

siren will sound 4 times and the parking lights will flash 4 times to indicate system

override, which indicates that the system is disarmed.

d. If LED flashes over 12 times, it means the program exits override procedure.

e. If failed the override procedure, will need to turn off the ignition and return to step a.

PROGRAM PERSONAL 2 PIN CODE (FACTORY DEFAULT SETTING 1,2)

Pin code program procedure: (system disarmed)

a. Turn ignition ON, press valet switch 5 times within 8 seconds.

b. After 8seconds, the LED should stay ON solid for 5 seconds, after the 5 seconds

LED begins to flash.

c. To change the factory pin code setting. Turn ignition OFF after the LED flashes the

1st pin code. Then turn ignition back ON to wait for LED to flash the 2nd pin code.

When the LED flashes the2nd number of the 2-pin code, Turn ignition OFF, If the pin

code recognition failed, the system will exit pin code setting automatically.

d. Then turn ignition ON, and set the pin code as the LED flashes your selected 1st pin,

then turn ignition OFF. Siren will sound with number of times to indicate new pin

code for the system. Follow the same method for the 2nd pin code. The new 2-pin

code will be recorded in EEPRON IC when completed.

NOTE: If the 2nd pin code setting is incorrect then the system will default pin code setting.

The PIN code should within 1~9, 0 is not acceptable, wrongly input will exit the mode.

REMOTE ENGINE START FUNCTION DESCRIPTION

RPM LEARNING (SEE FUNCTION SELECTION J3-4)

a. When the system is disarming and ignition ON, press valet switch 6 times within 10

seconds, the parking lights will flash twice to indicate that system has entered the

RPM learning mode.

b. Start the engine, when the RPM level is stabilized, press and hold valet switch till the

parking lights will flash twice and the siren will chirp twice, which indicates the

RPM value has been memorized successfully.

NOTE: The unit remote start defaults check mode is Voltage mode; before the system entry

the RPM learning mode, user must connect the vehicle RPM wire to the unit and function

selection must select the start check mode is RPM mode.

TURBO MODE (SEE FUNCTION SELECTION J3-11)

a. The turbo mode is used for protect the engine.

b. Before the ignition is turned from ON to OFF (ignition must be ON more than 10

seconds), the engine will not shutdown immediately, but continue remain running for

3 minutes.

c. The engine will stop running immediately if step foot brake or release hand brake.

Reservation procedure for manual gear car (See Function Selection J3-1, J3-2)

a. If the car is the manual gear car, the unit must to perform the reservation procedure

before the remote engine start, the reservation procedure has two setting mode

selection.

b. The manual setting mode operation is following:

c. When the engine running, before you turn ignition OFF to stop the engine, pulls up

the hand brake, release the foot brake.

d. Gear keeps in Empty position.

e. Press button 3+4 once together.

f. Turn ignition OFF, the engine will still remain running for 2 minutes. Within 2

minutes, open and close the door, the parking light will flash twice indicate that the

reservation procedure is successful.

g. In auto pre-set setting mode, when the engine running, Engine will automatically

running 2 minutes after ignition off as reservation. Within 2 minutes, open and close

the door, the parking light will flash twice indicate that the reservation procedure is

successful.

h. If reservation produce is failed, or within 2 minutes no any action, the parking light

will flash four times indication, then you must perform the step again.

i. Turn ignition ON, or open the hood, or press the foot brake, or pull down the hand

brake will cause the unit to exit the reservation mode.

REMOTE START OPERATION

Remote start activation: The following inputs will activate the Remote Start sequence and if

a successful start enters the ‘RUN’ mode.

Transmitter activation: the transmitter button 4 is press and hold 2 seconds when the

ignition is OFF.

REMOTE START ‘RUN’ MODE: The ‘RUN’ mode begins when the unit has

recognized a successful start.

a. RUN time: The unit will keep the engine running for a maximum of 10 minutes (5,

20,30min option) from the time of a successful start. The same time, the two-way

transmitter LCD screen will display running time and countdown running time.

b. The unit will exit the ‘RUN’ mode less than 10 minutes (5, 20,30min option) from

the time of a successful start ONLY by Remote start de-activation input.

EXIT REMOTE START: The following inputs & operations will cause the unit to exit

the ‘RUN’ mode and will not attempt to start again until the unit receives a remote start

activation input.

(if reservation procedure is successful, then if user: 1 pull down the handbrake; 2 press the

foot brake; 3 open the hood, the reservation procedure will canceled when remote start.)

a. Transmitter de-activation: the Transmitter button 4 is press and hold 2 seconds of

each other

b. The unit has reached the end of the 10 minute ‘RUN’ time (5, 20,30min option).

c. The unit detects a RPM signal at 8 times the programmed value (if RPM detect

mode).

d. Voltage input: in voltage mode the unit detects the voltage is drop 1.0V for more

than 5 consecutively seconds during ‘RUN’ time (if voltage detect mode).

e. Unsuccessful start attempts: Three consecutively unsuccessful start attempts.

TIMER START MODE OPERATION

a. Timer mode activation: Anytime, press and hold button 3+4 together for 2 seconds

on T36 or press button 5 once then press button 4 once within 3 seconds on T35.

b. The parking lights will flash 4 times as confirmation of activating ‘Timer mode’.

c. Timer mode start interval: The operator has the option to have the unit start every 12

or 1or 3 or 6 hours. Factory default is 12 Hour intervals. To select 12 or 1or 3 or 6

hour automatic start timer in feature programmable.

d. When timer modes start successful, the two-way transmitter LCD screen will display

the “time”. NOTE1: This feature cannot be activated when the ignition is ON or the

unit is in the ‘RUN’ mode.

NOTE2: 3 Unsuccessful starts attempts will count as 1 successful start. The unit will

attempt to start again at the next Timer mode start interval.

EXIT TIMER MODE: The following inputs & operations will cause the unit to exit the

‘TIMER’ mode.

a. Press and hold button 3+4 together for 2 seconds on T36 or press button 5 once then

press button 4 once within 3 seconds on T35.

b. (+) Input on the foot brake input wire

c. (-) Input on the hand brake input wire

d. (-) Input on the hood pin wire

e. The ignition is ON while the unit is NOT in the ‘RUN’ mode.

f. The unit has called the Remote Start activation option additional times.

g. ‘RUN’ mode is exited due to RPM signal 8 times programmed value (if RPM detect

mode).

DIAGNOSTICS MODE

When the engine stop running. Than the parking light will flash “N” times indicate the

reason for shutdown.

The indications are as follows:

1Flash 10(5, 20, 30) min run timer expired or transmitter activation input.

2Flashes Low or No RPM signal received.

3Flashes hand brake input shut down.

4Flashes foot brake or open hood input shut down.

5Flashes High RPM signal over speed shut down

6Flashes RPM has not learned.

7Flashes voltage not raised or voltage has drop

8Flashes manual gear car not perform the reservation procedure

RETURN TO FUNCTION FACTORY DEFAULT SETTING

a. In disarming status, turn Ignition OFF to ON 4 times, and ignition will stay in on

position.

b. Press valet switch 12 times then press once again and hold it until 6 chirps with a

long chirp is hearing then release the valet switch.

c. The all-programmable feature returns to factory default setting.

FUNCTION SELECTION

a. The function selection is programmable. Please follow the procedure.

b. In disarming status, turn ignition on (must 5 seconds longer after last ignition off).

c. Within 8 seconds, press valet switch 3 times, then press once again and hold it for 3

seconds. System will chirp once to indicate entering function menu 1 selection, if

not releasing the valet switch and hold on for 6 seconds, system will chirp twice to

indicate entering function menu 2 selection, if still hold on for 9 seconds, system

will chirp three times to indicate entering function menu 3 selection.

d. After entering manuals, presses Valet Switch to select the function to be changed

within 20 seconds, system will chirp each time when Valet Switch is pressed and

released.

e. When reach the times of selected function, press button 1 once or button 2 once or

button 3 once or hold button 4 for 2 seconds (or press button 2 once to select

variable value 1, press button 2 once again to select variable value 2, press button 2

once again to select variable value 3) of the remote control to select. The siren will

chirp once when button 1 confirms the factory value, the siren will chirp twice when

button 2 is the optional variable value 2. The siren will chirp three times when

button 3 confirms the optional variable value 3, the siren will chirp four times when

button 4 for 2 seconds confirms the optional variable value 4.

f. When exceed 20 seconds or turn ignition off, system will have a long beep and leave

function selection mode.

FEATURE MENU 1:

Function selection Pre set value

(1 chirp)

Variable 1

set-up

(2 chirps)

Variable 2

set-up

(3 chirps)

Variable 3

set-up

(4 chirps)

J1-1 Lock/unlock timer 0.5 seconds 3.5 seconds

J1-2 Lock time Same as J1 15 seconds 30 seconds

J1-3 Unlock pulse 1 pulse 2 pulse

J1-4 Arm/disarm with chirp On Off

J1-5 Arming delay time 3 seconds 30 seconds

J1-6 Last door arming On, without

lock Off On with

lock

J1-7 Auto re-arm On, without

lock Off On with

lock

J1-8 Automatic door lock On Off Lock with

footbrake

J1-9 Automatic door unlock On Off

J1-10 Alarm period 8 cycles No limit

J1-11 Smart immobilized On Off

J1-12 Siren alarm duration 30 seconds 60 seconds

J1-13 Emergency override

way Simple way 2 pin code

way

J1-14 Default setting On

FEATURE MENU 2:

Function selection Pre set value

(1 chirp)

Variable 1

set-up

(2 chirps)

Variable 2

set-up

(3 chirps)

Variable 3 set-up

(4 chirps)

J2-1 Anti car jacking

function Off On

J2-2 Anti car jacking

mode Mode C Mode B Mode A

J2-3 Programmable L1

output

Trunk (Channel

1) output

CH1

output and

disarm

Output

pulse after

start

Output pulse

during crank

J2-4 Programmable L2

output

Channel 2

output

Second

unlock

output

CH2

output and

disarm

Output pulse

before start

J2-5 Programmable L3

output

Channel 3

output

Horn

output

CH3

output and

disarm

Output pulse after

shutdown

J2-6 Programmable L4

output

Dome light

output

Channel 4

output

CH4

output and

disarm

Remote start status

output

J2-8 Trunk (Channel 1)

output

Momentary

output

Latched

output

Latched

output and

reset with

ignition

30 seconds timed

J2-9 Horn timing 10ms 50ms 20ms 30ms

J2-10 Ignition control

dome light On Off

J2-11 Channel 2 output Momentary

output

Latched

output

Latched

output and

reset with

ignition

30 seconds timed

J2-12 Channel 3 output Momentary

output

Latched

output

Latched

output and

reset with

ignition

30 seconds timed

J2-13 Channel 4 output Momentary

output

Latched

output

Latched

output and

reset with

ignition

30 seconds timed

J2-14 Default setting On

FEATURE MENU 3:

Function selection Pre set value

(1 chirp)

Variable 1 set-

up (2 chirps)

Variable

2 set-up

(3 chirps)

Variable

3 set-up

(4 chirps)

J3-1 Vehicle model Automatic gear Manual gear

J3-2 Manual gear reservation

setting Manual set Auto pre-set

J3-3 Engine checking on/off Engine checking

Engine

checking off

J3-4 Check mode when start Voltage checking

type

Tachometer

checking type

J3-5 High/low voltage check

level

High voltage

check level

Low voltage

check level

J3-6 Cranking time 1.0s 0.6s 0.8s 2.0s

J3-7 Gasoline/Diesel Gasoline 2s warn-

up timer

Diesel 15s

warn-up timer

Diesel

30s

warn-up

timer

Diesel

45s

warn-up

timer

J3-8 Remote timer start 12H 1H 3H 6H

J3-9 Warm-up duration 10 MIN 5MIN 20MIN 30MIN

J3-10 Parking light output

during running Flash Steady on

J3-11 Turbo mode Off On

J3-12 External module type Idata Fortin GP300

J3-13

Crank time mode of

tachometer checking

type

4 Cycle

tachometer sensing

Smart

tachometer

sensing

2 Cycle

tachome

ter

sensing

J3-14 Default setting On

FEATURE MENU 1 EXPLANATION:

J1-1. LOCK/UNLOCK TIMER

Pre-set: After press arm/disarm, the door is locked/unlocked output 0.5 seconds.

Variable1: After press arm/disarm, the door is locked/unlocked output 3.5 seconds.

J1-2. LOCK TIMER

Pre-set: same as J1.

Variable 1: After press arm the door is locked output 15 seconds.

Variable 2: After press arm the door is locked output 30 seconds.

J1-3. UNLOCK PULSE

Pre-set: After presses disarm the door is unlocked output one pulse.

Variable 1: After presses disarm the door is unlocked output two pulse.

J1-4. ARM/DISARM WITH CHIRP

Pre-set: Arm/Disarm will have chirp indication.

Variable 1: Arm/Disarm will not have chirp indication.

J1-5. ARMING DELAY TIME

Pre-set: delay 3s.

Variable 1: delay 30s.

J1-6. LAST DOOR ARMING

Pre-set: Turn ignition ON to OFF and close the last door. After 30seconds, the system will

arm itself without lock.

Variable1: Delete this feature.

Variable2: Turn ignition ON to OFF and close the last door. After 30seconds, the system

will arm itself with lock.

J1-7. AUTO RE-ARM

Pre-set: The system is disarming without ignition ON or open the door. After 30seconds,

the system will arm itself without lock.

Variable1: Delete this feature.

Variable2: The system is disarming without ignition ON or open the door. After 30seconds,

the system will arm itself with lock.

J1-8.AUTOMATIC DOOR LOCK

Pre-set: When the ignition turns from OFF to ON, doors will lock after 15 seconds.

Variable1: When the ignition turns from OFF to ON, door will not lock.

Variable2: When the ignition turns from OFF to ON, door will lock with press the

footbrake first.

J1-9.AUTOMATIC DOOR UNLOCK

Pre-set: When the ignition turns from ON to OFF, doors will unlock immediately.

Variable1: When the ignition turns from ON to OFF, door will not unlock.

J1-10.ALARM PERIOD

Pre-set: the system can only be triggered at most 8 times.

Variable1: the system’s triggered times is no limited.

J1-11.SMART IMMOBILIZE

Pre-set: this feature exists.

Variable 1: Delete this feature

J1-12. SIREN ALARM DURATION TIME

Pre-set: the system is triggered; the siren and parking light will alarm 30 seconds.

Variable 1: the system is triggered; the siren and parking light will alarm 60 seconds.

J1-13. EMERGENCY OVERRIDE WAY

Pre-set: simple way.

Variable 1: 2 pin code way

J1-14. DEFAULT SETTING

Pre-set: Return the feature menu 1 to the factory set-up.

FEATURE MENU 2 EXPLANATION:

J2-1. ANTI CAR-HIJACKING

Pre-set: Delete anti car-hijacking feature.

Variable 1: Follow procedure to enter anti car-hijacking mode.

J2-2. ANTI CAR-HIJACKING MODE SELECT

Pre-set: entry anti car-hijacking way is mode C.

Variable 1: entry anti car-hijacking way is mode B.

Variable 2: entry anti car-hijacking way is mode A.

J2-3.PROGRAMABLE L1 OUTPUT SELECT

Pre-set: Trunk (channel 1) output.

Variable1: Trunk (channel 1) output and disarming

Variable2: output pulse after start. The wire will provide a 1 seconds -300mA pulsed

ground output after the vehicle is started under control of the remote start unit. Typically

this wire will be used to re-lock the vehicle doors if the doors unlock automatically when

the factory anti-theft system is disarmed.

Variable 3: output pulse during crank. The wire will provide a -300mA ground output while

the starter output of the remote start unit is active. This output can be used to activate the

Crank Low/Bulb Test wire found in some GM vehicles. This wire is also referred to as the

ECM wake up wire in some Chrysler vehicles.

J2-4. PROGRAMMABLE L2 OUTPUT SELECT

Pre-set: channel 2 output.

Variable1: seconds unlock output.

Variable2: channel 2 output and disarming

Variable 3: output pulse before start. The wire will provide a 1 seconds -300mA pulsed

ground output 1.5 seconds before the remote start unit activates as well as when the

transmitter is used to unlock the system to prevent false triggering of the factory alarm

when the remote start unit engages or when the system is used to unlock the doors.

J2-5. PROGRAMMABLE L3 OUTPUT SELECT

Pre-set: channel 3 output.

Variable1: horn output.

Note: horn output honk time is by J2-9 feature selection. Alarm output is on 10ms, off

200ms.

Variable2: channel 3 output and disarming

Variable 3: output pulse after shutdown. The wire will provide a 1 seconds -300mA pulsed

ground output after the remote start unit shuts down. This output will occur regardless of

whether the circuit times out or is manually terminated. Typically this output will be used

to re-lock/re-arm the vehicle if the doors unlock automatically when the ignition circuit

transitions to off or the factory anti-theft system is disarmed.

J2-6. PROGRAMMABLE L4 OUTPUT SELECT

Pre-set: dome light output: when the system is alarming, the dome light ON as parking light.

When disarm, dome light will ON until ignition ON (max 30 seconds).

Variable1: channel 4 output.

Variable2: channel 4 output and disarm

Variable 3: status continuant output when remote start.

J2-8. TRUNK (CHANNEL 1) OUTPUT MODE SELECT

Pre-set: Momentary output: Anytime, press button 3 for 2sec. the CH1 will output-300mA

constantly. Until the button 3 of transmitter are released.

Variable1: Latched output: this selection will output a –300mA signal from the channel 1

output as soon as the channel 1 button is pressed and will continue until the button is

pressed again.

Variable2: Latched output/reset with ignition ON: this selection will output a –300mA

signal from the channel 1 output as soon as the channel 1 button is pressed but will reset or

stop when the ignition is turned ON.

Variable3: 30 seconds output: this selection will continue output a 30 seconds –300mA

signal from the channel 1 output as soon as the channel 1 button is pressed.

J2-9.HORN TIMING SETTING

Pre-set: If setting horn output, when the system is arm/disarm with horn honk, the horn

honk default timing is 10ms.

Variable1: the horn honk timing is 50ms.

Variable2: the horn honk timing is 20ms.

Variable3: the horn honk timing is 30ms.

J2-10. IGNITION CONTROL DOME LIGHT

Pre-set: the dome light will off when ignition turn from off to on position, the dome light

will illume (max: 30s) when ignition turn from on to off position.

Variable 1: the dome light will not illume when ignition turn from on to off position.

J2-11. CHANNEL 2 OUTPUT MODE SELECT

Pre-set: Momentary output: Anytime, within 3 seconds press button 4 once then press

button 2 once, CH2 will output-300 mA.

Variable1: Latched output: this selection will output a –300mA signal from the channel 2

output as soon as the channel 2 button is pressed and will continue until the button is

pressed again.

Variable2: Latched output/reset with ignition ON: this selection will output a –300mA

signal from the channel 2 output as soon as the channel 2 button is pressed but will reset or

stop when the ignition is turned ON.

Variable3: 30 seconds output: this selection will continue output a 30 seconds –300mA

signal from the channel 2 output as soon as the channel 2 button is pressed.

J2-12. CHANNEL 3 OUTPUT MODE SELECT

Pre-set: Momentary output: Anytime, within 3 seconds press button 4 once then press

button 3 once, CH3 will output-300 mA

Variable1: Latched output: this selection will output a –300mA signal from the channel 3

output as soon as the channel 3 button is pressed and will continue until the button is

pressed again.

Variable2: Latched output/reset with ignition ON: this selection will output a –300mA

signal from the channel 3 output as soon as the channel 3 button is pressed but will reset or

stop when the ignition is turned ON.

Variable3: 30 seconds output: this selection will continue output a 30 seconds –300mA

signal from the channel 3 output as soon as the channel 3 button is pressed.

J2-13.CHANNEL 4-OUTPUT MODE SELECT

Pre-set: Momentary output: Anytime, within 3 seconds press button 4 once then press

button 4, CH4 will output -300 Ma.

Variable1: Latched output: this selection will output a –300mA signal from the channel 4

output as soon as the channel 4 button is pressed and will continue until the button is

pressed again.

Variable2: Latched output/reset with ignition ON: this selection will output a –300mA

signal from the channel 4 output as soon as the channel 4 button is pressed but will reset or

stop when the ignition is turned ON.

Variable3: 30 seconds output: this selection will continue output a 30 seconds –300mA

signal from the channel 4 output as soon as the channel 4 button is pressed.

J2-14. DEFAULT SETTING

Pre-set: Return the feature menu 2 to the factory set-up.

FEATURE MENU 3 EXPLANATION:

J3-1. VEHICLE MODE

Pre-set: Automatic gear car: Without ‘ready mode’, remote start directly

Variable1: Manual gear car: The ‘ready mode’ routine has been completed successfully

system can remote start

J3-2. MANUAL GEAR CAR RESERVATION SETTING MODE

Pre-set: Manual setting: When the engine running, press button 3+4 once to routine ‘ready

mode’

Variable1: Auto pre-set setting: When the engine running exceed 10 seconds, ignition OFF

will automatically routine ‘ready mode’

J3-3. ENGINE CHECK SELECTION WHEN REMOTE START

Pre-set: Engine check ON: remote start successfully, to detect voltage rise or RPM signal.

(if voltage rise or RPM signal is interrupted suddenly, the unit will start two times).

Variable 1: Engine check OFF: remote start successfully, to detect voltage rise or RPM

signal. (if voltage rise or RPM signal is interrupted suddenly, the unit will not start).

J3-4. CHECK MODE WHEN START

Pre-set: Voltage checking type.

Variable 1: RPM checking type.

J3-5. VOLTAGE CHECK LEVEL

Pre-set: High voltage checks level.

Variable 1: Low voltage checks level.

J3-6. CRANK TIME SELECTION

Pre-set: 1 second.

Variable1: 0.6 seconds.

Variable2: 0.8 second.

Variable3: 2 seconds.

J3-7. GASOLINE ENGINE/DIESEL ENGINE

Pre-set: Gasoline engine without wait-to-start light 2 seconds warm-up timer.

Variable1: Diesel engine without wait-to-start light 15 seconds warm-up timer.

Variable2: Diesel engine without wait-to-start light 30 seconds warm -up timer.

Variable3: Diesel engine without wait-to-start light 45 seconds warm -up timer.

J3-8. TIMER REMOTE START

Pre-set: interval time is 12 hours in timer remote start.

Variable1: interval time is 1 hour in timer remote start.

Variable2: interval time is 3 hours in timer remote start.

Variable3: interval time is 6 hours in timer remote start.

J3-9.REMOTE START WARM-UP DURATION

Pre-set: 10 minutes.

Variable1: 5 minutes.

Variable2: 20 minutes.

Variable3: 30 minutes.

J3-10.PARKING LING OUTPUT DURING RUNNING MODE

Pre-set: keeping flash during running mode.

Variable1: keeping steady on during running mode.

J3-11. TURBO MODE

Pre-set: Turbo mode selection off.

Variable 1: Turbo mode selection on.

J3-12. EXTERNAL MODULE TYPE

Pre-set: I data link mode

Variable 1: Fortin mode;

Variable 2: GP300

J3-13. CRANK TIME MODE OF TACHOMETER CHECKING TYPE

Pre-set: the engine remote start detect tachometer signal is 4-cycle pulse of tachometer.

Variable 1: the engine remote start detect tachometer signal is alterable by tachometer pulse

frequency.

Variable 2: the engine remote start detect tachometer signal is 2-cycle pulse of tachometer.

J3-14. DEFAULT SETTING

Pre-set: Return the feature menu 3 to the factory set-up.

PHYSICAL PARAMETERS

Enclosure dimensions 122*77*22mm

Weight 120g

ELECTRICAL

DC Supply voltage 12V

DC Tolerance voltage 9V~16V

Current (With RF) ＜17mA

Current (Without RF) ＜10mA

RF PARAMETERS – T35

Frequency 910~918.4mHz

Battery life Half a year

TX range (with RX12) 1000Meter

Static current ＜10uA

INSTALLATION GUIDE FOR IDATALINK CONNECTED WITH AM9600

IDATALINK module (ADS-BLADE AL or ADS-BLADE TB) can be selected to work

with AM9600 optional, the IDATALINK module can be used for bypass IMMOBILIZER

SYSTEM for vehicle, and it can read RPM/DOOR/HAND BRAKE/FOOT BRAKE etc

status, the IDATALINK module can remote control arm/disarm OEM alarm, it’s valuable

for saving vehicle installation time.

The read out status is different for different IDATALINK module match with different

vehicle, detailed information please login http://www.idatalink.com/ and read relevant

content.

Download installation manual (example for Nissan vehicle)

1. Login http://store.idatalink.com/index.php?l=product_detail&p=70

2. Select

3. Download

then save it.

Note: quickly to find relative user guide in homepage:

Download IDATALINK explanation:

To download IDATALINK program and buy “ADS-USB” as below picture:

1. download Weblink Updater software: http://www.idatalink.com/, select SUPPORT

──＞then click Weblink plug-in 4.1 to download the software.

2. Install Weblink plug-in 4.1 program

3. While the program has installed, then insert ADS-BLADE AL into AM9600, and

make sure the connection is good. Then connect AM9600 (IDATA UPGRADE

PORT) to PC through ”ADS-USB” (AM9600 do not need power supply)

4. to start “ADS Plug in 4.1” in start menu────Æselect to quickly

search module, while the module has searched out, the below interface will jump out:

Select “BLADE-AL(DL)-NI Nissan/Infiniti CANbus Doorlock Interface” (keeping internet

connection is good)

Then Download

While download has finished, click “EXIT”

Installation guide:

Please refer the installation manual, such as the above picture

For example: model Maxima lntelli-key in the year of 05~08, the previous DOWNLOAD

software can be matched with the vehicle and IMMOBILIZER BYPASS/ARM(DISARM)

OEM ALARM/DOOR/HOOR/RPM function are supposed. To realize the function, please

refer the relevant installation guide and wire connection according to TYPE2

(CARTRIDGE CONNECTOR), the following wires which belong AM9600 must be

connect:

* ANT/LED/SWITCH need to connect with AM9600. The other wires connection

according to user requirements, the operation and explanation refer to the manual of

AM9600.

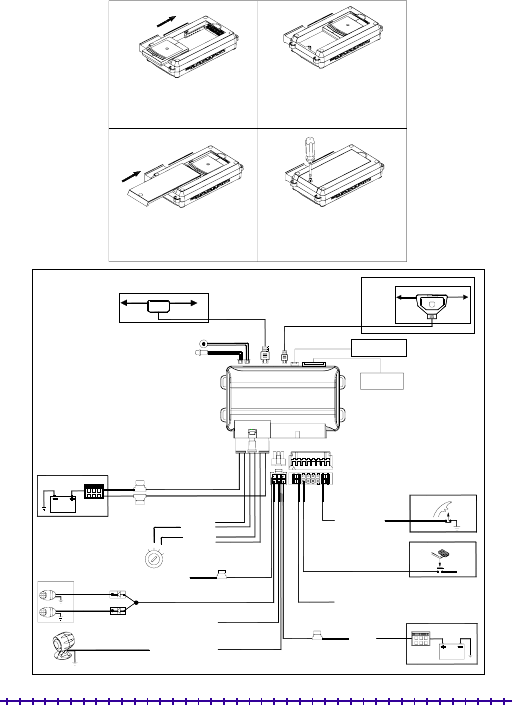

1 2

SLIPPED THE BUTTON

HOURSING OF AM9600

FIXED IDATA MODULE

RETURN THE HOURSING

TO ORIGNAL STATUS

FIXED THE HOUSING

IDATA MODULE INSTALLATION DRAWING

GND

FUSE BOX 30A

FUSE RED +12V

RED +12V

30A

FUSE

12V

BATTERY

PURPLE (START)

BROWN IGN2

ORANGE ACC

YELLOW IGN1

START

ACC

OFF

YELLOW IGN

FOOT BRAKE

+12V

BLACK/WHITE BRAKE

10A FUSE

ORANGE -- LAMP INPUT

ORANGE -- LAMP OUTPUT

BLACK -- GND

WHITE/RED -- SIREN OUTPUT

HANDBRAKE

GREEN HANDBRAKE

T35 RECEIVER

VALET SWITCH

LED

RX12

T35 RECEIVER

OPTIONAL

IDATA UPGRADE PORT

CARTRIDGE

CONNECTOR

LAMP

1N5401

ANT

GND

FUSE BOX

12V

BATTERY

RED -- +12V

5A FUSE

AM9600 INSTALLATION GUIDE

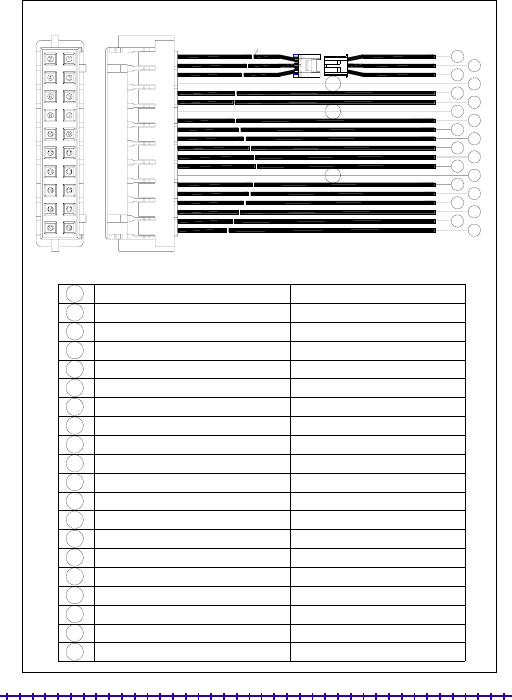

WHITE/RED

WHITE/BLACK

WHITE

---

PINK/BLACK

PINK

---

BLACK

BROWN/RED

BROWN/YELLOW

ORANGE/BLACK

ORANGE/WHITE

ORANGE

---

BLUE/RED

BLUE/YELLOW

GREEN/RED

YELLOW

GREY/RED

GREY/YELLOW

RELAY (N.C)

RELAY (COM)

RELAY (N.O)

---

POS _ OUT

POS _ IN

---

PASS LOCK _ GND

CAN-H

CAN-L

UBP

ISO9141 _ L

J1850 + / SW - CAN

---

BYPASS _ IN

BYPASS _ OUT

DATA _ OUT _ 1

ANALOG

DATA _ OUT _ 0

DATA _ IN _ 0

CARTRIDGE CONNECTOR

RX12

T35 RECEIVER

OPTIONAL

PC SETUP CABLE

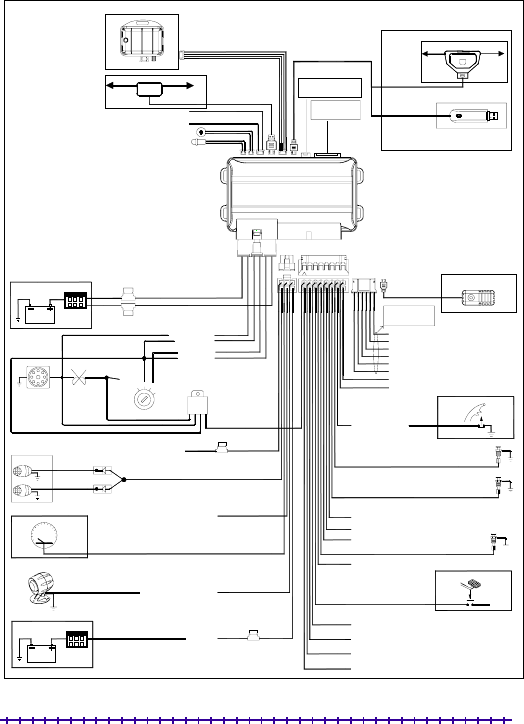

x1000

RPM

GND

FUSE BOX 30A

FUSE RED +12V

RED +12V

30A

FUSE

12V

BATTERY

PURPLE (START)

BROWN IGN2

ORANGE ACC

YELLOW IGN1

START

ACC

OFF

START

MOTOR RELAY

87a

GREY/YELLOW DISARM IN +

BROWN TG-

BROWN/YELLOW HOOD -

GREY/WHITE ARM IN +

YELLOW IGN

BROWN/WHITE TRUNK TRIGGER-

WHITE/PURPLE CH3 OUTPUT -300mA

+12V

WHITE TG +

PURPLE/BLACK DISARM OUTPUT -300mA

FOOT BRAKE

+12V

BLACK/WHITE BRAKE

10A FUSE

ORANGE -- LAMP INPUT

ORANGE -- LAMP OUTPUT

BLACK -- GND

PURPLE/BLACK -- RPM

WHITE/RED -- SIREN OUTPUT

GRAY ARME

PURPLE CH1 / TRUNK OUTPUT -300mA

BLUE DOME LIGHTS OUTPUT -300mA

HANDBRAKE

GREEN HANDBRAKE

CANBUS

PORT

T35 RECEIVER OR OPTIONAL

PC SETUP CABLE

VALET SWITCH

LED

SK600

OPTIONAL SHOCK SENSOR

BLUE/WHITE (-) LOCK OUTPUT -300mA

GREEN/WHITE (-) UNLOCK OUTPUT -300mA

ANT

GND

FUSE BOX

12V

BATTERY

RED -- +12V

YELLOW/GREEN IGN3 OUTPUT -300mA

WHITE/ORANGE CH2 OUTPUT -300mA

5A FUSE

BROWN/WHITE TRUNK TRIGGER -

GREY/WHITE ARM IN +

YELLOW IGNITION INPUT +

BROWN DOOR TRIGGER -

BORWN/YELLOW HOOD TRIGGER -

GREY/YELLOW DISARM IN +

IDATA UPGRADE PORT

CARTRIDGE

CONNECTOR

LAMP

1N5401

TM300

OPTIONAL

TEMPERATURE SENSOR

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions

(1) This device may not cause harmful interference and

(2) This device must accept any interference received, including interference that may

cause undesired operation

PORTMAN ELECTRONICS RX12-915 RX12 receiver User Manual AM9600 V1 9 t35t36

PORTMAN ELECTRONICS (DONGGUAN) CO., LTD. RX12 receiver AM9600 V1 9 t35t36

user manual

Navigation menu

Namespaces

Views

Navigation
