Portman Security Systems, Ltd
User Manual
MOTOR CYCLE ALARM SYSTEM
APSPS1
Version 1.2
![](/img.php?id=4109472&img=bg2.png)
Version1.1 APSPS1
1
STANDARD CONFIGURATION FOR TRANSMITTER
Function
Button
Action
System input/state
Arm
1
Tap
Ign off& disarmed
Arm/tilt bypass
1
Tap1 (arm) ->
(<5s)Tap1
Ign off & disarmed
Arm/all sensor
bypass
1
Tap1 (arm) -> Tap1-
>(<5s) Tap1
Ign off & disarmed
Panic
1
Hold
Any
Disarm
2
Tap
Ign off & armed
Anti-jacking
On/ Off
2
Hold
Anti-jacking Off/On
Valet mode (on
& off)
1 ,1,1
Ign on -> Ign off ->
Ign on (<5s)Tap
Disarmed
Aux output
1 & 2
Tap1&2
armed or Ign off& disarmed
Feature
programming
enter
1 & 2
Ign on ->
(<5s)Hold1&2
Disarmed
Feature
menu list
1
Tap (toggle menu
circular)
Disarmed
Feature
option
change
2
Tap (toggle setting
circular)
Disarmed
2-BUTTON TRANSMITTER
FEATURES:
CODE LEARNING
In case the transmitter is lost, or you want to add more transmitters (up to 4 most).
Please refer to following procedures:
a. In disarming mode, turn ignition ON/OFF 5 times within 15 sec, and stay in ON
position, 3 seconds later Siren will chirp 1 times to indicate system entered code
learning mode.
![](/img.php?id=4109472&img=bg3.png)
Version1.1 APSPS1
2
b. Press any button on the transmitter; siren will chirp the times of transmitter’s
sequence. E.g. once for the first transmitter, twice for the second, three times for
the third.
c. Up to 4 transmitters can be learned to each unit, each transmitter must be finished
in 8 seconds. if you want to learn 5th transmitter, the 1st transmitter will be
cleared, also when you learn 6th transmitter, the 2nd transmitter will be cleared.
d. After 30 sec or turn ignition OFF for 5 seconds, the Siren will long chirp once,
system will automatically exit code learning and store the code.
ARMING
a. In disarmed mode, turn ignition OFF, press button I once, siren will chirp once,
parking light will flash once. After 8 sec., system will armed automatically, LED flash
slowly and disable engine.
b. In arming mode, to turn on the key will trigger the siren, parking light will flash 30
seconds. The siren will keep 30 sec-cycle sounding till key turned to OFF. After the
key is turned to OFF, siren will keep sounding till cycle end.
Tilt/Shock Sensor defense area
1. Sensitivity for Tilt/Shock sensors are adjustable, please see FUNCTION SELECT
MENU 4&9.
2. If motorcycle is tilted/moved:
Sleep mode: first siren and parking light will trigger 10 times, then will trigger
continuously for 30 seconds.
Wake mode: Siren and Parking lights will trigger continuously for 30 seconds.
Note: up to 8 times to alarm per arming cycle.
ARMING AND BYPASS TILT SENSOR
When system entered arming mode, press button 1 once within 5 sec, system will long
chirp once to indicate that the Tilt sensor is bypassed.
In the mode, LED will flash twice interval 2 seconds.
![](/img.php?id=4109472&img=bg4.png)
Version1.1 APSPS1
3
ARMING AND BYPASS ALL SENSOR
When system entered arming mode, press button 1 twice within 5 sec, system will chirp
three times to indicate that the sensor is bypassed.
DISARMING
1. In arming mode, press button 2 once, siren will chirp twice, parking lights will
flash 2 times then system will be disarmed and enable the engine starter.
a. If the alarm is triggered during arming mode, siren will chirp 4 times when
disarming. Parking light will flash which indicates the alarm has been activated.
Parking light flash 4 times
Tilt/Shock sensor triggered
Parking light flash 5 times
TG- triggered
Parking light flash 6 times
Loop wire triggered
Parking light flash 7 times
Ignition trigger triggered
AUTO RE-ARMING
After disarming, 60 sec later if driver hasn’t start engine, system will be rearmed
automatically. LED will flash slowly.
(During rearm count down, LED will flash quickly, sire will chirp once, and parking light
will flash once.)
PANIC
If you are threatened near your motorcycle, you can attract attention by triggering the
system with your transmitter. Just press button 1 for 2 secs to enter panic mode. The siren
will sound for 10 sec, and parking lights will flash for 10 seconds. Press button 2 to stop.
ANTI MOTORCYCLE-JACKING
1. When key has been turned ON, press and hold button 2 for 2 seconds, LED will
flash quickly,then motorcycle-jacking mode is activated. Siren will chirp once
![](/img.php?id=4109472&img=bg5.png)
Version1.1 APSPS1
4
every 3sec, after chirping 5 times, siren will chirp once every 1.5sec. After
chirping 8 times, siren will continue sounding; parking lights will continuously
flash and disable the engine. (Press and hold button 2 for 2 sec exit motorcycle-
jacking mode.) During anti motorcycle-jacking mode, siren will long chirp, when
the key turns to OFF, siren will stop, and parking lights will stop flashing as long
as the ignition turns OFF. If key has been turned to ON again, siren will sound
and engine will not be able to start.
2. To exit anti motorcycle jacking: EMERGENCY OVERRIDE
VALET OVERRIDE
In arming mode or motorcycle-jacking mode, if transmitter is failed or lost, please refer to
following step for Emergency Override: Turn key to ON/OFF 5 times within 15 sec and
stay in ON position, LED will flash once then light solid, At this time user has 5 sec to turn
key OFF/ON once to disarm the system, and then Siren will chirp 4 times, parking light
will flash 4 times to indicate the system is disarmed.
PIN CODE OVERRIDE
In arming mode or motorcycle-jacking mode, if transmitter is failed or lost, please refer to
following step for Emergency Override: Turn key to ON/OFF 5 times within 15 sec and
stay in ON position, it can be as 5 times ACC ON come to emergency override mode, LED
shine for 2 seconds, then Turn ACC OFF, LED start flashing, after the digit of PIN code turn
ACC ON. Siren will chirp 4 times, parking light will flash 4 times to indicate the system is
disarmed.
PIN NUMBER SETTING
FACTORY PRESET PIN NUMBER: 1 (LED blinks one time)
In disarming mode, turn ignition ON/OFF 8 times within 15 sec, and ends in ON position.
LED will stay shine for 2 seconds, then enter into PIN setting mode:
Step 1: Confirm the original (preset) PIN Number
![](/img.php?id=4109472&img=bg6.png)
Version1.1 APSPS1
5
Turn ignition OFF within 10sec, LED will start blink slowly to confirm the preset PIN
Number, please turn ignition On once LED blinks the right times of the original preset PIN
number, if correct, Siren will chirp once (if siren do not chirp, means the preset PIN
number was confirmed failure, please start over under this kind of situation);
Step 2: Input the new PIN NUMBER
Right after the siren chirp once, then please turn ignition Off, it enters into new PIN
number setting, LED starts to blink, when the blinking times turns to the PIN number you
want to set, please turn ignition onto confirm. Then turn ignition Off,LED will play the
new PIN number by blinking the right times you have chosen. System will exit PIN
NUMBER setting mode。
Exit PIN NUMBER setting:No operation or input wrong initial password within 30s,
system will exit PIN NUMBER setting mode。
VALET MODE
You can prevent your security system from automatically arming by using valet mode,
this is very useful when washing the motorcycle for example, in valet mode, the security
system will not arm, even with the transmitter, but any accessory functions will continue
to work normally.
ENTER VALET MODE:
Cycle key ON/OFF/ON within 5sec, Then press Lock button 3 times, (the siren will chirp
once even the button was pressed once),then unit will enter valet mode. In valet mode,
press button 1, siren will chirp 3 times. LED will solid for one hour, After one hour,The
LED quickly flashes 3 times when an arm or disarm command is received.
The same way to exit valet mode.
MEMORY FUNCTION
This security system will store its current state to non-volatile memory. If power lost,
then reconnected the system will recall the stored state from memory. This means if the
unit is in valet mode and the battery is disconnected for any reason, such as servicing the
![](/img.php?id=4109472&img=bg7.png)
Version1.1 APSPS1
6
motorcycle, when the battery is reconnected the unit will still be in valet mode. This
applies to all states of the system including arm, disarm, and valet mode.
HIGH FREQUENCY
Your system transmits and receives at 433 MHz; this provides a cleaner spectrum with
less interference and a more stable signal.
FUNCTION SELECTION
1. In disarming mode, turn ignition ON/OFF 5 times within 15 sec, and stay in ON
position, 3 seconds later Siren will chirp 1 times to indicate system entered code
learning mode .Cycle key ON/OFF within 5sec,enter programming Bank2. Siren
will chirp 2 times to indicate system entered function selection.
2. Press button 1 once, siren will chirps(The siren chirps for the option selected) to
indicate unit entered function selection menu 1. Press button 1 once again, siren
will chirps(The siren chirps for the option selected) to indicate unit entered
function selection menu 2.On prestige the LED will flash for the feature number.
3. After unit entered function menu, press button 2 to toggle through the options.
Siren chirps according to its current setting.
4. After ignition OFF for 5sec,The system will exit function selection menu. Siren
will long chirp once
5. During the menu setting, if without any operation within 30 seconds, siren will
long chirp once to exit function selection menu.
NO
FUNCTION SELECT
DEFAUL
T
CHIRP 1
CHIRP 2
CHIRP 3
CHIRP 4
CHIRP 5
CHIRP 6
CHIRP 7
CHIRP 8
1
Passive Starter
Interrupt
OFF
OFF
ON
2
AUTO REARMING
OFF
OFF
ON
3
ANTI MOTORCYCLE-
JACKING
OFF
OFF
ON
![](/img.php?id=4109472&img=bg8.png)
Version1.1 APSPS1
7
4
Tilt SENSOR sensitivity
adjustment
5(°)
1(°)
5(°)
15(°)
30(°)
OFF
5
Silent/chirp mode
Chirp
mode
Chirp
mode
Silent
mode
6
Chirp Volume
Med
Low
Med
High
7
Siren(+)/Horn(-)output
Positive
(+)
Positive(
+)
Pulse
Low(-)
Pulse
Med(-)
Pulse
High(-
Human
Panic(-)
OFF
8
Flash lamp arm/disarm
ON
ON
OFF
9
Shock level
LEVEL 3
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
LEVEL 5
LEVEL 6
LEVEL 7
OFF
10
Aux Output
Momen
tary
output
Moment
ary
output
Latched
output
Latched
output
and
reset
with
ignition
ON
11
Override mode
Valet
Overrid
e
Valet
Override
Pin code
Override
12
DEFAULT
ON
POWER SAVING MODE
a. In the disarm or valet mode state,After 96 hours of no activity the alarm enters
sleep mode.
b. After 24 hours in the armed state, the LED will flash once interval 4 seconds, after
48hours, it will flash once interval 8 seconds
![](/img.php?id=4109472&img=bg9.png)
Version1.1 APSPS1
8
c. After 96 hours of no activity the alarm enters sleep mode. The alarms receiver,
and LED turn off to save as much battery power as possible, the system is drawing
next to no current in this mode.
d. If any other input is activated when in sleep mode, the system will wake up, the
siren will chirp 10 times.
APPENDIX
1. ELECTRICAL CONFIGRATIONS
DC Supply voltage
12V
DC Tolerance voltage
9V-16V
Current (Static)
≤8mA
Current (Sleep)
≤2mA
Siren volume
100±2dB

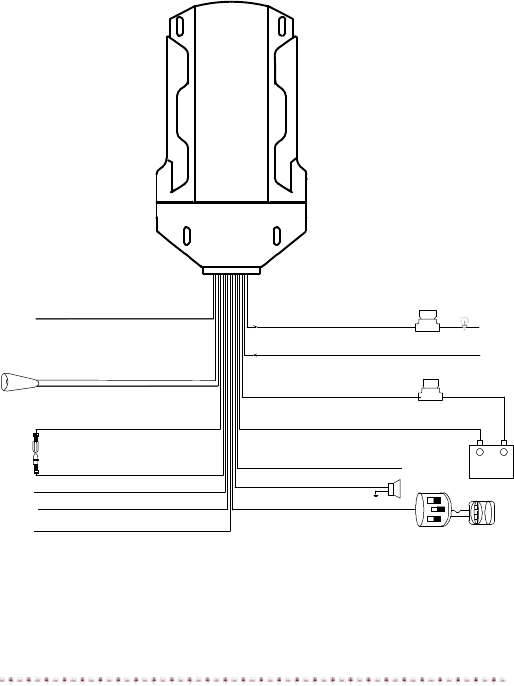

2. INSTALLATION GUIDE
![](/img.php?id=4109472&img=bga.png)
Version1.1 APSPS1
9
RED/WHITE 22# EXTRA- WHITE/RED 18 AWG LAMP OUT
12V
BATTERY
RED LED+
BLUE LED-
PURPLE/WHITE 22# LOO P IN
PURPLE/WHITE 22# LOO P OUT
WHITE 18AWG LAMP IN
BROWN 22AWG SIREN
YELLOW 22AWG ACC
BLACK/ORANGE 18 AWG CUT COM
RED 22 AWG +12V
BLACK/WHITE 22 AWG ANT
FUSE
15A
BLUE 22 AWG TG-
BLACK/ORANGE 18 AWG CUT NC
FUSE
5A
BLACK 22 AWG GND
(-)/(+)
(+)/(-)
+
-
OMEGA AL-1070-MS
![](/img.php?id=4109472&img=bgb.png)
Version1.1 APSPS1
10

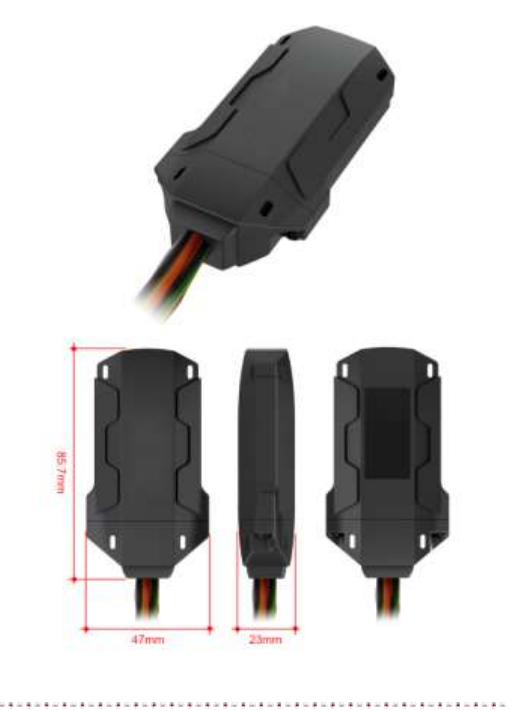

3. SMART UNITE SIZE
![](/img.php?id=4109472&img=bgc.png)
Version1.1 APSPS1
11
4. SIREN SIZE:
5. FINISHED GOOD
![](/img.php?id=4109472&img=bgd.png)
Version1.1 APSPS1
12
FCC Statement
This device complies with FCC Rules part 15. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference that may be received, including interference that may cause
undesired operation. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment. Such modification
could void the user’s authority to use the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
