POSH Mobile POSHC350 Mobile Phone User Manual Pegasus
Posh Mobile Limited Mobile Phone Pegasus
user manual
Pegasus
Brand Name: POSH
Model Name: C350
FCC ID : 2ABN6POSHC350
Basic terms
ROOT: Android system in the super-administrator user account, which has
control of the entire system permissions, and only have the permissions
to the original system can be refreshed for the revision of the various
systems
APK: Android application type, with the Windows Mobile platform cab and
exe file is similar to the user can be installed directly;
Webkit：The Android platform browser kernel and Apple's Safari, Google's
Chrome and FireFox use this kernel as a web page rendering mechanism;
Operating method described
Phone keys introduced
Menu button: Click to display the corresponding program menu, the user
can choose the corresponding sub-functions in the menu;
HOME button: Click to exit to the idle interface;
Back button: Click on the interface will fall back to the previous step;
Search: Click into the search interface
Lock screen: click on the following screen lock
To shortcut keys
Designed a unique shortcut key mode in the Android platform, users can,
in some interface, hit the screen for a long time and hold will soon be
a shortcut key, similar to the context menu appears on the computer. Such
as

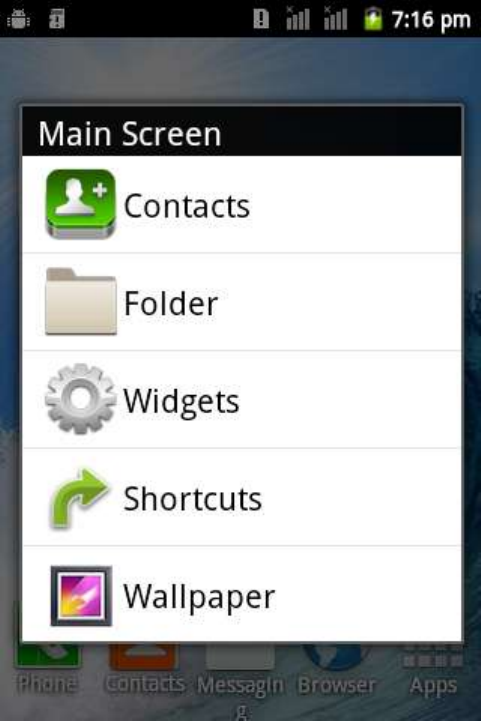

Space in the main interface, long click on the screen does not release,
will appear the following shortcuts:

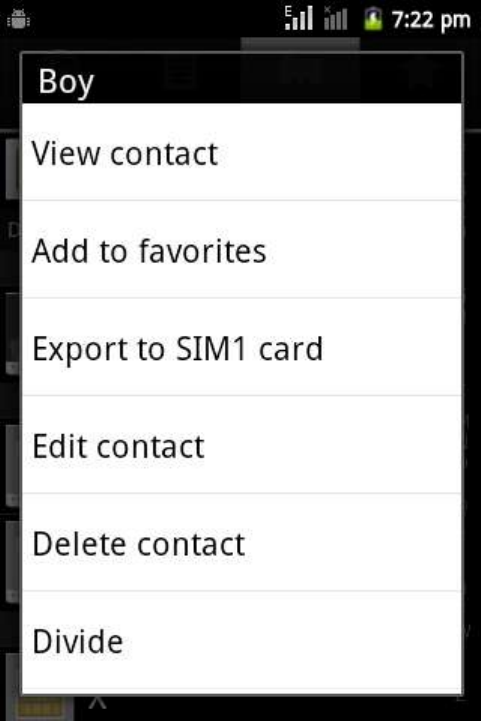

Select an address book entry in the phone book program, and for a long
time to hold down the screen does not release, the following shortcut keys,
you can send SMS / MMS, send contacts, editing, and favorites such as:
Information Function
To sort the entire information in accordance with the contacts,
conversational arrangement, user understanding of the entire information
communication history information, information in accordance with the
first sort contacts, including contact name for the first digital, and
then the letters of the alphabet, then Pinyin way.

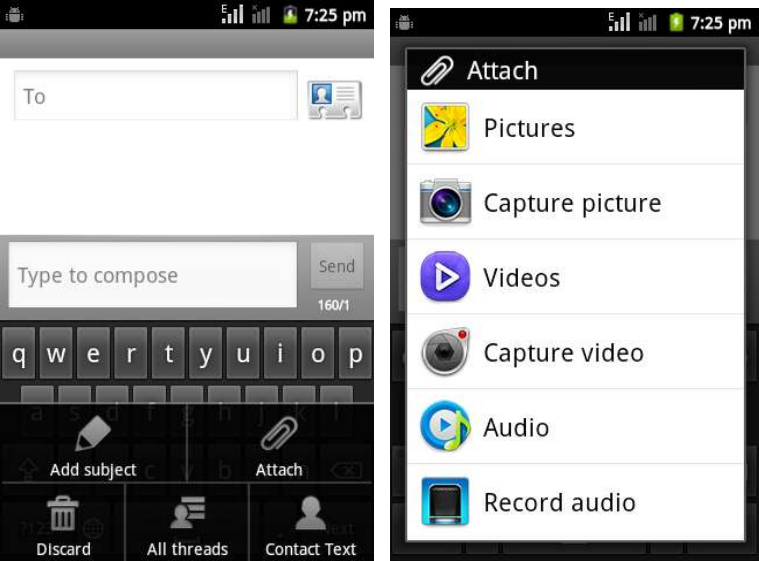

Send MMS
New information - click the menu key, select the "additional" function
- Select the desired additional content;

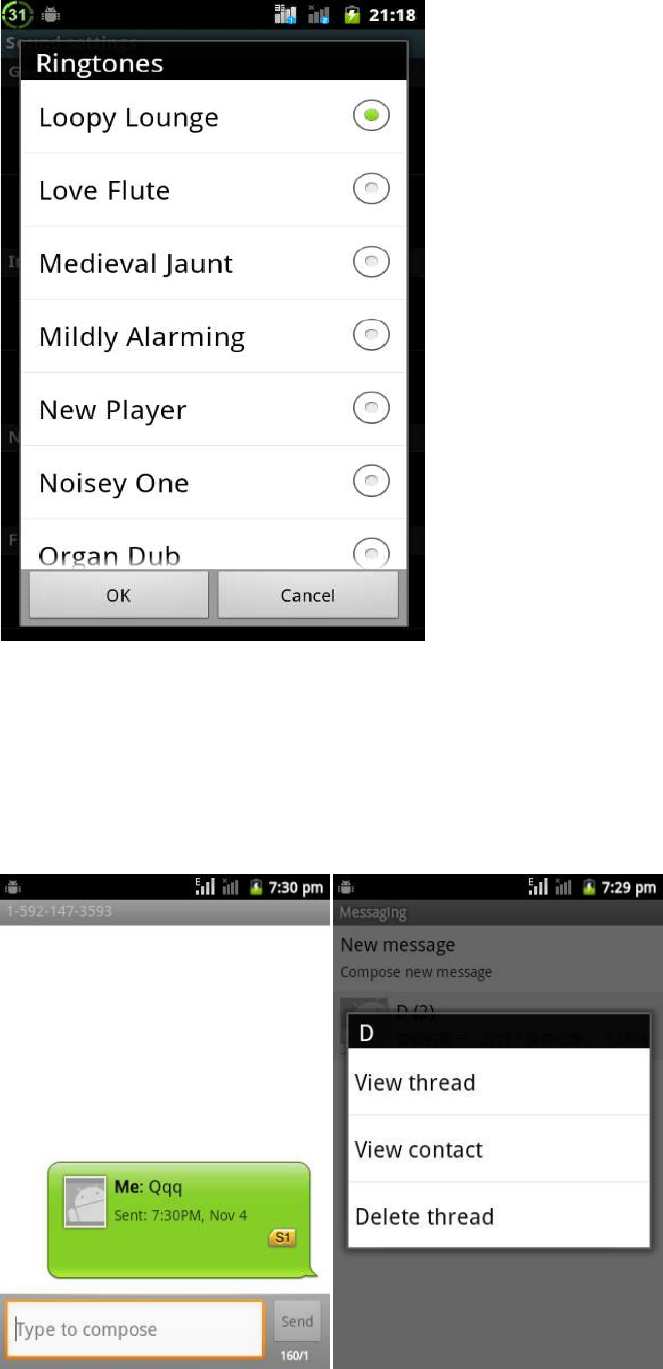

Replacement text messages to remind the sound
Into the information screen - click the menu key, select "Settings"
function - "to select" select ringtone "feature;

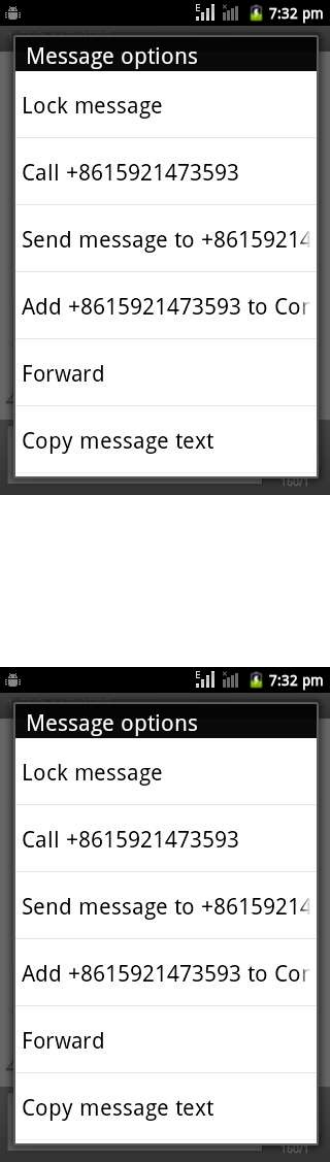

View the sender information
Access to the information interface - Select - "long press information,
there shortcut keys -" select "View Contact

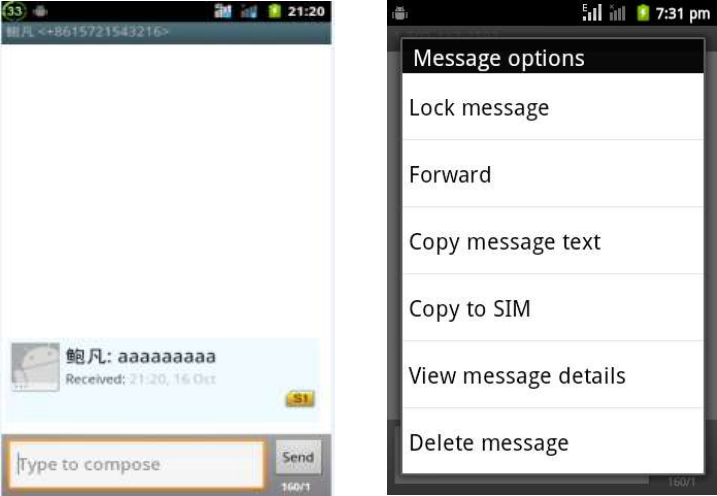

Forwarding information
Access to the information interface - Select - "long press information,
there shortcut keys -" select "Forward" functions
View Message details
Access to the information interface - Select - "long press information,
there shortcuts - Select" View Details "feature
Delete certain specific information in the information session
Access to the information interface - Select - "long press information,
there shortcuts - Select" Delete "function
Contacts Features
Integrated dialers, call history, contacts and favorites functions;
Address book introduced
The first figure, and then English characters, then sorted Pinyin;

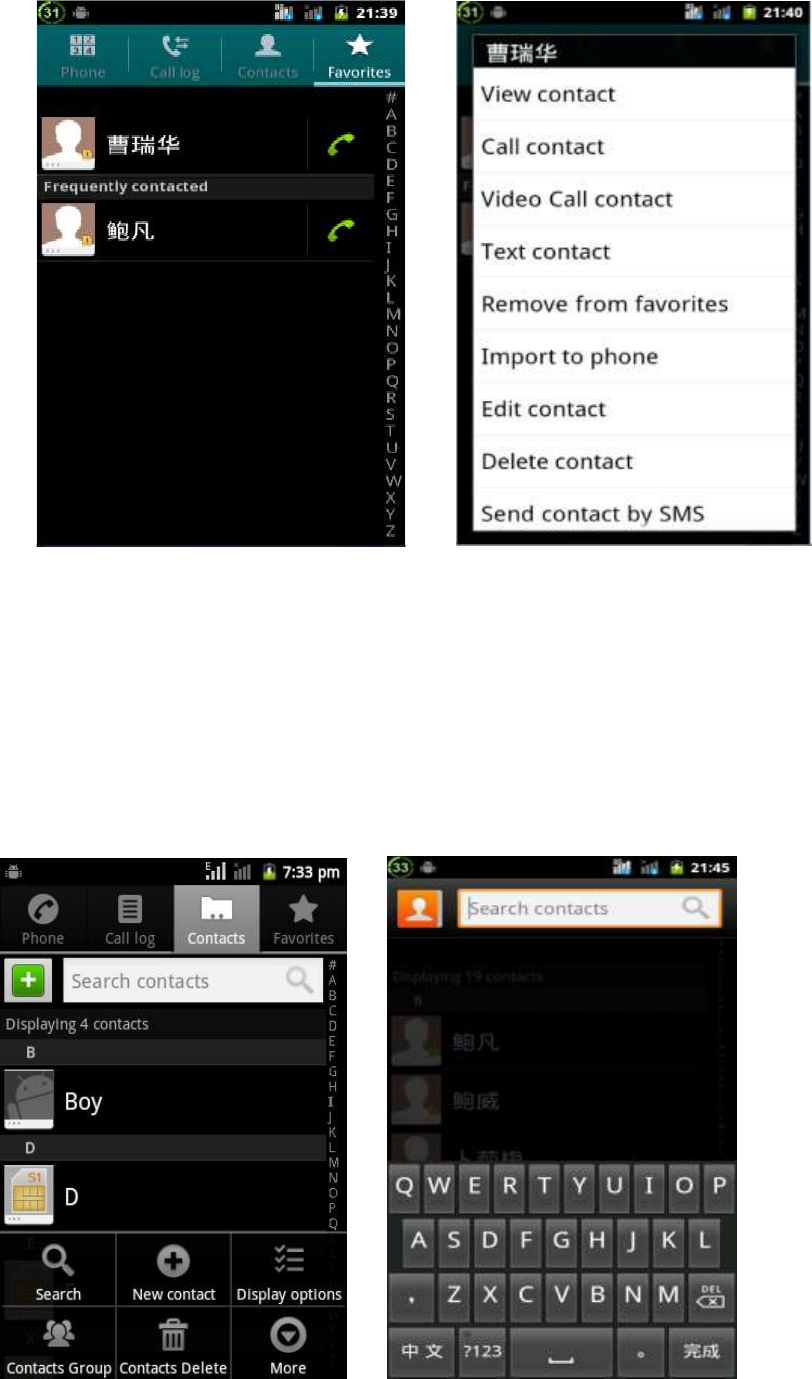

Favorites introduction
Contains the user's favorite contacts, and often call contact information,
and contact information of the Ju Shangban part of the overall fabric
collection for the user, the lower half of the system default often call
the contact information;
Contact Lookup
Go to the contact interface - click the menu button, select "Search"
function;
The search feature Search by first letter and the whole string
Import contact information methods
The first method, use Bluetooth to achieve data synchronization
The original mobile phone and cellphone using Bluetooth address book
synchronization;
The second method, the use of Gmail data synchronization

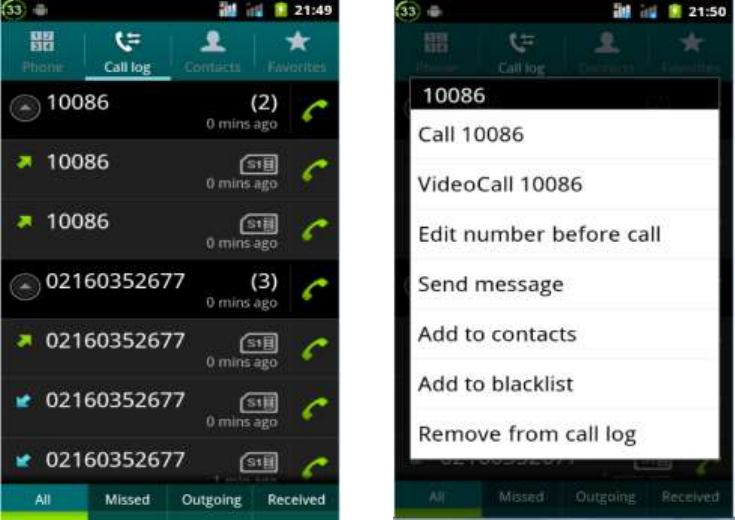

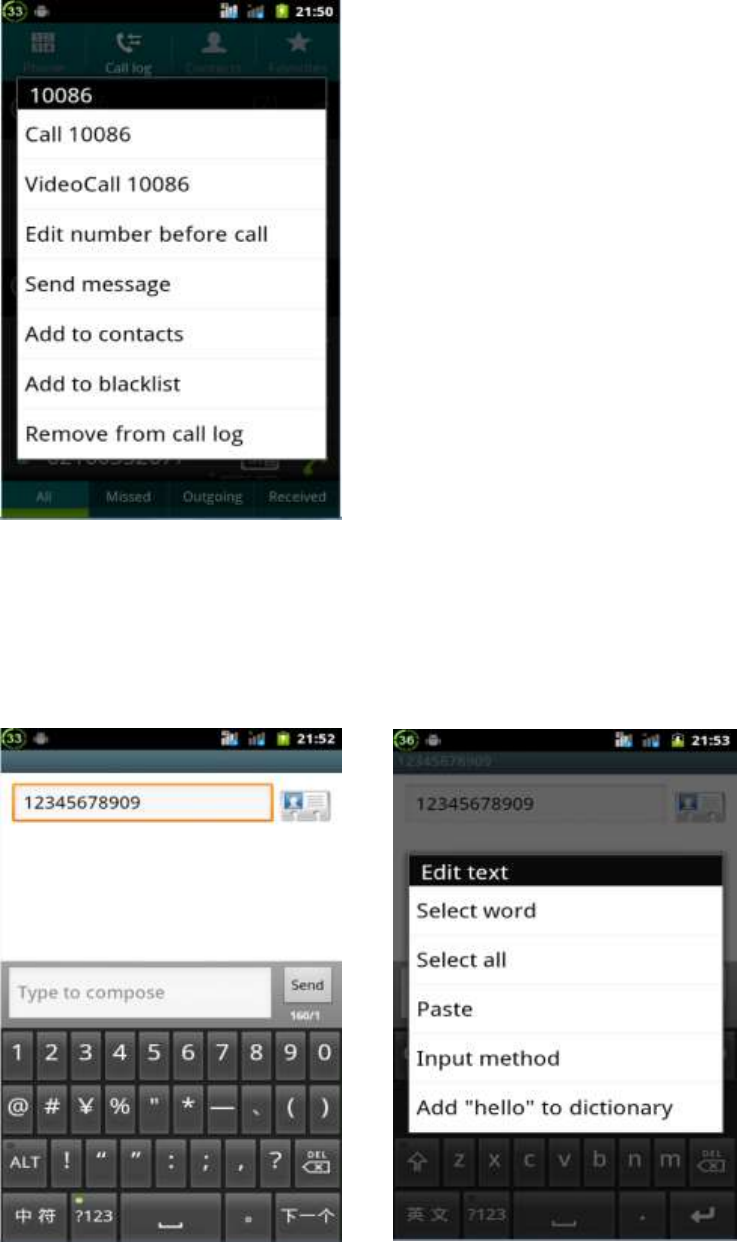

Save call records contact information
To enter the call log interface - choose need to save the call log - long
press record, a shortcut key - Select "Add to Contacts" feature
Or directly into the call log entry, select "Add to Contacts" feature
Paste the text / copy function introduced
- The input string into the input field, press and hold the input area,
a shortcut key - "Select All Cut," Copy All "," Select "or" Select Text
"function

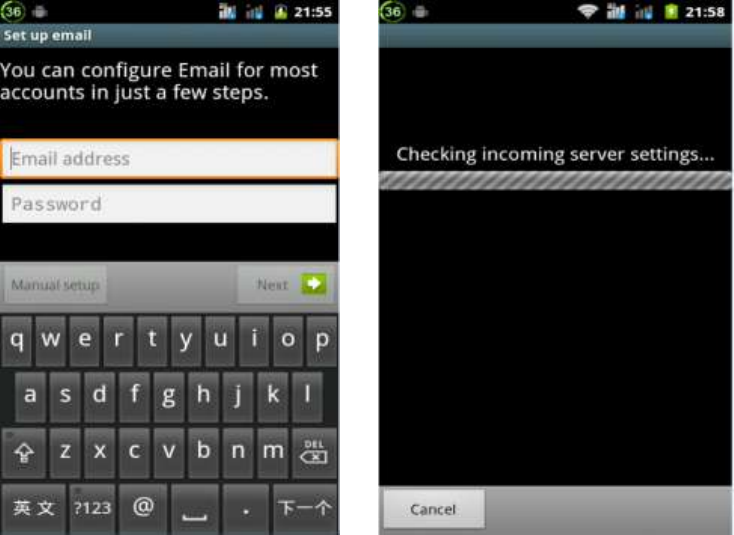

E-mail Features
Configure the mailbox account
Into the program group interface - "Select" e-mail applications - enter
your e-mail address and password.
If the system automatically recognizes the mailbox information, will
automatically complete the configuration; if the system does not
recognize, will ask the user according to the Mailbox type IMAP or POP3,
enter the appropriate configuration information.
Gmail for example:
E-mail address: ruihua.cao @ gmail.com
Password:
Configure multiple mailboxes account
Into the program group interface - "select" E-mail applications - click
the menu key, select "Add Account" feature

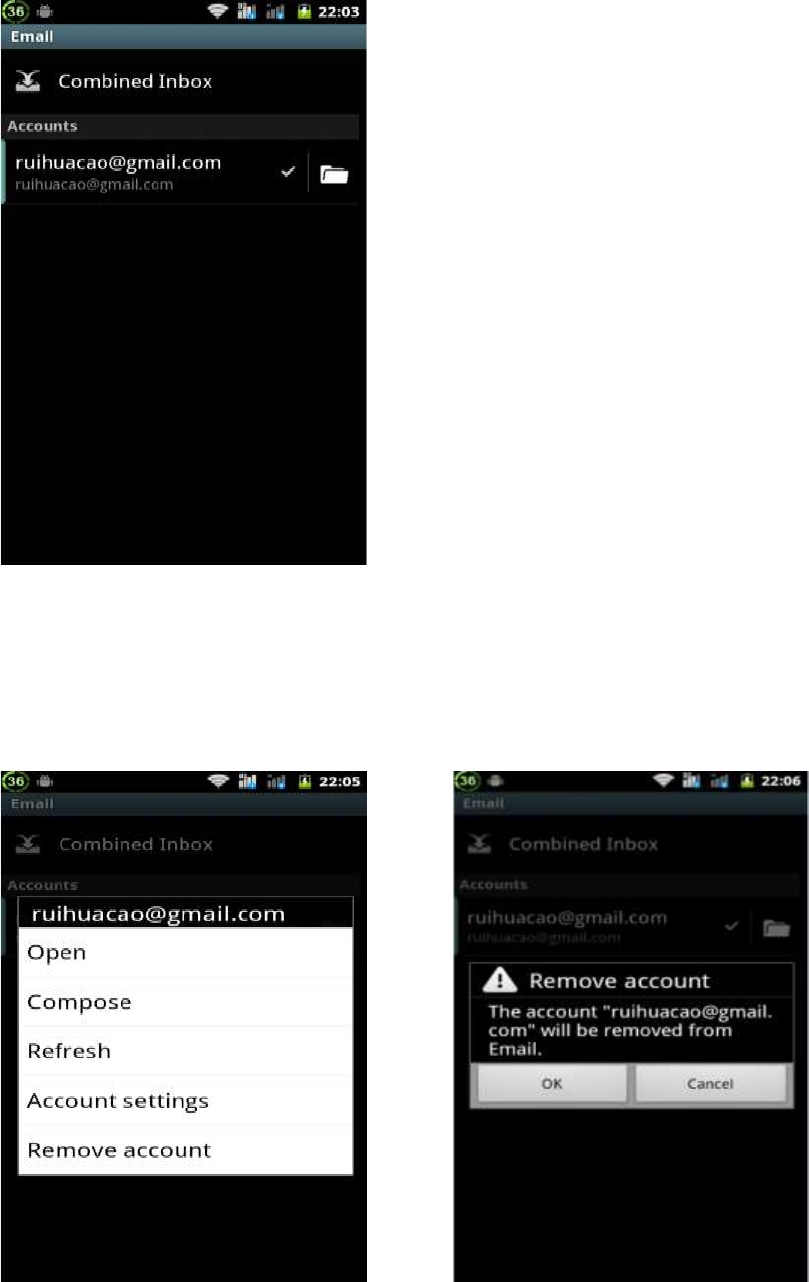

Delete the mailbox account
Enter the interface of the program group - select the "Email" application
- select need to delete the mail - the "long press to select the mailbox
account, there shortcuts - Select" Delete Account "function

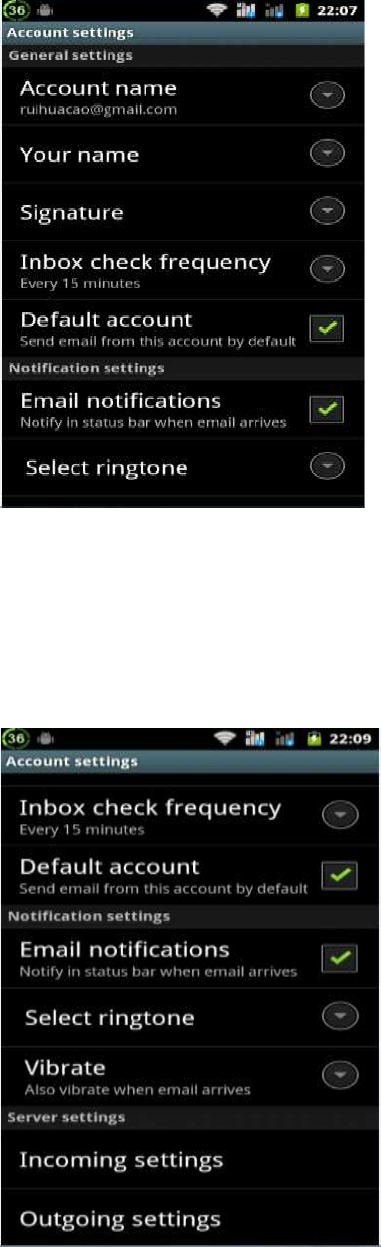

Set the mailbox check frequency
Enter the interface of the program group - the "E-mail applications - to
enter need to configure the mailbox account - click the menu key, select"
Account Settings "-" Select "Email check frequency
Set the mailbox letter ringtones
Enter the interface of the program group - the "E-mail applications - to
enter need to configure the mailbox account - click the menu key, select"
Account Settings "-" Select "to select the ringtones

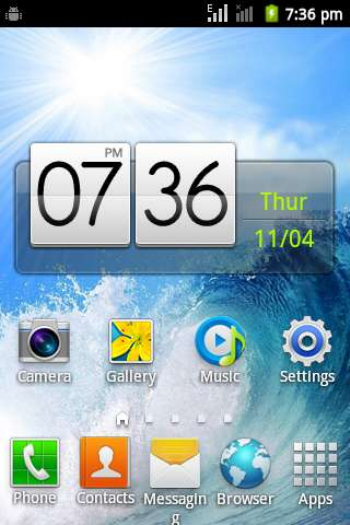

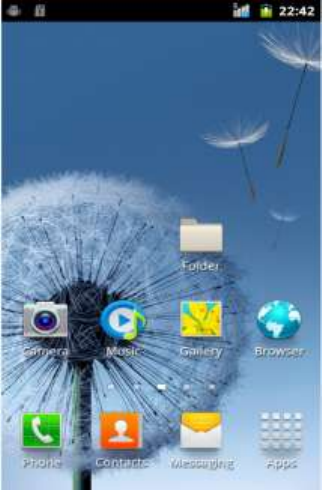

Desktop Features
Commonly used functions into the desktop
Enter the interface of the program group - Select the applications you
need to load the desktop - "long by application, the application will be
placed to the desktop;

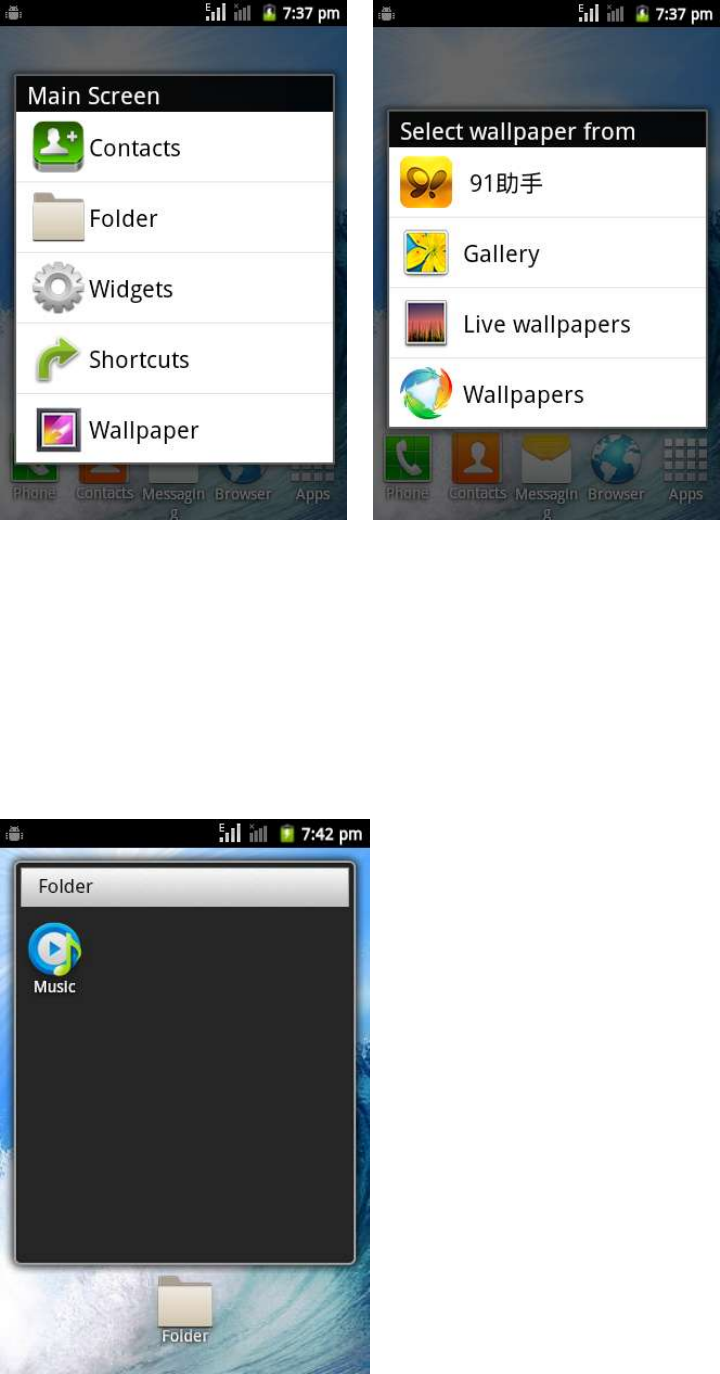

Replacement of wallpaper
Click the desktop in the desktop space - the "long, there shortcut keys
- select the" wallpaper "function

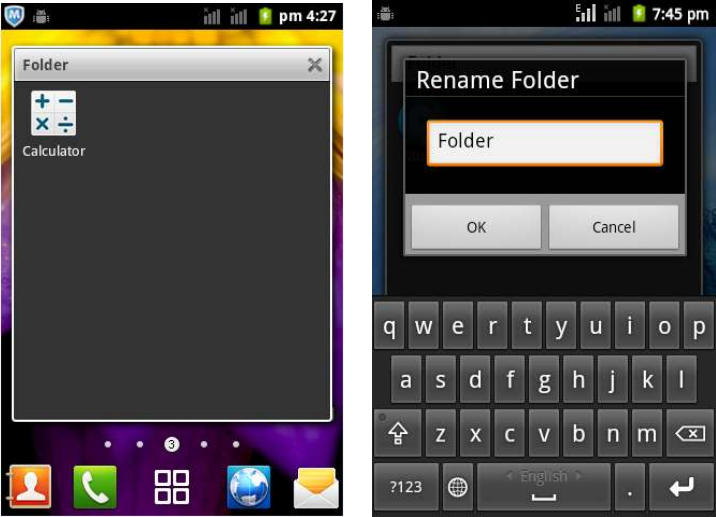

Packet applications
In the desktop space - the "long by the desktop, a shortcut key - Select
the folder" function - "Open the New Folder - enter the program group
interface - Select the desired into the application folder -" long-press
the application will applications into the new folder
Change the folder name
Open the folder on the desktop - "long by folder title bar -" "Rename
Folder" dialog box
Change the folder name
Open the folder on the desktop - "long by folder title bar -" "Rename
Folder" dialog box
Add contacts to your desktop

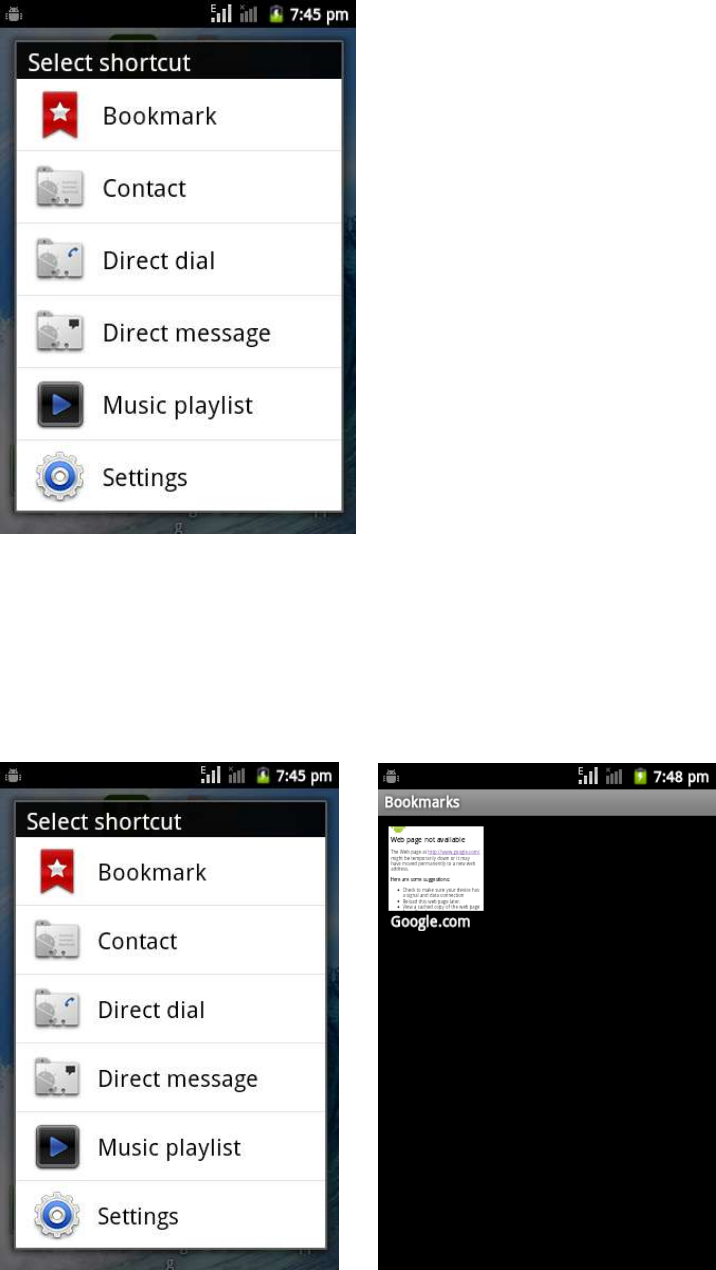

Select the "shortcuts" feature in the desktop space - the "long by the
desktop, a shortcut key -" - "Select" Contacts "feature - select a contact
Add URL to the desktop
Select the "shortcuts" feature in the desktop space - the "long by the
desktop, a shortcut key -" - "select" bookmark "function -" to select the
URL
Add a playlist to the desktop
Select the "shortcuts" feature in the desktop space - the "long by the
desktop, a shortcut key -" - "Select" music playlist "function -" to select
the playlist
(Ibid.) operating methods and procedures
Add to favorites the contact information to your desktop
In the desktop space - the "long by the desktop, a shortcut key - select
the" folder "function -" Choice "Starred Contacts" feature - "Select a
playlist
(Ibid.) operating methods and procedures
Remove desktop content
Select the desktop content - the "long press the icon -" into the bottom
of the screen the trash can icon

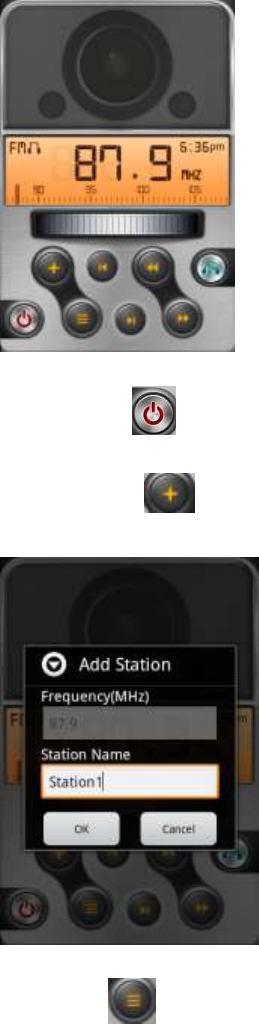

The use of FM
You must insert the headset when using the FM.
Click on the icon FM headset is plugged into the FM automatic station
search, the search is completed, you can normally listen to the FMFlight
Mode Function
Click the " " key, turn off FM
Click the " " key, Add radio.
Click on button, you can enter the list of saved stations
Click on button ,you can switch the radio.
Click on button, FM playback mode switch.
Select the "Settings" - select "wireless network" - "check flight mode"
function
Or select the phone "switch machine" button - Select the "flight mode"
feature
WIFI and BT

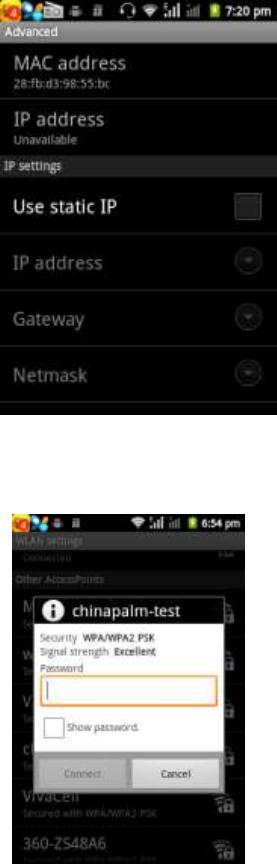

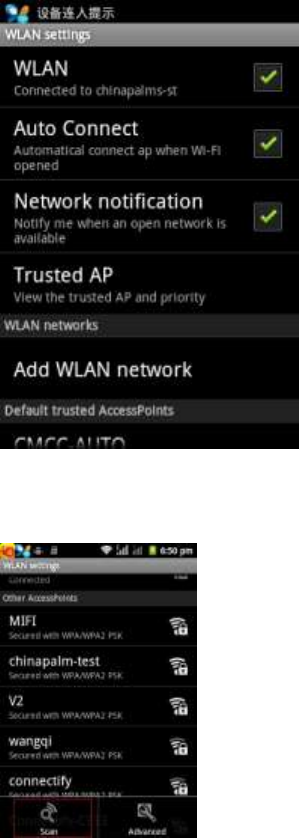

WIFI
Select the "Settings" - select "wireless & networks" - "WALN settings"
function, Check WALN options open WIFI
Click MEUN button, select Scan, Search Nearby AP
Click the "Advanced" button, set the interface type WALN
Click Search to AP, the password input box pops up
After entering the correct password and click "connect", after a
successful connection to the normal Internet.

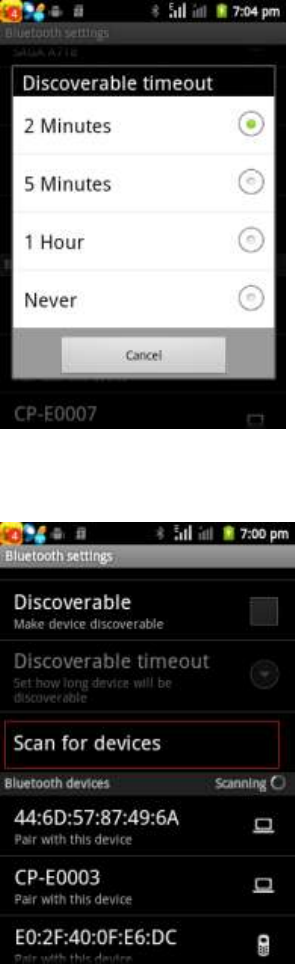

BT
Select the "Settings" - select "wireless & networks" - "Bluetooth
settings" function, Check WALN options open WIFI.
Check the "Discoverable", open the Bluetooth searchable, click
"Discoverable timeout" setting Bluetooth searchable time.
Click the "Scan for devices" to search for Bluetooth devices.
Click on a search for Bluetooth devices, it will pop up a matching box,
click on the "pair" can be paired, click on the "don't pair" can cancel
pairing after pairing is complete you can transfer the file to normal.
Screen lock settings
Select "Settings" - "Select the location and security" - "Select" screen
lock settings ."

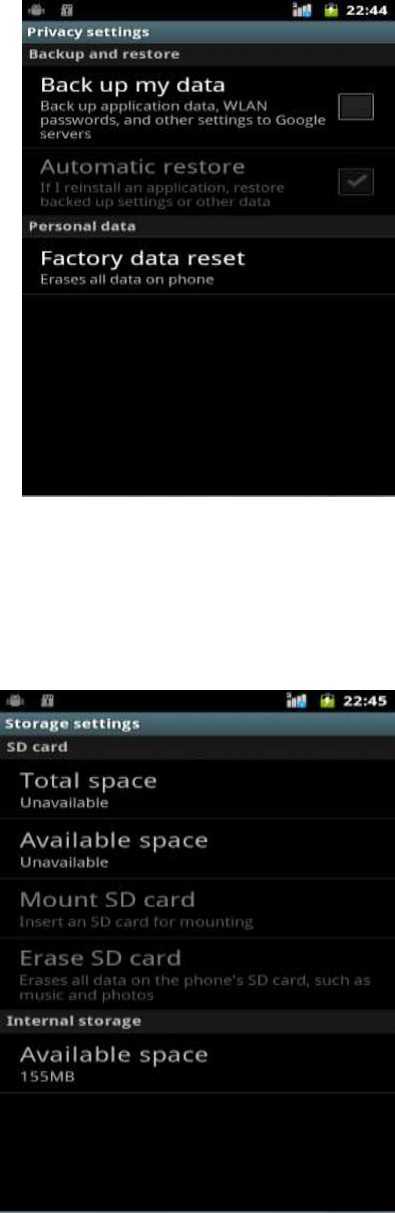

Restore the factory settings
Select the "Settings" - select "privacy settings" - "select" restore
factory settings "
Storage
Select the "Settings" - select "Storage" - "Storage Settings

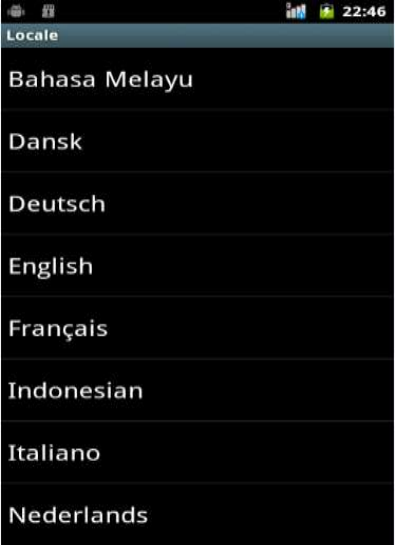

English language switching the phone
Select "Settings" - select the "voice and keyboard settings" - "choose"
Select Voice ", select either English or Chinese
Input method settings
Select "Settings" - select the "voice and keyboard settings - Select the
text input settings
Replace the mobile phone input method
In each input text box, long press the shortcut key appears, choose another
input method

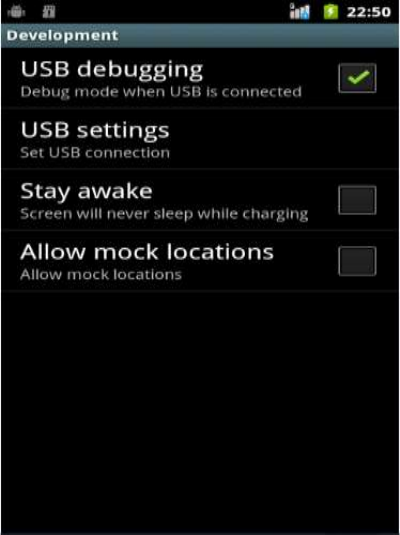

Cable link Android phone
Select "Settings" - "Select" Applications "-" Select the "development"
- "check the" USB debugging "
The driver of the product installed on your computer link USB cable;

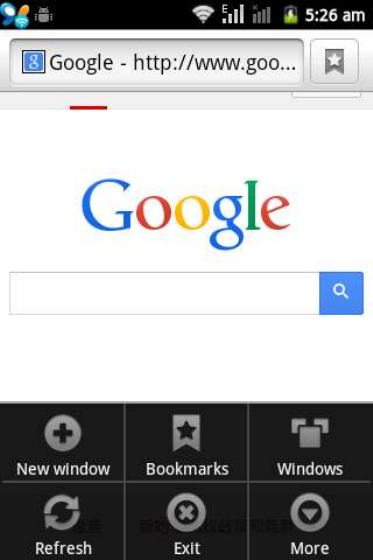

Browser features introduced
Visit the website
Browser - click on the "menu button" - select "go to" function, enter the
URL need to browse the web

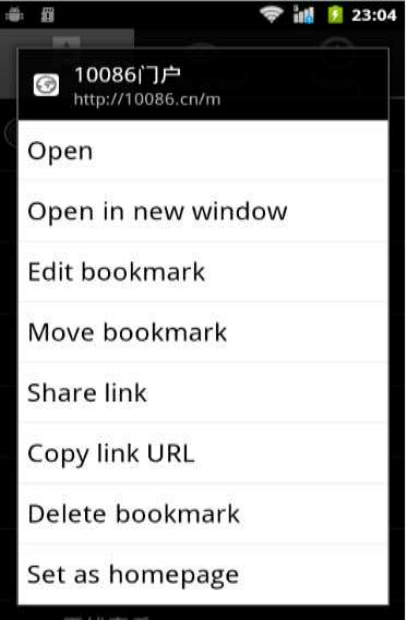

Access to save a good web site, or historical inform
Picture or other object in the download page
Browser - browse the web, in the pictures, long press the shortcut, select
"Save Image" function
Other web page content, including applications, ringtones, super
connections, can be long to complete the call shortcuts

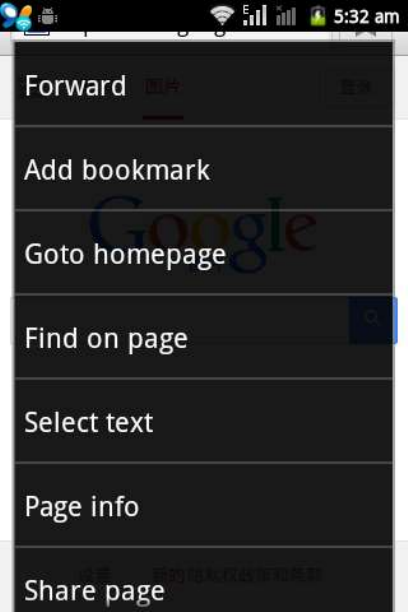

Browser settings / page to find
Browser - Browse the web - click the menu key, select "More" function,
you can achieve your browser settings / page to find
Q/A
1) how to turn off too much running in the background software
Download Advanced Task Manager Advanced Task Manager and select
install, it can help you achieve the end the program automatically switch
between programs to display information about memory, exclusion list, an
end of all widgets, fast uninstall program and other functions, to achieve
free up memory space, reduce the pressure of the CPU computing to improve
the operating speed, to extend the purpose of standby time.
Download:
http://m.91.com/soft/detail.aspx?platform=android&f_id=4001520
(2) how to quickly set up Email
Android system can automatically set up most POP3 or IMAP mail accounts,
e-mail address and password in the e-mail applications, direct input, if
not automatically adapts to the mailbox, will require the user to
configure the mailbox server information. Specific content see previous
e-mail features "section.
(3) How do I view the SD card capacity
Select "Settings" and then select "SD card & phone storage", will be
able to view the current phone's SD card capacity
How to save the power of mobile phones
First reduce the screen brightness, in normal use by reducing the
brightness to reduce battery drain, in the "Settings" in "sound and
display the project to find the" brightness ", and then the sliding scale
bar you can set the brightness of the Android phone;
Usually turn off the vibration of the calls and text messages to remind;
As little as possible to run large-scale software and software to run
multiple Android operating system does not exit the program, run software
and procedures to process management software is recommended to turn off
the process.
5 how the phone lock screen, to prevent others from using
In the "Settings", select the location and security settings, and select
"set the screen lock" pattern "to set a personal unlock pattern to achieve
the purpose to prevent strangers or to ensure the privacy of confidential
documents.
6. Why USB data cable link on the computer
Recognized in the phone's "Settings" - "application" - "development",
"USB debugging" functions check; also install the correct USB drivers
7.How to install the program on non-Android Market
Select the "Settings" - "application", "unknown source" function
check
8.When browsing the web or other applications, how to switch to other
applications
If you browse the Web need to open other applications, can task switch
by pressing the Home key, short press after return to the desktop (to note
is the system default show only 6 tasks)
9.How to enter the fast mute mode
In addition to ongoing press the volume down key, long press the end
call key, and directly choose the silent mode in the menu to quickly enter.
10 How to forward SMS / MMS
Information applications, long a piece of content information in the list
until the shortcut menu, select "Forward" can be realized.
11 how to copy and paste text content
In the input field, press and will pop up the shortcut menu, including
copy and paste function.
Download and install the application can install path is set to SD card
Platform sake, only to install the application in the phone memory
13 is installed too many applications in the mobile program group, how
to solve
On the desktop in the new folder, drag applications to the program
group to the folder
14 contacts to sort, can change the
Platform design to sort of number, and then letters, then the Chinese
way of sorting; the user can not own
15 contacts support grouping
Sake of platform, the current version not to support the Address Book
group, if necessary, in Gmail, the user program grouping, and can be
synchronized with Gmail
16 contacts and SMS storage capacity limit
Platform sake, no clear restrictions on contacts and SMS storage value
depends on the size of the flash memory space of the current mobile phone
17 SD card set personalized ring tones
, Namely the establishment of the "ringtones" (ringtones) alarms
(alarm) notifications (SMS notification ringtone), ringtones into a
different folder, the phone can automatically recognize the SD card.
18 how to synchronize the original phone contacts to the phone
The first method: Bluetooth, two cellphone sync contacts;
The second method: using the Gmail synchronization, attach the original
phone's address book to Gmail, then use the phone's ActiveSync (Moxier
application) to save your contacts to your phone; details please refer
to the Contact Function "
20 How to Find a contact
The contact interface, press the Menu key, select "Search" menu, you
can find the contacts, you can use the letters the first letter of the
query;
21 how to download applications for mobile phones
1) access to Google Market http://www.android.com/market/; part of the
software needs to pay to download;
2) third-party sites, access to application software, such sites are:
http://www.waptw.com/
http://android.sj.91.com/list/rjyxhj.shtml
......
Download the software will be installed in the SD card and some software
may be a result of the operating system version, network access node, size
or other reasons can not be used.
22 commonly used android forum
http://bbs.gfan.com/
http://www.hiapk.com/
http://ibbs.91.com/
http://android.tgbus.com/
23 How do I delete the downloaded software
"Settings" - "Applications" - "" management application "-" Select the
application to be deleted
24 How to view mobile version
"Settings" - "" phone ", you can get the version information of the
mobile phone, including the Android version, Linux version, software
version, hardware version
25 how to copy the contact information in the SIM card
Into the Contacts application, click the menu key, select "Import
Contacts", then you can see the contacts in the SIM card, if only to import,
click an item to. Import All you need to press the Menu key, select Import
All to import to.
26 Why have the time and date display in the SMS
SMS display, the day's show time, day of the show date
27 whether the phone supports Java
Platform reason, the phone does not support Java, if you need to install
third-party Java application, you need to install the Java Runtime
Environment in the phone.
FCC RF EXPOSURE INFORMATION:
WARNING!! Read this information before using your phone
In August 1986 the Federal Communications Commission (FCC) of the United
States with its action in Report and Outer FCC 96-326 adopted an updated
safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by both
U.S. and international standards bodies. The design of this phone complies
with the FCC guidelines and these international standards. Use only the
supplied or an approved antenna. Unauthorized antennas modifications, or
attachments could impair call quality, damage the phone, or result in
violation of FCC regulations. Do not use the phone with a damaged antenna.
If a damaged antenna comes into contact with the skin, a minor burn may
result. Please contact your local dealer for replacement antenna.
BODY-WORN OPERATION:
This device was tested for typical body-worn operations with the back of
the phone kept 0.5cm from the body. To comply with FCC RF exposure
requirements, a minimum separation distance of 0.5cm must be maintained
between the user's body and the back of the phone, including the antenna,
whether extended or retracted. Third-party belt-clips, holsters and
similar accessories containing metallic components shall not be used.
Body-worn accessories
that cannot maintain 0.5cm separation distance between the user’s body
and the back of the phone, and have not been tested for typical body-worn
operations may not comply with FCC RF exposure limits and should be
avoided.
For more information about RF exposure, please visit the FCC website at
www.fcc.gov
Your wireless handheld portable telephone is a low power radio transmitter
and receiver. When it is ON, it receives and also sends out radio frequency
(RF) signals. In August, 1996, the Federal Communications Commissions
(FCC) adopted RF exposure guidelines with safety levels for hand-held
wireless phones. Those guidelines are consistent with the safety
standards previously set by both U.S. and international standards bodies:
<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP> (1996)
Those standards were based on comprehensive and periodic evaluations of
the relevant scientific literature. For example, over 120 scientists,
engineers, and physicians from universities, government health agencies,
and industry reviewed the available body of research to develop the ANSI
Standard (C95.1). Nevertheless, we recommend that you use a hands-free
kit with your phone (such as an earpiece or headset) to avoid potential
exposure to RF energy. The design of your phone complies with the FCC
guidelines (and those standards).
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the phone and may
violate FCC regulations.
NORMAL POSITION:
Hold the phone as you would any other telephone with the antenna pointed
up and over your shoulder.
TIPS ON EFFICIENT OPERATION:
For your phone to operate most efficiently:
• Extend your antenna fully.
• Do not touch the antenna unnecessarily when the phone is in use. Contact
with the antenna affects call quality and may cause the phone to operate
at a higher power level than otherwise needed.
RF Exposure Information:
This product is compliance to FCC RF Exposure requirements and refer to
FCC website search for FCC ID: 2ABN6POSHC350 to gain further information
include SAR Values.
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Do not use the device with the environment which below minimum -10℃
or over maximum 50℃, the device may not work.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
Ad Hoc function is supported but not able to operate on non-US
frequencies.
