PROEXPRESS DISTRIBUTOR D107K3 Tablet PC User Manual DT re0923

PROEXPRESS DISTRIBUTOR LLC Tablet PC DT re0923

User Manual

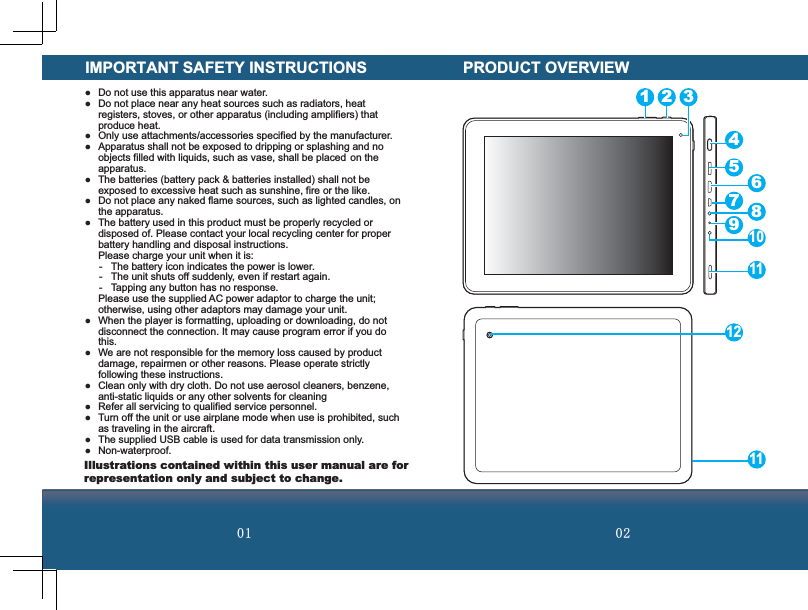

 IMPORTANT SAFETY INSTRUCTIONS Do not use this apparatus near water.  Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Only use attachments/accessories specified by the manufacturer. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vase, shall be placed on the apparatus. The batteries (battery pack & batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Do not place any naked flame sources, such as lighted candles, on the apparatus. The battery used in this product must be properly recycled or disposed of. Please contact your local recycling center for proper battery handling and disposal instructions. Please charge your unit when it is:- The battery icon indicates the power is lower.- The unit shuts off suddenly, even if restart again.- Tapping any button has no response. Please use the supplied AC power adaptor to charge the unit; otherwise, using other adaptors may damage your unit. When the player is formatting, uploading or downloading, do not disconnect the connection. It may cause program error if you do this. We are not responsible for the memory loss caused by product damage, repairmen or other reasons. Please operate strictly following these instructions. Clean only with dry cloth. Do not use aerosol cleaners, benzene, anti-static liquids or any other solvents for cleaning Refer all servicing to qualified service personnel. Turn off the unit or use airplane mode when use is prohibited, such as traveling in the aircraft. The supplied USB cable is used for data transmission only. Non-waterproof.PRODUCT OVERVIEW1 2 345678912101111Illustrations contained within this user manual are for representation only and subject to change.

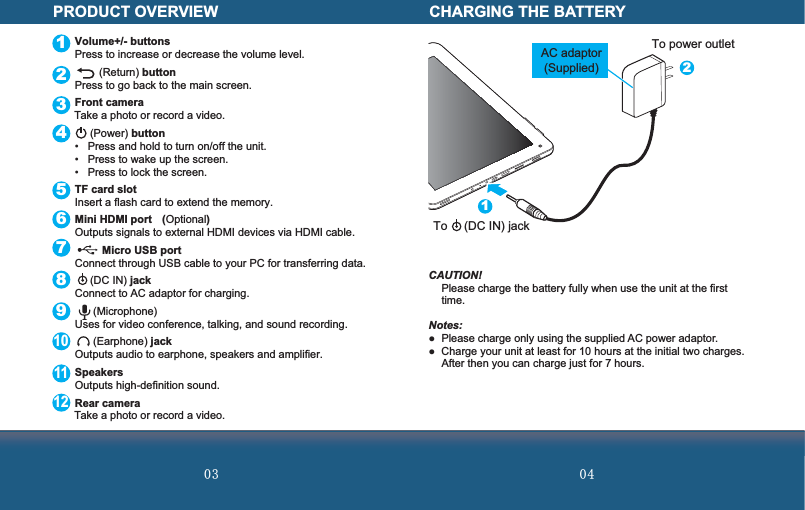

 PRODUCT OVERVIEW123456789Volume+/- buttonsPress to increase or decrease the volume level. (Return) buttonPress to go back to the main screen.Front camera Take a photo or record a video. (Power) button Press and hold to turn on/off the unit. Press to wake up the screen. Press to lock the screen.TF card slotInsert a flash card to extend the memory.Mini HDMI port (Optional)Outputs signals to external HDMI devices via HDMI cable. Micro USB portConnect through USB cable to your PC for transferring data. (DC IN) jackConnect to AC adaptor for charging. (Microphone)Uses for video conference, talking, and sound recording. (Earphone) jackOutputs audio to earphone, speakers and amplifier.SpeakersOutputs high-definition sound.Rear camera Take a photo or record a video.101112CHARGING THE BATTERYCAUTION! Please charge the battery fully when use the unit at the first time.Notes: Please charge only using the supplied AC power adaptor. Charge your unit at least for 10 hours at the initial two charges. After then you can charge just for 7 hours.21To (DC IN) jackTo power outletAC adaptor(Supplied)

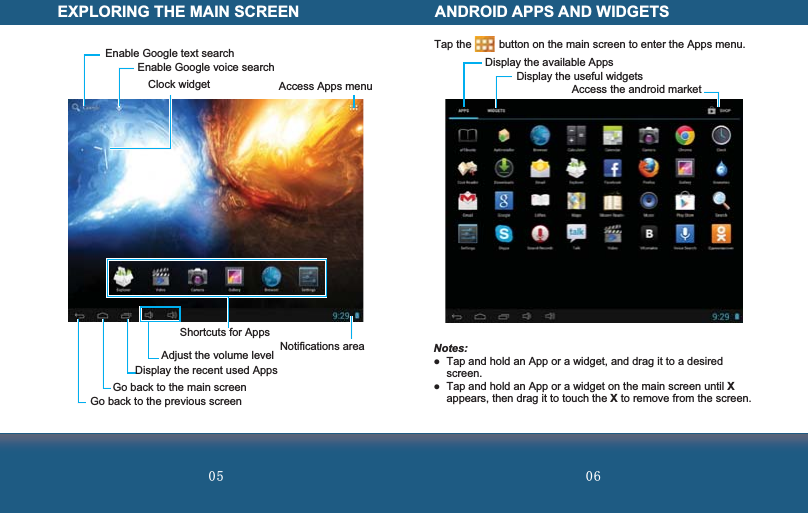

 Enable Google text searchClock widgetEnable Google voice searchAccess Apps menu Display the recent used AppsAdjust the volume levelShortcuts for AppsGo back to the main screenNotifications area Go back to the previous screenEXPLORING THE MAIN SCREEN ANDROID APPS AND WIDGETSDisplay the available Apps Display the useful widgets Access the android marketTap the button on the main screen to enter the Apps menu. Notes: Tap and hold an App or a widget, and drag it to a desired screen. Tap and hold an App or a widget on the main screen until X appears, then drag it to touch the X to remove from the screen.

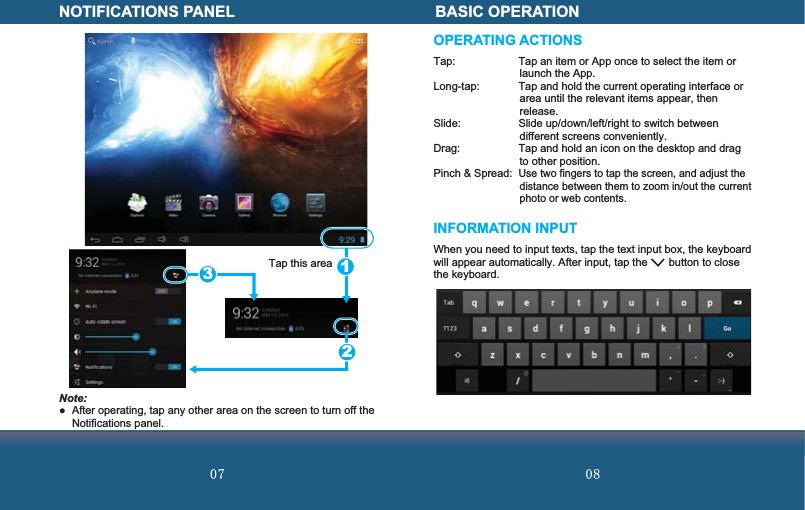

 Note: After operating, tap any other area on the screen to turn off the Notifications panel.Tap this areaNOTIFICATIONS PANEL123OPERATING ACTIONSTap: Tap an item or App once to select the item or launch the App.Long-tap: Tap and hold the current operating interface or area until the relevant items appear, then release.Slide: Slide up/down/left/right to switch between different screens conveniently.Drag: Tap and hold an icon on the desktop and drag to other position.Pinch & Spread: Use two fingers to tap the screen, and adjust the distance between them to zoom in/out the current photo or web contents.INFORMATION INPUTWhen you need to input texts, tap the text input box, the keyboard will appear automatically. After input, tap the button to close the keyboard.BASIC OPERATION

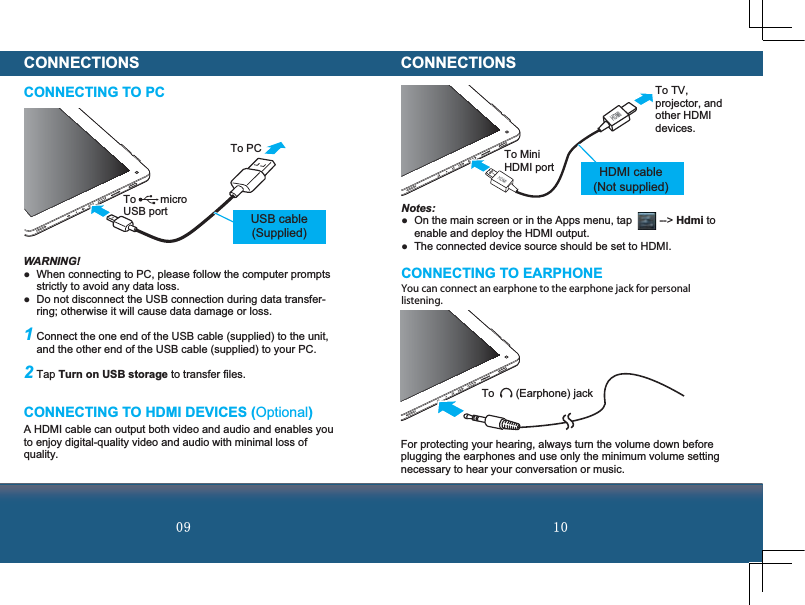

 Notes: On the main screen or in the Apps menu, tap --> Hdmi to enable and deploy the HDMI output. The connected device source should be set to HDMI.CONNECTIONS CONNECTIONSWARNING! When connecting to PC, please follow the computer prompts strictly to avoid any data loss. Do not disconnect the USB connection during data transfer-ring; otherwise it will cause data damage or loss.1 Connect the one end of the USB cable (supplied) to the unit, and the other end of the USB cable (supplied) to your PC. 2 Tap Turn on USB storage to transfer files.CONNECTING TO PCTo micro USB portTo PCCONNECTING TO EARPHONECONNECTING TO HDMI DEVICES (Optional)To (Earphone) jackYou can connect an earphone to the earphone jack for personal listening. A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.To Mini HDMI portTo TV,projector, andother HDMIdevices.For protecting your hearing, always turn the volume down before plugging the earphones and use only the minimum volume setting necessary to hear your conversation or music.USB cable(Supplied) HDMI cable (Not supplied)

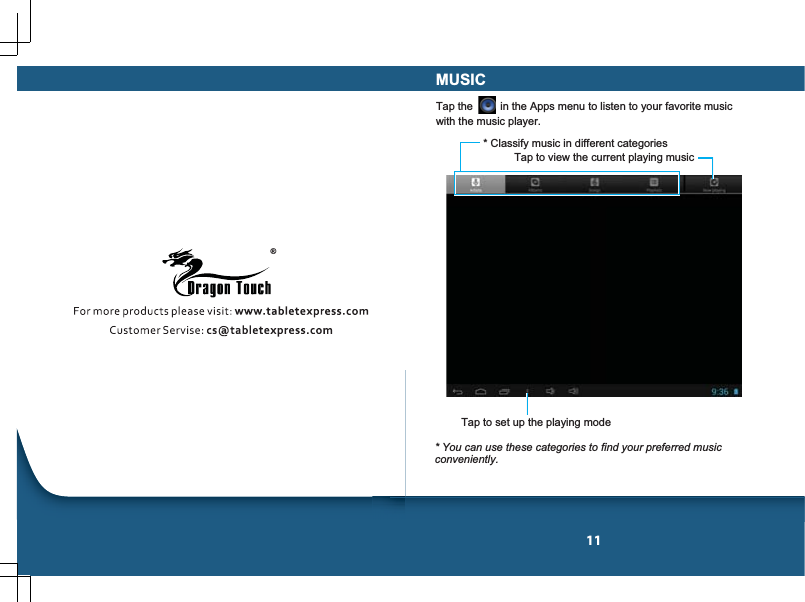

11Tap the in the Apps menu to listen to your favorite music with the music player.* Classify music in different categories * You can use these categories to find your preferred music conveniently.Tap to view the current playing musicTap to set up the playing modeMUSIC®

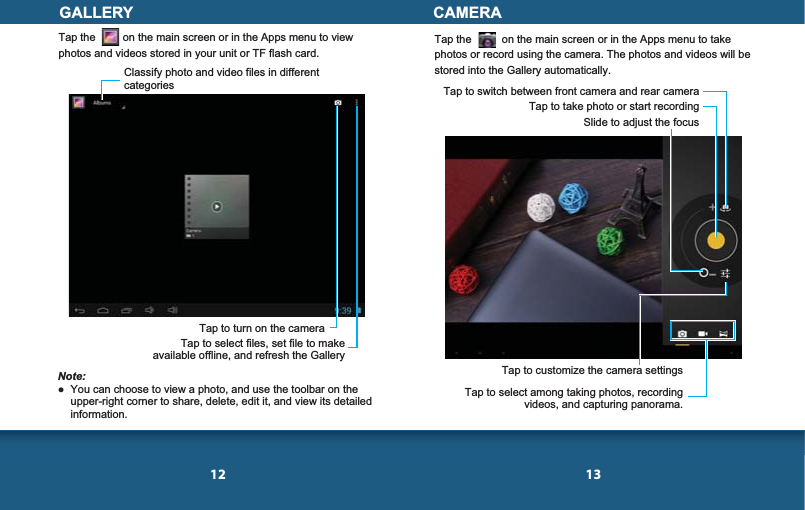

12 13Tap the on the main screen or in the Apps menu to take photos or record using the camera. The photos and videos will be stored into the Gallery automatically.GALLERYTap the on the main screen or in the Apps menu to view photos and videos stored in your unit or TF flash card.Note: You can choose to view a photo, and use the toolbar on the upper-right corner to share, delete, edit it, and view its detailed information.Classify photo and video files in different categories Tap to turn on the cameraTap to select files, set file to make available offline, and refresh the GalleryCAMERASlide to adjust the focusTap to select among taking photos, recording videos, and capturing panorama.Tap to customize the camera settingsTap to take photo or start recordingTap to switch between front camera and rear camera

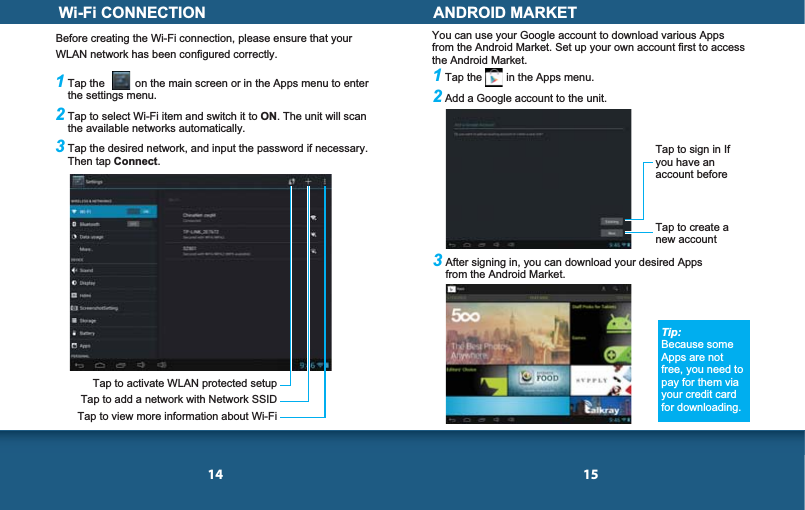

14 151 Tap the in the Apps menu.2 Add a Google account to the unit. Wi-Fi CONNECTION1 Tap the on the main screen or in the Apps menu to enter the settings menu.2 Tap to select Wi-Fi item and switch it to ON. The unit will scan the available networks automatically.3 Tap the desired network, and input the password if necessary. Then tap Connect.Before creating the Wi-Fi connection, please ensure that your WLAN network has been configured correctly.Tap to activate WLAN protected setupTap to add a network with Network SSIDTap to view more information about Wi-FiANDROID MARKETYou can use your Google account to download various Apps from the Android Market. Set up your own account first to access the Android Market.Tap to sign in If you have an account beforeTap to create a new account3 After signing in, you can download your desired Apps from the Android Market. Tip:Because some Apps are not free, you need to pay for them via your credit card for downloading.

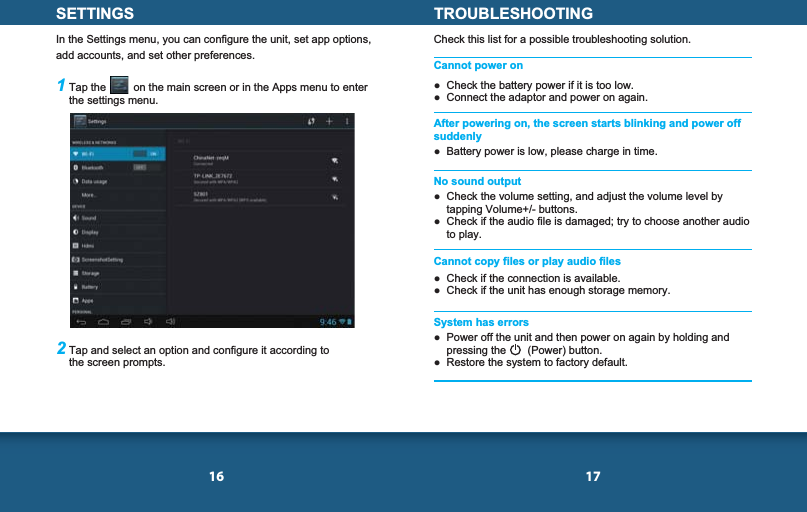

16 17SETTINGSIn the Settings menu, you can configure the unit, set app options, add accounts, and set other preferences.1 Tap the on the main screen or in the Apps menu to enter the settings menu.2 Tap and select an option and configure it according to the screen prompts.TROUBLESHOOTINGCheck this list for a possible troubleshooting solution.Cannot power on Check the battery power if it is too low. Connect the adaptor and power on again. Battery power is low, please charge in time. Check the volume setting, and adjust the volume level by tapping Volume+/- buttons. Check if the audio file is damaged; try to choose another audio to play. Check if the connection is available. Check if the unit has enough storage memory. Power off the unit and then power on again by holding and pressing the (Power) button. Restore the system to factory default.After powering on, the screen starts blinking and power off suddenlyNo sound outputCannot copy files or play audio filesSystem has errors

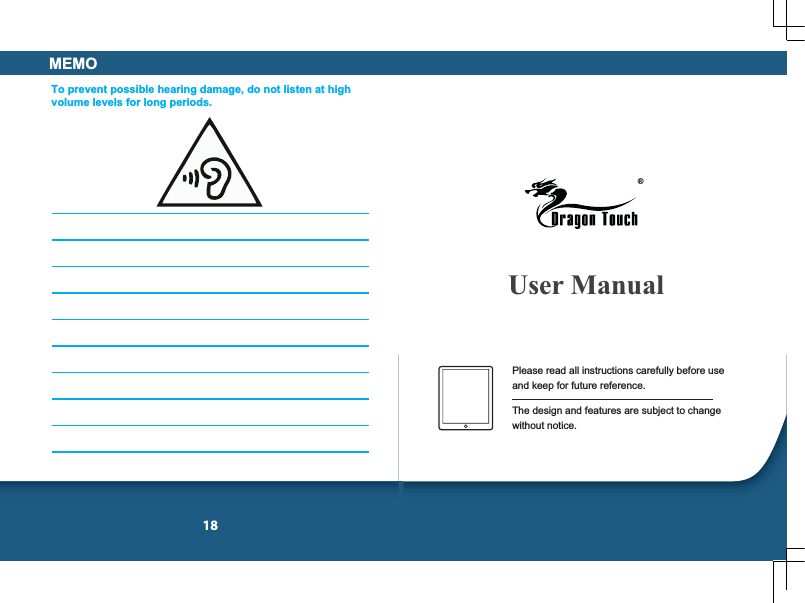

18User ManualMEMO®Please read all instructions carefully before use and keep for future reference.The design and features are subject to change without notice.To prevent possible hearing damage, do not listen at highvolume levels for long periods.
FCC Caution.§ 15.19 Labelling requirements.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.§ 15.21 Changes or modification warningAny Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.§ 15.105 Information to the user.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiointerference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between thee quipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.* RF warning for Portable device:The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
