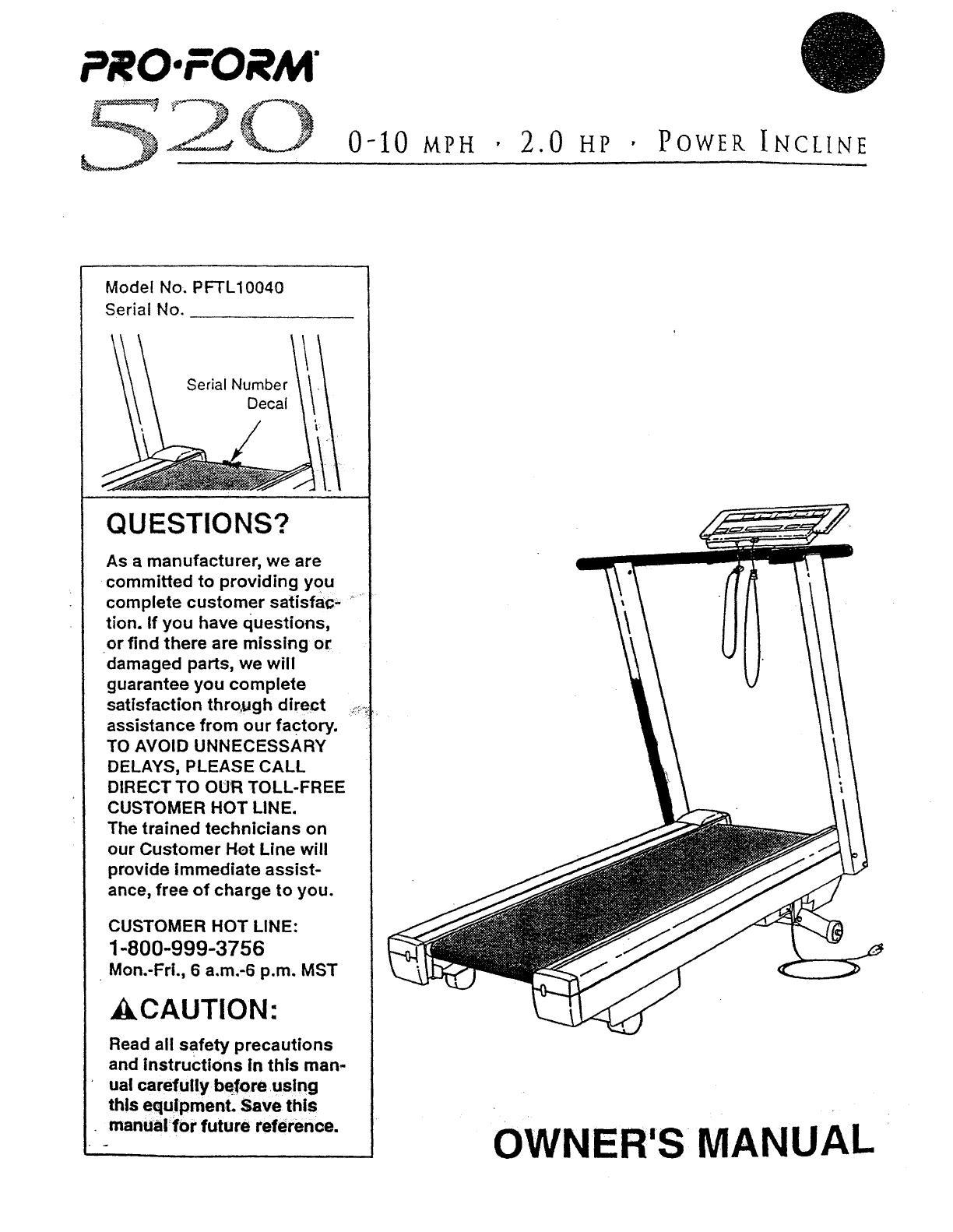

PRO.FORM

0-10 MPH •2.0 HP , POWER INCLINE

Model No. PFTLIO040

Serial No.

Decal

QUESTIONS?

As a manufacturer, we are

committed to providing yo u

complete customer satisfac, _'•

tion. If you have questions,

or find there are missing or

damaged parts, we will

guarantee you complete

satisfaction thro,ugh direct

assistance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL

DIRECT TO OUR TOLL-FREE

CUSTOMER HOT LINE.

The trained technicians on

our Customer Hot Line will

provide immediate assist-

ance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.-Frl., 6 a.m.-6 p.m. MST

IkCAUTION:

Read all safety precautions

and instructions in thls man-

ual carefully before using

this equipment. Save this

manual for future reference. OWNER'S MANUAL

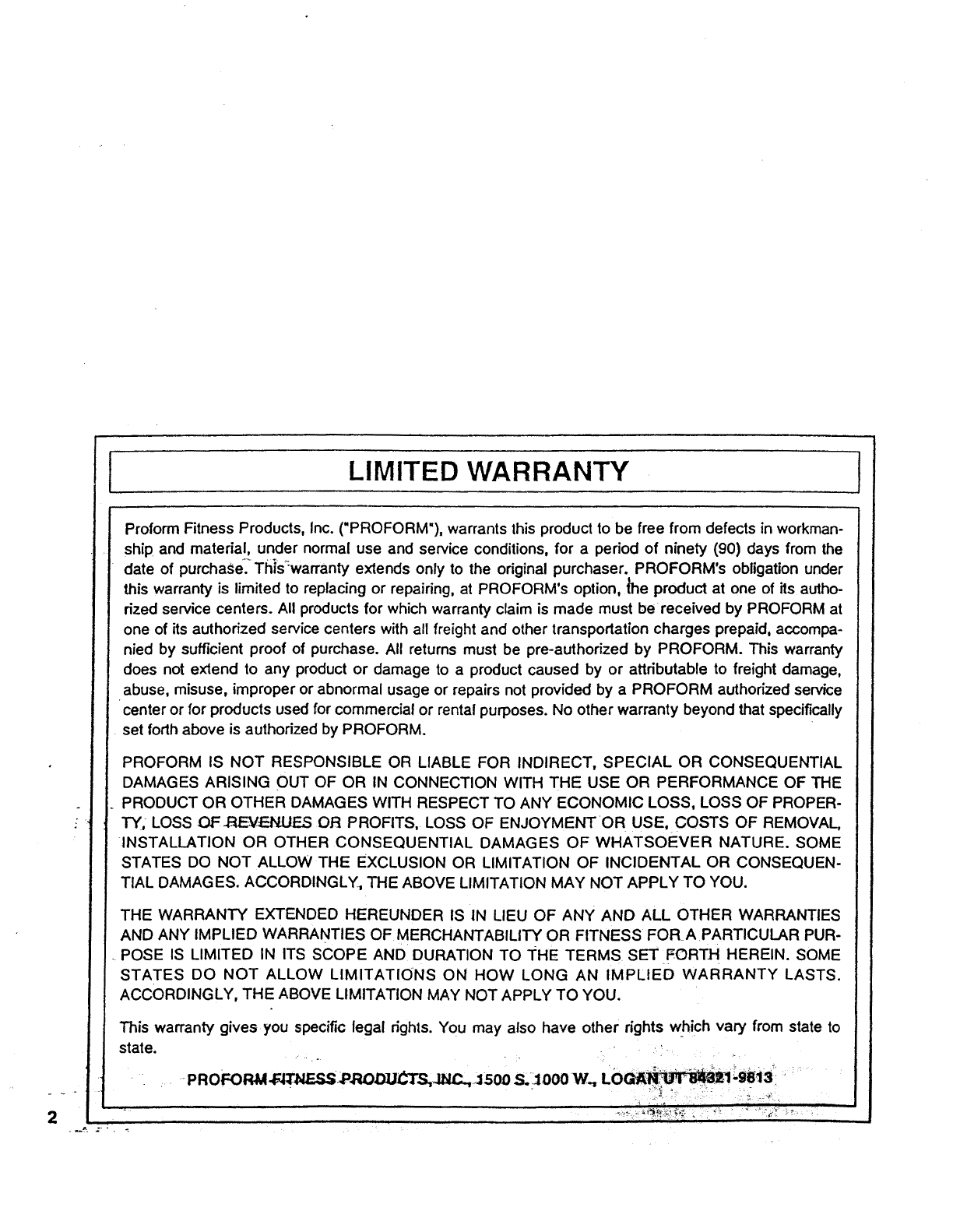

LIMITED WARRANTY 1

Proform Fitness Products, Inc. ('PROFORM"), warrants this product to be free from defects in workman-

ship and material, under normal use and service conditions, for a period of ninety (90) days from the

date of purchase_."Th|s':warranty extends only to the original purchaser. PROFORM's obligation under

this warranty is limited to replacing or repairing, at PROFORM's option, _he product at one of its autho-

rized service centers. All products for which warranty claim is made must be received by PROFORM at

one of its authorized service centers with all freight and other transportation charges prepaid, accompa-

nied by sufficient proof of purchase. All returns must be pre-authorized by PROFORM. This warranty

does not extend to any product or damage to a product caused by or attributable to freight damage,

abuse, misuse, improper or abnormal usage or repairs not provided by a PROFORM authorized service

center or for products used for commercial or rental purposes. No other warranty beyond that specifically

set forth above is authorized by PROFORM.

PROFORM IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE

PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPER-

"i'Y; LOSS OF-P-,EV_NLtES OR PROFITS, LOSS OF ENJOYMENT OR USE, COSTS OF REMOVAL,

INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES OF WHATSOEVER NATURE. SOME

STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES. ACCORDINGLY1 THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ANY AND ALL OTHER WARRANTIES

AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-

POSE IS LIMITED IN ITS SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME

STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS.

ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

This warranty gives you specific legal rights. You may also have other rights which vary from state to

state.

-PROFORM._,i.TNF...SS.,PJ;I,O_JblC_ _:1500SoJO00 W., LOG;___-'I _g_1:13

PRO.FORM"

0-10 MPH , 2.0 HP , POWER INCLINE

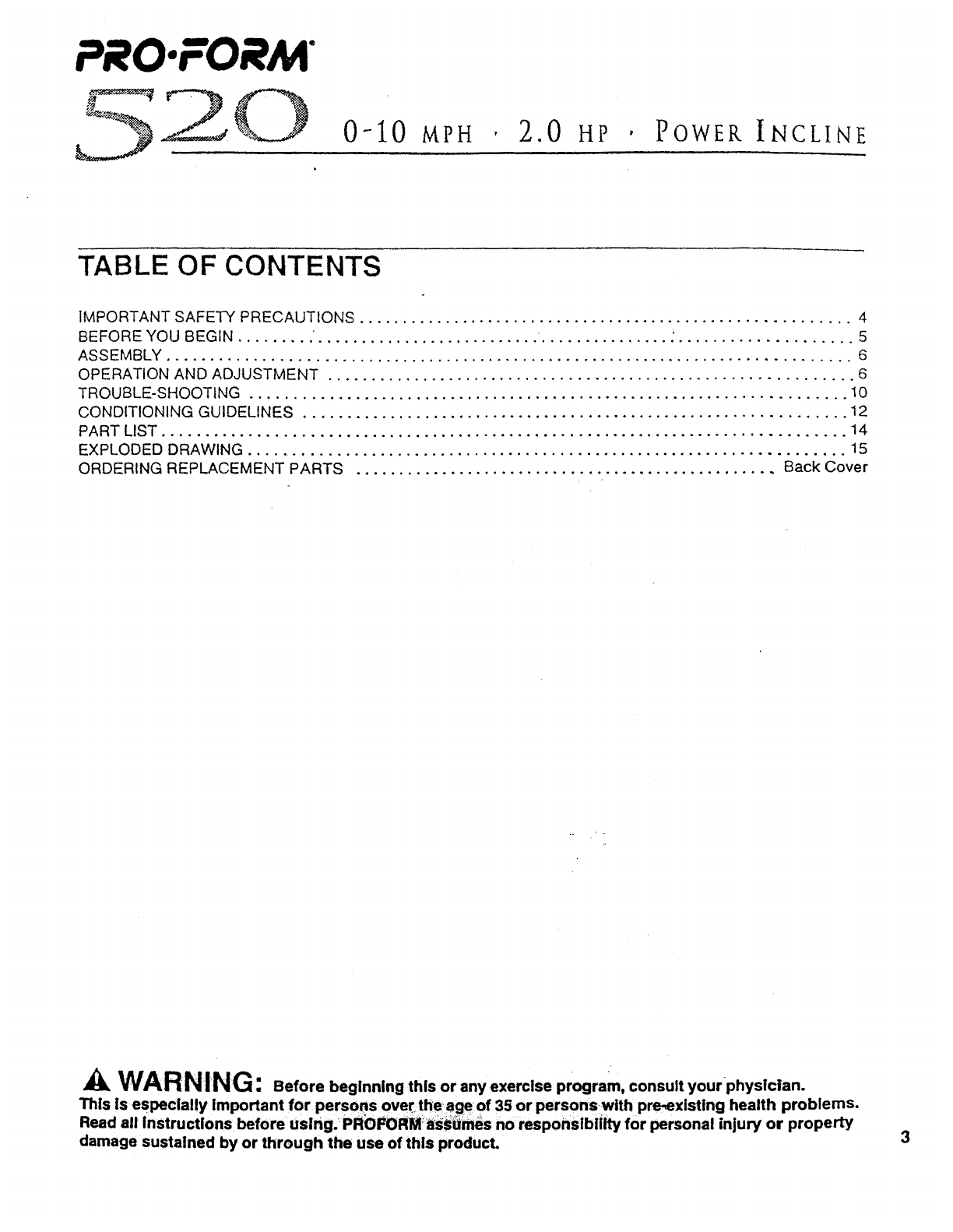

TABLE OF CONTENTS

IMPORTANT SAFETY PRECAUTIONS ......................................................... 4

BEFORE YOU BEGIN ......... .......................... ............... :.................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................. 6

TROUBLE-SHOOTING ..................................................................... 10

CONDITIONING GUIDELINES ............................................................... 12

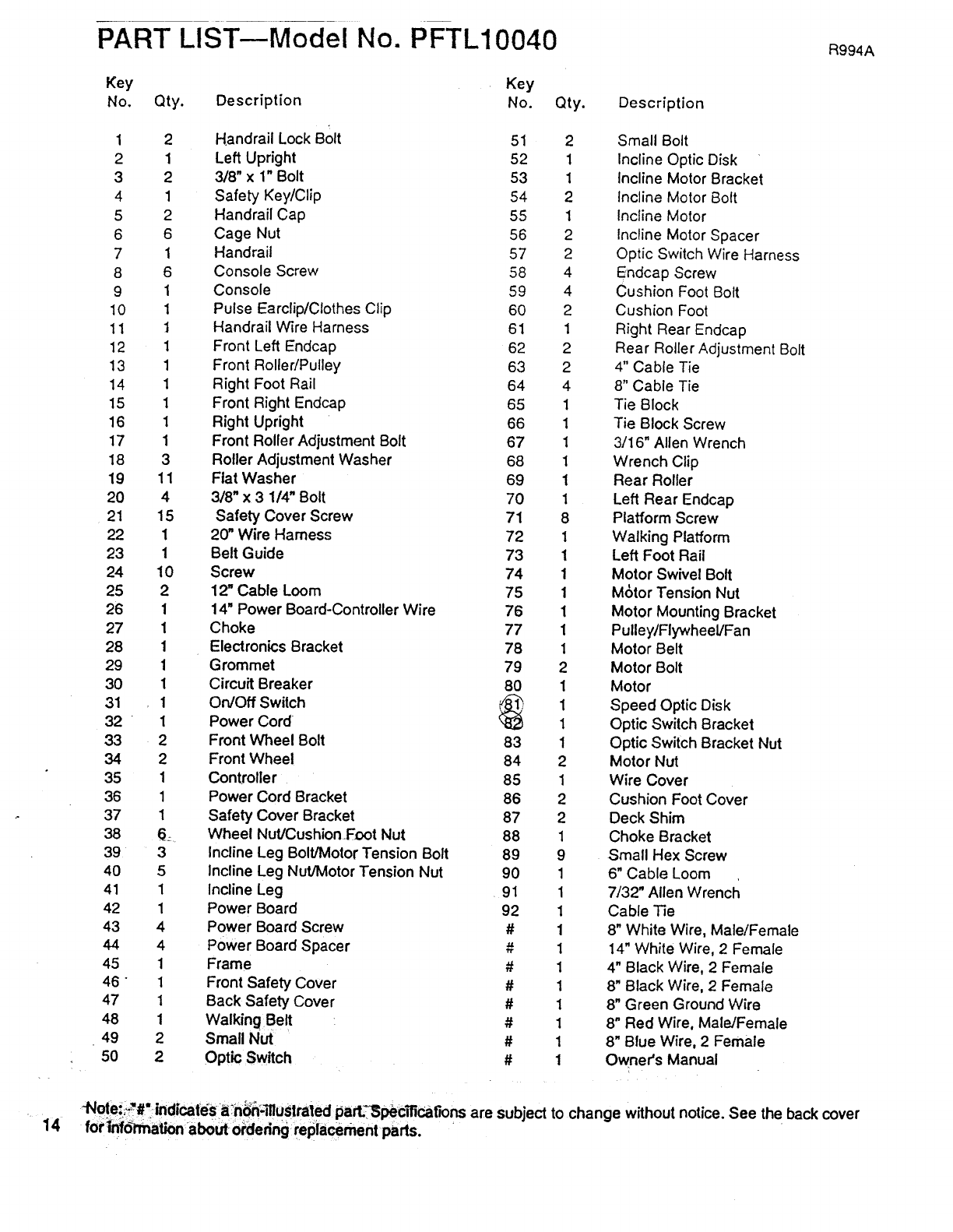

PART LIST ............................................................................... 14

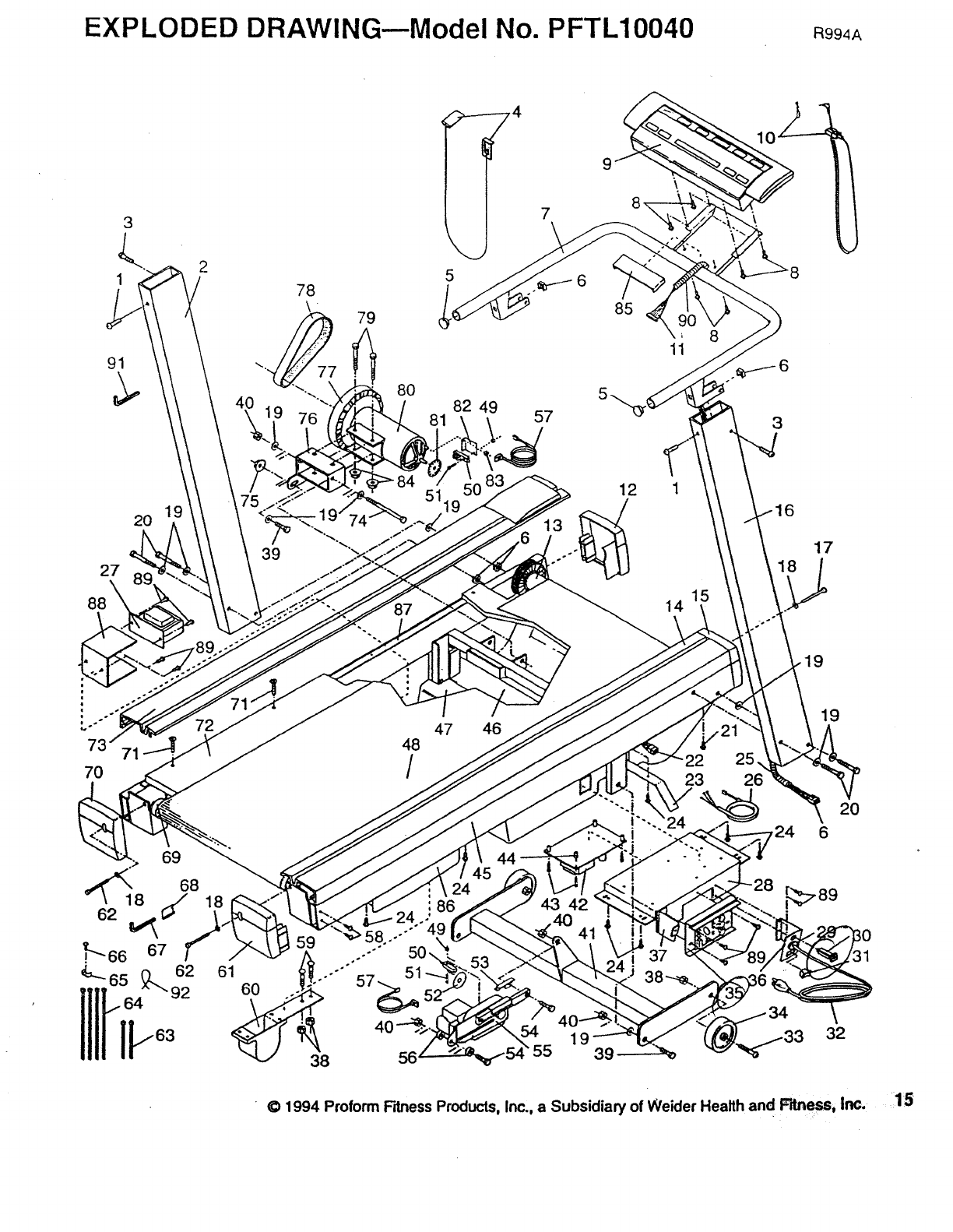

EXPLODED DRAWING ...................................................................... 15

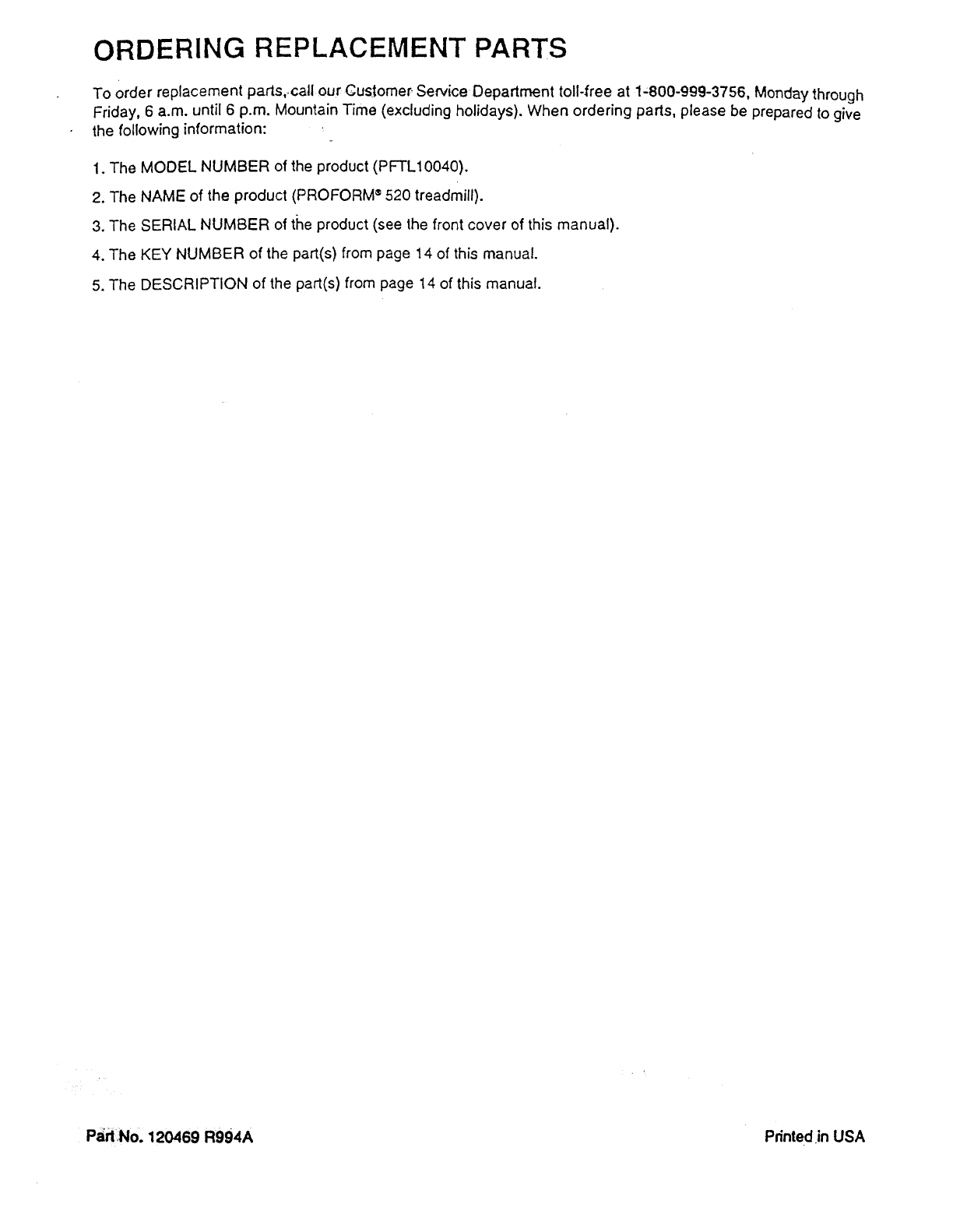

ORDERING REPLACEMENT PARTS ................................................. Back Cover

_k WARNING: Before beginning this or any exercise program, consult yourphysician.

This is especially Important for persons over the age of 35 or personswith preexisting health problems.

Read all instructions before using; PROleORM!_a's_es no responsibiilty for personal injury or property

damage sustained by or through the use of thls product.

IMPORTANT SAFETY PRECAUTIONS

WAR NING: To reduce the risk Ofburns, fire, electric shock or injury topersons, read the fol-

lowing important safety precautions and information before operating the treadmill.

1. Position the treadmill on a ie_,el surface, with at least 8 feet of clearance behind the treadmill. Do not

place the treadmill near water, outdoors or on any surface that blocks an air opening. Do not operate

where aerosol products are used or where oxygen is being administered.

.When connecting the power cord (see PLUGGING IN THE POWER CORD on page 6 and 7), plug the

power cord directly into a grounded circuit capable of carrying 12 or more amps. No other appliance

should be on the same circuit. Keep the power cord away from heated surfaces. If an extension cord

is needed, use only a 14-gauge general-purpose cord of five feet or less in length with a three-wire

conductor.

3. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power

cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on

page 5 if the treadmill is not working properly.)

4. Wear appropriate exercise clothing when using the treadmill; do not wear loose clothing that could

become caught in the treadmill. Always wear athletic shoes; never use the treadmill with bare feet,

vvea'}ing only stockings or in sandals. Athletic support clothes are recommended for both men and

women.

5. The pulse earclip is not a medical device. Various factors, including the user's movement while exer-

cising, may affect the accuracy of heart rate readings. The earclip is intended only as an exercise aid

in determining heart rate trends in general.

6. Never start the treadmill while you are standing on the walking belt. Always hold the handrail when

exercising on the treadmill

7. Never allow more than one person on the treadmill at a time. The treadmill should not be used by per-

sons weighing more than 250 pounds.

8. Keep small children away from the treadmill at all times. Never leave the treadmill unattended while it

is running. Always turn the power off when the treadmill is not in use.

9. Never drop or insert any object into any opening.

10. To reduce the possibility of overheating, do not operate the treadmill continuously for longer than 1

hour.

:11o_e treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden Jumps in speed.

12. Use the treadmill only as described in this manual.

13. Always unplug the power cord before performing the maintenance and adjustment procedures

described in this manual. Never remove the safety cover unless instructed to do so by an authorized

service representative. Servicing other than the procedures in thls manual should be performed by an

authorized service representative only.

SAVE THESE INSTRUCTIONS

BEFORE YOU BEGIN

Thank you for selecting the PROFORM ®520 treadmill. The PROFORM 520 treadmill blends advanced technolo-

gy with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and pri-

vacy of your home:

For your safety and benefit, read this manual carefully before using the treadmill. If you have additional

questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6

a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model num-

ber and serial number before calling. The model number of the treadmill is PFTL10040. The serial number can be

found on a decal attached to the treadmill (see the front cover of this manual for the location).

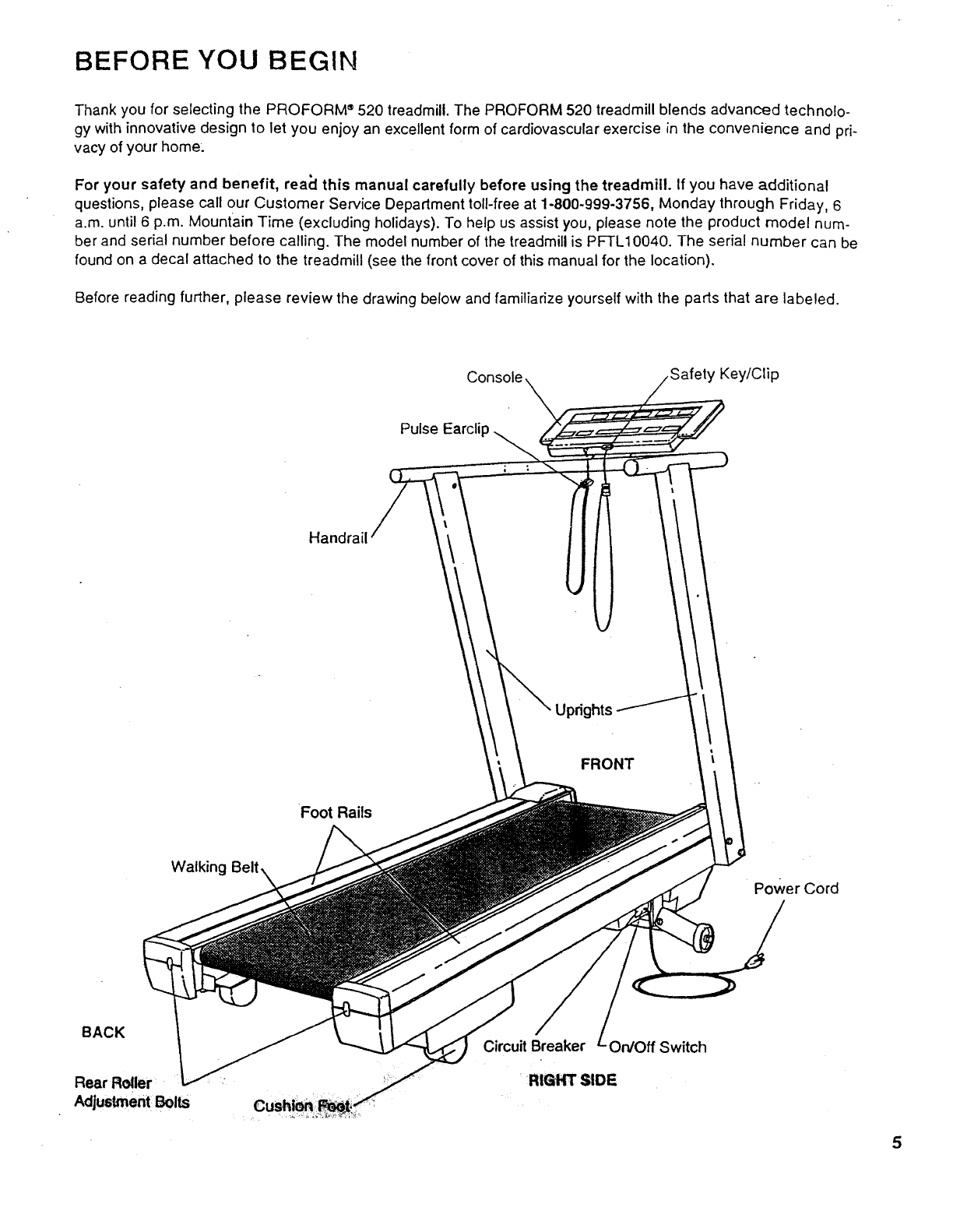

Before reading further, please review the drawing below and familiarize yourself with the pads that are labeled.

C°ns°le _

Pulse Earclip

Key/Clip

Handrail

FRONT

Foot Rails

Walking

Power Cord

BACK

Rear Roller

Adjustment Bolts

Circuit Breaker On/Off Switch

RI_ SIDE

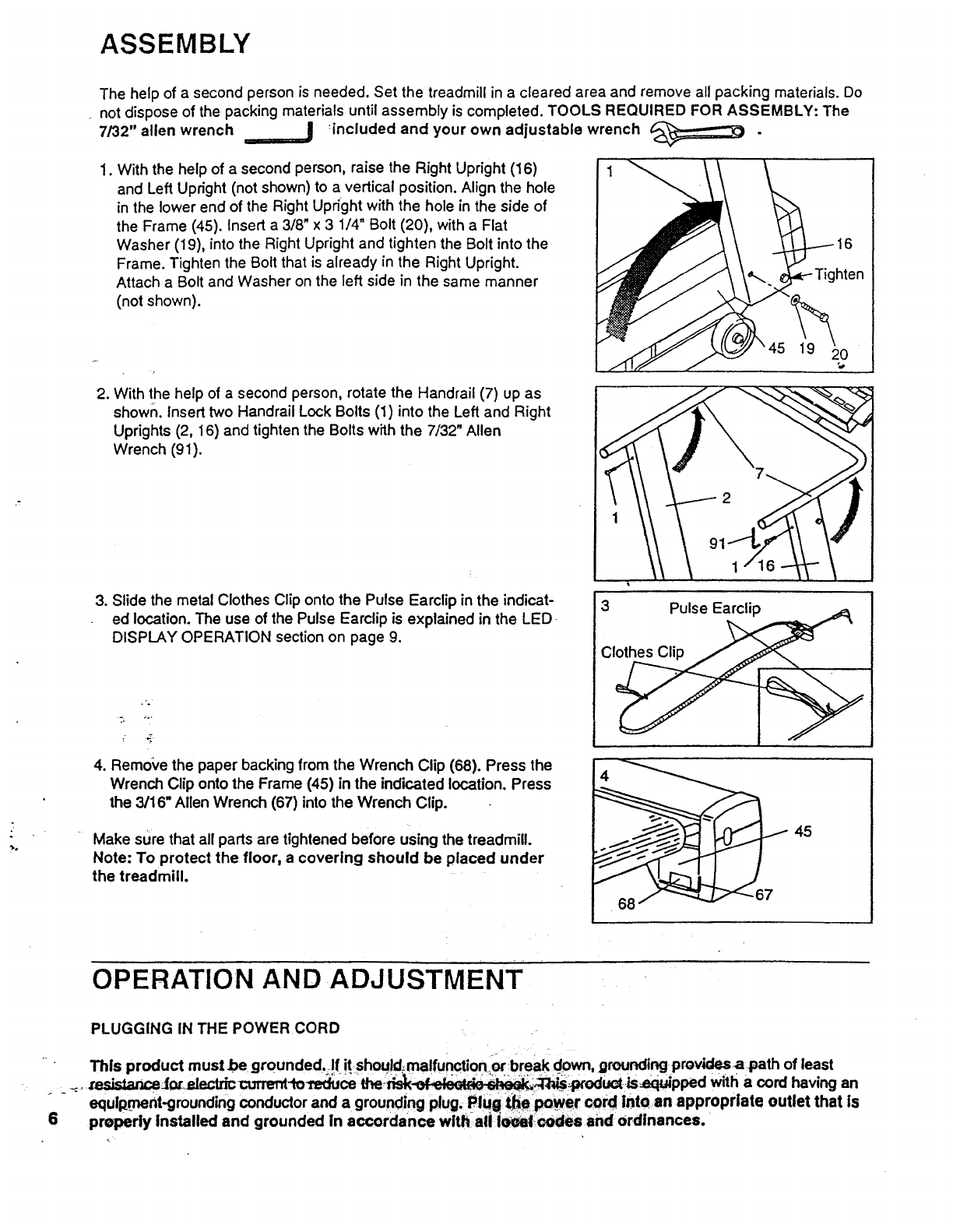

ASSEMBLY

The help of a second person is needed. Set the treadmill in a cleared area and remove all packing materials. Do

not dispose of the packing materials until assembly is completed. TOOLS REQUIRED FOR ASSEMBLY: The

7/32" allen wrench ==.,==,==j :included and your own adjustable wrench

1. With the help of a second person, raise the Right Upright (16)

and Left Upright (not shown) to a vertical position. Align the hole

in the lower end of the Right Upright with the hole in the side of

the Frame (45). Insert a 3/8" x 3 1/4" Bolt (20), with a Flat

Washer (19), into the Right Upright and tighten the Bolt into the

Frame. Tighten the Bolt that is already in the Right Upright.

Attach a Bolt and Washer on the left side in the same manner

(not shown).

19 )

2. With the help of a second person, rotate the Handrail (7) up as

shown. Insert two Handrail Lock Bolts (1) into the Left and Right

Uprights (2, 16) and tighten the Bolts with the 7/32" Allen

Wrench (91).

3. Slide the metal Clothes Clip onto the Pulse Earclip in the indicat-

ed location. The use of the Pulse Earclip is explained in the LED

DISPLAY OPERATION section on page 9.

4. Remo_,e the paper backing from the Wrench Clip (68). Press the

Wrench Clip onto the Frame (45) in the indicated location. Press

the 3/16" Allen Wrench (67) into the Wrench Clip.

Make sure that all parts are tightened before using the treadmill.

Note: To protect the floor, a covering should be placed under

the treadmill.

OPERATION AND ADJUSTMENT

PLUGGING IN THE POWER CORD

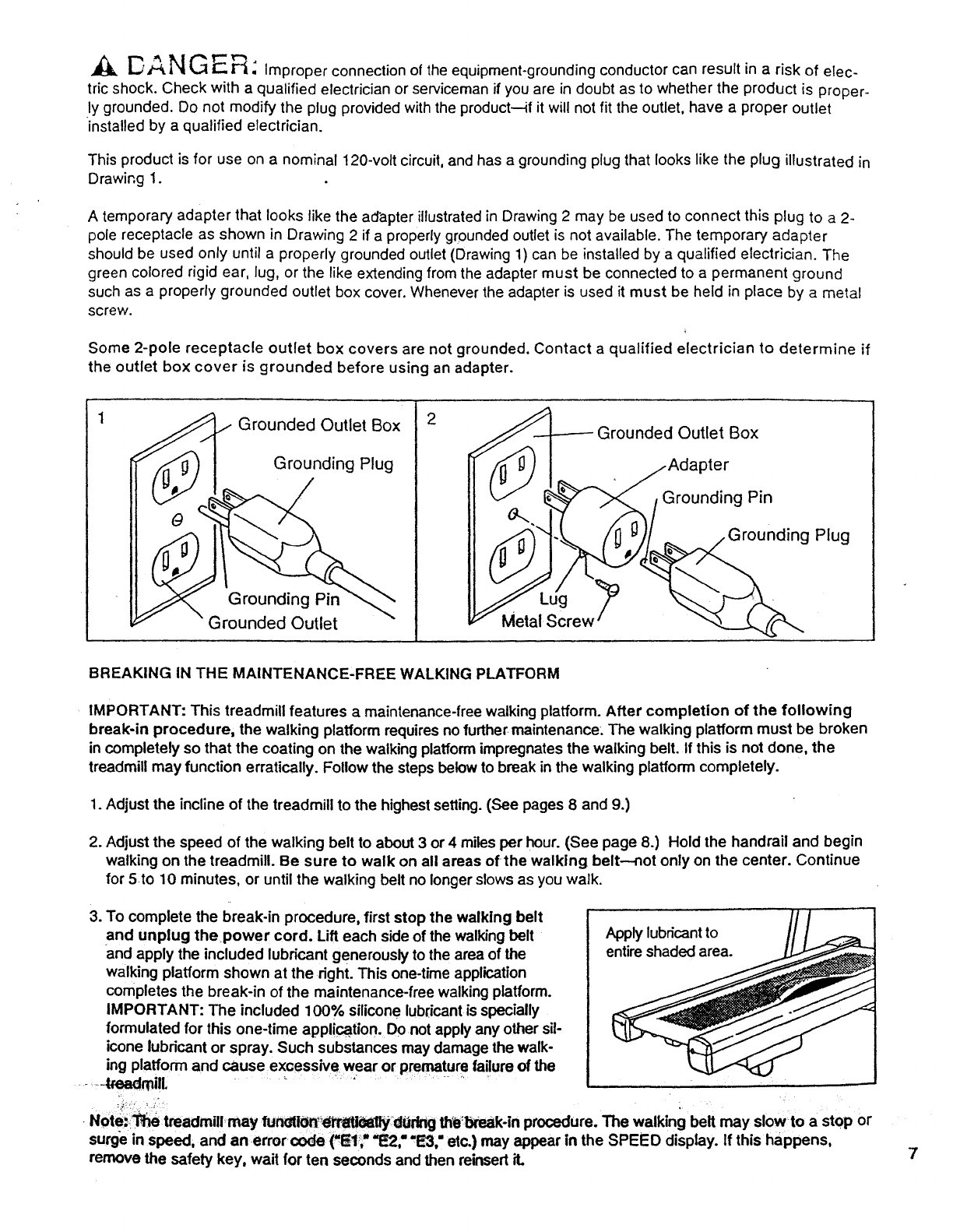

•"This product must be grounded. !f. it shou!d_malfunctionor •break down, grounding provides a path of least

_:_.r__f_ectticcurm_ffo-_Cethe _roduGt is_pped With a cord having an

equip_rnent-groundingconductor and a grounding plug. Plug t f_epower cord Into an appropriate outlet that is

6 properly Installed and grounded in accordance withal| Jeeiai _les and ordinances.

,& D,&NGER: ,mproperconnection of the equipment-grounding conductor can result in a risk of elec-

tric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is proper-

ly grounded. Do not modify the plug provided with the product---if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in

Drawing 1.

A temporary adapter that looks like the adapter illustrated in Drawing 2 may be used to connect this plug to a 2-

pole receptacle as shown in Drawing 2 if a properly grounded outlet is not available. The temporary adapter

should be used only until a properly grounded outlet (Drawing 1) can be installed by a qualified electrician. The

green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground

such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal

screw.

Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to determine if

the outlet box cover is grounded before using an adapter.

Grounded Outlet Box

Grounding Plug

Grounding Pin

Grounded Outlet

Metal Screw

_rounded Outlet Box

Grounding Pin

_rounding Plug

BREAKING IN THE MAINTENANCE-FREE WALKING PLATFORM

IMPORTANT: This treadmill features a maintenance-free walking platform. After completion of the following

break-in procedure, the walking platform requires no further maintenance: The walking platform must be broken

in completely so that the coating on the walking platformimpregnates the walking belt. If this is not done, the

treadmill may function erratically. Follow the steps belowto break in the walking platform completely.

1. Adjust the incline of the treadmill to the highest setting. (See pages 8 and 9.)

2. Adjust the speed of the walking belt to about 3 or 4 miles per hour. (See page 8.) Hold the handrail and begin

walking on the treadmill. Be sure to walk on all areas of the walking belt--not only on the center. Continue

for 5to 10 minutes, or until the walking belt no longer slows as you walk.

3. To complete the break-in procedure, first stop the walking belt

and unplug thepower cord. Lift each side of the walkingbelt

and apply the included lubricant generously to the area of the

walking platform shown at the right. This one-time application

completes the break-in of the maintenance-free walking platform.

IMPORTANT: The included 100% silicone lubricantis specially

formulated for this one-time application. Do not apply any other sil-

icone lubricant or spray. Such substances may damage the walk-

ing platform and cause excessivewear or premature failure of the

- .-_eadmilL

Apply lubricantto

entireshaded area.

Note_:_e treadmill may fun=lOn-efrati_'11y dEtringthte:lxeak-inprocedure. The walking belt may slowto a stop or

surge in speed, and an error code ("Et:," "L=2,""L_," etc.) may appear in the SPEED display. If this happens,

remove the safety key, wait for ten seconds and then re_,sed it. 7

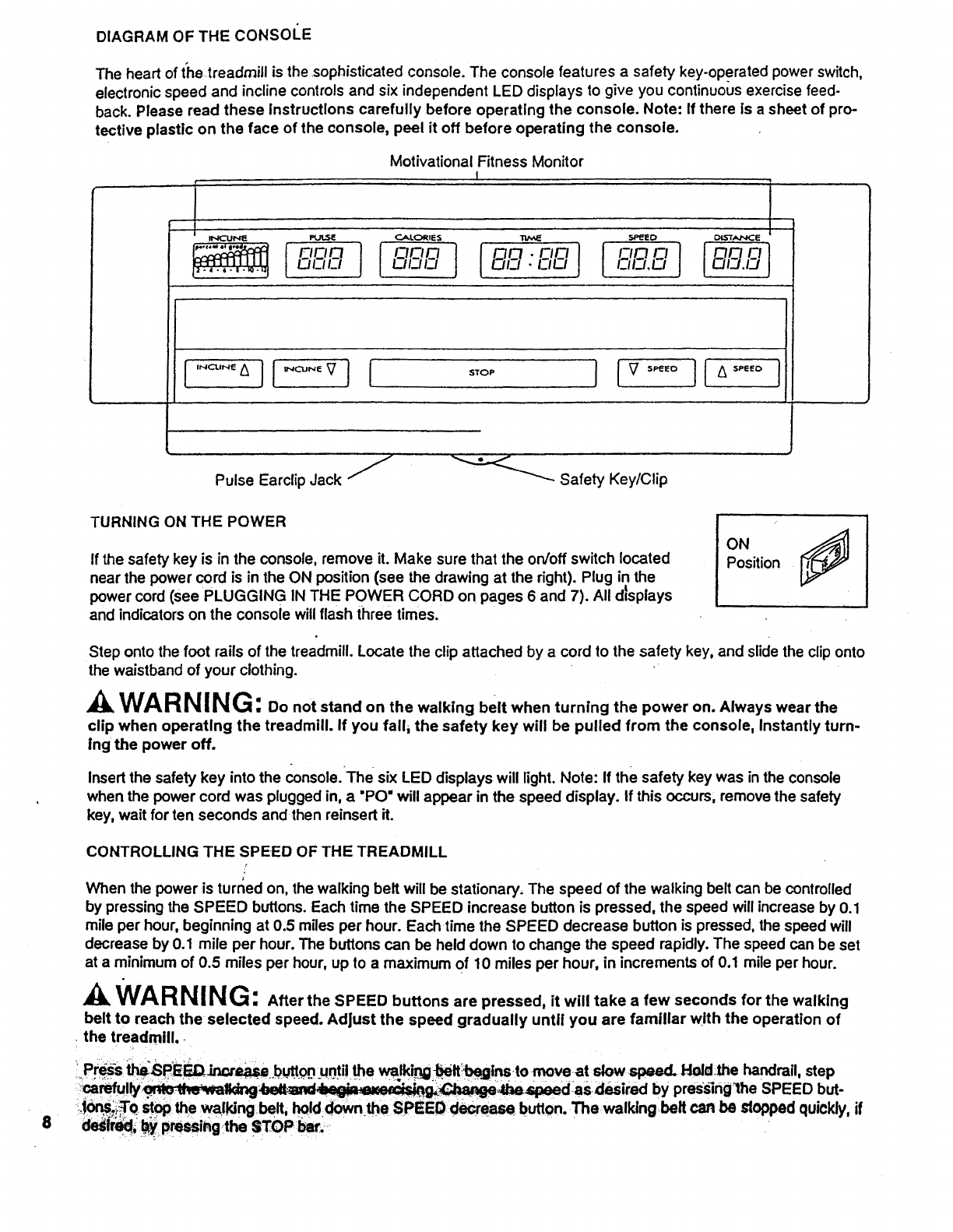

DIAGRAM OF THE CONSOI'E

The heart of the treadmill is the sophisticated console. The console features a safety key-operated power switch,

electronic speed and incline controls and six independent LED displays to give you continuous exercise feed-

back. Please read these Instructions carefully before operating the console. Note: If there Is a sheet of pro-

tective plastic on the face of the console, peel it off before operating the console.

Motivational Fitness Monitor

Pulse Earclip Jack j _ Safety Key/Clip

TURNING ON THE POWER

If the safety key is in the console, remove it. Make sure that the on/off switch located

near the power cord is in the ON position (see the drawing at the right). Plug in the

power cord (see PLUGGING IN THE POWER CORD on=pages 6 and 7). All d_splays

and indicatorson the console willflash three times.

oNj

Position

Step onto the foot rails of the treadmill. Locate the clip attached by a cord to the safety key, and slide the clip onto

the waistband of your clothing. _

WAR NING: Do not stand on the walking belt when turning the power on. Always wear the

clip when operating the treadmill. If you fall, the safety key will be pulled from the console, Instantly turn-

Ing the power off.

Insert the safety key into the console.The six LED displays will light. Note: If the safety key was inthe console

when the power cord was plugged in, a"PO" will appear in the speed display. If this occurs, remove the safety

key, wait for ten seconds and then reinsert it.

CONTROLLING THE SPEED OF THE TREADMILL

When the power is turr_edon, the walking belt will be stationary. The speed of the walking belt can be controlled

by pressing the SPEED buttons. Each time the SPEED increase button is pressed, the speed will increase by 0.1

mile per hour, beginning at 0.5 miles per hour. Each time the SPEED decrease button is pressed, the speed will

decrease by 0.1 mile per hour. The buttons can be held down to change the speed rapidly. The speed can be set

at a minimum of 0.5 miles per hour, up to a maximum of 10 miles per hour, in increments of 0.1 mile per hour.

WARNING: A,er the SPEED buttons are pressed, it will take a few seconds for the walking

belt to reach the selected speed. Adjust the speed gradually until you are familiar with the operation of

the treadmill.

PrOs _SpiEED.ir_r_l_se buttQn_untilthe wa_ {_elt;beginsto moveat slow speed. H_dthe handrail, step

_=_lly_lldng _g,:_:4be_)eedas desired by pressinglhe SPEED but-

.t_;iT0 stop the waling belt, holddown the SPEED decrease button. The walking belt can be slopped quickly, if

de_ecl_ .b.ypressing the STOP.bar.

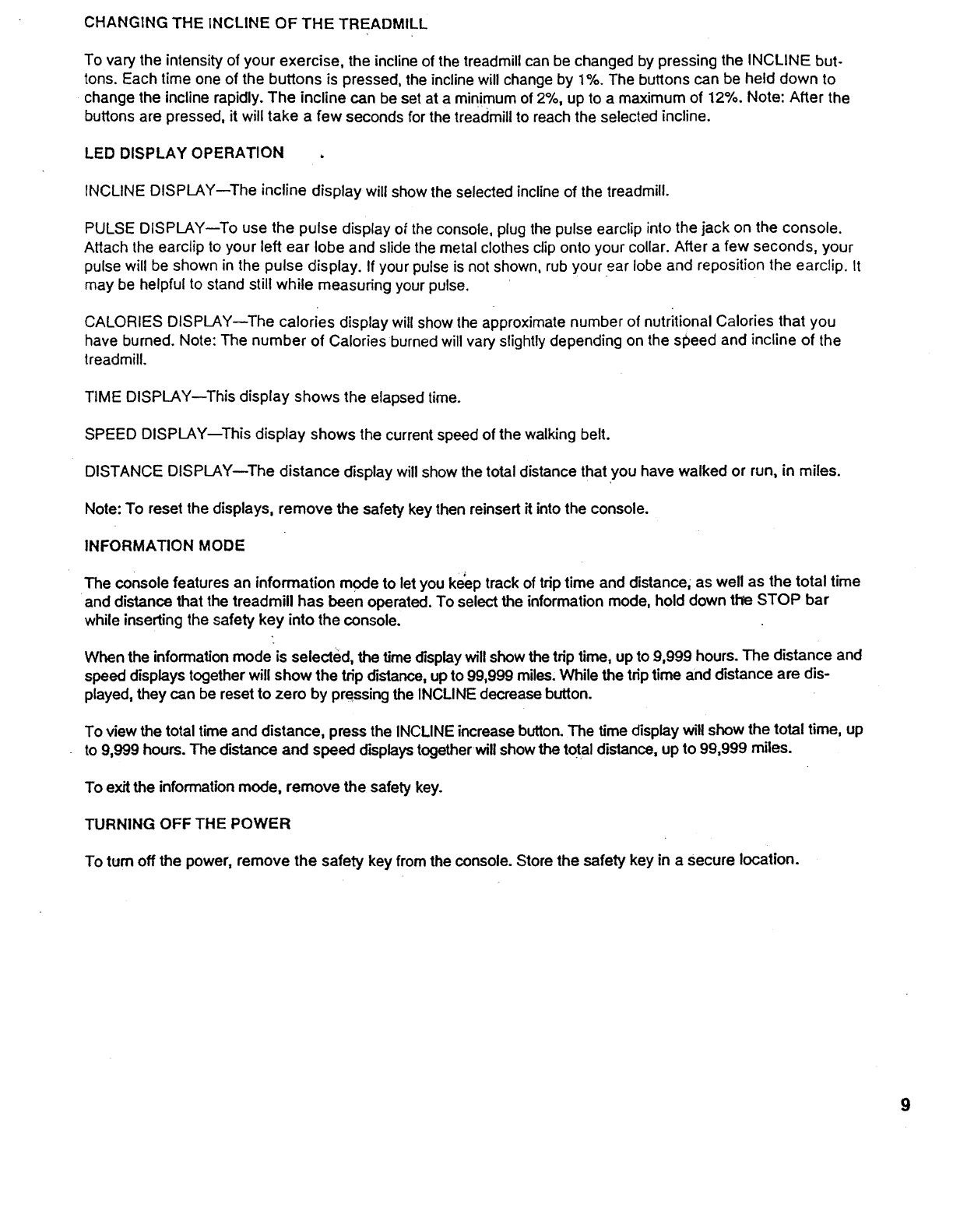

CHANGING THE INCLINE OF THE TREADMILL

To vary the intensity of your exercise, the inclineof the treadmill can be changed by pressing the INCLINE but-

tons. Each time one of the buttons is pressed, the incline will change by 1%. The buttons can be held down to

change the incline rapidly. The incline can be set at a minimum of 2%, up to a maximum of 12%. Note: After the

buttons are pressed, it will take a few seconds for the treadmill to reach the selected incline.

LED DISPLAY OPERATION

INCLINE DISPLAY--The incline display will show the selected incline of the treadmill.

PULSE DISPLAY--To use the pulse display of the console, plug the pulse earclip into the jack on the console.

Attach the earclip to your left ear lobe and slide the metal clothes clip onto your collar. After a few seconds, your

pulse will be shown in the pulse display. If your pulse is not shown, rub your ear lobe and reposition the earclip, tt

may be helpful to stand still while measuring your pulse.

CALORIES DISPLAY--The calories display will show the approximate number of nutritional Calories that you

have burned. Note: The number of Calories burned will vary slightly depending on the sl_eed and incline of the

treadmill.

TIME DISPLAY--This display shows the elapsed time.

SPEED DISPLAY--This display shows the current speed of the walking belt.

DISTANCE DISPLAY--The distance display will show the total distance that you have walked or run, in miles.

Note: To reset the displays, remove the safety key then reinsert it into the console.

INFORMATION MODE

The console features an information mode to let you keep track of trip time and distance; as well as the total time

and distance that the treadmill has been operated. To select the information mode, hold down the STOP bar

while inserting the safety key into the console.

When the information mode is selected, the time display will show the trip time, up to 9,999 hours. The distance and

speed displays together will show the trip distance, up to 99,999 miles. While the trip time and distance are dis-

played, they can be reset to zero by pressing the INCLINE decrease button.

To view the total time and distance, press the INCLINE increase button. The time display will show the total time, up

to 9,999 hours. The distance and speed displaystogetherwill show the total distance, up to 99,999 miles.

To exit the information mode, remove the safety key.

TURNING OFF THE POWER

To turn off the power, remove the safety key from the console. Store the safety key in asecure location.

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that appties,

and follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-

800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time.

1. SYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord is plugged into a properly grounded outlet. (See PLUGGING IN THE

POWER CORD on pages 6 and 7.) If an extension cord is needed, use only a 14-gauge general-purpose

cord of five feet or less in length.

b. After the power cord has been plugged in, make sure that the safety key is fully inserted into the console.

Various indicators on the console should light. (See TURNING ON THE POWER on page 8.)

d°

Check the circuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuit break-

er has tripped. To reset the circuit breaker, wait for five min-

utes and then press the switch back in.

Check the ON/OFF switch located on the treadmill near the

power cord. The switch must be in the ON position.

2. SYMPTOM: THE POWER TURNS OFF DURING USE

Tripped i: _ Reset

ON J

a. Check the circuit breaker located on the treadmill near the power cord. If the circuit breaker has tripped (see

the drawing above.), wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in....

c. Remove the safety key from the console. Reinsert the safety key fully into the console. Various indicators on

the console should light.

d. Check to make sure the ON!OFF switch is in the ON position. (See 1. d. above.)

e. If the treadmill still will not run, please call our Customer Service Department.

3. SYMPTOM: THE PULSE EARCLIP DOES NOT FUNCTION PROPERLY

a. Mak_ sure that the pulse earclip is plugged fully into the jack on the console. Rub your left ear lobe and

.reposition the earclip. Attach the clothes clip to your collar.

b. Stand still while measuring your pulse.

c. The _lse earclip may need to be .cleared. Press the earclip open, and find the two clear circles inside the

earclip. Wipe the two clear circles using a cotton swab saturated with denatured alcohol. NOTE: Various fac-

tors, including the user's movement, may affect the accuracy of heart rate readings. The earclip is intended

only as an exercise aid in determining heart rate trends in general.

4. SYMPTOM: THE CONSOLE DOES NOT FUNCTION PROPERLY

a. If a console malfunction occurs, an error code ('El ," =E2," "E3," etc.) may appear on the display. If an error

code appears, remove the safety key, wait for ten seconds and then reinsert the safety key. If an error code

appears again, call our Customer Service Department. Do not operate the treadmill until the problem is cor-

rected.

5. SYMPTOM:. THE WALKING BELT SLOWS WHEN WALKED ON

_.a._¢_Tffst_ti,,_¥_4amt, he _wal, k'<_'er'N_s.orface oflhe waltdng bett-for 10 m3nutes t° break in

th_waJking platform. During this initial break-in period, it is normal for the walking belt to slow. (See BREAK-

ING IN THE MAINTENANCE-FREE WALKING PLATFORM on page 7.)

b. If an extension cord is needed, use only a 14-gauge general-purpose cord of five feet or less in length.

c. If the walking belt is overtightened, treadmill performance may

decrease and the walking belt may be permanently damaged.

Remove the safety key and UNPLUG THE POWER CORD.

Using the 3/16" allen wrench, turn both rear roller adjustment

bolts counterclockwise, 1/4 of a turn. When the walking belt is

properly tightened, you should be able to lift each side of the

walking belt 3-4 inches off the walking platform. The center of the

walking belt should just touch the walking platform. Be careful to

keep the walking belt centered. Plug in the power cord, insert the

safety key and run the treadmill for a few minutes. Repeat until

the walking belt is properly tightened.

Rear Roller H/

AdjTkstment B°lts

/.@

6. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON

a. If the walking belt has shifted to the left, first remove the safety

key and UNPLUG THE POWER CORD. Using the 3/16" allen

wrench, turn the left rear roller adjustment bolt clockwise, and

the right bolt counterclockwise, 1/4 of a turn each. Be careful not

to overtighten the walking belt. Plug in the power cord, insert the

safety key and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

b. If the walking belt has shifted to the right, first remove the safety

key and UNPLUG THE POWER CORD. Using the 3/16" allen

wrench, turn the left rear roller adjustment bolt counterclockwise,

and the right bolt clockwise, 1/4 of a turn each. Be careful not to

overtighten the walking belt. Plug in the power cord, insert the

safety key and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

c. If the walking belt slips when walked on, first remove the safety

key and UNPLUG THE POWER CORD. Using the 3/16" allen

wrench, turn both rear roller adjustment bolts clockwise, 1/4 of a

turn. When the walking belt is correctly tightened, you should be

able to lift each side of the walking belt 3-4 inches off the walking

platform. The center of the walking belt should just touch the

walking platform. Be careful to keep the walking belt centered.

Plug in the power cord, insert the safety key and run the treadmill

for a few minutes. Repeat until the walking belt is properly tight-

ened.

STORAGE

Unplug the power cord when the treadmill is not in use. Remove the

indicated bolt and washer from the lower end of each upright. Loosen

the other bolts in each upright. Carefully rotate the uprights down. It is

recommended that the treadmill be covered during extended periods

of storage.

:lemove

CONDITIONING GUIDELINES

The following guidelines will help you, to plan your exercise program. Remember that proper n_dtion and ade-

quate rest are essential for successful results.

WARNING: Beforebeginningthisoranyexerciseprogram,consultyourphysician. Thisis

especially important for individuals over the age of 35 or individuals with pre-existing health problems.

EXERCISE INTENSITY

To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper intensity

level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be

maintained at a level between 70% and 85% of your maximum heart rate as you exercise. This is known as your

training zone. You can find your training zone in the table below.

UNCONDITIONED CONDITIONED

TRAINING ZONE TRAINING ZONE

AGE (BEATS/MIN) (BEATS/MfN)

20 138-167 133-162

25 136-166 132-160

30 135-164 130-158

35 134-162 129-156

40 132-161 127-155

45 131-159 125-153

50 129-156 124-150

UNCONDITIONED CONDITIONED

TRAINING ZONE TRAINING ZONE

AGE (BEATS/MIN)

55 127-155

60 126-153

65 125-151

70 123-15O

122-14775

• 85

120-146

118-144

(BEATS/MI_)

122-149

121-147

119-145

118-144

117-142

115-140

114-139

During the first few months of your exercise program, keep your heart rate near the low end of your trainingzone

as you exercise. After a few months of regular exercise, your heart rate can be increased gradually until it is near

the middle of your training zone as you exercise. You can measure your heart rate using the pulse mode of the

console. Exercise for at least four minutes, and then measure your heart rate immediately. If your heart rate is too

high, decrease the intensity of your exercise, if your heart rate is too low, increase the intensity of your exercise.

A' IA/A 1-111111#'l_

_wi4.rt |_1!|_I!L_: The pulse earclip is not a medical device. Various factors, including your move-

ment during exercise, may affect the accuracy of heart rate readings. The earclip is intended only as an

exercise aid in determining heart rate trends in general.

WORKOUT GUIDELINES

Eacll Wo_olA should consist of three_)asic parts: a warm-up, 20 to 30 minutes of training zone exercise, and a

cool-down. Warming up prepares the body for exercise by increasing circulation, delivering more oxygen to the

muscles and raising the body temperature. Begin each workout with 5 to 10 minutes of stretching and lightexer-

cise to warm up. Then, increase the intensity of your exercise to raise your heart rate to your training zone for 20

to 30 minutes. Breathe regularly and deeply as you exercise--never hold your breath. Finish each workout with 5

to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles as wellas help to

decrease soreness and other post-exercise problems.

To m&intain or improve your condition, complete three workouts each week, with at least one day of rest between

workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired.

The key to success is CONSISTENCY.

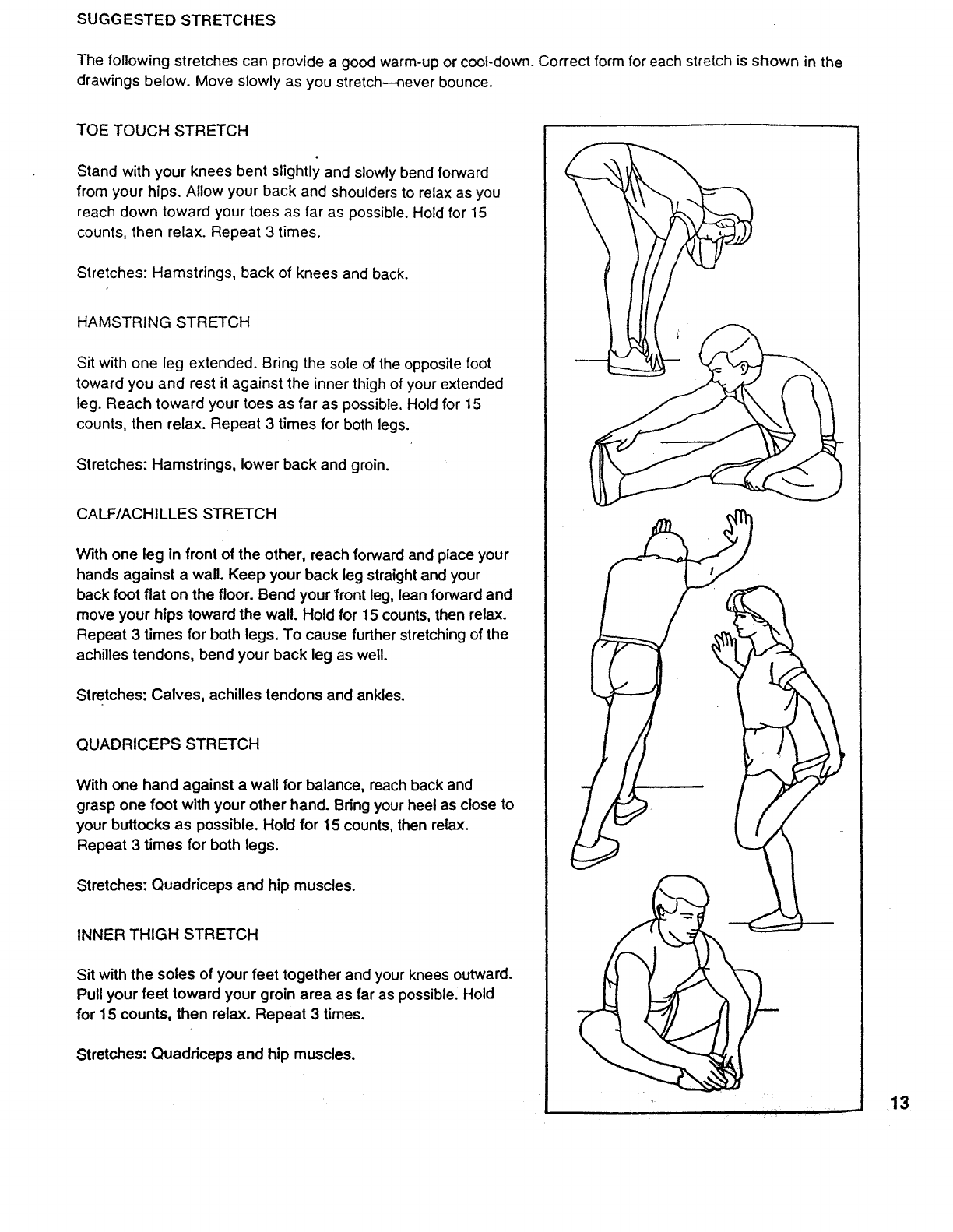

SUGGESTED STRETCHES

The following stretches can provide a good warm-up or coot-down. Correct form for each stretch is shown in the

drawings below. Move slowly as you stretch--never bounce.

TOE TOUCH STRETCH

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times.

Stretches: Hamstrings, back of knees and back.

HAMSTRING STRETCH

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for both legs.

Stretches: Hamstrings, lower back and groin.

CALF/ACHILLES STRETCH

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your

back foot flat on the floor. Bend your front leg, lean forward and

move your hips toward the wall. Hold for 15 counts, then relax.

Repeat 3 times for both legs. To cause further stretching of the

achilles tendons, bend your back leg as well.

Stretches: Calves, achilles tendons and ankles.

QUADRlCEPS STRETCH

With one hand against a wall for balance, reach back and

grasp one foot with your other hand. Bring your heel as close to

your buttocks as possible. Hold for 15 counts, then relax.

Repeat 3 times for both legs.

Stretches: Quadriceps and hip muscles.

INNER THIGH STRETCH

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold

for 15 counts, then relax. Repeat 3 times.

Stretches: Quaddceps and hip muscles.

./!i ¸ ,,i 13

PART LIST--Model No. PFTL10040 R994A

Key Key

No. Qty. Description No. Qty. Description

46"

2 Handrail Lock Bolt 51 2 Small Bolt

1 Left Upright 52 1 Incline Optic Disk

2 3/8" x 1" Bolt 53 1 Incline Motor Bracket

1 Safety Key/Clip 54 2 Incline Motor Bolt

2 Handrail Cap 55 1 Incline Motor

6 Cage Nut 56 2 Incline Motor Spacer

1 Handrail 57 2 Optic Switch Wire Harness

6 Console Screw 58 4 Endcap Screw

1 Console 59 4 Cushion Foot Bolt

1 Pulse Earclip/Clothes Clip 60 2 Cushion Foot

1 Handrail Wire Harness 61 1 Right Rear Endcap

1 Front Left Endcap 62 2 Rear Roller Adjustment Bolt

1 Front Roller/Pulley 63 2 4" Cable Tie

1 Right Foot Rail 64 4 8" Cable Tie

1 Front Right Endcap 65 1 Tie Block

1 Right Upright 66 1 Tie Block Screw

1 Front Roller Adjustment Bolt 67 1 3/16" Allen Wrench

3 Roller Adjustment Washer 68 1 Wrench Clip

11 Fiat Washer 69 1 Rear Roller

4 3/8" x 3 1/4" Bolt 70 1 Left Rear Endcap

15 Safety Cover Screw 71 8 Platform Screw

1 20" Wire Hamess 72 1 Walking Platform

1 Belt Guide 73 1 Left Foot Rail

10 Screw 74 1 Motor Swivel Bolt

2 12" Cable Loom 75 1 MBtor Tension Nut

1 14" Power Board-Controller Wire 76 1 Motor Mounting Bracket

1 Choke 77 1 Pulley/FlywheeVFan

1 Electronics Bracket 78 1 Motor Belt

1 Grommet 79 2 Motor Bolt

1 Circuit Breaker 80 1 Motor

1 On/Off Switch _ 1 Speed Optic Disk

1 Power Cord _ 1 Optic Switch Bracket

2 Front Wheel Bolt 83 1 Optic Switch Bracket Nut

2 Front Wheel 84 2 Motor Nut

1 Controller 85 1 Wire Cover

1 Power Cord Bracket 86 2 Cushion Foot Cover

1 Safety Cover Bracket 87 2 Deck Shim

6._ Wheel Nut/CushionFoot Nut 88 1 Choke Bracket

3 Incline Leg Bolt/Motor Tension Bolt 89 9 Small Hex Screw

5 Incline Leg Nut/Motor Tension Nut 90 1 6" Cable Loom

1 Incline Leg 91 1 7/32" Allen Wrench

1 Power Board 92 1 Cable Tie

4 Power Board Screw # 1 8" White Wire, Male/Female

4 Power Board Spacer # 1 14" White Wire, 2 Female

1 Frame # 1 4" Black Wire, 2 Female

1 Front Safety Cover # 1 8" Black Wire, 2 Female

1 Back Safety Cover # 1 8" Green Ground Wire

1 Walking Belt # 1 8" Red Wire, Male/Female

2 Small Nut # 1 8" Blue Wire, 2 Female

2Optic Switch # 1 Owner's Manual

-Note: _#'indicates a_n_n-_uStraled part._pec_cafions are subject to change without notice. See the back cover

for info_n'_ationabout oi'dering replacement parts.

EXPLODED DRAWING--Model No. PFTL10040 RSS4A

82 49

5119 12

14 1

73 71

38 56 39

-22

ORDERING REPLACEMENT PARTS

To order replacement pa,'ls,,catl our Customer- Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m, Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

1. The MODEL NUMBER of the product (PFTL10040).

2. The NAME of the product (PROFORM ®520 treadmill).

3. The SERIAL NUMBER of the product (see the front cover of this manual).

4. The KEY NUMBER of the part(s) from page 14 of this manual.

5. The DESCRIPTION of the part(s) from page 14 of this manual.

PartNo. 120469 R994A Pdntedin USA

PROFORM Treadmill Manual L1001146

PFTLIO040 L1001146

Navigation menu

Versions of this User Manual:

Views

Navigation
