Blood Pressure Monitor
Instruction Manual
BF2204B
Table of Contents
1. Safety Information ................................................................................................ 2
1.1 Warning .............................................................................................................................. 2
1.2 Precaution .......................................................................................................................... 2
2. Product Feature .................................................................................................... 3
3. Pre Measurement .................................................................................................. 4
3.1 Battery ................................................................................................................................ 4
3.2 System Setting ................................................................................................................... 5
4. Take a Measurement ............................................................................................ 5
4.1 Important Notes ................................................................................................................ 6
4.2 Applying the Wrist Cuff ................................................................................................... 6
4.3 Body Posture during Measurement ................................................................................. 6
4.4 Taking a Measurement ..................................................................................................... 7
4.5 Data Transmission ............................................................................................................. 8
4.6 Memory .............................................................................................................................. 9
5. Error Indication .................................................................................................... 9
6. Trouble Shooting ................................................................................................... 9
7. Specification ........................................................................................................ 10
8．About Blood Pressure .......................................................................................... 14
8.1 What is Blood Pressure? ................................................................................................. 14
8.2 What is High Blood Pressure? ....................................................................................... 14
8.3 What is Morning Hypertension (Morning Surge)? ...................................................... 15
Reference Standard .................................................................................................... 15
Blood Pressure Measurement Chart ........................................................................ 15
Guarantee Card ......................................................................................................... 16
Explanation of Symbols ............................................................................................. 17
After-Sale Service ....................................................................................................... 17
Rev. A3
2
1. Safety Information
1.1 Warning
Self diagnosis and treatment which use measured results may be dangerous. Follow the
instructions of your physician or licensed healthcare provider.
Those who have arrhythmia, diabetes, blood circulation or apoplexy problem, please use
under the physician’s instruction.
If cuff inflation doesn’t stop, remove the cuff or power off the unit, otherwise, it may result in
a hazard condition.
This equipment is not suitable for the neonate, infant and who can't communicate or interact
independently.
Do not use the blood pressure monitor for any other purpose except measuring the blood
pressure of human body.
Do not use the blood pressure monitor when you are close proximity to strong static
electricity or electromagnetic fields, and avoid using the mobile during measurement.
Do not use in combination with a hyperbaric oxygen therapy device, or in an environment
where combustible gas may be generated.
Do not install the unit in the following locations:
- Locations subject to vibration such as ambulances and emergency helicopters.
- A location where there is gas or flame.
- A location where there is water or steam.
- A location where chemicals are stored.
- A location where the unit may easily fall.
The common arrhythmia such as atrial premature beats, premature ventricular and atrial
fibrillation will lead to inaccurate results or error.
Measurements or stores need to take into account environment variables, or else it would lead
to the inaccurate measurement.
When using or replacing the batteries, the operator should not touch those parts and the
patient simultaneously.
The battery has positive/negative polarity. If the battery does not connect well to the unit, do
not forcibly connect it.
Do not use Luer lock. If Luer lock connectors are used in the construction of tubing, there is a
possibility that they might be inadvertently connected to intravascular fluid systems, allowing
air to be pumped into a blood vessel.
1.2 Precaution
Do not attempt to disassemble, repair or modify the blood pressure monitor.
Avoid high temperature, moisture, dust and direct sunlight.
Clean the body with soft and clean wet cloth. Do not clean the unit with alcohol and other
corrosive liquids.
Do not wet or clean the cuff with water.
Clean the cuff with soft dry cloth after measurement.
Do not use at extremely high temperature, high humidity, or high altitude. Use only within the
Rev. A3
3
required ambient conditions.
Do not drop or expose the device to heavy shock.
Do not use the unit near large equipment that uses a switching relay for power ON/OFF.
Remove the batteries if the unit will not use for a long time.
Clinical testing has not been conducted on newborn infants and pregnant women. Do not use
on newborn infants and pregnant women.
The blood pressure monitor has gone through several trials of testing to ensure the
measurement accuracy. The end user should conduct a manufacturer recommended
inspection and calibration annually.
Blood pressure measurements determined with the device are equivalent to those obtained by
a trained observer using the cuff/stethoscope auscultatory method, within the limit prescribed
by the American National Standard, Manual, electronic or automated sphygmomanometers.
Keep out of reach of infants, small children, and compromised people who cannot express
their consent.
This product is suitable for use to self- monitoring of blood pressure in home or used by the
licensed healthcare personnel in hospital.
Precaution！Please read the enclosed instruction.
2. Product Feature
Indications for use：Measurement of Human Blood Pressure and Pulse Rate for adults in home
or used by the licensed healthcare personnel in hospital.

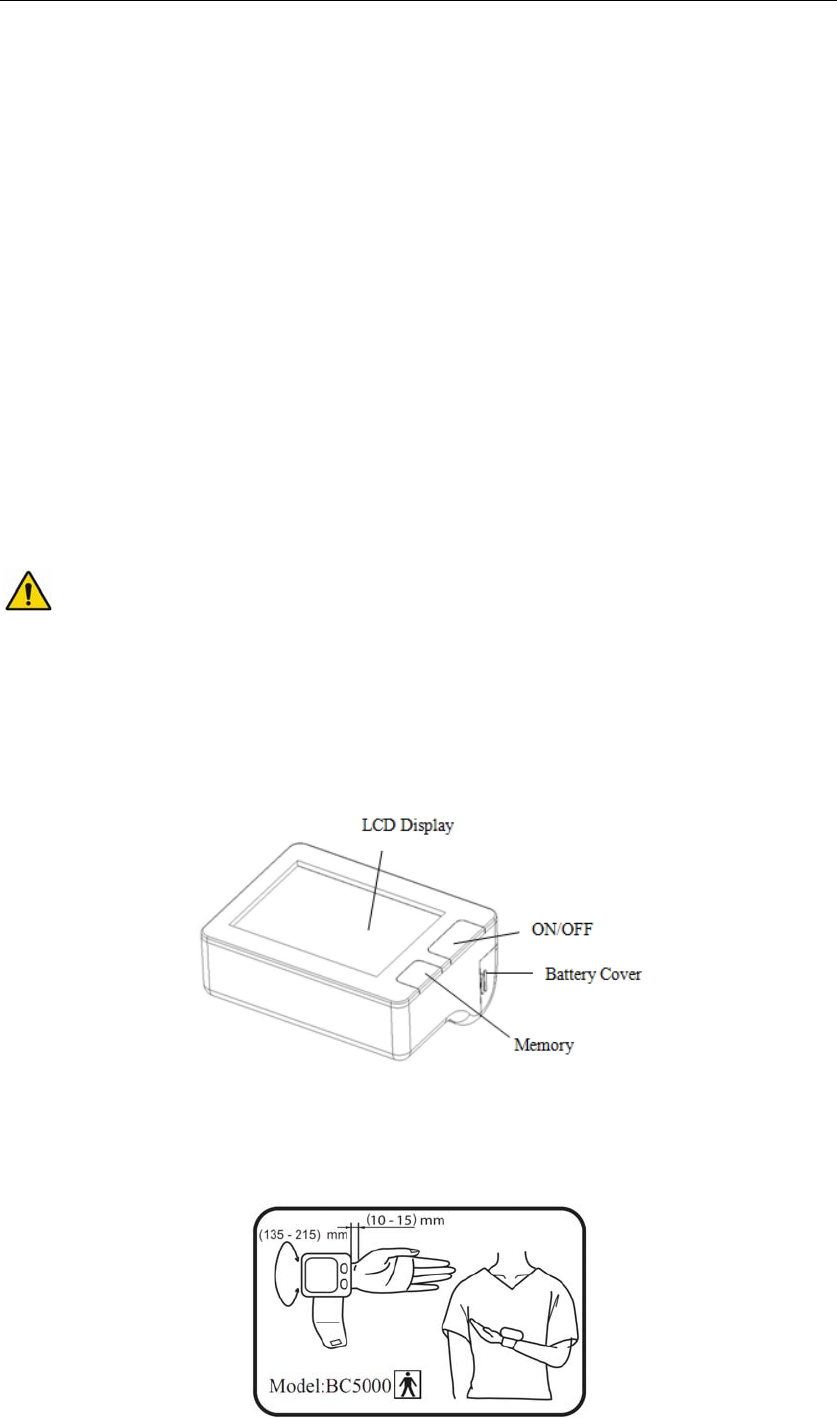

Body
Fig 1
Cuff Label (Type BF Applied Part)
Model: BC5000
Applicable Wrist Circumference: 135 mm to 215 mm
Rev. A3
4
Fig 2
Note: Symbol for”TYPE BF APPLIED PART”

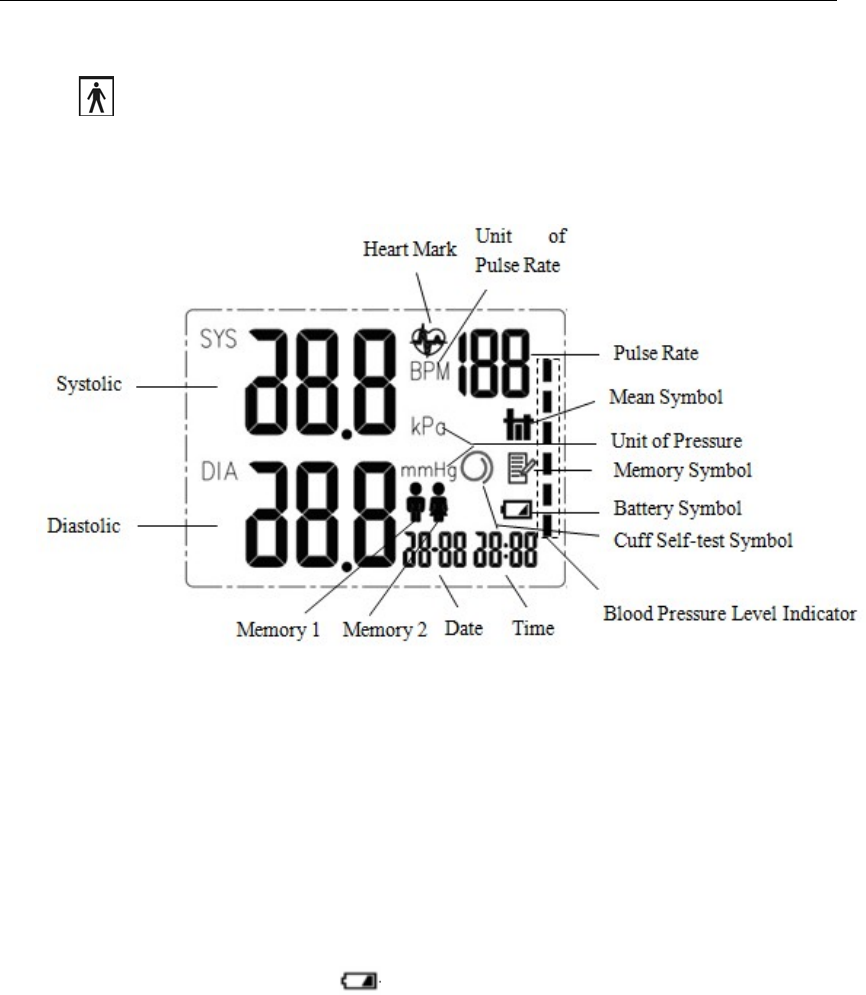

Display (Fig 3)
Fig 3
3. Pre Measurement
3.1 Battery
3.1.1 Installation and Replacement
1) Remove battery cover.
2) Load 2 standard AAA alkaline batteries.
3) Install back the battery cover.
4) Replace the battery if low battery icon is displayed.
If the low battery symbol is display, replace with new batteries, otherwise the
unit will not function properly.
Use 2 same brand 1.5 V AAA alkaline batteries and aware of the polarity of batteries
during installation.
Do not mix the new and old batteries.
Remove the batteries if the unit is to remain unused for an extended period.
Reset the time and date after battery replacement.
3.1.2 Battery Life
Two new LR03 (AAA) batteries will last for approximately 200 measurements, if
measurements are taken once a day at room temperature (23°C).
The batteries enclosed in the package are used for demonstration purpose. It is possible
that these batteries will therefore not last for 200 measurements.
Rev. A3
5
The battery life can be confirmed in the bottom right of the display. If the low battery
symbol is display, remaining power is low, replace with new batteries.
3.2 System Setting
3.2.1 Setting
1) With monitor power off
2) Hold the【M】and【ON/OFF】button for 3 seconds, Year digits blinking
a) Change number
i. Press the【M】memory button to advance one number
ii. Hold down the【M】memory button, the number will change rapidly
b) Enter the two digit of the year number
c) Press the【ON/OFF】button will proceed to month setting
d) Repeat step a) to c) to set month, day, hour and minutes
3) Unit Conversion (mmHg to kPa)
a) Press the 【M】 memory button will automatically change the unit conversion as
shown on Fig 4 or Fig 5.
4) Unit with Broadcast
a) Continues the broadcast setting, press the 【M】 memory button will automatically
turn on or off the broadcast system as shown on Fig 6 or Fig 7.
b) Complete setting, press【ON/OFF】button to exit.

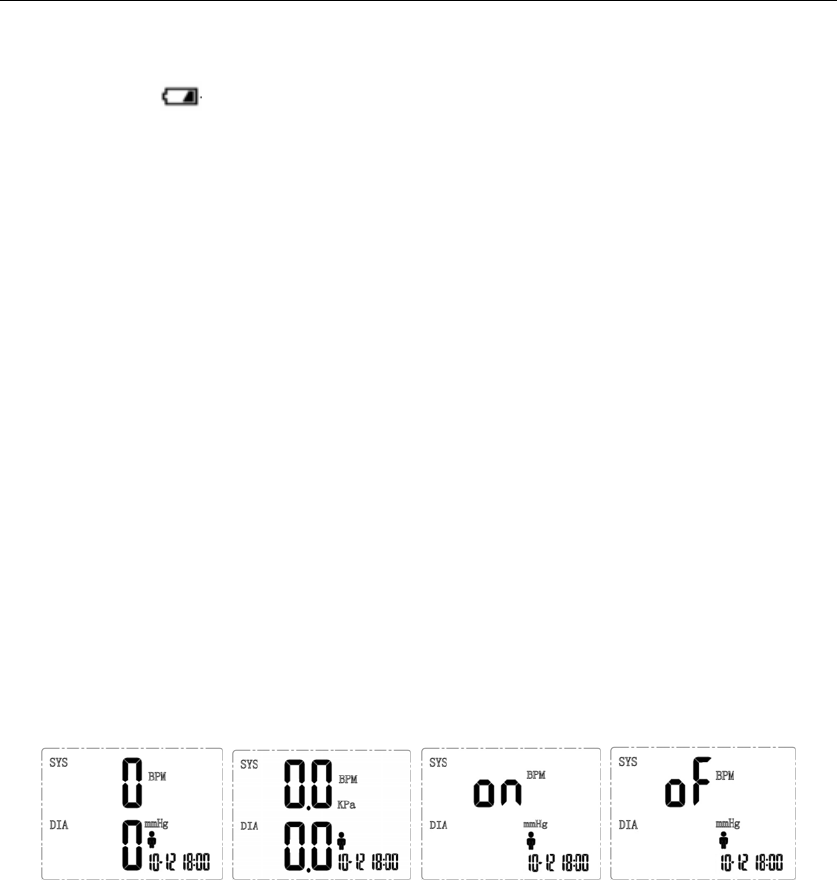

Fig 4 Fig 5 Fig 6 Fig 7
3.2.2 Memory Data Conversion
The blood pressure monitor is capable to hold 2 sets of memory data. Prior using the blood
pressure monitor, select the correct memory data.
Memory data conversion:
With monitor power off, hold the【ON/OFF】button until the selected Memory displayed.
Press the 【ON/OFF】button will automatically change the memory data conversion either
from Memory 1 or Memory 2.
The machine is complete setting, ready to use.
4. Take a Measurement
Rev. A3
6
4.1 Important Notes
Don't eat, drink alcohol, smoke, take a shower or exercise for at least 30 minutes before you
take your blood pressure and don't use any medicines that can raise blood pressure.
Do not try to take your blood pressure if you are nervous or upset. If you are nervous,
anxious, or agitated your blood pressure will rise.
Rest for 5～10 minutes before taking a reading. Sit in a comfortable, relaxed position. Don't
move around or talk while taking the blood pressure. Leave your legs in one position, breath
freely and calmly.
The blood pressure cuff should fit over about 3/4 of your wrist. It should easily go around
the wrist and the Velcro should close tightly.
If you can, use the same wrist for every reading.
Measuring blood pressure at the same time on different days should give about the same
reading (excluding outside influences like exercise).
Changes in medication or nutritional supplement can alter your result. Please consult your
doctor before taking or stopping medications or supplement.
4.2 Applying the Wrist Cuff
1) Roll up sleeve.
Make sure your sleeve is not rolled up too tightly on your arm. This may constrict the
flow of blood in your arm.
2) Wrap the cuff directly against your skin.
Do not apply the cuff over the clothes. Place the cuff over your left wrist with your left
thumb facing upward.

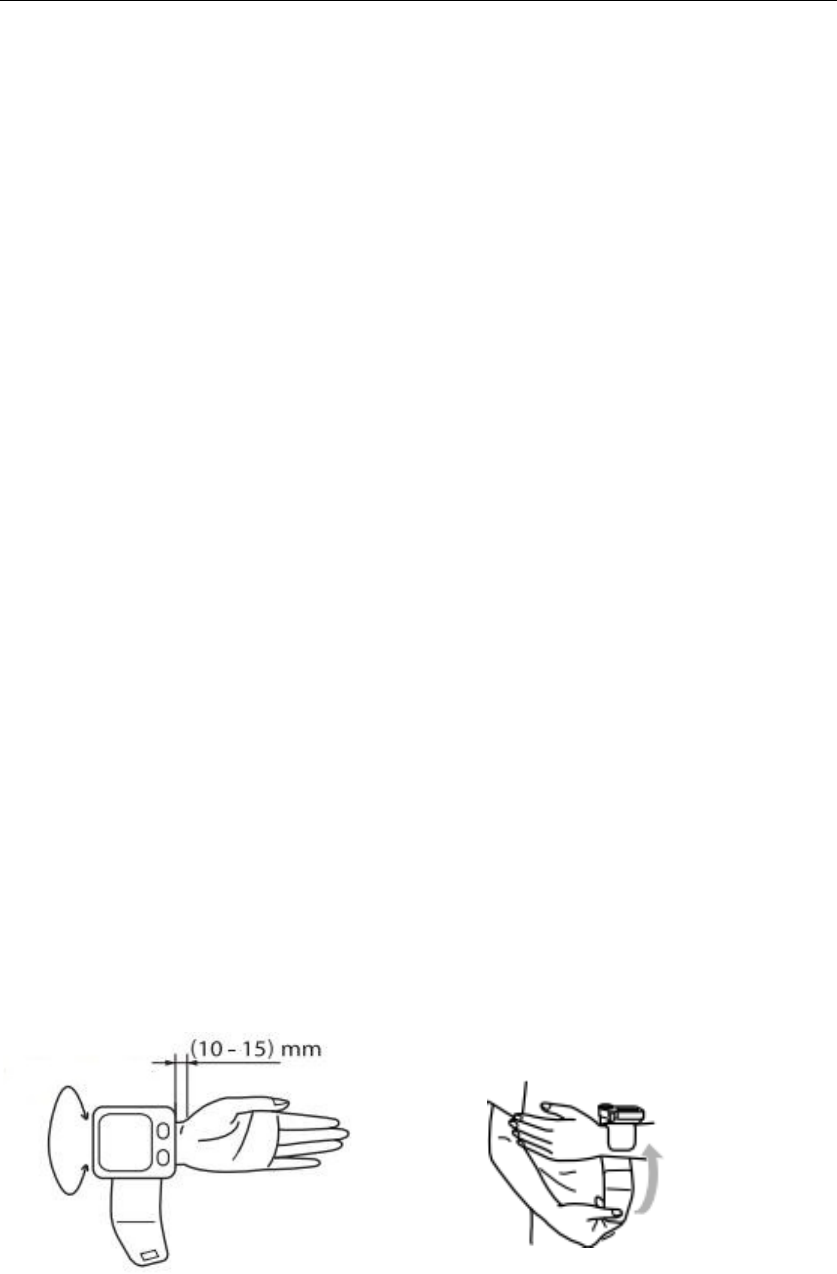

3) Position the cuff leaving a clearance of approximately 10 mm to 15 mm between the
cuff and the bottom of your palm (Fig 8).
4) Hold the bottom part of the cuff and wrap it around the wrist so it fits comfortably and
securely around your wrist (Fig 9).
5) Fold the remaining part of the wrist cuff back out of the way.
6) If you cannot apply the cuff on the left wrist, you also can take a measurement using the
right wrist position.
Fig 8 Fig 9
4.3 Body Posture during Measurement
Hold your wrist at the same level with your heart as show on Fig 10. If your arm is too
Rev. A3
7
low, your reading will be too high. If your arm is
too high, your reading will be too low.
Keep your elbow firmly to avoid body movement.
Sit still and do not talk or move during the
measurement.
The fingers do not force when measurement. The
measurement wrist do not bent up or down, and do
not clenched fist.
Do not use the other hand to support the wrist strap, otherwise it will affect the
measurement result.
4.4 Taking a Measurement
After installing the batteries and fitting the cuff, the unit is ready for measurement:
1) In order to get the most accurate result, please relax, do not smoke or take deep breath,
and do not speak loudly or move around during the measurement.
2) Turn on the 【ON/OFF】 button. Display will lit-up for 1 second as shown on Fig 11.
3) Then the display switch to Fig 12, a beep sound indicates the monitor has begun taking
the measurement.
4) When the device detects a pulse, the heart symbol will flash as shown on Fig 13. The
cuff inflates, and your pulse and blood pressure measurement is taken.
5) If the cuff is too loose, the cuff self-test symbol will flash for 30 seconds, at this case,
please confirm the cuff is wrapped up correctly, and take the measurement again.
6) When completing the test, the cuff will automatically deflate and the test result will
display on the screen as shown on Fig 14 and the device will broadcast the result. And
the pillar in the right of the display will indicate the level of the blood pressure, the
blood pressure level classification and definition as show in Fig 15.
7) You may turn off the unit or compare with the previous results.
8) Automatic shut off in 3 minutes.
9) If a problem occurs during the test, “Err” will display on the screen.
10) In the end of measurement, “ ” will display on the screen when irregular pulse is
detected.

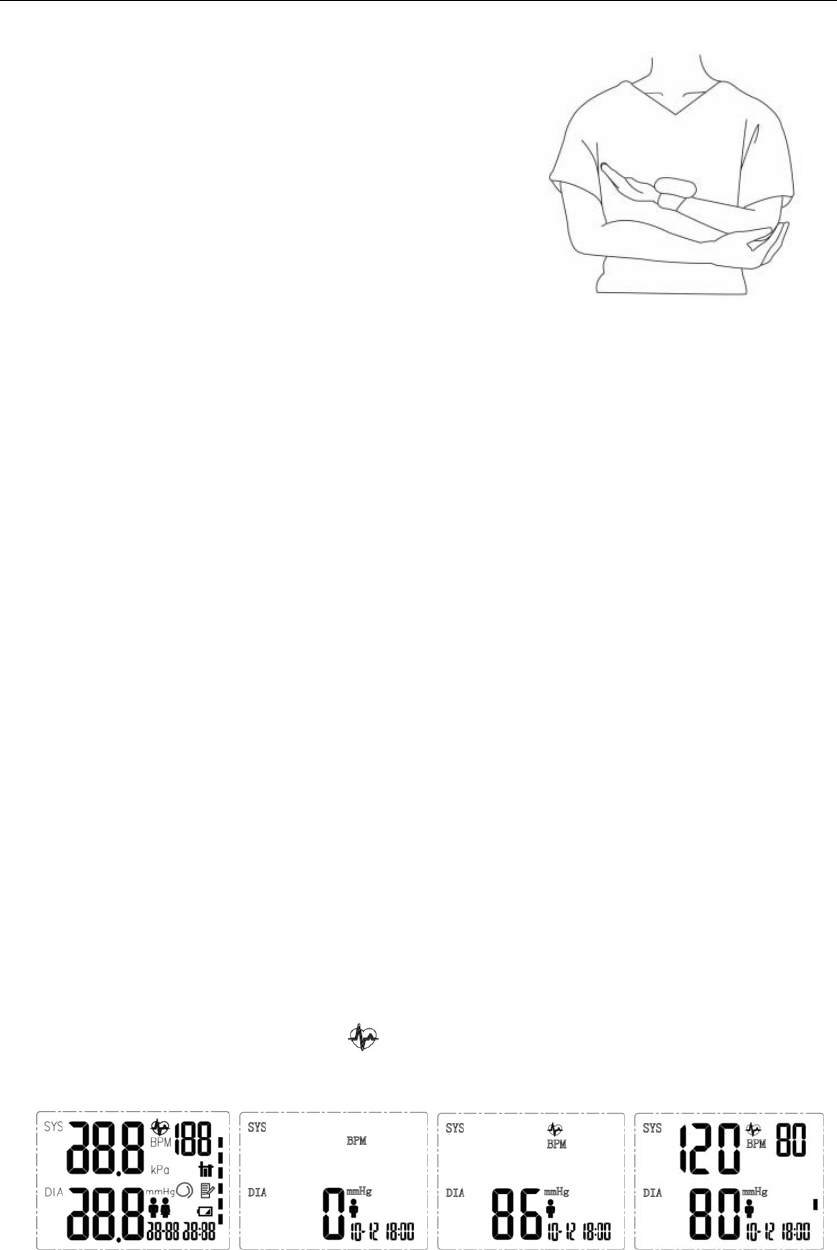

Fig 11 Fig 12 Fig 13 Fig 14

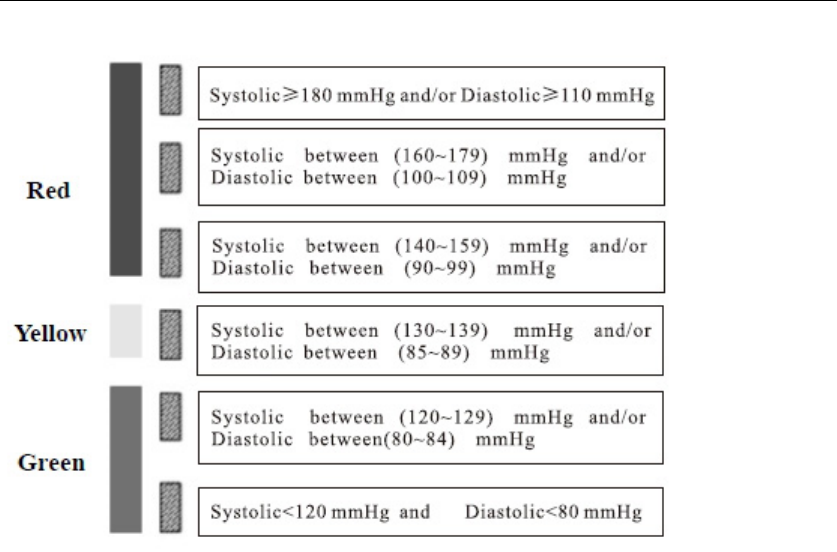

The blood pressure level classification and definition (Fig 15)
Fig 10
Rev. A3
8
Fig 15
Notes:
Do not self-diagnosis according to measurement results. Follow the instructions of your
physician or licensed healthcare provider.
Only use the cuff provided by manufacturer to ensure the measurement accuracy.
The pillar in the right of the display and the segment color in the unit will indicate the level of
the blood pressure, the blood pressure level classification and definition as show in Fig 15.
If the device cause any discomfort during measurement or fail to perform as indicated, turn
off the power or discontinue use.
The time of the pressure reduced from 260mmHg (34.67kPa) to 15mmHg (2kPa) does not
exceed 10s.
If cuff inflated up to 300 mmHg (40 kPa) doesn’t stop, please remove the cuff or power off
the unit.
4.5 Data Transmission
The Bluetooth is turn on after turn on the 【ON/OFF】 button, the device can transmit the data to
the data management system by Bluetooth.
Notes:
Bluetooth Function：BT4.0+BLE;
The instruction manual for an intentional or unintentional radiator shall caution the user that
changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. In cases where the manual is provide
d only in a form other than paper, such as on a computer disk or over the Internet, the informat
ion required by this section may be included in the manual in that alternative form, provided
the user can reasonably be expected to have the capability to access information in that form.
Rev. A3
9
4.6 Memory
The Memory 1 and Memory 2 can hold up to 60 reading each.
1) Memory Review
a) To access readings from the memory, press the【M】memory button.
b) Wait for 2 seconds, the average of most recent 3 sets of data will display.
c) When holding the【M】memory button the user can view the data from the most recent
date to the oldest date.
d) If the data in memory displays the heart mark, it prompts when measurement the
irregular pulse is detected.
e) If the user need to display the other set of memory data please refer to section 3.2.2
Caution: Continuous holding the 【M】button will delete all the memory.
2) Delete Memory Data
a) Enter into the memory mode refer to section 3.2.2.
b) Press and hold the【M】and【ON/OFF】button until the “---” displayed.
c) The unit will only delete the present set of memory data; the other set of memory data
will not be affected.
d) The device is not capable to delete a single data.
e) Press the【ON/OFF】button for 3 seconds to exit the memory mode and turn off.
5. Error Indication
List of error codes are as follows:
Error Cause How to correct
Cuff
self-test
symbol
Power on, cuff inflation rate is too
low or main unit does not connect
with the cuff or cuff is too loose.
(1) Cuff or bladder leakage, please connect
manufacturer.
(2) Confirm the cuff is wrapped up
correctly (ref 4.2), retake the
measurement.
Er 2 Weak signal or cuff is too loose. Cuff too loose, Confirm the cuff is wrapped up
correctly (ref 4.2) retake the measurement.
Er 3 Heavy shock during the
measurement.
The fingers do not force when measurement.
The measurement wrist do not bent up or
down, do not clenched fist. Then retake the
measurement (ref 4.3).
Er 5 Bad signal, moving or talking
during the measurement.
Remain still, and retake the measurement (ref
4.1).
Er7 Measurement abnormal. Please retake the measurement.
Lo Low battery power, cannot inflate. Change the batteries (ref 3.1).
6. Trouble Shooting
When the unit encounters malfunction during the use, refer to table below:
Rev. A3
10
Abnormal How to correct
After batteries installation, power
on, no display.
(1) Check batteries polarity.
(2) If still cannot power on, reinstall the batteries or
change new batteries.
Measured value is abnormally high
or low.
(1) Confirm the cuff is wrapped up correctly.
(2) If the user clothing restricts the normal flow, please
remove the obstructing clothing and retake the
measurement.
(3) Place the cuff over your left wrist with your left thumb
facing upward and hold your wrist at the same level
with your heart. Retake the measurement.
Cuff inflation rate is too low or
does not inflate.
(1) Cuff or bladder leakage, please connect
manufacturer.
(2) Confirm the cuff is wrapped up correctly (ref 4.2),
retake the measurement.
Cuff deflates too quickly. (1) Cuff too loose; confirm the cuff is wrapped up
correctly.
Measure value is different from the
hospital or the value is
inconsistent.
(1) Blood pressure value is varied during the day which
also will affect by the human emotional and physical
condition.
(2) Record the variance and consult to the doctor.
*If the above suggestion doesn’t remediable, please dial Service Hotline: 86-4006 755 009 for
consultant.
7. Specification
Description Blood Pressure Monitor Model BF2204B
Display LCD Digital Display Measuring
Principle Oscillometric Method
Measurement
Range
Pressure: 0mmHg~280mmHg
(0kPa~37.3kPa)
Pulse: 40 pulse/min ~180
pulse/min
Accuracy
Pressure: ±3mmHg (±0.4kPa)
Pulse: ±5%
Memory 2 Memory sets, 60 reading
each set.
Automatic
Power Off Unattended 3 minutes
Power Source 2 AAA alkaline batteries Battery Life Approx 200 measurements
Life Time Five years or 10000 times IP classification IP22
Operating
Environment
Temperature: +5℃～+40℃;
Humidity: 15%～93%
Pressure: 70.0kPa～106.0kPa
Altitude: ≤ 3 000 m
Storage and
transport
Environment
Temperature: -25℃～+70℃;
Humidity: 10%～95%
Pressure: 50.0kPa～106.0kPa
Rev. A3
11
Weight About 112g (Without
batteries) Size 75mm×57mm×34mm
Protection
Against
Electric Shock
Type BF Contents
·2 AAA alkaline Batteries
·Storage Case (Optional)
·Instruction Manual
·Guarantee Card
This unit is intended for home use and the specification may be changed without prior notice.
Please dispose of the batteries according to local regulations.
Guidance and manufacturer’s declaration
Guidance and manufacturer’s declaration – electromagnetic emissions
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment
specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that
it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11 Group 1
The [EQUIPMENT or SYSTEM] uses RF energy
only for its internal function. Therefore, its RF
emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
RF emissions
CISPR 11 Class B
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC’s and mobile (cellular) telephones,
medical devices in use may be susceptible to electromagnetic interference from other devices.
Electromagnetic interference may result in incorrect operation of the medical device and create
a potentially unsafe situation.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to
prevent unsafe product situation, the IEC60601-1-2 standard has been implemented. This
standard defines the levels of immunity to electromagnetic interferences as well as maximum
levels of electromagnetic emissions for medical devices.
This medical device manufactured by pump conforms to this IEC60601-1-2:2007 standard for
both immunity and emissions.
Nevertheless, special precautions need to be observed:
·Do not use mobile (cellular) telephones and other devices, which generate strong electrical or
electromagnetic fields, near the medical device. This may result in incorrect operation of the
unit and create a potentially unsafe situation. Recommendation is to keep a minimum distance
of 7 m. Verify correct operation of the device in case the distance is shorter.
Further documentation in accordance with IEC60601-1-2:2007 is available at pump at the
address mentioned in this user manual.
Rev. A3
12
Harmonic emissions
IEC 61000-3-2 Not applicable
Voltage
fluctuations/flicker
emissions
IEC 61000-3-3
Not applicable
Guidance and manufacturer’s declaration – electromagnetic immunity
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified
below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used
in such an environment.
Immunity
test IEC 60601 test
level Compliance
level Electromagnetic environment -
guidance
Electrostatic
discharge
(ESD)
IEC
61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30%. If ESD interfere
with the operation of equipment, counter
measurements such as wrist strap,
grounding shall be considered.
Electrical fast
transient/burst
IEC
61000-4-4
±2 kV for power
supply lines
±1 kV for
input/output lines
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment.
Surge
IEC
61000-4-5
±1 kV
differential mode
±2 kV common
mode
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment.
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC
61000-4-11
< 5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
< 5% UT
(>95% dip in UT)
for 5 sec
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the
[equipment or system] requires continued
operation during power mains
interruptions, it is recommended that the
[equipment or system] be powered from
an uninterruptible power supply or a
battery.
Power
frequency
(50/60 Hz)
magnetic
field IEC
61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields should
be at levels characteristic of a typical
location in a typical commercial or
hospital environment.
Guidance and manufacturer’s declaration – electromagnetic immunity –
for EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING
Guidance and manufacturer’s declaration – electromagnetic immunity
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment
specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that
it is used in such an environment.
Rev. A3
13
Immunity test IEC 60601 test
level Compliance
level Electromagnetic environment -
guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3V
3V/m
Portable and mobile RF
communications equipment should be
used no closer to any part of the
[EQUIPMENT or SYSTEM], including
cables, than the recommended
separation distance calculated from the
equation applicable to the frequency or
the transmitter.
Recommended separation distance
d = 1.2 p
d = 1.2 p 80 MHz to 800 MHz
d = 2.3 p 800 MHz to 2.5 GHz
Where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter
manufacturer and d is the recommended
separation distance in meters (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey, should be
less than the compliance level in each
frequency range.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
Recommended separation distances between portable and mobile
RF communications equipment and the EQUIPMENT or SYSTEM –
For EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING
Recommended separation distances between portable and mobile RF communications
equipment and the [EQUIPMENT or SYSTEM]
The [EQUIPMENT or SYSTEM] is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the [EQUIPMENT or
SYSTEM] can help prevent electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment (transmitters) and the [EQUIPMENT
or SYSTEM] as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d = 1.16 p
80 MHz to 800 MHz
d = 1.16 p
800 MHz to2.5 GHz
d = 2.33 p
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
Rev. A3
14
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
8．About Blood Pressure
8.1 What is Blood Pressure?
Blood pressure (BP) is the pressure exerted by circulating blood upon the walls of blood vessels,
and is one of the principal vital signs.
Two pressures are measured for a blood pressure reading:
Systolic blood pressure is a measure of blood pressure while the heart is beating.
Diastolic pressure is a measure of blood pressure while the heart is relaxed.
8.2 What is High Blood Pressure?
High blood pressure, also known as HBP or hypertension, is a widely misunderstood medical
condition. Some people think that those with hypertension are tense, nervous or hyperactive, but
hypertension has nothing to do with personality traits. The truth is, you can be a calm, relaxed
person and still have HBP. Let's look at the facts about blood pressure so you can better
understand how your body works and why it is smart to start protecting yourself now, no matter
what your blood pressure numbers are.
By keeping your blood pressure in the healthy range, you are:
Reducing your risk of your vascular walls becoming overstretched and injured
Reducing your risk of your heart having to pump harder to compensate for blockages
Protecting your entire body so that your tissue receives regular supplies of blood that is rich in
the oxygen it needs
According to World Health organization standard, the blood pressure level classification and
definition as following:
Category Systolic（mmHg） Diastolic（mmHg）
Desirable 120 and 80
Normal 120-129 and/or 80-84
Pre hypertension 130-139 and/or 85-89
Hypertension： ≥140 and/or ≥90
Stage 1 Hypertension 140-159 and/or 90-99
Stage 2 Hypertension 160-179 and/or 100-109
Hypertensive Crisis ≥180 and/or ≥110
These categories were defined by the American Heart Association. This chart applies to adults
Rev. A3
15
age 20 and older.
8.3 What is Morning Hypertension (Morning Surge)?
Morning high blood pressure or morning surge is defined as the weekly average for morning
blood pressure reading measured within 1 hour to 2 hours after awakening in the morning and
exceeding 135/85mm Hg. Studies have shown that exaggerated morning blood pressure surge is a
risk for cardiovascular events which includes ischemic and hemorrhagic stroke. Cardiovascular
events have been shown to be exaggerated in the morning to coincide with morning high blood
pressure. In fact heart attack, stroke and heart failure have been shown to fall particularly on a
Monday amongst all the other days of the week.
Organ damage and diabetic complications have also been shown to be linked with morning blood
pressure surges just in the same way as small artery disease and multiple celebral infarcts in elder
members of society. Morning high blood pressure has shown some correlation with initial stage
and progression of atherosclerosis. Patients with well controlled blood pressure may still have
high morning blood pressure and this happens in 50% of the cases. Patients with morning
hypertension have a 78% more chance of stroke compared with 48% of other hypertensive
patients without morning high blood pressure. Morning hypertension has also been associated
with changes in heart size and rhythm. This may lead to heart attack or heart failure.
Morning Hypertension can only detect within 1 hour to 2 hours after awakening, recommended
user monitor their own blood pressure at home.
Reference Standard
·IEC 60601-1: 2005 Medical electrical equipment-Part1: General requirements for safety and
essential performance.
·IEC 60601-1-2:2007 Medical electrical equipment – Part 1-2: General requirements for basic
safety and essential performance – Collateral standard: Electromagnetic compatibility –
Requirements and tests
·EN 1060-1:1995+A2:2009 Non-invasive sphygmomanometers – parts1: General
requirements
·EN 1060-3:1997+A2:2009 Non-invasive sphygmomanometers – parts3: Supplementary
requirements for electro-mechanical blood pressure measuring systems.
·ANSI/AAMI SP-10:2002+A1:2003+A2: 2006/(R)2008 Manual, electronic, or automated
sphygmomanometers
·ANSI/AAMI/ISO 81060-2-2009 Non-invasive sphygmomanometers-Part 2:Clinical validation of
automated measurement type
Blood Pressure Measurement Chart
Date Time SYS/DIA Pulse Remark Date Time SYS/DIA Pulse Remark
Rev. A3
16
Guarantee Card
Product Model Product SN
Date of Purchase Distributor
Customer Name Tel
Address
Details of the faults:
Warranty Rule
·The unit of this product is guaranteed by PUMP for a period of 1year after the date of
purchase.
·The guarantee does not cover any of the following:
-- Risks of transport.
-- Damages caused by the operating environment which is not in accordance with the
product requirements.
-- Defects resulting from repair by unauthorized persons.
-- Damages caused by user who disassemble or modify the structure of the unit and
damage the safety performance.
-- Product guarantee card is not accord with the serial number or the guarantee card is
changed.
·This product is medical device, to ensure the accuracy of the product when using it, we
would like to continue to provide you with paid services after the guarantee periods.
Rev. A3
17
Explanation of Symbols
Symbol for "batch code”
Symbol for "manufacturer"
0123 Symbol for“CE“
Symbol for “Follow operating instructions”
Symbol for”TYPE BF APPLIED PART”
IP22 Symbol for “the IP classification”
Symbol for “electrical and electronic equipment“
Symbol for "AUTHORISED REPRESENTATIVE IN THE EUROPEAN
COMMUNITY"
After-Sale Service
Manufacturing Enterprises: Shenzhen Pump Medical System Co., Ltd.
ADD: 2/F West, M-7 Sinosteel Building, Maqueling Estate, Hi-Tech Industrial Park, Nanshan
District, Shenzhen 518057, China
Tel: 86-0755-26710795/26067119
SHENZHEN PUMP MEDICAL SYSTEM CO., LTD.
Certificate
Product Name: Blood Pressure Monitor
Product Model: BF2204B
Inspector:
Rev. A3
18
Fax: 86-0755-26012025
Service Line: 86-4006 755 009
E-mail: service@bpump.com.cn
Shanghai International Holding Corp. GmbH (Europe)
Address: Eiffestraße 80, 20537 Hamburg, GERMANY
