Pacific Cycle, Inc. Remote Control grow with me 6V ride on

User Manual

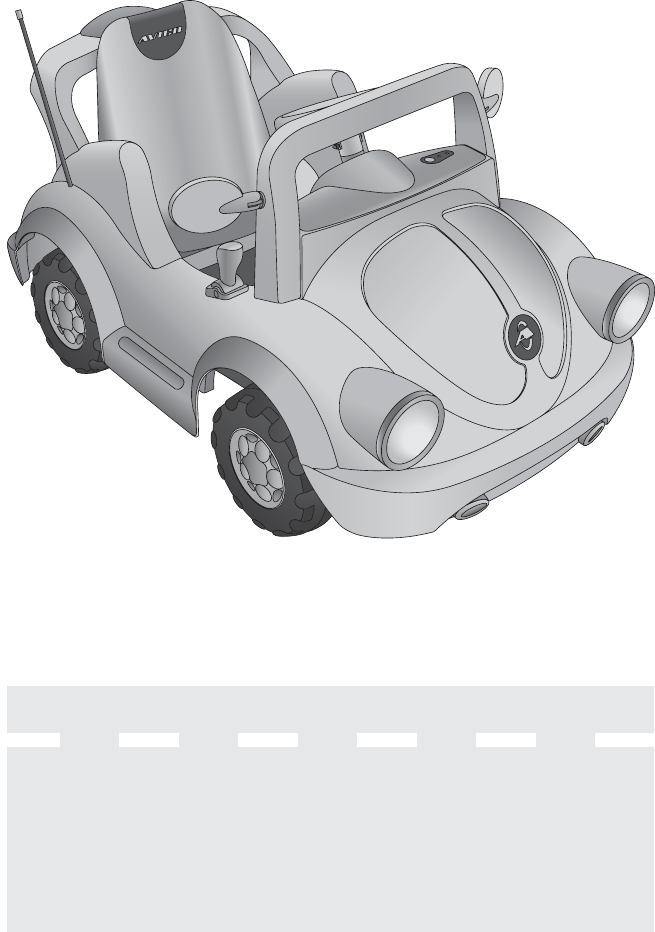

Avigo RC Coupe
The Owner’s manual contains assembly, use and maintenance
instructions. The Avigo RC Coupe must be assembled by an
adult who has read and understands the instructions in this
manual. Keep the packaging away from children and dispose all
packaging before use. Keep instructions for future reference.
Owner’s Manual
Thank you for purchasing the Kid Trax Avigo RC Coupe.
With the Avigo RC Coupe your child will have fun and
enjoyment for years to come. Some of the features on the
Avigo RC Coupe include: manual operation, 4-direction
remote control (with parental password control), a forward
and reverse shifter, a steering wheel with music and sound
and lights simulating a real car.
Please call us at Kid Trax Toys Consumer Relations at
877-741- 6154 with comments or questions.
Thank You
Contents
Safety 1
Parts 2
Assembly 3
Front Wheel 3
Rear Wheel 4
Attaching the Steering Wheel 5
Attaching the Window Frame 6
Attaching the Roll Bar 7
Attaching the Seat 8
Use 9
Charging the Battery 9
Using the Controls 10
User Requirements 11
Operating the Vehicle 11
Manual Operation 11
Remote Operation 12
Maintenance 13
General 13
Battery 13
Re-Charge Interval and Time 15
Battery Storage 15
Battery Replacement and Disposal 16
Battery Fuse 17
Troubleshooting Guide 18
Services, Repairs and Parts 21
FCC Information 22
WARNING!
1
The following safety hazards may result in serious injury or death
to the user of the Avigo RC Coupe:
This product contains small parts that are for adult assembly •
only. Keep small children away when assembling. Remove
and dispose of all protective material and poly bags before
assembly. Be sure to remove all packaging materials and
parts from underneath the cycle body.
Riding the vehicle without a helmet. Riders must always wear •
attedhelmetthatcomplieswithU.S.ConsumerProduct
Safety Commission (CPSC) Standard CFR 1203.
Body parts such as hands, legs, hair and clothing can get •
caught in moving parts. Never place a body part near a
moving part or wear loose clothing while using the vehicle.
Always wear shoes when using the vehicle.
Using the vehicle near streets, motor vehicles, drop-offs •
such as: steps, water (swimming pools), sloped surfaces,
hills,wetareas,ammablevapors,inalleys,atnightorinthe
dark could result in an unexpected accident. Always use the
vehicle in a safe, secure environment with continuous adult
supervision.
Using the vehicle in unsafe conditions such as snow, rain, •
loosedirt,mud,sandornegravelmayresultinunexpected
action such as tip over and skidding.
Using the vehicle in an unsafe manner. Examples include but •
are not limited to:
a. Pulling the vehicle with another vehicle or similar device
b. Allowing more than one rider
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe practices when using the
vehicle.
Safety

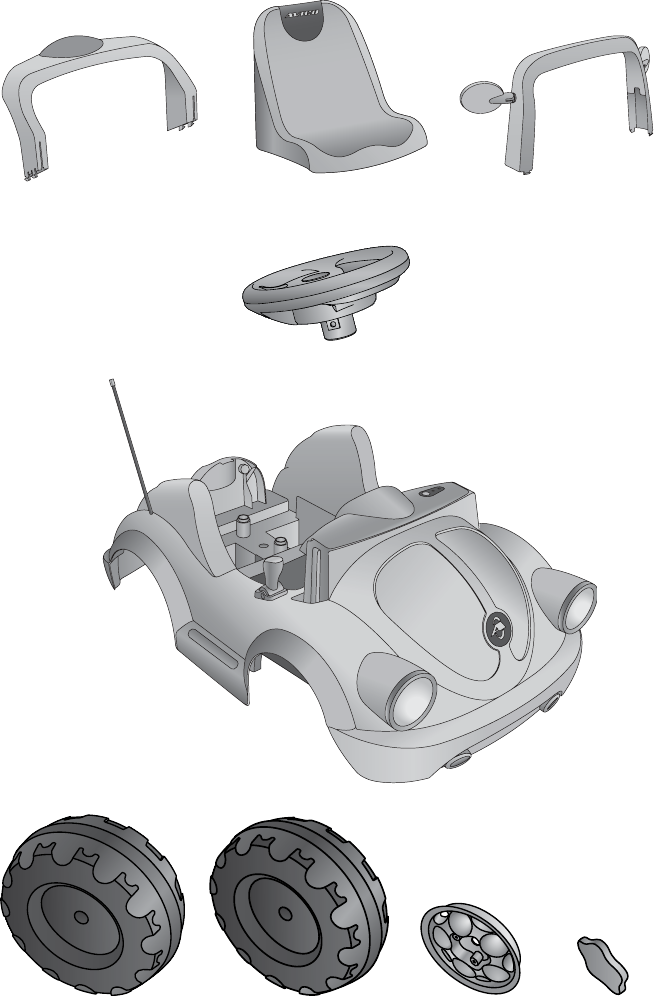

Parts
2
Front wheel Rear wheel Wheel cover Hub caps
Steering wheel
Roll Bar Seat Window frame
Body
Assembly
3
1 Slide a large washer, small spacer and large washer onto the
axle as shown.
2 Locate a wheel marked front. Slide the wheel onto the axle
with the word front facing in, toward the vehicle.
3 Align the four posts on the back of the wheel cover with the
holes in the wheel and slide the wheel cover into the wheel.
4 Slide a small washer and then the nut onto the axle. Tighten
the nut until it is snug. Do not overtighten.
5 Align the pins in the hubcap with the holes in the wheel cover
and press in place
Note: Do not use a hammer. Repeat steps 1-5 to attach both
front wheels.

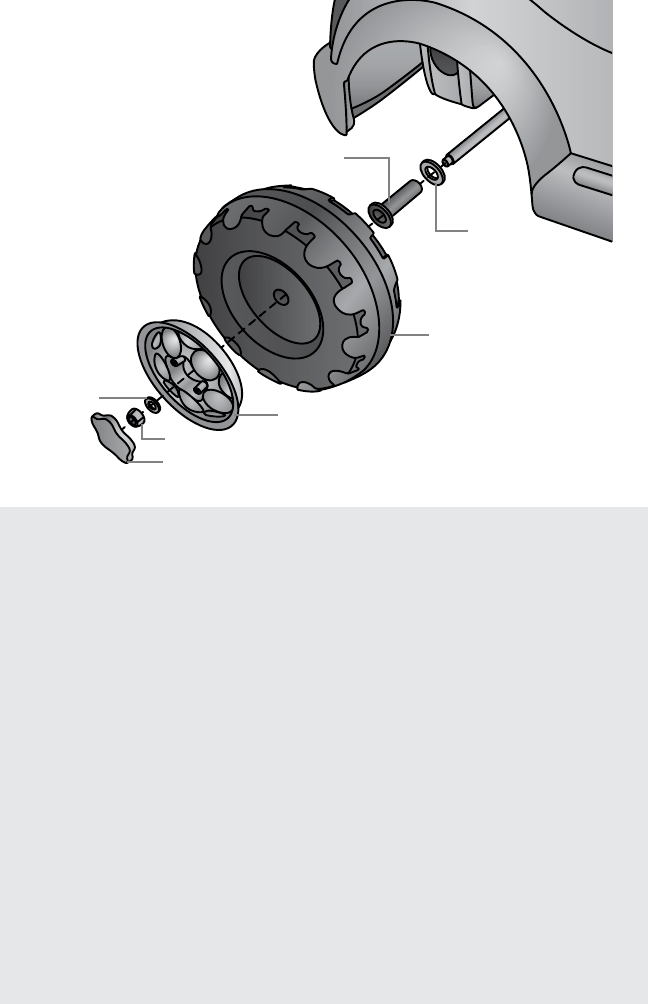

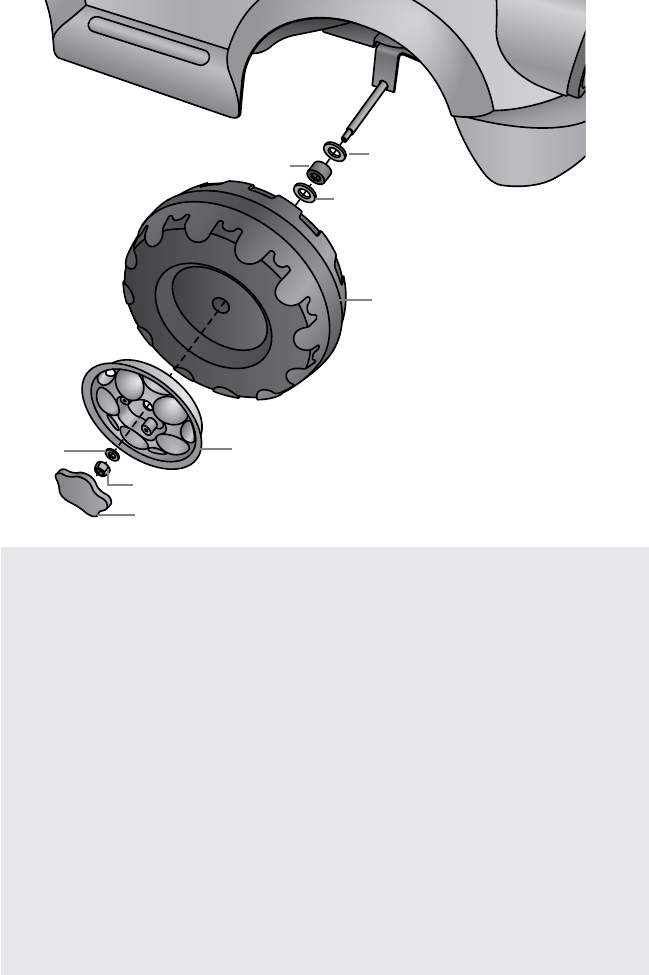

Front Wheel
Large
washer
Large washer
Small spacer
Wheel
Wheel cover
Nut
Hub cap
Small
washer
1
2
3
4
5
Wheel
4
Rear Wheel
Large
washer
Large spacer
Wheel cover
Nut
Small
washer
Hub cap
1 Slide a large washer and large spacer onto the axle as shown.
Note: On the motor side simply slide the wheel onto the axle
andalignthegearsoittsintothepocket.Nowasheror
spacer is needed.
2 Locate a wheel marked rear. Slide the wheel onto the axle
with the word rear facing in, toward the vehicle.
3 Align the four posts on the back of the wheel cover with the
holes in the wheel and slide the wheel cover into the wheel.
4 Slide a small washer and then the nut onto the axle. Tighten
the nut until it is snug. Do not overtighten.
5 Align the pins in the hubcap with the holes in the wheel cover
and press in place
Note: Do not use a hammer. Repeat steps 1-5 to attach both
rear wheels.
1
2
3
4
5
Steering wheel
Steering column
5

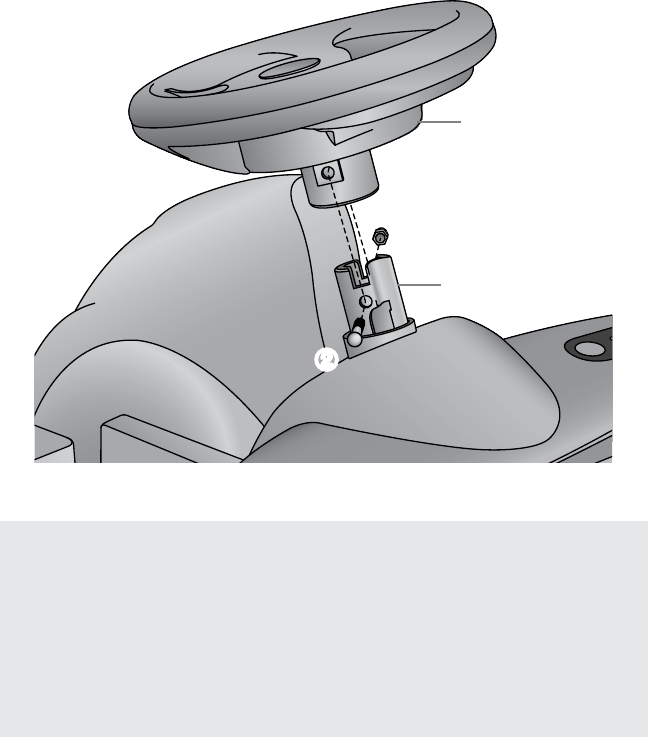

Attaching the Steering Wheel
1 Place the steering wheel onto the steering column and line
up the screw holes.
2 Insert the screw through the holes and thread the nut onto
the screw.
3 Tighten the nut.
1
2
3
1 Place the window frame over the dashboard. Slide it into the
slots on both sides until you hear the tabs lock into place.
Window
frame
6

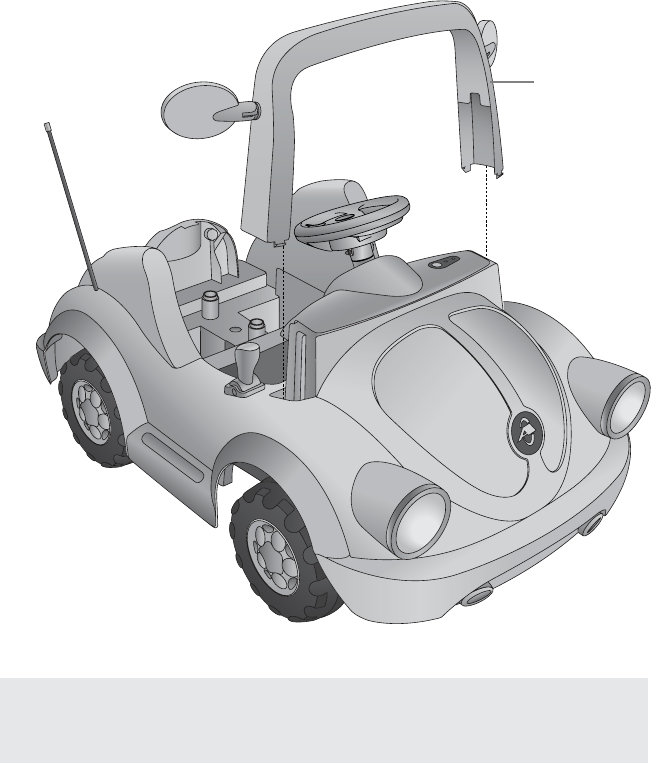

Attaching the Window Frame
Roll bar
7

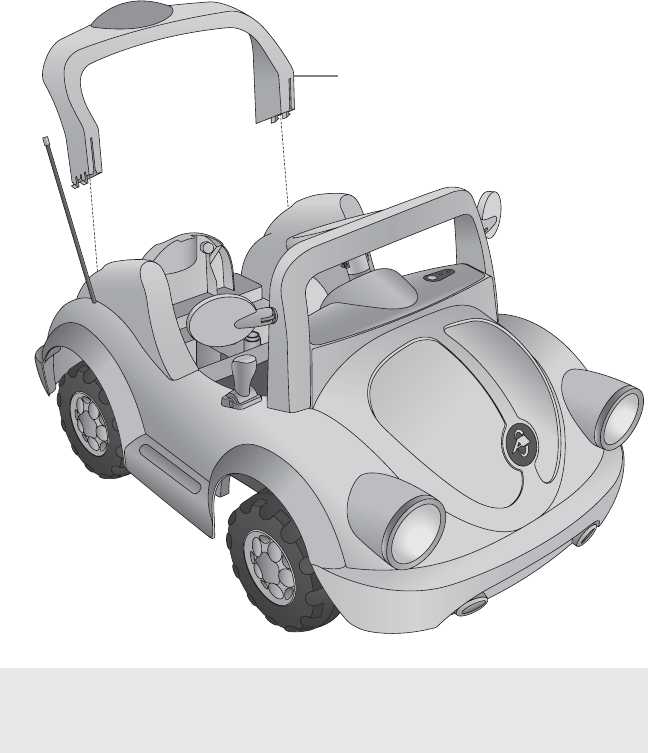

Attaching the Roll Bar
1 Place the Roll Bar between the rear wheels. Slide it into the
holes on either side until you hear a click.
Seat
8

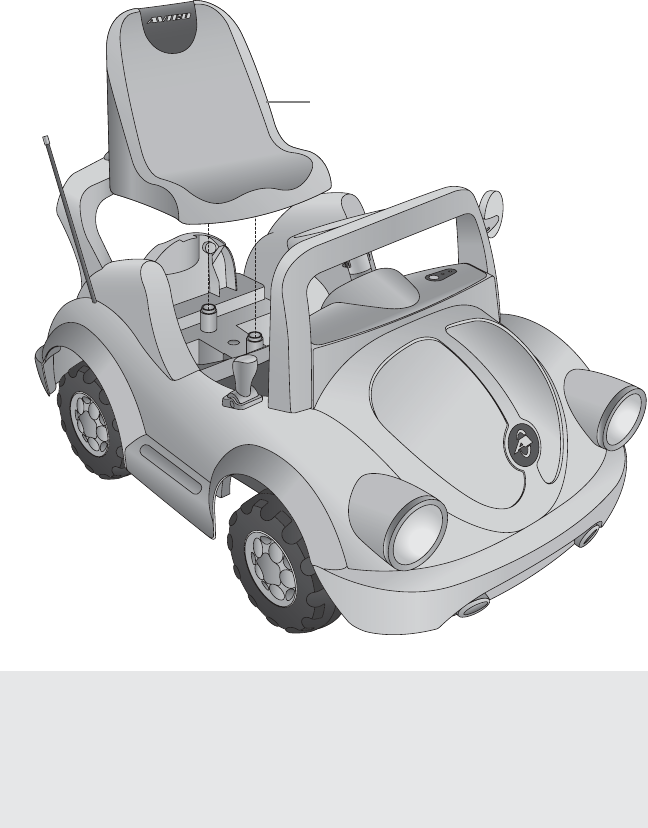

Attaching the Seat
1 Locate hooks behind the seat.
2 Place and lock the seat down onto the hooks.
3 Secure the seat by screwing the plastic screw into body.
9
Use
Charging the Battery
Important!BeforeusingtheAvigoRCCoupeforthersttime
the battery needs to be charged for a full 24 hours. Only an adult
who has read and understands the safety warnings should handle,
charge or recharge of the battery (see Maintenance, Battery page
13 - 17).
Note: It is not necessary to remove the battery from the vehicle for
charging. However, if the adapter cord will not safely reach a 120V
wall outlet, the battery can be removed for charging (see page 16 for
instructions concerning battery replacement).
1 Open the rear cover. Carefully set it aside.
2 Remove the battery cover.
3 Unplug the battery connectors.
4 Plug the charger connector into the battery. Only use the Kid
Trax Toys 12V charger included with the Avigo RC Coupe
(Input: AC120V–, 0.5A, 60Hz Output: DC14.2V, 1.5A).
5 Plug the charger into a standard 120V wall outlet. The light on
the charger will glow red.
Note: The charger may feel warm during charging. This is
normal and not a cause for concern.
6 After charging is complete (at least 16 hours, but not more
than 30) unplug the charger from the wall outlet.
7 Unplug the charger from the 12V battery.
8 Re-connect the battery connectors. Make sure connection
is tight.
9 Replace the rear cover.
10

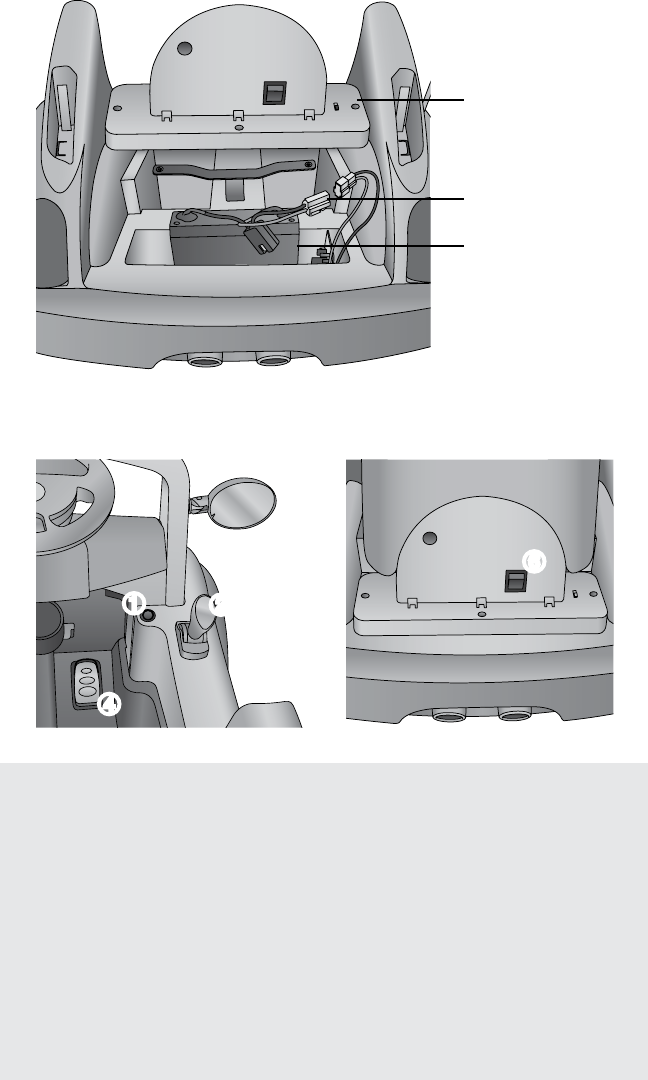

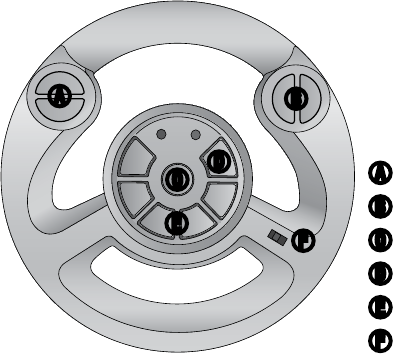

Using the Controls
1 Power Switch: The power switch turns the vehicle on and off.
2 Forward and Reverse Shifter: The shifter changes the
direction the vehicle moves from forward to reverse.
3 Manual/ Remote: The manual / remote button switches the
vehicle control from manual to the remote.
Note: See Remote Control for more details on remote
operation.
4 Foot Pedal: The foot pedal applies power (speed) the vehicle.
12
3
4
Rear cover
Battery
Battery connector
11
User Requirements
The suitable age range for a child using the Avigo RC Coupe is
between 2 to 8 years old. The max. weight of the child is 76 lbs (35kg).
Before using the Avigo RC Coupe the child should understand the
vehicle controls and safety issues. They must also demonstrate the
capability to handle the vehicle and operate its controls. It is the
responsibility of the adult to educate the child and supervise the
vehicles use.
Here are basic safe riding rules you should read aloud to your child
and playmates:
Only use the vehicle when an adult is present to watch (supervise)•
Always sit in the seat when using the vehicle•
Keep your hands, hair and clothes away from moving parts•
Only one rider is allowed at a time•
Friends under 3 years old cannot use the vehicle•
Only drive on level ground. Don’t go near water, drop-offs or up and •
down steep slopes.
Don’tdrivethevehicleintoloosedirt,mud,sandornegravel.•
Do not drive the vehicle on streets or near cars.•
Operating the Vehicle
Manual Operation
1 Child must be seated securely.
2 Turn the power switch on.
3 Set the forward/reverse shifter to the desired direction.
Important! The vehicle must be completely stopped when
shifting from forward to reverse or visa-versa. Failure to do so
may damage the gears and motor.
4 Press on the foot pedal to apply power (speed) to the vehicle
Important! Removing foot from foot pedal will stop the vehicle.
12
Remote Operation
1 On the vehicle, switch the manual/remote switch to remote.
2 Turn the vehicle power switch on.
Remote Control Buttons
3 Turn the remote power switch on (the Power LED should be red)
4 Move the Coding Switch on the remote to match the setting on
the vehicle.
5 Enter the password for the remote (default password is 1134).
The Setting LED should light up according to each press of the
numeric keys.
Note: to rest the password, see Maintenance: Resetting the
Remote Password
6 PresstheEnter(E)keytoconrmthepassword
7 Test the connection from the remote to the vehicle, see
Troubleshooting for problem resolution.
8 Operate the vehicle.
AB
D
C
F
E
A Forward/Reverse
B Left/Right
C Sound key (S)
D Enter key (E)
E Password keys (1-4)
F Coding Switch (A-D)
13
The vehicle should be checked for damage, missing or badly worn
parts before each use.
Check the tightness of the fasteners before each use.•
Checkthetightnessofthewheelnuts.Useaatheadscrewdriver•
to gently pry off the hubcap.
Note: If the wheel nuts are not tight the wheels will not engage
the forward gears and the vehicle will not run.
Ensure the battery bracket is securely in place before use•
Occasionally use lightweight oil to lubricate moving parts such •
as wheels and steering linkage. Do not use oil on plastic or nylon
parts. No lubrication is required.
Store the vehicle indoors or cover it with a tarp to protect it from •
the wet weather. Keep it away from sources of heat, such as
stoves and heaters.
Clean the vehicle with a soft, dry cloth. To restore shine to •
plastic parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water
will damage the motor, electrical system and battery.
Kid Trax Toys recommends that you take the vehicle to an •
authorized service center for periodic maintenance and service.
Call Kid Trax Toys Consumer Relations at 877-741-6154 for an
authorized service center.
Maintenance
General
Battery
Only an adult who has read and understands the safety warnings
should handle, charge or recharge of the battery. Failure to comply
with the following safety warnings may result in serious injury or
death.
14
The following safety hazards may result in serious injury or
death to the user of the Avigo RC Coupe:
Use of a battery or charger other than the supplied Kid Trax •
Toys 12V rechargeable battery and charger may cause a
reorexplosion.OnlyusethesuppliedKidTraxToys12V
rechargeable battery and charger with the vehicle.
Using the Kid Trax Toys 12V rechargeable battery and •
chargerforanyotherproductmayresultinoverheating,re
or explosion. Never use the Kid Trax Toys 12V rechargeable
battery and charger with another product.
Explosive gases are created during charging. Charge the •
battery in a well ventilated area. Do not charge the battery
nearheatorammablematerials.
Contact between the positive and negative terminals may •
resultinreorexplosion.Avoiddirectcontactbetweenthe
terminals. Picking up the battery by the wires or charger can
causedamagetothebatteryandmayresultinare.Always
pick up the battery by it’s case or handles.
Liquidsonthebatterymaycausereorelectricshock.•
Always keep all liquids away from the battery and keep the
battery dry.
Contact or exposure to battery leakage (lead acid) may cause •
serious injury. If contact or exposure occurs immediately call
your physician. If the chemical is on the skin or in the eyes,
ushwithcoolwaterfor15minutes.Ifthechemicalwas
swallowed, immediately give the person water or milk. Do not
give water or milk if the patient is vomiting or has a decreased
level of alertness. Do not induce vomiting.
WARNING!
15
Re-Charge Interval and Time
Important!
Damage to the battery may occur if it is allowed to drain •
completely. Do not allow the battery to drain completely.
Check the battery and charger (supply chord, connector) for wear •
and damage before charging. Do not charge the battery if damage
has occurred. Only replace with a Kid Trax Toys 12V rechargeable
battery and charger.
The battery should be charged after each use, or if not used
regularly, once a month at a minimum. Charge the battery for a full
16 hours. Do not charge the battery for more than 30 hours. Failure
to charge the battery as directed would cause permanent damage to
the battery and void the warranty.
Battery Storage
Do not leave the battery connected in the vehicle for long period of
times while not being used. This may drain the battery completely
and cause permanent damage. Disconnect the battery connectors
from the battery when the vehicle is not going to be used for a long
period of time.
It is best to leave the battery in the battery compartment when the
vehicle is being stored for long periods. Follow these guidelines if the
battery is removed:
The following safety hazards may result in serious injury or death
to the user of the Avigo RC Coupe:
Battery posts, terminals and related accessories contain lead •
and lead compounds (acid), chemicals known to the State of
California to cause cancer, reproductive harm and are toxic
and corrosive. Never open the battery.
Tampering or modifying the electric circuit system may cause •
ashock,reorexplosionandpermanentlydamagethe
system. Exposed wiring, circuitry in the charger may cause
electric shock. Always keep the charger housing closed.
WARNING! (cont’d)
16
Store the battery where temperatures are between -10° F (-24° C •
and 75° F (24° C)
Store the battery on a wood surface. Do not place the battery •
oncementoorsforextendedperiods.Thiswillresultinbattery
discharge.
Wipe the battery clean with a dry cloth prior to storage.•
Charge the battery once every month for 16 hours.•
Battery Replacement and Disposal
The Kids Trax Toys 12V battery will eventually lose the ability to hold
a charge. Depending on the amount of use, and varying conditions,
the battery should operate for one to three years.
Follow these steps to replace and dispose the battery:
1 Remove the seat.
2 Remove the rear cover
3 Disconnect the battery connectors
4 Remove the metal battery bracket
5 Carefully lift the battery.
Depending on the condition of the battery (i.e.: leakage) you •
may want to wear protective gloves before removal
Do not lift the battery by its connectors or cables•
6 Place the dead battery in a plastic bag.
Important! Recycle the dead battery responsibly. The battery
contains lead acid (electrolyte) and must be disposed of properly
and legally It is illegal in most areas to incinerate lead acid
 batteriesordisposeoftheminlandlls.Takeittoafederallyor
state-approved lead acid battery recycler, such as a Kid
Trax Toys authorized service center or your local automotive
battery retailer. Do not throw the battery away with your regular
household trash!
7 Replace the battery with a Kid Trax Toys 12V battery and
reconnect the connectors.
8 Replace the metal battery bracket
9 Replace the rear cover
bk Replace the seat
17
Battery Fuse
The Kid Trax Toys 12V battery features a thermal fuse with a reset
fuse on the circuit board that will automatically trip and cut all power
to the vehicle if the motor, electric system or battery is overloaded.
The fuse will reset and power will be restored after the unit is
turned off and turned on again. If the thermal fuse trips repeatedly
during normal use, the vehicle may need repair. Call Kid Trax Toys
Consumer Relations at 877-741- 6154 for an authorized service
center.
To avoid losing power, follow these guidelines:
Do not overload the vehicle•
Do not tow anything behind the vehicle•
Do not drive up steep slopes•
Donotdriveintoxedobjects,whichmaycausethewheelsto•
spin, causing the motor to overheat.
Do not drive in very hot weather; components may overheat.•
Do not allow water or other liquids to come in contact with the •
battery or other electric components.
Do not tamper with the electric system. Doing so may create a •
short, causing the fuse to trip.
Resetting the Remote Password
Follow these steps if you need to change reset the password:
1 Open the battery compartment in the remote.
2 Press and hold the reset button for 3 seconds (the Setting LED
willashgreen)
3 Press the Enter key (the Setting LED will be constant green for 3
seconds,thenash)
4 Press the numeric keypads to enter the new password
5 Press the Enterkeytoconrm
6 Password should be reset and the Setting LED should be
constant green.
18
Troubleshooting Guide
The following are examples of potential problems. Completely read
through this manual and the troubleshooting guide table before
calling Kid Trax Toys Consumer Relations. If you still need help
resolving the problem please call 877-741-6154.
Kid Trax Toys recommends that you take the vehicle to an
authorized service center for periodic maintenance and service.
Call the number listed above for the closest center to you.
Problem Possible Cause Remedy
Vehicle does not run Battery low on power Recharge batter (see
Battery: Recharge
Interval and Time)
Thermal fuse has
tripped
Reset fuse (see
Maintenance: General
Wheel nuts are loose Tighten wheel nuts
(see Maintenance:
General)
Battery connector or
wires are loose
Check that the
battery connectors
arermlyplugged
into each other.
If wires are loose
around the motor call
Consumer Relations
at 877-741-6154 for
an authorized service
center
Battery is dead Replace battery (see
Battery: Replacement
and Disposal)
Electrical system is
damaged
Call Consumer
Relations at
877-741- 6154 for an
authorized service
center
Motor is damaged Call Consumer
Relations at
877-741- 6154 for an
authorized service
center
19
Problem Possible Cause Remedy
Vehicle does not run
very long
Battery is under
charged
Check that the batter
connectors are
rmlypluggedinto
each other when
recharging (see
Batter: Recharge
Interval and Time)
Battery is old Replace battery (see
Battery: Replacement
and Disposal
Vehicle runs
sluggishly or beeping
occurs
Battery low on power Recharge battery (see
Battery: Recharge
Interval and Time)
Battery is old Replace battery (see
Battery: Replacement
and Disposal
Vehicle is overloaded Reduce weight on
vehicle (see User
Requirements and
Safety Warnings)
Vehicle is being used
in harsh conditions
Operate the vehicle
levelgroundandrm
surfaces (see User
Requirements and
Safety Warnings)
Vehicle needs a push
to go forward
Poor contact of wires
or connectors
Check that battery
connectors are
rmlypluggedinto
each other. If wires
are loose around
the motor call
Consumer Relations
at 877-741- 6154 for
an authorized service
center
20
Problem Possible Cause Remedy
Vehicle needs a push
to go forward (cont’d)
“Dead Spot” on motor A dead spot means
the electric power is
not being delivered
to the terminal
connection and the
vehicle needs repair.
Call Consumer
Relations at 877-
741-6154 for an
authorized service
center
Difcultshiftingfrom
forward to reverse or
visa-versa
Attempting to shift
while the vehicle is in
motion
Completely stop the
vehicle and shift
(see Use: Manual
Operation)
Loud grinding or
clicking noises
coming from motor or
gear box
Motor or gears are
damaged
Call Consumer
Relations at
877-741- 6154 for an
authorized service
center
12V Battery will not
recharge
Battery connector or
adapter connector is
loose
Check that battery
connectorsarermly
plugged into each
other
Charger not
plugged in
Check that battery
charger is plugged
into a working wall
outlet
Charger is not working
(lights not glowing)
Call Consumer
Relations at
877-741- 6154 for an
authorized service
center
Battery bubbles
or gurgles when
charging
This is normal and not
a cause for concern
Charger feels warm
when recharging
This is normal and not
a cause for concern
21
Services, Repairs and Parts
Do not return this product to the place of purchase. If your Avigo RC
Coupe needs service, repairs or replacement parts, call:
Kid Trax Toys Consumer Relations
Hours: 8:00am – 5:00pm (CST) Monday - Friday
Phone: 877-741-6154
Email: customerservice@kidtraxtoys.com
Web: www.kidtraxtoys.com
For service and repairs you will be directed to an authorized service
center. To order parts have the model and serial number, found
underneath the vehicle body and a brief description of the part.
The following is a list of available replacement parts:
Front wheel•
Rear wheel•
Wheel cover•
Hub caps•
Hardware bag for wheel assembly•
Hardware bag for dash and steering column•
Seat•
Hood•
12-volt battery•
Charger•
Key fob•
Mirrors•
Steering Wheel•
22
FCC Information
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.•
Increase the distance between the equipment and the receiver.•
Consult dealer or an experienced radio/TV technician for help.•
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the epuipment.
23
Warranty
One-Year Limited Warranty
Six-Month Limited Warranty on Battery
PacicCycle,Inc.(PC)warrantsthisproducttotheoriginalretail
purchaser as follows:
The vehicle (except for the 12-volt battery) is warranted against
defective materials or workmanship for one year from the date of
original purchase. The 12-volt battery is warranted against defective
materials or workmanship for six months from the date of original
purchase. An original receipt is required to validate your warranty.
PC will, at its option, provide replacement parts or replace this
product. PC reserves the right to substitute if the part or model has
been discontinued.
To make a claim under this warranty you may contact us at www.
kidtraxtoys.com; fax us at 1-800-207-8182, 24 hours a day; write to
Kid Trax Consumer Relations Department, Kid Trax Toys, P.O. Box
344 Olney, IL 62450 or call 1-877-741-6154 from 8 a.m. to 5 p.m.,
Monday through Friday, CST. Proof of purchase is required, and
shipping charges are the responsibility of the consumer.
Warranty Limitations
This warranty does not include damages which arise from accident,
misuse, abuse, neglect or other causes not arising out of defects in
materials or workmanship, nor does it cover damages arising out of
service by other than an authorized PC service center. For personal
use only. Not for commercial use. The original owner shall pay all
labor charges connected with the repair or replacement of all parts.
Under no circumstances does this limited warranty include the cost
of shipment or transportation to or from an authorized Kid Trax repair
center or Kid Trax retailer.
Limitation of Damages:
The warranty and remedies as set forth are exclusive and in lieu of
all others, oral or written, expressed or implied. In no event will PC
or the dealer selling this product be liable to you for any damages,
including incidental or consequential damages, arising out of the use
or inability to use this product. Some states do not allow limitations
as the exclusion or limitation of incidental or consequential damages,
so the above limitation may not apply to you.
24
Limitation of Warranties and Warranty Terms
Any implied warranties, including implied warranties of the
merchantabilityandtnessforaparticularpurpose,shallbelimited
to the duration and terms of the express written warranty. Some
states do not allow limitations as the exclusion or limitation of
incidental or consequential damages, so the above limitation may
notapplytoyou.Thiswarrantygivesyouspeciclegalrights,and
you may have other rights, which vary from state to state. Neither PC
nor the dealer selling this product authorized any person to create
for it any other warranty, obligation or liability in connection with this
product.
25
If you have any questions or comments please contact us at:
In U.S.A.
Pacic-CycleInc.
4902 Hammersly Rd.
Madison, WI 53711
Customer Service:
877-741-6154
customerservice@kidtraxtoys.com
www.kidtraxtoys.com
Contact Information
©2008 Harley-Davidson, All Rights Reserved.
Distributed by Toys”R”US. Inc.
Under License from Harley-Davidson Motor Company
©2008 Geoffrey, Inc.
Distributed by Toys “R” US. Inc. Wayne, NJ 07470
Made in China

Navigation menu
