ITEM 69488

1650 PSI

ElEctrIc

PrESSurE

WaShEr

Visit our website at: http://www.harborfreight.com

Email our technical support at: tech@harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Copyright© 2011 by Harbor Freight Tools®. All rights reserved. No portion of

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools. Diagrams

within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described

herein. Tools required for assembly and service may not be included.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-800-444-3353 as soon as possible.

Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual

near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and

the receipt in a safe and dry place for future reference.

Owner’s Manual & Safety Instructions

Page 2 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Table of Contents

Safety ......................................................... 3

Setup .......................................................... 7

Specifications ............................................. 7

Operation ................................................... 10

Maintenance .............................................. 14

Parts Lists and Assembly Diagrams .......... 16

Warranty .................................................... 20

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Page 3For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

IMPORTANT SAFETY INSTRUCTIONS

WARNING When using this product basic precautions should

always be followed, including the following:

Safety Warnings

1. Read all the instructions before using the product.

2. To reduce the risk of injury, close supervision is

necessary when a product is used near children.

3. Know how to stop the product and bleed pressures

quickly. Be thoroughly familiar with the controls.

4. Stay alert – watch what you are doing.

5. Do not operate the product when fatigued or under

the influence of medication, alcohol or drugs.

6. Keep operating area clear of all persons.

7. Do not overreach or stand on unstable support.

Keep good footing and balance at all times.

8. Follow the maintenance instructions

specified in the manual.

9. This product Is provided with A Ground Fault

Circuit Interrupter (GFCI) built into the power

cord plug. If replacement of the plug or cord is

needed, use only identical replacement parts.

10. WARNING – Risk of injection or injury–

do not direct discharge stream at persons.

11. Connect to individual branch circuit only.

12. WARNING – To reduce the risk of electrocution,

keep all connections dry and off the ground.

Do not touch plug with wet hands.

13. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the pressure

washer. Keep cord away from heat, oil, sharp

edges or moving parts. Damaged or entangled

cords increase the risk of electric shock.

14. GFCI PRECAUTIONS

Test GFCI (Ground Fault Circuit Interrupter)

before each use as follows:

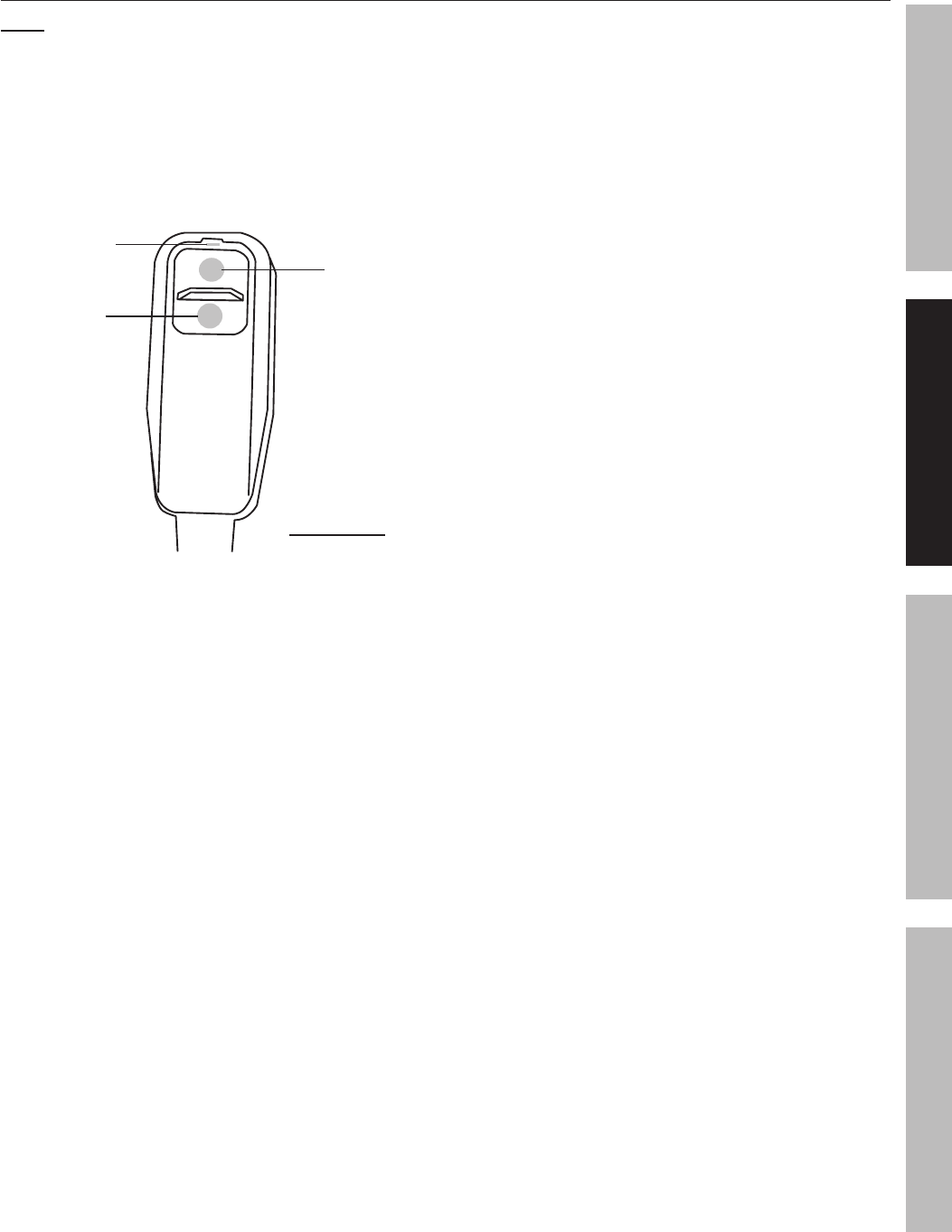

a. Plug GFCI into power outlet and press

reset button. Indicator should turn on.

b. Press test button. Indicator should turn off.

c. Press reset button again for use.

Do not use if above test fails.

The GFCI device does not protect against electrical

shock due to contact with both circuit conductors or a

fault in any wiring supplying the GFCI device.

To allow GFCI unit to function properly,

EXTENSION CORDS MUST NOT BE

USED with this pressure washer.

Set up Precautions

1. The work area should have adequate

drainage to reduce the possibility of a fall

or electric shock due to wet surfaces.

2. Wear ANSI-approved safety goggles

during set up and use.

3. Only feed cold, clean water through this tool.

Pressure washer detergent may be used in

the soap dispenser only. Do not use caustic

materials, solvents, flammable materials, or

detergents not designed for pressure washers.

Use of any such material can cause injury,

or damage this tool or personal property.

4. Prior to starting the Pressure Washer in cold weather,

check all of the parts of the unit to make sure ice

has not formed. Do not store the unit anywhere

that the temperature will fall near 32° F (0° C).

Page 4 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Operating Precautions

1. Disconnect the plug from the power source

before making any adjustments, changing

accessories, or storing pressure washers. Such

preventive safety measures reduce the risk of

starting the pressure washer accidentally.

2. Do not leave the equipment unattended

when it is running. Turn off the equipment

before leaving the work area.

3. Wear ANSI-approved safety goggles and heavy-

duty nonslip rubber work boots during use.

4. Use only accessories that are recommended by

Harbor Freight Tools for your model. Accessories

that may be suitable for one piece of equipment may

become hazardous when used on another one.

5. This product must continuously run with

cold water only. Never use hot water. Do

not dry run this product. Dry running will

cause serious damage to the seals.

6. To avoid electrical shock, never start and run the

Pressure Washer in the rain. Never allow water

to leak into the Body of the Pressure Washer.

Do not direct discharge stream at the Pressure

Washer itself or at other live electrical equipment.

7. Do not allow the GFCI Plug to become wet.

Always place the GFCI Plug in a dry location and as

far away as possible from the object being sprayed.

8. DO NOT use an extension cord with this product.

9. When using the Pressure Washer, always maintain

a firm grip on the Spray Gun. Squeezing the

Trigger of the Spray Gun causes a kickback force.

10. Do not feed already-pressurized water (such as that

from another pressure washer) into this washer.

11. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields in

close proximity to heart pacemaker could cause

pacemaker interference or pacemaker failure.

12. WARNING: The brass components of this

product contain lead, a chemical known to

the State of California to cause birth defects

(or other reproductive harm). (California

Health & Safety code § 25249.5, et seq.)

13. WARNING: Handling the cord on this product will

expose you to lead, a chemical known to the State

of California to cause cancer, and birth defects or

other reproductive harm. Wash hands after handling.

(California Health & Safety Code § 25249.5, et seq.)

14. Use the correct equipment for the application.

Do not modify the equipment and do not use the

equipment for a purpose for which it is not intended.

15. If water is leaking out of the Pressure Washer

immediately turn off the unit. Unplug the

Pressure Washer, and discharge all pressure

before tightening fittings or having repair

work done by a qualified technician.

16. The high pressure water flow can damage

the work surface if not used properly.

Always test the spray in an open area first.

17. Injection Hazard. The high pressure

water jet produced by this tool can cut

skin or cause injury to hands or eyes.

Do not allow spray to strike you and do

not spray toward people or animals.

Do not spray the tool itself or any electrical source.

18. This Pressure Washer is intended for

outdoor residential use only.

19. In case of an emergency during use,

immediately release the trigger on the spray

handle, turn the power switch off and then

unplug the unit. Do not set the spray handle

down without turning off the power switch.

Page 5For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Vibration Hazard:

This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent

physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for an

extended period should first be examined by a

doctor and then have regular medical check-

ups to ensure medical problems are not being

caused or worsened from use. Pregnant women

or people who have impaired blood circulation

to the hand, past hand injuries, nervous system

disorders, diabetes, or Raynaud’s Disease should

not use this tool. If you feel any medical or

physical symptoms related to vibration (such as

tingling, numbness, and white or blue fingers),

seek medical advice as soon as possible.

2. Do not smoke during use. Nicotine reduces

the blood supply to the hands and fingers,

increasing the risk of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration when there

is a choice between different processes.

5. Include vibration-free periods each day of work.

6. To reduce vibration, maintain the tool as

explained in this manual. If any abnormal

vibration occurs, stop use immediately.

Service Precautions

Ground Fault Circuit Interrupter Protection

This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the

power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement

of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

Servicing a Double-Insulated Appliance

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding

means is provided on a double-insulated product, nor should a means for grounding be added to the

product. Servicing a double-insulated product requires extreme care and knowledge of the system,

and should be done only by qualified service personnel. Replacement parts for a double-insulated

product must be identical to the parts they replace. A double-insulated product is marked with the words

“DOUBLE INSULATION” or “DOUBLE INSULATED.” The symbol may also be marked on the product.

Page 6 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Symbology

Double Insulated

Canadian Standards Association

Interlink Testing Services

V~ Volts Alternating Current

AAmperes

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

WARNING marking concerning

Risk of Electric Shock.

Properly connect power cord

to appropriate outlet.

WARNING marking concerning

Risk of Injection.

Do not direct spray at any

person or animal.

SAVE THESE INSTRUCTIONS.

Page 7For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Specifications

Electrical Rating 120V~ / 60Hz / 13A

Maximum Pressure 1650 PSI

Maximum Flow Rate 1.25 GPM

High Pressure Hose 13-3/4 FT.

Power Cord 35 ft.

Setup – Before Use:

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch of the tool off, unplug the tool from its electrical outlet,

shut off the water supply and safely discharge all residual water pressure from

the unit before assembling or making any adjustments to the tool.

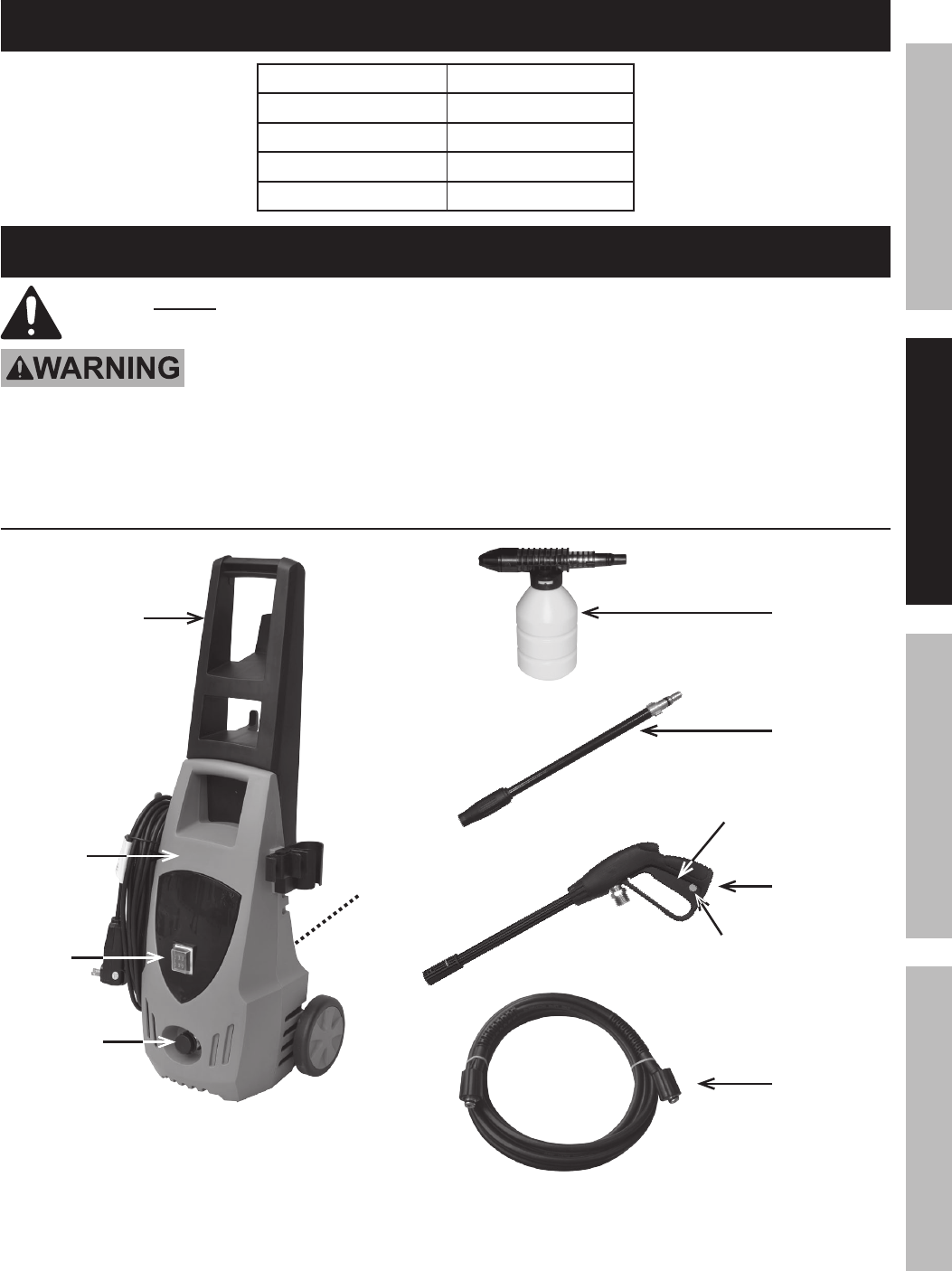

Components

Handle

Power

Switch

Trigger

Soap

Dispenser

High Pressure

Hose

Water

Supply Inlet

Spray Gun

Extension

Nozzle

Body Pressure Hose Outlet

(on back)

Figure A

Safety Lock

Button

Page 8 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Assembly

Note: For additional information regarding

the parts listed in the following pages,

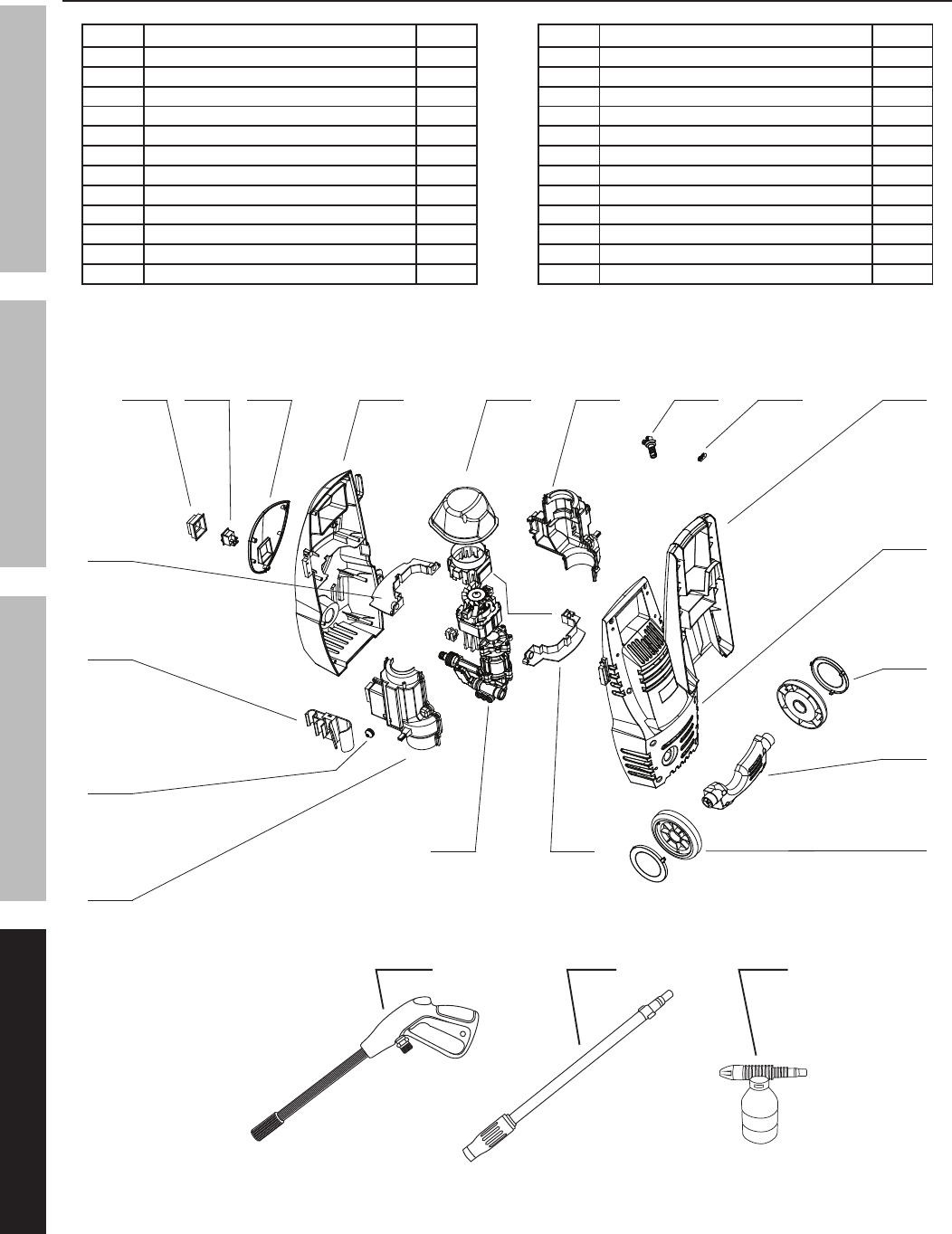

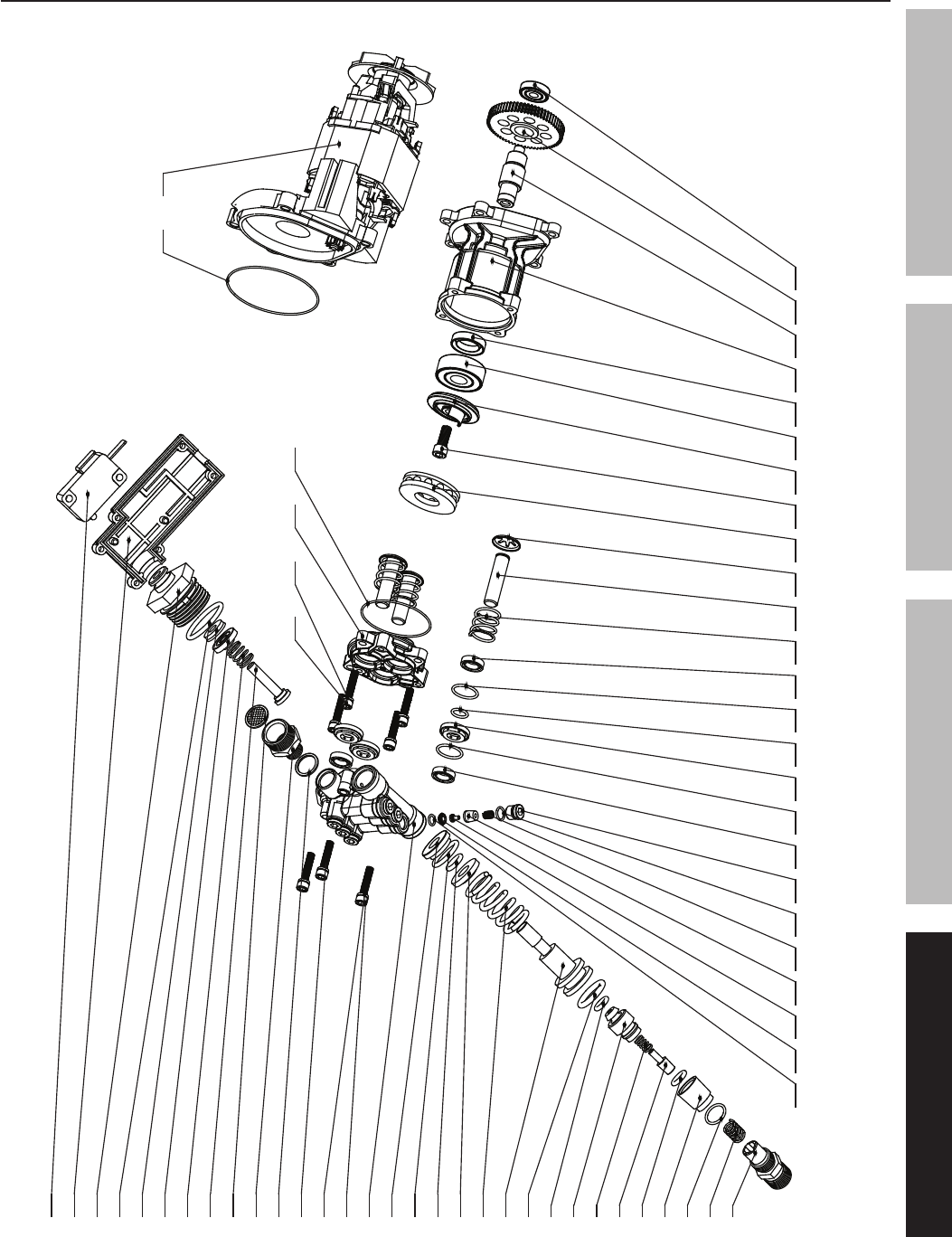

refer to Parts Lists and Assembly Diagrams on page 16.

Some of the following assembly steps may have been performed at the factory.

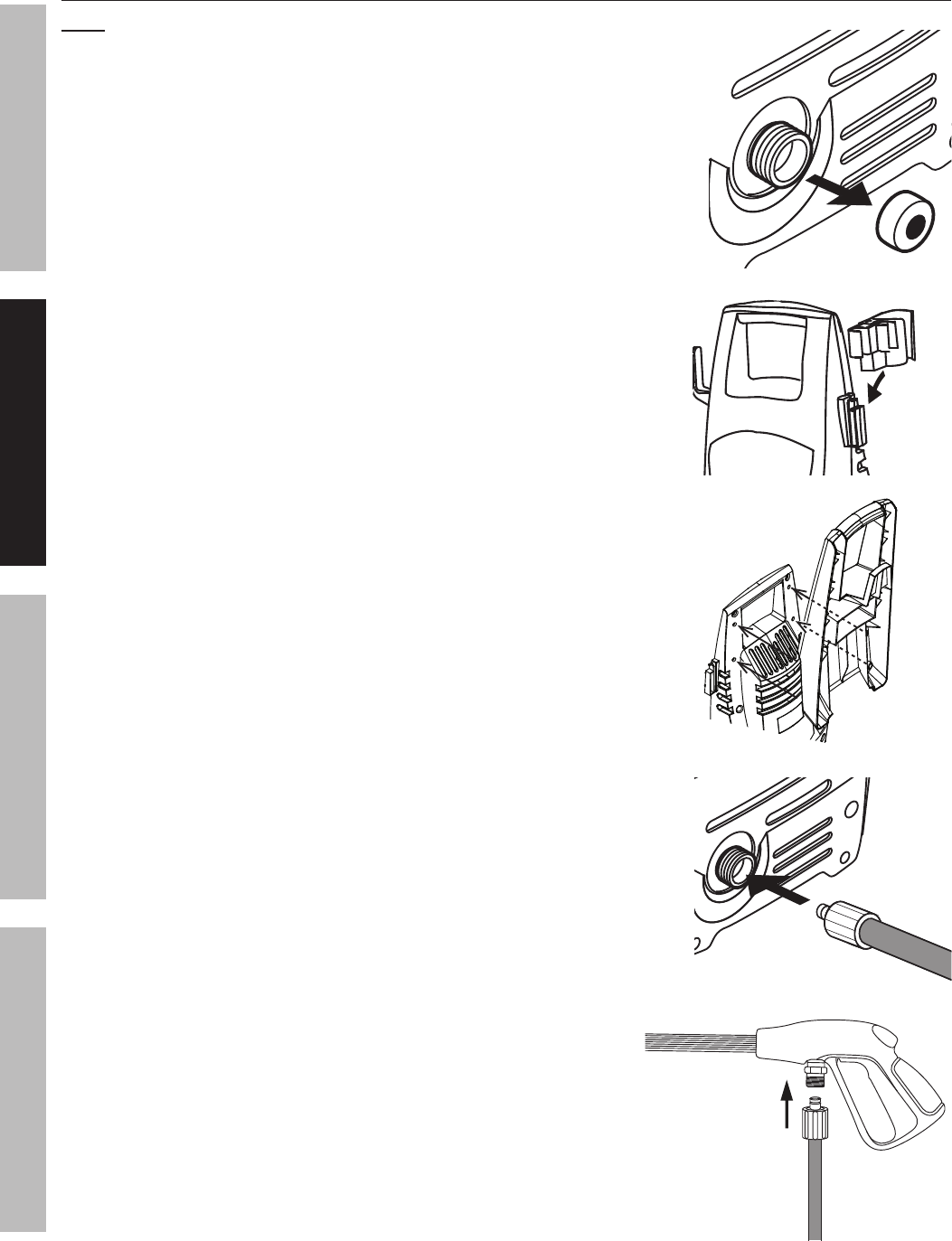

1. Check the Inlet Strainer for any blockage, including

packaging debris. Remove any plastic plugs from the water

inlet/outlet.

2. Attach the Gun/Extension Nozzle holder to the side of the

body.

3. Attach the Handle to the front of the Body with the

four included Screws.

4. Thread the High Pressure Hose onto the Pressure Hose

Outlet on the back of the body.

5. Thread the High Pressure Hose to the Spray Gun.

Page 9For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Features

Note: Familiarize yourself with the location and function of all of the machine’s

controls before proceeding to setup of the machine.

1. This item is equipped with a

GFCI (Ground Fault Circuit Interruption) plug.

Read and follow these GFCI precautions:

WARNING! TO PREVENT ELECTRIC SHOCK

AND DEATH:

Test GFCI (Ground Fault Circuit Interrupter)

before each use as follows:

a.

FIGURE A

INDICATOR RESET

BUTTON

TEST

BUTTON

Make sure the trigger is released and

plug GFCI into power outlet. Press reset

button. Indicator should turn on.

b. Press test button. Indicator should turn off.

c. Press reset button again for use.

Do not use if above test fails.

The GFCI device does not protect

against electrical shock due to contact

with both circuit conductors or a fault

in any wiring supplying this device.

Should replacement of the GFCI Power

Plug become necessary, only a qualified

technician should perform the service.

Do not alter or disable the GFCI Power Plug.

To allow the GFCI unit to function

properly, extension cords must not be

used with this pressure washer.

2. The Spray Control Sleeve on the Spray Wand

can be rotated for a range of spray patterns,

from a full fan spray to a direct stream spray.

Page 10 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Work Piece and Work Area Set Up

1. Designate a work area that is clean and well-lit.

The work area must not allow access by children

or pets to prevent distraction and injury.

2. CHECK THE WATER SUPPLY. Prior to using the

Pressure Washer for the first time, it is ESSENTIAL

to verify that the water supply is adequate.

The Pressure Washer needs TWICE the water supply

(or volume) than the listed water output (1.3 GPM).

This Pressure Washer will need about 2.6-3 GPM to

operate correctly and efficiently. If the water is being

supplied by a well/pump, make certain that the well/

pump produces enough water to keep up with the

Pressure Washer’s water demands. Water supply

hoses should be heavy duty to withstand the forces

involved. Water hoses up to 25' long must be 5/8" ID.

Water hoses up to 50' long must be 3/4" ID. Do not

use hoses longer than 50'. The more minerals in the

water (the harder the water) you use, the more often

mineral buildup will need to be cleaned out from the

nozzles. The flow rate of the water supply must never

be allowed to fall below 2.6 GPM.

To determine the water supply’s flow rate: Run the

water at full for one minute into a 5 gallon container,

and measure the amount of water in the container.

CAUTION! If the Pressure Washer is run

with an inadequate water supply, the pump

will cavitate. Cavitation causes the pump

to operate loudly and will damage it.

3. ARRANGE FOR A PROPER ELECTRICAL SUPPLY.

This unit uses a large amount of current, especially

during start-up. Turn off power switch, then connect

this unit only to a dedicated household circuit

capable of providing ample current to it. A dedicated

circuit has no additional loads (running devices)

connected to it; shut off any appliances that slow

down or lights that dim while the washer is running.

For best results, connect the plug to that circuit’s

outlet that is nearest to the circuit breaker panel.

4. PLAN OUT THE JOB: Plan out what areas will be

cleaned, how many sessions will be necessary,

and how long the individual sessions of work will

need to be. Plan to clean the higher portions

first, because the higher portions will typically

remain cleaner while the other areas are cleaned.

Plan a safe direction for runoff to flow while the job

is being performed, and plan on working your way

in that direction. You will have a clearer idea of the

time involved to clean the area after doing a test run.

5. Clear the cleaning area of all objects that

are not being cleaned. If any water prone or

delicate items cannot be moved, protect them.

If detergent is to be used, cover or remove any

plants or animals that may be damaged by the

detergent. Disconnect power to and protect any

nearby electrical wiring from water and spray.

6. Place the Pressure Washer in a location which is

protected from any water from the cleaning area.

Select a location higher than the cleaning area.

The pressure washer’s location should be

close enough so that the hose will reach

every portion of the job to be done with some

slack for movement. Also, select an area

with proper access to a dedicated circuit.

7. Route the power cord along a safe route

to reach the work area without creating a

tripping hazard or exposing the power cord

to possible damage. The power cord must

reach the work area with enough extra length

to allow free movement while working.

Page 11For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Tool Set Up

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch of the pressure washer off, unplug it from its electrical outlet, and relieve

all pressure in a safe manner before making adjustments or installing accessories.

1. MAKE SURE THE WASHER IS CLEAN AND READY FOR

USE. Ensure the inlet water strainer, nozzle, and the rest

of the Washer are completely free of buildup or debris.

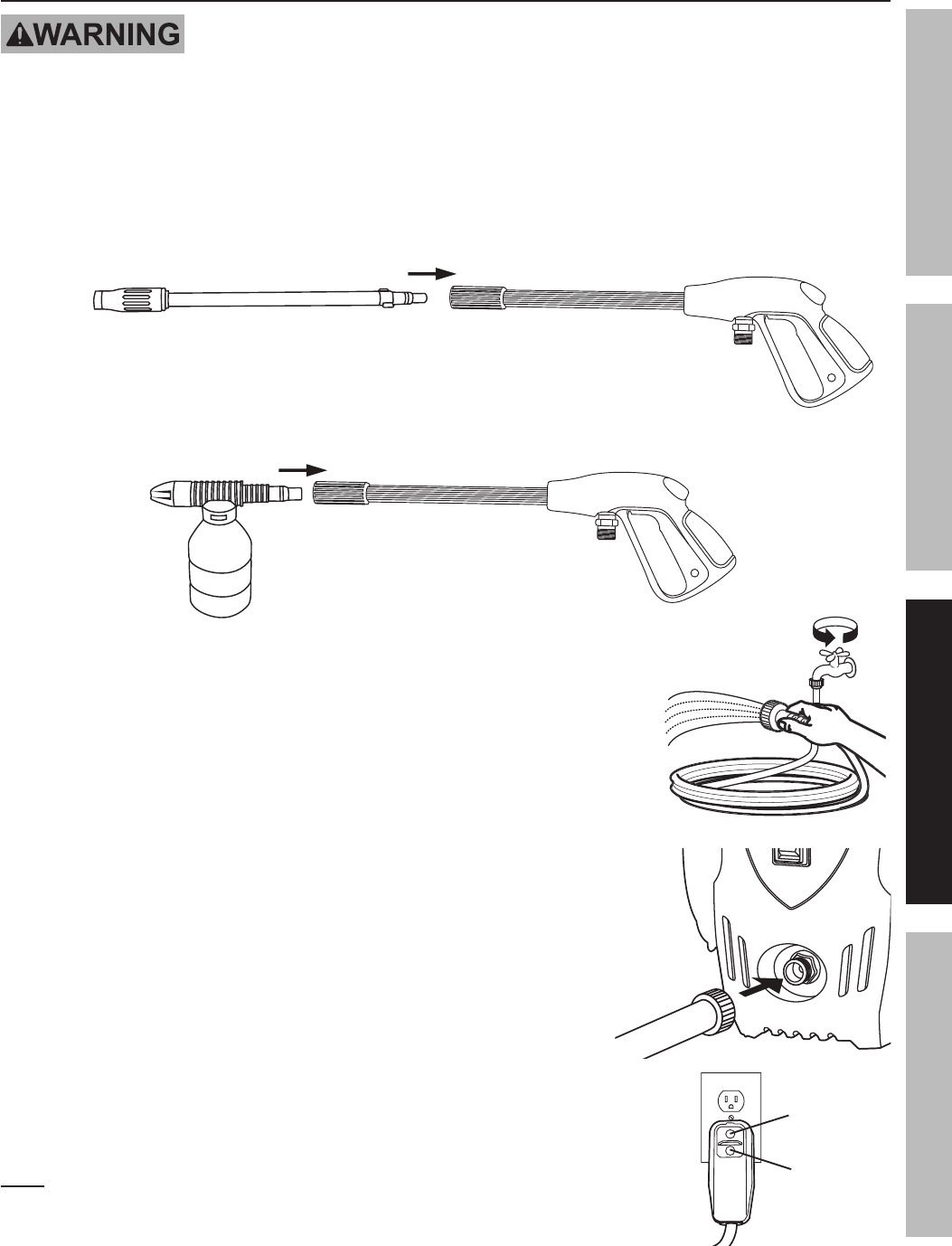

2. If using the Extension Nozzle, insert it into the end of the

gun, pressing in and twisting, until it clicks into place.

If using the Soap Dispenser:

a. Remove the dispenser lid and fill with pressure

washer detergent (sold separately).

b. Set the spray to the fan setting by turning the end

of the Extension Nozzle counterclockwise.

c. Insert the Extension Nozzle into the

Dispenser cap, pressing and twisting, until

it clicks into place (shown at right).

3. Before connecting the water supply, run water through the

garden hose (sold separately) to remove any debris.

4. Turn off the water, then thread the garden hose onto the

Water Supply Inlet on the front of the Pressure Washer.

5. Plug the Power Cord into a power outlet and test the GFCI

by pressing the Reset Button, then the Test button, then the

Reset Button again, as described in

Controls and Features section.

Note: The Pressure Washer will not work if the GFCI is not properly reset.

Reset Button

Test Button

Page 12 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

General Operating Instructions

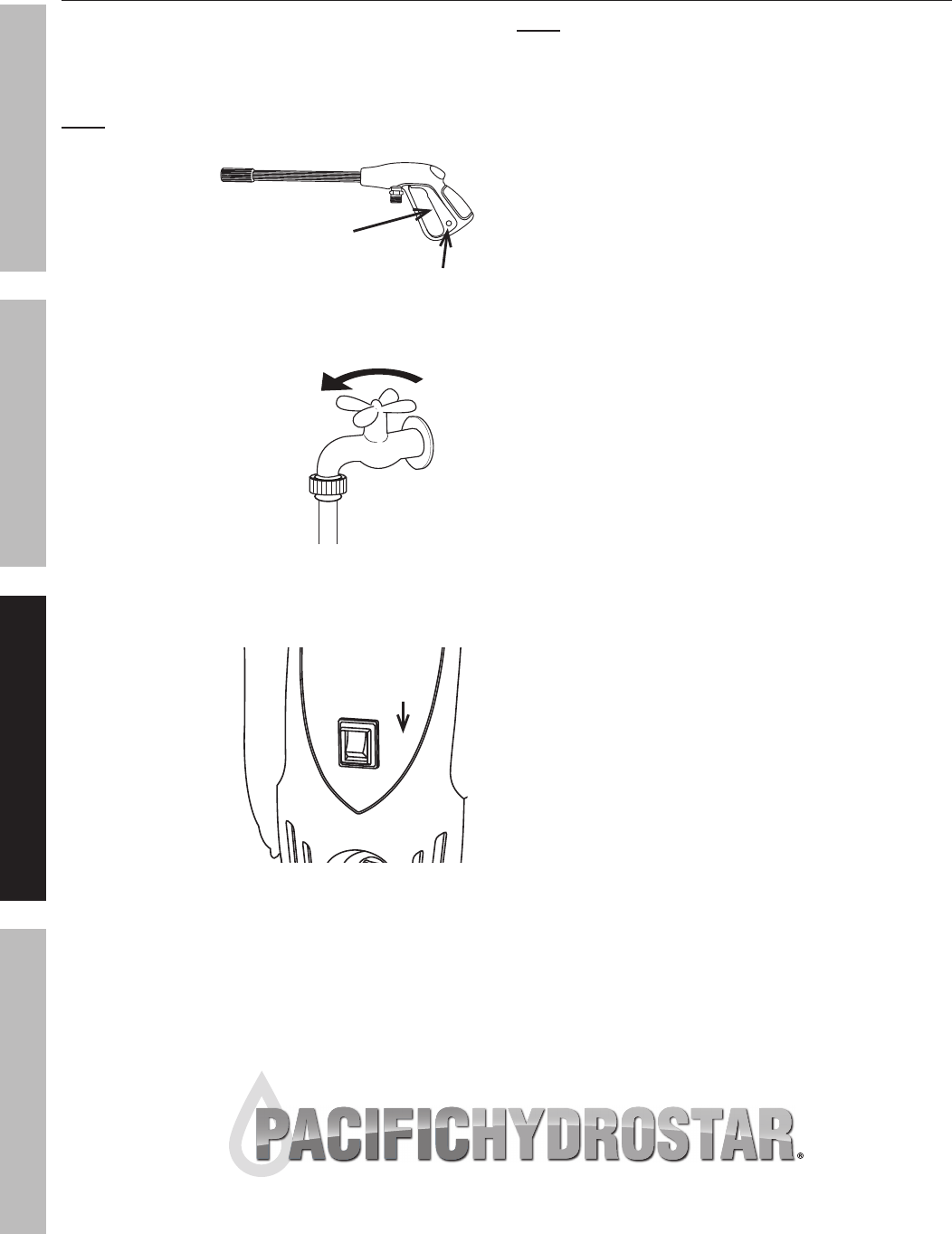

1. Point the Nozzle in a safe direction. Press in the

Safety Lock Button to unlock the Trigger and

squeeze the Trigger to check that all pressure is

released from the unit. Release the Trigger.

Note: The Gun’s safety lock feature locks the Trigger

when not in use. To unlock the unit and use the gun,

press the Safety

Lock Button and

squeeze the

Trigger. The

safety lock will

re-engage when

you release the

Trigger.

2. Turn on the water supply.

3. Turn on the Power Switch.

Note: If the unit does not turn on or turns off

suddenly, check and reset the GFCI.

4. Unlock the Safety Lock Button and squeeze

the Trigger to start the stream. Be aware that

when it is first started, the gun will kick back.

5. Test spray the edge of the surface to be cleaned

to make sure that the stream is not too strong for

the surface. Adjust the pressure by squeezing

the Trigger more or less, and by changing your

distance from the surface. Adjust the stream from

a fan to a direct stream by turning the nozzle.

6. When finished using the Pressure Washer,

release the Trigger, turn the Power Switch off,

unplug the unit, and turn off the water supply.

7. Point the Nozzle in a safe direction and press

the Safety Lock Button and squeeze the

trigger to check that all pressure is released

from the unit. Release the Trigger.

8. Clean, then store indoors, out of children’s reach.

Safety Lock

Button

Trigger

Power

Switch

ON

Page 13For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Operating Tips

Become Familiar With your Machine:

1. Before beginning work, set aside enough time to

familiarize yourself with this machine’s cleaning

rate and capacity along with all instructions

and precautions contained in this section,

along with the Operating Instruction and

Controls and Features sections.

2. This unit is intended for various light to moderate

cleaning applications. If deeper cleaning is desired, it

can be attained at times, however this is done at the

expense of speed. This unit is not intended for paint

stripping or deep concrete cleaning applications.

3. Clean a test area to satisfaction before

proceeding with the entire area, as stated

in Cleaning Recommendations.

4. This unit has several settings and adjustments

that effect the speed of cleaning and the

water force applied to cleaning. Good

guidelines to keep in mind are:

WIDE STREAM =

QUICKER COVERAGE BUT

LIGHTER CLEANING.

NARROW STREAM =

DEEPER CLEANING BUT

SLOWER COVERAGE.

Cleaning Recommendations

5. Clean an inconspicuous test area first. Always begin

with the fan spray at a distance of about 3-5 feet from

the surface being cleaned to avoid damaging it. Clear

the test area of people and water-sensitive objects.

If a pressure washing detergent is to be used, apply

the detergent to this area as well. After cleaning this

area, switch off the pressure washer and inspect

the area carefully for any damage or discoloration.

If any damage is noted from the pressure setting,

use a lighter setting when cleaning the rest of the

area. If damage or discoloration is noted from

the detergent, do not use it when cleaning.

6. First, pass over the area with a light cleaning,

and then more thoroughly clean it.

For a vertical or sloped surface:

a. Wash from the top down.

b. If possible, direct the stream in the same

direction as the slope towards a draining area.

This will enable better drainage and

therefore better cleaning.

For a flat surface:

a. If a thin layer of water accumulates on

the surface, periodically use the stream to

direct this water towards the drainage.

b. After the major cleaning is done, sweep

the surface with the stream to help direct

loose debris toward the drainage.

7. If detergent is to be applied: Only use pressure

washing detergent in the soap dispenser; other

detergents will clog the dispenser. Do not add

detergent to the body of the pressure washer.

Spray the surface with detergent until evenly

covered, then turn off the machine and water

source, release pressure, and remove the soap

dispenser. Allow the detergent several minutes to

sit and soak into the work surface; this will improve

cleaning efficiency. Turn on the water source and

power, and rinse off all detergent completely.

8. Hold the Spray Gun at about a 45° angle and

steadily sweep the stream back and forth; if a

severe, head-on angle is used, dirt may imbed

in the surface being cleaned. Follow a steady,

consistent pace during cleaning; this will help prevent

stripes or discoloration afterwards. If streaking or

uneven cleaning is noted at the end of a project,

go over the edges of the streaks with a wide fan

pattern to help blend these lighter areas in.

9. If several different surfaces are to be cleaned,

be careful not to damage any of the less solid

surfaces while trying to clean the harder ones.

This is especially a concern when cleaning tile and

grout, bricks and mortar, or stones and mortar.

10. If wood is being cleaned, be careful to avoid damage.

Wood will usually require resurfacing (sanding)

and re-coat with a surface protectant (wood, stain,

varnish) after it has dried. Try to avoid leaving water

on a wooden surface; doing so can harm the surface.

Page 14 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Maintenance and Servicing

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch of the tool off, unplug the tool from its electrical outlet,

shut off the water supply and safely discharge all residual water pressure from

the unit before performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:

Do not use damaged equipment. If abnormal noise or vibration

occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

1. Before each use, inspect the general condition

of the Pressure Washer. Check for loose screws,

misalignment or binding of moving parts, damaged

electrical wiring, damaged High Pressure Hose,

damaged accessories, and any other condition that

may affect its safe operation. If abnormal noise or

vibration occurs, have the problem corrected before

further use. Do not use damaged equipment.

2. To clean, remove excess water from the Pump by

tipping the unit to drain any remaining water from

the inlet and outlet fittings. Drain the Detergent

Dispenser and flush with running water. Use only a

clean cloth and mild detergent to clean the body of

the Pressure Washer. Do not use solvents.

Do not immerse any part of the tool in liquid.

Dry off any remaining water on all parts and fittings.

Remove mineral deposits from the nozzle using

a thin, stiff wire brush. The more minerals that

are dissolved in the water (the harder the water)

you use, the more often mineral buildup will

need to be cleaned out from inside nozzle.

3. In areas that have hard water

(water rich in minerals such as calcium) the unit

will need to be cleaned periodically to remove

calcium buildup which can clog the system.

To clean off calcium buildup: Unplug the unit and

lay it face down. Fill the body at the water inlet fitting

with calcium remover and allow at least 5 hrs. for

calcium deposit to break down. Rinse and dry.

4. STORAGE: When storing,

empty the Pressure Washer of water.

Frost will damage the Pressure Washer if the

unit contains water. Store the Pressure Washer

in a dry, frost-free room. Flush the unit with

automotive antifreeze prior to long-term storage.

Dispose of antifreeze according to local ordinances.

5. WARNING! If the supply cord or GFCI unit

of this power tool is damaged, it must be

replaced only by a qualified service technician.

Note: Pump gearbox oil type is SAE 15W/40 gr. 70.

Page 15For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Troubleshooting

Problem Possible Causes Likely Solutions

Pressure Washer

will not start

1. Cord not connected.

2. No power at outlet.

3. GFCI circuit breaker tripped.

4. Internal damage or wear.

(Carbon brushes or switch, for example.)

1. Check that cord is plugged in.

2. Check power at outlet. If outlet is unpowered,

turn off tool and check circuit breaker.

If breaker is tripped, make sure circuit is right

capacity for tool and circuit has no other loads.

3. Press reset button on GFCI unit on cord.

4. Have a qualified technician service tool.

Pressure Washer

stops suddenly

1. GFCI circuit breaker tripped.

2. Water leaking from housing.

1. Press reset button on GFCI unit on cord.

2. SHOCK HAZARD! IMMEDIATELY

discontinue use. Have the unit repaired by

a qualified technician before further use.

Output pressure

varies

1. Not enough water supply.

2. Air in water supply.

3. Water Inlet Filter is clogged.

4. Extension Nozzle not

attached to Spray Gun.

5. Nozzle is clogged.

6. Nozzle has mineral build up.

7. Garden hose is too long.

8. Internal valves or seals may

be worn or sticking.

1. Check water supply hose for kinks, leaks,

or blockage. Open faucet all the way.

2. Check that all connections are tight.

3. Remove Filter and clean.

4. Pressure is created by the Nozzle, not the

Spray Gun. Attach Extension Nozzle to unit.

5. Remove Nozzle and clean.

6. Remove Nozzle and clean with vinegar.

7. Recommended garden hose length is

20 to 50 feet, or 30 feet if using well water.

Shorten the length of the garden hose

if needed to increase pressure.

8. Have a qualified technician service tool.

Trigger does

not depress

Safety lock is still engaged. Press in on the release button on the bottom of

the Spray Gun Handle to release the Safety Lock.

Detergent will

not dispense

Incorrect detergent type. Check that the detergent is the recommended

type of detergent. Clean out dispenser and

replace with correct type if needed.

Performance

decreases over time

Clogged with mineral deposits. Clean unit with a de-mineralizing solution such

as vinegar or other aqueous acidic cleaner.

Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power

supply before service.

Page 16 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Part Description Qty

1 Outlet 1

2 Spring 1

3 O-Ring 1

4 Sleeve 1

5 O-Ring 1

6 Valve Core 1

7 Valve Core Spring 1

8 Jacket 1

9 O-Ring 1

10 O-Ring 1

11 Piston 1

12 Piston Spring 1

13 Piston Seat 1

14 O-Ring 1

15 O-Ring 1

16 Valve Seat 1

17 Pump Head 1

18 Capscrew 1

19 Spring Washer 3

20 Capscrew 1

21 O-Ring 1

22 Inlet 1

23 Strainer 1

24 Pressure Switch Push Rod 1

25 Push Rod Spring 1

26 Connecting Nut Gasket 1

27 Y-Ring 1

28 O-Ring 1

29 Connecting Nut 1

30 Pressure Switch Cover 1

31 Microswitch 1

Part Description Qty

32 Capscrew 4

33 Spring Washer 4

34 Pump Body 1

35 O-Ring 6

36 O-Ring 6

37 Valve Seat 6

38 Valve Core 6

39 Valve 6

40 Valve Spring 6

41 O-Ring 6

42 Valve Cap 6

43 Y-Ring 3

44 O-Ring 3

45 Middle Set 3

46 O-Ring 3

47 In The Interval Set 3

48 Skeleton Seal 3

49 Plunger Spring 3

50 Plunger 3

51 Plunger Clip 3

52 Bearing 1

53 Capscrew 1

54 Bearing Seat 1

55 Bearing 1

56 Reinforced Seal 1

57 Connecting Seat 1

58 Gear Shaft 1

59 Gear 1

60 Bearing 1

61 O-Ring 1

62 Motor 1

Parts Lists and Assembly Diagrams

Pump Assembly Parts List

Page 17For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

Pump Assembly Diagram

14

15

16

17

18

19

20

13

12

11

10

9

8

7

6

5

4

21

22

23

24

25

26

27

28

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36

32

1

2

3

31

30

29

33

34

35

6162

Page 18 For technical questions, please call 1-800-444-3353. SKU 69488

SAFETY OPERATION MAINTENANCESETUP

Part Description Qty

1a Power Switch Cover 1

2a Power Switch 1

3a Front Panel 1

4a Upper Housing 1

5a Waterproof Cover 1

6a Right Motor Cover 1

7a Cord Protector 1

8a Cord Clamp 1

9a Handle Extension 1

10a Bottom Housing 1

11a Wheel Cover 2

12a Axle 1

Part Description Qty

13a Wheel 1

14a Heat Guard 1

15a Fan Cover 1

16a Pump Asm. 1

17a Left Motor Cover 1

18a Cushion 1

19a Gun/Extension Nozzle Holder 1

20a Upper Heat Guard 1

21a Gun 1

22a Extension Nozzle 1

23a High Pressure Hose (not shown) 1

24a Detergent Bottle 1

Pressure Washer Parts List and Assembly Diagram

1a 2a 3a 4a 5a 6a 7a 8a 9a

10a

11a

12a

13a14a

15a

16a

20a

19a

18a

17a

21a 22a 24a

Page 19For technical questions, please call 1-800-444-3353.SKU 69488

SAFETYOPERATIONMAINTENANCE SETUP

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and

are not available individually as replacement parts.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
