Packard Bell EasyNote LJ61
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
II
Revision History
Please refer to the table below for the updates made to this service guide.
Date Chapter Updates
III
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.
V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
VI
VII
Table of Contents
System Specifications 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Your Notebook tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

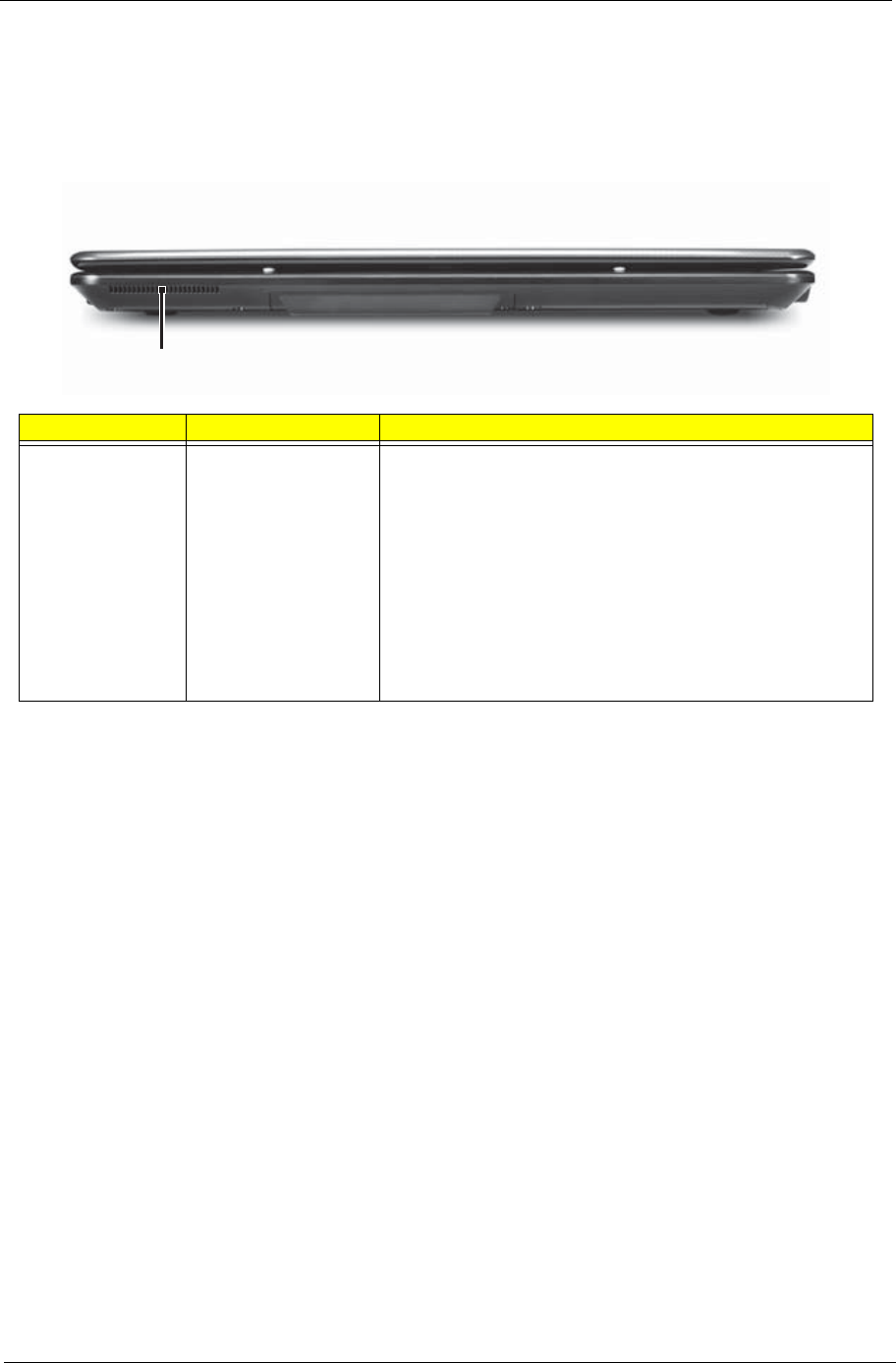

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

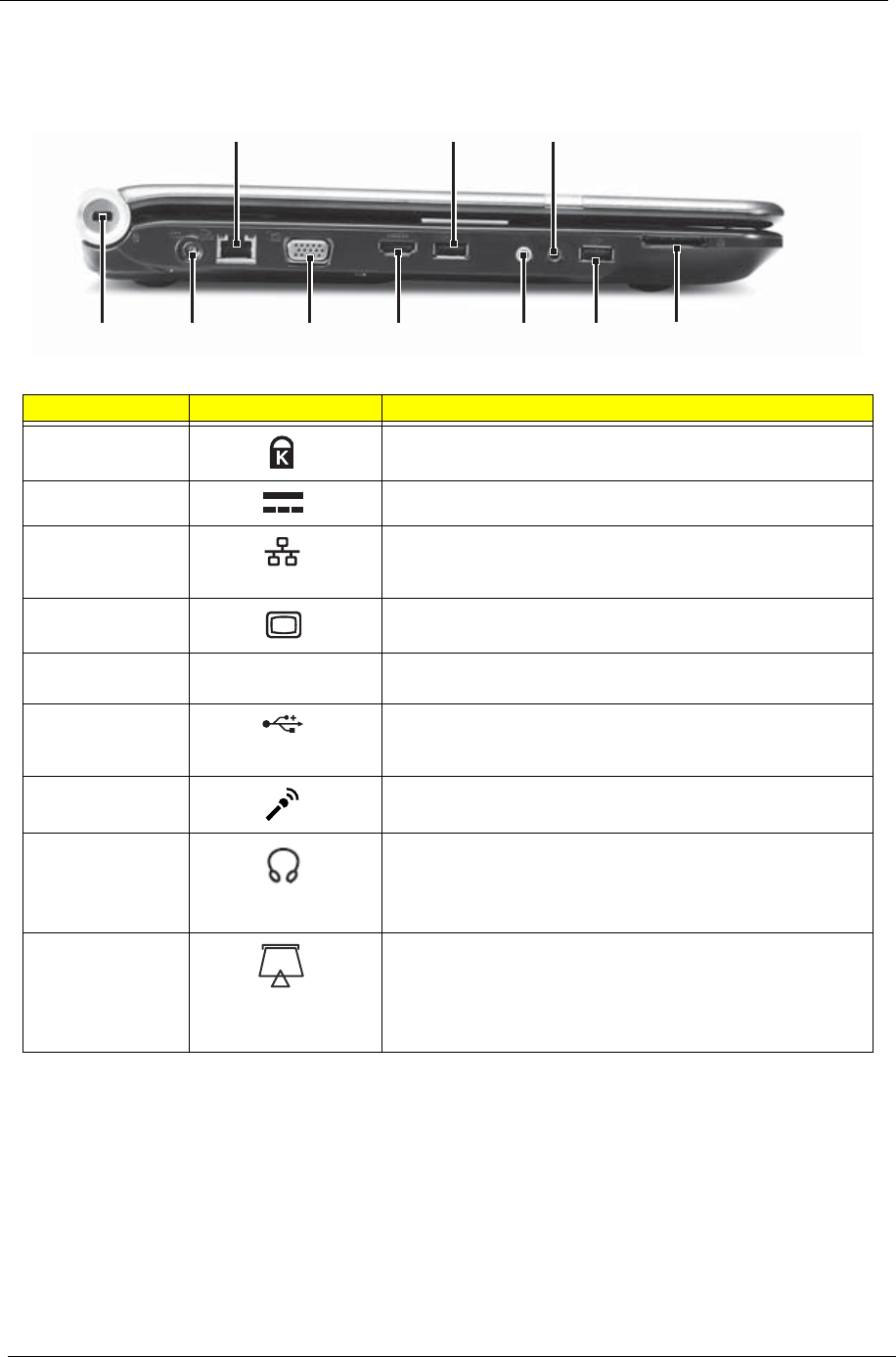

Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

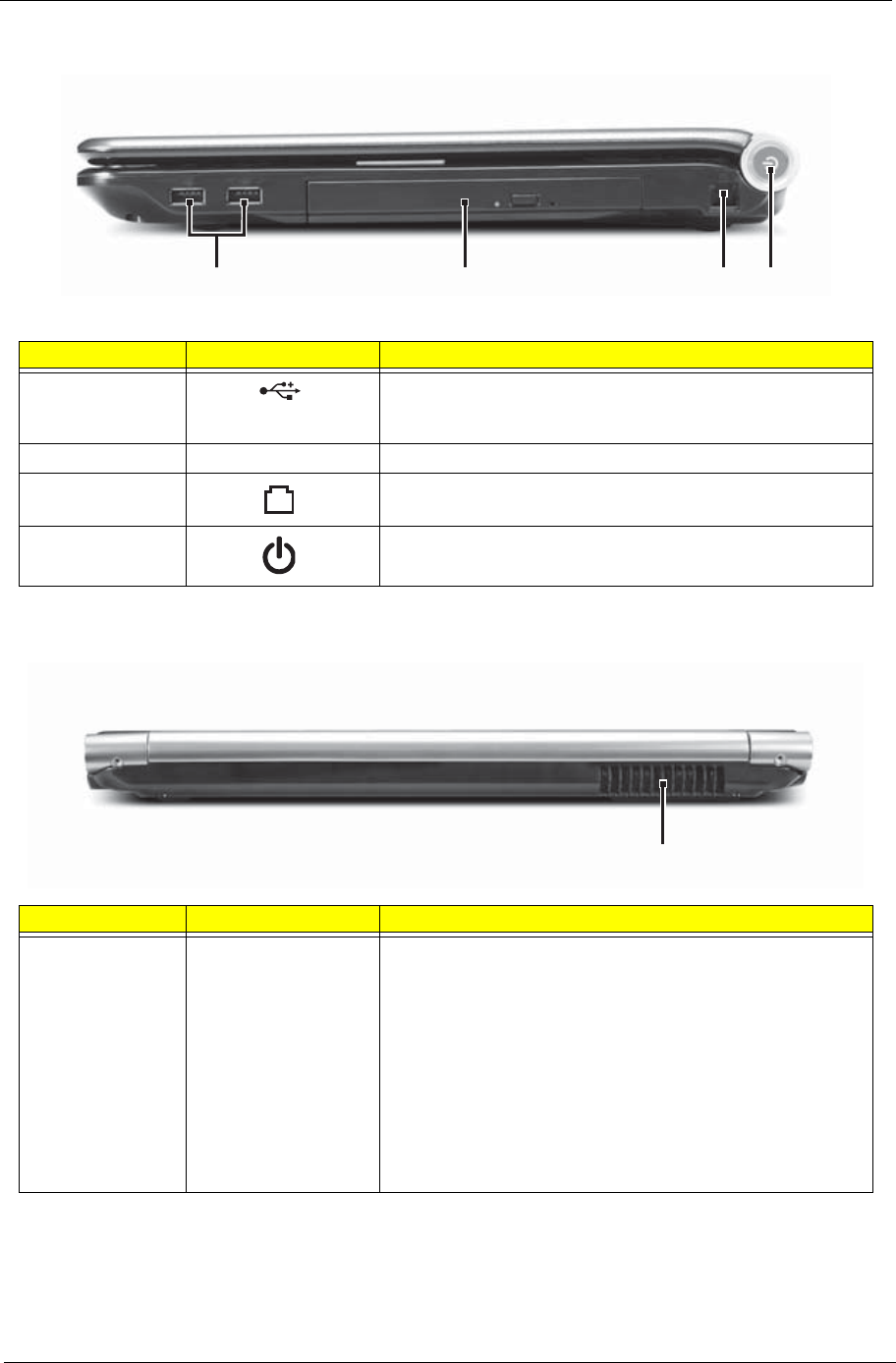

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

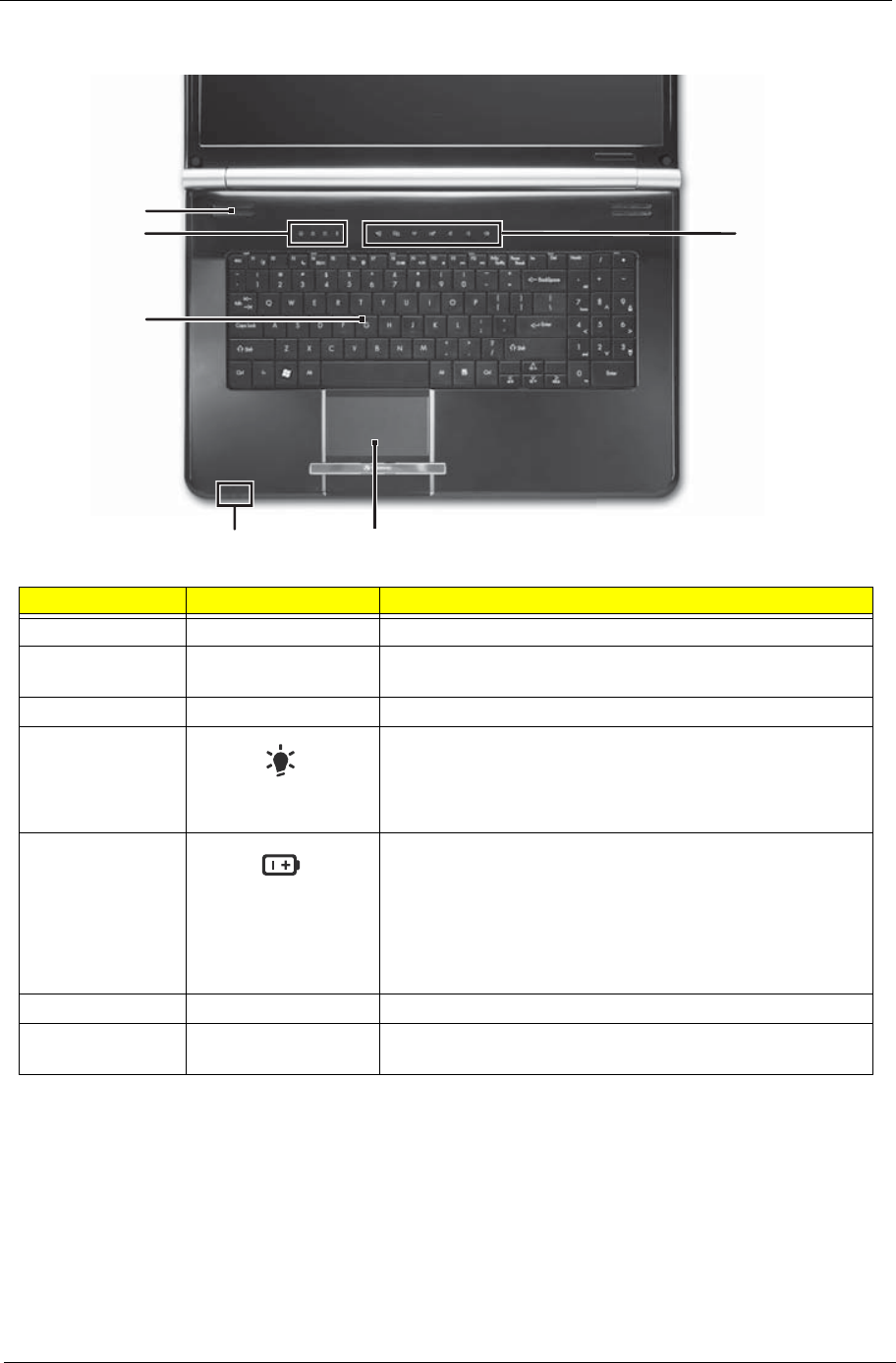

Keyboard Area (selected models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

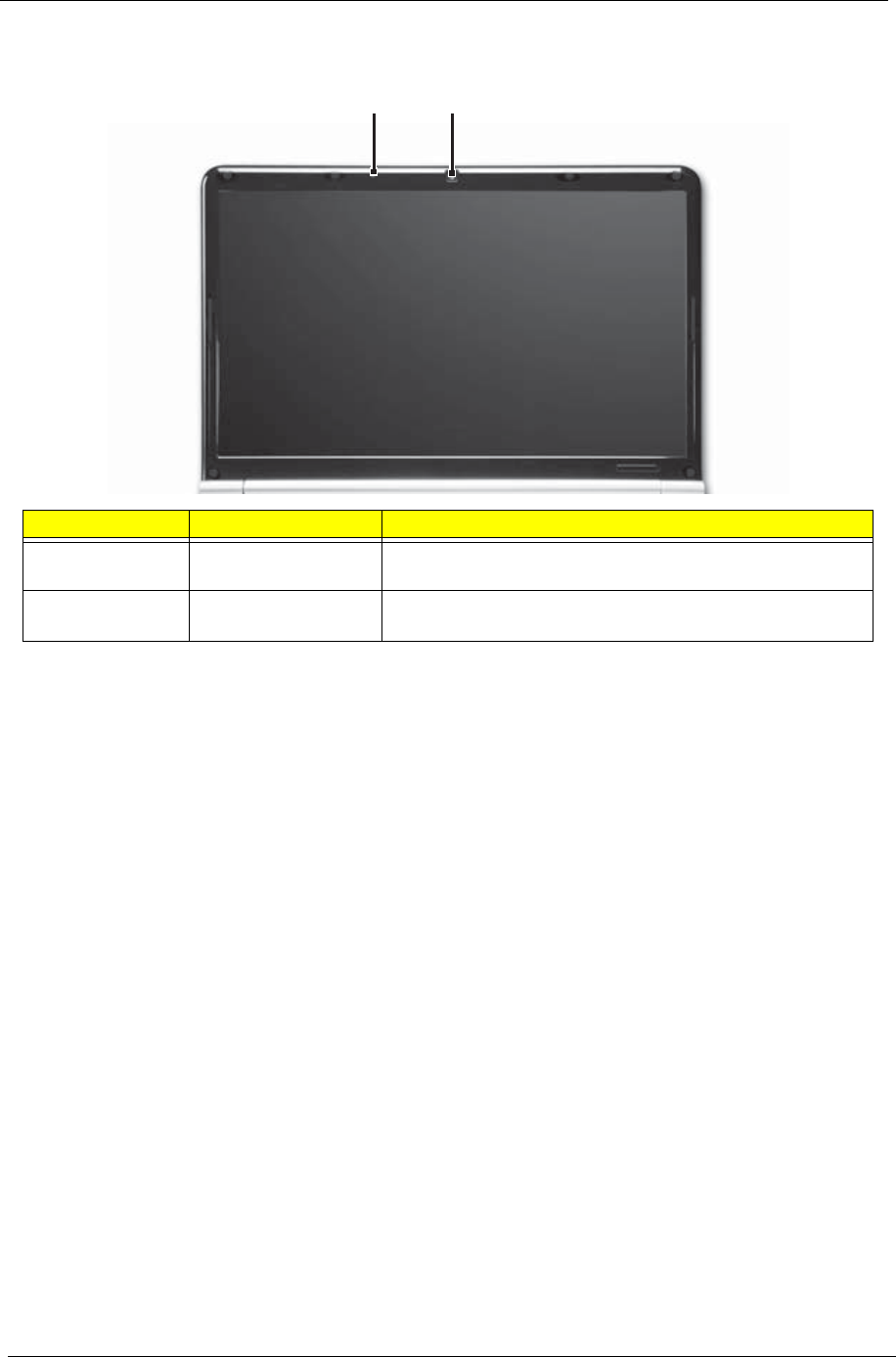

LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

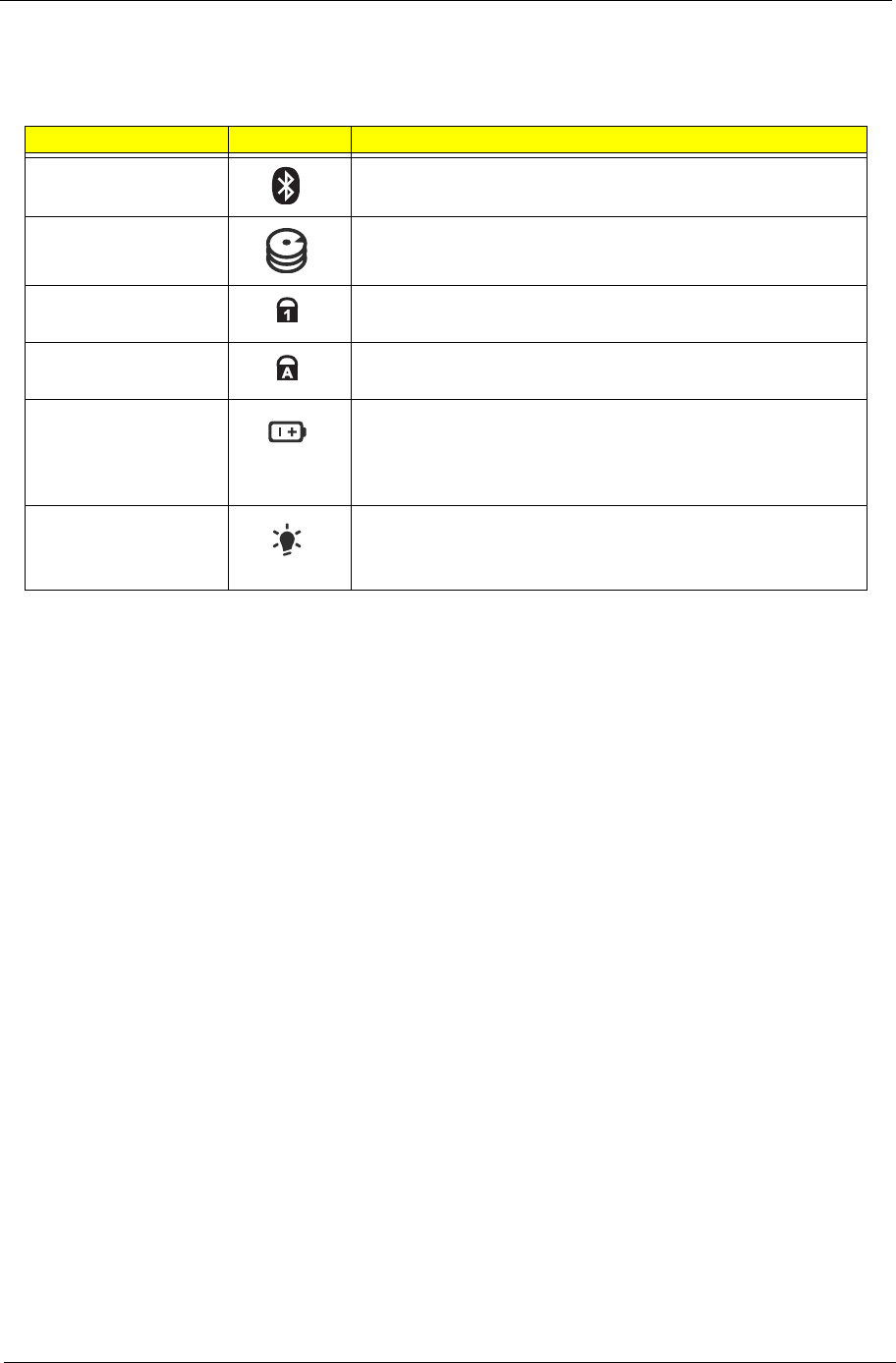

Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

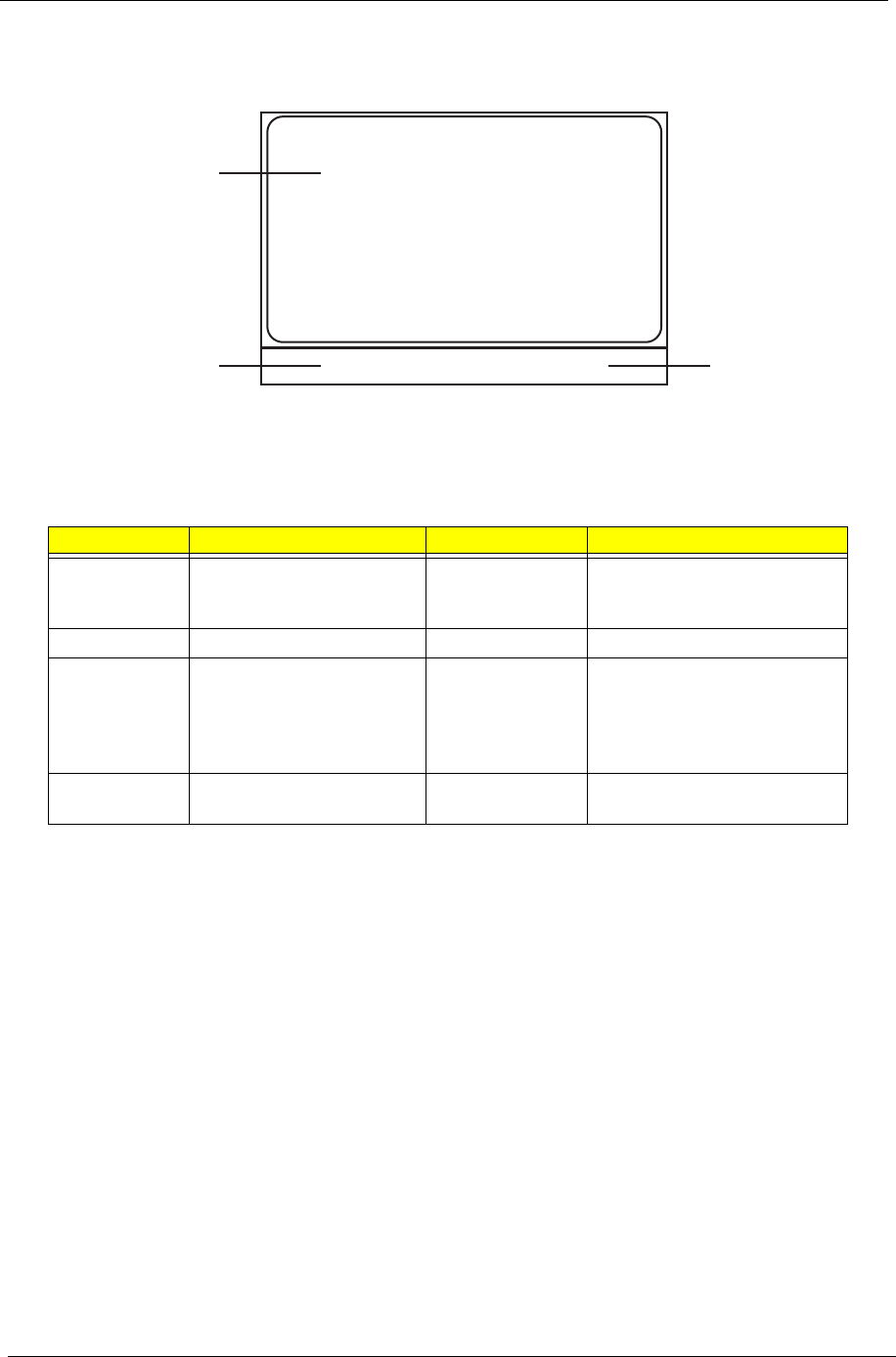

TouchPad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Key Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

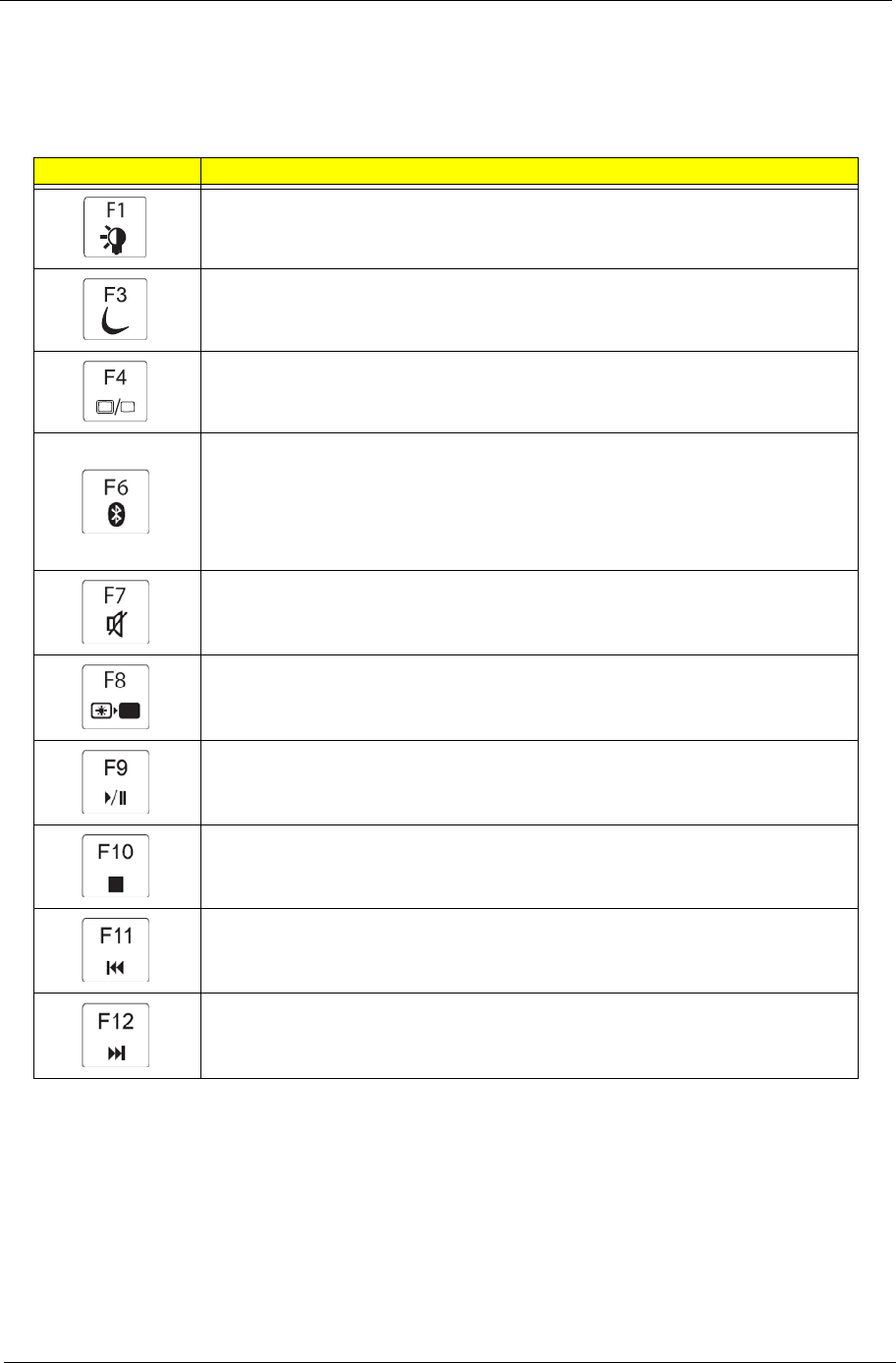

System Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Using the System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

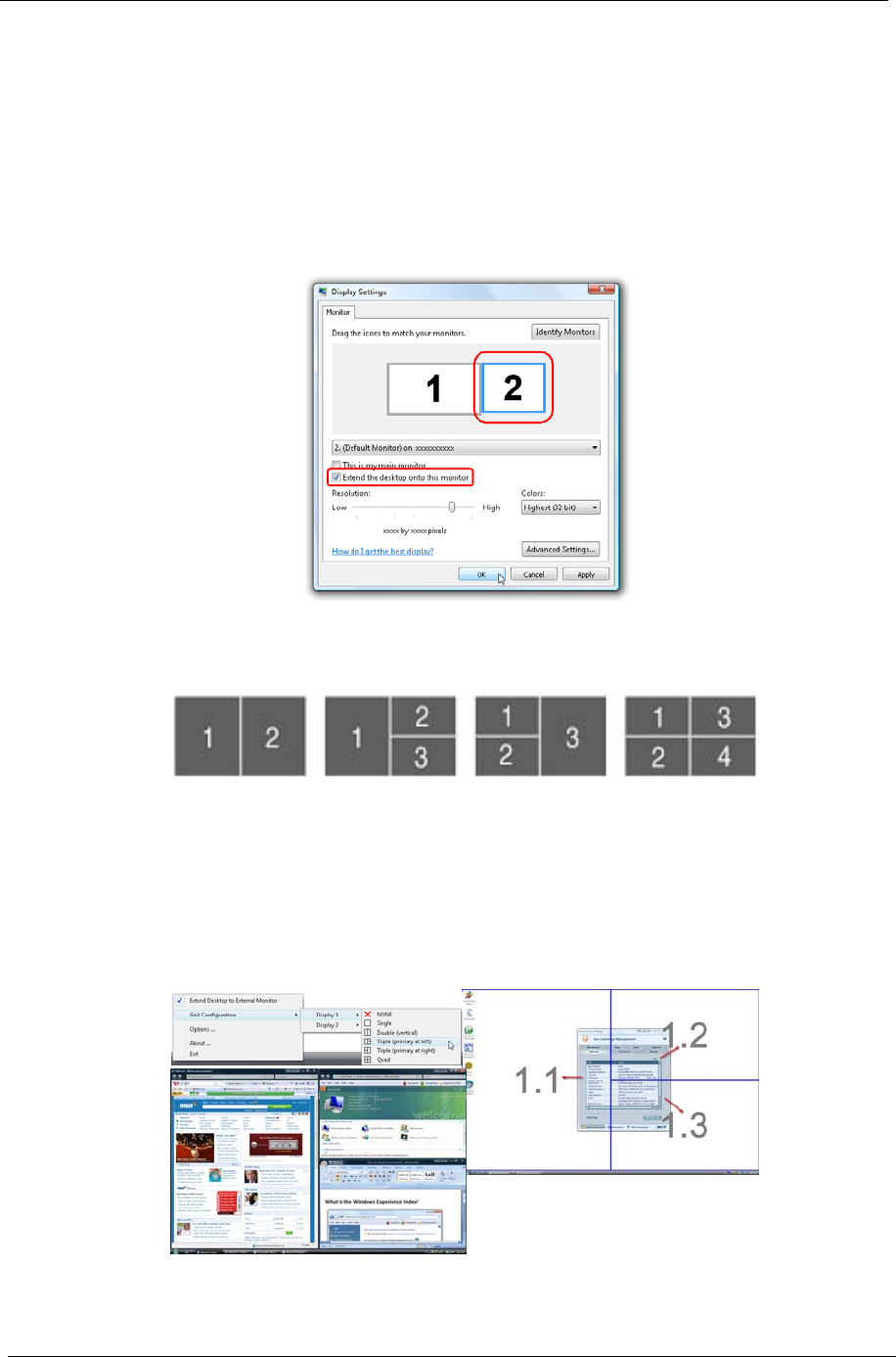

Acer GridVista (dual-display compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
System Utilities 27
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

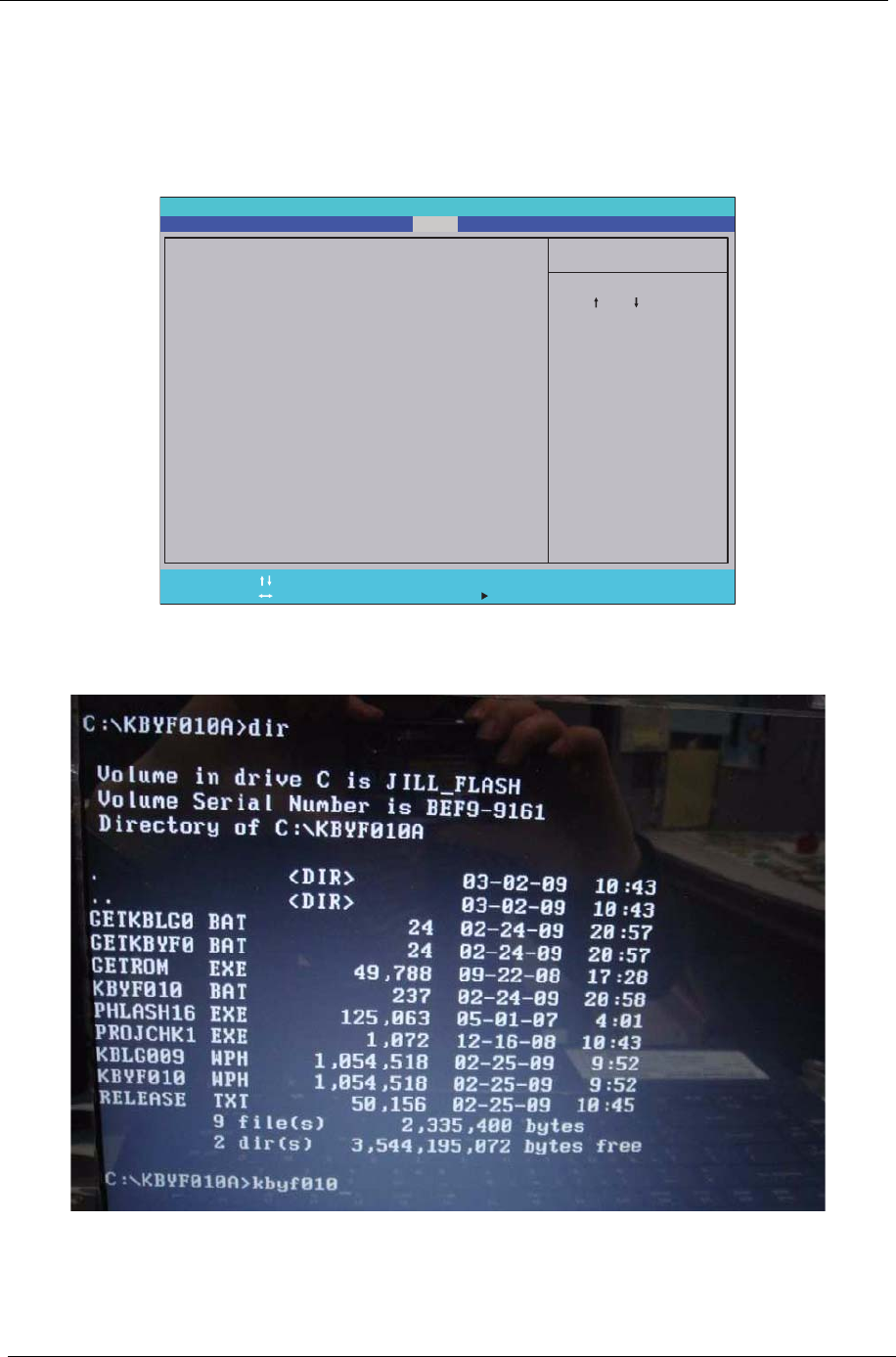

BIOS Flash Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

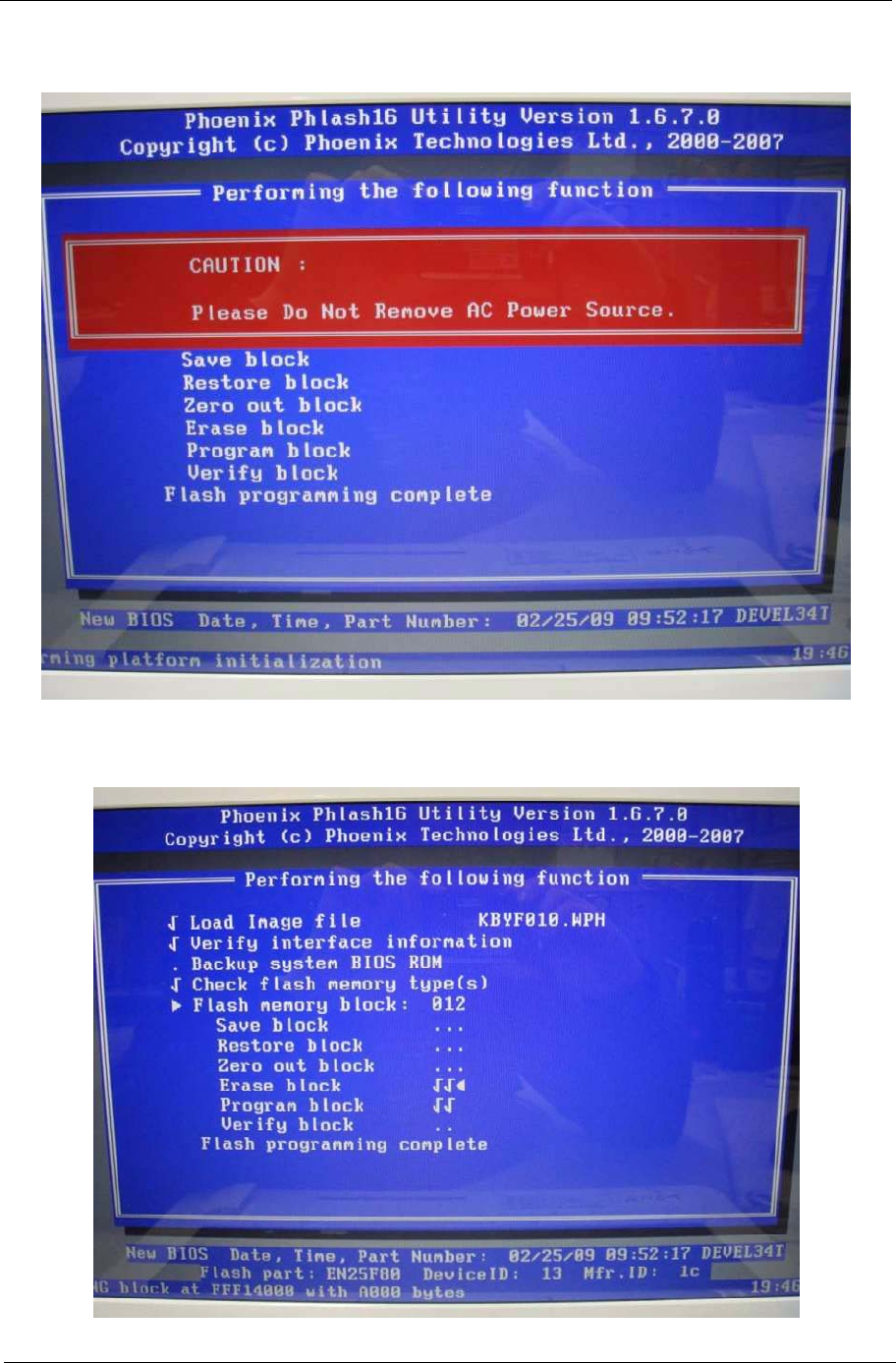

DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
WinFlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

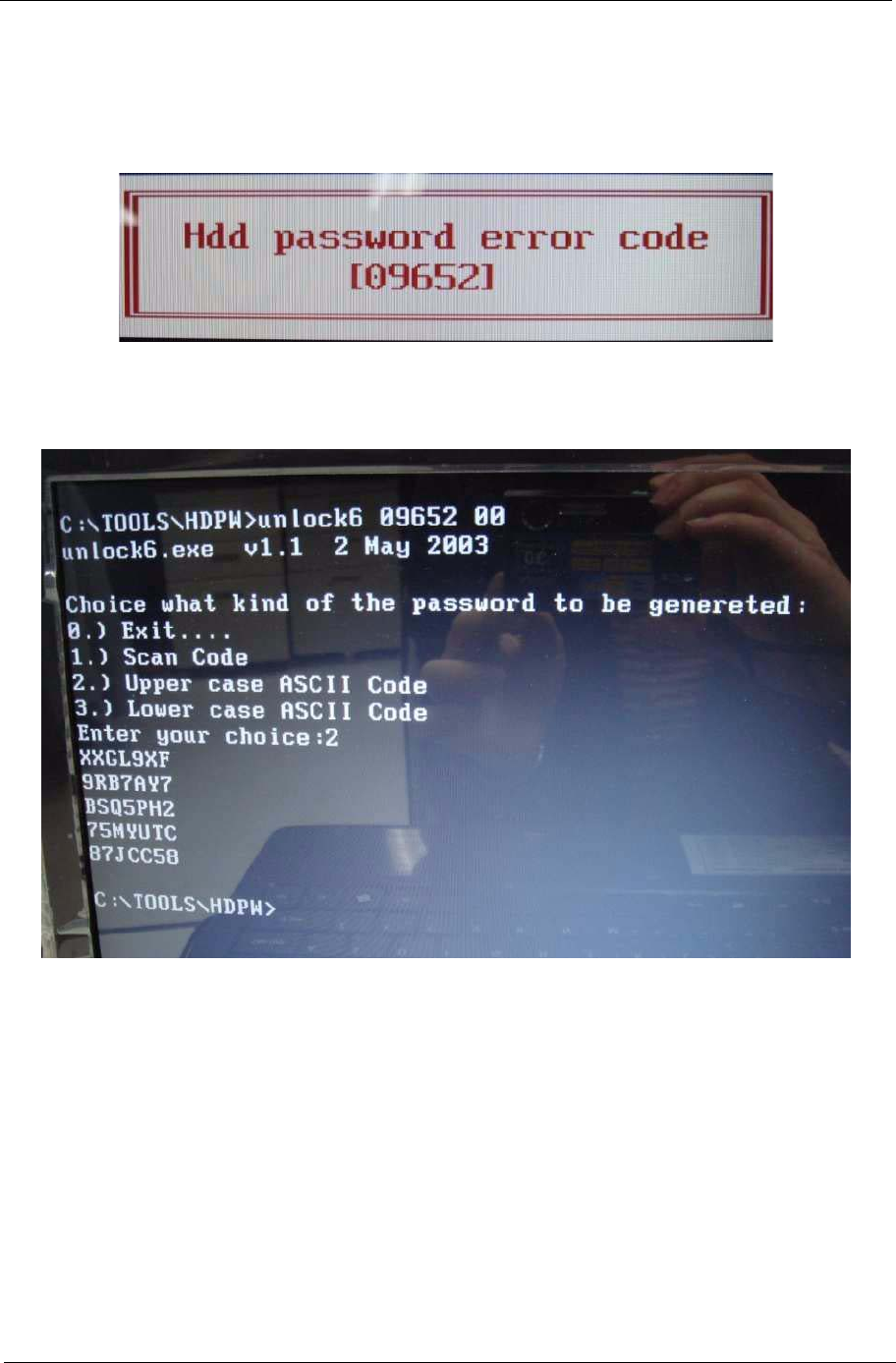

Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Machine Disassembly and Replacement 43
Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

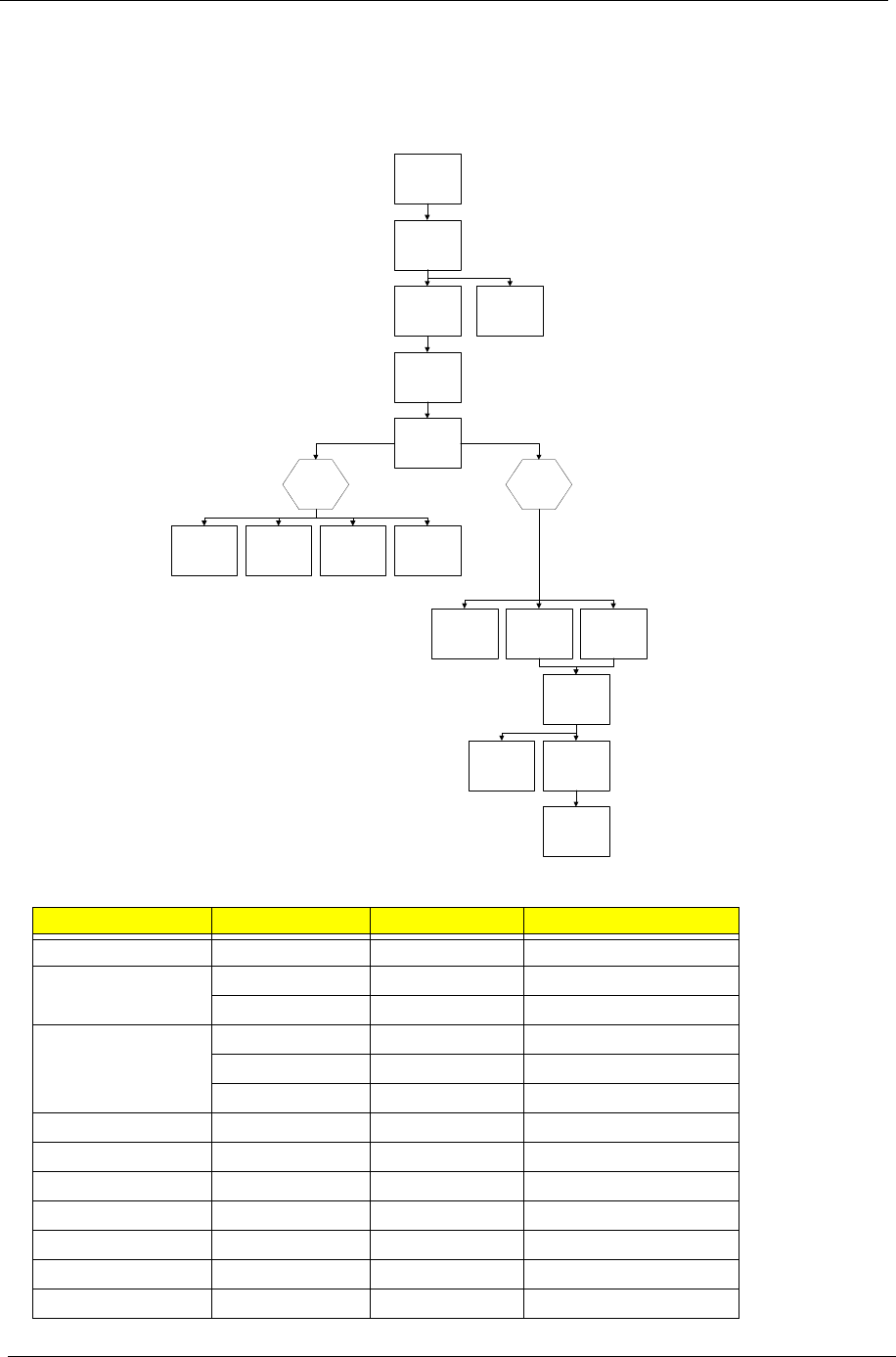

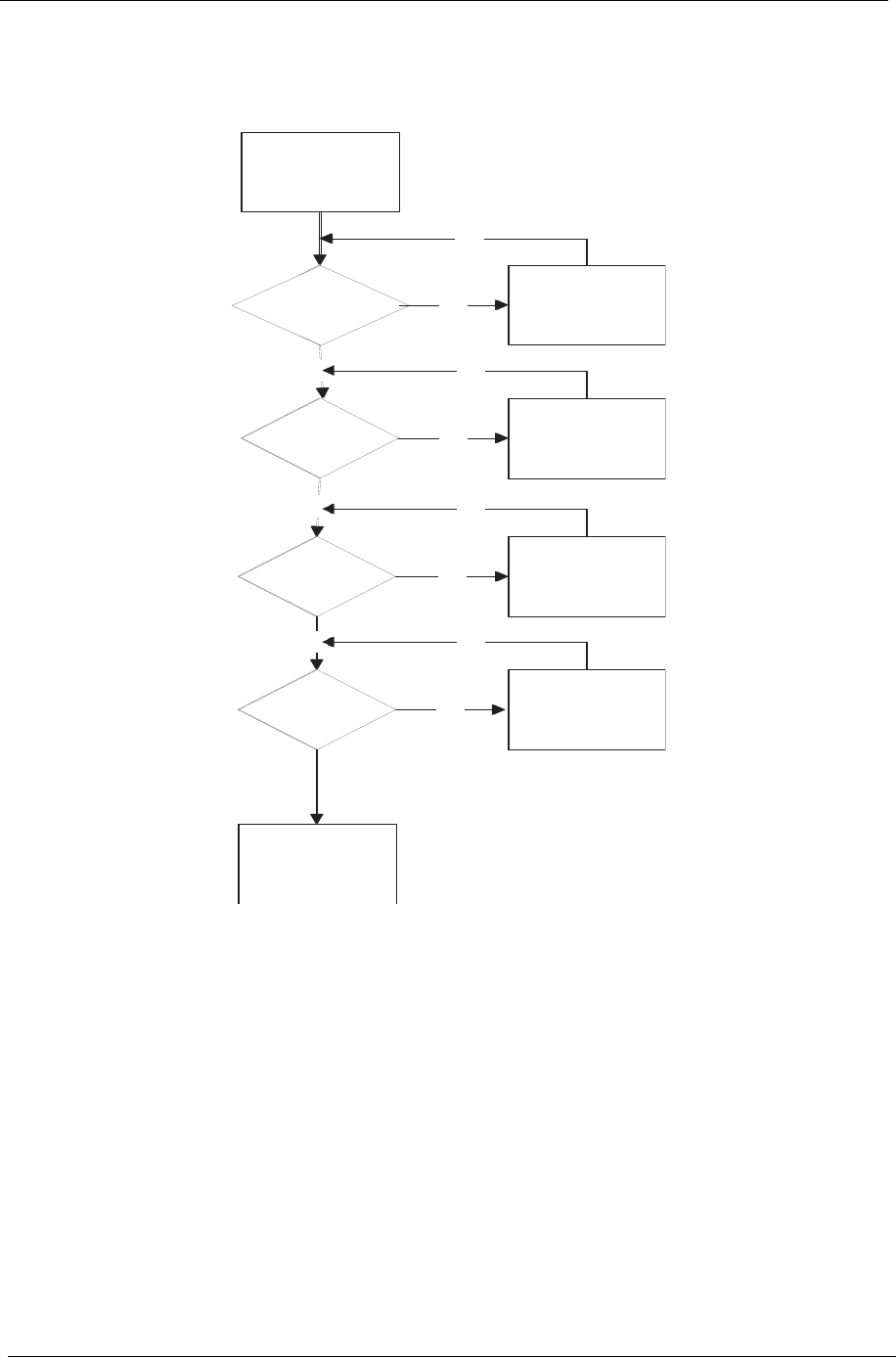

External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

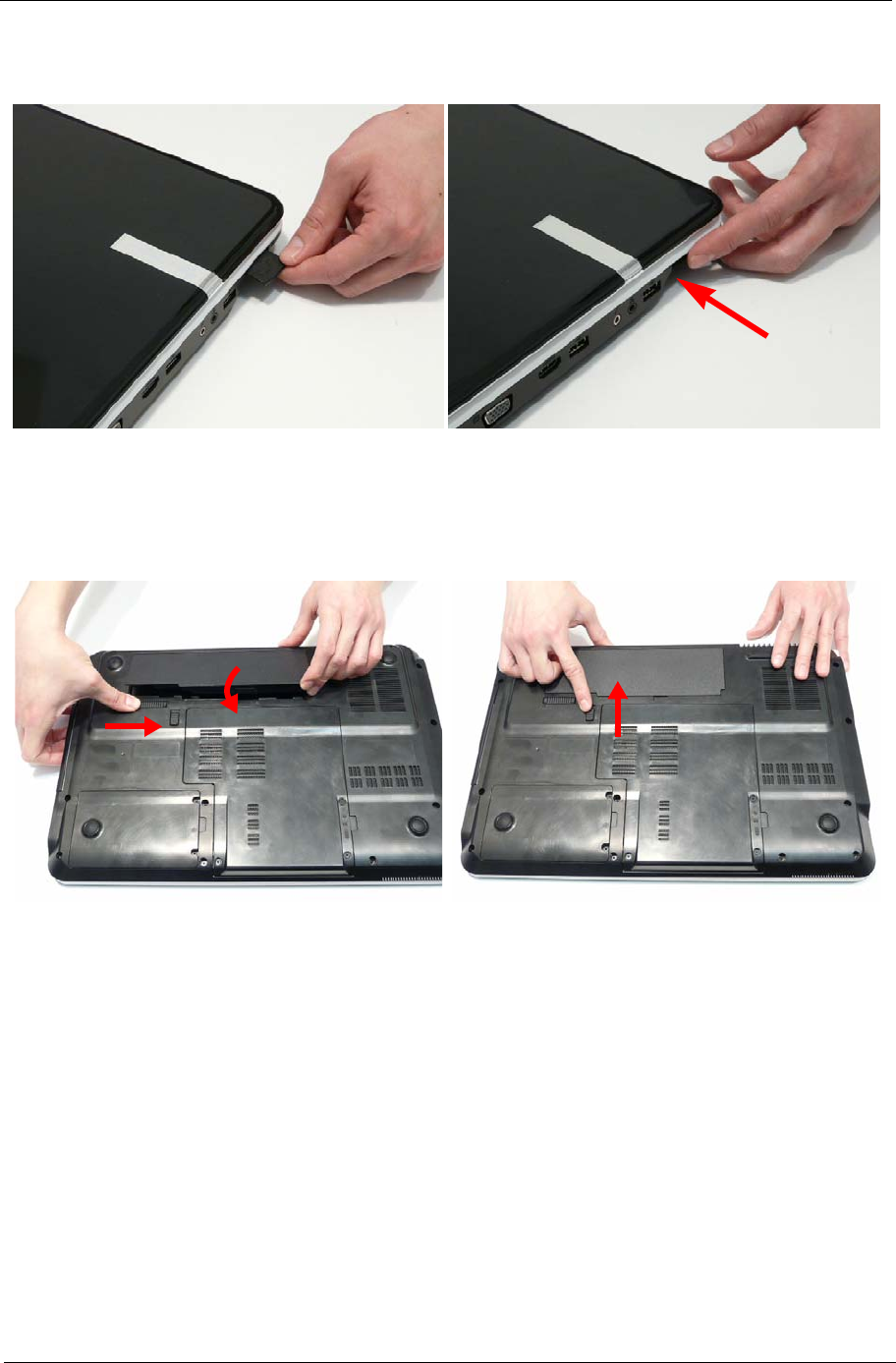

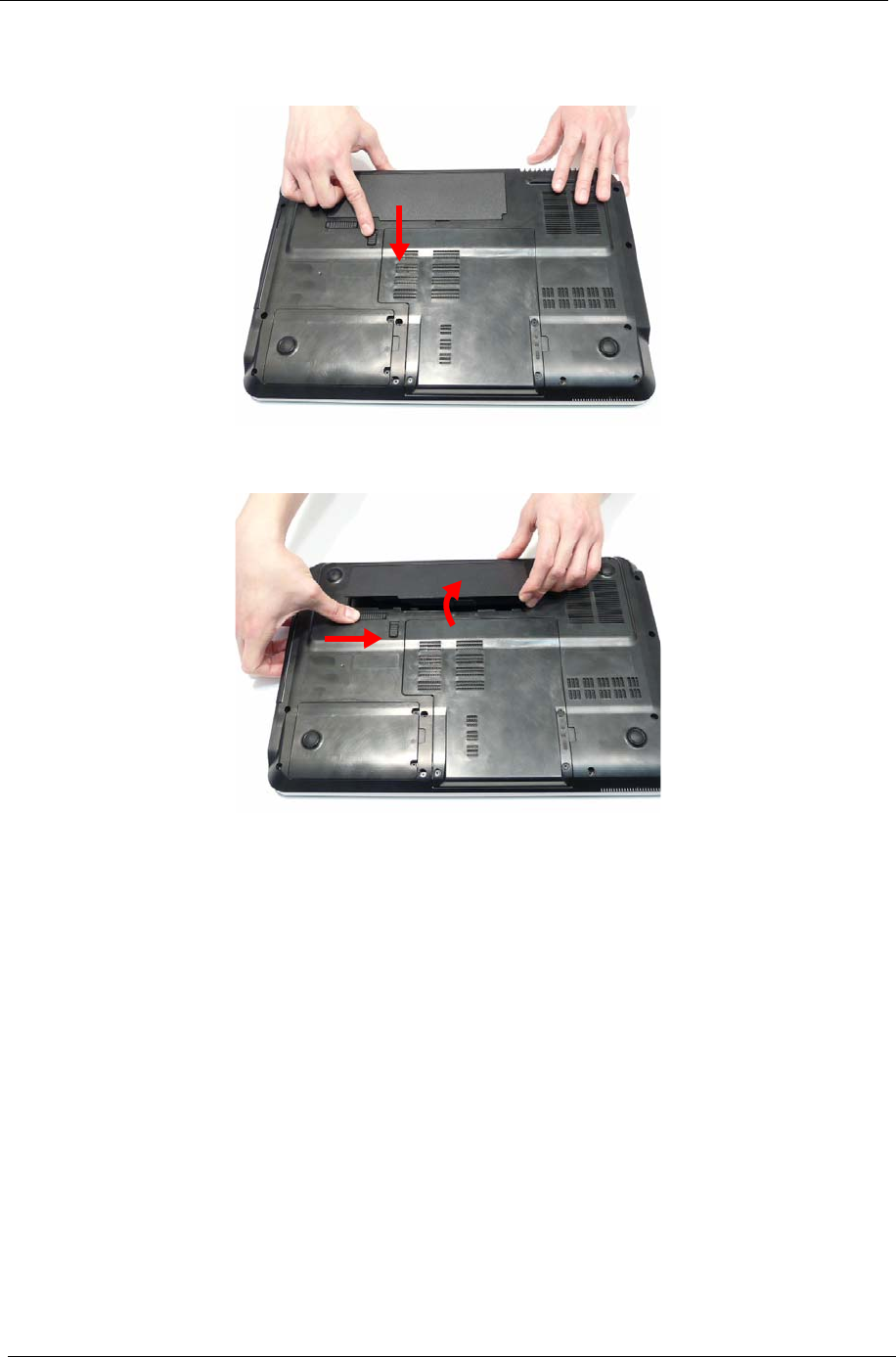

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

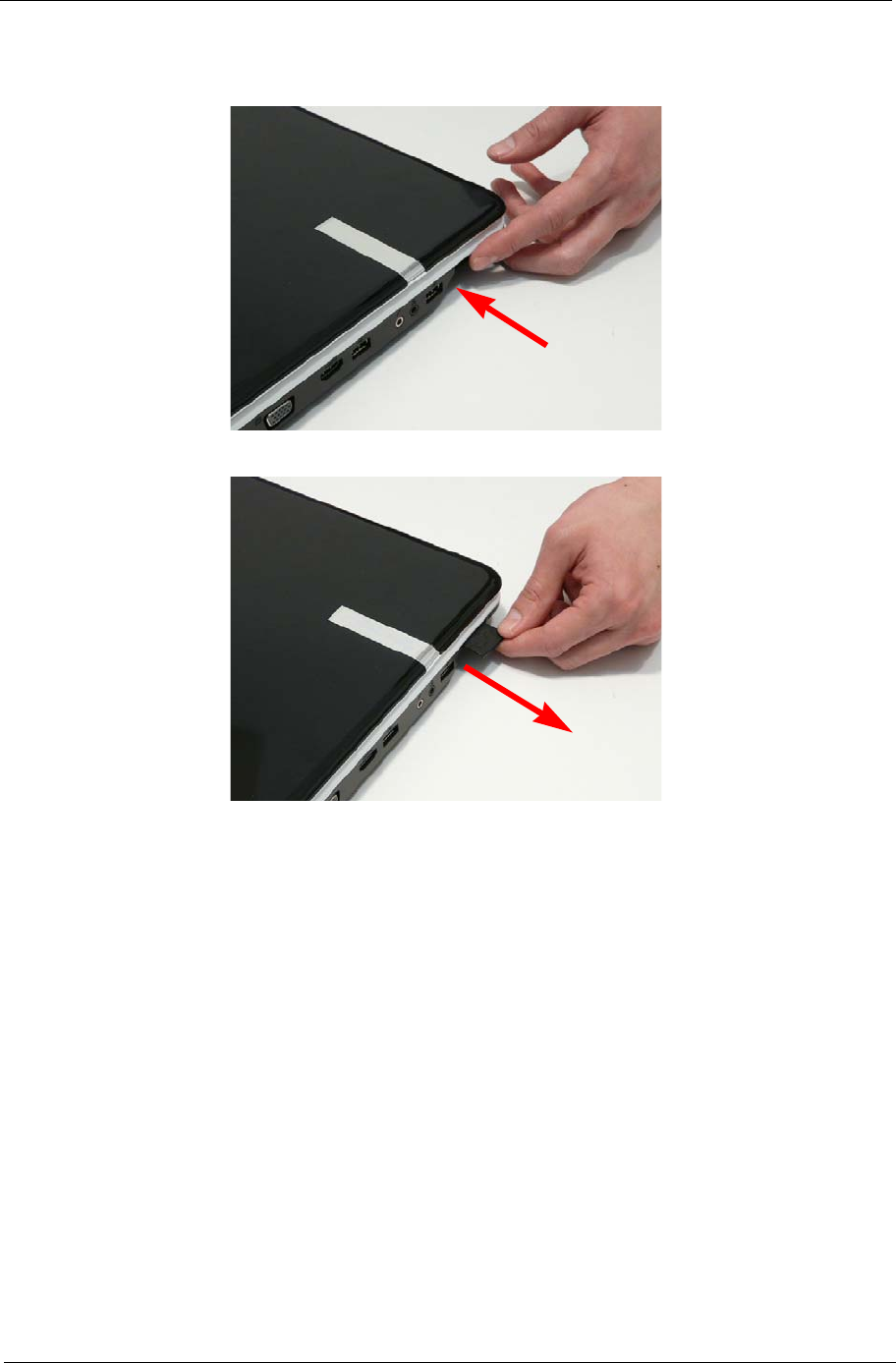

Removing the SD dummy card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

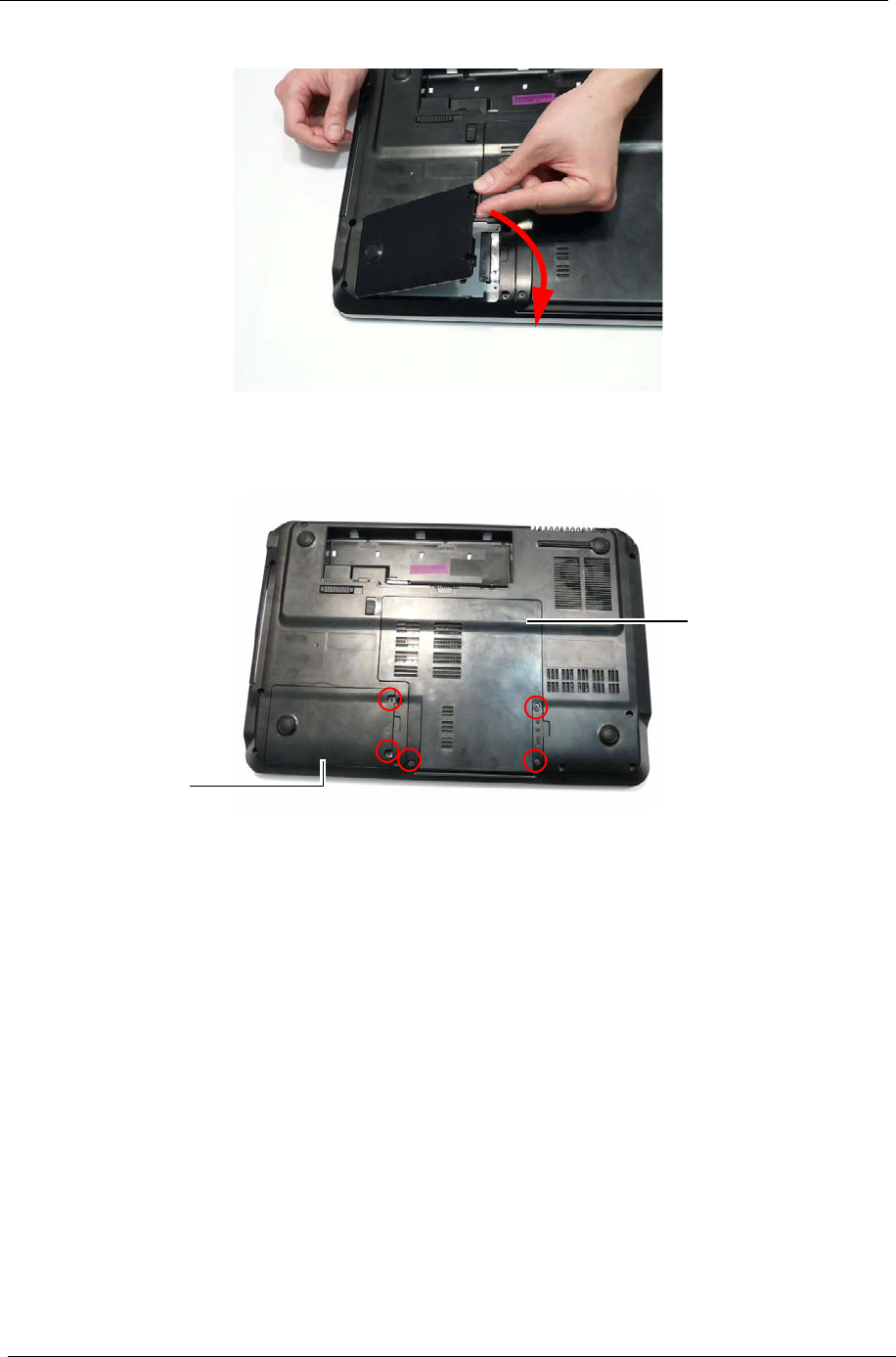

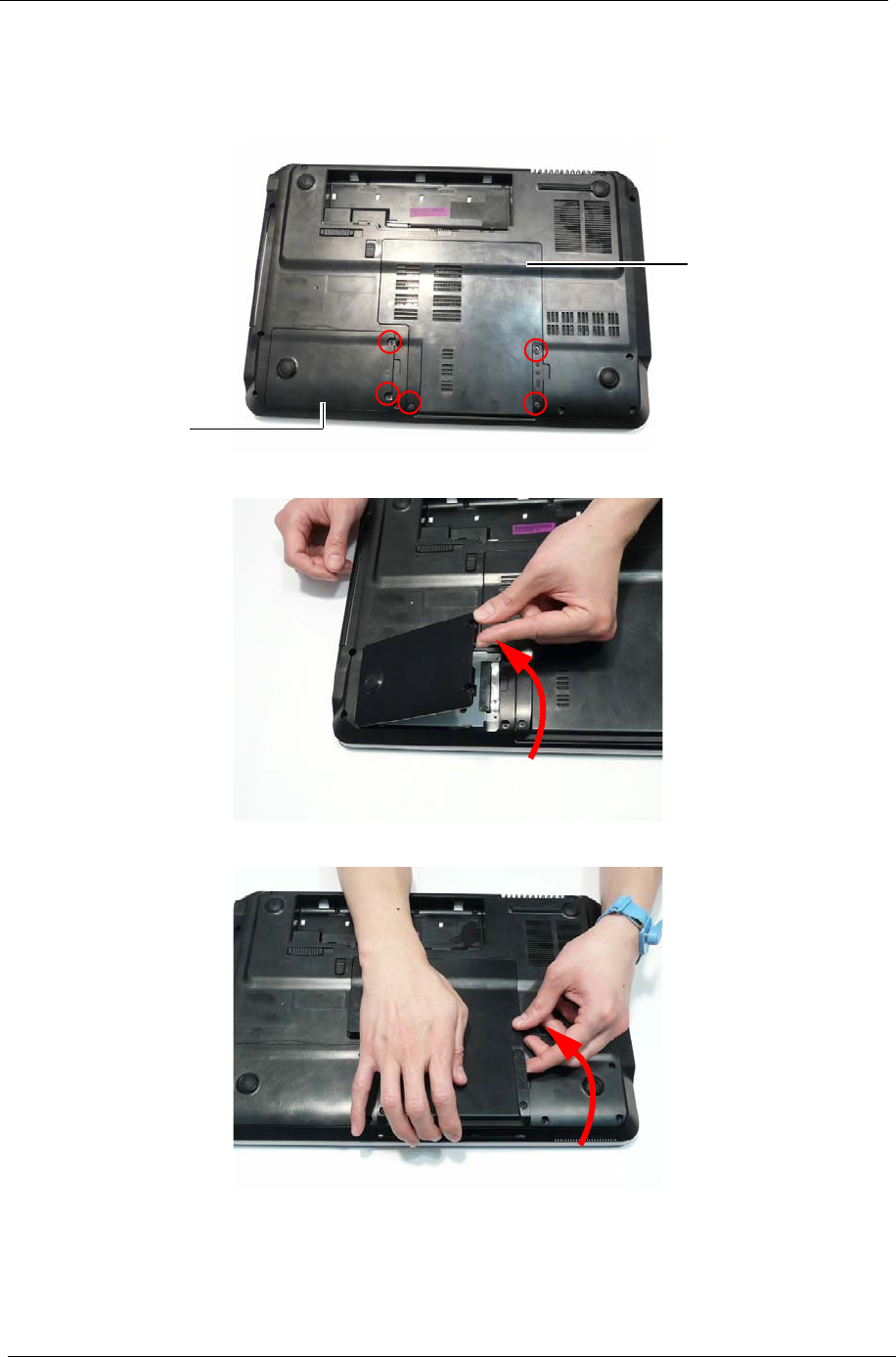

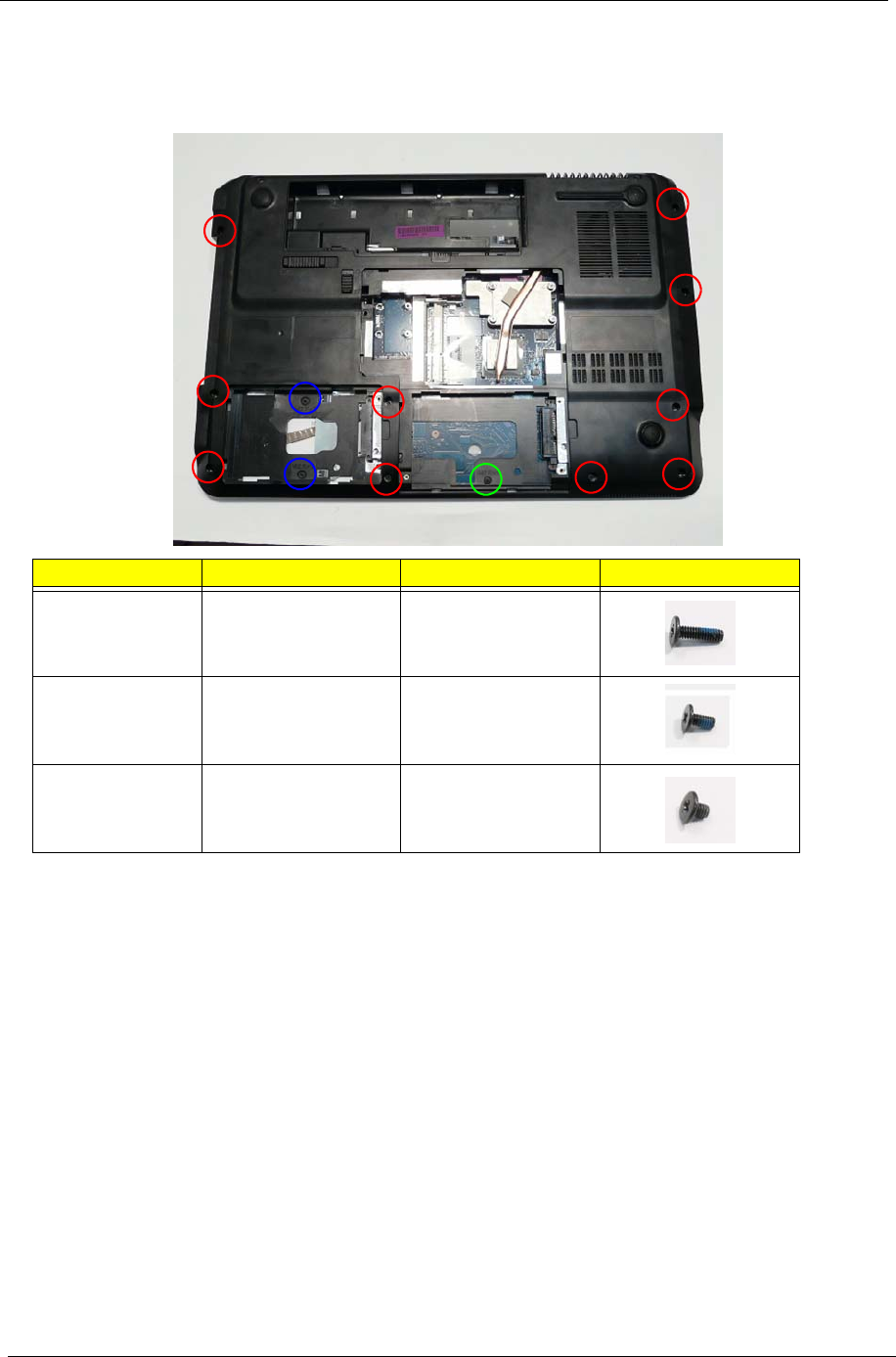

Removing the Lower Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

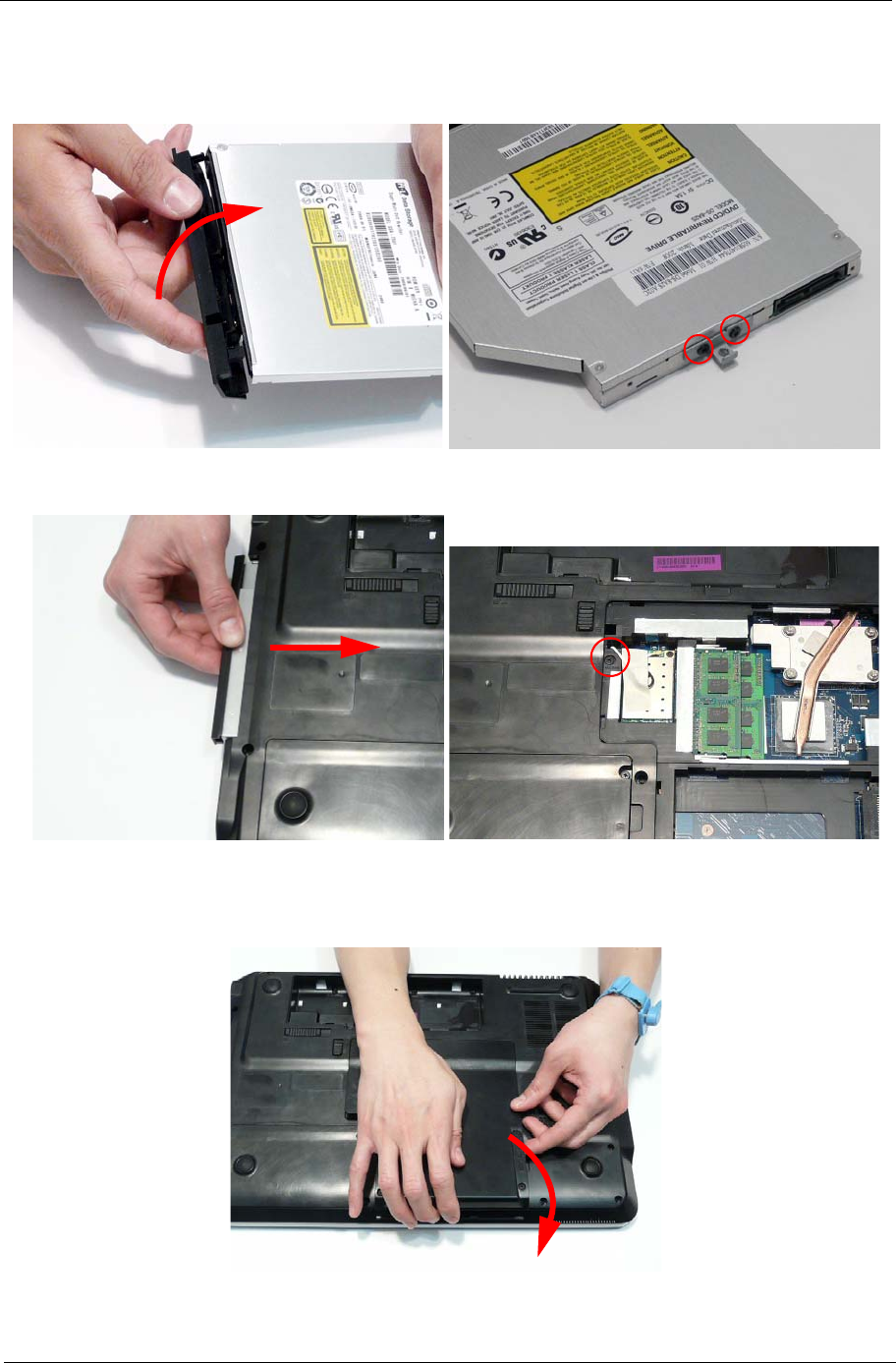

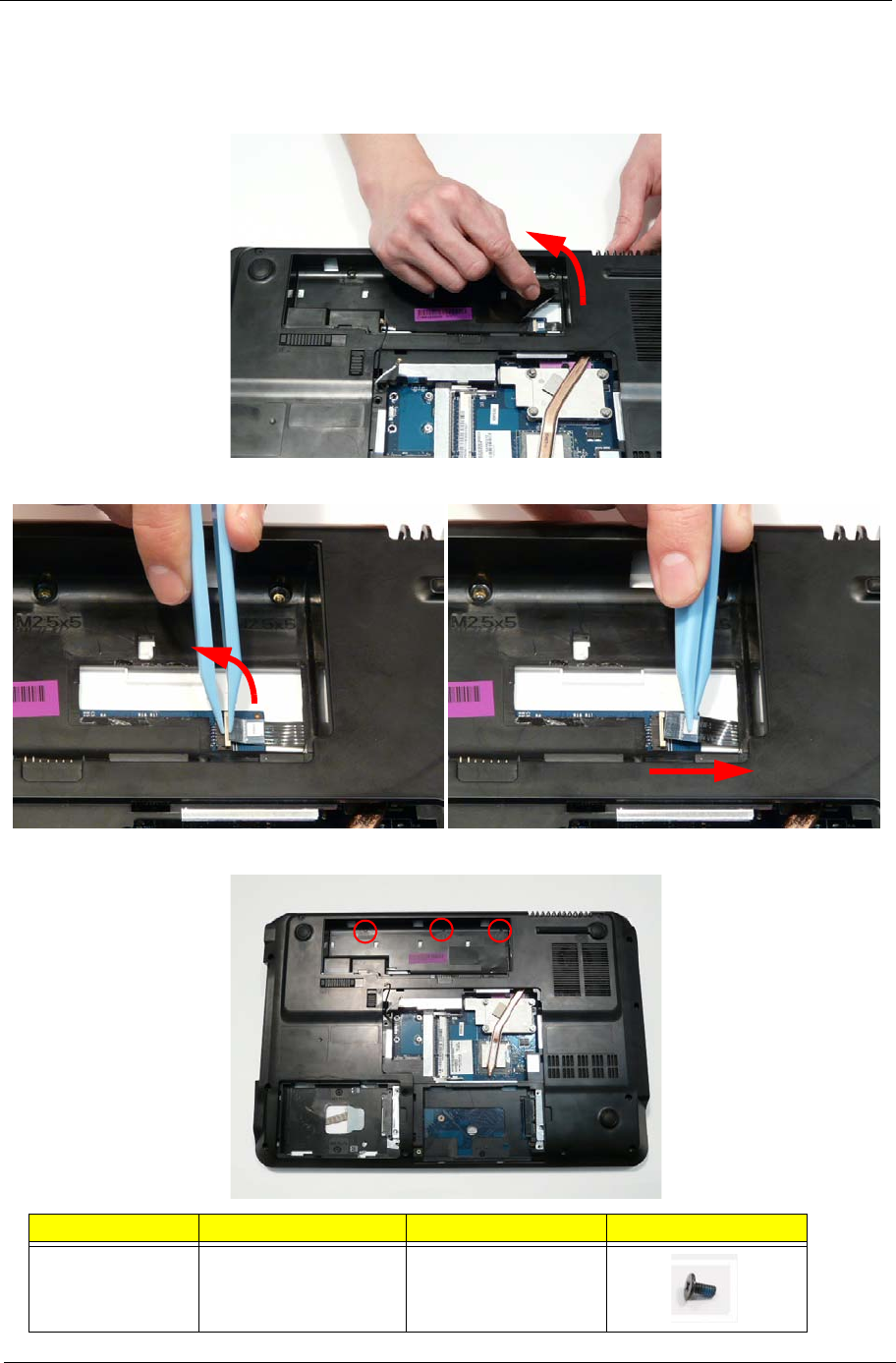

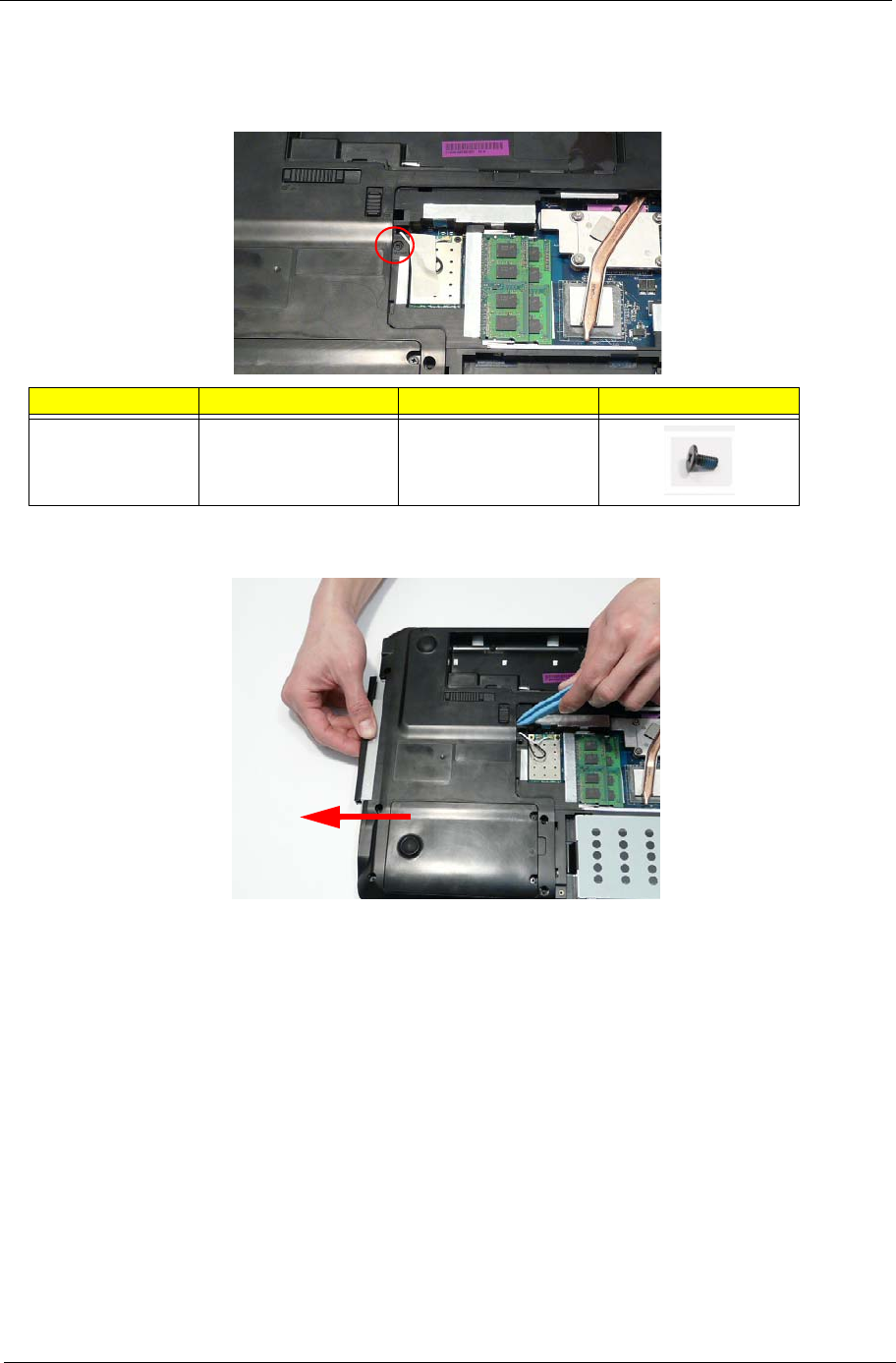

Removing the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

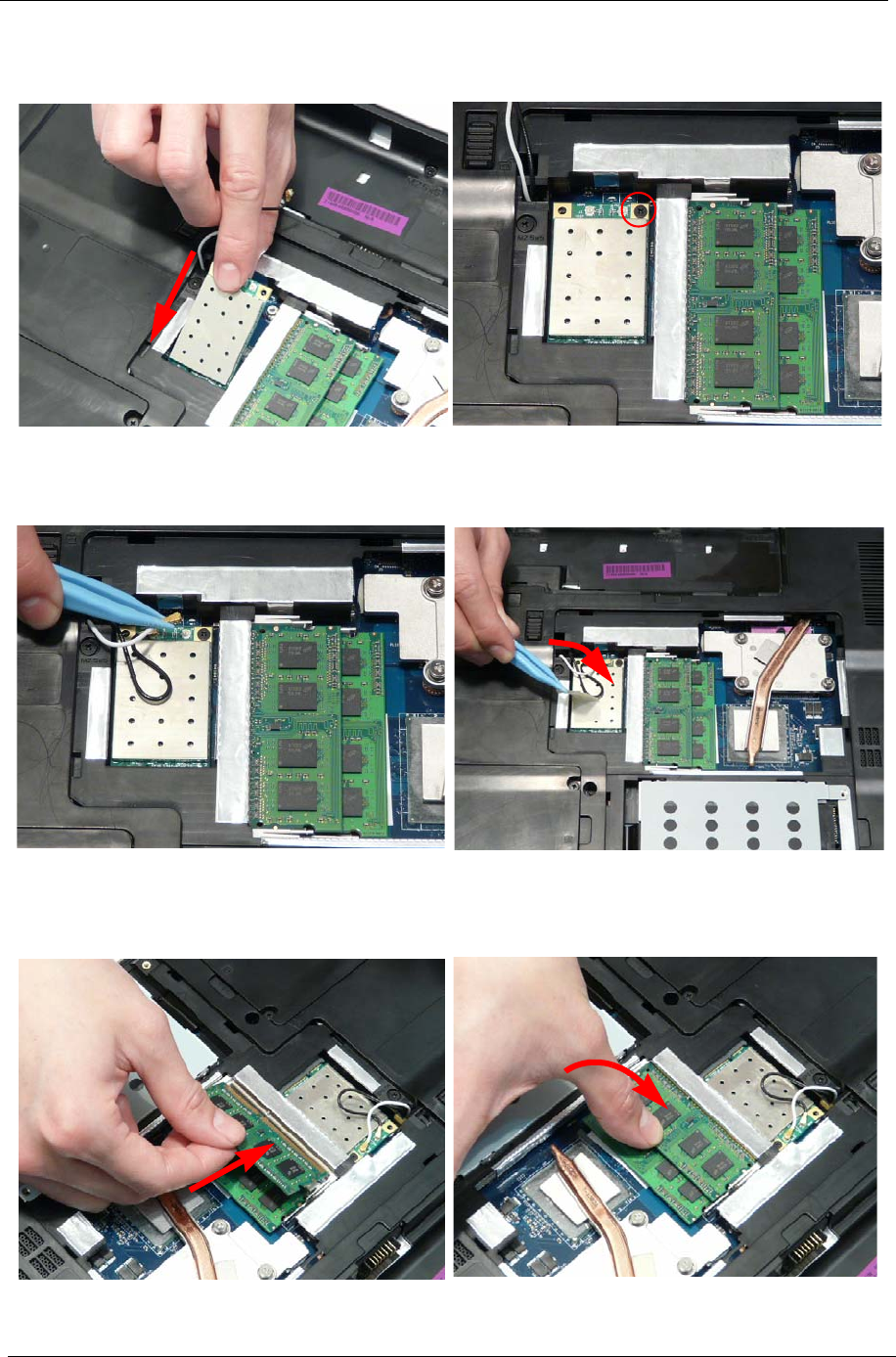

Removing the DIMM Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

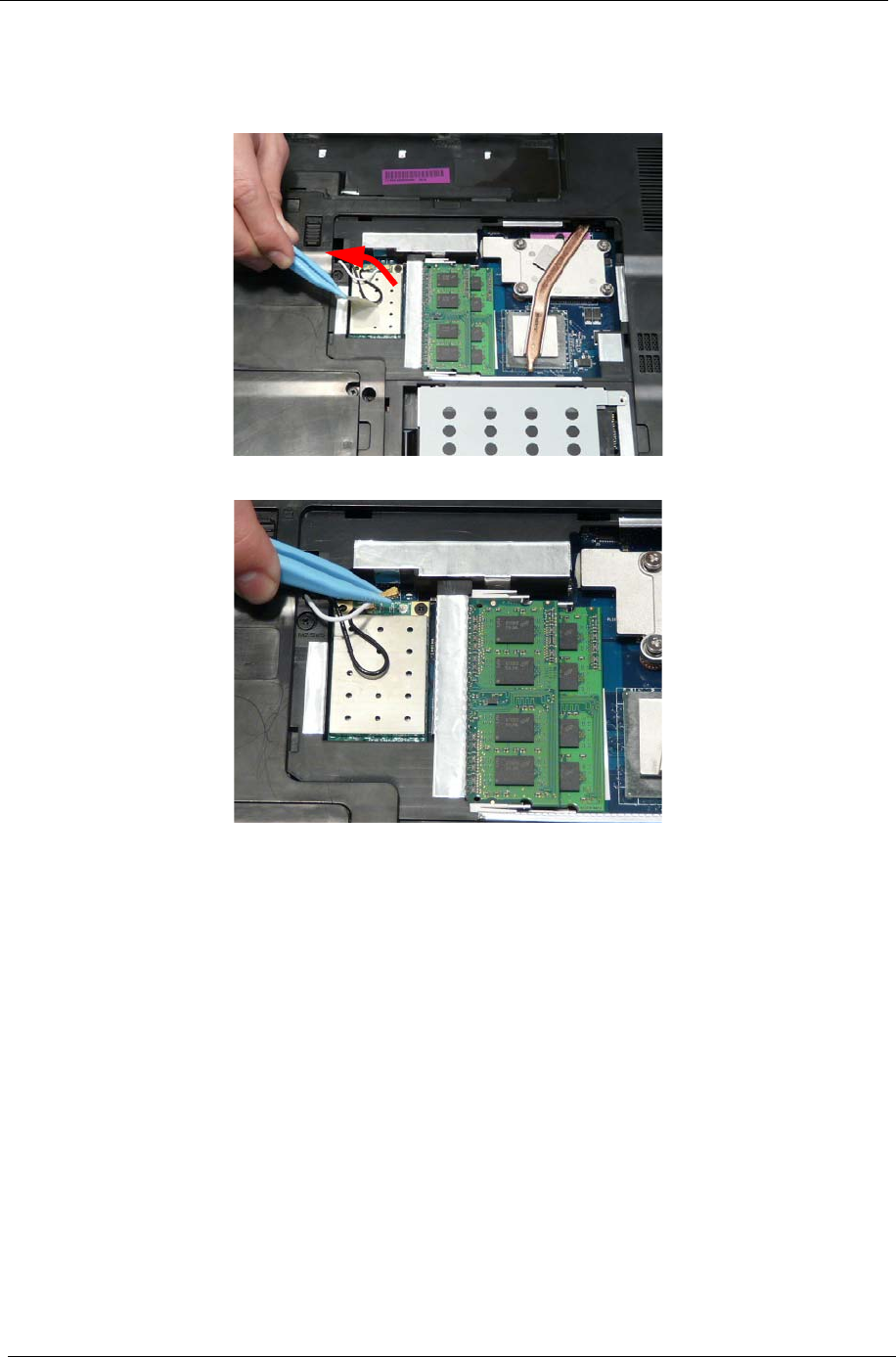

Removing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

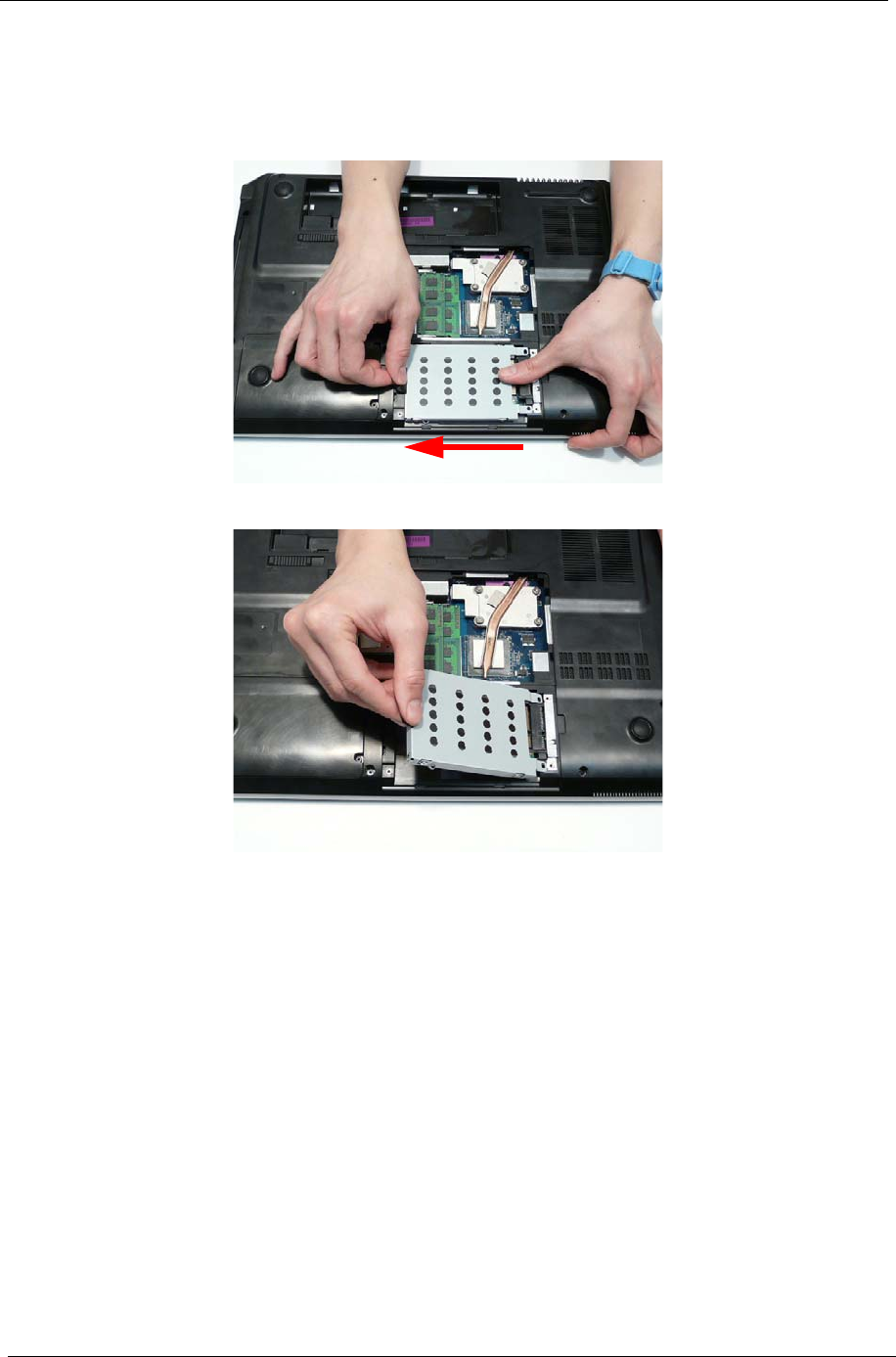

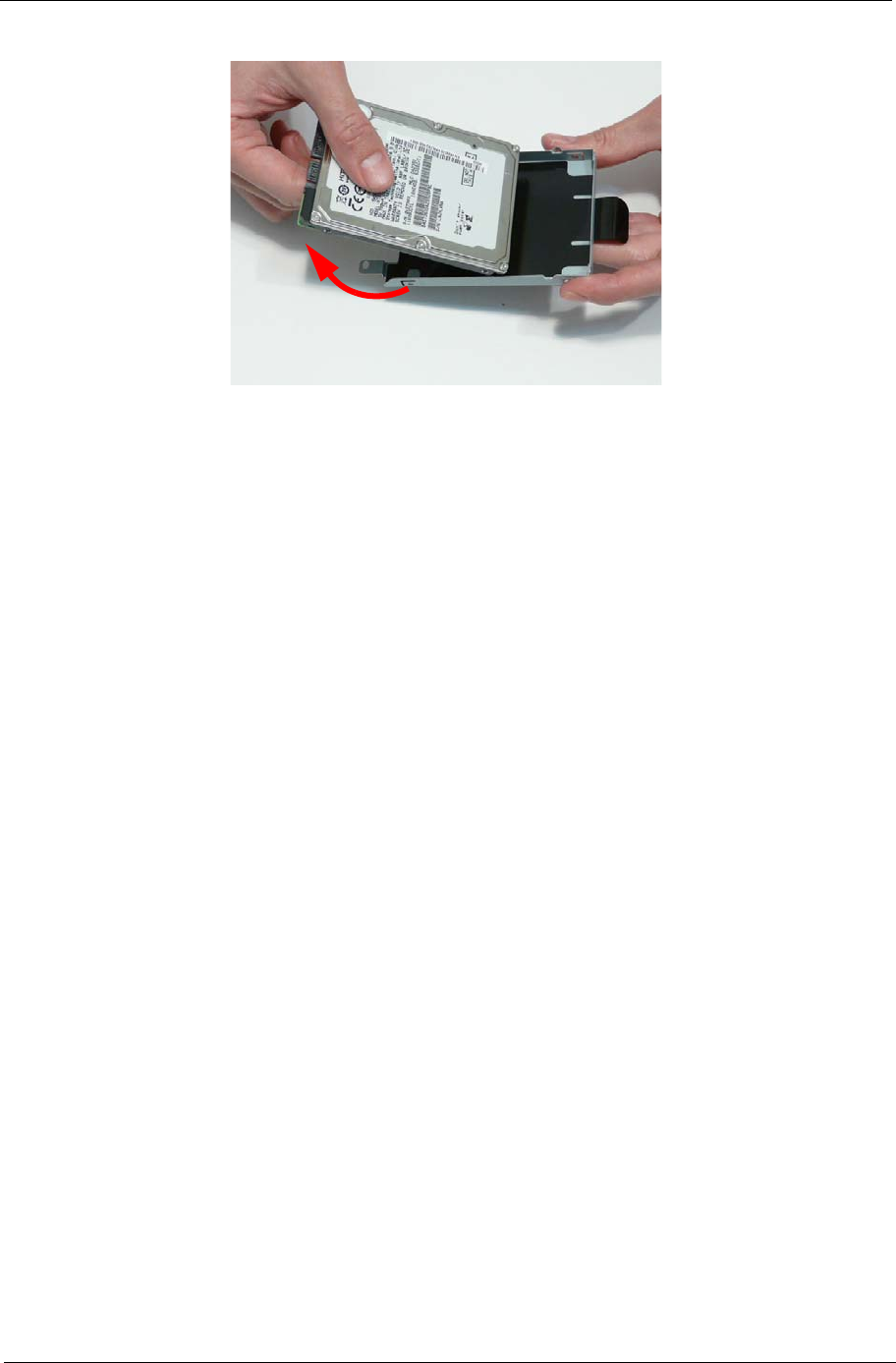

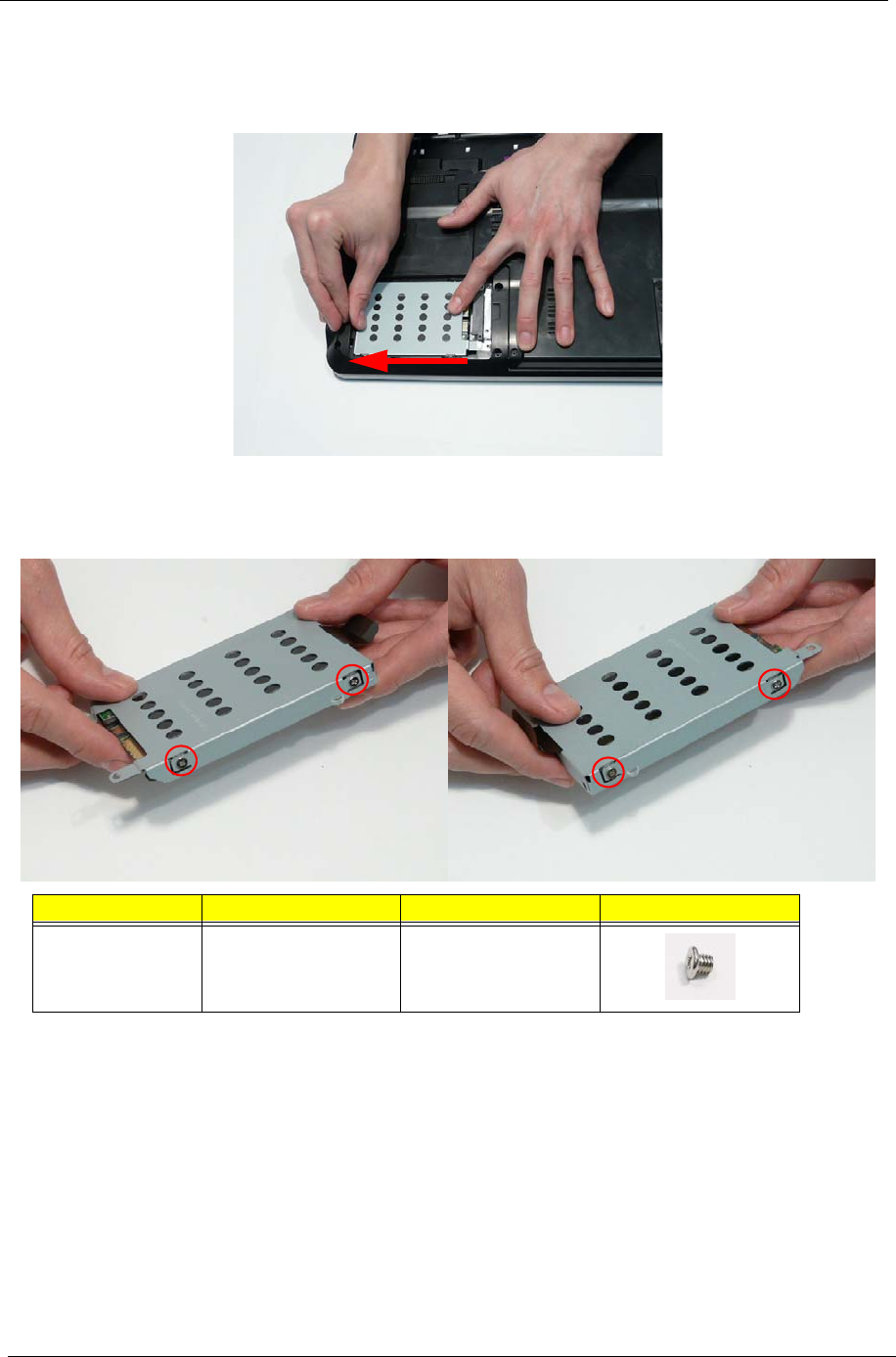

Removing the Primary HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

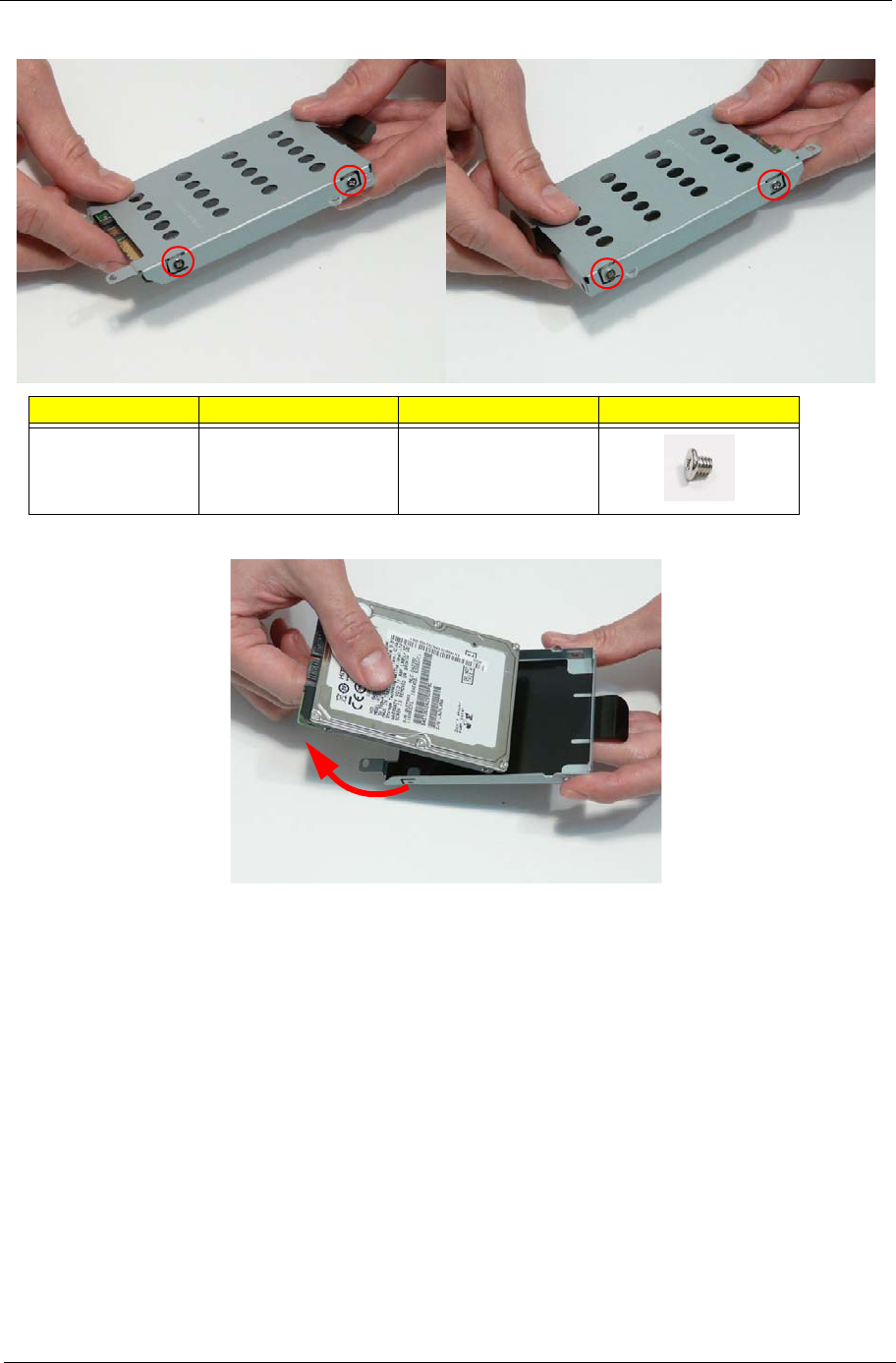

Removing the Secondary HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the Media Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

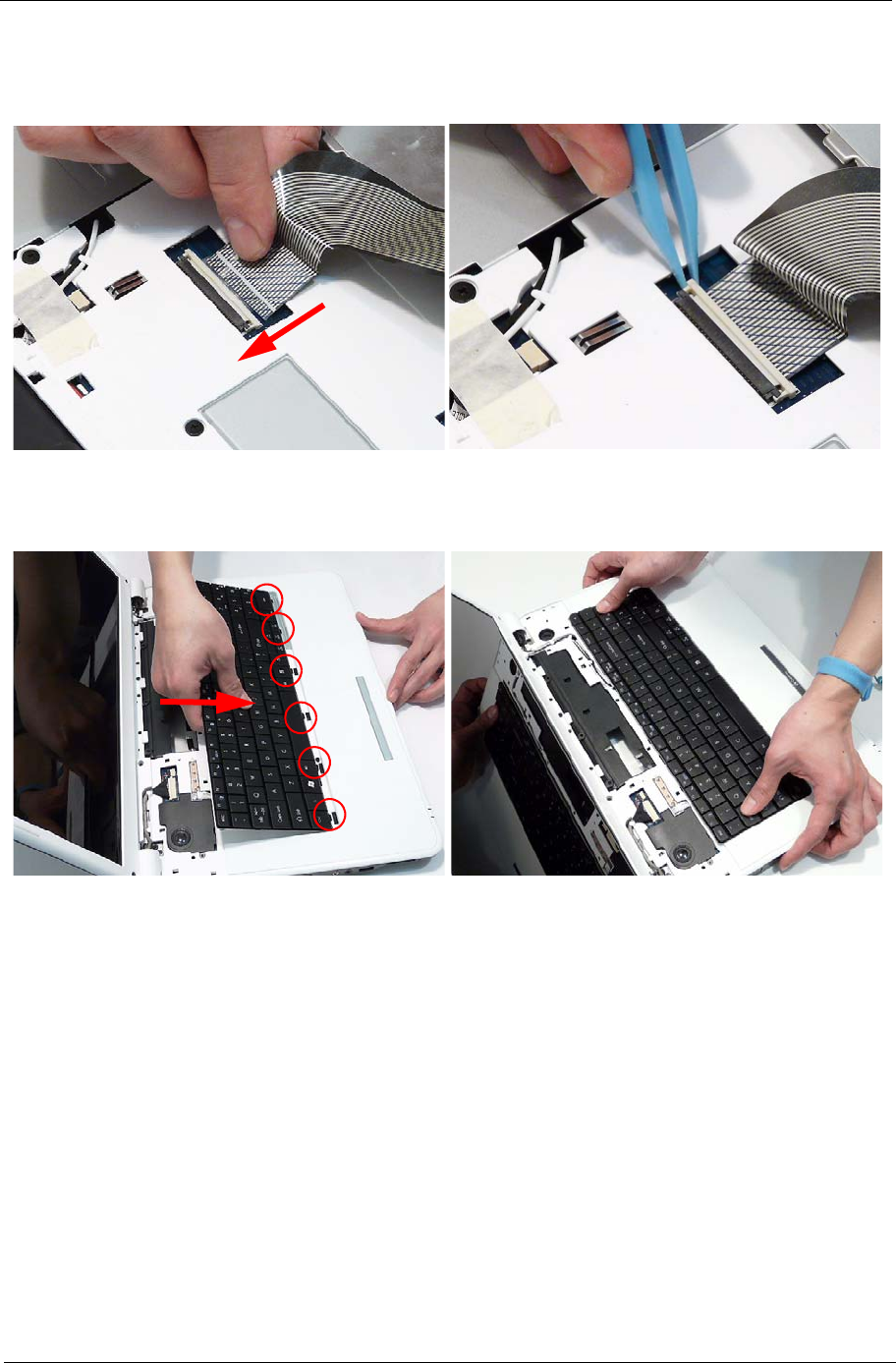

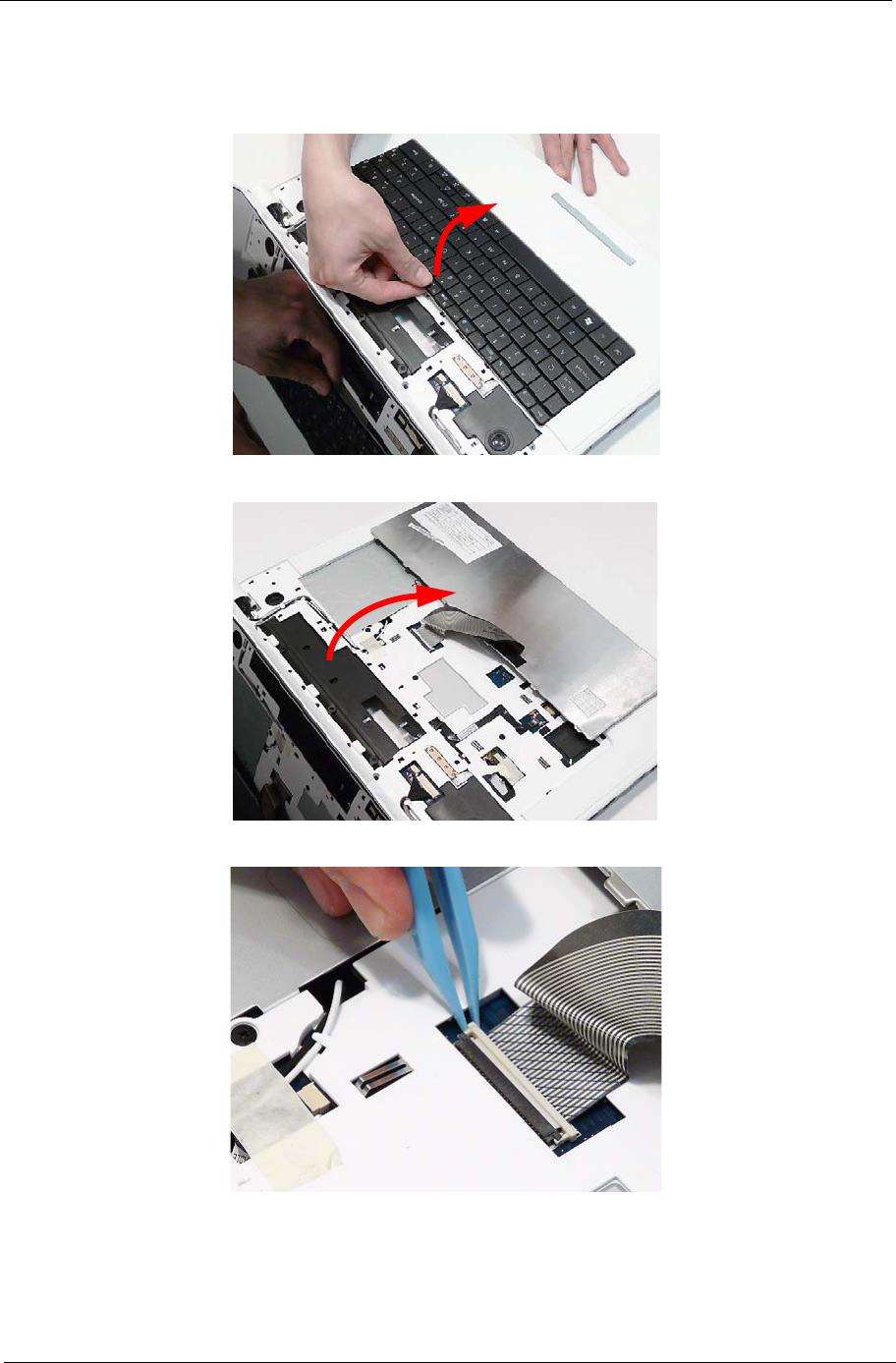

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
VIII
Table of Contents

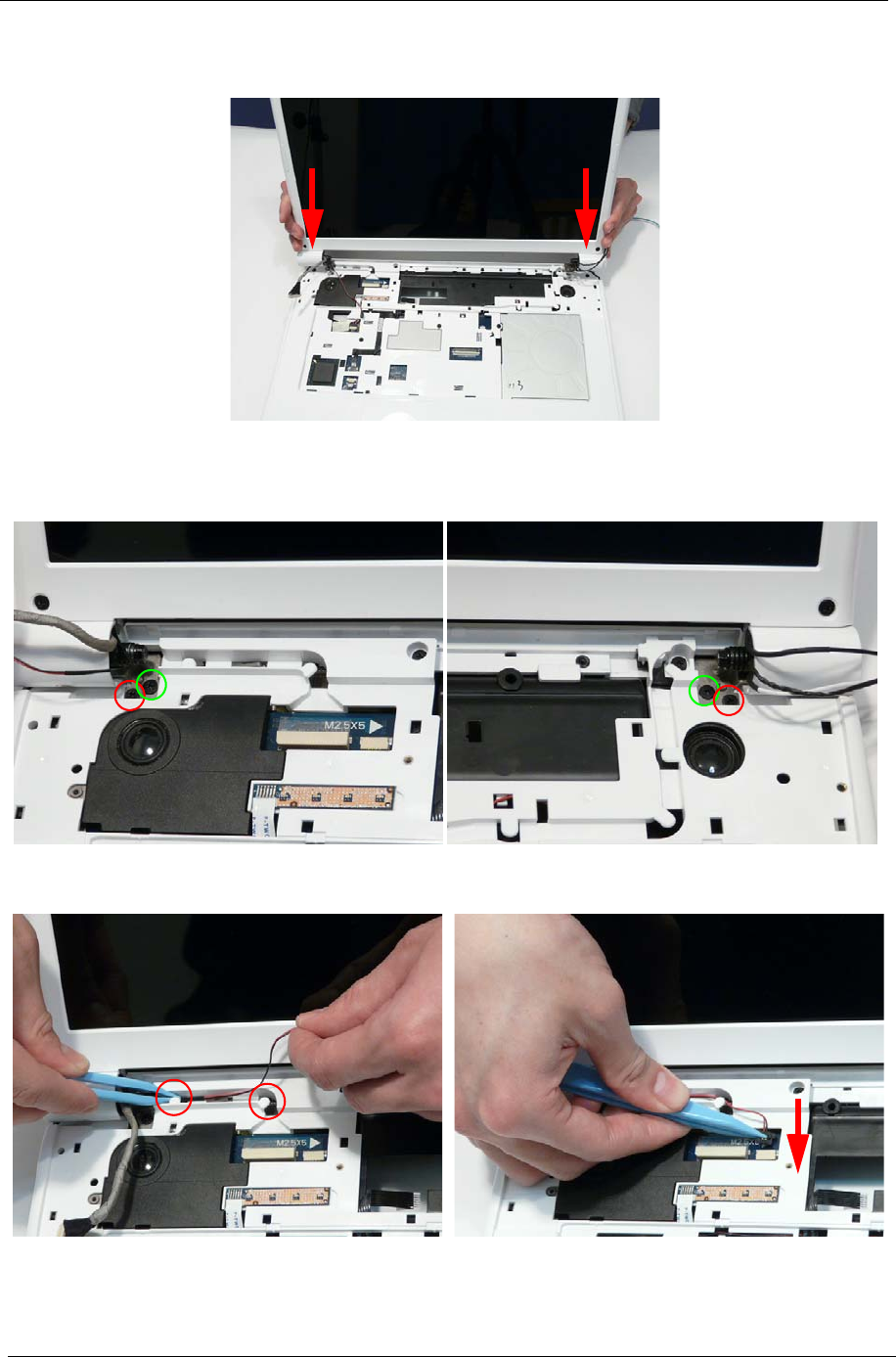

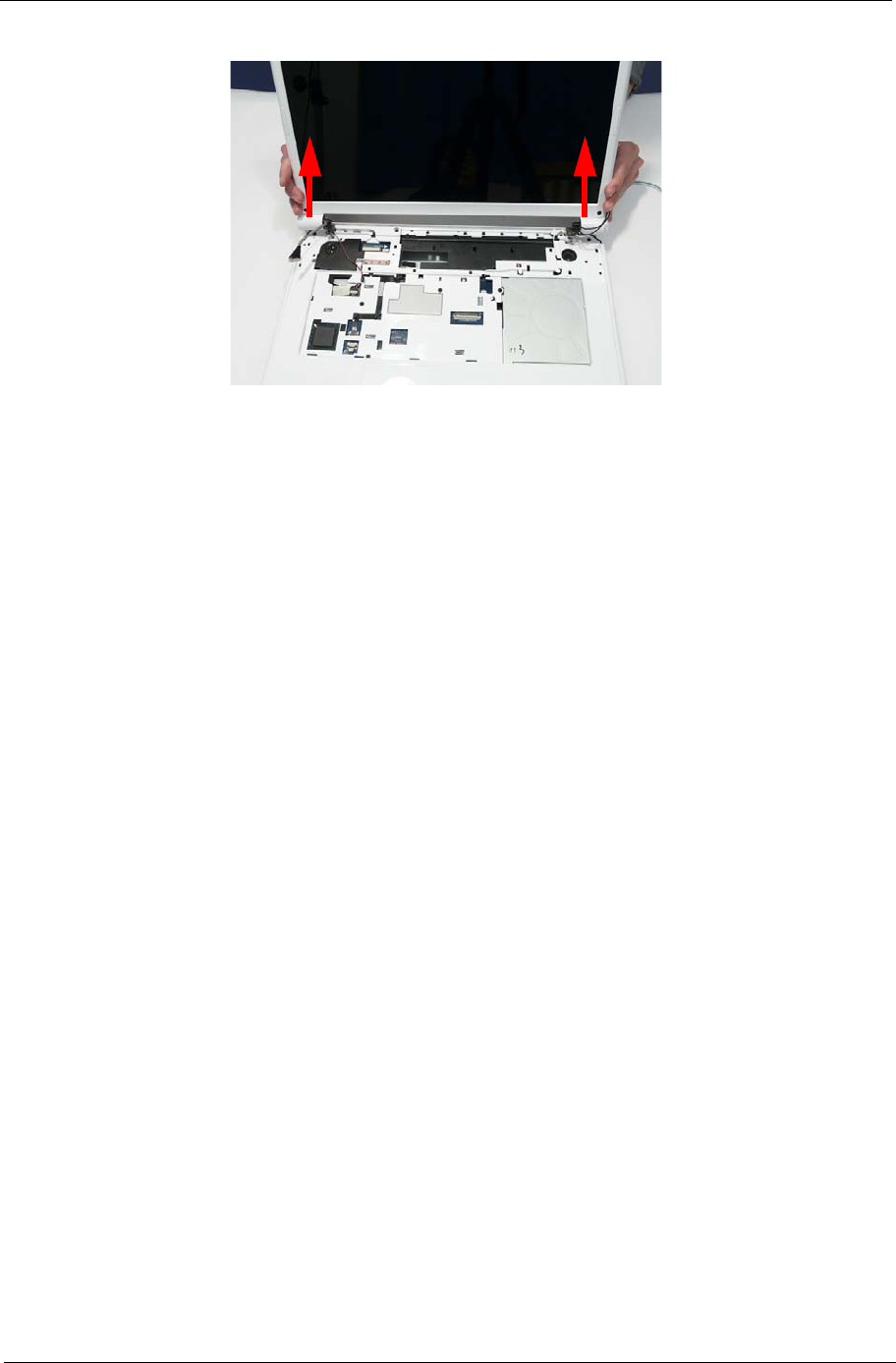

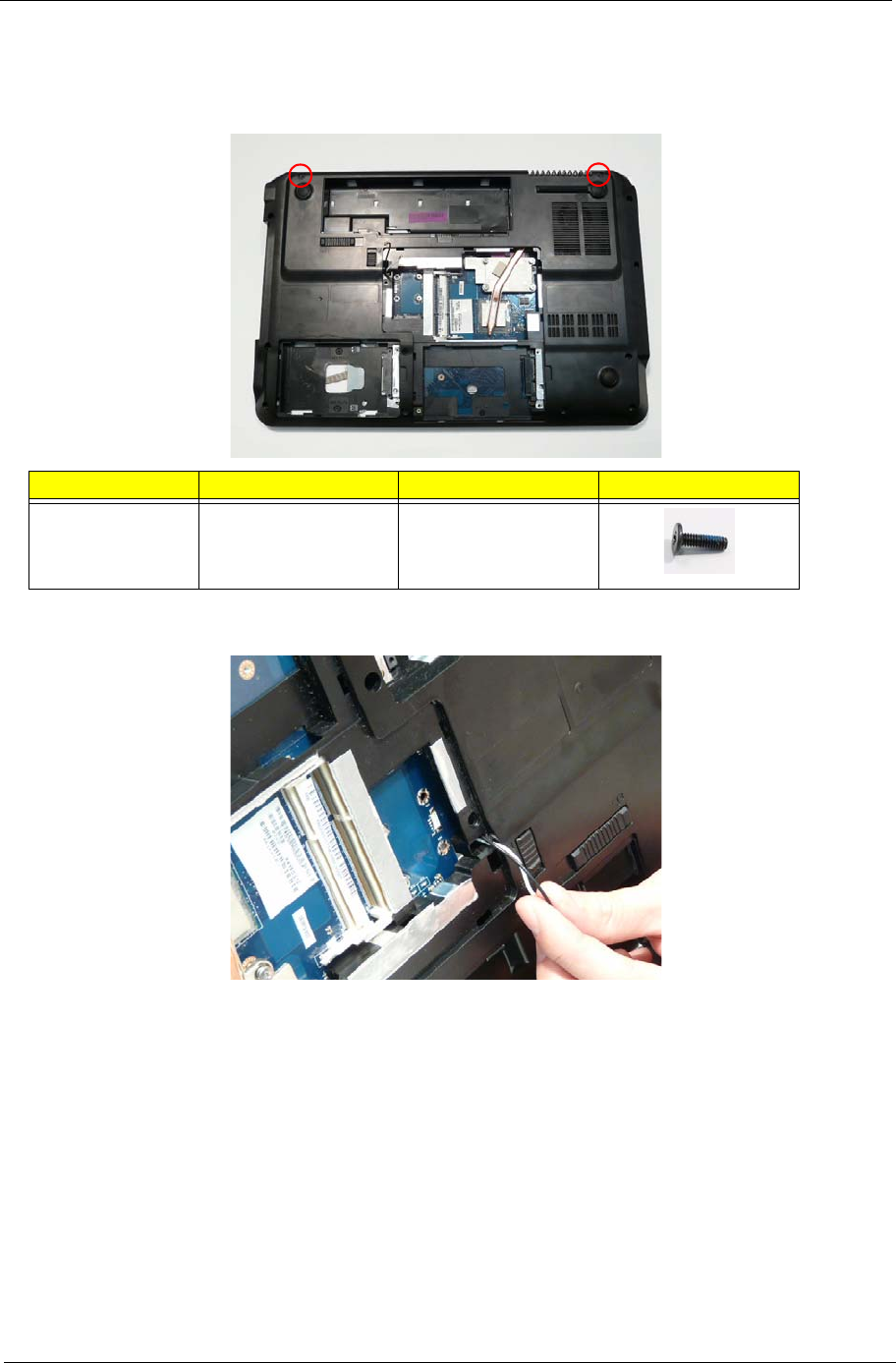

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

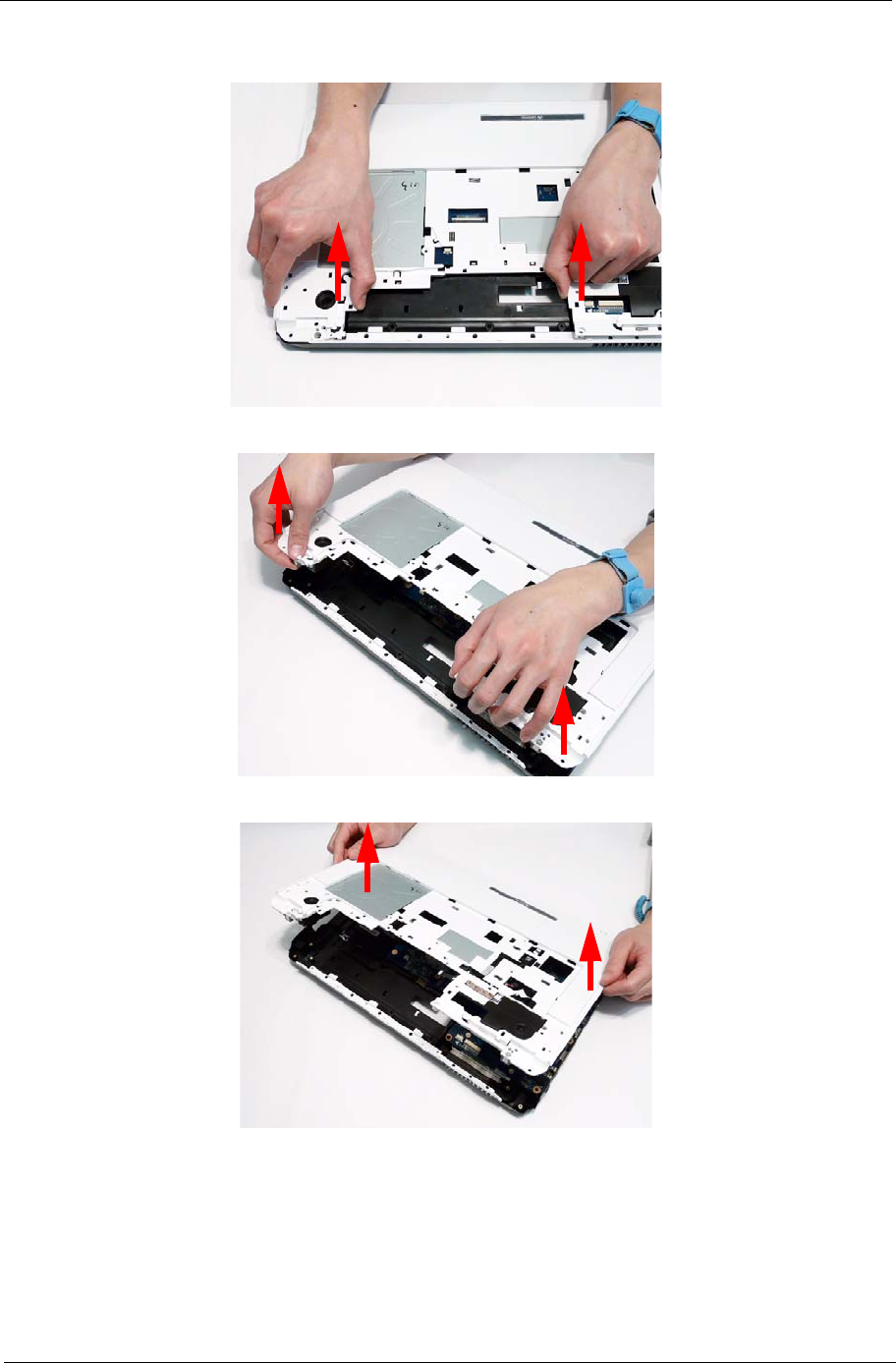

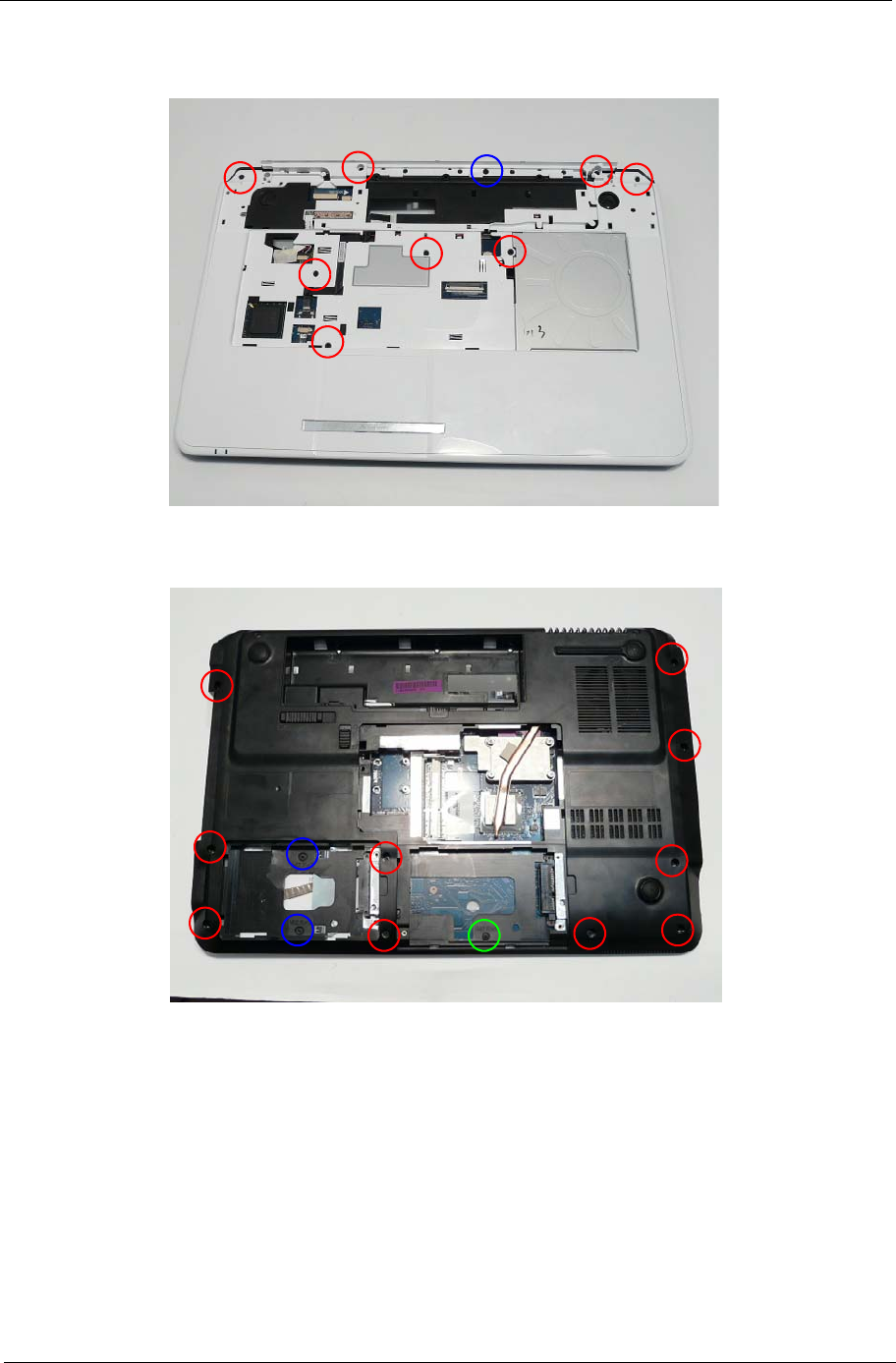

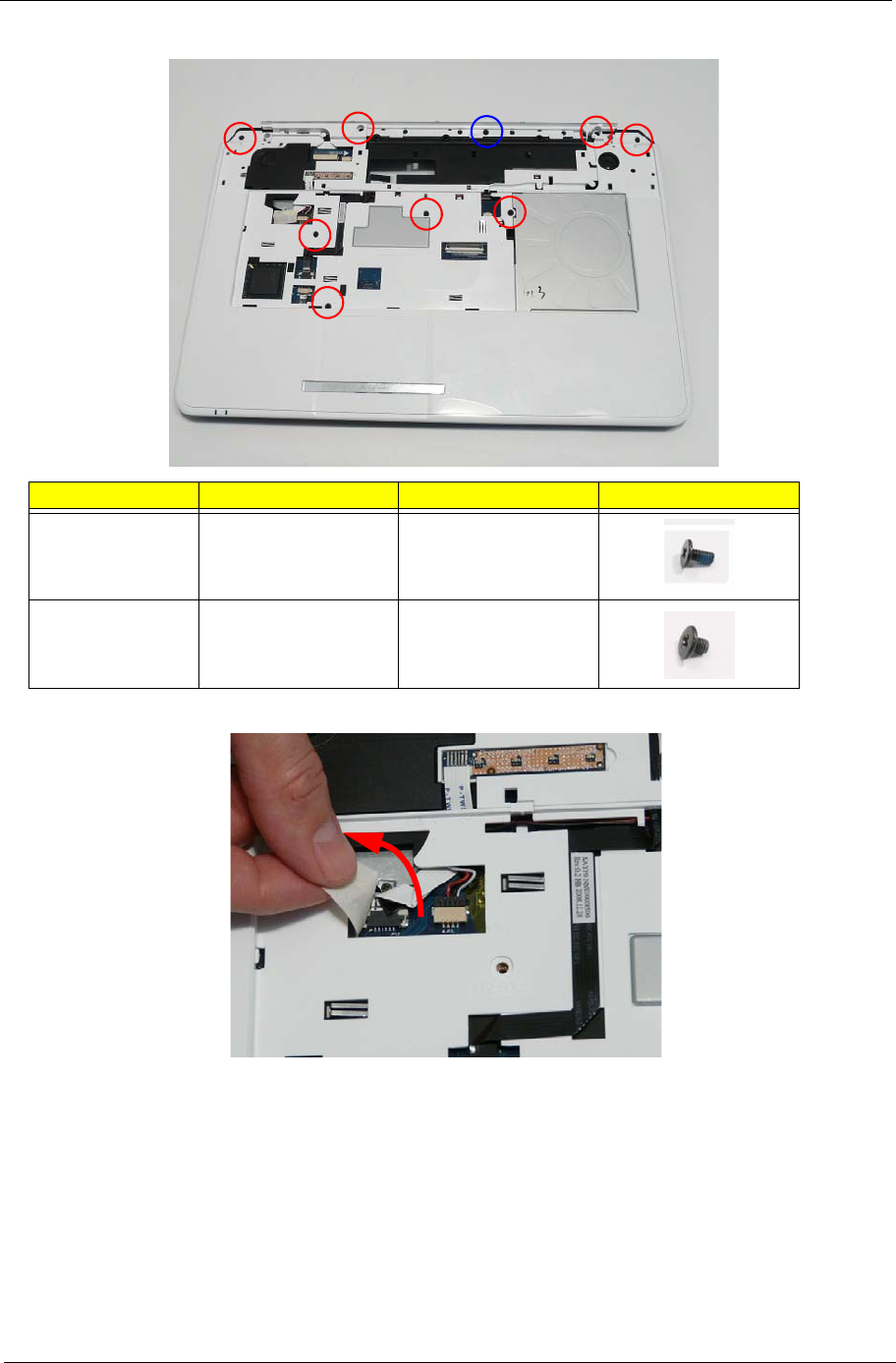

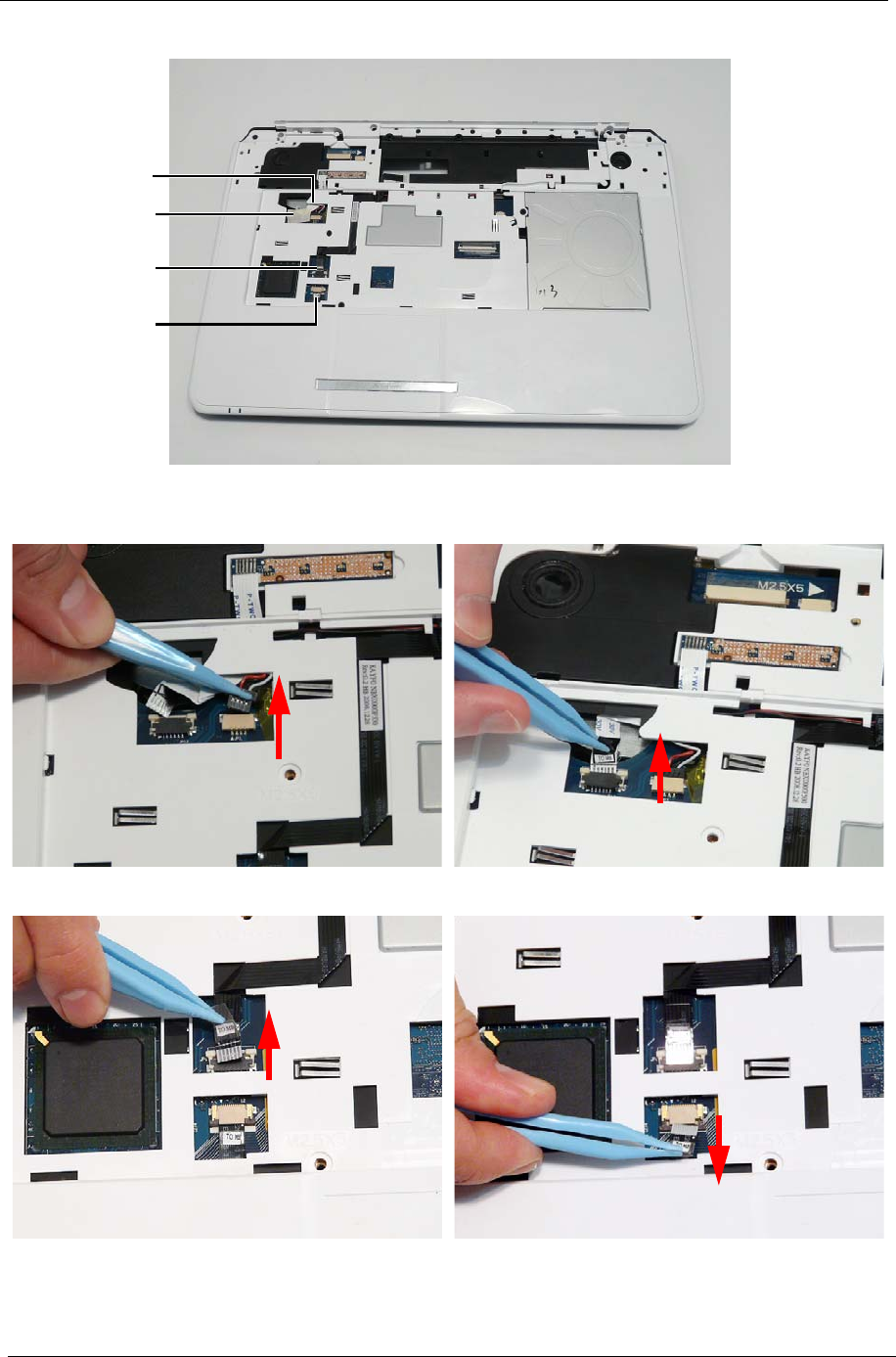

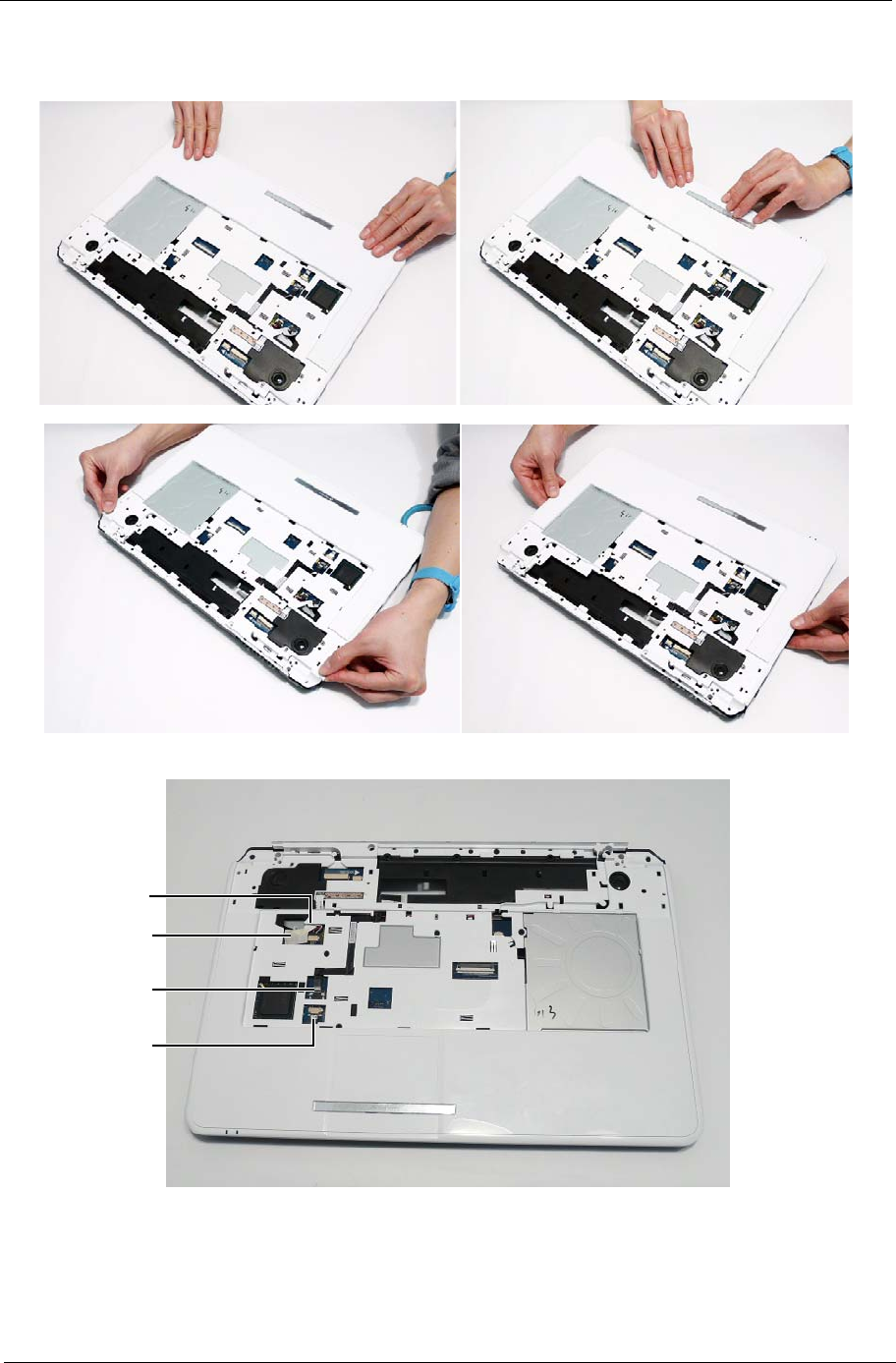

Removing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

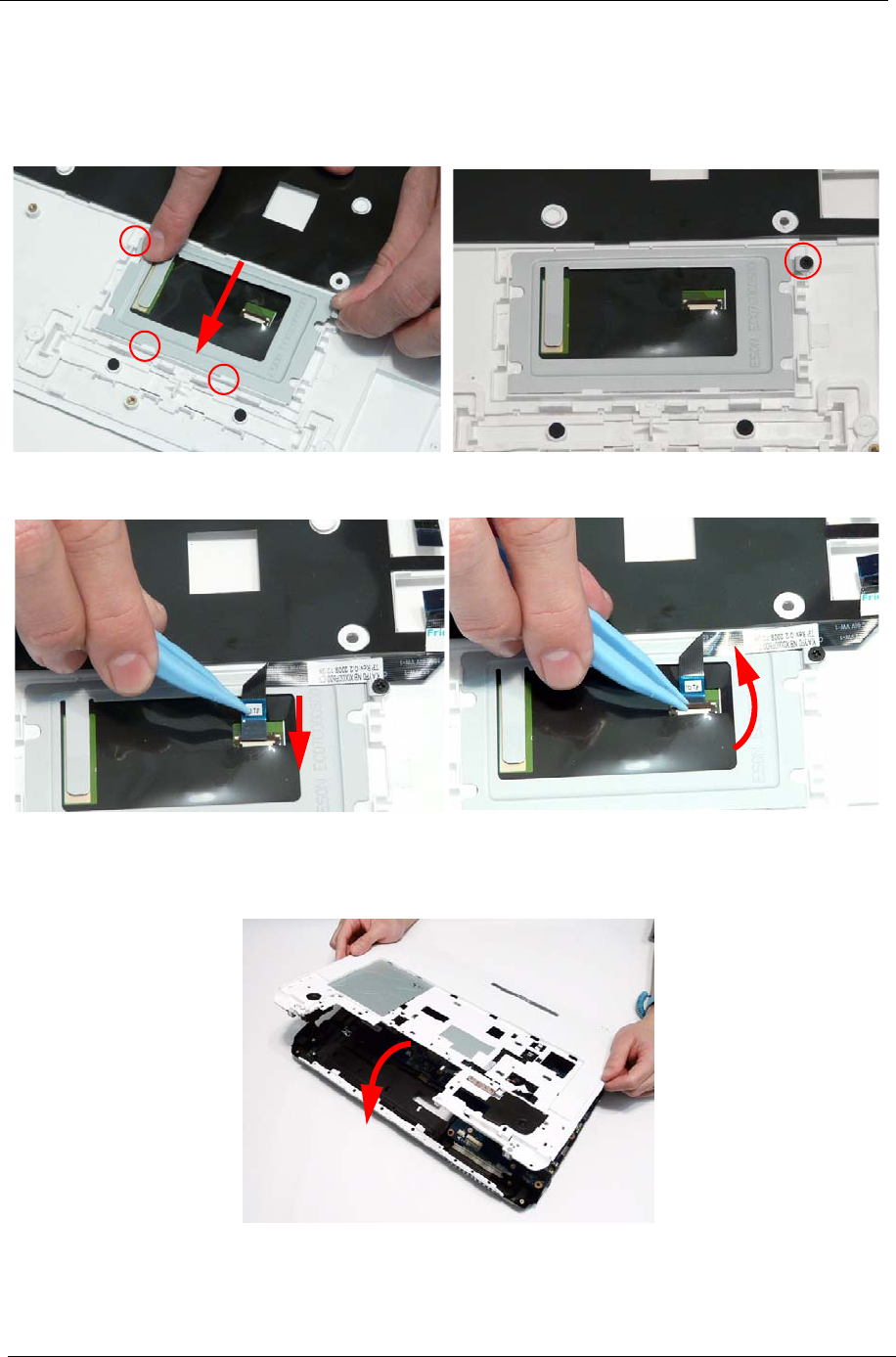

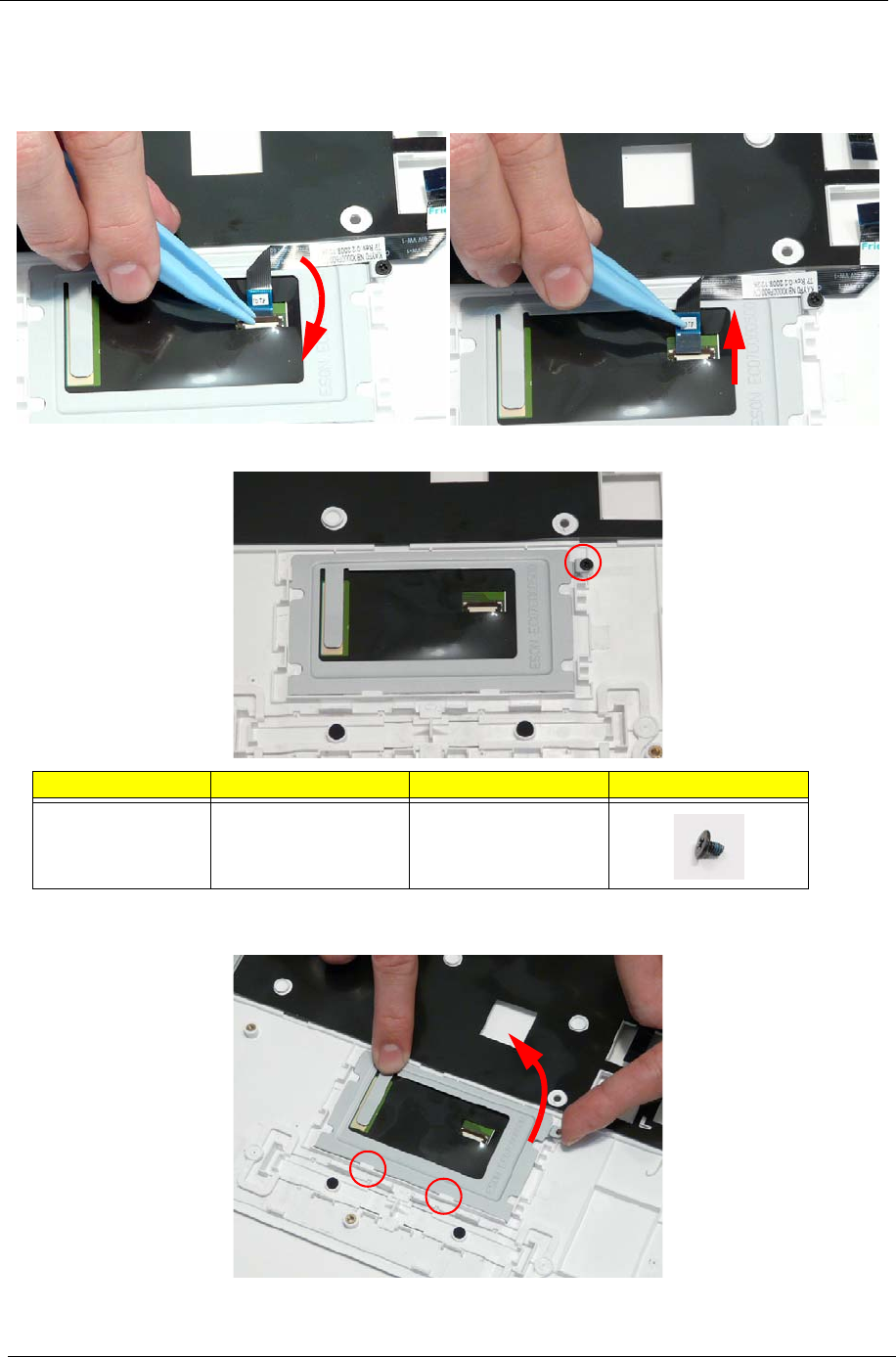

Removing the TouchPad Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

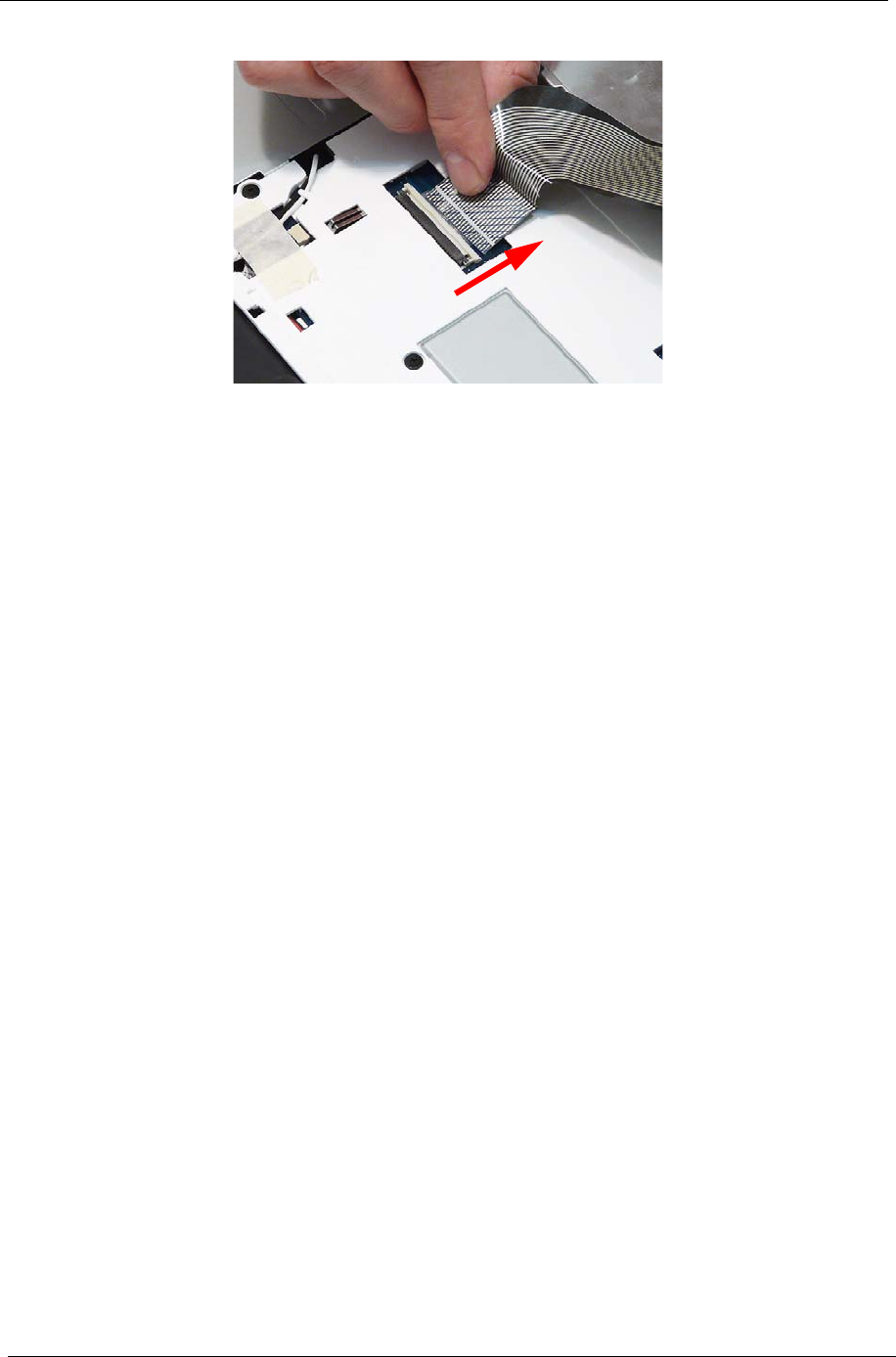

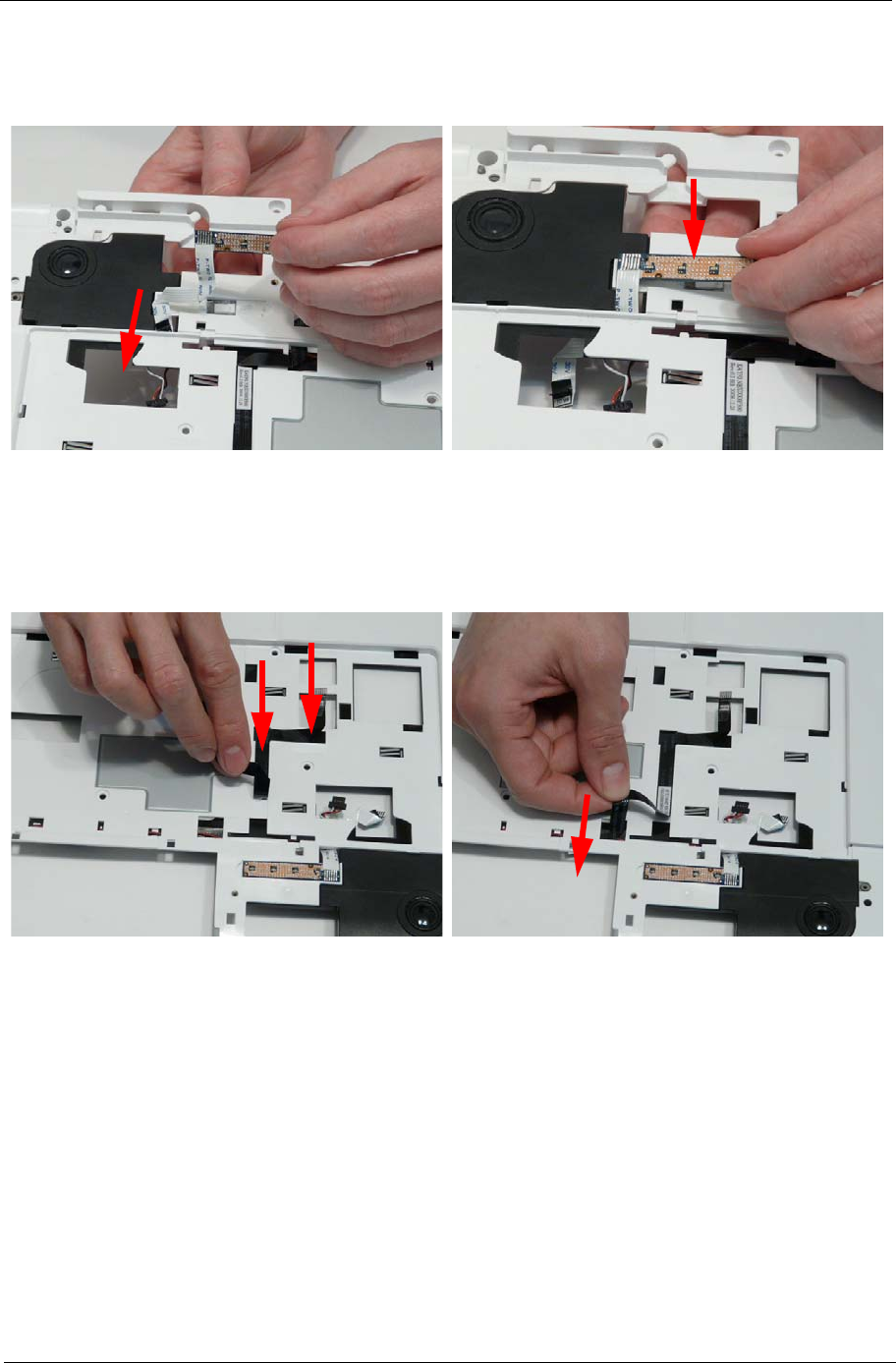

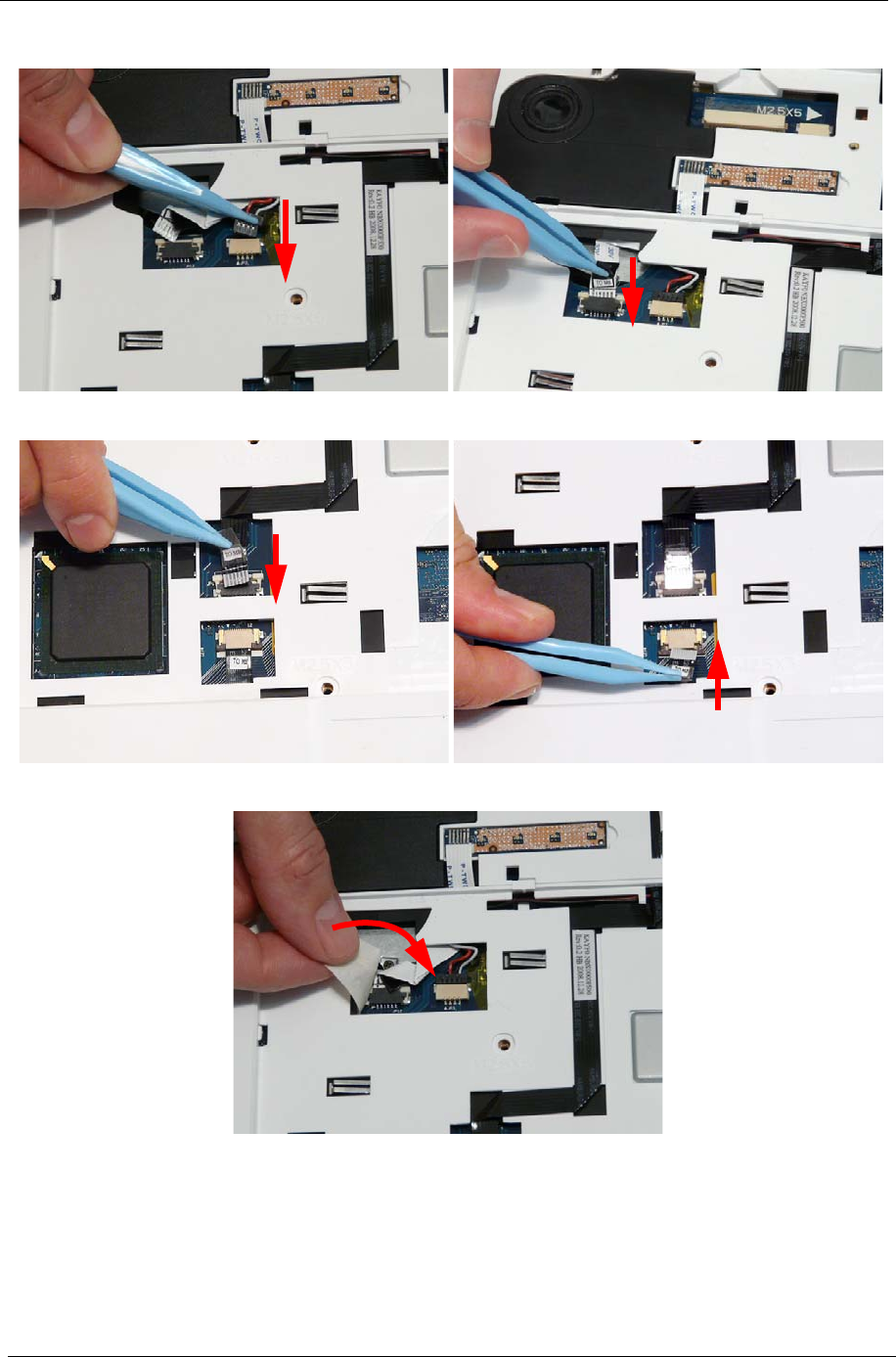

Removing the Media Board FFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

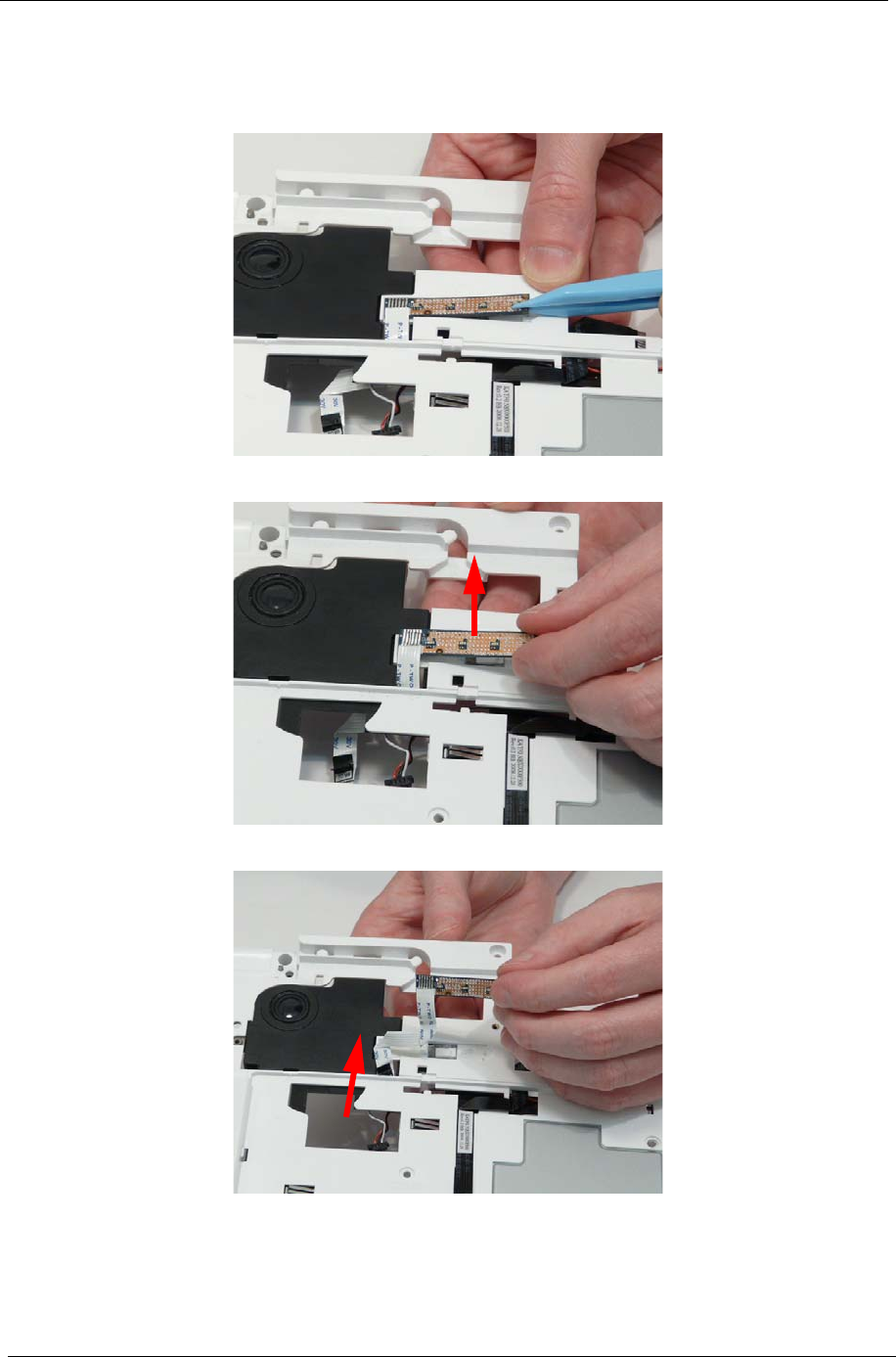

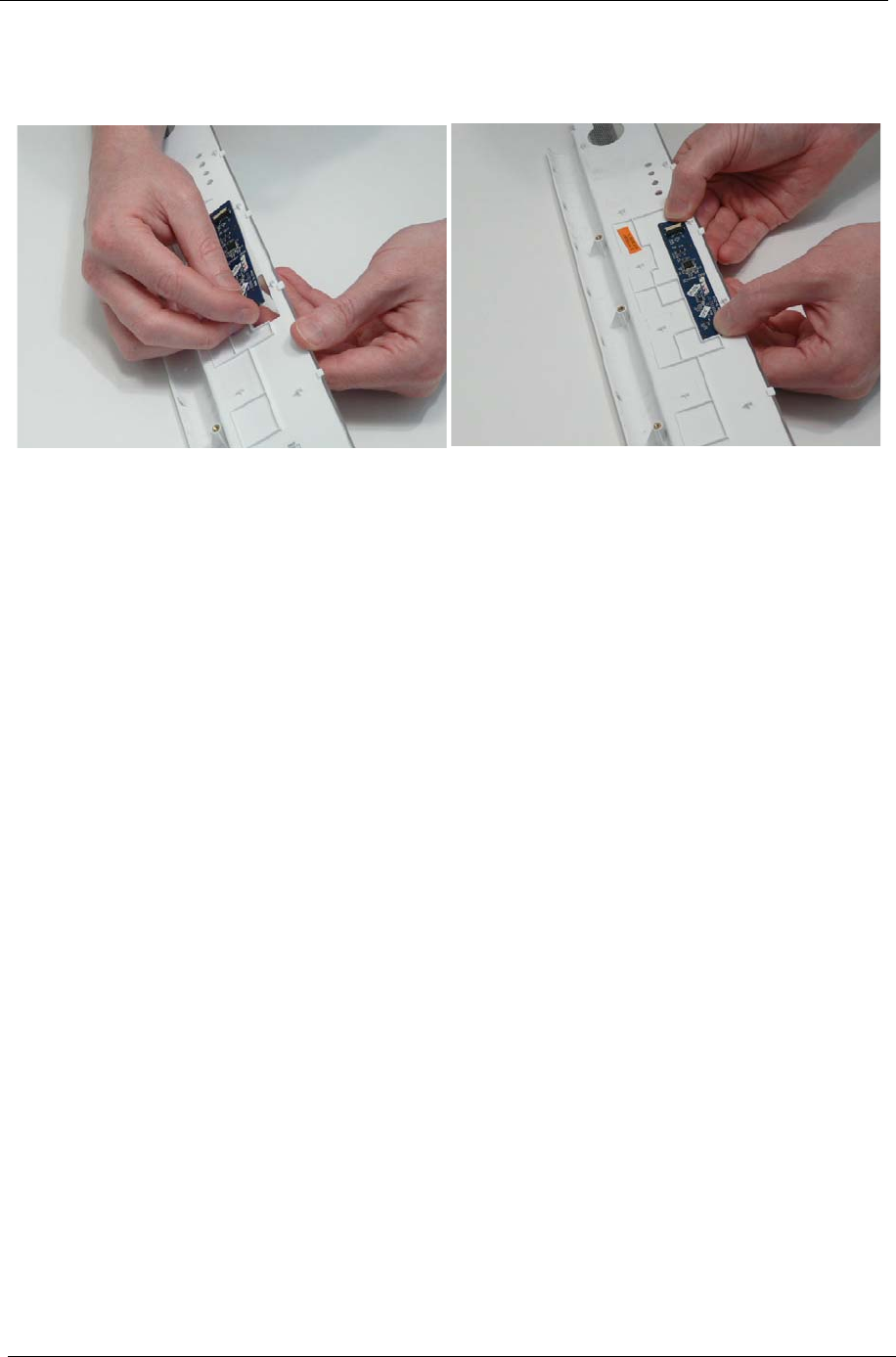

Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

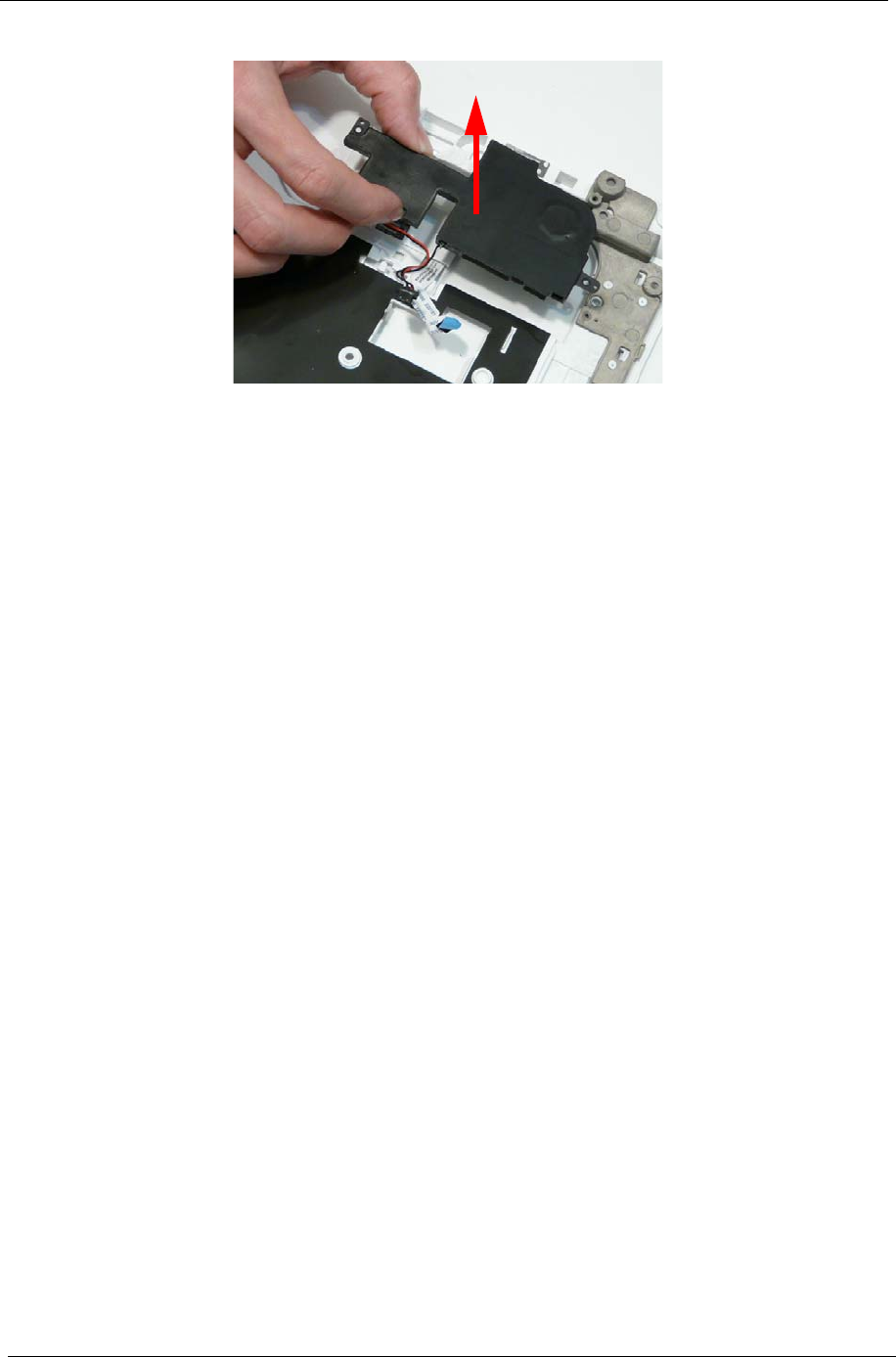

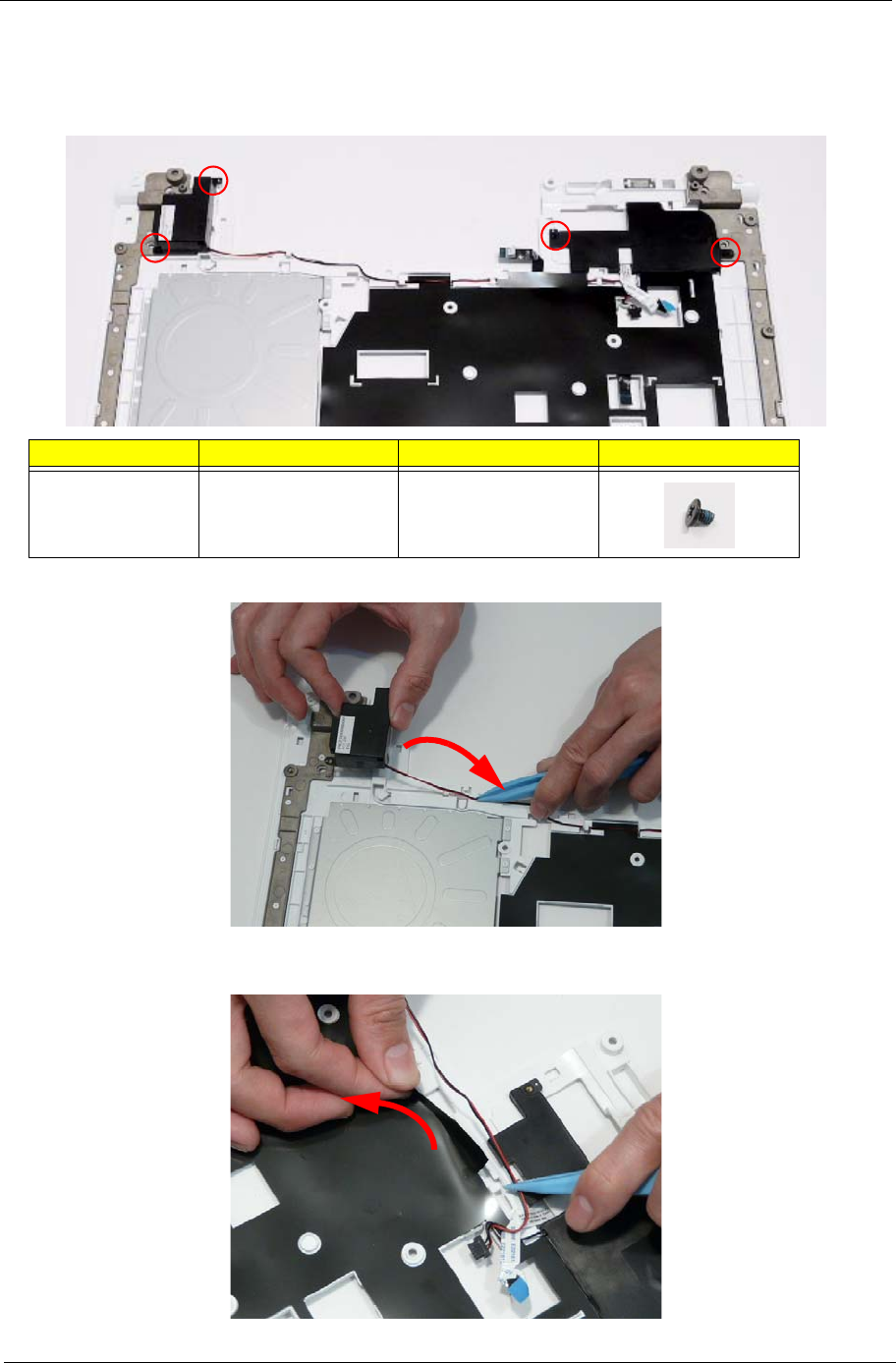

Removing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

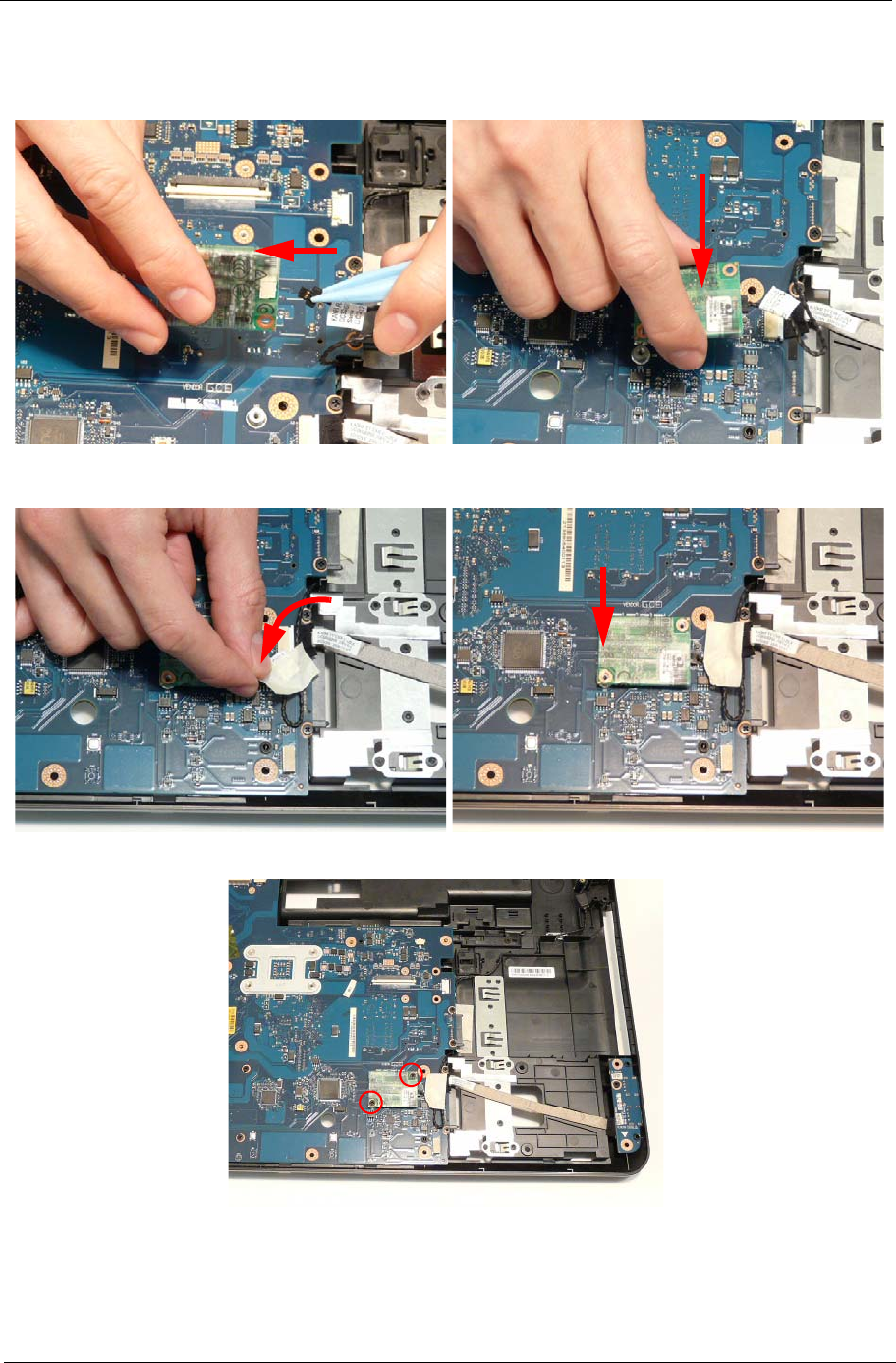

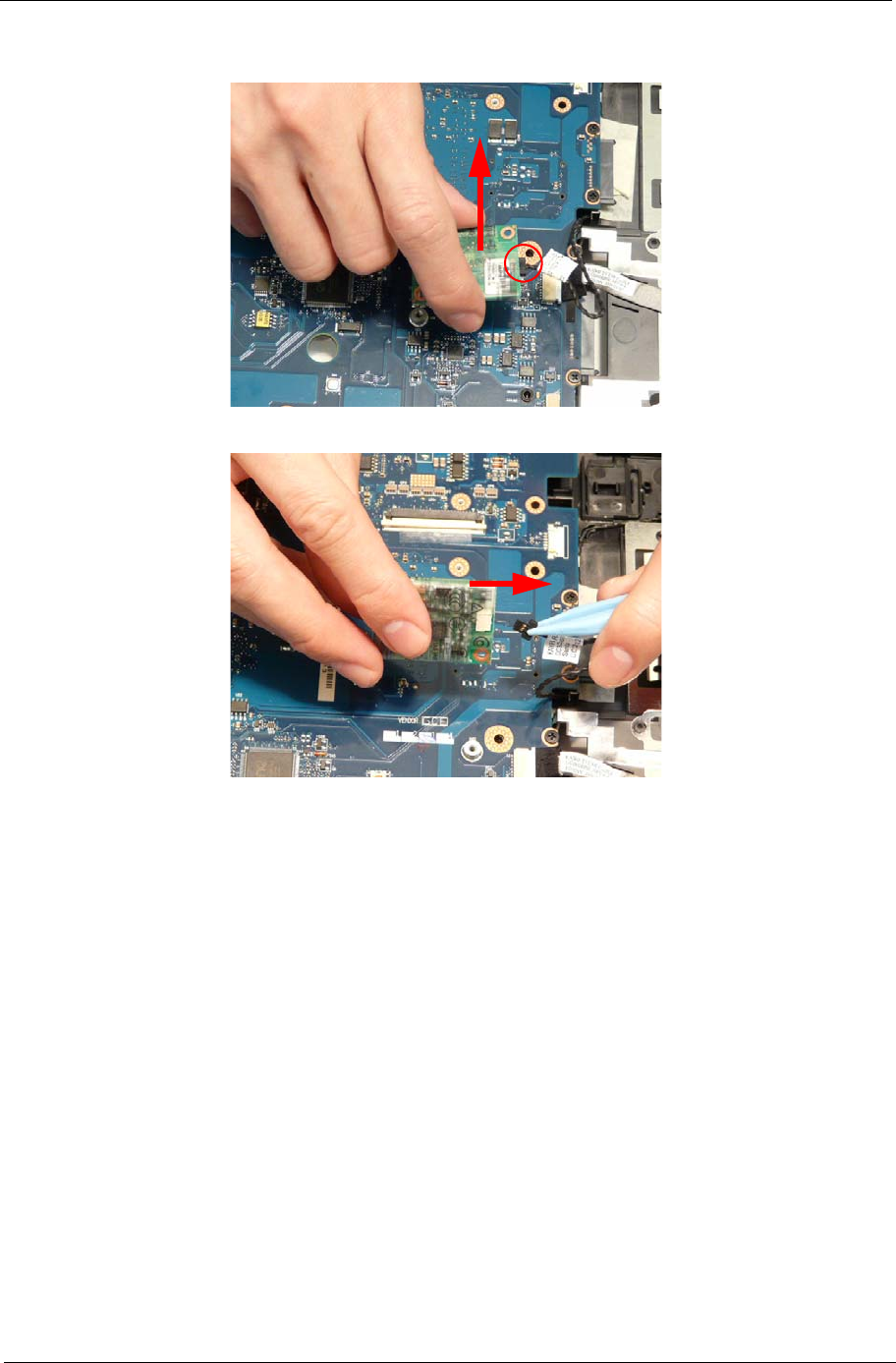

Removing the Modem Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

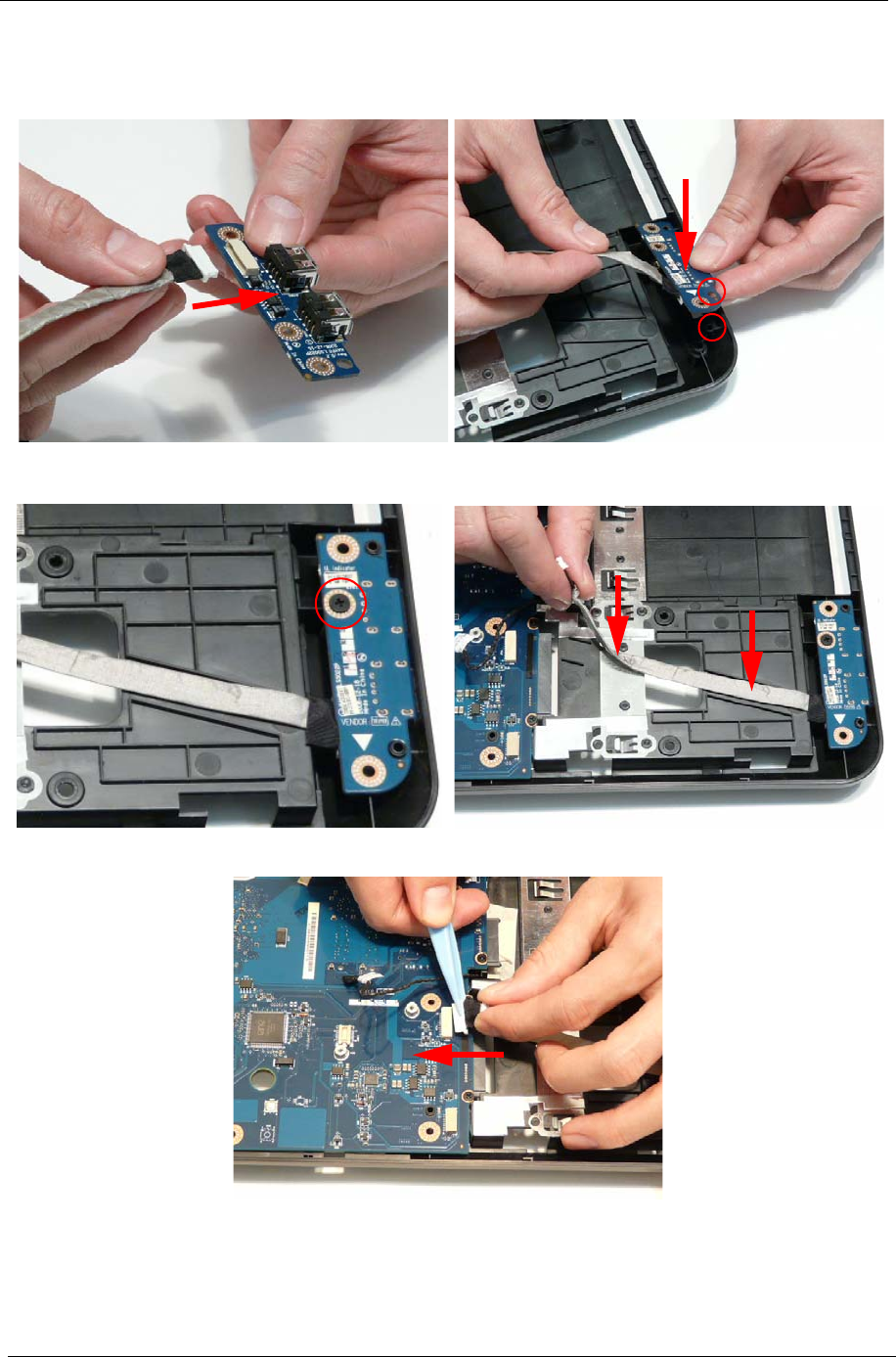

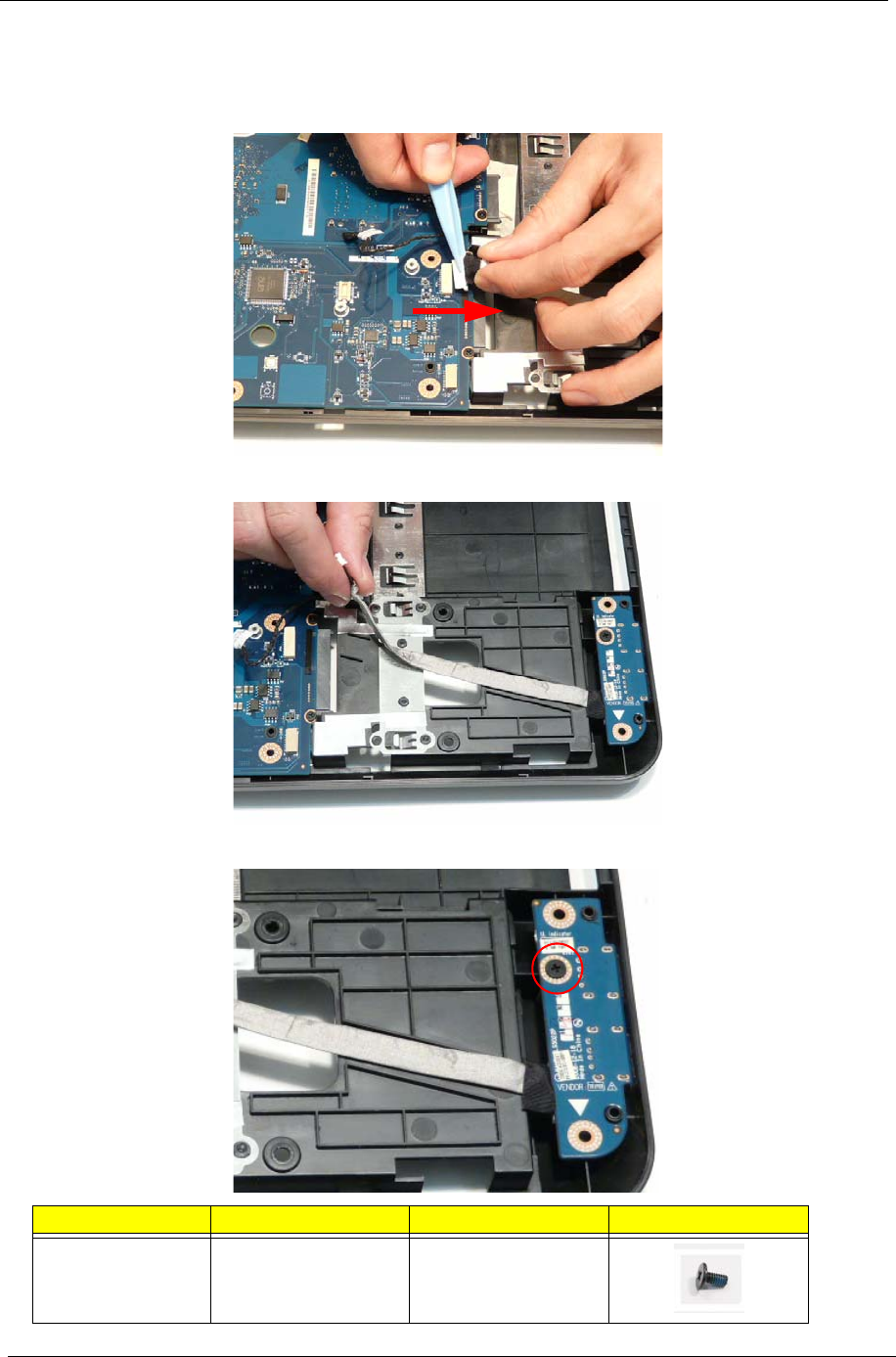

Removing the USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

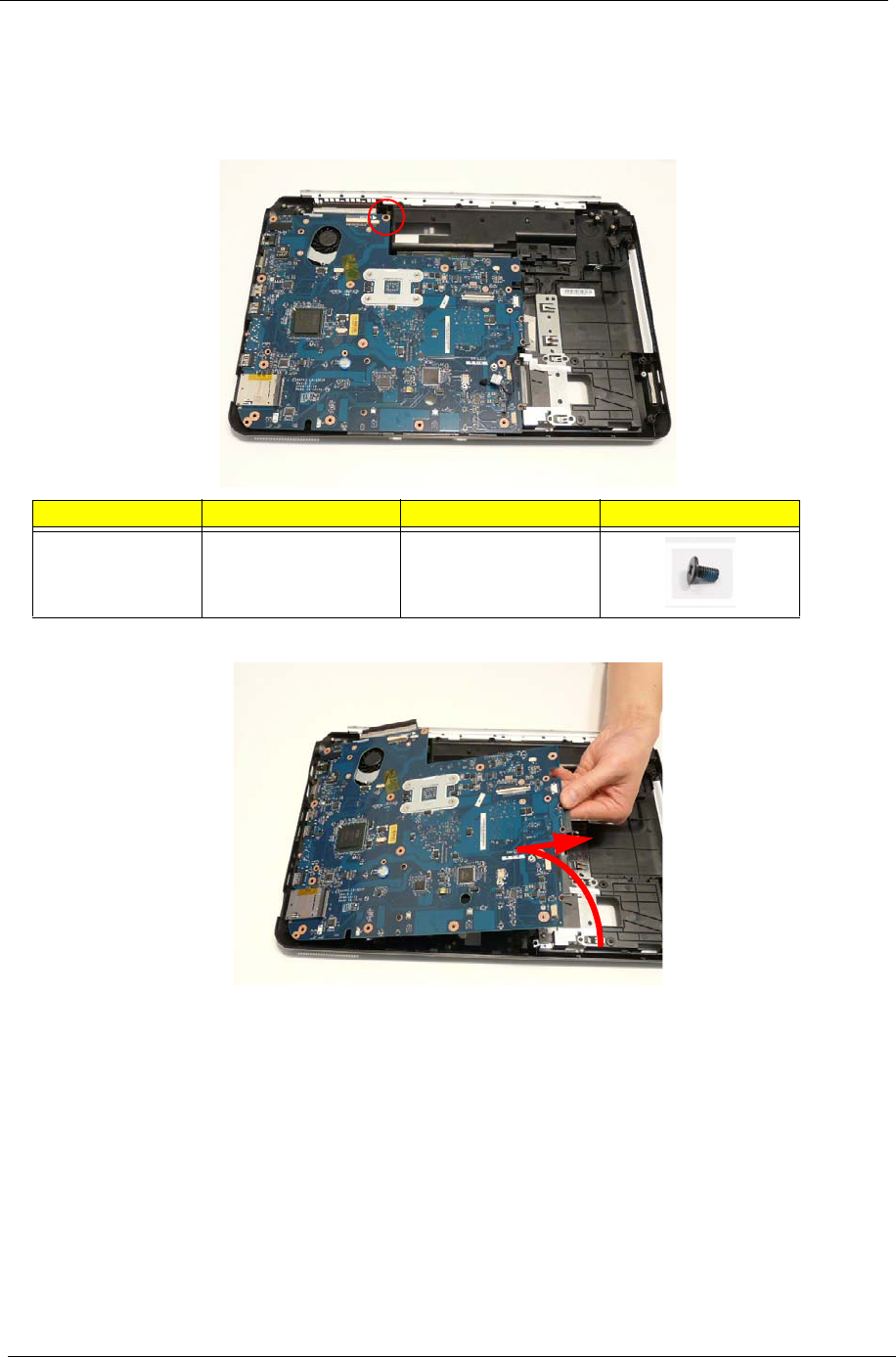

Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Removing the RJ-11 Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

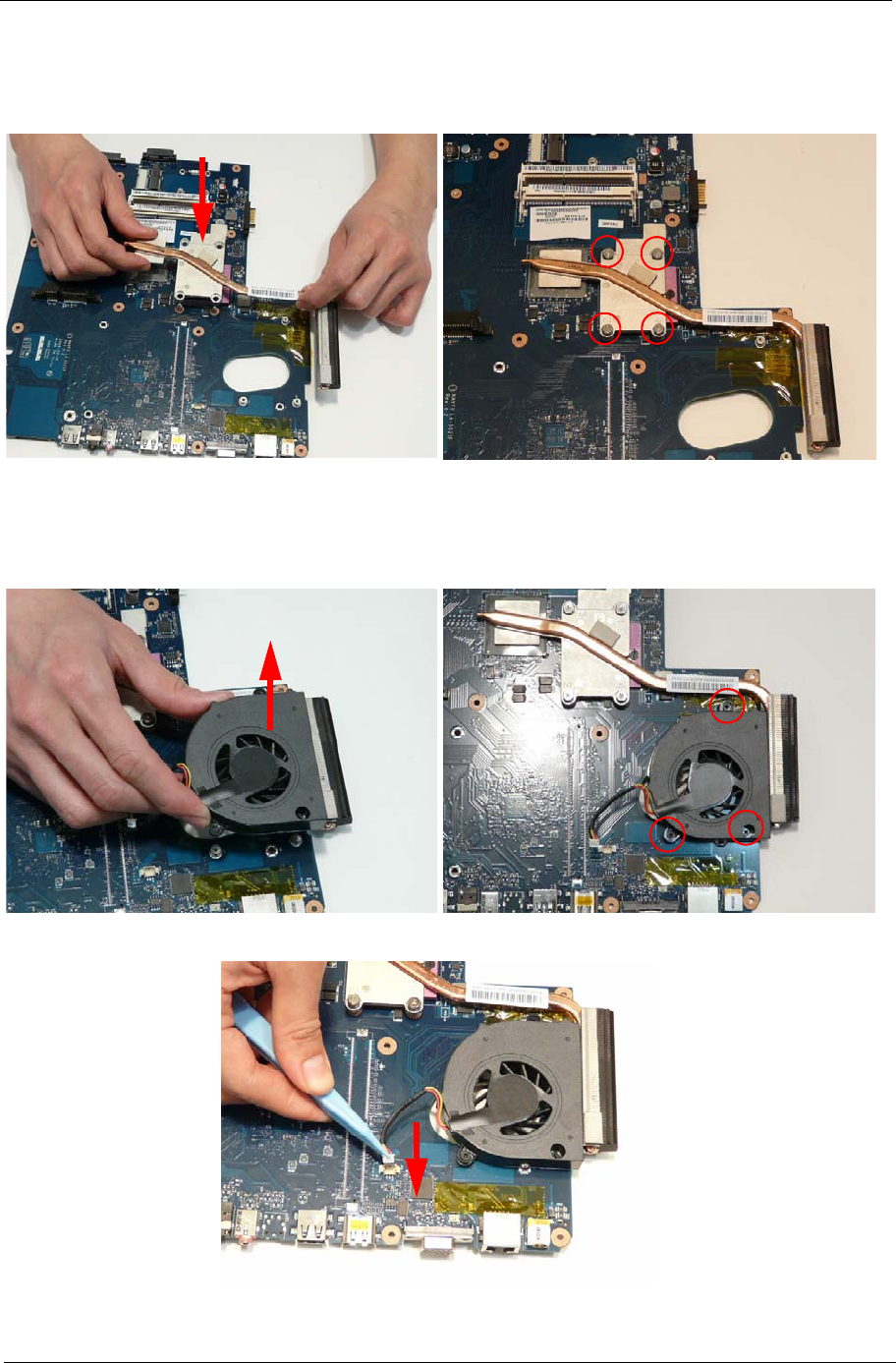

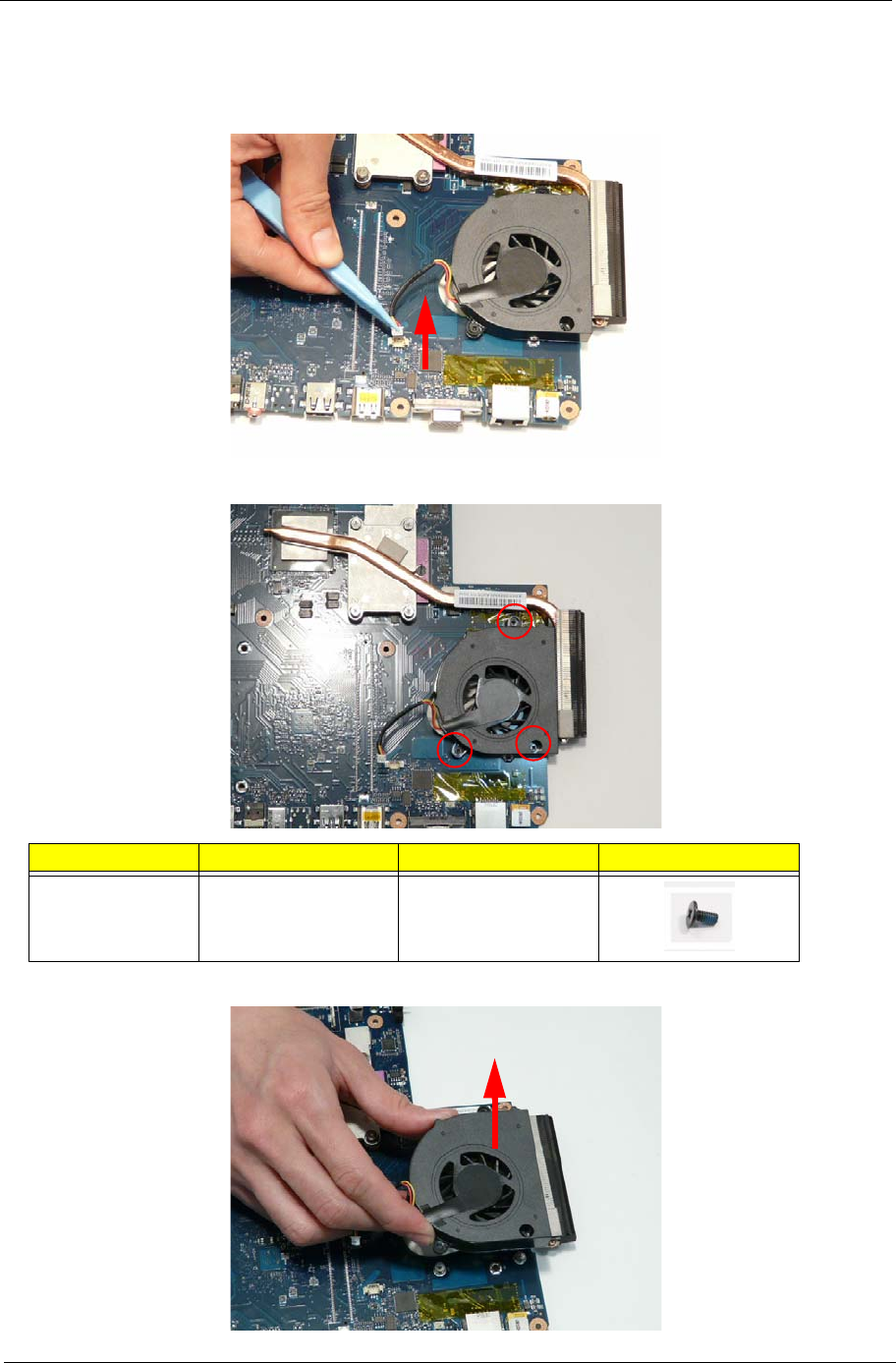

Removing the CPU Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

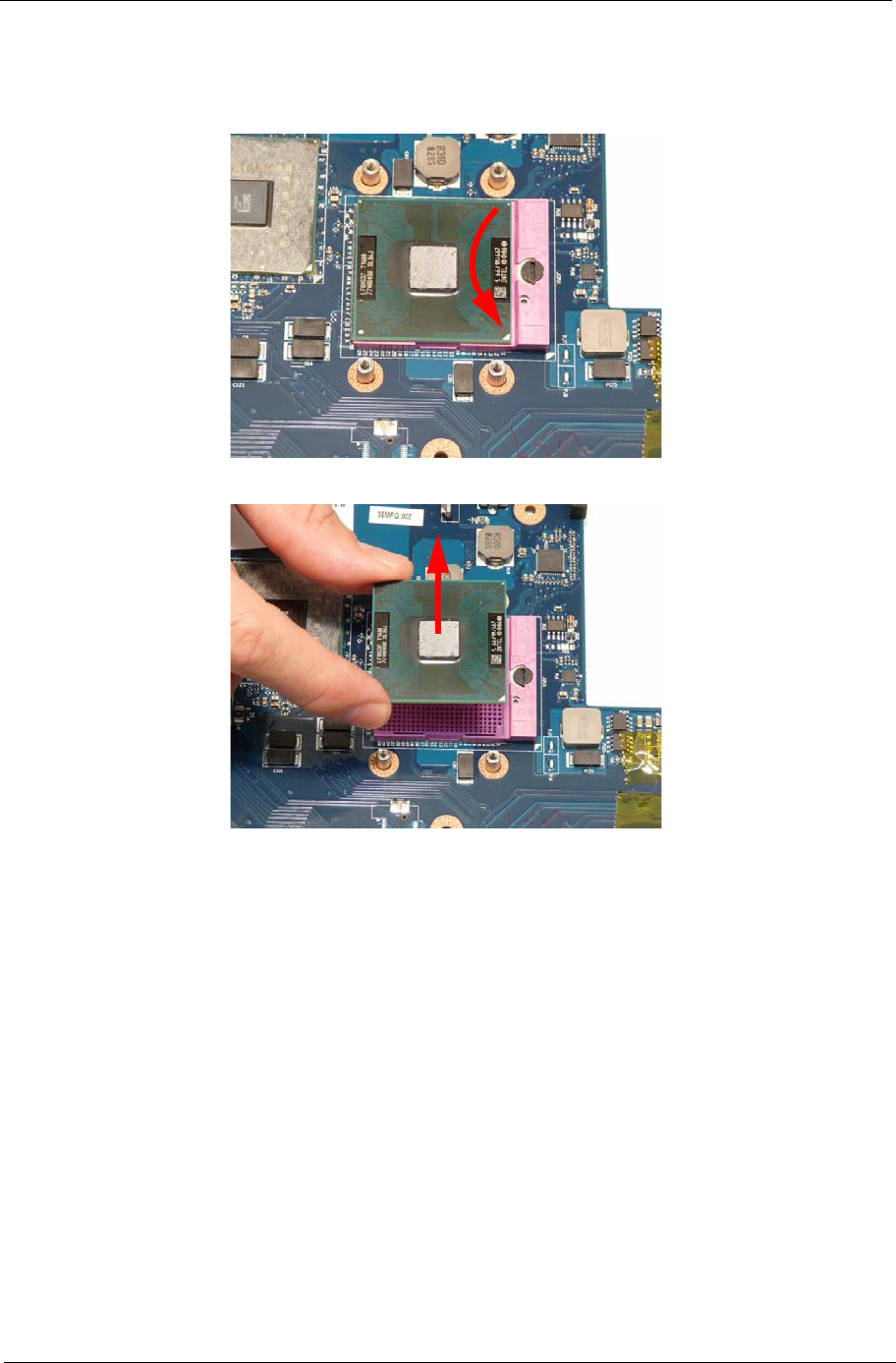

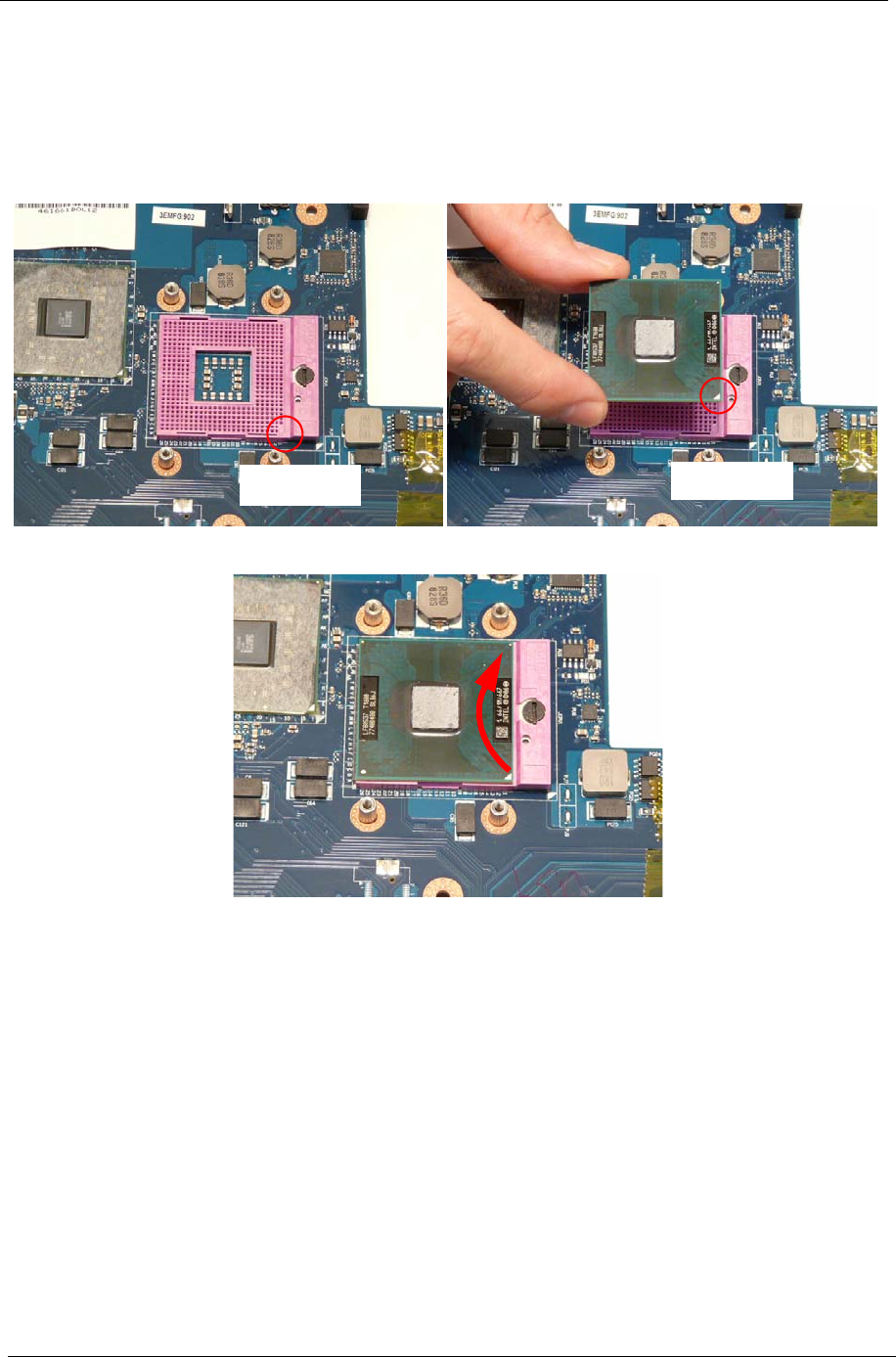

Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

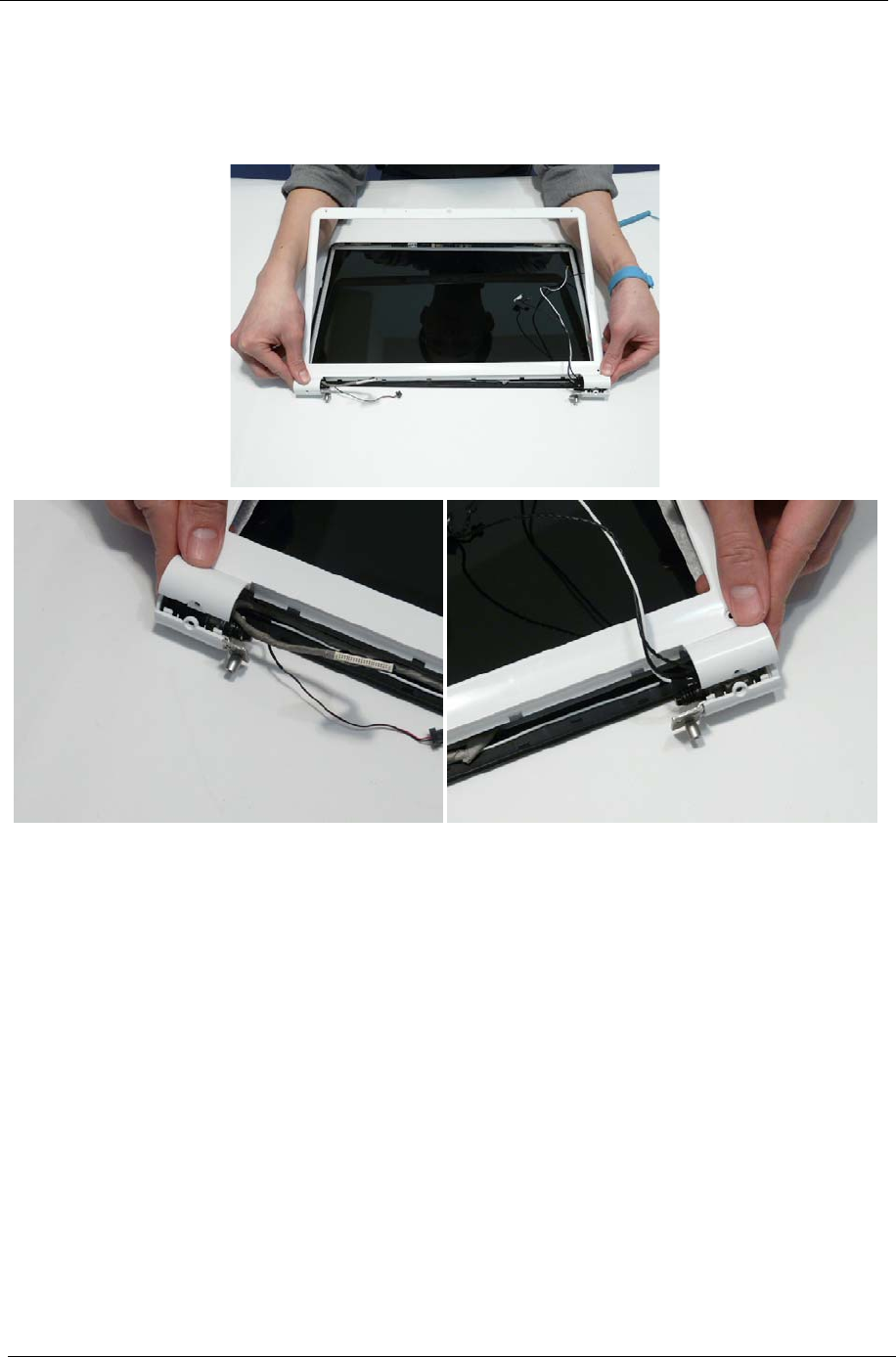

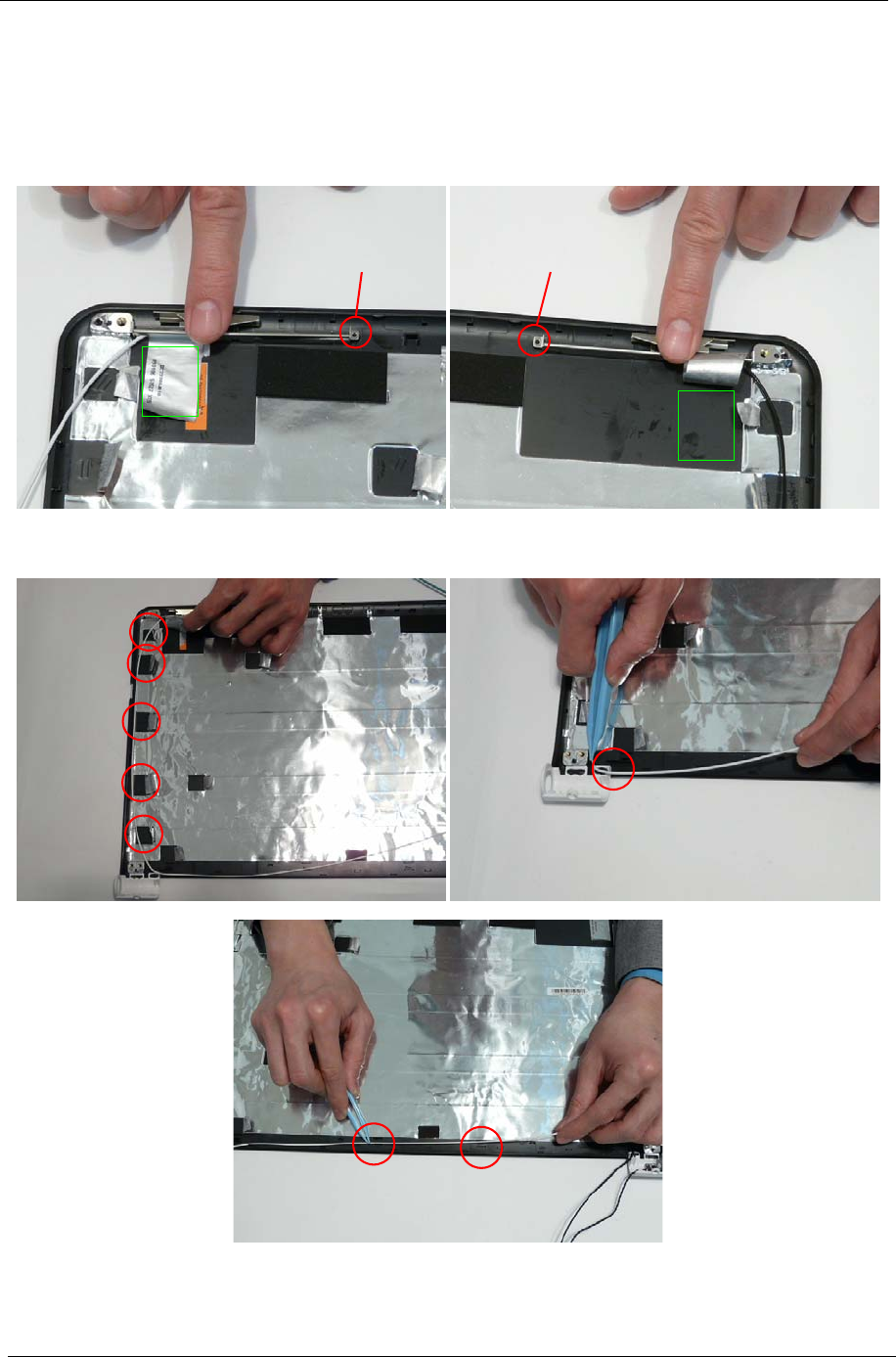

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

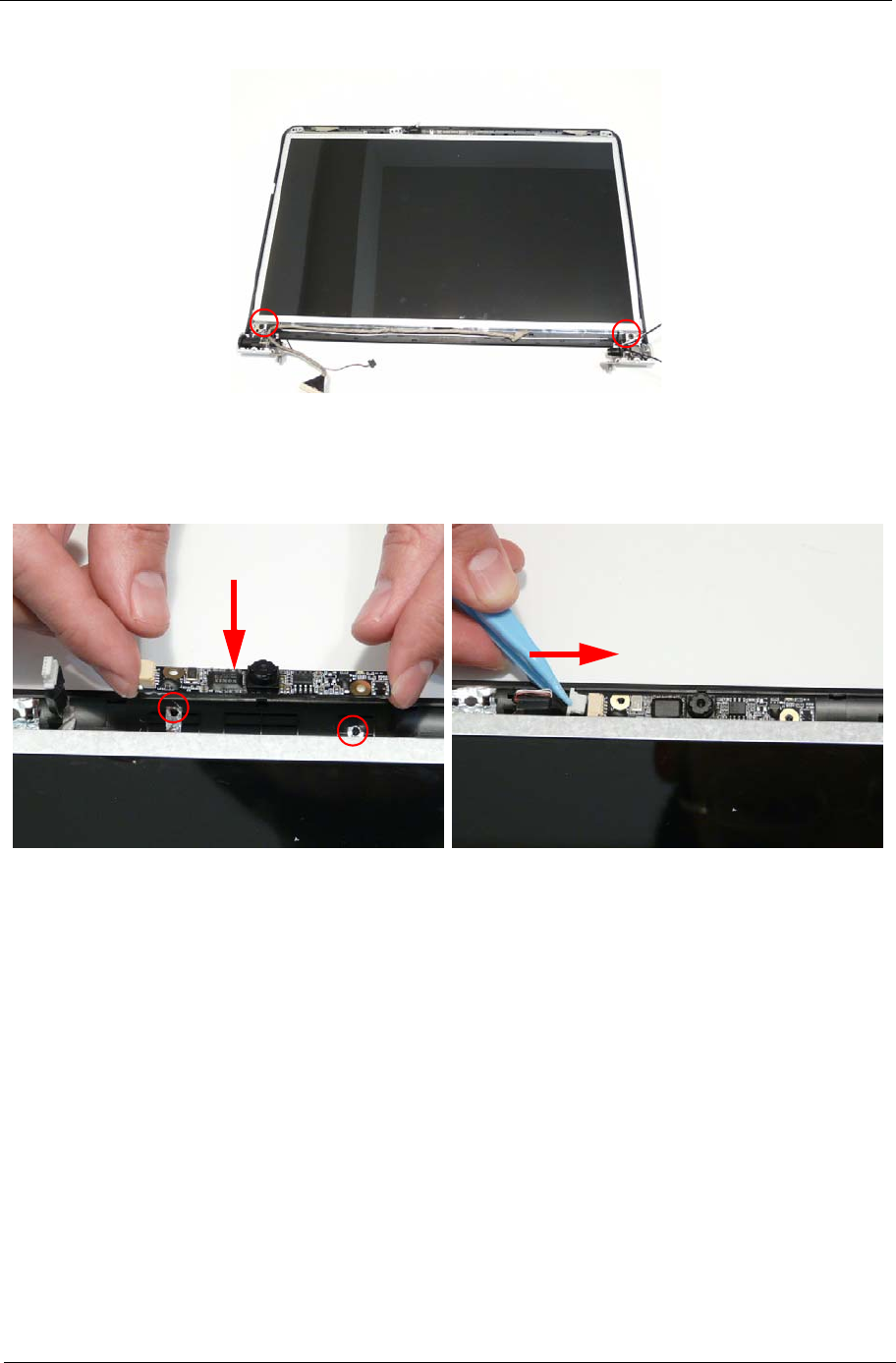

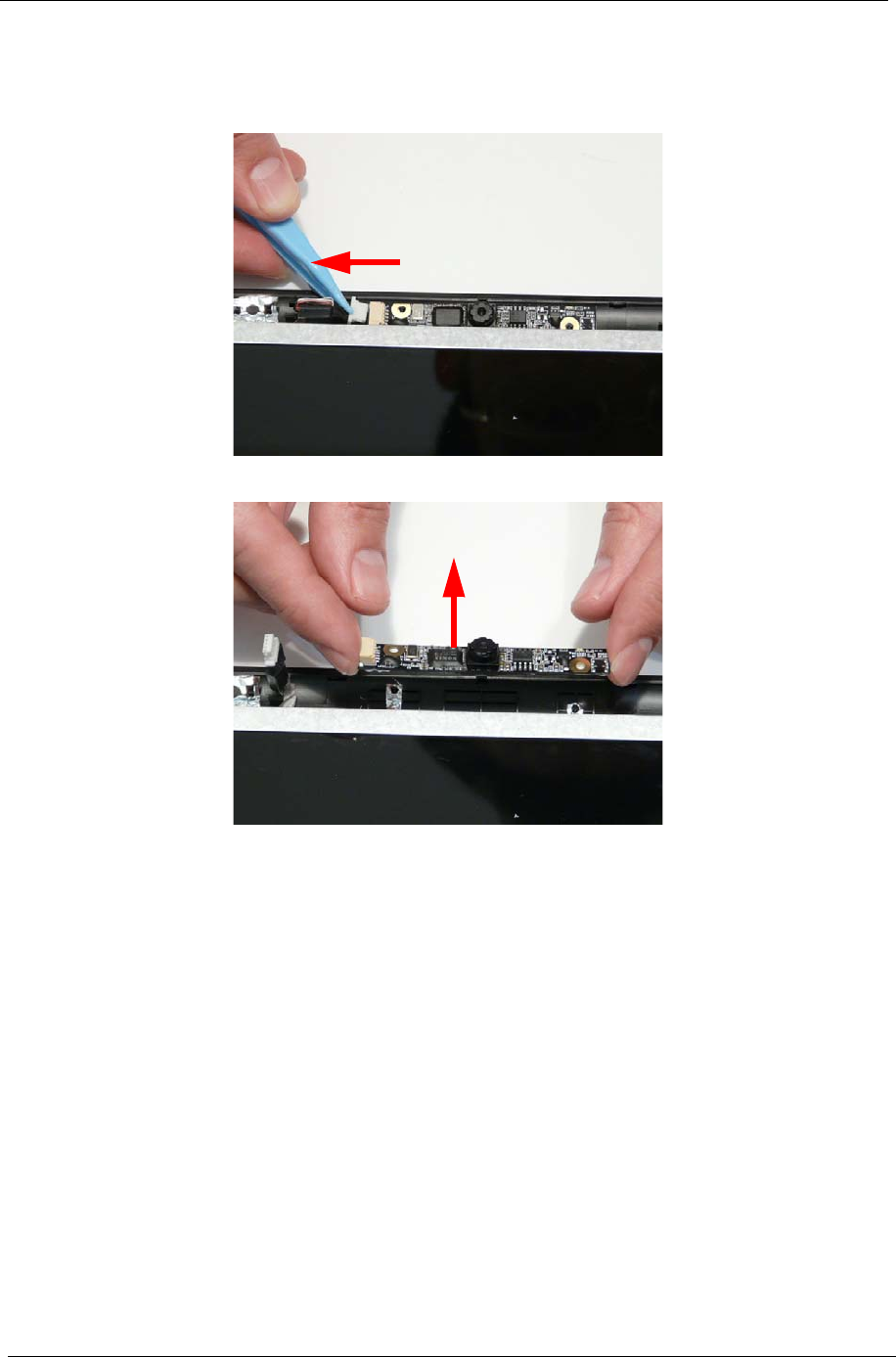

Removing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

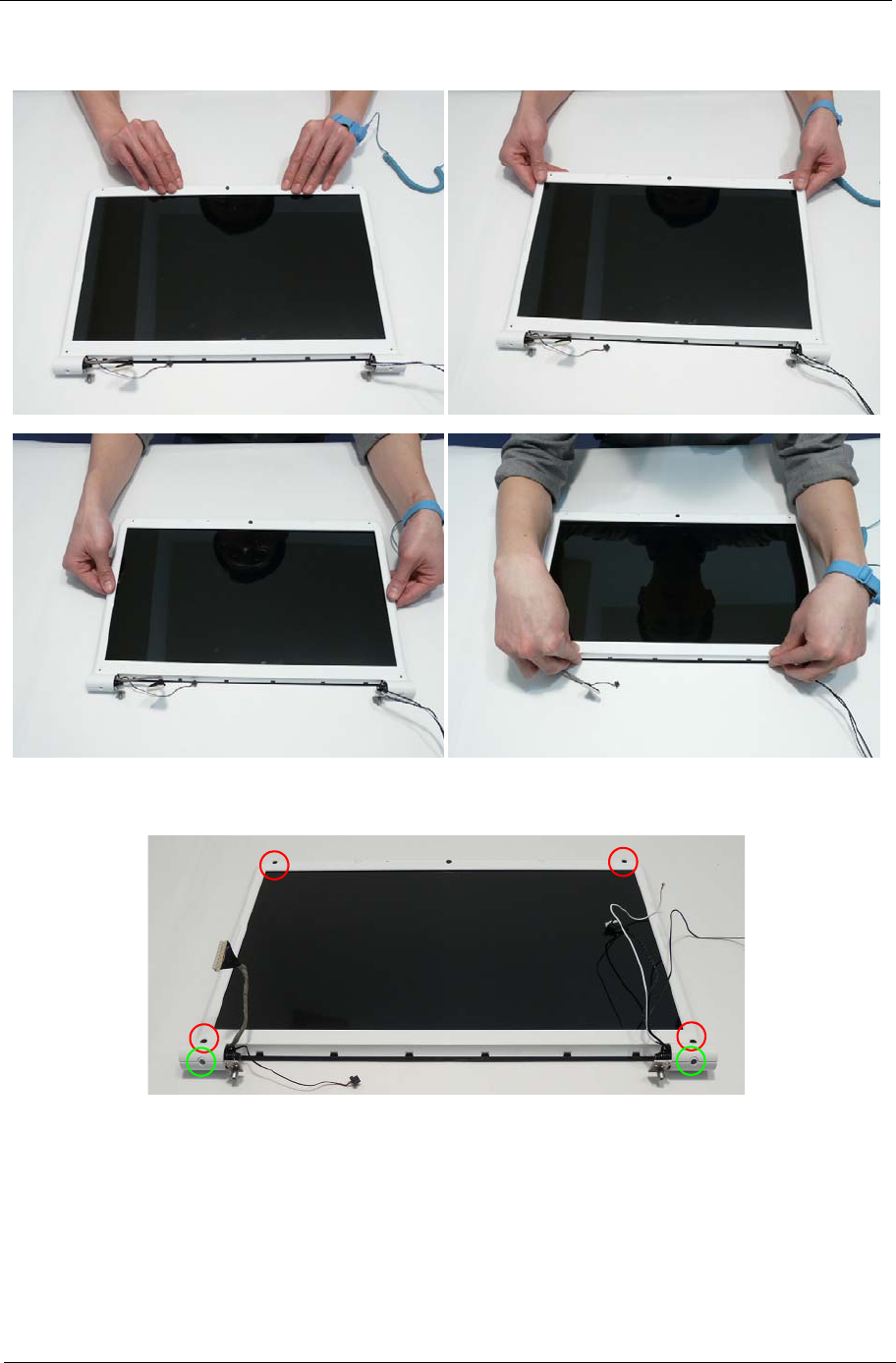

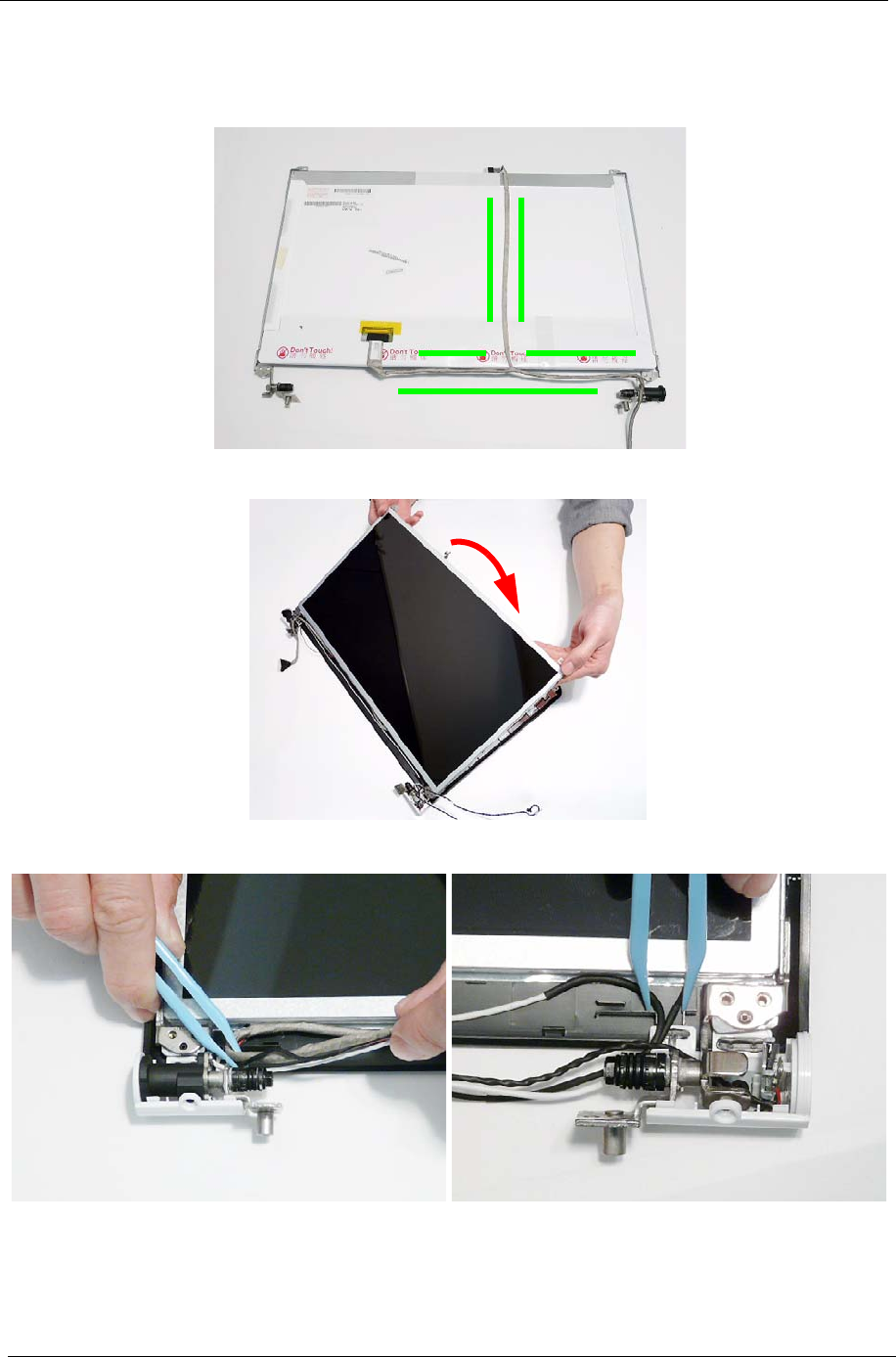

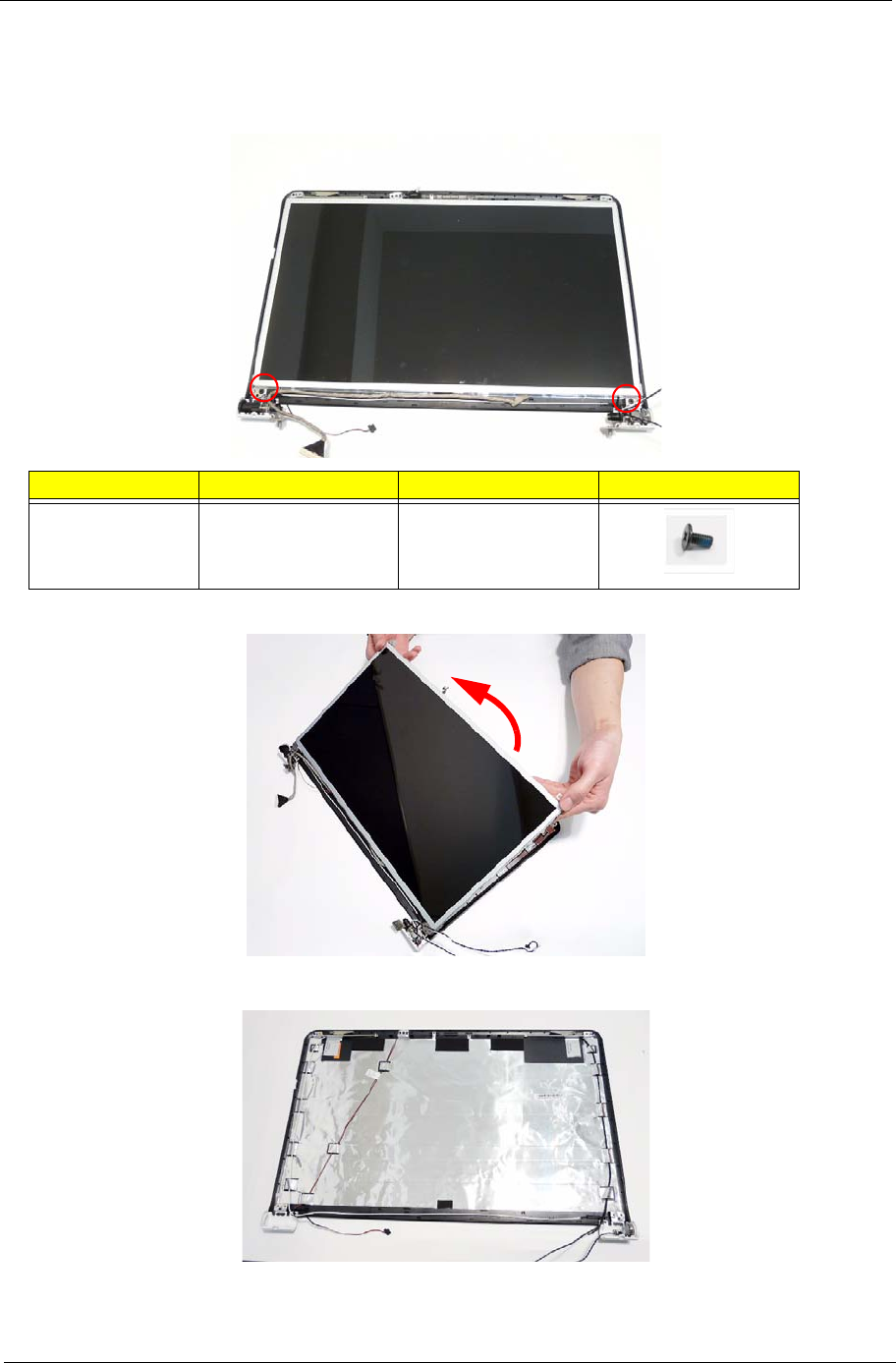

Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

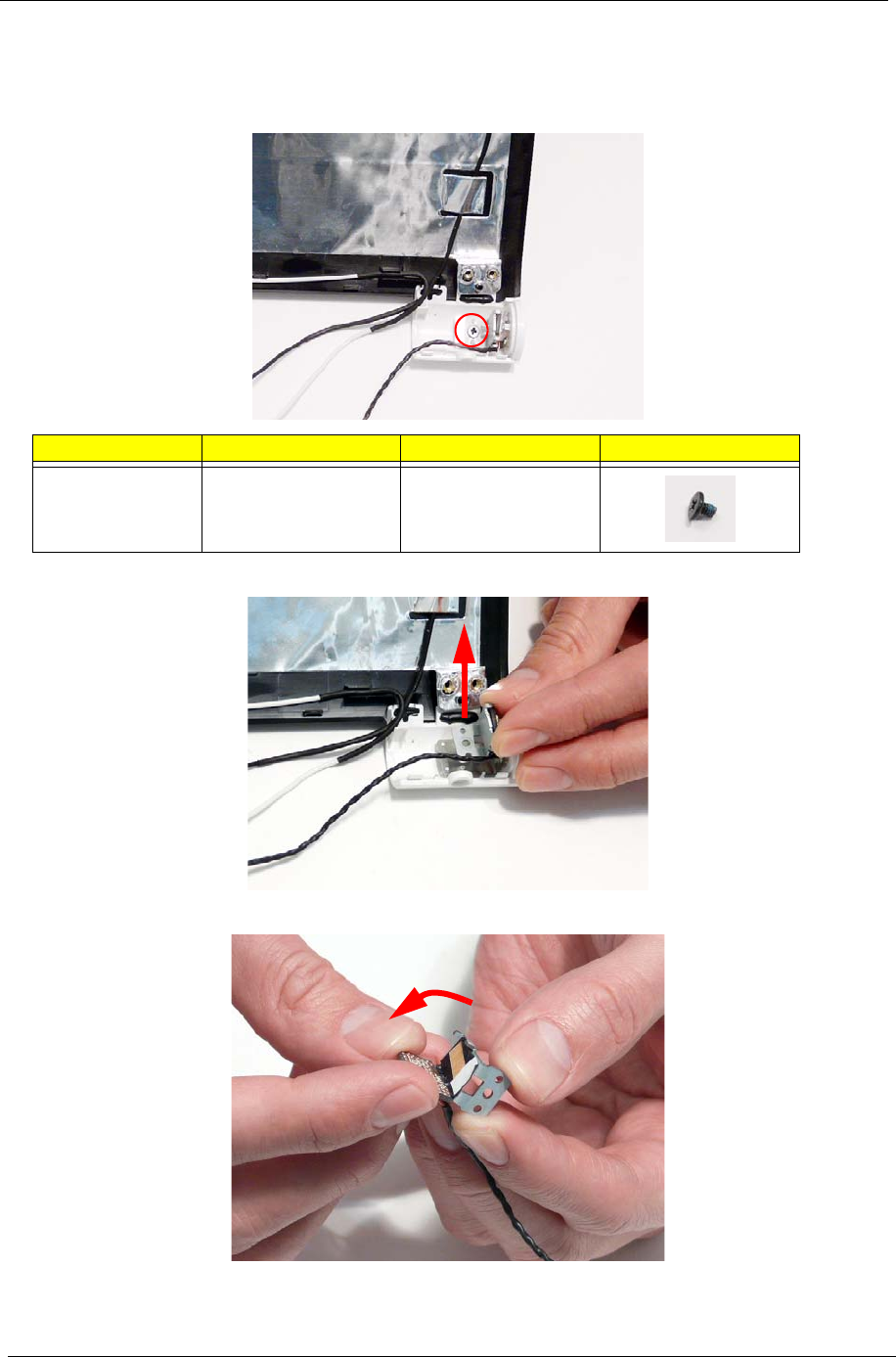

Removing the Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

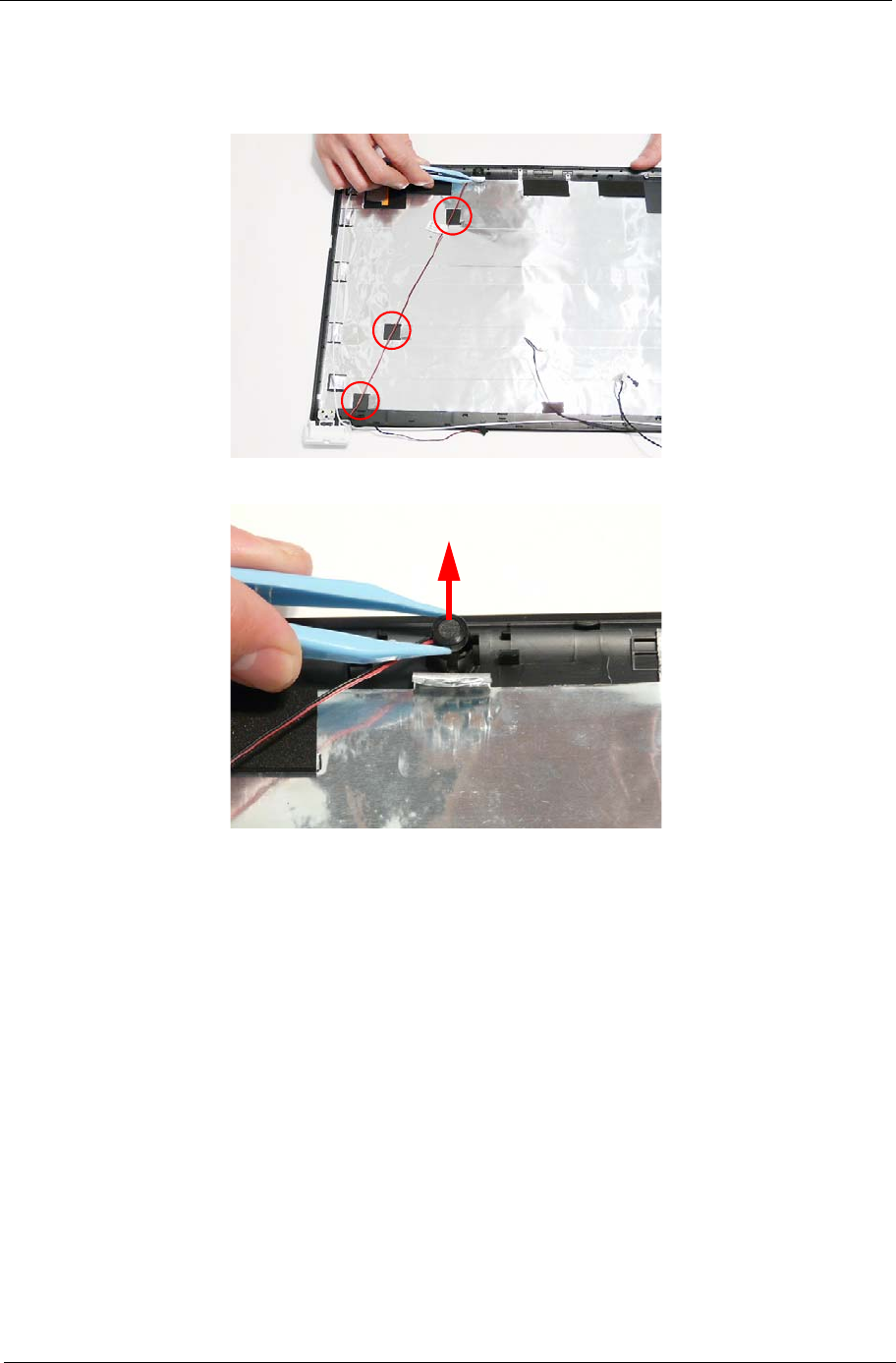

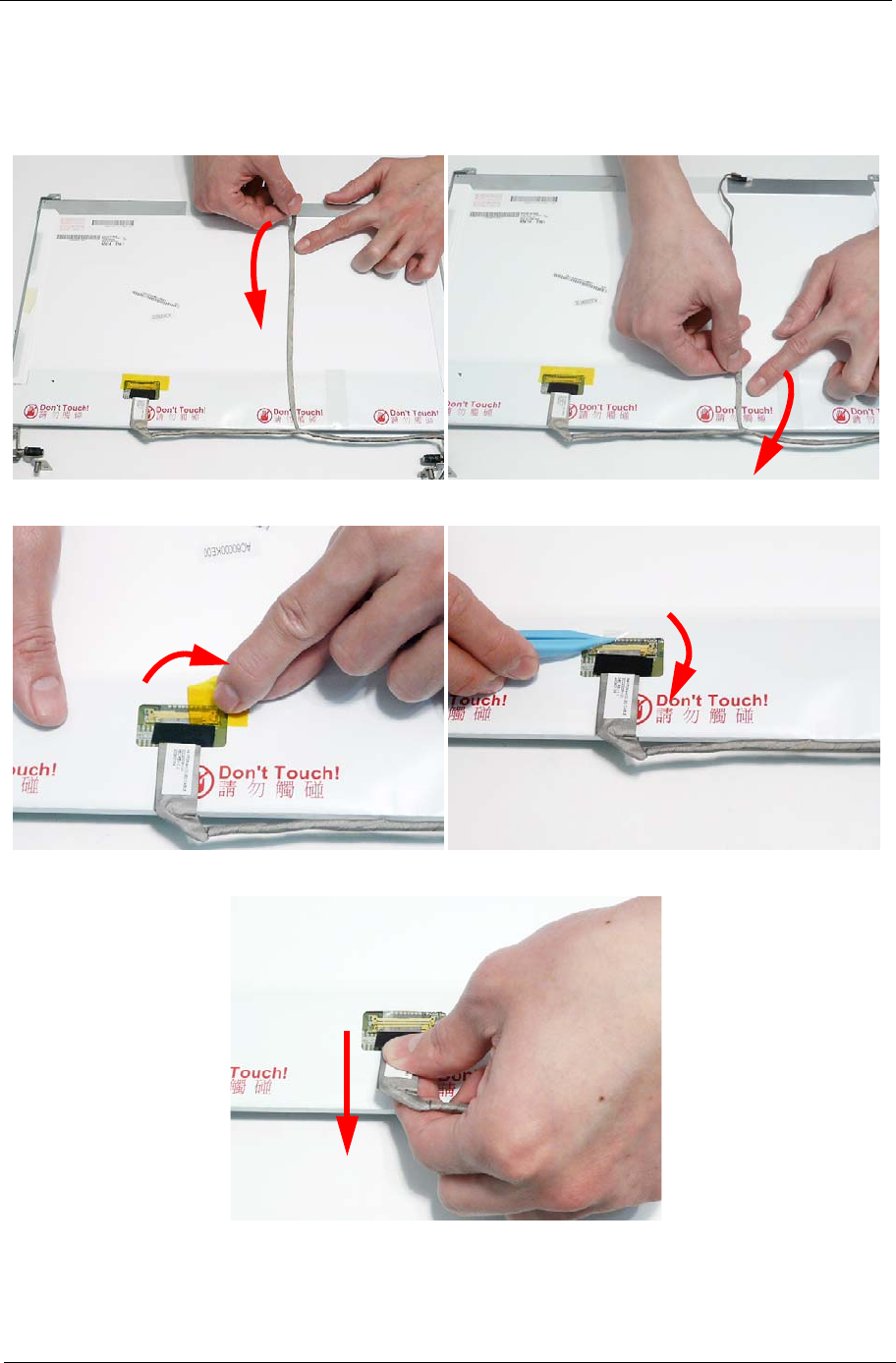

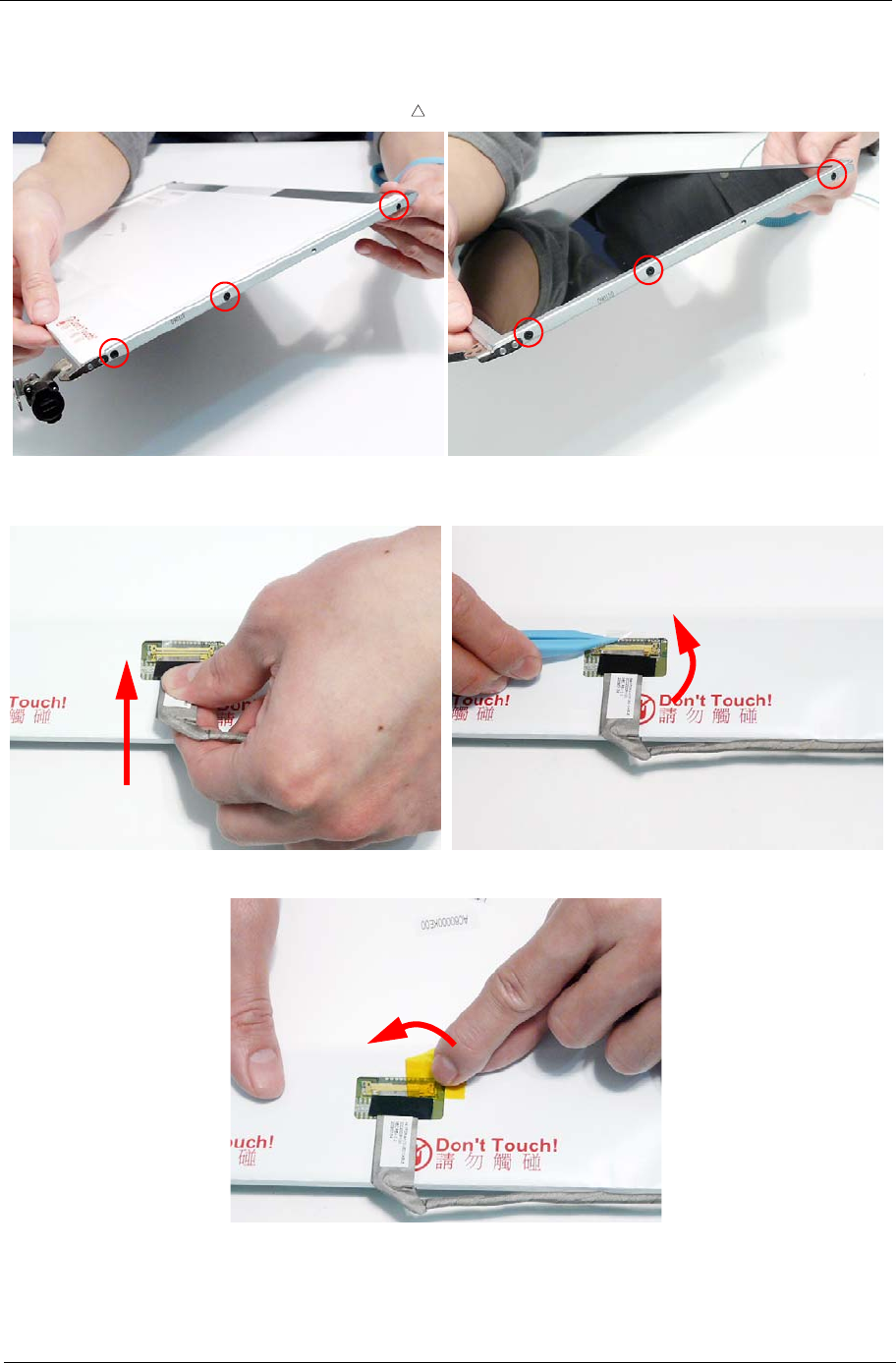

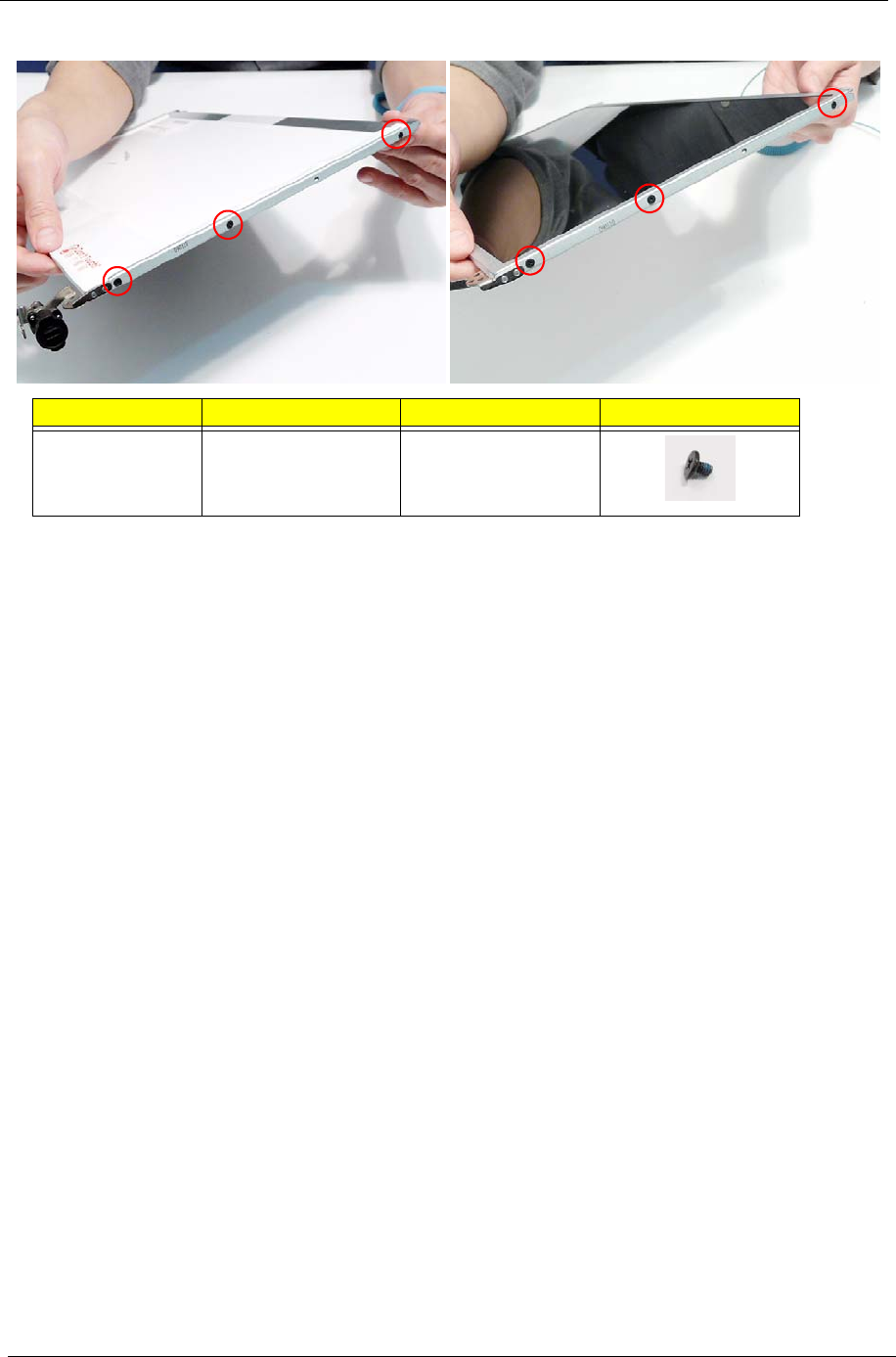

Removing the LCD Brackets and FPC Cable . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Removing the Microphone Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

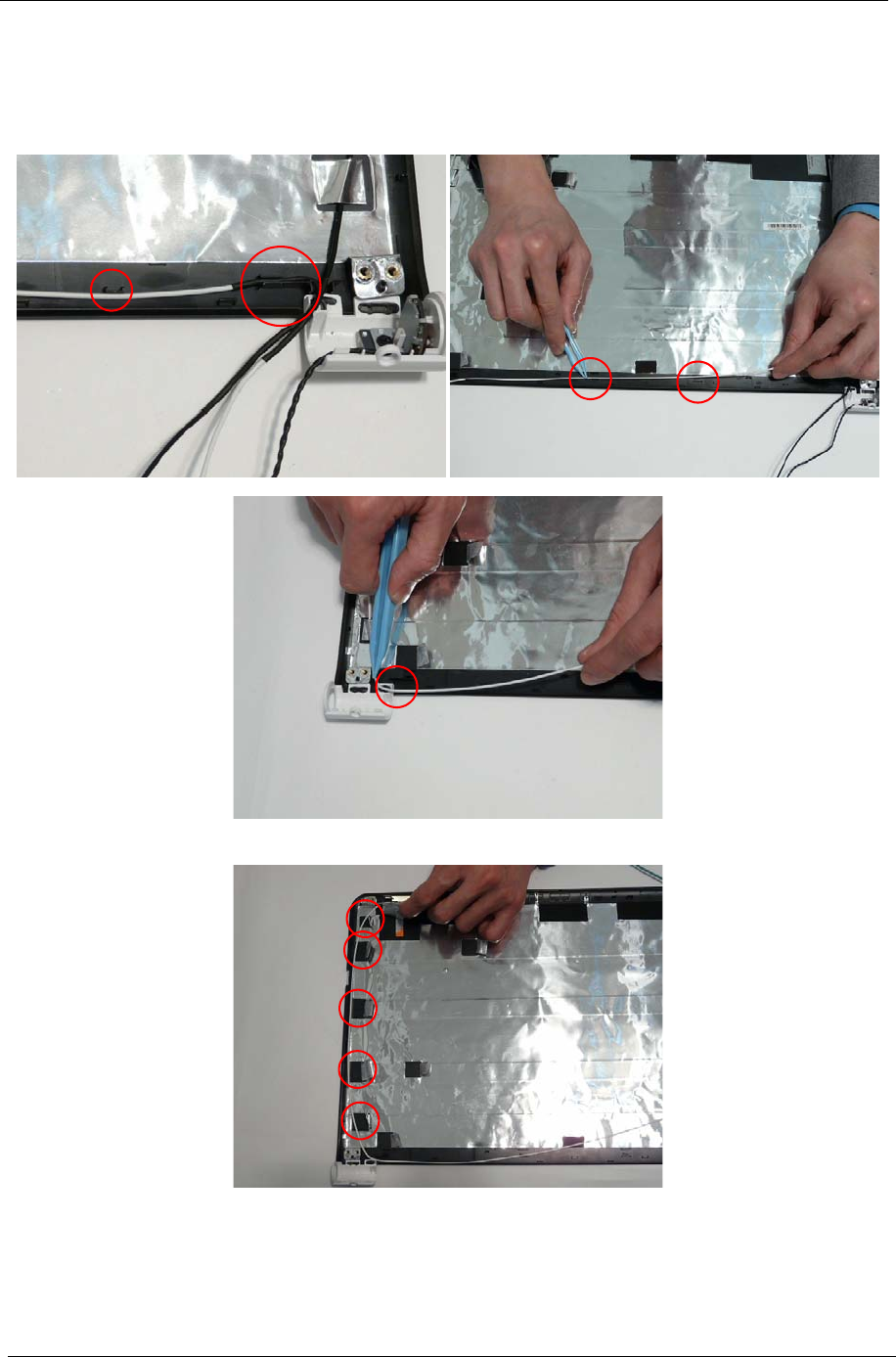

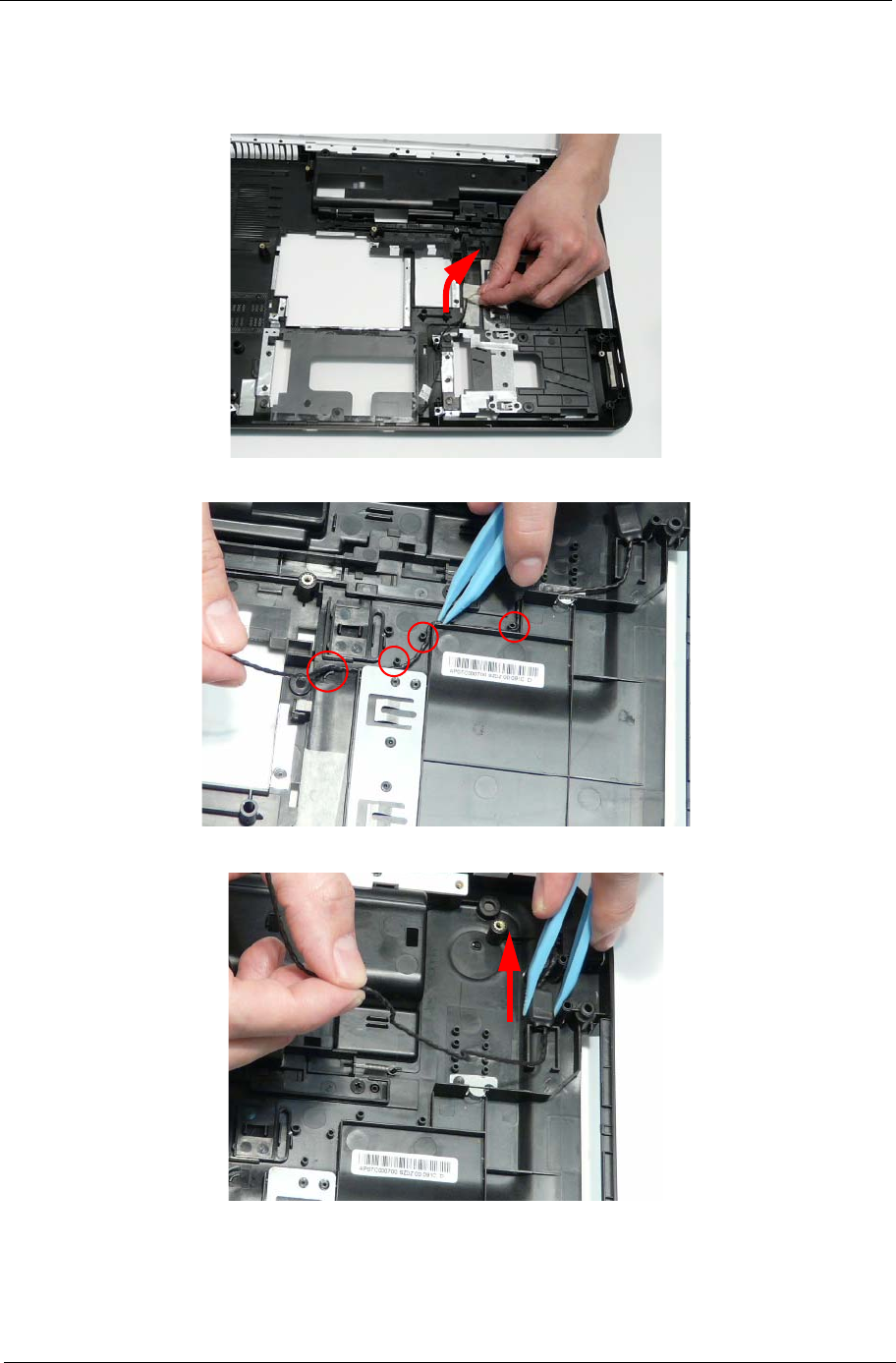

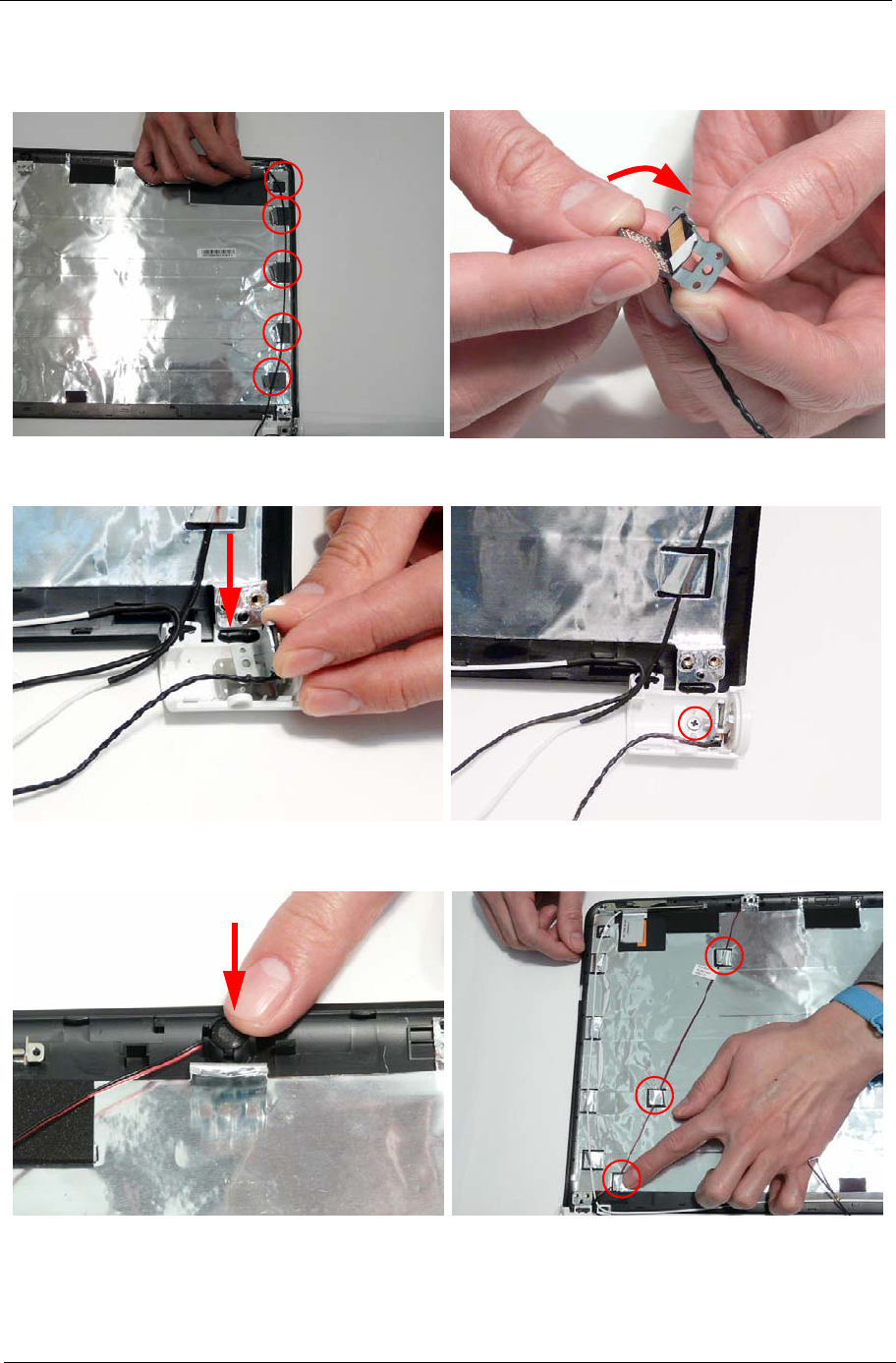

Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
LCD Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Replacing the Antennas, Power Board, and MIC . . . . . . . . . . . . . . . . . . . . . . .100
Replacing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Replacing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Replacing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Main Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Replacing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Replacing the CPU Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Replacing the RJ-11 Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Replacing the USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Replacing the Modem Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

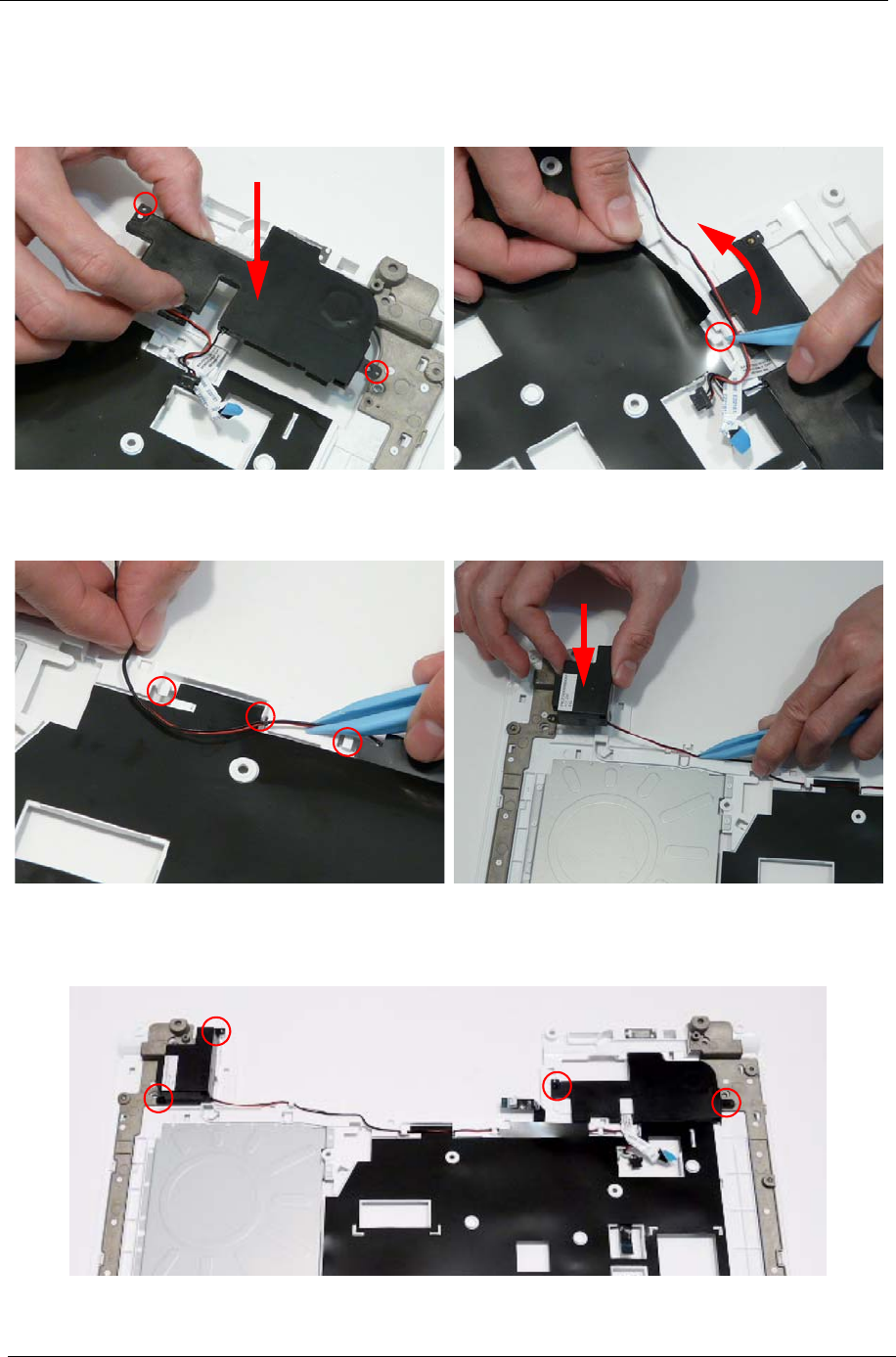

Replacing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Replacing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Replacing the Media Board FFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

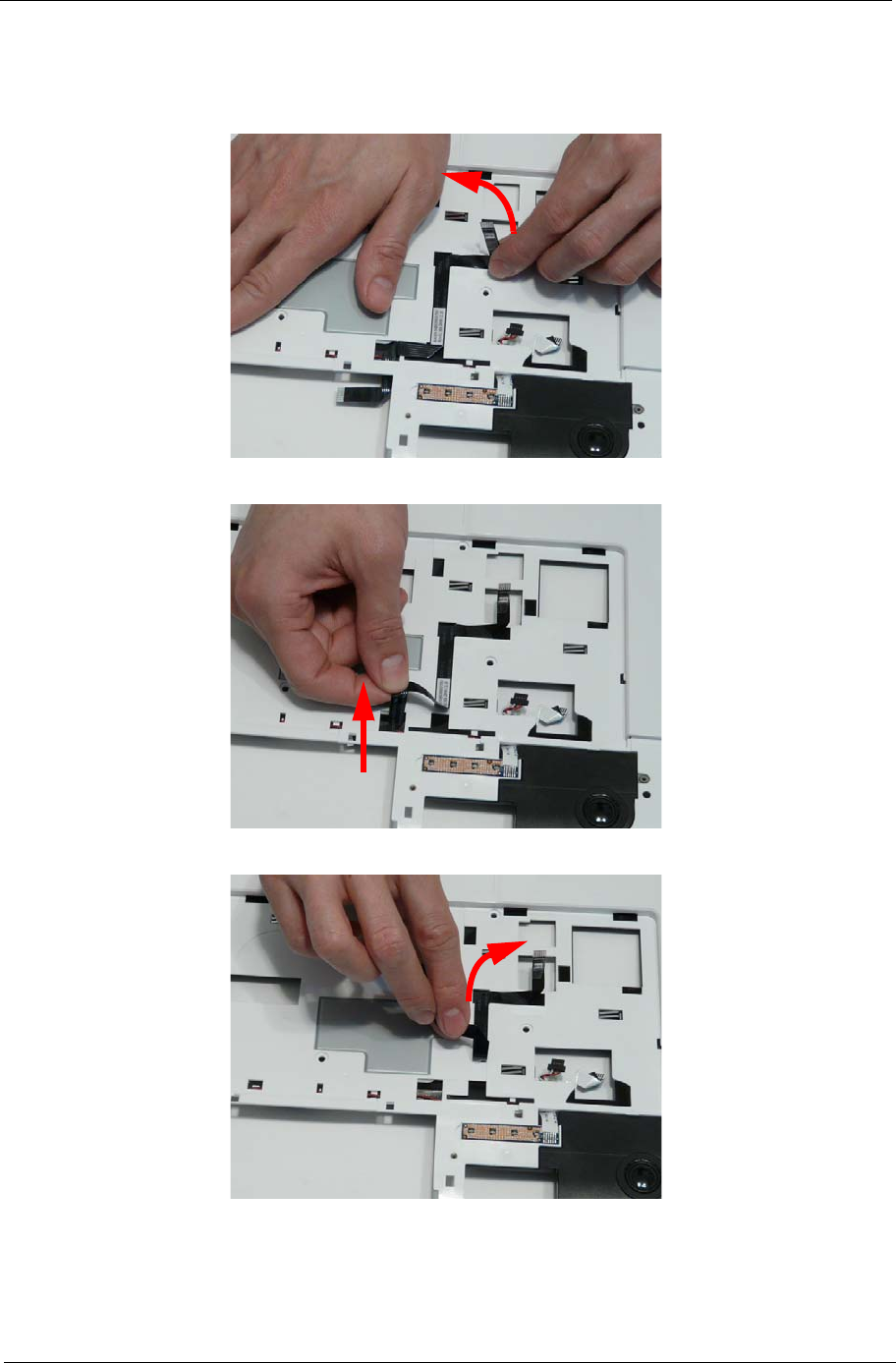

Replacing the TouchPad Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Replacing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Replacing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Replacing the Media Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

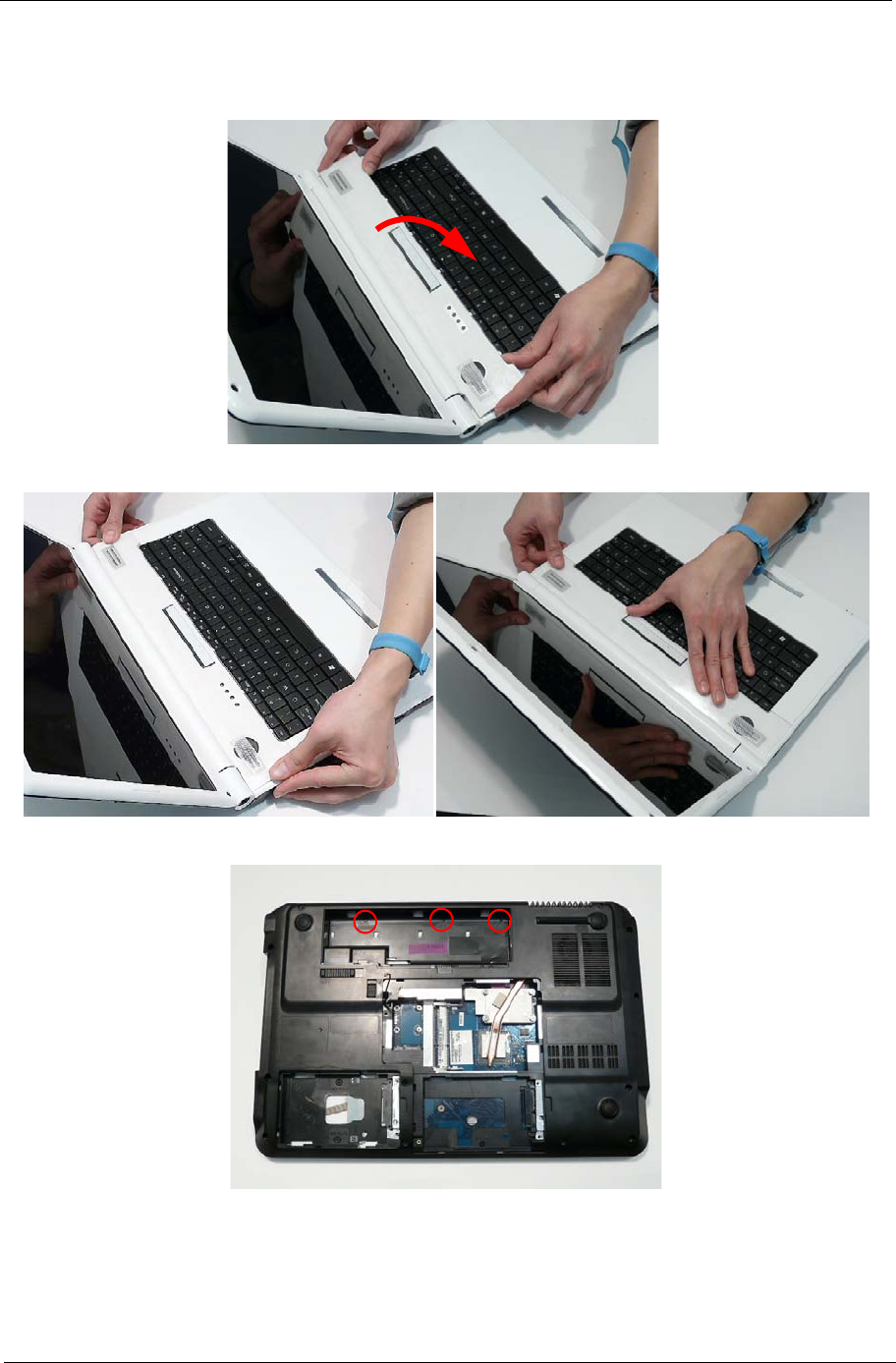

Replacing the Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

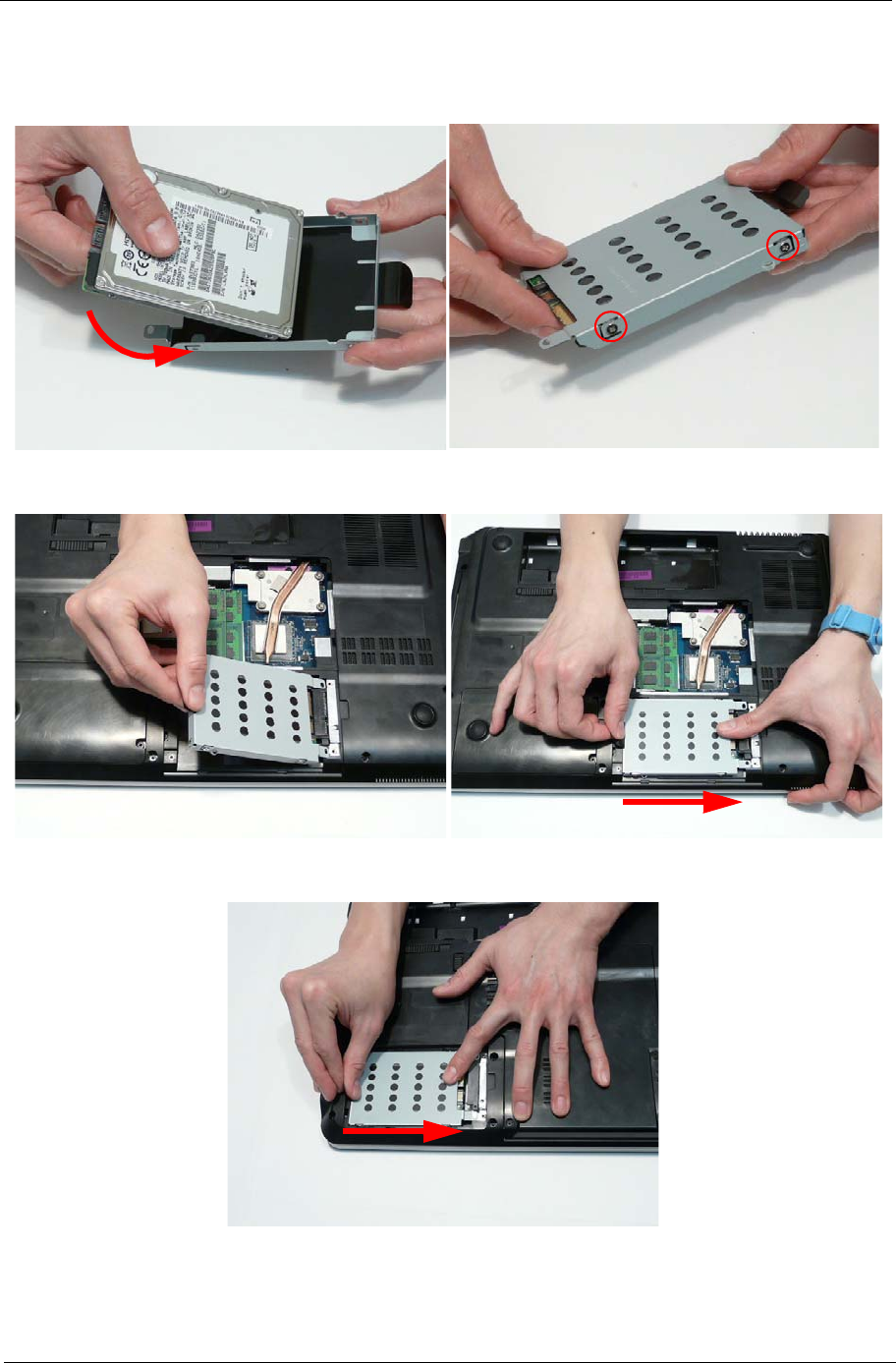

Replacing the Hard Disk Drive Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
Replacing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Replacing the DIMM Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Replacing the ODD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Replacing the Lower Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Replacing the SD Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

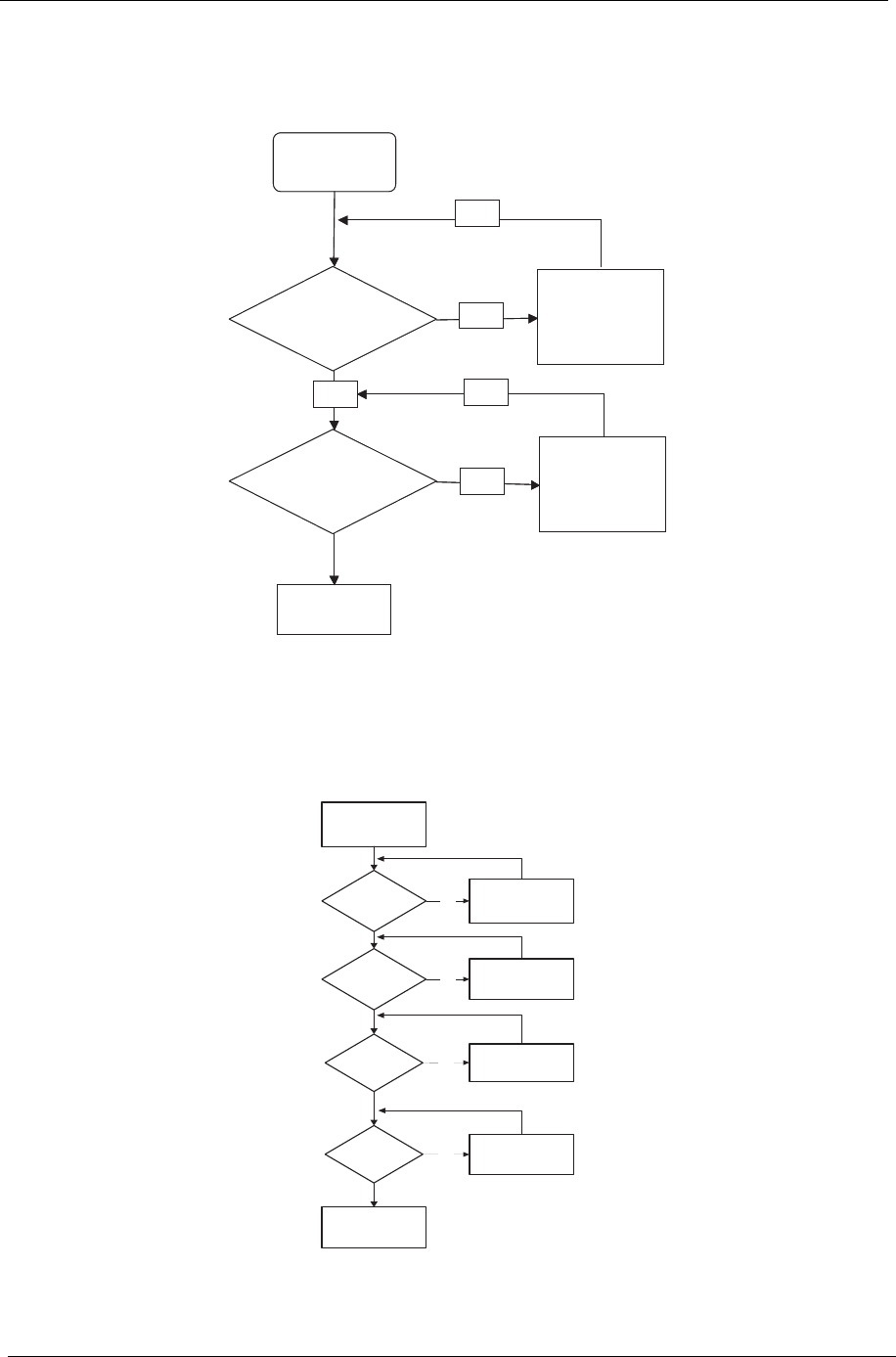

Troubleshooting 133
Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
IX
Table of Contents
Power On Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
No Display Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Random Loss of BIOS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Built-In Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
TouchPad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Internal Speaker Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Internal Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
HDD Not Operating Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
ODD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
USB Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Modem Function Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Wireless Function Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
BT Unit Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Function Board Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
Thermal Unit Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
External Mouse Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Other Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
Chipset POST Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

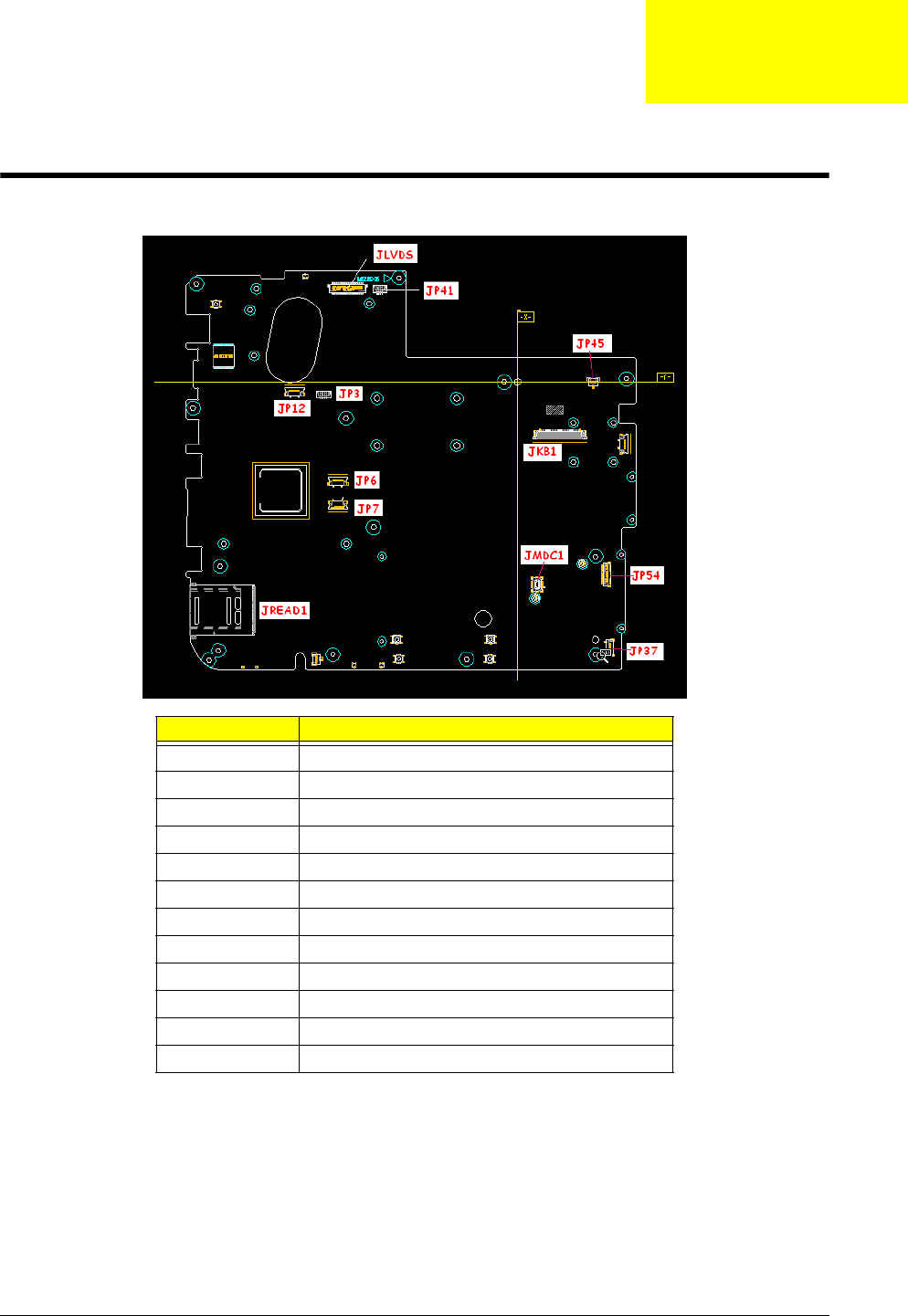

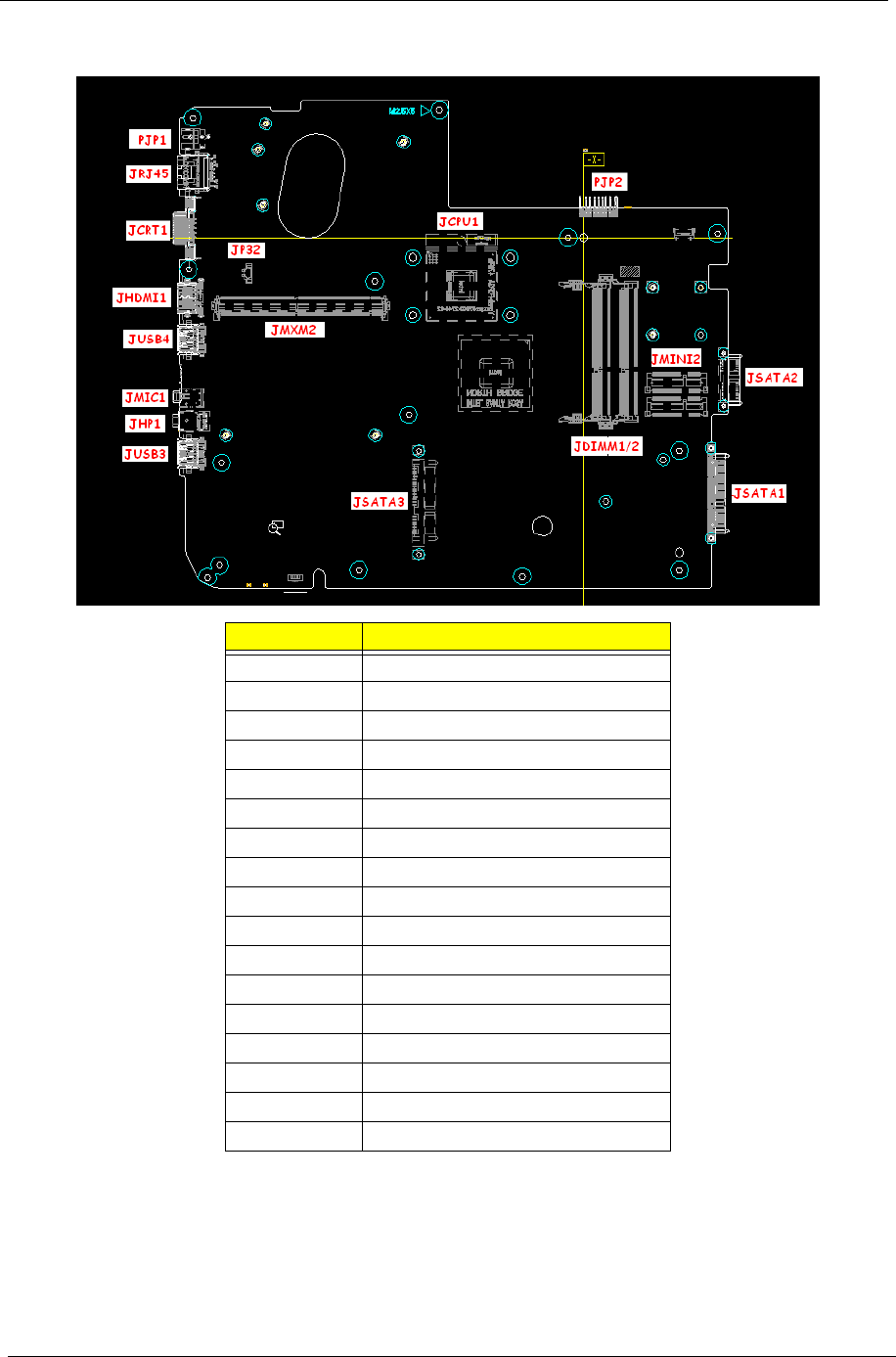

Jumper and Connector Locations 155
Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

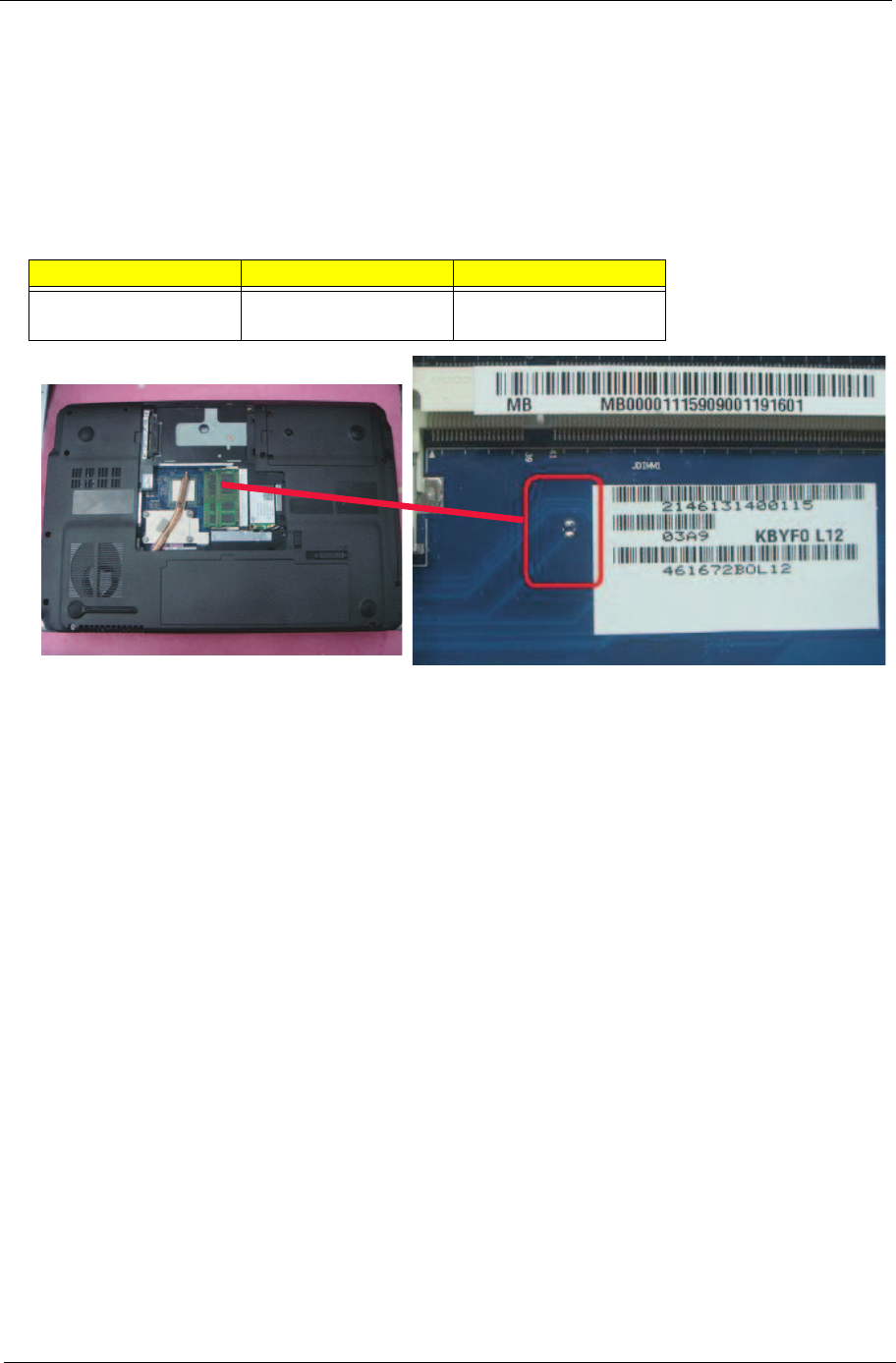

Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
Clearing Password Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
FRU (Field Replaceable Unit) List 161
Packard Bell EasyNote LJ61 Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . .162

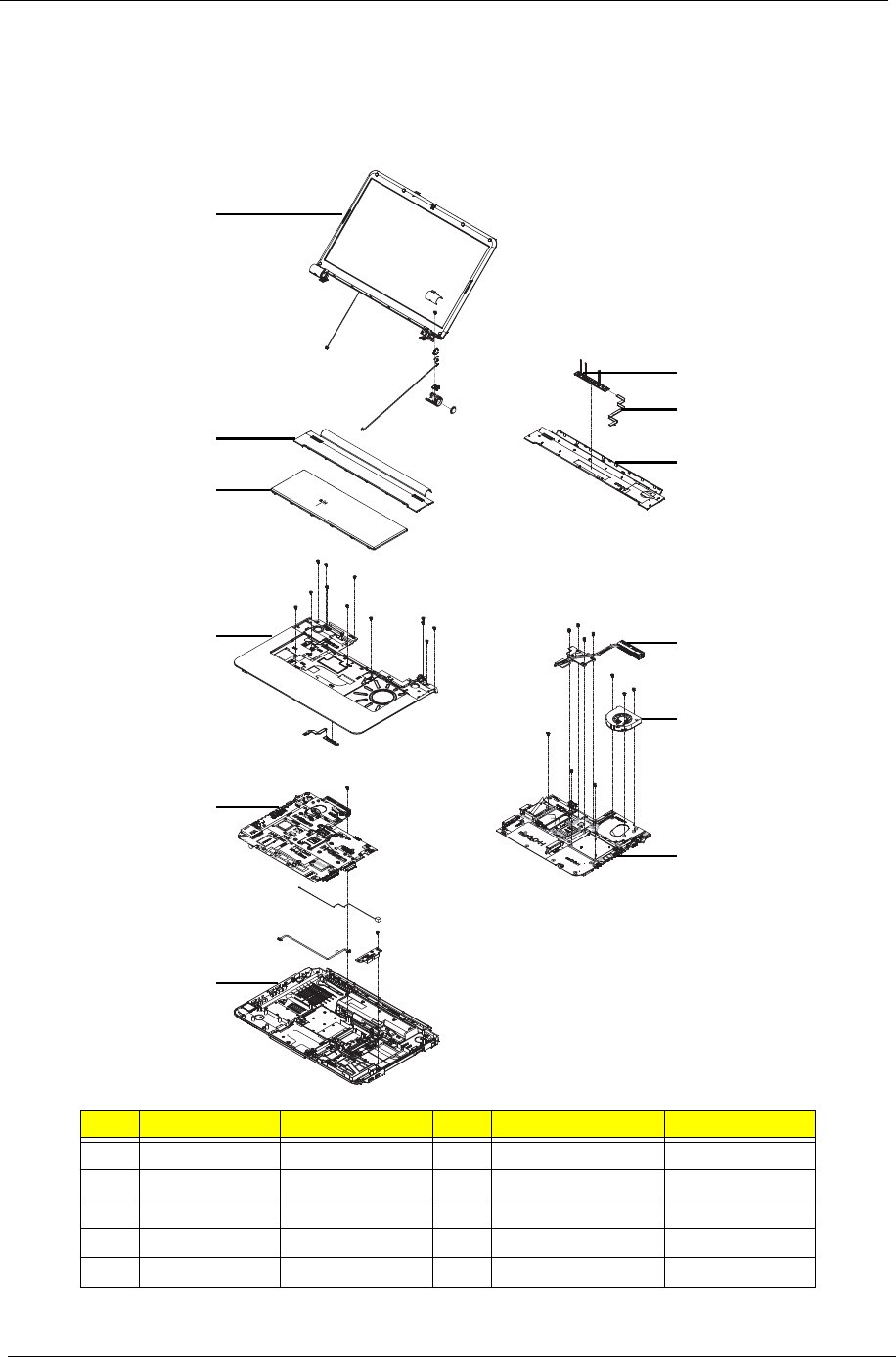

Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Rear Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

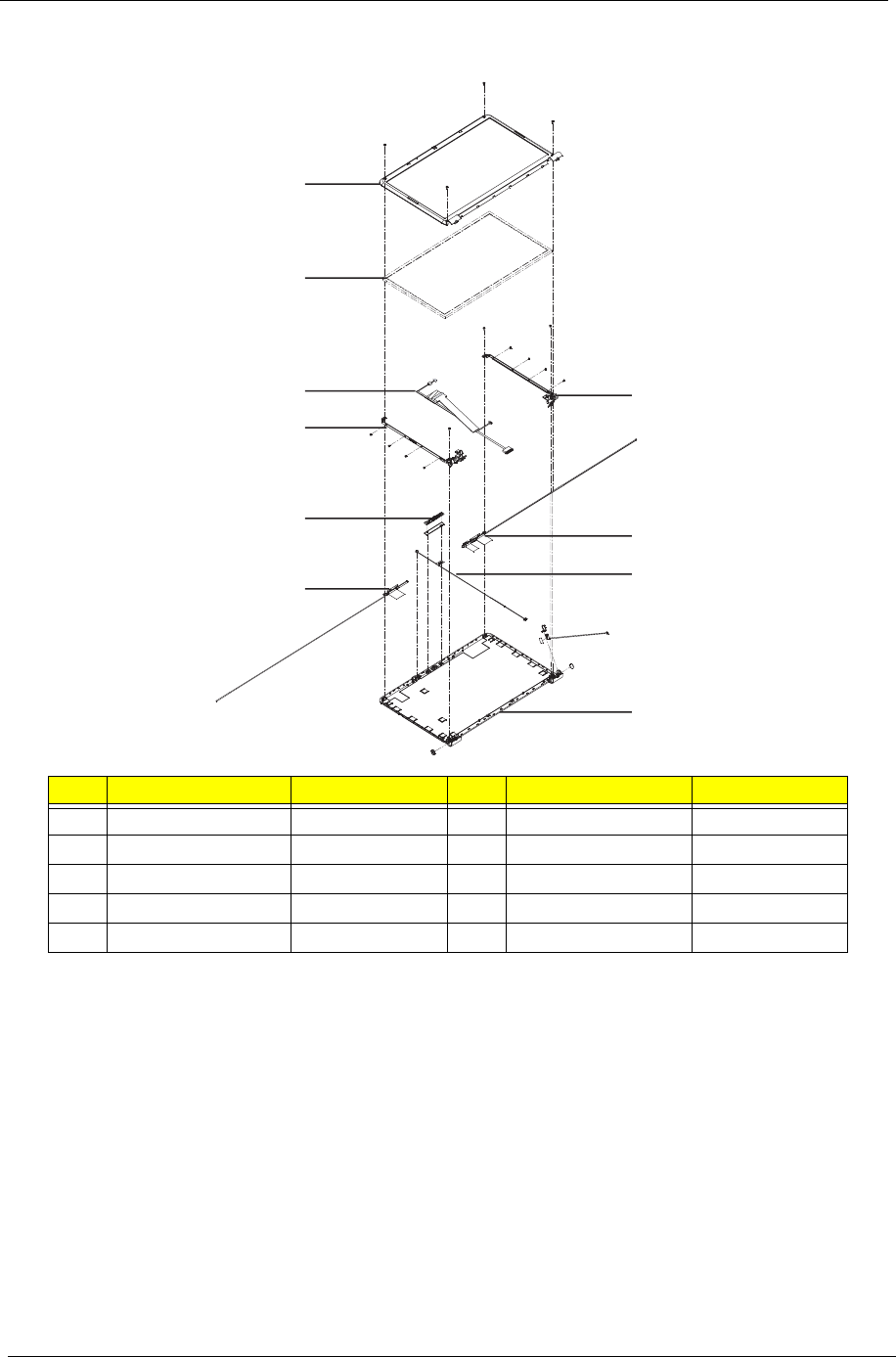

LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164

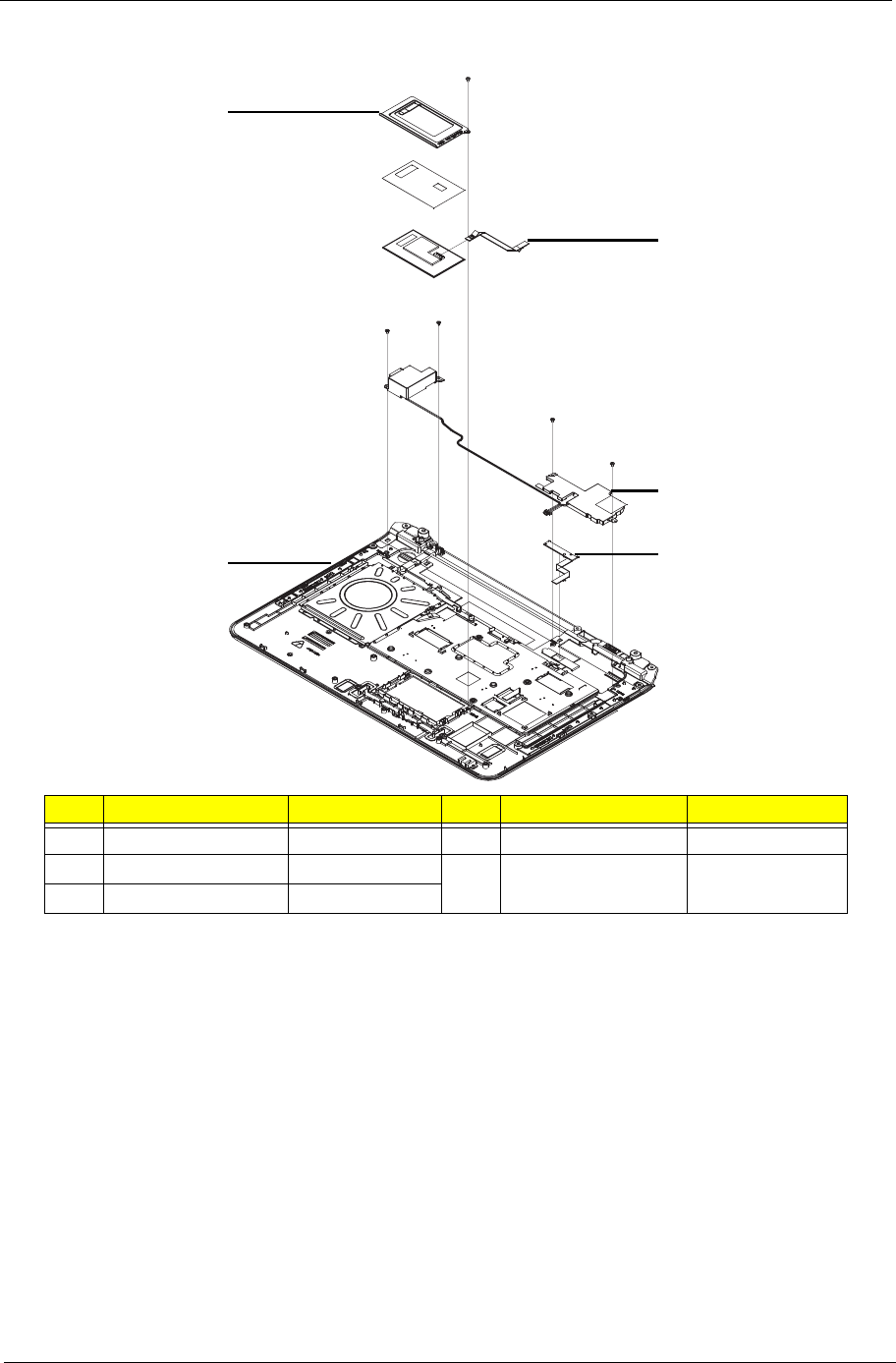

Base Top Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165

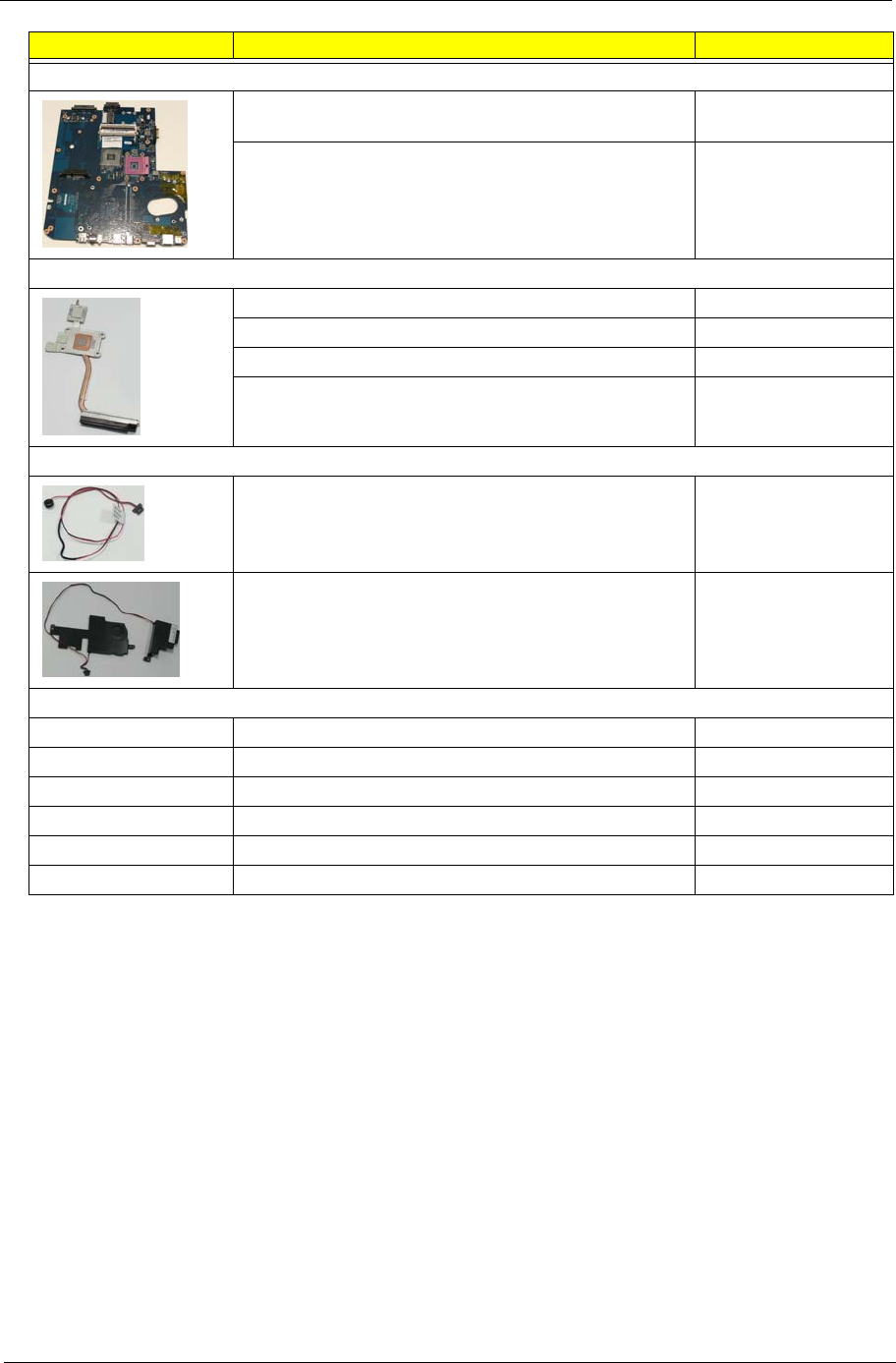

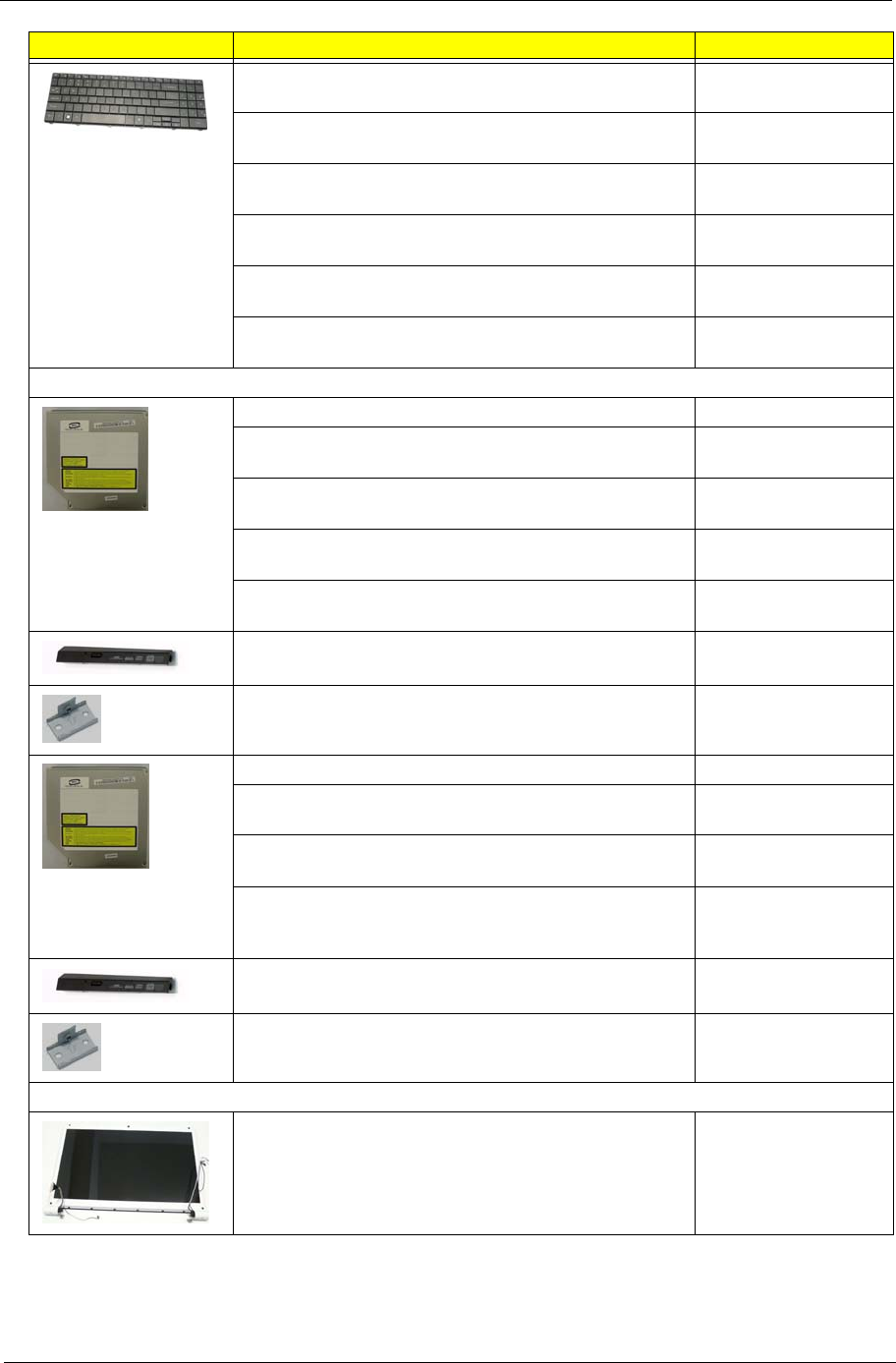

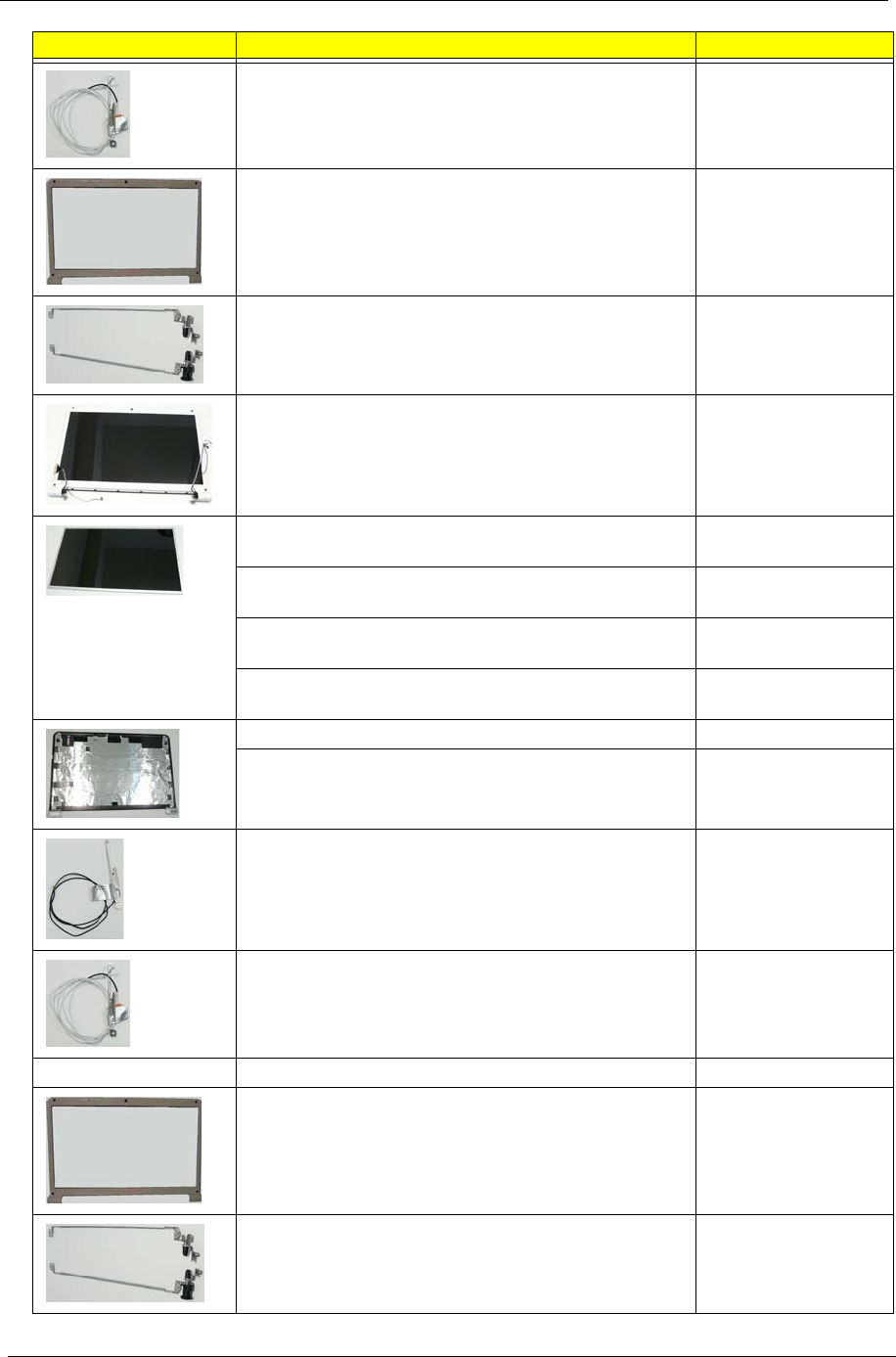

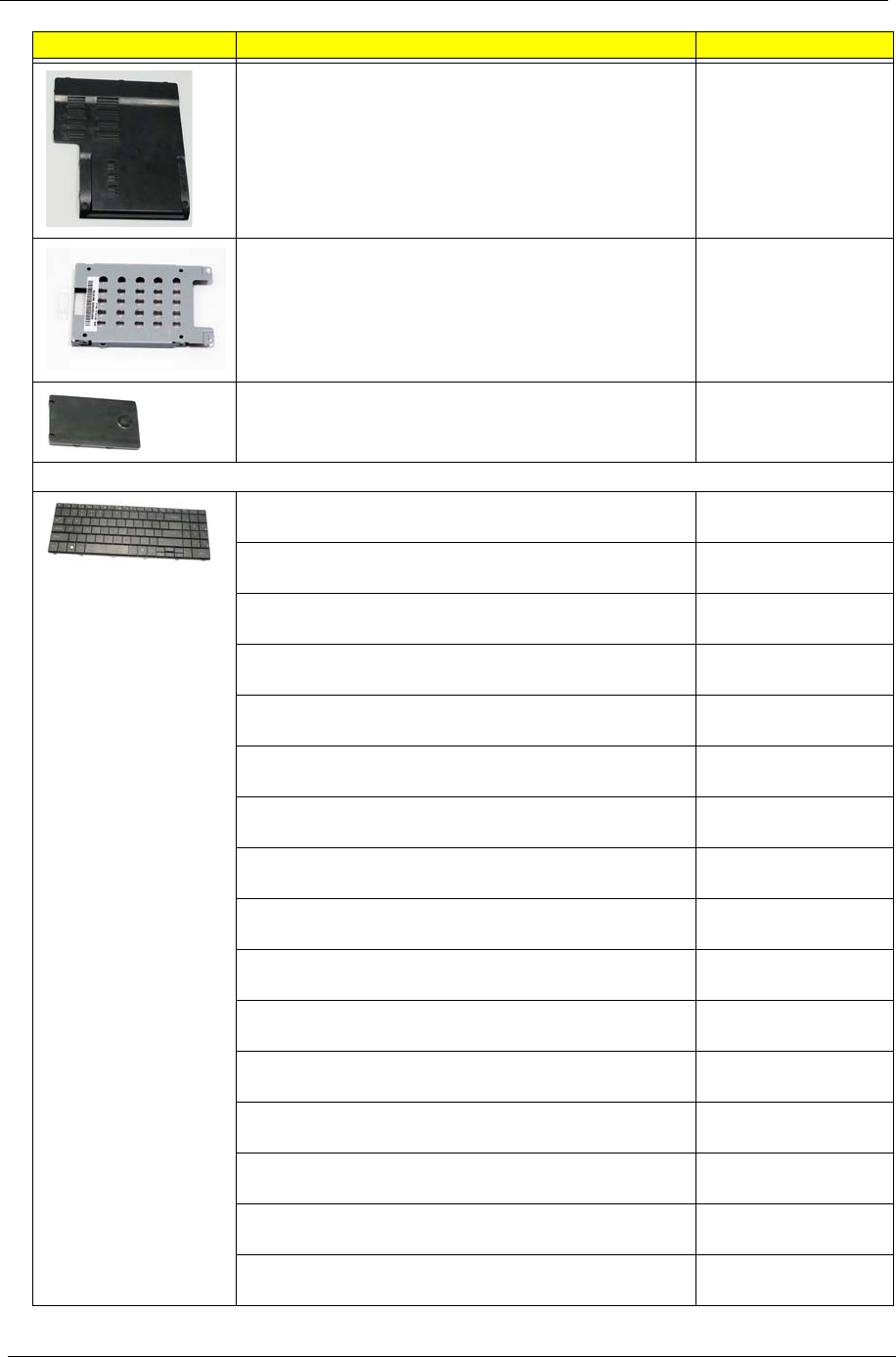

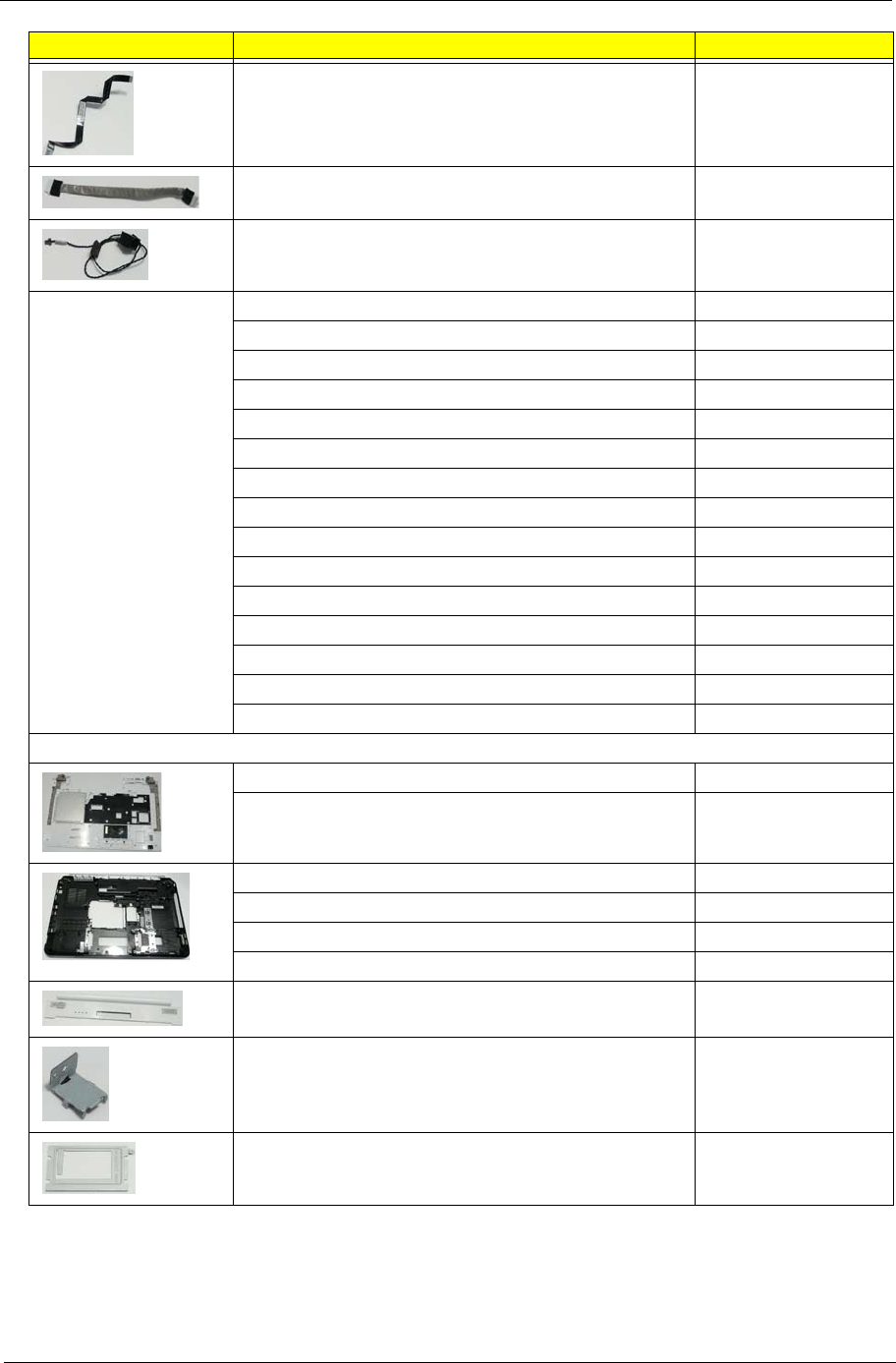

Packard Bell EasyNote LJ61 FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
Screw List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Model Definition and Configuration 176
Packard Bell EasyNote LJ61 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Test Compatible Components 181
Microsoft® Windows® Vista Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Online Support Information 187
Index 189
X
Table of Contents
Chapter 1 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
NOTE: Items marked with * denote only selected models.
Operating System
•Genuine Windows® Vista™
Platform
•AMD Athlon X2 QL-64 2.1GHz
•1MB Cache
•667MHz Bus Speed
System Memory
•3072MB DDR2
•On board with two 200-pin +1.8V DDRII SO-DIMM connector, supporting DDR II 667/800 SDRAM
memory interface design, 0MB DDR RAM on board, Two DDR SODIMM slot. Maximum memory:
2GB per slot. 4GB total.
Display
•Screen resolution: 1600x900
•Monitor size 17.3 inch
•Technology and ratio TFT
Graphics
•ATI Mobility Radeon™ HD3200 up to 1407MB Hypermemory
Storage subsystem
•SATA
•9.5mm, 2.5" HDD Support with 120GB/160GB/200GB/250GB
•Support Ultra DMA100, S.M.A.R.T
• 5400 RPM
•External USB FDD
Optical Drive
•DVDRW R9
Chapter 1
2Chapter 1
Audio
•Chipset: Realtek ALC272
•Integrated on motherboard or on PCI Slot Integrated
•Sound Stereo
•Dolby sound room
I/O Interface
•15 pin CRT port
•HDMI port
•MIC In
•90W DC-in jack for AC Adapter
•Four External USB 2.0 jacks
•RJ-11 jack for Modem
•RJ-45 jack for LAN
•5 in 1 connector
Dimensions and Weight
•Chassis dimensions: 412mmx280mmx38.6mm
•Weight: 3.4Kg
Communication
•Ethernet: 10/100/ GigaLAN Ethernet
•WIFI: Wireless b/g
Power subsystem
•Full ACPI 1.0B supported
Special keys and controls
•Power Button
•Launch Manager Button
•Backup Date Button
•Enable/Disable Wireless Button
•Enable/Disable Touch Pad Button
•Enable/Disable Mute Button
•Reduce Volume Button
•Increase Volume Button
Environment
•Temperature:
•Operating: 5 °C to 35 °C
•Non-operating: -20 °C to 65 °C
Chapter 1 3
•Humidity (non-condensing):
•Operating: 20% to 80%
•Non-operating: 20% to 80%
NOTE: Items marked with * denote only selected models.
4Chapter 1
System Block Diagram
Power On/Off CKT.
Touch Pad
CRT Conn.
LPC BUS
BGA-528
MDC 1.5
Conn
Int.KBD
BANK 0, 1, 2, 3
USB Conn
x4
A link
Express2
DC/DC Interface CKT.
AMD S1G2 Processor
3.3V 48MHz
Hyper Transport Link
16 x 16
Clock Generator
ICS9LPRS488B
CIR
Fan Control
Power Circuit DC/DC
uPGA-638 Package
200pin DDRII-SO-DIMM X2
ATI RS780M
EC ROM
1.8V DDRII 667/800
HDA Codec
ALC272
Memory BUS(DDRII)
BGA-528
HD Audio
ATI SB700
Thermal Sensor
ENE KB926
Audio AMP
TPA6017
LCD Conn.
Bluetooth
Conn
3.3V 24MHz
Phone Jack x2
RTC CKT.
Dual Channel
S-ATA
SATA HDD
Conn.
USB/B Conn.
ADM1032
BTN/B Conn.
port 0
USB port 0,1,2,6
CMOS
Camera
USB port 0,1,2,6
USB
LED/B Conn. SATA ODD
Conn.
HDMI Conn.
PCI-Express 16x
MXM III VGA/B
RJ45
LAN(GbE)
B5784M
MINI Card x2
TV-Tuner WLAN
PCI-Express 1x
port 2
USB port 3 USB port 12 USB port4
port 3port 1,2
5 in 1
Socket
Mono AMP
(for Woofer)
Digital/Analog MIC.
Int. MIC
Media/B Conn.
FUN/B Conn.
BIOS ROM
SPI
Card Reader
RTS5159
port1
Second SATA
HDD Conn.
Chapter 1 5
Your Notebook tour
After knowing your computer features, let us show you around your new computer.
Front View
Component Icon Description
Ventilation fan Helps cool internal components.
Warning: Do not work with the notebook resting on your
lap. If the air vents are blocked, the notebook may become
hot enough to harm your skin.
Caution: Do not block or insert objects into these slots. If
these slots are blocked, your notebook may overheat
resulting in unexpected shutdown or permanent damage to
the notebook.
Caution: Provide adequate space around your notebook
so air vents are not obstructed. Do not use the notebook on
a bed, sofa, rug, or other similar surface.
Ventilation fan
6Chapter 1
Left View
Component Icon Description
Kensington™
lock slot Secure your notebook to an object by connecting a
Kensington cable lock to this slot.
Power connector Plug the AC adapter cable into this connector.
Ethernet jack Plug an Ethernet network cable into this jack. Plug the other
end of the cable into a cable modem, DSL modem, or an
Ethernet network jack.
Monitor port Plug an analog VGA monitor or projector into this port.
HDMI out jack HDMI HDMI Plug an HDMI device, such as a high definition
television, into this optional jack.
USB port Plug USB devices (such as a diskette drive, flash drive,
printer, scanner, camera, keyboard, or mouse) into these
ports.
Microphone jack Plug a microphone into this jack.
Headphone jack Plug amplified speakers or headphones into this jack. The
built-in speakers are turned off when speakers or
headphones are plugged into this jack.
• Headphone with SPDIF support
Memory card
reader Insert a memory card from a digital camera, MP3 player,
PDA, or cellular telephone into the memory card reader.
The memory card reader supports Memory Stick®, Memory
Stick Pro®, MultiMediaCard™, Secure Digital™, and xD-
Picture Card™ cards.
Ethernet
jack USB
port
Kensington
lock slot Power
connector Monitor
port HDMI out
jack Microphone
jack
Headphone
jack
Memory card
reader
USB
port
Chapter 1 7
Right View
Rear View
Component Icon Description
USB port Plug a USB device (such as a diskette drive, flash drive,
printer, scanner, camera, keyboard, or mouse) into this
port.
DVD drive Insert CDs or DVDs into this drive.
Modem jack Plug a dial-up modem cable into this optional jack.
Power button Press to turn the power on or off. You can also configure
the power button for Sleep/Resume mode.
Component Icon Description
Ventilation fan Helps cool internal components.
Warning: Do not work with the notebook resting on your
lap. If the air vents are blocked, the notebook may become
hot enough to harm your skin.
Caution: Do not block or insert objects into these slots. If
these slots are blocked, your notebook may overheat
resulting in unexpected shutdown or permanent damage to
the notebook.
Caution: Provide adequate space around your notebook
so air vents are not obstructed. Do not use the notebook on
a bed, sofa, rug, or other similar surface.
DVD drive
USB port Modem
jack Power
button
Ventilation fan
8Chapter 1
Bottom View
Component Icon Description
Battery Provides power when the notebook is not plugged into AC
power.
Battery lock Slide to unlock the battery.
Battery latch Slide to release the battery.
Memory bay Memory modules are located in this bay.
Hard drive bay The hard drive is located in this bay.
Ventilation slots
and cooling fan Helps cool internal components.
Warning: Do not work with the notebook resting on your
lap. If the air vents are blocked, the notebook may become
hot enough to harm your skin.
Caution: Do not block or insert objects into these slots. If
these slots are blocked, your notebook may overheat
resulting in unexpected shutdown or permanent damage to
the notebook.
Caution: Provide adequate space around your notebook
so air vents are not obstructed. Do not use the notebook on
a bed, sofa, rug, or other similar surface.
Ventilatio
n
slots and
cooling fa
n
Battery
Battery
latch
Battery
lock
Memory/
Hard drive bay
Hard drive
bay
Chapter 1 9
Keyboard Area (selected models)
Component Icon Description
Speakers Left and right speakers deliver stereo audio output.
Status indicators Inform you when a drive is in use or when a button has
been pressed that affects how the keyboard is used.
Keyboard Provides all the features of a full-sized, computer keyboard.
Power indicator • LED on - Notebook is on.
• LED blinking - Notebook is in Sleep or Hybrid Sleep
mode.
• LED off - Notebook is off.
Battery charge
indicator • LED orange - Battery is fully charged.
• LED blinking orange - Battery is charging.
• LED blinking red - Battery charge is very low.
• LED solid red - Battery is malfunctioning.
Important: This LED only lights up when your notebook is
connected to AC power or the battery charge is very low.
Touchpad Provides all the functionality of a mouse.
Capacitive touch
keys Press to access capacitive touch key function.
Keyboard
Capacitive
touch keys
Status
indicators
Speakers
Touchpad
Power/Battery
indicators
10 Chapter 1
LCD Panel
Component Icon Description
Webcam Use to let others see who they are communicating with
when making VoIP calls.
Microphone Use to talk through when making Voice over Internet
Protocol (VoIP) calls.
Webcam
Microphone
Chapter 1 11
Status Indicators
Status indicators inform you when a drive is being used or when a button has been pressed that affects how
the keyboard is used. The status indicators are located below the screen.
Indicator Icon Description
Bluetooth • LED on - Bluetooth communication is turned on
• LED off - Bluetooth communication is turned off
Hard drive or disk
drive • LED blinking - The drive is being accessed
• LED off - The drive is not being accessed
Num lock • LED on - Num lock is turned on
• LED off - Num lock is turned off
Caps lock • LED on - Caps lock is turned on
• LED off - Caps lock is turned off
Battery charge
indicator • LED blue - Battery is fully charged
• LED red - Battery is charging
Important: This LED only lights up when your notebook is
connected to AC power.
Power indicator • LED on - Notebook is on.
• LED blinking - Notebook is in Sleep or Hybrid Sleep mode.
• LED off - Notebook is off.
12 Chapter 1
TouchPad Basics
The following items show you how to use the TouchPad:
• Move your finger across the TouchPad (1) to move the cursor.
• Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and
execution functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the TouchPad is the same as clicking the left button.
NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to
finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not
increase the TouchPad’s responsiveness.
Function Left Button (2) Right Button (3) Main TouchPad (1)
Execute Quickly click twice. Tap twice (at the same speed
as double-clicking a mouse
button).
Select Click once. Tap once.
Drag Click and hold, then use
finger on the TouchPad to
drag the cursor.
Tap twice (at the same speed
as double-clicking a mouse
button); rest your finger on
the TouchPad on the second
tap and drag the cursor.
Access
context menu Click once.
1
23
Chapter 1 13
Using the Keyboard
Your notebook features a full-size keyboard that functions the same as a desktop computer keyboard. Many of
the keys have been assigned alternate functions, including shortcut keys for Windows, function keys for
specific system operations, and the Num Lock keys for the numeric keypad.
Key Types
The keyboard has several different types of keys. Some keys perform specific actions when pressed alone
and other actions when pressed in combination with another key.
Icon Key Type Description
Function keys Press these keys labeled F1 to F12 to perform actions in
programs. For example, pressing F1 may open help. Each
program uses different function keys for different purposes.
See the program documentation to find out more about the
function key actions.
System keys Press these colored keys in combination with the Fn key to
perform specific actions. See “System Keys” on page 15.
Navigation keys Press these keys to move the cursor to the beginning of a line,
to the end of a line, up the page, down the page, to the
beginning of a document, or to the end of a document.
Fn key Press the Fn key in combination with a colored system key to
perform a specific action.
Windows key Press this key to open the Windows Start menu. This key
can also be used in combination with other keys to open
utilities. See “Windows Keys” on page 14.
Application key Press this key for quick access to shortcut menus and help
assistants in Windows.
Arrow keys Press these keys to move the cursor up, down, right, or left.
Function
keys/
System
keys
F
N
key Windows key Application key Arrow keys
Numeric
keypad/
Navigation
keys
14 Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button;
it launches the Start menu. It can also be used with other keys to provide a variety of
functions:
<>: Open or close the Start menu
<> + <D>: Display the desktop
<> + <E>: Open Windows Explore
<> + <F>: Search for a file or folder
<> + <G>: Cycle through Sidebar gadgets
<> + <L>: Lock your computer (if you are connected to a network domain), or
switch users (if you're not connected to a network domain)
<> + <M>: Minimizes all windows
<> + <R>: Open the Run dialog box
<> + <T>: Cycle through programs on the taskbar
<> + <U>: Open Ease of Access Center
<> + <X>: Open Windows Mobility Center
<> + <BREAK>: Display the System Properties dialog box
<> + <SHIFT+M>: Restore minimized windows to the desktop
<> + <TAB>: Cycle through programs on the taskbar by using Windows Flip 3-D
<> + <SPACEBAR>: Bring all gadgets to the front and select Windows Sidebar
<CTRL> + <> + <F>: Search for computers (if you are on a network)
<CTRL> + <> + <TAB>: Use the arrow keys to cycle through programs on the
taskbar by using Windows Flip 3-D
Note: Depending on your edition of Windows Vista, some shortcuts may not function
as described.
Chapter 1 15
System Keys
The computer employs hotkeys or key combinations to access most of the computer’s controls like screen
brightness, Bluetooth and WiFi.
To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Function Key Description
Turn the capacitive touch key LEDs on or off.
Enter Sleep mode or Hybrid Sleep mode. Press the power button to leave Sleep
mode.
Toggle the notebook display in the following order: The LCD. An external monitor
or projector (a monitor or projector must be plugged into the monitor port or
HDMI port on your notebook). Both displays at the same time.
Turn the optional Bluetooth radio on or off. Warning: Radio frequency wireless
communication can interfere with equipment on commercial aircraft. Current
aviation regulations require wireless devices to be turned off while traveling in an
airplane. Bluetooth communication devices are examples of devices that provide
wireless communication. Important: The wireless network switch must be in the
ON position for this button to work.
Mute the sound. Press the key combination again to restore the sound.
Turns the display screen backlight off to save power. Press any key to return.
Play/ Pause—Plays or pauses the CD or DVD.
Stop—Stops playing the CD or DVD.
Previous—Skips back one CD track or DVD chapter.
Next—Skips ahead one CD track or DVD chapter.
16 Chapter 1
Using the System Utilities
Acer GridVista (dual-display compatible)
NOTE: This feature is only available on certain models.
To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then
select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the
display box and then click the check box Extend my windows desktop onto this monitor. Finally, click
Apply to confirm the new settings and click OK to complete the process.
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen. To access this function, please go to Start´ All Programs and click on Acer GridVista.
You may choose any one of the four display settings indicated below:
Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display
compatible, allowing two displays to be partitioned independently.
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
AcerGridVista is simple to set up:
1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2. Drag and drop each window into the appropriate grid.
3. Enjoy the convenience of a well-organized desktop.
NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's
recommended value.
Chapter 1 17
Hardware Specifications and Configurations
Processor
Processor Specifications
CPU Fan True Value Table
•Throttling 50%: On=100°C, Off=95°C
•OS Shutdown: 105°C
•H/W Shutdown: 86°C
BIOS
System Memory
Item Specification
CPU Mobile AMD Family 11h Processor
Core Logic ·AMD RS780MN
·AMD SB700
CPU Package S1g2 package CPU
Power 35 / 25 W
Item CPU
Speed Cores Mfg.
Tech cache
Size Package Power Acer P/N
Athlon64X2 QL60 1.9G 2 65nm 1M PGA 638 35W KC.AQL02.600
Athlon64X2 QL62 2.0G 2 65nm 1M PGA 638 35W KC.AQL02.620
Athlon64X2 QL64 2.1G 2 65nm PGA 638 35W KC.AQL02.640
Athlon QL65 2.1G 1 65nm 1M PGA 638 35W KC.AOL02.650
Turion RM72 2.1G 2 65nm 1M PGA 638 35W KC.TRM02.720
Turion RM74 2.2G 2 65nm 1M PGA 638 35W KC.TRM02.740
Turion RM75 2.2G 1 65nm 1M PGA 638 35W KC.TRM02.750
TurionX2 ZM82 2.2G 2 65nm 2M PGA 638 35W KC.TZM02.820
TurionX2 ZM84 2.3G 2 65nm 2M PGA 638 35W KC.TZM02.840
Turion Ultra ZM85 2.3G 1 65nm 2M PGA 638 35W KC.TZM02.850
TurionX2 ZM86 2.4G 2 65nm 2M PGA 638 35W KC.TZM02.860
Turion Ultra ZM87 2.4G 1 65nm 2M PGA 638 35W KC.TZM02.870
SempronM SI40 2.0G 1 65nm 512K PGA 638 25W KC.SSI02.400
SempronM SI42 2.1G 1 65nm 512K PGA 638 25W KC.SSI02.420
Fan On Temp (°C) Fan Speed (rpm) SPL Spec (dBA)
38 2700 31
42 2900 34
65 3200 37
75 3500 40
Item Specification
BIOS vendor Phoenix
BIOS Version 4.0
Item Specification
Memory controller AMD RS780MN
AMD SB700
Memory size 0MB (onboard)
18 Chapter 1
Memory Combinations
NOTE: Above table lists some system memory configurations. You may combine DIMMs with various
capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be
reversed.
Graphics Controller
DIMM socket number 2
Supports memory size per socket 2048MB
Supports maximum memory size 4096MB
Supports DIMM type 200-pin DDRII SO-DIMM
Supports DIMM Speed 667/800 mHz
Supports DIMM voltage +1.8V
Slot 1 Slot 2 Total Memory
0MB 512MB 512MB
0MB 1024MB 1024MB
0MB 2048MB 2048MB
512MB 512MB 1024MB
512MB 1024MB 1536MB
512MB 2048MB 2560MB
1024MB 0MB 1024MB
1024MB 512MB 1536MB
1024MB 1024MB 2048MB
1024MB 2048MB 3072MB
2048MB 0MB 2048MB
2048MB 512MB 2560MB
2048MB 1024MB 3072MB
2048MB 2048MB 4096MB
Item Specification
VGA Chip ATI Mobility Radeon™ HD 4570 Intel® GL40/GM45 Express Chipset with
integrated 3D graphics
Graphics Memory 2304 MB of HyperMemory™ (512 MB of
dedicated DDR2 VRAM, up to 1792 MB of
shared system memory)
Up to 1759 MB of Intel® Dynamic Video
Memory Technology 5.0 (128 MB of
dedicated video memory, up to 1631 MB of
shared system memory)
Supports • Unified Video Decoder (UVD)
• OpenEXR High Dynamic-Range (HDR)
technology
• Shader Model 4.1
• Microsoft® DirectX® 10.1Mobile
• Dual independent display support
• Intel® Graphics Media Accelerator
4500M/4500MHD (Intel® GMA 4500M/
4500MHD)
• Microsoft® DirectX® 10
• Dual independent display support
Item Specification
Chapter 1 19
Resolution External resolution/refresh rate:·
2048 x 1536: 75/60 Hz
1920 x 1440: 85/75/60 Hz
1920 x 1200: 75/60 Hz
1920 x 1080: 100/85/75/60 Hz
1680 x 945: 100/85/75/60 Hz
1600 x 1200: 120/100/85/75/60 Hz
1600 x 900: 120/100/85/75/60 Hz
1400 x 1050: 85/75/60 Hz
1366 x 768: 85/75/60 Hz
1280 x 1024: 120/100/85/75/60 Hz
1280 x 960: 85/75/60 Hz
1280 x 768: 85/75/60 Hz
1280 x 720: 100/85/75/60 Hz
1024 x 768: 120/100/85/75/60 Hz
800 x 600: 120/100/85/72/60 Hz
Supports • 16.7 million colors
• MPEG-2/DVD decoding
• WMV9 (VC-1) and H.264 (AVC) decoding
• HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital
Content Protection) support
Item Specification
VGA Chip ATI Mobility Radeon™ HD 4570 NVIDIA® GeForce® GT 130M Mobile Intel® GM457 Express
Chipset with integrated 3D
graphics
Graphics Memory 2304 MB of HyperMemory™
(512 MB of dedicated DDR2
VRAM, up to 1792 MB of
shared system memory)
Up to 2815 MB of
TurboCache™ (1024 MB of
dedicated DDR2 VRAM, up to
1791 MB of shared system
memory)
Up to 1759 MB of Intel®
Dynamic Video Memory
Technology 5.0 (128 MB of
dedicated video memory, up to
1631 MB of shared system
memory)
Supports • Unified Video Decoder
(UVD)
• OpenEXR High Dynamic-
Range (HDR) technology
• Shader Model 4.1
• Microsoft® DirectX®
10.1Mobile
• Dual independent display
support
• NVIDIA® CUDA™
• PureVideo® HD technology
• OpenEXR High Dynamic-
Range (HDR) technology
• Shader Model 4.0
• Microsoft® DirectX® 10
• Intel® Graphics Media
Accelerator 4500MHD
(Intel® GMA 4500MHD)
• Microsoft® DirectX® 10
Item Specification
20 Chapter 1
LAN Interface
Wireless Module 802.11b/g
Bluetooth
Resolution External resolution/refresh rate:·
2048 x 1536: 75/60 Hz
1920 x 1440: 85/75/60 Hz
1920 x 1200: 75/60 Hz
1920 x 1080: 100/85/75/60 Hz
1680 x 945: 100/85/75/60 Hz
1600 x 1200: 120/100/85/75/60 Hz
1600 x 900: 120/100/85/75/60 Hz
1400 x 1050: 85/75/60 Hz
1366 x 768: 85/75/60 Hz
1280 x 1024: 120/100/85/75/60 Hz
1280 x 960: 85/75/60 Hz
1280 x 768: 85/75/60 Hz
1280 x 720: 100/85/75/60 Hz
1024 x 768: 120/100/85/75/60 Hz
800 x 600: 120/100/85/72/60 Hz
Supports • 16.7 million colors
• MPEG-2/DVD decoding
• WMV9 (VC-1) and H.264 (AVC) decoding
• HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content
Protection) support
Item Specification
LAN Chipset Broadcom BCM5784 for 10/100/1000LAN
LAN connector type RJ45
LAN connector location Left side
Features Support for 10/100/1000
Item Specification
Manufacturer
Model
Modem Device •
Interface
Item Specification
Model
Operating Frequency
Channel Numbers
Transmitter Output Power
Coverage
Receiver Sensitivity
Maximum Receiver Signal
Operating Voltage
Interface
Item Specification
Chapter 1 21
Hard Disk Drive Interface
Item Specification
Vendor Seagate
Model Name ST9160310AS ST9320320AS ST9500325AS
Capacity (MB) 160 320 500
Bytes per sector 512
Data heads 2 4 4
Drive Format
Disks 1 2 2
Spindle speed (RPM) 5,400
Performance Specifications
Buffer size 8 MB
Interface SATA
Internal transfer rate
(Mbits/sec max) 830 1175
I/O data transfer rate
(Mbytes/sec max) 300
DC Power Requirements
Voltage tolerance 5V(DC) +/- 5%
Item Specifications
Vendor & Model Name
Toshiba MK5055/2555GSX Toshiba MK3255/1655GSX
Capacity 500/250GB 320/160GB
Bytes per sector 512
Data heads 4/2 4/2
Drive Format
Disks 2/1 2/1
Spindle speed (RPM) 5400
Performance Specifications
Buffer size 8MB
Interface SATA
Internal transfer rate
(Mbits/sec, max) 363 ~ 952 typical
I/O data transfer rate 3Gbits/s
DC Power Requirements
Voltage +5.0V ± 5%.
22 Chapter 1
Hard Disk Drive Interface (cont)
Item Specifications
Vendor & Model
Name HTS545050
B9A300
HTS545032
B9A300
HTS545025
B9A300
HTS543216
L9A300
Capacity (MB) 500 320 250 160
Bytes per sector 512
Data heads 4 3 2 2
Drive Format
Disks 2 2 1 1
Spindle speed
(RPM) 5400
Performance Specifications
Buffer size 8MB
Interface SATA
Internal transfer
rate 875 MB/s 845 MB/s
I/O data transfer
rate 3 GB/s
DC Power Requirements
Voltage +5.0V ± 5%
Item Specifications
Vendor & Model
Name
WD
WD1600BEVT
WD
WD2500BEVT
WD
WD3200BEVT
WD
WD5000BEVT
Capacity (MB) 160 250 320 500
Bytes per sector 512
Data heads 2 2 3 4
Drive Format
Disks 1 1 2 2
Spindle speed
(RPM) 5400
Performance Specifications
Buffer size 8 MB
Interface SATA
Internal transfer
rate (Mbits/sec,
max)
106 MB max.
I/O data transfer
rate 3 GB/s
DC Power Requirements
Voltage +5.0V ± 5%
Chapter 1 23
Super-Multi Drive Module
Item Specification
Vendor & model name HLDS/GSA-T50, Toshiba Digi/TS-L633A
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (MB/sec) Sustained:
Max 3.5 Mbytes/sec
Sustained:
Max 10 Mbytes/sec
Buffer Memory 2MB
Interface SATA
Applicable disc format Applicable media types:
Writing:
Confirms to DVD+R Version 1.2 and DVD+RW Version 1.3 / DVD+R DL
Version 1.0 /DVD-R Version 2.0 / DVD-RW Version 1.2 / DVD-R DL Version
3.0.
Reading:
DVD single/dual layer (PTP, OTP), DVD-R single/dual layer
DVD+R single/double layer
DVD-RW
DVD+RW
CD-DA
CD-ROM
CD-ROM/XA
Photo-CD, Multi-session, Video CD
CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW
Loading mechanism Drawer (Solenoid Open)
Tact SW (Open)
Emergency Release (draw open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%
Item Specification
Vendor & model name SONY AD-7583S
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (MB/sec) Sustained:
3650 (max.)
Sustained:
10,993 (max.)
Buffer Memory 2 MB
Interface SATA
Applicable disc format Write:
DVD Data & Video
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2,
CD-i, Video-
CD, CD-Text
Read:
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-Video, DVD-Audio,
SACD (Hybrid), UDF DVD, DVD-R, DVD-R DL, DVD-R 3.95 GB, DVD-R
Authoring, DVD-R Multi-Border, DVD-RW, DVD+R, DVD+R DL, DVD+R Multi-
Session, DVD+RW, DVD-RAM V1.0, DVDRAM V2.0 & 2.1 & 2.2
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2,
CD-i, CD-i Bridge, Video-CD (MPEG-1), Karaoke CD, Photo-CD, Enhanced
CD, CD Plus, CD Extra, itrax CD, CD-Text, UDF CD, CD-R, and CD-RW
24 Chapter 1
Blue-Ray Combo Drive Module
Loading mechanism Drawer (Solenoid Open)
Tact SW (Open)
Emergency Release (draw open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%
Item Specification
Vendor & model name Sony BC-5500S
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (MB/sec) Sustained:
Max 2.4 Mbytes/sec
Sustained:
Max 11 Mbytes/sec
Buffer Memory 4.5 MB
Interface SATA
Applicable disc format Applicable media types:
BD-ROM (Single and Dual Layer)
BD-R (Single and Dual Layer)
BD-RE (Single and Dual Layer)
DVD-ROM (Single and Dual Layer)
DVD+R (Single and Double Layer)
DVD-R (Single and Dual Layer)
DVD+RW (Single Layer) and DVD-RW (Single Layer) discs
DVD-RAM (Ver.2)
CD-ROM
CD-R
CD-RW
Loading mechanism Drawer (Solenoid Open), Tact SW (Open), Emergency Release (draw
open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%
Item Specification
Vendor & model name PLDS BD Combo DS-4E1S
Performance Specification With CD Diskette With DVD Diskette Blueray
Transfer rate (KB/sec) Sustained:
3,500 (min.)
Sustained:
10,000 (min.)
Sustained:
18,000 (min.)
Buffer Memory 2 MB
Interface SATA
Applicable disc format CD-DA, CD-TEXT, CD ROM Mode-1, CD-ROM/XA Mode-2 Form-1
and Form-2, CD-I Ready, Video-CD (MPEG-1), Photo-CD, Enhance
CD, CD extra, I-Trax CD and UDF DVD-ROM, DVD-Video, DVD-Audio,
DVD-R single/multi border(s) DVD+R single/multi session(s) DVD-RW
DVD+RW DVD-RAM BD-ROM ver2.0, UDF2.5 BD-R ver1.0 and
ver2.0, UDF2.5 BD-RE ver2.0 and ver3.0, UDF2.5 BD-hybrid (only BD
part)
Loading mechanism Drawer (Solenoid Open), Tact SW (Open), Emergency Release (draw
open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%
Item Specification
Chapter 1 25
Audio Interface
Power and Keyboard Controller
Item Specification
Audio
Controller Realtek ALC272 Azalia Codec and Amplifier G1454
• Features • HD Audio
• SNR > 85,High-performance DACs with 95dB SNR (A-Weighting), ADCs with
85dB SNR (A-Weighting)
• Internal Digital Microphone
• Two speakers, max. 1W output for each
• Meets performance and function requirements for Microsoft WLP 3.10, and stricter
performance
• requirements for future WLP
• Two stereo DAC support 16/20/24-bit PCM for two independent playback (multiple
streaming)
• Two stereo ADC supports 16/20/24-bit PCM format for two independent recording
• All DACs support independent 44.1k/48k/96k/192kHz sample rate
• All ADCs support independent 44.1k/48k/96k/192kHz sample rate
• Two independent SPDIF outputs support 16/20/24-bit format and 44.1k/48k/88.2k/
96k/192kHz rate
• All analog jack ports except MONO, BEEP-IN and HP-OUT are stereo input and
output re-tasking
• Supports line level mono output
• Supports analog PCBEEP input, and features an integrated digital BEEP
generator
• Support two stereo digital microphone input for microphone array AEC/BF
application
• Each stereo digital microphone interface has its own clock output to support
independent sample rate
• Supports legacy analog mixer architecture
• Built-in five headphone amplifiers on port-A and port-D, port-E, port-F and port-I.
• Headphone amplifier on port-I (HP-OUT) is designed to drive output without
external DC blocking
• capacitors
• Software selectable 2.5V and 3.2V reference output for microphone bias
• Software selectable boost gain (+10/+20/+30dB) for analog microphone input
• Two jack detection pins; each supports detection of up to 4 jacks
• Supports two GPIO (General Purpose Input/Output) pins (pin sharing with digital
microphone
• interface)
• Supports EAPD (External Amplifier Power Down) control for external amplifier
• Supports anti-pop mode when analog power AVDD is on and digital power is off
• Supports 1.5V~3.3V scalable I/O for HD Audio link
• 48-pin LQFP ‘Green’ package
Item Specification
Controller KB926
Total number of keypads 86/87/91
Windows logo key Yes
26 Chapter 1
Battery
LCD
Internal & external keyboard
work simultaneously Yes
Features • Support Application keys for Windows XP version
Item Specification
6 Cell 8 Cell
Vendor & model name SONY AS-2007B/SIMPLO AS-
2007B/SANYO AS-2007B/
PANASONIC AS-2007B
SONY AS-2007B/SIMPLO AS-
2007B/SANYO AS-2007B/
PANASONIC AS-2007B
Battery Type Li-ion Li-ion
Pack capacity 4400 mAh 4800 mAh
Normal Voltage 11.1V 14.8
Charge Voltage 12.6V 12.6V
Fast Charge Current 2.94~3.5A 3.1A
Package configuration 3S2P 4S2P
Item Specification
Vendor/model name CMO N173O6-L02
AUO B173RW01
Samsung LTN173KT01-A01
LPL LP173WD1-TLA1
Screen Diagonal (mm) 439.4
Display Area (mm) 382.08 x 214.92
Display resolution (pixels) 1600x900
Pixel Pitch 0.2388
Display Mode Normal white
Typical White Luminance (cd/m2)
(also called Brightness)
220
Contrast Ratio 500:1
Response Time (Optical Rise Time/
Fall Time) msec 8
Typical Power Consumption (watt) 7
Weight (g) 580 Max.
Physical Size (mm) 398.1 x 232.8 x 5.5
Electrical Interface LVDS
Support Color 262K
Viewing Angle (U/D/R/L) 20/45/45/45
Item Specification
Chapter 2 27
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press F2 during POST (when “Press <F2> to enter Setup” message is prompted
on the bottom of screen).
Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.
Navigating the BIOS Utility
There are six menu options: Information, Main, Advanced, Security, Boot, and Exit.
Follow these instructions:
• To choose a menu, use the left and right arrow keys.
• To choose an item, use the up and down arrow keys.
• To change the value of a parameter, press F5 or F6.
• A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.
• Press Esc while you are in any of the menu options to go to the Exit menu.
• In any menu, you can load default settings by pressing F9. You can also press F10 to save any
changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a
particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.
Chapter 2
28 Chapter 2
Information
The Information screen displays a summary of your computer hardware information.
NOTE: The screen above is for your reference only. Actual values may differ according to model.
The table below describes the parameters in this screen.
Parameter Description
CPU Type This field shows the CPU type and speed of the system.
CPU Speed This field shows the speed of the CPU.
HDD Model Name This field shows the model name of HDD installed on primary IDE
master.
HDD Serial Number This field displays the serial number of HDD installed on primary IDE
master.
ATAPI Model Name This field shows the model name of the Optical device installed in
the system.
System BIOS Version Displays system BIOS version.
VGA BIOS Version This field displays the VGA firmware version of the system.
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Universally Unique Identifier (UUID) is an identifier standard used in
software construction, standardized by the Open Software
Foundation (OSF) as part of the Distributed Computing Environment
(DCE).
PhoenixBIOS Setup Utility
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
AMD Athlon(tm) 64 X2 Dual-Core Processor TK-42
1600 MHz
WDC WD2500BEVT-22ZCCT0 -(PM)
WD-WXHZ08604954
Optiarc DVD RW AD-7580S -(SM)
V0.11T04_C-Build
V010.055.000.050.030632
eMachines E625
eMachines
39353164386665643635001EECE1D377
AMD Athlon(tm) 64 X2 Dual-Core Processor TK-42
1600 MHz
WDC WD2500BEVT-22ZCCT0 -(PM)
WD-WXHZ08604954
Optiarc DVD RW AD-7580S -(SM)
V0.11T04_C-Build
V010.055.000.050.030632
eMachines E625
eMachines
39353164386665643635001EECE1D377
CPU Type
CPU Speed
HDD Model Name:
HDD Serial Number:
ATAPI Model Name:
System BIOS Version:
VGA BIOS Version:
Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name:
UUID:
CPU Type
CPU Speed
HDD Model Name:
HDD Serial Number:
ATAPI Model Name:
System BIOS Version:
VGA BIOS Version:
Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name:
UUID:
F5/F6
Main Boot Exit
SecurityInformation
Chapter 2 29
Main
The Main screen allows the user to set the system time and date as well as enable and disable boot option
and recovery.
NOTE: The screen above is for your reference only. Actual values may differ.
The table below describes the parameters in this screen.
Parameter Description Format/Option
System Time Sets the system time. The hours are displayed with 24-
hour format. Format: HH:MM:SS
(hour:minute:second)
System Date Sets the system date. Format MM/DD/YYYY
(month/day/year)
System Memory
Displays the memory available on the CPU cache.
N/A
Extended Memory
Displays the memory available on the DRAM chips
Video Memory
Displays the available memory for Video.
N/A
Quiet Boot Allows startup to skip certain tests while booting,
decreasing the time needed to boot the system. Option: Enabled or
Disabled
Network Boot Enables, disables the system boot from LAN (remote
server). Option: Enabled or
Disabled
F12 Boot Menu Enables, disables Boot Menu during POST. Option: Enabled or Enabled
D2D Recovery Enables, disables D2D Recovery function. The function
allows the user to create a hidden partition on hard disc
drive to store operation system and restore the system
to factory defaults.
Option: Enabled or
Disabled
SATA Mode Control the mode in which the SATA controller should
operate. Option: AHCI or IDE
PhoenixBIOS Setup Utility
Item Specific Help
<Tab>, <Shift-Tab>, or
<Enter> selects field.
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
[19:10:59]
[12/12/2008]
634 KB
1790 MB
[256MB]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[IDE AHCI]
[19:10:59]
[12/12/2008]
634 KB
1790 MB
[256MB]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[IDE AHCI]
System Time:
System Date:
System Memory:
Extended Memory:
Video Memory:
Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATA Mode:
System Time:
System Date:
System Memory:
Extended Memory:
Video Memory:
Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATA Mode:
F5/F6
Main Boot Exit
SecurityInformation
30 Chapter 2
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
NOTE: When entering a password, you have three tries before the system halts. Don’t forget your password. If you
forget your password, you may have to return your notebook computer to your dealer to reset it.
Parameter Description Option
Supervisor Password Is Shows the setting of the Supervisor password Clear or Set
User Password Is Shows the setting of the user password. Clear or Set
HDD Password Is Shows the setting of the hard disk password. Clear or Set
Set Supervisor Password Press Enter to set the supervisor password. When set,
this password protects the BIOS Setup Utility from
unauthorized access. The user can not either enter the
Setup menu nor change the value of parameters.
N/A
Set User Password Press Enter to set the user password. When user
password is set, this password protects the BIOS Setup
Utility from unauthorized access. The user can enter
Setup menu only and does not have right to change the
value of parameters.
N/A
Set SATA Port0 HDD
Password Enter HDD Password. N/A
Password on Boot Defines whether a password is required or not while the
events defined in this group happened. The following
sub-options are all requires the Supervisor password
for changes and should be grayed out if the user
password was used to enter setup.
Disabled or
Enabled
PhoenixBIOS Setup Utility
Item Specific Help
Supervisor Password
controls access to the
setup utility. It can
be used to boot up when
Pawword on boot is
enabled.
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
ClearClear
Supervisor Password Is:Supervisor Password Is:
ClearClear
User Password Is:User Password Is:
[Enter][Enter]
Set Supervisor PasswordSet Supervisor Password
[Enter][Enter]
Set User PasswordSet User Password
F5/F6
Main Boot Exit
SecurityInformation
:HDD Password Is :
ClearClear
[Enter][Enter]
Set SATA Port 0 HDD PasswordSet SATA Port 0 HDD Password
[Disabled][Disabled]
Password on Boot:Password on Boot:
Chapter 2 31
Setting a Password
Follow these steps as you set the user or the supervisor password:
1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Supervisor Password box appears:
2. Type a password in the “Enter New Password” field. The password length can not exceed 8 alphanumeric
characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.
IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.
3. Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
4. If desired, you can opt to enable the Password on boot parameter.
5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
Removing a Password
Follow these steps:
1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
2. Type the current password in the Enter Current Password field and press Enter.
3. Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields.
The computer then sets the Supervisor Password parameter to “Clear”.
4. When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.
Set Supervisor Password
Enter New Password [ ][ ]
Confirm New Password [ ]
Set Supervisor Password
Enter Current Password [ ][ ]
Enter New Password [ ]
Confirm New Password [ ][ ]
32 Chapter 2
Changing a Password
1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears.
2. Type the current password in the Enter Current Password field and press Enter.
3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password
field.
4. Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
5. If desired, you can enable the Password on boot parameter.
6. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
The password setting is complete after the user presses Enter.
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
If the new password and confirm new password strings do not match, the screen will display the following
message.
Set Supervisor Password
Enter Current Password [ ][ ]
Enter New Password [ ]
Confirm New Password [ ][ ]
Setup Notice
Changes have been saved.
[Continue][Continue]
Setup Warning
Invalid Password.
[Continue][Continue]
Setup Warning
Passwords do not match.
Re-enter password.
[Continue][Continue]
Chapter 2 33
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.
Select Boot Devices to select specific devices to support boot.
PhoenixBIOS Setup Utility
Item Specific Help
Use < > or < > to
select a device, then
press <F6> to move it
up the List, or <F5>
to move it down the
list. Press <Esc> to
escape the menu.
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:
Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:
F5/F6
Main Boot Exit
SecurityInformation
34 Chapter 2
Exit
The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.
The table below describes the parameters in this screen.
Parameter Description
Exit Saving Changes Exit System Setup and save your changes to CMOS.
Exit Discarding
Changes Exit utility without saving setup data to CMOS.
Load Setup Default Load default values for all SETUP item.
Discard Changes Load previous values from CMOS for all SETUP items.
Save Changes Save Setup Data to CMOS.
PhoenixBIOS Setup Utility
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
F5/F6
Main Boot Exit
SecurityInformation
Chapter 2 35
BIOS Flash Utilities
The BIOS flash memory update is required for the following conditions:
• New versions of system programs
• New features or options
• Restore a BIOS when it becomes corrupted.
Use the Phlash utility to update the system BIOS flash ROM.
NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery
Diskette before you use the Phlash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.
NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not
contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not
completely loaded.
Fellow the steps below to run the Phlash.
1. Prepare a bootable diskette.
2. Copy the flash utilities to the bootable diskette.
3. Then boot the system from the bootable diskette. The flash utility has auto-execution function.
36 Chapter 2
DOS Flash Utility
Perform the following steps to use the DOS Flash Utility:
1. Press F2 during boot to enter the Setup Menu.
2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move
USB HDD to position 1.
3. Execute the FLASH.BAT batch file to update BIOS.
The flash process begins as shown.
PhoenixBIOS Setup Utility
Item Specific Help
Use < > or < > to
select a device, then
press <F6> to move it
up the List, or <F5>
to move it down the
list. Press <Esc> to
escape the menu.
F1
Esc Help
Exit Select Item
Select Menu Change Values
Select Sub-Menu
Enter F9
F10 Setup Defaults
Save and Exit
Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:
Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:
F5/F6
Main Boot Exit
SecurityInformation
Chapter 2 37
4. In flash BIOS, the message Please do not remove AC Power Source displays.
NOTE: If the AC power is not connected, the following message displays.
Plug in the AC power to continue.
5. Flash is complete when the message Flash programming complete displays.
38 Chapter 2
WinFlash Utility
Perform the following steps to use the WinFlash Utility:
1. Double-click the WinFlash executable.Click Start.
2. Make sure that AC power is plugged in and click OK to begin the update.
A progress screen displays.
Chapter 2 39
Remove HDD/BIOS Password Utilities
Remove HDD Password:
If you key in the wrong HDD password three times, an error is generated along with an error code. Note down
this code.
To reset the HDD password, perform the following steps:
1. In DOS mode, use the code generated previously to execute the command Unlock6.exe 09652 00 and
then select option 2 to get the password. Note down the password, e.g.: XXGL9XF
2. Shut down the computer by holding down the Power button for 4 seconds.
Power on the computer and input the HDD password from previous steps to unlock the HDD.
40 Chapter 2
Cleaning BIOS Passwords
To clean the User or Supervisor passwords, perform the following steps:
1. From a DOS prompt, execute clnpwd.exe
2. Press 1 or 2 to clean the desired password shown on the screen.
The onscreen message determines whether the function is successful or not.
Using Boot Sequence Selector
The Boot Sequence Selector allows the boot order to be changed without accessing the BIOS. To use Boot
Sequence Selector, perform the following steps:
1. Enter into DOS.
2. Execute BS.exe to display the usage screen.
3. Select the desired boot sequence by entering the corresponding sequence. For example, enter BS2 to
change the boot sequence to HDD | CD ROM | LAN | Floppy.
Chapter 2 41
Using DMITools
The DMI (Desktop Management Interface) Tool copies BIOS information to EEPROM to be used in the DMI
pool for hardware management.
When the BIOS displays Verifying DMI pool data it is checking that the table correlates with the hardware
before sending to the operating system (Windows, etc.).
To update the DMI Pool, perform the following steps:
1. Boot into DOS.
2. Execute dmitools. The following messages report to screen to confirm completion:
• dmitools /r ==> Read dmi string from bios
• dmitools /wm xxxx ==> Write manufacturer name to eeprom (max. 16 characters)
• dmitools /wp xxxx ==> Write product name to eeprom (max. 16 characters)
• dmitools /ws xxxx ==> Write serial number to eeprom (max. 22 characters)
• dmitools /wu xxxx ==> Write uuid to eeprom
• dmitools /wa xxxx ==> Write asset tag to eeprom (max. 32 characters)
The following examples show the commands and the corresponding output information.
Read DMI Information from Memory
Input:
dmitools /r
Output:
Manufacturer (Type1, Offset04h): Acer
Product Name (Type1, Offset05h): TravelMate xxxxx
Serial Number (Type1, Offset07h): 01234567890123456789
UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Asset Tag (Type3, Offset04h): Acet Asstag
Write Product Name to EEPROM
Input:
dmitools /wp Acer
Write Serial Number to EEPROM
Input:
dmitools /ws 01234567890123456789
4). Write UUID to EEPROM (Create UUID from Intel WFM20.pdf)
Input:
dmitools /wu
5). Write Asset Tag to EEPROM
Input:
dmitools /wa Acet Asstag
NOTE: When using any of the Write options, restart the system to make the new DMI data effective.
42 Chapter 2

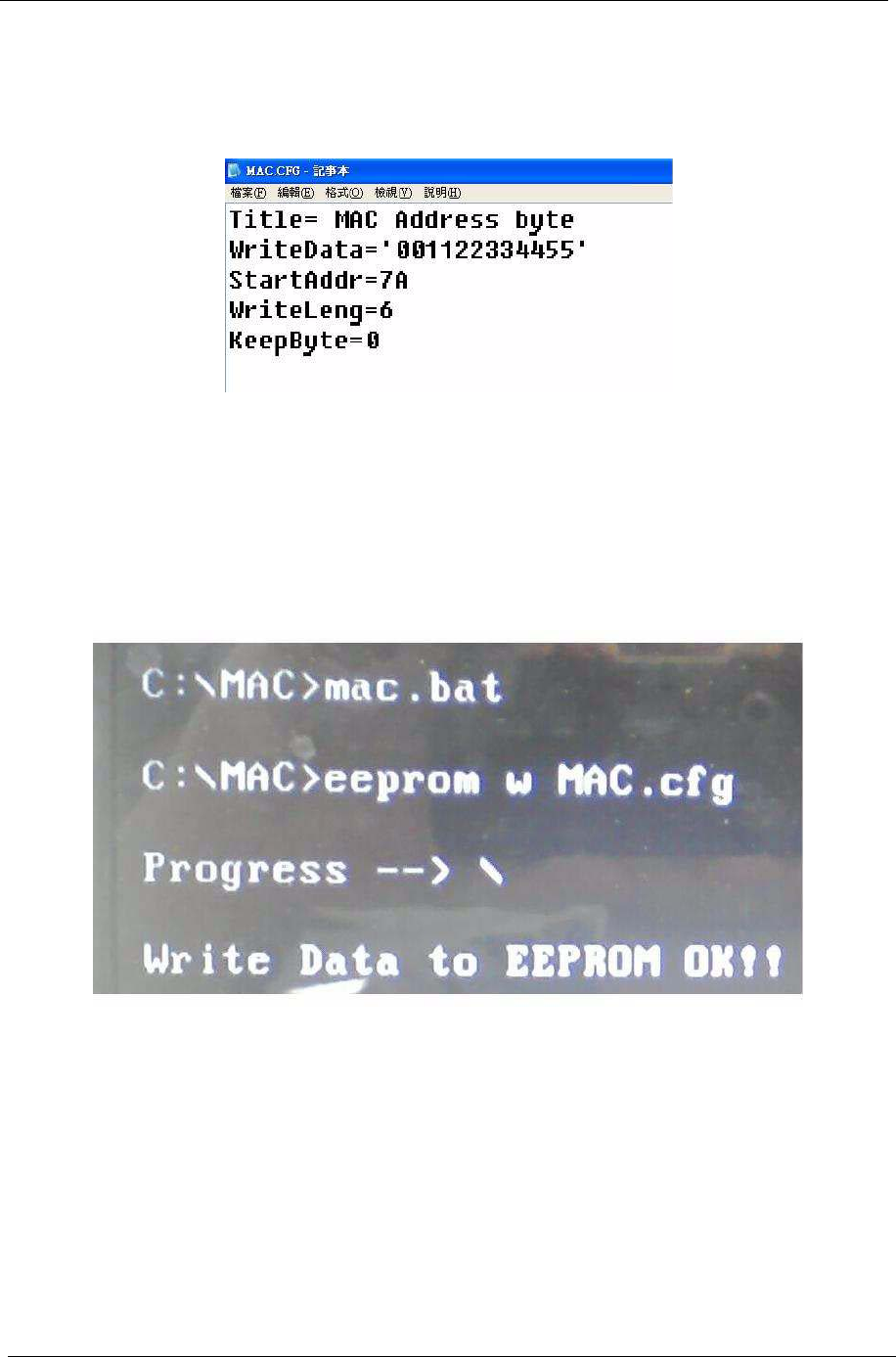

Using the LAN MAC EEPROM Utility
You can use the MAC.BAT utility to write the MAC.CFG file to the EEPROM under DOS mode.
1. Use a text editor (for example: Notepad) to open the MAC.CFG file. You can see the MAC.CFG contents
as below:
2. In DOS mode, run the MAC.BAT file to write MAC values to eeprom.
WriteData = ‘001122334455' MAC value
StartAddr=7A MAC address
WriteLeng=6 MAC value length
KeepByte=0 don’t care
Chapter 3 43
Machine Disassembly and Replacement
IMPORTANT:The outside housing and color may vary from the mass produced model.
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
Disassembly Requirements
To disassemble the computer, you need the following tools:
•Wrist grounding strap and conductive mat for preventing electrostatic discharge
•Flat screwdriver
•Philips screwdriver
•Plastic flat screwdriver
•Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
Chapter 3
44 Chapter 3

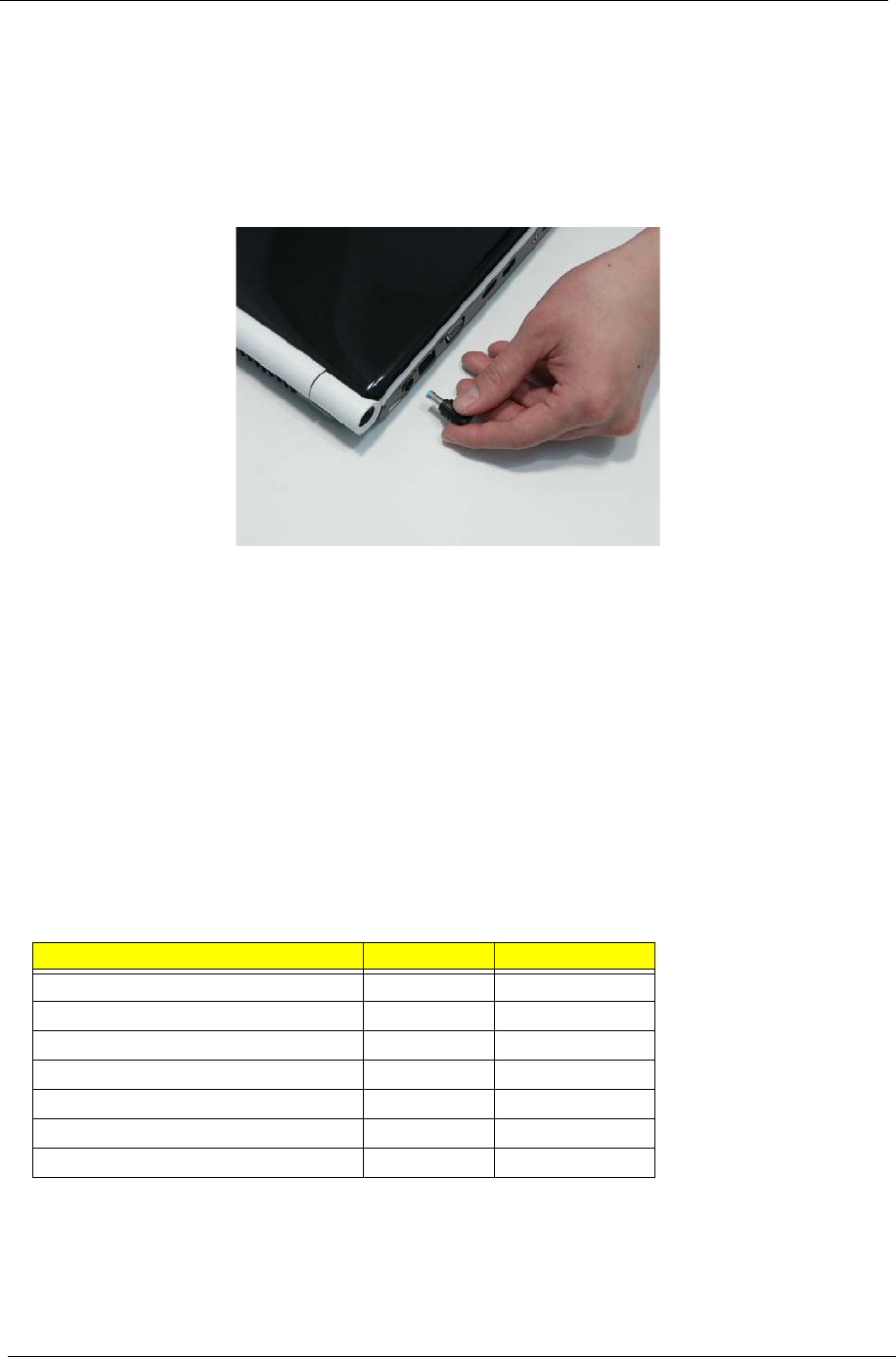

General Information
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Place the system on a flat, stable surface.
4. Remove the battery pack.
Disassembly Process
IMPORTANT:The LCD Module cannot be disassembled outside of factory conditions. If any part of the LCD
Module is faulty, such as the camera, antenna or LCD panel, the whole module must be replaced.
The disassembly process is divided into the following stages:
•External module disassembly
•Main unit disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the mainboard, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.
Main Screw List
Screw Quantity Part Number
M2.45D 8.0L K 5.5D 0.8T ZKNL 14 86.WBF02.001
M2.5D 5L K 5.5D ZK NL + CR3 23 86.WBF02.010
M2.46D 3.0L K 5.5D 0.8T ZKNL 3 86.WBF02.002
M1.98D 3.0L K 4.6D 0.8T ZKNL 20 86.WBF02.003
M3.0D 3.0L K 4.9D NI 8 86.WBF02.005
M2D 4.0L K 4.6D NI NL 2 86.WBF02.007
ASSY THML SPRING 4 86.WBF02.009
Chapter 3 45
External Module Disassembly Process
IMPORTANT:The outside housing and color may vary from the mass produced model.
External Modules Disassembly Flowchart
The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you
on the components that need to be removed during servicing. For example, if you want to remove the main
board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
NOTE: Items enclosed with broken lines (— - - —) are optional and may not be present.
Screw List
Step Screw Quantity Part No.
WLAN Module M2*3 1 86.WBF02.003
ODD Module M2.5*5 1 86.WBF02.010
ODD Bracket M2*3 2 86.WBF02.003
Primary HDD Carrier M3*3 4 86.WBF02.005
Secondary HDD Carrier M3*3 4 86.WBF02.005
Disconnect power
and signal cables
from system
Remove
Battery
Turn off system
and peripherals
power
Remove
DIMMs
Remove
WLAN
Remove
Primary HDD
Remove
ODD
Remove
Lower Covers
Remove
Dummy Cards
Remove
Secondary HDD
46 Chapter 3
Removing the Battery Pack
1. Turn computer over. Slide the battery lock in the direction shown.
2. Slide and hold the battery release latch to the release position (1), then lift out the battery pack from the main
unit (2).
1
2
Chapter 3 47
Removing the SD dummy card
1. Push the SD dummy card all the way in to eject it.
2. Pull the card out from the slot.
48 Chapter 3
Removing the Lower Covers
1. See “Removing the Battery Pack” on page 46.
2. Loosen the five captive screws in the memory and HDD covers.
3. Remove the HDD1 Cover.
4. Remove the HDD2, WLAN, and Memory Cover as shown.
HDD1
Cover
HDD2, WLAN,
and Memory
Cover
Chapter 3 49
Removing the Optical Drive Module
1. See “Removing the Lower Covers” on page 48.
2. Remove the screw securing the ODD module.
3. Insert a suitable tool into the access slot as shown. Gently lever the ODD module out of the chassis.
4. Pull the optical drive module out from the chassis.
Step Size Quantity Screw Type
ODD Module M2.5*5 1
50 Chapter 3
5. Remove the two screws securing the ODD bracket and remove the ODD bracket from the optical disk drive
module.
6. Remove the ODD bezel by rotating the top edge downward and pulling it clear of the module.
Step Size Quantity Screw Type
ODD Bracket M2*3 2
Chapter 3 51

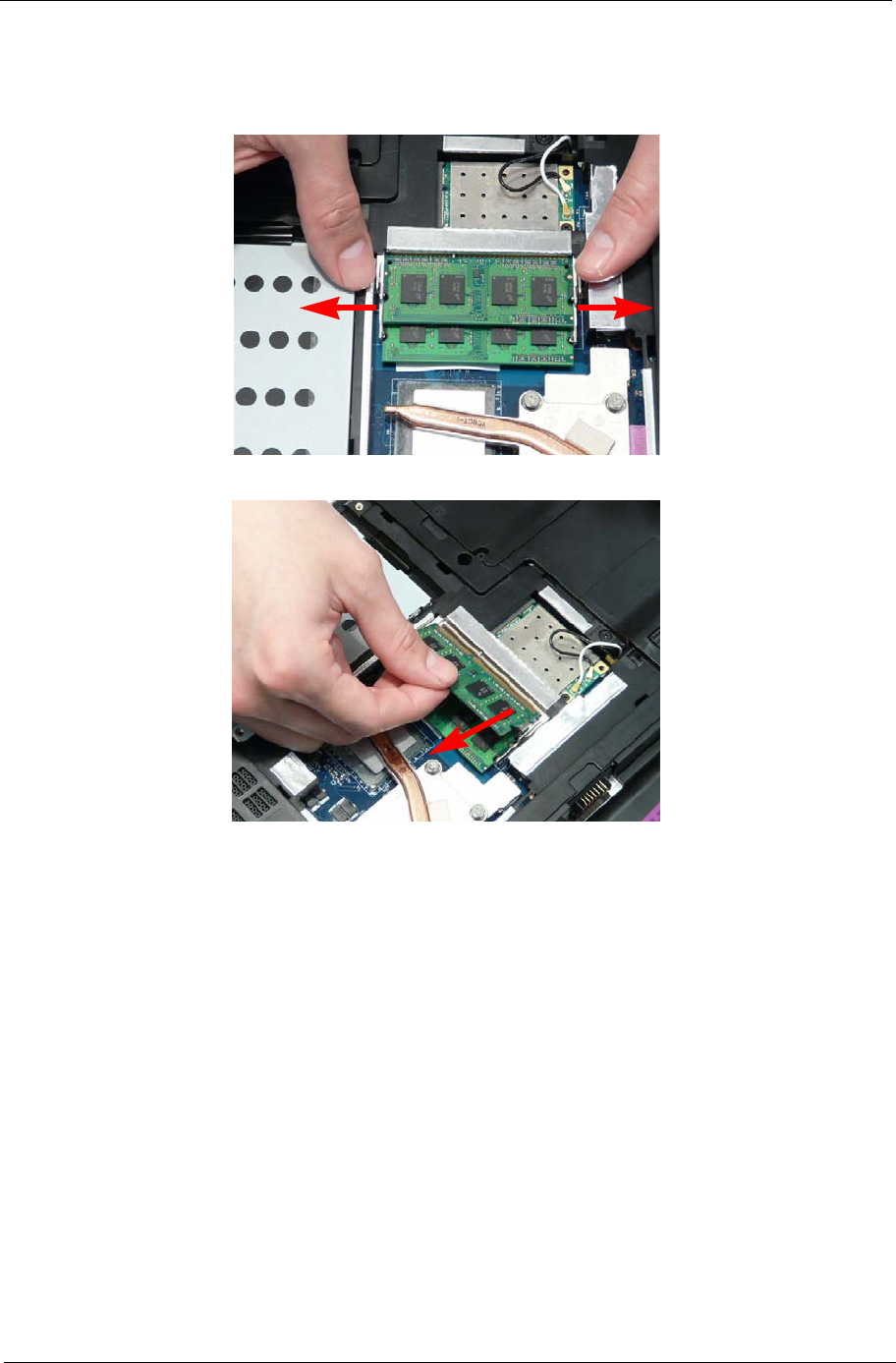

Removing the DIMM Modules
1. See “Removing the Lower Covers” on page 48.
2. Push out the release latches on both sides of the DIMM socket to release the DIMM module.
3. Remove the DIMM module.
4. Repeat steps for the second DIMM module if present.
52 Chapter 3
Removing the WLAN Module
1. See “Removing the Lower Covers” on page 48.
2. Remove the adhesive tape securing the Antenna cables in place.
3. Disconnect the antenna cables from the WLAN Module.
NOTE: Cable placement is Black to the MAIN terminal (left) and White to the AUX terminal (right).
Chapter 3 53
4. Move the Antennas away and remove the two screws to release the WLAN Module.
5. Detach the WLAN Module from the WLAN socket.
NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.
Step Size Quantity Screw Type
WLAN Module M2*3 1
54 Chapter 3
Removing the Primary HDD Module
1. See “Removing the Lower Covers” on page 48.
2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface.
3. Lift the HDD Module clear of the HDD bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
4. Remove the four screws (two each side) securing the hard disk to the carrier.
Step Size Quantity Screw Type
HDD Carrier M3*3 4
Chapter 3 55
5. Remove the HDD from the carrier.
56 Chapter 3
Removing the Secondary HDD Module
NOTE: The Secondary HDD is optional and may not be present.
1. See “Removing the Lower Covers” on page 48.
2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface.
3. Lift the HDD Module clear of the HDD bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
Chapter 3 57
4. Remove the four screws (two each side) securing the hard disk to the carrier.
5. Remove the HDD from the carrier.
Step Size Quantity Screw Type
HDD Carrier M3*3 4
58 Chapter 3
Main Unit Disassembly Process
Main Unit Disassembly Flowchart
Screw List
Step Screw Quantity Part No.
Switch Cover M2.5*5 3 86.WBF02.010
LCD Module M2.5*8 4 86.WBF02.001
M2.5*5 2 86.WBF02.010
Upper Cover M2.5*8 10 86.WBF02.001
M2.5*5 9 86.WBF02.010
M2.5*3 3 86.WBF02.002
TouchPad Bracket M2*3 1 86.WBF02.003
Speaker Module M2*3 4 86.WBF02.003
Modem Board M2*3 2 86.WBF02.003
USB Board M2.5*5 1 86.WBF02.010
Mainboard M2.5*5 1 86.WBF02.010
CPU Fan M2*3 3 86.WBF02.003
Thermal Module M2.5*6.5 4 86.WBF02.009
Remove
Mainboard
Remove
USB Board
Remove
Switch Cover
Remove
Keyboard
Remove
Upper Cover
Remove
LCD Module
Remove
LED Board
Remove External
Modules before
proceeding
Remove
TouchPad
Bracket
Upper
Cover
Lower
Cover
Remove
Speaker Module
Remove
Modem Module
Remove
Media Board
Remove
Media Board FFC
Remove
CPU
Remove
RTC Battery
Remove
Thermal Module
Remove
RJ-11 Jack
Chapter 3 59
Removing the Switch Cover
1. See “Removing the Battery Pack” on page 46.
2. Lift the Media Board FFC cover as shown to expose the FFC connector.
3. Open the FFC locking latch and disconnect the Media Board FFC.
4. Remove the three securing screws from the Lower Cover.
Step Size Quantity Screw Type
Switch Cover M2.5*5 3
60 Chapter 3

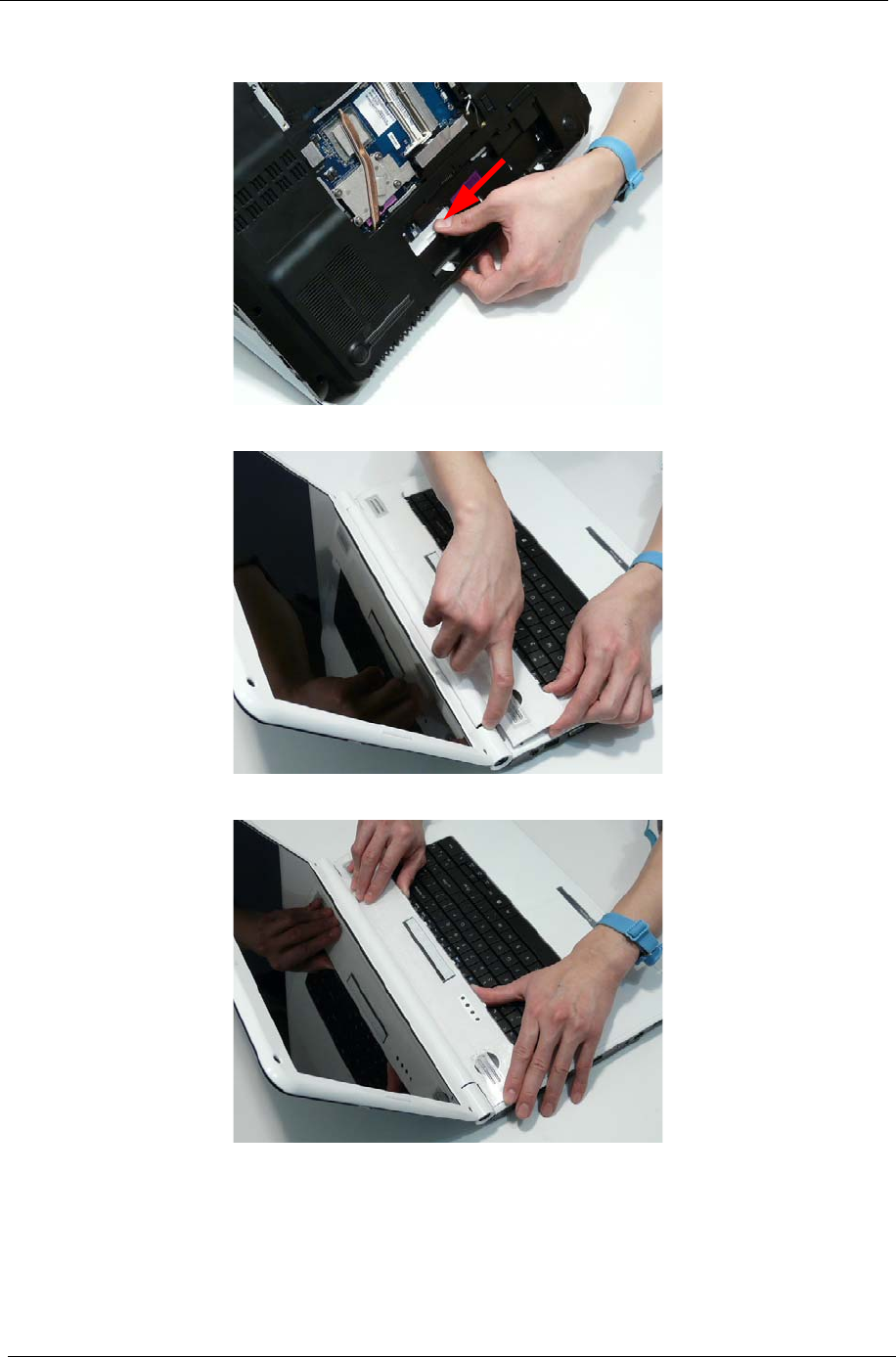

5. Open the computer lid to approximately 45° and push the Switch Cover from the underside of the computer to
release the locking latches securing the cover in place.
6. Turn the computer over and open the lid fully. Lift the left side of the Switch Cover as shown.
7. Working along the Switch Cover toward the right hinge, gently pry up the cover as shown.
Chapter 3 61

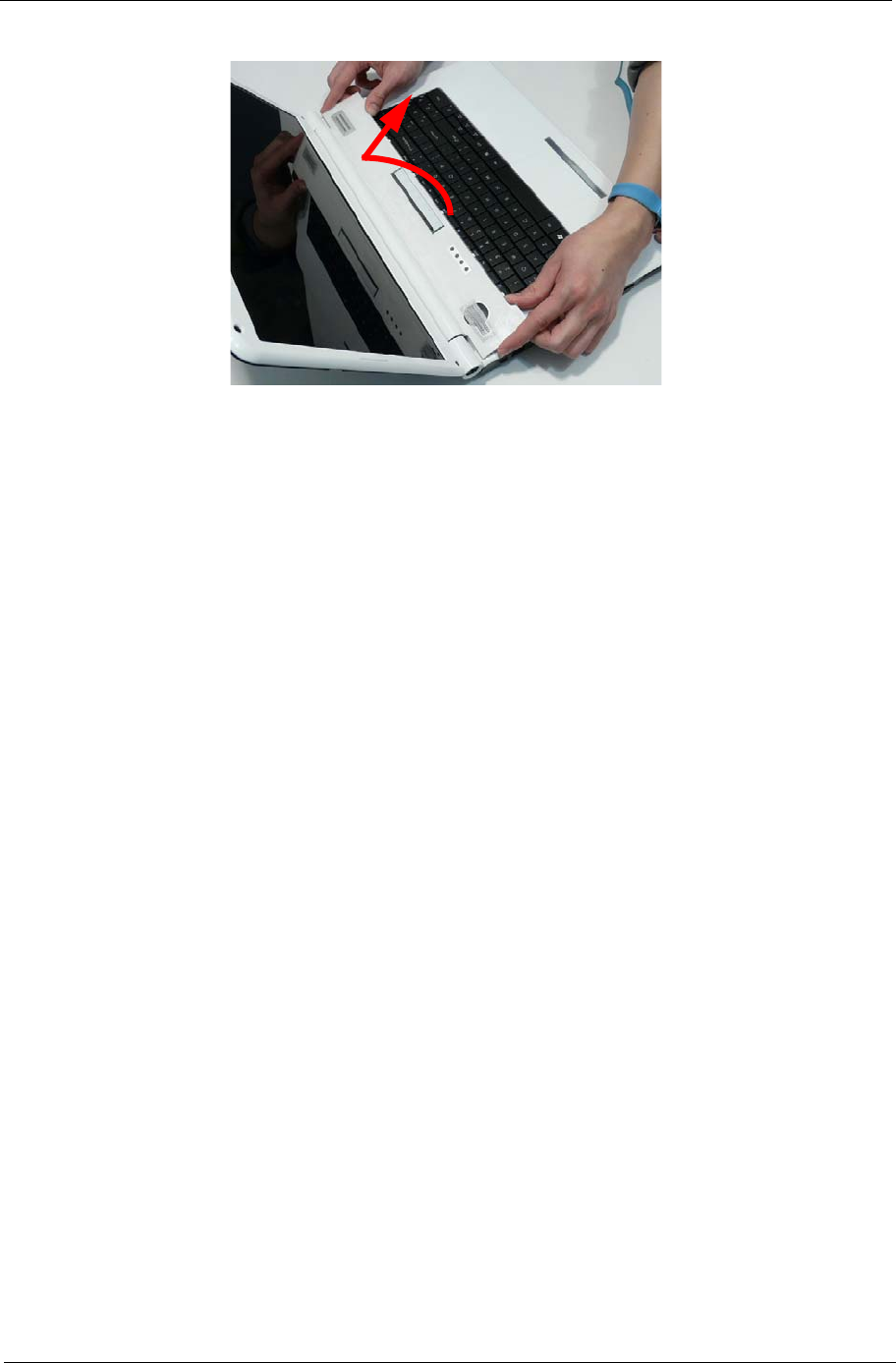

8. Rotate the Switch Cover toward the LCD panel and lift it away from the Upper Cover.
62 Chapter 3
Removing the Media Board
1. See “Removing the Switch Cover” on page 59.

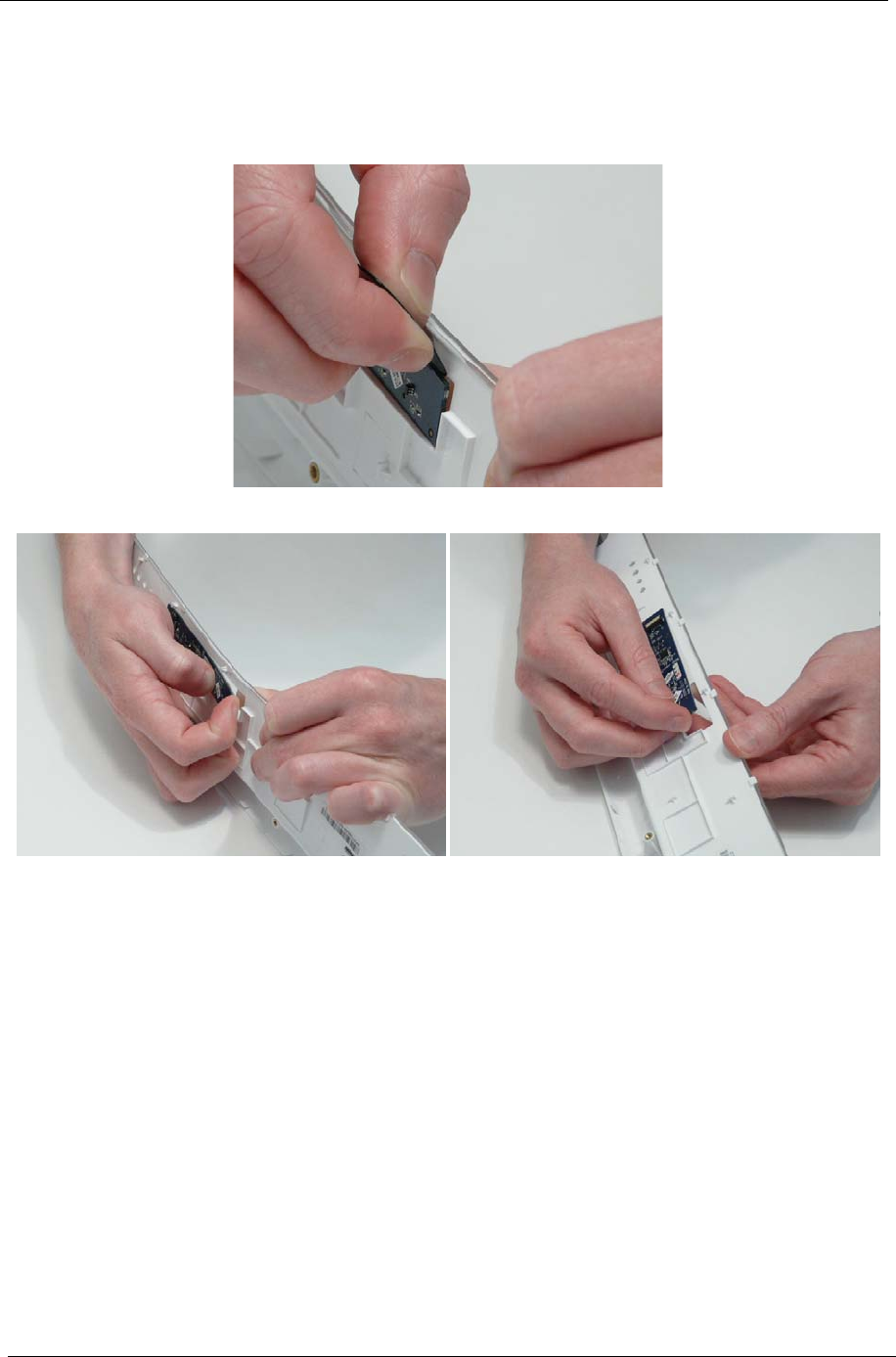

2. Pry the Media Board away from the Switch Cover as shown.
NOTE: A very strong adhesive is used to secure the board in place.
3. Pry the board away from the Upper Cover and remove it completely.
Chapter 3 63
Removing the Keyboard
1. See “Removing the Switch Cover” on page 59.
2. Lift the keyboard from the centre as shown to release the securing clips on each side.
3. Turn the Keyboard over on the TouchPad to expose the FFC cable.
4. Open the locking latch on the FFC as shown.
64 Chapter 3
5. Disconnect the FFC cable from the mainboard.
6. Lift the keyboard clear of the chassis.
Chapter 3 65
Removing the LCD Module
1. See “Removing the Keyboard” on page 63.
2. Turn the computer over. Remove the two securing screws from the bottom of the chassis.
3. Open the computer lid and stand the chassis on its edge. Ensure the Antenna Cables are free from
obstructions as shown.
Step Size Quantity Screw Type
LCD Module M2.5*8 2
66 Chapter 3

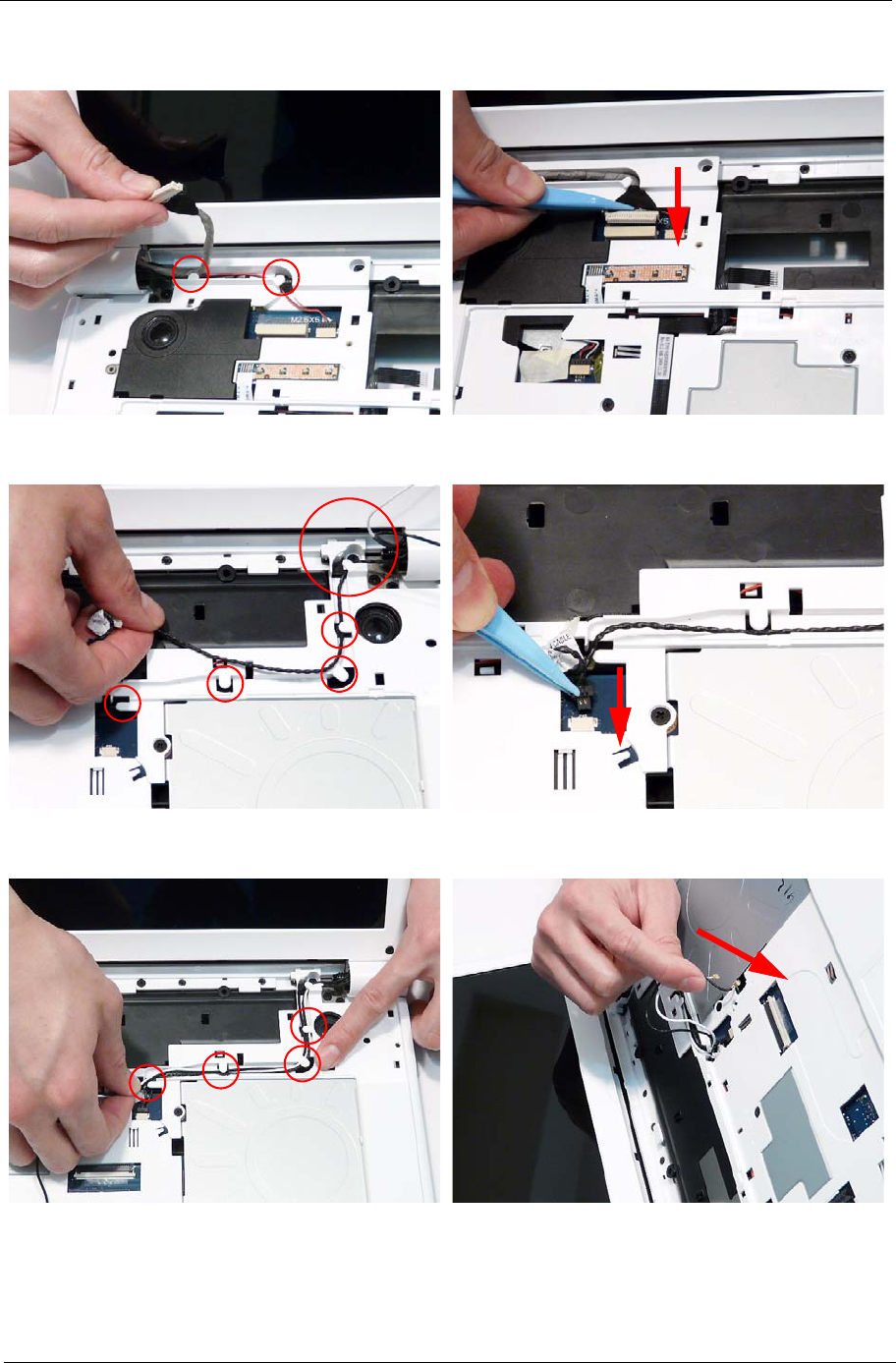

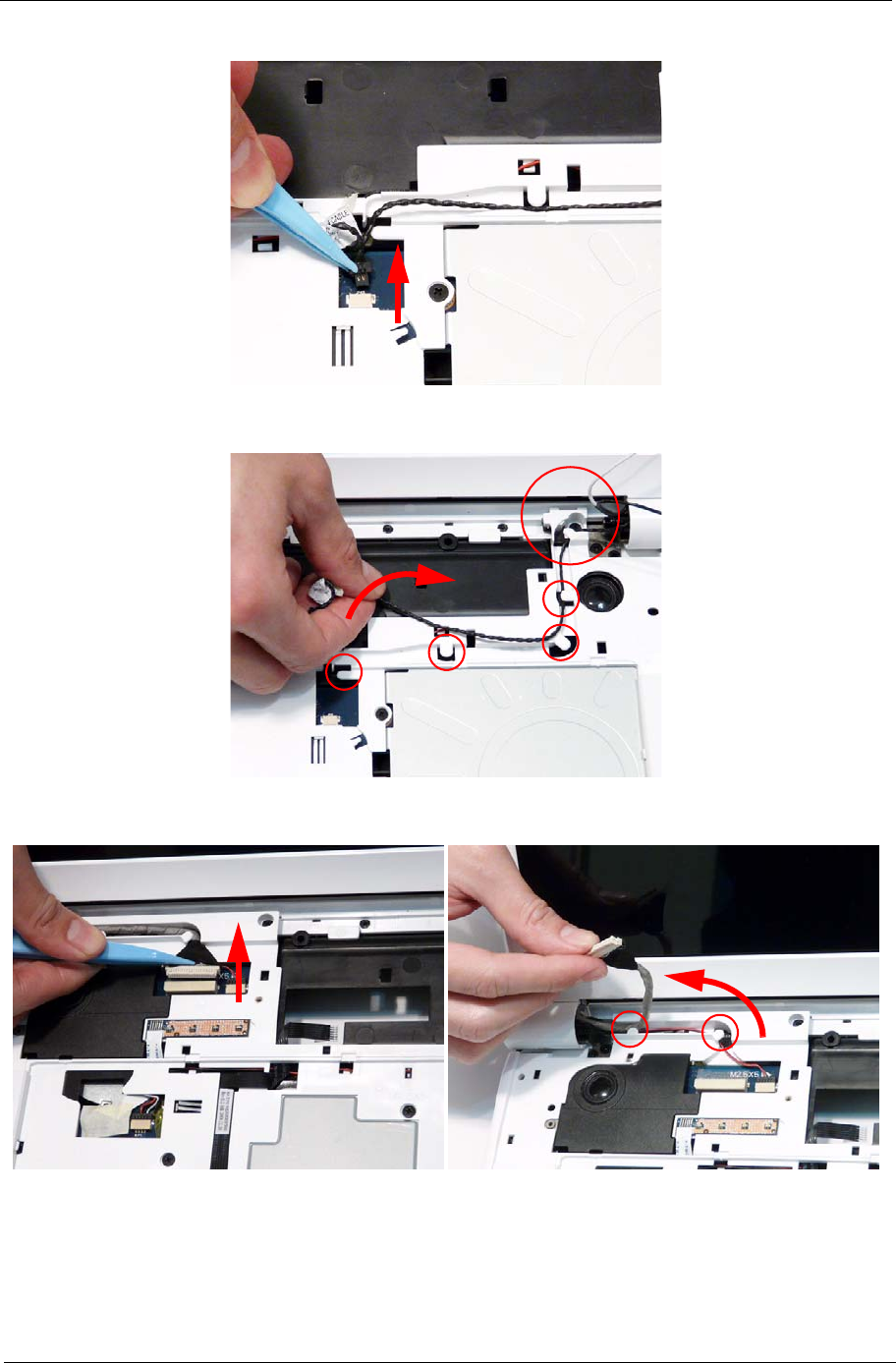

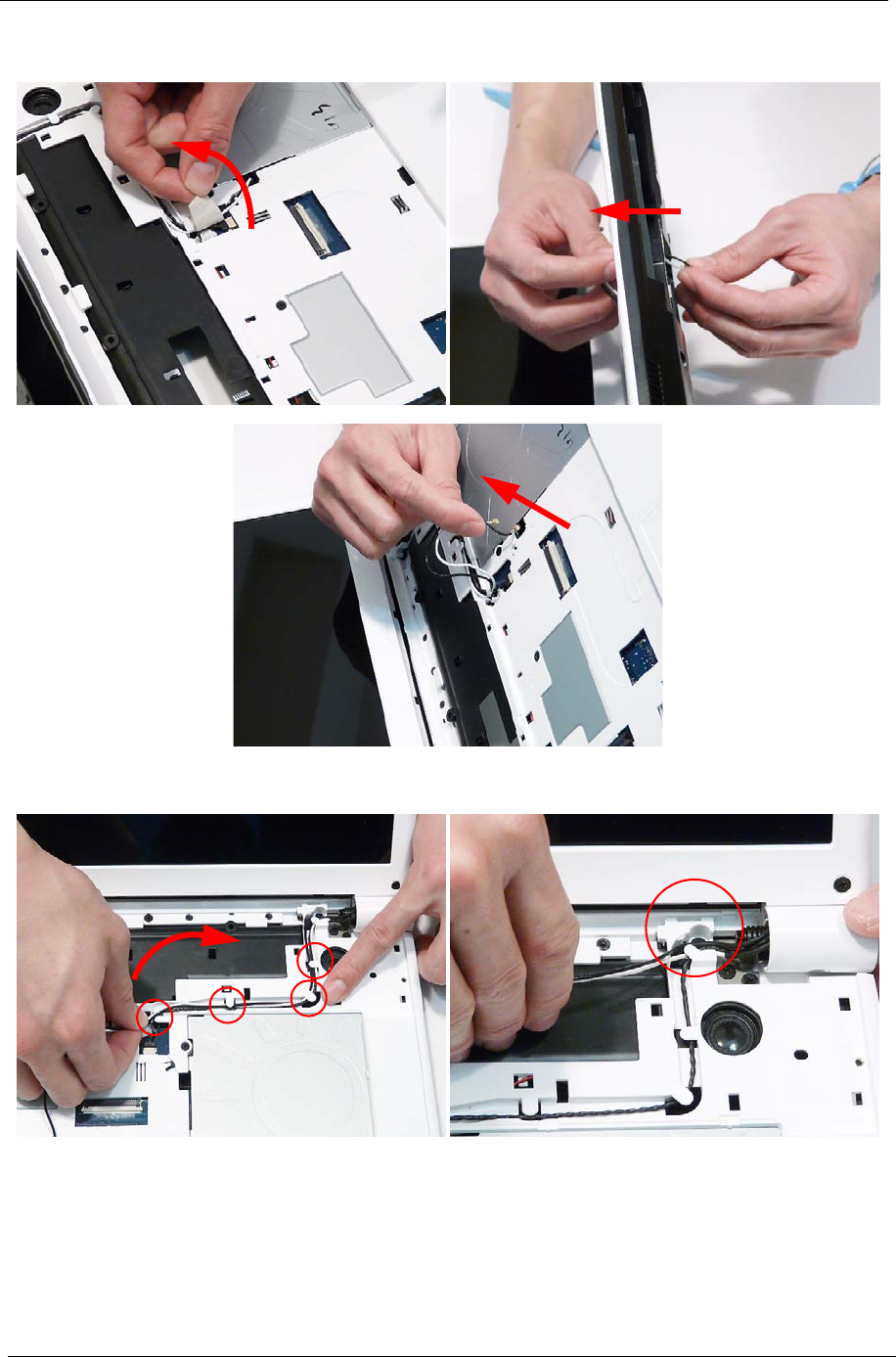

4. Remove the adhesive tape securing the cables in place and pull the Antenna cables through the casing as
shown.
5. Remove the cables from the cable channel as shown. Ensure that the cables are completely free of the
retaining clips all the way to the hinge well.
Chapter 3 67
6. Disconnect the Power Board cable from the Mainboard.
7. Remove the cable from the cable channel as shown. Ensure that the cable is completely free of the retaining
clips all the way to the hinge well.
8. Disconnect the power cable from the Mainboard as shown. Ensure that the cable is completely free of the
retaining clips all the way to the hinge well.
68 Chapter 3
9. Disconnect the MIC cable from the Mainboard as shown. Ensure that the cable is completely free of the
retaining clips all the way to the hinge well.
10. Remove the four securing screws (two each side) from the LCD module.
Step Size Quantity Screw Type
LCD Module
(red callout)
M2.5*8 2
LCD Module
(green callout)
M2.5*5 2
Chapter 3 69

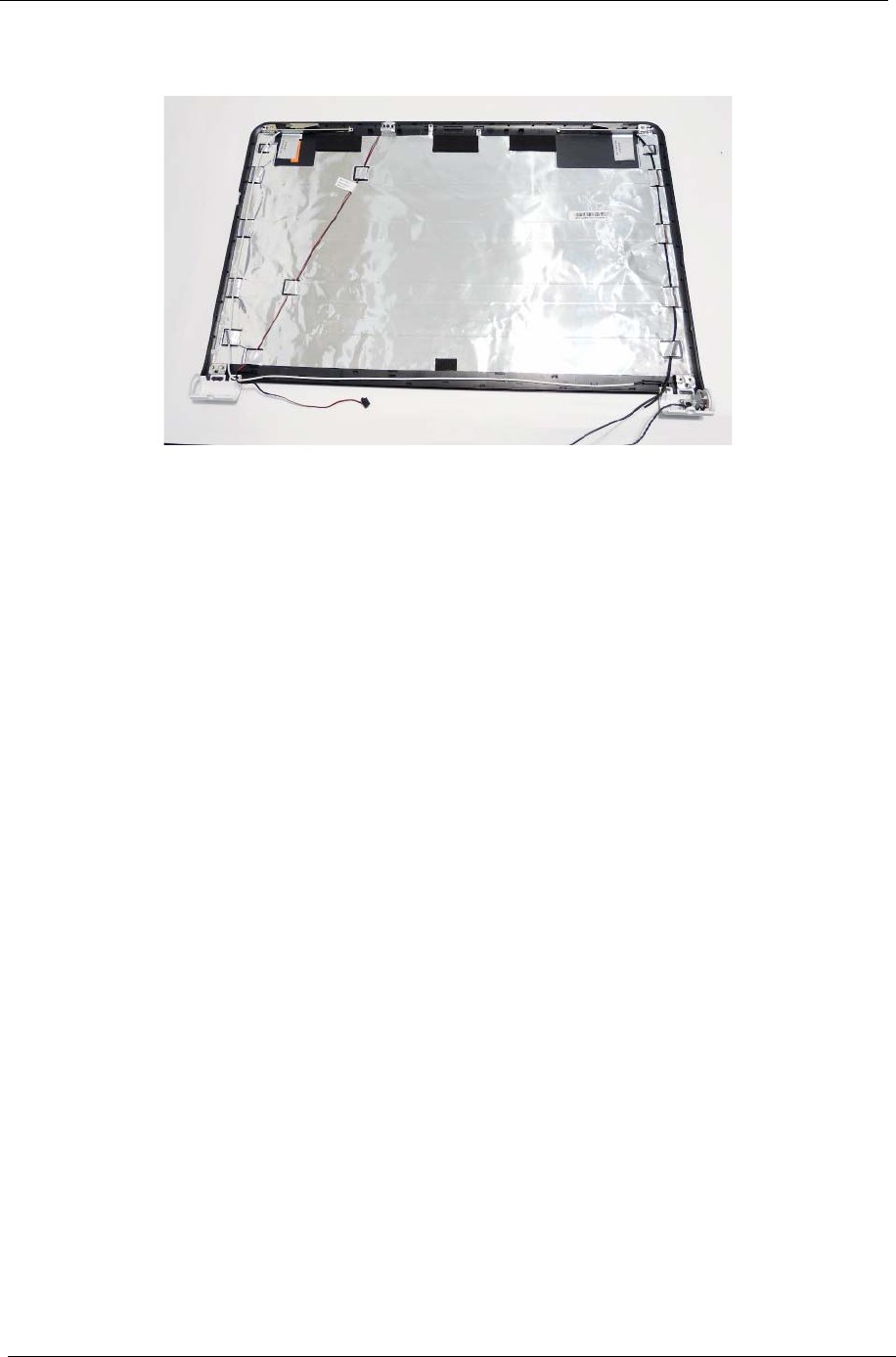

11. Carefully remove the LCD module from the chassis.
70 Chapter 3
Removing the Upper Cover
1. See “Removing the LCD Module” on page 65.
2. Turn the computer over. Remove the thirteen screws on the bottom panel.
Step Size Quantity Screw Type
Upper Cover
(red callout)
M2.5*8 10
Upper Cover
(green callout)
M2.5*5 1
Upper Cover
(blue callout)
M2.5*3 2
Chapter 3 71
3. Turn the computer over. Remove the nine screws on the top panel.
4. Remove the adhesive tape holding the cables in place.
Step Size Quantity Screw Type
Upper Cover
(red callout)
M2.5*5 8
Upper Cover
(blue callout)
M2.5*3 1
72 Chapter 3
5. Disconnect the following cables from the Mainboard.
NOTE: Avoid pulling on cables directly to prevent damage to the connectors. Use the pull-tabs on FFC cables
whenever available to prevent damage.
6. Disconnect A as shown. 7. Release the locking latch and remove B as shown.
8. Release the locking latch and remove C as shown. 9. Release the locking latch and remove D as shown.
A
B
C
D
Chapter 3 73
10. Starting at the top-inside edges of the Upper Cover above the Battery Bay, lift the Upper Cover away from the
Lower Cover as shown.
11. Work along the top edge prying the casing apart as shown.
12. Pry apart the left and right sides of the casing and lift the Upper Cover away from the Lower Cover.
74 Chapter 3
Removing the TouchPad Bracket
1. See “Removing the Upper Cover” on page 70.
2. Release the FFC locking latch and disconnect the TouchPad FFC from the cover.
3. Remove the single screw securing the TouchPad Bracket to the Upper Cover.
4. Hold down the left side of the bracket as shown. Lift and pivot the right edge in the direction of the arrow to
release the locking latches on the front edge.
5. Remove the bracket from the Upper Cover.
Step Size Quantity Screw Type
TouchPad Bracket M2*3 1
Chapter 3 75
Removing the Media Board FFC
1. See “Removing the Upper Cover” on page 70.
2. Lift the Media Board FFC as shown to release the adhesive securing it to the Upper Cover.
3. Pull the FFC through the Upper Cover as shown. Ensure that the cable passes through the casing completely.
4. Lift the FFC to remove it from the Upper Cover.
76 Chapter 3
Removing the LED Board
1. See “Removing the Upper Cover” on page 70.
2. Lift the right edge of the LED Board to release the adhesive securing the board to the Upper Cover.
3. Lift the LED Board away from the Upper Cover as shown.
4. Remove the LED Board from the chassis and slide the FFC through the casing as shown.
Chapter 3 77
Removing the Speaker Module
1. See “Removing the Upper Cover” on page 70.
2. Remove the four screws from the speaker modules.
3. Remove the right side Speaker cable from the channel as shown.
4. Lift the mylar sheet away from the Upper Cover to expose the Speaker cable. Remove the cable from the
Upper Cover.
Step Size Quantity Screw Type
Speaker Module M2*3 4
78 Chapter 3
5. Lift the entire Speaker assembly clear of the Upper Cover.
Chapter 3 79
Removing the RTC Battery
IMPORTANT:Follow local regulations for disposal of all batteries.
1. See “Removing the Upper Cover” on page 70.
2. The RTC Battery is soldered to the Mainboard. To replace the battery, solder the new battery to the
connections shown.
80 Chapter 3
Removing the Modem Board
1. See “Removing the Upper Cover” on page 70.

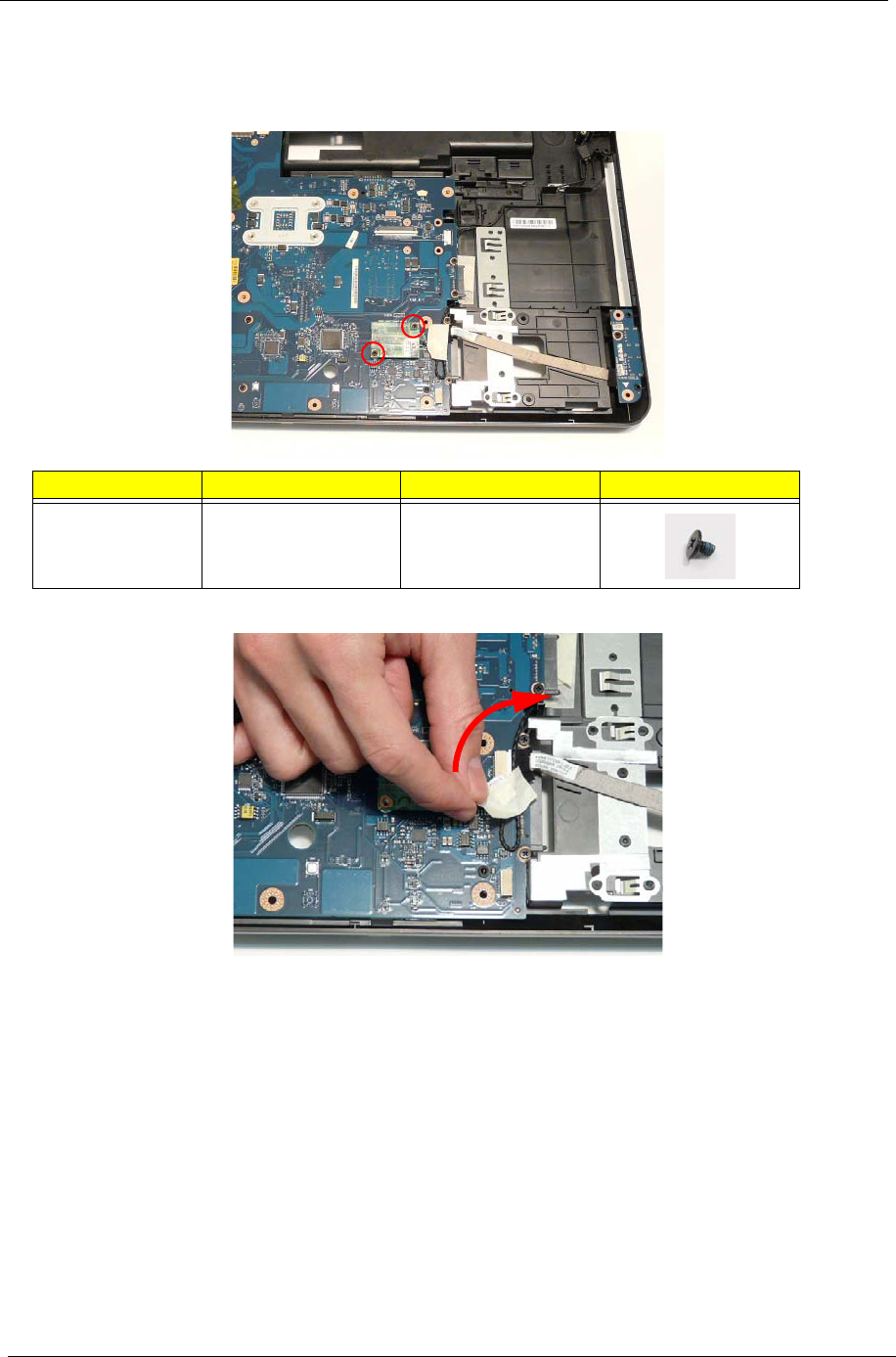

2. Remove the two securing screws from the Modem Board.
3. Remove the adhesive tape securing the Modem cable to the Mainboard.
Step Size Quantity Screw Type
Modem Board M2*3 2
Chapter 3 81
4. Lift the Modem Board away from the Mainboard, taking care not to damage the cable attached to the underside
of the board.
5. Disconnect the cable from the underside of the Modem Board and lift the board clear of the chassis.
82 Chapter 3
Removing the USB Board
1. See “Removing the Upper Cover” on page 70.
2. Disconnect the USB Board cable from the Mainboard connector.
3. Lift the USB cable away from Lower Cover to detach the adhesive.
4. Remove the single screw securing the USB Board to the Lower Cover.
Step Size Quantity Screw Type
USB Board M2.5*5 1
Chapter 3 83
5. Lift the USB Board out of the Lower Cover as shown.
6. Remove the USB Board cable from the board connector.
84 Chapter 3
Removing the Mainboard
1. See “Removing the Modem Board” on page 80.
2. See “Removing the USB Board” on page 82.
3. Remove the single screw securing the Mainboard to the Lower Cover.
4. Lift the Mainboard from the Lower Cover right side first, and place it on a clean, dust-free surface.
Step Size Quantity Screw Type
Mainboard M2.5*5 1
Chapter 3 85

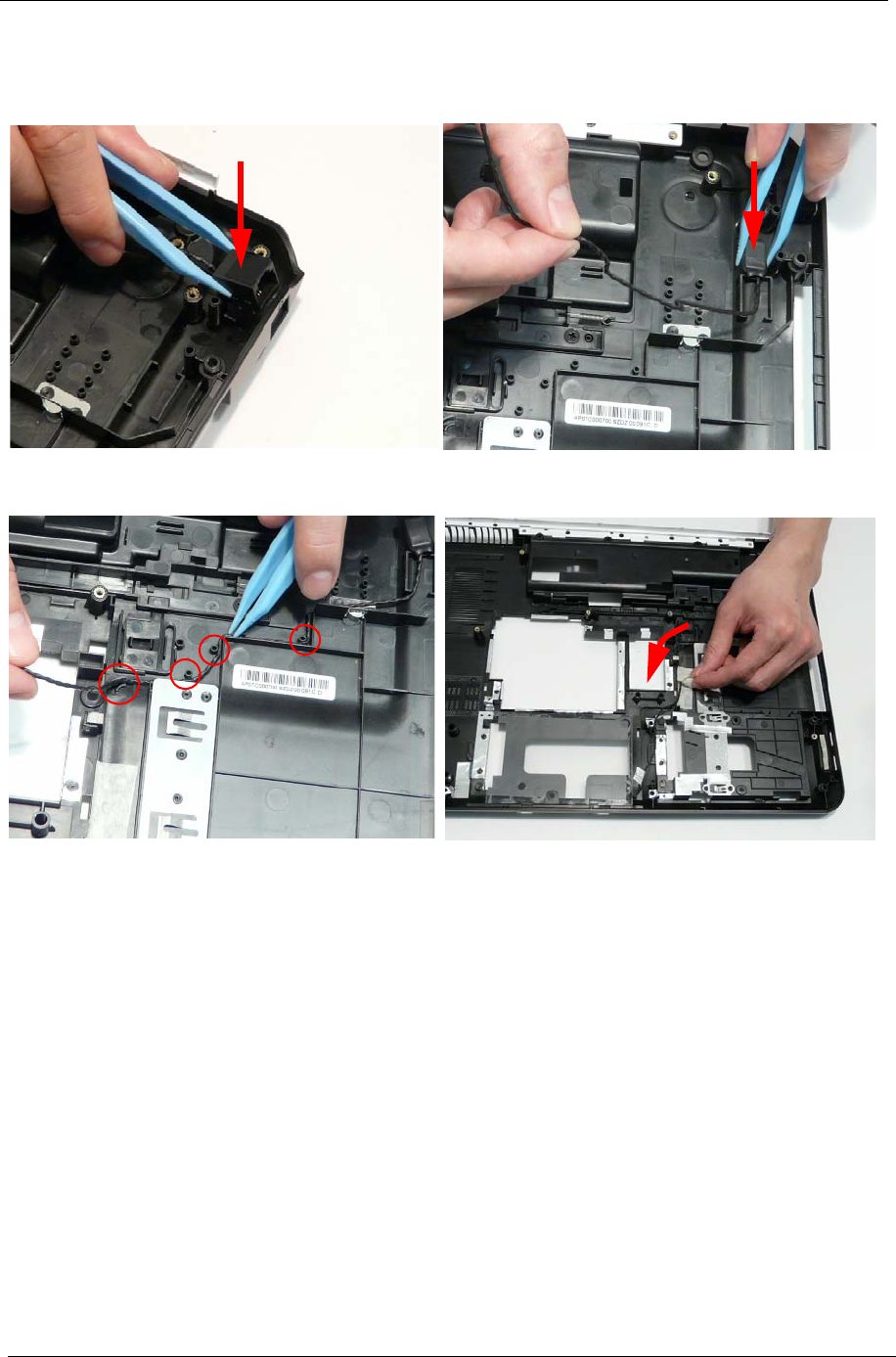

Removing the RJ-11 Jack
1. See “Removing the Mainboard” on page 84.
2. Remove the adhesive tape securing the RJ-11 cable to the Lower Cover.
3. Remove the RJ-11 cable from the cable channel. Ensure that the cable is free from all cable clips.
4. Lift the cable bundle away from the Lower Cover to detach the adhesive securing it in place.
86 Chapter 3

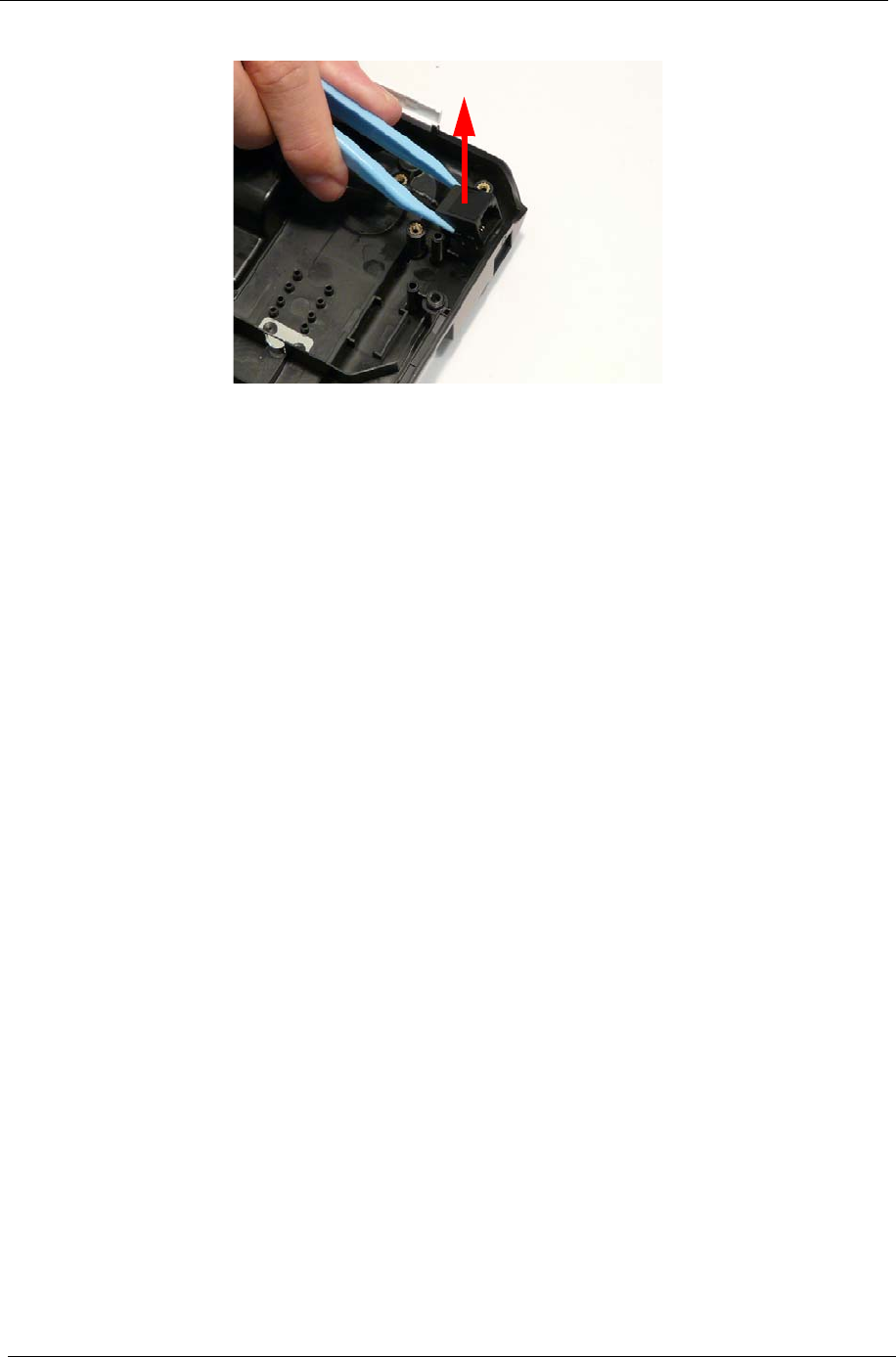

5. Lift the RJ-11 Jack away from the Lower Cover to detach the adhesive securing it in place.
Chapter 3 87
Removing the CPU Fan
1. See “Removing the Mainboard” on page 84.
2. Disconnect the CPU Fan power cable from the Mainboard.
3. Remove the three securing screws from the CPU Fan.
4. Remove the CPU Fan from the Mainboard.
Step Size Quantity Screw Type
CPU Fan M2*3 3
88 Chapter 3
Removing the Thermal Module
1. See “Removing the Mainboard” on page 84.
2. Remove the four screws securing the Thermal Module to the Mainboard in reverse numerical order from 4 to 1.
3. Using both hands, lift the Thermal Module clear of the Mainboard.
Step Size Quantity Screw Type
Thermal Module M2.5*6.5 4
1
2
3
4
Chapter 3 89
Removing the CPU
1. See “Removing the Thermal Module” on page 88.
2. Using a flat-bladed screw driver, rotate the CPU locking screw 180° counter-clockwise as shown.
3. Lift the CPU clear of the socket as shown.
90 Chapter 3
LCD Module Disassembly Process
LCD Module Disassembly Flowchart
Screw List
Step Screw Quantity Part No.
LCD Bezel M2.5*5 4 86.WBF02.010
M2*4 2 86.WBF02.007
LCD Panel M2.5*5 2 86.WBF02.010
Power Board M2*3 1 86.WBF02.003
LCD Brackets M2*3 6 86.WBF02.003
Remove
LCD Panel
Remove
LCD Bezel
Remove
LCD FPC Cable
Remove LCD
Panel from Main
Unit before
proceeding
Remove
LCD Brackets
Remove
Antennas
Remove
Camera Module
Remove
Microphone
Remove
Power Board
Chapter 3 91
Removing the LCD Bezel
1. See “Removing the LCD Module” on page 65.
2. Remove the four screw caps and six screws (four on the Bezel and two on the Hinge Covers).
3. Starting from the top centre of the bezel, pry the bezel upwards and away from the panel. Move along the top
edge and down each side until all sides of the bezel are removed.
NOTE: If necessary, use a pry to lift up the outside edges of the bezel.
Step Size Quantity Screw Type
LCD Bezel
(red callout)
M2.5*5 4
LCD Bezel
(green callout)
M2*4 2
92 Chapter 3
Removing the Camera Module
1. See “Removing the LCD Bezel” on page 91.
2. Disconnect the camera cable.
3. Remove the Camera from the module.
Chapter 3 93
Removing the LCD Panel
1. See “Removing the Camera Module” on page 92.
2. Remove the two securing screws from the LCD Panel.
3. Lift the LCD Panel out of the module, rear edge first, as shown.
The LCD Module appears as follows when the LCD Panel is removed.
Step Size Quantity Screw Type
LCD Panel M2.5*5 2
94 Chapter 3
Removing the Power Board
1. See “Removing the LCD Panel” on page 93.
2. Remove the single screw securing the Power Board Bracket to the LCD Module.
3. Lift the Power Board Bracket from the LCD Panel as shown.
4. Remove the Power Board from the bracket as shown.
Step Size Quantity Screw Type
Power Board M2*3 1
Chapter 3 95
Removing the LCD Brackets and FPC Cable
1. See “Removing the LCD Panel” on page 93.
2. Turn the LCD panel over to expose the rear. Lift the cable as shown to disengage the adhesive strip securing it
in place.
3. Remove the adhesive tape and lift the adhesive protector securing the cable to the LCD Panel.
4. Disconnect the cable from the panel connector and lift the FPC cable from the panel.
96 Chapter 3
5. Remove the six securing screws (three on each side) from the LCD Panel brackets.
6. Remove the LCD Brackets by pulling away from the LCD Panel.
Step Size Quantity Screw Type
LCD Brackets M2*3 6
Chapter 3 97
Removing the Microphone Module
1. See “Removing the LCD Panel” on page 93.
2. Remove the strips holding the microphone cable in place. Ensure the cable is free from obstructions.
3. Lift the Microphone Module clear of the module.
98 Chapter 3
Removing the Antennas
1. See “Removing the LCD Panel” on page 93.
2. Starting from the right hinge, remove the white Antenna cable from the cable channel running along the bottom
edge of the LCD Module.
3. Remove the adhesive strips holding the left Antenna cable in place. Ensure the cable is free from obstructions.
Chapter 3 99

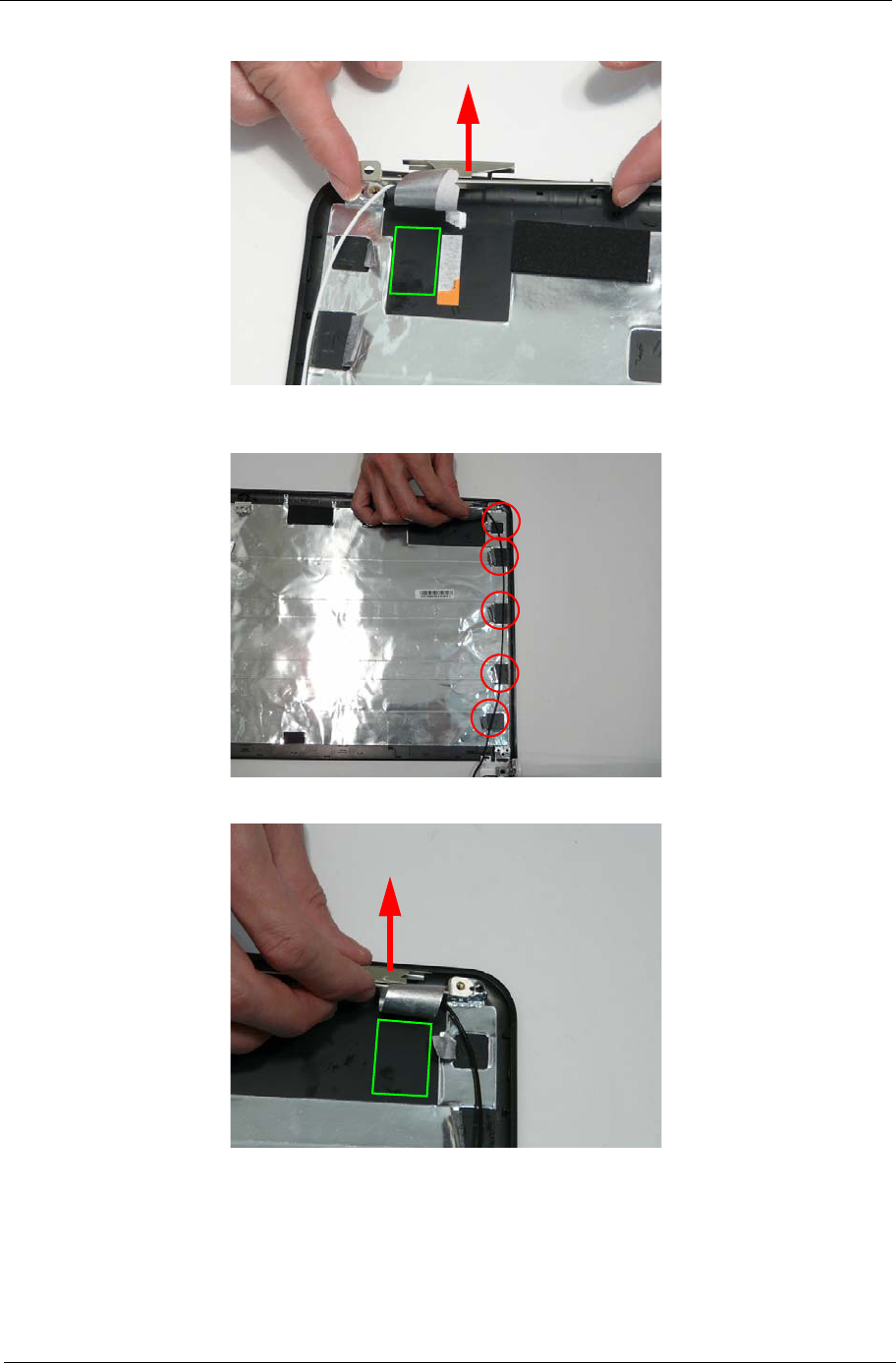

4. Remove the adhesive tape (green callout) and lift the left side Antenna from the LCD module as shown.
5. Remove the adhesive strips holding the right Antenna cable in place. Ensure the cable is free from
obstructions.
6. Remove the adhesive tape (green callout) and lift the right side Antenna from the LCD module as shown.
100 Chapter 3
LCD Module Reassembly Procedure
Replacing the Antennas, Power Board, and MIC
1. Replace the left and right antennas as shown. Ensure that the locating pin on each antenna is correctly
seated. Press down on the adhesive pads (green callout) to secure the antennas in place.
2. Replace the left antenna cable (white) as shown. Ensure that the cable is inserted along the cable channel
and secured under each adhesive tab strip.
Locating Pin Locating Pin
Chapter 3 101
3. Replace the right antenna cable (black) as shown.
Ensure that the cable is secured under each
adhesive tab strip.
4. Place the Power Board in to the bracket as shown.
5. Place the Power Board Bracket in the LCD Module
as shown. 6. Replace the single screw to secure the bracket in
place.
7. Place the Microphone Module in the LCD Module,
as shown, and press down to secure it in place. 8. Run the cable as shown and secure it using the
adhesive tabs.
102 Chapter 3
NOTE: The LCD Module appears as shown when the Antennas, Power Board, and MIC are replaced
correctly.
Chapter 3 103
Replacing the LCD Panel
1. Align the LCD brackets with the screw holes on the panel.
2. Starting with the top most screws (marked with ), replace the six screws in the brackets as shown.
3. Insert the LCD Panel cable into the LCD Panel
connector as shown. 4. Replace the adhesive strip securing the connector
in place.
5. Replace the adhesive strip as shown.
104 Chapter 3
6. Replace the LCD cable as shown an press down along the cable’s length to secure the cable to the panel.
IMPORTANT:Ensure the cable is placed between the green callouts to avoid trapping when the panel is
replaced.
7. Place the LCD Panel in the back cover, bottom edge first, and lower it in to place as indicated.
IMPORTANT: Ensure that the LCD cables pass through the hinge wells and are not trapped under the panel.
Chapter 3 105
Replacing the Camera Module
8. Replace the two screws to secure the panel in the LCD Module.
1. Align the Camera Board with the locating pins and
place the camera in the LCD Module. 2. Connect the cable to the Camera Board.
106 Chapter 3
Replacing the LCD Bezel
1. Locate the bezel bottom edge first and press down until there are no gaps between the bezel and the LCD
Module.
IMPORTANT: Ensure that the LCD cables pass through the hinge wells and are not trapped by the bezel.
Chapter 3 107
2. Press down around the entire perimeter of the bezel until there are no gaps between the bezel and the LCD
Module.
3. Replace the six screws as indicated.
NOTE: The Bezel securing screws differ in size: Red callout—M2.5*5, Green callout—M2*4.
108 Chapter 3
Main Module Reassembly Procedure
Replacing the CPU
IMPORTANT:
The CPU has a Pin1 locator that must be positioned corresponding to the marker on the CPU socket.
Replacing the Thermal Module
IMPORTANT:Apply a suitable thermal grease and ensure all heat pads are in place before replacing the
Thermal Module.
The following thermal grease types are approved for use:
•Silmore GP50
•Honeywell PCM45F-SP
•ShinEtsu 7762
The following thermal pads are approved for use:
Eapus XR-PE
1. Place the CPU into the CPU socket as shown, taking note of the Pin1 locator.
2. Using a flat-bladed screw driver, rotate the CPU locking screw 180° clockwise to secure the CPU in place.
1. Remove all traces of thermal grease from the CPU using a lint-free cloth or cotton swab and Isopropyl
Alcohol, Acetone, or other approved cleaning agent.
2. Apply a small amount of thermal grease to the centre of the CPU—there is no need to spread the grease
manually, the force used during the installation of the Thermal Module is sufficient.
Socket
Pin1 Locator
CPU
Pin1 Locator
Chapter 3 109
Replacing the CPU Fan
3. Align the four screw holes on the Thermal Module
and Mainboard and lower the module into place.
Keep the module as level as possible to spread the
thermal grease evenly.
4. Secure the four screws (in numerical order from
screw 1 to screw 4) in the Thermal Module as
shown.
1. Align the three screw holes on the CPU Fan and
Mainboard and lower the module into place. 2. Secure the three screws in the CPU Fan as shown.
3. Connect the CPU Fan power cable to the Mainboard connector as shown.
1
2
3
4
110 Chapter 3
Replacing the RJ-11 Jack
1. Place the RJ-11 Jack in the Lower Cover as
shown. 2. Replace the cable bundle and press down to
secure the adhesive in place
3. Run the cable along the Lower Cover as shown,
using all available cable clips. 4. Secure the cable in place with an adhesive strip.
Chapter 3 111
Replacing the Mainboard
1. Ensure that the Mainboard is face up (the CPU is not visible). Place the Mainboard in the chassis, left side
first (1), then rotate it downward into position (2).
2. Ensure that the RJ-11 (Modem) cable is accessible when the Mainboard is replaced as shown.
3. Replace the single securing screw in the mainboard.
(1) (2)
112 Chapter 3
Replacing the USB Board
1. Reconnect the USB Board cable to the USB
Board. 2. Align the locating holes and pins on the Lower
Cover and replace the USB Board.
3. Replace the single screw securing the board to the
Lower Cover. 4. Replace the cable in the cable channel as shown
and press down to secure it in place.
5. Reconnect the USB cable to the USB Board.
Chapter 3 113
Replacing the Modem Board
1. Reconnect the RJ-11 cable to the Modem Board. 2. Align the screw holes on the Modem and Lower
Cover and replace the board.
3. Secure the cable in place with adhesive tape. 4. Press down as indicated to connect the board-to-
board interface.
5. Secure the Modem Board to the Mainboard with two screws.
114 Chapter 3
Replacing the Speaker Module
1. Place the left Speaker Module in the chassis as
shown, ensuring that the locating pins are seated
correctly.
2. Lift the mylar sheet away from the Upper Cover and
run the Speaker cable along the Upper Cover using
all available cable clips.
3. Continue running the cable along the Upper Cover
using all available cable clips. 4. Place the right Speaker Module in the chassis as
shown, ensuring that the locating pins are seated
correctly.
5. Replace the four securing screws.
NOTE: Ensure that the Speaker cable runs as shown in the image below to avoid trapping when the Upper
Cover is replaced.
Chapter 3 115
Replacing the LED Board
Replacing the Media Board FFC
1. Pass the LED Board FFC through the Upper Cover
as shown. 2. Place the LED Board in the Upper Cover and press
down as indicated to secure the board in place.
1. Place the Media Board FFC on the Upper Cover as
shown, and press down to secure the adhesive in
place.
2. Pass the upper end of the cable through the Upper
Cover as shown.
116 Chapter 3
Replacing the TouchPad Bracket
Replacing the Upper Cover
1. Replace the TouchPad Bracket bottom edge first to
engage the securing clips (1). Rotate the bracket
on to the Upper Cover and press down as
indicated (2).
2. Secure the bracket to the Upper Cover with a single
screw.
3. Insert the TouchPad FFC in to the connector as
shown. 4. Close the FFC locking latch to secure the cable in
place.
1. Place the upper cover on the lower cover front edge first and lower the cover into position.
(1)
(2)
Chapter 3 117
2. Press down around the front and sides to secure the Upper Cover in place.
NOTE: Ensure that there a no gaps between the Upper and Lower Covers.
3. Reconnect the following cables as shown.
A
B
C
D
118 Chapter 3
4. Connect A as shown. 5. Insert B as shown and close the locking latch.
6. Insert C as shown and close the locking latch. 7. Insert D as shown and close the locking latch.
8. Secure cables A and B in place using adhesive tape.
Chapter 3 119
9. Replace the nine screws in the upper cover as shown.
NOTE: The securing screws differ in size: Red callout—M2.5*5, Blue callout—M2.5*3.
10. Turn the computer over and replace the thirteen screws as shown.
NOTE: The securing screws differ in size: Red callout—M2.5*8, Green callout—M2.5*5, Blue callout—M2.5*3.
120 Chapter 3
Replacing the LCD Module
1. Turn the computer over. Align the LCD hinges with the lower cover and replace the LCD module.
2. Replace the four securing screws (two each side), starting with the left side hinge. Ensure that the LCD
cables are not trapped in the hinges.
NOTE: The securing screws differ in size: Red callout—M2.5*8, Green callout—M2.5*5.
3. Run the MIC cable along the cable channel as
shown, using all the available cable clips. 4. Reconnect the MIC cable to the Mainboard as
shown.
Chapter 3 121
5. Run the LVDS cable along the cable channel as
shown, using all the available cable clips. 6. Reconnect the LVDS cable to the Mainboard as
shown.
7. Run the Power Board cable along the cable channel
using all available cable clips. 8. Connect the Power Board cable to the Mainboard
as shown.
9. Run the Antenna cables along the cable channel
using all available cable clips. 10. Insert the Antenna cables through the chassis as
shown.
122 Chapter 3

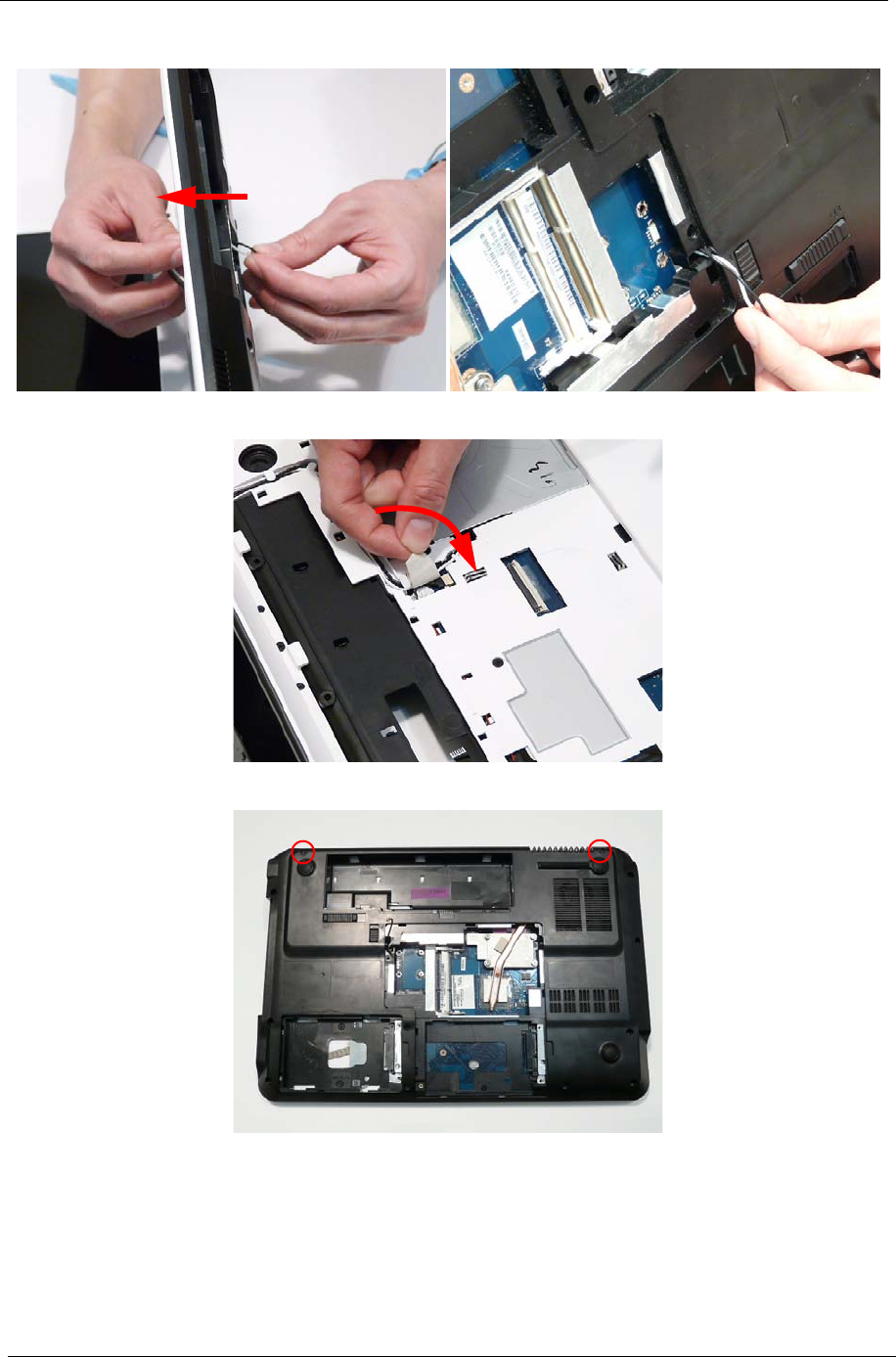

11. Pull the Antennas completely through from the under side of the computer.
12. Secure the cables in place with adhesive tape.
13. Replace the two securing screws.
Chapter 3 123
Replacing the Keyboard
1. Place the Keyboard face down on the TouchPad
area.Reconnect the FFC as shown. 2. Close the FFC locking latch to secure the cable in
place.
3. Turn the keyboard over and insert it front edge first
into the chassis. 4. Press down as indicated to seat the Keyboard.
NOTE: Ensure that the six locating tabs are correctly seated.
124 Chapter 3
Replacing the Media Board
1. Align the Media Board with the transparent pane
on the Switch Cover. 2. Press the Media Board down to secure it in place
with adhesive.
Chapter 3 125
Replacing the Switch Cover
1. Place the Switch Cover rear edge first on to the Upper Cover. Rotate the Switch Cover downward on the
Keyboard.
2. Press down the edges of the cover to snap it into place, then press the centre down until it snaps in to place.
3. Turn the computer over and replace the three securing screws as shown.
126 Chapter 3

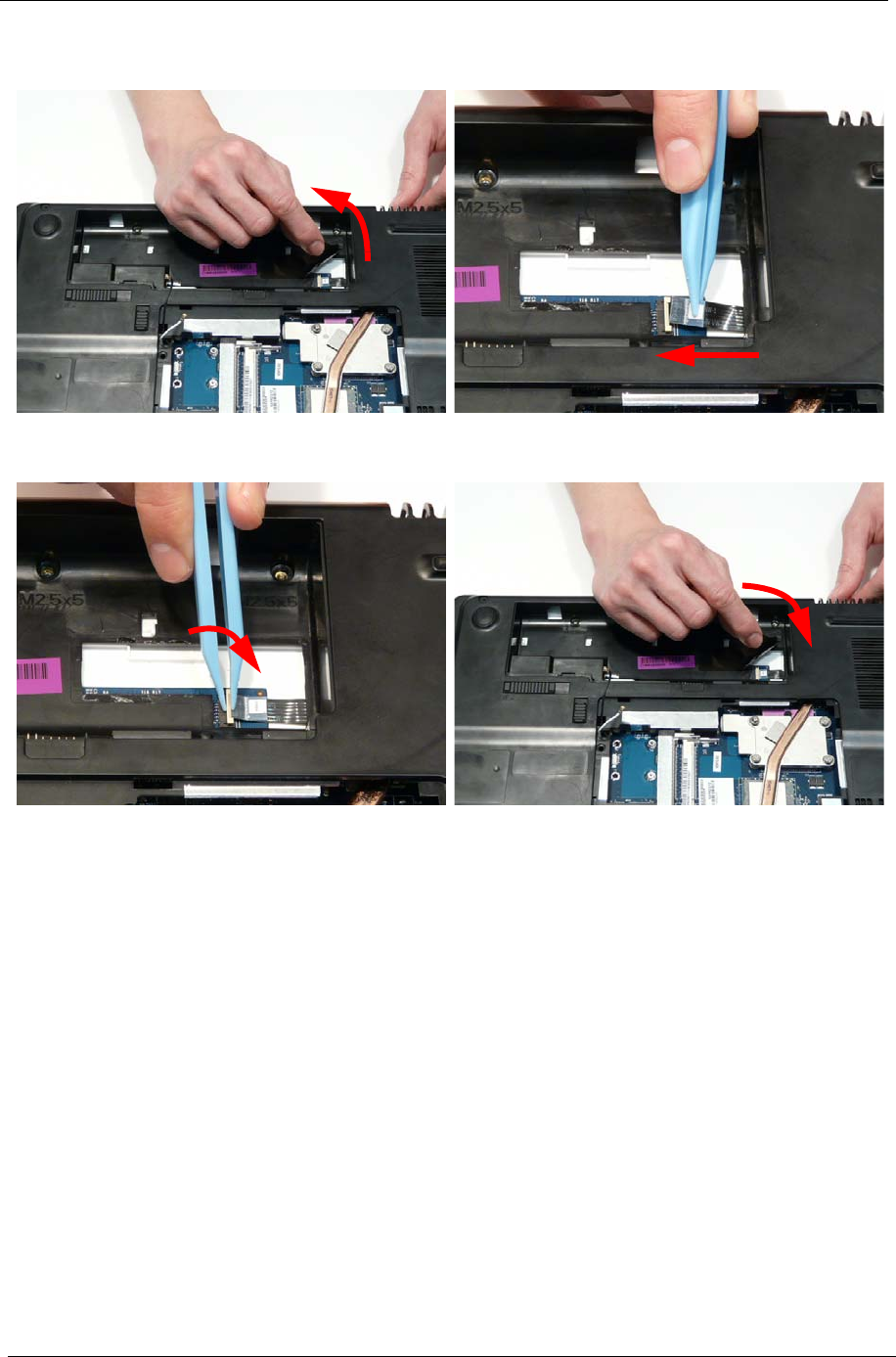

4. Lift the Media Board FFC cover as shown to
expose the FFC connector. 5. Connect the FFC to the Media Board as shown.
6. Close the FFC locking latch to secure the FFC in
place. 7. Replace the Media Board FFC cover.
Chapter 3 127
Replacing the Hard Disk Drive Modules
1. Place the HDD in the HDD carrier. 2. Replace the four screws (two each side) to secure
the carrier.
3. Insert the Secondary HDD, right side first, and
lower it into place. 4. Slide the Secondary HDD to the right to connect
the interface.
5. Insert the Primary HDD, right side first, and lower it into place. Slide the Primary HDD to the right to connect
the interface.
128 Chapter 3
Replacing the WLAN Module
Replacing the DIMM Modules
1. Insert the WLAN Module into the WLAN socket. 2. Replace the single screw to secure the module.
3. Connect the two antenna cables to the module. 4. After connecting the cables to the terminals,
secure the cables in place using adhesive tape.
NOTE: Cable placement is Black to the MAIN terminal (left) and White to the AUX terminal (right).
1. Insert the DIMM Module in place. 2. Press down to lock the DIMM module in place.
Chapter 3 129
Replacing the ODD Module
Replacing the Lower Covers
1. Press the bezel into the tray, bottom edge first, to
secure it to the ODD Module. 2. Secure the ODD bracket with the two screws.
3. Push the ODD Module into the ODD bay until it is
flush with the casing. 4. Replace the single screw to secure the Module.
1. Replace the HDD2, WLAN, and Memory Cover back edge first as shown.
130 Chapter 3
2. Replace the HDD1 Cover as shown.
IMPORTANT:Press down around the perimeter of the covers to ensure that the all the securing tabs are
correctly located in the casing.
3. Secure the five captive screws to hold the covers in place.
HDD1
Cover
HDD2, WLAN,
and Memory
Cover
Chapter 3 131
Replacing the SD Dummy Card
Replacing the Battery
1.
Insert the SD Dummy Card into the slot and push until the card clicks into place and is flush with the casing.
1.
Slide and hold the battery release latch to the
release position (1), insert the battery pack and
press down (2).
2. Slide the battery lock in the direction shown to
secure the battery in place.
1
2
132 Chapter 3
Chapter 4 133
Troubleshooting
Common Problems
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3. Use the following table with the verified symptom to determine which page to go to.
4. If the Issue is still not resolved, see “Online Support Information” on page 187.
Symptoms (Verified) Go To
Power On Issue Page 134
No Display Issue Page 135
LCD Failure Page 137
Internal Keyboard Failure Page 137
TouchPad Failure Page 138
Internal Speaker Failure Page 138
Internal Microphone Failure Page 140
ODD Failure Page 142
Modem Failure Page 145
WLAN Failure Page 146
Thermal Unit Failure Page 148
Other Functions Failure Page 149
Intermittent Failures Page 150
Undermined Failures Page 150
Chapter 4
134 Chapter 4
Power On Issue
If the system doesn’t power on, perform the following actions one at a time to correct the problem. Do not
replace a non-defective FRUs:
Computer Shutsdown Intermittently
If the system powers off at intervals, perform the following actions one at a time to correct the problem.
1. Check the power cable is properly connected to the computer and the electrical outlet.
2. Remove any extension cables between the computer and the outlet.
3. Remove any surge protectors between the computer and the electrical outlet. Plug the computer directly
into a known good electrical outlet.
4. Disconnect the power and open the casing to check the Thermal Unit (see “Thermal Unit Failure” on page
148) and fan airways are free of obstructions.
5. Remove all external and non-essential hardware connected to the computer that are not necessary to
boot the computer to the failure point.
6. Remove any recently installed software.
7. If the Issue is still not resolved, see “Online Support Information” on page 187.
Start
Check
AC/Batt only
power on
Swap
AC/Battery
OK
NG
Check
Power/B
Whether OK
OK
Swap Powe
r
SW/B
OK
NG
Swap M/B
Start
Check
AC/Batt only
power on
Swap
AC/Battery
OK
NG
Check
Power/B
Whether OK
OK
Swap Powe
r
SW/B
OK
NG
Swap M/B
Chapter 4 135
No Display Issue
If the Display doesn’t work, perform the following actions one at a time to correct the problem. Do not replace
a non-defective FRUs:
No POST or Video
If the POST or video doesn’t display, perform the following actions one at a time to correct the problem.
1. Make sure that the internal display is selected. On this notebook model, switching between the internal
display and the external display is done by pressing Fn+F5. Reference Product pages for specific model
procedures.
2. Make sure the computer has power by checking at least one of the following occurs:
•Fans start up
•Status LEDs light up
If there is no power, see “Power On Issue” on page 134.
3. Drain any stored power by removing the power cable and battery and holding down the power button for
10 seconds. Reconnect the power and reboot the computer.
4. Connect an external monitor to the computer and switch between the internal display and the external
display is by pressing Fn+F5 (on this model).
If the POST or video appears on the external display, see “LCD Failure” on page 137.
5. Disconnect power and all external devices including port replicators or docking stations. Remove any
memory cards and CD/DVD discs. Restart the computer.
If the computer boots correctly, add the devices one by one until the failure point is discovered.
6. Reseat the memory modules.
7. Remove the drives (see “Disassembly Process” on page 44).
8. If the Issue is still not resolved, see “Online Support Information” on page 187.
START
Power On? No goto no power
trouble shooting
step
Replace
Ext. DDR RAM
module
No
No Connect it well
CPU OK?
Replace
M/B
Connect
it well
No
Replace CPU No
LCD module
OK?
No
Replace
LCD panel/
LCD cable
Ext. DDRRAM
module well
connected?
Ext. DDRRAM
module OK?
CPU well
connected?
VGA BD
OK?
Or Connect it well?
No
Connect it well
or Replace VGA
BD
136 Chapter 4
Abnormal Video Display
If video displays abnormally, perform the following actions one at a time to correct the problem.
1. Reboot the computer.
2. If permanent vertical/horizontal lines or dark spots display in the same location, the LCD is faulty and
should be replaced. See “Disassembly Process” on page 44.
3. If extensive pixel damage is present (different colored spots in the same locations on the screen), the LCD
is faulty and should be replaced. See “Disassembly Process” on page 44.
4. Adjust the brightness to its highest level. See the User Manual for instructions on adjusting settings.
NOTE: Ensure that the computer is not running on battery alone as this may reduce display brightness.
If the display is too dim at the highest brightness setting, the LCD is faulty and should be replaced. See
“Disassembly Process” on page 44.
5. Check the display resolution is correctly configured:
a. Minimize or close all Windows.
b. If display size is only abnormal in an application, check the view settings and control/mouse wheel
zoom feature in the application.
c. If desktop display resolution is not normal, right-click on the desktop and select
Personalize´ Display Settings.
d. Click and drag the Resolution slider to the desired resolution.
e. Click Apply and check the display. Readjust if necessary.
6. Roll back the video driver to the previous version if updated.
7. Remove and reinstall the video driver.
8. Check the Device Manager to determine that:
•The device is properly installed. There are no red Xs or yellow exclamation marks.
•There are no device conflicts.
•No hardware is listed under Other Devices.
9. If the Issue is still not resolved, see “Online Support Information” on page 187.
10. Run the Windows Memory Diagnostic from the operating system DVD and follow the onscreen prompts.
11. If the Issue is still not resolved, see “Online Support Information” on page 187.
Random Loss of BIOS Settings
If the computer is experiencing intermittent loss of BIOS information, perform the following actions one at a
time to correct the problem.
1. If the computer is more than one year old, replace the CMOS battery.
2. Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3. If the computer is experiencing HDD or ODD BIOS information loss, disconnect and reconnect the power
and data cables between devices.
If the BIOS settings are still lost, replace the cables.
4. If HDD information is missing from the BIOS, the drive may be defective and should be replaced.
5. Replace the Motherboard.
6. If the Issue is still not resolved, see “Online Support Information” on page 187.
Chapter 4 137

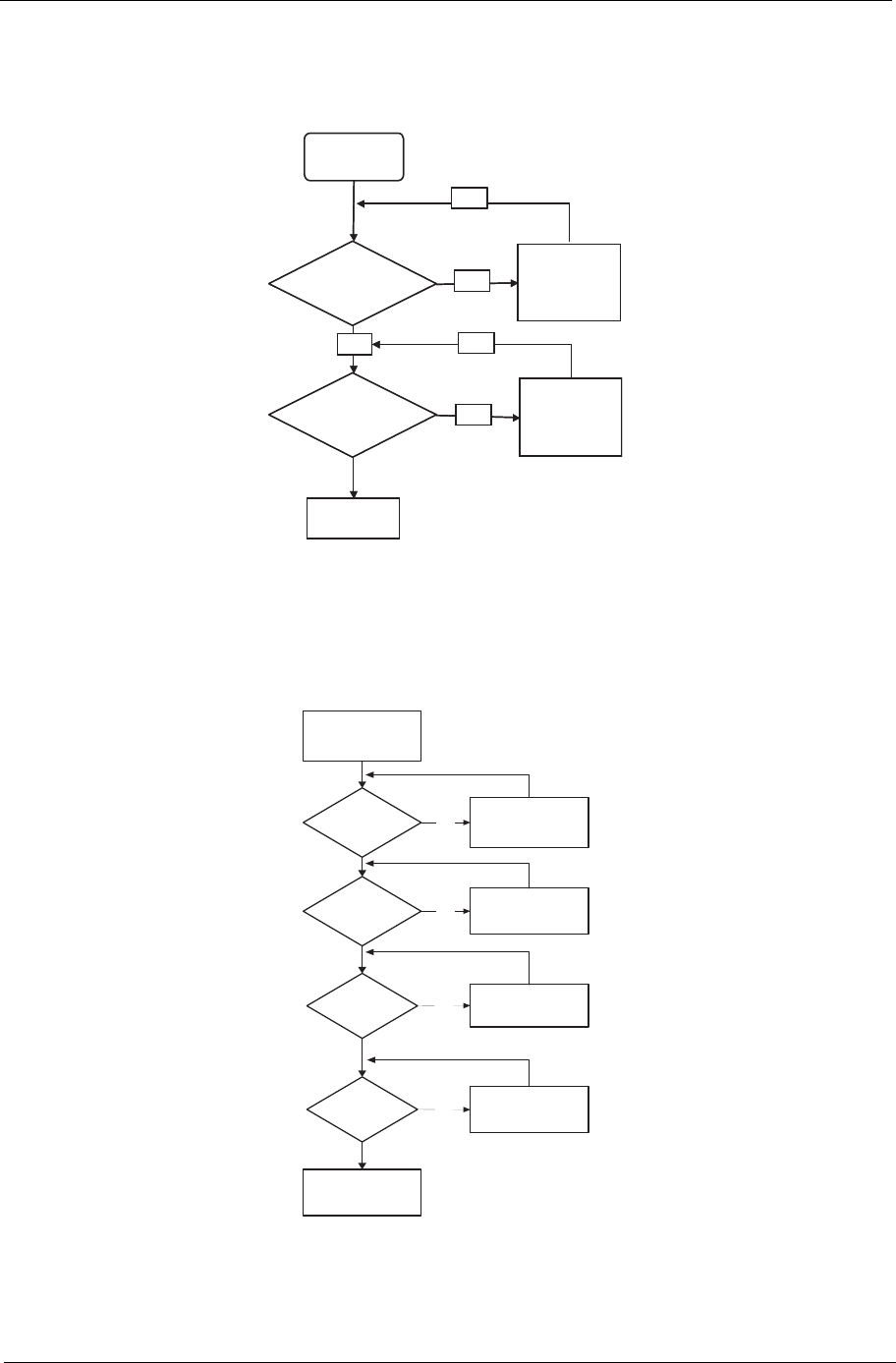

LCD Failure
If the LCD fails, perform the following actions one at a time to correct the problem. Do not replace a non-
defective FRUs:

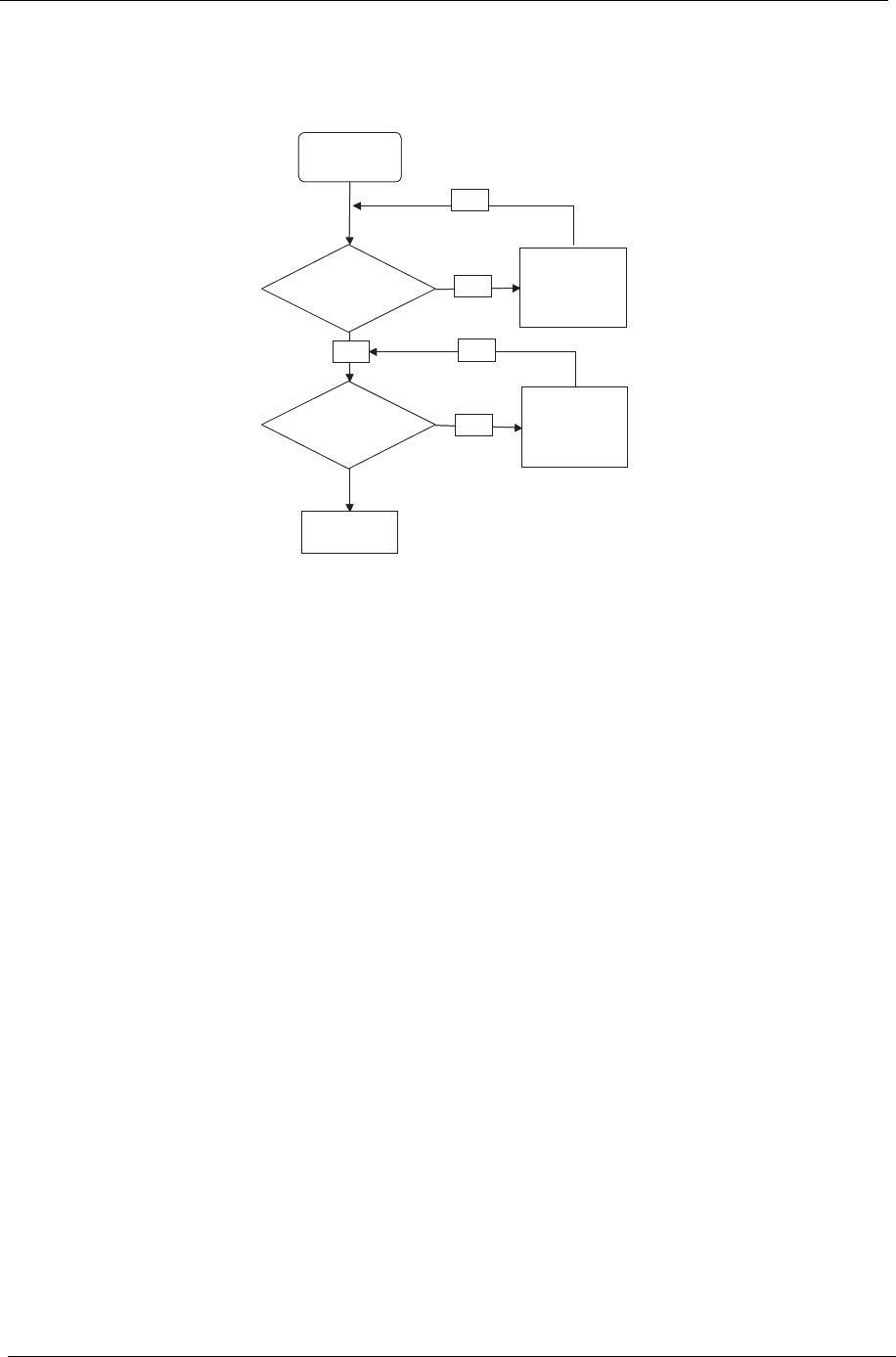

Built-In Keyboard Failure
If the built-in Keyboard fails, perform the following actions one at a time to correct the problem. Do not replace
a non-defective FRUs:
Start
Check LCD
Module
ok
Swap M/B
Swap LCD panel/
LCD cable
NG
OK
START
Keyboard FPC
well connected? No Connect
it well
Keyboard OK? No Replace
keyboard
Replace M/B
138 Chapter 4
TouchPad Failure
If the TouchPad doesn’t work, perform the following actions one at a time to correct the problem. Do not
replace a non-defective FRUs:
Internal Speaker Failure
If the internal Speakers fail, perform the following actions one at a time to correct the problem. Do not replace
a non-defective FRUs:
Start
Check M/B
T/P FFC
Re-assemble
the T/P FFC t
o
M/B
OK
NG
Check Logic
Upper
OK
Swap/
Reassemble
the T/P boar
d
or T/P FFC
OK
NG
Swap M/B
Start
Check M/B
T/P FFC
Re-assemble
the T/P FFC t
o
M/B
OK
NG
Check Logic
Upper
OK
Swap/
Reassemble
the T/P boar
d
or T/P FFC
OK
NG
Swap M/B
Start
Check M/B
Speaker cable
ok
Check
speaker
Swap M/B
Re-assemble
the speaker cable
to M/B
NG
Swap speakerNG
OK
OK
Chapter 4 139
Sound Problems
If sound problems are experienced, perform the following actions one at a time to correct the problem.
1. Reboot the computer.
2. Navigate to Start´ Control Panel´ System and Maintenance´ System´ Device Manager. Check
the Device Manager to determine that:
•The device is properly installed.
•There are no red Xs or yellow exclamation marks.
•There are no device conflicts.
•No hardware is listed under Other Devices.
3. Roll back the audio driver to the previous version, if updated recently.
4. Remove and reinstall the audio driver.
5. Ensure that all volume controls are set mid range:
a. Click the volume icon on the taskbar and drag the slider to 50. Ensure that the volume is not muted.
b. Click Mixer to verify that other audio applications are set to 50 and not muted.
6. Navigate to Start´ Control Panel´ Hardware and Sound´ Sound. Ensure that Speakers are selected
as the default audio device (green check mark).
NOTE: If Speakers does not show, right-click on the Playback tab and select Show Disabled Devices
(clear by default).
7. Select Speakers and click Configure to start Speaker Setup. Follow the onscreen prompts to configure
the speakers.
8. Remove and recently installed hardware or software.
9. Restore system and file settings from a known good date using System Restore.
If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
10. Reinstall the Operating System.
11. If the Issue is still not resolved, see “Online Support Information” on page 187.
140 Chapter 4

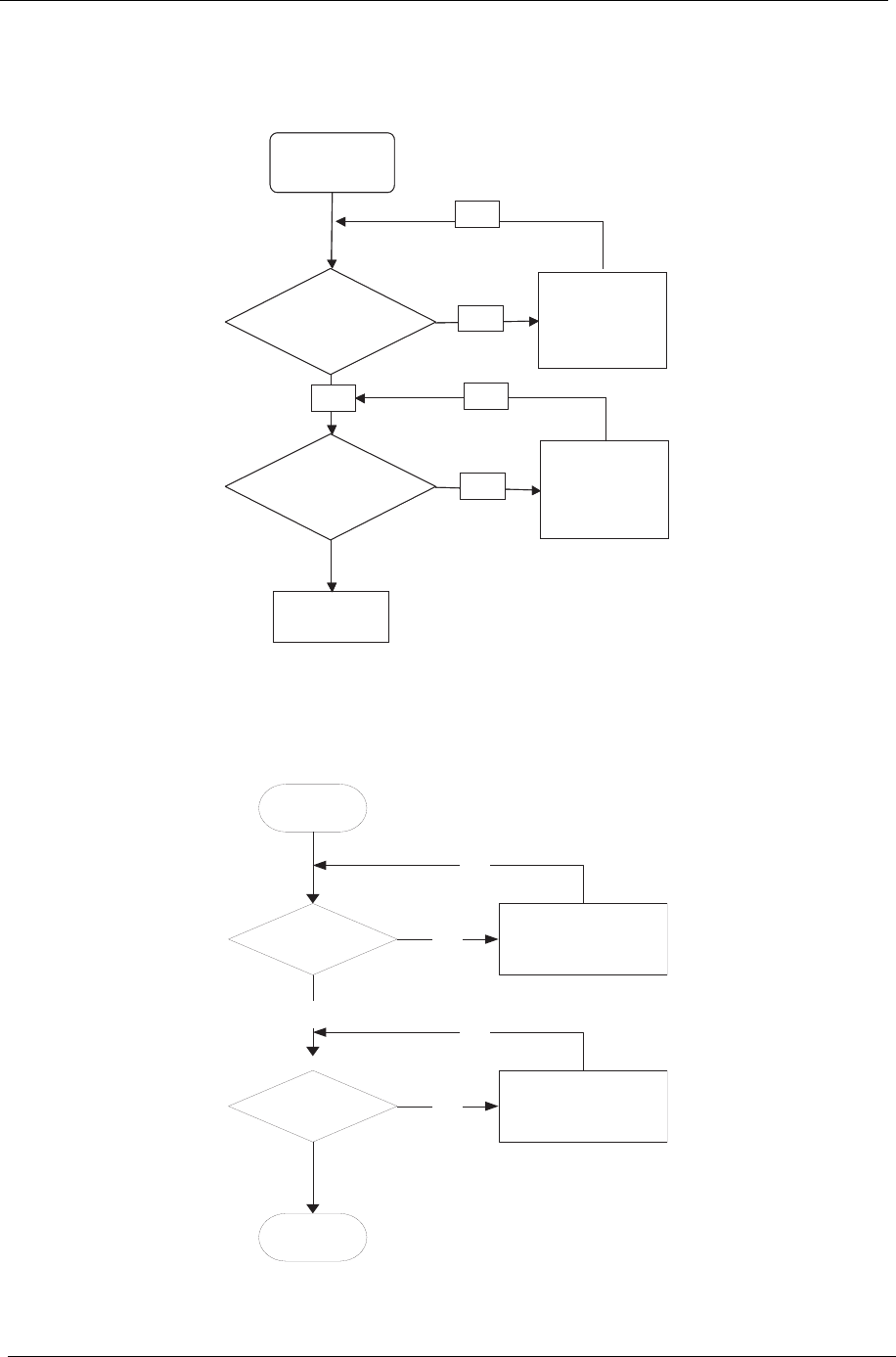

Internal Microphone Failure
If the internal Microphone fails, perform the following actions one at a time to correct the problem. Do not
replace a non-defective FRUs:
[
Microphone Problems
If internal or external Microphones do no operate correctly, perform the following actions one at a time to
correct the problem.
1. Check that the microphone is enabled. Navigate to Start´ Control Panel´ Hardware and Sound´
Sound and select the Recording tab.
2. Right-click on the Recording tab and select Show Disabled Devices (clear by default).
3. The microphone appears on the Recording tab.
4. Right-click on the microphone and select Enable.
5. Select the microphone then click Properties. Select the Levels tab.
6. Increase the volume to the maximum setting and click OK.
7. Test the microphone hardware:
a. Select the microphone and click Configure.
b. Select Set up microphone.
c. Select the microphone type from the list and click Next.
d. Follow the onscreen prompts to complete the test.
8. If the Issue is still not resolved, see “Online Support Information” on page 187.
Start
Check M/B
Mic cable
Re-assemble
the MIC cable
to M/B
OK
NG
Check MIC
wire of LCD
module
OK
Swap MIC wire
of LCD module
OK
NG
Swap M/B
Start
Check M/B
Mic cable
Re-assemble
the MIC cable
to M/B
OK
NG
Check MIC
wire of LCD
module
OK
Swap MIC wire
of LCD module
OK
NG
Swap M/B
Chapter 4 141
HDD Not Operating Correctly
If the HDD does not operate correctly, perform the following actions one at a time to correct the problem.
1. Disconnect all external devices.
2. Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3. Run the Windows Vista Startup Repair Utility:
a. insert the Windows Vista Operating System DVD in the ODD and restart the computer.
b. When prompted, press any key to start to the operating system DVD.
c. The Install Windows screen displays. Click Next.
d. Select Repair your computer.
e. The System Recovery Options screen displays. Click Next.
f. Select the appropriate operating system, and click Next.
NOTE: Click Load Drivers if controller drives are required.
g. Select Startup Repair.
h. Startup Repair attempts to locate and resolve issues with the computer.
i. When complete, click Finish.
If an issue is discovered, follow the onscreen information to resolve the problem.
4. Run the Windows Memory Diagnostic Tool. For more information see Windows Help and Support.
5. Restart the computer and press F2 to enter the BIOS Utility. Check the BIOS settings are correct and that
CD/DVD drive is set as the first boot device on the Boot menu.
6. Ensure all cables and jumpers on the HDD and ODD are set correctly.
7. Remove any recently added hardware and associated software.
8. Run the Windows Disk Defragmenter. For more information see Windows Help and Support.
9. Run Windows Check Disk by entering chkdsk /r from a command prompt. For more information see
Windows Help and Support.
10. Restore system and file settings from a known good date using System Restore.
If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
11. Replace the HDD. See “Disassembly Process” on page 44.
142 Chapter 4
ODD Failure
If the ODD fails, perform the following actions one at a time to correct the problem. Do not replace a non-
defective FRUs:
ODD Not Operating Correctly
If the ODD exhibits any of the following symptoms it may be faulty:
•Audio CDs do not play when loaded
•DVDs do not play when loaded
•Blank discs do not burn correctly
•DVD or CD play breaks up or jumps
•Optical drive not found or not active:
•Not shown in My Computer or the BIOS setup
•LED does not flash when the computer starts up
•The tray does not eject
•Access failure screen displays
•The ODD is noisy
Perform the following general solutions one at a time to correct the problem.
1. Reboot the computer and retry the operation.
2. Try an alternate disc.
3. Navigate to Start´ Computer. Check that the ODD device is displayed in the Devices with Removable
Storage panel.
4. Navigate to Start´ Control Panel´ System and Maintenance´ System´ Device Manager.
a. Double-click lDE ATA/ATAPI controllers. If a device displays a down arrow, right-click on the device
and click Enable.
START
DVD/
CD-ROM driver
installed? Install itNo
DVD/
CD-ROM module
well seated? No Seat it well
No Replace
DVD/CD-ROM
disc
No Replace
DVD/CD-ROM
module
Replace M/B
DVD/
CD-ROM disc
OK?
DVD/
CD-ROM module
OK?
Chapter 4 143
b. Double-click DVD/CD-ROM drives. If the device displays a down arrow, right-click on the device and
click Enable.
c. Check that there are no yellow exclamation marks against the items in lDE ATA/ATAPI controllers. If
a device has an exclamation mark, right-click on the device and uninstall and reinstall the driver.
d. Check that there are no yellow exclamation marks against the items in DVD/CD-ROM drives. If a
device has an exclamation mark, right-click on the device and uninstall and reinstall the driver.
e. If the exclamation marker is not removed from the item in the lists, try removing any recently installed
software and retrying the operation.
Discs Do Not Play
If discs do not play when inserted in the drive, perform the following actions one at a time to correct the
problem.
1. Check that the disc is correctly seated in the drive tray and that the label on the disc is visible.
2. Check that the media is clean and scratch free.
3. Try an alternate disc in the drive.
4. Ensure that AutoPlay is enabled:
a. Navigate to Start´ Control Panel´ Hardware and Sound´ AutoPlay.
b. Select Use AutoPlay for all media and devices.
c. In the Audio CD and DVD Movie fields, select the desired player from the drop down menu.
5. Check that the Regional Code is correct for the selected media:
IMPORTANT:Region can only be changed a limited number of times. After Changes remaining reaches zero,
the region cannot be changed even Windows is reinstalled or the drive is moved to another computer.
a. Navigate to Start´ Control Panel´ System and Maintenance´ System´ Device Manager.
b. Double-click DVD/CD-ROM drives.
c. Right-click DVD drive and click Properties, then click the DVD Region tab.
d. Select the region suitable for the media inserted in the drive.
Discs Do Not Burn Properly
If discs can not be burned, perform the following actions one at a time to correct the problem.
1. Ensure that the default drive is record enabled:
a. Navigate to Start´ Computer and right-click the writable ODD icon. Click Properties.
b. Select the Recording tab. In the Desktop disc recording panel, select the writable ODD from the
drop down list.
c. Click OK.
2. Ensure that the software used for burning discs is the factory default. If using different software, refer to
the software's user manual.
Playback is Choppy
If playback is choppy or jumps, perform the following actions one at a time to correct the problem.
1. Check that system resources are not running low:
a. Try closing some applications.
b. Reboot and try the operation again.
2. Check that the ODD controller transfer mode is set to DMA:
a. Navigate to Start´ Control Panel´ System and Maintenance´ System´ Device Manager.
b. Double-click IDE ATA/ATAPI controllers, then right-click ATA Device 0.
144 Chapter 4
c. Click Properties and select the Advanced Settings tab. Ensure that the Enable DMA box is
checked and click OK.
d. Repeat for the other ATA Devices shown if applicable.
Drive Not Detected
If Windows cannot detect the drive, perform the following actions one at a time to correct the problem.
1. Restart the computer and press F2 to enter the BIOS Utility.
2. Check that the drive is detected in the ATAPI Model Name field on the Information page.
NOTE: Check that the entry is identical to one of the ODDs specified in “Hardware Specifications and
Configurations” on page 17.
3. Turn off the power and remove the cover to inspect the connections to the ODD. See “Disassembly
Process” on page 44.
a. Check for broken connectors on the drive, motherboard, and cables.
b. Check for bent or broken pins on the drive, motherboard, and cable connections.
c. Try an alternate cable, if available. If the drive works with the new cable, the original cable should be
replaced.
4. Reseat the drive ensuring and all cables are connected correctly.
5. Replace the ODD. See “Disassembly Process” on page 44.
Drive Read Failure
If discs cannot be read when inserted in the drive, perform the following actions one at a time to correct the
problem.
1. Remove and clean the failed disc.
2. Retry reading the CD or DVD.
d. Test the drive using other discs.
e. Play a DVD movie
f. Listen to a music CD
If the ODD works properly with alternate discs, the original disc is probably defective and should be
replaced.
3. Turn off the power and remove the cover to inspect the connections to the ODD. See “Disassembly
Process” on page 44.
a. Check for broken connectors on the drive, motherboard, and cables.
b. Check for bent or broken pins on the drive, motherboard, and cable connections.
c. Try an alternate cable, if available. If the drive works with the new cable, the original cable should be
replaced.
4. Replace the ODD. See “Disassembly Process” on page 44.
Chapter 4 145
USB Failure
If the USB fails, perform the following actions one at a time to correct the problem. Do not replace a non-
defective FRU:
Modem Function Failure
If the internal Modem fails, perform the following actions one at a time to correct the problem. Do not replace a
non-defective FRUs:
Start
Check
USB/B to
M/B cable
Re-assemble
the USB/B
cable to M/B
OK
NG
Check
USB/B
module
OK
Swap USB/B
Mo d ule
OK
NG
Swap M/B
Start
Check
USB/B to
M/B cable
Re-assemble
the USB/B
cable to M/B
OK
NG
Check
USB/B
module
OK
Swap USB/B
Mo d ule
OK
NG
Swap M/B
START
RJ-11
well connected? Connect it wellNo
Modem wire well
connected? No Connect it well
No Seat it well
No Replace
Modem card
Replace M/B
Modem card well
seated?
Modem card
OK?
146 Chapter 4
Wireless Function Failure
If the WLAN fails, perform the following actions one at a time to correct the problem. Do not replace a non-
defective FRUs:
Start
Check antenna to
WL /WiMax card
ok
Check antenna
ok
Check WL/
WiMax card
ok
Check
function /B
Swap M/B
NG
Re-assemble the
antenna to WL /
WiMax card
OK
NG Swap the antenna
OK
Swap WL/WiMax
card
Swap function/B
OK
OK
NG
NG
Start
Check BT cable
well connect
ok
Check BT cable
ok
Check BT
ok
Check
Function/B
Swap M/B
NG Re-assemble BT
Cable
OK
NG Swap BT cable
OK
Swap BT
Swap Function/B
OK
OK
NG
NG
Chapter 4 147
BT Unit Failure
If the Bluetooth Module fails, perform the following actions one at a time to correct the problem. Do not
replace a non-defective FRU:
Start
Check BT cable
well connect
ok
Check BT cable
ok
Check BT
ok
Check
Function/B
Swap M/B
NG Re-assemble BT
Cable
OK
NG Swap BT cable
OK
Swap BT
Swap Function/B
OK
OK
NG
NG
148 Chapter 4
Function Board Failure
If the Function Board fails, perform the following actions one at a time to correct the problem. Do not replace
a non-defective FRUs:
Thermal Unit Failure
If the Thermal Unit fails, perform the following actions one at a time to correct the problem. Do not replace a
non-defective FRUs:
Start
Check
function /B to
M/B FFC
Re -assemble
the function /B
FFC to M/B
OK
NG
Check
function /B
and FFC
OK
Swap The
function /B
OK
NG
Swap M/B
Start
Check
function /B to
M/B FFC
Re -assemble
the function /B
FFC to M/B
OK
NG
Check
function /B
and FFC
OK
Swap The
function /B
OK
NG
Swap M/B
START
Fan power
wire well
connected? Connect it wellNo
Fan OK? No Replace thermal
module
No Seat it well
No Replace
CPU
Replace M/B
CPU
heatsink well
seated?
CPU OK?
Chapter 4 149
External Mouse Failure
If an external Mouse fails, perform the following actions one at a time to correct the problem.
1. Try an alternative mouse.
2. If the mouse uses a wireless connection, insert new batteries and confirm there is a good connection. See
the mouse user manual.
3. If the mouse uses a USB connection, try an alternate USB port.
4. Try an alternative program to verify mouse operation. Reinstall the program experiencing mouse failure.
5. Restart the computer.
6. Remove any recently added hardware and associated software.
7. Remove any recently added software and reboot.
8. Restore system and file settings from a known good date using System Restore.
If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
9. Run the Event Viewer to check the events log for errors. For more information see Windows Help and
Support.
10. Roll back the mouse driver to the previous version if updated recently.
11. Remove and reinstall the mouse driver.
12. Check the Device Manager to determine that:
•The device is properly installed. There are no red Xs or yellow exclamation marks.
•There are no device conflicts.
•No hardware is listed under Other Devices.
13. If the Issue is still not resolved, see “Online Support Information” on page 187.
Other Failures
If the CRT Switch, Dock, LAN Port, external MIC or Speakers, PCI Express Card, 5-in-1 Card Reader or
Volume Wheel fail, perform the following general steps to correct the problem. Do not replace a non-defective
FRUs:
1. Check Drive whether is OK.
2. Check Test Fixture is ok.
3. Swap M/B to Try.
150 Chapter 4
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power On
Issue” on page 134.):
1. Power-off the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
•Non-Acer devices
•Printer, mouse, and other external devices
•Battery pack
•Hard disk drive
•DIMM
•CD-ROM/Diskette drive Module
•PC Cards
4. Power-on the computer.
5. Determine if the problem has changed.
6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
•System board
•LCD assembly
Chapter 4 151
Post Codes
These tables describe the POST codes and descriptions during the POST.
Chipset POST Codes
The following table details the chipset POST codes and functions used in the POST.
Code Beeps POST Routine Description
02h Verify Real Mode
03h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
08h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h Initialize Power Management
11h Load alternate registers with initial POST values
12h Restore CPU control word during warm boot
13h Initialize PCI Bus Mastering devices
14h Initialize keyboard controller
16h 1-2-2-3 BIOS ROM checksum
17h Initialize cache before memory autosize
18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h 1-3-1-1 Test DRAM refresh
22h 1-3-1-3 Test 8742 Keyboard Controller
24h Set ES segment register to 4 GB
26h Enable A20 line
28h Autosize DRAM
29h Initialize POST Memory Manager
2Ah Clear 512 KB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx*
2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of memory
bus
2Fh Enable cache before system BIOS shadow
30h 1-4-1-1 RAM failure on data bits xxxx* of high byte of memory
bus
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
152 Chapter 4
38h Shadow system BIOS ROM
3Ah Autosize cache
3Ch Advanced configuration of chipset registers
3Dh Load alternate registers with CMOS values
42h Initialize interrupt vectors
45h POST device initialization
46h 2-1-2-3 Check ROM copyright notice
48h Check video configuration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
50h Display CPU type and speed
51h Initialize EISA board
52h Test keyboard
54h Set key click if enabled
58h 2-2-3-1 Test for unexpected interrupts
59h Initialize POST display service
5Ah Display prompt "Press F2 to enter SETUP"
5Bh Disable CPU cache
5Ch Test RAM between 512 and 640 KB
60h Test extended memory
62h Test extended memory address lines
64h Jump to UserPatch1
66h Configure advanced cache registers
67h Initialize Multi Processor APIC
68h Enable external and CPU caches
69h Setup System Management Mode (SMM) area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB recovery
70h Display error messages
72h Check for configuration errors
76h Check for keyboard errors
7Ch Set up hardware interrupt vectors
7Eh Initialize coprocessor if present
80h Disable onboard Super I/O ports and IRQs
81h Late POST device initialization
82h Detect and install external RS232 ports
83h Configure non-MCD IDE controllers
84h Detect and install external parallel ports
Code Beeps POST Routine Description
Chapter 4 153
85h Initialize PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports.
87h Configure Motherboard Configurable Devices (optional)
88h Initialize BIOS Data Area
89h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8Ch Initialize floppy controller
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96h Clear huge ES segment register
97h Fixup Multi Processor table
98h 2-1 Search for option ROMs. One long, two short beeps on
che checksum failure
99h Check for SMART Drive (optional)
9Ah Shadow option ROMs
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h Check key lock
A4h Initialize Typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B2h POST done - prepare to boot operating system
B4h 1 One short beep before boot
B5h Terminate QuietBoot (optional)
B6h Check password (optional)
B9h Prepare Boot
BAh Initialize DMI parameters
BBh Initialize PnP Option ROMs
BCh Clear parity checkers
BDh Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
Code Beeps POST Routine Description
154 Chapter 4
* If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap (xxxx)
indicating the address line or bits that failed. For example, 2C 0002 means address line 1 (bit one set) has
failed. 2E 1020 means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. Note that error 30
cannot occur on 386SX systems because they have a 16 rather than 32-bit bus. The BIOS also sends the
bitmap to the port-80 LED display. It first displays the check point code, followed by a delay, the high-order
byte, another delay, and then the low-order byte of the error. It repeats this sequence continuously.
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2h Initialize error logging
C3h Initialize error display function
C4h Initialize system error handler
C5h PnPnd dual CMOS (optional)
C6h Initialize notebook docking (optional)
C7h Initialize notebook docking late
C8h Force check (optional)
C9h Extended checksum (optional)
D2h Unknown interrupt
Code Beeps POST Routine Description
E0h Initialize the chipset
E1h Initialize the bridge
E2h Initialize the CPU
E3h Initialize system timer
E4h Initialize system I/O
E5h Check force recovery boot
E6h Checksum BIOS ROM
E7h Go to BIOS
E8h Set Huge Segment
E9h Initialize Multi Processor
EAh Initialize OEM special code
EBh Initialize PIC and DMA
ECh Initialize Memory type
EDh Initialize Memory size
EEh Shadow Boot Block
EFh System memory test
F0h Initialize interrupt vectors
F1h Initialize Run Time Clock
F2h Initialize video
F3h Initialize System Management Mode
F4h 1 Output one beep before boot
F5h Boot to Mini DOS
F6h Clear Huge Segment
F7h Boot to Full DOS
Code Beeps POST Routine Description
Chapter 5 155
Jumper and Connector Locations
Top View
Item Description
JLVDS1 LCD Connector
JP41 Internal MIC
JP45 Power board Connector
JKB1 Internal Keyboard Connector
JMDC1 Internal MDC Connector
JP54 USB Board connector
JP37 B/T connector
JP6 Cap sensor board CONN
JP7 T/P Connector
JREAD1 Card Reader Socket
JP3 Speaker CONN
JP12 LED Board CONN
Chapter 5
156 Chapter 5
Bottom View
Item Description
PJP2 Battery Connector
JMINI2 WLAN Connector
JSATA2 ODD Connector
JSATA1 HDD Connector
JDIMMI/2 RAM Connector
JCPU CPU Socket
JSATA3 2nd HDD Connector
JMXM2 MXM Board Connector
JP32 FAN Connector
JUSB3 USB Connector
JHP1 Head-Phone Jack
HMIC1 MIC-In Jack
JUSB4 USB Connector
JHDMI1 HDMI Connector
JCRT1 CRT Connector
JRJ45 RJ45 Connector
PJP1 AC-IN Jack
Chapter 5 157
Clearing Password Check and BIOS Recovery
This section provide you the standard operating procedures of clearing password and BIOS recovery for
Packard Bell EasyNote LJ61. Packard Bell EasyNote LJ61 provides one Hardware Open Gap on main board
for clearing password check, and one Hotkey for enabling BIOS Recovery.
Clearing Password Check
Hardware Open Gap Description is as follows:
Steps for Clearing BIOS Password Check
If users set BIOS Password (Supervisor Password and/or User Password) for a security reason, BIOS will ask
the password during systems POST or when systems enter to BIOS Setup menu. However, once it is
necessary to bypass the password check, users need to short the HW Gap to clear the password by the
following steps:
1. Power Off the system, and remove HDD, AC and Battery from the machine.
2. Open the back cover of the machine, and remove the Modem Board (see “Removing the Modem Board”
on page 80.
3. Disconnect the RTC Battery cable and locate the G1 jumper.
4. Use an electric conductivity tool to short the two points of the HW Gap.
5. Plug in AC, keep the short condition on the HW Gap, and press Power Button to power on the system till
BIOS POST finish. Then remove the tool from the HW Gap.
6. Restart system. Press F2 key to enter BIOS Setup menu.
7. If there is no Password request, BIOS Password is cleared. Otherwise, please follow the steps and try
again.
NOTE: These steps are only for clearing BIOS Password (Supervisor Password and User Password).
Item Description Location
G1 Clear CMOS Jumper Thermal Module Bay,
under Modem Board
158 Chapter 5
BIOS Recovery by Crisis Disk
BIOS Recovery Boot Block:
BIOS Recovery Boot Block is a special block of BIOS. It is used to boot up the system with minimum BIOS
initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous
BIOS flashing process failed.
BIOS Recovery Hotkey:
The system provides a function hotkey: Fn+Esc, for enable BIOS Recovery process when system is powered
on during BIOS POST. To use this function, it is strongly recommended to have the AC adapter and Battery
present. If this function is enabled, the system will force the BIOS to enter a special BIOS block, called Boot
Block.
Steps for BIOS Recovery from USB Storage:
Before doing this, prepare the Crisis USB key. The Crisis USB key could be made by executing the Crisis Disk
program in another system with Windows XP OS.
Follow the steps below:
1. Save ROM file (file name: JAL90x64.fd) to the root directory of USB storage.
2. Plug USB storage into USB port.
3. Press Fn + ESC button then plug in AC.
The Power button flashes once.
4. Press Power button to initiate system CRISIS mode.
When CRISIS is complete, the system auto restarts with a workable BIOS.
5. Update the latest version BIOS for this machine by regular BIOS flashing process.
Chapter 5 159
Steps for BIOS Recovery by Crisis Disk:
Before doing this, a Crisis Diskette should be prepared ready in hand. The Crisis Diskette could be made by
executing the Crisis Disk program in another system with Windows XP OS.
Follow the steps below:
1. Power Off failed system.
2. Attach a USB floppy drive to the failed system.
3. Copy xxxxx.wph to tool's folder and rename it as BIOS.wph.
4. Execute wincris.exe to start the Crisis Disk Build.
5. Select Removable and click Start.
6. Select Quick Format Disk and click Start. A progress screen displays.
7. Click OK to complete the process.
8. Insert the Crisis Disk in to the USB floppy drive attached to the BIOS flash failed system.
9. In the power-off state, press and hold Fn+Esc then press the Power button.
The system powers on and the Crisis BIOS Recovery process begins.
BIOS Boot Block begins restoring the BIOS code from the Crisis floppy disk to BIOS ROM on the failed
systems.
When the Crisis flash process is finished, the system restarts with a workable BIOS.
Update to the latest version BIOS for the system using the regular BIOS flashing process.
160 Chapter 5
Chapter 6 161
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Packard Bell EasyNote LJ61.
Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your
regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service
Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from
those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer
office to order FRU parts for repair and service of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to
dispose it properly, or follow the rules set by your regional Acer office on how to return it.
Chapter 6
162 Chapter 6
Packard Bell EasyNote LJ61 Exploded Diagrams
Main Assembly
No. Description Acer P/N No. Description Acer P/N
1 LCD Module 6M.WBF02.003 6 Lower Cover 60.WBF02.003
2 Switch Cover 60.WBF02.007 7 Media Board 55.WBF02.001
3 Keyboard KB.I170G.029 8 Media Board FFC 50.WBF02.003
4 Upper Cover 60.WBF02.001 9 Thermal Module 60.WBT02.001
5 Mainboard MB.B5802.001 10 CPU Fan 23.B5702.001
1
2
3
4
5
6
7
8
2
9
10
5
Chapter 6 163
Rear Assembly
No. Description Acer P/N No. Description Acer P/N
1 Primary HDD Cover 42.WBF02.001 3 Lower Cover 60.WBF02.003
2 Secondary HDD Door 42.WBF02.002
1
2
3
164 Chapter 6
LCD Assembly
No. Description Acer P/N No. Description Acer P/N
1 LCD Bezel 60.WBF02.009 6 Antenna_Left 50.WBF02.007
2 LCD Panel LK.17305.001 7 LCD Bracket_Right 33.WBF02.004
3 LCD Cable 50.WBF02.008 8 Antenna_R 50.WBF02.006
4 LCD Bracket_Left 33.WBF02.004 9 Microphone Module 23.WBF02.001
5 Camera Module 57.WBF02.001 10 LCD Cover 60.WBF02.009
1
2
3
4
5
6
7
8
9
10
Chapter 6 165
Base Top Assembly
No. Description Acer P/N No. Description Acer P/N
1 TouchPad Bracket 33.WBF02.002 4 Speaker Module 23.WBF02.002
2 Upper Cover 60.WBF02.001 5 LED Board 55.WBF02.002
3 TouchPad FFC 50.WBF02.002
1
2
3
4
5
166 Chapter 6

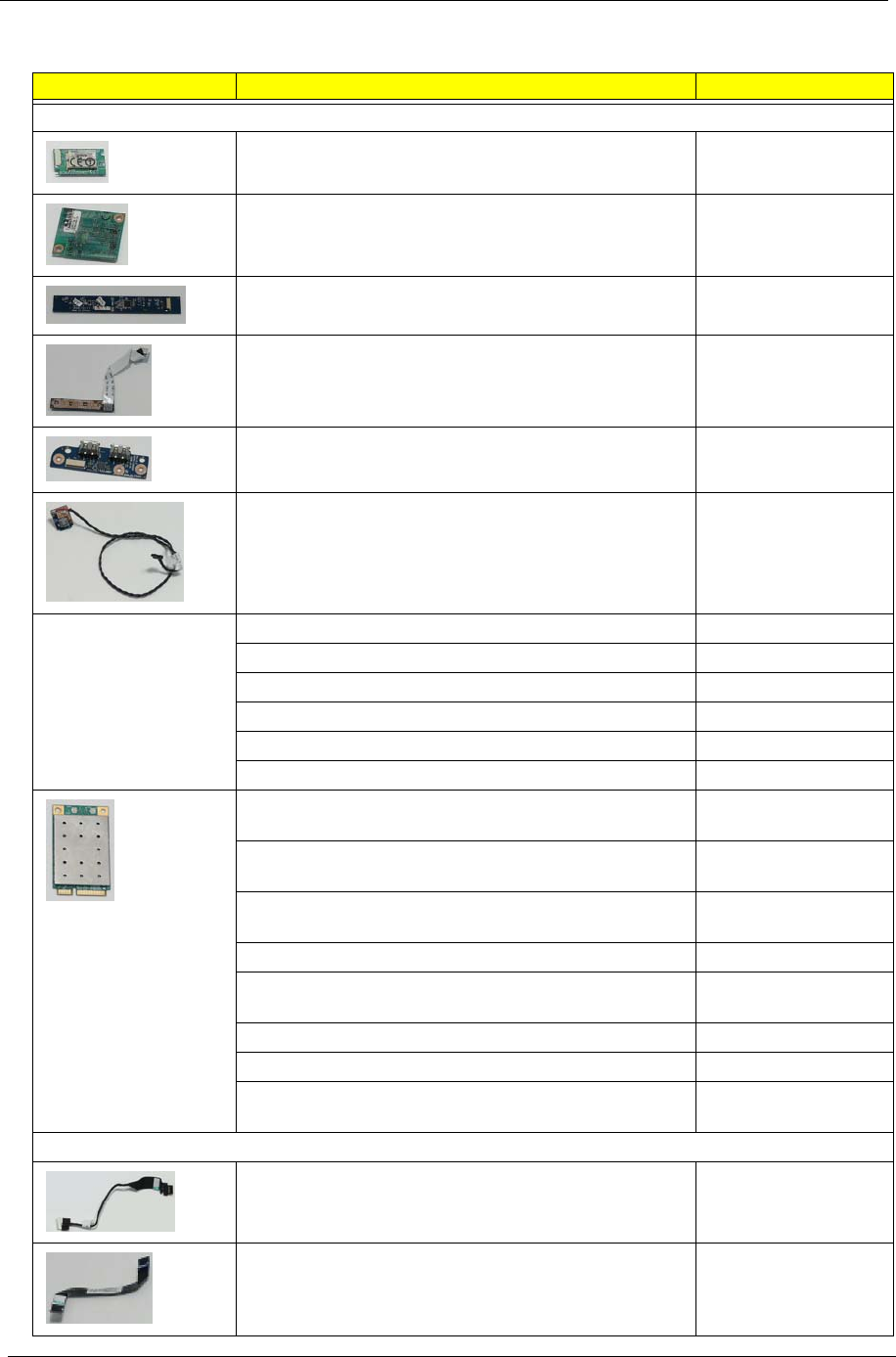

Packard Bell EasyNote LJ61 FRU List
Category Description Acer Part Number
BOARD
Foxconn Bluetooth FOX_BRM_2.0 F/W 300 BT.21100.005
Lite-On Conexant -Unizion 1.5_3.3v AUS RD02-D330 FX.22500.021
MEDIA BOARD 55.WBF02.001
LED BOARD 55.WBF02.002
USB BOARD 55.WBF02.003
POWER BOARD 55.WBF02.004
VGA BOARD 10PGE1-MSI (MS-V165A3 1G) 55.WBG02.001
VGA BOARD 10PGE1-YUAN (YSTP801GP) 55.WBG02.002
VGA BOARD M92M-MSI (MS-V164A3 512MB) 55.WBK02.001
VGA BOARD M92M-FOX (T77Z108 512MB) 55.WBK02.002
VGA BOARD M96M-MSI (MS-V164A3 1G) 55.WBY02.001
VGA BOARD M96M-FOX (T77Z108 1G) 55.WBY02.002
Lan Intel WLAN 512AN_MMWG Shirley Peak 5100
MM#895361 KI.SPM01.003
Lan Intel WLAN 512AN_MMWG2 Shirley Peak 5100
ME enable / MM#899541 KI.SPM01.008
Lan Intel WLAN 533AN_MMWG2 Shirley Peak 5300
ME enable / MM#899545 KI.SPM01.009
Foxconn Wireless LAN Atheros HB93 1x2 BGN (HM) NI.23600.046
Foxconn FOX_ATH_XB63 Foxconn Atheros XB63
minicard b/g NI.23600.007
Foxconn Wireless LAN Broadcom 4312 minicard b/g NI.23600.029
Foxconn Wireless LAN Atheros AR5B91 1x2 BGN NI.23600.030
Foxconn Wireless LAN Wireless LAN Ralink RT2700E
1x2 BGN NI.23600.031
CABLE
BLUE TOOTH CABLE 50.WBF02.001
T/P FFC 50.WBF02.002
Chapter 6 167
MEDIA BOARD FFC 50.WBF02.003
USB CABLE 50.WBF02.004
RJ11 CABLE 50.WBF02.005
POWER CORD US 3 PIN 27.TAVV5.001
POWER CORD EU 3 PIN 27.TAVV5.002
POWER CORD AUS 3 PIN 27.TAVV5.003
POWER CORD UK 3 PIN 27.TAVV5.004
POWER CORD CHINA 3 PIN 27.TAVV5.005
POWER CORD SWISS 3 PIN 27.TAVV5.006
POWER CORD ITALIAN 3 PIN 27.TAVV5.007
POWER CORD DENMARK 3 PIN 27.TAVV5.008
POWER CORD JP 3 PIN 27.TAVV5.009
POWER CORD SOUTH AFRICA 3 PIN 27.TAVV5.010
POWER CORD KOERA 3 PIN 27.TAVV5.011
POWER CORD ISRAEL 3 PIN 27.TAVV5.012
POWER CORD INDIA 3 PIN 27.TAVV5.013
POWER CORD TWN 3 PIN 27.TAVV5.014
POWER CORD ARGENTINA 3 PIN 27.APV02.001
CASE/COVER/BRACKET ASSEMBLY
UPPER CASE ASSY-GTW 60.WBF02.001
UPPER CASE ASSY-PB 60.WBF02.002
LOWER CASE DIS W/RJ11 F 60.WBF02.003
LOWER CASE DIS W/O RJ11 F 60.WBF02.004
LOWER CASE UMA W/RJ11 F 60.WBJ02.001
LOWER CASE UMA W/O RJ11 F 60.WBJ02.002
MIDDLE COVER 60.WBF02.007
POWER BOARD BRACKET 33.WBF02.005
TP BRACKET 33.WBF02.002
Category Description Acer Part Number
168 Chapter 6
MAIN HDD DOOR W/ RUBBER FOOT 42.WBF02.001
HDD CARRIER 33.WBF02.001
HDD DOOR FOR NB W/ 2 HDD 42.WBF02.002
KEYBOARD
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 103KS White US International KB.I170G.029
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 103KS White Greek KB.I170G.014
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 103KS White Arabic KB.I170G.005
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 103KS White Russian KB.I170G.021
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 103KS White Thailand KB.I170G.026
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White UK KB.I170G.028
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White German KB.I170G.013
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Swiss/G KB.I170G.025
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White CZ/SK KB.I170G.008
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Belgium KB.I170G.006
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Danish KB.I170G.010
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Italian KB.I170G.016
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White French KB.I170G.012
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Hungarian KB.I170G.015
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Norwegian KB.I170G.019
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Portuguese KB.I170G.020
Category Description Acer Part Number
Chapter 6 169
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Spanish KB.I170G.023
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Turkish KB.I170G.027
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Sweden KB.I170G.024
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White SLO/CRO KB.I170G.022
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 104KS White Nordic KB.I170G.018
Keyboard GATEWAY GP-7T white SJV70 Internal 17
Standard 107KS White Japanese KB.I170G.017
DVD-RW DRIVE
ODD SUPER-MULTI DRIVE MODULE 6M.WBF02.001
ODD PANASONIC Super-Multi DRIVE 12.7mm Tray
DL 8X UJ880A LF W/O bezel SATA KU.00807.064
ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X
GT20N LF W/O bezel SATA KU.0080D.040
ODD SONY Super-Multi DRIVE 12.7mm Tray DL 8X
AD-7580S LF W/O bezel SATA KU.0080E.017
ODD PLDS Super-Multi DRIVE 12.7mm Tray DL 8X
DS-8A3S LF W/O bezel SATA KU.0080F.004
ODD BEZEL-SUPER MULTI 42.WBF02.004
ODD BRACKET 33.WBF02.003
ODD BD COMBO MODULE 6M.WBF02.002
ODD PLDS BD COMBO 12.7mm Tray DL 4X DS-4E1S
LF W/O bezel SATA KO.0040F.001
ODD HLDS BD COMBO 12.7mm Tray DL 4X CT10 LF
W/O bezel SATA KO.0040D.002
ODD PANASONIC BD COMBO 12.7mm Tray DL 4X
UJ-130A LF W/O bezel SATA 2X Single Layer, 4X
Double Layer
KO.00407.002
ODD BEZEL-BD COMBO 42.WBF02.005
ODD BRACKET 33.WBF02.003

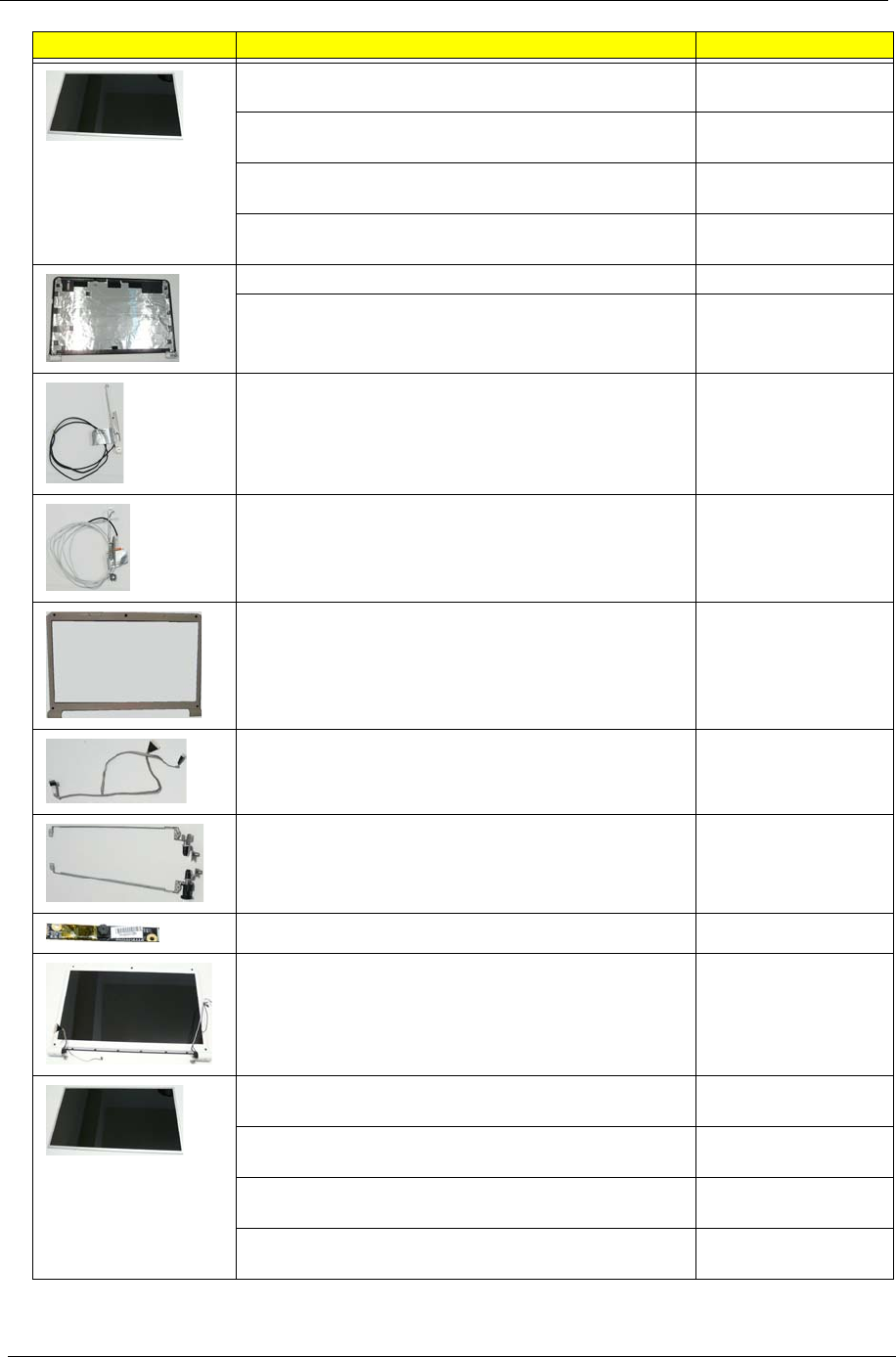

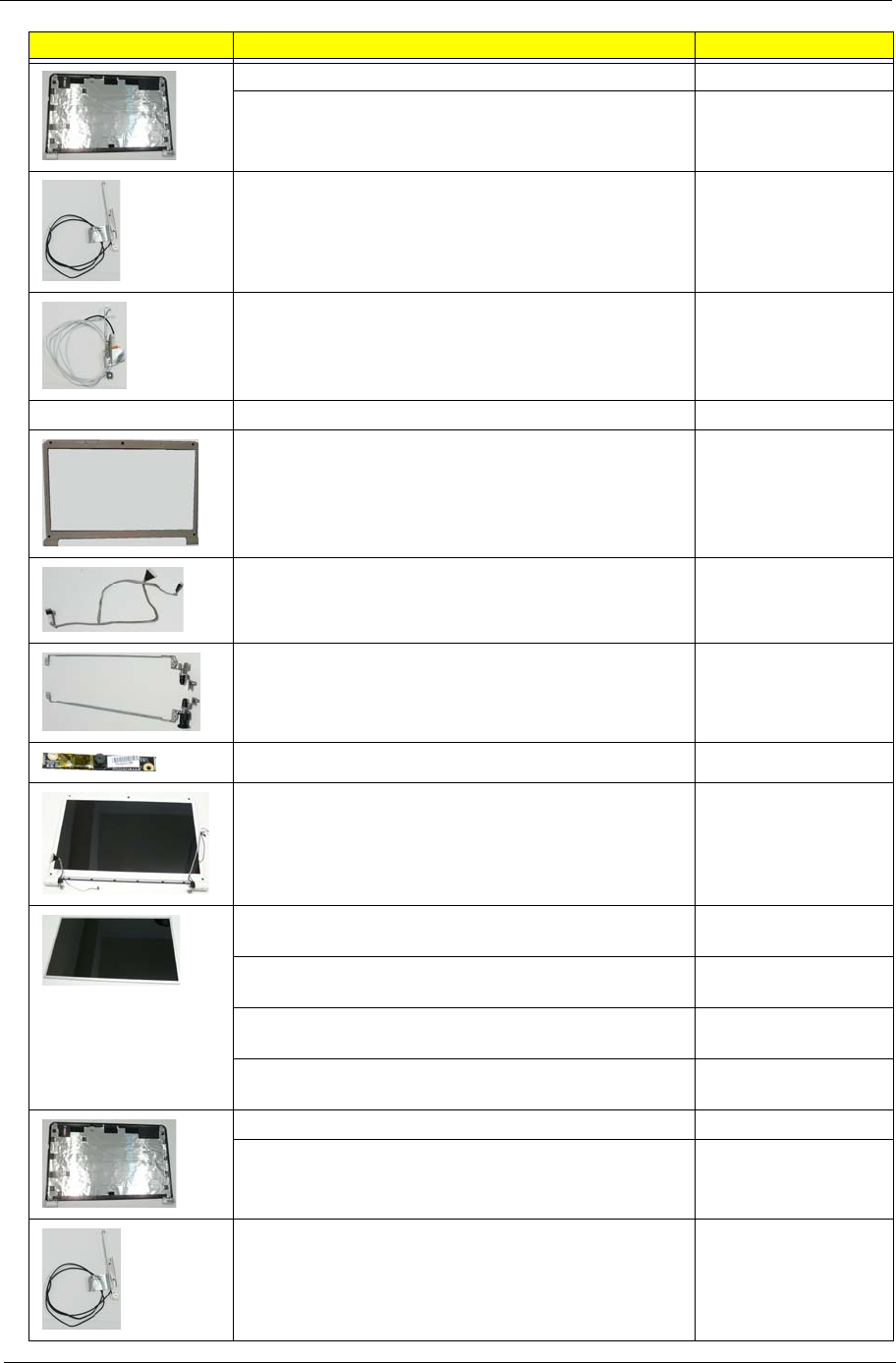

LCD
ASSY LEC LCD MODULE 17.3" WXGA GLARE W/
ANTENNA *2, CAMERA, IMR 6M.WBF02.003
Category Description Acer Part Number
170 Chapter 6
LED LCD AUO 17.3" WXGA+ Glare B173RW01-V0 LF
220nit 8ms 600:1 LK.17305.001
LED LCD SAMSUNG 17.3" WXGA+ Glare
LTN173KT01-A01 LF 220nit 8ms 600:1 LK.17306.001
LED LCD LPL 17.3" WXGA+ Glare LP173WD1-TLA1
LF 220nit 8ms 600:1 LK.17308.001
LED LCD CMO 17.3" WXGA+ Glare N173O6-L02 LF
220nit 8ms 600:1 LK.1730D.001
LCD COVER IMR-GTW 60.WBF02.009
LCD COVER IMR-PB 60.WBF02.010
ANTENNA MAIN (R -1X2) 50.WBF02.006
ANTENNA AUX (L) 50.WBF02.007
LCD BEZEL 60.WBF02.008
LVDS CABLE 50.WBF02.008
LCD BRACKET R+L 33.WBF02.004
CAMERA 0.3M 57.WBF02.001
ASSY LEC LCD MODULE 17.3" WXGA GLARE W/
ANTENNA *3, CAMERA, IMR 6M.WBK02.001
LED LCD AUO 17.3" WXGA+ Glare B173RW01-V0 LF
220nit 8ms 600:1 LK.17305.001
LED LCD SAMSUNG 17.3" WXGA+ Glare
LTN173KT01-A01 LF 220nit 8ms 600:1 LK.17306.001
LED LCD LPL 17.3" WXGA+ Glare LP173WD1-TLA1
LF 220nit 8ms 600:1 LK.17308.001
LED LCD CMO 17.3" WXGA+ Glare N173O6-L02 LF
220nit 8ms 600:1 LK.1730D.001
Category Description Acer Part Number
Chapter 6 171
LCD COVER IMR-GTW 60.WBF02.009
LCD COVER IMR-PB 60.WBF02.010
ANTENNA MAIN (R -1X2) 50.WBF02.006
ANTENNA AUX (L) 50.WBF02.007
ANTENNA MIMO (R-3X3) 50.WBF02.009
LCD BEZEL 60.WBF02.008
LVDS CABLE 50.WBF02.008
LCD BRACKET R+L 33.WBF02.004
CAMERA 0.3M 57.WBF02.001
ASSY LEC LCD MODULE 17.3" WXGA GLARE W/
ANTENNA *2, IMR, W/O CCD 6M.WBJ02.001
LED LCD AUO 17.3" WXGA+ Glare B173RW01-V0 LF
220nit 8ms 600:1 LK.17305.001
LED LCD SAMSUNG 17.3" WXGA+ Glare
LTN173KT01-A01 LF 220nit 8ms 600:1 LK.17306.001
LED LCD LPL 17.3" WXGA+ Glare LP173WD1-TLA1
LF 220nit 8ms 600:1 LK.17308.001
LED LCD CMO 17.3" WXGA+ Glare N173O6-L02 LF
220nit 8ms 600:1 LK.1730D.001
LCD COVER IMR-GTW 60.WBF02.009
LCD COVER IMR-PB 60.WBF02.010
ANTENNA MAIN (R -1X2) 50.WBF02.006
Category Description Acer Part Number
172 Chapter 6
ANTENNA AUX (L) 50.WBF02.007
LCD BEZEL W/O CMOS 60.WBJ02.003
LCD BRACKET R+L 33.WBF02.004
ASSY LEC LCD MODULE 17.3" WXGA GLARE W/
ANTENNA *3, IMR, W/O CCD 6M.WBJ02.002
LED LCD AUO 17.3" WXGA+ Glare B173RW01-V0 LF
220nit 8ms 600:1 LK.17305.001
LED LCD SAMSUNG 17.3" WXGA+ Glare
LTN173KT01-A01 LF 220nit 8ms 600:1 LK.17306.001
LED LCD LPL 17.3" WXGA+ Glare LP173WD1-TLA1
LF 220nit 8ms 600:1 LK.17308.001
LED LCD CMO 17.3" WXGA+ Glare N173O6-L02 LF
220nit 8ms 600:1 LK.1730D.001
LCD COVER IMR-GTW 60.WBF02.009
LCD COVER IMR-PB 60.WBF02.010
ANTENNA MAIN (R -1X2) 50.WBF02.006
ANTENNA AUX (L) 50.WBF02.007
ANTENNA MIMO (R-3X3) 50.WBF02.009
LCD BEZEL W/O CMOS 60.WBJ02.003
LCD BRACKET R+L 33.WBF02.004
Category Description Acer Part Number
Chapter 6 173
MAINBOARD
Mainboard ENLJ61_UMACck_NV76_72_UMACckM
RS780 SB700 LF MB.B5802.001
Mainboard ENLJ61_M96_M92&NV76/72_M96_M92
RS780 SB700 LF MB.B6002.001
HEATSINK
VGA THERMAL MODULE-M92M 60.WBW02.001
VGA THERMAL MODULE-M96M 60.B6002.001
CPU THERMAL MODULE 60.WBT02.001
FAN-UMA 23.B5702.001
SPEAKER
MIC SET 23.WBF02.001
SPEAKER 23.WBF02.002
MISCELLANEOUS
BATTERY MYLAR 42.WBF02.003
RUBBER FOOT 47.WBF02.002
NAME PLATE-NV78 40.WBG02.001
NAME PLATE-NV74 40.WBF02.001
NAME PLATE-ENLJ65 40.B5702.001
LCD SCREW RUBBER 47.WBF02.001
Category Description Acer Part Number
174 Chapter 6
Screw List
Category Description Part No.
Screw
SCREW M2.45D 8.0L K 5.5D 0.8T ZKNL 86.WBF02.001
SCREW M2.5D 5L K 5.5D ZK NL + CR3 86.WBF02.010
SCREW M2.46D 3.0L K 5.5D 0.8T ZKNL 86.WBF02.002
SCREW M1.98D 3.0L K 4.6D 0.8T ZKNL 86.WBF02.003
SCREW M2.5D 4.15L K 5.5D ZK NL CR3 86.WBF02.004
SCREW M3.0D 3.0L K 4.9D NI 86.WBF02.005
SCREW M2.5D 3.2L K 6D NI 86.WBF02.006
SCREW M2D 4.0L K 4.6D NI NL 86.WBF02.007
SCREW M2.0D 3L K 5D NI 86.WBF02.008
SCREW ASSY THML SPRING 86.WBF02.009
Chapter 6 175
Appendix A 176
Model Definition and Configuration
Packard Bell EasyNote LJ61 Series
Model RO Country Acer Part No Description CPU
ENLJ61-
644G50Mn
EMEA France LX.BA20Y.001 ENLJ61-644G50Mn VHB32BTFR1
M92XT512Cck2 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEc_FR61
EASYNOTE_LJ61-BG114FR
AAQL64
ENLJ61-
644G32Mn
EMEA France LX.BA20X.001 ENLJ61-644G32Mn VHP32BTFR1
M92XT512Cck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_FR64
EASYNOTE_LJ61-SB112FR
AAQL64
ENLJ61-
643G32Mn
EMEA Holland LX.BA20X.003 ENLJ61-643G32Mn VHP32BTNL1
M92XT512Cck2 1G+2G/320/6L/5R/
CB_bgn_0.3D_GEc_NL34
EASYNOTE_LJ61-SB-012NL
AAQL64
ENLJ61-
644G50Mn
EMEA Germany LX.BA20X.002 ENLJ61-644G50Mn VHP32BTDE1
M92XT512Cck2 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEc_DE44
EASYNOTE_LJ61-SB-002GE
AAQL64
ENLJ61-
824G25Mn
WW WW S2.B590Y.001 ENLJ616-824G25Mn VHB32BWW1
M92XT512Cck6 2*2G/250/BT/6L/
CB_bgn_0.3D_GEc_EN11
ATUZM82
ENLJ61-
724G50Mn
EMEA Germany LX.B590X.002 ENLJ61-724G50Mn VHP32BTDE1
M92XT512Cck6 2*2G/500_L/BT/6L/5R/
CB_bgn_0.3D_GEk_DE44
EASYNOTE_LJ61-SB-003GE
ATRM72
ENLJ61-
724G50Mn
EMEA Portugal LX.B590X.001 ENLJ61-724G50Mn VHP32BTPT1
M92XT512Cck6 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEc_PT44
EASYNOTE_LJ61-SB-301PT
ATRM72
ENLJ61-
644G50Mn
EMEA Holland LX.BAS0X.001 ENLJ61-644G50Mn VHP32BTNL1
M961GBCck2 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEc_NL34
EASYNOTE_LJ61-SB-016NL
AAQL64
ENLJ61-
644G32Mn
EMEA France LX.BAS0X.004 ENLJ61-644G32Mn VHP32BTFR1
M961GBCck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_FR64
EASYNOTE_LJ61-SB-138FR
AAQL64
ENLJ61-
644G32Mn
EMEA Holland LX.BAS0X.003 ENLJ61-644G32Mn VHP32BTNL1
M961GBCck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_NL34
EASYNOTE_LJ61-SB-015NL
AAQL64
ENLJ61-
644G25Mn
EMEA France LX.BAS0X.002 ENLJ61-644G25Mn VHP32BTFR1
M961GBCck2 2*2G/250/6L/5R/
CB_bgn_0.3D_GEc_FR64
EASYNOTE_LJ61-SB116FR
AAQL64
ENLJ61-
743G100Mn
EMEA Nordic LX.B600X.001 ENLJ61-743G100Mn VHP32BTND1
M961GBCck6 2G+1G/500_L+500_L/BT/6L/
5R/CB_bgn_0.3D_GEc_ENU4
EASYNOTE_LJ61-SB-755NCD
ATRM74
Appendix A
177 Appendix A
ENLJ61-
644G50Mn
EMEA Belgium LX.B730X.003 ENLJ61-644G50Mn VHP32BTBE1
UMACck2 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEc_ENT4
EASYNOTE_LJ61-RB-001BE
AAQL64
ENLJ61-
643G25Mn
EMEA UK LX.B730X.002 ENLJ61-643G25Mn VHP32BTGB1
UMACck2 1G+2G/250/6L/5R/
CB_bgn_0.3D_GEc_ENX4
EASYNOTE_LJ61-RB-110UK
AAQL64
ENLJ61-
642G25Mn
EMEA Nordic LX.B730Y.004 ENLJ61-642G25Mn VHB32BTND1
UMACck2 2*1G/250/6L/5R/
CB_bgn_0.3D_GEc_ENU1
EASYNOTE_LJ61-RB-700NCD
AAQL64
ENLJ61-
643G25Mn
EMEA Belgium LX.B730Y.003 ENLJ61-643G25Mn VHB32BTBE1
UMACck2 1G+2G/250/6L/5R/
CB_bgn_0.3D_GEc_ENT1
EASYNOTE_LJ61-RB-003BE
AAQL64
ENLJ61-
644G25Mn
EMEA Belgium LX.B730X.006 ENLJ61-644G25Mn VHP32BTBE1
UMACck2 2*2G/250/6L/5R/
CB_bgn_0.3D_GEc_ENT4
EASYNOTE_LJ61-RB-002BE
AAQL64
ENLJ61-
644G25Mn
EMEA France LX.B730Y.002 ENLJ61-644G25Mn VHB32BTFR1
UMACck2 2*2G/250/6L/5R/
CB_bgn_0.3D_GEc_FR61
EASYNOTE_LJ61-TB115FR
AAQL64
ENLJ61-
644G32Mn
EMEA Germany LX.B730X.005 ENLJ61-644G32Mn VHP32BTDE1
UMACck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_DE44
EASYNOTE_LJ61-RB-001GE
AAQL64
ENLJ61-
644G32Mn
EMEA Portugal LX.B730X.004 ENLJ61-644G32Mn VHP32BTPT1
UMACck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_PT44
EASYNOTE_LJ61-RB-300PT
AAQL64
ENLJ61-
643G16Mi
EMEA France LX.B730Y.001 ENLJ61-643G16Mi VHB32BTFR1 UMACck2
1G+2G/160/6L/5R/CB_bg_0.3D_GEc_FR61
EASYNOTE_LJ61-TB110FR
AAQL64
ENLJ61-
644G32Mn
EMEA Spain LX.B730X.001 ENLJ61-644G32Mn VHP32BTES1
UMACck2 2*2G/320/6L/5R/
CB_bgn_0.3D_GEc_ES54
EASYNOTE_LJ61-RB-302SP
AAQL64
ENLJ61-
644G50Mn
EMEA Belgium LX.BBH0Y.001 ENLJ61-644G50Mn VHB32BTBE1
UMACkk2 2*2G/500_L/6L/5R/
CB_bgn_0.3D_GEk_ENT1
EASYNOTE_LJ61-SB-004BE
AAQL64
Model LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1
(GB) HDD 2
(GB)
ENLJ61-
644G50Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N500GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
643G32Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO1GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
644G50Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N500GB
5.4KS
N
ENLJ61-
824G25Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
724G50Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N500GB
5.4KS
N
Model RO Country Acer Part No Description CPU
Appendix A 178
ENLJ61-
724G50Mn
NLED17.3
WXGA+G
M92XT 512M-DDR2
(64*16*4)
SO2GBII6 SO2GBII6 N500GB
5.4KS
N
ENLJ61-
644G50Mn
NLED17.3
WXGA+G
M96 1G-DDR2
(64*16*8)
SO2GBII6 SO2GBII6 N500GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
M96 1G-DDR2
(64*16*8)
SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
M96 1G-DDR2
(64*16*8)
SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
644G25Mn
NLED17.3
WXGA+G
M96 1G-DDR2
(64*16*8)
SO2GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
743G100Mn
NLED17.3
WXGA+G
M96 1G-DDR2
(64*16*8)
SO2GBII6 SO1GBII6 N500GB
5.4KS
N500GB
5.4KS
ENLJ61-
644G50Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N500GB
5.4KS
N
ENLJ61-
643G25Mn
NLED17.3
WXGA+G
UMA N SO1GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
642G25Mn
NLED17.3
WXGA+G
UMA N SO1GBII6 SO1GBII6 N250GB
5.4KS
N
ENLJ61-
643G25Mn
NLED17.3
WXGA+G
UMA N SO1GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
644G25Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
644G25Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N250GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
643G16Mi
NLED17.3
WXGA+G
UMA N SO1GBII6 SO2GBII6 N160GB
5.4KS
N
ENLJ61-
644G32Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N320GB
5.4KS
N
ENLJ61-
644G50Mn
NLED17.3
WXGA+G
UMA N SO2GBII6 SO2GBII6 N500GB
5.4KS
N
Model ODD Extra SW1 Card
Reader Wireless LAN Wireless LAN1 BT
ENLJ61-
644G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
643G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
824G25Mn
NSM8XS Norton 2009 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN BT 2.0
ENLJ61-
724G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN BT 2.0
ENLJ61-
724G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
Model LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1
(GB) HDD 2
(GB)
179 Appendix A
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
743G100Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN BT 2.0
ENLJ61-
644G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
643G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
642G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
643G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G25Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
643G16Mi
NSM8XS NIS 5 in 1-built in 3rd WiFi BG 3rd WiFi BG N
ENLJ61-
644G32Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
ENLJ61-
644G50Mn
NSM8XS NIS 5 in 1-built in 3rd WiFi 1x2 BGN 3rd WiFi 1x2 BGN N
Model ODD Extra SW1 Card
Reader Wireless LAN Wireless LAN1 BT
Appendix A 180
Appendix B 181
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under Windows® XP Home, Windows® XP Pro environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Packard Bell EasyNote LJ61
Compatibility Test Report released by the Acer Mobile System Testing Department.
Appendix B
182 Appendix B
Microsoft® Windows® Vista Environment Test
BRAND Type Description
Adapter
DELTA 90W Adapter DELTA 90W 19V 1.7x5.5x11 Blue ADP-90SB BBGE
LV4, for OBL (for flicker issue) LED LF
Audio Codec
Realtek ALC272X Realtek Audio Codec ALC272X
Battery
PANASONIC 6CELL2.2 Battery PANASONIC AS-2007B Li-Ion 3S2P PANASONIC 6
cell 4400mAh Main COMMON PSS
SAMSUNG 6CELL2.2 Battery SAMSUNG AS-2007B Li-Ion 3S2P SAMSUNG 6 cell
4400mAh Main COMMON SDI 2.2F
SANYO 6CELL2.2 Battery SANYO AS-2007B Li-Ion 3S2P SANYO 6 cell
4400mAh Main COMMON Normal Type
SIMPLO 6CELL2.2 Battery SIMPLO AS-2007B Li-Ion 3S2P PANASONIC 6 cell
4400mAh Main COMMON PSS
SONY 6CELL2.2 Battery SONY AS-2007B Li-Ion 3S2P SONY 6 cell 4400mAh
Main COMMON Normal Type
PANASONIC 8CELL2.4 Battery PANASONIC AS-2007B Li-Ion 4S2P PANASONIC 8
cell 4800mAh Main COMMON
SANYO 8CELL2.4 Battery SANYO AS-2007B Li-Ion 4S2P SANYO 8 cell
4800mAh Main COMMON
SIMPLO 8CELL2.4 Battery SIMPLO AS-2007B Li-Ion 4S2P PANASONIC 8 cell
4800mAh Main COMMON PSS
SONY 8CELL2.4 Battery SONY AS-2007B Li-Ion 4S2P SONY 8 cell 4800mAh
Main COMMON
Bluetooth
Foxconn BT 2.0 Foxconn Bluetooth FOX_BRM_2.0 F/W 300
Camera
Chicony 0.3M DV Chicony 0.3M DV Calla_2G
Suyin 0.3M DV Suyin 0.3M DV Camellia_2G
Card Reader
N/A 5 in 1-Build in 5 in 1-Build in MS, MS Pro, SD, SC, XD
CPU/Processor
AMD AAQL60 CPU AMD Athlon64X2 QL60 PGA 1.9G 1M 638 35W Griffin
B1
AMD AAQL62 CPU AMD Athlon64X2 QL62 PGA 2.0G 1M 638 35W Griffin
B1
AMD AAQL64 CPU AMD Athlon64X2 QL64 PGA 2.1G 638 35W Griffin B1
AMD AAQL65 CPU AMD Athlon QL65 PGA 2.1G 1M 638 35W Griffin B1 4.0
GT/s-inactive
AMD ATRM72 CPU AMD Turion RM72 PGA 2.1G 1M 638 35W Griffin B1
AMD ATRM74 CPU AMD Turion RM74 PGA 2.2G 1M 638 35W Griffin B1
AMD ATRM75 CPU AMD Turion RM75 PGA 2.2G 1M 638 35W Griffin B1 4.0
GT/s
AMD ATUZM82 CPU AMD TurionX2 ZM82 PGA 2.2G 2M 638 35W Griffin B1
AMD ATUZM84 CPU AMD TurionX2 ZM84 PGA 2.3G 2M 638 35W Griffin B1
Appendix B 183
AMD ATUZM85 CPU AMD Turion Ultra ZM85 PGA 2.3G 2M 638 35W Griffin
B1
AMD ATUZM86 CPU AMD TurionX2 ZM86 PGA 2.4G 2M 638 35W Griffin B1
AMD ATUZM87 CPU AMD Turion Ultra ZM87 PGA 2.4G 2M 638 35W Griffin
B1
AMD SMPSI4025W CPU AMD SempronM SI40 PGA 2.0G 512K 638 25W Griffin
B1
AMD SMPSI4225W CPU AMD SempronM SI42 PGA 2.1G 512K 638 25W Griffin
B1
HDD
HGST N160GB5.4KS HDD HGST 2.5" 5400rpm 160GB HTS543216L9A300
Falcon-B SATA LF F/W:C40C
SEAGATE N160GB5.4KS HDD SEAGATE 2.5" 5400rpm 160GB ST9160310AS
Crockett SATA LF F/W:0303
WD N160GB5.4KS HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTO
ML160 SATA LF F/W:11.01A11
HGST N250GB5.4KS HDD HGST 2.5" 5400rpm 250GB HTS545025B9A300
Panther B SATA LF F/W:C60F
TOSHIBA N250GB5.4KS HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX Libra
SATA LF F/W:FG001J
HGST N320GB5.4KS HDD HGST 2.5" 5400rpm 320GB HTS545032B9A300
Panther B SATA LF F/W: C60F
SEAGATE N320GB5.4KS HDD SEAGATE 2.5" 5400rpm 320GB ST9320320AS
Crockett SATA LF F/W:0303
WD N320GB5.4KS HDD WD 2.5" 5400rpm 320GB WD3200BEVT-22ZCT0
ML160 SATA LF F/W:11.01A11
HGST N500GB5.4KS HDD HGST 2.5" 5400rpm 500GB HTS545050B9A300
Panther B SATA LF F/W:C60F
TOSHIBA N500GB5.4KS HDD TOSHIBA 2.5" 5400rpm 500GB MK5055GSX Libra
SATA LF F/W:FG001J
WD N500GB5.4KS HDD WD 2.5" 5400rpm 500GB WD5000BEVT-22ZAT0
ML250 SATA LF F/W:01.01A01
2nd HDD
HGST N160GB5.4KS HDD HGST 2.5" 5400rpm 160GB HTS543216L9A300
Falcon-B SATA LF F/W:C40C
TOSHIBA N160GB5.4KS HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX Libra
SATA LF F/W: FG011J
TOSHIBA N250GB5.4KS HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX Libra
SATA LF F/W:FG001J
SEAGATE N320GB5.4KS HDD SEAGATE 2.5" 5400rpm 320GB ST9320320AS
Crockett SATA LF F/W:0303
WD N320GB5.4KS HDD WD 2.5" 5400rpm 320GB WD3200BEVT-22ZCT0
ML160 SATA LF F/W:11.01A11
TOSHIBA N500GB5.4KS HDD TOSHIBA 2.5" 5400rpm 500GB MK5055GSX Libra
SATA LF F/W:FG001J
Keyboard
Gateway GP-7T Black Keyboard GP-7T Black SJM80 Internal 17 Standard Black
NONE Texture
BRAND Type Description
184 Appendix B
LAN
Broadcom BCM5784 Broadcom BCM5784
LCD
AUO NLED17.3WXGA+G LED LCD AUO 17.3" WXGA+ Glare B173RW01-V0 LF 220nit
8ms 600:1
CMO NLED17.3WXGA+G LED LCD CMO 17.3" WXGA+ Glare N173O6-L02 LF 220nit
8ms 600:1
LPL NLED17.3WXGA+G LED LCD LPL 17.3" WXGA+ Glare LP173WD1-TLA1 LF
220nit 8ms 600:1
SAMSUNG NLED17.3WXGA+G LED LCD SAMSUNG 17.3" WXGA+ Glare LTN173KT01-A01
LF 220nit 8ms 600:1
Memory
HYNIX SO1GBII6 Memory HYNIX SO-DIMM DDRII 667 1GB
HMP112S6EFR6C-Y5 LF 64*16 0.055um
HYNIX SO1GBII6 Memory HYNIX SO-DIMM DDRII 667 1GB
HYMP112S64CP6-Y5 LF
MICRON SO1GBII6 Memory MICRON SO-DIMM DDRII 667 1GB
MT8HTF12864HDY-667G1 LF 64*16 0.065um
SAMSUNG SO1GBII6 Memory SAMSUNG SO-DIMM DDRII 667 1GB
M470T2864EH3-CE6 LF 64*16 0.055um
MICRON SO1GBII8 Memory MICRON SO-DIMM DDRII 800 1GB
MT8HTF12864HDY-800G1 LF 64*16 0.065um
NANYA SO1GBII8 Memory NANYA SO-DIMM DDRII 800 1GB
NT1GT64UH8D0FN-AD LF 64*16 0.07um
SAMSUNG SO1GBII8 Memory SAMSUNG SO-DIMM DDRII 800 1GB
M470T2864EH3-CF7 LF 64*16 0.055um
ELPIDA SO2GBII6 Memory ELPIDA SO-DIMM DDRII 667 2GB
EBE21UE8AESA-6E-F LF 128*8 0.065um
HYNIX SO2GBII6 Memory HYNIX SO-DIMM DDRII 667 2GB
HMP125S6EFR8C-Y5 LF 128*8 0.055um
HYNIX SO2GBII6 Memory HYNIX SO-DIMM DDRII 667 2GB
HYMP125S64CP8-Y5 LF
MICRON SO2GBII6 Memory MICRON SO-DIMM DDRII 667 2GB
MT16HTF25664HY-667G1 LF 128*8 0.065um
SAMSUNG SO2GBII6 Memory SAMSUNG SO-DIMM DDRII 667 2GB
M470T5663EH3-CE6 LF 128*8 0.055um
MICRON SO2GBII8 Memory MICRON SO-DIMM DDRII 800 2GB
MT16HTF25664HY-800G1 LF 128*8 0.065um
NANYA SO2GBII8 Memory NANYA SO-DIMM DDRII 800 2GB
NT2GT64U8HD0BN-AD LF 128*8 0.07um
SAMSUNG SO2GBII8 Memory SAMSUNG SO-DIMM DDRII 800 2GB
M470T5663EH3-CF7 LF 128*8 0.055um
Modem
Lite On Lite+Con MC4Z
1.5_3.3V Aus Lite-On Conexant -Unizion 1.5_3.3v AUS RD02-D330
Northbridge Chipset
AMD AMDRS780MN AMD RS780MN w/ HDCP EEPROM
BRAND Type Description
Appendix B 185
ODD
HLDS NBDCB4XS ODD HLDS BD COMBO 12.7mm Tray DL 4X CT10 LF W/O
bezel SATA
PLDS NBDCB4XS ODD PLDS BD COMBO 12.7mm Tray DL 4X DS-4E1S LF W/
O bezel SATA
HLDS NSM8XS ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X GT20N
LF W/O bezel SATA
PANASONIC NSM8XS ODD PANASONIC Super-Multi DRIVE 12.7mm Tray DL 8X
UJ880A LF W/O bezel SATA
PLDS NSM8XS ODD PLDS Super-Multi DRIVE 12.7mm Tray DL 8X DS-8A3S
LF W/O bezel SATA
SONY NSM8XS ODD SONY Super-Multi DRIVE 12.7mm Tray DL 8X AD-
7580S LF W/O bezel SATA
Southbridge Chipset
AMD AMDSB700 AMD SB700
Software
Norton NIS Antivirus application NIS
VGA Chipset
AMD M92XT AMD M92XT 55nm 29mm*29mm M2 package
AMD M96 AMD M96 55nm 29mm*29mm M2 package
N/A UMA UMA (AMD)
VRAM
N/A 1G-DDR2(64*16*8) 1G-DDR2 64*16*8
WiFi Antenna
WNC PIFA PIFA
WLAN
Foxconn 3rd WiFi 1x2 BGN Foxconn Wireless LAN Atheros AR5B91 1x2 BGN
Foxconn 3rd WiFi BG Foxconn FOX_ATH_XB63 Foxconn Atheros XB63 minicard b/
g
BRAND Type Description
186 Appendix B
Appendix C 187
Online Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
•Service guides for all models
•User's manuals
•Training materials
•Bios updates
•Software utilities
•Spare parts lists
•TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
•Detailed information on Acer's International Traveler's Warranty (ITW)
•Returned material authorization procedures
•An overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Appendix C
188 Appendix C
189
A
AFLASH Utility 35
Antennas
Removing 98
B
Battery Pack
Removing 46
Replacing 131
BIOS
vendor 17
Version 17
BIOS Utility 27–35
Boot 33
Exit 34
Navigating 27
Onboard Device Configuration 31
Power 33
Save and Exit 34
Security 30
System Security 34
Board Layout
Top View 155
C
Camera Module
Removing 92
Replacing 105
Common Problems 134
CPU
Removing 89
Replacing 108
CPU Fan
Removing 87
Replacing 109
D
DIMM Modules
Removing 51
Replacing 128
Display 4
E
EasyTouch Failure 148
External Module Disassembly
Flowchart 45
F
Features 1
Flash Utility 35
FPC Cable
Removing 95
Replacing 103
FRU (Field Replaceable Unit) List 161
H
Hard Disk Drive Modules
Replacing 127
HDD1
Removing 54
Replacing 127
HDD2
Removing 56
Replacing 127
HDTV Switch Failure 149
Hot Keys 13
I
Indicators 11
Intermittent Problems 150
Internal Microphone Failure 140
Internal Speaker Failure 138
J
Jumper and Connector Locations 155
K
Keyboard
Removing 63
Replacing 123
Keyboard Failure 137
L
LCD Bezel
Removing 91
Replacing 106
Index
190
LCD Brackets
Removing 95
Replacing 103
LCD Failure 137
LCD Module
Removing 65
Replacing 120
LCD Module Disassembly
Flowchart 90
LCD Module Reassembly Procedure 100
LCD Panel
Removing 93
Replacing 103
LED Board
Removing 76
Replacing 115
Lower Covers
Removing 48
Replacing 129
M
Main Module Reassembly Procedure 108
Main Unit Disassembly
Flowchart 58
Mainboard
Removing 84
Replacing 111
Media Board
Removing 62
Replacing 124
Media Board FFC
Removing 75
Replacing 115
Memory Check 134
MIC Board
Replacing 100
Microphone Module
Removing 97
Model Definition 176
Modem Board
Removing 80
Replacing 113
Modem Cable
Removing 85
Replacing 110
Modem Failure 145
N
No Display Issue 135
O
ODD Failure 142
ODD Module
Removing 49
Replacing 129
Online Support Information 187
P
Panel 5
Bottom 8
left 5
PC Card 11
Power Board
Removing 94
Replacing 100
Power On Failure 134
Primary HDD
Removing 54
Replacing 127
R
RJ-11 Jack
Removing 85
Replacing 110
RTC Battery
Removing 79
S
SD Dummy Card
Removing 47
Replacing 131
Secondary HDD
Removing 56
Replacing 127
Speaker Module
Removing 77
Replacing 114
Switch Cover
Removing 59
Replacing 125
System
Block Diagram 4
191
T
Test Compatible Components 181
Thermal Grease 108
Thermal Module
Removing 88
Replacing 108
Thermal Unit Failure 148
TouchPad Bracket
Removing 74
Replacing 116
TouchPad Failure 138
Troubleshooting
Built-in KB Failure 137
EasyTouch Buttons 148
HDTV Switch 149
Internal Microphone 140
Internal Speakers 138
LCD Failure 137
Modem 145
No Display 135
ODD 142
Other Failures 149
Power On 134
Thermal Unit 148
TouchPad 138
WLAN 146
U
Undetermined Problems 150
Upper Cover
Removing 70
Replacing 116
USB Board
Removing 82
Replacing 112
utility
BIOS 27–35
W
Windows 2000 Environment Test 182
Wireless Function Failure 146
WLAN Module
Removing 52
Replacing 128
192
