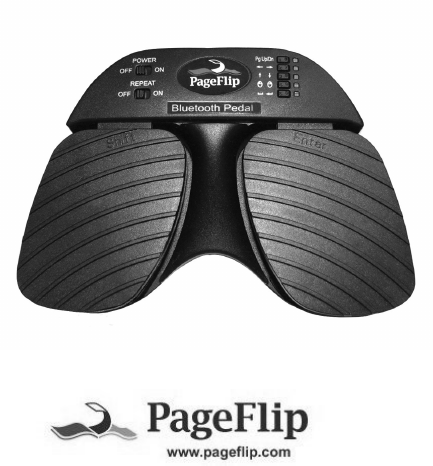

PageFlip Cicada
Wireless Bluetooth Pedal
User Guide
![](/img.php?id=1401698&img=bg2.png)
PageFlip Cicada User Guide 9. FREQUENTLY ASKED QUESTIONS
Does the PageFlip Cicada work with the Amazon Kindle?
No. The Kindle hardware does not support Bluetooth or include a USB
port. However, Kindle software for the PC and Mac works with the pedal.
Does the PageFlip Cicada work with the Apple iPad?
Yes. However, the pedal only works with software that accepts keyboard
commands. Currently, this is limited to the MusicReader, ForScore, and
unrealBook apps. The list of compatible software is sure to grow. Please
check www.pageflip.com for updated information.
Where can I find digital sheet music to download?
The best source for free classical music is the International Music Score
Library Project (IMSLP) at imslp.org. Extensive collections of popular
music can be found at freehandmusic.com,sheetmusicdirect.com,
musicnotes.com,sheetmusicscore.com, or everynote.com. CD Sheet
Music from Hal Leonard (halleonard.com) is a great source of scanned
classical music conveniently available on CDs. Search the internet for
“sheet music download” to get updated results.
How do I import my books or sheet music into my computer?
You must scan the physical pages. For best results, try to avoid the shad-
ows near the book spine by using a flatbed book scanner such as the
Plustek OpticBook 3600. Visit www.plustek.com for more details.
Why the name "Cicada"?
The pedal derives its name from the cicada insect. The sleek design of
the dual pedal is inspired by the graceful shape of the cicada wings.
Please visit us at www.pageflip.com for additional information, including
manuals and videos. Please send email to support@pageflip.com with
any technical questions or comments.
PageFlip, Inc. 21 www.pageflip.com
![](/img.php?id=1401698&img=bg3.png)
PageFlip Cicada User Guide 9. FREQUENTLY ASKED QUESTIONS
Why did PageFlip Cicada automatically shut down?
Automatic shutdown occurs after two hours of inactivity. Tapping a pedal
will make the PageFlip Cicada attempt to re-establish the Bluetooth con-
nection. This may take a few seconds. If the computer continues to be
unresponsive to the pedal, press the RESET button.
What do I do if Bluetooth pairing is unsuccessful?
Delete the device displayed in the host and press the RESET button on
the pedal. Initial discovery mode may take up to 30 seconds. Follow your
computer’s instructions on how to pair Bluetooth devices.
Does PageFlip Cicada work with computers that have no Bluetooth?

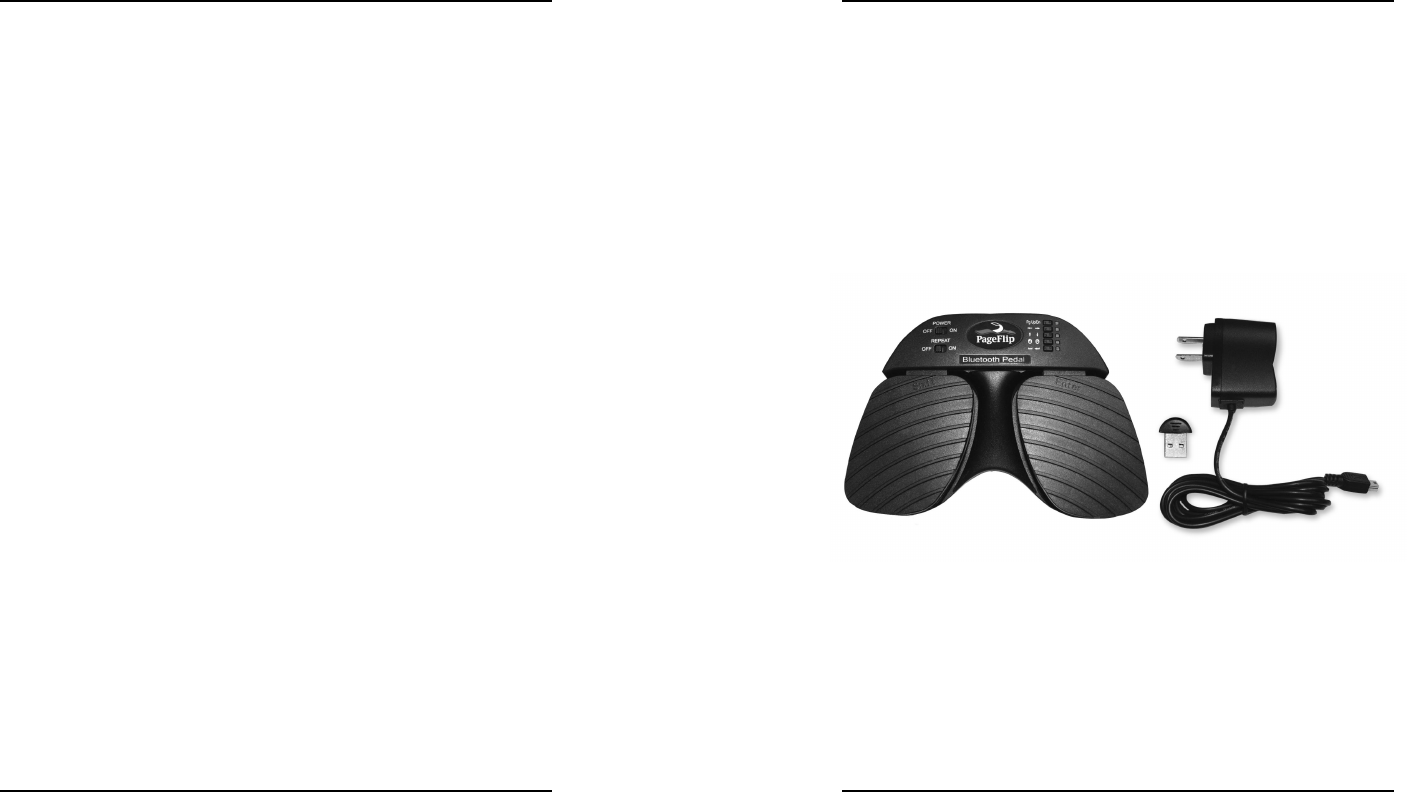

Yes, only after you plug in the included USB Bluetooth micro adapter (don-
gle) into the computer’s USB port. Follow your computer’s instructions for
adding Bluetooth devices.
Does PageFlip Cicada turn pages at timed intervals?
No. PageFlip Cicada turns a page only when the user triggers it by tap-
ping a pedal or activating an external switch.
When is the Autorepeat mode appropriate?
Turn on autorepeat if you are interested in fast browsing or scrolling. Turn
off autorepeat to avoid multiple pages from turning at once if you inadver-
tently press the pedal too long. It is therefore best to turn off autorepeat
during a performance.
Which software is known to work with the PageFlip Cicada?
PageFlip Cicada works with any software that uses PageUp/PageDown,
arrow keys, or mouse clicks to advance through the electronic document.
This includes any PDF reader, Microsoft Word, Powerpoint, web browsers,
image viewers, and more.
PageFlip, Inc. 20 www.pageflip.com
PageFlip Cicada User Guide
Legal Notice
Copyright c
2011 PageFlip Inc. All rights reserved.
Information in this document is subject to change without notice. All state-
ments, information, and recommendations in this manual are believed to
be accurate but may include inadvertent technical inaccuracies or typo-
graphical errors. PageFlip Inc. provides this information “as is”, without
warranty of any kind, either expressed or implied, including any implied
warranties of merchantability or fitness for a particular purpose. No part
of this manual may be reproduced, stored in a retrieval system, or trans-
mitted in any form or any means electronic or mechanical, including pho-
tocopying and recording for any purpose other than the purchaser’s per-
sonal use without the consent of PageFlip Inc.
Contents c
2011 PageFlip Inc.
PageFlip Inc.
Woodmere, NY 11598
USA
www.pageflip.com
support@pageflip.com
Version 1.0
January 1, 2011
PageFlip, Inc. 1www.pageflip.com
![](/img.php?id=1401698&img=bg4.png)
PageFlip Cicada User Guide
FCC/CE Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interfer-
ence that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
PageFlip Cicada
FCC ID: XKEPFCICADA01
This product conforms to the EMC-Directive 89/336/EEC and to the Low
Voltage Regulation 73/23 EEC.
Safety Notice / Warning
Please read the following safety instructions carefully to safely and cor-
rectly operate this device. PageFlip assumes no responsibility for property
damage or personal injury.
1. Do not place any container filled with liquid on the device.
2. Do not use a voltage other than the specified one.
3. Do not plug AC Adapter into socket with wet hands.
4. Always hold case before removing AC adapter plug.
5. Safely install and apply power before operating device.
6. Never insert your hand into device while operating it.
7. Do not disassemble or modify the device.
PageFlip, Inc. 2www.pageflip.com
PageFlip Cicada User Guide 9. FREQUENTLY ASKED QUESTIONS
9 FREQUENTLY ASKED QUESTIONS
Why are the LEDs not lit when I turn on the PageFlip Cicada?

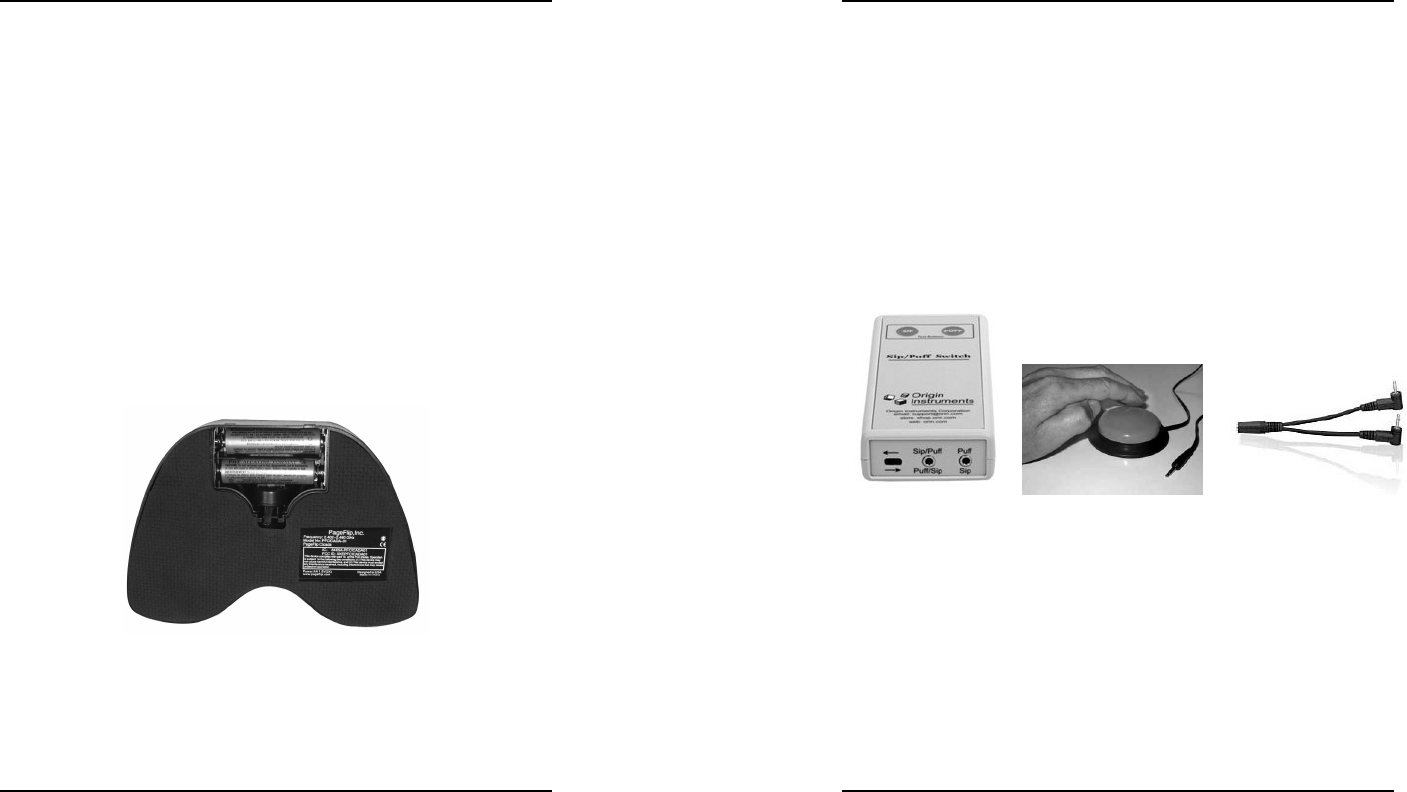

Make sure to install two fresh AA batteries in the pedal. Alternatively, the
PageFlip Cicada may be connected to a computer’s USB port via a mini-
USB cable (not included), or it may be plugged into the wall using the
supplied univeral AC adapter. Do not use any other AC adapter as that
may damage the unit.

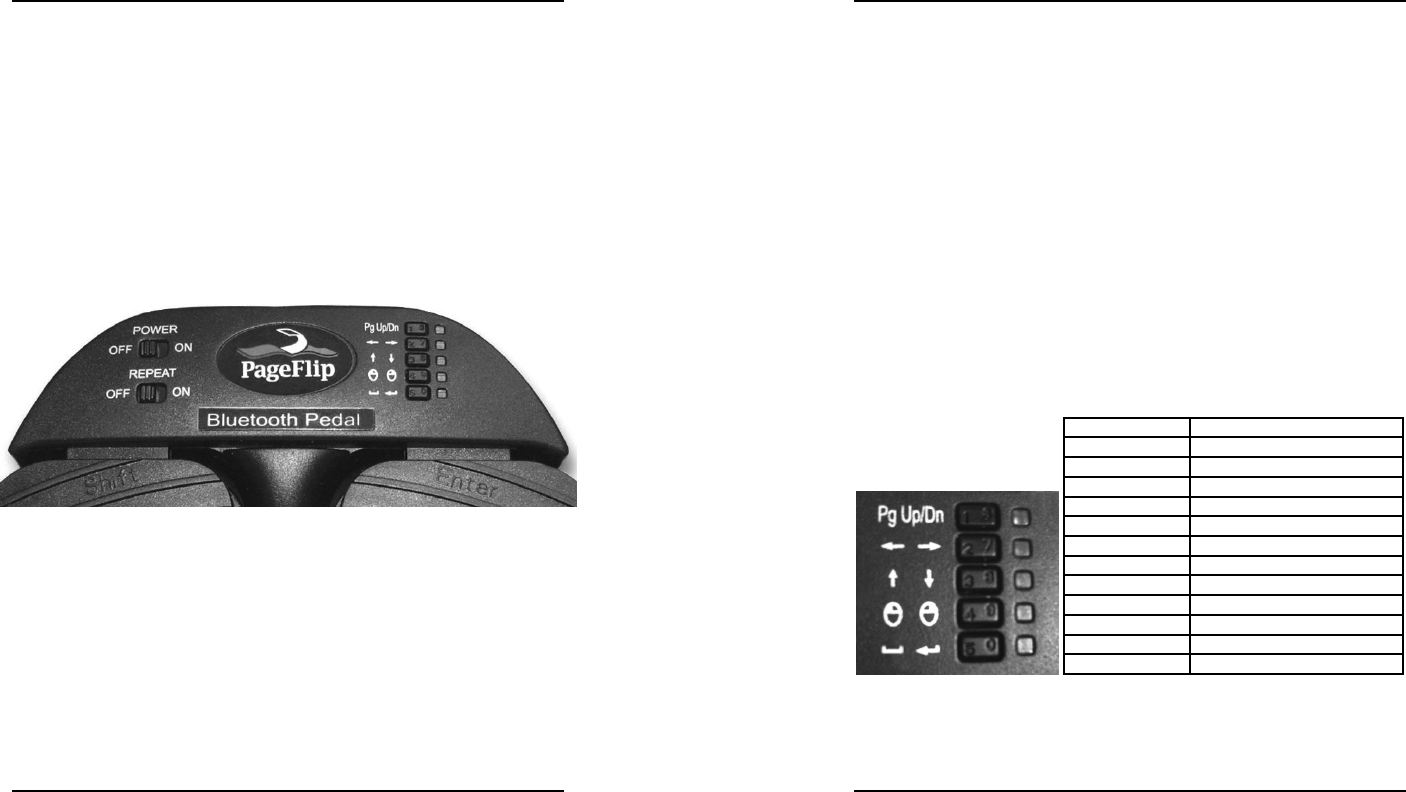

What is the current pedal mode?
An LED is lit next to the current mode setting of the pedal. Simply press
a different mode button to change the setting. The LED will turn off once
the PageFlip Cicada enters sleep mode after two hours of inactivity.
Why is the pedal not turning pages?
Confirm that the device "Dual Pedal" is paired to your computer and that
the correct pedal mode is selected. Some software may require arrow
keys while others may require PageUp/PageDown or other keystrokes.
Try several modes until you find one that works. Note that if you use
unrealBook on the iPad, the app toolbar must be hidden (by tapping the
screen) in order for the app to respond to the Up/Down Arrow keys.
What are the different operating conditions signified by the LED?
A solid LED means that the pedal is plugged into a power source. If the
RESET button is pressed, the pedal enters Bluetooth discovery mode and
all the LEDs flash in sequence. The LED flashes once per second after
the pedal is turned on and is attempting to establish a Bluetooth connec-
tion with a paired device. The LED flashes once every four seconds to
signal that the pedal is already paired. Repeated bursts of three quick
flashes signal a low-battery condition.
PageFlip, Inc. 19 www.pageflip.com
![](/img.php?id=1401698&img=bg5.png)
PageFlip Cicada User Guide 8. GUARANTEE
8 GUARANTEE
PageFlip offers a 30-day money back guarantee if our products do not
meet your needs or expectations. Products must be returned postage paid
in new condition in the original packaging to honor this service. A 20%
restocking fee applies. Contact support@pageflip.com for instructions.
Contact us at:
PageFlip, Inc.
Woodmere, NY
USA
support@pageflip.com
www.pageflip.com
PageFlip, Inc. 18 www.pageflip.com
PageFlip Cicada User Guide CONTENTS
Contents
1 WELCOME 4
2 FEATURES 5
3 PACKAGE CONTENTS 7
4 BASIC OPERATION 8
4.1 Battery Installation . . . . . . . . . . . . . . . . . . . . . . 8
4.2 ACAdapter.......................... 9
4.3 Powering On the Pedal . . . . . . . . . . . . . . . . . . . 10
4.4 Bluetooth Pairing . . . . . . . . . . . . . . . . . . . . . . . 11
4.5 Pedal Mode Selection . . . . . . . . . . . . . . . . . . . . 12
4.6 Triggering the Pedal . . . . . . . . . . . . . . . . . . . . . 13
4.7 Autorepeat Function . . . . . . . . . . . . . . . . . . . . . 14
5 PRODUCT SPECIFICATION 15
6 MAINTENANCE 16
7 WARRANTY 17
8 GUARANTEE 18
9 FREQUENTLY ASKED QUESTIONS 19
PageFlip, Inc. 3www.pageflip.com
![](/img.php?id=1401698&img=bg6.png)
PageFlip Cicada User Guide 1. WELCOME
1 WELCOME
Congratulations on your purchase of the PageFlip Cicada Bluetooth pedal!
This product was designed to meet the needs of people with disabilities,
musicians, and avid readers who struggle with the challenge and incon-
venience of page turning. PageFlip Cicada works exclusively with digital
documents, web pages, and image collections on any Windows, Mac, or
Linux computer. By simply tapping the dual pedal of the PageFlip Cicada,
the digital content can now be flipped or scrolled in either the forward or
reverse directions for convenient hands-free reading.
The PageFlip Cicada emulates a standard keyboard and works with
any software that uses keyboard strokes to navigate through digital files.
For added versatility, the user may select among five modes for the dual
pedals: PageUp/PageDown, Left/Right arrow, Up/Down arrow, Left/Right
mouse click, and Left-click / Enter. Changing modes is as simple as press-
ing a button. No software installation or programming is required.
The PageFlip Cicada is ideal for musicians who can now keep their
hands, and their focus, on their instruments rather than struggle with turn-
ing sheet music. It is also ideal for people with disabilities who can more
easily tap a pedal than attempt to manipulate pages of a standard book or
magazine. The convenient mode buttons maximize versatility for use with
a wide variety of software to scroll, browse, and navigate through eBooks,
PDF files, Word, Powerpoint, web pages, and images.
PageFlip Cicada is compact, silent, reliable, and easy to use. Since
it works with digital content, it guarantees 100% reliability in turning one
page at a time without moving parts or noise. Just pair the pedal with a
Bluetooth-enabled computer, open up any digital file, and tap the pedal to
begin enjoying hands-free reading. Be prepared to enjoy the benefits of
the PageFlip Cicada Bluetooth pedal for automatic page turning!
PageFlip, Inc. 4www.pageflip.com
PageFlip Cicada User Guide 7. WARRANTY
7 WARRANTY
PageFlip offers a 90-day warranty on the PageFlip Cicada Bluetooth pedal.
The warranty commences on the date of purchase. Should a unit fail dur-
ing the warranty period, PageFlip will, at its option, repair or replace the
damaged unit. Repaired or replaced units will be covered for the remain-
der of the original warranty period. This warranty does not apply to units
that, after being examined by PageFlip, have been found to have failed
due to customer abuse, mishandling, alteration, improper installation, or
negligence. Furthermore, the warranty does not apply to defects that have
negligible effect on the value or operation of the unit.
Defective units must be returned postage paid as a complete unit to
PageFlip or its authorized distributor. Proof of purchase and a letter ex-
plaining the problem must accompany the returned unit. The warranty
becomes void if repairs are undertaken by unauthorized persons and if
original PageFlip parts are not used.
Products no longer covered by a warranty may be repaired for a nom-
inal fee. All repairs are warranted for 90 days. Before returning a product
for refund or repair, please send email to support@pageflip.com with a
description of the problem. PageFlip will respond with instructions on how
to expediently resolve the matter. Repair charges must first be approved
for products no longer covered by the warranty.
PageFlip, Inc. 17 www.pageflip.com
![](/img.php?id=1401698&img=bg7.png)
PageFlip Cicada User Guide 6. MAINTENANCE
6 MAINTENANCE
Before cleaning the PageFlip Cicada, the following is recommended:
1. Turn off the power
2. Unplug the power cord
3. Take out the batteries
Gently wipe the PageFlip Cicada surface with a soft, dry, lint-free cloth.
Caution:
Do not use water, liquid detergent or solvents for cleaning. Liquids might
drip into the device’s mechanical or electronic parts and cause damage.
PageFlip, Inc. 16 www.pageflip.com
PageFlip Cicada User Guide 2. FEATURES
2 FEATURES
•Ease of Use
Simply open a digital file and press either pedal of the PageFlip
Cicada to turn a page forwards or backwards.
•Convenience
Permits hands-free reading of vast libraries of scanned, purchased,
or freely downloaded digital content. There is no need to stop play-
ing your musical instrument or wait for a care-giver to turn the page.
•Reliability
Turns one page at a time with 100% accuracy. Navigation of digital
content eliminates the risk of turning multiple pages at once, which
is a problem typically associated with physical books.
•Versatility
Press a mode button to select pedal functions for enhanced soft-
ware compatibility: PageUp/PageDown, Left/Right arrow, Up/Down
arrow, Left/Right mouse click, and Left-click / Enter.
•Robust Operation
A Repeat switch enables continuous scrolling while the pedal is
pressed down. Disable this feature for musical performances to
prevent inadvertent page turns in case of a slow pedal release.
•Wireless Connectivity
The PageFlip Cicada communicates wirelessly with the computer
up to a range of 10 meters using standard Bluetooth 2.0 technology.
•Compatibility
Works with any Windows, Mac, or Linux computer. Even works with
the Apple iPad on apps that accept keyboard commands. Includes
a Bluetooth USB micro adapter (dongle) to bring the full benefits of
this wireless pedal to any computer that is not Bluetooth compliant.
PageFlip, Inc. 5www.pageflip.com
![](/img.php?id=1401698&img=bg8.png)
PageFlip Cicada User Guide 2. FEATURES
•Unique Pairing
Multiple pedals can be operated in the same room without interfer-
ence. The Bluetooth pairing process uniquely establishes wireless
connectivity between the PageFlip Cicada and one computer. The
computer requires the user to enter a numerical code on the Page-
Flip Cicada. Simply press one of the five mode buttons and, if
necessary, the left pedal (Shift) to enter each code digit. The right
pedal (Enter) must be pressed to complete the pairing process.
•External Switches
The PageFlip Cicada is compatible with a wide array of external
switches. Commonly used sip-and-puff and Jelly Bean pushbutton
switches may be plugged into the auxiliary switch outlet(s) via two
1/8" mono plugs.
•Auto Power-Off Function
PageFlip Cicada automatically turns itself off two hours after the
last operation is performed. The pedal has a battery life of 200
hours of continuous page turning, or about 200,000 page turns.
•Portability
Small lightweight pedal operates on AC power or two AA batteries.
•Technical Support
Additional information and video tutorials can be found at
www.pageflip.com
PageFlip, Inc. 6www.pageflip.com
PageFlip Cicada User Guide 5. PRODUCT SPECIFICATION
5 PRODUCT SPECIFICATION
Item Specifications
Model Name PageFlip Cicada
Model Number PFCICADA-01
Dimensions 6.7 x 4.6 x 1.3 inches (171 x 118 x 34 mm)
Weight (w/o batteries) 4.8 ounces (135 grams)
Power Requirements DC 5V, 500mA (2 AA batteries)
Power Consumption:
Operating Mode 4 mA
Bluetooth Pairing 30-40 mA
Standby 1 mA
Sleep 0.05 mA
Battery Life 200 hours of continuous turning
(2 AA batteries) approx. 200,000 page turns
Output Power -2 dBm to 4 dBm
Operating Distance 10 meters
Operating Frequency 2402-2480 MHz
Operating Temperature 32◦
−140◦F (0◦C - 60◦C)
Storage Temperature −4◦
−140◦F (−20◦-60◦C)
Relative Humidity 15% - 90%
Warranty 90 days
LED Operating Condition
Off Pedal powered off or asleep
Solid Connected to external power source
All LEDs flash Bluetooth discovery mode (RESET)
Quick flash (1 sec) Attempting to pair with computer
Slow flash (4 sec) Paired with computer
Three quick flashes Low-battery condition
PageFlip, Inc. 15 www.pageflip.com
![](/img.php?id=1401698&img=bg9.png)
PageFlip Cicada User Guide 4.7 Autorepeat Function
4.7 Autorepeat Function
The PageFlip Cicada features an autorepeat function that may be set by
the REPEAT switch (Fig. 4). If autorepeat is on, a continuous stream of
commands is sent to the computer as long as the pedal is pressed down.
This behavior, which is identical to that of a keyboard, is useful for fast
browsing or scrolling. The autorepeat function applies only to the following
pedal modes: PageUp/PageDown, Left/Right arrow, and Up/Down arrow.
Enable Autorepeat
1. Slide the REPEAT switch to the On position.
2. Tap pedal quickly to turn one page.
3. Tap and hold the pedal to turn successive pages quickly.
Disable Autorepeat
1. Slide the REPEAT switch to the Off position.
2. Tap pedal slowly or quickly to turn one page.
For musical practice or performance, it is recommended to disable the
autorepeat function. This prevents turning multiple pages inadvertently if
the pedal is held down too long. This also permits the user to rest their
foot on the pedal until the next page is turned with another foot tap.
PageFlip, Inc. 14 www.pageflip.com
PageFlip Cicada User Guide 3. PACKAGE CONTENTS
3 PACKAGE CONTENTS
This package contains the following items. If any items are missing, please
contact the dealer where you purchased the product.
1. PageFlip Cicada Bluetooth Pedal
2. Bluetooth USB Micro Adapter (Dongle)
3. Universal AC Adapter
4. This User Guide
Figure 1: Package contents: PageFlip Cicada, Bluetooth USB micro
adapter, and universal AC adapter.
PageFlip, Inc. 7www.pageflip.com
![](/img.php?id=1401698&img=bga.png)
PageFlip Cicada User Guide 4. BASIC OPERATION
4 BASIC OPERATION
Please read the operating instructions carefully before first use. PageFlip
Cicada is designed to work with a wide variety of software to display elec-
tronic documents. It is important that the user closely follow the directions
below in order to maximize performance, reliability, and reading pleasure.
4.1 Battery Installation
1. Turn off the PageFlip Cicada pedal before inserting the batteries.
2. Remove the battery cover on the bottom of the pedal (Fig. 2).
3. Install two new AA batteries.
4. Slide the battery cover back on.
Note: To conserve battery power, turn off device when not in use. The unit
automatically turns off after two hours of inactivity, but can awake instantly
upon a pedal tap.
Figure 2: Battery cover is located at the bottom of the PageFlip Cicada. A
convenient storage compartment for the Bluetooth dongle lies
alongside the batteries.
PageFlip, Inc. 8www.pageflip.com
PageFlip Cicada User Guide 4.6 Triggering the Pedal
4.6 Triggering the Pedal
The PageFlip Cicada Bluetooth pedal can be triggered by:
1. tapping the left or right pedal of the PageFlip Cicada
2. activating an external (auxiliary) switch
PageFlip Cicada works with sip-and-puff switches, AbleNet Jelly Bean
pushbuttons, or any external switch that can be plugged into the two 1/8"
mono outlets shown in Fig. 3. Use an adapter, if necessary, to convert
other plugs for use with the unit. PageFlip does not supply plug adapters
or external switches. Consult assistive technology vendors for more infor-
mation about switches.
(a) (b) (c)
Figure 6: (a) A sip-and-puff switch can connect to the PageFlip Cicada
auxiliary outlet via two 1/8" (3.5mm) mono plugs. (b) A Jelly
Bean is a large pushbutton switch. Two such switches can be
connected to the PageFlip Cicada to turn pages in either di-
rection by using the two outlets for 1/8" mono plugs. Plug one
switch into the R outlet to turn pages forward or plug both into
the L and R outlets for bidirectional operation. (c) Use a 1/8"
stereo to dual 1/8" mono plug adapter for converting stereo
plugs into two mono plugs.
PageFlip, Inc. 13 www.pageflip.com
![](/img.php?id=1401698&img=bgb.png)
PageFlip Cicada User Guide 4.5 Pedal Mode Selection
4.5 Pedal Mode Selection
The PageFlip Cicada emulates a standard keyboard and works with any
software that uses keyboard strokes to navigate through digital files. For
added versatility, the user may select among five pedal modes, as shown
in Table 1. Simply press a button (Fig. 4) to change the mode. A flashing
LED confirms the mode selection.
Pedal Mode Function
PageUp/PageDown Turn page
Left/Right Arrow Turn page or move cursor
Up/Down Arrow Turn page or move cursor
Left/Right Mouse click Click left or right mouse button
Space/Enter Press Space bar or Return key
Table 1: Five pedal modes and their functions.
Select the mode that achieves your intended goals. Results may
vary based on the software. For instance, some software applications
use PageUp/PageDown to advance between pages/screens, and use the
arrow keys to move the cursor between characters or rows. Other pro-
grams accept the PageUp/PageDown or arrow keys interchangeably. Im-
age viewers typically respond to Left/Right arrow but not Up/Down arrow.
Experiment with the different modes and see which works best for your
application. These options are made available to enhance pedal versatil-
ity by making it responsive to the widest array of software.
PageFlip, Inc. 12 www.pageflip.com
PageFlip Cicada User Guide 4.2 AC Adapter
4.2 AC Adapter
In addition to being battery-operated, PageFlip Cicada may also be plugged
into the wall via the universal AC adapter (Fig. 3). For added versatility,
the pedal may be powered by connecting it directly to the USB port of a
computer.
(a) (b)
Figure 3: (a) Rear view of PageFlip Cicada; (b) insert universal AC
adapter into rear POWER outlet using the 6’ mini-USB cable.
PageFlip, Inc. 9www.pageflip.com
![](/img.php?id=1401698&img=bgc.png)
PageFlip Cicada User Guide 4.3 Powering On the Pedal
4.3 Powering On the Pedal
1. Slide the POWER switch to the On position.
2. The pedal will attempt to pair itself with a computer.
3. For all new pairings, please refer to the Pairing instructions in Sec. 4.4.
4. For existing pairings, an LED will blink quickly for up to 30 seconds.
5. The LED will blink slowly once a pairing is re-established.
6. Make sure the paired computer is on and awake.
Figure 4: Top view of PageFlip Cicada control panel.
PageFlip, Inc. 10 www.pageflip.com
PageFlip Cicada User Guide 4.4 Bluetooth Pairing
4.4 Bluetooth Pairing
1. Press the RESET button (Fig. 3(a)) to make the pedal discoverable.
2. Five LEDs will flash in sequence while pedal is in discovery mode.
3. Enable Bluetooth on the computer to be paired.
4. Show Bluetooth devices on the computer and select "Dual Pedal."
5. Note: "Keyboard" may appear momentarily before "Dual Pedal."
6. Wait for the computer to generate a random number.
7. Use the five mode buttons (Fig. 4) to enter digits 1, 2, 3, 4, 5.
8. Hold down left pedal (Shift) and press buttons to enter 6, 7, 8, 9, 0.
9. Hold down left pedal and press right pedal for backspace.
10. Press right pedal (Enter) after all digits have been entered.
11. The LED of the current pedal mode will now flash slowly.
Digit/Function Button/Pedal Combination
1 1/6
2 2/7
3 3/8
4 4/9
5 5/0
6 L Pedal + 1/6
7 L Pedal + 2/7
8 L Pedal + 3/8
9 L Pedal + 4/9
0 L Pedal + 5/0
Enter R Pedal
Backspace L Pedal + R Pedal
Figure 5: Use mode buttons and pedals to enter numeric Bluetooth code.
PageFlip, Inc. 11 www.pageflip.com
