Palm JIMI CELL/PCS CDMA Smartphone User Manual Introduction Information

Palm Inc CELL/PCS CDMA Smartphone Introduction Information

Contents

QPU User manual

WLAN6065SD Card
User Manual
10/01/2003
preliminary
Confidential Information
Note: SyChip, Inc. reserves the right to make changes in specifications at anytime and without notice.
The information furnished in this data sheet is believed to be accurate and reliable. However, no
responsibility is assumed by SyChip for its use, nor any infringements of patents or other rights of third
parties resulting from its use. No license is generated under any rights of SyChip or its supporters unless
specifically agreed.
WLAN6065SD Card User Manual
WLAN6065SD Card User Manual Version Control
Version Date Author Engineering
Approval
Marketing
Approval
Operation
Approval
Mark
Preliminary 10/01/2003 JC
SyChip Confidential Page 2 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
Table of Content
1 INTRODUCTION INFORMATION...................................................................................................................5
1.1 Introduction.................................................................................................................................................................... 5
1.2 About this User Manual:............................................................................................................................................... 6
1.3 Safety Precautions.......................................................................................................................................................... 7
1.4 Limitation of Liability .................................................................................................................................................. 7
1.5 Usage Conditions............................................................................................................................................................ 7
1.6 Warning .......................................................................................................................................................................... 7
1.7 Caution............................................................................................................................................................................ 7
1.8 Handling Instructions.................................................................................................................................................... 7
1.9 Notes................................................................................................................................................................................ 7
2 WLAN6065SD PACKAGE CONTENTS .........................................................................................................7
3 WLAN6065SD SPECIFICATIONS..................................................................................................................7
4 INSTALLATION AND CONFIGURATION ......................................................................................................8
4.1 Preparation..................................................................................................................................................................... 8
4.2 Supported Devices.......................................................................................................................................................... 8
4.3 Installing WLAN6065SD Card and Software ............................................................................................................. 8
4.4 Configuring WLAN6065SD Card ................................................................................................................................ 9
4.4.1 Pegasus Card Configuration........................................................................................................................................ 9
4.4.2 Status Tab.................................................................................................................................................................... 9
4.4.3 Configuration Tab..................................................................................................................................................... 11

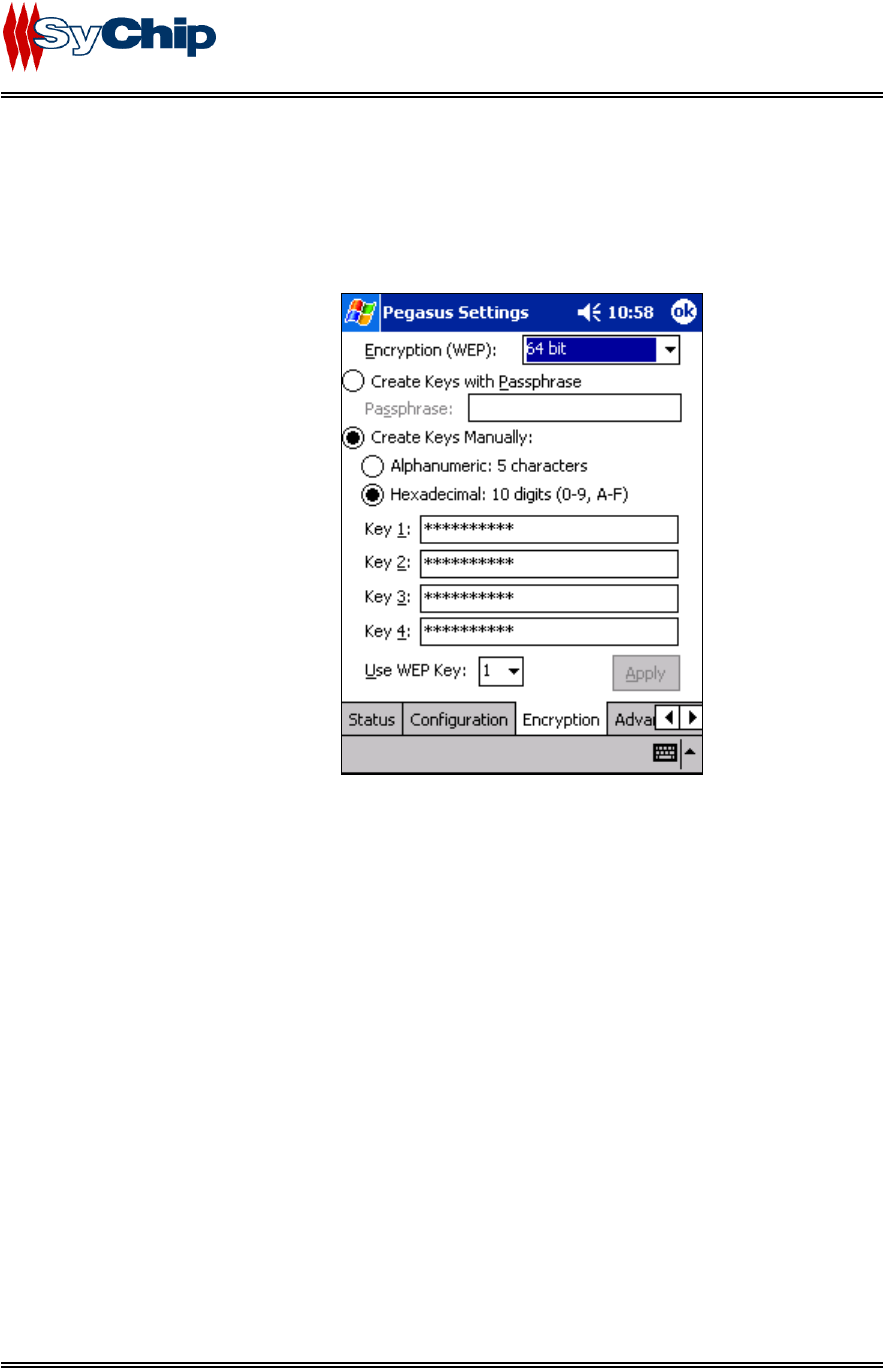

4.4.4 Encryption Tab.......................................................................................................................................................... 12

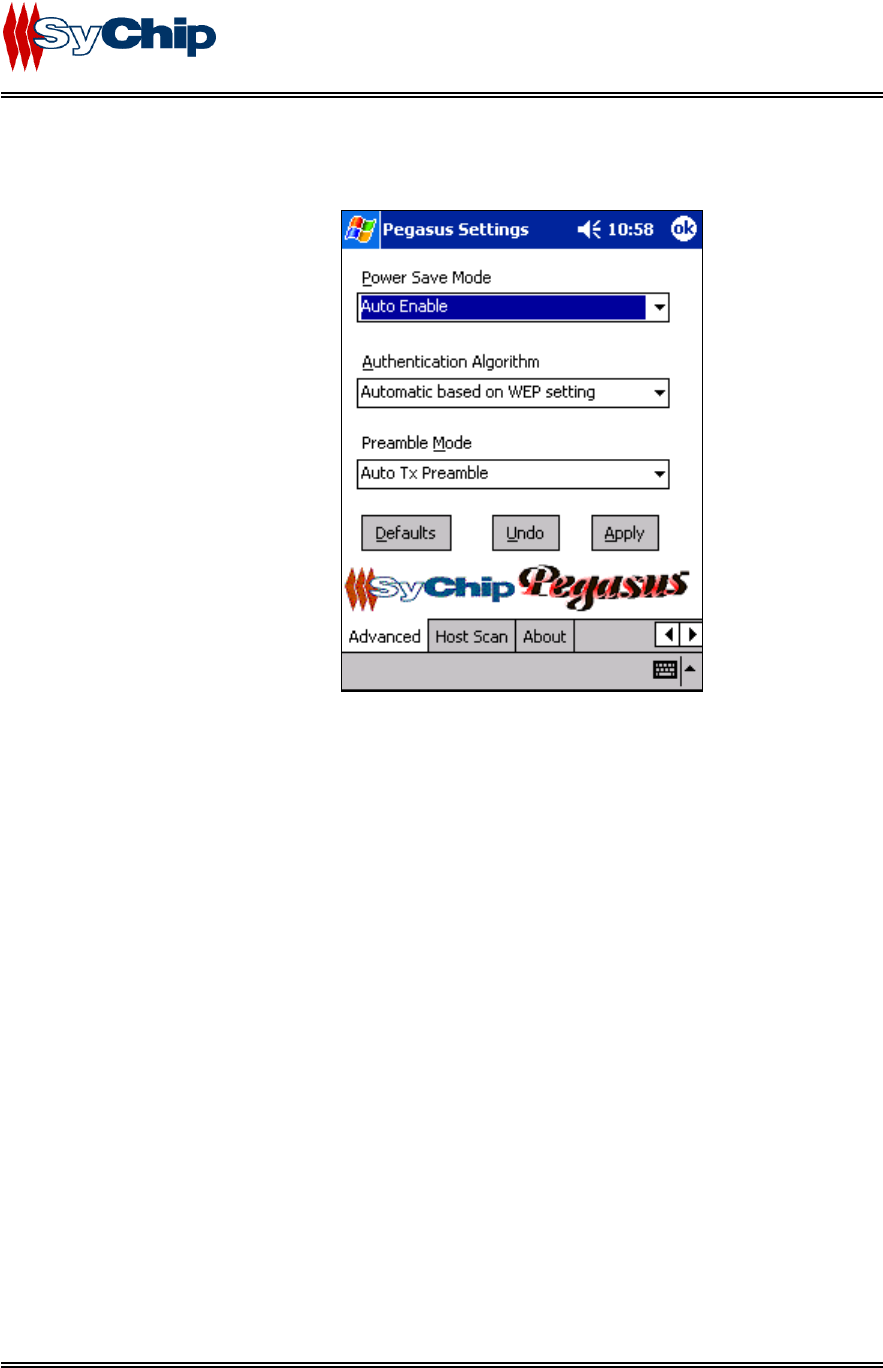

4.4.5 Advanced Setting Tab ............................................................................................................................................... 13

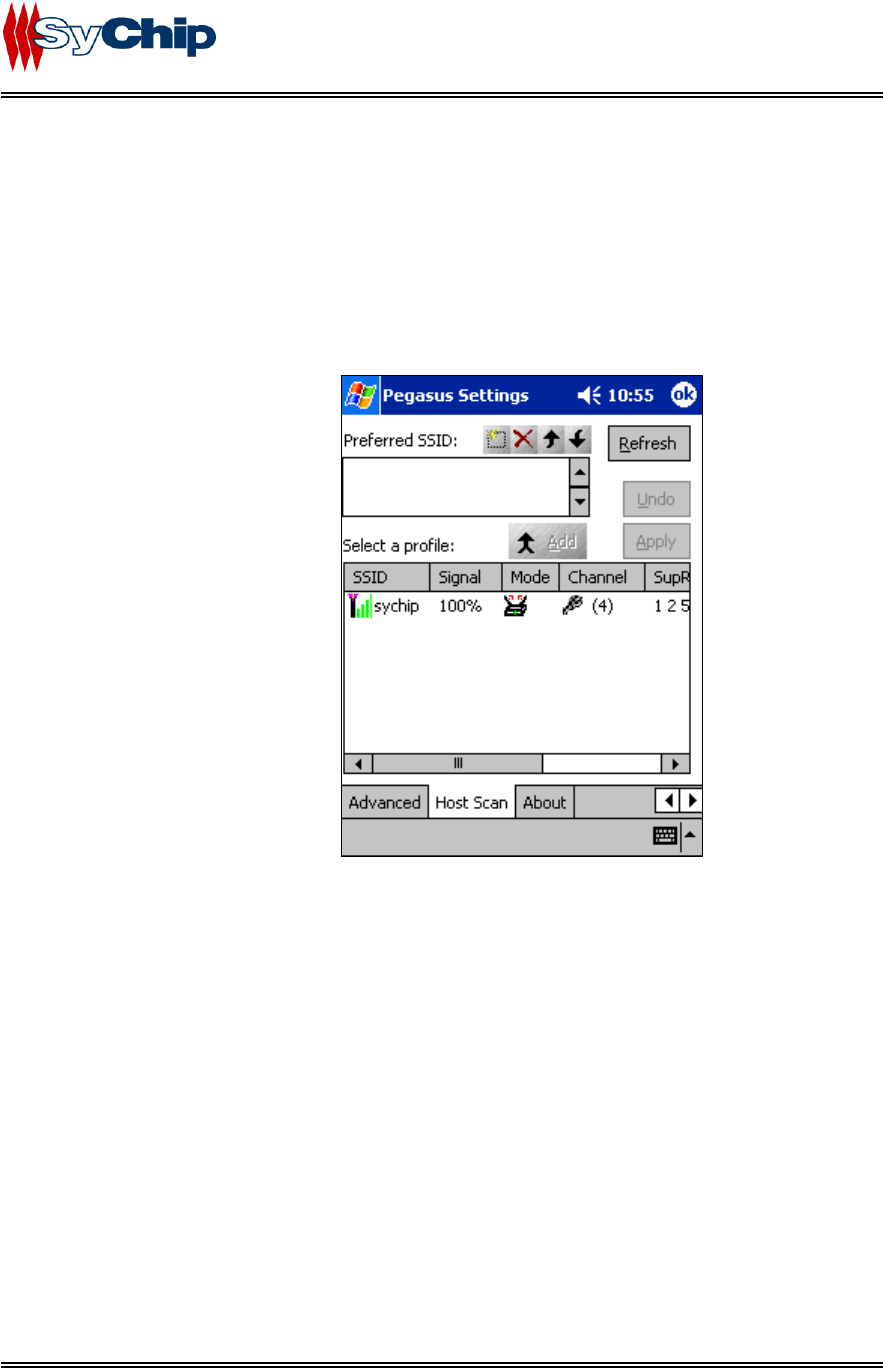

4.4.6 Host Scan Tab ........................................................................................................................................................... 14
4.4.7 About Tab ................................................................................................................................................................. 16
4.5 Removing the radio card ............................................................................................................................................. 16
5 TROUBLESHOOTING ..................................................................................................................................16
SyChip Confidential Page 3 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
6 DOCUMENTATION UPDATES.....................................................................................................................17
7 CONTACT INFORMATION ...........................................................................................................................17
8 LEGAL INFORMATION ................................................................................................................................18
8.1 Applying the Regulatory Country Stamp .................................................................................................................. 18
SyChip Confidential Page 4 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
1 Introduction Information
1.1 Introduction

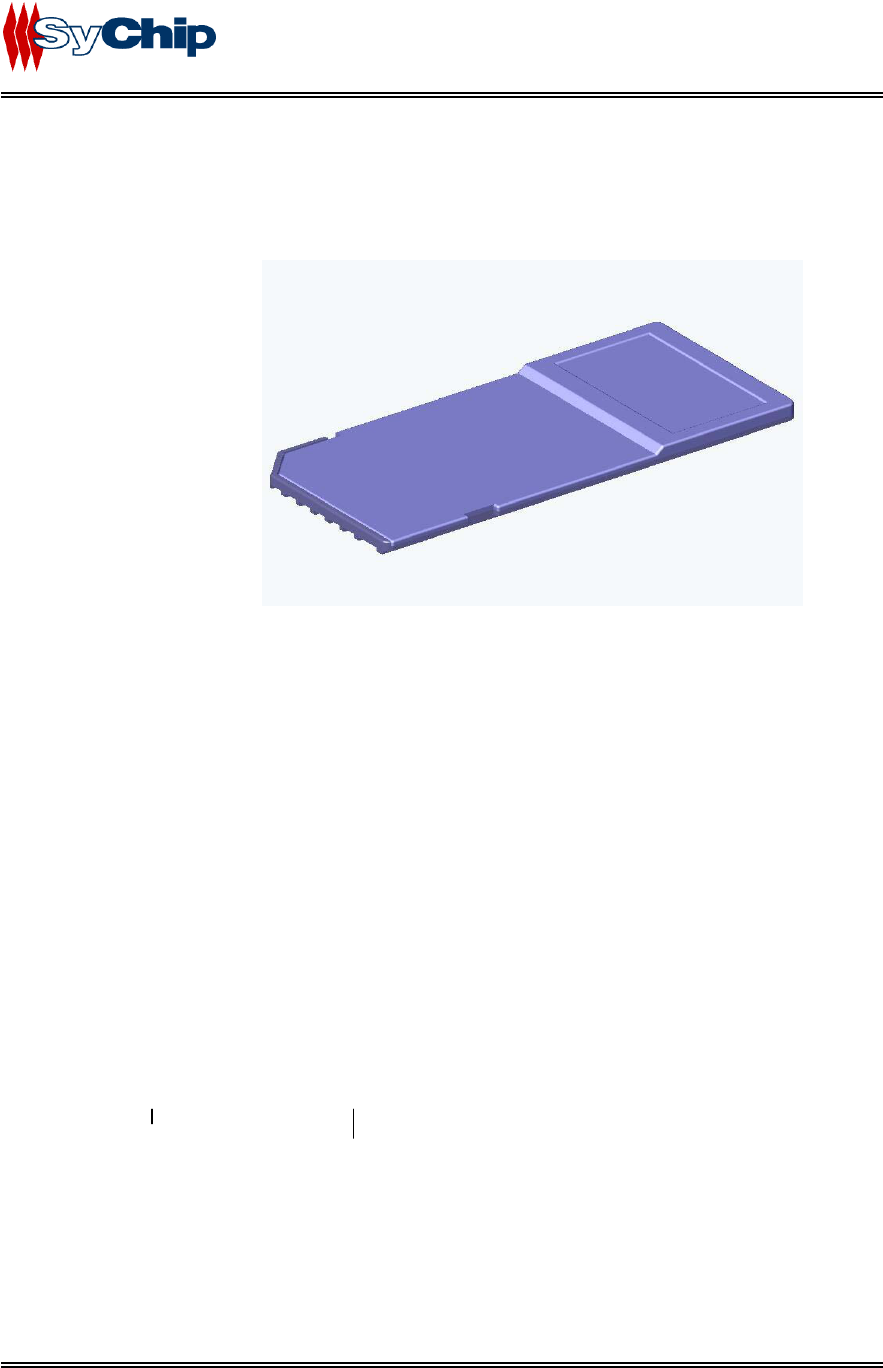

SyChip WLAN6065SD Network Interface Card
WLAN6065SD Card from SyChip Inc is a Secure Digital Card form factor Wireless LAN NIC(Network
Interface Card) incorporating the popular wireless Ethernet standard 802.11b. It uses Direct Sequence
Spread Spectrum (DSSS) Wireless LAN technology to provide bandwidths of up to 11Mbps at ranges of
up to 400 feet. This card enables next generation Pocket PC/PDAs, Cellular Phones, and Ultra-thin
notebook computers to access the internet, email, corporate networks and transfer streaming video or
audio, images or large files from a WLAN-enabled environment. It allows an extension of the corporate
resources by enabling the mobile workforce and telecommuters. The card is idea for vertical markets such
as manufacturing floors, car rentals, retail spaces, hospitals etc. In the consumer market, this WLAN card
is ideal for users of next generation Palms, Pocket PCs, Smartphones, printers and scanners. Additionally,
the card gives users the ability to work whilst away from the office by connecting to the rapidly
expanding public hotspot infrastructure. Such venues as coffee shops, airports, shopping malls, hotels, etc
are offering this capability based on the IEEE802.11b standard. For mobile applications, battery life is
extended through the use of enhanced power saving features, which reduce the current drain whilst in
standby mode (the card is in this state for the majority of the time as it awaits data destined for it).
Not only does the WLAN6065SD Card roam seamlessly among multiple 802.11b wireless network
access point, it also operates in peer to peer mode (without an access point) to download data from
wirelessly equipped laptops without a cradle or network connection, and can share data directly with
wireless PDAs.
This is a complete WLAN solution incorporating the Baseband Processor, Mac, Memory, VCO,
Transceiver, Antenna, antenna switch and power amplifier and to realize a complete design. The card will
be fully WiFi certified.
SyChip Confidential Page 5 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
Key Features:
• Wi-Fi Certified – interoperable with other Wi-Fi certified WLAN products
• Very small footprint: card measured 54.0x24.0x2.1mm3.
• Complete IEEE802.11b functionality integrated BB/MAC, RF, VCO, PA and SD interface
• Reduced power consumption in standby mode
• User definable transmit data rate settings in Ad Hoc Mode
• Will support Win2000/NT/XP, WinCE (v3.0 or greater), Palm OS
• Support infrastructure or Peer to Peer connectivity
Warnings:
THIS EQUIPMENT COMPLIES WITH PART 15 OF THE FCC RULES. ANY CHANGE OR
MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
1.2 About this User Manual:
This User Manual contains:
• Information of safety and handling of WLAN6065SD Card
• WLAN6065SD Card installation procedures for Pocket PC/PDA
• Basic configuration and settings of WLAN6065SD Card for Pocket PC/PDA
• Troubleshooting of WLAN6065SD Card
• Update and support information
• Legal Information
Please be sure to read this User Manual before using the WLAN6065SD Card to ensure its proper
handling.
• Please be sure to read “Safety Precautions” in the document since these describe important safety
issues
SyChip Confidential Page 6 of 21 SyChip_WLAN6065SD
THIS WAS DEVICE WAS EVALUATED FOR BODY SAR IN A PDA WITH A SEPARATION 
DISTANCE OF 0.0 CM. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILLWILL 
RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR RF EXPOSURE AND IS 
DISCOURAGED. ONLY ANTENNAS APPROVED WITH THE DEVICE MAY BE USED. NO 
EXTERNAL ANTENNAS MAY BE USED. THIS DEVICE MAY NOT BE CO-LOCATED WITH 
OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC.
WLAN6065SD Card User Manual
•
•
•
•
•
After reading this document, keep it in a convenient place for future reference.
Concerning the display of device certification:
This product has been certified as conforming to technological standards for a wireless device as a small
electrical data transmission system under electrical transmission law. Therefore, you do not need a license
from a government agency to operate this system.
However, the following actions are punishable by law:
Disassembly or modification of this product
Removal of identification labels on the back of this product
1.3 Safety Precautions
1.4 Limitation of Liability
1.5 Usage Conditions
1.6 Warning
1.7 Caution
1.8 Handling Instructions
1.9 Notes
2 WLAN6065SD Package Contents
WLAN6065SD Card package from SyChip includes:
1 WLAN6065SD Card
1 WLAN6065SD software and document CD
3 WLAN6065SD Specifications
Supported Operating System: Win CE3.0 (Pocket PC2002)
Certification: Wi-Fi (802.11b)
Size (LxWxH mm3): 54.0x24.00x1.6 (2.1mm high for extended antenna section)
Weight(g): 4.3
SyChip Confidential Page 7 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
Transmit Power(dBm): 13.0
Power ratings:
DC (V) 3.3 (2.7~3.6)
Current Consumption(mA): 297 (max)
35 (average)
15 (sleep)
Security Standards: WEP 64/128
4 Installation and Configuration
4.1 Preparation
Before operating the WLAN6065SD Card, refer to Applying the Regulatory Country Stamp. Once the
regulatory stamp is affixed, register the WLAN6065SD Card at www.sychip.com/products/reg.
Before beginning the installation, verify the hardware package contains:
• A WLAN6065SD Card
• A WLAN6065SD Card software and documentation CD
4.2 Supported Devices
The WLAN6065SD card can be used in any platform that has the proper SDIO interface and Software
drivers.
Refer to the documentation on the enclosed CDROM for installation and usage instructions.
4.3 Installing WLAN6065SD Card and Software
WLAN6065SD Host Device
SDIO Slot
The WLAN6065SD Card driver and utility installation requires a connection through Microsoft
ActiveSync between the desktop or notebook PC and the host device. The installation installer on the
CDROM downloads the necessary files to the host device through the desktop or notebook PC.
SyChip Confidential Page 8 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
1. Establish an ActiveSync connection between the desktop or notebook PC and the host device.
2. Insert the WLAN6065SD Card Software and Documentation CDROM into the CDROM drive on
the desktop or notebook PC.
An HTML (Web) page automatically displays
3. Click Software Installation
A File Download window display
4. Check the Run this program from its current location option and click OK.
5. Follow the instruction displayed by the installer.
6. Finish of the installation of WLAN6065SD software to the host device.
4.4 Configuring WLAN6065SD Card
After installed the driver into host device, you can now plug in the WLAN6065SD card into SDIO slot in
your host device. You will see an icon appearing on the low right corner bar.
4.4.1 Pegasus Card Configuration
You need to configure the Pegasus card before you can be connected to the network. Double click the
Pegasus icon, a “Pegasus Wireless Settings” windows will pop up.
4.4.2 Status Tab
The status tab screen shows some important parameters that card is working with:

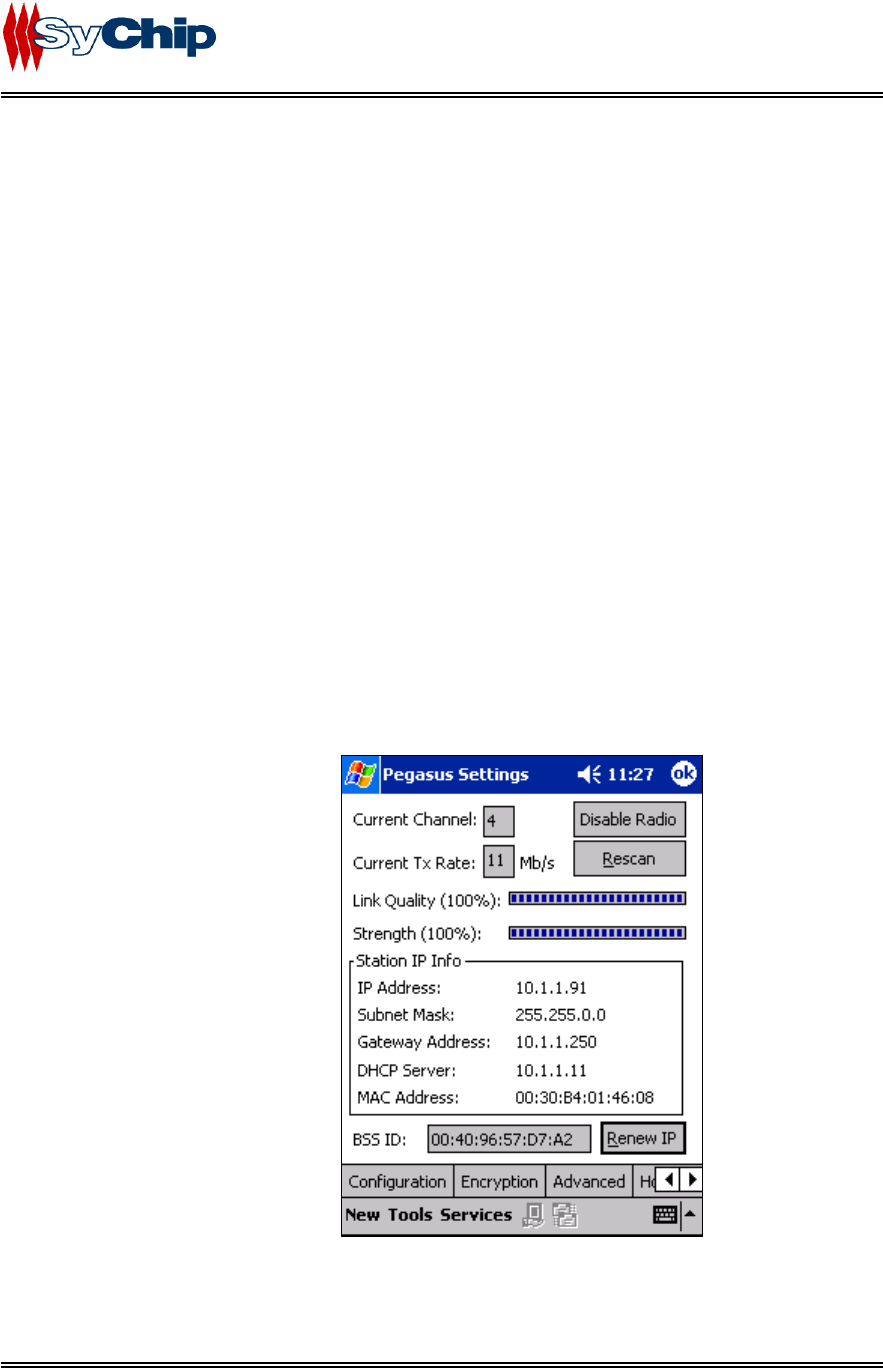

Figure 1 Status window
Information Field
• Current Channel
SyChip Confidential Page 9 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
It shows the RF channel number currently used by the card.
• Current TX Rate
It shows the current transmit speed that can be 1Mb/s, 2Mb/s, 5.5Mb/s, and 11 Mb/s depending on the
link quality.
• Link Quality
It gives both percentage and graphic display for signal to noise ratio.
• Signal Strength
It gives both percentage and graphic display for signal strength in Receiver.
• Station IP Info
This block gives the card IP information that include:
IP Address
Subnet Mask
Gateway Address
DHCP Server
MAC Address
Check with your network administrator for IP configuration information.
• BSS ID
It shows the MAC address of the Access Point the card associating with.
Operation Button
• Disable Radio
This button is used to disable the radio link from the card.
• Rescan
Press this button to start a rescan in current radio channel.
• Renew IP
Renew IP button allows one to reapply IP address from DHCP server.
SyChip Confidential Page 10 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
4.4.3 Configuration Tab
Figure 2 Configuration window
Information Field
• Profile Name
Profile file contains all configuration parameters for card setting. You can use a default profile to
configure the card, or use a specified profile for card setting.
• Network Name
Network name (SSID) is the network ID your card associates with, which can be a domain name.
Check with your network administrator for Network Name (SSID).
• Network Type
Network type is the working mode your card is working on. Pegasus card can work in two modes.
One is the “Access Point” mode, it is also called “Infrastructure” mode, which is used by default. The
other one is “Peer to Peer” mode that is used to communicate between two radio cards without an
access point.
• Peer-to-Peer Channel
If you use “Peer to Peer “ mode, you have to select your radio channel same as the channel your other
party is using.
• Transmit Rate
You can manually select the transmit rate between 1Mb/s, 2Mb/s, 5.5Mb/s, and 11Mbit/s. It is “Fully
Automatic” by default.
Operation Button
• Defaults
Defaults button is used for factory reset.
• Undo
SyChip Confidential Page 11 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
Undo the change in configuration setting.
• Apply
Apply change in configuration setting immediately.
4.4.4 Encryption Tab
Figure 3 Encryption window
Information Field
• Encryption (WEP Key)
It provides the security for your wireless communication. By default, it is disabled for easy set up. It
can be set to 64 bits or 128 bits long.
• Create Keys with Passphrase
This option can be used to generate an encryption code based on the phrase you entered in the
window.
• Create Keys Manually
Alphanumeric
This option let one choose 5 or 13 characters (depending on the encryption length) for encryption.
Hexadecimal
This option lets one to enter 10 or 26 digits (0-9, A-F, depending on the encryption length) for
each WEP Key window, and then specify a WEP Key to be used from right scroll down menu
window.
Check with your network administrator for security WEP Key you need to use.
Operation Button
• Apply
Apply change to encryption setting.
SyChip Confidential Page 12 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
4.4.5 Advanced Setting Tab
Figure 4 Advanced setting window
Information Field
• Power Save Mode
One can select to set power save mode to be:
Disable
Always Enable
Auto Enable
It is Always Enable by default.
• Authentication Algorithm
Authentication algorithm has three options:
WECA Compliant
Must use Shared with WEP
Automatic based on WEP setting
It has been selected to Automatic based on WEP setting by default.
Note: WEP Key must be enabled and supported by the Access Point for this feature.
• Preamble Mode
One can select to set preamble to be:
Long TX Preamble
Short TX Preamble
Auto TX Preamble
It’s been set to Auto TX Preamble by default.
Operation Button
SyChip Confidential Page 13 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
• Default
Default button reset the setting.
• Undo
Undo button undo the change for setting.
• Apply
Apply button applying the change to card setting.
4.4.6 Host Scan Tab
Figure 5 Host scan window
This function tab provides a tool to find a new Access Point with better service quality. It works in the
procedure define below:
• Refresh
Press this button to initial a new search for all available Access Point around. One should be able to
see all Access Points with SSID, Signal, Mode, Channel, Support Rate, and BSSID on the bottom half
of the screen.
• Select a Profile
By highlighting one Access Point, one selects it as a profile to work on.
Press Apply button to use this Access Point for card association immediately.
Press Add button to pop up the setting window for entering WEP Key, click OK to add it to
your Preferred SSID table showing on the upper screen.
SyChip Confidential Page 14 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual

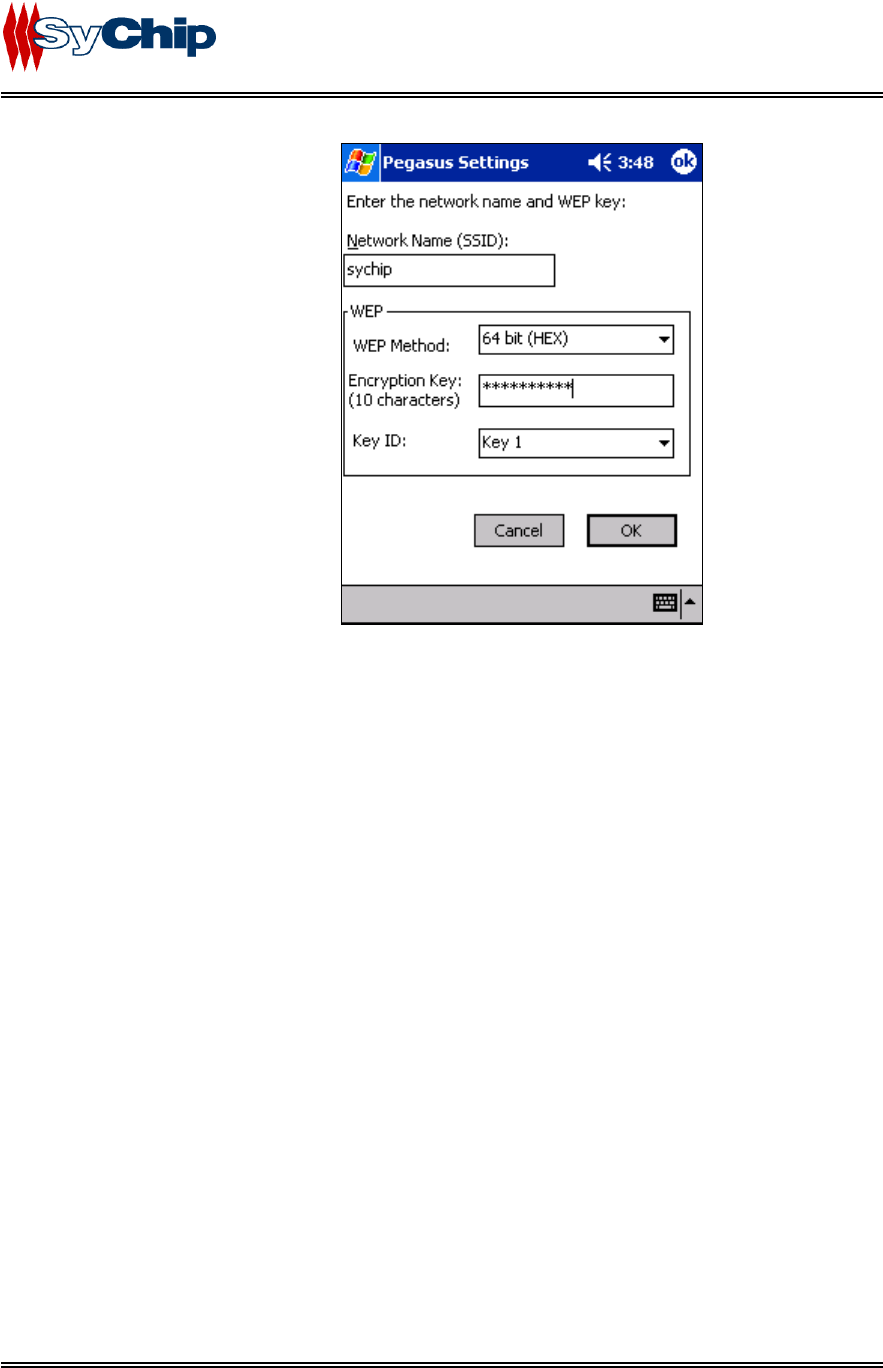

Figure 6 Profile setting window
• Preferred SSID Table
For each profile in the table, one can make the following change by using icon tools on right side:
Modify the setting will let one to change the card configuration setting
Delete from table will delete the highlighted profile
Change order higher will move profile upper
Change order lower will move profile lower
SyChip Confidential Page 15 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
4.4.7 About Tab

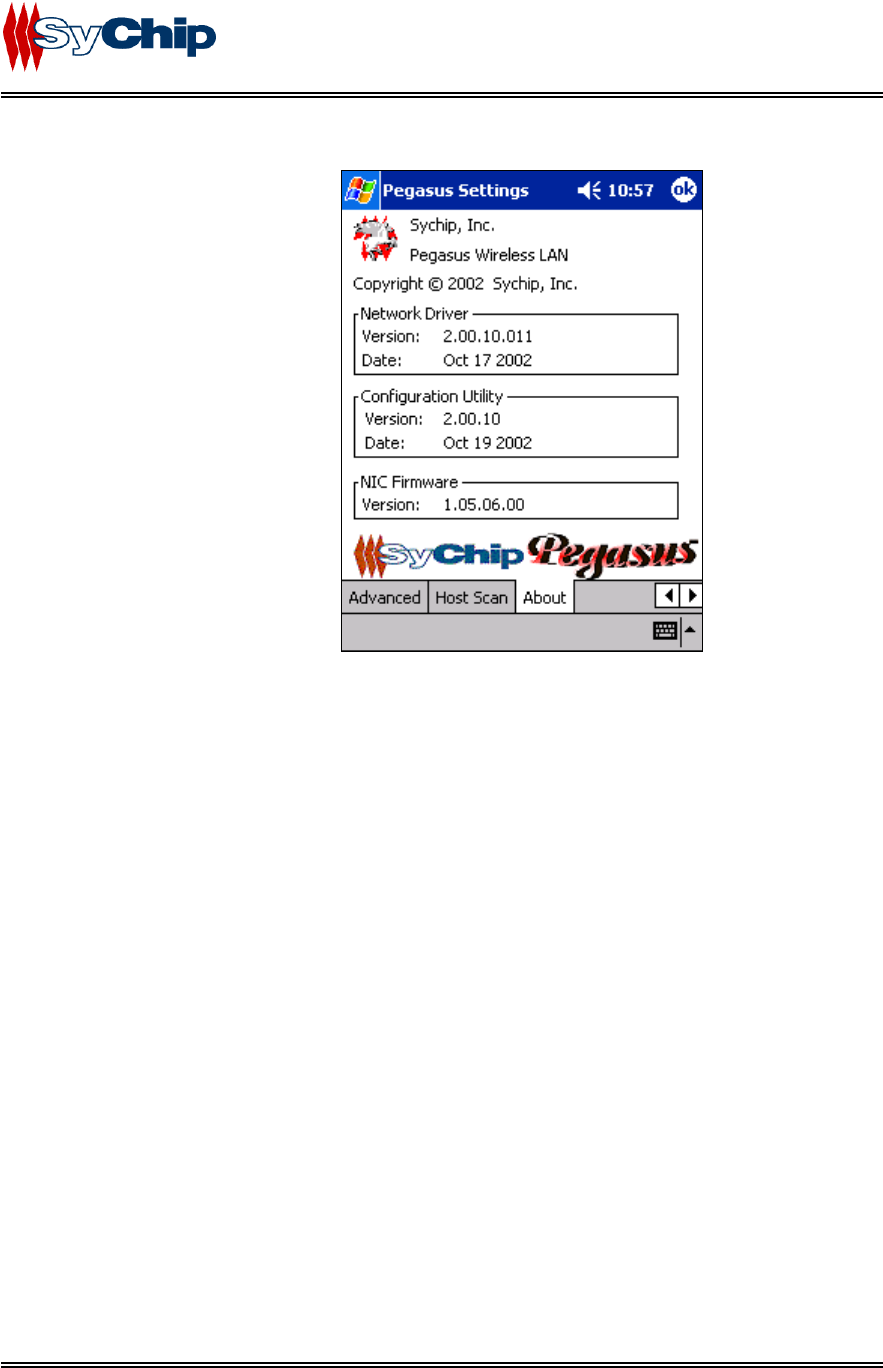

Figure 7 About window
This window provides Version Number and time to be built for Network Driver, Configuration Utility,
and NIC Firmware currently used in this card. One can check SyChip website for latest version, and
download to the card.
4.5 Removing the radio card
You should always stop the radio card before removing it from the Host Device slot. To stop the radio,
right click the icon on the task bar and select the option Wireless Radio Off.
Refer to the WLAN6065SD Card User Manual on the CDROM for detailed information on configuration
settings.
5 Troubleshooting
The following scenarios could be encountered when using the WLAN6065SD Card in a Windows CE
environment:
The Pocket PC does not Recognize WLAN6065SD Card
The Pocket PC displays an Unrecognized Card dialog box when the WLAN6065SD Card is inserted.
SyChip Confidential Page 16 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
This means the WLAN6065SD Card driver was not loaded or was loaded incorrectly. If this is the case
the driver files require reinstallation. Refer to the WLAN6065SD Card installation section of this
document.
An IP Address is Not Recognized by the Pocket PC
Remove and reinsert the wlan6065SD Card or turn off and on the Pocket PC for changes to the IP address
to take effect.
6 Documentation Updates
All latest documentation, software version and drivers will be updated on SyChip’s Web site at
www.sychip.com/download . Please feel free to visit and download for your applications.
7 Contact Information
Customer Support
SyChip Inc provides its customers with prompt and accurate customer support. If the SyChip Customer
Support specialists cannot solve a problem, access to all technical disciplines within SyChip becomes
available for further assistance and support. SyChip Customer Support responds to calls by email,
telephone of fax within the time limits set forth in individual contractual agreements. When contacting
SyChip Customer Support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number.
• Order number
SyChip Inc. worldwide Customer Support contact information:
SyChip Inc.
Parkway Centre II
2805 Dallas parkway, Suite 400
Plano, TX 75093
Telephone: (972)836-0010
Fax: (972)633-0327
Email: support@sychip.com
SyChip Confidential Page 17 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
8 Legal Information
8.1 Applying the Regulatory Country Stamp
A regulatory Label is applied on the back of the WLAN6065SD Card.
The regulatory label signifies that the WLAN6065SD Card is approved for use in the following countries:
• United States
• Canada
• Australia
• Japan
• Europe Union (except Belgium and France)
For approved countries other than those listed above, a sheet of adhesive country stamps may be enclosed
within the WLAN6065SD Card package.
To apply the country stamp:
1. Peel the stamp appropriate to the country where the WLAN6065SD Card is used.
2. Apply the country stamp on the bottom right-hand corner of the regulatory label located on the
back of the WLAN6065SD Card.
For countries that have not received regulatory approval, an adhesive country stamp is not enclosed. Refer
to www.sychip.com for the latest list of approved countries.
! Operation of the device without a regulatory label or the correct country stamp is illegal.
SyChip Confidential Page 18 of 21 SyChip_WLAN6065SD
WLAN6065SD Card User Manual
SyChip Confidential Page 19 of 21 SyChip_WLAN6065SD
This Page Intentionally Left Blank for Future Use
WLAN6065SD Card User Manual
SyChip Confidential Page 20 of 21 SyChip_WLAN6065SD
This Page Intentionally Left Blank for Future Use
WLAN6065SD Card User Manual
SyChip Confidential Page 21 of 21 SyChip_WLAN6065SD
This Page Intentionally Left Blank for Future Use
EU
Danish Undertegnede SyChip, Inc. erklærer herved, at følgende udstyr Wideband
Transmission System Radio overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Dutch Hierbij verklaart SyChip, Inc. dat het toestel [Wideband Transmission System Radio
in overeenstemming is met de essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EG.
Bij deze verklaart [Naam van de fabrikant] dat deze [naam /type van het apparaat]
voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn
1999/5/EC.
English Hereby, SyChip, Inc., declares that this Wideband Transmission System Radio is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
German Hiermit erklärt SyChip, Inc., dass sich dieser/diese/dieses Wideband Transmission
System Radio in Übereinstimmung mit den grundlegenden Anforderungen und den
anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.
Hiermit erklärt SyChip, Inc. die Übereinstimmung des Gerätes Wideband Data
Transmission System Radio mit den grundlegenden Anforderungen und den anderen
relevanten Festlegungen der Richtlinie 1999/5/EG.
Greek ?? ??? ?????S? SyChip, Inc. ???O??? ??? Wideband Data Transmission
System Radio S?????FO????? ???S ??S ??S?O???S ??????S??S ??? ??S
?????S S??????S ????????S ??S ???G??S 1999/5/??.
Finnish SyChip, Inc. vakuuttaa täten että Wideband Data Transmission System Radio
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
French Par la présente SyChip, Inc. déclare que l'appareil Wideband Data Transmission
System Radio est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Par la présente, SyChip, Inc. déclare que ce Wideband Data Transmission System
Radio est conforme aux exigences essentielles et aux autres dispositions de la
directive 1999/5/CE qui lui sont applicables.
Italian Con la presente SyChip, Inc. dichiara che questo Wideband Data Transmission
System Radio è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Portuguese SyChip, Inc. declara que esteWideband Data Transmission System Radio está
conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Spanish Por medio de la presente SyChip, Inc. declara que el Wideband Data Transmisión
System Radio cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Swedish Härmed intygar SyChip, Inc. att denna Wideband Data Transmission System Radio
står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
0470
!
Restrictions (English)
Austria: Use of plug-in radio devices only with host equipment and external
antennas as declared by the manufacturer
France: Limited to 2446.5-2483.5 with some geographical contstraints and
e.i.r.p limited to -20dBW/MHz.Indoor: 10 mW eirp in 2400-2446 MHz. Inside
private area: 2446-2483.5 MHz with 100 mW with authorisation. Outside private
area: the band is not opened.
Belgium: E.I.R.P limited to 10 mW.
Hungary: Processing gain: min 10 dB, Antenna type: integral or external with
max gain 6 dBi.
Italy: None If used outside of own premises, general authorisation is required.
Luxembourg: None System provider for third party traffic may require a
telecommunications Act licence
The Netherlands: 10 mW licence free indoor and outdoor.
100 mW licence free indoor only. 100 mW with licence outdoor within 2451- 2471
MHz. Protection of existing use Government and ENG/OB.
United Kingdom: System provider for third party traffic may require a Wireless
Telegraphy and/or Telecommunictions Act Licence.
Restricciones en español
Austria: Uso de dispositivos de radio enchufables solamente con el equipo de
anfitrión y antenas externas según lo declarado por el fabricante.
Francia: Limitado a 2446,5-2483,5 con algunos contstraints y e.i.r.p geográficos
limitados a -20dBW/MHz.Indoor: eirp de 10 mW en 2400-2446 megaciclo. Área
privada interior: 2446-2483,5 megaciclos con 100 mW con la autorización. Área
privada exterior: la venda no se abre.
Bélgica: E.I.R.P limitado a 10 mW.
Hungría: Proceso de aumento: DB del minuto 10, tipo de la antena: integral o
externo con dBi máximo del aumento 6.
Italia: No se requiere ninguno si está utilizada fuera de propias premisas,
autorización general.
Luxemburgo: Ningunos abastecedor del sistema para el tráfico de los terceros
pueden requerir una licencia del acto de telecomunicaciones los
Países Bajos: 10 de interior libres de la licencia del mW y al aire libre. 100 de
interior libres de la licencia del mW solamente. 100 mW con la licencia al aire
libre dentro de 2451- 2471 megaciclos. Protección del gobierno existente del uso
y de ENG/OB.
Reino Unido: El abastecedor del sistema para el tráfico de los terceros puede
requerir una telegrafía y/o una licencia sin hilos del acto de Telecommunictions.
Restrictions en français
L'Autriche: Utilisation des dispositifs par radio embrochables seulement avec
l'équipement central et les antennes externes comme avoué par le fabricant.
France: Limité à 2446,5-2483,5 avec des certains contstraints et e.i.r.p
géographiques limités à -20dBW/MHz.Indoor: eirp de 10 mW dans 2400-2446
mégahertz. Secteur privé intérieur: 2446-2483,5 mégahertz avec 100 mW avec
l'autorisation. Secteur privé extérieur: la bande n'est pas ouverte.
La Belgique: E.I.R.P limité à 10 mW.
La Hongrie: Traitement du gain: DB de la minute 10, type d'antenne: intégral ou
externe avec le maximum du gain 6 dBi.
L'Italie: Aucun si utilisé en dehors de de propres lieux, autorisation générale
n'est exigé.
Le Luxembourg: Aucun fournisseur de système pour le trafic de tiers peut ne
pas exiger un permis de Loi de télécommunications
Lles Hollandes: d'intérieur libres de permis de 10 mW et extérieurs. d'intérieur
libres de permis de 100mW seulement. 100 mW avec le permis extérieur à
moins de 2451- 2471 mégahertz. Protection de gouvernement existant
d'utilisation et d'ENG/OB.
Royaume Uni: Le fournisseur de système pour le trafic de tiers peut exiger une
télégraphie et/ou un permis sans fil de Loi de Telecommunictions.

Navigation menu
