Panasonic Healthcare 9TB100CRS Advanced Disc for Archive Drive User Manual 9581 preface
Panasonic Healthcare Co., Ltd. Advanced Disc for Archive Drive 9581 preface
User Manual
Advanced Disc for Archive Drive
LKM-KB12
INSTRUCTION MANUAL
Please read through these instructions before operating this unit.
Created in Japan
iii
ENGLISH
Advanced Disc for Archive Drive
LKM-KB12
INSTRUCTION MANUAL
Please read through these instructions before operating this unit.
Interface : USB
TABLE OF CONTENTS
IMPORTANT SAFETY NOTICE ................................................................................ iv
LASER SAFETY INFORMATION ............................................................................. A-1
1. INTRODUCTION.................................................................................................... A-4
1.1 FEATURE SUMMARY ..................................................................................... A-4
1.2 KIT CONTENTS ............................................................................................... A-4
1.3 SYSTEM REQUIREMENTS ............................................................................ A-5
2. PRECAUTIONS WHEN OPERATING................................................................... A-6
2.1 PRECAUTIONS WHEN TRANSPORTING...................................................... A-6
2.2 INSTALLATION LOCATION ............................................................................ A-6
2.3 PRECAUTIONS FOR USE .............................................................................. A-6
2.4 PRECAUTIONS FOR OPERATION ................................................................ A-6

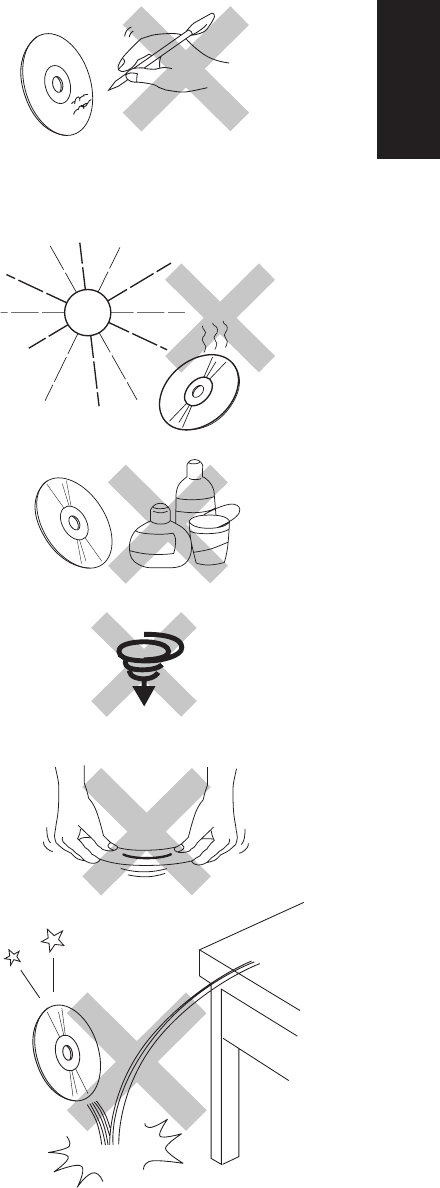

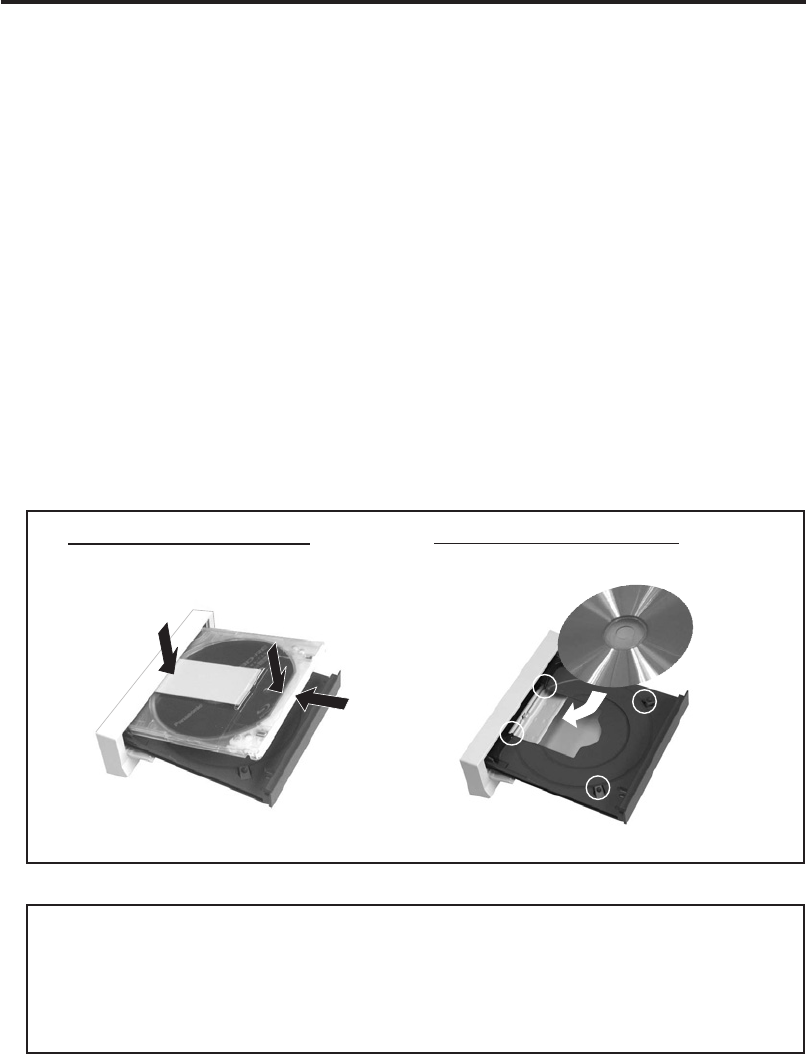

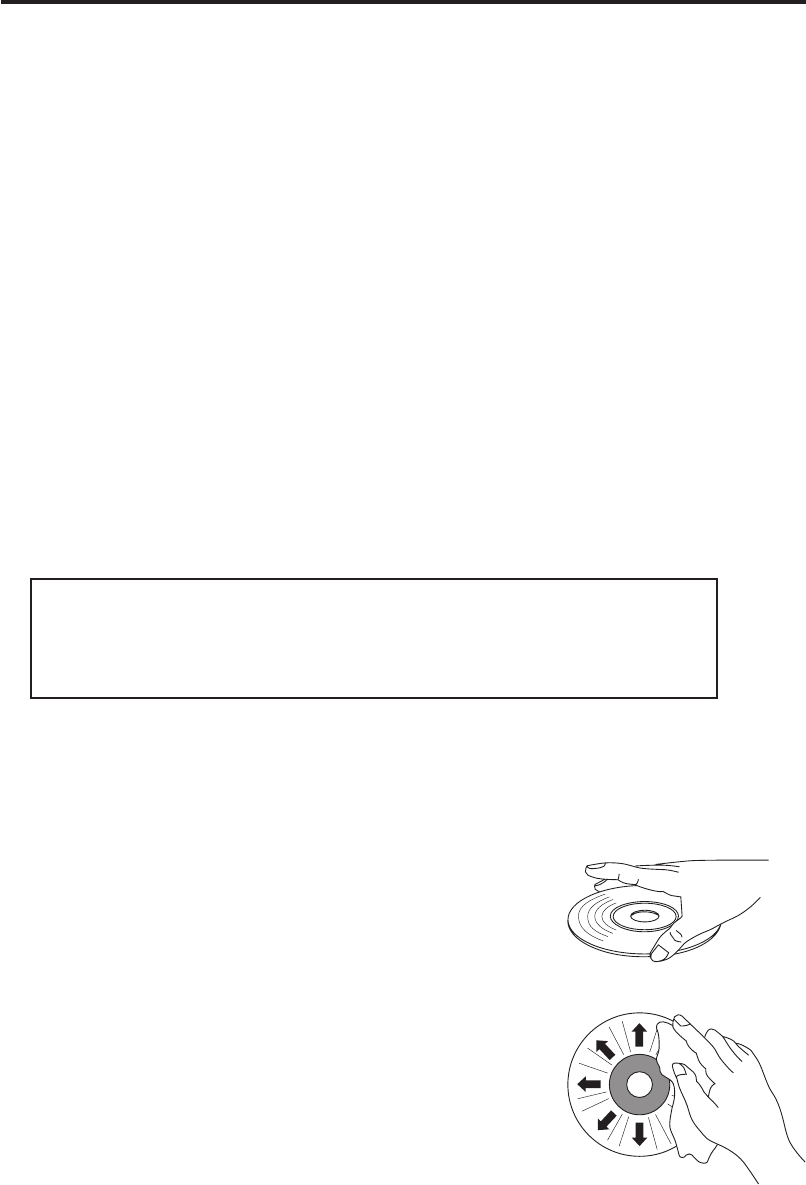

2.5 PRECAUTIONS WHEN HANDLING DISCS.................................................... A-6
3. PARTS AND FUNCTIONS .................................................................................... A-8

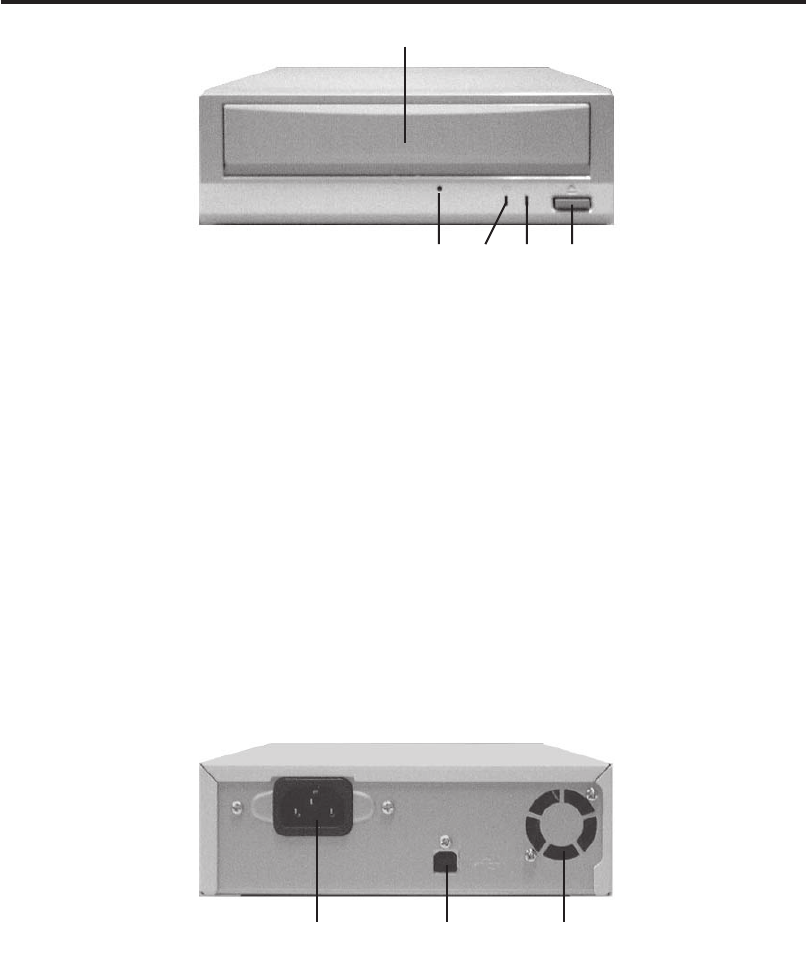

3.1 FRONT VIEW................................................................................................... A-8
3.2 REAR VIEW ..................................................................................................... A-8
4. CONNECTIONS..................................................................................................... A-9

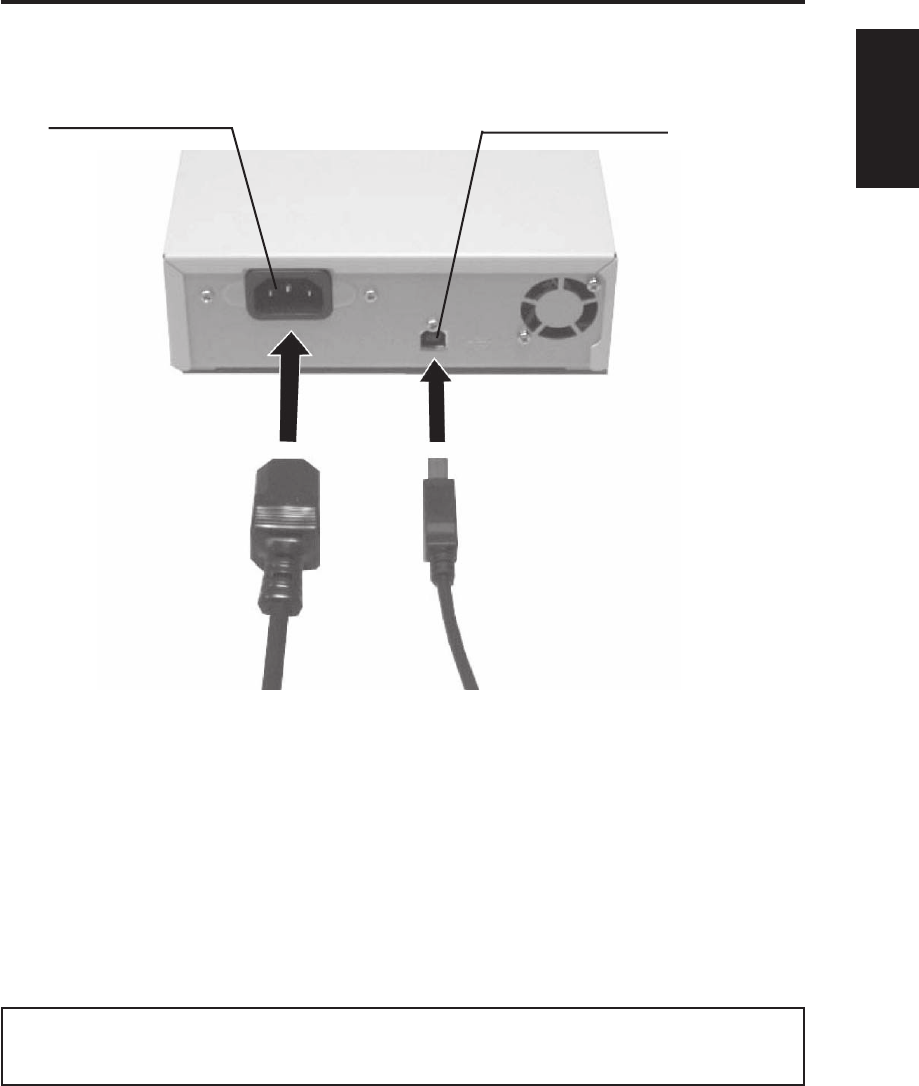

4.1 CONNECTING VIEW ....................................................................................... A-9
5. GUIDE TO OPERATION ....................................................................................... A-10
5.1 INSTALLATIONS ............................................................................................. A-10
6. BEFORE REQUESTING SERVICE....................................................................... A-11
6.1 TROUBLESHOOTING ..................................................................................... A-11
7. SPECIFICATION SUMMARY ................................................................................ A-12
7.1 GENERAL PERFORMANCE ........................................................................... A-12
7.2 ENVIRONMENTAL CONDITIONS................................................................... A-12
iv
IMPORTANT SAFETY NOTICE
NOTICE
(1) You may not reproduce or transcribe any part of this publication without permission.
(2) We reserve the right to revise this document at any time without notice.
(3) If you have any questions about this document, contact your sales representative.
SAFETY NOTICE
(1) To prevent fire or electric shock, do not expose this appliance to rain or moisture.
(2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to
disassemble the cabinet.
Dieses Laufwerk als Einheit entspricht den Anforderungen von EN60950-1, EN60825-1.
Wenn das Laufwerk in ein System eingebaut betrieben werden soll, muß das System in
seiner Gesamtheit den einschlägigen Vorschriften entsprechen.
For German
For USA
CAUTION :
Use shielded connecting cables in order to meet FCC emission limits and also to prevent
interference to nearby radio and television reception.
FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO
FREQUENCY INTERFERENCE STATEMENT
Class B Computing Device
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and , if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
- - Reorient or relocate the receiving antenna.
- - Increase the separation between the equipment and receiver.
- - Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- - Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING : Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
v
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read all of these instructions.
2. Save these instructions for later use.
3. Follow all warnings and instructions marked on the product.
4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use this product near water.
6. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
7. This product should be operated from the type of power source indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.
8. This product is equipped with a 3-wire grounding type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the purpose of the
grounding-type plug.
9. Do not allow anything to rest on the power cord. Do not locate this product where
persons will walk on the cord.
10. If an extension cord is used with this product, make sure that the total of the
ampere ratings on the products plugged into the extension cord do not exceed the
extension cord ampere rating. Also, make sure that the total of all products
plugged into the wall outlet does not exceed 15 amperes.
11. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a risk of fire
or electric shock. Never spill liquid of any kind on the product.
12. Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to
service personnel.
13. Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C.If the product has been exposed to rain or water.
D.If the product does not operate normally when the operating instructions are
followed. Adjust only those controls that are covered by the operating
instructions since improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating a need for
service.
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
A-1
ENGLISH
LASER SAFETY INFORMATION
Class 1 LASER Product
This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in
effect as of date of manufacture.
Elsewhere, the drive is certified to conform to the requirements of the International
Electrotechnical Commission (IEC) 60825-1 and CENELEC EN60825-1 for Class 1 laser
products.
Class 1 laser products are not considered to be hazardous. To ensure continued product
safety, the following precautions should be heeded. This equipment has the Optical Pickup
which has the Triple Lasers (BD, DVD & CD).
Caution :
(1) The use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
(2) Do not open the drive unit; no user adjustments or serviceable parts are inside.
•This label is attached to the upper shield at the top of the built-in drive unit in the enclosed
box.
•Dieses Etikett ist auf der oberen Abschirmung oben auf des eingebauten Antriebsaggregats im
Außengehäuse. (For German)
•Cette classification peut être trouvée au fond de l’unité d’entraînement incorporée dans la
boîte extérieure. (For French)
•Märkningen återfinns på den översta kåpan överst på det innbyggd drive-apparatet i den
omslutade boxen. (For Swedish)
•Denne merkelappen er festet til det øverste dekselet på toppen av det innebygde
drive-aggregatet i den lukkete kassen. (For Norwegian)
•Denne etiket er sat fast på den øverste skærm på drev-enhedens top af det indebyggede
drive-aggregat i den lukkede kasse. (For Danish)
•Tämä etiketti on liimattu voimayksikön yläosan suojalevyyn kotelon sisässä olevan
sisäänrakennetun ohjaimen pohjaan. (For Finnish)
CAUTION – CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO THE BEAM.
VORSICHT – SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG KLASSE 3B, WENN
ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
ADVARSEL – KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
ADVARSEL – KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL
ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING – SYNLIG OCH OSYNLIG LASERSTRÅLNING KLASS 3B VID ÖPPEN
LUCKA. UNDVIK EXPONERING FÖR LASERSTRÅLNINGEN.
VARO – AVATTAESSA OLET ALTTIINA LUOKAN 3B NÄKYVÄÄ JA NÄKYMÄTÖNTÄ
LASERSÄTEILYÄ. VARO ALTISTUMISTA SÄTEELLE.
DANGER – Invisible Laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM.
CAUTION – Laser radiation when open. DO NOT STARE INTO BEAM.
•This label is attached to the bottom of the drive enclosed box.
•Dieser Zettel befindet sich angeklebt am Boden des Außengehäuses von
Antriebsaggregat. (For German)
• Cette étiquette est appliquée sur le fond de la boîte extérieure de l’unité d’entraînement.
(For French)
•Denne etiketten är satt nederst på kassen til drive-apparatet. (For Swedish)
•Denne merkelappen er satt nederst på kassen til drive-aggregatet. (For Norwegian)
•Denne markeseddel er sat nederst på kassen til drive-aggregatet. (For Danish)
•Tämä tarra on kiinnitetty ohjainkotelon pohjaan. (For Finnish)
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
APPAREIL À LASER DE CLASSE 1
EN60825-1:2001
A-2
for BD media
LASER Specification
Type: Semiconductor laser InGaN
Wave Length: 400 nm ~ 410 nm (Typical 405 nm)
Divergence:
θ
= 16 ° ~ 24 ° (Typical 20 °)
Output Power: Read = 0.53 mW
Write = 19.6 mW
Laser-Daten: (For German)
Typ: InGaN-Halbleiter-Laser
Wellenlänge: 400 nm ~ 410 nm (Typisch 405 nm)
Divergenz:
θ
= 16 ° ~ 24 ° (Typisch 20 °)
Ausgangsleistung:Lesen = 0,53 mW
Schreiben = 19,6 mW
LASER: (For French)
Type: Laser semi-conducteur InGaN
Longueur d’ondes:400 nm ~ 410 nm (Environ 405 nm)
Divergence:
θ
= 16 ° ~ 24 ° (Environ 20 °)
Puissance de sortie:Lecture = 0,53 mW
Ecriture = 19,6 mW
Laser- specifikationer: (For Swedish)
Typ: Laserhalvedare InGaN
Våglängd: 400 nm ~ 410 nm (Typiskt 405 nm)
Divergens:
θ
= 16 ° ~ 24 ° (Typiskt 20 °)
Uteffekt: Läsning = 0,53 mW
Skrivning = 19,6 mW
LASER Spesifikasjon: (For Norwegian)
Type: Halvleder laser InGaN
Bølgelengde: 400 nm ~ 410 nm (Typisk 405 nm)
Divergens:
θ
= 16 ° ~ 24 ° (Typisk 20 °)
Utgangseffekt: Lese = 0,53 mW
Skrive = 19,6 mW
Laser Specifikationer: (For Danish)
Type: Semiconductor InGaN
Bølge-længde: 400 nm ~ 410 nm (Typisk 405 nm)
Divergens:
θ
= 16 ° ~ 24 ° (Typisk 20 °)
Udgang-effekt: Læse = 0,53 mW
Skrive = 19,6 mW
LASERin tekniset tiedot: (For Finnish)
Tyyppi: Laserpuolijohdin InGaN
Aallon pituus: 400 nm ~ 410 nm (Tyypillinen 405 nm)
Hajaantuminen:
θ
= 16 ° ~ 24 ° (Tyypillinen 20 °)
Teho: Lue = 0,53 mW
Kirjoita = 19,6 mW
for CD media
LASER Specification
Type: Semiconductor laser AlGaAs
Wave Length: 777 nm ~ 790 nm (Typical 783 nm)
Divergence:
θ
= 13 ° ~ 17.5 ° (Typical 15 °)
Output Power: Read = 1.5 mW
Laser-Daten: (For German)
Typ: AlGaAs-Halbleiter-Laser
Wellenlänge: 777 nm ~ 790 nm (Typisch 783 nm)
Divergenz:
θ
= 13 ° ~ 17,5 ° (Typisch 15 °)
Ausgangsleistung:Lesen = 1,5 mW
LASER: (For French)
Type: Laser semi-conducteur AlGaAs
Longueur d’ondes:777 nm ~ 790 nm (Environ 783 nm)
Divergence:
θ
= 13 ° ~ 17,5 ° (Environ 15 °)
Puissance de sortie:Lecture = 1,5 mW
Laser- specifikationer: (For Swedish)
Typ: Laserhalvedare AlGaAs
Våglängd: 777 nm ~ 790 nm (Typiskt 783 nm)
Divergens:
θ
= 13 ° ~ 17,5 ° (Typiskt 15 °)
Uteffekt: Läsning = 1,5 mW
LASER Spesifikasjon: (For Norwegian)
Type: Halvleder laser AlGaAs
Bølgelengde: 777 nm ~ 790 nm (Typisk 783 nm)
Divergens:
θ
= 13 ° ~ 17,5 ° (Typisk 15 °)
Utgangseffekt: Lese = 1,5 mW
Laser Specifikationer: (For Danish)
Type: Semiconductor AlGaAs
Bølge-længde: 777 nm ~ 790 nm (Typisk 783 nm)
Divergens:
θ
= 13 ° ~ 17,5 ° (Typisk 15 °)
Udgang-effekt: Læse = 1,5 mW
LASERin tekniset tiedot: (For Finnish)
Tyyppi: Laserpuolijohdin AlGaAs
Aallon pituus: 777 nm ~ 790 nm (Tyypillinen 783 nm)
Hajaantuminen:
θ
= 13 ° ~ 17,5 ° (Tyypillinen 15 °)
Teho: Lue = 1,5 mW
for DVD media
LASER Specification
Type: Semiconductor laser AlGaInP
Wave Length: 657 nm ~ 665 nm (Typical 662 nm)
Divergence:
θ
= 14 ° ~ 19 ° (Typical 16 °)
Output Power: Read = 1.42 mW
Write = 67 mW
Laser-Daten: (For German)
Typ: AlGaInP-Halbleiter-Laser
Wellenlänge: 657 nm ~ 665 nm (Typisch 662 nm)
Divergenz:
θ
= 14 ° ~ 19 ° (Typisch 16 °)
Ausgangsleistung:Lesen = 1,42 mW
Schreiben = 67 mW
LASER: (For French)
Type: Laser semi-conducteur AlGaInP
Longueur d’ondes:657 nm ~ 665 nm (Environ 662 nm)
Divergence:
θ
= 14 ° ~ 19 ° (Environ 16 °)
Puissance de sortie:Lecture = 1,42 mW
Ecriture = 67 mW
Laser- specifikationer: (For Swedish)
Typ: Laserhalvedare AlGaInP
Våglängd: 657 nm ~ 665 nm (Typiskt 662 nm)
Divergens:
θ
= 14 ° ~ 19 ° (Typiskt 16 °)
Uteffekt: Läsning = 1,42 mW
Skrivning = 67 mW
LASER Spesifikasjon: (For Norwegian)
Type: Halvleder laser AlGaInP
Bølgelengde: 657 nm ~ 665 nm (Typisk 662 nm)
Divergens:
θ
= 14 ° ~ 19 ° (Typisk 16 °)
Utgangseffekt: Lese = 1,42 mW
Skrive = 67 mW
Laser Specifikationer: (For Danish)
Type: Semiconductor AlGaInP
Bølge-længde: 657 nm ~ 665 nm (Typisk 662 nm)
Divergens:
θ
= 14 ° ~ 19 ° (Typisk 16 °)
Udgang-effekt: Læse = 1,42 mW
Skrive = 67 mW
LASERin tekniset tiedot: (For Finnish)
Tyyppi: Laserpuolijohdin AlGaInP
Aallon pituus: 657 nm ~ 665 nm (Tyypillinen 662 nm)
Hajaantuminen:
θ
= 14 ° ~ 19 ° (Tyypillinen 16 °)
Teho: Lue = 1,42 mW
Kirjoita = 67 mW
A-3
ENGLISH
Do not insert any foreign objects into the drive unit, since this may result in damage
to the drive.
ELECTROSTATIC DISCHARGE NOTICE
VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING! Om apparaten används på annat sätt än i denna bruksanvisning
specificerats, kan användaren utsättas för osynlig laserstrålning, som
överskrider gränsen för laserklass 1.
For Finnish
For Swedish
A-4
This drive features both BD/DVD media reading and BD-R/BD-RE/DVD-RAM/DVD-R
/DVD-RW media writing technology.
But, CD writing is not supported

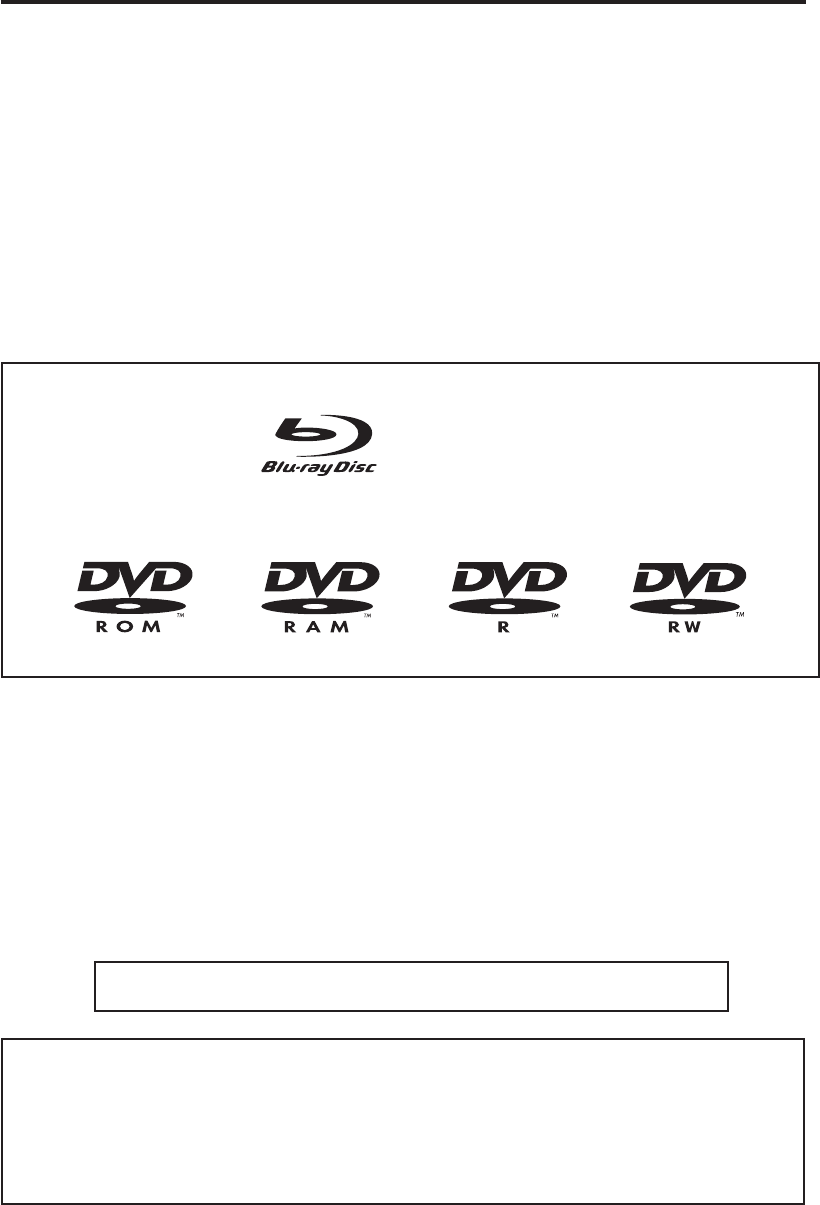

This drive unit uses BD-R/RE discs which bear the following mark.
This drive unit uses DVD-ROM / DVD-RAM / DVD-R / DVD-RW discs which bear the
following mark.
TM

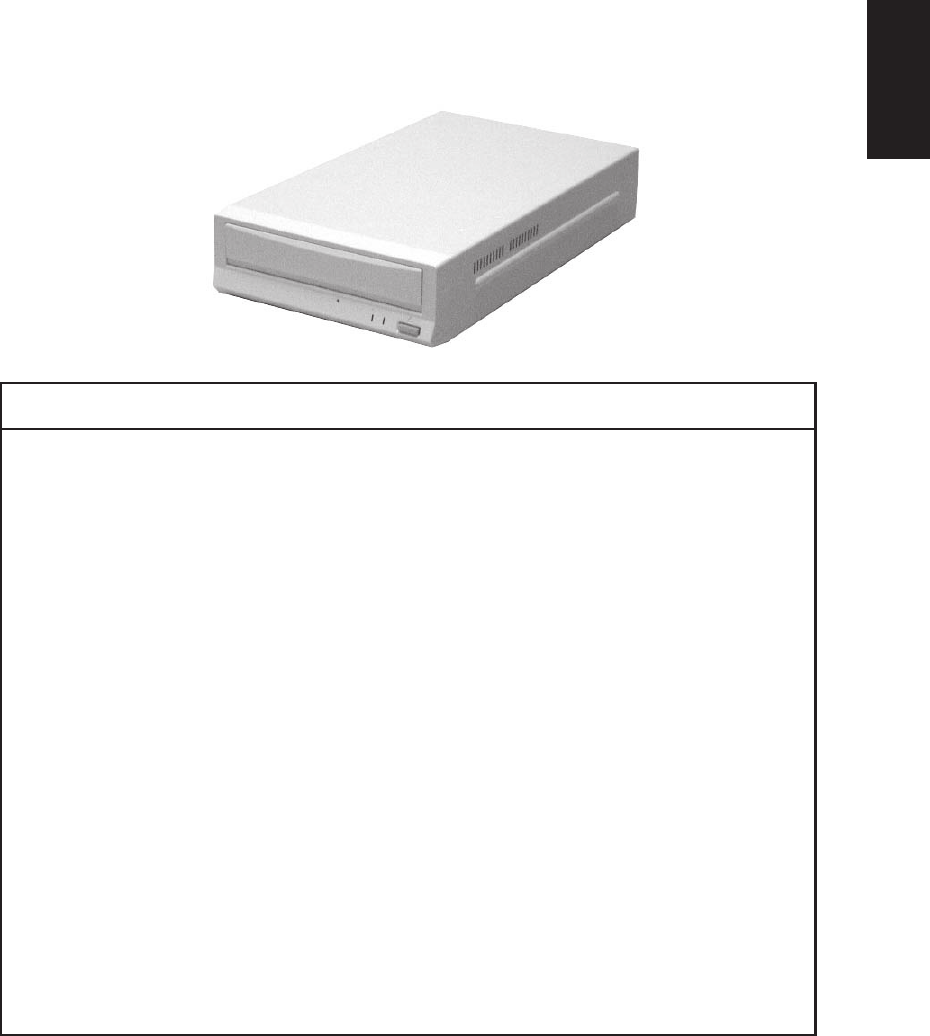

CHAPTER 1 INTRODUCTION
1.1 FEATURE SUMMARY
➀USB 2.0 Interface.
➁Automatic Loading with tray.
➂Mechanical Shield for dust protection.
➃BD-R/RE, DVD-RAM & DVD-R/RW media readable or writable
➄Case and Bare type media supported.
➅External Type design.
1.2 KIT CONTENTS
• Drive Unit
• AC Power Cable *
• USB Interface Cable
• CD-ROM Disc (Driver software, User manual)
• BD-RE (Blank disc) with Disc Protection Case
• Emergency Ejection Pin
NOTE :
•USB2.0 : Universal Serial Bus Specification Revision 2.0
• MS Windows is a registered trademark of Microsoft Corporation.
•All other product/ brand names are trademarks or registered trademarks of their
respective companies.
* This product can be used with the attached AC power cable only.
A-5
ENGLISH
1.3 SYSTEM REQUIREMENTS
• CPU (Computer)
• Operating System
Single CPU Multi CPU
32bit Xeon / Core2 by Intel
64bit AMD64 by AMD
Windows 2000 Professional
Serve
Advanced Server
Datacenter Server
Windows XP Home Edition
Professional
Professional x64 Edition
Windows Server 2003 R2
x64 Editions
Windows Vista Starter
Home Basic
Home Premium
Business
Business x64
Enterprise
Enterprise x64
Ultimate
Ultimate x64
Windows Server 2008 Standard Edition x86
Standard Edition x64
Standard Edition without Hyper-V x86
Standard Edition without Hyper-V x64
Enterprise Edition x86
Enterprise Edition x64
Enterprise Edition without Hyper-V x86
Enterprise Edition without Hyper-V x64
Datacenter Edition x86
Datacenter Edition x64
Datacenter Edition without Hyper-V x86
Datacenter Edition without Hyper-V x64
Fedora Core
x86 & x64
32. 6. 9-1. 667
420. 6. 11-1. 1369-FC4
52. 6. 15-1. 2054
62. 6. 18-1. 2798
72. 6. 21-1. 3194
A-6
CHAPTER 2 PRECAUTIONS WHEN OPERATING
2.1 PRECAUTIONS WHEN TRANSPORTING
To avoid damage
* Keep the original packing materials for the drive unit.
* Before you transport the drive unit, remove the disc from the drive unit and repack
the drive unit in its original packing.
2.2 INSTALLATION LOCATION
Do not place unit in the following environments.
* High-temperature, high-humidity, extreme temperature changes.
* Dusty
* Excessive vibration/ sudden shock.
* Inclined/ unstable place.
* Direct sunlight.
2.3 PRECAUTIONS FOR USE
* Never push objects of any kind through the disc tray, never spill liquid of any
kind on the unit.
* Do not place objects on the product.
* Do not attempt to service this product yourself.
* Do not open or remove covers.
* Do not place foreign objects on the disc tray and attempt to operate.
* Do not use this drive when vertically oriented.
2.4 PRECAUTIONS FOR OPERATION
To avoid error
* Do not move the drive unit during operation.
* Do not operate the unit directly after a sudden increase in temperature.
NOTE :
A great proportion of problems are usually caused by the following.
➀ Dust or Finger-prints on the surface of the disc.
➁ Random Electrical Noise.
➂ Scratches and Defects on the surface of the disc.
2.5 PRECAUTIONS WHEN HANDLING DISCS
➀Hold the disc by the edges (Bare type
only), do not touch the surface of the disc.
➁To remove dust or fingerprint, use a clean,
soft, dry cloth.
A-7
ENGLISH
➂Do not write and paste anything on the
recording/ reading side of the disc.
Do not paste anything to all the surface of
the BD-R/RE, DVD-RAM or DVD-R/RW
disc.
When labelling the BD-R/RE, DVD-RAM
or DVD-R/RW disc for identification
purposes, write only on the premarked
label side using a soft, felt tip marker.
Should not paste a large or thick label to
the outer back surface (the label side) of
the disc, or it generates drive vibration due
to imbalance of the disc.
➃Do not store the disc in a place where
the temperature is high.
➄Do not use benzine, thinners and
cleaners, etc.
➅Do not make the center hole larger.
➆Do not bend the disc.
➇Do not drop the disc, or subject it to
shock.
T
h
i
n
n
e
r
s
C
l
e
a
n
e
r
s
B
e
n
z
i
n
e
A-8
CHAPTER 3 PARTS AND FUNCTIONS
3.1 FRONT VIEW
➀ DISC TRAY
Accepts a disc.
➁ EMERGENCY EJECT HOLE
Insert the emergency ejection pin (attached) firmly into this hole to manually
eject the tray.
(Before proceeding with this emergency step, make sure that the power is switched OFF.)
➂ POWER LED
Lights up when the drive power is ON.
➃ BUSY / WRITING INDICATOR
Blinks when data is being accessed from the disc or the drive is writing onto the BD-R/RE
or DVD-RAM/R/RW disc.
➄ EJECT/LOAD BUTTON
Ejects and loads the disc tray.
3.2 REAR VIEW
➀ AC INLET
Connects to the wall outlet with the attached power cable.
➁ USB (B type) CONNECTOR
Connects to host computer’s USB connector with USB cable (attached).
➂ FAN
makes air to flow to protect this drive from overheating.
➀
➁➂
➀➁➂
➃ ➄
A-9
ENGLISH
CHAPTER 4 CONNECTIONS
4.1 CONNECTING VIEW
AC (IN) Connector
AC Power Cable
USB(B type)
Interface Cable
Drive Rear Side
USB Connector
When you operate this product, the power outlet should be near the product and easily
accessible.
To
AC Power Outlet
➀➁
When connecting, connect in order of AC power cable ---> USB Interface Cable .
When disconnecting, disconnect in converse order of the connecting.
A-10
CHAPTER 5 GUIDE TO OPERATION
5.1 INSTALLATIONS
• Starting the drive.
➀Turn on the power supply.
➁Press the eject button. The tray is ejected from the drive.
➂Place the disc according to each disc type as in the below figure.
Case type (BD, DVD-RAM) :
1. Insert so the label-side of the shutter is facing up.
2. Push the case disc about 2 cm towards the drive.
3. Press gently on the shutter-label so the BD/DVD-RAM disc sits firmly on the tray.
Non-case(Bare media) type :
1. Turn a disc so the label-side of the disc is facing up.
2. Place the outer edges of the disc to inner of the four disc holders (A,B,C,D).
3. Set the disc so it fits inside the disc guides.
➃Press the eject button or press the tray lightly.
The tray is retracted automatically.
➄Loading start.
Case type (BD, DVD-RAM) Non-case(Bare media) type
CAUTION:
•Do not insert any foreign objects into the disc tray. This could result in a
malfunction.
•Do not manually force the tray to open.
• When the drive is not in use, keep the tray closed to protect against dust and dirt.
•Do not press down hard on the tray when loading a disc, since this may result
in damage to or malfunction of the tray.
1
2
3
A
B
C
D
A-11
ENGLISH
CHAPTER 6 BEFORE REQUESTING SERVICE
(1) There are many kinds of problems caused by misuse. When a problem occurs,
check the table below which describes possible problems occurring with your
drive.
(2) If the drive is not operating correctly and you cannot restore operation by following
the detailed procedures in the table below, do not remove the cover of the units or
adjust further.
(3) In the case of (2) above, unplug the unit and consult with your dealer or the nearest
service station.
TROUBLE
•The drive does not operate
and Busy Indicator does not
blink while writing, reading,
or tray opening/closing.
CORRECTION
➀Confirm that the connection between the drive and the
host computer is correct.
➁Confirm that the program is correct.
➂Confirm that the setting drive select switch is correct.
➃Confirm that the disc has been inserted label side up.
➄Confirm that foreign objects have not been inserted.
6.1 TROUBLESHOOTING
A-12
CHAPTER 7 SPECIFICATION SUMMARY
7.1 GENERAL PERFORMANCE
➀ Power requirement 100 V – 240 V ~ AUTO
0.5 A – 0.3 A 50 Hz / 60 Hz
➁ Dimensions (W x H x D) 168.5 mm x 56.8 mm x 290 mm
➂ Weight 2435 g typ.
7.2 ENVIRONMENTAL CONDITIONS
Operating Non-operating
• Temperature 5 °C ~ 35 °C – 30 °C ~ 60 °C
• Humidity 10 %Rh ~ 80 %Rh 5 %Rh ~ 90 %Rh
(Max. wet bulb temp. is 29 °C, (Non-condensation)
Non-condensation)
