Panasonic Corporation of North America 2.4 GHz Wireless Pen 06
User Manual
Operating Instructions
Electronic Board
(elite Panaboard)
Model No. UB-T880W
UB-T880W
Stand is sold separately.
UB-T880
Installation Manual Included (for qualified service personnel)
•To assemble this unit, please refer to the Installation Manual on pages 35 through 55.
•Before operating this unit, please read these instructions completely and keep them carefully for future
reference.
•This unit is designed for installation by a qualified servicing dealer.
Installation performed by non-authorized individuals could cause safety-related problems with the operation of
this equipment.
For U.S.A. only:
•To locate the closest authorized dealer in your area, please call 1-800-449-8989.
Introduction
2Operating Instructions
Introduction
Introduction
Thank you for purchasing the Panasonic Electronic Board.
For optimum performance and safety, please read these instructions carefully.
Feature Highlights
By connecting the elite Panaboard to a computer and using a projector to display the contents of the
computer’s screen on the elite Panaboard, you can do the following.
Touch and Electronic Pen Features
•Manipulate objects on the computer screen by using your finger as a mouse.
•Up to 3 people at once can draw or erase lines on the computer screen by using their fingers or
electronic pens. (You cannot use more than one electronic pen at the same time.)
Use the electronic pen to choose line colors and other options.
•Save what you draw on the computer screen as image files.
•Manipulate objects on the computer screen remotely by using the up and down buttons on the
electronic pen.
•Supports Windows®7 multi-touch functionality.
elite Panaboard book
Use the elite Panaboard book software that supports elite Panaboard operations, such as writing,
drawing, attaching images and computer operations. This software lets you save the contents of the
screen on your computer and retrieve it for later use.
In-built USB Speaker
The elite Panaboard has an in-built USB speaker. Sound can be heard through the USB speaker when it
is connected to a computer.
USB Hub Features
The elite Panaboard comes with a 2-port USB hub as standard. By connecting equipment such as
scanners, printers, or external USB memory sources, you can use their respective features directly with
the elite Panaboard. Input from the USB peripherals can be easily incorporated in whiteboard
presentations.
Usage Scenarios
For Education
•Create an effective learning environment by using your finger for direct control of a variety of
educational software projected onto the elite Panaboard. Write or draw on software screens with your
finger or the electronic pen.
•With several tools at your disposal for aiding in explanations, such as illustration and marker tools, you
can keep students’ attention through a dynamic screen display.
•Draw your students’ interest by using the screen shade feature to show questions to students while
hiding the answers, and incrementally showing the rest of the screen.
•The teacher can prepare materials before class to display on the elite Panaboard.
Introduction
3Operating Instructions
1
For Business
•Visually convey your product’s characteristics and create an appealing product presentation by
displaying images and using your finger or the electronic pen to highlight key points.
•Information projected on the elite Panaboard at your company—including what you add, using your
finger or the electronic pen—can be displayed in real-time at remote locations using videoconferencing
equipment.
Things you should keep a record of
Abbreviations
Windows® refers to the Microsoft® Windows® operating system.
Windows®XP refers to the Microsoft® Windows® XP operating system.
Windows Vista® refers to the Microsoft® Windows Vista® operating system.
Windows®7 refers to the Microsoft® Windows®7 operating system.
DirectX® refers to the Microsoft® DirectX® application programming interface.
Trademarks
•Microsoft, Windows, Windows Vista, DirectX, Windows Media, and Internet Explorer are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
•IBM is a trademark of International Business Machines Corporation in the United States, other countries, or
both.
•Intel and Pentium are trademarks of Intel Corporation in the U.S. and other countries.
•Adobe, Reader and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated
in the United States and/or other countries.
•All other trademarks identified herein are the property of their respective owners.
For your future reference
Date of purchase
Serial number
Dealer’s name
Dealer’s address
Dealer’s tel no.
Attach your sales receipt here
Introduction
4Operating Instructions
Help of the Software
Instructions for elite Panaboard software and elite Panaboard book (included) are provided in the help
information accompanying the software.
For details on accessing this information, see “Viewing the Help of the Software” (page 27).
Federal Communications Commission and Industry Canada Requirements
For United States and Canada Only
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of this
device.
Federal Communications Commission Requirements
For United States Only
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Industry Canada Requirements
For Canada Only
This equipment complies with IC radiation exposure limits set forth for an uncontrolled equipment and
meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF
energy that are deemed to comply without testing of specific absorption ratio (SAR).
FCC Warning
To assure continued FCC compliance, the user must use only shielded interface cable and the
provided power supply cord. Also, any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
RF Exposure Warning:
This Electronic Board may be used with below referenced optional low power 2.4 GHz USB
Wireless Adaptor and Electronic Pen and may not be co-located or operated with any other
antenna or transmitter. These transmitters comply with FCC radiation exposure limits set forth for
uncontrolled environment/general population to meet the FCC radio frequency (RF) Exposure
Guidelines in FCC/OET Bulletin 65, Supplement.
This satisfies RF exposure evaluation by calculated Maximum Permission Exposure (MPE) without
the need for tested localized specific absorption rate (SAR) measurements.
Introduction
5Operating Instructions
1
Warning about saving data
System Requirements
Note
•For details about the system requirements, refer to “Read Me First” (page 22) in the install menu of the
included DVD-ROM.
Exemption of Liability
Panasonic System Networks Co., Ltd. is not responsible for accidents or injuries caused by, but not limited to,
the following:
1. Altering the device or improper installation construction.
2. Using the device for purposes beyond its intended use.
3. Earthquake, fire, flood, tidal wave, hurricane, lightning or other natural phenomena.
4. Natural aging of the building or similar phenomena.
When the system storage device or any of its optional storage device is adversely effected by
operational errors, static electricity, electrical noise, vibration, dust or when the power has been cut off
due to malfunction, repair or inadvertently, the memory contents may be lost or changed. Before
operating the system, make a point of reading the precautionary notes in the Operating Instructions and
the help information, and observe them during operation.
Please observe carefully the following precaution:
•Make absolutely sure that all important data is saved by back-up or the original is saved.
The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data
stored on floppy disks, hard disks, optical disks, or other memory devices.
Computer IBM® PC/AT compatible with a DVD-ROM drive
CPU Intel® Pentium® 4 processor or later
Interface USB 2.0
Introduction
6Operating Instructions
For FRG Users (For Germany Only)
Note
Machine noise information regulation - 3.GPSGV, the maximum sound pressure level is 70 dB(A)
or less, in conformity with EN ISO 7779.
This device is not intended for use in the direct field of view at visual display workplaces. To avoid
incommoding reflexions at visual display workplaces this device must not be placed in the direct field
of view.
Table of Contents
7Operating Instructions
1
Table of Contents
Table of Contents
For Your Safety..........................................................................................8
For Your Safety.................................................................................................................. 8
For Users............................................................................................................................ 8
Safety Information (For United Kingdom only) .............................................................11
Precautions...................................................................................................................... 12
Other Information ............................................................................................................ 13
Usage .......................................................................................................14
Included Accessories ..................................................................................................... 14
Names and Uses of the Parts......................................................................................... 15
Connecting External Components................................................................................. 18
Installing the elite Panaboard software/book ............................................................... 22

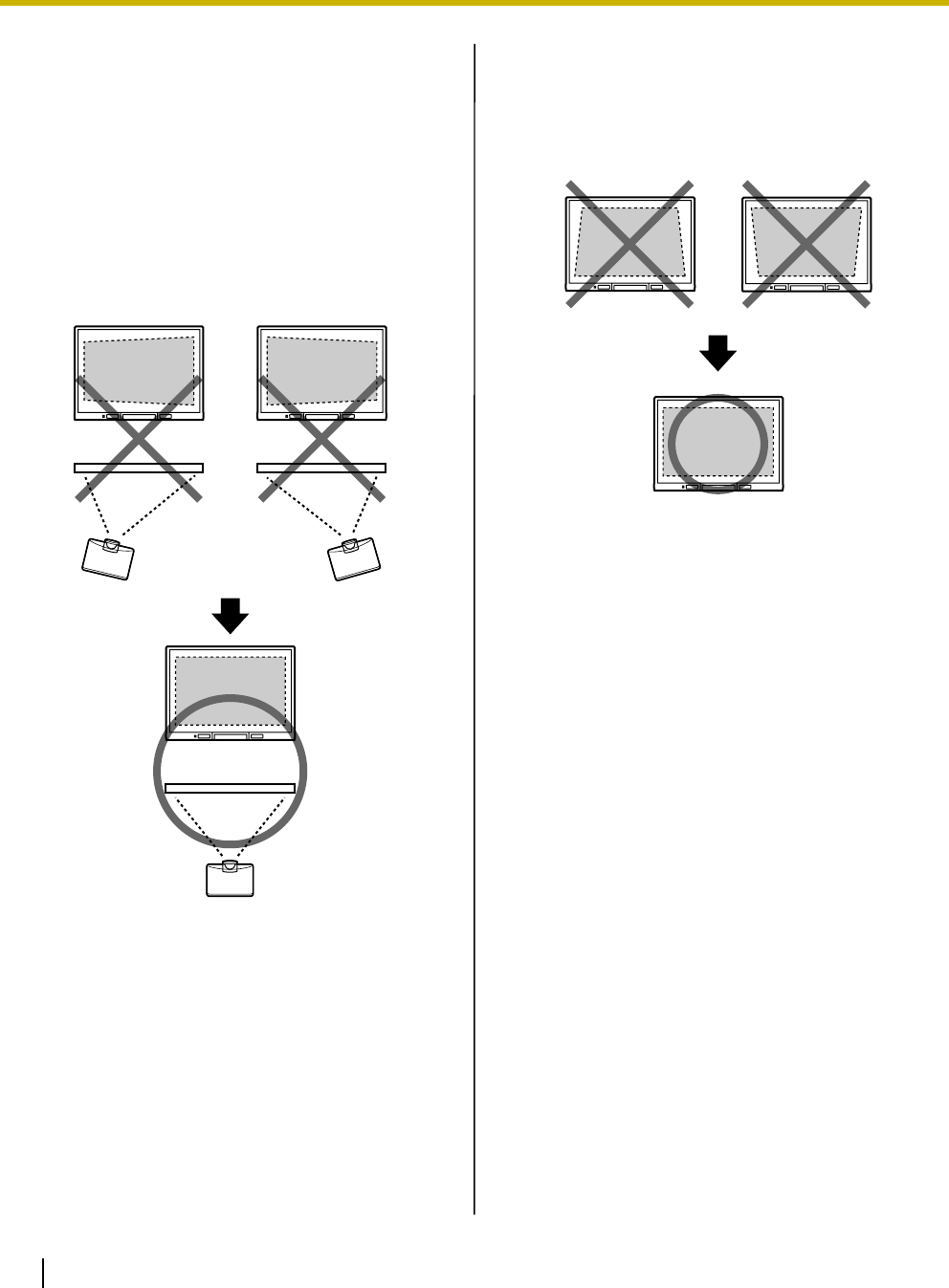

Setting the Projector ....................................................................................................... 24
Setting Your System (Calibration) ................................................................................. 25
Starting the elite Panaboard software and Performing Calibration............................ 25
Viewing the Help of the Software................................................................................... 27
Uninstalling the elite Panaboard software/book .......................................................... 27
Download the Latest Software ....................................................................................... 27
Appendix..................................................................................................28
Daily Care......................................................................................................................... 28
Cleaning the elite Panaboard ......................................................................................... 28
Replacing the Battery in the Electronic Pen ................................................................... 28
Replacing the Penpoint of the Electronic Pen ................................................................ 29
Troubleshooting .............................................................................................................. 30
Specifications ..................................................................................................................32
Supplies & Accessories .................................................................................................. 34
Installation Manual..................................................................................35
Installation Manual (for qualified service personnel)................................................... 35
For Your Safety................................................................................................................ 35
Notice ............................................................................................................................. 35
Included Accessories ..................................................................................................... 37
Wall Mounting Construction........................................................................................... 39
Checking the Wall........................................................................................................... 39
Installing the Wall Mounting Plates................................................................................. 40
Wall Types and Installation Procedures ......................................................................... 42

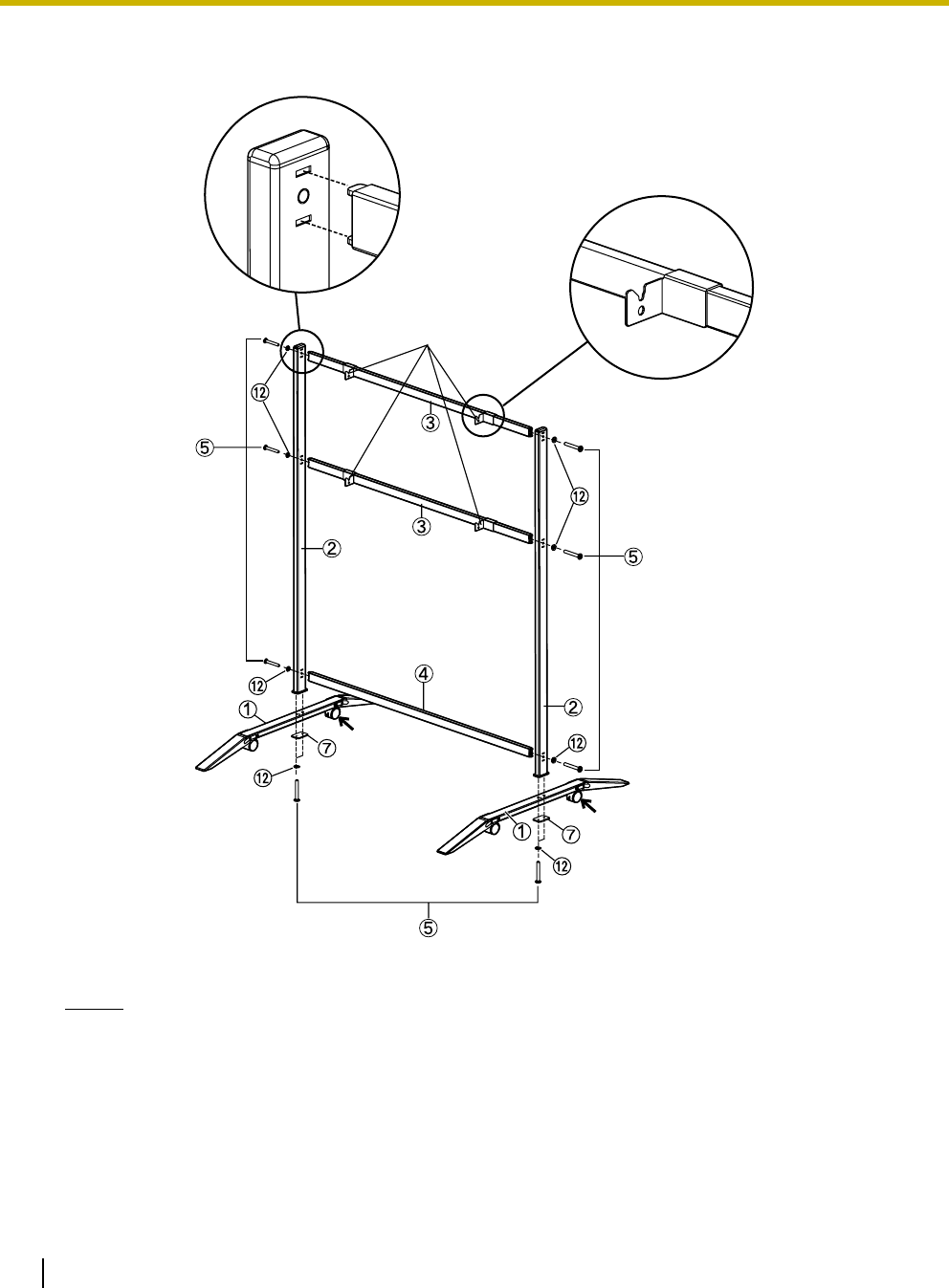

Stand KX-B061 Assembly (Sold Separately) ................................................................ 44
Included Parts................................................................................................................. 44
Assembly Instructions..................................................................................................... 45
Assembly Instructions.................................................................................................... 48
Preparing for Removing the elite Panaboard from Its Packaging................................... 48
Assembling the elite Panaboard..................................................................................... 49
Confirming the elite Panaboard Operation ................................................................... 54
Confirming the Interactive Features ............................................................................... 54
Repackaging .................................................................................................................... 55
For Your Safety
8 Operating Instructions
For Your Safety
For Your Safety
To prevent severe injury and loss of life, read this
section carefully before using the unit to ensure proper
and safe operation of your unit.
•This section explains the graphic symbols used in
this manual.
For Users
Power and Ground Connection
Denotes a potential
hazard that could
result in serious
injury or death.
Denotes hazards
that could result in
minor injury or
damage to the unit.
These symbols are used to
alert operators to a specific
operating procedure that
must not be performed.
These symbols are used to
alert operators to a specific
operating procedure that
must be emphasized in
order to operate the unit
safely.
WARNING
CAUTION
The power source voltage of this unit is
listed on the nameplate. Only plug the
unit into an AC outlet with the proper
voltage. If you use a cord with an
unspecified current rating, the unit or plug
may emit smoke or become hot to the
touch.
When you operate this product, the power
outlet should be near the product and
easily accessible.
To ensure safe operation the power cord
supplied must be inserted into a standard
three-prong AC outlet which is effectively
grounded (earthed) through the normal
wiring.
The fact that the equipment operates
satisfactorily does not imply that the
power point is grounded (earthed) and
that the installation is completely safe.
For your safety, if in any doubt about the
effective grounding (earthing) of the
power point, consult a qualified
electrician.
If the plug cannot be inserted into the AC
outlet, contact a licensed electrician to
replace the AC outlet with a properly
grounded (earthed) one.
Do not defeat the grounding (earthing)
plug (ex. do not use a conversion plug).
WARNING
9Operating Instructions
For Your Safety
1
Installation and Relocation
Operating Safeguards
Battery
Plug the power cord firmly into an AC
outlet. Otherwise, it can cause fire or
electric shock.
Do not pull, bend, rest objects on, or
chafe the power cord and plug. Damage
to the power cord or plug can cause fire
or electric shock.
Do not attempt to repair the power cord or
plug. If the power cord or plug is
damaged or frayed, contact an authorized
service representative for a replacement.
Ensure that the plug connection is free of
dust. In a damp environment, a
contaminated connector can draw a
significant amount of current that can
generate heat and eventually cause fire if
left unattended over an extended period
of time.
Never touch the plug with wet hands.
Danger of electric shock exists.
Stop operation immediately if the unit
emits smoke, excessive heat, abnormal
smell or unusual noise. These conditions
can cause fire or electric shock.
Immediately turn the unit off and unplug
the power cord, and contact your dealer
for service.
When disconnecting the unit, grasp the
plug instead of the cord. Pulling on a cord
forcibly can damage it and cause fire or
electric shock.
During thunderstorms, do not touch the
unit and plug. It may cause an electric
shock.
Have the unit installed, removed and
disposed of only by qualified service
personnel.
When the unit will no longer be used, in
order to prevent it from falling, do not
leave the unit installed, but remove it. If
the unit falls, it can cause injury.
If metal fragments or water gets into the
unit, turn the unit off and unplug the unit
immediately. Contact your dealer for
service. Operating the contaminated unit
can cause fire or electric shock.
Never open or remove unit covers that
are screwed with screws unless
specifically instructed in the “Operating
Instructions”. A high-voltage component
can cause electric shock.
Do not alter the unit or modify any parts.
Alteration or modification can cause fire
or electric shock.
CHOKING HAZARD
Keep the penpoint and battery out of
reach of children to prevent swallowing.
Use only the specified type of battery.
Using the incorrect type of battery can
result in overheating/burning or leakage
of battery acid.
For Your Safety
10 Operating Instructions
Electronic Pen / elite Panaboard
Power
Installation and Relocation
Make sure that the battery is installed with
the correct polarity as indicated on the
battery holder. Incorrectly installed
batteries may burst or leak, resulting in
injuries.
Batteries that seem worn down or
damaged should not be used. Using worn
down or damaged batteries may result in
leaking.
Do not charge, short, heat, break or throw
in a fire, as it may result in the battery
leaking, generating heat, or bursting.
When disposing of the battery, cover the
battery contacts with insulation (ex. tape).
Direct contact with other batteries may
result in leaking, fire, or explosion.
Do not solder the battery, as it may result
in the battery leaking, generating heat, or
bursting.
Do not use near medical equipment.
(Do not bring into a surgery room,
intensive care unit, critical care unit, etc.)
Electromagnetic waves generated by this
device can affect equipment, and can
cause equipment to malfunction.
Do not use near automatic doors, smoke
detectors and other automatically
controlled equipment.
Electromagnetic waves generated by this
device can affect equipment, and can
cause equipment to malfunction.
Use at least 20 cm (8 in.) away from
pacemakers.
Electromagnetic waves generated by this
device can affect the operation of
pacemakers.
When the unit is not used over an
extended period of time, switch it off and
unplug it. If an unused unit is left
connected to a power source for a long
period, degraded insulation may cause
electric shock, current leakage, or fire.
The unit should be used only with the
power cord enclosed with the unit.
Do not position the unit in a location
where it is unstable.
Do not place the unit in a hot humid or
dusty environment. Prolonged exposure
to these adverse conditions may cause
fire or electric shock.
To prevent fire or shock hazard, do not
expose this unit to rain or any type of
moisture.
When moving the unit, be sure to unplug
the power cord from the AC outlet. If the
unit is moved with the power cord
attached, it can cause damage to the cord
which could result in fire or electric shock.
Move this unit with two persons.
Otherwise, this unit may fall down and
cause injury.
CAUTION
11Operating Instructions
For Your Safety
1
Operating Safeguards
Battery
Safety Information (For
United Kingdom only)
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp fuse is fitted in this plug. Should the fuse need
to be replaced, please ensure that the replacement
fuse has a rating of 5 amps and that it is approved by
ASTA or BSI to BS1362. Check for the ASTA mark
or the BSI mark on the body of the fuse. If the plug
contains a removable fuse cover, you must ensure that
it is refitted when the fuse is replaced. If you lose the
fuse cover the plug must not be used until a
replacement cover is obtained. A replacement fuse
cover can be purchased from your local Panasonic
Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR PREMISES,
THEN THE FUSE SHOULD BE REMOVED AND THE
PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13 AMP SOCKET.
If a new plug is to be fitted, please observe the wiring
code as shown below. If in any doubt, please consult a
qualified electrician.
WARNING
This appliance must be earthed.
IMPORTANT
The wires in this mains lead are coloured as
follows:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
After installing or moving the unit, lock the
casters and set the fall-prevention
extension legs.
If the unit falls down or gets damaged,
turn the unit off and unplug the power
cord. Otherwise, it may cause fire or
electric shock.
Do not lean against the screen or on the
cover (lower), even if the unit is mounted
on the wall.
When the unit is not used over an
extended period of time, take the
batteries out of the unit. Otherwise, the
batteries may leak. Do not use the leaked
batteries.
Locking the
casters
(Push to lock)
For Your Safety
12 Operating Instructions
As the colours of the wire in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows.
The wire that is coloured GREEN-AND-YELLOW must
be connected to the terminal in the plug which is
marked with the letter E or by the Earth symbol or
coloured GREEN or GREEN-AND-YELLOW.
The wire that is coloured BLUE must be connected to
the terminal in the plug that is marked with the letter N
or coloured BLACK.
The wire that is coloured BROWN must be connected
to the terminal in the plug which is marked with the
letter L or coloured RED.
Precautions
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate this device.
About Using the Battery
If a battery is used improperly, the battery may leak,
causing corrosion of the unit, or it may burst. To
prevent this, always follow the precaution given below.
•If the electronic pen ceases to function because the
battery has run out, remove it immediately and
dispose of it according to local regulations. Leaving a
drained battery in the electronic pen may result in
leakage.
About Disposing of the Battery
How to replace the fuse:
Open the fuse
compartment with a
screwdriver and
replace the fuse and
fuse cover. Após o uso as pilhas / baterias
contidas neste produto poderão
ser dispostas em lixo doméstico.
For Brazil
For Taiwan ( )
13Operating Instructions
For Your Safety
1
Other Information
Usage Note
Operating the elite Panaboard near electrical
appliances may cause interference. Move away
from the electrical appliances such as TVs, radios,
cordless phone, or wireless devices.
MEDICAL
Consult the manufacturer of any personal medical
devices, such as pacemakers, to determine if they
are adequately shielded from external RF (radio
frequency) energy. (The unit operates in the
frequency range of 2.402 GHz to 2.481 GHz, and
the power output level is 0.001 watts.) Do not use
the unit in health care facilities if any regulations
posted in the area instruct you not to do so.
Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
(radio frequency) energy.
For European Union (EU)
Panasonic System Networks Co., Ltd. declares
that this equipment is in compliance with the
essential requirements and other relevant
provisions of Radio & Telecommunications
Terminal Equipment (R&TTE) Directive 1999/5/EC.
Declarations of Conformity for the relevant
Panasonic products described in this manual are
available for download by visiting:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
No responsibility will be taken by our company
with respect to consequences resulting from the
use, damage or both of the equipment.
Usage
14 Operating Instructions
Usage
Included Accessories
Check that all of the following items are included with your elite Panaboard.
In the event that an item is missing, please contact your dealer.
List of Accessories
* A 2.4 GHz USB Wireless Adaptor is preinstalled on the elite Panaboard.
FCC ID: ACJ5Z6UE-608049 / IC: 216A-UE608049
Note
•The illustration of the power cord shown above is for the United States. The shape of the plug may vary
depending on country/area.
•Stand is sold separately.
•Store the extra penpoint along with this operating manual.
•Replacement penpoints are available for purchase separately (page 34).
•The warranty may not be included depending on country/area.
About Using the DVD-ROM
Power Cord
(3 m [9 ft. 10 1/8in.]) 1USB Cable
(5 m [16 ft. 4 7/8in.]) 1 Software DVD-ROM 1
AAA Battery (LR03)
(Disposable) 1Electronic Pen1 Penpoint
(Replacement) 2
Operating Instructions
(this document) 1Warranty1
2.4 GHz USB
Wireless Adaptor* 1
To prevent damage to the DVD-ROM:
•Do not touch or write on the surface of the disc.
•Do not leave the disc out of the protective case.
•Do not leave the disc in the direct sunlight or near heat sources.
•Do not place heavy objects on the disc case or drop the case.
•To clean the disc, hold the disc by its edges and wipe it from the center to the edges with a dry, soft cloth.
Usage
15Operating Instructions
1
Names and Uses of the Parts
Screen
Notice
•The operation of external devices connected via the USB hub is not guaranteed.
•External devices connected via the USB hub that require a lot of power, such as scanners or CD/
CD-Rs, may not operate properly. For more information, please consult the relevant dealer.
Note
•The elite Panaboard detects a change in electrostatic capacitance when touched by your finger. For
this reason, it may not react to fingernails, gloved hands, or the electronic pen when a glove is worn.
Screen Board
Detects the position of your finger or the electronic pen.
Project the contents of a computer screen using a projector.
Error LED (red)
Blinks red when an error occurs.
Power Switch/Power LED (green)
Turns the elite Panaboard on or off each time the power switch is
pressed.
Lights green when the power is on.
Pen Tray
Push the center of the door to open the pen tray, which can hold the
electronic pen.
USB Speaker
Outputs sound from a computer or the audio input port in stereo.
Volume Dial
Adjusts the volume of the speaker.
External Audio Input Port
Connect the audio output port of a VCR or DVD player etc. to this port and hear sound through
the USB speaker.
USB Hub (2 Ports)
You can connect external devices directly to the elite Panaboard using these ports (page 20).
USB Port
Directly connect a computer using a USB cable (included).
Power Cord
AC Inlet
Power Inlet for Optional Devices
Is for optional elite Panaboard accessories only.
Do not use this inlet with other devices.
Usage
16 Operating Instructions
Electronic Pen
Note
•The up and down buttons can be used in a range of approximately 10 m (approximately 30 ft.) from the
elite Panaboard (without obstructions).
Electronic Pen Features
Notice
•To avoid operating errors, do not touch the penpoint when the electronic pen is not in use.
Black/Red/Blue/Green
Draws with a marker in the selected color.
Marker line thickness and other settings can be specified in the Drawing
Menu.
Eraser
Erases marker lines that you have drawn.
Eraser size and other settings can be specified in the Drawing Menu.
Yellow/Yellow-Green/
Pink
Highlights with a highlighter in the selected color.
Highlighter line thickness and other settings can be specified in the Drawing
Menu.
Low-Power Mode
Puts the electronic pen in low-power mode.
The pen detects motion to turn itself on or off automatically. To conserve
battery power, put the pen in low-power mode before carrying it while
walking, when it is not in use.
Selector Dial
Selects features of the electronic pen.
Status LED (green)
Lights when the electronic pen power is on.
Blinks when the electronic pen battery is low.
Prepare a new battery and replace the old battery soon.
Up Button
Performs the same function as pressing the up key () on a
computer by remote control.
Down Button
Performs the same function as pressing the down key () on
a computer by remote control.
Battery Cover
Penpoint
Penpoint Cover
Menu Button
Hold this button and touch the screen board with the pen to
display the Drawing Menu (page 26).
Strap Loop
For attaching straps, if desired.
(No strap is included. Use a strap from which the cord will
detach if excessive force is applied.)
Usage
17Operating Instructions
1
Inserting (Replacing) Batteries
Registering the Electronic Pen
The elite Panaboard automatically detects electronic pens within approximately 10 m (approximately 30 ft.),
but if other electronic whiteboards are nearby, electronic pens for those whiteboards may be detected
accidentally. Similarly, other electronic whiteboards may detect electronic pens for the elite Panaboard. In the
following cases, register the electronic pen to the elite Panaboard.
•Buttons on the electronic pen are unresponsive
•The elite Panaboard responds to the electronic pen as if you were touching the elite Panaboard with your
finger
•The elite Panaboard responds as if you were operating it, but you are not
•elite Panaboard operation is erratic
Once you register an electronic pen, it cannot be used with another electronic whiteboard. (The whiteboard
responds as if you were touching it with your finger instead of the electronic pen.)
To use registered electronic pens with another electronic whiteboard, unregister the pens.
See “Registering the Electronic Pen” and “Unregistering the Electronic Pen” in “Software Help” for
instructions on registering and unregistering the electronic pen.
For details on accessing the help information, see “Viewing the Help of the Software” (page 27).
1. Unlock the battery cover (),
and open the cover ().
•When replacing the cover, follow the procedure in
reverse.
2. Insert (replace) the battery, and then
reattach the cover and lock it.
•Make sure to use a AAA alkaline battery, and
ensure that and face the correct directions.
•Dispose of expired batteries quickly, by covering
the terminals in tape and following the disposal
regulations in your country/area.
Usage
18 Operating Instructions
Connecting External Components
1. Connect the power cord (included) to the elite Panaboard, and plug the power cord into an AC
outlet.
•Plug the power cord into an outlet that is close to the elite Panaboard and in a location that is
easy to unplug.
•If you are using the optional stand, plug the power cord into the AC inlet, and secure the cord as
shown in the illustrations below.
•About Grounding
If you cannot connect the grounding line, contact your dealer. The cost of installing a grounding
connection is not included in the price of the elite Panaboard.
•The included power cord is exclusively for use with the elite Panaboard. Do not use it with any
other devices.
Power Cord
(Included)
When attaching the power cord downward. When attaching the power cord along the lower
side of the elite Panaboard.
Usage
19Operating Instructions
1
2. Connect the elite Panaboard to a computer using the USB cable (included).
•elite Panaboard: Plug the B connector (smaller connector) into the elite Panaboard’s USB port.
Computer: Plug the A connector (larger connector) into a USB port on the computer.
•Do not connect the elite Panaboard via a USB hub. This could result in erroneous operation.
Notice
•Do not connect the elite Panaboard to a computer via USB unless elite Panaboard software/book is
installed.
Only connect the USB cable after following the steps in “Installing the elite Panaboard software/
book” (page 22) to install the software.
3. Connect the computer to a projector.
•For instructions on connecting your computer and projector, refer to the respecting instruction manuals.
To USB Port USB Cable
(Included)
Video Cable AC
AC
Computer Projector
Usage
20 Operating Instructions
Connecting External Devices
1. Connect the external device to the elite Panaboard using a USB cable (sold separately).
•elite Panaboard: Plug the A connector (larger connector) into the elite Panaboard’s USB port.
External device: Plug the B connector (smaller connector) into a USB port on the external device.
About the Usage Location
•Do not place the elite Panaboard where it is directly exposed to sunlight.
•Do not use the elite Panaboard in a location less than 10 °C (50 °F) or in a location subject to extreme
changes in temperature.
Note
•The elite Panaboard may not work properly when used in one of the above locations.
•Operating the elite Panaboard near electrical appliances may cause interference. Move away from the
electrical appliances.
To USB Port
USB Cable
(Sold Separately)
MFP
Flatbed
Scanner
To USB Port
Usage
21Operating Instructions
1
Volume Control
•The volume of the USB speaker on the elite Panaboard can be controlled using the Volume Dial, the
volume of Windows, and the volume of the application being used. To adjust the volume, use the Volume
Dial, or adjust the volume of the application.
Power Switch
•After turning the elite Panaboard off, wait more than 2 seconds before turning it back on.
Moving the elite Panaboard When Using the Stand (Sold Separately)
1. After confirming that the power is off, disconnect the power cord and USB cable.
2. Release the locks on the casters.
3. Move the elite Panaboard, avoid banging or shaking the board.
Notice
•Always move the elite Panaboard with 2 people.
•Do not drag or step on the cable.
4. Lock the casters.
Usage
22 Operating Instructions
Installing the elite
Panaboard software/book
You need to install the elite Panaboard software/book
on the computer that will be used with the elite
Panaboard.
To install the elite Panaboard software/book, follow the
procedure below.
Notice
•Do not connect the USB cable until the
installation is completed.
•Do not connect more than 1 elite Panaboard to
the same computer.
(Doing so can cause erroneous behavior on the
computer.)
1. Turn on your computer and start the Windows
operating system.
•Log into an account with Administrator
privileges.
2. Insert the included DVD-ROM into the
DVD-ROM drive.
•The setup screen will be displayed.
•If the setup screen does not appear, select your
DVD-ROM drive in Explorer and double-click
[Menu.exe].
•In Windows Vista or Windows 7, if the Autoplay
dialog box is displayed, click [Run Menu.exe].
3. When the “Welcome” screen has been
displayed, click [Next].
4. When the “Model Selections” screen is
displayed, click the type of device you are
using.
5. When the “Menu” screen is displayed, click
[Read Me First].
•After the system requirements are displayed,
make sure that your computer meets the
requirements.
6. Click [Install elite Panaboard] on the “Menu”
screen.
7. If you agree to the terms in the “License
Agreement”, click [Yes].
•In Windows Vista, if the “User Account Control”
window is displayed, click [Continue] to continue
with the installation.
•In Windows 7, if the “User Account Control”
window is displayed, click [Yes] to continue with
the installation.
23Operating Instructions
Usage
1
8. When the following screen is displayed,
confirm that the USB cable is not connected to
your computer or the elite Panaboard, and
click [OK].
•If the USB cable is connected to the elite
Panaboard, disconnect the cable, and click [OK].
•If .NET Framework 3.0 or later is not installed, an
installation screen will be displayed. Follow the
on-screen directions to install these components.
9. When the installation wizard is displayed,
follow the on-screen instructions and continue
with the installation.
10. When installation has finished, click [Finish].
•Restart your computer if you are prompted to do
so.
•The group [elite Panaboard] will be created in
the [Panasonic] group in the program menu.
•The following items will appear in the [elite
Panaboard] group:
– elite Panaboard software
– elite Panaboard book
– Electronic Pen Registration Tool
– Operating Instructions
– Software Help
– Download the latest version
Note
•To view the Operating Instructions, you must
have Adobe® Reader® installed on your
computer. If your computer is connected to
the Internet, you can download Adobe
Reader from Adobe’s web site.
Usage
24 Operating Instructions
Setting the Projector
Set up your projector as instructed below.
About Positioning the Image
•When you are projecting an image, make sure the
image is inside the screen frame.
Project the Image as a Rectangle
•Adjust the location of the projector to project at a
right angle with the elite Panaboard.
•If the image is projected trapezoidally, the position
may not be read correctly. Adjust the projector so
that the projected image is a rectangle. Refer to your
projector’s documentation for information on
adjusting the projected image.
Set the Proper Resolution
•Set your computer’s and projector’s resolutions to
the most appropriate setting.
If the resolution is not set properly, the image will be
difficult to see. Particularly, if the projector’s
resolution is lower than the computer’s, thin lines can
appear cut or broken. Refer to your projector’s
documentation for information on adjusting the
resolution.
Do Not Look Directly into the Projector Lamp
•When using a projector, try to avoid looking directly
into the projector lamp. Doing so can hurt your eyes.
25Operating Instructions
Usage
1
.
Setting Your System
(Calibration)
About Calibration
Calibration refers to setting up the elite Panaboard and
projector so that lines and comments drawn with your
finger or the electronic pen are displayed in the correct
position. Be sure to perform calibration before use.
After you have set up the elite Panaboard, project an
image onto the screen board and use the elite
Panaboard software installed on your computer to
perform calibration.
After Calibration
Do Not Move the elite Panaboard or the
Projector
•The following changes will bring the position of
projection out of alignment with the position of your
finger or the electronic pen, and you will need to
recalibrate the equipment.
– The location of the projector changed.
– The location of the elite Panaboard changed.
– The image area or placement was changed due
to changes in the zoom, focus, etc.
– The resolution of the projector or the computer
changed.
•If you are using the elite Panaboard installed on a
stand, be aware that accidentally hitting the elite
Panaboard or pushing too strongly with the
electronic pen while operating can move the stand’s
position, which will result in misalignment of the
projected image and the electronic pen’s position.
•Make sure to lock the stand’s casters when using the
elite Panaboard, as failing to do so can cause
misalignment.
Note
•To perform calibration, click the icon in the
notification area and click [Calibration] in the
pop-up menu.
Starting the elite
Panaboard software and
Performing Calibration
1. Turn on the elite Panaboard.
2. Connect the elite Panaboard to your computer
with the USB cable.
•The elite Panaboard software starts
automatically.
•Once the elite Panaboard software starts up, the
calibration screen is automatically displayed.
•Restart your computer if you are prompted to do
so. After the computer has restarted, connect the
elite Panaboard to your computer with the USB
cable.
3. Calibrate the equipment by using your finger to
touch the center of the indicated points in the
order shown for about 2 seconds.
•Touch the screen board at a right angle with your
finger.
•After you touch an indicated point correctly, the
next point is shown automatically.
•When calibration has finished normally, a
completion dialog box is displayed.
Usage
26 Operating Instructions
4. Click [OK].
•If the elite Panaboard and projector are fixed so
that they will not move (Wall mounted case),
select the [Always use this calibration
information.] check box, and click [OK] to skip
calibration from the next time you start the elite
Panaboard software.
•When calibration is finished, the icon is
displayed in the notification area. You can now
use the elite Panaboard software.
•To display the Select Function Menu, click the
Menu Start Tab (left side: / right side: ) on
the screen with your finger.
•To display the Drawing Menu, touch the screen
board while holding the menu button on the
electronic pen.
Note
•For detailed information about using the elite
Panaboard software, refer to the help menu.
For details on accessing the help
information, see “Viewing the Help of the
Software” (page 27).
Exiting the elite Panaboard software
Click on the icon in the notification area, and select
[Exit] from the menu.
Example of the Select Function Menu
Example of the Drawing Menu
27Operating Instructions
Usage
1
Viewing the Help of the
Software
Follow the procedure below to view the help of the
software installed on your computer.
1. Turn on your computer and start Windows.
2. Open “Software Help” from the Start menu.
([Start] → [All Programs] → [Panasonic] → [elite
Panaboard] → [Software Help])
•General help information of the installed software
is displayed.
Note
•To access the help information of elite
Panaboard software and Drawing Menu,
click the icon in the notification area and
select [Help] from the pop-up menu.
•To access elite Panaboard book help
information, select [Help...] from the elite
Panaboard book [Help] menu.
•We recommend that you view the help using
Internet Explorer® 6.0 or later for Windows.
Uninstalling the elite
Panaboard software/
book
If it is necessary to uninstall the elite Panaboard
software/book, follow the procedure below.
1. Turn on your computer and start Windows.
•Log into an account with Administrator
privileges.
2. Select [Add or Remove Programs] from the
Control Panel.
•In Windows Vista or Windows 7, select [Uninstall
a program].
3. Select Panasonic elite Panaboard, then remove
it.
4. Follow the on-screen instructions.
5. When uninstallation is complete, restart your
computer.
Download the Latest
Software
Follow the procedure below to download the latest
version of the software from the download web site.
1. Turn on your computer and start Windows.
2. On the Start menu, point to [All Programs] →
[Panasonic] → [elite Panaboard], and click
[Download the latest version].
Appendix
28 Operating Instructions
Appendix
Daily Care
When cleaning the elite Panaboard or inside the elite Panaboard, make sure to switch off the power and
unplug the power cord from the AC outlet.
Cleaning the elite Panaboard
Gently wipe the elite Panaboard with a soft, moist
cloth.
Notice
•The elite Panaboard is designed exclusively for
projector images.
To remove marks written with a whiteboard
marker or stubborn stains, use whiteboard
cleaner or neutral household detergent diluted
with water.
•Do not use thinner, benzene, or abrasive
chemicals to clean.
(Doing so can result in discoloration.)
Replacing the Battery in the
Electronic Pen
When the electronic pen battery is low, the pen status
LED blinks. Continued use of the electronic pen can
lead to poor performance. Replace the battery as soon
as possible. See “Inserting (Replacing) Batteries”
(page 17) for details on replacing the battery.
•Dispose of expired batteries quickly, by covering the
terminals in tape and following the disposal
regulations in your country/area.
Após o uso as pilhas / baterias
contidas neste produto poderão
ser dispostas em lixo doméstico.
For Brazil
For Taiwan ( )
29Operating Instructions
Appendix
1
Replacing the Penpoint of the
Electronic Pen
As the penpoint of the electronic pen becomes worn,
the penpoint will no longer slide easily across the
surface. Continuing to use the electronic pen in this
condition may make the screen dirty and cause
malfunction. Replace the penpoint with a new one as
soon as possible.
1. Remove the penpoint cover.
2. Remove the old penpoint and attach the new
one.
3. Reattach the penpoint cover.
OldPenpoint
NewPenpoint
Appendix
30 Operating Instructions
Troubleshooting
When experiencing problems, please refer to the table below for possible solutions. If the problem persists,
contact your dealer.
Symptom Possible cause and solution See page
The LEDs do not light
when the power switch is
turned on.
Check that the power cord is properly plugged in.
→If the problem persists, unplug the cord momentarily, wait
about 2 seconds, and plug it in again.
—
Error LED (red) is blinking. Turn off the power, and turn it on.
→If the problem persists, contact your dealer. —
The computer does not
recognize the elite
Panaboard.
•The elite Panaboard and your computer are not connected.
→Securely connect the elite Panaboard and your computer
using a USB cable.
•The USB cable is connected to a USB hub.
→Do not connect the elite Panaboard through a USB hub.
—
The connection between
the computer and the elite
Panaboard is
unexpectedly lost.
Check that the elite Panaboard is in an operable state, and that
the USB cable is properly connected. —
The point of control is out
of alignment with your
finger or the electronic
pen.
The projected image is misaligned.
→Perform the calibration again. 25
Lines or comments drawn
with your finger are not
shown on the computer
screen.
•You are touching the screen board with a part of your hand
other than your finger.
→Use only your finger tip to touch the screen board.
•You are touching too lightly with your finger.
→Touch the screen board more firmly.
—
The electronic pen loses
the functions.
(Buttons are
unresponsive.)
(The elite Panaboard
responds as if you were
touching it with your
fingers.)
(Lines written with the
electronic pen are broken
or colors change.)
•The electronic pen is low on batteries.
→Replace the electronic pen’s battery.
•The electronic pen is in low-power mode.
→Turn the selector dial to change the mode.
•Another electronic whiteboard is in use nearby.
→Use the Electronic Pen Registration Tool to register the
electronic pen. See “Registering the Electronic Pen” in
“Software Help” for instructions on registering the electronic
pen.
17
16
—
Appendix
31Operating Instructions
1
Symptom Possible cause and solution See page
The electronic pen status
LED is blinking.
The electronic pen is low on batteries.
→Replace the electronic pen’s battery. 17
Marks written with a
whiteboard marker cannot
be erased.
Because the elite Panaboard is designed exclusively for projector
images, you cannot erase the marks with a standard eraser.
→Use commercially available whiteboard cleaner or neutral
household cleaner diluted with water.
28
The sound level is low or
no sound is output from
the speaker.
•The volume level of the elite Panaboard is low.
→Adjust the volume using the volume dial.
•The volume of your computer is low or set to mute.
→Adjust the volume using the volume control in the notification
area, or uncheck the mute setting.
•The volume of the application is low.
→Adjust the volume of the application (e.g. Windows Media
Player).
•The connection between the external audio input port and the
VCR or DVD player etc. is not correct.
→Securely connect the external audio input port and the VCR
or DVD player etc.
15
The external device
connected to the USB hub
does not work properly.
•The elite Panaboard and external devices are not connected.
→Securely connect the elite Panaboard and external devices.
•A driver or application for enabling the use of external devices
may not be installed on your computer.
→Install the driver or application following the instructions in
the manual for the external device.
—
Appendix
32 Operating Instructions
Specifications
Model
Number UB-T880 / UB-T880W
General Power AC 100 V–240 V, 50 Hz/60 Hz
Power Consumption During Operation: 0.5 A
(When power is OFF by the power switch: 0.2 W)
Operating Environment Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 30 % to 80 %
Storage Environment Temperature: -20 °C to 40 °C (-4 °F to 104 °F)
Humidity: 15 % to 80 %
Interface USB 2.0
No. of Hub Ports 2 ports
Electronic
Pen
Transmission System GFSK
Electronic Pen Power LR03 (AAA alkaline dry cell battery) × 1
Electronic Pen Battery Life 30 hours (when used continuously at 25 °C [77 °F])
* When using Panasonic LR03 alkaline dry-cell batteries.
Audio
Features
Audio Input Input level: 309 mVrms (1 KHz, 0 dB, 10 kΩ)
Stereo 1 system, ø 3.5 mm (1/8in.) stereo mini jack
Audio Output 2W + 2W (maximum 4W + 4W)
Appendix
33Operating Instructions
1
Model
Number UB-T880
General External Dimensions:
Height × Width × Depth
1,320 mm × 1,657 mm × 117 mm
(4 ft. 4 in. × 5 ft. 5 1/4in. × 4 5/8in.)
Weight 36 kg (79.4 lbs)
Input Unit Screen Board Size:
Height × Width
1,175 mm × 1,602 mm
(3 ft. 10 1/4in. × 5 ft. 3 1/16 in.)
Interactive
Features
Effective Area:
Height × Width
1,175 mm × 1,567 mm (3 ft. 10 1/4in. × 5 ft. 1 11/16 in.)
(77 in. diagonal)
Model
Number UB-T880W
General External Dimensions:
Height × Width × Depth
1,320 mm × 1,900 mm × 117 mm
(4 ft. 4 in. × 6 ft. 2 13/16 in. × 4 5/8in.)
Weight 39 kg (86 lbs)
Input Unit Screen Board Size:
Height × Width
1,175 mm × 1,845 mm
(3 ft. 10 1/4in. × 6 ft. 5/8in.)
Interactive
Features
Effective Area:
Height × Width
1,036 mm × 1,842 mm (3 ft. 4 3/4in. × 6ft. 1/2in.)
(83 in. diagonal)
Appendix
34 Operating Instructions
Supplies & Accessories
•To purchase separately sold items, contact your dealer.
Optional Device Stand KX-B061
Electronic Pen UE-608026
Stylus UE-608027
Pointer UE-608028
Up / Down Unit UE-608030
Stand Table UE-608031
Short-Throw Arm Unit UE-608032
Consumables Penpoint
(Replace the penpoint after it has become
worn and no longer slides across the
surface.)
䋿䋿䋿
Installation Manual
35Operating Instructions
1
Installation Manual
Installation Manual (for qualified service personnel)
•Request assembly of the Electronic Board, stand and wall mounting from your dealer.
•Before constructing or installing the elite Panaboard, please read “Installation Manual (for qualified service
personnel)” carefully.
Especially, please read “For Your Safety” carefully and install the elite Panaboard safely.
Panasonic System Networks Co., Ltd. cannot be held responsible for accidents or damage to property
resulting from incorrect installation.
•When installing the elite Panaboard on a wall or on the stand, perform installation with 2 people.
For Your Safety
To prevent severe injury and loss of life, read this
section carefully before using the unit to ensure proper
and safe operation of your unit.
The following graphic symbols are used in this
Installation Manual.
Notice
Denotes a
potential hazard
that could result in
serious injury or
death.
Denotes hazards
that could result in
minor injury or
damage to the
unit.
These symbols are used to alert
operators to a specific operating
procedure that must not be
performed.
These symbols are used to alert
operators to a specific operating
procedure that must be
emphasized in order to operate
the unit safely.
WARNING
CAUTION
Safety check must be done by qualified
service personnel after installing this
option.
Be sure to disconnect the power cord
while installing the unit. Otherwise, it may
cause electric shock or injury.
Be sure to use the specified parts for the
installation. Otherwise, it may cause fire,
electric shock or injury.
Notes in the operating instructions or
notes of labels on the cabinet, chassis or
parts should be observed.
Do not alter the unit and install. Installing
an altered unit can cause fire, electric
shock or injury.
WARNING
Installation Manual
36 Operating Instructions
Electronic Pen / elite Panaboard
Have the unit installed, removed and
disposed of only by qualified service
personnel.
Do not use near medical equipment.
(Do not bring into a surgery room,
intensive care unit, critical care unit, etc.)
Electromagnetic waves generated by this
device can affect equipment, and can
cause equipment to malfunction.
Do not use near automatic doors, smoke
detectors and other automatically
controlled equipment.
Electromagnetic waves generated by this
device can affect equipment, and can
cause equipment to malfunction.
Use at least 20 cm (8 in.) away from
pacemakers.
Electromagnetic waves generated by this
device can affect the operation of
pacemakers.
After installing or moving the electronic
board, lock the casters and set the fall-
prevention extension legs.
If the unit is hung on a wall, confirm the
wall must be capable of supporting at
least the following weight.
1,962 N (200 kgf)
Do not attach the electronic board to
mortared walls. Accidental electric
leakage from the wall mounting plate
bolts to metal laths or wire laths can
cause heat, smoke or fire.
Confirm the bolts of the unit are certainly
caught by the wall mounting plate by
pulling the unit after hanging the unit on
the wall mounting plate if the unit is
mounted on a wall.
Be sure to put on a glove to avoid electric
shock or injury.
CAUTION
Locking the
casters
(Push to lock)
Installation Manual
37Operating Instructions
1
Installation Manual
Included Accessories
Confirm that the following items are included with the elite Panaboard.
No. Part Name Illustration Q’ty Remarks
Power Cord
(3 m [9 ft. 10 1/8in.]) 1
The illustration of the
power cord is for the
United States. The
shape of the plug may
vary depending on
country/area.
USB Cable
(5 m [16 ft. 4 7/8in.]) 1For computer
connection
DVD-ROM 1
Operating Instructions
Drivers
Application software
Wall Mounting Plate (Left) 1—
Wall Mounting Plate (Right) 1—
Battery (LR03 AAA alkaline
battery) 1For electronic pen
Electronic Pen 1—
Penpoint
(Replacement) 2For electronic pen
2.4 GHz USB Wireless
Adaptor 1
A 2.4 GHz USB
Wireless Adaptor is
preinstalled on the elite
Panaboard.
FCC ID:
ACJ5Z6UE-608049 /
IC: 216A-UE608049
Operating Instructions 1
Operating Instructions
(includes Installation
Manual)
Installation Manual
38 Operating Instructions
Notice
•Screws (8 count) for wall mounting are not included. Please purchase screws with a size of M6,
appropriate for your type of wall (page 42).
Warranty 1
May not be included
depending on country/
area.
No. Part Name Illustration Q’ty Remarks
Installation Manual
39Operating Instructions
1
Wall Mounting Construction
Checking the Wall
When mounting on a wall, consult with your building’s owner, caretaker or construction manager to determine
if the wall strength is sufficient to install the elite Panaboard. For safety, install the elite Panaboard only after
thoroughly understanding the type of walls, the appropriate types of screws and the construction method
(page 42).
CAUTION
Do not attach the electronic board to mortared walls. Accidental electric leakage from the wall
mounting plate bolts to metal laths or wire laths can cause heat, smoke or fire.
I. Necessary Tools and Parts (not included with the elite Panaboard)
Drill, Phillips-head screwdriver, Measuring tape, Level
8 screws (M6 size)
II. Before Starting
1. Make sure that the wall is strong enough to support the elite Panaboard.
Rated strength: greater than 1,962 N (200 kgf)
Notice
•If necessary, reinforce the wall so that it is strong enough to support the elite Panaboard.
2. Make sure that the location is large enough to accommodate the elite Panaboard.
Height: greater than 2,100 mm (6 ft. 10 5/8in.)
Width: greater than 2,000 mm (6 ft. 6 3/4in.)
3. Make sure that the AC outlet is within 3 m (9 ft. 10 1/8in.) of where the elite Panaboard will be
mounted and that it will not be behind the elite Panaboard.
Installation Manual
40 Operating Instructions
Installing the Wall Mounting Plates
1. Ensure that the wall is strong enough to support the elite Panaboard.
Rated strength: greater than 1,962 N (200 kgf)
2. Using the measuring tape and level, mark the 8 locations to insert the screws.
UB-T880
UB-T880W
Note
•The dotted line in the illustration represents the outer edge of the elite Panaboard.
3. Drill 8 holes for the wall mounting plates.
•Drill holes that are appropriate for the screws you are using.
421.8 mm
(1 ft. 4 19/32 in.)
813 mm
(2 ft. 8 in.)
324.2 mm
(1 ft. 49/64 in.)
208.2 mm
(8 3/16 in.)
40 mm
(1 9/16 in.)
1,006 mm
(3 ft. 3 19/32 in.)
220.9 mm
(8 11/16 in.)
23.5 mm
(15/16 in.)
543.3 mm
(1 ft. 9 3/8in.)
813 mm
(2 ft. 8 in.)
324.2 mm
(1 ft. 49/64 in.)
208.2 mm
(8 3/16 in.)
40 mm
(1 9/16 in.)
1,006 mm
(3 ft. 3 19/32 in.)
220.9 mm
(8 11/16 in.)
23.5 mm
(15/16 in.)
Installation Manual
41Operating Instructions
1
4. Install the wall mounting plates using the 4 screws.
•2 screws are used for each wall mounting plate. The remaining 4 screws are used after installing the
elite Panaboard on the wall.
UB-T880 / UB-T880W
•Screws (8 count) are not included with the elite Panaboard. Please purchase screws with a size of M6,
appropriate for your type of wall.
•Tighten the bolt so that it will not become loose.
•When drilling the holes and installing the wall mounting plates, follow the procedure in “Wall Types and
Installation Procedures” (page 42).
5. Mount the elite Panaboard on the wall.
•See “Assembling the elite Panaboard” (For Wall Mounting → page 49).
40 mm (1 9/16 in.)
1,006 mm (3 ft. 3 19/32 in.)
220.9 mm
(8
11
/
16
in.)
813 mm (2 ft. 8 in.)
23.5 mm
(
15
/
16
in.)
Installation Manual
42 Operating Instructions
Wall Types and Installation Procedures
The method for attaching the wall mounting plates to the wall will vary depending on the wall’s structure.
Three available options are listed below.
Other methods may be necessary depending on the wall.
Metal or Concrete walls
Stud plugs (not included) are needed.
Drill bit
Metal or concrete wall
Insert a stud plug in the hole.
Stud plug
Wall mounting plate
Drill 8 holes in the wall.
For the correct hole size, refer to the
instructions for the particular stud plugs
used.
Insert the bolt through the hole in the wall
mounting plate and tighten until the wall
mounting plate is securely fixed to the wall.
Bolt
Installation Manual
43Operating Instructions
1
Plasterboard walls
Split-wing toggles (not included) are needed.
Wooden walls
Wood screws (not included) are needed.
Plasterboard
Split-wing toggle
Arms
Wall mounting
plate
After the arms expand, pull the wall
mounting plate out until the arms of the
split-wing toggle grip firmly into the wall.
Tighten the bolt until the wall mounting plate
is securely fixed into the wall.
Bolt
Insert the bolt through the hole in the wall
mounting plate and into the hole in the wall
so that the arms of the split-wing toggle are
horizontal.
For the correct hole size, refer to the
instructions for the particular split-wing
toggles used.
Arms
Wall mounting plate
Wood screw
Wooden wall
Insert the wood screw through the hole in
the wall mounting plate and tighten until the
wall mounting plate is securely fixed to the
wall.
For the correct hole size, refer to the
instructions for the particular wood screws
used.
Installation Manual
44 Operating Instructions
Stand KX-B061 Assembly (Sold Separately)
Included Parts
Check that the following parts are included with the stand KX-B061.
*1Use the two-wing bolts () when securing the elite Panaboard to the stand.
*2The included wrench is necessary for tightening and loosening the screw (), so keep it in a safe location.
No. Part Name Illustration Q’ty
Stand Base 2
Support Beam 2
Cross Bar (A) 2
Cross Bar (B) 1
Screw (M6 × 45 mm [1 3/4in.]) 10
Two-wing Bolt (M5 × 12 mm [1/2in.])*12
Support Bracket 2
Fall-prevention Extension Leg 4
Screw (M6 × 60 mm [2 3/8in.]) 4
Nut 4
Wrench*21
Washer 10
Installation Manual
45Operating Instructions
1
CAUTION
Before assembly, be sure to lock the casters.
Assembly Instructions
1. Assemble the fall-prevention extension legs.
Locking the casters
(Push to lock)
Installation Manual
46 Operating Instructions
2. Assemble the stand.
Notice
•Do not over-tighten the screw (). (Doing so can warp the support beams.)
•Assemble the stand so that the locking casters are on the rear side.
Assemble with the holes
toward the front.
Locking
caster side
(rear)
REAR
Locking caster
side (rear)
FRONT
Installation Manual
47Operating Instructions
1
3. Pull the fall-prevention extension legs down.
Note
•When folding back the fall-prevention extension legs, release the lock as follows (,).
4. Mount the elite Panaboard.
•See “Assembling the elite Panaboard” (For Mounting on a Stand KX-B061 (Sold Separately)
→ page 52).
2
1
1
1
2
Installation Manual
48 Operating Instructions
Assembly Instructions
Preparing for Removing the elite Panaboard from Its Packaging
Remove the 10 joints, open the box, remove the accessory box & packing foam and open the plastic sheet of
the elite Panaboard.
Notice
•When handling the electronic board, hold it by the edge frame and not the screen board.
(Holding the screen board can result in damage.)
•The packing materials in the shipping box are necessary for repackaging, so keep them in a safe place.
Note
•The warranty may not be included depending on country/area.
Shipping Box
Electronic
Board
Shipping Box
[Accessory Box Contents]
•Power Cord ......................... 1
•USB Cable .......................... 1
•DVD-ROM........................... 1
•Wall Mounting Plate
(Right, Left) ..............1 (Each)
•Battery................................. 1
•Electronic Pen..................... 1
•Penpoint.............................. 2
•Operating Instructions......... 1
•Warranty ............................. 1
Joint
Cushioning
material
49Operating Instructions
Installation Manual
1
Assembling the elite Panaboard
For Wall Mounting
1. Attach the power cord.
•Connect the power cord to the elite Panaboard
before installing on a wall.
2. Depending on the location of the outlet, install
the power cord as illustrated in the following
diagrams.
•When attaching the power cord downward.
•When attaching the power cord along the lower
side of the elite Panaboard.
3. Remove the push-turn rivets (4) on the
fasteners on the bottom of the board.
•Turn the push-turn rivets counter-clockwise with
a Phillips-head screwdriver. When the fastener
pops up, the part can be removed.
4. Hang the elite Panaboard on the wall mounting
plates with the screw heads.
Power Cord
Push-turn Rivets
Installation Manual
50 Operating Instructions
5. Remove the screws on each end of the bottom
of the lower frame cover.
•UB-T880: 2 screws,
UB-T880W: 4 screws
(UB-T880 is shown in the following figure as an
example.)
6. Open the pen tray, remove the screw caps and
the screws, and remove the lower frame cover.
•Open the pen tray (), and remove the right and
left screw caps (2 locations). Then, remove the
screws, and remove the lower frame cover ().
7. Fasten to the wall.
•Use 4 screws to attach the fasteners on the
bottom of the board securely to the wall.
8. Attach the lower frame cover.
•Perform step 6 and step 5 in reverse and attach
the lower frame cover, making sure there is no
unevenness with the front surface.
Notice
•When mounting on a wall, do not hit or jolt
the elite Panaboard.
•After mounting, gently apply some weight on
the elite Panaboard to make sure that it is
securely fastened to the wall.
9. Confirm that the elite Panaboard can operate.
•See “Confirming the elite Panaboard Operation”
(page 54).
Screw Caps
51Operating Instructions
Installation Manual
1
9. Remove the wireless adaptor cover.
•Remove the screw for the wireless adaptor cover
with a no. 1 Phillips-head screwdriver, and then
remove the cover.
10. Attach the 2.4 GHz USB Wireless Adaptor.
•After inserting the 2.4 GHz USB Wireless
Adaptor, secure the wireless adaptor cover
with the screw.
11. Confirm that the elite Panaboard can operate.
•See “Confirming the elite Panaboard Operation”
(page 54).
12. Turn off the power switch and unplug the
power cord from the AC outlet.
13. Wipe the screen board surface.
•Gently wipe the screen board surface with a soft,
moist cloth.
Notice
•Do not use thinner, benzene, or abrasive
chemicals to clean.
(Doing so can result in discoloration.)
•Do not wipe the screen board with a dry
cloth.
(Doing so can cause static electricity build-
up.)
Wireless Adaptor Cover
2.4 GHz USB Wireless
Adaptor
(Label faces toward the back)
Installation Manual
52 Operating Instructions
For Mounting on a Stand KX-B061
(Sold Separately)
1. Attach the power cord.
•Connect the power cord to the elite Panaboard
before installing on the stand.
2. Depending on the location of the outlet, install
the power cord as illustrated in the following
diagrams.
•When attaching the power cord downward.
•When attaching the power cord along the lower
side of the elite Panaboard.
3. Hang the elite Panaboard on the stand with the
screw heads.
4. Secure the elite Panaboard to the stand frame
using the two-wing bolts (M5 × 12 mm [1/2in.]
[2 count]) included with the stand.
Power Cord
53Operating Instructions
Installation Manual
1
•When installing the elite Panaboard on the
stand, you can adjust its height to 4 different
levels.
When changing the height, remove the left
and right screws from the back of the elite
Panaboard, and securely insert them at the
desired height. Torque (greater than 1 N•m
[10 kgf•cm (9 lbf•in.)]).
5. Confirm that the elite Panaboard can operate.
•See “Confirming the elite Panaboard Operation”
(page 54).
6. Turn off the power switch and unplug the
power cord from the AC outlet.
7. Wipe the screen board surface.
•Gently wipe the screen board surface with a soft,
moist cloth.
Notice
•Do not use thinner, benzene, or abrasive
chemicals to clean.
(Doing so can result in discoloration.)
•Do not wipe the screen board with a dry
cloth.
(Doing so can cause static electricity build-
up.)
elite Panaboard
Height Screw Position
-100 mm (-3 7/8in.) Highest
Standard 2nd from top
+100 mm (+3 7/8in.) 2nd from bottom
+200 mm (+7 7/8in.) Lowest
Installation Manual
54 Operating Instructions
Confirming the elite Panaboard Operation
After assembling the elite Panaboard, confirm that it operates properly by following the procedure below.
Confirming the Interactive Features
1. Following the procedure in “Installing the elite Panaboard software/book” (page 22), install the
software and connect the included USB cable.
2. Confirm that the interactive features are operating correctly.
•If a projector is not available, confirm operation using only the elite Panaboard and computer.
•When the elite Panaboard software starts, the calibration screen is displayed on the computer screen.
•Perform tentative calibration by touching each of the following points on the elite Panaboard with your
finger for about 2 seconds, one point after another. For precise adjustment, it is necessary to use a
projector.
•Confirm operation by writing on the screen board with the electronic pen and checking that the writing is
displayed on the computer’s screen. (Your writing with the electronic pen will not appear on the screen
board itself.)
Action
Checkpoints
Operation Measure
1Turn on the power. Power LED (green) lights. (Normal operation)
Power LED (green) does not
light, or Error LED (red) is
blinking.
Check the power cord.
See step 1 of “Assembling the elite Panaboard”.
•For Wall Mounting → page 49
•For Mounting on a Stand KX-B061 (Sold
Separately) → page 52
1
3
4
2
Approx. 100 mm (3 7/8in.)
Approx. 100 mm (3 7/8in.)
Installation Manual
55Operating Instructions
1
Repackaging
To repackage the elite Panaboard, perform steps in the following “Assembling the elite Panaboard” in
reverse.
•For Wall Mounting → page 49
•For Mounting on a Stand KX-B061 (Sold Separately) → page 52
Package the unit as depicted in the diagram in “Preparing for Removing the elite Panaboard from Its
Packaging” (page 48).
Notice
•When handling the electronic board, hold it by the frame and not the screen board. (Holding the screen
board can result in damage.)
1731
(For EU only)
© Panasonic System Networks Co., Ltd. 2010 F0510E0
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable
collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement
set by the Directive for the chemical involved.
