Panasonic Corporation of North America Car Radio

User Manual

AT1601
User Manual
Confidential
Since this device is always used with vehicle, it is not sold to general end users separately.
Therefore there is no user manual of this device by alone.
The following statements must be described on the User manual of the vehicle.
FCC ID: ACJ932AT1601
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment
has very low levels of RF energy that is deemed to comply without maximum permissive
exposure evaluation (MPE).
Confidential

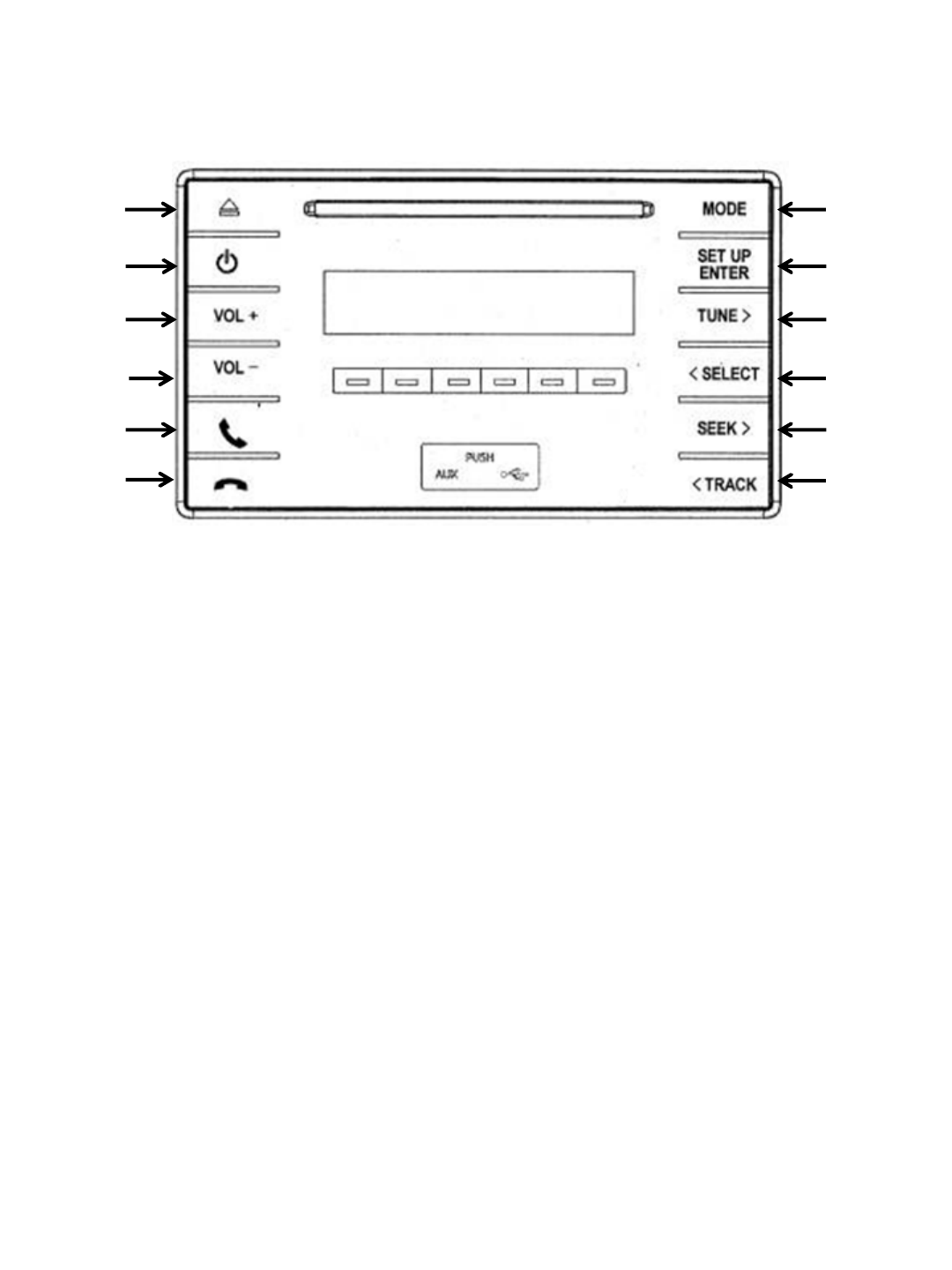

(1) CD Eject (Push)
(2) Power ON/OFF (Push)
(3)(4) Volume Control (Push)
(5) Off Hook in Hands Free mode (Push)
(6) On Hook in Hands Free mode (Push)
(7) Mode Switching (Push)
(8) Setup Mode (Push)
(9)(10) Manual Tuning in Radio mode (Push)
(11)(12) Automatic Tuning in Radio mode (Push)
(13)-(18) Station Preset (Push)
About Bluetooth
Hands Free mode
The mode is changed into a hands-free mode by pushing(5).
It changes into the last mode of Audio by pushing(6) at hands free mode.
Registration of Bluetooth telephone Initial setting
Push (8) then choose "Bluetooth“ "Pairing“ .
During Pass Key indication, input 4 to 8 codes into a Bluetooth Telephone.
It is registered afterwards.
Connection OK :”Phone is connected”
Connection NG :”Bluetooth connection failed”
Each command is carried out by pushing (8).
Confidential
(13) (14) (15) (16) (17) (18)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Product Description
For radio broadcast reception and Bluetooth hands free phone system or audio.
