Panasonic Corporation of North America Bluetooth Module Installation Manual
User Manual
Installation Manual
This module is to be installed only by the professionals and used only with a Car Audio produced by
Matsushita Electric Industrial Co., Ltd. When this Bluetooth module is installed in the Car Audio,
we shall consider the following points;
1. Since “C5ZZZ0000035 (C5ZZZ0000037)” owns its FCC ID Number, we shall affix an
exterior label on the outside of the product if the FCC ID is not visible. The exterior label
shall use wording such as either ”Contains Transmitter Module FCC ID:
ACJ932C5ZZZ035” or “Contains FCC ID: ACJ932C5ZZZ035”.
2. “C5ZZZ0000035 (C5ZZZ0000037)” complies with requirements of sub-sections 15.19(a)(3)
in FCC Rules Part 15 Subpart C. The manual statement (15.19 (a)(3) is included User Guide
of the product.
3. “C5ZZZ0000035 (C5ZZZ0000037)” is to be installed only by the professional line operator as
shown in following pictures. (Fig 1)

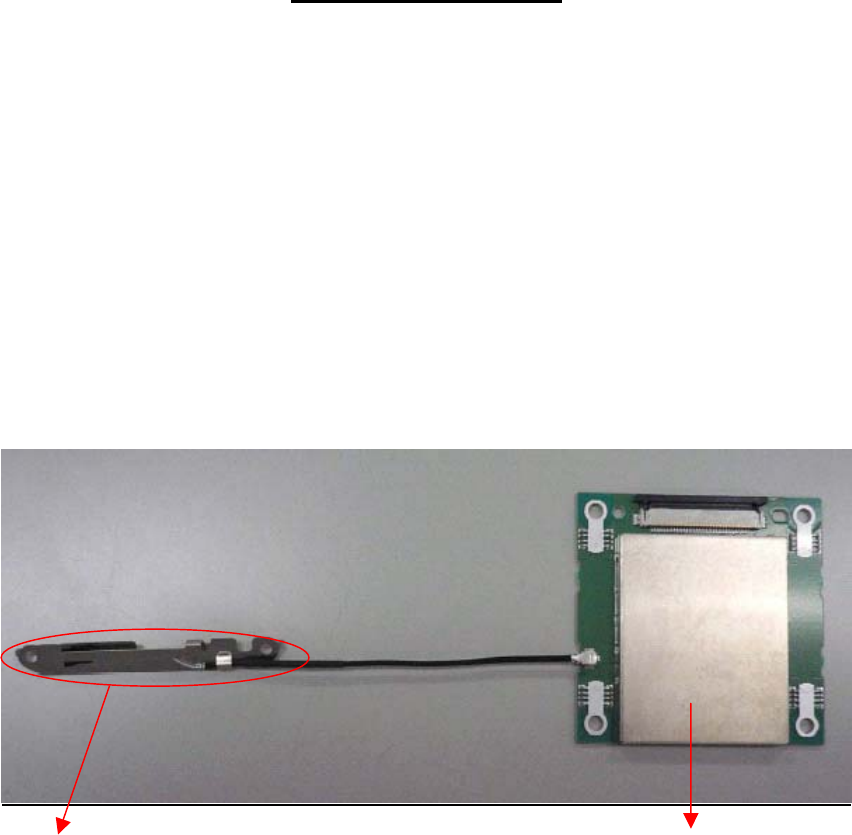

Fig 1. Front side of “C5ZZZ0000035 (C5ZZZ0000037)”
Antenna Bluetooth Module

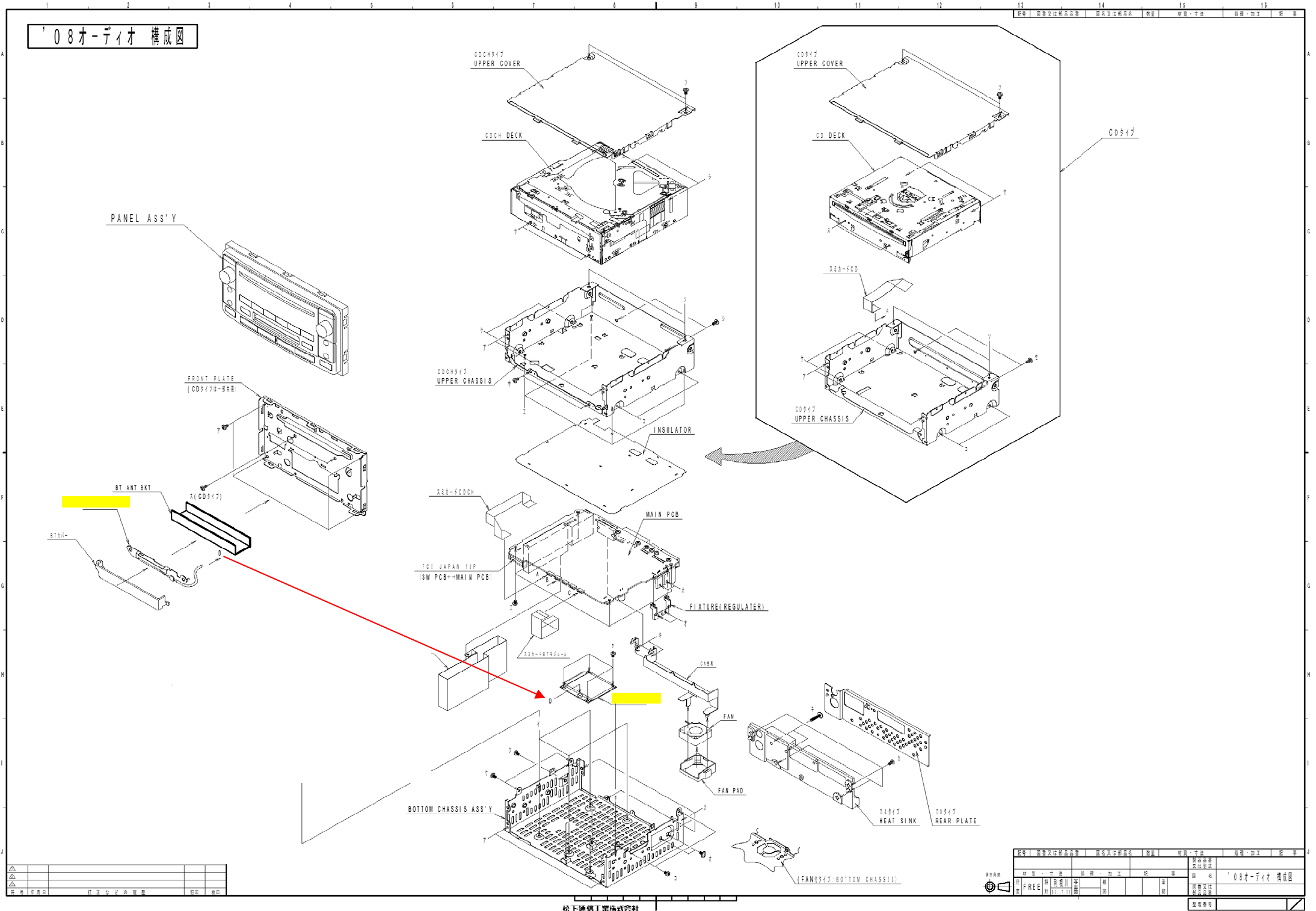

The following page is the configuration how the Bluetooth module is equipped in Car Audio.
Bluetooth module
Bluetooth Antenna
Bluetooth Antenna
Bluetooth Module
There isn’t an official user manual for this Bluetooth module (C5ZZZ0000035
(C5ZZZ0000037)).
However, user manuals of final product which have the module, must contain
notification corresponding to the following description.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Properly shielded a grounded cables and connectors must be used for connection to host
computer and / or peripherals in order to meet FCC emission limits. AC adaptor with ferrite
core must be used for RF interference suppression.
(This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that it is deemed to comply without testing of specific absorption ratio
(SAR).
