Panasonic Corporation of North America Bluetooth Module
User Manual
Installation Manual
This module is to be installed only by the professionals and used only with a Car Audio produced by
Matsushita Electric Industrial Co., Ltd. When this PCB assy with Bluetooth for car audio is installed
in the Car Audio, we shall consider the following points;
1. Since
“YEP0PT9919A0”owns its FCC ID Number, we shall affix an exterior label on the
outside of the product if the FCC ID is not visible. The exterior label shall use wording such
as either ”Contains Transmitter Module FCC ID: ACJ932CQ-EX0772” or “Contains FCC
ID: ACJ932CQ-EX0772 ”.
2. “YEP0PT9919A0” complies with requirements of sub-sections 15.19(a)(3) in FCC Rules
Part 15 Subpart C. The manual statement (15.19 (a)(3) is included User Guide of the
product.
3. “YEP0PT9919A0” is to be installed only by the professional line operator as shown in
following pictures. (Fig 1 and 2)

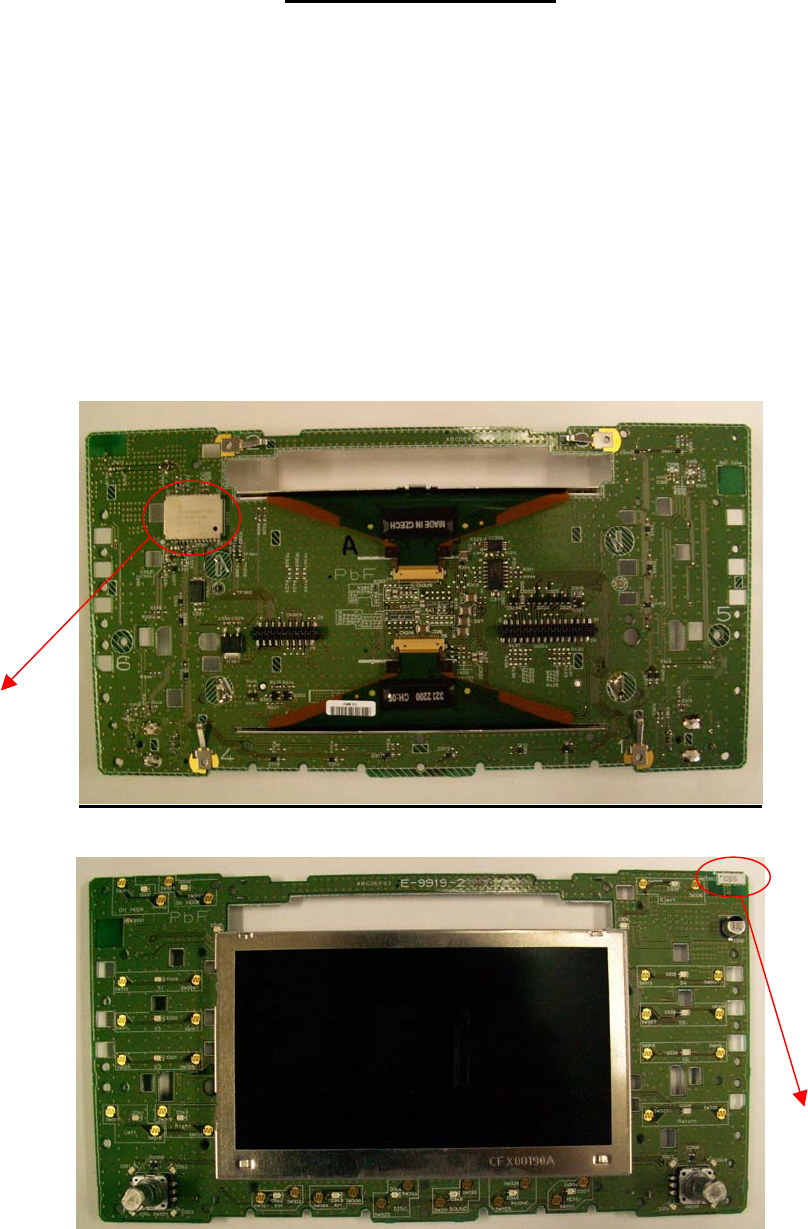

Fig 1. Rear side of “YEP0PT9919A0”
Fig 2. Front side of “YEP0PT9919A0”
Bluetooth
Module
Bluetooth
Antenna

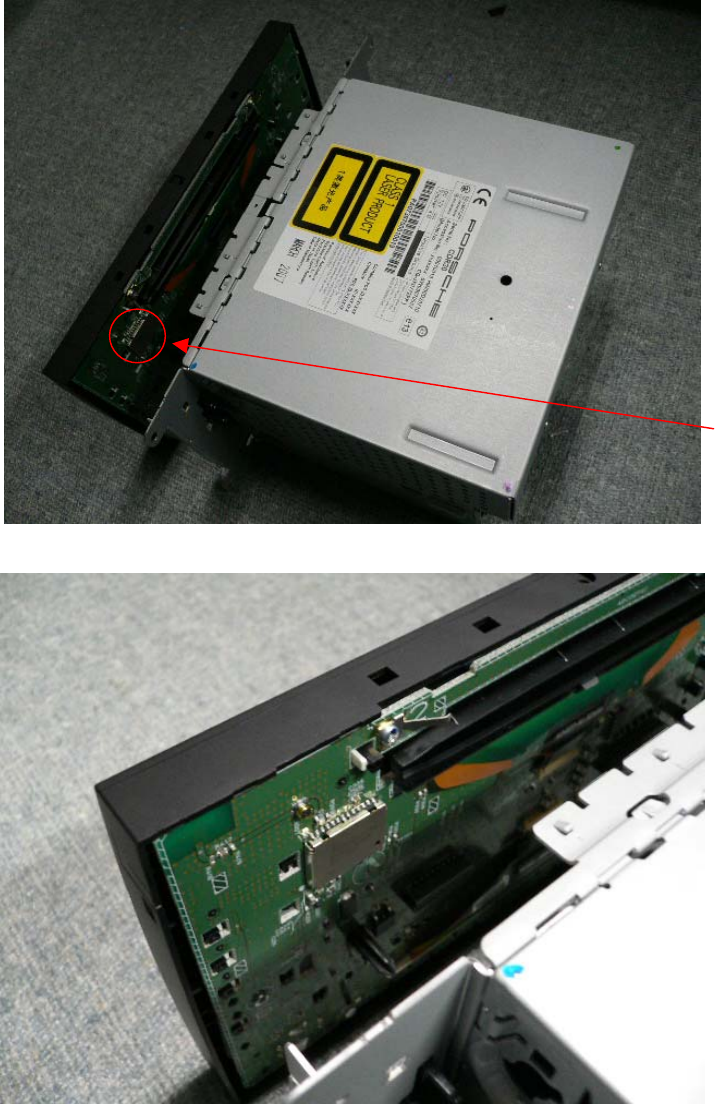

Fig 3. Top view of “YEP0PT9919A0” be equipped for a Car Audio (example)
Fig 4. Enlarged view of “YEP0PT9919A0” be equipped for a Car Audio (example)
Module
There isn’t an official user manual for this PCB assy with Bluetooth
(YEP0PT9919A0).
However, user manuals of final product which have the module, must
contain notification corresponding to the following description.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Properly shielded a grounded cables and connectors must be used for connection to
host computer and / or peripherals in order to meet FCC emission limits.
(This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines
in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation (MPE). But it is desirable that it
should be installed and operated with at least 20cm and more between the radiator and
person’s body (excluding extremities: hands, wrists, feet and ankles).
