Panasonic of North America 932YEAP01A466 Bluetooth Module Assy User Manual Short Term Confidential Installation Manual
Panasonic Corporation of North America Bluetooth Module Assy Short Term Confidential Installation Manual
(Short-Term Confidential) Installation Manual
Installation Manual
This PCB assy with is to be installed only by the professionals and used only with a Car
Audio produced by
Panasonic Co., Ltd. When this PCB assy with Bluetooth for car audio is installed in the Car
Audio, we shall consider the following points;
1. Since
Model “YEAP01A466” owns its FCC ID Number / IC Number,
we shall affix an exterior label on the outside of the product if the FCC ID Number
and IC Number are not visible. The exterior label shall use wording such as
either ”Contained Transmitter Module FCC ID: ACJ932YEAP01A466” , “Contained
Transmitter Module IC: 216J-YEAP01A466” or “Contained FCC ID:
ACJ932YEAP01A466”, “Contained IC: 216J- YEAP01A466”
2. “YEAP01A446” complies with requirements of sub-sections
15.19(a)(3) in FCC Rules Part 15 Subpart C. The manual statement (15.19 (a)(3) is
included User Guide of the product.
3. “YEAP01A446” is to be installed only by the professional line operator
as shown in following pictures. (Fig 1 and 2)

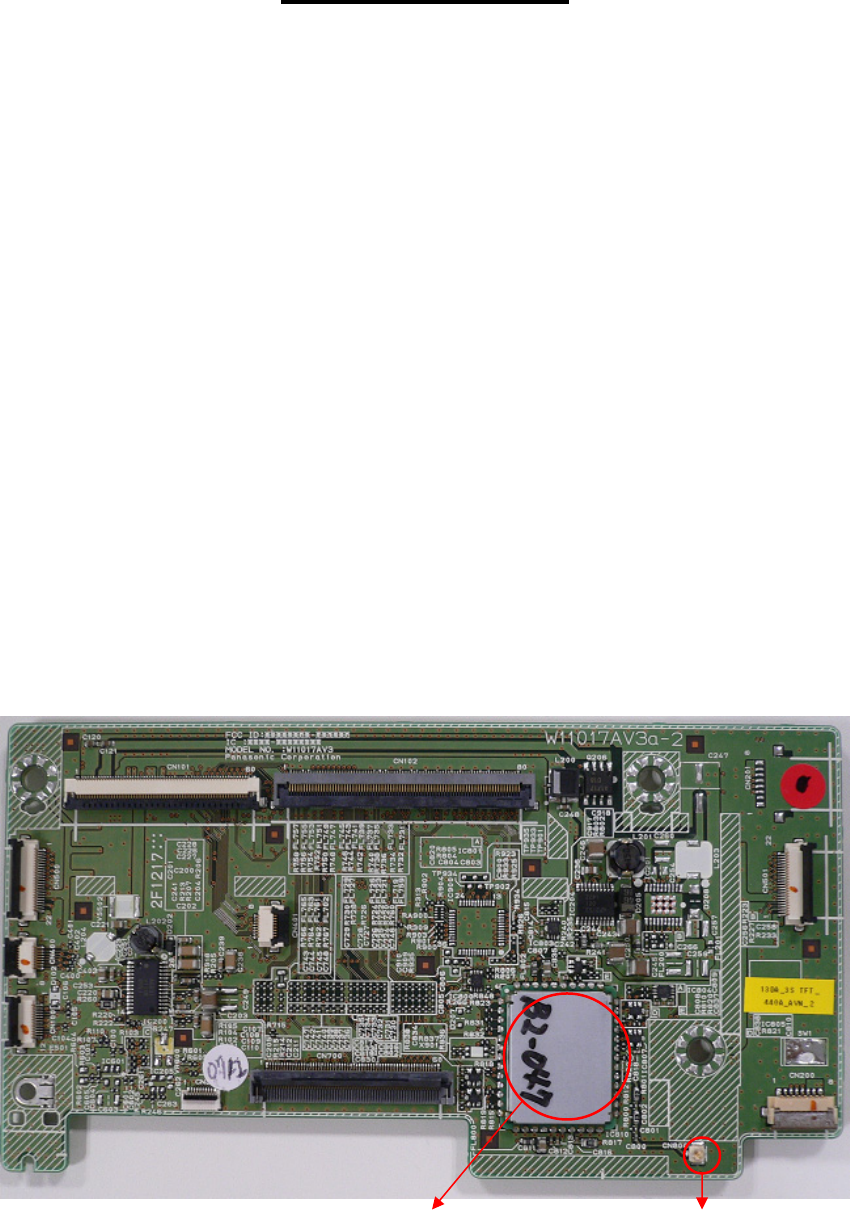

Fig 1. Rear side of “YEAP01A466”
Bluetooth Module Bluetooth Antenna
Connecter

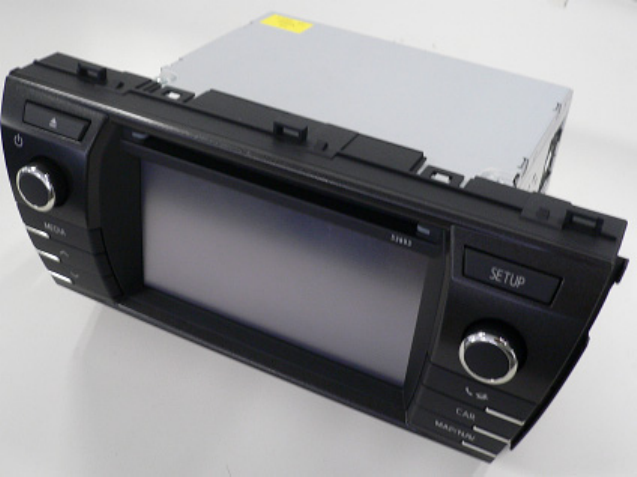

Fig 2. Top view of “YEAP01A466” be equipped for a Car Audio (example)

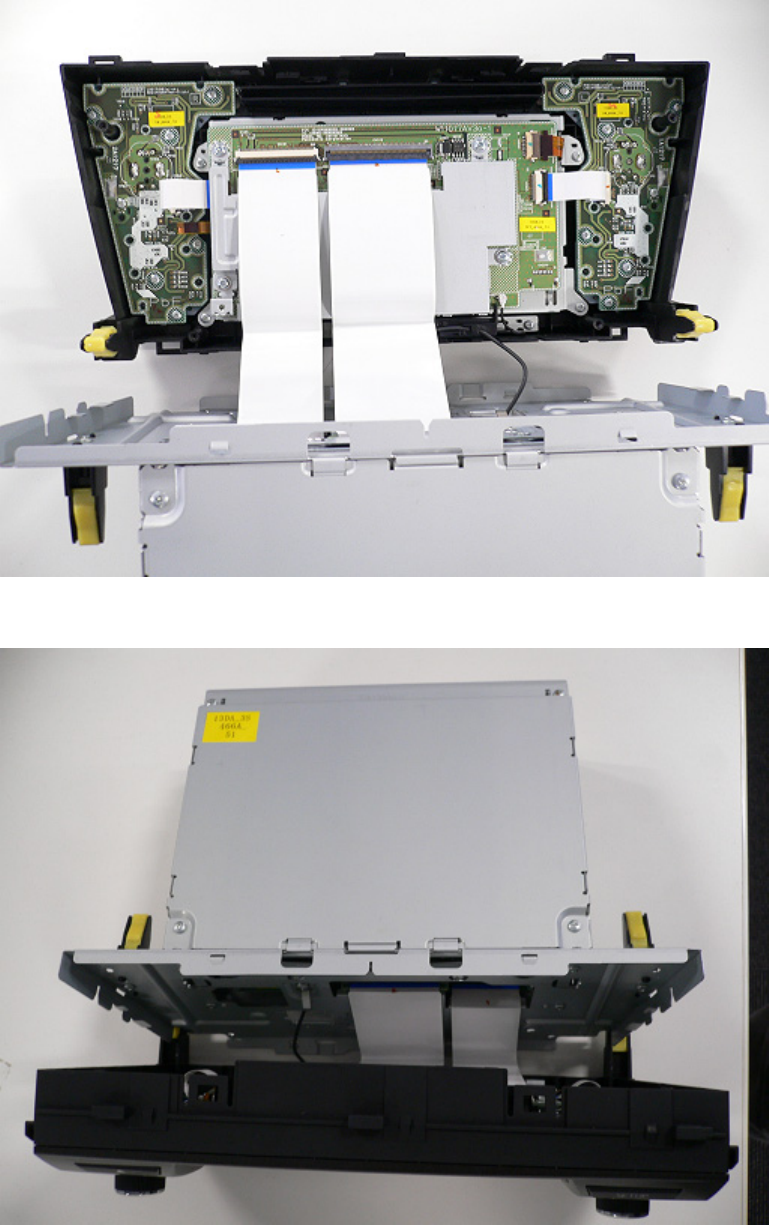

Fig 3. Top view of “YEAP01A466” be equipped for a Car Audio (example)
Fig 4. Front view of “YEAP01A466” be equipped for a Car Audio (example)
There isn’t an official user manual for this PCB assy with Bluetooth
“YEAP01A466”.
However, user manuals of final product which have the module, must
contain notification corresponding to the following description.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Properly shielded a grounded cables and connectors must be used for connection to host
computer and / or peripherals in order to meet FCC emission limits.
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS
standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines and
RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment
has very low levels of RF energy that it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and operated with at
least 20cm and more between the radiator and person’s body.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna List
The following antennas are installed to this Bluetooth Module Assy.
Model name Type Manufacturer Antenna gain
(with cable loss)
Cable loss Connector type
N1KYYYY00019 Monopole antenna NISSEI
ELECTRONIC
Co., LTD.
-3.8dBi 0.165dB U.FL
(Coaxial connector)
N1KYYYY00030 Monopole antenna NISSEI
ELECTRONIC
Co., LTD.
-4.4dBi 0.743dB U.FL
(Coaxial connector)
