SMART KEY SYSTEM
USER MANUAL
Panasonic Corporation
Automotive Systems Company
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
2
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
FOB KEY
What is the SMART KEY SYSTEM ?
3
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
Operating Range of SMART KEY SYSTEM
*ID authentication is carried out when you operate the door handle
knob and the tailgate knob. If the ID authentication succeeds, you can
open doors and the tailgate.
*bidirectional communication between Car and FOB Key
Operating Range of unlocking doors and the tailgate function
4
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
Operating Range of starting the Engine function
Operating Range of starting the Engine function is in the car except on the
Instrument Panel, on the Rear shelf.
5
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
Door Unlock and Lock
You can unlock and lock doors from driver’s door handle and assistant’s door handle
Door Unlock
If a door handle is grasped, all doors and the tailgate are unlocked.
At this time, answerback buzzer sounds “pip” and hazard flusher blink twice.
Door Lock
If a door handle outside portion is touched, all doors and the tailgate are locked.
At that time, answerback buzzer sounds “pip” and hazard flusher blink one time.
6
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html

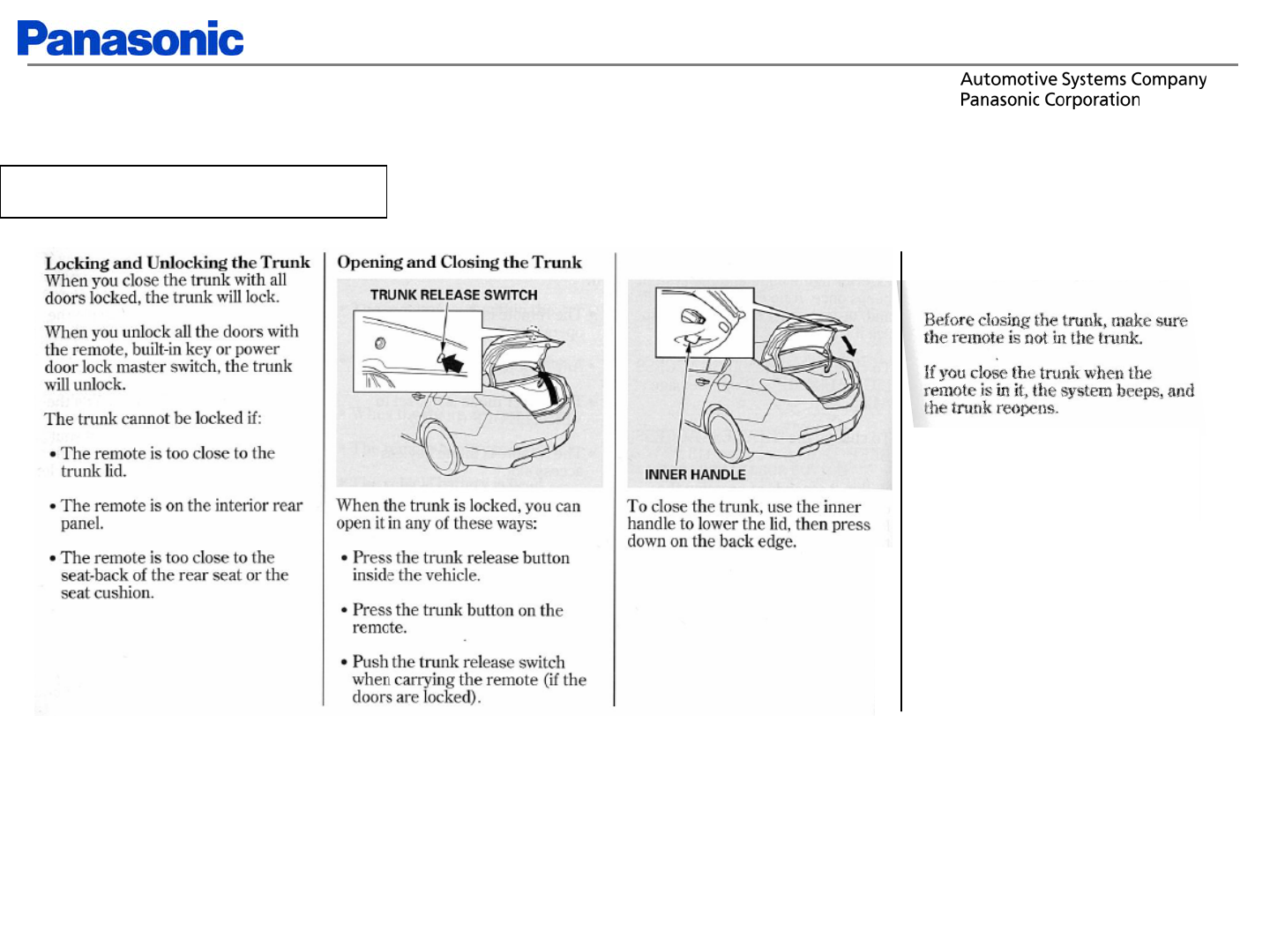

Trunk Unlock and Lock
7
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html

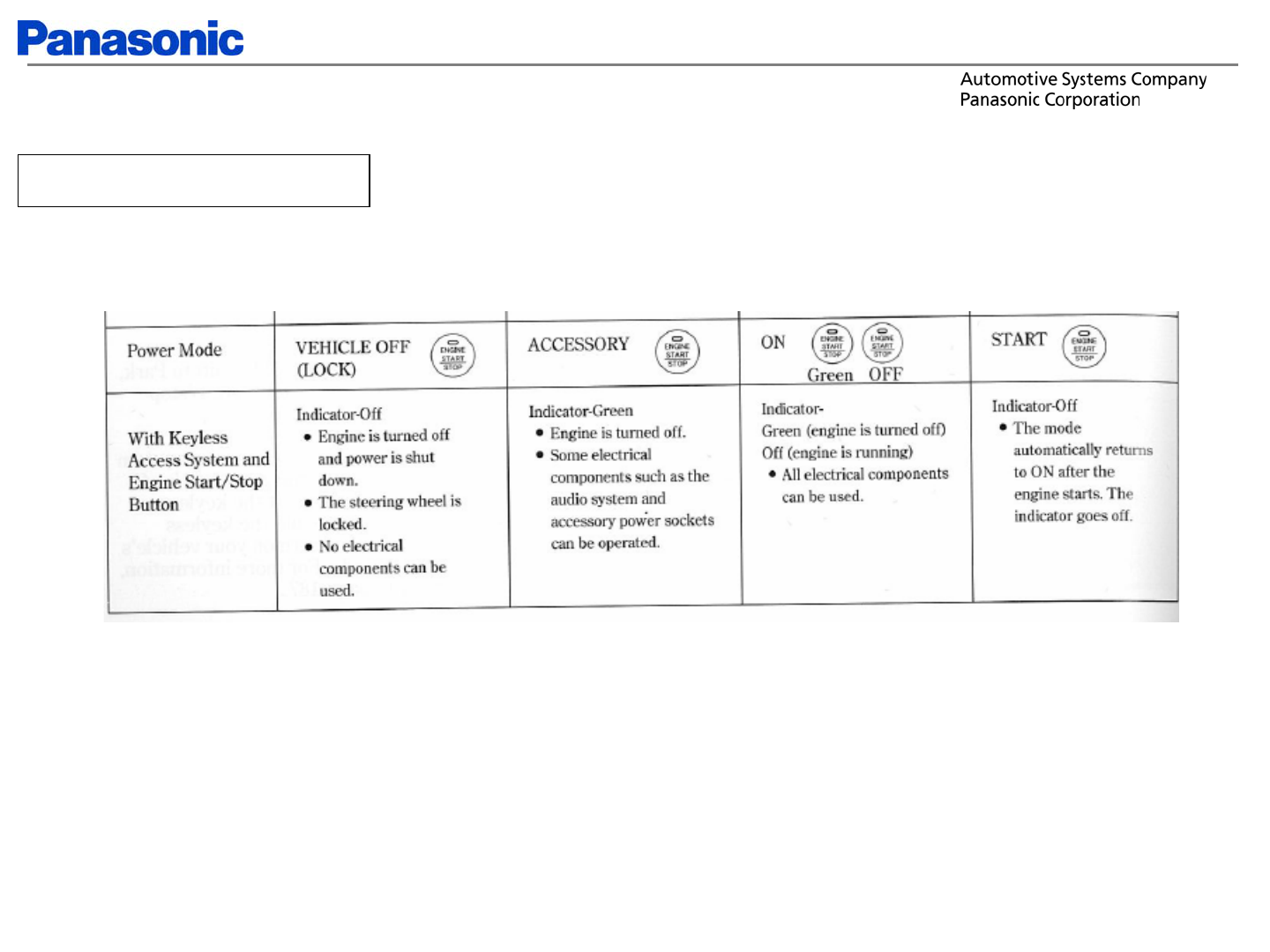

Engine Start Button
There are the following five states in the Engine Start Button .
8
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html

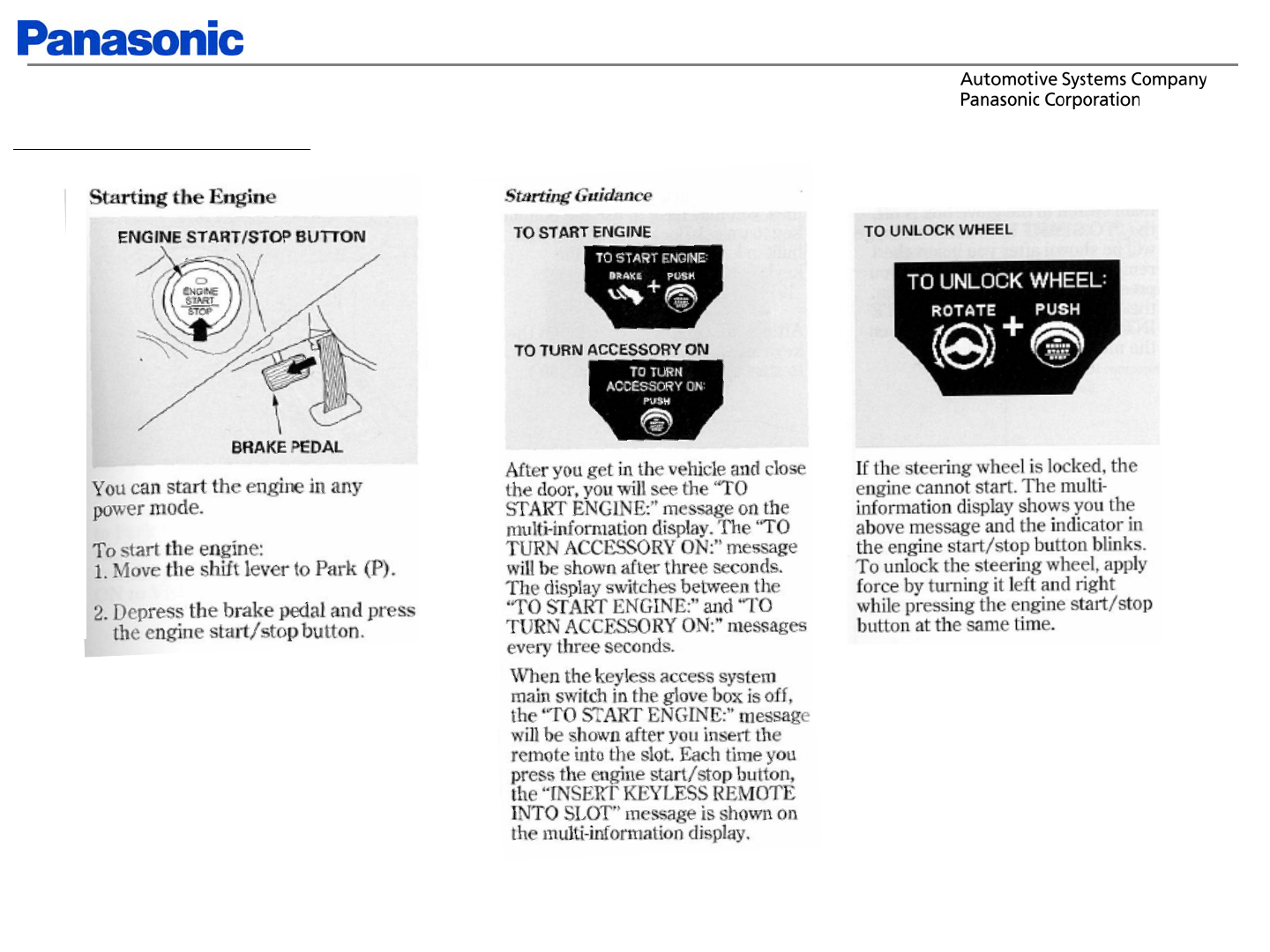

How to start Engine
9
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City
224-8520, Japan Tel +81-45-939-6111
http://panasonic.co.jp/pas/en/index.html
Keyless Entry
You can unlock or lock all doors and the tailgate by pressing the Button of a FOB Key.
Button
FOB Key
（Transmitter included）
Door and Trunk Unlock
Please press the Door Unlock Button of a FOB Key.
Then all doors and trunk are unlocked and hazard flusher blink two times.
Door and Trunk Lock
Please press the Lock Button of a FOB Key.
Then all doors and the trunk are locked and hazard flusher blink one time.
